Wilson Electronics 460027 Quint Band Signal Booster User Manual

Wilson Electronics, LLC Quint Band Signal Booster

Contents

User Manual

Contents:
How Cellular Boosters Work ..................................1
Inside This Package ........................................2
Install Overview ............................................2
Installation Diagram ......................................3 & 4
Outside Antenna Installation ..................................5
Installing the Inside Panel Antenna(s) ...........................7
Installing The Signal Booster ..................................7
Finding The Strongest Signal .................................8
Post Install Setup / LCD Screen ...............................9
Warnings and Recommendations .............................13
Warranty ................................................15
Specifications .................................... Back Cover
Note: This manual contains important safety and operating information. Please read and follow the
instructions in this manual. Failure to do so could result in damage to your Signal Booster.
Appearance of device and accessories may vary.
INSTALLATION GUIDE
In-Building
SmarTech ®
Cellular Signal Boosters
PRO 70 PLUS
PRO SERIES
12
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.

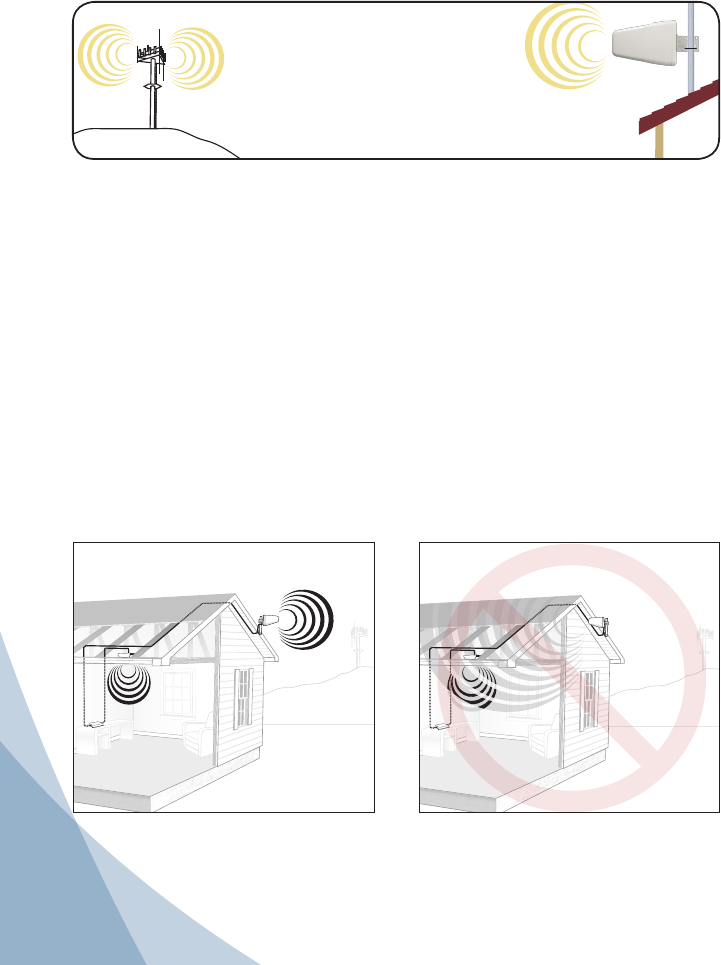

How a Cellular Booster Improves Indoor Signals
Wilson cellular signal booster systems work as follows: an outdoor antenna placed
on a building where some cell signal is present, (ideally on a roof or pole), receives
and sends that weak signal via coax cable (like used in satellite TV installs) to a
signal booster located indoors. That weak signal is amplified by the booster and
delivered via coax cable to an inside antenna(s) which rebroadcasts the amplified
signal within one or several areas where improved signal is required. Signals from
indoor cell device(s) are likewise picked up by the inside antenna(s), amplified by
the signal booster and transmitted back to the cell tower via the outside antenna.
The improved signals result in reliable cellular connections for indoor users.

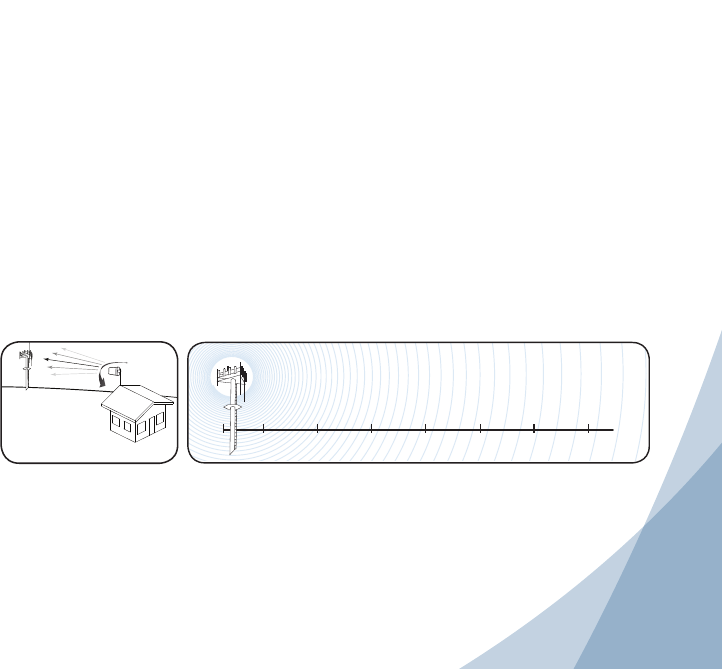

About Gain and Improved Signal Area
The less signal strength at the outside antenna’s location and/or the greater
the coverage need, the more gain will be required. Conversely, the more signal
present outside, the greater the inside coverage area will be. Proper aiming of the
outside antenna towards the source of the cell signal is also important. The gains
of the outside and inside antenna, though reduced by losses from coax cable
lengths, also affect area of improved coverage. Placement of the inside antenna is
also a factor as they have directional characteristics. Inside wall materials will also
affect indoor coverage area.
Another important factor affecting coverage area is inadequate isolation between
outside and inside antenna(s). Wilson boosters are designed to reduce their
internal gain in order to prevent any feedback “oscillations” which if unchecked,
could affect nearby cell site operation. The LCD status display on the booster is
used to determine if a booster is operating at optimal gain for each cellular band.
Optimal gain can be achieved by increasing antenna separation, i.e. isolation,
until the max gain is indicated. If attainable separation is limited by a building’s
layout, gain will suffer. A nearby cell site, even if not providing service to a user,
can also cause the booster’s automatic network protection circuitry to reduce
gain or even turn off one or more of the booster’s bands so as to prevent signal
overload to the nearby site. The display on the booster can also be used to
determine if this condition is taking place. Refer to pages 9-11 for explanation of
the booster status display.
12
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.

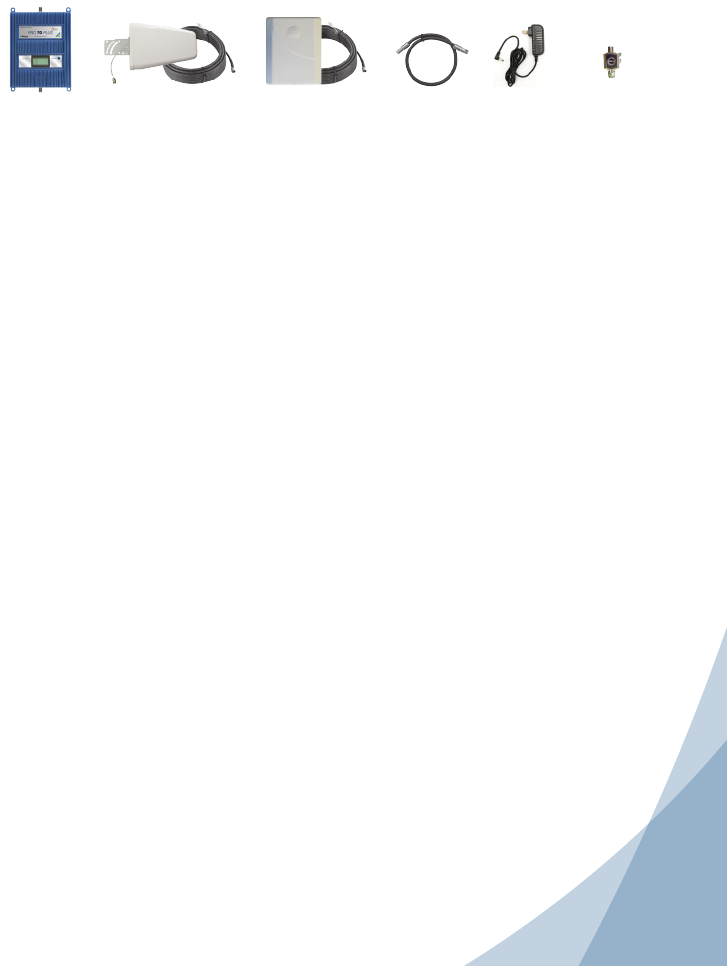

Inside this Package Note: Kits may contain different accessories
Signal
Booster
AC/DC
Power Supply
12V/3A (859900)
2’ RG11 Cable
(951127)
Lightning Surge
Protector
(859992)
To purchase Expansion Kits call Wilson Electronics Sales Department at: 888-503-5329
For additional antenna options see pages 14 & 15.
1. Select a location on the roof or outside of the building to install the outside
antenna. Refer to pages 3 & 5.
2. Select a location to install the Signal Booster that is away from excessive heat,
direct sunlight or moisture, and has adequate ventilation. Airtight enclosures
are not recommended. Booster should be as close to the outside antenna as
possible in order to minimize losses from cable length to outside antenna.
3. Connect the cable from the outside antenna to the signal boosters “outside
antenna” connector. Refer to page 6 for more information on running cable.
Lightning Surge Protection is recommended for all in-building installations.
Refer to pages 3 & 6.
4. Select a location for the inside antenna. Try to choose a position in the center
of the area needing improved signal. Keep in mind that proper inside antenna
to outside antenna isolation is necessary for the system to function properly.
This may require as much as 50 to 75 feet of horizontal separation from the
outside antenna. Vertical separation also helps increase isolation. Alternate
means of isolation are possible. If physical separation is not possible, please
contact Wilson Electronics Tech Support at 866-839-9361 for suggestions on
alternate methods to achieve isolation.
5. Connect the cable from the inside antenna to the signal booster’s “inside
antenna” connector. Refer to page 6 for more information on running cable.
Keep cable runs as short as possible to reduce signal loss in the system.
6. Before powering up the signal booster, verify that both the outside antenna and
the inside antenna are connected correctly, and check that all connections are
tight. Note: Be careful when plugging the connectors in so as not to bend the
center pins on the connectors.
7. Power on the signal booster by plugging in the included power supply. If the
lights are not green, please refer to pages 9-11.
Install Overview
Refer to Installation Diagram on page 3 & 4. Contact Wilson Electronics Technical
Support Team with any questions at 866-839-9361.
Wide Band Directional
Antenna 75’ RG11 Cable
(314475-1175)
Wide Band Panel Antenna
50’ RG11 Cable
(311155-1150)
34
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.

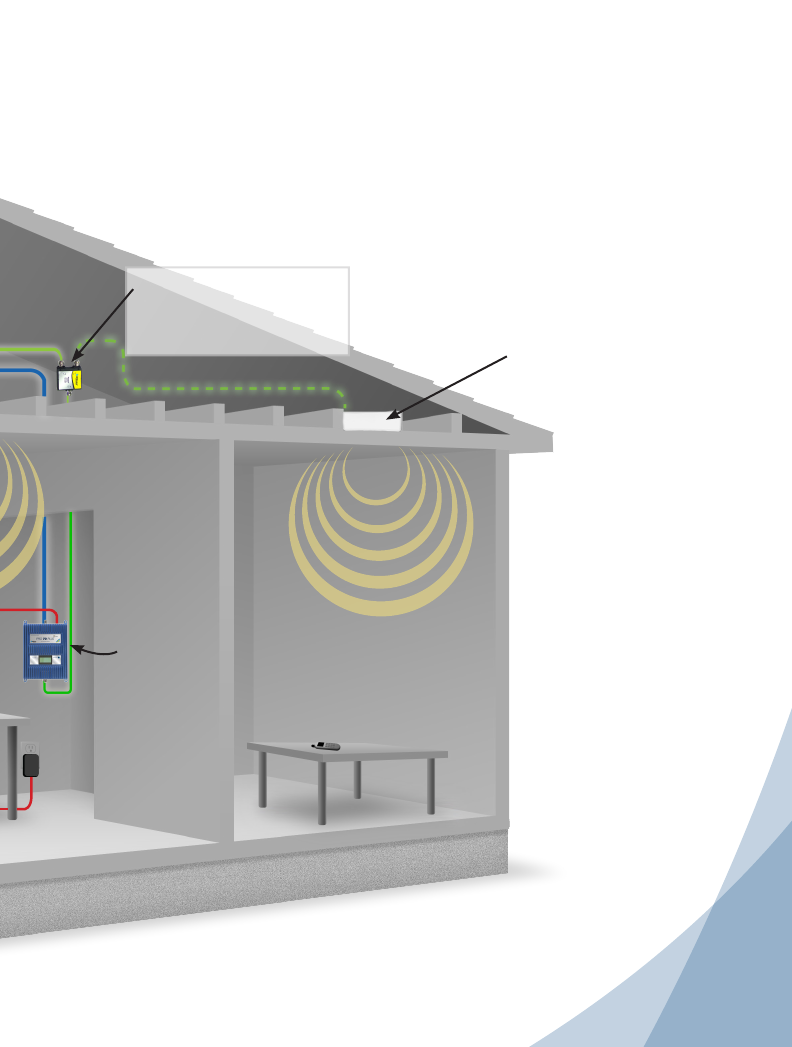

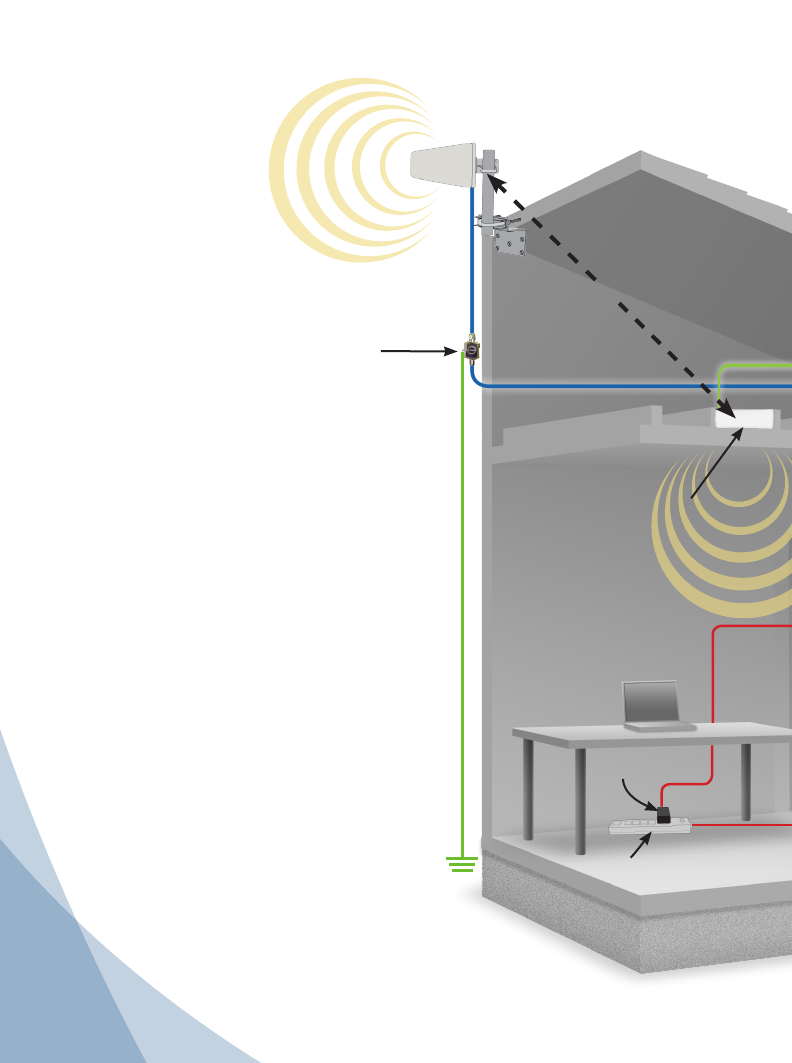

Installation Diagram
Spacing Critical
Outside Antenna
(Wide Band Directional
Antenna shown)
Inside Antenna
Power Supply
Inside Antenna
Preferred Method: Place the
Inside Antenna in the ceiling
facing down for the best
coverage.
Note: A Wilson Lightning Surge
Protector (859992) is recommended
for all building installations. Make sure
the protector is installed outside the
building at point of entry connected to
a suitable ground and in line between
the Outside Antenna and the Signal
Booster.
Surge Protector
Power Strip
34
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Signal
Booster
Optional Inside
Antenna for added
coverage
Optional Splitter
2-way or 3-way, when using
multiple inside antennas for
increased coverage
56
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Cell Tower
Wide Band Antenna
Selecting a Location for the Outside Antenna
The outside antenna must be mounted at a location outside of the home or building,
where the strongest cell signal is present. This can be accomplished by using the
Wilson Signal Meter. Alternatively, a cell phone in test mode can be used for finding
the area around the building with the strongest signal.
Mount the outside antenna as high as possible facing towards the suspected
location of the cell tower and pointing away from the expected location of the inside
antenna(s).
Outside Antenna Installation
The antenna should be mounted as shown in Figure 1. The mounting bracket,
included with antenna, is adjustable and will accommodate pipe diameters from
1.25 inches to 2 inches (pipe sold separately #901117). Mount the antenna so
that there is at least 3 feet of clearance in all directions around it. Make sure the
antenna is not pointing across your own roof or at the inside antenna as this will
cause the cell site protection circuitry to shut down the signal booster.
Signal Booster
Outdoor
Antenna
Outdoor
Antenna
Inside Panel
Antenna
Figure 1 Figure 2
CORRECT INSTALLATION
Never point antennas toward each otherPoint antennas away from each other
INCORRECT INSTALLATION
Inside Panel
Antenna
Signal Booster
56
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Warning:
Lightning protection is recommended for all installations (#859992-
75 Ohm, shown below). Take extreme care to ensure that neither
you nor the antenna comes near any electric power lines.
Installing Lightning Protection
Install the Lightning Surge Protector (LSP) outside, in line with the coax cable from
the outside antenna, near where the coax cable from the outside antenna will enter
the building. Connect the Outside antenna cable to one of the connectors of the
surge protector. Connect the other connector on the LSP to the cable entering the
building. Ensure the LSP is
properly grounded as close to
the LSP as possible (ground
wire not included).
Running Outside Antenna Cable
If you are mounting the outside antenna to the outside wall of your home or
building, the simplest way is to run the cable on the outside of the wall and attach it
to the exterior of your home or office. Then drill a hole through the wall where you
want the cable to appear on the inside of the building. Before drilling, make sure
that there are no electrical outlets, sewer or water pipes, or electrical wiring in the
wall that you are about to drill through as this could potentially harm you or damage
the building. Note: Existing TV cables already being used for another purpose can
not be shared with the cell booster installation.
After drilling the required hole, run the cable through and seal it with cable bushings
or a silicone-type sealant to enclose the hole that you have created. In some
instances, it may be possible to run the cable up into the fascia of the attic overhang.
In this circumstance, the cable will be accessible in the attic for further routing.
Exterior wall of building or home
Lightning
Surge Protector
(859992)
Signal Booster
Surge Protector Power Strip
To Outside
Antenna
Ground Wire
To Inside
Antenna
78
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Installing the Inside Panel Antenna(s)
Select a location for the inside antenna, preferably in the center of where the signal
needs to be amplified. A minimum separation distance of 20 vertical feet and or
50 horizontal feet between the inside and outside antenna(s) may be necessary
in order to achieve full booster gain and therefore maximum indoor coverage. If
the amplifier can not be set to maximum gain as explained on page 10, you may
need as much as 75 feet of horizontal separation, or mechanical isolation, between
inside and outside antennas. Refer to installation diagram on pages 3 & 4.
Ceiling
Rafters
Ceiling
Drywall
Inside
Antenna
Some installations requiring signal improvement in far areas of larger homes or
structures may require multiple inside antennas and splitter(s). For example if
signal is improved in most areas of a structure, but yet there is weak signal In
another area, the signal from the booster can be split to two or more separate
indoor antennas by using a splitter (sold separately). Refer to the configuration
on pages 3 & 4.

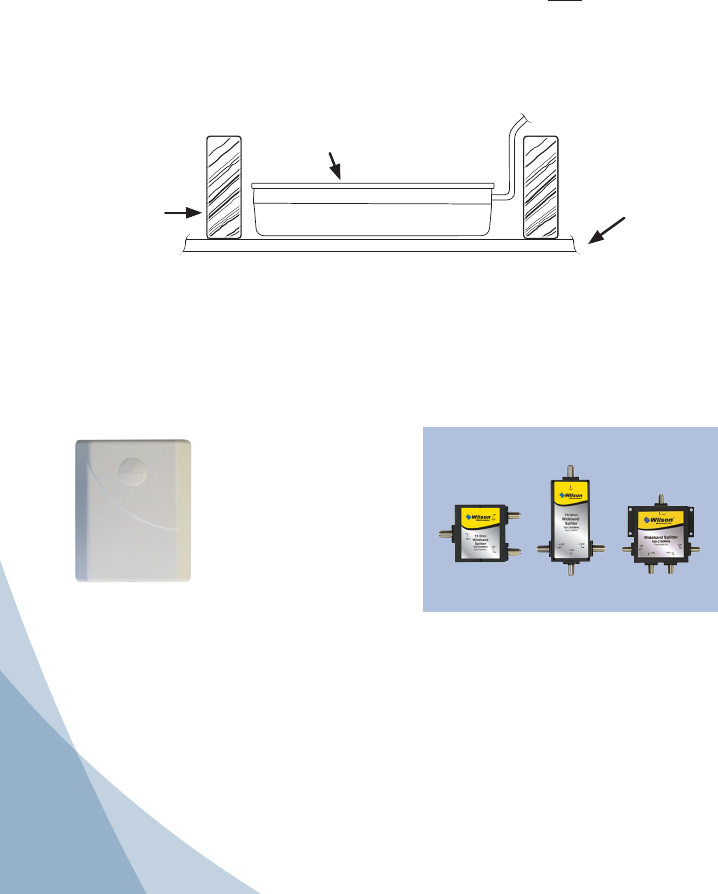

Additional Inside Panel
Antenna
(sold separately)
Multiple mounting options
available
For additional antenna options
see pages 14 & 15
Installing the Signal Booster
Select a location for the signal booster which is away from excessive heat, direct
sunlight, moisture and is not subject to high temperatures. Do not place the signal
booster in an air-tight enclosure. Recommended installation locations for in-building
signal boosters are in a closet or on a shelf where power is available. Attic installations
may expose the booster to high heat.
Splitter Options:
2-way 3-way 4-way
78
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Note: Do not install in areas subject to temperatures in excess of 150 °F.
Note: Maintain at least 6 inches of clearance from surrounding objects. Be careful
when plugging the connector in so as not to damage the center pins on the connectors.
Run the outside antenna cable to the signal booster and attach it to the connector
labeled “Outside Antenna” on the signal booster. Run the inside antenna cable to the
signal booster and attach it to the connector labeled “Inside Antenna” on the signal
booster.
Note: In order to abide by FCC regulations, cable lengths and antennas shipped as a kit
with each booster must be used and not cut and shortened. Contact our tech support for
cable kits to be used in situations requiring long cable runs.
Note: It is very important to power your signal booster using a surge protected AC
power strip with at least a 1000 Joule rating. Failure to do this will void
your warranty in the event of a power surge or lightning strike
Finding the Strongest Signal
When installing your signal boosters outside antenna, aiming it towards the best
signal source from your carrier is important. The best way of getting the strongest
signal is to use the Wilson Signal Meter and accessory Directional Antenna (see
outside antenna kit options on page 14), an alternate way is to have one person
on the roof to rotate the outside antenna, which is connected to the signal booster.
Turn the outside antenna about 45 degrees at a time, while the second person,
inside the building, is watching the signal strength on a signal meter (preferred)
or a phone in test mode. This allows you to read the signal strength from the cell
tower. The phone should be in the test mode so the actual signal strength can
be read, as bars are not the most accurate. Always make sure the person inside
the building gives the signal strength time to register on the phone (at least 30
seconds for phone to update the signal reading).
-50 dBm0 dBm -60 dBm -70 dBm -80 dBm -90 dBm -100dBm -110dBm
EXCELLENT GOOD POOR NO
SIGNAL
Signal Strength Graph
Cell Tower
Cell Signal
Outside
Antenna
Signal readings usually appear as a negative number (for example, -86). The closer
the number to zero, the stronger the signal (see Signal Srength Graph above).
910
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Post Install Setup
The Pro Series booster is designed with advanced internal programming which allows
it to automatically adjust itself for a variety of conditions and still boost weak signals.
After completing the amplifier installation, the LCD display and push button on the
lower panel of the Pro Series booster is used to verify the final gain that the booster
adjusted itself to produce after antennas have been placed. The display can also be
used (if necessary) to re-adjust antennas so the booster can produce maximum gain
and therefore, coverage. The LCD screen will show status for each band and inform
the installer if any bands may have had their gain reduced by the boosters internal
programming. In addition, an indicator light on the booster's upper panel will help
diagnose the overall status of the booster by glowing in different colors. This will be
covered in the following page.
The Pro Plus booster has an integrated graphical meter to simplify the installation
process. This is not to replace your signal meter - rather it complements the use.
The bar graphs will assist in the aiming of your outside antenna - the biggest graph
indicates that you are receiving the best overall signal.
To access this feature for the currently displayed frequency band, press and hold the
"Band Select" button for 2 seconds. This will change the display to the UL/DL bar
graph (uplink/downlink). A quick press of the button will move to the next band (briefly
showing the band, before returning back to the bar graph); while holding the button will
return to the regular display.
UL
DL
press and hold
for 2 seconds

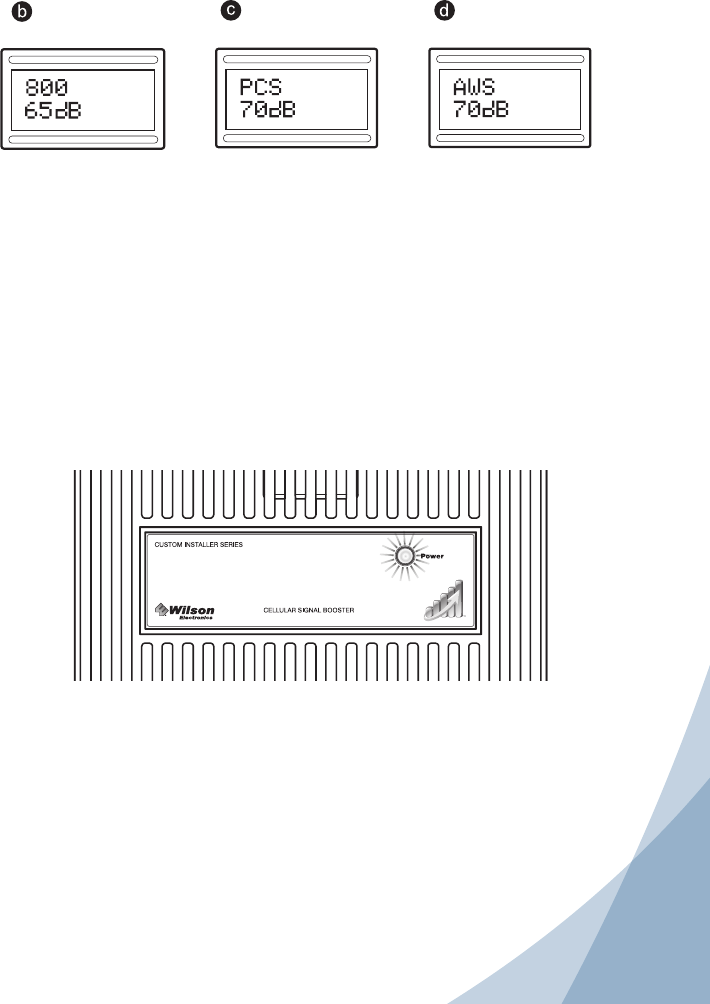

Understanding the LCD Screen
1. Four bands can be individually selected:
The 700 MHz LTE Bands (B12/17 and B13)
OK
910
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
The 800 MHz Band
– Cell Band
The 1900 MHz
– PCS Band
1700/2100 MHz
– AWS Band
OK OK OK
The single “BAND SELECT” button is used to scroll the display through the four
cellular bands in order to verify that each band is functioning properly. An asterisk
(located next to the band selected) will flash if one or more bands have been turned
down/off by the boosters control circuitry due to strong nearby cell site signal overload
(“OVL”) and/or oscillation detection (“OSC”) from antennas being too close. This is
no cause for concern if the power light remains green and you are satisfied with your
indoor coverage area.
Understanding the Upper Panel Indicator Light
As the LCD display is being toggled through the four cellular bands, the upper
indicator light (power) will glow green, orange, or red on each selected band,
depending on how the booster is functioning on each band as explained below.
PRO 70 PLUS
Green indicates the unit is powered and working properly.
Red indicates the booster has shut down due to extreme oscillation (feedback).
Orange indicates the booster has shut down due to extreme signal overload. This
is caused from being too close to a cell tower.
11 12
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Fixing Red Light Issues
If the power light is red:
1. Make sure all connections are tight.
2. You need to increase the distance between the outside antenna and the
inside antenna by moving them horizontally and/or vertically farther apart.
After doing so, reset the booster by unplugging the power supply and then
plugging it back in. If the light is green after separating the antennas, you
have eliminated the problem.
3. If your coverage area is still too small after separating the antennas contact the
Wilson Electronics Customer Support Team for assistance: 866-839-9361.
Fixing Orange Light Issues
If the power light is orange:
1. It will be necessary to turn the outside antenna away from the nearby cellular
signal in small increments until the light turns green. If the Signal Booster will
not respond, relocation of the outside antenna may be required.
2. If the light remains orange, contact the Wilson Electronics Customer Support
Team for assistance at 866-839-9361.
11 12
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
About Wilson Electronics
Wilson Electronics, LLC has been a leader in the wireless communications industry
for over 40 years. The company designs and manufactures Signal Boosters,
antennas and related components that significantly improve cellular telephone signal
reception and transmission in a wide variety of applications, mobile (marine, RV,
vehicles) and in-building (home, office, machine to machine).
With extensive experience in antenna and Signal Booster research and design, the
company’s engineering team uses a state-of-the-art testing laboratory, including
an anechoic chamber and network analyzers, to fine-tune antenna designs and
performance. For its Signal Boosters, Wilson Electronics uses a double electrically
shielded RF enclosure and cell tower simulators for compliance testing.
Wilson Electronics Signal Boosters feature patented SmarTech ® that enables them
to automatically adjust their power based on cell tower requirements. By detecting
and preventing oscillation (feedback), signal overload and interference with other
users, these SmarTech ® Signal Boosters improve network cell phone areas without
compromising carrier systems.
All products are engineered and assembled in the company’s 100,000 square-foot
headquarters in St. George, Utah. Wilson Electronics has product dealers in all 50
states as well as in countries around the world.
13 14
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Note: Dome Antennas are not recommended with these Signal Booster(s).
Note: For a complete list of antennas and cables approved for use with these boosters see
pages 14 & 15.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority to
operate this equipment.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider
and have your providers consent. Most wireless providers consent to the use of
signal boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by
the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any
person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate
for calls served by using this device.
This is a CONSUMER device.
Warnings and Recommendations
WARNING: To uphold compliance with network protection standards, all active
cellular devices must maintain at least 6 feet of separation distance
from Panel and Dome antennas.
WARNING: Connecting the Signal Booster directly to the cell phone with use of an
adapter will damage the cell phone.
WARNING: Use only the power supply provided in this package. Use of a non-
Wilson Electronics product may damage your equipment.
WARNING: The Signal Booster unit is designed for use in an indoor, temperature-
controlled environment (less than 150 degrees Fahrenheit). It is not
intended for use in attics or similar locations subject to temperatures
in excess of that range.
WARNING: Warning: The Outside Antenna must be installed no higher than 10
meters (31’9”) above ground.
WARNING: Take care to ensure that neither you nor the pole comes near any
power lines during installation.
RF SAFETY WARNING: Any antenna used with this device must be located at least
8 inches from all persons.
13 14
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
INSIDE ANTENNA EXPANSION KITS
Kit 309900-50N
2- Wall Panel antennas
1- 50 ohm 3-Way Splitter
Kit 309905-50N
3 - Wall Panel Antennas
3- 2-Way 50 Ohm Splitters
Kit 309902-75F
2 - Wall Panel Antennas
1-3-Way 75Ohm Splitter
Kit 309903-75F
3 - Wall Panel Antennas
3- 2-Way 75Ohm Splitters
Kit 309904-75F
1 - Wall Panel Antenna
1- 2-Way 75 Ohm Splitter
Kit 301213
Desktop Antenna w/ 5’ RG174
INSIDE ANTENNAS
Kit 301121-40010
50 Ohm Dome Antenna
10’ LMR400
Kit 301151-0610
75 Ohm Dome Antenna
10’ RG6 Cable
Kit 311155-0630
75 Ohm Wall Mount Panel Antenna
30’ RG6 Cable
Kit 311135-5820
50 Ohm Wall Mount Panel Antenna
20’ RG58 Cable
Kit 311135-40060
50 Ohm Wall Mount Panel Antenna
60’ LMR400 Cable
Kit 301151-1110
75 Ohm Dome Antenna
10’ RG11 cable
Kit 311155-1150
75 Ohm Wall Mount Panel Antenna
50’ RG11 Cable
Kit 311155-40060
75 Ohm Wall Mount Panel Antenna
60’ LMR400 Cable
Kit 304412-40010
50 Ohm 4G Dome Antenna
10’ Wilson400 Cable
Kit 304412-5810
50 Ohm 4G Dome Antenna
10’ RG58 cable
Kit 304419-1110
75 Ohm 4G Dome Antenna
10’ RG 11 cable
Kit 304419-17410
75 Ohm 4G Dome Antenna
10’ RG174 cable
*May need separate adapter
Kit 304419-0610
75 Ohm 4G Dome Antenna
10’ RG6 cable
50 OHM OUTSIDE ANTENNA KITS
Kit 314453-5825
50 Ohm Pole Mount Panel Antenna
25’ RG58 Cable
Kit 314411-5825
50 Ohm Wide Band Directional
25’ RG58 Cable
Kit 301111-5850
Yagi Directional Antenna
50’ RG58 Cable
Kit 311129 – 5840
800 MHz Yagi Directional
40’ RG58 Cable
Kit 311203-5820
Omni-Directional Antenna
20’ RG58 Cable
Kit 311124-5830
1900 MHz Yagi Antenna
30’ RG58 Cable
Kit 314411-40075
50 Ohm Wide Band Directional
75’ LMR400 Cable
Kit 311203-40020
Omni-Directional Antenna
20’ LMR400 Cable
Kit 301111-400170
Yagi Directional w/ N-Female
170’ LMR400
Kit 311124 – 400100
1900 MHz Yagi Directional
100’ LMR400 Cable
Kit 311129-400100
800 MHz Yagi Antenna
100’ LMR400 Cable
Kit 314453-40075
50 Ohm Pole Mount Panel Antenna
75’ LMR400 Cable
Kit 304422-40020
50 Ohm 4G Omni Antenna
20’ Wilson400 cable
Kit 304422-5810
50 Ohm 4G Omni Antenna
10’ RG58 cable
*May need separate adapter
Kit 304422-1120
50 Ohm 4G Omni Antenna
20’ RG11 cable
*May need separate adapter
Mini-Mag
301126 w/ 12.5 RG174 cable- SMA
75 OHM OUTSIDE ANTENNA KITS
Kit 301111 – 0675
Yagi Directional Antenna
75’ RG6 Cable
N-Male to F-Female adapter
Kit 311201-0620
Omni Directional w/ F-Female
20’ RG6 Cable
Kit 311129-0660
800 MHz Yagi Directional
60’ RG6 Cable
N-Male to F-Female adapter
Kit 311124-0650
1900 MHz Yagi Directional
50’ RG6 Cable
N-Male to F-Female adapter
Kit 314473 -0640
75 Ohm Pole Mount Panel Antenna
RG6 Cable
Kit 314475 – 0630
75 Ohm Wide Band Directional
30’ RG6 Cable
Kit 311141 - 0620
75 Ohm Grey Brick Antenna
20’ RG6 Cable
Kit 301111 – 11140
Yagi Directional Antenna
140’ RG11 Cable
N-Male to F-Female adapter
Kit 311201-1120
Omni Directional w/ F-Female
20’ RG11 Cable
Kit 311129-11110
800 MHz Yagi Directional
110’ RG11 Cable
N-Male to F-Female adapter
Kit 311124-1180
1900 MHz Yagi Directional
80’ RG11 Cable
N-Male to F-Female adapter
Kit 314473 -1175
75 Ohm Pole Mount Panel Antenna
75’ RG11 Cable
Kit 314475 – 1175
75 Ohm Wide Band Directional
75’ RG11 Cable
Kit 311141 - 1120
75 Ohm Grey Brick Antenna
20’ RG11 Cable
Kit 304421-1120
75 Ohm 4G Omni Antenna
20’ RG 11 cable
Kit 304421-17410
75 Ohm 4G Omni Antenna
10’ RG174 cable
*May need separate adapter
Kit 304421-0610
75 Ohm 4G Omni Antenna
10’ RG6 cable
Kit 304421-5810
75 Ohm 4G Omni Antenna
10’ RG58 cable
*May need separate adapter
15 16
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If for any reason
the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of
purchase.
3-Year Warranty
Wilson Electronics Signal Boosters are warranted for three (3) years against defects in workmanship and/or materials.
Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of
purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics
shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced
product back to the original consumer if located within the continental U.S.
This warranty does not apply to any Signal Booster determined by Wilson Electronics to have been subjected to
misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
RMA numbers may be obtained by contacting Customer Support at 866-294-1660.
Disclaimer : The information provided by Wilson Electronics, LLC is believed to be complete and accurate.
However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from
its use, or for any infringements of patents or other rights of third parties that may result from its use.
Copyright © 2014 Wilson Electronics, LLC All rights reserved.
U.S. Patent Nos. – 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,034; 8,583,033; 8,874,030 B2;
8,874,029 B2; 8,755,399; 8,849,187 B2; 8,639,180; D703, 181
15 16
Contact Wilson Electronics Customer Support Team with any questions at 866-839-9361
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Notes:
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
Notes:
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
Notes:
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
Wilson Electronics, LLC
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: tech@wilsonelectronics.com
Phone: 866-839-9361 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
Signal Booster Specifications
Pro 70 Plus
Product Number U460027
Model Number 460027
FCC ID PWO460027
IC ID 4726A-460027
Connectors F-Female
Antenna Impedance 75 Ohms
Frequency 698-716 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Passband Gain (nominal) 700MHz Band12/17
56.0
700MHz Band13
55.2
800MHz
58.9
1700/2100MHz
60.7
1900MHz
60.7
20 dB Bandwidth (MHz) 700MHz Band12/17 700MHz Band13 800MHz 1700/2100MHz 1900MHz
Typical
Maximum
29.9
34.4
28.6
34.4
38.7
40.3
82.6
85.0
81.8
85.9
Power output for single cell
phone (Uplink) dBm
700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz
20.4 20.82 25.16 23.0 21.42
Power output for single cell
phone (Downlink) dBm
700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz
11.57 10.41 9.4 11.3 9.47
Power output for multiple
received channels (Uplink) dBm
No. Tones 700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz
218.0 17.6 24.9 20.0 18.6
314.5 14.0 21.4 16.4 15.1
412.0 11.5 18.9 13.9 12.6
510.0 9.6 16.9 12.0 10.7
68.4 8.0 15.3 10.4 9.1
Power output for multiple
received channels
(Downlinklink) dBm
No. Tones 700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz
29.50 7.60 10.00 11.70 9.10
36.00 4.10 6.50 8.20 5.60
43.50 1.60 4.00 5.70 3.10
51.60 -0.40 2.00 3.80 1.10
60.00 -1.90 0.40 2.20 -0.40
Noise Figure 5 dB nominal
Isolation > 90 dB
Power Requirements 110-240 V AC, 50-60 Hz, 20 W
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory
reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase
coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected.
If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn
the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1
minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually
restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Boosters
microprocessor.
111601_RevFCC_ERIN_06.30.16

Navigation menu
