User Manual
In-Building Cellular Signal Booster
With In-Line Amplification
Package Content 1
About The WilsonPro 1050 System 2
Key Features 4
Competitive Advantages 5
Post Install Setup 7
1050 Main Status Screen 8
1050 In-Line Status Screens 10
Safety Guidelines 12
Warranty 17
_____
Index
1
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION

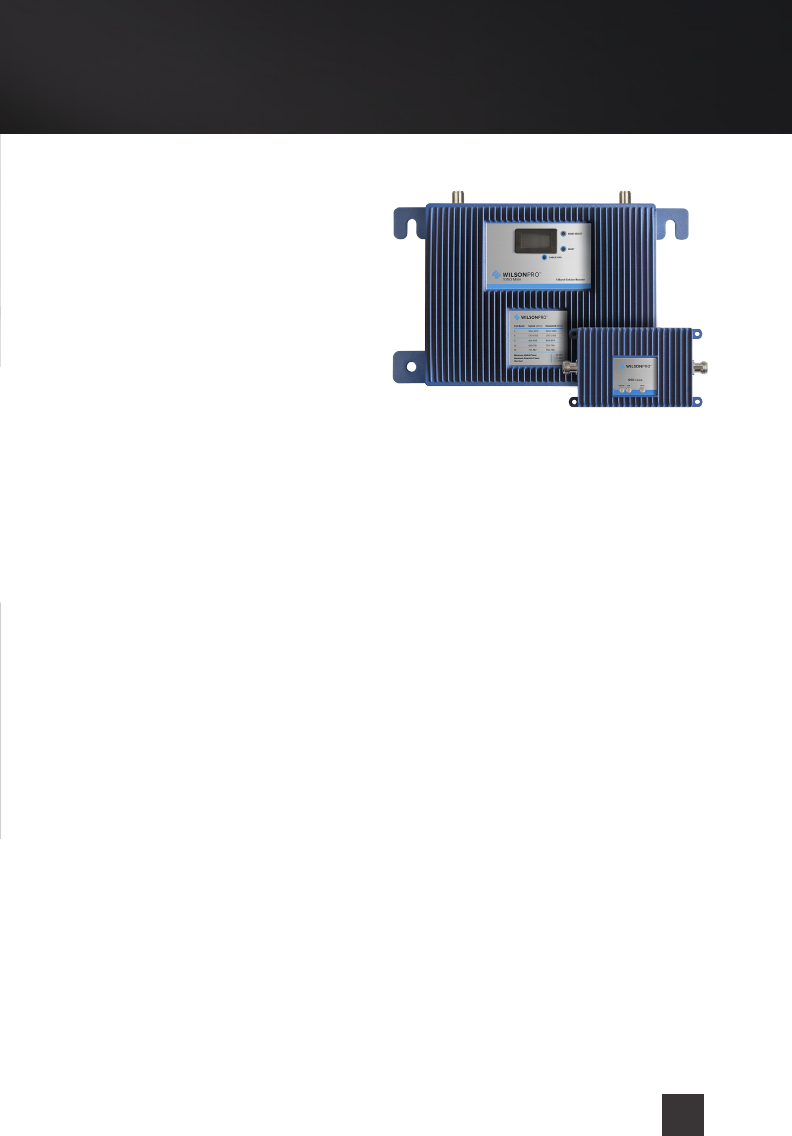

WilsonPro 1050
Two-Part Booster
System

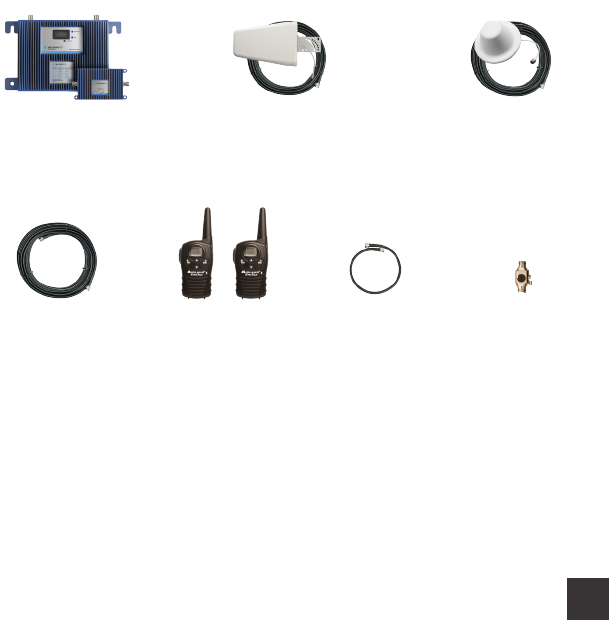

2’ Wilson
400 Cable
Lightning Surge
Protector
Pair of 2-Way
Radios
100’ Wilson
400 Cable
Wide Band Directional
Antenna + 75’
Wilson 400 Cable
Dome Antenna +
100’ Wilson 400 Cable
________
Package
Content
Kit 460230
2IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

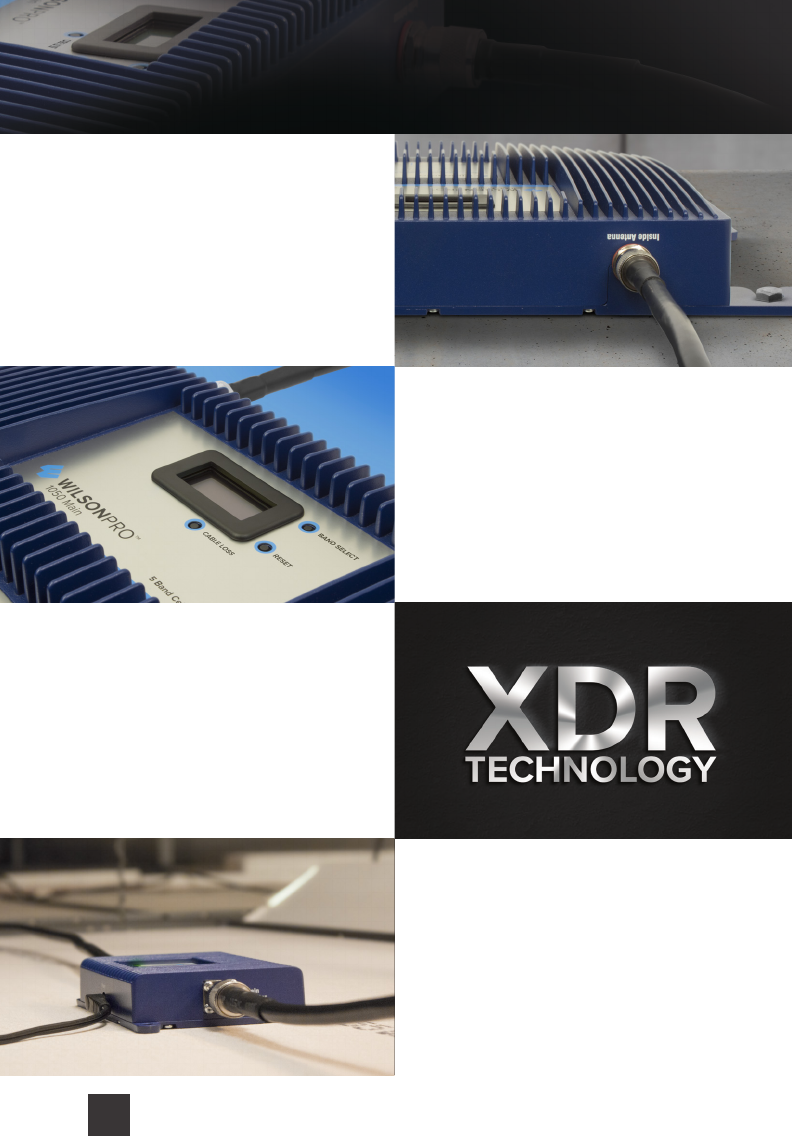

FCC Approved
In-Line Amplification
Compensates for up to 300’ of indoor
cable losses using in-line amplification.
Onboard Software For
Better Control
Automatically controlled with onboard
software, ensuring great connectivity
throughout large spaces and multi-story
buildings.
Auto-Calibration
Main booster & In-Line booster
automatically link, communicate &
calibrate.
Extended Dynamic
Range For Continuous
Connectivity
XDR allows the booster system to never
shutdown due to too strong of a signal. No
matter how strong, the booster system will
never overpower and shutdown.
WilsonPro 1050 System
3
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
The WilsonPRO 1050 Cellular Signal
Booster System automatically
compensates for signal loss resulting
from a long indoor RF coax cable run.
Simply connect the 1050 In-Line unit at
a cable length between 100’ and 300’
from the 1050 Main unit. When both
units are powered up, they will begin to
communicate with each other, sending signals and calculating the amount of signal
loss in the cable. Once cable losses are calculated, the gain levels are adjusted
between the 1050 Main and 1050 In-Line units so that only enough extra gain is added
to the system to compensate for the signal loss of the indoor cable.
This capability to overcome significant cable losses allows the 1050 System to provide
cellular coverage in areas that were previously impossible, such as the lower floors
of residences.
The WilsonPro 1050 system also includes Wilson Electronics’ state-of-the-art XDR
(Extended Dynamic Range) technology that prevents signal overload conditions which
can, in accordance with FCC regulations, force a booster to shut down or
even shut down.
When the WilsonPro 1050 system senses that any incoming cell signal is too strong,
and threatens to overload the system, XDR automatically reduces signal gain to
compensate for this overload condition while maintaining signal coverage throughout
the building. In contrast, competing signal boosters shut down when they reach
a maximum incoming signal strength threshold, causing the indoor cell signal to
drop out. Both antenna ports are located on the top of the 1050 Main unit for easy
installation. Like all WilsonPro cell signal boosters, the WilsonPRO 1050 Cellular Signal
Booster System is universal: it works for all cellular devices, all services including 4G
LTE, and all U.S. and Canada cell phone carriers.
In-Line Amplification
4IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050
FCC Approved In-Line Amplification: Compensates for up to 300’ of
indoor cable losses using in-line amplification, providing cell coverage
to hard-to-reach areas.
Onboard Software for Better Control: Booster is automatically
controlled with automatic onboard software. The booster will adjust
its gain level up or down as required by the conditions of the
immediate signal environment.
Extended Dynamic Range (XDR) for continuous connectivity: Gives
the 1050 much greater tolerance for a strong incoming signal from the
tower. XDR lets the 1050 system work with an incoming signal stronger
than any competing booster and never shuts down due to a strong
outside signal.
Automatic Calibration: Main booster and In-Line booster
automatically link, communicate, and calibrate.
____________
Key Features
5
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
Highest Downlink Power: Up to +15dB more downlink power than
the competition allows for stronger signal in environments where
the incoming signal is weak. The benefit is a stronger signal sent to
the inside antennas, providing larger coverage area from a single
booster.
Highest Uplink Power: This allows for a stronger signal transmitted
to the tower, up to +3dB more than the competition, providing greater
user capacity and increased range from the cell site.
Lower Overload and Shutdown Threshold: No matter how strong
the outside signal, the WilsonPro 1050 system never shuts down.
This is a huge benefit in strong signal environments like cities and
locations close to a carrier tower.
Intelligent Control: WilsonPro cellular boosters automatically adjust
signal gain while still providing even signal coverage throughout the
building.
Sophisticated Software: Cellular signals are constantly fluctuating.
The software is always monitoring signal levels and making
immediate adjustments as needed, allowing the booster to operate at
maximum gain consistently.
___________
Competitive
Advantages
6IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

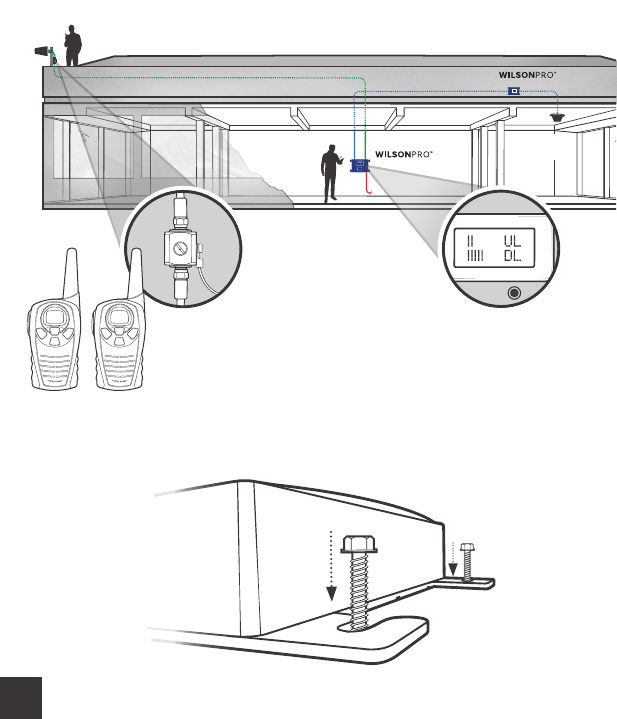

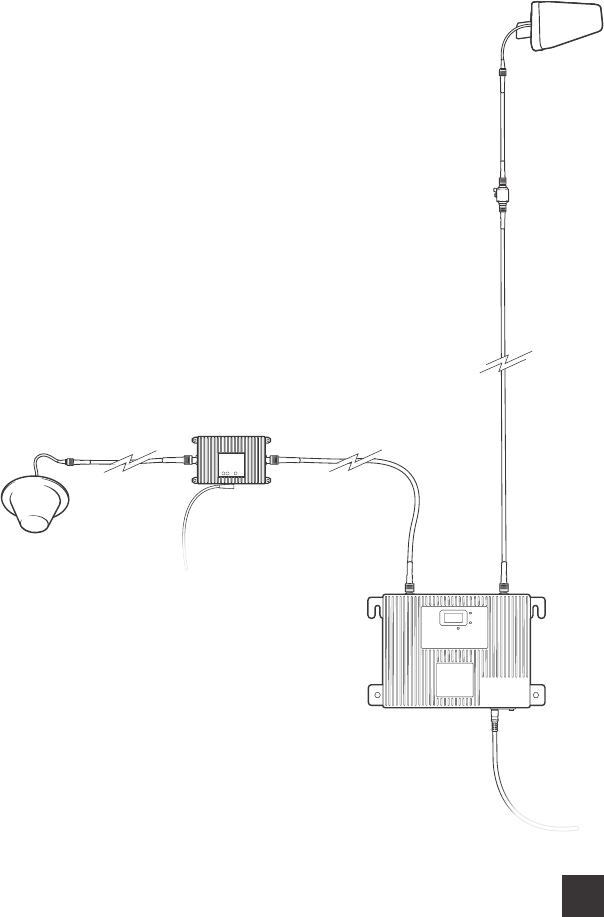

Outside
Directional
Antenna
to power
Lightning
Surge Protector
1050 Main
1050 In-Line
Inside Dome
Antenna
BAND SELECT
RESET
CABLE LOSS
2-way radios are included
to help with the installation
process.
Simple wall-mount
installation.
The direction of the
outside antenna should
be adjusted until the
“DL” bar is maximized.
A Wilson Lightning Surge Protector is recommended for all building installations. Make
sure the protector is installed outside the building at point of entry connected to a
suitable ground and in line between the Outside Antenna and the Signal Booster.
__________
Installation
Diagram
7
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
Inside Antenna
Lightning Surge
Protector
Outside Antenna
1050 In-Line
(placed at a cable length of 100’ to 300’)
1050 Main
to power
to power
The WilsonPRO 1050 System is designed with
advanced internal programming, which allows it to
automatically adjust for a variety of conditions, while
still boosting weak signals.
Once the AC power cable and antenna cables are
connected, turn the unit on by toggling the power
switch located near the AC power receptacle.
__________
Post Install
Setup
8IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

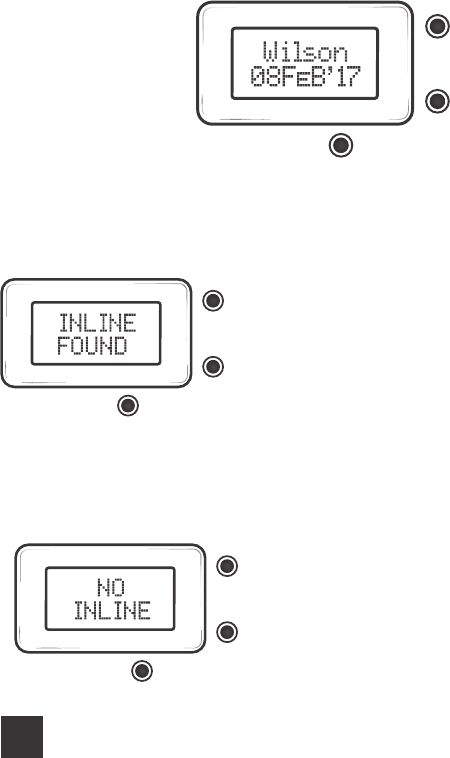

Upon power up, the 1050 MAIN unit will attempt to begin it’s calibration routine, which
lasts approximately 14 seconds during which time one of the following messages will
appear on the screen:
Boot Screen
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
The 1050 In-Line unit has been found
and is communicating with the 1050
Main. Cable loss calibration is in
progress.
The 1050 In-Line unit has been found
and is communicating with the 1050
Main. Cable loss calibration is in
progress.
____________
1050 Main
Status Screen
In-Line Found Screen
No In-Line Screen
9
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS
BAND SELECT
RESET
CABLE LOSS

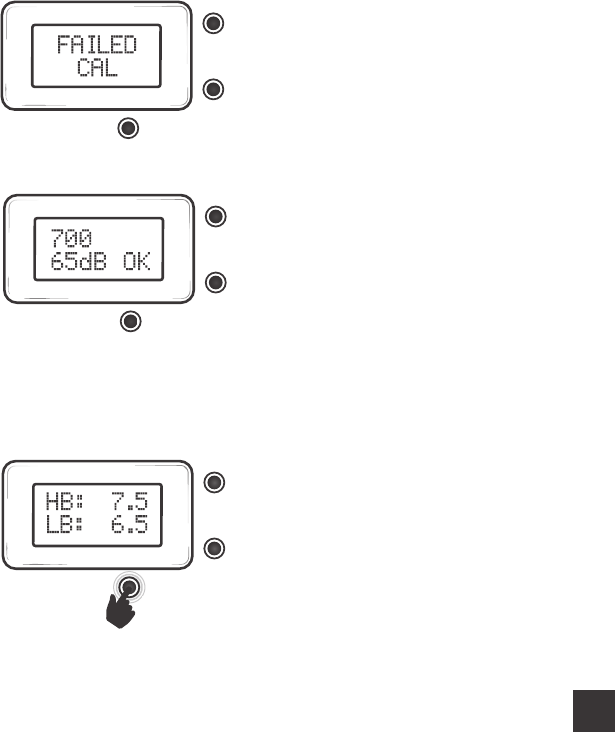

Failed cable loss calibration. Cable loss
must be between 4dB and 25dB for all
bands. If the cable loss is calculated to
be outside of this range, calibration
will fail. This range corresponds
between 100 feet and 300 feet of
Wilson 400 Cable.
Once cable calibration has successfully
completed, the band status screens will
appear.
Pressing the Cable Loss Button will
display the cable loss compenstion at
the upper bands and lower bands.
Failed Calibration Screen
Cable Loss Button
________
1050 Main Status Screen (cont.)
10 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050

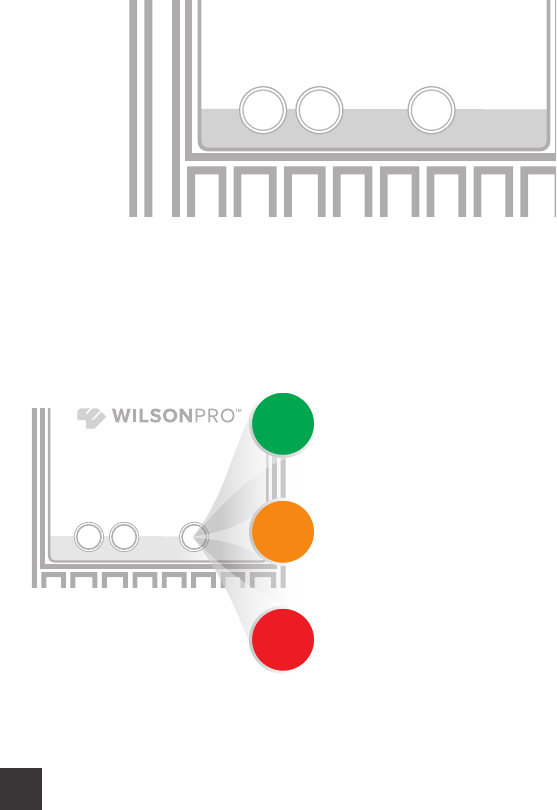

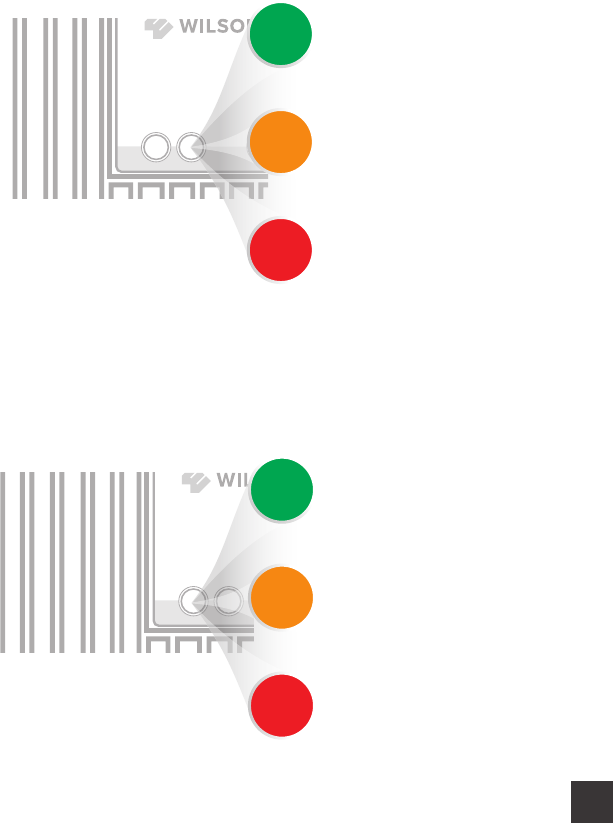

The 1050 In-Line has 3 status lights:
GREEN: Normal
ORANGE: One or more bands has
shut o due to strong downlink.
RED: One or more bands has shut
o due to OSCILLATION.
1050 In-Line
CABLE CAL COM STATUS
1050 In-Line
CABLE CAL COM STATUS
1050 In-Line
CABLE CAL COM
STATUS
1050 In-Line
CABLE CAL COM
STATUS
1050 In-Line
CABLE CAL COM STATU S
1050 In-Line
CABLE CAL COM STATUS
1050 In-Line
CABLE CAL COM
STATUS
1050 In-Line
CABLE CAL COM
STATUS
____________
1050 In-Line
Status Lights
‘STATUS’ LED:
11
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
GREEN: Normal, waiting for next
communications event
GREEN: Calibration complete.
ORANGE: Brief orange blink when
communicating with 1050 Main.
ORANGE: Calibration in process.
RED: Communications failure when
attempting to communicate with
1050 Main.
RED: Calibration failed.
1050 In-Line
CABLE CAL COM STATU S
1050 In-Line
CABLE CAL COM STATUS
1050 In-Line
CABLE CAL COM
STATUS
1050 In-Line
CABLE CAL COM
STATUS
1050 In-Line
CABLE CAL COM STATU S
1050 In-Line
CABLE CAL COM STATUS
1050 In-Line
CABLE CAL COM
STATUS
1050 In-Line
CABLE CAL COM
STATUS
‘COM’ LED:
‘CABLE CAL’ LED:
________
1050 In-LIne Status Screen (cont.)
12 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050
Warnings
To uphold compliance with network protection standards, all active cellular devices must maintain at
least 6 feet of separation distance from Panel and Dome antennas.
Use only the power supply provided in this package. Use of a non-Wilson Electronics product may
damage your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than
100 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures
in excess of that range.
RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all
persons.
AWS Warning: Warning: The Outside Antenna must be installed no higher than 10 meters (31’9”) above
ground.
This is a CONSUMER device.
BEFORE USE, you meet all requirements set out in CPC-2-1-05.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have
your provider’s consent. Most wireless providers consent to the use of signal boosters.
Some providers may not consent to the use of this device on their network. If you are
unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC, ISED or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls
served by using this device.
This device may be operated ONLY in a fixed location for in-building use.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
Sprint: http://www.sprint.com/legal/fcc_boosters.html
T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827
Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
______________
Safety Guidelines
13
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
The following accessories are certified by the FCC to be used with the
Wilson PRO 1050 System.
Inside Antenna Expansion Kit
Kit 309900-50N40090
2 - Wall Panel antennas
1 - 50 ohm 3-Way Splitter
1 - 100' Wilson 400
Kit 309905-50N17420
3 - Wall Panel Antennas
3 - 2-Way 50 Ohm Splitters
20' RG174
Kit 309902-75F0650
2 - Wall Panel Antennas
1 - 3-Way 75Ohm Splitter
50' RG6
Kit 309903-75F1180
3 - Wall Panel Antennas
3 - 2-Way 75Ohm Splitters
80' RG11 cable
Kit 309904-75F5830
1 - Wall Panel Antenna
1 - 2-Way 75 Ohm Splitter
30' RG58 cable
Inside Antenna Kits
Kit 311155-0670
75 Ohm Wall mount Panel Antenna
70’ RG6 Cable
Kit 311135-5840
50 Ohm Wall mount Panel Antenna
40’ RG58 Cable
Kit 311135-400150
50 Ohm Wall mount Panel Antenna
150' Wilson 400
Kit 311155-11120
75 Ohm Wall mount Panel Antenna
10’ RG11 cable
Kit 304412-400100
50 Ohm 4G Dome Antenna
100' Wilson400 cable
Kit 304412-5830
50 Ohm 4G Dome Antenna
30' RG58 cable
Kit 304419-1175
75 Ohm 4G Dome Antenna
75' RG 11 cable
Kit 304419-17450
75 Ohm 4G Dome Antenna
50' RG174 cable
May need separate adapter
Kit 304419-0650
75 Ohm 4G Dome Antenna
50' RG6 cable
50 Ohm Outside Antenna Kits
Kit 314453-5825
50 Ohm Pole Mount Panel Antenna
25’ RG58 Cable
Kit 314411-5825
50 Ohm Wide Band Directional
25’ RG58 Cable
Kit 301111-5850
Yagi Directional Antenna
50’ RG58 Cable
Kit 311203-5820
Omni-Directional antenna
20’ RG58 Cable
Kit 314411-40075
50 Ohm Wide Band Directional
75’ LMR400 Cable
Kit 311203-40020
Omni-Directional antenna
20’ LMR400 Cable
Kit 301111-400170
Yagi Directional w/ N-Female
170’ LMR400
Kit 314453-40075
50 Ohm Pole Mount Panel Antenna
75’ LMR400 Cable
Kit 304422-40020
50 Ohm 4G Omni Antenna
20’ Wilson400 cable
Kit 304422-5810
50 Ohm 4G Omni Antenna
10’ RG58 cable
Kit 304422-1120
50 Ohm 4G Omni Antenna
20’ RG11 cable
May need separate adapter
75 Ohm Outside Antenna Kits
Kit 301111-0675
Yagi Directional Antenna
75’ RG6 Cable
N-Male to F-Female adapter
Kit 311201-0620
Omni Directional w/ F-Female
20’ RG6 Cable
Kit 314473-0640
75 Ohm Pole Mount Panel Antenna
40’ RG6 Cable
Kit 311141-0620
75 Ohm Grey Brick Antenna
20’ RG6 Cable
Kit 301111-11140
Yagi Directional Antenna
140’ RG11 Cable
N-Male to F-Female adapter
Kit 311201-1120
Omni Directional w/ F-Female
20’ RG11 Cable
Kit 314473-1175
75 Ohm Pole Mount Panel Antenna
75’ RG11 Cable
Kit 314475-0630
75 Ohm Wide Band Directional
30’ RG6 Cable
Kit 314475-1175
75 Ohm Wide Band Directional
75’ RG11 Cable
Kit 311141-1120
75 Ohm Grey Brick Antenna
20’ RG11 Cable
Kit 304421-17410
75 Ohm 4G Omni Antenna
10’ RG174 cable
Kit 304421-0610
75 Ohm 4G Omni Antenna
10’ RG6 cable
Kit 304421-5810
75 Ohm 4G Omni Antenna
10’ RG58 cable
May need separate adapter
Kit 304421-1120
75 Ohm 4G Omni Antenna
20’ RG 11 cable
_________________
Antenna Kit Options
14 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050
Product Number 460030
Model Number 460030
FCC ID PWO460030 / PWO0460030IL
IC ID 4726A-460030
Connectors N-Female
Antenna Impedance 50 Ohms
Frequency 698-716 MHz, 729-746 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Power output for single cell
phone (Uplink) dBm
700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz
24.7 24.7 24.3 25.1 24.5
Power output for single cell
phone (Downlink) dBm
700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz
14.8 14.3 15.2 15 15.1
1050 Main 1050 In-Line
Noise Figure 5 dB nominal 5 dB nominal
Isolation > 90 dB > 90 dB
Power Requirements 110-220V AC 5V 3A
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be
adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter
incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal Booster
is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency
band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power o on that
band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1
minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut o until the Signal Booster
has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity
are maintained by the Signal Booster’s microprocessor.
___________
Specifications
15
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
____________
Notes
16 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION WILSON PRO 1050
____________
Notes
17
WILSON PRO 1050 IN-BUILDING SIGNAL BOOSTER WITH IN-LINE AMPLIFICATION
30 DAY MONEY-BACK GUARANTEE
All WilsonPro products are protected by WilsonPro 30-day money-back guarantee.
If for any reason the performance of any product is not acceptable, simply return
the product directly to the reseller with a dated proof of purchase.
3 YEAR WARRANTY
WilsonPro Boosters are warranted for three (3) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by WilsonPro. WilsonPro shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by WilsonPro
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by contacting Customer Support.
DISCLAIMER: The information provided by WilsonPro is believed to be complete and
accurate. However, no responsibility is assumed by WilsonPro for any business or
personal losses arising from its use, or for any infringements of patents or other rights
of third parties that may result from its use.
NEED HELP? support.wilsonpro.com 866.294.1660
________
Warranty
3301 East Deseret Drive, St. George, UT
www.wilsonpro.com | support.wilsonpro.com
Copyright © 2016 Wilson Electronics. All rights reserved.
Wilson Electronics products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA
A Wilson Electronics Brand
111853_Rev01_03.01.17
3301 East Deseret Drive, St. George, UT
www.wilsonpro.com | support.wilsonpro.com
Copyright © 2016 Wilson Electronics. All rights reserved.
Wilson Electronics products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA
A Wilson Electronics Brand

Navigation menu
