INSTALLATION GUIDE

In-Building

Cellular Signal Boosters

PRO SERIES

12

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

How a Cellular Booster Improves Indoor Signals

Wilson cellular signal booster systems work as follows: an outdoor antenna placed

on a building where some cell signal is present, (ideally on a roof or pole), receives

and sends that weak signal via coax cable (like used in satellite TV installs) to a

signal booster located indoors. That weak signal is amplified by the booster and

delivered via coax cable to an inside antenna(s) which rebroadcasts the amplified

signal within one or several areas where improved signal is required. Signals from

indoor cell device(s) are likewise picked up by the inside antenna(s), amplified by

the signal booster and transmitted back to the cell tower via the outside antenna.

The improved signals result in reliable cellular connections for indoor users.

About Gain and Improved Signal Area

The less signal strength at the outside antenna’s location and/or the greater

the coverage need, the more gain will be required. Conversely, the more signal

present outside, the greater the inside coverage area will be. Proper aiming of the

outside antenna towards the source of the cell signal is also important. The gains

of the outside and inside antenna, though reduced by losses from coax cable

lengths, also affect area of improved coverage. Placement of the inside antenna is

also a factor as they have directional characteristics. Inside wall materials will also

affect indoor coverage area.

Another important factor affecting coverage area is inadequate isolation between

outside and inside antenna(s). Wilson boosters are designed to reduce their

internal gain in order to prevent any feedback “oscillations” which if unchecked,

could affect nearby cell site operation. The LCD status display on the booster is

used to determine if a booster is operating at optimal gain for each cellular band.

Optimal gain can be achieved by increasing antenna separation, i.e. isolation,

until the max gain is indicated. If attainable separation is limited by a building’s

layout, gain will suffer. A nearby cell site, even if not providing service to a user,

can also cause the booster’s automatic network protection circuitry to reduce

gain or even turn off one or more of the booster’s bands so as to prevent signal

overload to the nearby site. The display on the booster can also be used to

determine if this condition is taking place. Refer to pages 9-11 for explanation of

the booster status display.

12

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

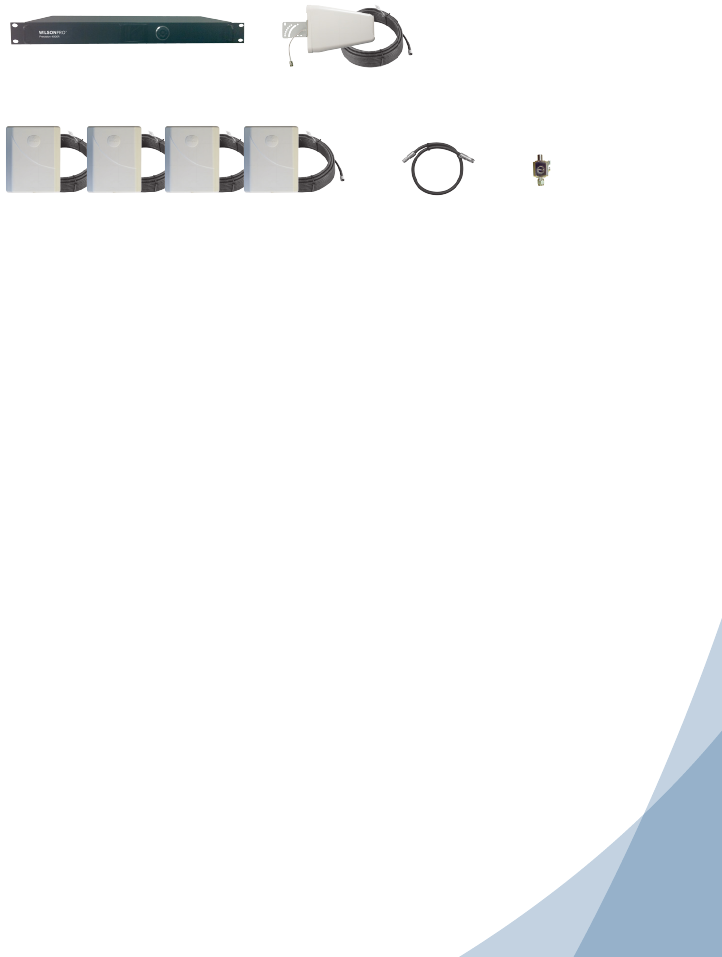

Inside this Package Note: Kits may contain different accessories

Signal Booster

2’ Wilson 400 Lightning Surge

Protector

(859992)

To purchase Expansion Kits call Wilson Electronics Sales Department at: 888-503-5329

For additional antenna options see pages 14 & 15.

1. Select a location on the roof or outside of the building to install the outside

antenna. Refer to pages 3 & 5.

2. Select a location to install the Signal Booster that is away from excessive heat,

direct sunlight or moisture, and has adequate ventilation. Airtight enclosures

are not recommended. Booster should be as close to the outside antenna as

possible in order to minimize losses from cable length to outside antenna.

3. Connect the cable from the outside antenna to the signal booster’s “outside

antenna” connector. Refer to page 6 for more information on running cable.

Lightning Surge Protection is recommended for all in-building installations.

Refer to pages 3 & 6.

4. Select a location for the inside antennas. Try to choose a position in the center

of the area needing improved signal. Keep in mind that proper inside antennas

to outside antenna isolation is necessary for the system to function properly.

This may require as much as 50 to 75 feet of horizontal separation from the

outside antenna. Vertical separation also helps increase isolation. Alternate

means of isolation are possible. If physical separation is not possible, please

contact Wilson Electronics Tech Support at 866-839-9361 for suggestions on

alternate methods to achieve isolation.

5. Connect the cable from the inside antennas to the signal booster’s “inside

antenna” connector. Refer to page 6 for more information on running cable.

Keep cable runs as short as possible to reduce signal loss in the system.

Install Overview

Refer to Installation Diagram on page 3 & 4. Contact Wilson Electronics Technical

Support Team with any questions at 866-839-9361.

Wide Band Directional

Antenna 75’ Wilson 400

Wide Band Panel Antenna

50’ Wilson 400

34

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

6. Before powering up the signal booster, verify that both the outside antenna and

the inside antennas are connected correctly, and check that all connections are

tight. Note: Be careful when plugging the connectors in so as not to bend the

center pins on the connectors.

7. Power on the signal booster by plugging in the included power supply. If the

lights are not green, please refer to pages 9-11.

1 2 3 4

Connect up to 4 indoor

panel antennas for

added coverage

Outdoor Antenna

To Inside Antennas

The outdoor antenna must be mounted at

a location outside of the home or building,

where the strongest cell signal is present.

Installation Diagram

34

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Cell Tower

Wide Band Antenna

Selecting a Location for the Outside Antenna

The outside antenna must be mounted at a location outside of the home or building,

where the strongest cell signal is present. This can be accomplished by using the

Wilson Signal Meter. Alternatively, a cell phone in test mode can be used for finding

the area around the building with the strongest signal.

Mount the outside antenna as high as possible facing towards the suspected

location of the cell tower and pointing away from the expected location of the inside

antenna(s).

Outside Antenna Installation

The antenna should be mounted as shown in Figure 1. The mounting bracket,

included with antenna, is adjustable and will accommodate pipe diameters from

1.25 inches to 2 inches (pipe sold separately #901117). Mount the antenna so

that there is at least 3 feet of clearance in all directions around it. Make sure the

antenna is not pointing across your own roof or at the inside antenna as this will

cause the cell site protection circuitry to shut down the signal booster.

Signal Booster

Outdoor

Antenna

Outdoor

Antenna

Inside Panel

Antenna

Figure 1 Figure 2

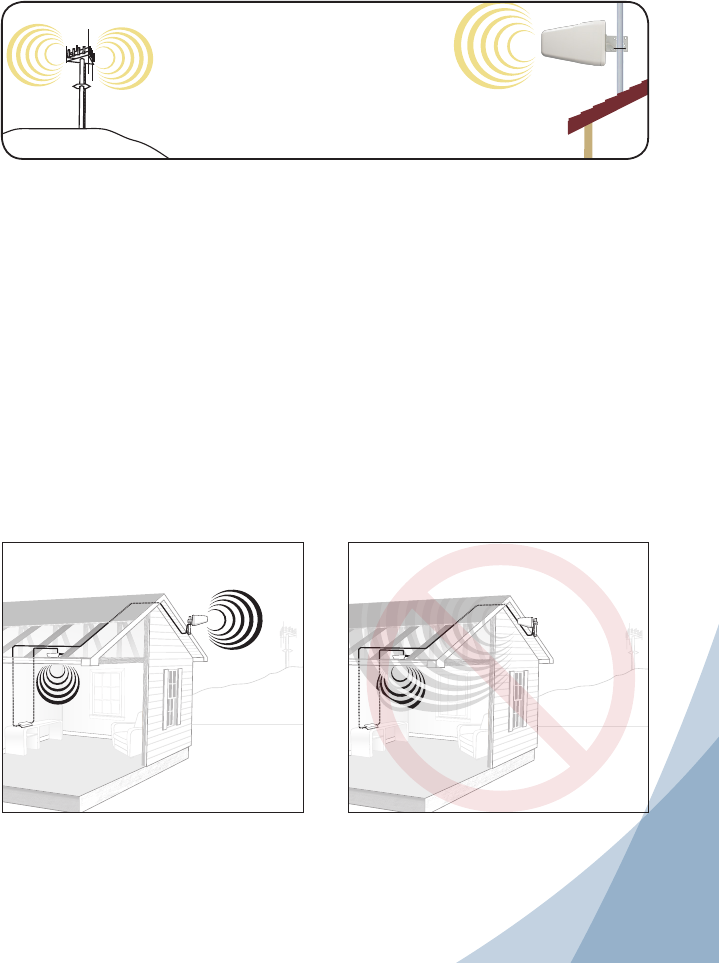

CORRECT INSTALLATION

Never point antennas toward each otherPoint antennas away from each other

INCORRECT INSTALLATION

Inside Panel

Antenna

Signal Booster

56

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Warning:

Lightning protection is recommended for all installations (#859992-

75 Ohm, shown below). Take extreme care to ensure that neither

you nor the antenna comes near any electric power lines.

Installing Lightning Protection

Install the Lightning Surge Protector (LSP) outside, in line with the coax cable from

the outside antenna, near where the coax cable from the outside antenna will enter

the building. Connect the Outside antenna cable to one of the connectors of the

surge protector. Connect the other connector on the LSP to the cable entering the

building. Ensure the LSP is

properly grounded as close to

the LSP as possible (ground

wire not included).

Running Outside Antenna Cable

If you are mounting the outside antenna to the outside wall of your home or

building, the simplest way is to run the cable on the outside of the wall and attach it

to the exterior of your home or office. Then drill a hole through the wall where you

want the cable to appear on the inside of the building. Before drilling, make sure

that there are no electrical outlets, sewer or water pipes, or electrical wiring in the

wall that you are about to drill through as this could potentially harm you or damage

the building. Note: Existing TV cables already being used for another purpose can

not be shared with the cell booster installation.

After drilling the required hole, run the cable through and seal it with cable bushings

or a silicone-type sealant to enclose the hole that you have created. In some

instances, it may be possible to run the cable up into the fascia of the attic overhang.

In this circumstance, the cable will be accessible in the attic for further routing.

Exterior wall of building or home

Lightning

Surge Protector

(859992)

Signal Booster

Surge Protector Power Strip

To Outside

Antenna

Ground Wire

To Inside

Antenna

56

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Installing the Inside Panel Antenna(s)

Select a location for the inside antenna, preferably in the center of where the signal

needs to be amplified. A minimum separation distance of 20 vertical feet and or

50 horizontal feet between the inside and outside antenna(s) may be necessary

in order to achieve full booster gain and therefore maximum indoor coverage. If

the amplifier can not be set to maximum gain as explained on page 10, you may

need as much as 75 feet of horizontal separation, or mechanical isolation, between

inside and outside antennas. Refer to installation diagram on pages 3 & 4.

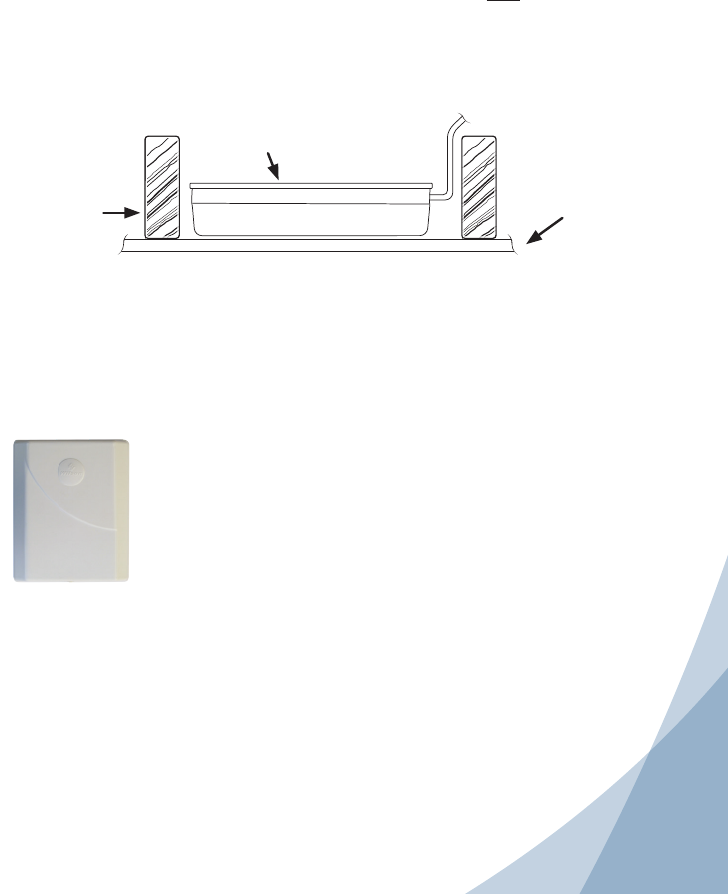

Ceiling

Rafters

Ceiling

Drywall

Inside

Antenna

Some installations requiring signal improvement in far areas of larger homes or

structures may require multiple inside antennas and splitter(s). For example if

signal is improved in most areas of a structure, but yet there is weak signal In

another area, the signal from the booster can be split to two or more separate

indoor antennas by using a splitter (sold separately). Refer to the configuration

on pages 3 & 4.

Additional Inside Panel

Antenna

(sold separately)

Multiple mounting options

available

For additional antenna options

see pages 14 & 15

Installing the Signal Booster

Select a location for the signal booster which is away from excessive heat, direct

sunlight, moisture and is not subject to high temperatures. Do not place the signal

booster in an air-tight enclosure. Recommended installation locations for in-building

signal boosters are in a closet or on a shelf where power is available. Attic installations

may expose the booster to high heat.

78

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Note: Do not install in areas subject to temperatures in excess of 150 °F.

Note: Maintain at least 6 inches of clearance from surrounding objects. Be careful

when plugging the connector in so as not to damage the center pins on the connectors.

Run the outside antenna cable to the signal booster and attach it to the connector

labeled “Outside Antenna” on the signal booster. Run the inside antenna cable to the

signal booster and attach it to the connector labeled “Inside Antenna” on the signal

booster.

Note: In order to abide by FCC regulations, cable lengths and antennas shipped as a kit

with each booster must be used and not cut and shortened. Contact our tech support for

cable kits to be used in situations requiring long cable runs.

Note: It is very important to power your signal booster using a surge protected AC

power strip with at least a 1000 Joule rating. Failure to do this will void

your warranty in the event of a power surge or lightning strike

Finding the Strongest Signal

When installing your signal booster’s outside antenna, aiming it towards the best

signal source from your carrier is important. The best way of getting the strongest

signal is to use the Wilson Signal Meter and accessory Directional Antenna (see

outside antenna kit options on page 14), an alternate way is to have one person

on the roof to rotate the outside antenna, which is connected to the signal booster.

Turn the outside antenna about 45 degrees at a time, while the second person,

inside the building, is watching the signal strength on a signal meter (preferred)

or a phone in test mode. This allows you to read the signal strength from the cell

tower. The phone should be in the test mode so the actual signal strength can

be read, as bars are not the most accurate. Always make sure the person inside

the building gives the signal strength time to register on the phone (at least 30

seconds for phone to update the signal reading).

-50 dBm0 dBm -60 dBm -70 dBm -80 dBm -90 dBm -100dBm -110dBm

EXCELLENT GOOD POOR NO

SIGNAL

Signal Strength Graph

Cell Tower

Cell Signal

Outside

Antenna

Signal readings usually appear as a negative number (for example, -86). The closer

the number to zero, the stronger the signal (see Signal Srength Graph above).

78

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

About Wilson Electronics

Wilson Electronics, LLC has been a leader in the wireless communications industry

for over 40 years. The company designs and manufactures Signal Boosters,

antennas and related components that significantly improve cellular telephone signal

reception and transmission in a wide variety of applications, mobile (marine, RV,

vehicles) and in-building (home, office, machine to machine).

With extensive experience in antenna and Signal Booster research and design, the

company’s engineering team uses a state-of-the-art testing laboratory, including

an anechoic chamber and network analyzers, to fine-tune antenna designs and

performance. For its Signal Boosters, Wilson Electronics uses a double electrically

shielded RF enclosure and cell tower simulators for compliance testing.

Wilson Electronics Signal Boosters feature patented SmarTech ® that enables them

to automatically adjust their power based on cell tower requirements. By detecting

and preventing oscillation (feedback), signal overload and interference with other

users, these SmarTech ® Signal Boosters improve network cell phone areas without

compromising carrier systems.

All products are engineered and assembled in the company’s 100,000 square-foot

headquarters in St. George, Utah. Wilson Electronics has product dealers in all 50

states as well as in countries around the world.

910

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Note: For a complete list of antennas and cables approved for use with these boosters see

pages 14 & 15.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority to

operate this equipment.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider

and have your provider’s consent. Most wireless providers consent to the use of

signal boosters. Some providers may not consent to the use of this device on their

network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by

the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any

person.

You MUST cease operating this device immediately if requested by the FCC or a

licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate

for calls served by using this device.

This Device may be operated ONLY in an fixed location for in-building use.

This is a CONSUMER device.

Warnings and Recommendations

WARNING: To uphold compliance with network protection standards, all active

cellular devices must maintain at least 6 feet of separation distance

from Panel and Dome antennas.

WARNING: Connecting the Signal Booster directly to the cell phone with use of an

adapter will damage the cell phone.

WARNING: Use only the power supply provided in this package. Use of a non-

Wilson Electronics product may damage your equipment.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-

controlled environment (less than 150 degrees Fahrenheit). It is not

intended for use in attics or similar locations subject to temperatures

in excess of that range.

WARNING: Warning: The Outside Antenna must be installed no higher than 10

meters (31’9”) above ground.

WARNING: Take care to ensure that neither you nor the pole comes near any

power lines during installation.

RF SAFETY WARNING: Any antenna used with this device must be located at least

8 inches from all persons.

910

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Inside Antenna Expansion Kit

(contact Wilson Technical Support for assistance)

Kit 309900-50N40090

• 2- Wall Panel antennas

• 1 - 50 ohm 3-Way Splitter

• 1 - 100' Wilson 400

Kit 309905-50N17490

• 3 – Wall Panel Antennas

• 3- 2-Way 50 Ohm Splitters

• 90' RG174

Kit 309902-75F0650

• 2 - Wall Panel Antennas

• 1 - 3-Way 75Ohm Splitter

• 50' RG6

Kit 309903-75F1180

• 3 – Wall Panel Antennas

• 3 - 2-Way 75Ohm Splitters

• 80' RG11 cable

Kit 309904-75F5830

• 1 - Wall Panel Antenna

• 1 - 2-Way 75 Ohm Splitter

• 30' RG58 cable

Inside Antenna Kits

(contact Wilson Technical Support for assistance)

Kit 301121-40050

• 50 Ohm Dome Antenna

• 50' Wilson 400

Kit 301151-0630

• 75 Ohm Dome Antenna

• 30’ RG6 Cable

Kit 311155-0670

• 75 Ohm Wall mount Panel Antenna

• 70’ RG6 Cable

Kit 311135-5840

• 50 Ohm Wall mount Panel Antenna

• 40’ RG58 Cable

Kit 311135-400150

• 50 Ohm Wall mount Panel Antenna

• 150' Wilson 400

Kit 301151-1140

• 75 Ohm Dome Antenna

• 40' RG11 cable

Kit 311155-11120

• 75 Ohm Wall mount Panel Antenna

• 10’ RG11 cable

Kit 311155-1150

• 75 Ohm Wall mount Panel Antenna

• 120’ RG11 Cable

Kit 304412-400100

• 50 Ohm 4G Dome Antenna

• 100' Wilson400 cable

Kit 304412-5830

• 50 Ohm 4G Dome Antenna

• 30' RG58 cable

Kit 304419-1175

• 75 Ohm 4G Dome Antenna

• 75' RG 11 cable

Kit 304419-17450

• 75 Ohm 4G Dome Antenna

• 50' RG174 cable

• May need separate adapter

Kit 304419-0650

• 75 Ohm 4G Dome Antenna

• 50' RG6 cable

50 Ohm Outside Antenna Kits

(contact Wilson Technical Support for assistance)

Kit 314453-5825

• 50 Ohm Pole Mount Panel Antenna

• 25’ RG58 Cable

Kit 314411-5825

• 50 Ohm Wide Band Directional

• 25’ RG58 Cable

Kit 301111-5850

• Yagi Directional Antenna

• 50’ RG58 Cable

Kit 311129-5840

• 800 MHz Yagi Directional

• 40’ RG58 Cable

Kit 311203-5820

• Omni-Directional antenna

• 20’ RG58 Cable

Kit 311124-5830

• 1900 MHz Yagi antenna

• 30’ RG58 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional

• 75’ LMR400 Cable

Kit 311203-40020

• Omni-Directional antenna

• 20’ LMR400 Cable

Kit 301111-400170

• Yagi Directional w/ N-Female

• 170’ LMR400

Kit 311124-400100

• 1900 MHz Yagi Directional

• 100’ LMR400 Cable

11 12

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Kit 311129-400100

• 800 MHz Yagi Antenna

• 100’ LMR400 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional Antenna

• 75’ LMR400 Cable

Kit 314453-40075

• 50 Ohm Pole Mount Panel Antenna

• 75’ LMR400 Cable

Kit 304422-40020

• 50 Ohm 4G Omni Antenna

• 20' Wilson400 cable

Kit 304422-5810

• 50 Ohm 4G Omni Antenna

• 10' RG58 cable

Kit 304422-1120

• 50 Ohm 4G Omni Antenna

• 20' RG11 cable

• May need separate adapter

75 Ohm Outside Antenna Kits

(contact Wilson Technical Support for assistance)

Kit 301111-0675

• Yagi Directional Antenna

• 75’ RG6 Cable

• N-Male to F-Female adapter

Kit 311201-0620

• Omni Directional w/ F-Female

• 20’ RG6 Cable

Kit 311129-0660

• 800 MHz Yagi Directional

• 60’ RG6 Cable

• N-Male to F-Female adapter

Kit 311124-0650

• 1900 MHz Yagi Directional

• 500’ RG6 Cable

• N-Male to F-Female adapter

Kit 314473-0640

• 75 Ohm Pole Mount Panel Antenna

• 40’ RG6 Cable

Kit 311141-0620

• 75 Ohm Grey Brick Antenna

• 20’ RG6 Cable

Kit 301111-11140

• Yagi Directional Antenna

• 140’ RG11 Cable

• N-Male to F-Female adapter

Kit 311201-1120

• Omni Directional w/ F-Female

• 20’ RG11 Cable

Kit 311129-11110

• 800 MHz Yagi Directional

• 110’ RG11 Cable

• N-Male to F-Female adapter

Kit 311124-1180

• 1900 MHz Yagi Directional

• 80’ RG11 Cable

• N-Male to F-Female adapter

Kit 314473-1175

• 75 Ohm Pole Mount Panel Antenna

• 75’ RG11 Cable

Kit 314475-0630

• 75 Ohm Wide Band Directional

• 30’ RG6 Cable

Kit 314475-1175

• 75 Ohm Wide Band Directional

• 75’ RG11 Cable

Kit 311141-1120

• 75 Ohm Grey Brick Antenna

• 20’ RG11 Cable

Kit 304421-17410

• 75 Ohm 4G Omni Antenna

• 10' RG174 cable

Kit 304421-0610

• 75 Ohm 4G Omni Antenna

• 10' RG6 cable

Kit 304421-5810

• 75 Ohm 4G Omni Antenna

• 10' RG58 cable

• May need separate adapter

Kit 304423-1120

• 75 Ohm 4G Omni Antenna

• 20' RG 11 cable

Kit 304423-17410

• 75 Ohm 4G Omni Antenna

• 10' RG174 cable

• May need separate adapter

Kit 304423-0610

• 75 Ohm 4G Omni Antenna

• 10' RG174 cable

Kit 304423-5810

• 75 Ohm 4G Omni Antenna

• 10' RG6 cable

• May need separate adapter

Kit 304424-40020

• 50 Ohm 4G Omni Antenna

• 20' Wilson400 cable

Kit 304424-5810

• 50 Ohm 4G Omni Antenna

• 10' RG174 cable

• May need separate adapter

11 12

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If for any reason

the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of

purchase.

3-Year Warranty

Wilson Electronics Signal Boosters are warranted for three (3) years against defects in workmanship and/or materials.

Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of

purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics

shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced

product back to the original consumer if located within the continental U.S.

This warranty does not apply to any Signal Booster determined by Wilson Electronics to have been subjected to

misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Customer Support at 866-294-1660.

Disclaimer : The information provided by Wilson Electronics, LLC is believed to be complete and accurate.

However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from

its use, or for any infringements of patents or other rights of third parties that may result from its use.

weBoost products covered by U.S. patent(s) and pending application(s)

For patents go to: weboost.com/us/patents

Kit 304424-1120

• 50 Ohm 4G Omni Antenna

• 20' RG11 cable

• May need separate adapter

Mini-Mag Outside Antenna

(contact Wilson Technical Support for assistance)

301126 w/12.5 RG174 cable-SMA

13 14

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Notes:

_____________________________________________________________

13 14

Contact Wilson Electronics Customer Support Team with any questions

at 866-839-9361 or email: tech@wilsonelectronics.com.

Notes:

_____________________________________________________________

Wilson Electronics, LLC

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: tech@wilsonelectronics.com

Phone: 866-839-9361 Local: 435-673-5021 Fax: 435-656-2432

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

Signal Booster Specifications

WilsonPro Precision 4000R™

Product Number U460031

Model Number 460031

FCC ID PWO460031

IC 4726A-460031

Connectors N-Female

Antenna Impedance 50 Ohms

Frequency 698-716 MHz, 746-787 MHz, 824-894 MHz, 1850-1990 MHz, 1710-1755/2110-2155 MHz

Passband Gain (nominal) 700MHz Band12/17

57.8

700MHz Band13

57.8

800MHz

59.8

1700/2100MHz

62.5

1900MHz

63.6

20 dB Bandwidth (MHz) 700MHz Band12/17 700MHz Band13 800MHz 1700/2100MHz 1900MHz

Typical

Maximum

29.8

35.2

29.9

35.2

36.4

37.4

76.7

79.2

73.8

74.4

Power output for single cell

phone (Uplink) dBm

700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz

24.7 25.7 25.3 26.1 25.2

Power output for single cell

phone (Downlink) dBm

700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz

10.9 10.9 10.9 10.8 9.3

Power output for multiple

received channels (Uplink) dBm

No. Tones 700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz

218.0 18.3 21.1 17.6 22.1

314.5 14.8 17.6 14.1 18.6

412.0 12.3 15.1 11.6 16.1

510.0 10.3 13.1 9.6 14.1

68.5 8.8 11.6 8.1 12.6

Power output for multiple

received channels

(Downlinklink) dBm

No. Tones 700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz

211.2 12.5 14.0 11.4 10.5

37.7 9.0 10.5 7.9 7.0

45.2 6.5 8.0 5.4 4.5

53.2 4.5 6.0 3.4 2.5

61.7 3.0 4.5 1.9 1.0

Noise Figure 5 dB nominal

Isolation > 90 dB

Power Requirements 12V 3A

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory

reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase

coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected.

If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn

the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1

minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually

restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s

microprocessor.

The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are

present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to

adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the

device.

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.

111857_RevP_05.08.16

Wilson Electronics 460031 Consumer Booster User Manual Rev 1

Wilson Electronics, LLC Consumer Booster Rev 1

User Manual_Rev 1

Navigation menu

Namespaces

Views

Navigation
