Wilson Electronics 460033 4G Marine Booster User Manual
Wilson Electronics, LLC 4G Marine Booster
User Manual

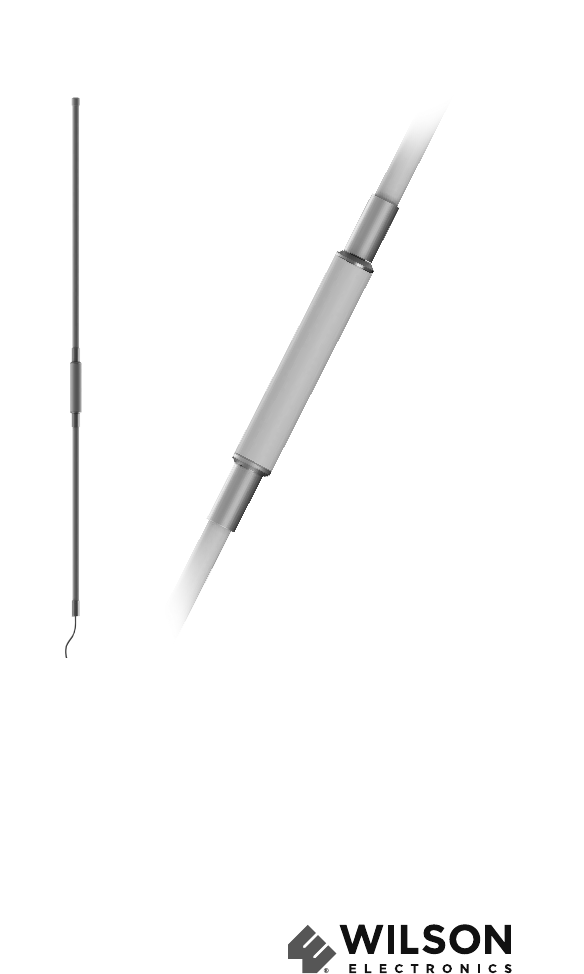

Omni-Directional Antenna / Cellular Signal Booster
4G Marine Booster
User Manual
2 3
Contact Wilson Electronics Technical Support Team with any questions at
866-294-1660 or email: tech@wilsonelectronics.com
Please read all instructions before installing and check the parts supplied against those
listed in this guide. Wilson Electronics weatherproof antenna is omni-directional and ideal
for many marine applications including small boats, cabin cruisers and yachts.
Our innovative design results in high efficiency and low signal loss, which means more
signal to your cellular device.
Package Contents Include
1 - 4G Marine Antenna Booster
1 - 4 foot Donor Antenna
1 - 3 foot Server Antenna
1 - 25 foot Power Cable
Compatible with standard 1” x 14 thread Marine Mounts
Wilson Electronics Marine Mount 901119 (sold separately)
Carefully Determine Your Mounting Location
The Wilson Electronics Marine Booster should be mounted as high as possible with no
obstructions. Marine antennas work on a “line-of-sight” basis, so the higher your antenna
is, the farther it can receive a signal. This gives you a greater range for your cellular
communications.
For assistance with your installation, contact Wilson Electronics Technical Support toll free at
866-294-1660 or visit www.weboost.com/us/support-center/
Vertical Placement
Vertical placement is very important for proper operation. There may be a desire to angle
the antenna backwards for aesthetic reasons. However, not having the antenna mounted
vertically decreases its performance.
A general “rule of thumb” for placement is to install all antennas at least an antenna’s
length away from other antennas. If there is not enough separation between antennas
then oscillation (feedback) may occur causing the Signal Booster to power down.
3
Contact Wilson Electronics Technical Support Team with any questions at
866-294-1660 or email: tech@wilsonelectronics.com
Booster
Server Antenna
Donor Antenna
connect SMB connectors
before screwing ends together
connect SMB connectors
before screwing ends together
4G Marine Antenna Assembly
4 5
Contact Wilson Electronics Technical Support Team with any questions at
866-294-1660 or email: tech@wilsonelectronics.com
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.
ISED CPC-2-1-05: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
Sprint: http://www.sprint.com/legal/fcc_boosters.html
T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827
Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have
your provider’s consent. Most wireless providers consent to the use of signal boosters.
Some providers may not consent to the use of this device on their network. If you are
unsure, contact your provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from (i.e., MUST
NOT be installed within 20 cm of) any person.
You MUST cease operating this device immediately if requested by the FCC (or ISED in
Canada) or licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls
served by using this device.
Warnings and Recommendations
WARNING: To uphold compliance with network protection standards, all active
cellular devices must maintain at least 3 feet of separation distance
from Inside Antennas.
RF Safety Warning: Any antenna used with this device must be located at least 8
inches from all persons.
5
Contact Wilson Electronics Technical Support Team with any questions at
866-294-1660 or email: tech@wilsonelectronics.com
Signal Booster Specifications
4G Marine Antenna™
Product Number 470133
Model Number 460033
FCC ID PWO460033
IC ID 4726A-460033
Frequency 698-716 MHz, 729-746 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Power output for single cell
phone (Uplink) dBm
700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz
21.5 24.8 24.10 23.90 26.00
Power output for single cell
phone (Downlink) dBm
700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz
5.8 8.0 10.1 5.8 -1.5
Noise Figure 5 dB nominal
2-Year Warranty
Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or
materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof
of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof
of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson
Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the
repaired or replaced product back to the original consumer if located within the continental U.S.
Replacement products may include refurbished weBoost products that have been recertified to conform with
product specifications.
This warranty does not apply to any antennas determined by Wilson Electronics to have been subjected to
misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Disclaimer: The information provided by Wilson Electronics, LLC is believed to be complete and accurate.
However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses
arising from its use, or for any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2017 Wilson Electronics, LLC. All rights reserved.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without
factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order
to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a
signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster
will automatically turn the power o on that band. For a detected oscillation the Signal Booster will automatically resume normal
operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut o until the
Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity
are maintained by the Signal Booster’s microprocessor.
