Wilson Electronics, LLC WilsonPro 1000R
User Manual
NEED HELP? wilsonpro.com 866.294.1660
User Manual
In-Building Signal Booster
With Extended Dynamic Range
WILSON PRO
1000R
A Wilson Electronics Brand
Package Content 1
About The WilsonPro 1000R 2
Key Features 4
Competitive Advantages 5
Post Install Setup 7
Status Screen 8
Port/Band Status Screens 10
Enable/Disable Ports 12
Safety Guidelines 13
Warranty 17
_____
Index
1
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
________

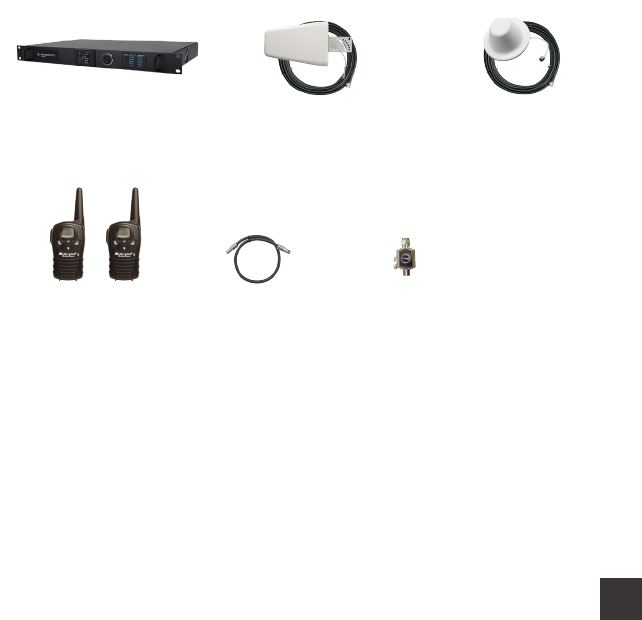

Package
Content
WilsonPro
1000R
2’ Wilson
400
Lightning Surge
Protector
Pair of 2-Way
Radios
Wide Band Directional
Antenna + 75’
Wilson 400 Cable
4 Qty. Dome
Antenna + 4 Qty. 100’
Wilson 400 Cable
Kit 460231
2IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R

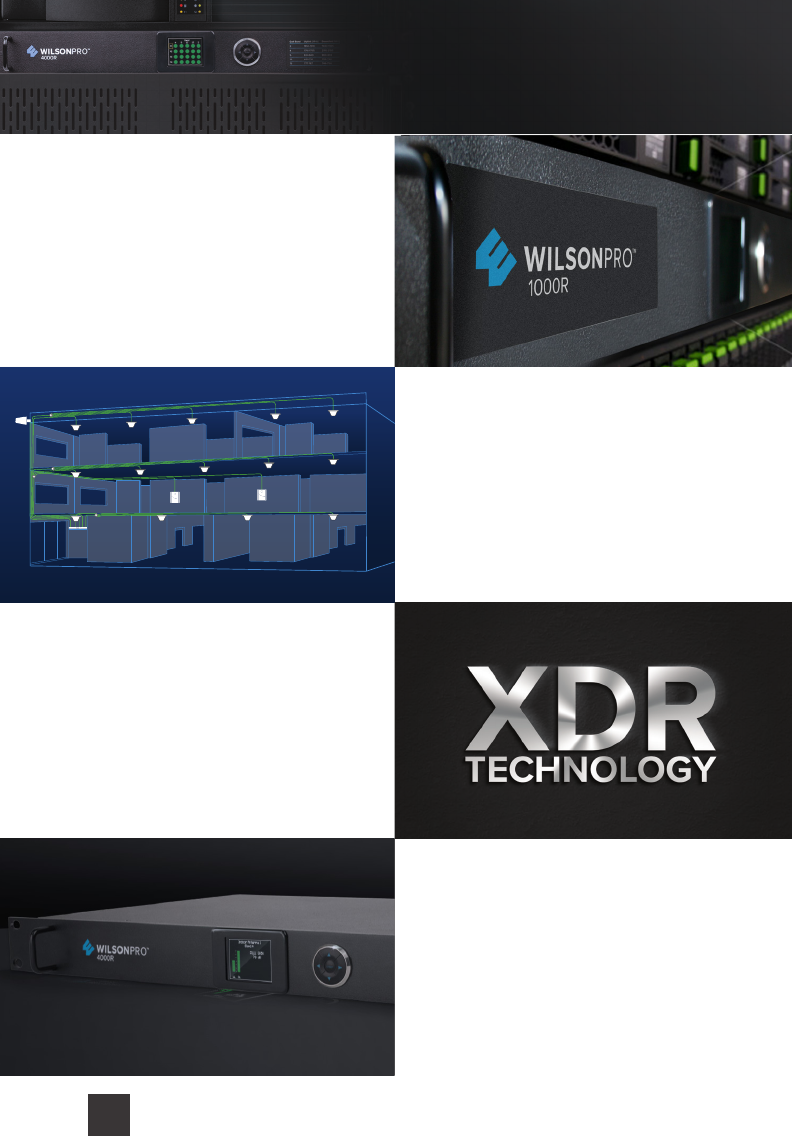

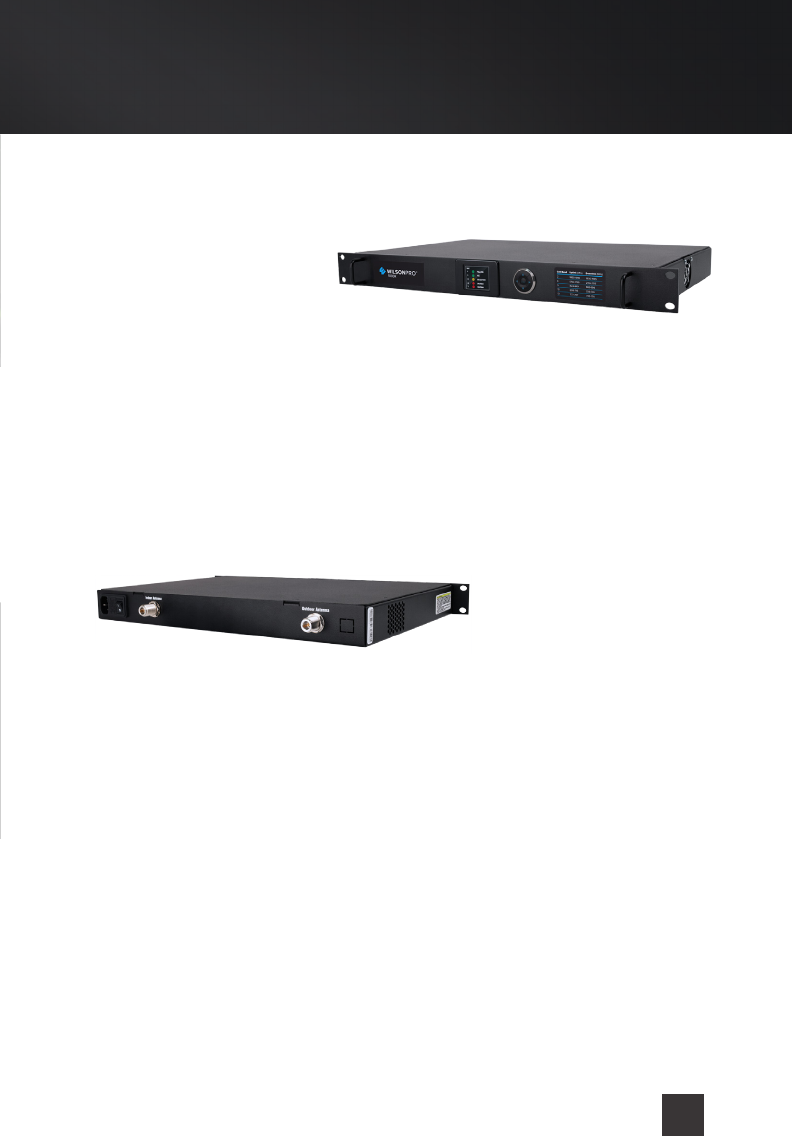

Easy Rack-Mounted
Installation
Neat and clean installation while leaving
the unit easily accessible.
Color LCD For Easier
Access
Unlike other boosters, the WilsonPro
1000R has a color LCD screen
with four-way navigation, allowing
integrators to have easy and eective
control of the product.
Extended Dynamic
Range For Continuous
Connectivity
XDR allows the booster to never shutdown
due to too strong of a signal. No matter how
strong, the booster will never overpower and
shutdown.
WilsonPro 1000R
Onboard Software For
Better Control
Automatically controlled with onboard
software, ensuring great connectivity
throughout large spaces and multi-story
buildings.
3
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
Designed to provide enhanced
in-building cellular coverage for
commercial and large residential
spaces, the WilsonPro 1000R amplifies weak cell signals to provide
reliable voice and data coverage – including 4G – to inside spaces where signals may
not penetrate.
Like all WilsonPro cellular signal boosters, the WilsonPro 1000R features cell
site protections that auto-detect and prevent any cell tower interference. Wilson
Electronics quality and an industry-leading three-year warranty make the 1000R a
clear choice for the professional technology integrator.
4IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R
Easy rack-mounted installation: The 1000R is intended to fit into
an existing server rack. This design allows for a neat and clean
installation while leaving the unit easily accessible.
Onboard Software for Better Control: Each indoor antenna path is
independently and automatically controlled with onboard software,
ensuring great connectivity throughout large spaces and multi-story
buildings. Since all ports are independently controlled, each can
adjust its gain level up or down as required by the conditions of the
immediate signal environment without disrupting coverage from any
other antenna.
Extended Dynamic Range (XDR) for continuous connectivity: Gives
the 1000R much greater tolerance than any competing booster for
a strong incoming signal from the tower. XDR lets the 1000R system
work with an incoming signal stronger than any competing booster
and never shuts down.
Color LCD for Easier Access: Unlike other boosters, the Wilson
1000R has a color LCD screen with four-way navigation, allowing
integrators to have easy and eective control of the product.
____________
Key Features
5
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
Highest Downlink Power: Up to +12dB more downlink power than
the competition allows for stronger signal in environments where
the incoming signal is weak. The benefit is a stronger signal sent to
the inside antennas, providing larger coverage area from a single
booster.
Highest Uplink Power: This allows for a stronger signal transmitted
to the tower, up to +3dB more than the competition, providing greater
user capacity and increased range from the cell site.
Lower Overload and Shutdown Threshold: No matter how strong
the outside signal, the WilsonPro 1000R never shuts down. This is a
huge benefit in strong signal environments like cities and locations
close to a carrier tower.
Intelligent Control: WilsonPro cellular boosters automatically adjust
signal gain while still providing even signal coverage throughout the
building.
Sophisticated Software: Cellular signals are constantly fluctuating.
The software is always monitoring signal levels and making
immediate adjustments as needed, allowing the booster to operate at
maximum gain consistently.
___________
Competitive
Advantages
6IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R
Outside
Directional
Antenna
Inside Dome
Antenna(s)
1000R
__________
Installation
Diagram
2-way radios are included to help with the
installation process.
The direction of the outside antenna should be
adjusted until the “DL” bar is maximized.
7
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
__________
Post Install
Setup
The WilsonPRO 1000R is designed with advanced internal programming, which allows
it to automatically adjust for a variety of conditions, while still boosting weak signals.

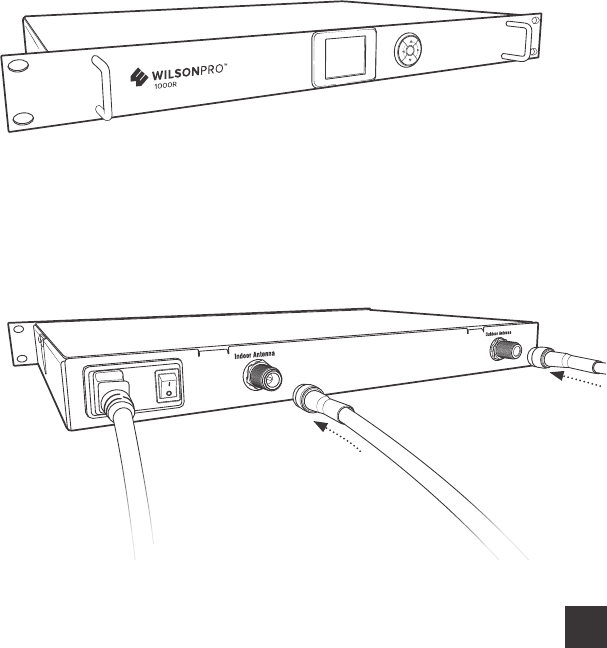

Once the AC power cable and antenna cables are connected, turn the unit on by
toggling the power switch located near the AC power receptacle, located at the rear
of the unit.
Power Switch
8IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R

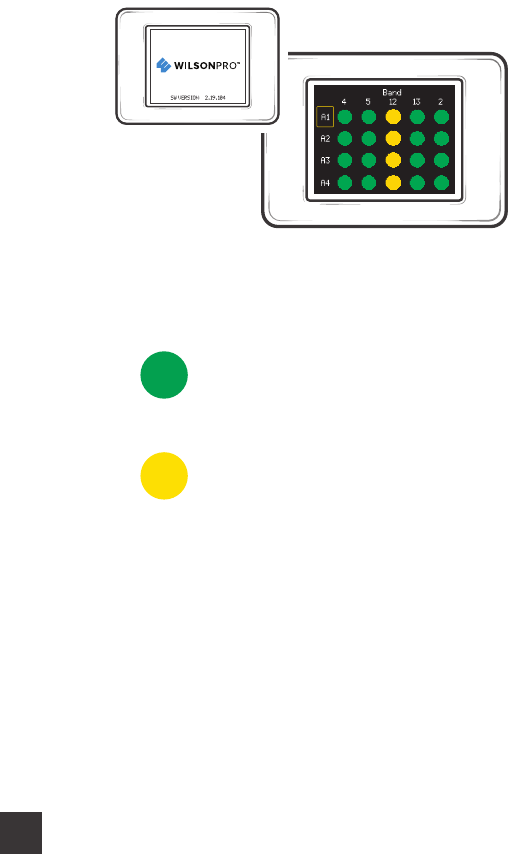

The 1000R takes about 20 seconds to boot up. Once boot up is complete, the status
screen will appear, showing the amplification and status of each port and band.
A solid green light indicates that a
band/port is operating correctly with
maximum allowable gain.
A solid yellow light indicates band/
port gain reduction because of an
oscillation condition. Reposition
antennas (more separation between
indoor and outdoor antennas, and
pointed in opposite directions) and
reboot (power cycle) the 1000R
for maximum performance. When
adequate separation is achieved, the
yellow lights will return to green upon
reboot. Note that when the light is
yellow, the band/port is operational;
however, performance is reduced.
____________
Status Screen
System Status Screen
Splash Screen
Lights Description
9
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
________
(LIGHTS DESCRIPTION cont.)
A red light indicates a band/port
which has been completely shut
down because of a severe oscillation
condition or repeated oscillation
events. Reposition antennas (more
separation between indoor and
outdoor antennas, and pointed
in opposite directions) and then
reboot (power cycle) the 1000R to
reactivate the band/port and maximize
performance. When adequate
separation is achieved, the red light(s)
will return to green upon reboot.
System Status Screen
10 IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R
______________
Port/Band Status
Screens
This screen provides specific band
and port information. Including the
strength of the received uplink and
downlink signal, status details, and
the amplifier gain.

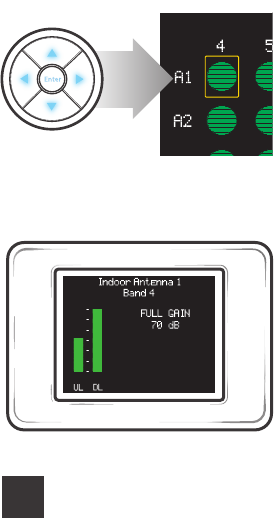

By pressing enter on a highlighted light,
as shown, a more detailed status screen
will be displayed for the highlighted
band/port.
D-Pad with Enter
button Status Screen
Close-up
Band Details Screen
Green Light
11
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
___________
(PORT/BAND STATUS SCREENS - GREEN LIGHT cont.)
In the presence of a strong outdoor
cell tower signal, the 1000R will
reduce it’s “boost” (Gain) using
internal Automatic Gain Control (AGC).
This gain reduction is necessary to
stay within FCC requirements. When
this occurs, the 1000R has reached
the ‘speed limit’ so this is good!
The outside antenna should always
be adjusted until the “DL” bar is
maximized and “AGC” is indicated, if
possible with a weak outside signal,
this may not be possible.
Band Details Screen
This screen indicates band/port gain
has been reduced because of the
oscillation condition detected at a
nearby band/port.
Pressing enter on a highlighted
light with a yellow light (Antenna 1,
Band 12), as shown, will display the
following...
D-Pad with Enter
button Status Screen
Close-up
Band Details Screen
Yellow Light
12 IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R
_____________
Enable/Disable
Ports

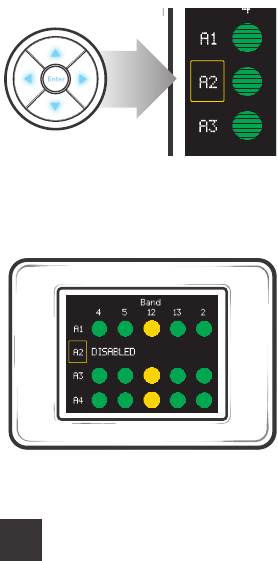

Unused indoor antenna ports should
be enabled/disabled by pressing
enter on the applicable port, from the
status screen.
To return to the Status Screen press the ENTER button on the D-Pad
D-Pad with Enter
button Status Screen
Close-up
‘Disabled’ will be displayed on the
applicable port, as shown.
Status Screen
13
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
______________
Safety Guidelines
Warnings
To uphold compliance with network protection standards, all active cellular devices
must maintain at least 6 feet of separation distance from Panel and Dome antennas.
Use only the power supply provided in this package. Use of a non-Wilson Electronics
product may damage your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled
environment (less than 100 degrees Fahrenheit). It is not intended for use in attics or
similar locations subject to temperatures in excess of that range.
RF Safety Warning: Any antenna used with this device must be located at least 8
inches from all persons.
AWS Warning: The Outside Antenna must be installed no higher than 10 meters (31’9”)
above ground.
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have
your provider’s consent. Most wireless providers consent to the use of signal boosters.
Some providers may not consent to the use of this device on their network. If you are
unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls
served by using this device.
This device may be operated ONLY in a fixed location for in-building use.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR
WIRELESS PROVIDER, PLEASE SEE BELOW:
Sprint: http://www.sprint.com/legal/fcc_boosters.html
T-Mobile/MetroPCS: https://support.t-mobile.com/docs/DOC-9827
Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html
AT&T: https://securec45.securewebsession.com/attsignalbooster.com/
U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
14 IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R
_________________
Antenna Kit Options
The following accessories are certified by the FCC to be used with the
Wilson PRO 1000R.
Inside Antenna Expansion Kit
Kit 309900-50N40090
2 - Wall Panel antennas
1 - 50 ohm 3-Way Splitter
1 - 100' Wilson 400
Kit 309905-50N17420
3 - Wall Panel Antennas
3 - 2-Way 50 Ohm Splitters
20' RG174
Kit 309902-75F0650
2 - Wall Panel Antennas
1 - 3-Way 75Ohm Splitter
50' RG6
Kit 309903-75F1180
3 - Wall Panel Antennas
3 - 2-Way 75Ohm Splitters
80' RG11 cable
Kit 309904-75F5830
1 - Wall Panel Antenna
1 - 2-Way 75 Ohm Splitter
30' RG58 cable
Inside Antenna Kits
Kit 311155-0670
75 Ohm Wall mount Panel Antenna
70’ RG6 Cable
Kit 311135-5840
50 Ohm Wall mount Panel Antenna
40’ RG58 Cable
Kit 311135-400150
50 Ohm Wall mount Panel Antenna
150' Wilson 400
Kit 311155-11120
75 Ohm Wall mount Panel Antenna
10’ RG11 cable
Kit 304412-400100
50 Ohm 4G Dome Antenna
100' Wilson400 cable
Kit 304412-5830
50 Ohm 4G Dome Antenna
30' RG58 cable
Kit 304419-1175
75 Ohm 4G Dome Antenna
75' RG 11 cable
Kit 304419-17450
75 Ohm 4G Dome Antenna
50' RG174 cable
May need separate adapter
Kit 304419-0650
75 Ohm 4G Dome Antenna
50' RG6 cable
50 Ohm Outside Antenna Kits
Kit 314453-5825
50 Ohm Pole Mount Panel Antenna
25’ RG58 Cable
Kit 314411-5825
50 Ohm Wide Band Directional
25’ RG58 Cable
Kit 301111-5850
Yagi Directional Antenna
50’ RG58 Cable
Kit 311203-5820
Omni-Directional antenna
20’ RG58 Cable
Kit 314411-40075
50 Ohm Wide Band Directional
75’ LMR400 Cable
Kit 311203-40020
Omni-Directional antenna
20’ LMR400 Cable
Kit 301111-400170
Yagi Directional w/ N-Female
170’ LMR400
Kit 314453-40075
50 Ohm Pole Mount Panel Antenna
75’ LMR400 Cable
Kit 304422-40020
50 Ohm 4G Omni Antenna
20’ Wilson400 cable
Kit 304422-5810
50 Ohm 4G Omni Antenna
10’ RG58 cable
Kit 304422-1120
50 Ohm 4G Omni Antenna
20’ RG11 cable
May need separate adapter
75 Ohm Outside Antenna Kits
Kit 301111-0675
Yagi Directional Antenna
75’ RG6 Cable
N-Male to F-Female adapter
Kit 311201-0620
Omni Directional w/ F-Female
20’ RG6 Cable
Kit 314473-0640
75 Ohm Pole Mount Panel Antenna
40’ RG6 Cable
Kit 311141-0620
75 Ohm Grey Brick Antenna
20’ RG6 Cable
Kit 301111-11140
Yagi Directional Antenna
140’ RG11 Cable
N-Male to F-Female adapter
Kit 311201-1120
Omni Directional w/ F-Female
20’ RG11 Cable
Kit 314473-1175
75 Ohm Pole Mount Panel Antenna
75’ RG11 Cable
Kit 314475-0630
75 Ohm Wide Band Directional
30’ RG6 Cable
Kit 314475-1175
75 Ohm Wide Band Directional
75’ RG11 Cable
Kit 311141-1120
75 Ohm Grey Brick Antenna
20’ RG11 Cable
Kit 304421-17410
75 Ohm 4G Omni Antenna
10’ RG174 cable
Kit 304421-0610
75 Ohm 4G Omni Antenna
10’ RG6 cable
Kit 304421-5810
75 Ohm 4G Omni Antenna
10’ RG58 cable
May need separate adapter
Kit 304421-1120
75 Ohm 4G Omni Antenna
20’ RG 11 cable
15
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
Product Number 460037
Model Number 460037
FCC ID PWO460037
Connectors N-Female
Antenna Impedance 50 Ohms
Frequency 698-716 MHz, 729-746 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Passband Gain (nominal) 700MHz Band12/17
57.6
700MHz Band13
58.0
800MHz
59.2
1700/2100MHz
65.7
1900MHz
65.2
20 dB Bandwidth (MHz) 700MHz Band12/17 700MHz Band13 800MHz 1700/2100MHz 1900MHz
Typical
Maximum
29.6
35.4
30.3
35.4
36.8
37.8
77.5
81.0
74.5
75.1
Power output for single cell
phone (Uplink) dBm
700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz
25.3 25.8 24.7 26.2 25.3
Power output for single cell
phone (Downlink) dBm
700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz
15.2 13.9 15.4 15.4 15.4
Power output for multiple
received channels (Uplink) dBm
No. Tones 700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz
223.0 23.9 20.4 22.4 22.1
319.5 20.4 16.9 18.9 18.6
417.0 17.9 14.4 16.4 16.1
515.0 15.9 12.4 14.4 14.1
613.5 14.4 10.9 12.9 12.6
Power output for multiple
received channels
(Downlinklink) dBm
No. Tones 700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz
216.1 15.2 15.3 12.0 15.3
312.6 11.7 11.8 8.5 11.8
410.1 9.2 9.3 6.0 9.3
58.1 7.2 7.3 4.0 7.3
66.6 5.7 5.8 2.5 5.8
Noise Figure 5 dB nominal
Isolation > 90 dB
Power Requirements 12V 3A
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be
adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter
incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal Booster
is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency
band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power o on that
band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1
minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut o until the Signal Booster
has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity
are maintained by the Signal Booster’s microprocessor.
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple
carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-
radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or
gain reduction and not by an attenuator at the output of the device.
___________
Specifications
16 IN-BUILDING SIGNAL BOOSTER WILSON PRO 1000R
____________
Notes
17
WILSON PRO 1000R IN-BUILDING SIGNAL BOOSTER
30 DAY MONEY-BACK GUARANTEE
All WilsonPro products are protected by WilsonPro 30-day money-back guarantee.
If for any reason the performance of any product is not acceptable, simply return
the product directly to the reseller with a dated proof of purchase.
3 YEAR WARRANTY
WilsonPro Boosters are warranted for three (3) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by WilsonPro. WilsonPro shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by WilsonPro
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by contacting Customer Support.
DISCLAIMER: The information provided by WilsonPro is believed to be complete and
accurate. However, no responsibility is assumed by WilsonPro for any business or
personal losses arising from its use, or for any infringements of patents or other rights
of third parties that may result from its use.
NEED HELP? support.wilsonpro.com 866.294.1660
________
Warranty
3301 East Deseret Drive, St. George, UT
www.wilsonpro.com | support.wilsonpro.com
Copyright © 2016 Wilson Electronics. All rights reserved.
Wilson Electronics products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents
NOT AFFILIATED WITH WILSON ANTENNA WilsonPro1000R_ErinFCCRevP_01.05.17
A Wilson Electronics Brand
