Wilson Electronics 806WV iDen in Car Amplifier User Manual BD800NM M 022603 13 R1
Wilson Electronics, LLC iDen in Car Amplifier BD800NM M 022603 13 R1
users manual

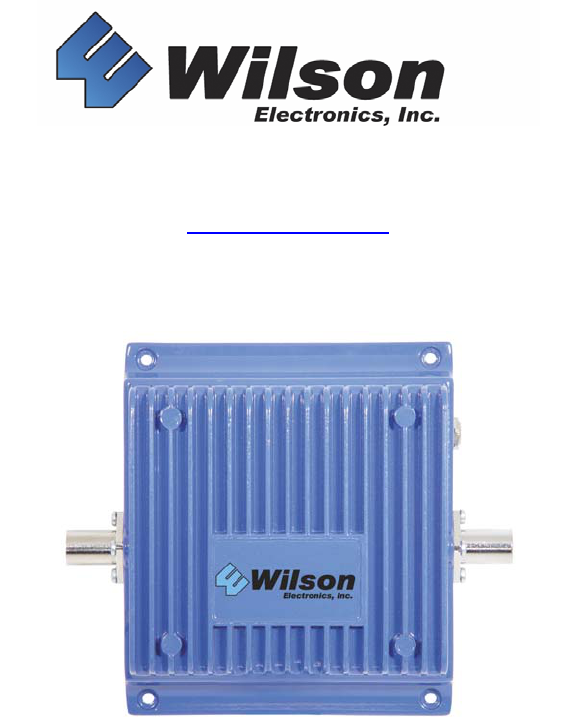

Rev 1 MODEL: BD800NM
PART#: 804002
IDEN MOBIL Bi-Directional
Amplifier for
In Vehicle
Installation Guide
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result
from its use.
FCC ID: PWO806WV
Copyright © 2002 Wilson Electronics, Inc.
IC: 4726A-806WV
3301 E. Deseret Drive
St. George, Utah 84790
wilsonelectronics.com
tech@wilsonelectronics.com
Phone 1-866-294-1660 Fax 1-435-656-2432
Rev 1 PAGE 2
TABLE OF CONTENTS
1. PACKAGE CONTENTS.……………………………….………page 3
2. ANTENNA OPTIONS...…………………………………………page 3
3. PURPOSE OF THE IDEN……………………………..…...……page 4
4. HOW THE IDEN FUNCTIONS………………..…………..……page 4
5. FEATURES……………………………………………….…..…page 4
6. AMPLIFIER SPECIFICATIONS……………………………… page 4
7. AMPLIFIER INSTALLATION…………………………... page 5 & 6
8. TECH SUPPORT…………………………………..……………page 6
9. NOTES & WARNINGS……………………………...…….……page 6
Rev 1 PAGE 3
Rev 1 PAGE 4
1. PURPOSE OF THE IDEN
The IDEN Bi-Directional Amplifier greatly improves RF coverage for areas in which
low signal strength or no signal is a problem when using your portable iDEN phone
inside the car.
2. HOW THE IDEN FUNCTIONS
The signal is received by the outside antenna from the cell site. It is then
AMPLIFIED/REPEATED and transmitted to your iDEN phone through the inside
antenna. When the phone transmits it is received by the inside antenna. It is then
AMPLIFIED/REPEATED and transmitted to the cell site through the outside antenna.
3. FEATURES
Wireless Operation - No Physical Connection to Cellphone
The IDEN Amplifier greatly improves signal strength inside a vehicle without a
physical connection to your phone. It also allows multiple phones to be used
simultaneously.
Advanced Electronics Receive & Transmit Better Than Your Cellphone
The Wilson Cellular Amplifier has a better receiver than what's in your cellphone. Its
advanced electronics are very sensitive and able to receive small signals that would go
undetected by most cellphones. It also has a better transmitter with double the power
of your cellphone. This allows your voice to be heard by distant cell sites, increasing
coverage up to 50 miles or more.
4. AMPLIFIER SPECIFICATIONS
Frequency…….……………...806-821 MHz Uplink 851-866 MHz Downlink
Gain………………………….37dB Uplink 37dB Downlink
Flatness………………………+/- 3dB Uplink +/- 3dB Downlink
Max RF Output Power……….+31dBm Uplink +15dBm Downlink
Noise Figure………………….5dB Uplink 5dB Downlink
Uplink Downlink Isolation...…More than 90dB
Power Consumption………….12V, 1.5A
Connecter……………………..FME-Male 50 Ohms
Dimensions…………………..5.5 x 4.3 x 1.4 (inches) OR 14.0 x 10.8 x 3.5 (cm)
Weight…………………….….1.32 pounds or 600 grams
Model #………………………IDEN
Part #…………………….…... 804002
Rev 1 PAGE 5

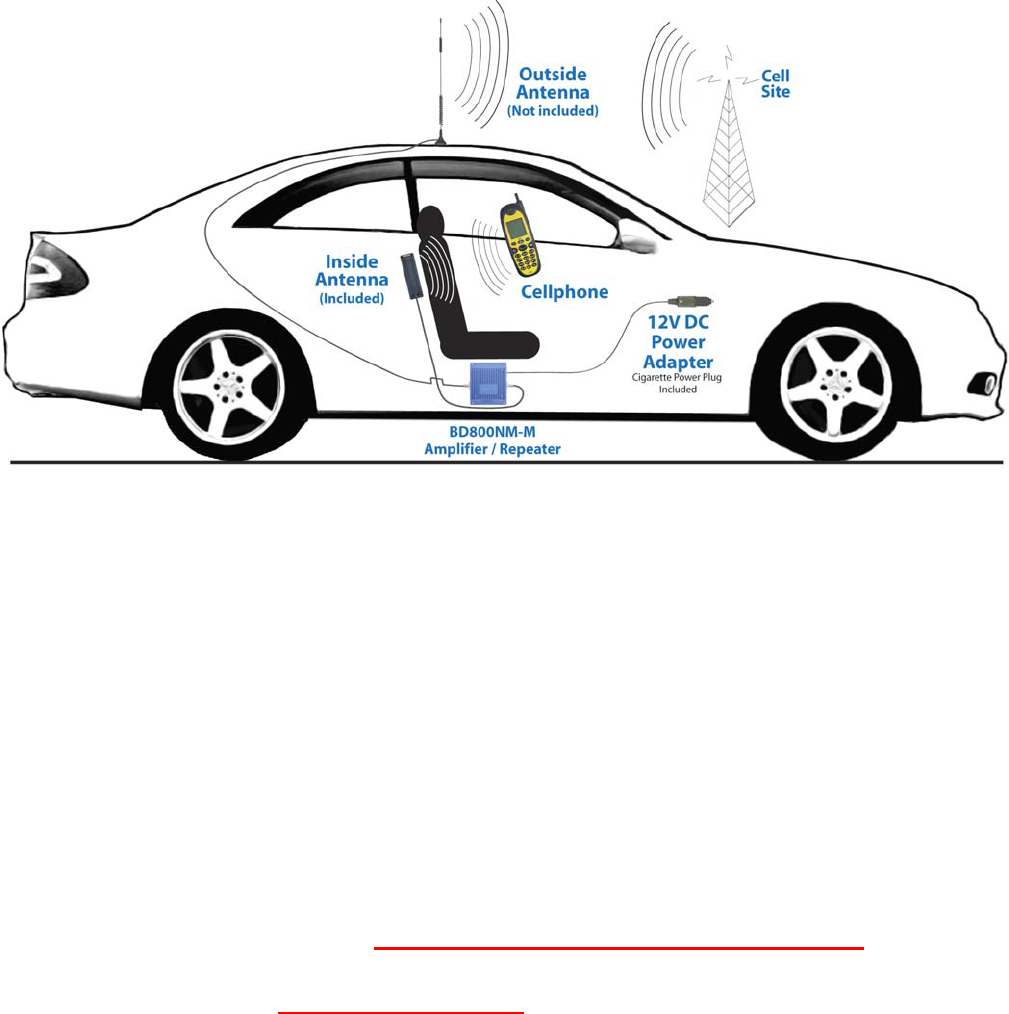

5. AMPLIFIER INSTALLATION (REFER TO ILLUSTRATION)
ILLUSTRATION
5.1 Mounting the Amplifier
5.1.1 Mount the AMPLIFIER under the dash or car seat.
NOTE: The amplifier should be mounted to the selected location using
mounting screws. (Mounting screws not included.)
5.2 Installing the Outside Antenna (Sold Separately)
5.2.1 Select an outside mounting location. For best performance try to keep
the antenna centered on the car’s / truck’s roof.
5.2.2 The outside antenna should be located in an area with at least a 12”
radius clear of obstructions, and other radiating elements.
NOTE: When using a magnet mount, NMO or trucker antenna, keep the
separation distance between the inside and outside antennas at least 4ft.
When using a glass mount antenna, keep the separation distance between
the inside and outside antennas at least 5ft.
WARNING: The outside antenna used with this amplifier must be
mounted with a separation distance of at least 10 inches(25cm) from all persons
and must not be co-located or operating in conjunction with any other
antenna or amplifier.
5.2.3 Connect the Outside Antenna to the AMPLIFIER/ side labeled
“OUTSIDE ANTENNA”.
Rev 1 PAGE 6
5.3 Installing the Inside Antenna (Included)
5.3.1 Connect the Inside Antenna to the side labeled “INSIDE ANTENNA” on
the AMPLIFIER.
5.3.2 The Inside Antenna should be centered in the vehicle. It can be placed in
the seat back between the seat cushion and fabric or in the vehicle
headliner.
WARNING: The inside antenna used with this amplifier must be mounted
with a separation distance of at least 8 inches(20cm) from all persons and
must not be co-located or operating in conjunction with any other antenna
or amplifier.
5.4 Connect the 12V Power Supply
5.4.1 Connect the large end of the 12V Power Supply into your cigarette lighter
and the other end into the input on your amplifier labeled “DC 12V IN”.
7. TECH SUPPORT
If you need further assistance with your installation please call us Toll-Free at 866-
294-1660 or send an E-mail to tech@wilsonelectronics.com
Our Hours of Operation are: 8:00 AM – 4:30 PM (Mountain Time)
8. NOTES & WARNINGS
NOTE: When using a magnet mount, NMO or trucker antenna, keep the
separation distance between the inside and outside antennas at least 4ft. When
using a glass mount antenna, keep the separation distance between the inside
and outside antennas at least 5ft.
WARNING: The outside antenna used with this amplifier must be mounted
with a separation distance of at least 8 inches(20cm) from all persons and must
not be co-located or operating in conjunction with any other antenna or amplifier.
WARNING: The inside antenna used with this amplifier must be mounted with
a separation distance of at least 10 inches(25cm) from all persons and must not
be co-located or operating in conjunction with any other antenna or amplifier.
