Wilson Electronics 8140SD Direct Connection iDEN HP SmartTech Amplifier User Manual USERS MANUAL
Wilson Electronics, LLC Direct Connection iDEN HP SmartTech Amplifier USERS MANUAL
USERS MANUAL
Wilson Electronics, Inc.
3301 E. Deseret Drive, St. George, Utah 84790
For additional technical support go to
www.wilsonelectronics.com
Phone: 1-866-294-1660 Fax: 1-435-656-2432

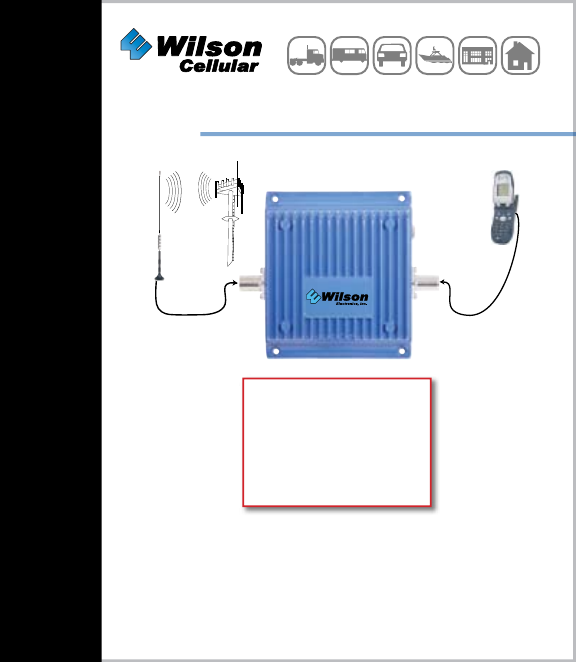

DIRECT CONNECTION
Mobile & In-Building
The term “IC:” before the radio certification number only signifies
that Industry of Canada technical specifications were met.
DIRECT CONNECTION
iDEN High Power
Smart TechnologyTM
Amplifier
Part# 814004
FCC ID: PWO8140SD
IC: 4726A-8140SD
Installation Guide
iDEN High Power
2
3
1. PURPOSE OF THE DIRECT CONNECTION AMPLIFIER
The Direct Connection Bi-directional Amplifier improves cell phone coverage in
areas with low signal strength.
2. PACKAGE CONTENTS
2.1 Bi-directional Direct Connection Amplifier.
2.2 DC plug-in power supply with ON/OFF switch.
2.3 6ft. adapter extension cable.
3. HOW THE DIRECT CONNECTION AMPLIFIER FUNCTIONS
When using the amplifier, the signal is received by the outside antenna from the cell
site. The signal is then AMPLIFIED and sent to the cell phone through the adapter (sold
separately). When the phone transmits, the signal is sent to the amplifier through the
adapter then AMPLIFIED and transmitted to the cell site through the outside antenna.

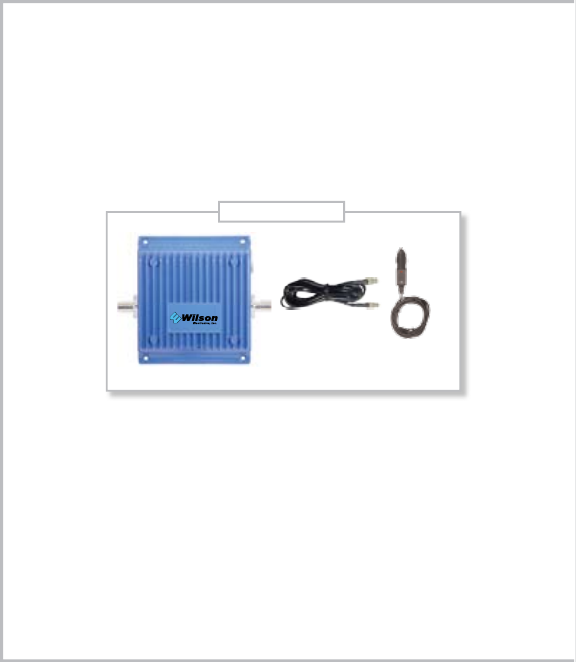

Package Contents
AMPLIFIER
12V DC
CIGARETTE
LIGHTER PLUG
6FT ADAPTER
EXTENSION CABLE
2
3
4. AMPLIFIER INSTALLATION (see illustration on pg.4)
4.1 Installing the
Wilson Cellular
Antenna
4.1.1 See antenna packaging for model specific instructions.
4.1.2..See Warnings (Section 7)
4.2 Installing The Amplifier
4.2.1 Select a suitable location to mount the AMPLIFIER. The amplifier can
be mounted to the selected location using screws. (Screws not included.)
Mount the AMPLIFIER away from direct sunlight, excessive heat and/
or moisture. The amplifier needs proper ventilation.
4.2.2 Connect the outside antenna to the AMPLIFIER side labeled “OUTSIDE
ANTENNA”.
4.2.3 Connect the ADAPTER EXTENSION CABLE to the AMPLIFIER side
labeled “CELLULAR PHONE”.
4.2.4 An external antenna adapter is required (sold separately) to connect the
AMPLIFIER to the cellphone. External antenna adapters connect di-
rectly to the antenna extension cable.
4.2.5 Connect the DC power supply to the AMPLIFIER. Verify that both the
OUTSIDE ANTENNA and the ADAPTER EXTENSION CABLE
are connected before powering up the AMPLIFIER.
NOTE: Visit our website at www.wilsonelectronics.com for the latest adapter
cross reference chart. If your phone’s adapter is not available from
your retailer contact us at 1-866-294-6996 and we will help you
locate one in your area. For further assistance contact our technical
support Toll-Free at 1-866-294-1660.
NOTE: iDEN Antennas are recommended for iDEN Amplifier 814004.
4
5
ell
te

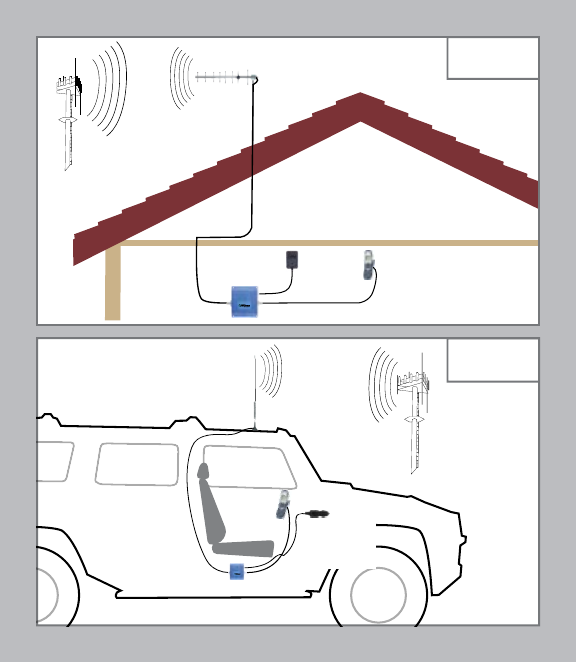

In-Building
Installation
Mobile
Installation
Cell
Site
Outside
Antenna
(Not Included)
Cellphone
Amplifier
12V DC
Power Adapter
Cigarette Lighter
Plug (Included)
Outside
Antenna
(Optional Yagi
Antenna Shown)
Cell
Site
Amplifier
Cellphone
Outside Antenna to
Amplifier Connection
AC/DC
Transformer
(Optional)
4
5
5. AMPLIFIER SPECIFICATIONS
Part Number #814004
Connectors FME-Male 50 Ohms
Dimensions 5.5x4.3x1.4 inch (14.0x10.8x3.5 cm)
Weight 1.32 Pounds (600 Grams)
Frequency 806-821 MHz Uplink
851-866 MHz Downlink
Gain Cell Site Controlled
Flatness up/down +/-2 dB / +/-3 dB
Max RF up/down +35 dBm / +15 dBm
Noise Figure down 3.5 dB nominal
Isolation Uplink/Downlink 90 dB
Power Requirements 13.8 V, 1.4 A During Uplink Transmission
50 mA During Downlink Reception
6
7
6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS
6.1 Coax Cable Extensions 50Ω (see chart on pg.7)
6.2 Antenna Options (see chart on last page)
6.3 N-Female To FME-Female Adapter - Adapts 9913 Coax to the Bi-directional Amplifier.
6.4 Lightning Surge Protector (In-Building application)
WARNING: Lightning protection is recommended for all In-Building installations.
6.5 Hardwire Power Supply Kit.

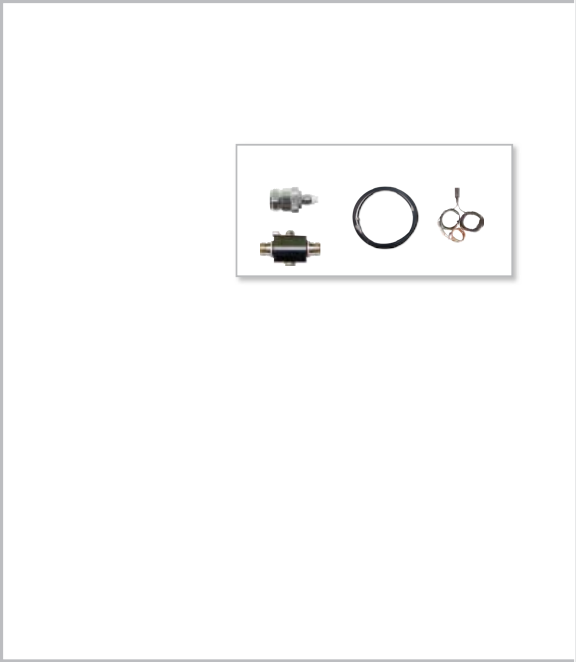

Optional Accessories
Lightning Surge Protector
Coax Cable Extension
Ultra Low Loss Coax
N-Female to
FME-Female
Hardwire
Power Supply Kit
7. WARNINGS
WARNING: Verify that both the outside antenna and adapter extension cable are connected before
powering up the AMPLIFIER.
RF SAFETY WARNING: (IN-VEHICLE ONLY) The outside antenna must be mounted with a sepa-
ration distance of at least 24 inches from any of the vehicle occupants or nearby persons. For roof mount-
ed antennas, separation distance from an occupant is the distance to the outside edge of the roof plus the
distance from the roof edge to the antenna. For antennas mounted without an intervening metal surface
(such as trunk mounted antennas), separation distance is the straight line distance between an occupant
and the antenna (measured in a straight line through the rear window for a trunk mounted antenna). The
outside antenna must not be located or operating in conjunction with any other antenna or amplifier. Use
of this amplifier in mobile applications with antenna gains higher than 5.8 dBi is in violation of FCC
regulations for which the offender is fully liable. All Wilson Mobile Antennas are 5.8 dBi or less.
WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-building installations.
RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside antenna must be
fixed-mounted on an outdoor permanent structure with a separation of at least 20 feet from all persons
during normal operation.
8. TECH SUPPORT
If you need further assistance with your installation:
1) Call us Toll-Free at 866-294-1660
2) E-mail tech support at tech@wilsonelectronics.com
3) Go to www.wilsonelectronics.com
Our Hours of Operation are: 8:00 AM – 4:30 PM (Mountain Time)
6
7
EXTENSION CABLE CHART (RG58U - FME connectors / 9913 - N connectors)
951101 5’ Extension Cable RG58U
Low Loss Coax (0.6 db loss)
951102 10’ Extension Cable RG58U
Low Loss Coax (1.2 db loss)
951103 15’ Extension Cable RG58U
Low Loss Coax (1.8 db loss)
951104 20’ Extension Cable RG58U
Low Loss Coax (2.4 db loss) N-Male to FME Female
951108 20’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
Only use 9913 Equivalent Low Loss Coax for
extensions 20’ or longer (0.8 db loss)
951105 30’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax (1.2 db loss)
951106 50’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax (2.0 db loss)
951117 75’ Extension 9913 Equivalent
Low Loss Coax (3.0 db loss)
951107 100’ Extension 9913 Equivalent
Low Loss Coax (4.0 db loss)
951113 2’ Extension 9913 Equivalent Ultra Low Loss
Coax (N-Male to N-Male Ends)
(0.08 db loss) Jumper Coax - Can be used to connect a
splitter behind an amplier.
951110 2’ Extension RG58U Low
Loss Coax (N-Male to FME Female)
Used with the Yagi antenna to help nd the optimum
signal strength (for installation purposes only).
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However,
no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from
its use, or for any infringements of patents or other rights of third parties that may result from its use.
Copyright © 2005 Wilson Electronics, Inc.
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier
signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can
cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an
attenuator at the output of the device.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of this device.
Leaving the amplifier on in an unused vehicle for days may drain your battery. This can be avoided by plugging into an ignition
switched outlet or by using the small white switch located on the power supply.
The voltage and current into the final amplification stage are: TX: 13.8 V, 4 A Peak, 1.3 A Average
RX: 5 V, 50 mA
8
Trucker
Mirror Mount
Dual-Band
Yagi
Single-Band
(For Building Intallations Only)
Glass
Mount
Dual-Band
Mini Magnet
Dual-Band
Mini Glass
Dual-Band
Magnet
Mount
Dual-Band
NMO
Mount
Dual-Band
For more options visit
www.wilsonelectronics.com

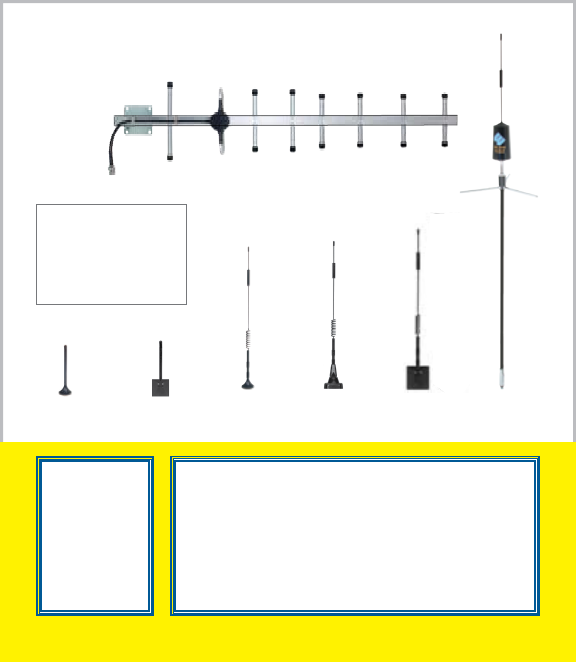

Outside Antenna Options
Pictures Are Not To Scale
Not All Outside Antenna
Options Are Shown
Questions?
1-866-294-1660
www.wilsonelectronics.com
15 DAY
MONEY BACK
GUARANTEE
All Wilson products
have a 15 day
money back
guarantee with
Proof of Purchase
1 YEAR WARRANTY
The Wilson amplifier is warranted for one year against defects in workmanship
and/or materials and will be repaired or replaced, at the discretion of the manufac-
turer, to the original purchaser with dated proof of purchase or sales receipt.
If you have questions about your amplifier please call technical support
call 1-866-294-1660 or E-mail tech@wilsonelectronics.com
Most warranty cases can be handled by taking the amplifier and the re-
ceipt to the store where it was purchased. If inconvenient, the amplifier and a
copy of the receipt, may be sent to the factory, at purchasers expense, where
it may be repaired or replaced and returned shipping paid. Warranty does not
cover damages caused by abuse, misuse, and negligence.
