Users Manual 1
Installation Guide
Wilson Electronics, Inc.
3301 E. Deseret Drive, St. George, Utah 84790
For additional technical support go to
www.wilsonelectronics.com
Phone: 1-866-294-1660 Fax: 1-435-656-2432
DIRECT CONNECTION
Vehicle & Building
The term “IC:” before the radio certification number only signifies
that Industry of Canada technical specifications were met.
AMPS
DIRECT
CONNECTION
AMPLIFIER
Part# 811101
FCC ID: PWO824D
IC: 4726A-824D
iDEN
DIRECT
CONNECTION
AMPLIFIER
Part# 814001
FCC ID: PWO806D
IC: 4726A-806D
DUAL BAND
DIRECT
CONNECTION
AMPLIFIER
Part# 811201
FCC ID: PWO819D
IC: 4726A-819D
2
3
1. PURPOSE OF THE DIRECT CONNECTION AMPLIFIER
The Direct Connection Bi-directional Amplifier improves RF coverage in areas
with no signal or low signal strength. Part# 811101 Amplifies the signal on
800MHz up to 3 watts and allows for the full benefit of the outside antenna on
1900MHz frequencies. Part# 814001 Amplifies the iDEN (Nextel) frequencies
up to 3 watts.
2. PACKAGE CONTENTS
2.1 Bi-directional Direct Connection Amplifier.
2.2 DC plug-in power supply with ON/OFF switch.
2.3 6ft. Adapter Extension Cable.
3. HOW THE DIRECT CONNECTION AMPLIFIER FUNCTIONS
When using 800 MHz the signal is received by the outside antenna from the cell site.
The signal is then AMPLIFIED and sent into your phone through the adapter (sold
separately). When the phone transmits, the signal is sent to the amplifier through the
adapter then AMPLIFIED and transmitted to the cell site through the outside antenna.
When using 1900MHz (PCS) the signal bypasses the amplifier’s circuitry while getting
full benefit from the outside antenna.
NOTE: Amplifier #814001 does not have a 1900MHz (PCS) bypass as iDEN
(Nextel) does not utilize this frequency.

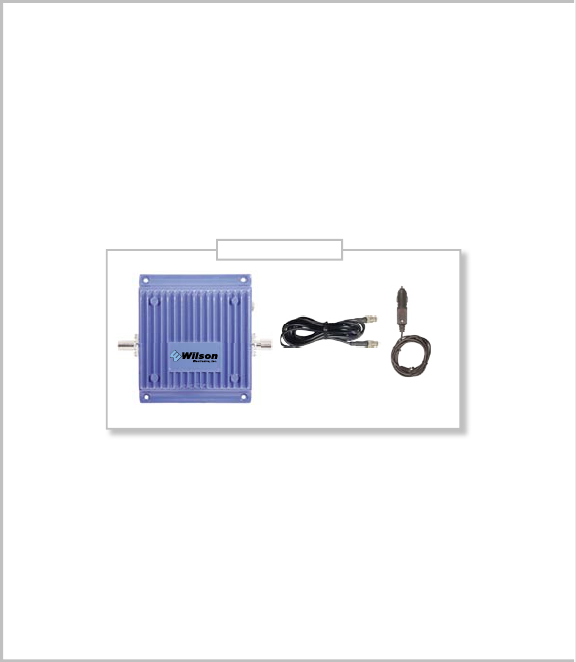

Package Contents
AMPLIFIER
DC PLUG-IN
POWER SUPPLY
6FT ADAPTER
EXTENSION CABLE
2
3
4. AMPLIFIER INSTALLATION (see illustration on pg.4)
4.1 Installing the
Wilson Cellular
Antenna
4.1.1 See antenna packaging for model specific instructions.
WARNING: Verify that both the outside antenna and adapter extension cable are con-
nected before powering up the AMPLIFIER.
RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be mounted
with a separation distance of at least 15.5 inches from any of the vehicle
occupants or nearby persons and must not be co-located or operating
in conjunction with any other antenna or amplifier. Use of a cellular
amplifier with antenna gains higher than 5.12dBi is in violation of FCC
regulations for which the offender is fully liable. All Wilson Mobile
Antennas are 5.12dBi or less.
WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all in-build-
ing installations.
RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the outside
antenna must be fixed-mounted on an outdoor permanent structure with a
separation of at least 20 feet from all persons during normal operation.
4.2 Installing The Amplifier
4.2.1 Select a suitable location to mount the AMPLIFIER.
• In vehicle installation - under the dash or vehicle seat
• In building installation - on a wall or ceiling
NOTE: Mount the AMPLIFIER away from direct sunlight, excessive heat and/or mois-
ture. The amplifier needs proper ventilation. DO NOT place the amplifier in
an air-tight enclosure. Use #6 screws to mount the amplifier.
4.2.2 Connect the outside antenna to the AMPLIFIER side labeled “OUTSIDE
ANTENNA”.
4.2.3 Connect the ADAPTER EXTENSION CABLE to the AMPLIFIER side
labeled “CELLULAR PHONE”.
4.2.4 An external antenna adapter is required (sold separately) to connect the
AMPLIFIER to the cellphone. External antenna adapters connect directly to
the antenna extension cable.
4.2.5 Connect the DC power supply to the AMPLIFIER. Verify that both the
OUTSIDE ANTENNA and the ADAPTER EXTENSION CABLE are
connected before powering up the AMPLIFIER.
NOTE: Visit our website at www.wilsonelectronics.com for the latest adapter cross
4
5
In-Building
Installation
Mobile
Installation
4
5
reference chart. If your phone’s adapter is not available from your
retailer contact us at 1-866-294-6996 and we will help you locate one
in your area. For further assistance contact our technical support Toll-
Free at 1-866-294-1660.
NOTE: iDEN Antennas are recommended for iDEN Amplifier 814001.
Dual Band #811201
PCS 1900 Specications
Dual Band #811201
AMPS Specifications
Frequency 1850-1910MHz Uplink
1930-1990MHz Downlink
824-849MHz Uplink
869-894MHz Downlink
Gain (up/down) Cell Site Controlled-Max
11db/11db
Cell Site Controlled-Max
10db/10db
Flatness (up/down) (+/-2dB / +/-2dB) (+/-2dB / +/-3dB)
Max RF (up/down) (+33dBm / +15dBm) (+35dBm / +15dBm)
Noise Figure (down) (3.5dB nominal) (3.5dB nominal)
Isolation Uplink/Downlink 90dB Uplink/Downlink 90dB
Power Consumption 1.5A@12V 1.5A@12V
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However,
no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from
its use, or for any infringements of patents or other rights of third parties that may result from its use.
Copyright © 2004 Wilson Electronics, Inc.
5. AMPLIFIER SPECIFICATIONS
Connectors FME-Male 50 Ohms
Dimensions 5.5x4.3x1.4 (inch) or 14.0x10.8x3.5 (cm)
Weight 1.32 Pounds or 600G
iDEN #814001 AMPS #811101
Frequency 806-821MHz Uplink
851-866MHz Downlink
824-849MHz Uplink
869-894MHz Downlink
Gain (up/down) Cell Site Controlled-Max
10/10db
Cell Site Controlled-Max
10/10db
Flatness (up/down) (+/-2dB / +/-3dB) (+/-2dB / +/-3dB)
Max RF (up/down) (+35dBm / +15dBm) (+35dBm / +15dBm)
Noise Figure (down) (3.5dB nominal) (3.5dB nominal)
Isolation Uplink/Downlink 90dB Uplink/Downlink 90dB
Power Consumption 1.5A@12V 1.5A@12V
6
7
6. OPTIONAL ACCESSORIES/ANTENNA OPTIONS
6.1 Coax Cable Extensions 50Ω (see chart on pg.7)
6.2 Antenna Options (see chart on last page)
6.3 N-Female To FME-Female Adapter - Adapts 9913 Coax to the
814001 Bi-directional Amplifier.
6.4 Lightning Suppressor (In-Building application)
WARNING: Lightning protection is recommended for all In-Building
installations.
6.5 Hardwire Power Supply Kit.
7. WARNINGS
WARNING: Verify that both the outside antenna and adapter extension cable are
connected before powering up the AMPLIFIER.
RF SAFETY WARNING: (MOBILE ONLY) The outside antenna must be
mounted with a separation distance of at least 15.5 inches from any of the vehicle
occupants or nearby persons and must not be co-located or operating in conjunc-
tion with any other antenna or amplifier. Use of a cellular amplifier with antenna
gains higher than 5.12dBi is in violation of FCC regulations for which the of-
fender is fully liable. All Wilson Mobile Antennas are 5.12dBi or less.
WARNING: (IN-BUILDING ONLY) Lightning protection is recommended for all
in-building installations.
RF SAFETY WARNING: (IN-BUILDING ONLY) When using in-building, the
outside antenna must be fixed-mounted on an outdoor permanent structure with a
separation of at least 20 feet from all persons during normal operation.

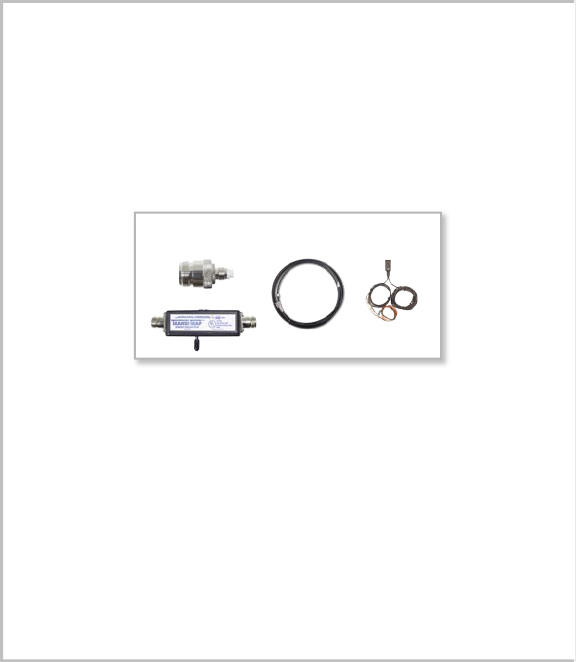

Optional Accessories
6
7
8. TECH SUPPORT
If you need further assistance with your installation:
1) Call us Toll-Free at 866-294-1660
2) E-mail tech support at tech@wilsonelectronics.com
3) Go to www.wilsonelectronics.com
Our Hours of Operation are: 8:00 AM – 4:30 PM (Mountain Time)
951101 5’ Extension Cable RG 58 Low Loss Coax (0.6 db loss)
951102 10’ Extension Cable RG 58 Low Loss Coax (1.2 db loss)
951103 15’ Extension Cable RG 58 Low Loss Coax (1.8 db loss)
951104 20’ Extension Cable RG 58
Low Loss Coax
(2.4 db loss) Used with the Yagi
Antenna - (N-Male to FME Female)
951108 20’ Extension Cable 9913
Ultra Low Loss Coax
Only use 9913 Low Loss Coax for
extensions 20’ or longer (0.8 db loss)
951105 30’ Extension Cable 9913
Ultra Low Loss Coax
(1.2 db loss)
951106 50’ Extension Cable 9913
Ultra Low Loss Coax
(2.0 db loss)
951107 100’ Extension 9913 Low Loss Coax (4.0 db loss)
EXTENSION CABLE CHART (RG 58 - FME connectors / 9913 - N connectors)
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations
when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially
where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of
the device.
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of this device.
Leaving the amplifier on in an unused vehicle for days may drain your battery. This can be avoided by
plugging into an ignition switched outlet or by using the small white switch located on the power supply.
8
For more options visit
www.wilsonelectronics.com

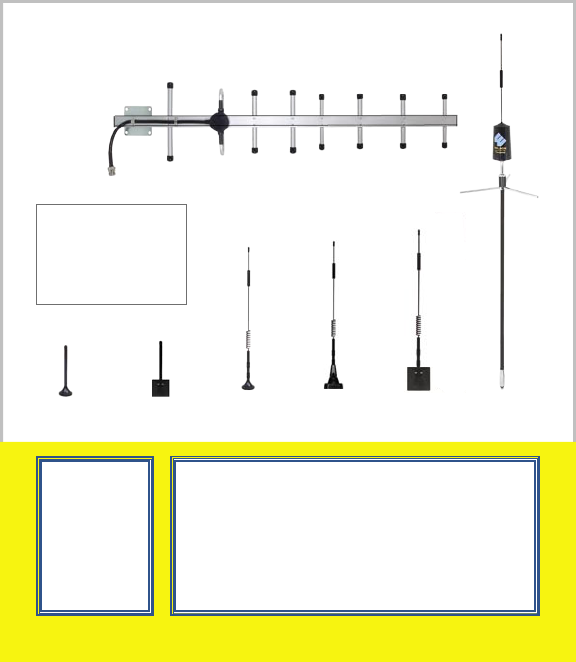

Outside Antenna Options
Pictures Are Not To Scale
Not All Outside Antenna
Options Are Shown
Questions?
1-866-294-1660
www.wilsonelectronics.com
15 DAY
MONEY BACK
GUARANTEE
All Wilson products
have a 15 day
money back
guarantee with
Proof of Purchase
1 YEAR WARRANTY
The Wilson amplifier is warranted for one year against defects in workmanship
and/or materials and will be repaired or replaced, at the discretion of the manufac-
turer, to the original purchaser with dated proof of purchase or sales receipt.
If you have questions about your amplifier please call technical support
call 1-866-294-1660 or E-mail tech@wilsonelectronics.com
Most warranty cases can be handled by taking the amplifier and the re-
ceipt to the store where it was purchased. If inconvenient, the amplifier and a
copy of the receipt, may be sent to the factory, at purchasers expense, where
it may be repaired or replaced and returned shipping paid. Warranty does not
cover damages caused by abuse, misuse, and negligence.
