Win Accord 5DINCHAML7213 Digital Photo Frame User Manual
WIN ACCORD LTD., Digital Photo Frame
User Manual
User's Manual
Table of Contents
f Contents
Table ……………………………………………….……..………………… 2
o
Important Safety ……………………………………..…...…....……..3
…
Precautions
Sc ree n.
th e L CD
Cl ean ing .. ... ... . ... ... ... ... . ... ... ... ... . ... ... ... ... . ... ... ... ... . ... ... 3
the
Cle an in g Digi ta l p ictu re F ra me .... .... .... ... . ... . ... .... .... .... ... . ... . ... .... .... .... 3
What's in the Box… …………………………………………………………………....…4
I d e n t i f y i n g t h e P a r t s … … … … … … … … … … … … … … … . … … … … . … … … … 4
R e p l a c i n g R e m o t e C o n t r o l B a t t e r y … … … … … … … … … … … . . … … … … … . 5
Product Specification …………………………… … ………………………….. . ………5
F e a t u r e s . … … … … … … … … … … … … … … … … … … … … … … … … … … . . … … … . . 5
S p e c i f i c a t i o n … … … … … … … … … … … … … … … … … … … … . … … … … … … . 6
How to Use Your Digital Picture Frame…………………………………..………….6
T u r n i n g O n a n d O f f … … … … … … … … … … … … … … … … … … … … … … … … 6
C o n n e c t i n g t o P C … … … … … … … … … … … … … … … … … … … … … … … … . . 6
F e a t u r e S e l e c t i o n S c r e e n … … … … … … … … … … … … … … … … … … … … … 7
P h o t o … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . 7
S l id e s h o w Mode …………………………………………………………...7
T h u m b n a il Mode …………………………………………………………...7
S i n g l e V iew Mode ………………………………………………………….7
V i d e o … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . . 8
M u si c …… …………… ………… … ………… ………… … ………… ………… … ..9
V i v id S hare … ………………………………………………………………………….9
Ca le ndar …………………………………………………………………………...10
M o n t h ly Calendar ………………………………………………………….10
C a l e n d ar …………………………………………………………………….10
C lo c k … ………………………………………………………………………11
F i l e M a n a g e r … … … … … … … … … … … … … … … … … … … … … … … … … … . . . . 11
S e t u p ………………………………………………………………………………..12
S y s t e m S e t u p … … … … … … … … … … … … … … … … … … … … … … … . . . 1 2
P h o to Setup ……………………………………………………………......12
C a l e n d ar Setup .…………………………………………………………....12
V id e o Setup …………………………………………………………………12
M u s ic Setup …………………………………………………………………12
V i v id S h are ……………………………………………………………………12
Frequently Asked Questions ………………………………………………………..13
...
...
......
......
....
......
..
......
....
..
..............
..............
..............
......
..............
..............
..
..
..
..
..
..
..
....
..
..
..
..
..
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
..
....
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
.
..
..
..
..
..
..
..
..
..
..
..
..
...
..
..
..
..
..
..
..
.
..
..
..
..
..
..
..
....
..
Always follow these basic safety precautions when using your Digital Picture
Frame. This will reduce the risk of fire, electric shock, and injury.
Warning: To reduce the risk of fire or shock hazard, do not expose this product to
rain or moisture.
Warning: To prevent the risk of electric shock, do not remove the cover. There are no
user-serviceable parts inside. Refer all servicing to qualified personnel.
The Digital Picture Frame is for indoor use only.
Unplug the Digital Picture Frame before performing care and maintenance.
Do not block the ventilation holes on the back of the Digital Picture Frame at
any time.
Keep your Digital Picture Frame out of direct sunlight and heat sources.
Protect the power cord. Route power cords so that they are not likely to be
walked on or pinched by items places on or against them. Pay particular
attention to the point where the cord attaches to the Digital Picture Frame.
Only use the AC adapter included with the Digital Picture Frame. Using any
other power adapter will void your warranty.
Unplug the power cord from the outlet when the unit is not in use.
Cleaning the LCD Screen
Treat the screen gently.
To clean fingerprints or dust from the LCD screen, it is recommended to use a soft,
non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to
the LCD screen. Clean the LCD screen with cleaning cloth moistened with the liquid.
Cleaning the Digital Picture Frame
Clean the outer surface of the Digital Picture Frame (excluding the screen) with
a soft cloth dampened with water.
Important Safety Precautions
Digital Picture Frame
Power Adapter
Remote Control
USB cable
User's Manual
Speaker Function Buttons
Function
Buttons
4-in-1 card reader
USB host
Zoom In
EXIT
ROTATE
Copy / Delete
SLIDE SHOW
STOP
SETUP
SLEEP
Volume Control
Direction Buttons
ENTER
What's in the Box

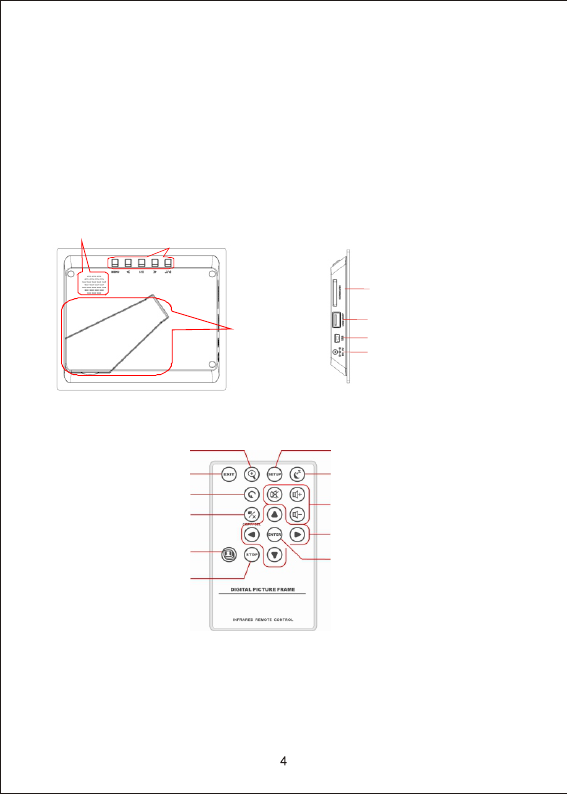

Identifying the Parts
Mini USB
DC in jack
If the remote control stops working or works improperly, replace the battery
(CR2025 lithium battery) with a new one.
1. Pull out the battery holder.
2. Remove the old battery from the holder and then put a new battery
with “+” facing up.
3. Insert the battery holder back to the remote control.
Warning
Battery may explode if mistreated. Do not recharge,
disassemble or dispose of in fire
When the lithium battery becomes weak, the operating distance of the Remote
Control may shorten, or the Remote Control may not function properly. In this
case, replace the battery with a CR2025 lithium battery. Use of another battery
may present a risk of fire or explosion.
Dispose the used batteries as specified by the local authorities.
Do not leave the Remote Control in a very hot and humid place.
Incorrect use of the battery may cause leaking and corrosion.
- When the Remote control will not be used for a long period of time,
remove the battery from the remote control to prevent leaking and
corrosion.
- Incorrectly inserting, shorting, dismantling, or heating the battery, or
throwing it into a fire may cause the battery to rupture and leak.
Replacing Remote Control Battery
Product Specification
Supports JPEG and BMP image formats
Image rotation, zoom in, background music, and auto-slideshow with effects
Displays clock, calendar, and monthly calendar
Auto-rotating
Plays personalized stories with VividShare function
Supports USB update
Features
Notes
Specification
Turning On and Off
To turn the Digital Picture Frame on, just simply plug the AC adapter to a wall
outlet and the Digital Picture Frame then switch the POWER switch to ON
position or press the POWER button, and the system will shows the Feature
Selection Screen
To turn off the Digital Picture Frame, just switch the POWER switch to OFF
position or press and hold the POWER button until the screen is blackened. *
* The power switch or the power button may vary from different models.
How to Use Your Digital Picture Frame
Connecting to PC
At any time connecting the Digital Picture Frame to the PC, it will enter USB mode.
The screen will show the message “connecting to PC”. In USB mode, the Digital
Picture Frame functions as a USB flash drive. To exit USB mode, simply unplug the
USB cable or press ESC key.
Note: If the Digital Picture Frame includes VividShare feature, the VividShare PC
Tool will pop on the PC screen when the Digital Picture Frame and the PC
are connected. Please see VividShare section on page 9 for detail.
Product
Resolution
Memory Card
Formats
Image Formats
Audio Formats
Video Formats
USB Ports
Power Input
Power Output
Internal
Speakers
Certification
5” Digital Photo Frame
640x480 Pixel
Secure Digital™, Multi-Media Card™, Memory
Stick™,Memory Stick Pro™, Memory Stick Duo™,
Memory Stick Pro Duo™, and USB flash drives
JPEG, BMP
MP3, WAV, WMA, OGG
MPEG-4, AVI, 3GP, MOV
USB 2.0 (Host) x 1, mini-USB x 1
AC 100V~240V, 50~60Hz
DV 5V / 2A
CE / FCC / RoHS
1Wx1

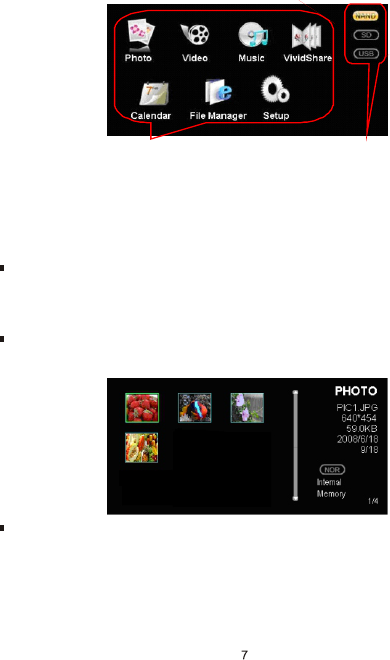

Feature Selection Screen
The Digital Picture Frame will enter the Feature Selection Screen when
powered on. (The screen may vary from different models)
If there is not any operation for 8 seconds in the Feature Selection Screen, the Digital
Picture Frame will start the slideshow automatically.
Slideshow Mode: the images are displayed one by one. Pressing the SLIDESHOW
button will start the slideshow. You can setup the display duration, effects, and
image display ratio in the Setup menu by pressing SETUP button on the remote
control.
Thumbnail Mode: the screen is split to 2 portions; the left portion shows the
thumbnails and the right portion displays the image information (image name,
resolution, file size, image created date…etc)
Single View Mode: select the desired image in Thumbnail mode and press enter to
display the image in full screen. The image will be displayed constantly. Press
LEFT/RIGHT button on the remote control to view last/next image, or press
ESC/Exit to return to Thumbnail Mode.
Feature Options Storage type: built-in memory, memory
cards, or USB massive storage device
Video

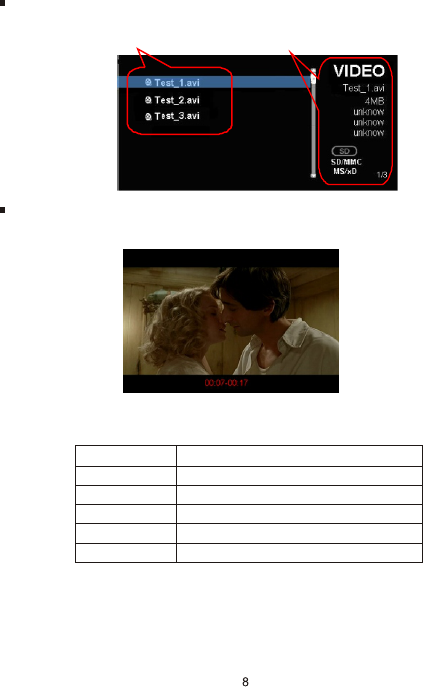

Select Video in Feature Selection Screen will show the video file list.
File List File Information
Press ENTER to play the video file.
While playing the video, the playing time and the video length are shown at the bottom.
Button
EXIT
LEFT
RIGHT
ENTER
STOP
Function
Exit to file list
Backward
Fast forward
Pause / Play
Stop the video
Music
Select Music in Feature Selection Screen and the screen will show the music
file list.
Use UP and DOWN buttons to select the file.
Press ENTER to play the music.
VividShare
VividShare is an advanced slideshow tool which can provide high-quality-effect
slideshow. No software is needed to install on the PC. You can make your VividShare
stories anywhere by simply connecting to a PC. When connecting to a PC, the
VividShare PC tool pops up on the PC screen, as shown below.
With VividShare PC tool, you can add effects, background music, and decorations to
a series of images. When you finish editing, the VVD file will be saved in the Digital
Picture Frame.
In Feature Selection Screen, select VividShare and file selection screen shows as
below. Use LEFT and RIGHT buttons to select the desired VividShare story.
The selected VividShare story will be in the middle. Press ENTER to start.
Calendar

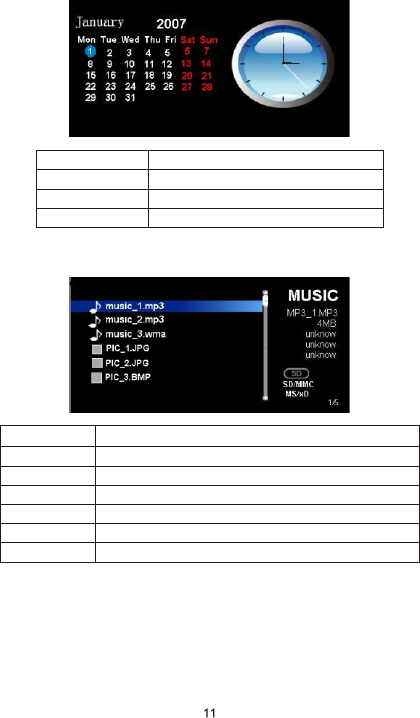

There are 3 display modes: Monthly Calendar, Calendar, and Clock.

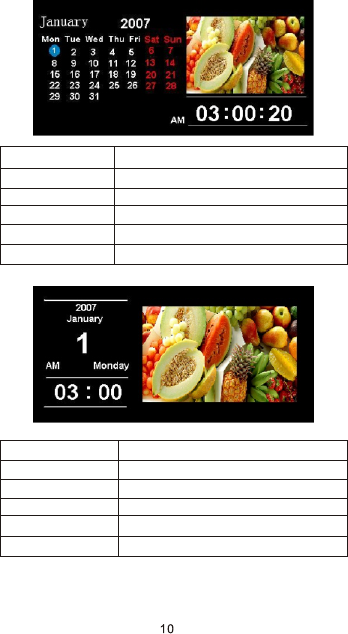

A. Monthly Calendar
B. Calendar
Button
EXIT
LEFT
RIGHT
UP
DOWN
Function
Exit to Feature Selection Screen
Last image
Next image
Last month
Next month
Button
EXIT
LEFT
RIGHT
UP
DOWN
Function
Exit to Feature Selection Screen
Last image
Next image
Last month
Next month
C. Clock
File Manager
In Feature Selection Screen, select File Manager then press ENTER; the file list
shows.
*1 Only files in the internal memory can be deleted.
*2 When a folder is deleted, the files in the folder will also be deleted.
*3 Only files from the memory cards can be copied to the internally memory; files
can't be copied from the internal memory to the memory cards.
Button
EXIT
UP
DOWN
Function
Exit to Feature Selection Screen
Last month
Next month
Button
EXIT
UP
DOWN
LEFT
RIGHT
ENTER
Function
Back to upper folder / Exit to Feature Selection Screen
Select the upward file
Select the downward file
*1 *2
Delete file
*3
Copy file to the internal memory
Confirm
Setup
In Setup, you can setup the system, photo, calendar, video, music, and
VividShare.
In the sub-setup menus, you can use below keys to change the settings.
A. System Setup
Here you can adjust Backlight, Brightness, Gamma, Language, Auto-Power
On/Off, Auto-Power Frequency, and Reset.
B. Photo Setup
Here you can change the photo Display Mode, Display Ratio, Slideshow Duration,
Slideshow Effect, Slideshow Repeat, and Clock Display.
C. Calendar Setup
Here you can change the calendar Display Mode and adjust Date, Time, and Clock
Mode.
D. Video Setup
Display Ratio and Play Mode can be modified here.
E. Music Setup
Music Effect and Play Mode can be modified here.
F. VividShare
You can set VividShare Play Mode here.
Function
Back to upper folder / Exit to Feature Selection Screen
Select the upward setting
Select the downward setting
Change setting value
Button
EXIT
UP
RIGHT
LEFT/RIGHT
Q: How do I set up my Digital Picture Frame?
A: It is very simple to get you Digital Picture Frame out of the box and running in just
a few minutes. Just plug the power adapter into the Digital Picture Frame and into
a standard wall socket. Insert a memory card into the appropriate card slot on the
side of the Digital Picture Frame and turn it on. Your first slideshow will
automatically start to play.
Q: What memory cards can the Digital Picture Frame read?
A: Compatible memory cards include Secure Digital™, Multi-Media Card™, Memory
Stick™, Memory Stick Pro™, Memory Stick Duo™, and Memory Stick Pro Duo™.
Q: I set up the Digital Picture Frame; why does it not turn on?
A: The adapter may be not securely connected to the Digital Picture Frame or wall
socket, or the Power Switch may not be on. Please check if the adapter is properly
plugged to the Digital Picture Frame and the wall socket.
Q: I have a memory card in the Digital Picture Frame; why can't I view my photos?
A: First, check whether the memory card is one of listed above and the images are
one of the formats listed in the Specification on page 6. Second, turn the Digital
Picture Frame off and make sure that the memory is inserted all the way into the
card slot and is facing the correct direction. Third, turn the Digital Picture Frame
on; you should see the Feature Selection Screen. Press EXIT and the yellow
NAND icon on the right side enlarges. Press DOWN button and the SD icon
enlarges and become yellow. Press ENTER to choose Photo, the slideshow starts
(factory default).
Note: Some digital cameras save images in other formats. Please refer to your
camera's manual if your photo format is not listed in the Specification.
Q: Why is the picture display slower with some pictures and faster with others?
A: Higher resolution pictures will be loaded slowly. Try to use lower resolution
pictures or down sampling your images. See your camera's operating manual for
details on downsizing your photos.
Q: Does the Digital Picture Frame support all JPEG files?
A: No. The Digital Picture Frame supports the JPEG files taken by a digital camera.
It may not read all images files downloaded from the Internet or from other graphic
applications.
Frequently Asked Questions
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
