Win Accord LIBAR104AUO 10.4 Digital Photo Frame User Manual

WIN ACCORD LTD., 10.4 Digital Photo Frame

User Manual

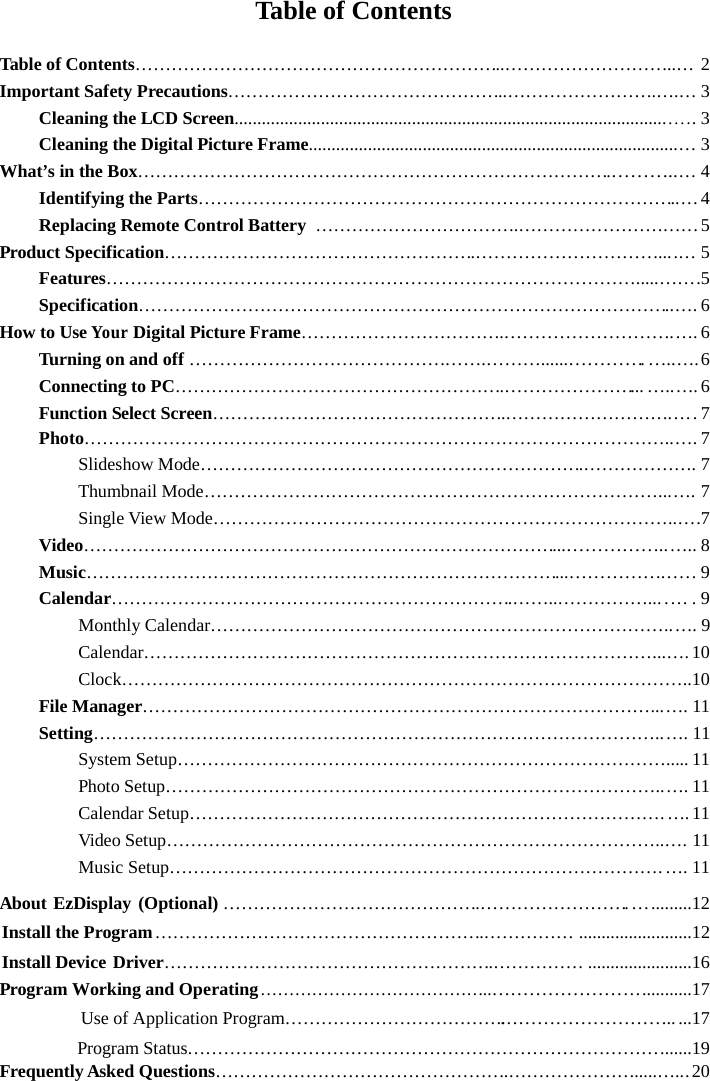

Table of ContentsTable of Contents……………………………………………………..………………………..… 2Important Safety Precautions………………………………………..…………………….….… 3Cleaning the LCD Screen................................................................................................ 3Cleaning the Digital Picture Frame.................................................................................… 3What’s in the Box…………………………………………………………………….………..… 4Identifying the Parts……………………………………………………………………..…4Replacing Remote Control Battery …………………………….…………………………5Product Specification…………………………………………….…………………………....… 5Features…………………………………………………………………………….....…….5Specification……………………………………………………………………………..…. 6How to UseYourDigital Picture Frame…………………………….……………………….…. 6Turning on and off………………………………………….………......………….…..….6Connecting to PC……………………………………………….…………………...…..…. 6Function Select Screen………………………………………….……………………….Photo……………………………………………………………………………………..…. 7Slideshow Mode……………………………………………………….………………. 7Thumbnail Mode…………………………………………………………………...…. 7Single View Mode…………………………………………………………………..….7Video……………………………………………………………………...……………..….. 8Music……………………………………………………………………...……………. …. 9Calendar………………………………………………………….……..……………... … . 9Monthly Calendar…………………………………………………………………..…. 9Calendar…………………………………………………………………………...….10Clock…………………………………………………………………………………..10File Manager…………………………………………………………………………...…. 11Setting…………………………………………………………………………………..…. 11System Setup………………………………………………………………………..... 11Photo Setup………………………………………………………………………..…. 11Calendar Setup…………………………………………………………………….….11Video Setup………………………………………………………………………..…. 11Music Setup……………………………………………………………………….….11About EzDisplay (Optional) …………………………………….…………………….….........12Install the Program……………………………………………….…………… .........................12Install Device Driver……………………………………………….…………… .......................16Program Working and Operating…………………………………..……………………...........17Use of Application Program……………………………….……………………….....17Program Status…………………………………………………………………….......19Frequently Asked Questions………………………………………….………………….....….. 20…. 7...

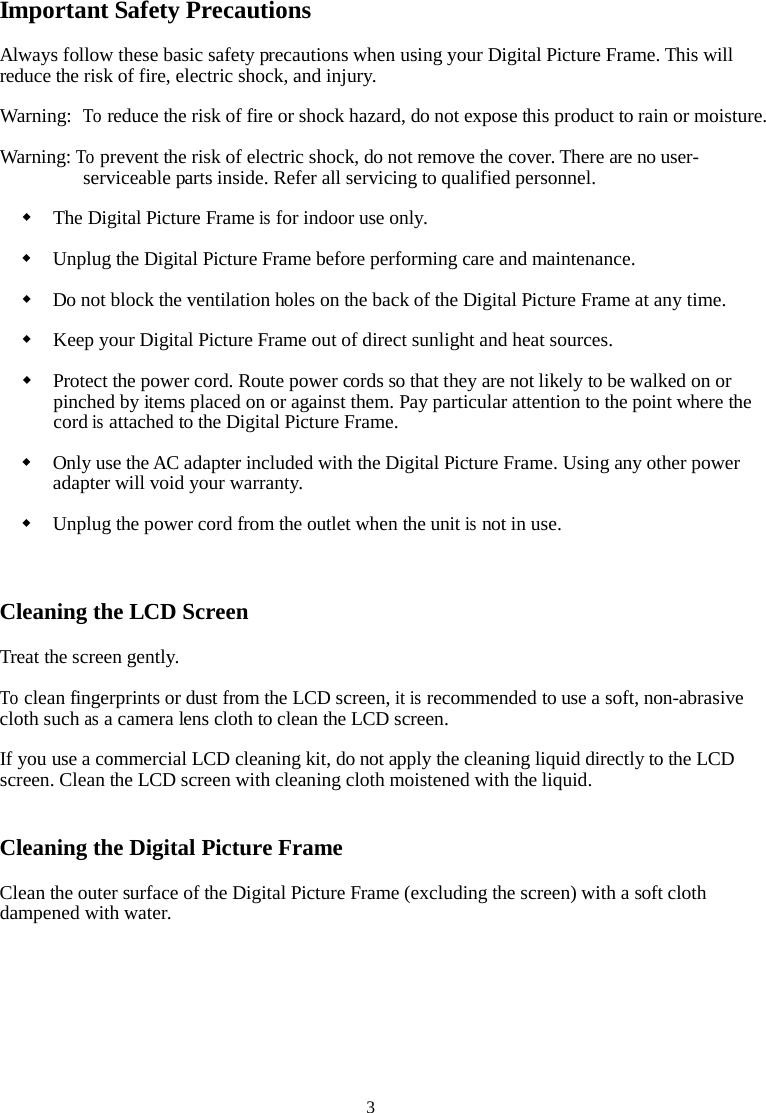

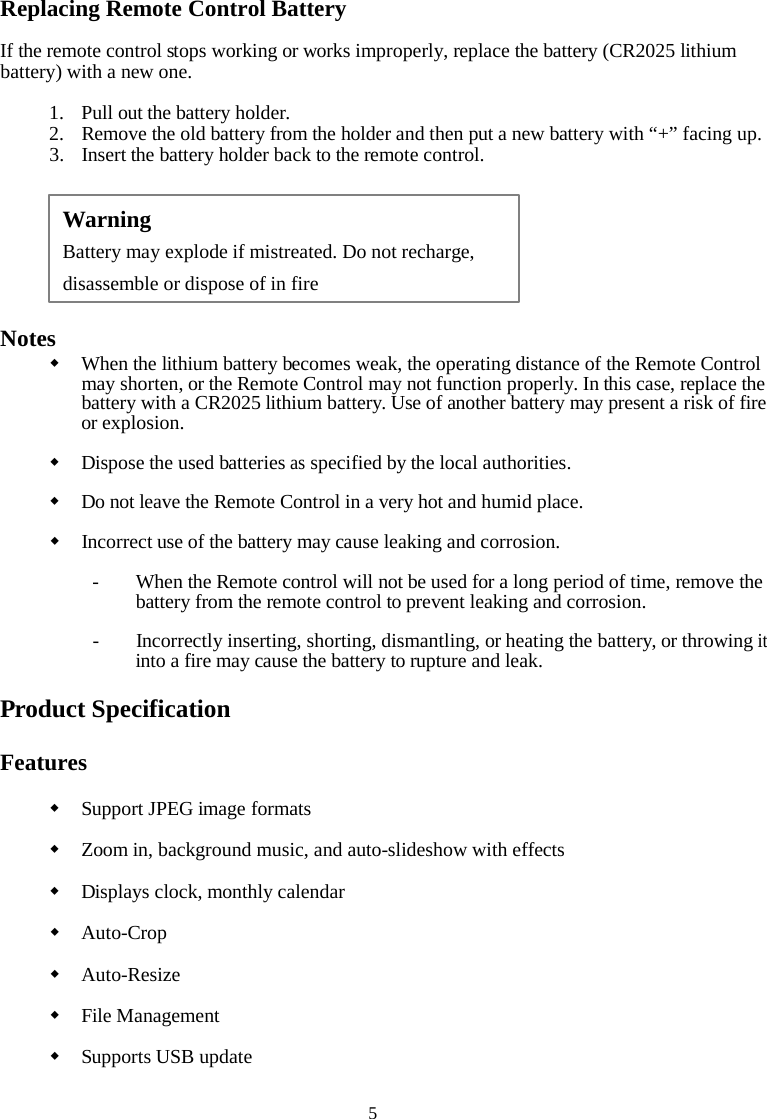

3Important Safety PrecautionsAlways follow these basic safety precautions when using your Digital Picture Frame. This willreduce the risk of fire, electric shock, and injury.Warning:Toreduce the risk of fire or shock hazard, do not expose this product to rain or moisture.Warning:Toprevent the risk of electric shock, do not remove the cover. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.The Digital Picture Frameisfor indoor use only.Unplug the Digital Picture Frame before performing care and maintenance.Do not block the ventilation holes on the back of the Digital Picture Frame at any time.Keep your Digital Picture Frame out of direct sunlight and heat sources.Protect the power cord. Route power cords so that they are not likely to be walked on orpinched by items placed on or against them. Pay particular attention to the point where thecordisattached to the Digital Picture Frame.Only use the AC adapter included with the Digital Picture Frame. Using any other poweradapter will void your warranty.Unplug the power cord from the outlet when the unitisnot in use.Cleaning the LCD ScreenTreat the screen gently.Toclean fingerprints or dust from the LCD screen,itisrecommended to use a soft, non-abrasivecloth suchasa camera lens cloth to clean the LCD screen.If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCDscreen. Clean the LCD screen with cleaning cloth moistened with the liquid.Cleaning the Digital Picture FrameClean the outer surface of the Digital Picture Frame (excluding the screen) with a soft clothdampened with water.

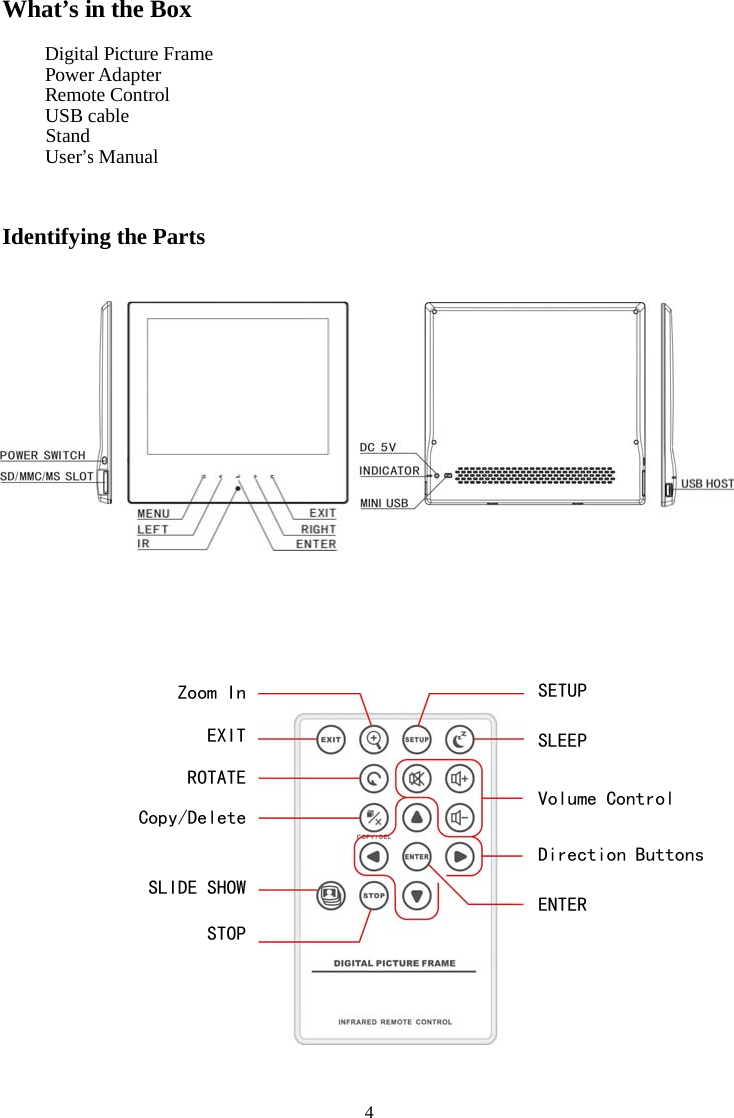

4What’s in the BoxDigital Picture FramePower AdapterRemote ControlUSB cableStandUser’sManualIdentifying the PartsSETUPSLEEPVolume ControlDirection ButtonsENTERZoom InEXITROTATECopy/DeleteSLIDE SHOWSTOP
5Replacing Remote Control BatteryIf the remote control stops working or works improperly, replace the battery (CR2025 lithiumbattery) with a new one.1. Pull out the battery holder.2. Remove the old battery from the holder and then put a new battery with “+” facing up.3. Insert the battery holder back to the remote control.NotesWhen the lithium battery becomes weak, the operating distance of the Remote Controlmay shorten, or the Remote Control may not function properly. In this case, replace thebattery with a CR2025 lithium battery. Use of another battery may present a risk of fireor explosion.Dispose the used batteriesasspecified by the local authorities.Do not leave the Remote Control in a very hot and humid place.Incorrect use of the battery may cause leaking and corrosion.- When the Remote control will not be used for a long period of time, remove thebattery from the remote control to prevent leaking and corrosion.- Incorrectly inserting, shorting, dismantling, or heating the battery, or throwingitinto a fire may cause the battery to rupture and leak.Product SpecificationFeaturesSupport JPEG image formatsZoom in, background music, and auto-slideshow with effectsDisplays clock, monthly calendarAuto-CropAuto-ResizeFile ManagementSupports USB updateWarningBattery may explode if mistreated. Do not recharge,disassemble or dispose of in fire

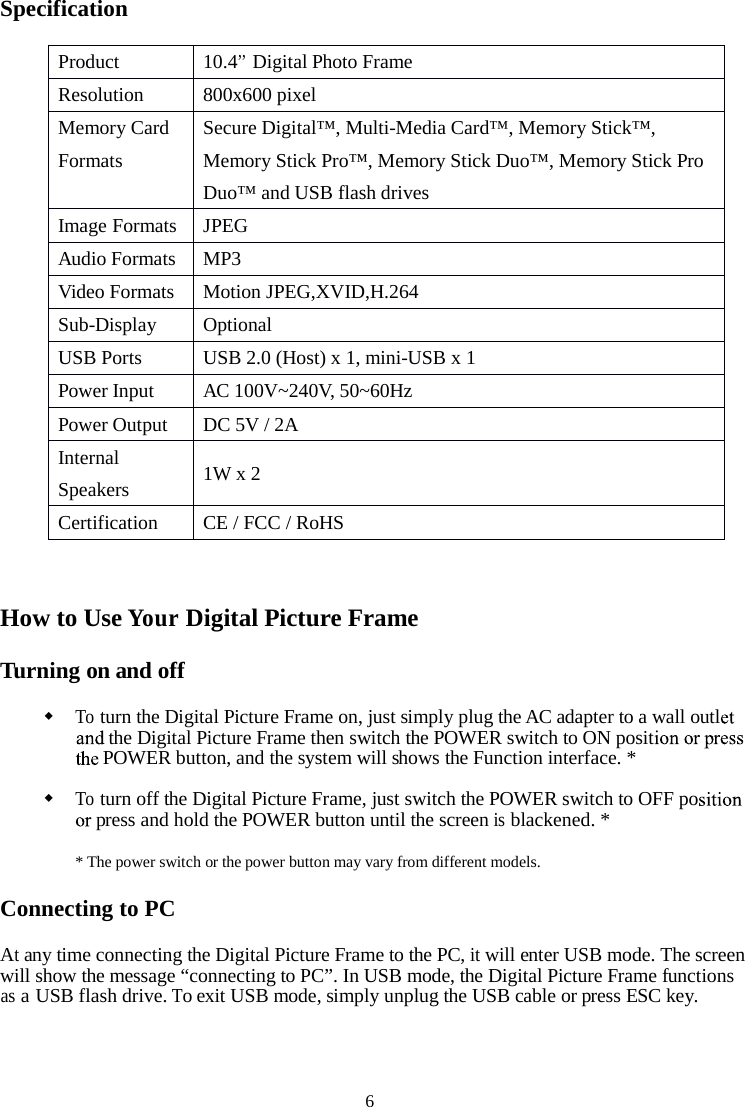

6SpecificationHow to UseYourDigital Picture FrameTurning on and offToturn the Digital Picture Frame on, just simply plug the AC adapter to a wall outlthe Digital Picture Frame then switch the POWER switch to ON positPOWER button, and the system will shows the Function interface. *Toturn off the Digital Picture Frame, just switch the POWER switch to OFF popress and hold the POWER button until the screenisblackened. ** The power switch or the power button may vary from different models.Connecting to PCAtany time connecting the Digital Picture Frame to the PC,itwill enter USB mode. The screenwill show the message “connecting to PC”. In USB mode, the Digital Picture Frame functionsasaUSB flash drive.To exit USB mode, simply unplug the USB cable or press ESC key.Product10.4’’Digital Photo FrameResolution800x600 pixelMemory CardFormatsSecure Digital™, Multi-Media Card™, Memory Stick™,Memory Stick Pro™, Memory Stick Duo™,Memory Stick ProDuo™ and USB flash drivesImage FormatsJPEGAudio FormatsMP3Video FormatsMotion JPEG,XVID,H.264Sub-DisplayOptionalUSB PortsUSB 2.0 (Host) x 1, mini-USB x 1Power InputAC 100V~240V, 50~60HzPower OutputDC 5V / 2AInternalSpeakers1W x 2CertificationCE / FCC / RoHS

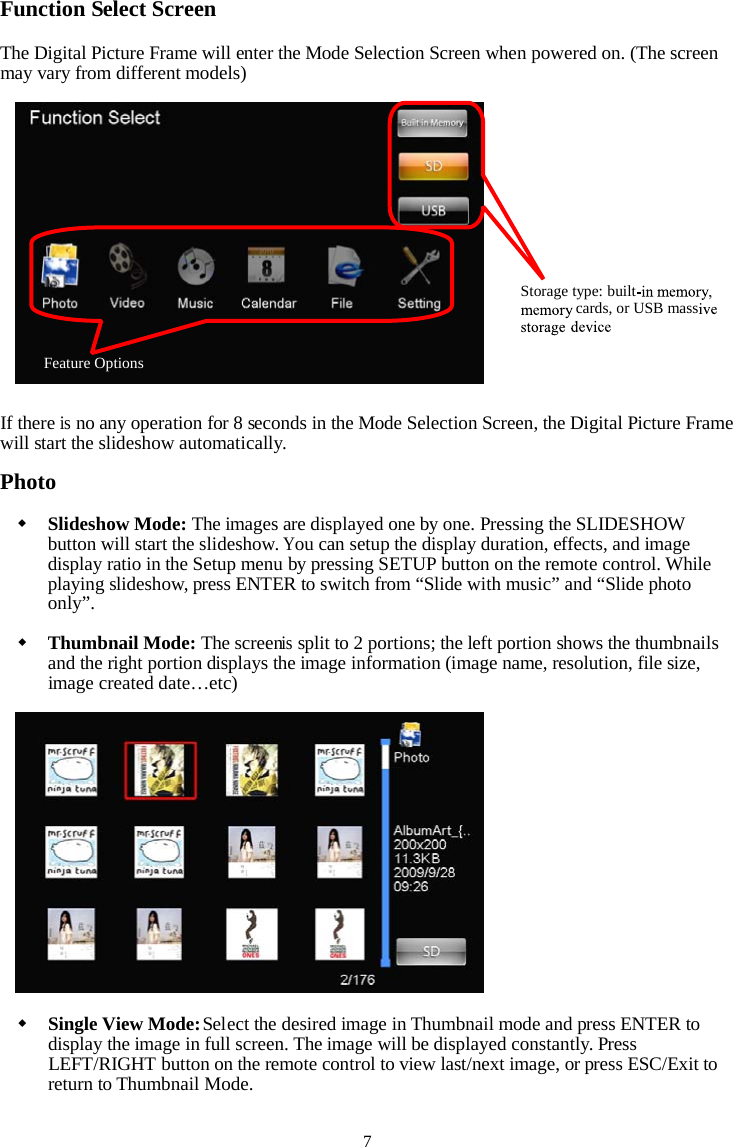

7Function Select ScreenThe Digital Picture Frame will enter the Mode Selection Screen when powered on. (The screenmay vary from different models)If thereisno any operation for 8 seconds in the Mode Selection Screen, the Digital Picture Framewill start the slideshow automatically.PhotoSlideshow Mode: The images are displayed one by one. Pressing the SLIDESHOWbutton will start the slideshow.You can setup the display duration, effects, and imagedisplay ratio in the Setup menu by pressing SETUP button on the remote control. Whileplaying slideshow, press ENTER to switch from “Slide with music” and “Slide photoonly”.Thumbnail Mode: The screenissplit to 2 portions; the left portion shows the thumbnailsand the right portion displays the image information (image name, resolution, file size,image created date…etc)Single View Mode:Select the desired image in Thumbnail mode and press ENTER todisplay the image in full screen. The image will be displayed constantly. PressLEFT/RIGHT button on the remote control to view last/next image, or press ESC/Exit toreturn to Thumbnail Mode.Feature OptionsStorage type: builtcards, or USB mass

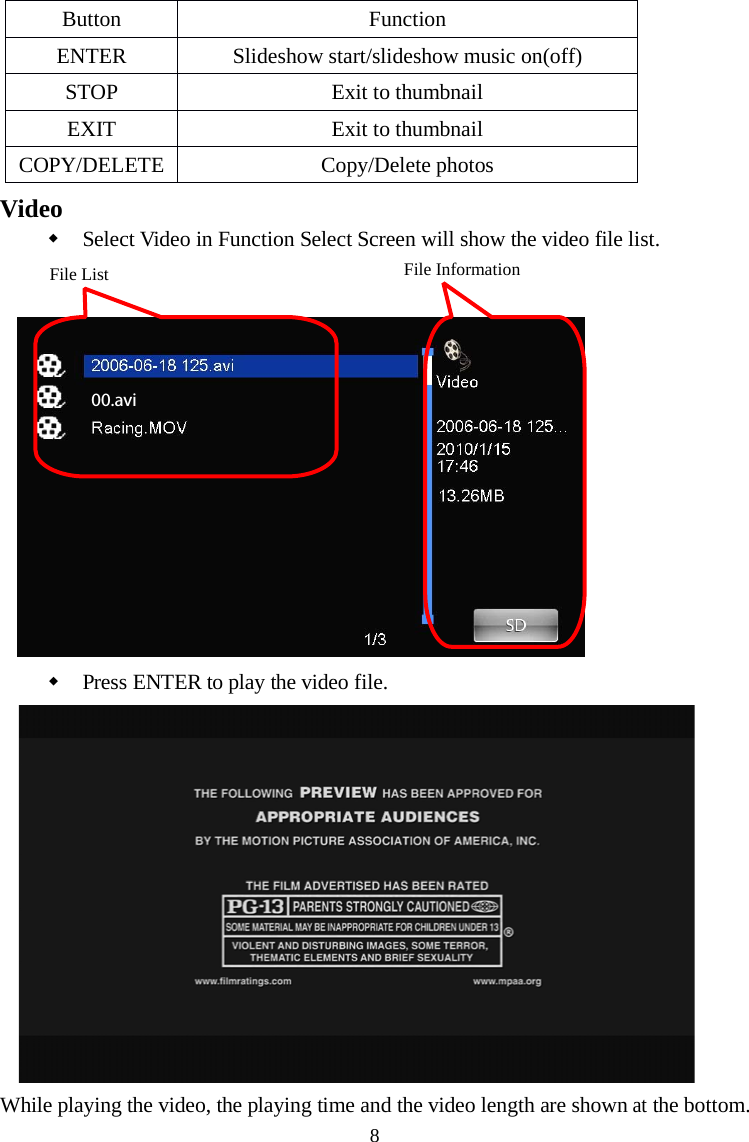

8VideoSelect Video in Function Select Screen will show the video file list.Press ENTER to play the video file.While playing the video, the playing time and the video length are shownatthe bottom.ButtonFunctionENTERSlideshow start/slideshow music on(off)STOPExit to thumbnailEXITExit to thumbnailCOPY/DELETECopy/Delete photosFile InformationFile List00.avi

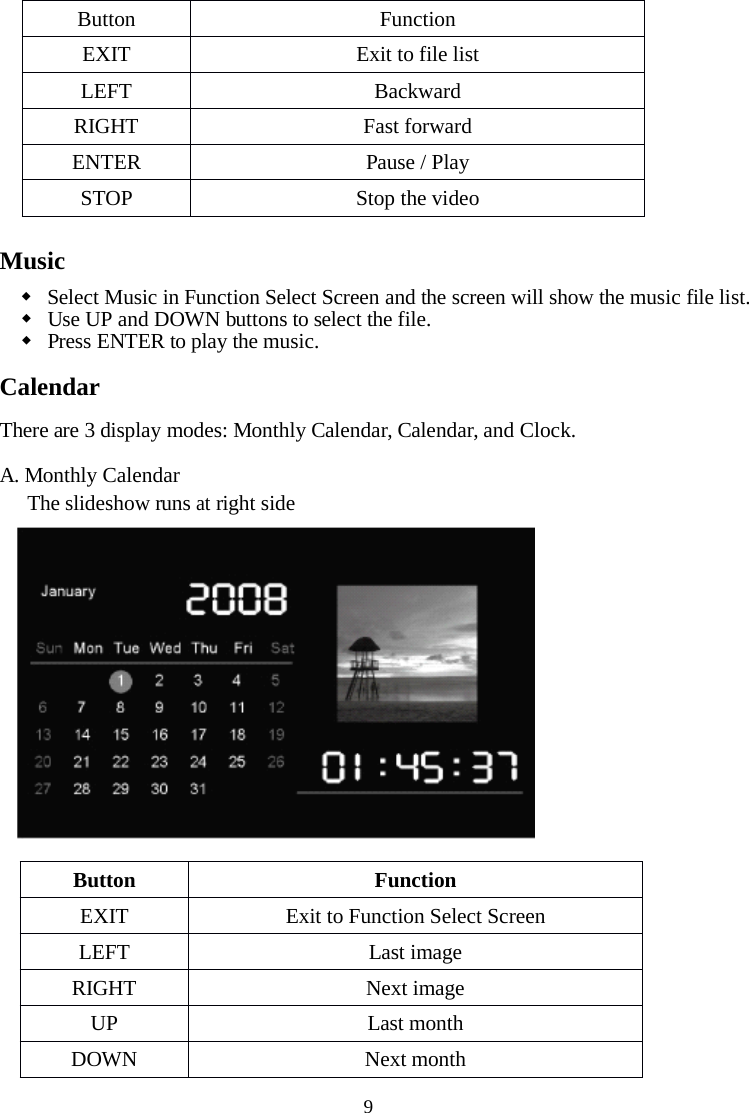

9MusicSelect Music in Function Select Screen and the screen will show the music file list.Use UP and DOWN buttons to select the file.Press ENTER to play the music.CalendarThere are 3 display modes: Monthly Calendar, Calendar, and Clock.A. Monthly CalendarThe slideshow runsatright sideButtonFunctionEXITExit to file listLEFTBackwardRIGHTFast forwardENTERPause / PlaySTOPStop the videoButtonFunctionEXITExit to Function Select ScreenLEFTLast imageRIGHTNext imageUPLast monthDOWNNext month

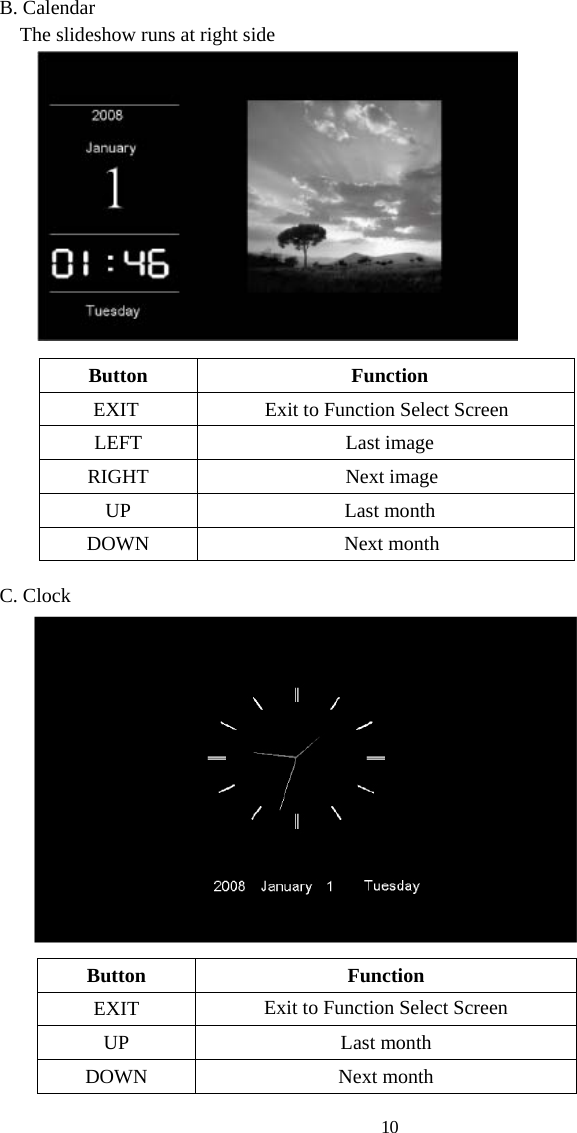

10B. Calendar noitcnuF nottuBEXIT egami tsaL TFEL egami txeN THGIR htnom tsaL PU htnom txeN NWODC. Clock noitcnuF nottuBEXIT htnom tsaL PU htnom txeN NWODThe slideshow runs at right side Exit to Function Select Screen Exit to Function Select Screen

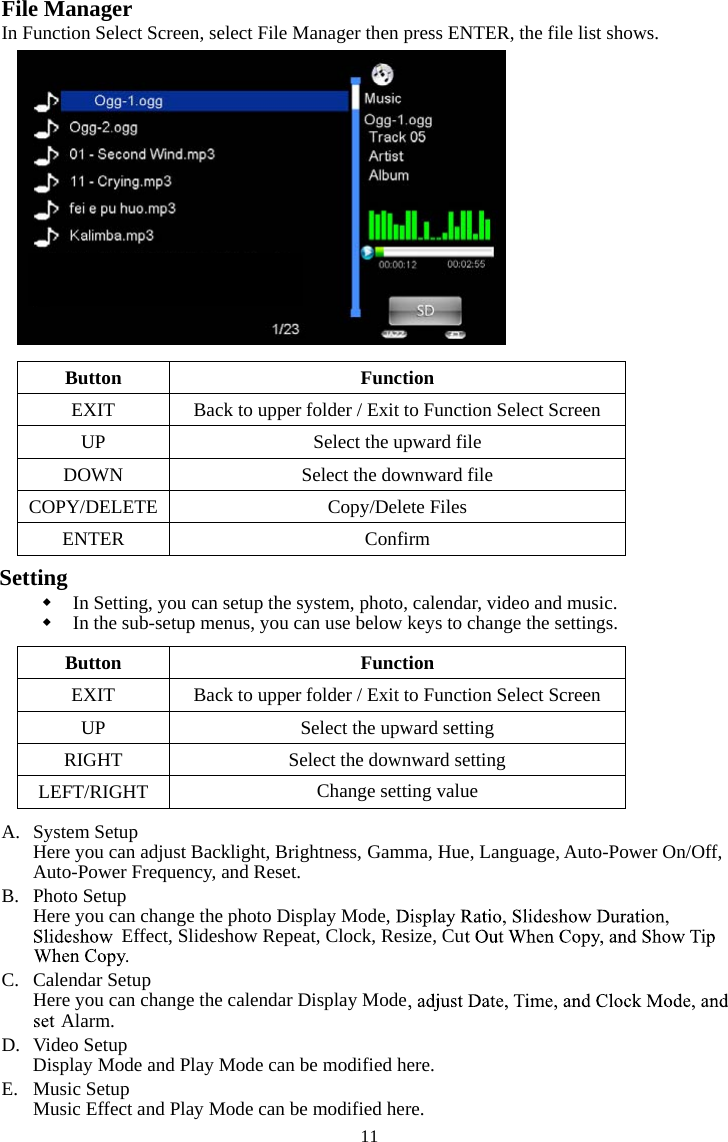

11File Manager In Function Select Screen, select File Manager then press ENTER, the file list shows. noitcnuF nottuBEXIT Back to upper folder / Exit to Function Select Screen elif drawpu eht tceleS PUDOWN Select the downward file COPY/DELETE Copy/Delete Files mrifnoC RETNESettingIn Setting, you can setup the system, photo, calendar, video and music. In the sub-setup menus, you can use below keys to change the settings. noitcnuF nottuBEXIT Back to upper folder / Exit to Function Select Screen UP Select the upward setting RIGHT Select the downward setting LEFT/RIGHT Change setting valueA. System Setup Here you can adjust Backlight, Brightness, Gamma, Hue, Language, Auto-Power On/Off, Auto-Power Frequency, and Reset. B. Photo Setup Here you can change the photo Display Mode, Effect, Slideshow Repeat, Clock, Resize, CuC. Calendar Setup Here you can change the calendar Display ModeAlarm. D. Video Setup Display Mode and Play Mode can be modified here. E. Music Setup Music Effect and Play Mode can be modified here.

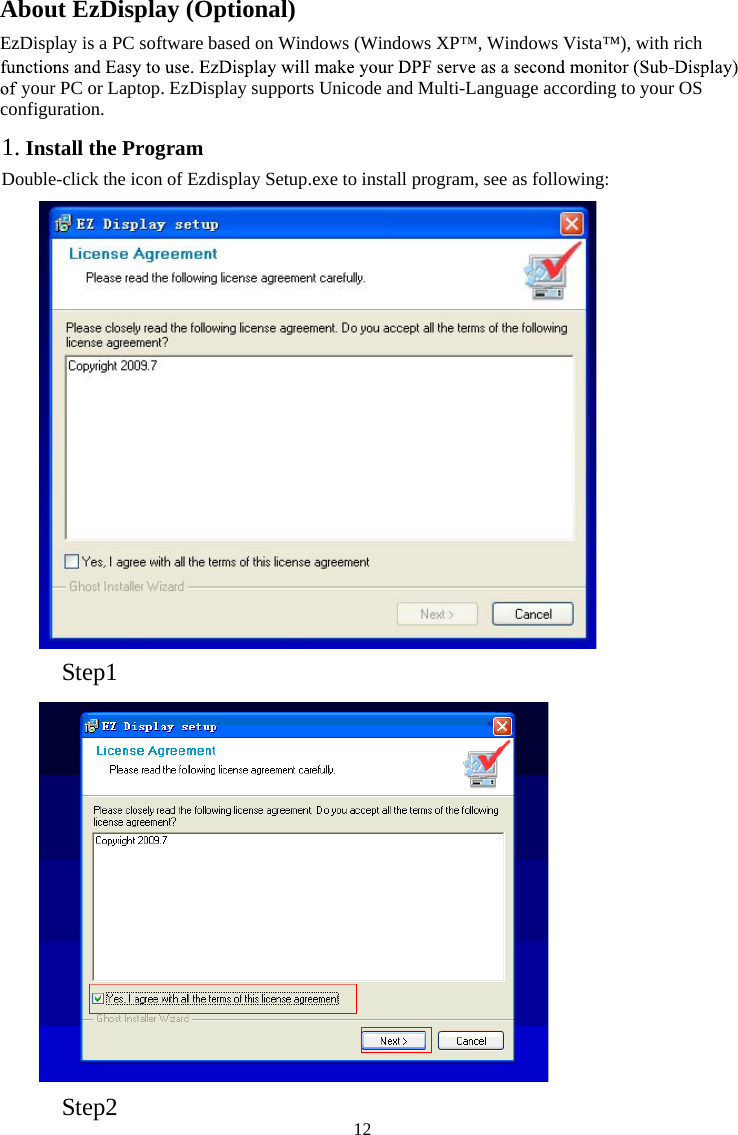

12About EzDisplay (Optional)EzDisplay is a PC software based on Windows (Windows XP™, Windows Vista™), with rich your PC or Laptop. EzDisplay supports Unicode and Multi-Language according to your OS configuration. 1. Install the ProgramDouble-click the icon of Ezdisplay Setup.exe to install program, see as following: Step1 Step2

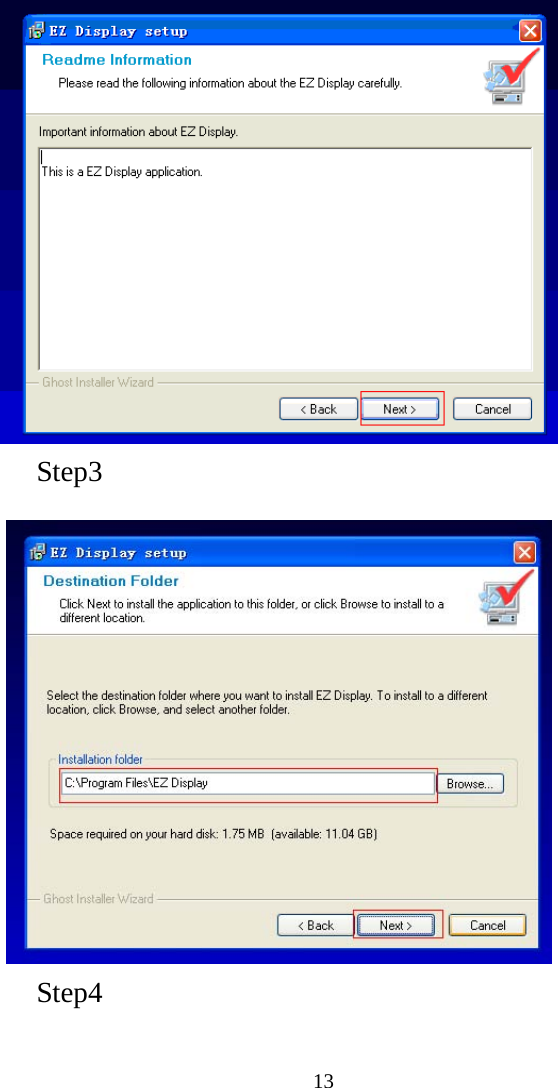

13Step3 Step4

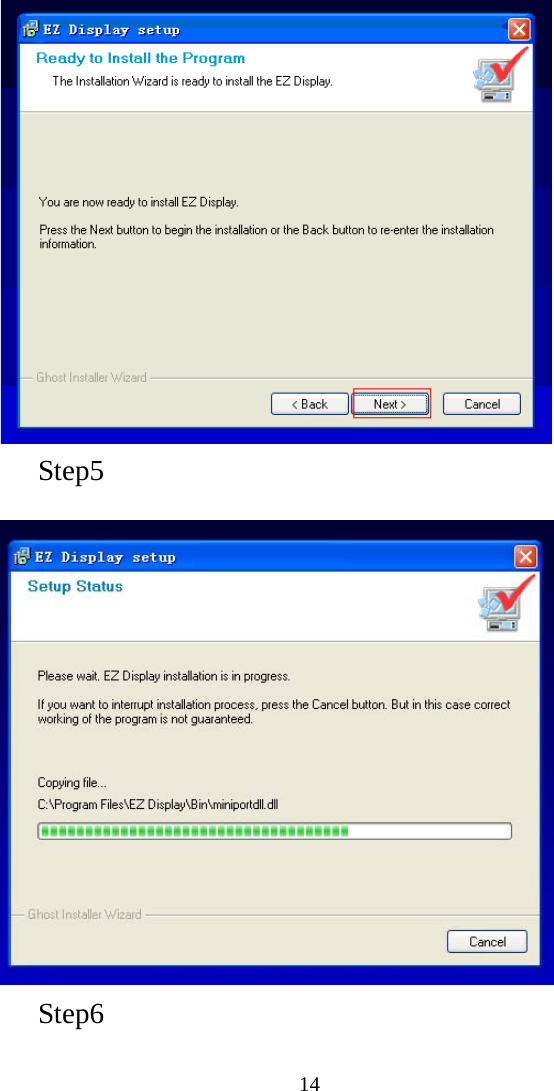

14Step5 Step6

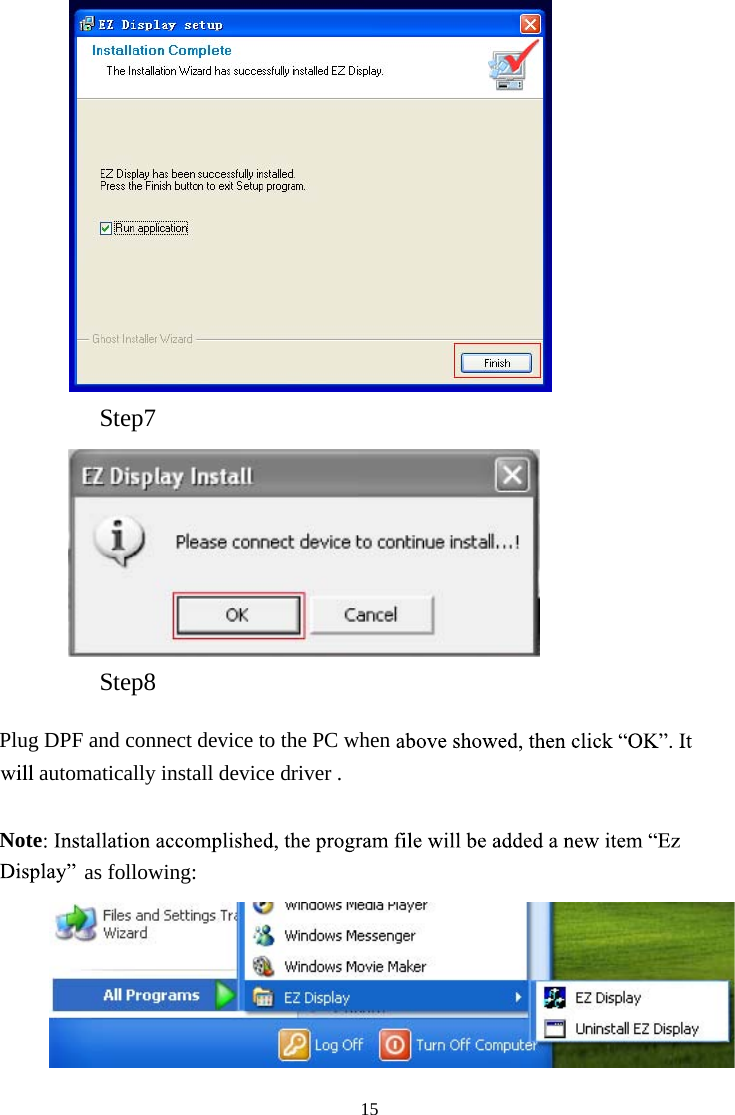

15Step7 Step8 Plug DPF and connect device to the PC when automatically install device driver . Noteas following:

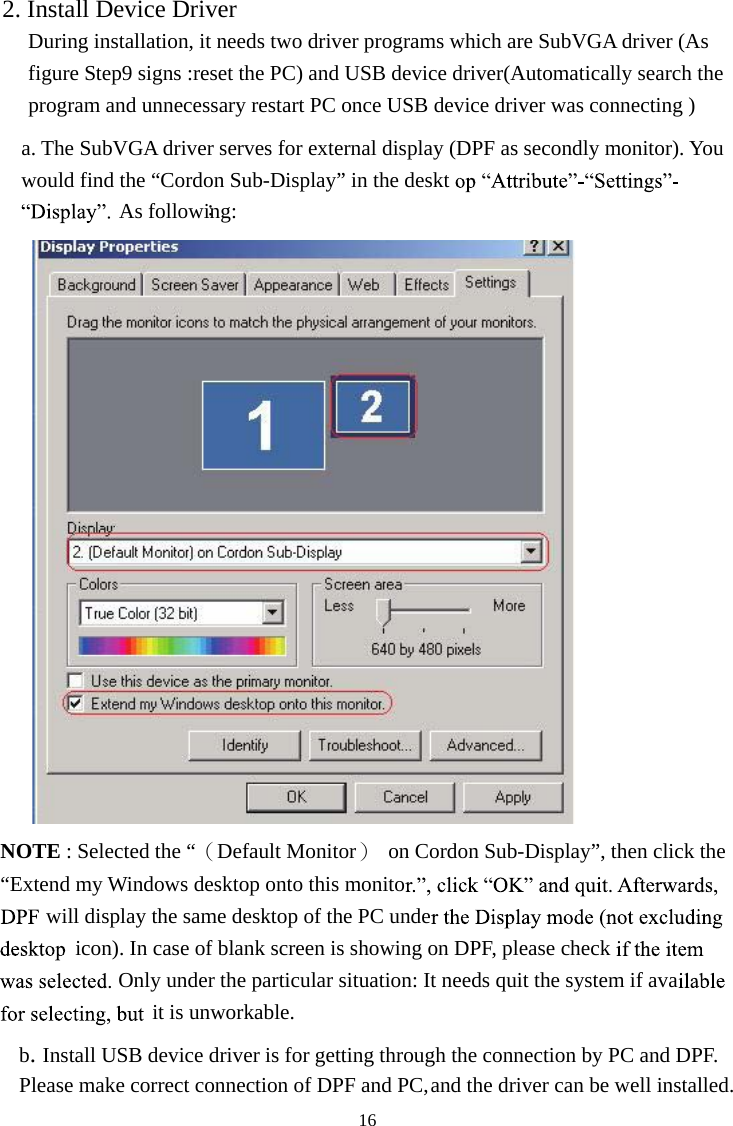

162. Install Device Driver During installation, it needs two driver programs which are SubVGA driver (As figure Step9 signs :reset the PC) and USB device driver(Automatically search the program and unnecessary restart PC once USB device driver was connecting ) a. The SubVGA driver serves for external display (DPF as secondly monitor). You would find the “Cordon Sub-Display” in the desktAs following:：NOTE : Selected the “（Default Monitor） on Cordon Sub-Display”, then click the “Extend my Windows desktop onto this monitowill display the same desktop of the PC undeicon). In case of blank screen is showing on DPF, please checkOnly under the particular situation: It needs quit the system if avait is unworkable. b.Install USB device driver is for getting through the connection by PC and DPF. Please make correct connection of DPF and PC, and the driver can be well installed.

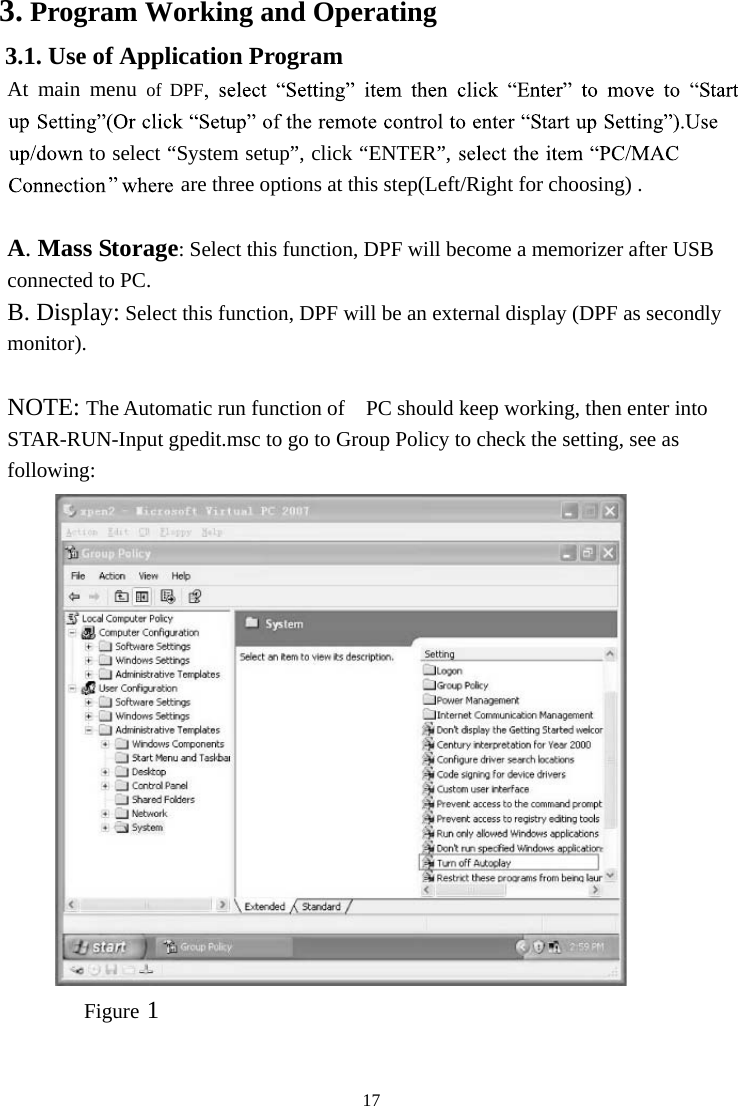

173. Program Working and Operating 3.1. Use of Application Program At main menu of DPFto select “System setup”, click “ENTER”, are three options at this step(Left/Right for choosing) . A. Mass Storage: Select this function, DPF will become a memorizer after USB connected to PC. B. Display: Select this function, DPF will be an external display (DPF as secondly monitor).NOTE: The Automatic run function of PC should keep working, then enter into STAR-RUN-Input gpedit.msc to go to Group Policy to check the setting, see as following:Figure 1

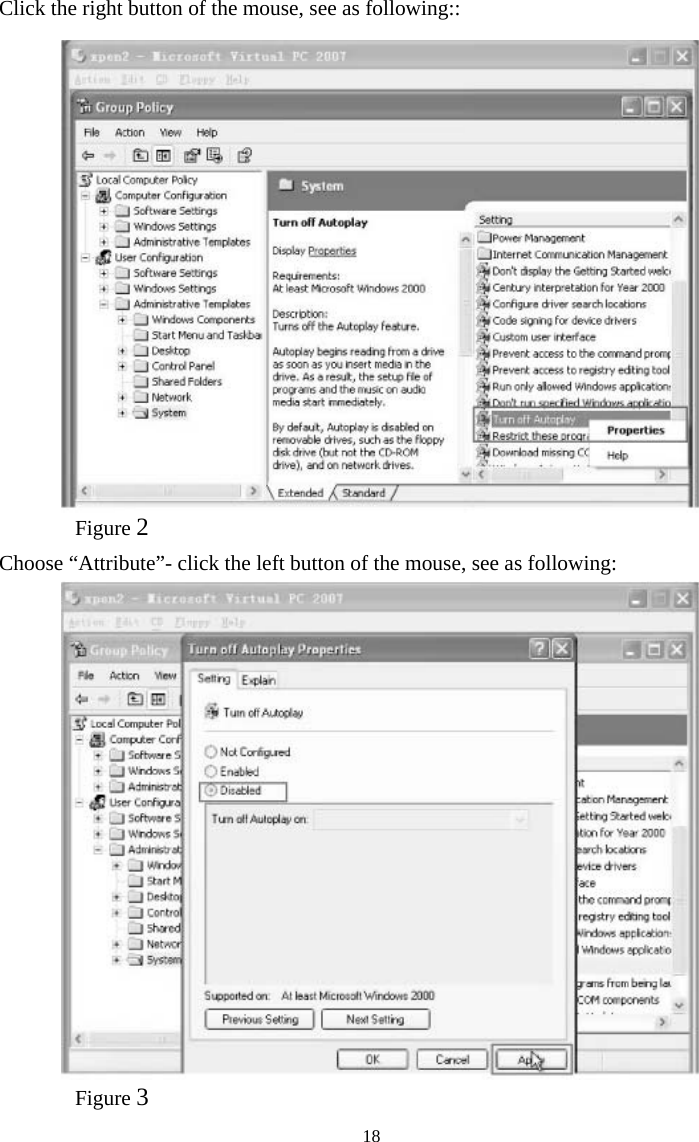

18Click the right button of the mouse, see as following:: Figure 2Choose “Attribute”- click the left button of the mouse, see as following: Figure 3

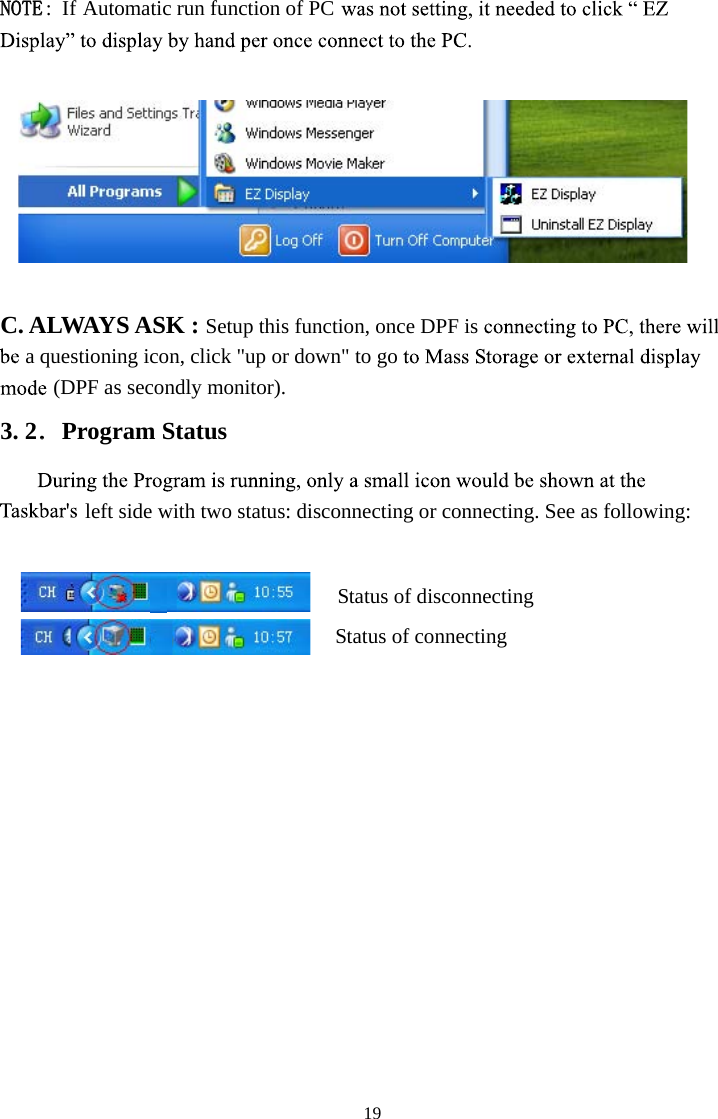

19NOTE Automatic run function of PC: IfC. ALWAYS ASK : Setup this function, once DPF is a questioning icon, click "up or down" to go (DPF as secondly monitor). 3. 2．Program Status left side with two status: disconnecting or connecting. See as following: Status of disconnecting Status of connecting

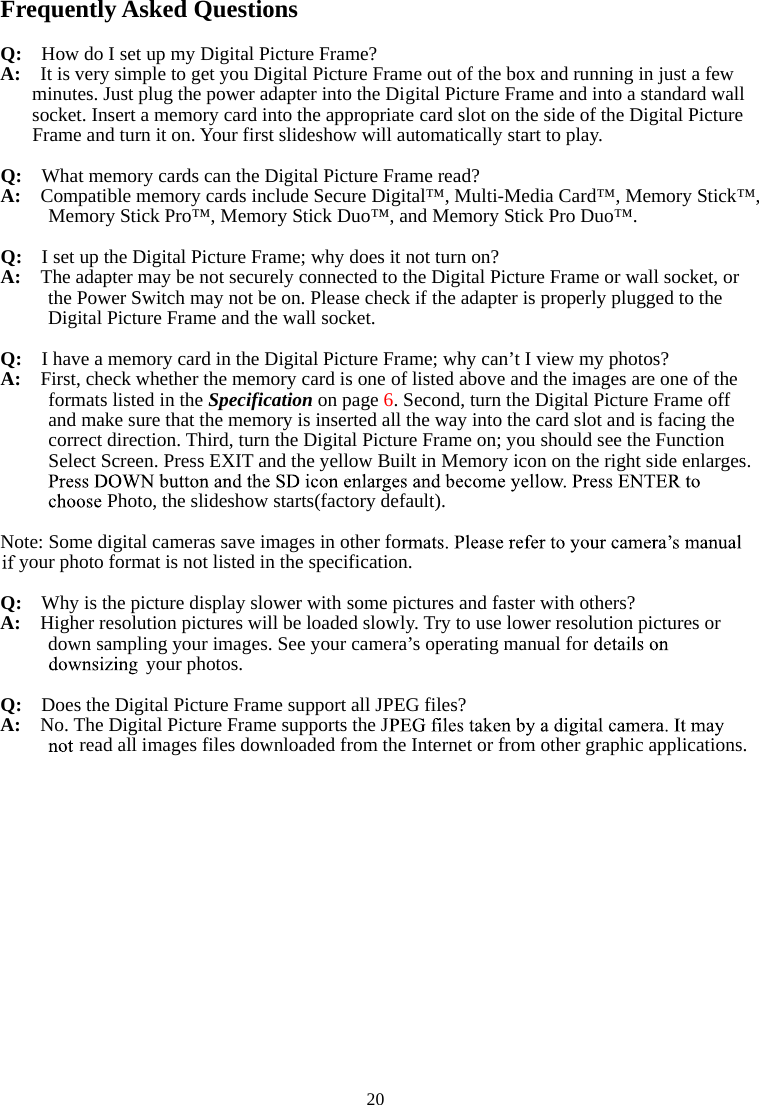

20Frequently Asked Questions Q: How do I set up my Digital Picture Frame? A: It is very simple to get you Digital Picture Frame out of the box and running in just a few minutes. Just plug the power adapter into the Digital Picture Frame and into a standard wall socket. Insert a memory card into the appropriate card slot on the side of the Digital Picture Frame and turn it on. Your first slideshow will automatically start to play. Q: What memory cards can the Digital Picture Frame read? A: Compatible memory cards include Secure Digital™, Multi-Media Card™, Memory Stick™, Memory Stick Pro™, Memory Stick Duo™, and Memory Stick Pro Duo™. Q: I set up the Digital Picture Frame; why does it not turn on? A: The adapter may be not securely connected to the Digital Picture Frame or wall socket, or the Power Switch may not be on. Please check if the adapter is properly plugged to the Digital Picture Frame and the wall socket. Q: I have a memory card in the Digital Picture Frame; why can’t I view my photos? A: First, check whether the memory card is one of listed above and the images are one of the formats listed in the Specification on page 6. Second, turn the Digital Picture Frame off and make sure that the memory is inserted all the way into the card slot and is facing the correct direction. Third, turn the Digital Picture Frame on; you should see the Function Select Screen. Press EXIT and the yellow Built in Memory icon on the right side enlarges. Photo, the slideshow starts(factory default). Note: Some digital cameras save images in other foyour photo format is not listed in the specification. Q: Why is the picture display slower with some pictures and faster with others? A: Higher resolution pictures will be loaded slowly. Try to use lower resolution pictures or down sampling your images. See your camera’s operating manual for your photos. Q: Does the Digital Picture Frame support all JPEG files? A: No. The Digital Picture Frame supports the Jread all images files downloaded from the Internet or from other graphic applications.

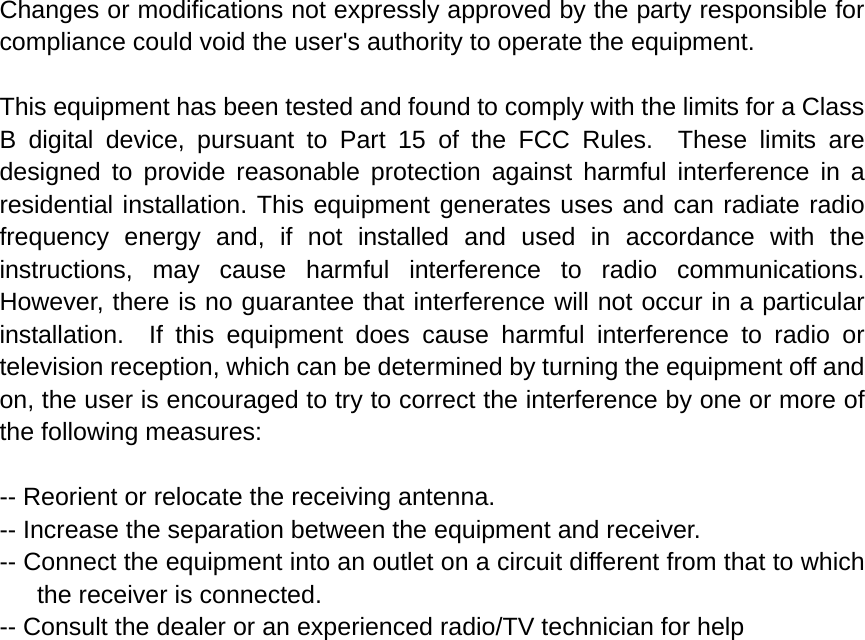

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help
