Win Accord PTT-1026 Mobile internet device User Manual CT1002 2011 6 29
WIN ACCORD LTD., Mobile internet device CT1002 2011 6 29
User Manual
- 2 -
Table of Content
Ⅰ- GETTING STARTED
Important Safety Precautions 3
Cleaning the Panel 4
Cleaning the Personal Touch Tablet 4
Introduction 4

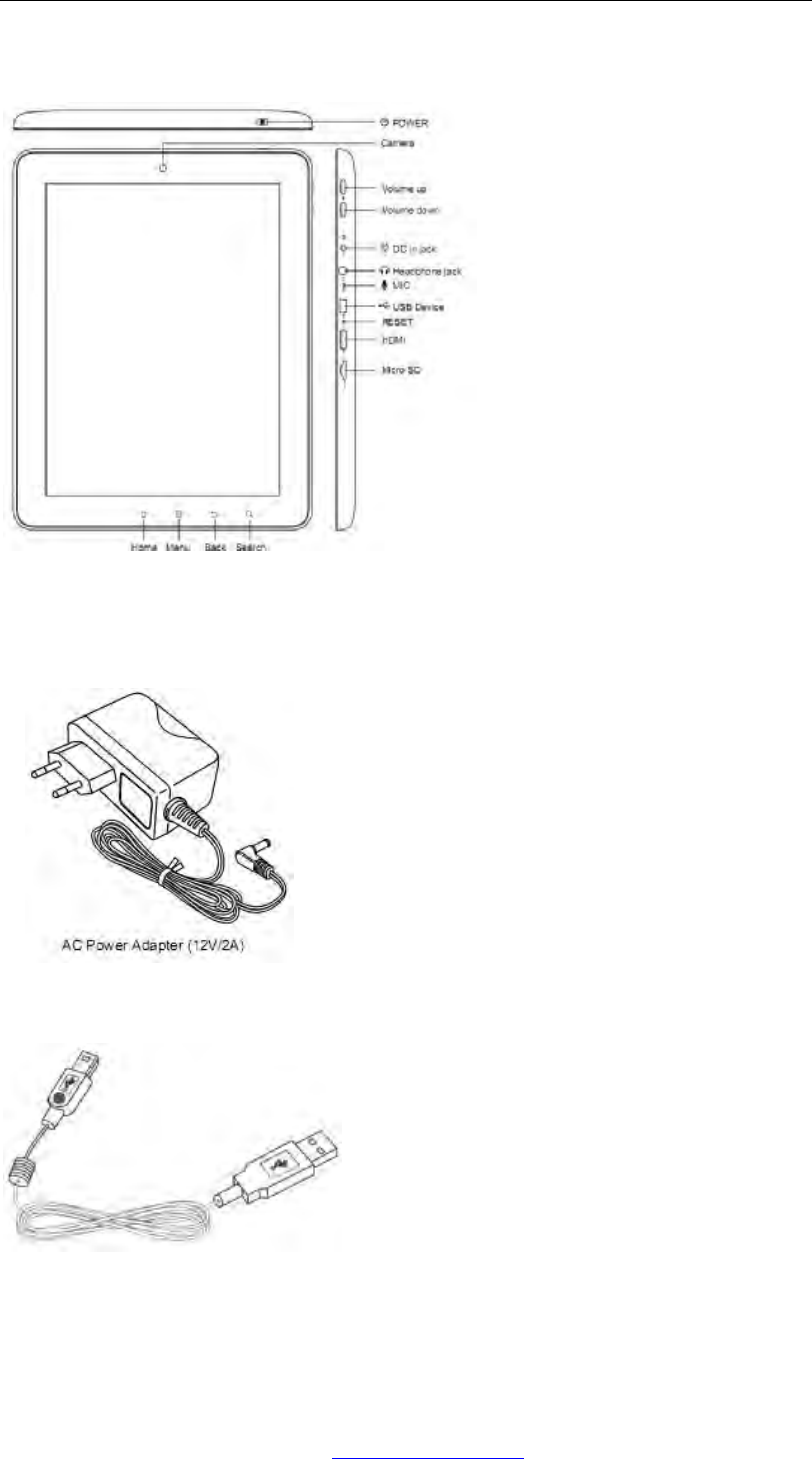

Buttons Overview 5
Accessories 5
What’s in the Box 6
Charging the Battery 6
Power On/Off and Unlock Tablet 6
Ⅱ-FUNCTIONNING OF THE TABLET
Navigation 7
Home Screen 7
Application Launcher Screen 7
Status Bar 8
Onscreen Keyboard 9
Ⅲ- SETTINGS
Set Up Wi-Fi Connection 10
Set Date and Time 11
Set Up Email 12
Set Up Calendar 13
Create Shortcuts on Home Screen 11
Create Widgets on Home Screen 14
Change Wallpapers 14
Install Third-Part Applications from micro SD 15
Ⅳ-CONNECTIONS
Browser 16
Wi-Fi 17
Bluetooth 17

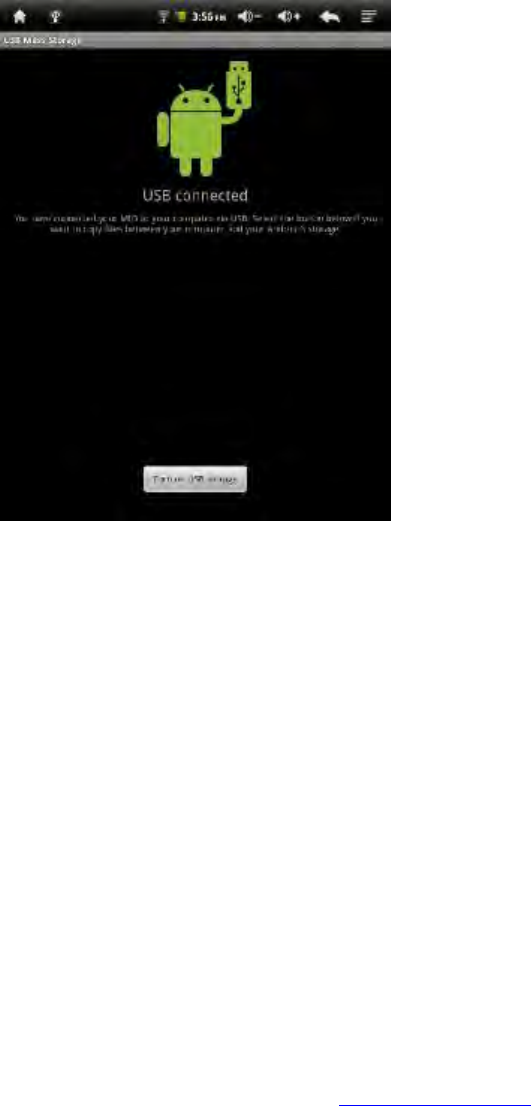

PC Connection 18
Connect to TV set 19
Ⅴ-APPLICATIONS

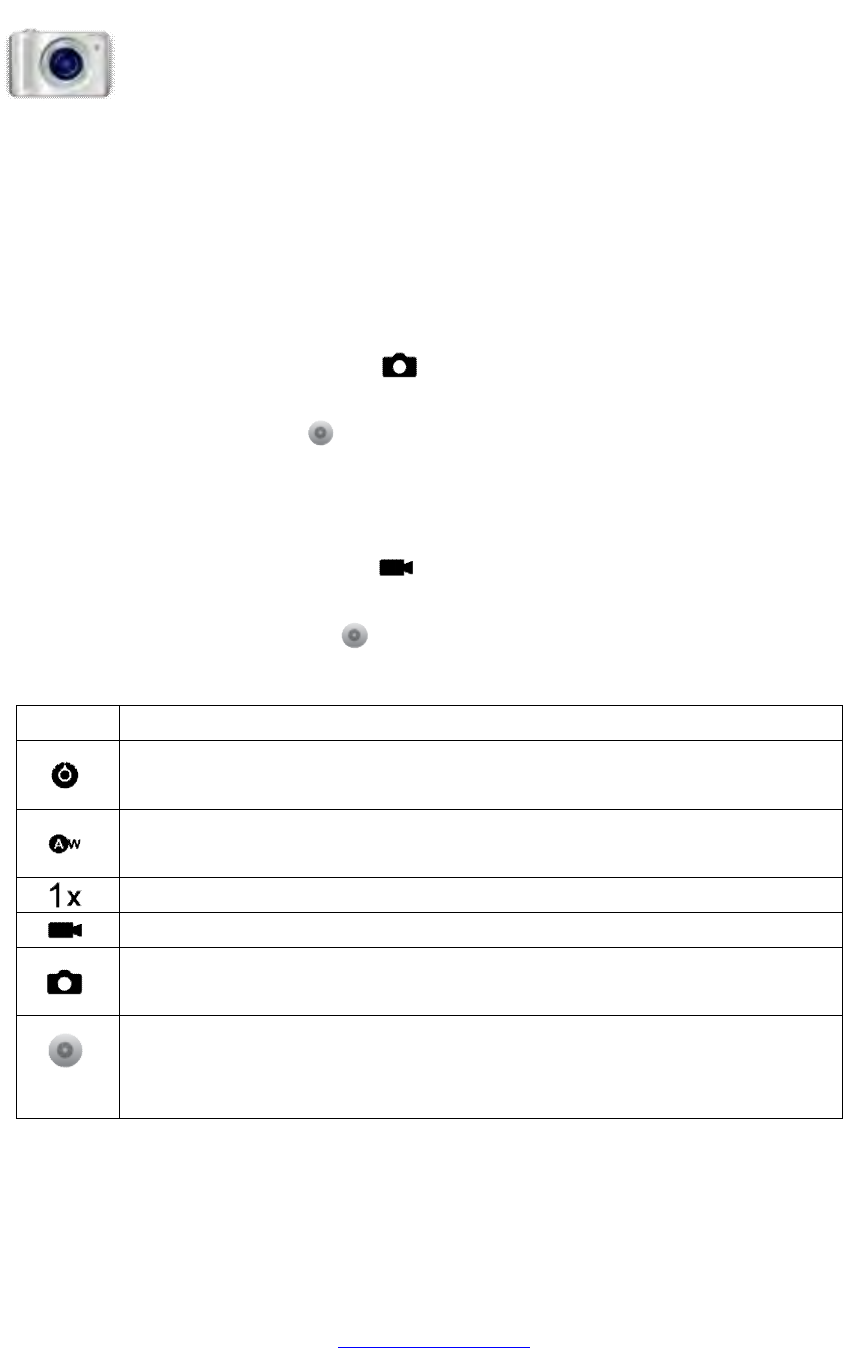

Camera 20
Clock 21
Calculator 22
Gallery 23
Music 24

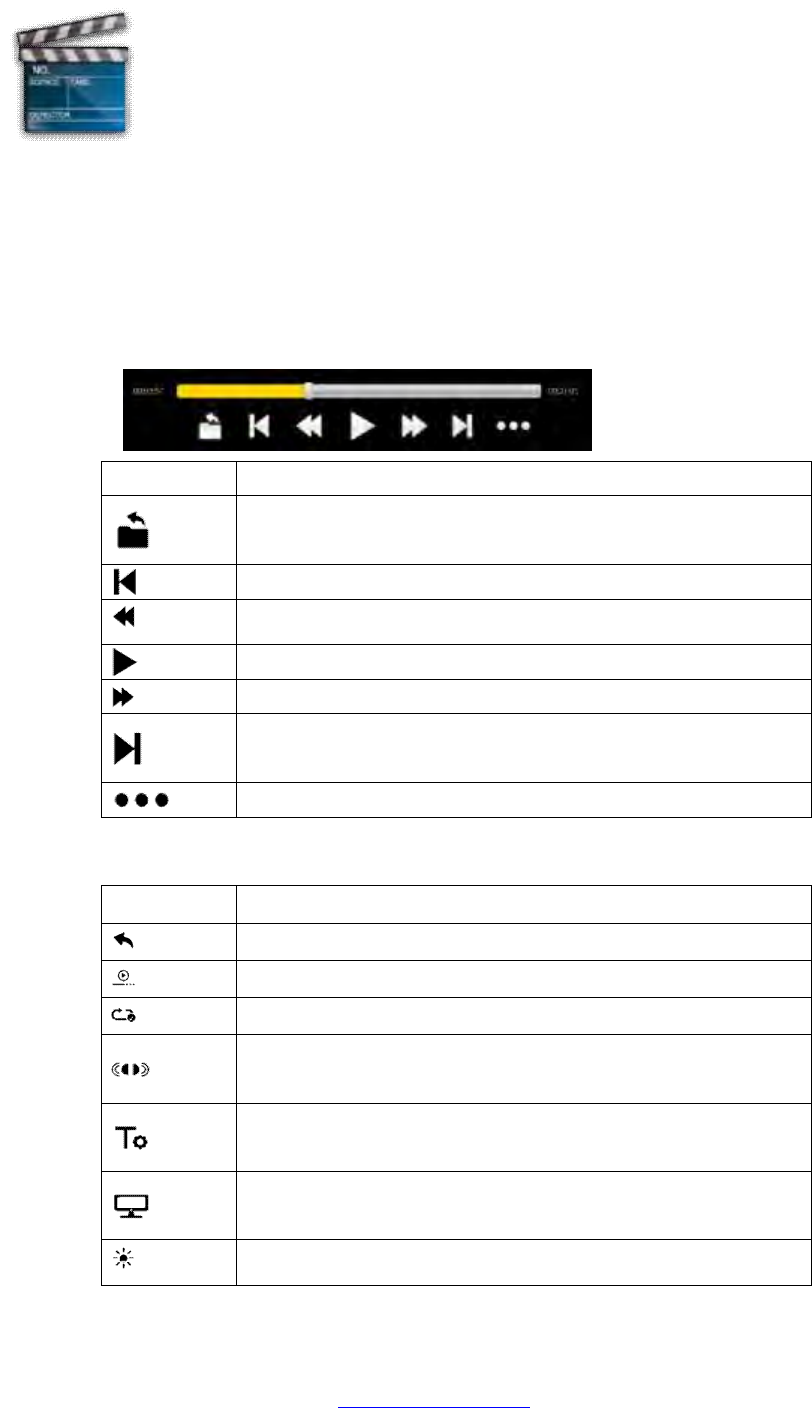

Video Player 25
File Browser 26
Ⅵ-Product Specification 27
Trademark 30
Recycling 30
Declaration of Conformity 26
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 3 -
Ⅰ- GETTING STARTED
Important Safety Precautions
Always follow these safety precautions when using your Personal Touch Tablet. This
will reduce the risk of fire, electric shock and injury.
Warning: To reduce the risk of fire of shock hazard, do not expose this product to rain
or water.
Warning: Keep the product away from direct sunlight and heat source.
Warning: To prevent the risk of electric shock, do not remove the cover. Do not
disassemble, repair or modify the product by yourself. There are no
user-serviceable parts inside.
● Unplug the Personal Touch Tablet before performing maintenance.
● Keep your Personal Touch Tablet out of direct sunlight and heat sources.
● Protect the power cord. Route power cords so that they are not likely to be walked on
or pinched by items placed on or against them. Pay particular attention to the point
where the power cord is attached to the Personal Touch Tablet.
● Only use the AC adapter included with the Personal Touch Tablet.
● Unplug the power cord from the outlet when the unit is not in charging condition.
Only use accessories provided in the package.
● Prevent the product from drops or strong impacts.
● Please backup any important data, repair or other causes may result in data loss.
● Do not disconnect the device during memory formatting or file transfer operations.
Otherwise, it may cause program failure or files damage.
● Do not dispose the product in fire to avoid explosion as the product contain
rechargeable battery.
WARNINGS!
• Do not turn up the volume too high, doctors warn against prolonged
exposure to high volume.
• Stop using the product or lower the volume if you feel your ears
ringing.
• Excessive sound pressure from earphones and headphones can
cause hearing loss.
• A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de
l’utilisateur.
• Earphone maximum output voltage : <150mV
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 4 -
Cleaning the Panel
Treat the screen gently. The screen is made of glass and can be scratched or broken.
To clean fingerprints or dust from the screen, it is recommended to use a soft,
non-abrasive cloth such as a camera lens cloth to clean the screen.
Cleaning the Personal Touch Tablet
Clean the outer surface of the Personal Touch Tablet (excluding the screen) with a soft
cloth.
Introduction
Welcome to the Personal Touch Tablet! The Personal Touch Tablet includes these key
features:
● Displays Alarm, AppInstaller, Browser, Bluetooth, Calculator, Calendar, Camera,
Clock, Email, File Browser, Gallery, HDMI Switch, Music, Setting, Video Player
and etc
● Displays digital photos, Play Music and Video
● Wi-Fi function to connect with your access point router for internet browsing
● Micro Secure Digital™ (micro SD) slot for external storage
● Capacitive touch screen for all user operations
● 4GB Internal Memory
● USB2.0 OTG for connection to the PC or USB flash drive
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 6 -
What’s in the Box
Personal Touch Tablet
AC Power Adapter
USB Cable
Quick Start Guide
Charging the Battery
Plug the AC power adapter into the Personal Touch Tablet and into a wall outlet.
Icon will be turn flashing with charging sign while the battery is charging.
When charging is completed, the battery icon will turn into a steady green.
* It is strongly recommended you fully charge the device for about 4-6 hours before use.
Power on/off and Unlock Personal Touch Tablet
The Personal Touch Tablet is easy to set up. Just follow these steps:
1. To power on the device, press and hold Power button for 3 seconds to turn on tablet.
2. Wait until a screen with a lock and speaker icon show up, gently tap the “Lock” icon
and slide it toward the speaker icon to unlock tablet.
3. To power off the device, press and hold the Power button for 2 seconds until a MID
options message show up on screen where you can choose Power off option to power
off the device.
Note: The screen with the lock icon will time out in 10 seconds if you do not unlock it.
In case it happens, the Power button can be pressed briefly to make it show up
again.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 7 -
Ⅱ- FUNCTIONNING OF THE TABLET
Navigation
Tablet has five home screens by default. You can tailor shortcuts or widgets to home
screen to fit your needs by using Add to Home screen function. For more information,
refer to “Create Shortcuts on Home Screen” on page 14.

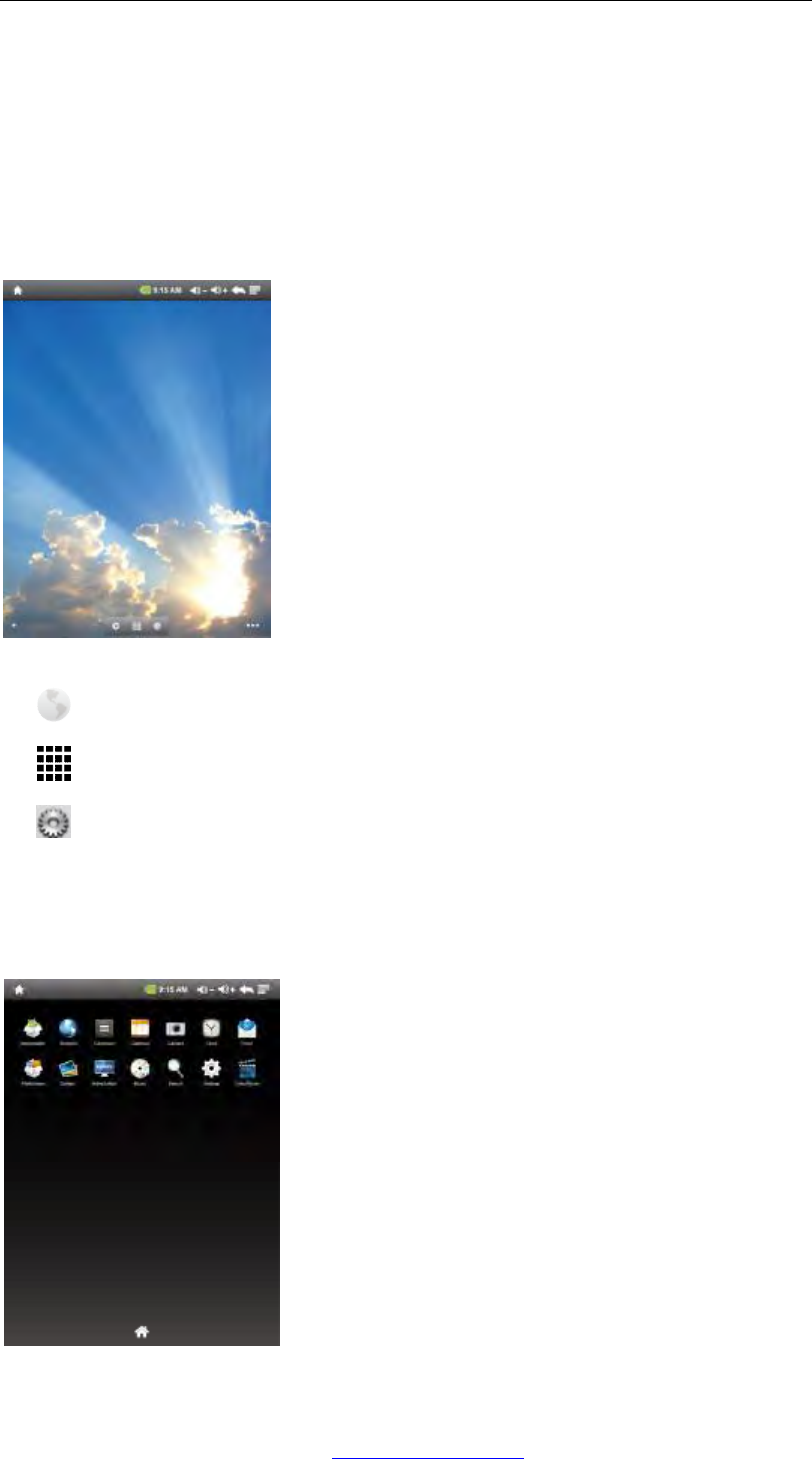

Home Screen
A typical Home screen with wallpaper, status bar, and few applications at the bottom.
◆ A shortcut to browser
◆ A shortcut to application Launcher screen.
◆ A shortcut to system Settings
Application Launcher Screen
A typical application Launcher screen is shown below. One icon represents one
application which can be run by tapping on the icon.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 8 -

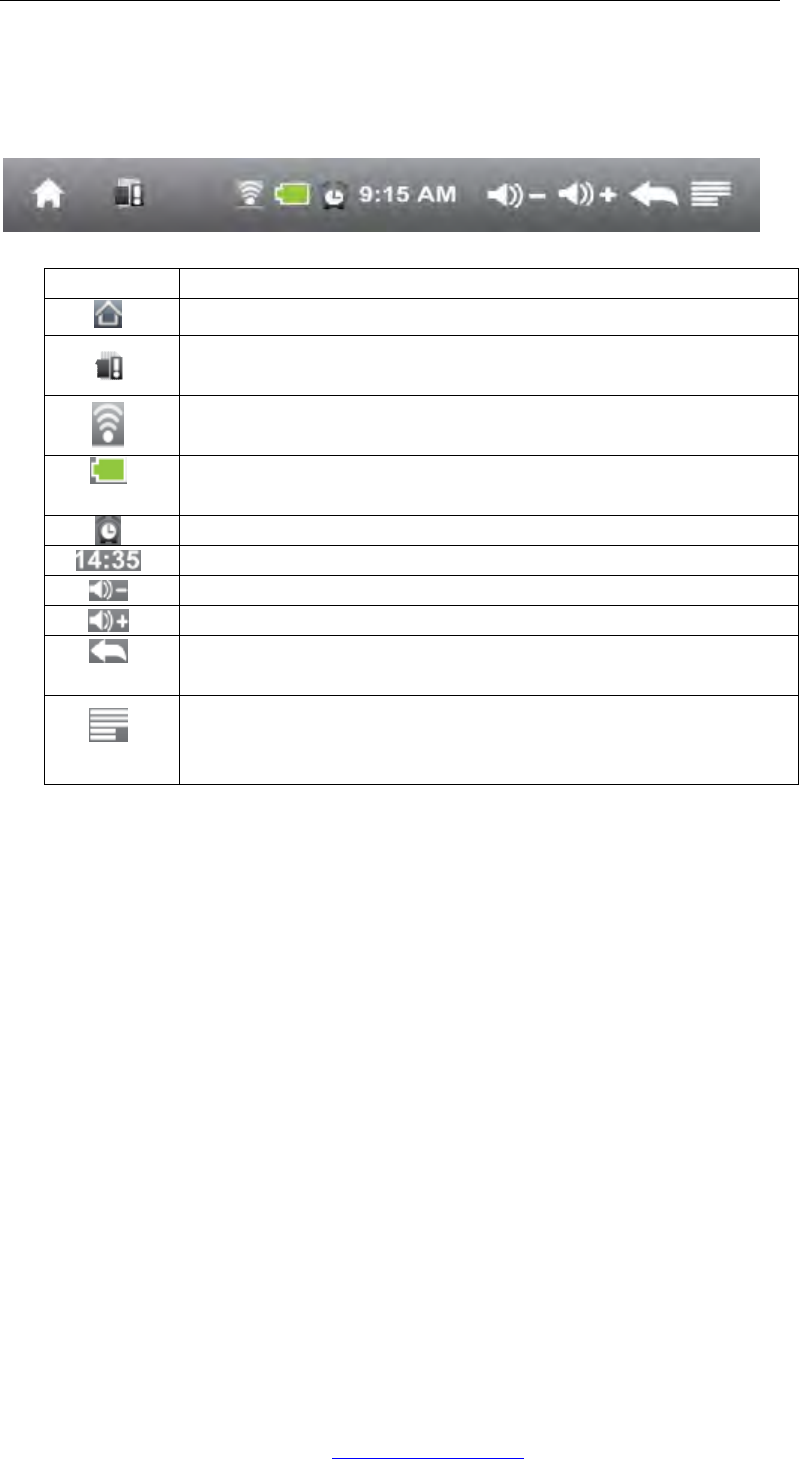

Status Bar
On the top corner of the screen, the status bar mainly indicates Home icon, Wi-Fi
status, battery level, current time and volume, etc.
Icon Action
On any functional screen, tap this icon to go to Home screen
Shows the status of micro SD (this icon shows micro SD is
removed.)
Wi-Fi connection and signal strength
Battery level. Will turn orange when battery is low and turn red
when battery is very low.
Indicates alarm clock is turned on
Current time
Volume down
Volume up
On any functional screen, tap this icon to go back one screen or
exit application.
Tap this icon to open a contextual menu screen. The available
options will vary, depending on what application is running on
the screen.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 9 -

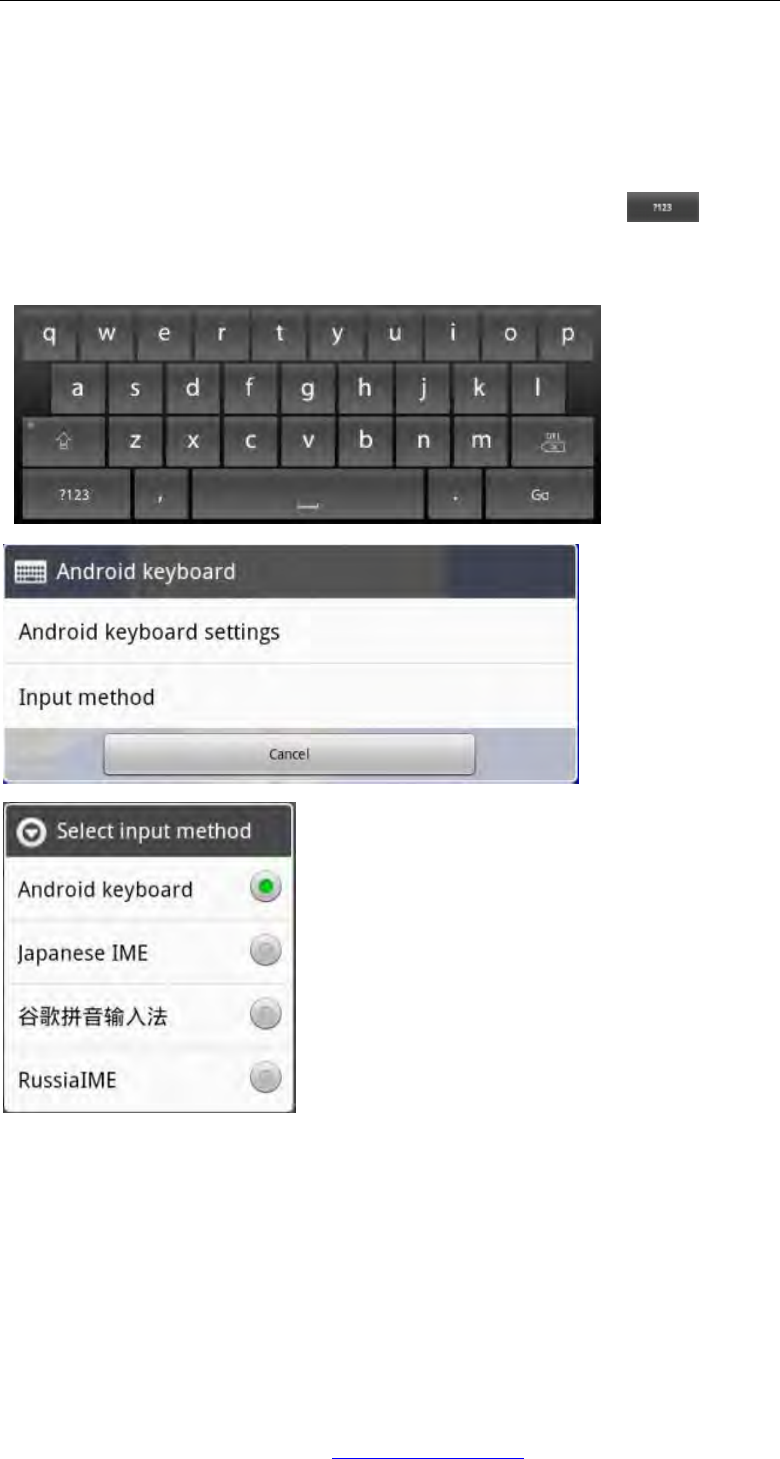

Onscreen Keyboard
The onscreen keyboard appears automatically anytime you tap on a text line for input.
While entering text with the onscreen keyboard, each character will be entered into
the position pointed by a vertical cursor. You can change the cursor position by
tapping with your finger on the position you want to enter the next character. To
select different language keyboard, touch and hold the onscreen key . A
pop menu will show up to let you select the “Input Method”
*Setting up an International keyboard: see “Install Third-Part Applications from
micro SD” section.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 10 -
Ⅲ- SETTINGS

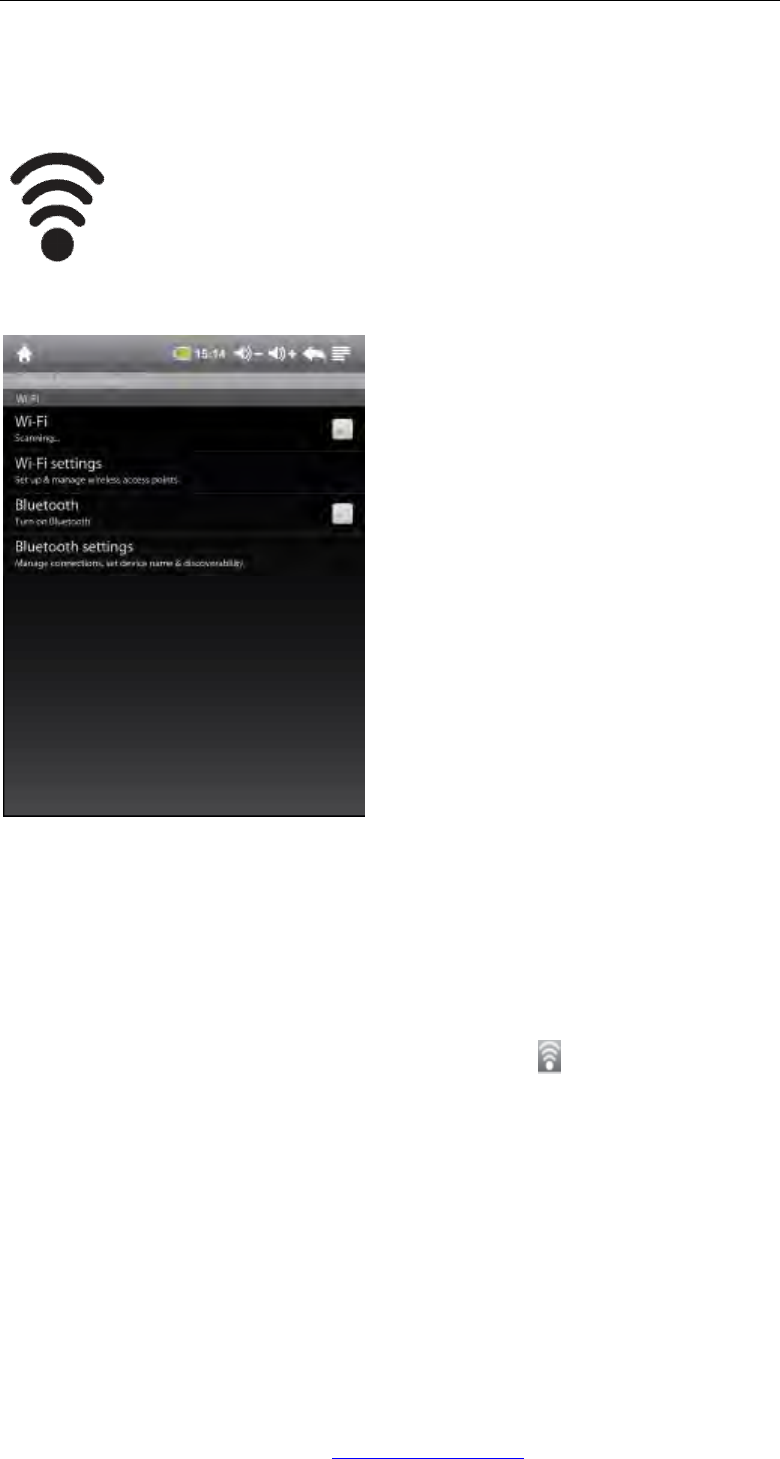

Set Up Wi-Fi Connection
Make Wi-Fi Connection In Settings à Wireless & networks à Wi-Fi
Settings, check on the Wi-Fi to turn on the Wi-Fi.
Normally, the device will automatically scan the available Wi-Fi Access Point (AP).
If this does not happen, press Menu (upper right corner icon in the Status bar) and
select Scan to scan for the available Wi-Fi APs. Then, tap on the desired AP to make
the connection. If it is a secured AP, system will prompt you for the password. Enter
it by tapping on the password entry line, and use the onscreen keyboard to enter the
password. Then, tap on the Connect to start connecting to that AP.
When connection is established, the Wi-Fi connected icon will show up on the
status bar.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 11 -

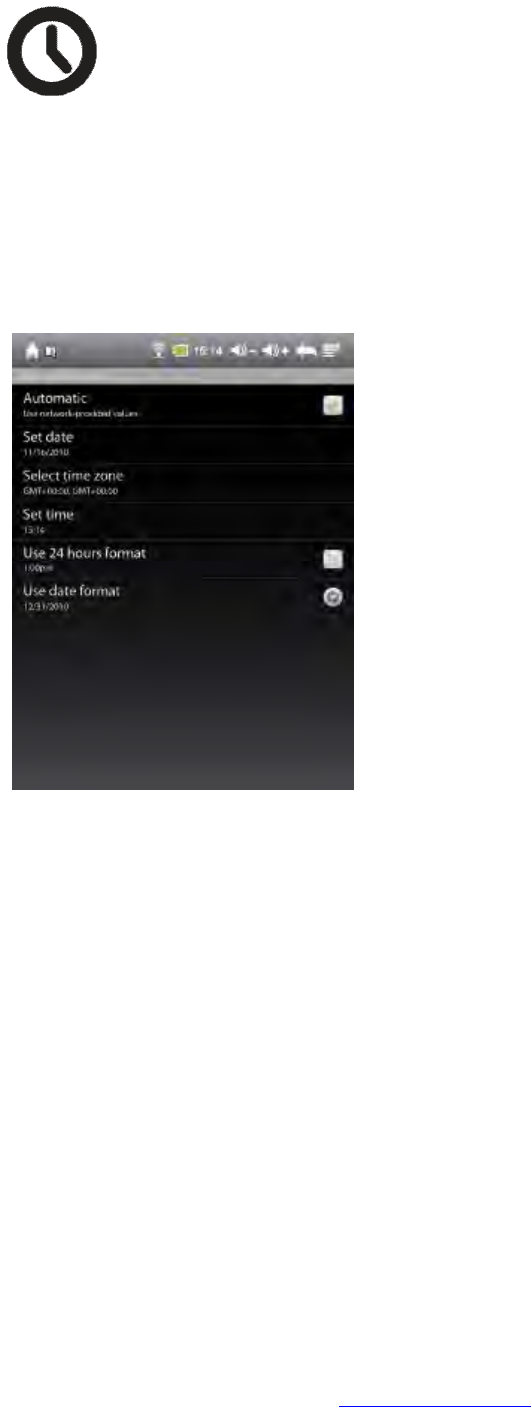

Set Date and Time
Use Settings à Date & Time to open up the date/time setting screen as
shown below. Select the correct time zone. If the Wi-Fi is connected to Internet, check
on the Automatic to have time set up automatically. If Wi-Fi is not connected to
Internet, uncheck Automatic to temporarily set date and time. Then, check Automatic
again before leaving the screen. In the future, when the Wi-Fi is connected to internet,
date and time will be automatically adjusted.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 12 -

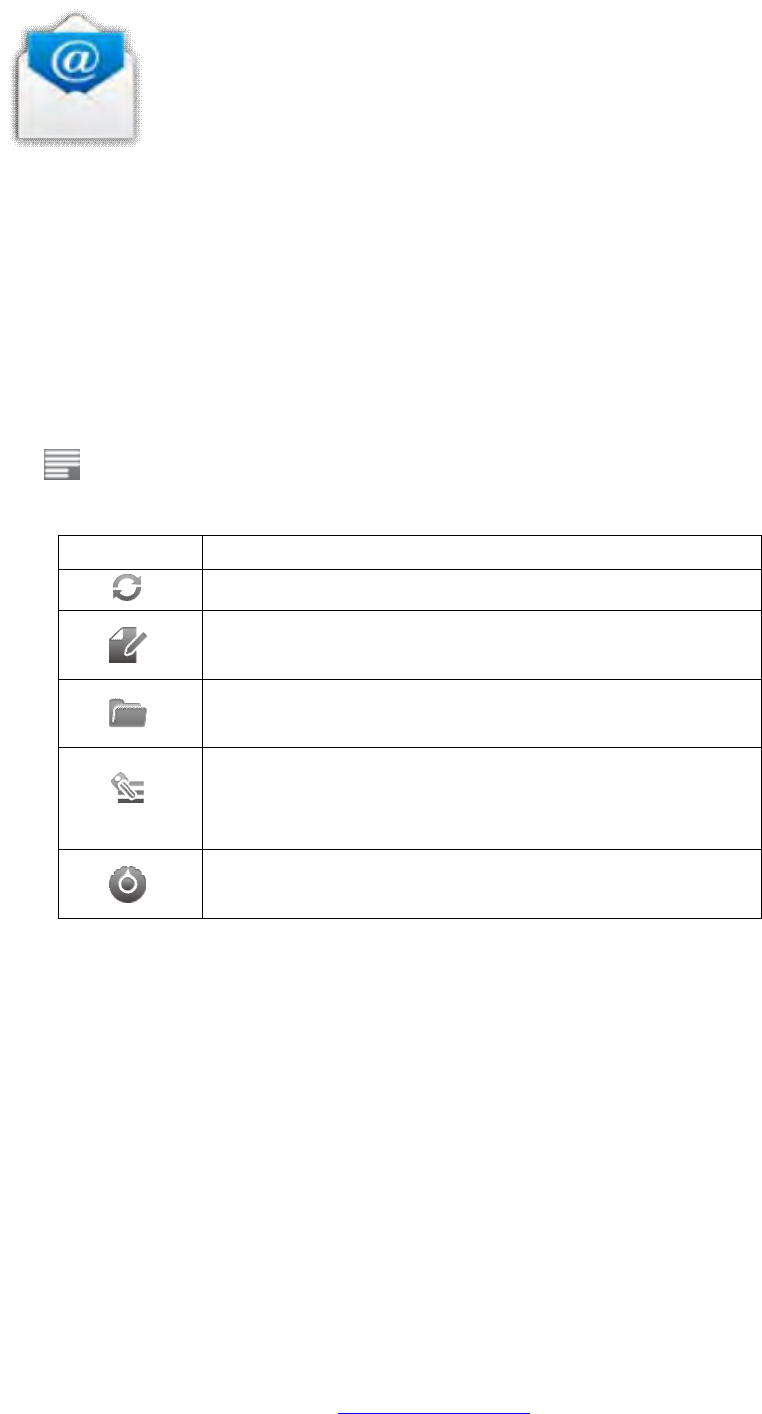

Set Up Email
You can configure Email for most accounts in just a few steps. For
many popular email services, tablet automatically enters most of the settings for you.
1. Make sure the Wi-Fi is connected.
2. Open the Email application and enter your Email address and password, then tap
“Next”
3. Give a name to your account then tap “Done”. Mail messages will be downloaded
automatically.
Tap to show function bar at the bottom of the screen
Icon Action
Refresh
Tap to enter E-mail compose interface
Tap to enter mailbox interface
Tap to enter your accounts viewing
To remove your account record in tablet, touch and hold
your account address ＞Tap Remove account.
Account settings
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 13 -

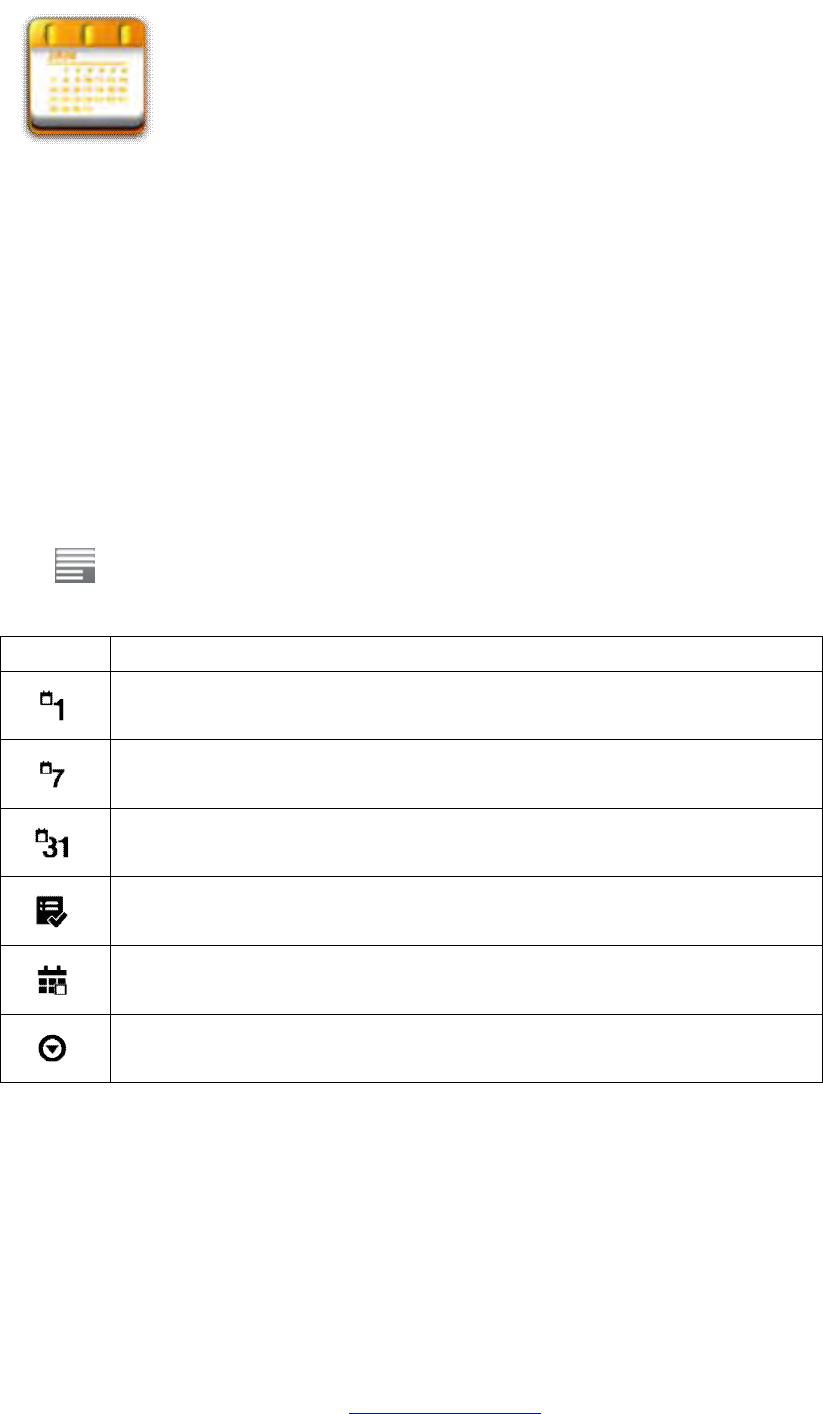

Set Up Calendar
Calendar makes you easy to stay on schedule. You can view your
schedule by day, week, and month.
When using calendar for the first time, there are some steps you shall follow:
1. Tap Calendar icon into Gmail entering interface, then enter your Gmail account and
password and tap Next.
2. Erase “\” icon in front of your Domain\Username.
3. Change the Serve “gmail.com” for “m.google.com”, then tap next step.
In Account options, you can adjust: Email checking frequency and Amount to
synchronize and so on.
Tap on the specific date to start using your personal calendar now.
Tap to show function bar at the bottom of the screen.
Icon Action
Show all schedules sorted by Day
Show all schedules sorted by Week
Show all schedules sorted by Month
Show all schedules sorted by specific Agenda
Show all schedules sorted by today
Show more options: New event \Calendars\ Settings
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 14 -
Create Shortcuts on Home Screen
In order to access to frequently used applications more quickly, you can create a short
cut to an application and place it on the Home screen. Therefore, you don’t need to
spend to look for it among the many applications on the Launcher screen.
There are two ways to make shortcuts:
1. Tap any blank space on Home screen and hold until a pop out menu shows up. Then,
you can select Shortcuts to add to the Home screen.
2. Press the application icon in the Launcher screen and hold until the icon is enlarged
and background has been changed to Home screen. Then, drag the enlarged icon to
an empty space on Home screen and release the finger.
Create Widgets on Home Screen
Widget is a small application. After being installed, it does not show up in the
Application Launcher screen. However, using the same method as creating shortcuts on
Home screen, widgets can be put on the Home screen, and be launched by tapping on
the widget icon.

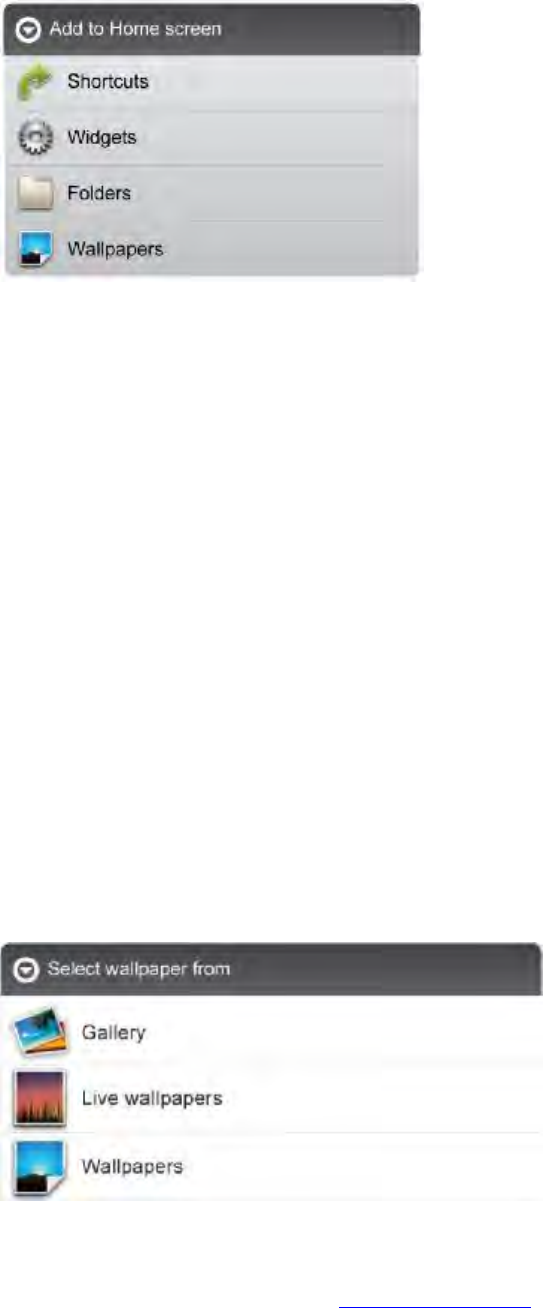

Change Wallpapers
In Add to Home screen menu tap Wallpapers, then a submenu shows up. You can select
wallpaper from your Gallery/ Live wallpapers/ default Wallpapers.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 15 -

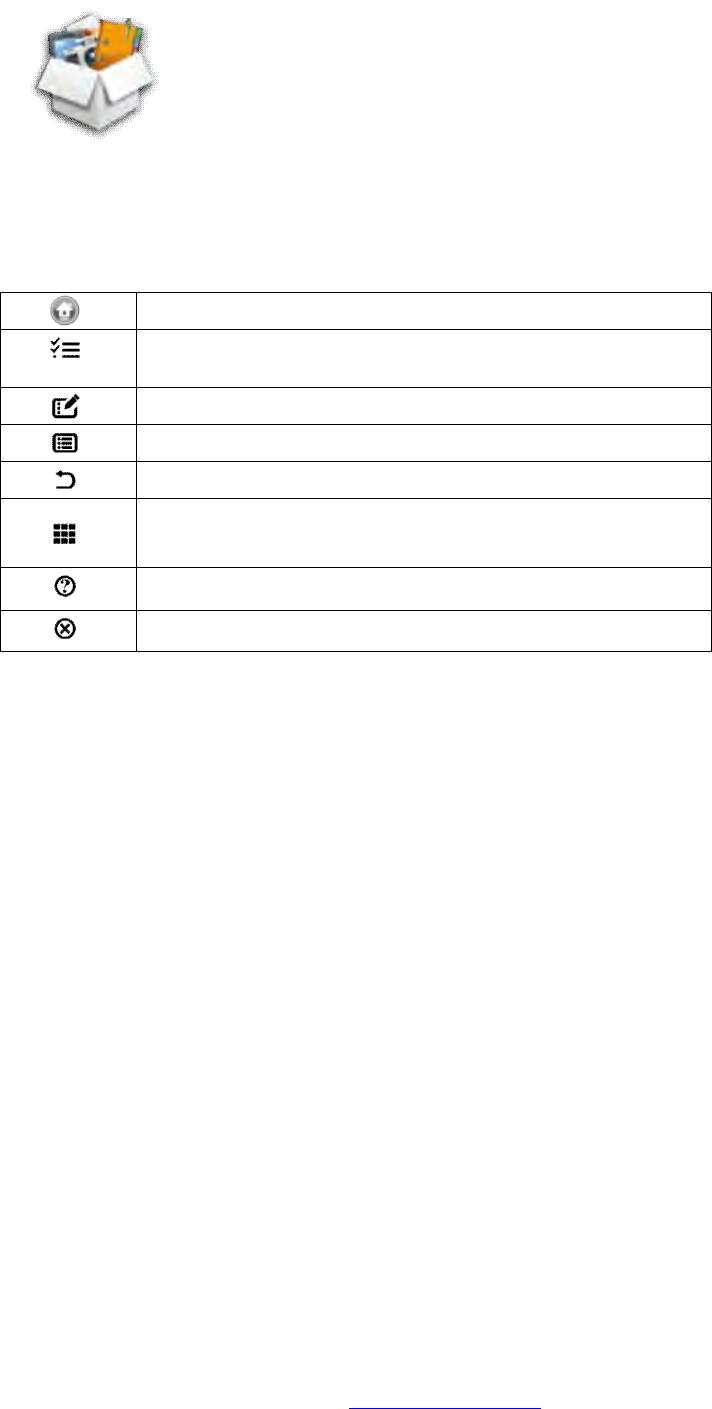

Install Third-Part Applications from micro SD
AppInstaller can be used to install the application file (with
extension apk) into the system.
1. Change the Settings to allow third-party application installation. In Settings à
Applications à Unknown sources, check the box to the right.
2. Prepare the application files in a micro SD card and insert the micro SD card.
3. Launch the AppInstaller application on the application launcher screen. The system
will scan for the installation files in the SD. Find the application you want to install
from the list and tap on it. The installation process will start. Follow the screen
instruction to complete the installation.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 16 -
Ⅴ- CONNECTIONS

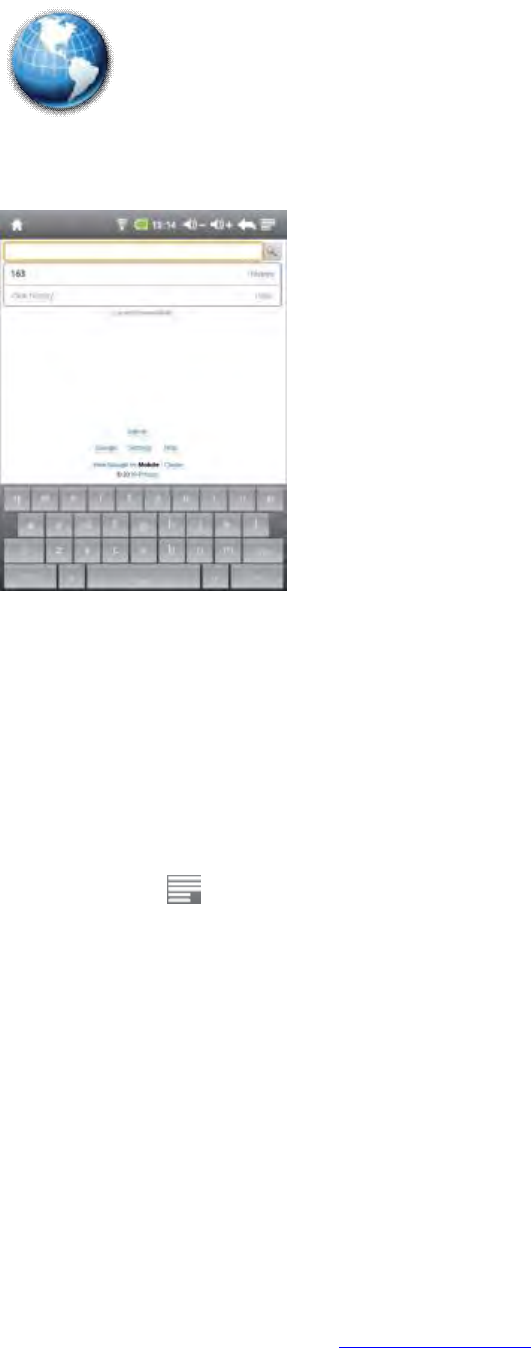

Browser
Browser is used for browsing the World Wide Web. With the web browser
plug-ins, you could browse websites to watch videos, download contents, and listen to
music etc.
1. Tap the address field (in the title bar) to bring up the onscreen keyboard, enter
website address, then tap Go.
2. Similar website previously browsed or key work previous searched will appear
beneath the address field. You can tap them to go to the web site listed or search the
key word.
3. Double tap on screen to zoom in and zoom out. Moving fingers across the screen
will pan the screen up, down, left or right.
Tap Menu button at the right-upper corner to display additional functions at the
bottom of the screen.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 17 -
Wi-Fi
This tablet uses the 802.11b/g/n wireless specification to transmit and receive data. For
more information, refer to “Set up Wi-Fi Connection” on page 11.

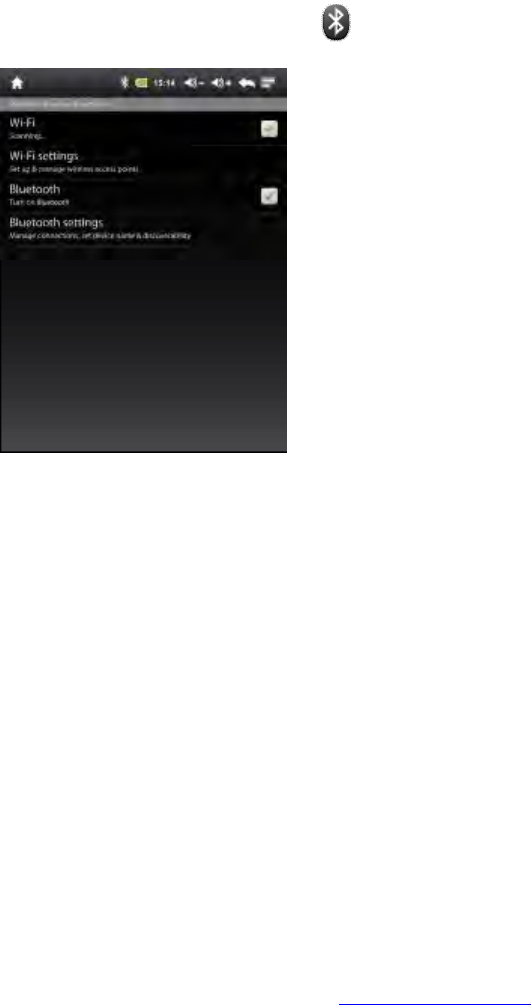

Bluetooth
Bluetooth is a short-range communications technology that enables you to link to other
devices for exchanging information without a physical connection.
Make Bluetooth Connection In Settings à Wireless & networks à Bluetooth, check
on the Bluetooth to turn it on. Icon will display when Bluetooth is active.
Setting up Bluetooth is similar to setting up Wi-Fi. Normally, the device will
automatically scan the available Bluetooth devices. If this does not happen, tap Scan
for devices for the available Bluetooth device. Then, tap on the desired device for a
while to show Pair & connect, and enter a PIN to pair with this Bluetooth to make the
connection. Tap on the OK to start connecting to that Bluetooth.
When connection is established, you may start exchanging information now.
*Insert a TF card before storing information.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 18 -
PC Connection
Connect your tablet to a PC via USB cable. By connecting tablet to PC, you can
synchronies files or transfer data directly.
1. Plug one end of a USB cable to a tablet and plug the other end to a PC, then you will
see a screen as below. Tap Turn on USB storage to connect to PC.
2. For a better use of your tablet, tap Turn off USB storage every time you unmount
USB storage.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 19 -

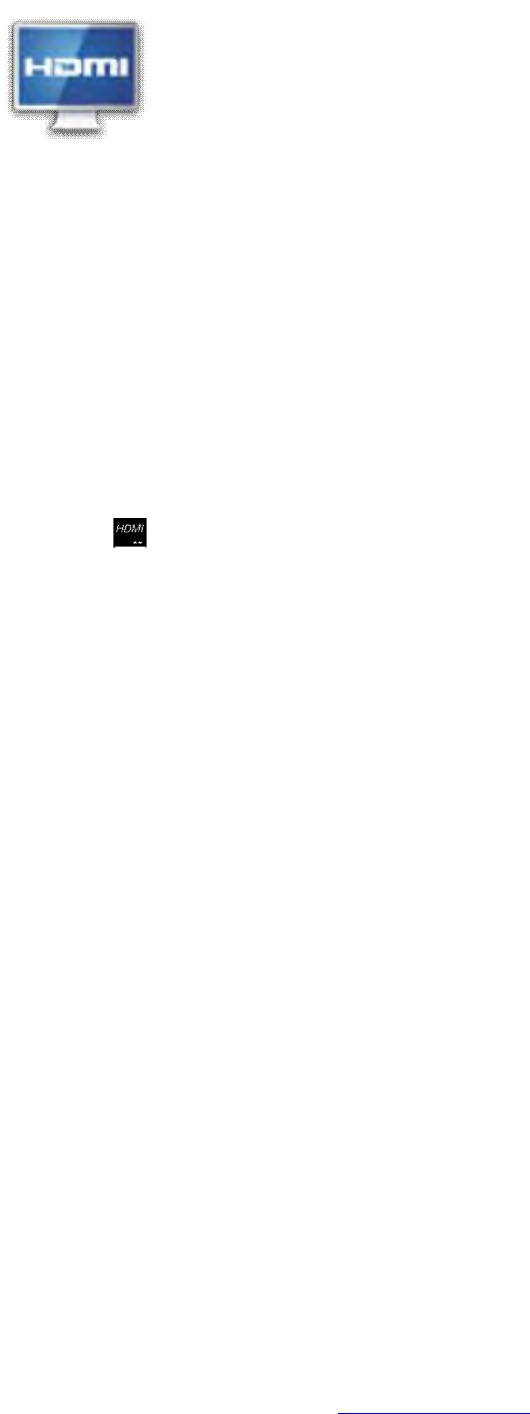

Connect to TV set
HDMI switch can switch your video display from tablet to a TV or
monitor with HDMI input. While the tablet screen is shown on TV or monitor, tablet
will become a touch pad for all operations, including switching video display back to
the tablet screen.
To switch the video display from the tablet screen to a TV or Monitor equipped with
HDMI input
1. Plug one end (larger end) of the HDMI cable into one of the TV/monitor HDMI
inputs, and plug the other end to tablet HDMI output.
2. Choose the correct input source setting on TV/monitor. Wait until the HDMI
icon shows up on the status bar, and indicates “HDMI connected”.
3. Open the HDMI Switch application. Tap on a compatible video format the
TV/monitor can accept. If you don’t know which one to use, the best guess is
to tap on the 720p (or 480p for older HD Ready TV).
4. Wait for a few seconds, the tablet video will show up on the TV/monitor screen.
5. Slide your finger on the tablet screen to move an arrow to the OK button, and
double tap the tablet screen to apply the selection.
6. From this moment on, until your use the HDMI Switch application to switch the
video back to tablet screen or disconnect the HDMI cable, you can use the
following gestures to perform all the operations.
• Finger move ---- move arrow cursor on the TV/monitor
• Double tap ---- select/open the item pointed by the arrow
• Double tap and quick move – slide the screen, scroll a list or move the tapped
icon.
• Double tap and hold -- equivalent to the long press of an item when video
display is on the tablet screen.
7. To switch back to the normal video on the tablet screen, simply unplug the
HDMI cable
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 20 -
Ⅵ-APPLICATIONS
Camera
Tablet allows you to take photos and video through the front camera. You
can take photos at resolution up to 800 x 600 pixel (0.3 megapixels) and videos at
resolution up to 354 x 288 pixels. The application requires external micro SD card to
run. The picture taken and video recorded will be store in the external micro SD card.
Be sure to insert the micro SD before using this application.
To take picture:
Make sure mode switch is set to , the photo mode.
Tap on the shutter button to take a picture.
To record video:
Make sure mode switch is set to , the video recording mode.
Tap on the Recording button to start video recording.
Icon Action
Exposure \ Picture size \ Picture quality \ Color effect \ Camera settings
submenu
White balance submenu for different light environment
Zoom submenu
Video recording mode
Photo mode
Tap to take picture or start video recording. Photo or video will be saved in
the micro SD card automatically. After photo is taken or recording, tap the
square icon on upper-right corner of the screen to review.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 21 -

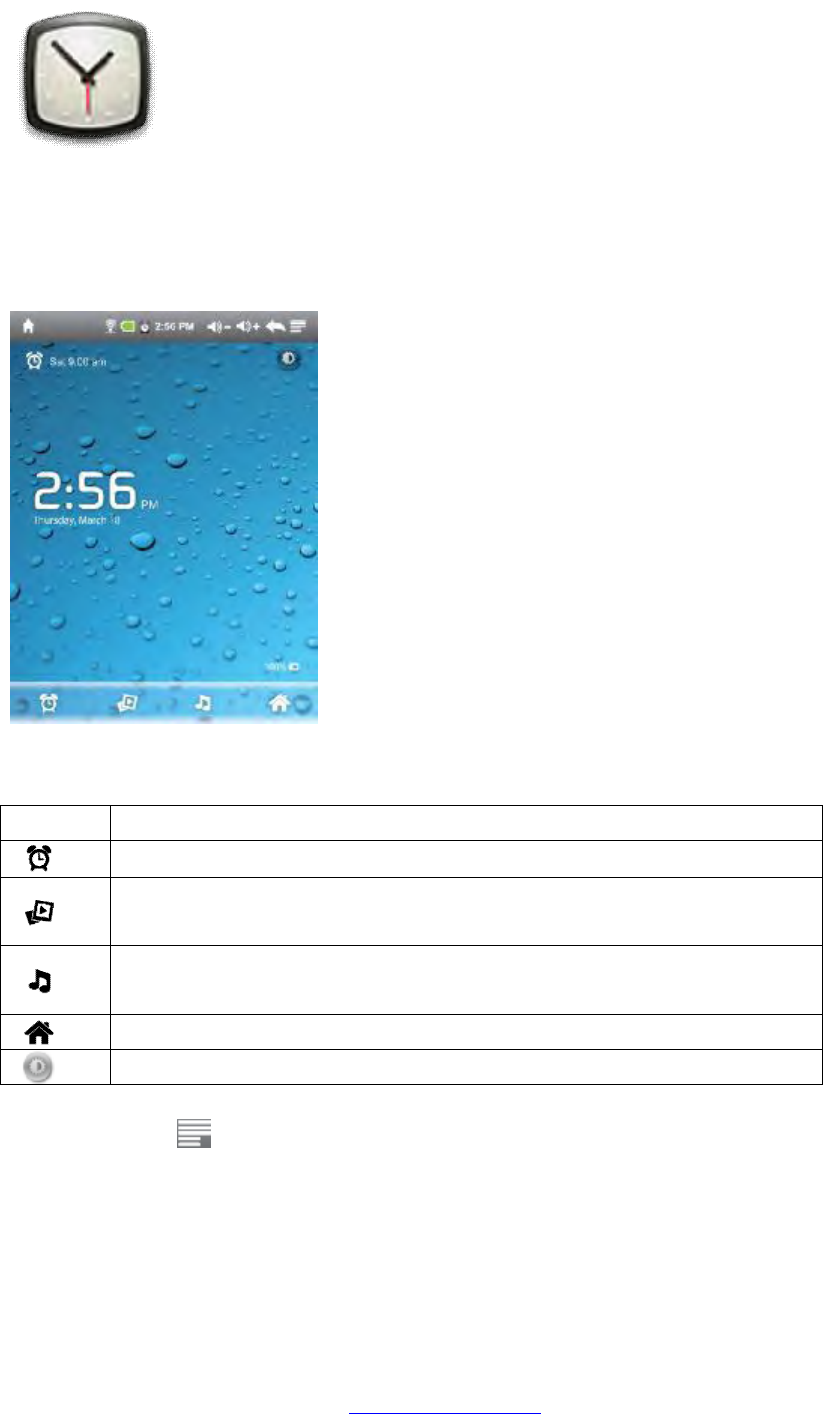

Clock
Tap on clock icon. The following screen will be shown. You can tap
on the icon at the bottom screen to adjust alarm settings, play photo slideshow, play
music or go back to Home screen.
The icon at the upper-right corner can be used to adjust the brightness of the panel.
Icon Action
Adjust alarm clock
Play photo slideshow of internet memory or micro SD
Play music
Exit to Home screen
Adjust panel brightness
Tap Menu button at the right-upper corner to display additional functions at the
bottom of the screen: Set alarms, Add alarm or Set the docking (not available now).
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 23 -

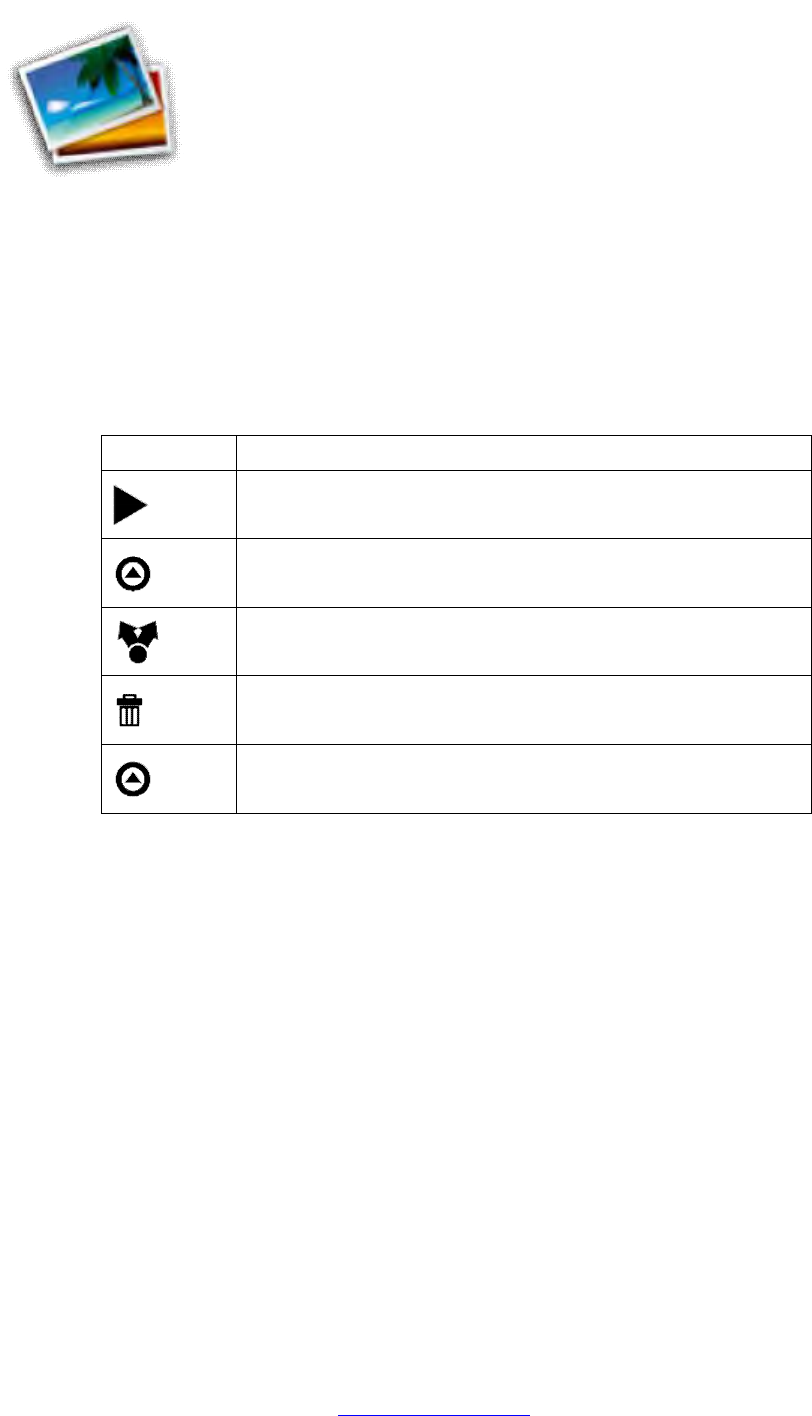

Gallery
Tap on “Gallery” in Launcher screen to open the application.
1. The first screen shows all photos and subfolders located in the Pictures folder.
2. Tap Pictures folder into photo thumbnail mode. (Default view)
3. Tap a thumbnail into photo single view mode.
4. When in photo single view mode, tap anywhere on screen to show function bar on
screen.
Icon Action
Tap to start sliding photos
Go to more options
Share photos by Bluetooth or Email
Delete photo
Go to more options: Details of photo/ Set as wallpaper/
Crop photo/ Rotate option: Right/ Left
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 24 -
Music
Tap “Music” in the application launcher screen to get to the song
screen as below:
Select the song, album, artist or playlist to play music. Use the onscreen icons to
configure how you want to play the songs.
Icon Action
Show playing list
Turn shuffle on/off function
/ Repeating all songs, current song or Off
Previous song
Pause/ Stop
Next song
Note: Song will keep playing as background music while you leave the music playback
screen. This function allows you to browse files, view photos and surf Internet
while listening to music. To stop playing songs, tap on Pause on the music
playing screen followed by the Back button.
Tap on status bar to select other functions to play the song.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 25 -
Video Player
1. Tap “Video Player” in the application launcher screen.
2. Browse the micro SD or internal memory to find the video file to play.
3. Tap video file to start playing video.
4. While playing video file, tap anywhere on screen to display the control bar as below.
Drag the yellow bar to fast forward or backward view video.
Icon Action
Back to previous menu
Move to previous video
Fast reverse
Play/Pause
Fast forward
Move to next video
Show more options
Additional options in the control bar are:
Icon Action
Back icon
Resume Mode
Repeat all or Repeat one
Audio Track
Subtitle
Adjust the size of screen display format: Normal/ Full
Screen/ 4:3 / 16:9
Adjust screen brightness： 1/2/3/4
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 26 -
File Browser
In main screen, tap FileBrowser to choose your options first:
Internal Memory / SD Card.
Icons on FileBrowser
Back to Device List interface
Multiple select / open mode
Edit file: Cut/Copy/ Paste/Delete
Sort file: Sort by name/ Sort by date/ Sort by size
Back icon
Change between thumbnail mode and list mode interface
Help mode
Close FileBrowser
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 27 -
Ⅶ-Product Specification
Specifications:
General
Model Number CT1002
Panel Size/Type
10" TFT capacitive touch panel
Aspect Ratio: 4:3
Resolution:
1024 x 768
Brightness 180 nits (with touch lens)
Processor ARM Coretex-A9, 800MHz
Operation System Android 2.2.1
Storage
Internal memory 512MB DDR2
NAND Flash
4GB
External SD card Micro SD up to 32GB
Support Format
Video MPEG 1/2/4, H.264/VC-1 @1080P
RealVideo 8/9/10 @720P
Audio MIDI, MP3, WMA, AAC
Images JPEG, BMP, GIF, PNG
Connectivity
External 3G dongle Support
WIFI 802.11 b/g/n
Bluetooth V2.1 + EDR class 2 compliant
Webcam 0.3 Mega pixel
HDMI 1.3
USB OTG USB OTG 2.0 x 1
Stereo Speaker 1W x 2
Microphone Built-in
Earphone 3.5mm Stereo Jack
Sensor
Gravity 3-axis g-sensor
User Interface
Hardware Keys Power, Vol+, Vol-
Virtual Full Touch Screen /Touch Button/Virtual keyboard
Dimension/Weight/Condition
Dimension :
249 x 196 x 13.5 mm
Weight 660g
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 28 -
Operation Condition 0℃～40℃
Storage Condition -20℃～55℃
Power
Li-Polymer Rechargeable 7.4V/3000mAh
Standby time : 80 hours B
attery :
Video Playback : 4.5 hours
AC/DC Adapter
100Vac~240Vac,0.5A, 50Hz-60Hz, 12V/2A
For EU - Model: ADS-24S-12 1224GPG
For US - Model: ADS-24S-12 1224GPCU
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 29 -
TRADEMARK
Carrefour is a registered trademark of Carrefour group. All other company names are
trademarks, registered trademarks or service marks of their respective owners.
RECYCLING
This product bears the selective sorting symbol for waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European Directive 2002/96/EC in order to be recycled or dismantled to minimize its
impact on the environment. For further information, please contact your local or
regional authorities. Electronic products not included in the selective sorting process
are potentially dangerous for the environment and human heath due to the presence of
hazardous substances.
Declaration of Conformity
Hereby, Carrefour declares that this device (WiFi) is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
The declaration of conformity may be consulted at: CMI - 2 Avenue du Pacifique -
Les Ulis - 91940 COURTABOEUF Cedex FRANCE
Par la présente,Carrefour déclare que l’appareil (WiFi) est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Une copie de la Déclaration de Conformité peut être obtenu en écrivant à l'adresse
suivante : CMI - 2 Avenue du Pacifique - Les Ulis - 91940 COURTABOEUF
Cedex FRANCE
Restriction dans la communauté européenne.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
- 30 -
Pour un usage en intérieur seulement.
Approvato esclusivamente per uso in locali chiusi. L'utilizzo all'esterno dei propo
locali è subordinato al rilasci di un'autorizzazione generele.
Déclaration de conformité :
Utiliser cet appareil avec les écouteurs inclus. Cela permet d'assurer le respect de
la puissance sonoroe maximale fixée par l'article L5232-1 du Code de la Santé
Publique français. Pour en savoir plus sur l'écoute sans risque consulter la
rubrique des précautions d'emploi dans le manuel.
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Rev 1.0
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
Caution: the user that changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate the equipment.
