Winmate 7000WBW Rugged Tablet PC User Manual 1

WINMATE Communication INC. Rugged Tablet PC 1

M700D User Manual

Rugged Computing
Users Manual Rugged Tablet PCs
M700D Rugged Tablet PC
(Intel® Atom Duo Core N2600 Based Tablet PC)
USERS MANUAL
Version: 1.0
M700D

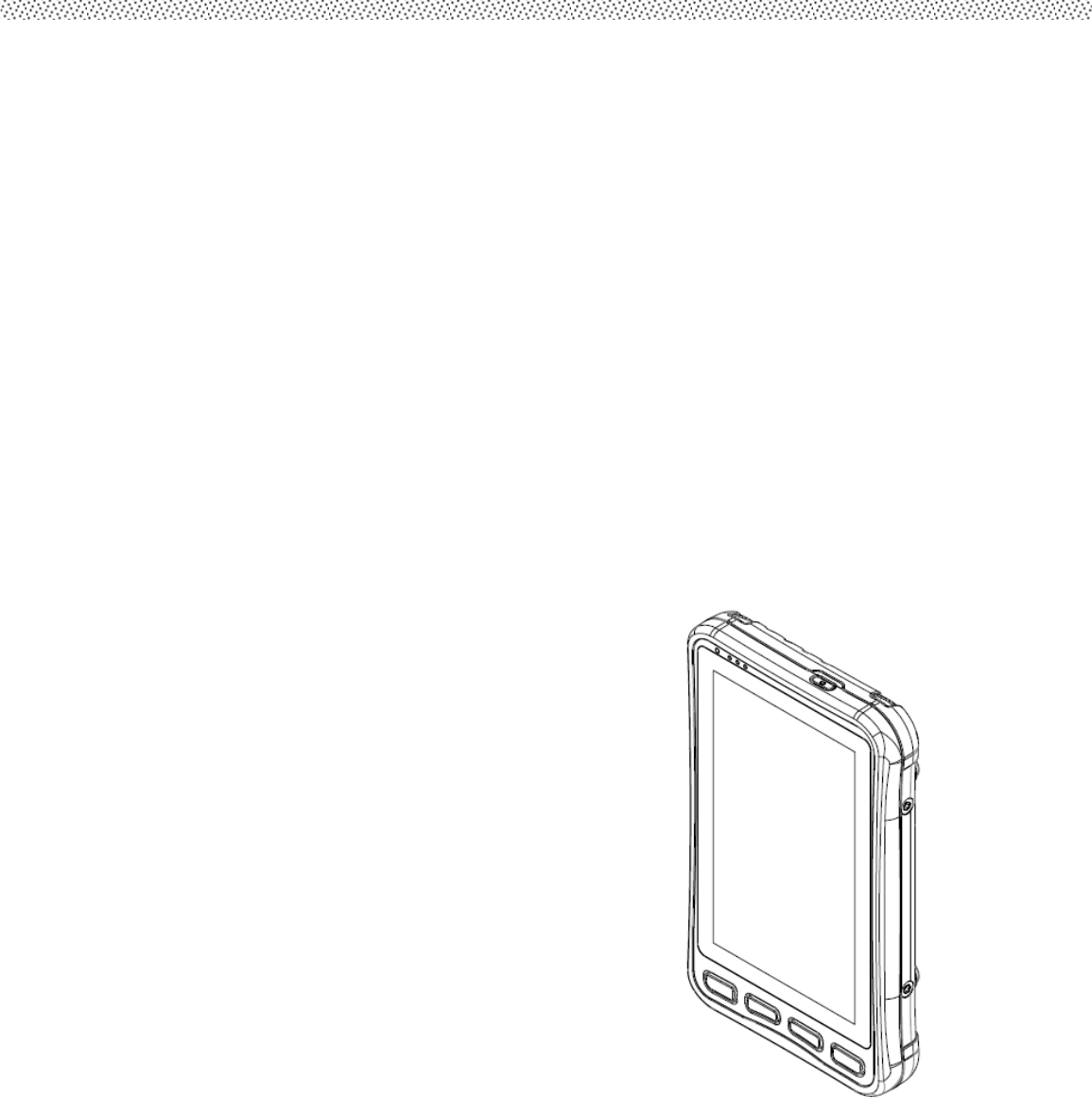

7” Compact Rugged Tablet PC
Rugged Computing
Users Manual Rugged Table PCs
2
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions carefully before using the product and
save for later reference.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Clean the
product with a damp soft cloth. Do not use liquid or aerosol cleaners
as it may cause permanent damage to the screen.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
This product should be operated from the type of power indicated on
the marking label. If you are not sure of the type of power available,
consult your dealer or local power company.
This product is equipped with a 3-wire grounding type plug, a plug
having a third (grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. (For AC version only)
Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
Do not attempt to service this product by yourself, as opening or
removing covers may expose you to dangerous voltage points or
other risks and will void the warranty. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If rainy or water has been exposed to the product.
If the product does not operate normally that the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibited a distinct change in the performance, that
indicates a need for service.
Rugged Computing
Users Manual Rugged Table PCs
3
Copyright Notice
Copyright © 2012 Winmate Communication Inc., ALL RIGHTS RESERVED. No
part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
Winmate Communication Inc. reserves the right to make any product changes
without notice, including circuits and/or software described or contained in this
manual in order to improve design and/or performance. Winmate Communication
assumes no responsibility or liability for the use of the described product(s),
conveys no license or title under any patent, copyright, or masks work rights to
these products, and makes no representations or warranties that these products
are free from patent, copyright, or mask work right infringement, unless otherwise
specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
Winmate warrants that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer
discovers a defect, Winmate will, at its option, repair or replace the defective
product at no charge to the customer, provided it is returned during the warranty
period of one year, with transportation charges prepaid. The returned product must
be properly packaged in it’s original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W08Axxxxxxxx means October of year 2008.
Rugged Computing
Users Manual Rugged Table PCs
4
Customer Service
We provide service guide for any problem as follow steps：First, visit the website
at http://www.winmate.com.tw to find the update information about the product.
Second, contact with your distributor, sales representative, or our customer service
center for technical support if you need additional assistance. You may have the
following information ready before you call：
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every
business day. We are always ready to give advice on application requirements or
specific information on the installation and operation of any of our products. Please
do not hesitate to call or e-mail us.
Notice
1. Do not touch the LCD panel surface with sharp or hard objects.
2. Do not use abrasive cleaners, waxes or solvents for cleaning, use only a dry or
damp, soft cloth.
3. Use only with a high quality, safety-approved, AC/DC power adapter.
Rugged Computing
Users Manual Rugged Table PCs
5
Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not make
connections while the power is on. Sensitive electronic
components can be damaged by sudden power surges. Only
experienced electronics personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded bag
when they are not in the chassis.
Rugged Computing
Users Manual Rugged Table PCs
6
FEDERAL COMMUNICATIONS COMMISSION
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an
uncontrolled environment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Rugged Computing
Users Manual Rugged Table PCs
7
RF exposure information (SAR)
This Rugged Tablet PC meets the government's requirements for
exposure to radio waves. This Rugged Tablet PC is designed and
manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. The exposure standard for
wireless Rugged Tablet PC employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the
FCC is 1.6 W/kg. Tests for SAR are conducted using standard
operating positions accepted by the FCC with the Rugged Tablet
PC transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the Rugged Tablet PC
while operating can be well below the maximum value. This is
because the Rugged Tablet PC is designed to operate at multiple
power levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base station
antenna, the lower the power output. The highest SAR value for US
model Rugged Tablet PC as reported to the FCC when tested for
use at the body, as described in this user guide, is 0.297 W/kg.
Rugged Computing
Users Manual Rugged Table PCs
8
Packaging List
This product is shipped with the items list below. Please make sure that all are in
your package.
Item
Description
Note
Default Packing Accessories
1
1 piece of Rugged Tablet PC Quick Start
Guide.
2
1 piece of CD for Recovery CD for Operation
System (Windows embedded standard 7).
3
1 piece of CD for M700D Manual & Driver
4
1 piece of 12V Adapter w/ Standard Power
Cord.
(Euro / U.S. Std type, 1.8m)
Optional Accessories
1
Docking
For charging / USBx2 /
VGA out / LAN
2
Hand Strap
3
Capacitive Touch Stylus
4
Vehicle charger
5
Battery
Rugged Computing
Users Manual Rugged Table PCs
9
Contents
IMPORTANT SAFETY INSTRUCTIONS............................................................. 2
PACKAGING LIST ................................................................................................... 8
CHAPTER 1 GETTING STARTED ...................................................................... 12
1.1 CONNECTING THE AC POWER ................................................................................ 12
1.2 TURNING ON AND OFF THE TABLET PC ..................................................................... 13
1.2.1 TURNING ON THE TABLET PC ........................................................................ 13
1.2.2 TURNING OFF THE TABLET PC ....................................................................... 13
1.3 THE OPTIMIZED USE FOR SUNLIGHT READABLE TOUCH SCREEN. ....................................... 14
1.4 TAKING A LOOK AT I/O FUNCTIONS (FOR 7 INCH TABLET PC) .......................................... 15
1.5 PRODUCT FEATURES AND SPECIFICATION .................................................................. 18
1.5.2 Product Features ...................................................................................................................... 18
1.5.2 Product Specification .............................................................................................................. 19
CHAPTER 2 OPERATING TABLET PC AND HOTTAB HOTKEY UTILITY22
2.2 STARTING AND STOPPING THE TABLET PC ................................................................. 22

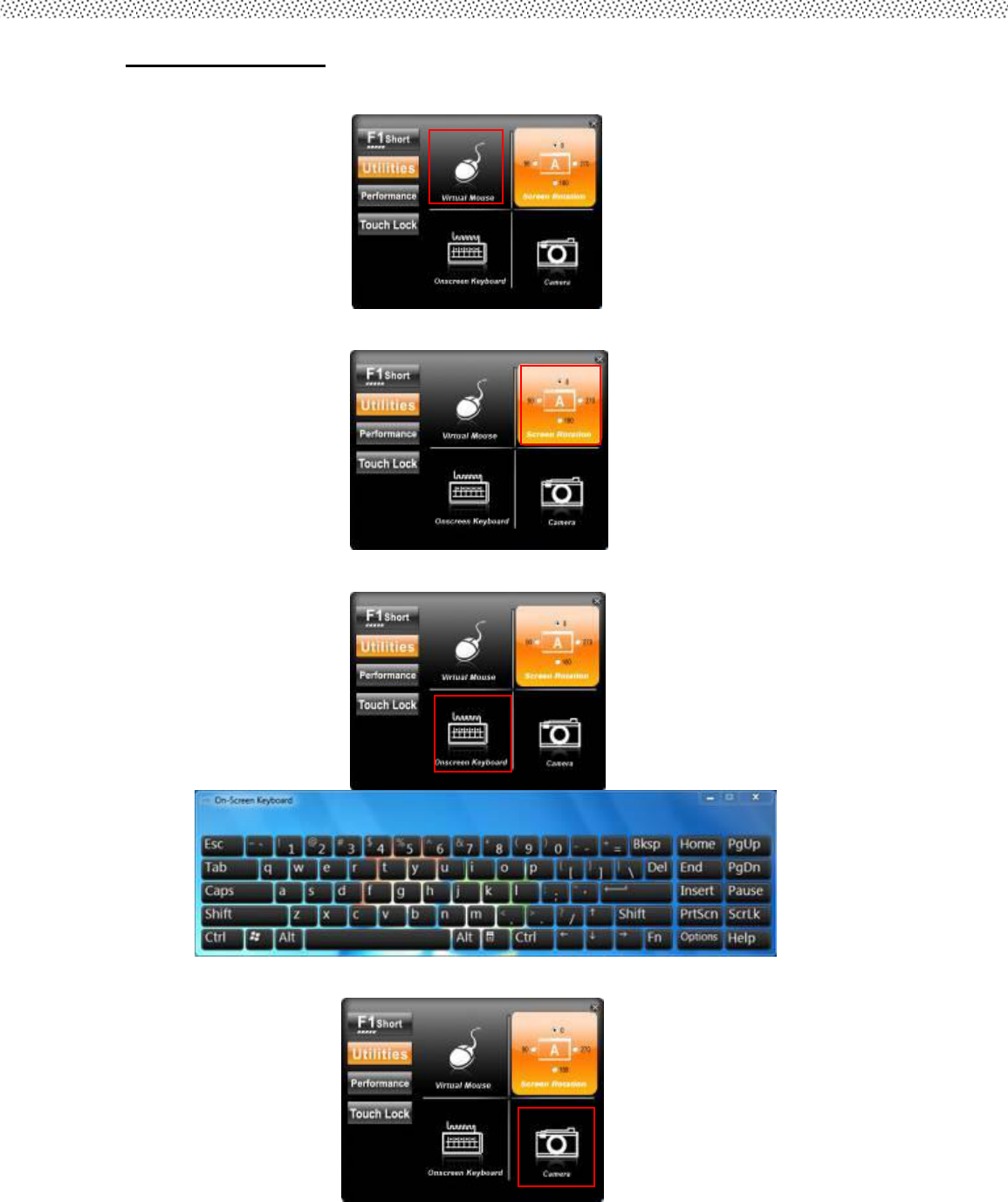

2.2 QUICK TO KNOW MENU AND HOTTAB HOTKEY FUNCTION ............................................... 23
2.2.1 How to use Menu Function ................................................................................................... 23
2.2.2 How to use F1 (Hotkey) Function ...................................................................................... 25
Use the HotTab software utility to make it easy to program and define hot key by
customer’s usual application. .............................................................................................................. 25
2.2.3 Connecting to a Wireless Network ..................................................................................... 28
2.2.4 Using the Bluetooth Wireless Feature .............................................................................. 29
2.2.5 Using the Camera Feature .................................................................................................... 31
CHAPTER 3 TABLET PC POWER MANAGEMENT ......................................... 33
3.1 ABOUT AC ADAPTER .......................................................................................... 33
3.2 CHARGING AND CHECKING CHARGING STATUS ........................................................... 34
3.2.1 Charging the Battery Pack .................................................................................................... 34
3.2.3 Charging Approaches .............................................................................................................. 34
3.2.3 Checking the Battery Level .................................................................................................. 35
3.2.4 Battery Low Signals and Actions ........................................................................................ 35
3.3 POWER MANAGEMENT......................................................................................... 35
FOR DETAILED INFORMATION ON POWER MANAGEMENT, SEE WINDOWS’ HELP. ............................. 36
CHAPTER 4 EXPANDING YOUR TABLET PC ................................................ 37
4.1 HOW AND WHEN TO USE BIOS SETUP .................................................................... 39
4.2 BIOS FUNCTIONS ............................................................................................. 40
4.2.1 Main Menu ................................................................................................................................... 40

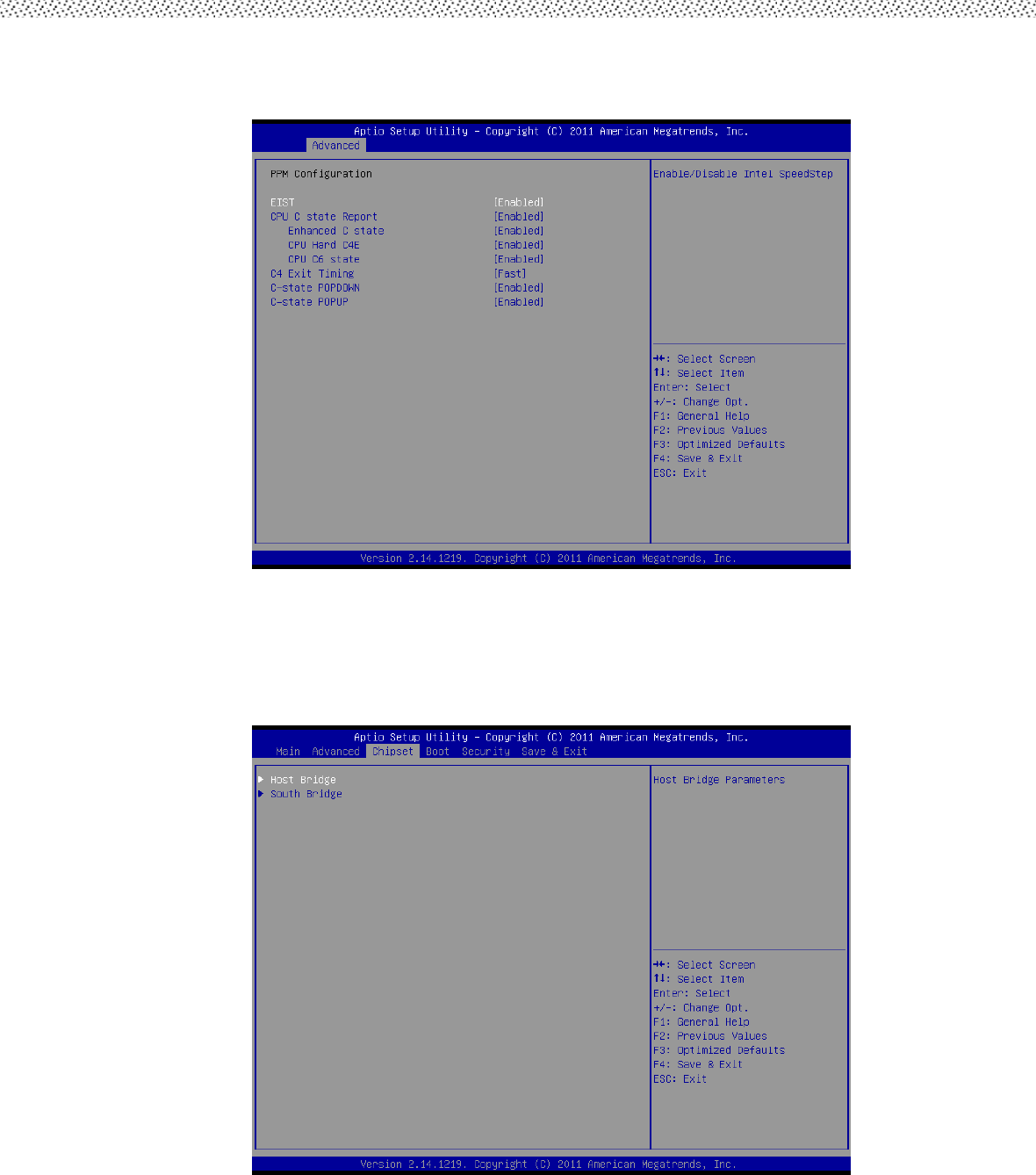

4.2.2 Advanced Menu ......................................................................................................................... 40
4.2.3 Chipset Menu ............................................................................................................................. 43

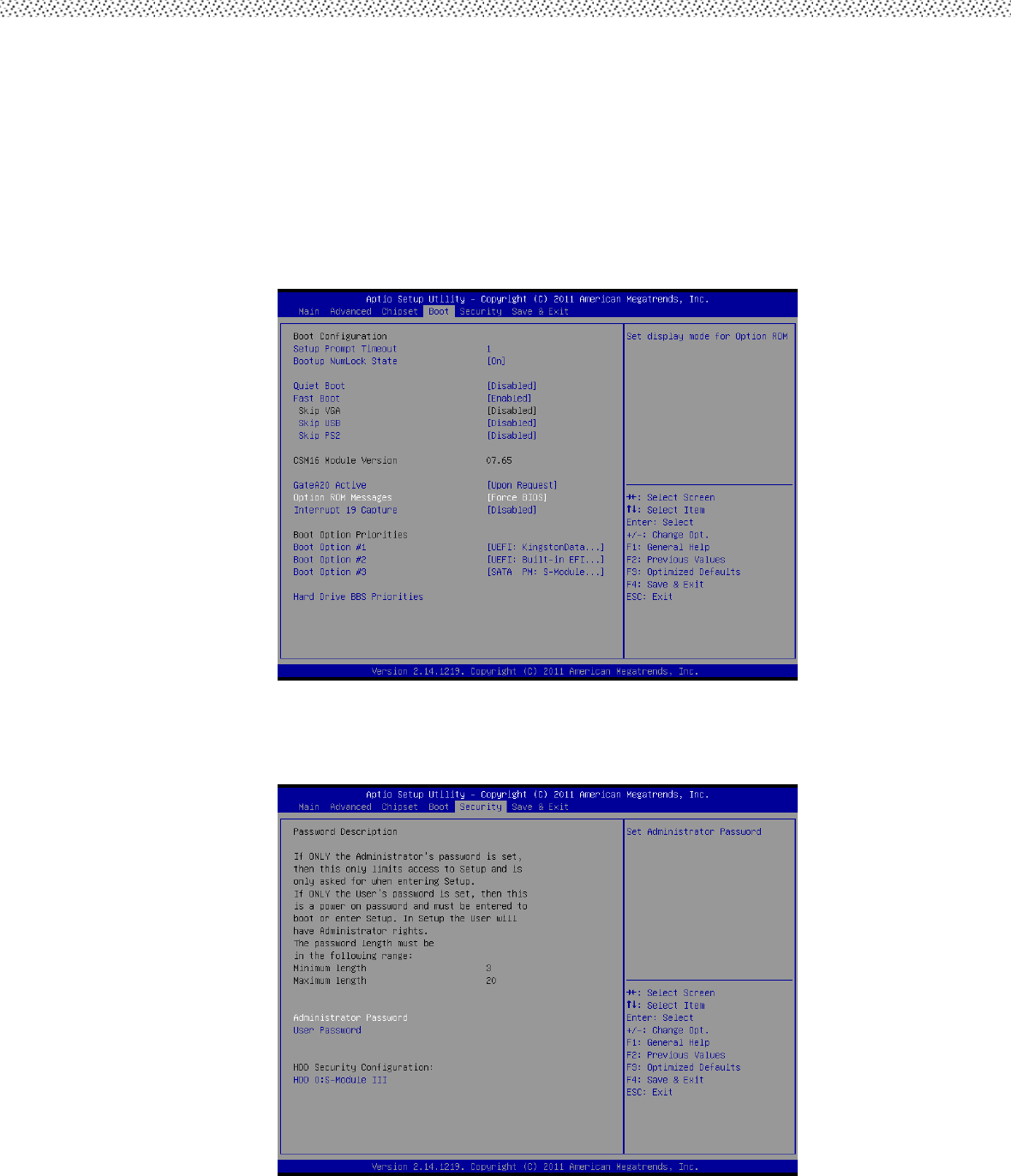

4.2.4 Boot Menu ................................................................................................................................... 44
4.2.5 Security Menu ............................................................................................................................ 44
4.2.6 Save & Exit Menu ..................................................................................................................... 45
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 5 HOW TO USE RECOVERY DVD .................................................. 46
5.1 HARDWARE PREPARATION .......................................................................... 47
5.2 START TO RECOVER THE SYSTEM BY RECOVERY DVD ..................................... 47
Rugged Computing
Users Manual Rugged Table PCs
11
CHAPTER 1
Getting Started
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 1 GETTING STARTED
This chapter guides you to get the Rugged Tablet PC ready for operating.
1.1 Connecting the AC Power
Our tablet PC can operate either on the external AC power adapter or
internal battery power. It is suggested that you use AC power when you
start up the tablet PC first time.
**Caution
Use only the AC adapter included with your tablet PC. Using other AC
adapters may damage the tablet PC.
1. Plug the DC cord of the AC adapter to the power connector of the tablet PC.
2. Plug the female end of the AC power cord to the AC adapter and the male end to
the power electrical outlet.
3. When the AC adapter is connected, the Battery Pack is also under charging. You
can check the Battery Status LED indicator to see the currently progress. The
indicator turns to green when is fully charged.
(For information on using battery power, see “Chapter 3 The Power Management”)
**Caution
When you disconnect the AC adapter, disconnect from the electrical outlet
first and then from the tablet PC. A reverse procedure may damage the AC
adapter or the tablet PC.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
DC-Jack
Rugged Computing
Users Manual Rugged Table PCs
1.2 Turning On and Off the Tablet PC
1.2.1 Turning on the Tablet PC
1. Place your tablet PC on a flat and stable surface or holding the tablet PC on your
hand.
2. Make sure that the tablet PC is either connected to AC power or the battery pack
with power.
3. Press the power button on the right side by 3 seconds to start it.
1.2.2 Turning off the Tablet PC
To turn off the tablet PC power, use the “Shut Down” command of your
operating system.
**Caution
If you have to turn the tablet PC on again immediately after turning
it off, wait for at least five seconds. Turning the tablet PC off and on
rapidly can damage it.
Power Button
Rugged Computing
Users Manual Rugged Table PCs
1.3 The Optimized Use for Sunlight Readable Touch screen.
With the imposed reflective function, the modified LCD can reflect the ambient light
passing the LCD cell and utilize the reflected light beams as its illumination. The
stronger the ambient light is, the brighter the LCD will appear. As a result, the
modified LCD is viewable under lighting conditions. The optimized angle of view is
fourty-five degree. And the optimized distance of view is 30cm.
**Caution
Although transflective LCD is mainly used in outdoor environment and it may
increase the reflective lights under sunlight, it is suggested that you should
keep the LCD in appropriate temperature for operation and storage, and avoid
direct sunlight if possible. To ensure the transflective LCD work stably, 0~50°C
(32-121°F) operation and storage temperature is suitable.
Light Source
Rugged Computing
Users Manual Rugged Table PCs
1.4 Taking a Look at I/O Functions (for 7 inch Tablet PC)
This section we will show the Tablet PC external connection parts and their
functions.
Front side Control Functions
#
Components
Function Description
See Other
Intro.
1
Power Button
Press 3 seconds continuous to
turn-on the PC.
Press once to turn off backlight when PC
is on.
Press once to tune on backlight when
backlight is off
Need 8 seconds continuous push to
force the Tablet PC turn-off
immediately.
2
LED Indicator
From right to left shows the status
about Power mode and Battery mode
status mode.
3
Menu
Push Menu function to show Brightness,
Volume,Battery status and WiFi/
Bluetooth on/off.
Chapter 2.2.1
4
Hotkey (F1/F2)
1 programmable Hot-key for user to
define by application
Chapter 2.2.2
Hot Key:
Home, Hot Tab, F2 and Manu
LED Indicator
Power Button
Manu
F2
Function
key
F1
Function
key
Home
Rugged Computing
Users Manual Rugged Table PCs
LED Indicator Status Description
LED Term
Power mode
Battery 1 Status
Battery 2 Status
LED
Indicator
Indicator
Status
Description
Blue light：when
Power On.
No light when Power
Off.
Orange Light：
Under charging
Red Blinking
Light：Low Battery
Check Chapter
3.2.3/ 2.4 for low
battery and
replacing battery
Orange Light：
Under charging
Red Blinking
Light：Low Battery
Check Chapter
3.2.3/ 2.4 for low
battery and
replacing battery
I/O side Input
#
Components
Function Description
See Other Intro.
1
Power Button
Press 3 seconds continuous to
turn-on the PC.
2
Force shutdown
Button
Press to force shutdown the unit
3
SIM card slot
To insert the SIM card
4
Micro SD slot
To insert the SD card
5
USB
Standard USB2.0 port
SIM card slot
Audio Jack
Docking
DC Jack
USB 2.0
SD card slot
Rugged Computing
Users Manual Rugged Table PCs
6
Mic-in/Line-Out
Mic-in for microphone. Line-Out for
the external speaker or handset.
7
DC Jack
DC 12V in
8
Docking
Connector
Connect to the optional docking
Through the first Chapter 1.1 to 1.4, you can understand the basic information when you own
the machine, in next Chapter you will understand more detail about how to operate the tablet
PC. Between this, you can check our product function and specification.
Rugged Computing
Users Manual Rugged Table PCs
1.5 Product Features and Specification
1.5.2 Product Features
Our Rugged Tablet PCs are designed with state of the art industrial use,
versatile functionality and solid products. With great mobility support and
battery management. The 7” rugged tablet provides an alternative solution
for those between general consumer and extremely rugged application.
7” 1024x768 Resolution IPS LED Panel
Low-power system with Intel® Atom N2600 processor
2GB SODIMM DDR3-800 memory
Built-in Wi-Fi/ Bluetooth Module
Support GPS function (optional)
Standard Battery 5300 mAh
Mobile Rugged- Shock, Vibration, and transit drop
4 points Projective-capacity touch
Rugged Computing
Users Manual Rugged Table PCs
1.5.2 Product Specification
The product specification as the following table description:
System Specification
System
Processor
Intel® Atom N2600 Dual core 1.6GHz
BIOS
AMI System BIOS
System Chipset
Intel® NM10 Chipset
System Memory
2GB SODIMM DDR3-800
LAN Controller
Realtek RTL811B GigaLAN Controller
Storage
mSATA SSD
Audio
Audio out for headset, Micro-in for microphone jack,
1.0W Speaker x2 (Internal)
I/O Connectors
I/O Port
Docking Connector x1, Standard USB2.0 port x1,
Mic-in/Line-Out x1, DC jack x1, SIM card slot x1,
Micro SD slot x1
Button
Power Button x1, Volume up x1, Volume down x1,
Function key x4
In Front Control
LED indicator
From right to left shows the status about, Battery 1 mode,
Battery 2 mode, Power mode status mode
Display Specification
Size
7 inch
Resolution
1024x600 pixels
Touch
Projective Capacitive (5 points)
Rugged Computing
Users Manual Rugged Table PCs
System Specification (continues)
Mechanical and Environment
Weight
770g (w/o accessories)
Operating
Temperature
0 deg.C to 50 deg.C
Operating Humidity
30% to 90% (non condensing）
IP Proof
IP65
Mounting
Optional docking
Shock
Rugged mobile-shock
Vibration
Rugged mobile-vibration
Drop*
4 feets
Certifications
CE, FCC, CCC
Power Management
Power Input
12V DC
Battery
Standard battery 2270mAh
Operating time
2 Hours
Adapter
100-240V AC in , 50-60Hz, 12VDC output
Wireless Communication
WLAN
built-in 802.11b/g/n
Bluetooth
built-in Bluetooth
GPS
Optional built-in GPS Module
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 2
Operating Tablet PC and
HotTab Hotkey Utility
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 2 OPERATING TABLET PC AND HOTTAB HOTKEY UTILITY
This Chapter will guide you how to operate the Tablet PC, including start /
stop the PC, and how to use menu function including basic hardware
function adjustment and the HotTab hotkey utility software that is very easy
& helpful for operating the computer.
2.2 Starting and Stopping the Tablet PC
Starting the Tablet PC
You always start the tablet PC using the power button, push the Power
Button continuously by 3 seconds to turn on the Tablet PC.
Our Tablet PC will starts up with an operating system (OS) existing on the
storage device like the hard disk. The computer will automatically load the OS
after you turn it on. This is normal booting process.
NOTE: The operating system is the platform for all software application
programs to run on. The Tablet computer is recommended to use the
Microsoft Windows embedded standard 7 system for default solution.
Stopping the Tablet PC
When you finish your work, you can stop the tablet PC by turning off the
power or leaving the tablet PC in Standby mode:
#
Stop mode
How to do
Start or
Resume
again
1
Power Off
Following the shutdown process during
operating system. The standard
process can prevent unsave data loss or
damage your software programs.
2
Sleep (S3)
Under normal operating system, Push
the Power Button 4 second to go to
sleep mode. (push again to wake up the
unit)
If you choose to stop in Standby mode, you can return to where you left off
the next time you start up the tablet PC. (See “Power Management” in
Chapter 3 for more information.)
Rugged Computing
Users Manual Rugged Table PCs
2.2 Quick to Know Menu and HotTab Hotkey Function
This section will introduce you about our easy-of-use function buttons. Our
Tablet PC function buttons support very easy way and useful function to
adjust Brightness, Volume and watch Battery current status. For
programmable Hotkey function can also be defined by user to control by
their common use application.
2.2.1 How to use Menu Function
Menu Function Adjustment
#
Action
Function
Description
Funtion Adjustment
1
Push
“Menu”
button
1st Time
Show Current Brightness
Click “Vol+” button to
increase brightness (Or Drag
by Touch)
Click ”Vol-” to decrease
brightness(Or Drag by
Touch)
2
Push
“Menu”
button
2nd Time
Show current Volume
Click “Vol+” button to
increase volume(Or Drag by
Touch)
Click ” Vol-” to decrease
volume(Or Drag by
Touch)
3
Push
“Menu”
button
3rd Time
Show current Battery status
Rugged Computing
Users Manual Rugged Table PCs
Menu Function Adjustment
#
Action
Function Description
Funtion Adjustment
4
Push “Menu”
button
4th Time
Show current on/off of
Wireless\ Bluetooth \
Camera and GPS mode.
1. WiFi on/off
2. Bluetooth on/off
3. Camera on/off
4. GPS on/off (Optional)
5
Push “Menu”
button
5th Time

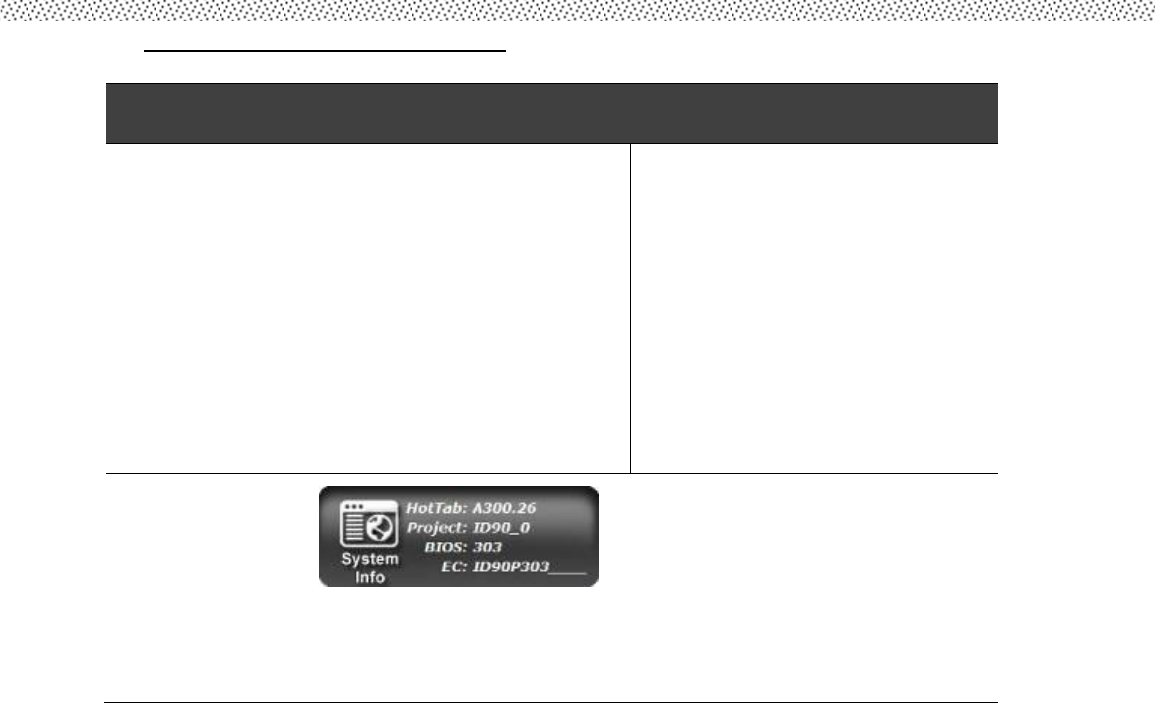

Show the system information
You can see the following:
1. HotTab version
2. Project ID
3. BIOS version
4. EC version
Rugged Computing
Users Manual Rugged Table PCs
2.2.2 How to use F1 (Hotkey) Function
F1 (Hotkey) Function
Use the HotTab software utility to make it easy to program and define hot
key by customer’s usual application.
Long press (3~4 seconds) the “F1” button on the top of your M700D and
you can see the utilities menu at center of desktop.
Then touch the “F1 Short” button.
Choose one software application as your hotkey function. After that, the
software application which you set will open immediately when you short
press “F1” button.
The Hotkey software program is the programmable application software for
the Hotkey; we choose some usual applied function for default setup. For
example, user can choose his own application program very easy by setting
up the function from the setup window.
Rugged Computing
Users Manual Rugged Table PCs
Utilities Function
A. The first is virtual mouse
B. Screen rotation
C. Onscreen Keyboard
D. Camera Function
Rugged Computing
Users Manual Rugged Table PCs
1. F1 Short function key
You can set F1 button as a hotkey to open the programs listed on menu or use “Browse”
and choose the execution program file.
2. Power Manage function
3. Touch Lock
Touch “Touch Lock” button to lock the touch screen and all buttons on the tablet.
Drag right to unlock the touch screen and all buttons on the tablet.
Rugged Computing
Users Manual Rugged Table PCs
4. Low battery warning:
When the battery under 10%, system will show the battery low to remind you to
change the new battery or insert adapter to charge.
2.2.3 Connecting to a Wireless Network
To connect to a wireless network:
1. Push “Menu” button 4 times and making sure the Wireless function is “On”.
2. Please using the defult Windows Wireless Network Connection utility.
Rugged Computing
Users Manual Rugged Table PCs
2.2.4 Using the Bluetooth Wireless Feature
We apply Bluetooth 2.1+ EDR module for default function of the Tablet PC
series. Depending on your application, the Bluetooth module can give you
capability for short-range wireless communicaitons between devices
without requiring a cable connection. The transmission can go through walls,
pockets and briefcases as long as two devices are within range around 10
meters. Following the easy step to connect to the Bluetooth communication.
1. Push “Menu” button 4 times and making sure the Bluetooth function is “On”.
2. Double click the Bluetooth shortcut and it will search any bluetooth device automatically.
Or click “Search for Devices” to search again.
3. Choose the bluetooth device you want to connect, and left click to choose “Connect”.
Then the device will be connected to the module.
Rugged Computing
Users Manual Rugged Table PCs
4. When under connecting, left click to check the connection status, or choose “Unplug”
to remove the connection.
Rugged Computing
Users Manual Rugged Table PCs
2.2.5 Using the Camera Feature
We apply a internal 2M Pixels Web Camera module for default function of the
Tablet PC series.
1. Push “Menu” button 4 times and making sure the Camera function is “On”.
2. Press “F1” button about 5 seconds to into the HotTab utilities menu. Then choose the
camera function.
3. Click the icon to record a video.
Click the icon to take a picture.
Click the icon to change the flashlight mode.
Click the icon to open the setting menu.
Click the icon to close the camera.
* Default picture & video save path: C:\Webcam
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 3
Tablet PC Power
Management
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 3 TABLET PC POWER MANAGEMENT
3.1 About AC Adapter
Our Tablet PC support one set of AC adapter and power cord by country area.
Please contact with your dealer for appropriate power cord if necessary.
**Caution
1. When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the tablet PC. A reverse procedure may
damage the AC adapter or tablet PC.
2. Always hold the plug head when you unplug the connector, never pull
out the cord.
3. The AC adapter is designed for use with your tablet PC only. Connecting
the AC adapter to another device can damage the adapter.
The adapter operates on any voltage in the range of 100~240 V AC. The AC
adapter serves as a converter from AC (Alternating Current) to DC (Direct
Current) power because the tablet PC runs on DC power input, but an
electrical outlet usually provides AC power.
Rugged Computing
Users Manual Rugged Table PCs
3.2 Charging and Checking Charging Status
3.2.1 Charging the Battery Pack
The battery pack is the internal power source for the tablet PC. It is
rechargeable using the AC adapter. The operating time of a fully charged
battery pack depends on how you are using the tablet PC. When your
applications often access peripherals, you will experience a shorter operating
time.
NOTE:
1. Charging will not start if the battery’s temperature is below 0 C (32 F).
It is also recommended not to charge the battery when temperature is
above 45 C (113 F)
2. To prevent damage, the charging process may stop and the Battery
Charge Indicator flashes red when the environmental temperature gets
above 55 C (131F)
3.2.3 Charging Approaches
There is one way recommended to charge the battery pack. By connecting
the AC adapter to the tablet PC and an electrical outlet, the Battery Charge
Indicator on the tablet PC glowed orange to indicate that charging is in
progress. You are advised to keep the tablet PC power off while the battery is
being charged. When the battery is fully charged, the Battery Charge
Indicator glows green.
CAUTION:
1. After the tablet PC has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. The
above-mentioned may damage the battery.
2. During charging, do not disconnect the AC adapter before the battery
has been fully charged; otherwise you will get a prematurely charged
battery.
Rugged Computing
Users Manual Rugged Table PCs
3.2.3 Checking the Battery Level
Any battery level indication is an estimated result. The actual operating time
can be different from the estimated time, depending on how you are using
the tablet PC.
In Windows operating system, you can check the approximate battery level
using the battery meter function. To read the battery level in Windows, click
the icon on the taskbar. (Click the icon if the tablet PC is using AC power.)
3.2.4 Battery Low Signals and Actions
Battery Low occurs when the battery has approximately 10 % (Windows
default setting) of its charge remaining. The tablet PC’s Battery Charge
Indicator ( ) blinks red to alert you take actions.
NOTICE:
You can set up the Battery Low threshold and signals under Windows.
Immediately save your data upon Battery Low. The remaining operating
time depends on how you are using the tablet PC. If you are using the
audio subsystem, hard or USB flash disk, the battery might run out of
charge very quickly.
CAUTION:
1. If you do not take any action, the tablet PC will automatically hibernate
and turn off.
2. If you fail to save your data when the battery completely runs out of
charge, then you will lose your data.
3.3 Power Management
The Tablet PC supports ACPI (Advanced Configuration and Power Interface)
for power management. The power management feature allows you to
reduce the power consumption for energy saving. With an ACPI-compliant
operating system such as Windows XP, power supply to different tablet PC
components is controlled on an as-needed basis. This allows maximum power
conservation and performance at the same time. In general, Windows’ power
management works in following state:
Rugged Computing
Users Manual Rugged Table PCs
Occurrence
Condition
Power to the hard disk is turned off
When the hard disk has been idle for a
set period.
Power to the display is turned off
When the display has been idle for a set
period.
When the entire system has been idle
for a set period.
The tablet PC enters the Standby mode.
The hard disk and display are turned off
and the entire system consumes less
power.
When the display has been idle for a set
period.
When you press the power button. *
The tablet PC enters the Hibernation
mode.
When the entire system has been idle
for a set period
When you press the power button. *
* Depends on your settings in Windows.
For detailed information on power management, see Windows’ Help.
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 4
Expanding Your Tablet PC
Rugged Computing
Users Manual Rugged Table PCs
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 4 EXPANDING YOUR TABLET PC
4.1 How and When to Use BIOS Setup
For enter to the Tablet PC BIOS setup, you need to connect with an external
USB keyboard, press “Del” key when the prompt appears on the screen
during start up. The prompt screen shows only few seconds so need press Del
key quickly.
**NOTICE
Updated BIOS version may be published after the manual is released.
Check with the latest version of BIOS on website.
You may need to run BIOS setup utility when the below status.
1. Error message on sreen indicate to check BIOS setup.
2. Restoring the factory default settings.
3. Modifing the specific hardware specification
4. Want to optimize the specification.
In order to control the keyboard to select BIOS utility setup, you need
Keyboard Icon
Function Description
Selects a menu title.
Selects an item or option.
Enter
Go to the sub-menu when available.
Opens or closes the option window when an item is
selected.
Esc
To leave sub-menu and return to main menu.
**NOTICE
You can press the F1, F2, F3, F4, –/+, and Esc keys by connecting a USB keyboard
to your tablet PC. Make sure that the item “Legacy USB Support” under the Main
menu is set at Enabled (default).
Rugged Computing
Users Manual Rugged Table PCs
4.2 BIOS Functions
4.2.1 Main Menu
The Main menu contains the information of the Tablet system including BIOS
version, processor RC version, system language, time, and date.
4.2.2 Advanced Menu
The Advanced menu contains the selections of PXE OpROM and Watch Dog
Timer, and the settings of PCI Subsystem, ACPI, and S5 RTC Wake. Besides,
it also contains the configuration information of CPU, Thermal, IDE/SATA,
USB, and PPM Configuration.
Rugged Computing
Users Manual Rugged Table PCs
1. CPU Configuration
2. Thermal Configuration
Rugged Computing
Users Manual Rugged Table PCs
3. IDE / SATA Configuration
4. USB Configuration
Rugged Computing
Users Manual Rugged Table PCs
5. PPM Configuration
4.2.3 Chipset Menu
The Chipset menu contains the information of Host Bridge and South Bridge.
Rugged Computing
Users Manual Rugged Table PCs
4.2.4 Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
The bootable devices will be automatically detected during POST and shown
here, allowing you to set the sequence that the BIOS uses to look for a boot
device from which to load the operating system. A brief description of button
usage is listed next:
4.2.5 Security Menu
In the Security menu, users can set Administrator Password, User Passwaord,
and HDD Security Configuration.
Rugged Computing
Users Manual Rugged Table PCs
4.2.6 Save & Exit Menu
The Exit menu displays ways of exiting BIOS Setup utility. After finishing with
your settings, you must save and exit so that the changes can take effect.
Save Canges and Exit saves the changes you have made and exits BIOS
Setup utility.
Discarding Changes and Exit exits BIOS Setup utility without saving the
changes you have made.
Save Canges and Rest saves the changes you have made and resets BIOS
system.
Discarding Changes and Reset resets BIOS system without saving the
changes you have made.
Save Changes done so far to any of the setup options.
Discard Changes done so far to any of the setup options.
Resotre Defaults loads/restore the factory default values for all the items.
Save as User Defaults saves the changes one so far as User Defaults.
Restore User Defaults loads/restore the User default values for all the
items.
Rugged Computing
Users Manual Rugged Table PCs
CHAPTER 5
How to use Recovery DVD
Rugged Computing
Users Manual Rugged Table PCs
5.1 Hardware preparation
You need preparing follow items before start to recover your tablet.
a. USB Keyboard x1
b. USB DVD-ROM Driver x1
c. USB HUB x1
●Connect a RDVD-ROM driver with RDVD inside & a keyboard to the USB hub
●Connect the USB hub to M700D’s USB port.
●Make sure the RDVD-ROM driver has been recognized by the M700D tablet.
5.2 Start to recover the system by recovery DVD
Step1.
Reboot your tablet, then press “delete key” on the keyboard to get into the
bios setup mode.
Step2.
Set your DVD-ROM driver as the first priority of the boot device.
Rugged Computing
Users Manual Rugged Table PCs
Step3.
Choose “Save Changes and Rest” under “save & Exit” tag.
Rugged Computing
Users Manual Rugged Table PCs
Step4.
Your tablet will reboot again. Then press any key on your keyboard when you
see the following.
Step5.
Your will get a DOS window and then type “reccf”
Step6.
The recovery process will be started automatically.
