Winner Wave EPD01 EZCast Pro User Manual
Winner Wave Limited EZCast Pro Users Manual
Users Manual
Quick Start Guide
Rev. 1.00
Introduction
Thanks for choosing EZCast Pro products, it is
based on popular EZCast app and enhances more
features like Split Screens Display, Host Control
System, and Content Broadcast features. With all
these new functions, it is a powerful tool for
educational or presentation purpose. Please
download EZCast Pro app and enjoy all these new
features now!!
Learn more
Visit http://www.iezcast.com/os_help.php?l=en
for more information about our user’s guide, find
answers for frequently asked questions and more
finger tips for your EZCast Pro product.
Hardware Installation

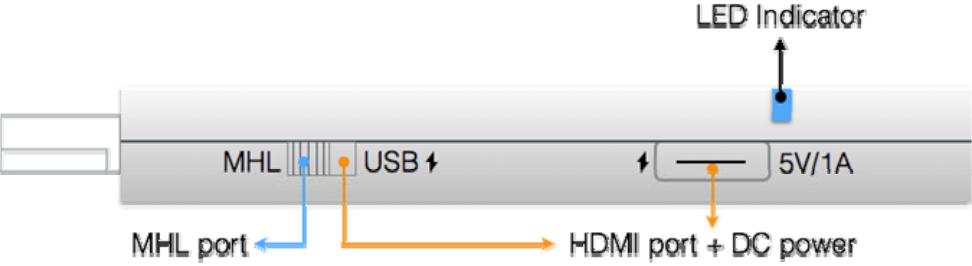

The EZCast Pro dongle is compatible with MHL
interface, so there are 2 ways to connect with
EZCast Pro dongle with your receiver devices like
TV, Monitor or Projector. Use the switch to choose
HDMI output or MHL output, please be noted your
MHL device must provide 900mA power, and if you
use HDMI out, you will need external 5V/1A DC
power to bring up the dongle.

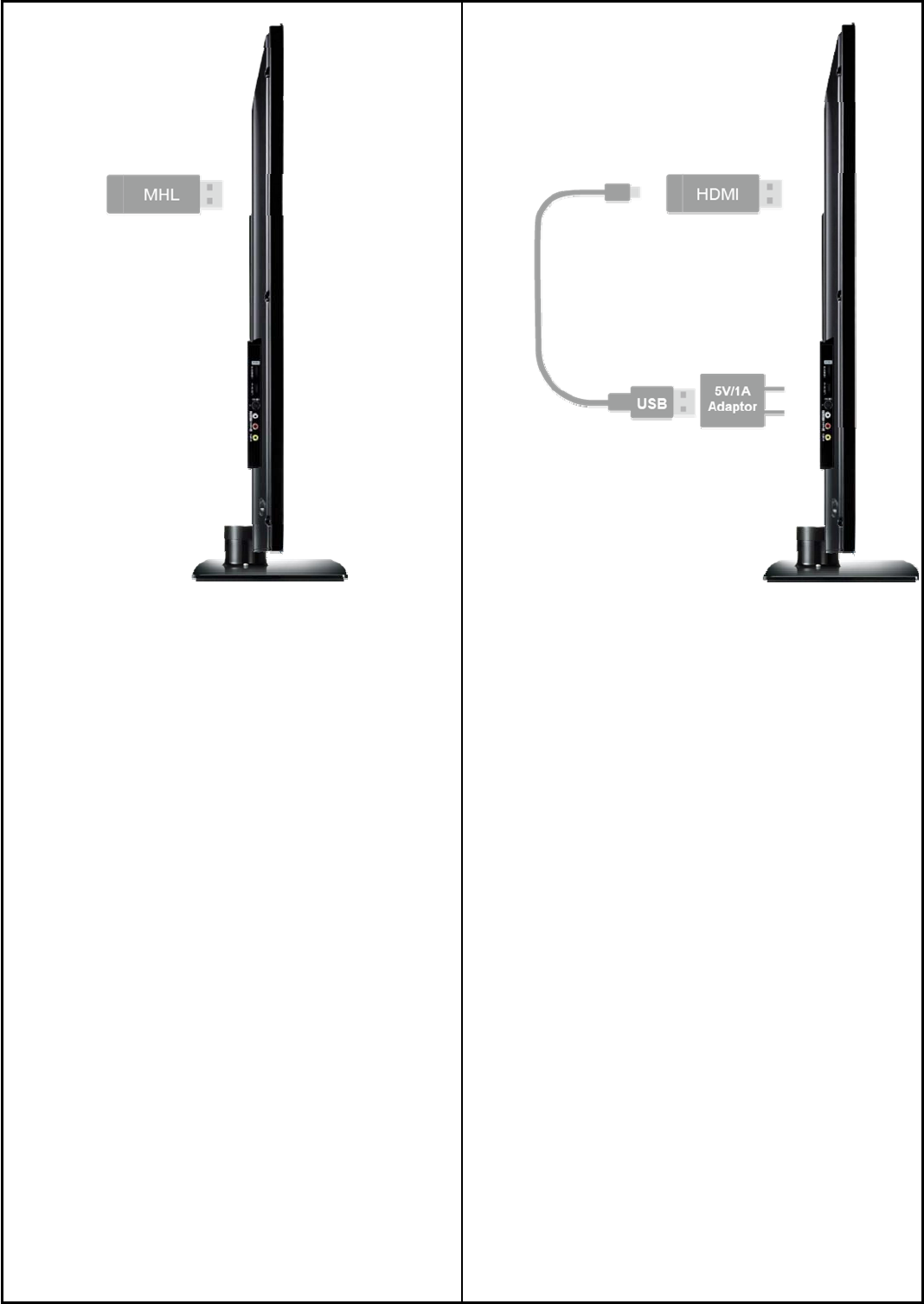

MHL out:
Plug into MHL port
directly to use it
directly.
HDMI out:
*UseexternalDC
power, and make sure
you're your USB DC
power can provide 1A
current.
App Installation
IOS and Android users:
Please search “EZCast Pro” in Apple’s
App Store or Google Play and install
it.
Or Use the QR scanner app to scan the
QR code on EZCast Pro dongle’s main
page.
*Supports iOS7 and Android 4.0 above
Windows and Mac OS users:
Please download it from our official
website: www.iezcast.com or
www.iezvu.com
*Supports from WinXP/Vista/7/8.1, and Mac
OS 10.9 and after.
Get Started
Enter your NB/PC/Smartphone/Tablet’s WiFi
setting, and find the SSID
(EZCastPro_xxxxxxxx) and connect with it.
Open EZCast Pro app on your device.

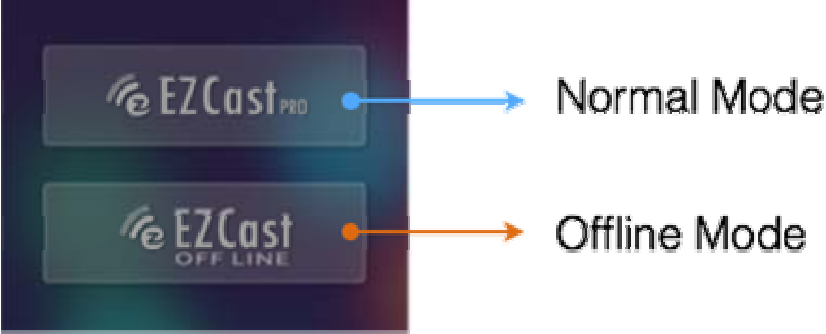

The Normal mode will be only working when
you connect with EZCast Pro hardware.
UnderOfflinemode,therewillbeonlyfew
features to be used before you connect with
the device.
Now you can try all these app features with
EZCast Pro!!
©2014 Actions Microelectronics Co., Ltd. All right reserved. EZCast,
and EZCast Pro are trademarks of Actions Microelectronic Co., Ltd.,
registered in China and other countries. Other product and company
names mentioned herein may be trademarks oftheir respective
companies.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20cm
betweentheradiator&yourbody
