User Manual
(WS-BTK002)
1
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
![](/img.php?id=734664&img=bg2.png)

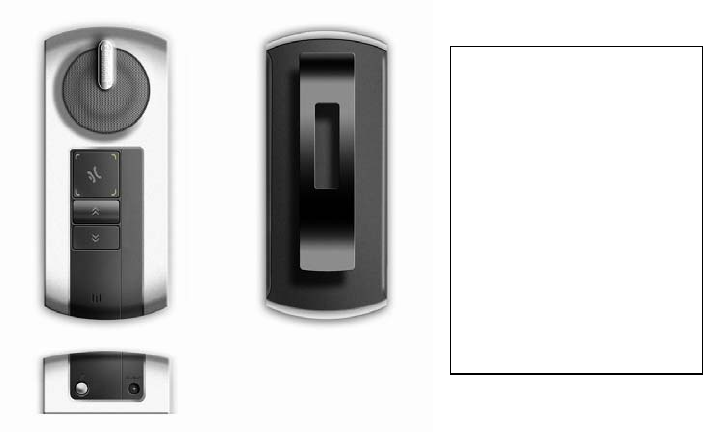

1.Function Key:
Send, End, Connect
2.Increase Volume
3.Decrease Volume
4.Speaker
5.Mic.
6.DC Jack
7.Pairing
8.Power: ON/OFF
9. Clip
4
1
2
9
3
8
5
6
7
2
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
![](/img.php?id=734664&img=bg3.png)
3
Table of contents ……………... 4
Bluetooth technology 5
Product introduction 5 &6
Pairing ……………. 7
- Pairing process with a Bluetooth mobile phone 8
- Reconnect paired device … .
8
- Deactivate pairing … . . 8
Operation 9
- Answer a call 9
- Reject a call 9
- Make a call 9
- Manage calls 10
Low pressure reminder 11
Trouble shooting of the charger 11
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
4
II. Bluetooth tech
Bluetooth technology allows you to transfer data (e.g., voice or data) between
your removable and non-removable Bluetooth devices in 2.4 GHz GSM frequency
without a cable.
III. Product introduction:
The Compact style WS-BTK002 integrates a Lithium-ion battery,it can be
connected to your Bluetooth mobile through the Bluetooth technology, which
designed to operate your mobile phone hands-free, especially while you are
driving. And also it can be used in the office & at home. At the same time, it can
connect with the Bluetooth Dongle to play the music. Besides, It has DSP solution
for Echo Cancellation & Noise Suppression.
(一) Function introduction:
1. It can connect the previous pairing Bluetooth device automatically once
opening.
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
5
2. It can realize the call switch between the mobile phone and WS-BTK002.
3. Remind to the low pressure (Red LED is flashing )
4. It can realize the function of voice dialing. (Mobile phone support)
5. It can realize to re-dial again by last dialed call .
(二)Product Specifications:
Standard Convention………Bluetooth V1.2
Frequency band……………2.4GHZ
Operation range……10 Meters (max.)
Talk time………………… 4 Hours
Standby time…………… 35 Hours
recharge time……Approx 3 Hours
Battery type………………650mAh (lithium electricity)
Caliber of the speaker……Φ40mm
Weight……………………98g
Dimension(L x W x H ) ………………12.0 x 5.0 x 2.5 cm
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
6
IV. Pairing:
(一)Pairing process with a Bluetooth mobile phone
(1).Turn on the Bluetooth function of your mobile. E.g., The
process to turn on a Samsung SGH-X708 is: “menu/settings/Bluetooth/on”
(2).WS-BTK002 will search automatically the previous
pairing mobile phone and then connect. If not, it will exit
the paring process and enter into the stand--by mode.
(3).Press the pairing key of WS-BTK002, red LED and blue LED
flash by turns(pairing mode), Then you can pairing with your mobile phone.
If it fails, it will exit the paring process within 1 minute and switch to the
stand-by mode, only the blue LED flashes.
(4).Use your mobile phone to search for the Bluetooth device:
For example, the paring process for Samsung SGH-X708 is:
“menu/Bluetooth/My device/Search for new device”. If
success, the screen of your phone will show the name of
device (The device name is BTK002).Select this device,
your will be asked to key in the default PIN code 1234 for
paring(The PIN code could be changed by user as
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
7
appropriate), then press“OK”to confirm paring. In this
step, the blue LED of WS-BTK002 will flash 1 time in
every 3 seconds, and WS-BTK002 will appear in “my
device” folder of your phone. Until now, the pairing is
completed. (To avoid reconnection for the same device,
your phone will prompt “If you want to connect to
WS-BTK002”. If yes, choose “my device” and set
WS-BTK002 as authorized device--this function is only
available for some phones)
(二)Reconnect pairing device
1. WS-BTK002 will connect automatically the previous pairing mobile phone
once opening or press the “MFB” key to be connected automatically.
2. Connecting WS-BTK002 with paired mobile:Choose “my device” in your
mobile Bluetooth profile, select“WS-BTK002”and“connect” The connection
is established until the blue LED flashes.
(三)Deactivate pairing
1.Deactivate with paired mobile: in the paired mode, choose “my device” profile
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
8
and select “WS-BTK002” to confirm disconnect.
2. Close the WS-BTK002 device.
V. Operation
(一) Answer a call
When there is a call, you will hear deep-beep ringing tone from the speaker.
Press“MFB”key to answer the call, or answer the call with your mobile. While
answering the call, the blue indicator light of WS-BTK002 will flash 4 times
every 3 seconds.
(二) Reject a call
When the call is coming, you will hear deep-beep ringing tone from the
speaker. Press“MFB”key to reject the call, or use your mobile to refuse the
call.
(三) Make a call
1. Re-dial by last dialed call
To redial the last dialed call with WS-BTK002, press and hold the volume up
or down key for 3 seconds. For some mobiles such as Samsung“SGH-X708”,
press the volume button for 3 seconds and release, then press and hold
another 3 seconds.
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
9
2. Voice dialing(if the mobile supports the function)
Press the “MFB”of WS-BTK002, follow the instruction to speak
out the number saved in your mobile over the microphone speaker.
(四) Manage answering calls
1.Mute
During the conversation, you can mute the call without hang up. Press the
volume up or down key for 3 seconds until you hear a long beep tone. Press
the volume button to back to the conversation.
2.End a call
Press the “MFB” key to end a call. You can end a dialed
call by press the same key.
3.Transfering a call between WS-BTK002 and mobile
When answering call with mobile or WS-BTK002, in paired mode, you can
transfer the call between mobile and WS-BTK002 by pressing the “MFB”key
for 3 seconds each time.
4.Volume adjustment
To increase or decrease the volume of the speaker, press the volume up or
down button. Echo may be caused by loudly sound.
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
10
Ⅵ . Low pressure reminding
When the lithium electricity pressure of WS-BTK002 device is 3.2V—3.6V,
the red LED will flash and the speaker will give an alarm, it means that the battery
has low electricity and must be charged. It will close automatically when the lithium
electricity pressure is less than 3.2V.
Ⅶ. Trouble shooting of the charger
1. USB Plug-In Saver / Charger
It’s used to charge the WS-BTK002 on the car. The electricity pressure of charger
should be DC12V-24V. It can be used for all cars. The charge time is about 3
hours.
2. USB Travel Charger
It’s used to charge the WS-BTK002 by normal electricity in the office or at home.
The electricity pressure of charger should be AC100V-240V. It can be used for many
countries. The charge time is about 3 hours.
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
11
3. The charger has the LED. The LED is Red color when it is charging. Or it will turn
to Green color after it’s full.
4. The key “ON/OFF” should be “ON” position when it charge.
5. It will impact the battery natural life if the battery is kept in charge process a long
time once it’s full.
APPLICANT: WINNER’SUN PLASTIC & ELECTRONIC (SHENZHEN) CO., LTD.
FCC ID: UR9-WS001
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
