User Manual

CARE & USE INSTRUCTIONS

IMPORTANT, RETAIN FOR

FUTURE REFERENCE: READ CAREFULLY

For assistance with assembly or installation, parts and customer service, call us at 1-866-294-9244 (English),

Mon to Fri 8 AM to 5PM Pacic Time, email us at info@winplususa.com

820 South Wanamaker Ave., Ontario, CA 91761, USA

www.winplus.com

ITM. / ART. 688836

Model: LM55811

LED Utility Light

with motion sensor

Important safety instructions:

This product is splash proof, suitable for use in home, oce, warehouse, workshop,

garage and covered wet locations (e.g. covered patios, covered porches, etc.). It is IP65

rated, which means it is protected against dust ingress and is able to withstand splashed

water from any direction (does not include being fully submersed in water or deep

snow). This product is ideal for lighting in wet areas, such as patio awnings and covered

decks. it is also dust and wind proof.

This light is operated by a Smart Sensor Control. It will automatically switch on when

motion is detected and will turn o automatically when there is no movement in area

for preset time.

Please read the following safety information before use.

To reduce risk of re, electric shock, or injury to persons:

• Grounded lights must be plugged into an outlet properly installed and grounded in

accordance with all codes and ordinances.

• Improperly connecting the grounding wire can result in the risk of electric shock. Do not

modify the power cord plug provided with the product. Never remove the grounding

prong from the plug .

• Do not use the light if the power cord or plug is damaged. If damaged, have it repaired

by a service facility before use. If the plug does not t the outlet, have a proper outlet

installed by a qualied electrician.

• Disconnect the power cord plug from the power source before making any adjustment

or changing accessories. Do not attempt to install product while plugged in.

• Do not abuse the power cord. Never use the power cord to carry the light or pull the plug

from an outlet. Keep the power cord away from heat, oil, sharp edges, or moving parts.

• Always refer to a qualied electrician to remove the diuser cover. Unplug and allow to

cool before changing the control setting.

• Store the product out of reach of children.

• Only use product in its intended location.

• Some metal parts in the product may have sharp edges. To prevent cuts, wear gloves

when handling these parts.

Warning:

• LED light output is strong enough to injure human eyes. Precautions must be taken

to prevent looking directly at the LEDs without installing the diuser (cover) for

more than a few seconds.

• If the lighting xture is damaged, it shall be exclusively replaced by the

manufacturer or the service agent or qualied person in order to avoid a hazard.

• The warnings, precautions, and instructions discussed in this manual cannot cover

all possible conditions and situations that may occur. The operator must understand

that common sense and caution are factors which cannot be built into this product,

but must be supplied by the operator.

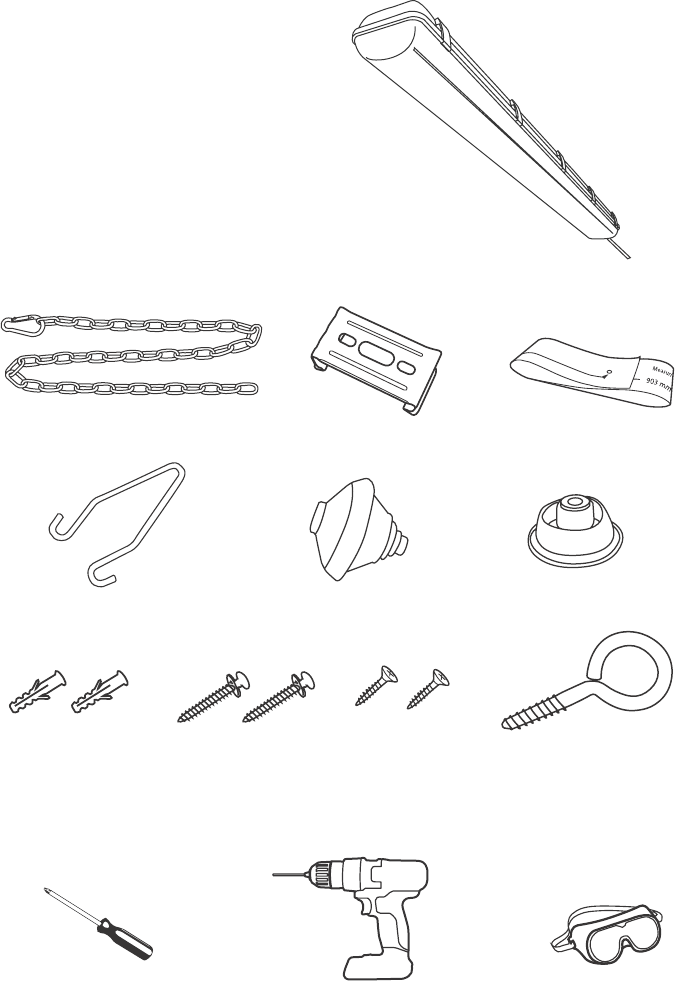

Package Contents:

1 x Measuring template2 x Mounting brackets

2 x Self-tapping screw hooks2 x Drywall screws2 x Plastic anchors

2 x Hanging hooks

2 x Wood screws

1 x Cable bushing 1 x Plastic cap

2 x 61 cm / 24 in zinc plated chains

Tools Needed (not included)

Philips head screwdriver Safety glassesDrill, and 5/64 inch / 2 mm drill bit

1 x LED Utility Light with 1.8 m / 6 ft power cable

Please layout all parts and read the

instructions prior to installation.

Product Specications:

1. Operating Voltage: 120V ac, 60 Hz

2. Wattage: 48 W / Stand-by mode: 1.5 W

3. Light Output: 3800 Lm

4. Color Temperature: 4000K

5. LED Life Cycles: up to 50,000 hrs

6. Dimensions: 126 cm / 49.4 in (L) x 12.7 cm / 5 in (W)

x 8.8 cm / 3.46 in (H)

7. Weight: 2.6kg / 5.7lb

8. Waterproof rating: IP 65

9. Operating temperature: -4°F to 104°F / -20°C to 40°C

Installation Procedures:

The product is intended to be connected to a plug and does not need to be switched

on/o as it is controlled by the motion sensor. You do not need to disconnect from plug

except for changing Smart Sensor Control setting.

After reconnecting power, please wait for 10 seconds to allow for the calibration

time of sensor.

Ceiling hanging with chains:

This product is ETL/cETL Listed

1. Select a suitable mounting location,

and make sure the wooden surface is

suitable for supporting the lighting

xture. Use the measuring template to

mark the hook locations on mounting

surface.

Final installed illustration

5. Clip mounting brackets onto the

lighting xture.

2. Wear safety glasses before drilling

pilot holes. Drill two 5/64 inch / 2 mm

diameter pilot holes.

3. Screw in the self-tapping screw hook

until only the curved eye is visible, no

screw threads should be showing. Repeat

for another hook.

2 3

4a. Determine desired hanging height,

slip wire hanging hook through the chain.

4b. Insert the hanging hook into the

openings of mounting bracket. Repeat for

another mounting bracket.

4c. Connect the chain onto the self-

tapping screw hook, and repeat for

another chain and hook.

4 5

Ceiling ush mount:

Final installed illustration 1. Select a suitable mounting location,

and make sure the wooden surface is

suitable for supporting the lighting xture.

Use the measuring template to mark the

hook locations on mounting surface.

2. Wear safety glasses before drilling

pilot holes. Drill two 5/64 inch / 2 mm

diameter pilot holes.

3. Screw on the mounting bracket with

wood screws provided. Repeat for another

mounting bracket.

Note: For concrete or drywall, you may use

drywall screws along with plastic anchor

instead of wood screws.

4. Clip mounting brackets onto the

lighting xture.

4a. Slip wire hanging hook into the self-

tapping screw hook. Repeat for another

hanging hook.

4b. Insert the hanging hook into the middle

opening of mounting bracket. Repeat for

another mounting bracket.

5. Clip mounting brackets onto the

lighting xture.

2. Wear safety glasses before drilling pilot

holes. Drill two 5/64 inch / 2 mm diameter

pilot holes.

3. Screw in the self-tapping screw hook

until only the curved eye is visible, no

screw threads should be showing. Repeat

for another hook.

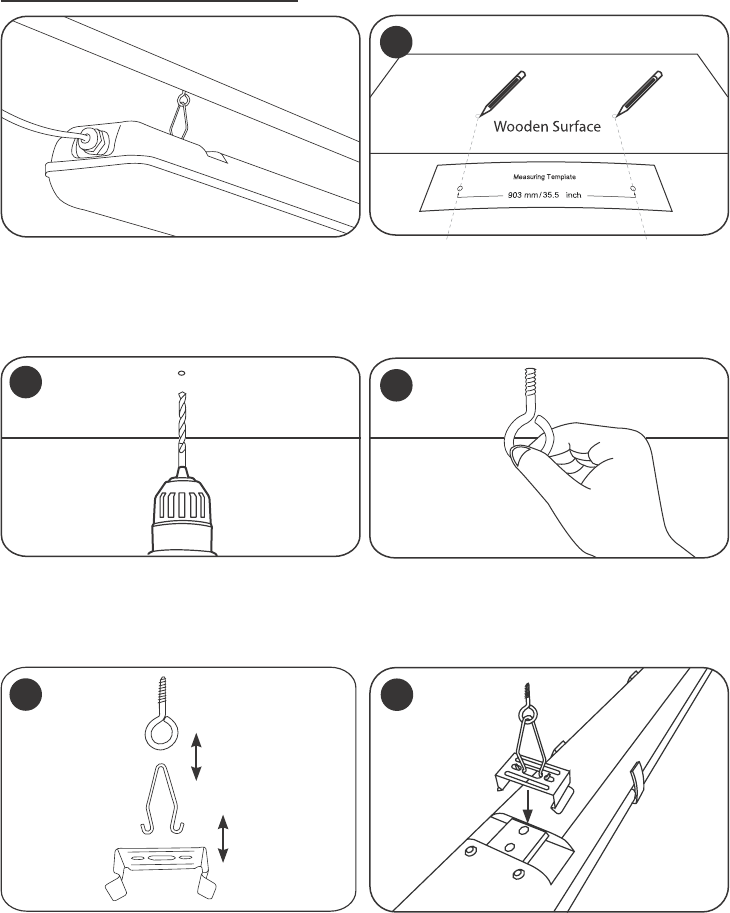

1. Select a suitable mounting location,

and make sure the wooden surface is

suitable for supporting the lighting xture.

Use the measuring template to mark the

hook locations on mounting surface.

Ceiling hanging with hooks:

Final installed illustration

DIP switch control Setting and Operation:

Unplug and allow to cool before changing the control setting. By choosing the setting

of DIP switch control, you can use the lighting xture in dierent locations. Please refer

to the following instructions for choosing the DIP switch control setting.

CAUTION: Unplug the power cord from electrical outlet before adjusting the DIP

switch control setting.

After unplugging the power cord, you

can release all the retaining clips (A) and

the four screws to remove the diuser

(cover).

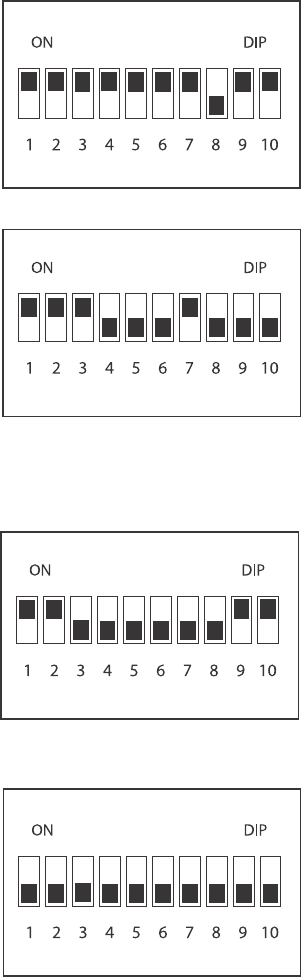

DIP Switch Control Default Setting

10M O O 10 30 Min

DIP Switch Settings

Distance Time

dim

Light sensor

Dim

level %

Motion Sensor

min

sec

9 107 85 63 41 2

lux

min

sec

diuser (cover)

(A)

Denition of the each DIP switch control Setting:

Switches 1 & 2: Sensor Detection Distance

Sensor Detection Distance is the detection area of the smart sensor. You can set the

distance from 3 m / 9.8 ft, 5 m / 16.4 ft, 8 m / 26.2 ft, or 10 m / 33 ft. You may refer to the

table below for the height of installation based on 10M setting.

Any movement inside the detection zone

will be detected by the motion sensor.

Actual sensing distance may be inuenced

by environment conditions.

NOTE: The detection distance is measured for a person approximately 1.7 m / 5.6 ft tall,

moving at a speed of 1.0 - 1.5 m/sec (3.2 - 5 ft/sec).

You may select 3 m / 9.8 ft or 5 m / 16.4 ft for a small area, and select a 8 m / 26.2 ft or

10 m / 33 ft for a larger area.

Switches 3 & 4: Time Dim

Time Dim is the time to dim the lighting xture when no movement detected. You can

set Time Dim from O, 30 seconds, 5 minutes, or 10 minutes. The lighting xture will

be dimmed if there is no movement detected by the sensor. Any movement detected

within this period will restart the timer, and the time will be counted again.

You may select 10 min for use in garage, or a shorter time such as 5 min for use in

covered patio. You may disable the Time Dim function by selecting OFF.

Height (H) Sensing Distance (D)

2.5 m / 8.2 ft 7 m / 23 ft - 8 m / 26.2 ft

3.0 m / 9.8 ft 8 m / 26.2 ft - 10 m / 32.8 ft 120º

Refer to switches 7 & 8 setting for dim level setting.

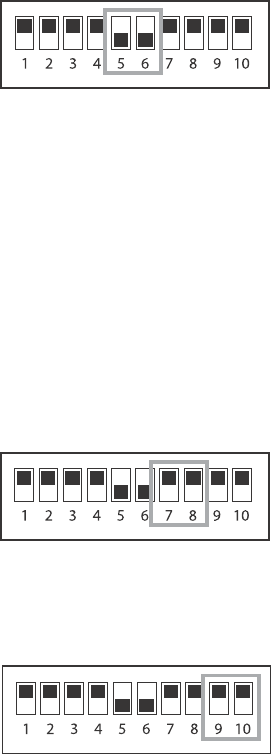

Switches 5 & 6: Light Sensor Auto O

Light Sensor Auto O refers to the ambient light level to keep lighting xture o

during the day time regardless any movement. For example, if you set to 10 lux, when

the ambient light is above 10 lux, the lighting xture will be turned OFF even there is

motion detected around. When the ambient light is below 10 lux and there is motion

detected by the sensor, the lighting xture will be ON.

Note: One lux is considered as bright as the illumination of a surface from a candle

1 meter away.

The “OFF” mode is for usage where you want to disable the light sensor function, i.e.

the lighting xture is controlled by motion sensor only. This mode would be suitable

for using in parking lot, which you may want to keep the light always ON regardless of

ambient light.

Note: Light sensor function will be disabled when Motion Sensor Auto O

(Switches 9 & 10) set to “OFF’”

Switches 7 & 8: Dim Level %

Dim Level is referring to the light dim level desired after you have selected your Switch

3 & 4 settings. You can choose the dim level from 10%, 20%, 30% or 50%, which means

the percentage of light level remaining from the original lighting level, so for example,

50% would mean that the light will dim to half of its original level.

Switches 9 & 10: Motion Sensor Auto O

Motion Sensor Auto O is the time for turn OFF the lighting xture completely when

there is no motion detected. You can set to O Mode, 30 seconds, 10 minutes, or 30

minutes. The light will be turned OFF when there is no motion detected within the

preset time. Any movement detected within this period will restart the timer and the

light will be turned on again.

If you have selected Time Dim function ON, the timer will start counting the Time Dim

function (S3 & S4) and then per Motion Sensor (S9 & S10). E.g. for S3 & S4 as 30 sec

and S9 & S10 as 5 min: the light will be dimmed down when no motion detected for

30 seconds and the light will be turned OFF when no motion is detected for further

5 minutes. Any movement detected within this period will restart timer, light will be

turned on again.

The motion sensor covers a large area 10 m / 33 ft and the light would be dimmed to

50% when there is no movement detected in 10 minutes, and the light would be o

completely when there is no movement detected in further 30 minutes.

You can choose this setting to have light turned o in day time. During day time with

good amount of ambient light, the lighting xture would not be turned ON even if

movement is detected by the smart sensor. During evening or when ambient light

decreases below the preset setting “50 lux”, the lighting xture will be turned ON

when there is movement detected.

The light would be dimmed to 30% when there is no movement detected in 5

minutes, and the light would be OFF completely when there is no movement detected

in further 10 minutes.

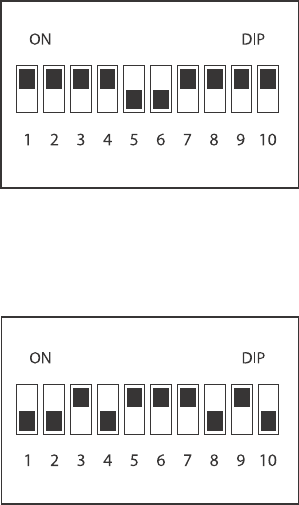

Some recommended settings:

Garage / Warehouse / Indoor use:

1 & 2 Distance: 10 m / 33 ft

3 & 4 Time Dim: 10 min

5 & 6 Light Sensor Auto O: O

7 & 8 Dim Level: 50%

9 & 10 Motion Sensor Auto O: 30 min

Covered Patio / Backyard:

(light turn o during day time)

1 & 2 Distance: 3 m / 9.8 ft

3 & 4 Time Dim: 5 min

5 & 6 Light Sensor Auto O: 50 lux

7 & 8 Dim Level: 30%

9 & 10 Motion Sensor Auto O: 10 min

You can select “OFF” if you want to have the lighting xture be turned ON all the

time. By selecting this mode, light sensor function will be disabled.

After choosing the desired DIP switch control setting, please put back the diuser

(cover) properly by closing all of the retaining clips and screws, to ensure the

product remains water proof and dust proof.

By selecting this mode, the light will be turned ON all the time. When there is no

movement within 5 min, the light will be dimmed to 30%. The light will become full

light again when there is movement detected.

The light would be o completely when there is no movement detected in 30 minutes

You can choose this setting to simulate ordinary light and operate by the wall

On/O switch.

Indoor Parking Lots / Always On:

1 & 2 Distance: 10 m / 33 ft

3 & 4 Time Dim: 5 min

5 & 6 Light Sensor Auto O: O

7 & 8 Dim Level: 30%

9 & 10 Motion Sensor Auto O: O

Oce:

1 & 2 Distance: 10 m / 33 ft

3 & 4 Time Dim: O

5 & 6 Light Sensor Auto O: O

7 & 8 Dim Level: 10%

9 & 10 Motion Sensor Auto O: 30 min

Disable Motion / Light Sensor:

1 & 2 Distance: 3 m / 9.8 ft

3 & 4 Time Dim: O

5 & 6 Light Sensor Auto O: O

7 & 8 Dim Level: 10%

9 & 10 Motion Sensor Auto O: O

Covered Boat Dock:

1 & 2 Distance: 10 m / 33 ft

3 & 4 Time Dim: 10 min

5 & 6 Light Sensor Auto O: 50 lux

7 & 8 Dim Level: 30%

9 & 10 Motion Sensor Auto O: 30 min

Maintenance:

CLEANING INSTRUCTIONS: When cleaning, make sure you have unplugged the lighting

xture and allow to it cool to room temperature. Do not open the retaining clips when

cleaning. The lighting xture can be cleaned with a feather duster or a soft damp cloth.

You should plug in the lighting xture after it has been completely dried.

Troubleshooting:

Malfunction Cause Remedy

The light is

not working

The light is under calibration Wait for 30 seconds until calibration is

nished

Wrong light control setting selected Adjust setting

Main switch is OFF Switch on the Main switch

The light is

always ON

Continuous movement

in the detection zone Check Switch 1 & 2 settings

The light is ON

without any

identiable movement

Movement occurred, but not identied by the

sensor (movement behind wall, movement of a

small object in immediate lamp vicinity, etc.)

Check Switch 1 & 2 settings

The light is not ON

despite movement

Rapid movements are being suppressed

to minimize malfunctioning of light or the

detection zone you have set is too small

Check Switch 1 & 2 settings

Other accessories:

The lighting xture is provided with a plastic cap and a cable bushing. Always refer to a

qualied electrician if re-wiring of power cable is required. After re-wiring, plastic cap

is used for covering the original opening for power cable, and the cable bushing is used

for output of power cable / hardwire.

Warranty:

Winplus North America

Limited warranty

Winplus North America warrants, to the original purchaser, that its products are

free from defects in material and workmanship for 1 year from the date of original

purchase. Where permitted by law, Winplus North America’s liability shall be limited

to that set forth in this limited express warranty. This limited express warranty shall

be the exclusive remedy of the purchaser and Winplus North America makes no other

warranty of any kind aside from the limited express warranty stated above.

NOTE: Warranty only applies for North American customers of purchases made in North

America.

Conditions of Warranty

If during the 1 year warranty period your new product is found to be defective, Winplus

North America will repair such defect, or replace the product, without charge for parts

or labor subject to the following conditions:

• All repairs must be performed by Winplus North America.

• All warranty claims must be accompanied by a copy of the sales receipt or bill of sale.

• The equipment must not have been altered or damaged through negligence,

accident, improper operation, or failure to follow the product instructions for

installation, use, or care.

• The replacement of parts is excluded from the warranty when replacement is

necessary due to normal wear and tear.

• Repair or replacement parts supplied by Winplus North America under this warranty

are protected only for the unexpired portion of the original warranty.

• This is a “repair or replace” warranty only, and does not cover the costs incurred for the

installation, removal or reinstallation of the product.

OWNER’S RESPONSIBILITIES: Winplus North America will make every eort to

provide warranty service within a reasonable period of time. SHOULD YOU HAVE

ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE

IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1.866.294.9244 DURING REGULAR

BUSINESS HOURS MONDAY THROUGH FRIDAY 9:00 AM TO 5:00PM.

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt

RSS standard(s). Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modications or change to this equipment. Such modications or change

could void the user’s authority to operate the equipment.

This radio transmitter (IC: 7297A-LM55811) has been approved by Industry Canada

to operate with the antenna types listed below with the maximum permissible gain

indicated. Antenna types not included in this list, having a gain greater than the

maximum gain indicated for that type, are strictly prohibited for use with this device.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

NOTE: Toll Free # is for North America Customers ONLY. See Customer service section

for customer contact numbers for other regions/oces.

For customer service and technical support, please call us at 1.866.294.9244 or email us

at customercare@winplususa.com. If at that time it is determined that a replacement

unit is needed, the support representative will issue a Return Authorization and instruct

on how to get a new unit.

Winplus North America makes no other warranty of any kind aside from the limited

express warranty stated herein.

DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF MERCHANTABILITY AND

WARRANTY OF FITNESS FOR PARTICULAR PURPOSE: EXCEPT AS SPECIFICALLY SET

FORTH HEREIN, NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIES, IS MADE AS

TO THE LED UTILITY LIGHT. EXCEPT AS EXPRESSLY SET FORTH HEREIN, WINPLUS NORTH

AMERICA AND/ OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT LIMITATION, ANY

STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

FCC / IC Compliance Statement:

television reception, which can be determined by turning the equipment o and on,

the user is encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC’s RF exposure guidelines, this equipment should be

installed and operated with a minimum distance of 20cm between the radiator and

your body.

CAN ICES-3(B)/NMB-3(B)

Caution:

Note : Cet appareil est conforme à la Partie 15 des règlements de la FCC et aux normes

RSS de l’Industrie du Canada. Son fonctionnement est soumis aux deux conditions

suivantes : (1) cet appareil ne doit pas causer des interférences nuisibles, et (2) cet

appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent

provoquer un fonctionnement indésirable.

Le fabricant n’est pas responsable des toutes interférences radio ou télévision causées

par des modications non autorisées apportées à cet appareil. De telles modications

peuvent empêcher l’utilisateur d’utiliser l’appareil.

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt

RSS standard(s). Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modications or change to this equipment. Such modications or change

could void the user’s authority to operate the equipment.

This radio transmitter (identify the device by certication number or model number if

Category II) has been approved by Industry Canada to operate with the antenna types

listed below with the maximum permissible gain indicated. Antenna types not included

in this list, having a gain greater than the maximum gain indicated for that type, are

strictly prohibited for use with this device.
