Winspeed A35 TORID GAMEPAD DONGLE User Manual

Winspeed Co., Ltd TORID GAMEPAD DONGLE

SL-6576-BK-02_User manual rev1

SL91052.4GAndroidTVBoxControllerManual
Thankyouverymuchforpurchasing2.4Ggamecontroller.Thisgamecontrollerisoneof
peripheralequipmentsforyourpersonalcomputer,PS3console,Ithascompletefunctionkeysto
makeyourgamecontrollermorepowerful.Beforeusingthiscontroller,pleasereadthismanual
andretainitforfuturereference.
Content
1. 2.4Gcontroller
2. NanoReceiver*1
3. Manual
4. USBchargingcable
FEATURE
1. 2.4Gwirelesstechnology
2. Operationrangeupto10M
3. BuiltinLIpolymerbattery
4. Softhandgrip
5. 2joystickand2Trigger
6. Compatible with Windows XP

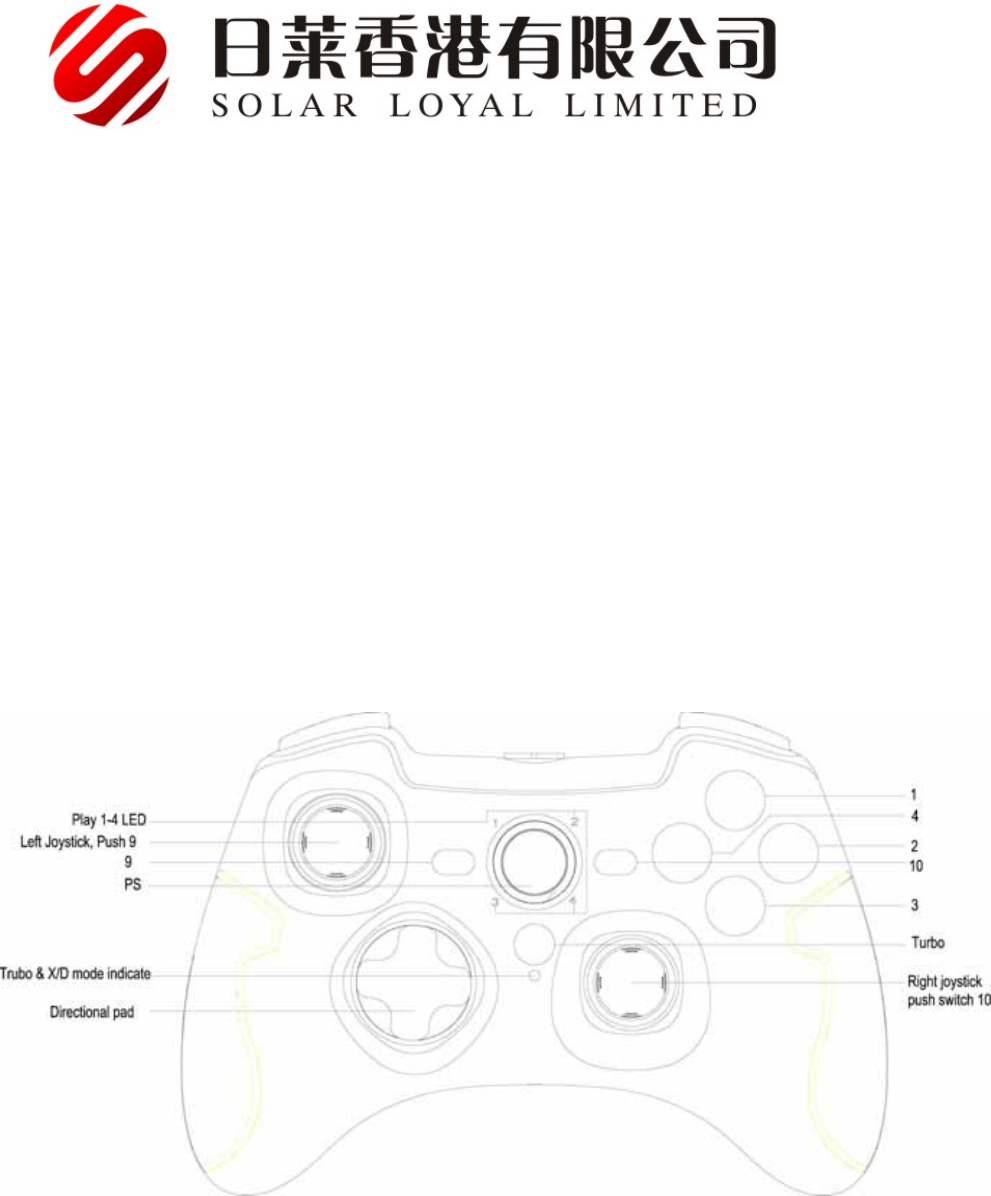

Buttonfunction:
1. Direction button
8-way point of view control button

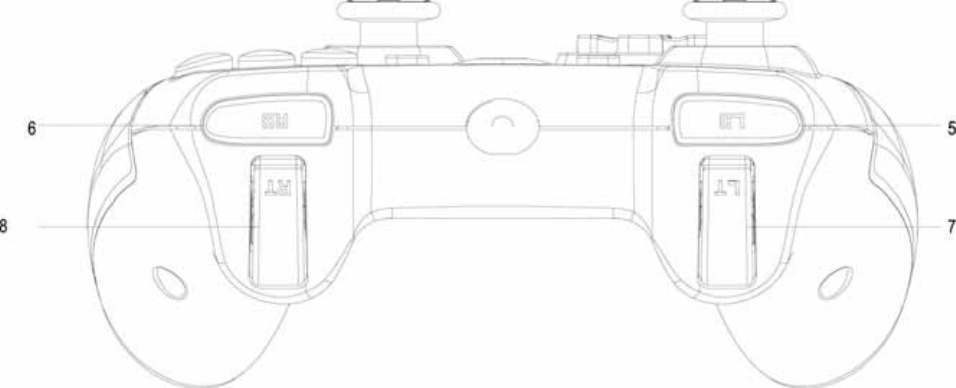

2. Fire Buttons
There are six keys including 1, 2,3,4,5,6, they are used to control other actions of your
role. L-trigger and R-trigger are used analog signal. It can be set in special function
according to different games.
3. Function Buttons
Pressing button 10 can start the game or the game will pause in some special games.
Button 9 is “BACK” button.
4. Left and right 3D stick
They are set in the deferent game according to the customer favorite.
5. MODE button
Button “PS” is mode button or Converse mode
7. Turbo setting
7.1 Hold the key which you want to set it into turbo function, then press turbo key one
time. Then it is set in Turbo station.
7.2 Hold the key which you have set turbo function, then press turbo key it can
clear turbo setting.
Operation
1. Plug the receiver into one of USB port of your device , Turn on your device.
2. Press PS button within 5 seconds, 4 port Led will rapid flash ,
3. When one of one Port Led light ,paired successfully
4. Mode change and indicate :
4.1 Default mode is Xinput , 1ST port LED&2ST port LED will light ,
4.2 Hold the “PS” button for 6 seconds, it turn to D-input mode successfully, 1ST port
LED&3ST port LED will light
4.3 You can press the “Home” button once to change to digital mode when it is in Dinput
mode ,4st LED will be off. In this mode D-pad function are same as Left joystick,
4.4 It can recognized automatically when operation on PS3 console, no need to change
mode.
5. When you use on PS3 console ,you can use on it directly
Notice:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontroll
ed environment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
From that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
