Winstars Technology WS-WN518 802.11bgn HIGH POWER WI-FI REPEATER User Manual

Winstars Technology Limited 802.11bgn HIGH POWER WI-FI REPEATER

User Manual

High Power Wi-Fi Repeater User Manual Quick Installation Guide(Q.I.G.) REV.1.2
Introduction： The Wi-Fi Repeater is a combined wired/wireless network connection device designed specifically for small business, office, and home office networking requirements. It allows a wireless network to be expanded using multiple access points without the need for a wired backbone to link them. It also works well with other 11b/g and 11n protocol wireless products. NOTE: If you need to reset the Wi-Fi Repeater, you need press and hold the reset button inside the tiny hole for 10 seconds. Package Contents Before you starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: • 1 x Wireless-N Repeater • 1 x RJ-45 Networking Cable • 1 x Quick installation Guide resetWPS RJ45

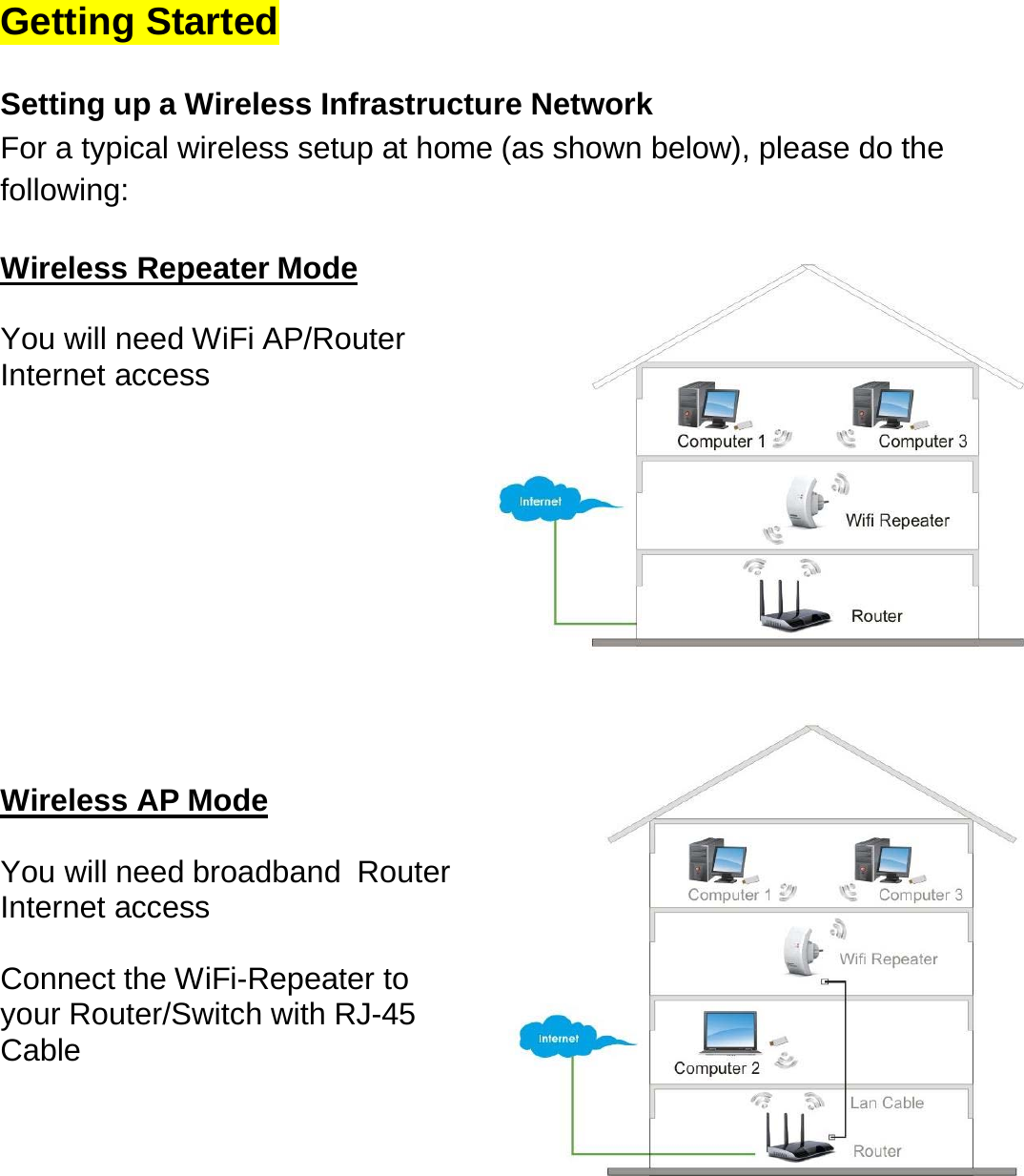

Getting Started Setting up a Wireless Infrastructure Network For a typical wireless setup at home (as shown below), please do the following: Wireless Repeater Mode You will need WiFi AP/Router Internet access Wireless AP Mode You will need broadband Router Internet access Connect the WiFi-Repeater to your Router/Switch with RJ-45 Cable

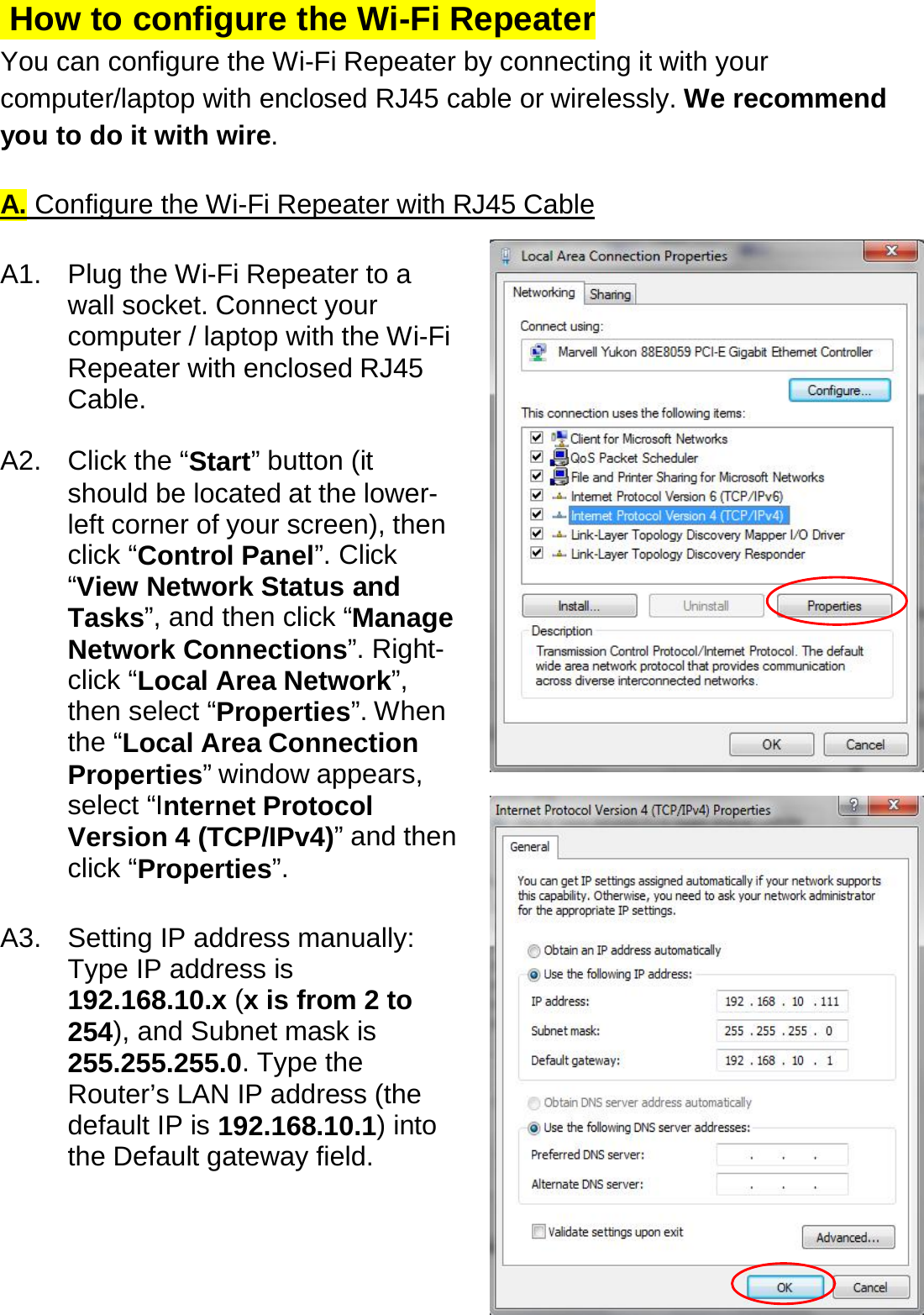

How to configure the Wi-Fi Repeater You can configure the Wi-Fi Repeater by connecting it with your computer/laptop with enclosed RJ45 cable or wirelessly. We recommend you to do it with wire. A. Configure the Wi-Fi Repeater with RJ45 Cable A1. Plug the Wi-Fi Repeater to a wall socket. Connect your computer / laptop with the Wi-Fi Repeater with enclosed RJ45 Cable. A2. Click the “Start” button (it should be located at the lower-left corner of your screen), then click “Control Panel”. Click “View Network Status and Tasks”, and then click “Manage Network Connections”. Right-click “Local Area Network”, then select “Properties”. When the “Local Area Connection Properties” window appears, select “Internet Protocol Version 4 (TCP/IPv4)” and then click “Properties”. A3. Setting IP address manually: Type IP address is 192.168.10.x (x is from 2 to 254), and Subnet mask is 255.255.255.0. Type the Router’s LAN IP address (the default IP is 192.168.10.1) into the Default gateway field.

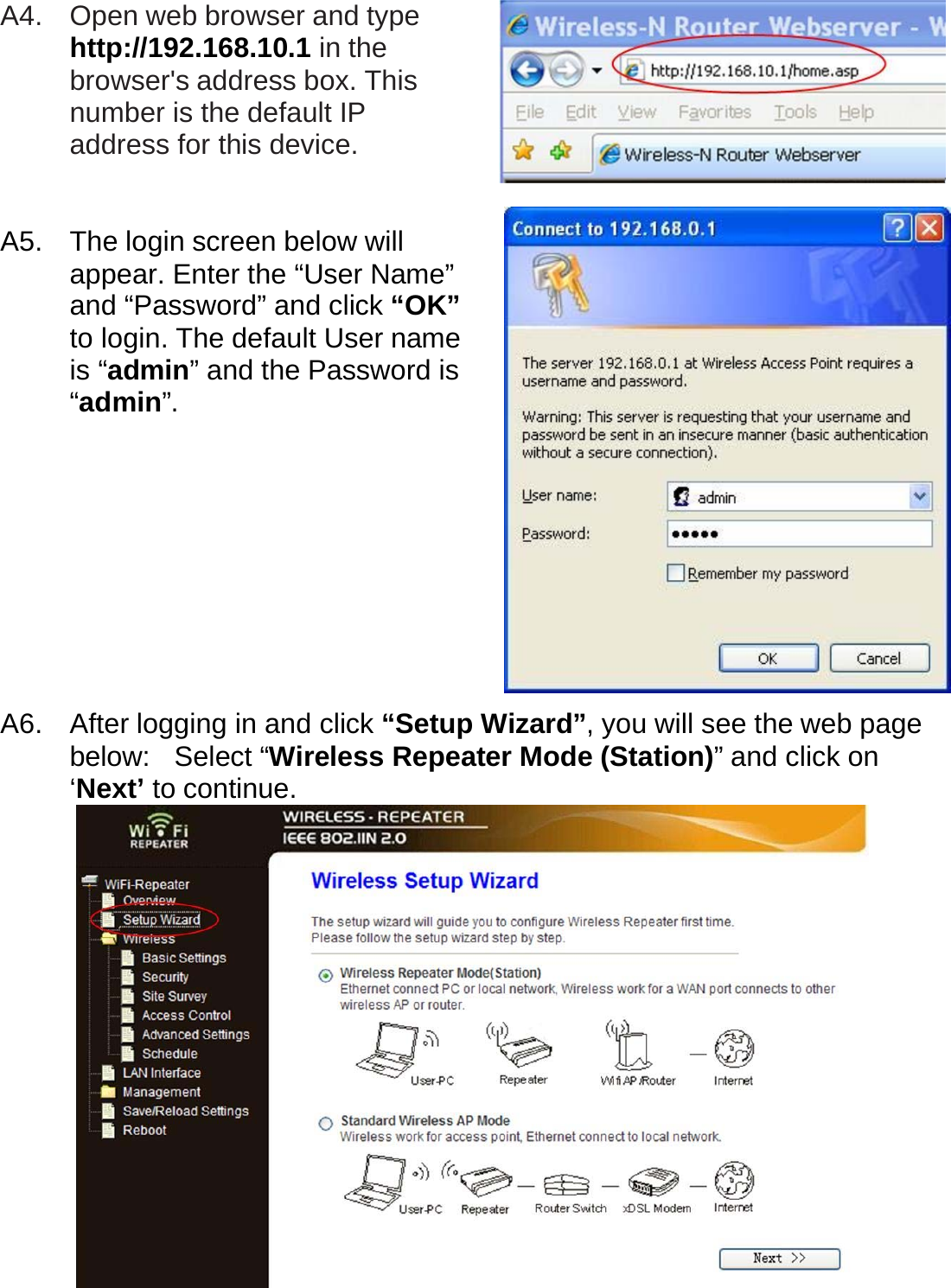

A4. Open web browser and type http://192.168.10.1 in the browser's address box. This number is the default IP address for this device. A5. The login screen below will appear. Enter the “User Name” and “Password” and click “OK” to login. The default User name is “admin” and the Password is “admin”. A6. After logging in and click “Setup Wizard”, you will see the web page below: Select “Wireless Repeater Mode (Station)” and click on ‘Next’ to continue.

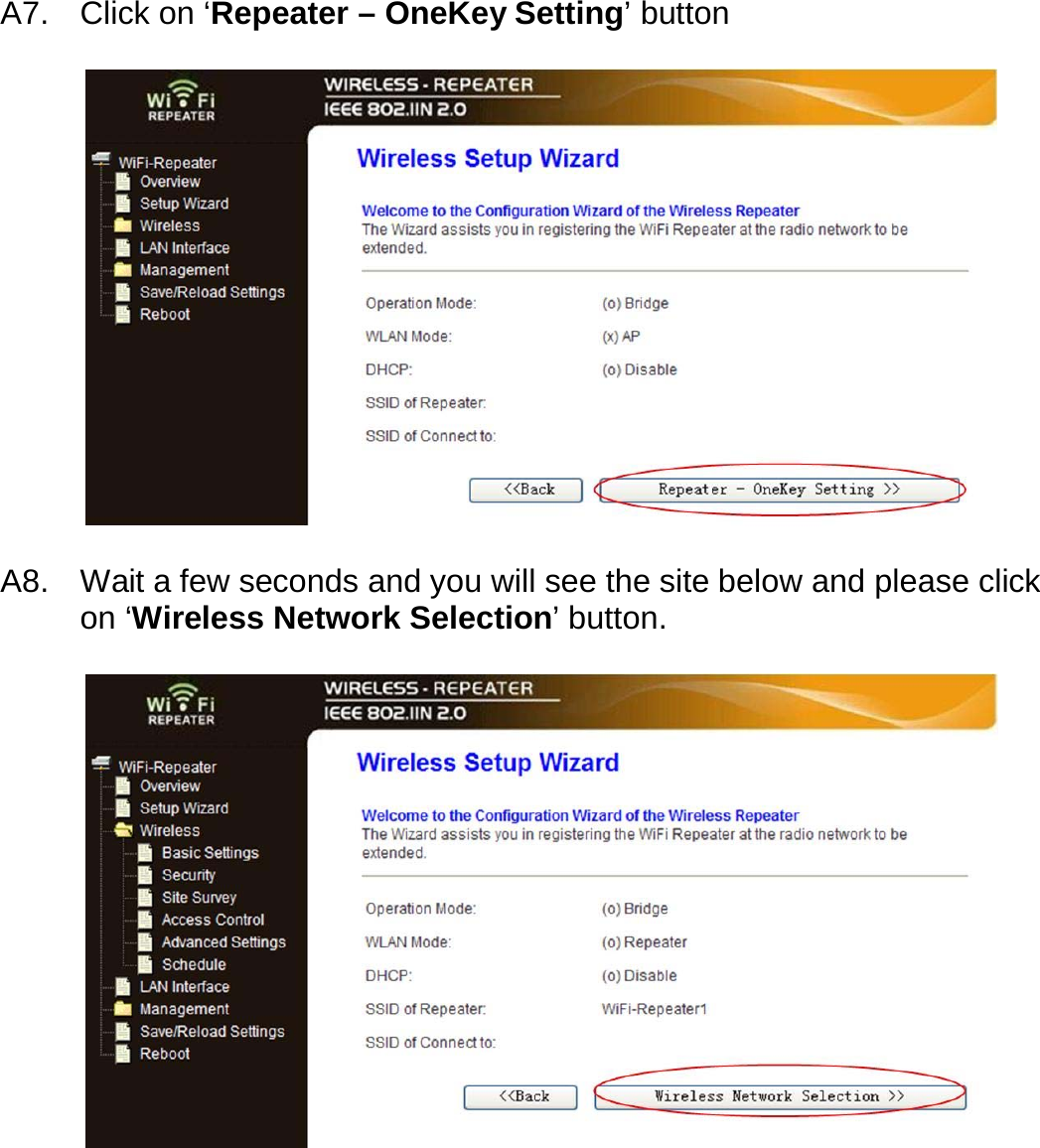

A7. Click on ‘Repeater – OneKey Setting’ button A8. Wait a few seconds and you will see the site below and please click on ‘Wireless Network Selection’ button.
A9. Click on ‘Refresh List’ button. Select the Wireless SSID and click ‘Next’ to continue. A10. When you see the site below, please do not change any setting but only insert the password of your network. Click on ‘Apply and Reboot’ button.

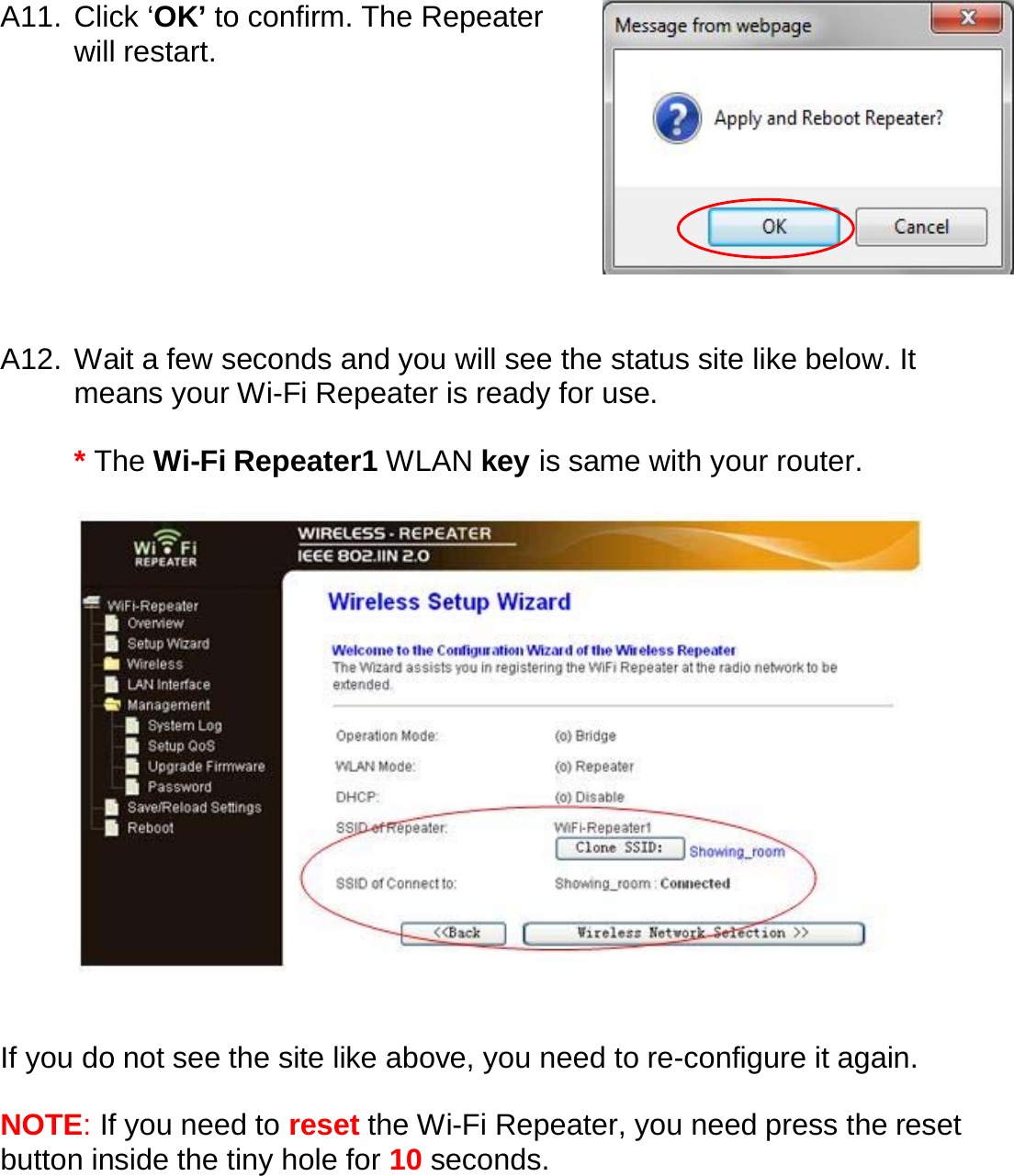

A11. Click ‘OK’ to confirm. The Repeater will restart. A12. Wait a few seconds and you will see the status site like below. It means your Wi-Fi Repeater is ready for use. * The Wi-Fi Repeater1 WLAN key is same with your router. If you do not see the site like above, you need to re-configure it again. NOTE: If you need to reset the Wi-Fi Repeater, you need press the reset button inside the tiny hole for 10 seconds.

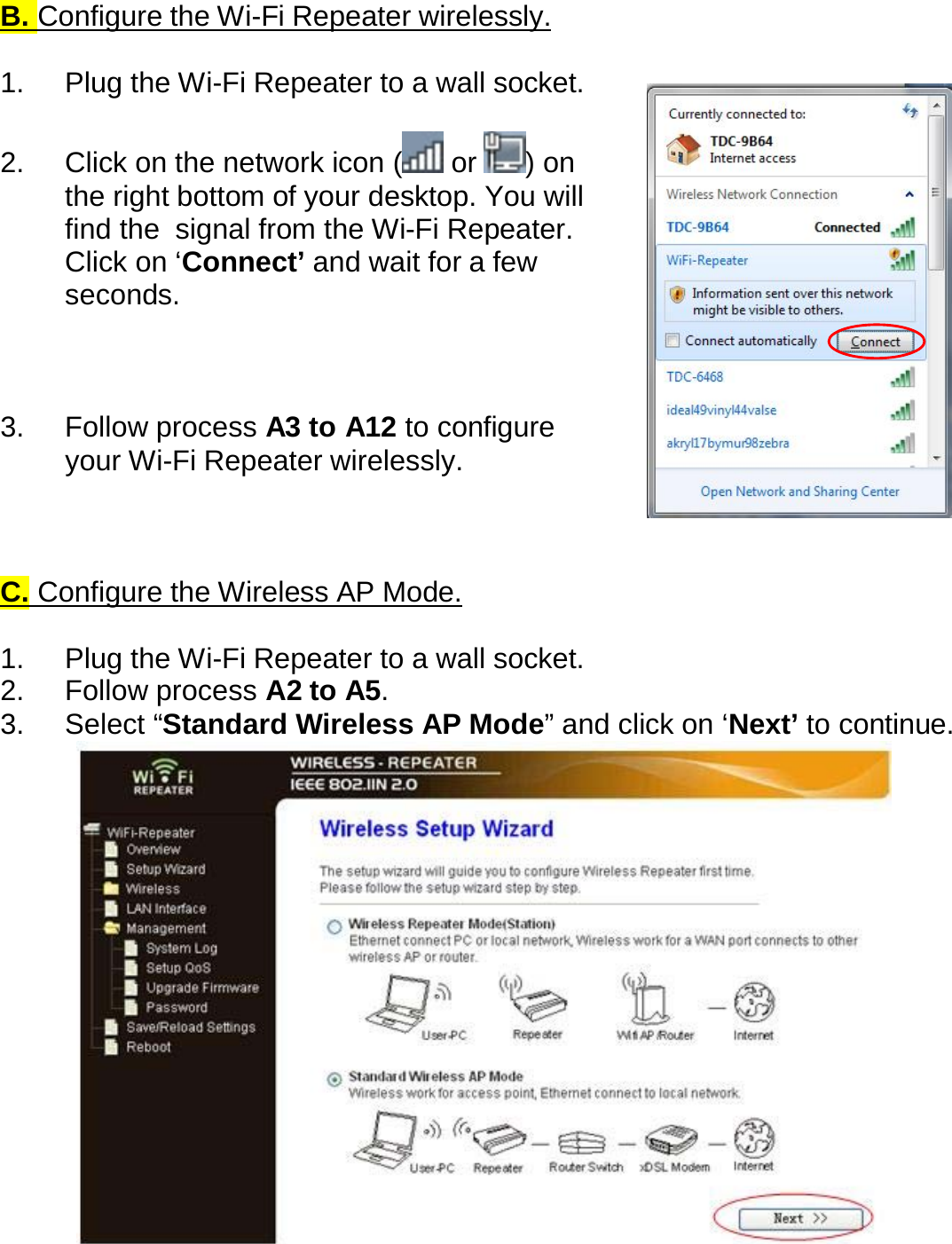

B. Configure the Wi-Fi Repeater wirelessly. 1. Plug the Wi-Fi Repeater to a wall socket. 2. Click on the network icon ( or ) on the right bottom of your desktop. You will find the signal from the Wi-Fi Repeater. Click on ‘Connect’ and wait for a few seconds. 3. Follow process A3 to A12 to configure your Wi-Fi Repeater wirelessly. C. Configure the Wireless AP Mode. 1. Plug the Wi-Fi Repeater to a wall socket. 2. Follow process A2 to A5. 3. Select “Standard Wireless AP Mode” and click on ‘Next’ to continue.

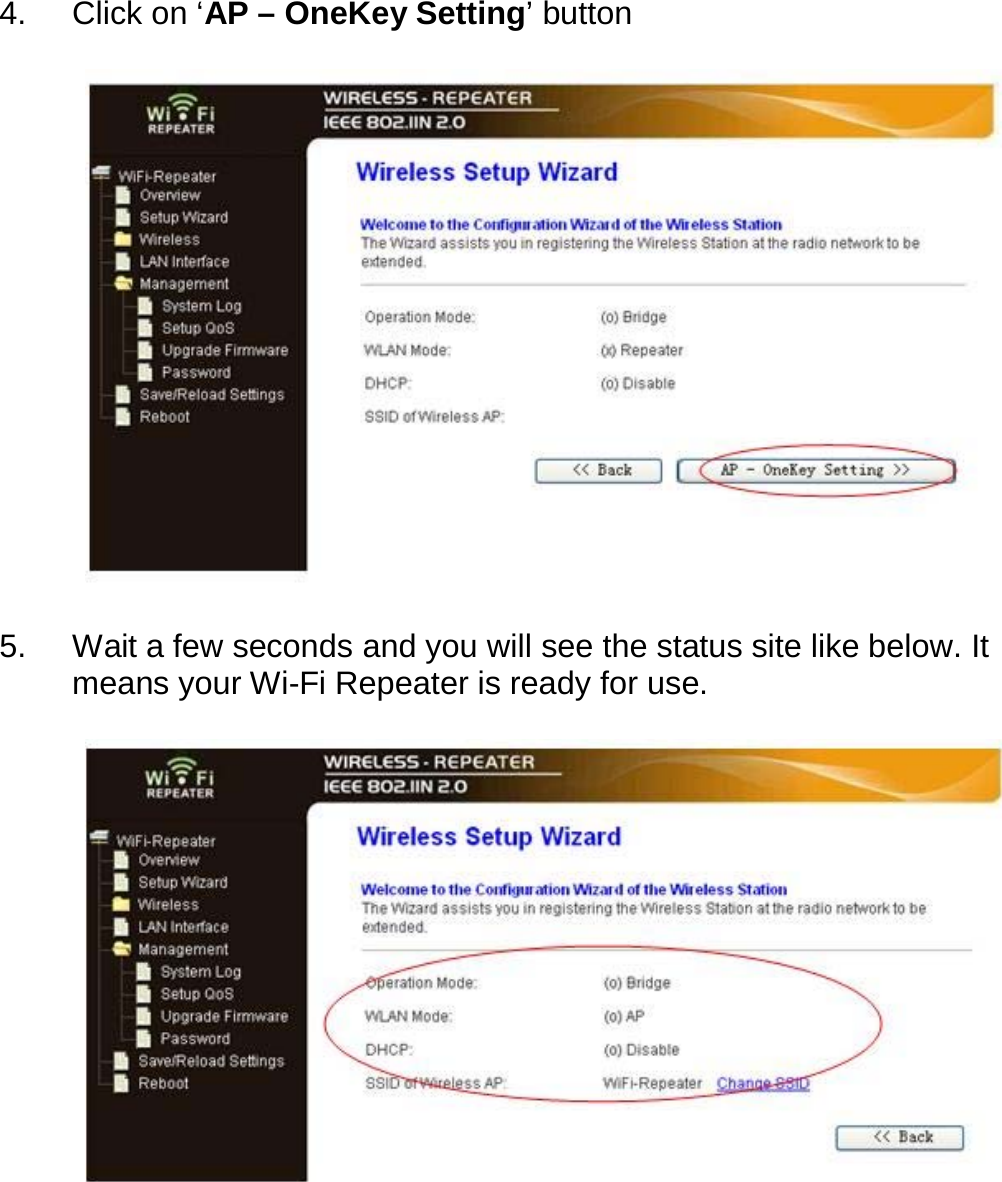

4. Click on ‘AP – OneKey Setting’ button 5. Wait a few seconds and you will see the status site like below. It means your Wi-Fi Repeater is ready for use.

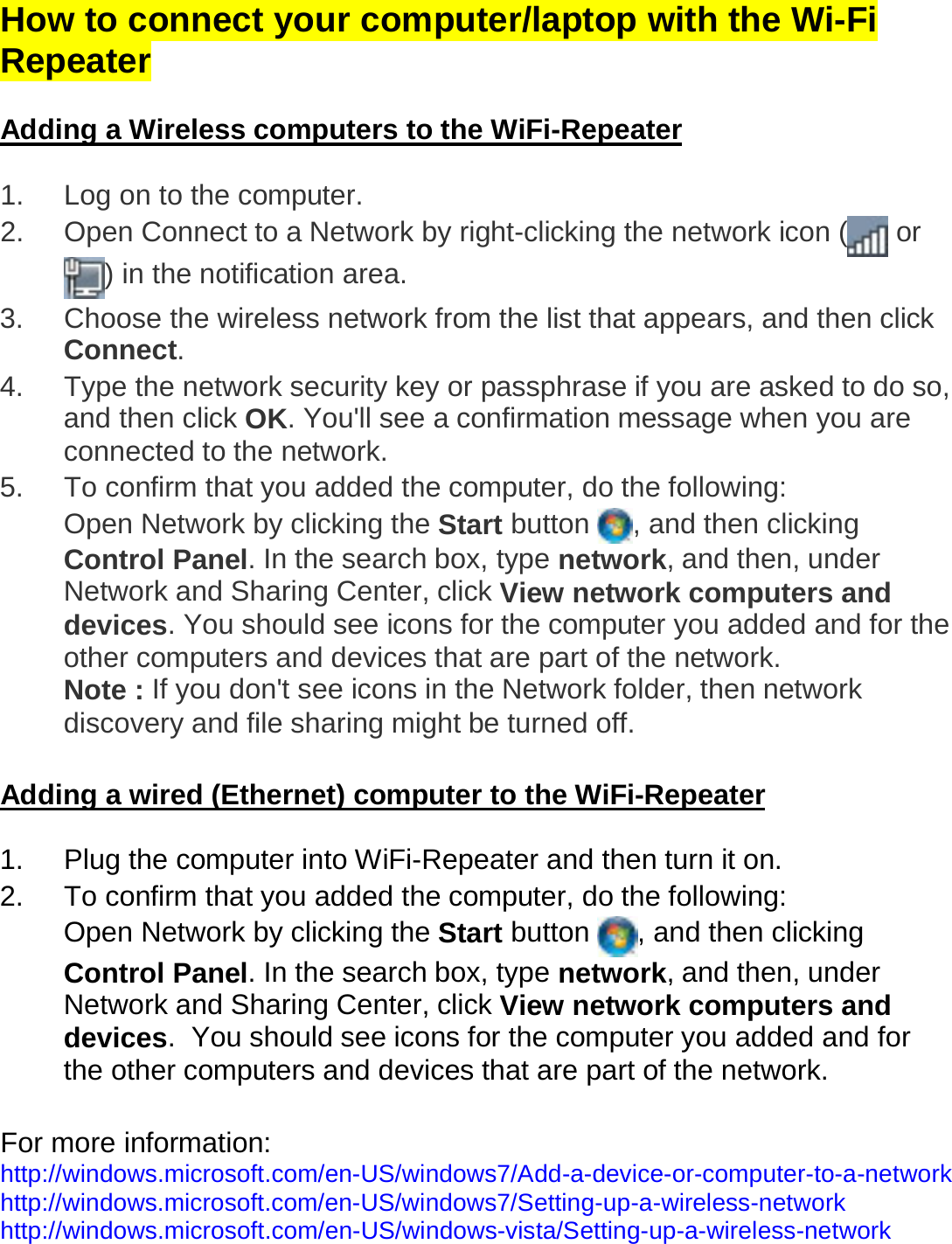

How to connect your computer/laptop with the Wi-Fi Repeater Adding a Wireless computers to the WiFi-Repeater 1. Log on to the computer. 2. Open Connect to a Network by right-clicking the network icon ( or ) in the notification area. 3. Choose the wireless network from the list that appears, and then click Connect. 4. Type the network security key or passphrase if you are asked to do so, and then click OK. You'll see a confirmation message when you are connected to the network. 5. To confirm that you added the computer, do the following: Open Network by clicking the Start button , and then clicking Control Panel. In the search box, type network, and then, under Network and Sharing Center, click View network computers and devices. You should see icons for the computer you added and for the other computers and devices that are part of the network. Note : If you don't see icons in the Network folder, then network discovery and file sharing might be turned off. Adding a wired (Ethernet) computer to the WiFi-Repeater 1. Plug the computer into WiFi-Repeater and then turn it on. 2. To confirm that you added the computer, do the following: Open Network by clicking the Start button , and then clicking Control Panel. In the search box, type network, and then, under Network and Sharing Center, click View network computers and devices. You should see icons for the computer you added and for the other computers and devices that are part of the network. For more information: http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-network
Configuring via Web Browser Wireless Base Configuration Please click “Wireless -> Basic Settings” located at the web management interface, the following message will be displayed on your web browser: You could configure the minimum number of Wireless settings for communication, such as Network Name (SSID) and Channel. The Access Point can be set simply with only the minimum setting items. Disable Wireless Wireless On/Off Mode Supports AP / Repeater modes. SSID of AP or SSID of Connect to Main Service Set Identifier. It’s the "name" of your wireless network. SSID of Extended Universal Repeater Mode (Acting as AP and client simultaneouly) Band Supports 11B/11G/11N mixed modes.

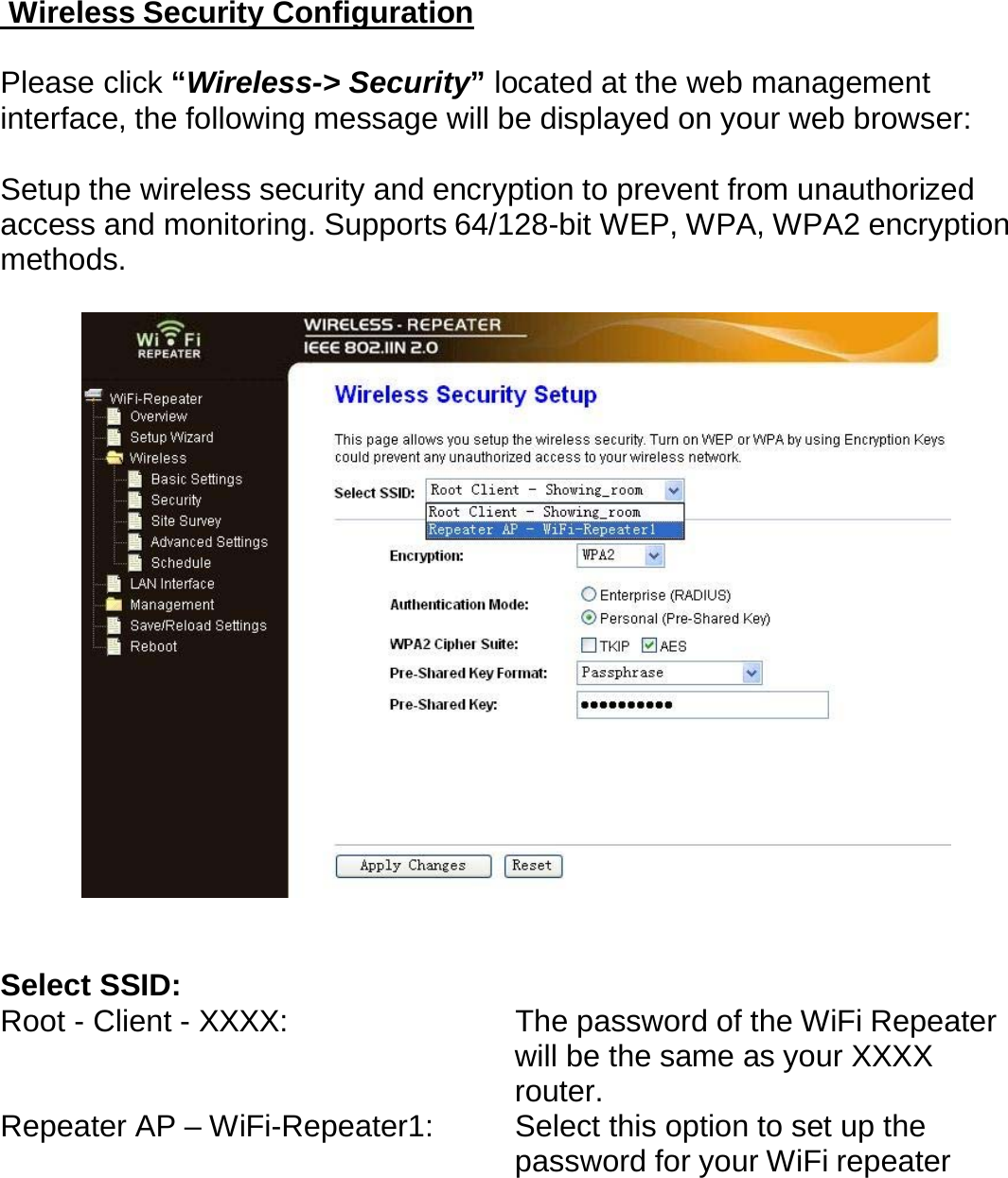

Wireless Security Configuration Please click “Wireless-> Security” located at the web management interface, the following message will be displayed on your web browser: Setup the wireless security and encryption to prevent from unauthorized access and monitoring. Supports 64/128-bit WEP, WPA, WPA2 encryption methods. Select SSID: Root - Client - XXXX: The password of the WiFi Repeater will be the same as your XXXX router. Repeater AP – WiFi-Repeater1: Select this option to set up the password for your WiFi repeater

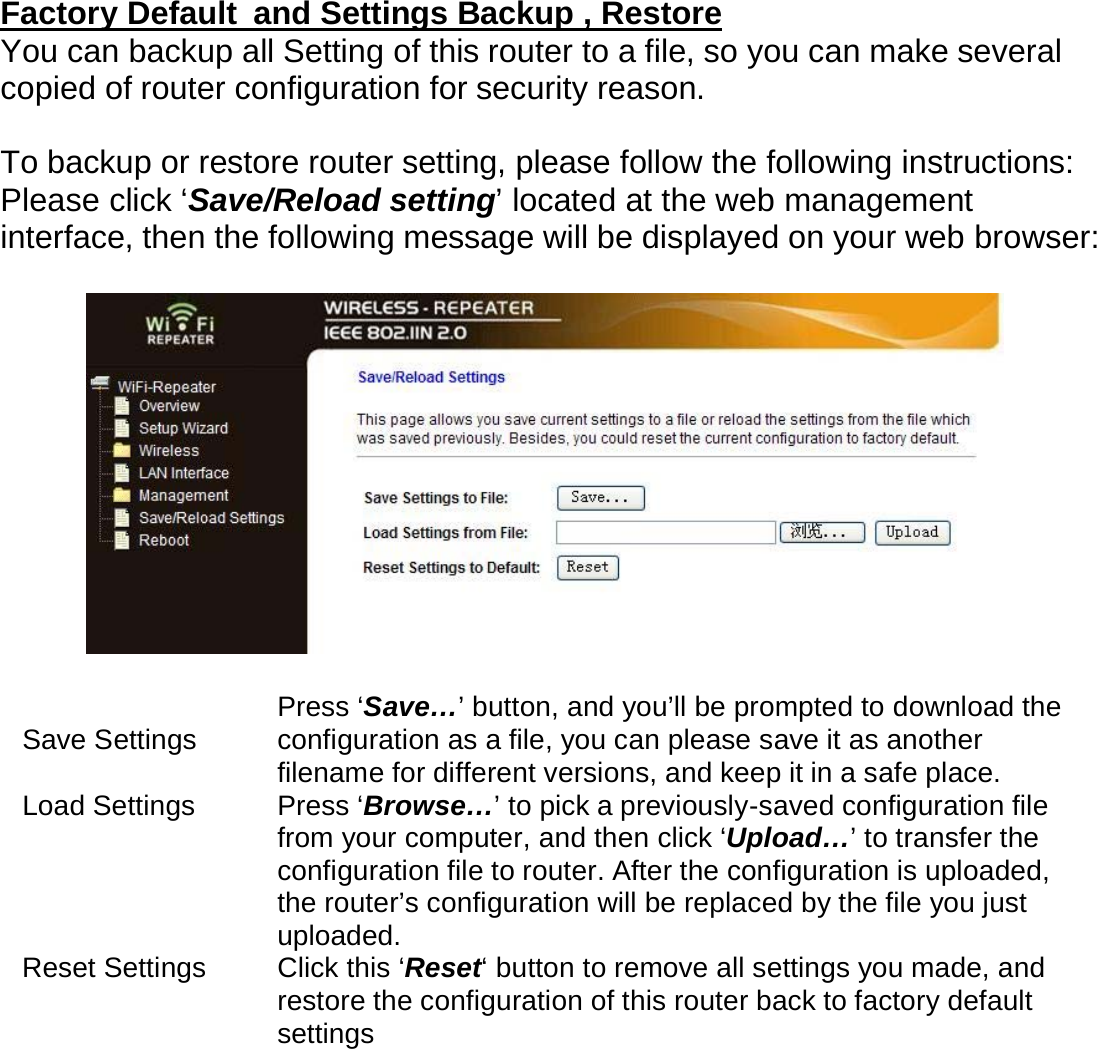

Factory Default and Settings Backup , Restore You can backup all Setting of this router to a file, so you can make several copied of router configuration for security reason. To backup or restore router setting, please follow the following instructions: Please click ‘Save/Reload setting’ located at the web management interface, then the following message will be displayed on your web browser: Save Settings Press ‘Save…’ button, and you’ll be prompted to download the configuration as a file, you can please save it as another filename for different versions, and keep it in a safe place. Load Settings Press ‘Browse…’ to pick a previously-saved configuration file from your computer, and then click ‘Upload…’ to transfer the configuration file to router. After the configuration is uploaded, the router’s configuration will be replaced by the file you just uploaded. Reset Settings Click this ‘Reset‘ button to remove all settings you made, and restore the configuration of this router back to factory default settings

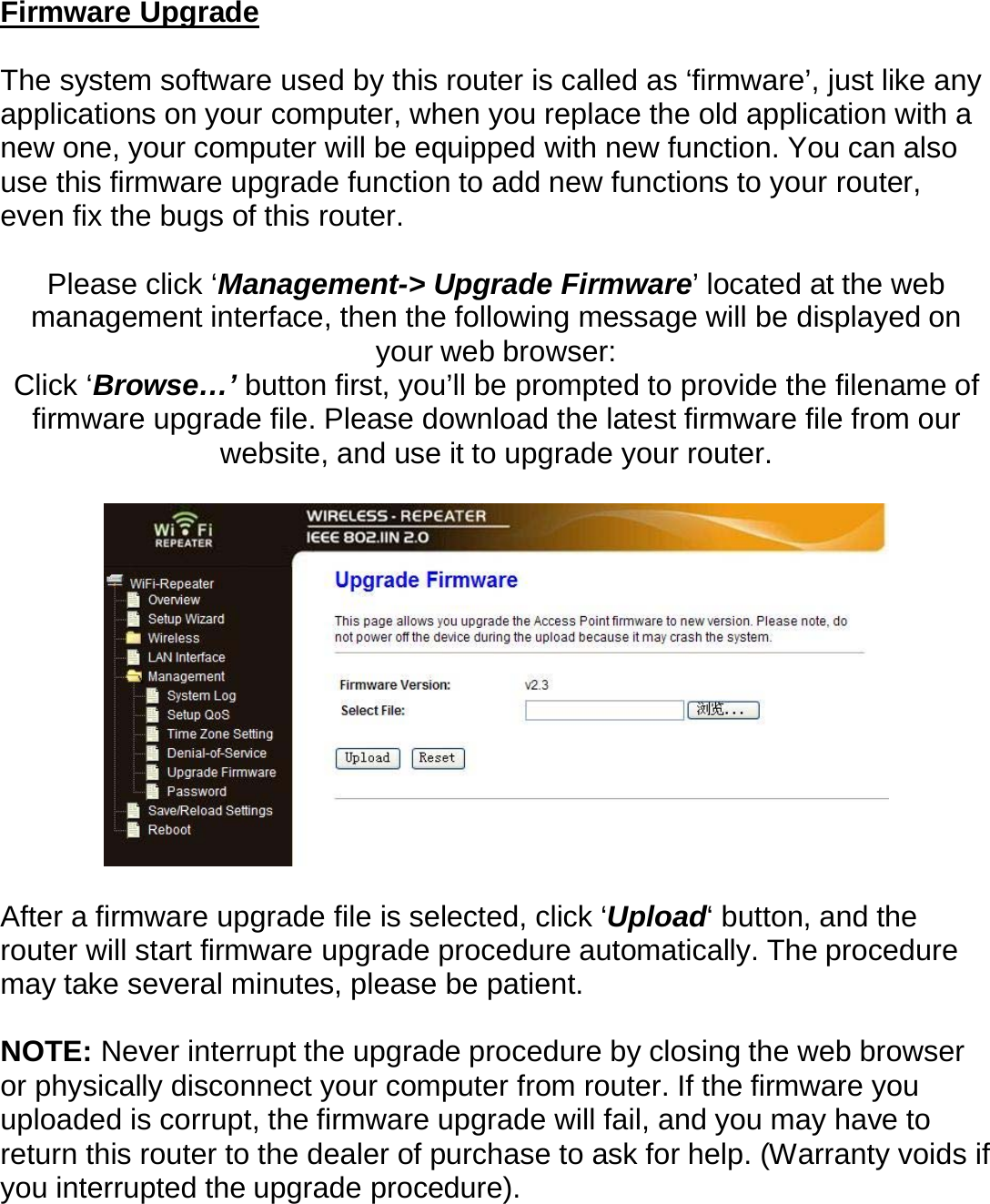

Firmware Upgrade The system software used by this router is called as ‘firmware’, just like any applications on your computer, when you replace the old application with a new one, your computer will be equipped with new function. You can also use this firmware upgrade function to add new functions to your router, even fix the bugs of this router. Please click ‘Management-> Upgrade Firmware’ located at the web management interface, then the following message will be displayed on your web browser: Click ‘Browse…’ button first, you’ll be prompted to provide the filename of firmware upgrade file. Please download the latest firmware file from our website, and use it to upgrade your router. After a firmware upgrade file is selected, click ‘Upload‘ button, and the router will start firmware upgrade procedure automatically. The procedure may take several minutes, please be patient. NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from router. If the firmware you uploaded is corrupt, the firmware upgrade will fail, and you may have to return this router to the dealer of purchase to ask for help. (Warranty voids if you interrupted the upgrade procedure).
Change Management password Default password of Wireless Router is “admin”, and it’s displayed on the login prompt when accessed from web browser. There’s a security risk if you don’t change the default password, since everyone can see it. This is very important when you have wireless function enabled. To change password, please follow the following instructions: Please click ‘Management -> Password‘ menu on the web management interface, the following message will be displayed on your web browser: click ‘Apply Changes‘; If you want to keep original password unchanged, click ‘Reset‘.

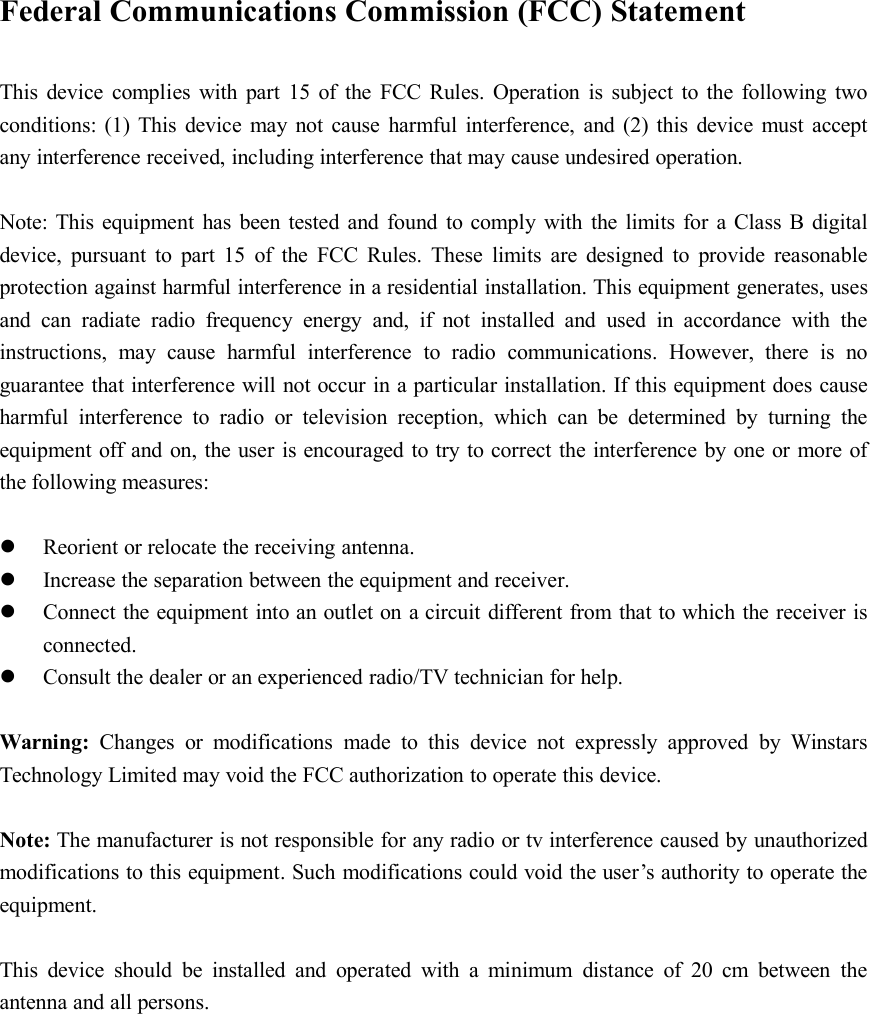

Federal Communications Commission (FCC) StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or more ofthe following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.Consult the dealer or an experienced radio/TV technician for help.Warning: Changes or modifications made to this device not expressly approved by WinstarsTechnology Limited may void the FCC authorization to operate this device.Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorizedmodifications to this equipment. Such modifications could void the user’s authority to operate theequipment.This device should be installed and operated with a minimum distance of 20 cm between theantenna and all persons.
