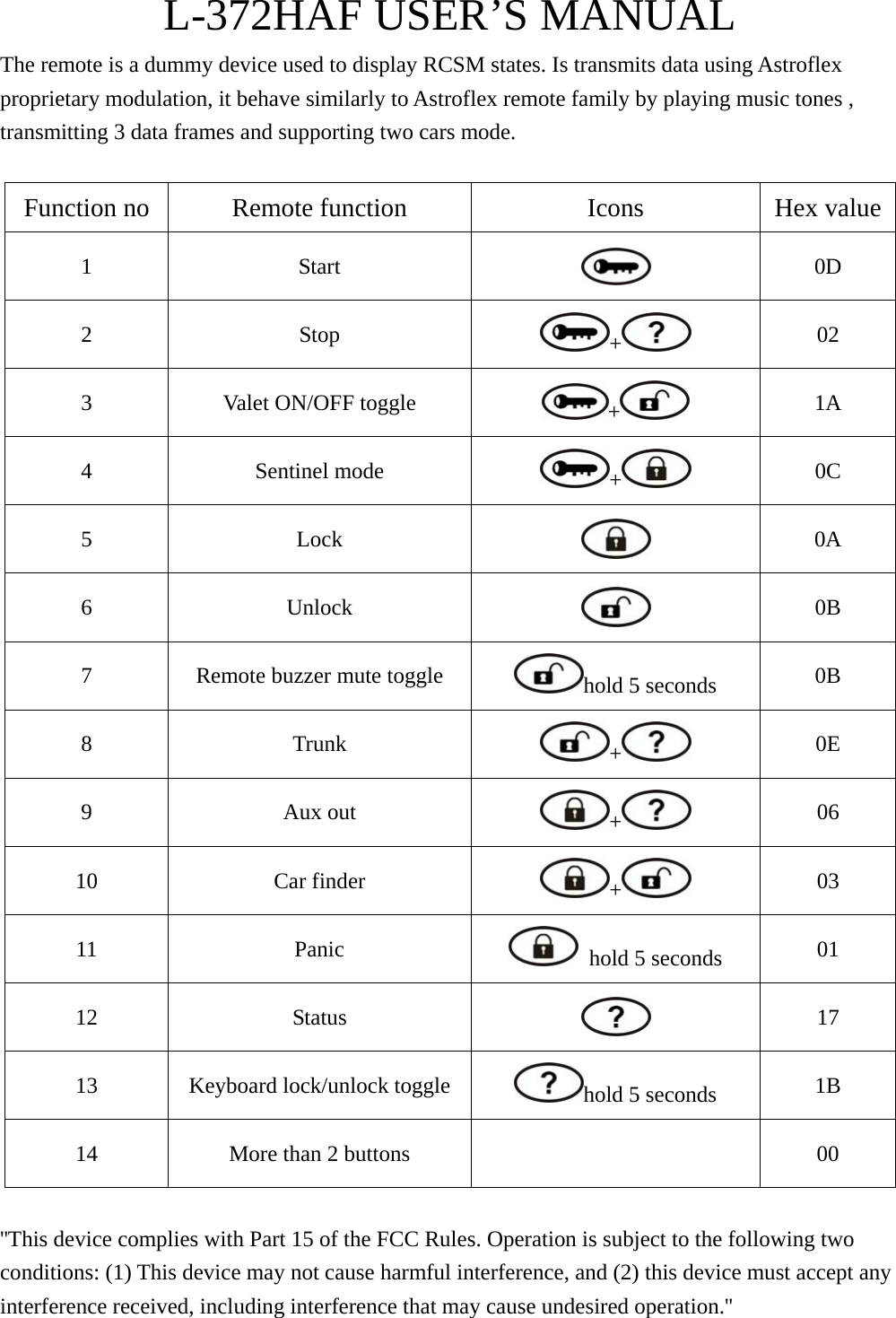

L-372HAF USER’S MANUAL The remote is a dummy device used to display RCSM states. Is transmits data using Astroflex proprietary modulation, it behave similarly to Astroflex remote family by playing music tones , transmitting 3 data frames and supporting two cars mode.    Function no  Remote function  Icons  Hex value1 Start   0D 2 Stop  +   02 3  Valet ON/OFF toggle  +   1A 4 Sentinel mode  +   0C 5 Lock   0A 6 Unlock   0B 7  Remote buzzer mute toggle  hold 5 seconds  0B 8 Trunk  +   0E 9 Aux out  +   06 10 Car finder  +   03 11 Panic    hold 5 seconds  01 12 Status   17 13 Keyboard lock/unlock toggle  hold 5 seconds  1B 14  More than 2 buttons    00  ''This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.''

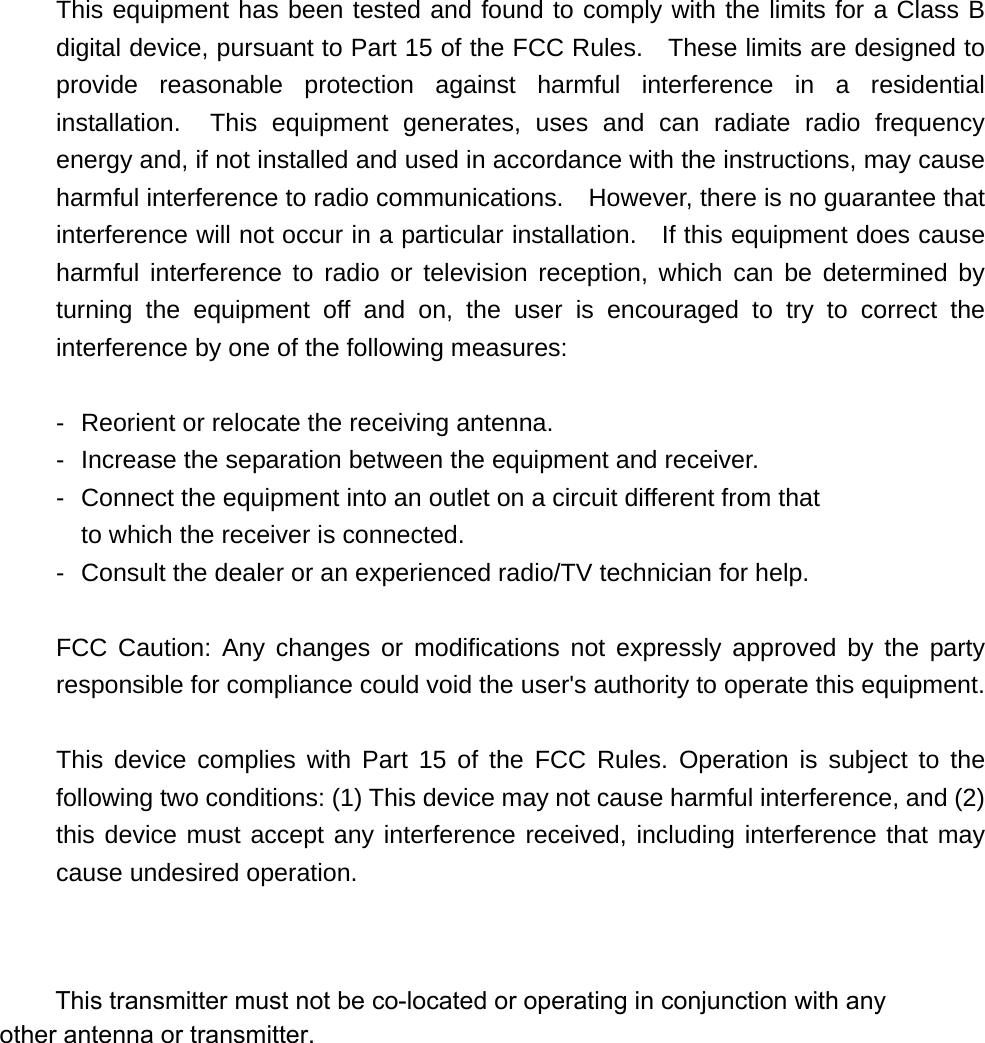

  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.    These limits are designed to provide reasonable protection against harmful interference in a residential installation.  This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.    However, there is no guarantee that interference will not occur in a particular installation.    If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  -  Reorient or relocate the receiving antenna. -  Increase the separation between the equipment and receiver. -  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -  Consult the dealer or an experienced radio/TV technician for help.  FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.           This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
