Wintop Electronics KB-604 2.4GHz Wireless Keyboard User Manual 1
Wintop Electronics Co., Limited 2.4GHz Wireless Keyboard 1
User Manual
QUICK REFERENCE
Touch Pad Wireless Keyboard
1. Introduction
Thank you for choosing the wireless keyboard for smart TV and PC
2. Product description
The wireless keyboard is a keyboard with touchpad mouse function on the same keyboard.
Includes 87 standard keys and 12 multimedia functions. Perfect to easily control all smart
TV devices or use as a wireless keyboard for PC.
With stylish and compact design and low profile keys, perfect for storage anywhere in the
home.
Forget wires with its nano receiver connected to a USB port and increase the potential of
your smart TV.
3. Package Contents
Keyboard and nano receiver
Quick Install Guide
4. Note:
Make sure your package contains the items described above. If you find any items are
missing or damaged,please contact your dealer.
5 System Requirements
USB2.0 port Smart TV or PC
6.Installation and configuration
Installation Procedure for keyboard battery
Step 1: Open the battery compartment cover on the bottom of the keyboard
Step 2: Insert two AAA batteries into the battery compartment as shown in the picture.
Step 3: Close the battery cover.
Step 4: Change the Switch to ON.
7.Installing the nano reciver
Place the nano receiver into a free port on your PC or Smart TV
8.Hotkeys keyboard
Valid only for Windows PC
FN+F1=Media Player FN+F8=Stop
FN+F2=Volume down FN+F9=Internet explorer
FN+F3= Volume UP FN+F10=Email
FN+F4=mute F N+F11=My PC
FN+F5=previous track FN+F12=Favorites
FN+F6= Next track
FN+F7=Play/pause
Touch pad funcon
By default the feature is enabled keypad, press the Num lock key to acvate or
deacvate.

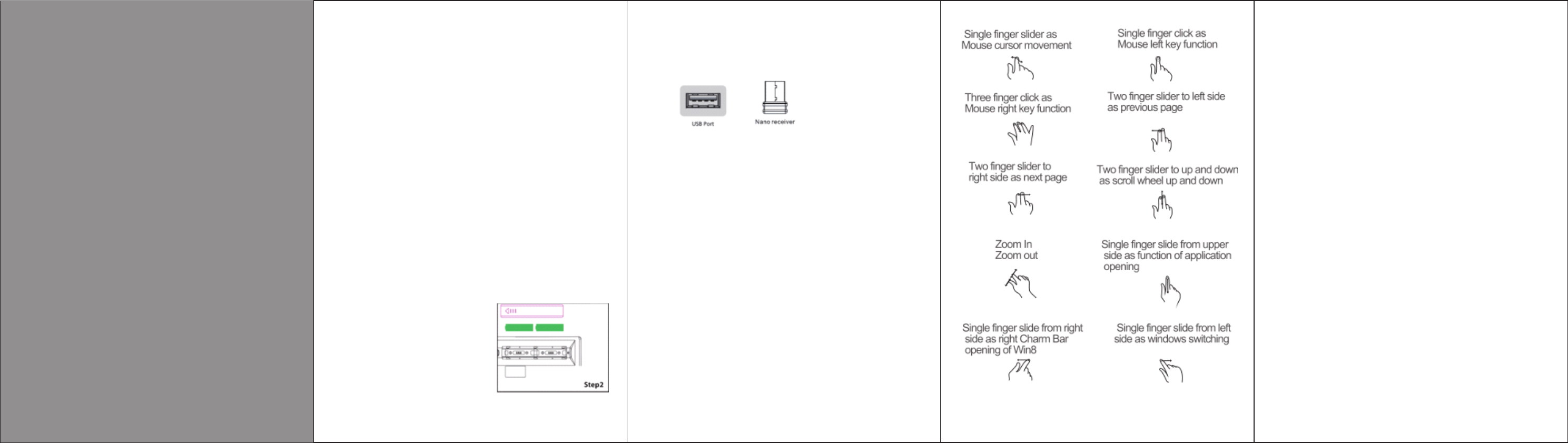

9.List of funcons in mouse mode.
Flick of the finger on the touch pad : Move the mouse pointer
Clicking the finger on the touch panel: Le mouse buon
Double Click with your finger on the touch pad: Middle mouse buon
Make Click with three fingers at once on the touch pad: right mouse buon
Double Click with your fingers and push the le: Page up
Double Click with your fingers and push the right: Page down
Double Click with your fingers and thumb up/down: Scroll up/down
10. Technical support
For more informaon about installing and configuring this product, please
visit our website or send an email to us, thanks.
