Wireless Cables BLE1K Bluetooth 4.0 Low Energy Single Mode Module User Manual

Wireless Cables Inc. Bluetooth 4.0 Low Energy Single Mode Module Users Manual

Users Manual

Wireless Cables Inc.
2880 Zanker Rd, Suite 203, San Jose CA 95134
T 408.954.7301 ~ F 408.228.0687
sales@aircable.net ~ www.aircable.net
The AIRcable BLE
Extremely Low Power Bluetooth 4.0 Low Energy Single Mode
Module with the AIRcable Universal GATT Profile
Powerful Characteristics for IO
• Read and write 8 digital input and output
 
 
 
 
Serial Communication
• 
 
 
Single Module Solution
 
 
 
 
AIRcable BLE

 AIRcable BLE        

AIRcable
BLE
http://www.aircable.net/ble
AIRcable, AIRtags and AIRmote
are trademarks of Wireless Cables, Inc.
CSR and BlueCore are trademarks of Cambridge Silicon Radio
Bluetooth is a registered trademark of the Bluetooth SIG.
All other company, product, and brand names are
trademarks of their respective owners.
AIRcable BLE C1K Datasheet
Benefits of the AIRcable SMD
 
 
 
 
 
 
 
 


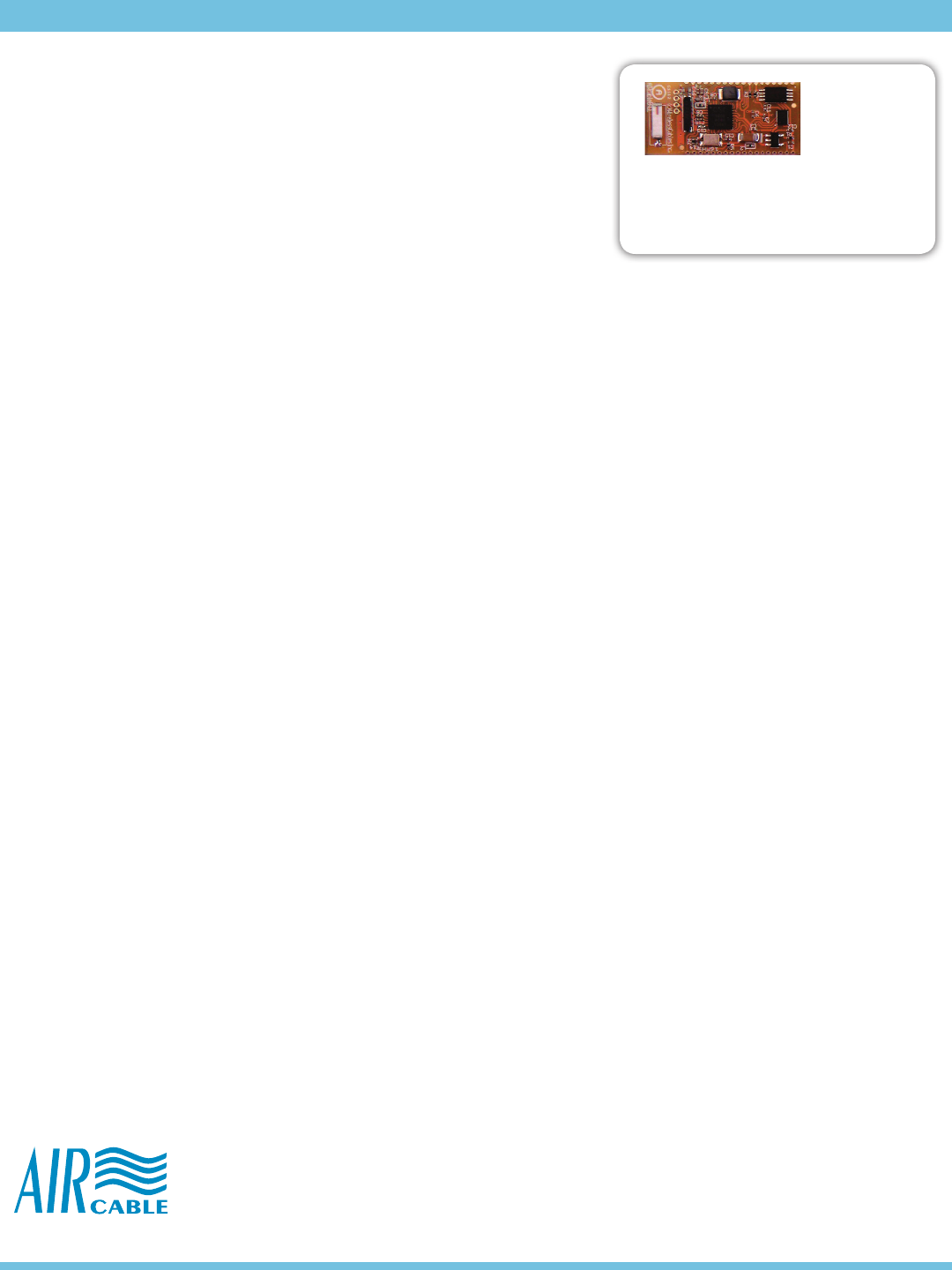

The AIRcable BLE
Actual
Size

Wireless Cables Inc.
2880 Zanker Rd, Suite 203, San Jose, CA 95134
T 408.954.7301 ~ F 408.228.0687
sales@aircable.net ~ www.aircable.net
Terminal Description
1 PIO(10) I/O 3.3V TTL PIO(10), used for button input, weak pull-down resistor
2 LED(0) O Supply connected to PIO(2), used for EEPROM power control
3 WAKEUP I Supply Wakeup from deep sleep, connected to PIO(10)
4 VBATT I/O Supply 3V Coin cell, 3.3V supply or battery, positive terminal
5 AIO(0) I Analog Analog input or output 0-1.3V
6 AIO(1) I Analog Analog input or output 0-1.3V
7 SPI_RESET I 3.3V TTL High enables SPI interface for programming and debugging
8 SPI_MISO I 3.3V TTL 
9 SPI_CSB I 3.3V TTL 
10 SPI_CLK I 3.3V TTL 
11 SPI_MOSI O 3.3V TTL 
12 CTS connected to RTS for compatib ility
13 TX O 3.3V TTL Uart async serial output, same as PIO(0)
14 RTS shorted with CTS for compatibility
15 RX I 3.3V TTL Uart async serial input, same as PIO(1)
16 NC not connected
17 VIN I Supply Regulator input, 3V – 12V
18 GND Supply Ground
PIO(10)
LED_CHG
WAKEUP
VBATT
AIO(0)
AIO(1)
SPI_RESET
SPI_MISO (pio8)
SPI_CSB (pio6)
SPI_CLK (pio5)
SPI_MOSI( pio12)
TX (pio0)
RX (pio1)
1V35
VIN
GND
PIO(9)
GND
PIO(6)
PIO(8)
PIO(11)
PIO(7)
PIO(2)
PIO(3)
PIO(4)
PIO(5)
SCL
SDA
Pin Functions
Viewed from Component Side
GND
ANT
GND
AIO2
14.50mm
31.00mm
1.27mm
1.2mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
Optional Antenna Area
24.90mm
2.0mm
2.1mm
41 40 39 38
smd pad: 1mm x 0.5mm

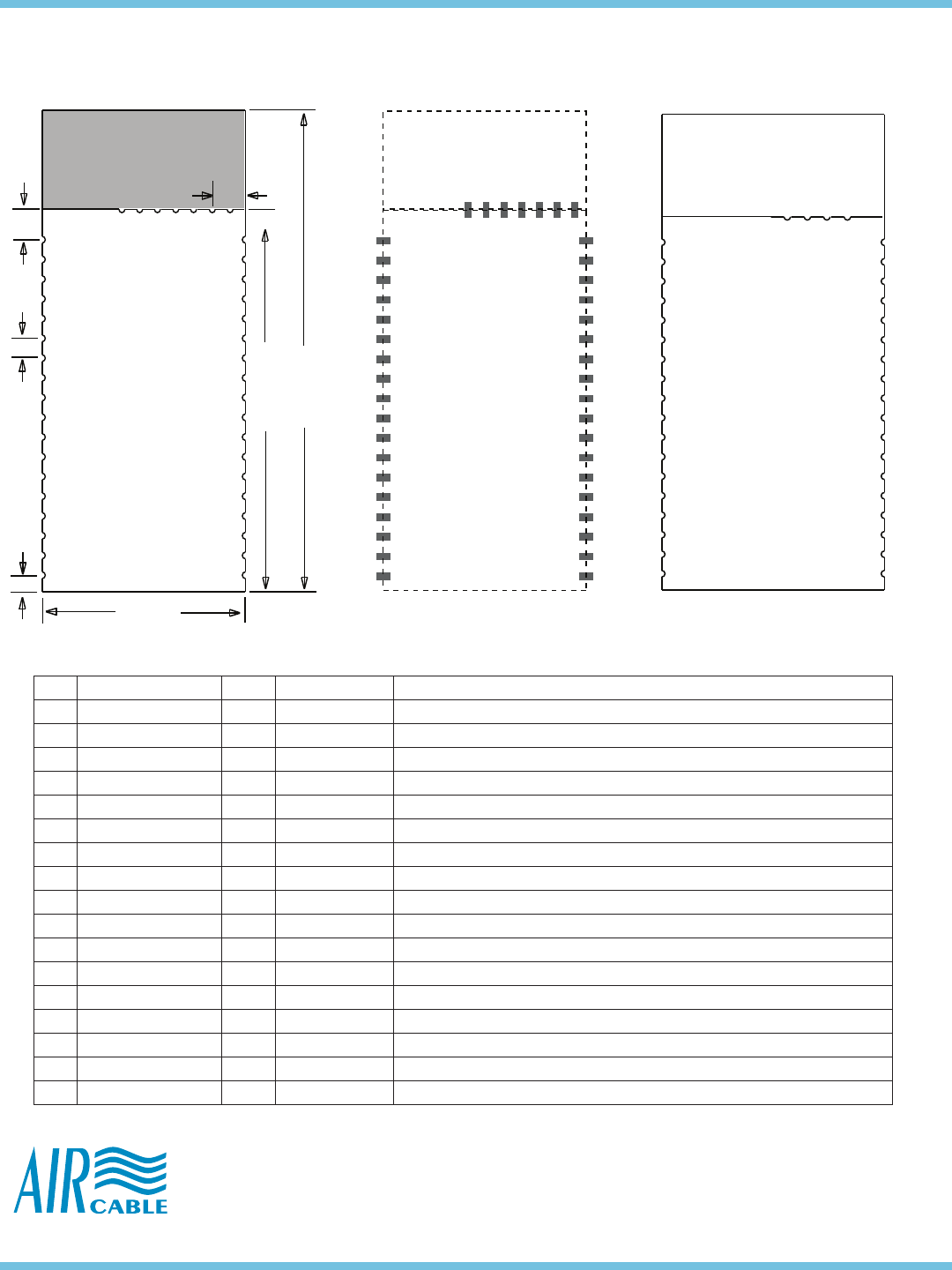

PCB Layout
Wireless Cables Inc.
2880 Zanker Rd, Suite 203, San Jose, CA 95134
T 408.954.7301 ~ F 408.228.0687
sales@aircable.net ~ www.aircable.net
Terminal Description (cont.)
39 GND Supply Ground
40 ANT I/O Analog RF antenna connector
41 GND Supply Ground
42 AIO(2) I/O Analog analog input or output
43 GND Supply Ground
19
20
21
22
23
24
25 SDA I/O 3.3V TTL I2C master data
26 SCL O 3.3V TTL I2C master clock
27 PIO(5) I/O 3.3V TTL general purpose input or output pin
28 PIO(4) I/O 3.3V TTL general purpose input or output pin
29 PIO(3) I/O 3.3V TTL general purpose input or output pin
30 PIO(2) I/O 3.3V TTL general purpose input or output pin
31 PIO(7) I/O 3.3V TTL general purpose input or output pin
32 PIO(11) I/O 3.3V TTL general purpose input or output pin
33 PIO(8) I/O 3.3V TTL general purpose input or output pin
34 PIO(6) I/O 3.3V TTL general purpose input or output pin
35 GND Supply Ground
36 PIO(9) I/O 3.3V TTL general purpose input or output pin
RF Port Description
For versions of the AIRcable BLE without antenna, only use the antenna port with a 50 Ohm trace
to an external antenna. Impedance matching will be required. Pleaes contact Wireless Cables Inc.
for these versions.
FCC Requirements

could void the user’s authority to operate the equipment
2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
3. When the module is installed inside of an end product, OEM customer will be instructed on
how to apply the exterior label. Relevant to the OEM labeling requirements are present in the prod-
uct’s user manual.
