Wireless XH2 TWO WAY RADIO/TRANSCEIVER User Manual

Wireless Corporation Limited TWO WAY RADIO/TRANSCEIVER Users Manual

Users Manual

User Manual

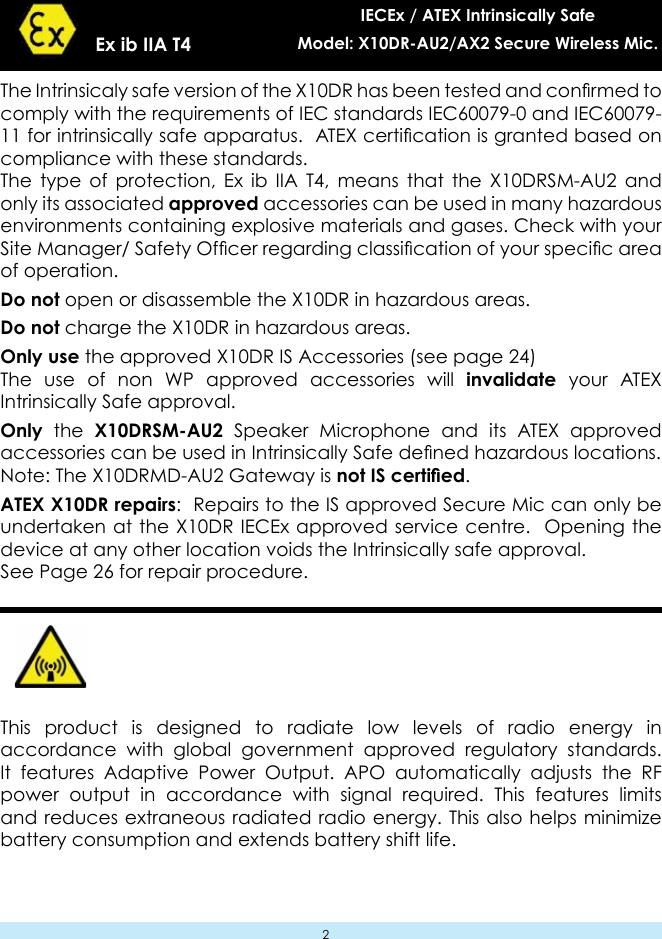

 2This product is designed to radiate low levels of radio energy in accordance with global government approved regulatory standards. It features Adaptive Power Output. APO automatically adjusts the RF power output in accordance with signal required. This features limits and reduces extraneous radiated radio energy. This also helps minimize battery consumption and extends battery shift life. The Intrinsicaly safe version of the X10DR has been tested and conrmed to comply with the requirements of IEC standards IEC60079-0 and IEC60079-11 for intrinsically safe apparatus.  ATEX certication is granted based on compliance with these standards.The type of protection, Ex ib IIA T4, means that the X10DRSM-AU2 and only its associated approved accessories can be used in many hazardous environments containing explosive materials and gases. Check with your Site Manager/ Safety Ofcer regarding classication of your specic area of operation.Do not open or disassemble the X10DR in hazardous areas.Do not charge the X10DR in hazardous areas.Only use the approved X10DR IS Accessories (see page 24)The use of non WP approved accessories will invalidate your ATEX Intrinsically Safe approval.Only the X10DRSM-AU2 Speaker Microphone and its ATEX approved accessories can be used in Intrinsically Safe dened hazardous locations. Note: The X10DRMD-AU2 Gateway is not IS certied.ATEX X10DR repairs:  Repairs to the IS approved Secure Mic can only be undertaken at the X10DR IECEx approved service centre.  Opening the device at any other location voids the Intrinsically safe approval. See Page 26 for repair procedure.Ex ib IIA T4IECEx / ATEX Intrinsically Safe Model: X10DR-AU2/AX2 Secure Wireless Mic.
Table of ContentsATEX Model information ..................................................................................2Nomenclature, Parts & Functions ...................................................................4Wearing the X10DR Secure Mic ......................................................................7How it works ......................................................................................................8Basic Operation ...............................................................................................8 •Power On & Off, Volume Control .................................................................... 8 •Transmitting/Receiving, Talkaround ................................................................ 8 •Talk permit tone, Emergency, Secondary PTT ...............................................9 •Earpiece, Out of Range, Charging conrmation .........................................9 •Find Me™ operation .........................................................................................9 •Stealth, Remote monitor, Mic boost operation ...........................................10Multiple unit, Motorcycle, Covert, Headset operation ...............................12Battery Charging ............................................................................................14Audio adjustment, Device pairing ...............................................................15Antennas .........................................................................................................17Installation & Connections ............................................................................18Accessories and Parts ...................................................................................24Service Support ..............................................................................................25IECEx ATEX Service Support, *Coverage Info ..............................................26 Regulatory, Warranty  ....................................................................................28Important safety and handling .....................................................................29Type Approvals, Specifications ....................................................................313

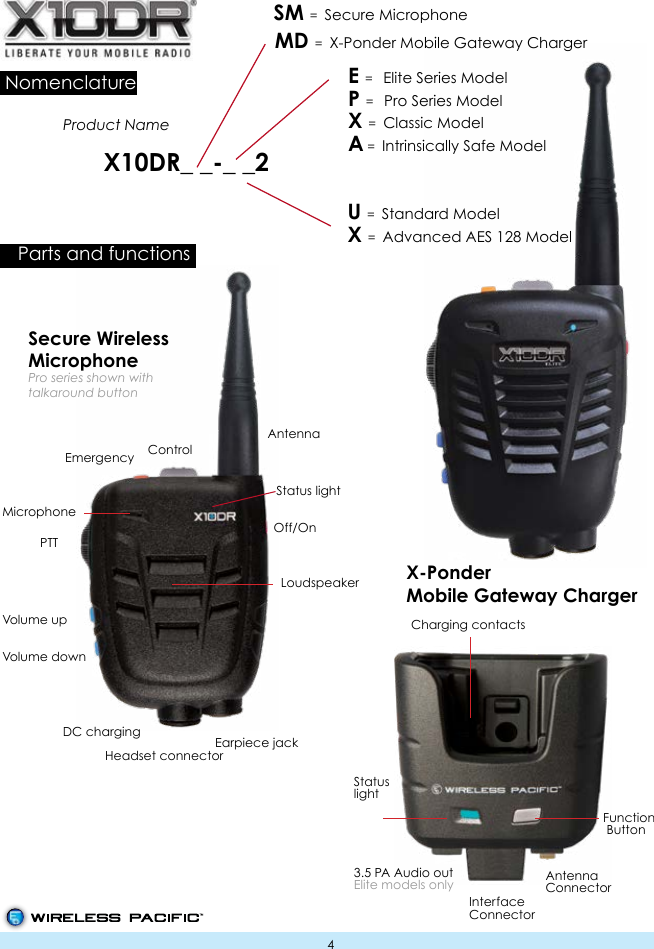

Parts and functions4Secure Wireless MicrophonePro series shown with talkaround buttonX-Ponder Mobile Gateway ChargerAntennaPTTVolume upVolume downHeadset connector  Earpiece jackDC chargingMicrophoneLoudspeakerStatus lightAntennaConnectorStatus lightFunction ButtonCharging contactsNomenclatureX10DR_ _-_ _2Product NameSM =  Secure MicrophoneMD =  X-Ponder Mobile Gateway ChargerU =  Standard ModelX =  Advanced AES 128 ModelOff/OnEmergency  ControlE =   Elite Series ModelP =   Pro Series ModelX =  Classic ModelA =  Intrinsically Safe Model3.5 PA Audio outElite models onlyInterfaceConnector

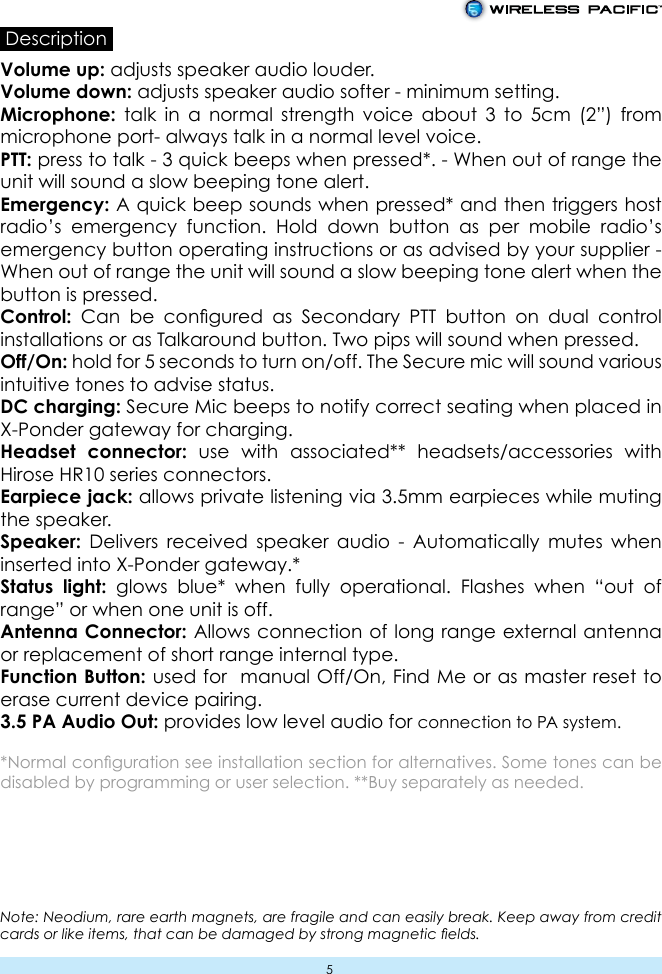

Volume up: adjusts speaker audio louder.Volume down: adjusts speaker audio softer - minimum setting.Microphone: talk in a normal strength voice about 3 to 5cm (2”) from microphone port- always talk in a normal level voice. PTT: press to talk - 3 quick beeps when pressed*. - When out of range the unit will sound a slow beeping tone alert.Emergency: A quick beep sounds when pressed* and then triggers host radio’s emergency function. Hold down button as per mobile radio’s emergency button operating instructions or as advised by your supplier - When out of range the unit will sound a slow beeping tone alert when the button is pressed.Control:  Can  be  congured  as  Secondary  PTT  button  on  dual  control installations or as Talkaround button. Two pips will sound when pressed.Off/On: hold for 5 seconds to turn on/off. The Secure mic will sound various intuitive tones to advise status.DC charging: Secure Mic beeps to notify correct seating when placed in X-Ponder gateway for charging.Headset connector: use with associated** headsets/accessories with Hirose HR10 series connectors. Earpiece jack: allows private listening via 3.5mm earpieces while muting the speaker.Speaker: Delivers received speaker audio - Automatically mutes when inserted into X-Ponder gateway.*Status light: glows blue* when fully operational. Flashes when “out of range” or when one unit is off.Antenna Connector: Allows connection of long range external antenna or replacement of short range internal type.Function Button: used for  manual Off/On, Find Me or as master reset to erase current device pairing.3.5 PA Audio Out: provides low level audio for connection to PA system.*Normal conguration see installation section for alternatives. Some tones can be disabled by programming or user selection. **Buy separately as needed.5Note: Neodium, rare earth magnets, are fragile and can easily break. Keep away from credit cards or like items, that can be damaged by strong magnetic elds. Description
Thankyou for choosing the revolutionary X10DR (“extender”) Secure Wireless Microphone. This incredibly compact, lightweight personal accessory extends the power of the mobile radio to the palm of your hand, whether in and out of the vehicle. X10DR stands ready to re-dene mobile network design by increasing user functionality and mobility whilst dramatically improving the effectiveness of your infrastructure investment. This visionary solution provides users out of vehicle communications with the power and performance of their mobile radio. X10DR cuts the cord and for the rst time puts the microphone and radio system access into the palm of your hand when away from the vehicle, delivering true mobility without system compromise. Users can feel totally condent their private communications are kept secure with up to AES128 encryption (model dependent) functionality. X10DR uniquely incorporates HLC™ “Hard Line Coding” connection protocol that virtually eliminates any possibility of outside intrusion between the X10DR and your vehicle’s mobile. When the mission is critical, X10DR delivers. X10DR unleashes the power of your mobile radio  allowing wireless communication with  a xed  located or  vehicle radio:  up to  500 meters or more.* Our EVR™ enhanced voice resilience audio ensures users can communicate with clean clear audio, with the power and range of their mobile radio, whilst not being tied to the vehicle allowing the user to be truly mobile in every operational environment. This ability to now communicate  whilst  outside your vehicle  signicantly  enhances  a  safer and more secure work environment for everyone who carries an X10DR Secure Wireless Microphone.Introduction6Up to 500 meters and more

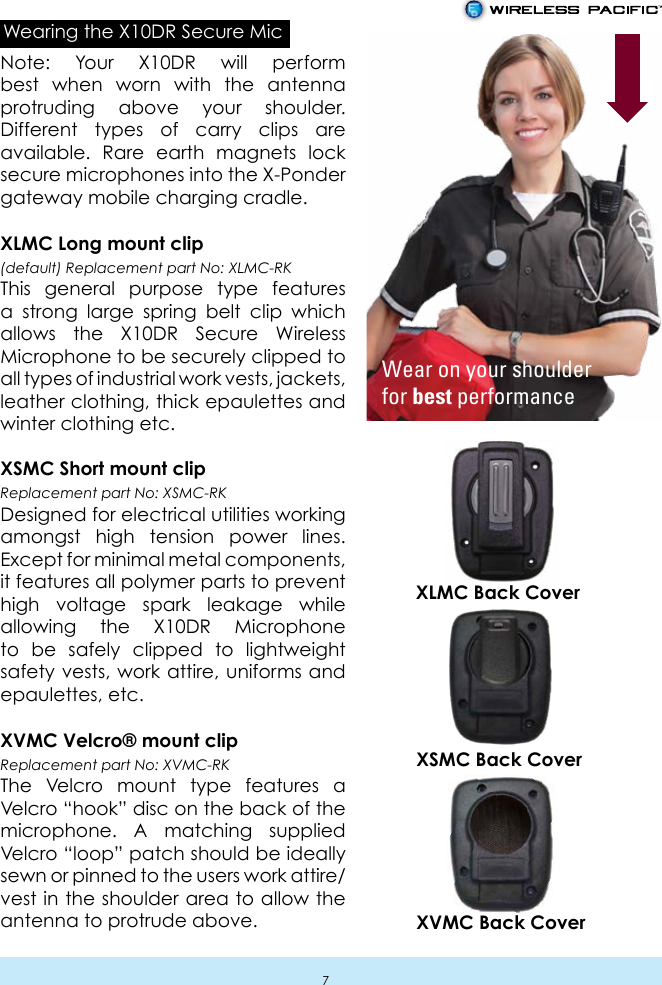

Wearing the X10DR Secure MicNote: Your X10DR will perform best when worn with the antenna protruding above your shoulder. Different types of carry clips are available. Rare earth magnets lock secure microphones into the X-Ponder gateway mobile charging cradle.XLMC Long mount clip (default) Replacement part No: XLMC-RKThis general purpose type features a strong large spring belt clip which allows the X10DR Secure Wireless Microphone to be securely clipped to all types of industrial work vests, jackets, leather clothing, thick epaulettes and winter clothing etc. XSMC Short mount clip Replacement part No: XSMC-RKDesigned for electrical utilities working amongst high tension power lines. Except for minimal metal components, it features all polymer parts to prevent high voltage spark leakage while allowing the X10DR Microphone to be safely clipped to lightweight safety vests, work attire, uniforms and epaulettes, etc. XVMC Velcro® mount clip Replacement part No: XVMC-RKThe Velcro mount type features a Velcro “hook” disc on the back of the microphone. A matching supplied Velcro “loop” patch should be ideally sewn or pinned to the users work attire/vest in the shoulder area to allow the antenna to protrude above.7Wear on your shoulder for best performanceXLMC Back CoverXSMC Back CoverXVMC Back Cover

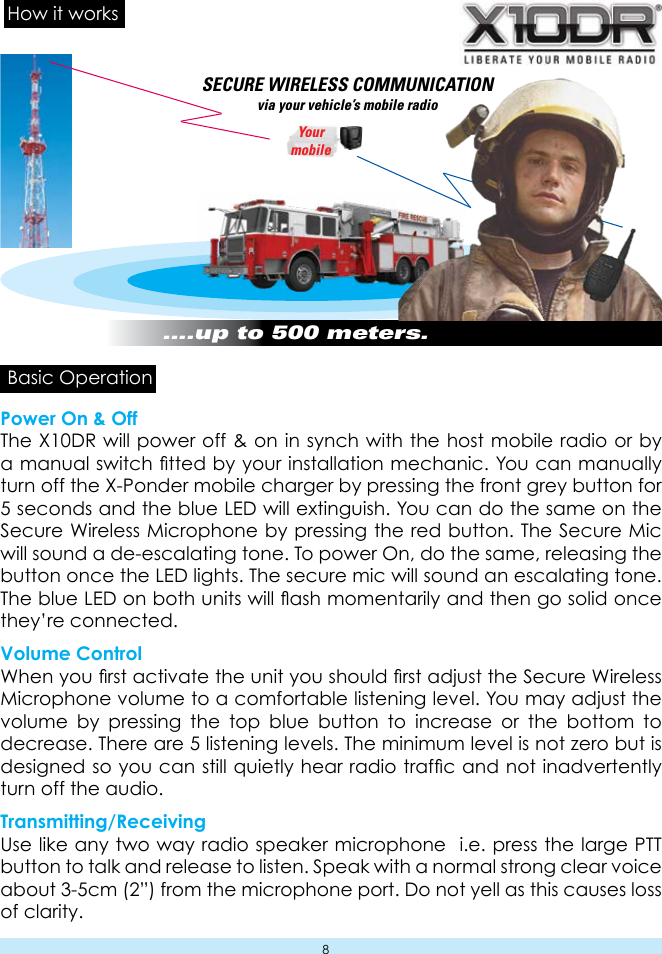

How it works8SECURE WIRELESS COMMUNICATIONvia your vehicle’s mobile radio....up to 500 meters.Basic OperationPower On & OffThe X10DR will power off & on in synch with the host mobile radio or by a manual switch tted by your installation mechanic. You can manually turn off the X-Ponder mobile charger by pressing the front grey button for 5 seconds and the blue LED will extinguish. You can do the same on the Secure Wireless Microphone by pressing the red button. The Secure Mic will sound a de-escalating tone. To power On, do the same, releasing the button once the LED lights. The secure mic will sound an escalating tone. The blue LED on both units will ash momentarily and then go solid once they’re connected.Volume ControlWhen you rst activate the unit you should rst adjust the Secure Wireless Microphone volume to a comfortable listening level. You may adjust the volume by pressing the top blue button to increase or the bottom to decrease. There are 5 listening levels. The minimum level is not zero but is designed so you can still quietly hear radio trafc and not inadvertently turn off the audio.Transmitting/ReceivingUse like any two way radio speaker microphone  i.e. press the large PTT button to talk and release to listen. Speak with a normal strong clear voice about 3-5cm (2”) from the microphone port. Do not yell as this causes loss of clarity. Your mobile
9TalkaroundYour X10DR can be congured so that up to eight X10DR devices can be connected to the one mobile radio. Use Talkaround to talk to other users sharing your mobile radio without the audio being transmitted over the radio channel whilst continuing to be able to monitor all communications over the radio system. Both handsfree and Press to talk operation is available. Handsfree requires use of either an earpiece connected to the 3.5mm audio jack but preferabley with a noise cancelling headset with boom mic connected to the Hirose® accessory port.Secondary PTTIn some applications your X10DR may be connected to two mobile radios, or a mobile radio and a smartphone with LTE, a satellite link or perhaps your vehicle’s Public Address systems. In these situations the top centre button can be used as a secondary PTT button to communicate over the secondary device.Talk Permit tonesX10DR can provide talk permit tones* so users know when to start speaking so that words are not lost at the start of a transmission. The tones can be enabled individually, 3 short chirps when you press the main PTT, 2 chirps for Secondary or Talkaround PTT. If you are out of range of your vehicle, the user will hear the X10DR’s Out of Range tone. Out of Range IndicationX10DR provides the user with audible feedback should the user move out of range from their vehicle. Note: if you walk out of range the blue status LED will ash. If you then push the PTT an alert tone will sound to let you know your call is not getting though. Pressing the Talkaround Function or Emergency button when Out of Range will provide a similar indication. Depending on your location, you may nd you need to walk back several meters closer to your vehicle to re-connect  and the blue status light will then glow solid again. Charging Conrmation ToneX10DR provides the user with a discrete tone whenever the X10DR Secure Mic is returned to the charging cradle. This discrete alert ensures the user has a positive indication that the X10DR Secure Mic is charging and seated correctly in the cradle.  The X10DR microphone blue LED momentary ashes  every  10  seconds while    charging inside  the  cradle. The LED remains constant when fully charged.
10Emergency The emergency button can be used to trigger and reset the emergency function in your suitably equipped mobile radio. The time you hold the button is the time your mobile radio registers the emergency command. So if your radio requires you to hold the front panel emergency button for 2 secs, then you should hold the Wireless Microphone emergency button for 2 seconds. A short beep* will sound when the emergency (orange) button is pressed. See pg. 20 for other Emergency information. Advanced Emergency Operation (Elite Models only)X10DR Elite models provide additional emergency signalling capability including sending alert tones locally to other units in multi-unit installations and over the network withor without optional Live Mic. Live Mic sends user Mic audio for a pre-programmed duration with higher audio gain so others monitoring can ascertain the nature of the emergency. This is followed by a receive wait time before repeating the cycle however many times was desired. Alternatively, where the console operator is able to remotely monitor a mobile, the X10DR Mic can be programmed to facillitate this remote audio monitoring for a pre-determined time. Emergency can be reset by pressing the emergency button for another two seconds.Earpiece OperationX10DR provides the user with a weather protected (Elite models waterproof) 3.5mm earpiece jack to allow use of a range of earpiece styles to suit individual user preferences while ensuring call privacy. Plugging in an earpiece disables the internal loudspeaker. Elite models are not waterproof with the protective cap removed or if damaged.Find Me™X10DR’s Find Me feature allows a lost unit or its user to be audibly located by sounding a loud continuous alert tone thru the Secure Mic. To activate press the X-Ponder function button for 2 seconds. The loud alert tone will immediately start to sound. it can be deactivated by the user momentarily pressing any button on the Secure Mic or at the vehicle by momentarily pressing the X-Ponder gateway’s function button. Note if the Secure Mic is out of range it will immediately sound the alert tone once it reconnects. Function can be enabled/disabled by eld programmer.Radio Off AlertOnce the X10DR is powered on should the attached host mobile radio be turned off for any reason the user will be alerted as soon as the secure mic is removed from the cradle with an out of range tone. This automatic alerting ensures users know there mobile radio is active when away from the vehicle.
Stealth ModeFor special applications the secure Mic’s Blue LED on the front of the Secure Mic can be temporarily disabled along with all audible alert tones. This is achieved by holding down the VOLUME UP/DOWN (both) while powering up the unit. To turn the LED back on, simply power down and power back up. The feature may be of particular use to “Law Enforcement Users” who may prudently prefer in some situations to not be walking around at night with a blue light glowing on their shoulder. Alternatively, Stealth mode can be permanently enabled via  re-programming the X10DR Secure Mic.Accessory Mic BoostUsers can choose to increase an audio accessory’s microphone sensitivity on X10DR models tted with the Hirose accessory port to cater for sensitivity requirements  or  variations  in  headset  manufacturer’s  specications.  To activate the higher sensitivity, the X10DR’s blue VOLUME UP button should be held down while powering up. The user will thereafter hear 2 short conrmation beeps at the end of each start up tone sequence. To revert to standard operation, the unit should be powered up with the VOLUME DOWN blue button held down. NOTE: Enabling the mic boost does NOT effect the l  internal front cover microphone. The default sensitivity can be adjusted using the XPK Field Programmer.Remote Monitor (Elite Models only)A unique input is provided on Elite series X10DR  installations which allows that users audio to be remotely activated. The activation may be from a manual switch installed in the vehicle (supplied by others) or it may connect to a mobile radio suitably equipped to allow a despatcher to remotely send a command to the users vehicle mobile that can be used in turn to activate the remote monitor function. Depending on the specic application a XSJB special function may be required.Public Address /In-Car Monitor (Elite Models only)The X10DR Elite model provides a low level audio output  to allow a secure microphone user’s transmissions to be be connected to an external public address system. Press buttons on the base of the gateway allows the audio volume to be adjusted up or down. Audio connection is via a 3.5mm mono socket in the base of the gateway.In-out of cradle remote sensing (Elite Models only)The Elite gateway cradle provides an externally accessible indication ofwhen the secure mic is in the gateway cradle or not. This can be used for automatic enabling of functions such as lone worker or other remote electronic devices.11

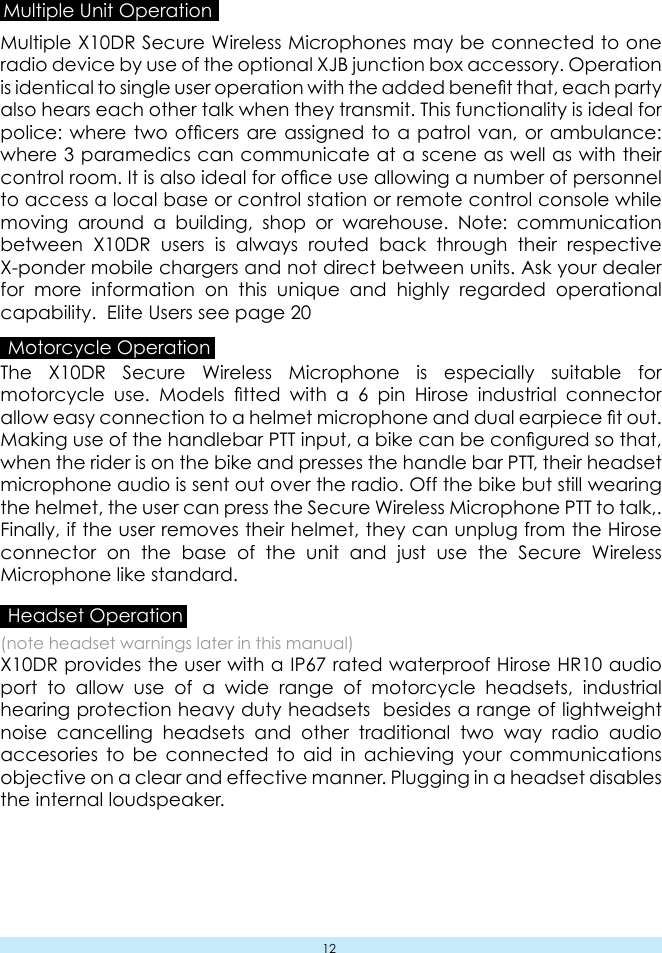

Multiple X10DR Secure Wireless Microphones may be connected to one radio device by use of the optional XJB junction box accessory. Operation is identical to single user operation with the added benet that, each party also hears each other talk when they transmit. This functionality is ideal for police: where two  ofcers are assigned to  a patrol van,  or ambulance: where 3 paramedics can communicate at a scene as well as with their control room. It is also ideal for ofce use allowing a number of personnel to access a local base or control station or remote control console while moving around a building, shop or warehouse. Note: communication between X10DR users is always routed back through their respective X-ponder mobile chargers and not direct between units. Ask your dealer for more information on this unique and highly regarded operational capability.  Elite Users see page 20 The X10DR Secure Wireless Microphone is especially suitable for motorcycle  use.  Models  tted  with  a  6  pin  Hirose  industrial  connector allow easy connection to a helmet microphone and dual earpiece t out. Making use of the handlebar PTT input, a bike can be congured so that, when the rider is on the bike and presses the handle bar PTT, their headset microphone audio is sent out over the radio. Off the bike but still wearing the helmet, the user can press the Secure Wireless Microphone PTT to talk,.Finally, if the user removes their helmet, they can unplug from the Hirose connector on the base of the unit and just use the Secure Wireless Microphone like standard.(note headset warnings later in this manual)X10DR provides the user with a IP67 rated waterproof Hirose HR10 audio port to allow use of a wide range of motorcycle headsets, industrial hearing protection heavy duty headsets  besides a range of lightweight noise cancelling headsets and other traditional two way radio audio accesories to be connected to aid in achieving your communications objective on a clear and effective manner. Plugging in a headset disables the internal loudspeaker.12Motorcycle OperationMultiple Unit OperationHeadset Operation

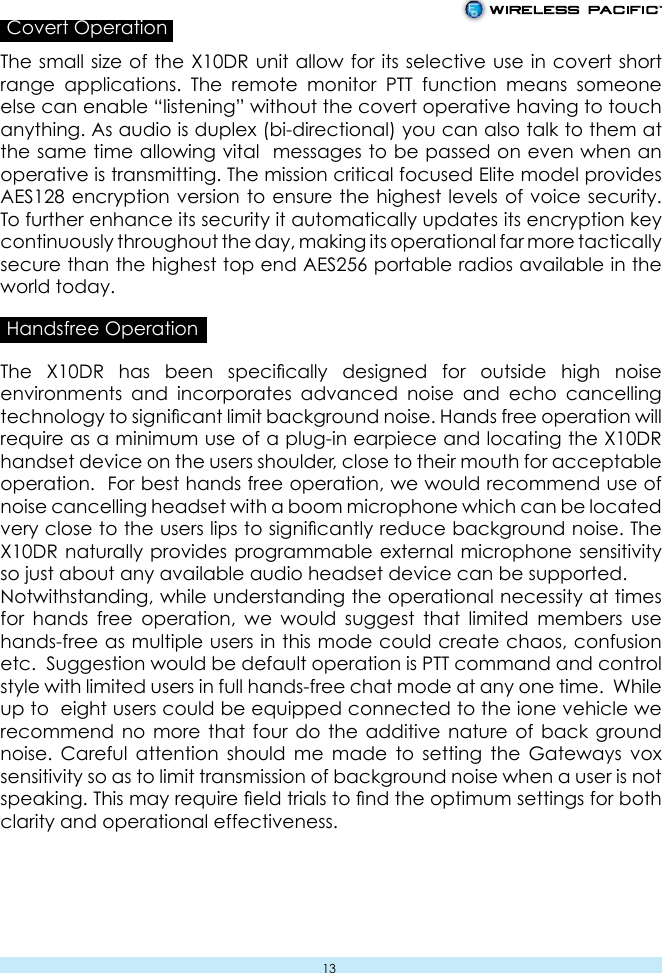

Covert OperationThe small size of the X10DR unit allow for its selective use in covert short range applications. The remote monitor PTT function means someone else can enable “listening” without the covert operative having to touch anything. As audio is duplex (bi-directional) you can also talk to them at the same time allowing vital  messages to be passed on even when an operative is transmitting. The mission critical focused Elite model provides AES128 encryption version to ensure the highest levels of voice security. To further enhance its security it automatically updates its encryption key continuously throughout the day, making its operational far more tactically secure than the highest top end AES256 portable radios available in the world today.Handsfree OperationThe  X10DR  has  been  specically  designed  for  outside  high  noise environments and incorporates advanced noise and echo cancelling technology to signicant limit background noise. Hands free operation will require as a minimum use of a plug-in earpiece and locating the X10DR handset device on the users shoulder, close to their mouth for acceptable operation.  For best hands free operation, we would recommend use of noise cancelling headset with a boom microphone which can be located very close to the users lips to signicantly reduce background noise. The X10DR naturally provides programmable external microphone sensitivity so just about any available audio headset device can be supported. Notwithstanding, while understanding the operational necessity at times for hands free operation, we would suggest that limited members use hands-free as multiple users in this mode could create chaos, confusion etc.  Suggestion would be default operation is PTT command and control style with limited users in full hands-free chat mode at any one time.  While up to  eight users could be equipped connected to the ione vehicle we recommend no more that four do the additive nature of back ground noise. Careful attention should me made to setting the Gateways vox sensitivity so as to limit transmission of background noise when a user is not speaking. This may require eld trials to nd the optimum settings for both clarity and operational effectiveness.13
14Battery - ChargingThe X10DR Secure Wireless Microphone should be charged overnight before initial use. Thereafter it may be left in the charger unit between calls, or may be worn all day and placed back at the end of the work day. The unit is designed to provide about 15-24 hours operation between charges even on the busiest radio channels. On quiet channels it can last up to 3-4 days. When the battery does start to go at, a short beep will sound once every 2 minutes. It will then automatically power down after about 30 minutes, so you should plan to re-charge the unit as soon as is practical once the chirps are heard.  A fully discharged battery will typically recharge in less than 3-4 hours, or less if only partially discharged. The battery will re-charge even if the mobile charger unit has been turned off. The microphone’s blue status light will indicate charging by a momentary double ash every 10 seconds. When complete the blue LED will remain solid.Simply place handset into pocket. X10DR will beep to show correct placement. NB: do not  allow  debris to  ll  the  pocket as  it  may prevent the microphone from making contact with the charging pins. Keep all liquids well away from the charging cradle at all times.When you notice the X10DR sounding a small chirp every couple of minutes, it indicates the battery is nearly at and should be re-charged. The unit will self power down after about 30 minutes when voltage drops to the minumum level. When you notice this occurring far more often than usual, it may mean it is time for the battery to be replaced. Like all re-chargeable products, periodic replacement of the internal battery is required. The Secure Wireless Microphone features a high capacity Lithium Ion battery. To maximize the life of a Lithium battery its is better to keep it topped up by returning it to the charger often rather than waiting for  it  to  rst  go  at  -  which  was  the  opposite  case with older nickel based batteries. Typically you can expect to get about 500 complete re-charge cycles before requiring replacement.

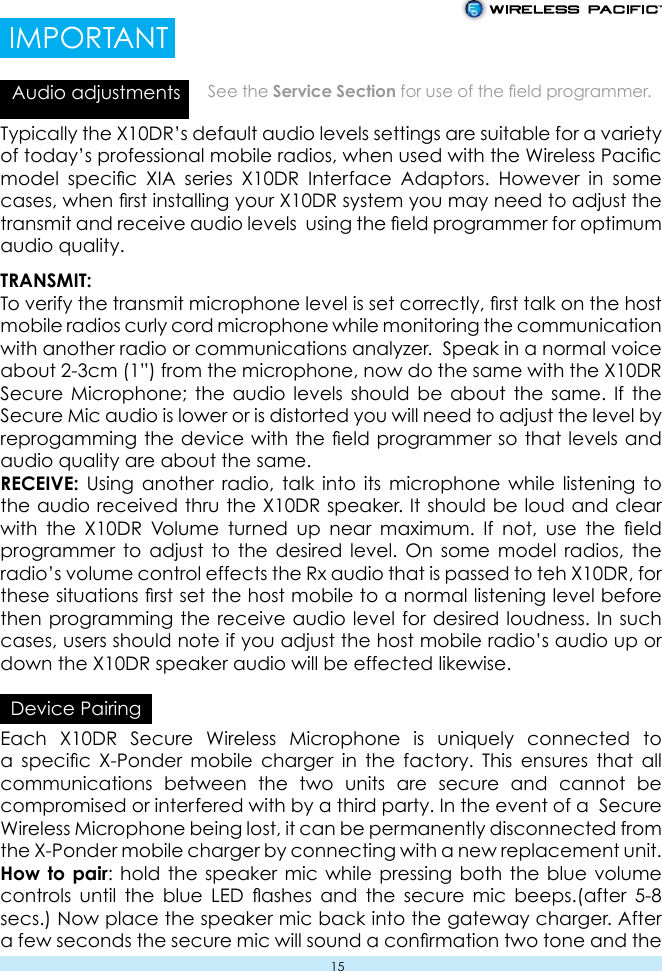

15Typically the X10DR’s default audio levels settings are suitable for a variety of today’s professional mobile radios, when used with the Wireless Pacic model  specic  XIA  series  X10DR  Interface  Adaptors.  However  in  some cases, when rst installing your X10DR system you may need to adjust the transmit and receive audio levels  using the eld programmer for optimum audio quality.TRANSMIT: To verify the transmit microphone level is set correctly, rst talk on the host mobile radios curly cord microphone while monitoring the communication with another radio or communications analyzer.  Speak in a normal voice about 2-3cm (1”) from the microphone, now do the same with the X10DR Secure Microphone; the audio levels should be about the same. If the Secure Mic audio is lower or is distorted you will need to adjust the level by reprogamming the device with the eld programmer so that levels and audio quality are about the same.RECEIVE: Using another radio, talk into its microphone while listening to the audio received thru the X10DR speaker. It should be loud and clear with  the  X10DR  Volume  turned  up  near  maximum.  If  not,  use  the  eld programmer to adjust to the desired level. On some model radios, the radio’s volume control effects the Rx audio that is passed to teh X10DR, for these situations rst set the host mobile to a normal listening level before then programming the receive audio level for desired loudness. In such cases, users should note if you adjust the host mobile radio’s audio up or down the X10DR speaker audio will be effected likewise.IMPORTANTAudio adjustments See the Service Section for use of the eld programmer.Each X10DR Secure Wireless Microphone is uniquely connected to a  specic  X-Ponder  mobile  charger  in  the  factory.  This  ensures  that  all communications between the two units are secure and cannot be compromised or interfered with by a third party. In the event of a  Secure Wireless Microphone being lost, it can be permanently disconnected from the X-Ponder mobile charger by connecting with a new replacement unit.How to pair: hold the speaker mic while pressing both the blue volume controls  until  the  blue  LED  ashes  and  the  secure  mic  beeps.(after  5-8 secs.) Now place the speaker mic back into the gateway charger. After a few seconds the secure mic will sound a conrmation two tone and the Device Pairing
16The XSMA2 antenna has been especially designed to perfectly meet the radiation requirements of the X10DR Secure Microphone.  Do not use alternatives as they will void regulatory type approval and generally always reduce overall performance.Mic Antennablue LED on both units will glow solid to indicate completion. Repeat procedure if you require other secure mics paired to the one X-Ponder gateway. Up to ve mics may be paired to the same gateway but only one can be operational at any one time*. If multiple secure mics are powered on and paired, should the currently operational mic be turned off or go out of range for longer than 30 seconds then the gateway will then try and automatically connect with the next stored powered paired mic. Note: X10DR Elite models can uniquely have two active operational secure mics operation thru the one X-Ponder gateway at any one time.In  this  conguration  there  is  about  25%  reduced  maximum  range.  Also note that this unique capability is not available with handsfree operation.X10DR performs best when worn with the antenna protruding up above your shoulder. This helps reduce the effects of body shielding and enhances overall coverage. Coverage is always dependent on the local terrain, obstacles and the overall communications environment. For longer distances, an external antenna should always be tted to the vehicle. For best performance we recommend you use our multi-polarity antennas.A choice of vehicle antennas are available to enhance into-building penetration or, to simply extend the overall communication zone around your vehicle. Ask your dealer which  conguration best suits your specic application. Units operating in the 2.4GHz unlicensed band may be subject to external interferences from others at times. The quoted expected coverage distances in this manual and other advertizing material are for X10DR installations using specied our multi-polarity antennas and low loss cable feeds and assume operation is undertaken in normal everyday city /urban/rural outside environments where obstacles to the radio signals are minimal and the spectrum is devoid of high levels of RF interfernce from other devices operational in the area on same or related frequencies.*Additional Coverage Information

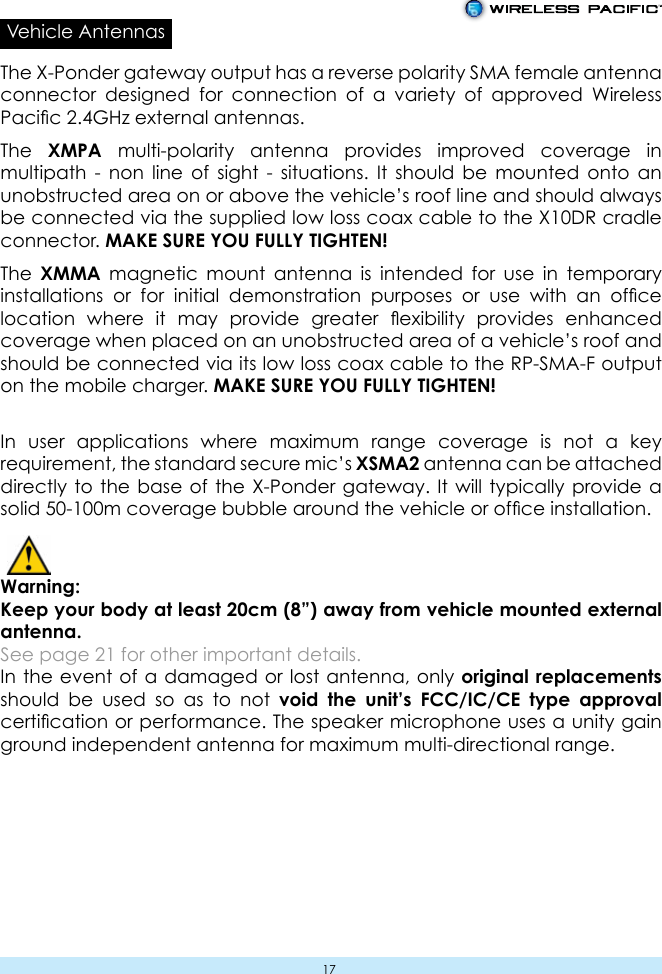

Vehicle Antennas17The X-Ponder gateway output has a reverse polarity SMA female antenna connector designed for connection of a variety of approved Wireless Pacic 2.4GHz external antennas.The  XMPA  multi-polarity antenna provides improved coverage in multipath - non line of sight - situations. It should be mounted onto an unobstructed area on or above the vehicle’s roof line and should always be connected via the supplied low loss coax cable to the X10DR cradle connector. MAKE SURE YOU FULLY TIGHTEN!The  XMMA magnetic mount antenna is intended for use in temporary installations  or  for  initial  demonstration  purposes  or  use  with  an  ofce location  where  it  may  provide  greater  exibility  provides  enhanced coverage when placed on an unobstructed area of a vehicle’s roof and should be connected via its low loss coax cable to the RP-SMA-F output on the mobile charger. MAKE SURE YOU FULLY TIGHTEN!In user applications where maximum range coverage is not a key requirement, the standard secure mic’s XSMA2 antenna can be attached directly to the base of the X-Ponder gateway. It will typically provide a solid 50-100m coverage bubble around the vehicle or ofce installation.Warning: Keep your body at least 20cm (8”) away from vehicle mounted external antenna.See page 21 for other important details. In the event of a damaged or lost antenna, only original replacements should be used so as to not void the unit’s FCC/IC/CE type approval certication or performance. The speaker microphone uses a unity gain ground independent antenna for maximum multi-directional range.
18Installation & Connections1. Power: connected via a 1 amp in-line fuse preferably direct to a vehicle’s 12V battery but can be any voltage from about 6-16VDC. Current consumption is typically 60mA/Max current 420mA@6V. (12V = <200mA)2. Emergency: Output intended to connect to the host mobile radio’s emergency input. It is normally provides an active switched ground but can be congured to be active open circuit. The time held low (or high) is the exact time that the user presses the Emergency button. This output could be used for other functions such as to trigger the panic function of a car alarm system, providing it is correctly “buffered”.3. Gateway audio in: Receive audio from the host mobile radio that you wish to be sent to the Wireless Microphone. Ideally, it should be sourced pre-volume control but can be post, as long as the host mobile radio’s speaker audio has rst been sent for a comfortable listening level in the vehicle. 4.Gateway audio out: Audio from the Wireless Microphone that is to be transmitted over the host mobile radios transmitter. It is factory set for 100mV RMS. Also used to automatically turn on/off Secure Wireless Microphone when connected to host radio biased Mic hi input, if not, the user should supply manual on/off switch.5. Mic audio grd: This should connect to microphone audio ground. 6. COR/audio unmute: Input designed to monitor the receive status of the host mobile radio.  Ideally, it is driven by an “audio unmute” switched ground command in the host mobile. i.e. when the radio’s speaker unmutes to pass audio then the COR input should toggle in sync. Alternatively, it could be driven by the radio’s unsquelch command that factors in reception of required correct CTCSS tones, etc. Where COR is not available the X10DR’s audio detect capability in almost every case allows satisfactory operation.Shielded RJ45Talkaround audio - Remote/Handle bar PTTExt PTT to radioCOR/ Audio unmute from radioMic LoExt Mic Hi Output/Radio On detectRadio Receive audio Emergency output to radioPower nominal +12VDCDC Ground shield/drain87654321
197. Ext. PTT output: Switched grd output designed to drive the host mobile radio PTT.8. Talkaround audio bus: passes xed audio level between multiple X10DR gateways connected to XJB (Junction Box).  The line is also used for Remote PTT*.9.Shield.  DC /Digital ground connection. * Remote PTT: This provides an alternative remote PTT to transmit secure microphone audio via the host mobile radio. You may choose to connect to a motorbike handle bar PTT, a hidden palm or footswitch, a wireless PTT device, or even to an output from the host mobile equipped to provide remote radio monitoring of the secure microphones users audio. In such remote monitoring cases, use of the remote PTT input causes the sensitivity of the INTERNAL secure microphone to be greatly increased, so a control room operator can more easily monitor the health or safety of the user. There is no increased audio gain when a headset is connected to the audio port at the base of the secure microphone.

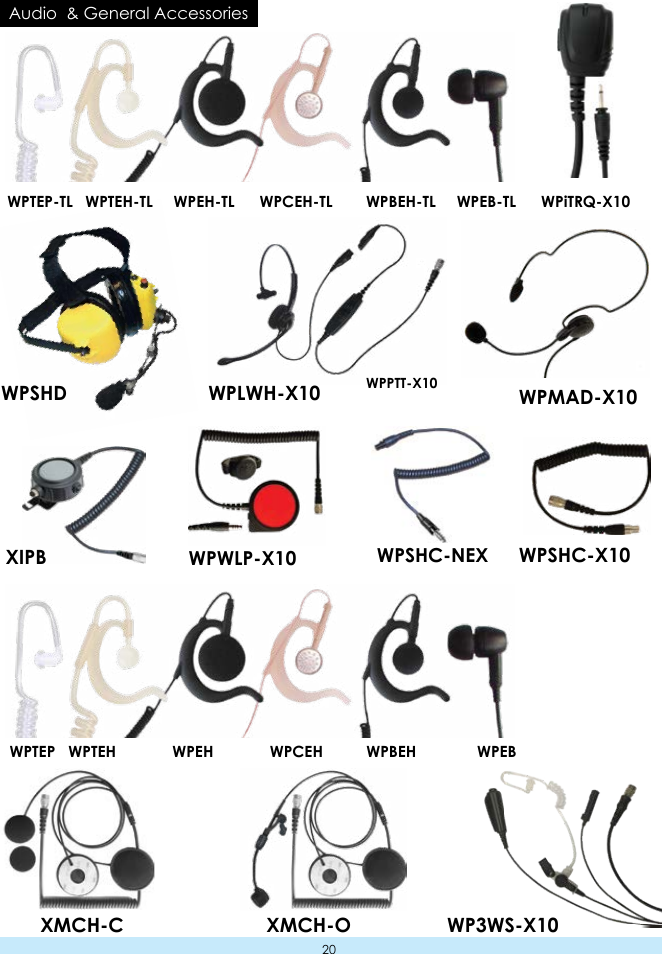

Audio  & General AccessoriesWP3WS-X1020WPSHC-X10WPSHDXIPBWPTEP-TL   WPTEH-TL     WPEH-TL      WPCEH-TL        WPBEH-TL     WPEB-TL      WPiTRQ-X10XMCH-OXMCH-CWPLWH-X10 WPPTT-X10WPWLP-X10 WPSHC-NEXWPTEP   WPTEH             WPEH             WPCEH          WPBEH              WPEBWPMAD-X10

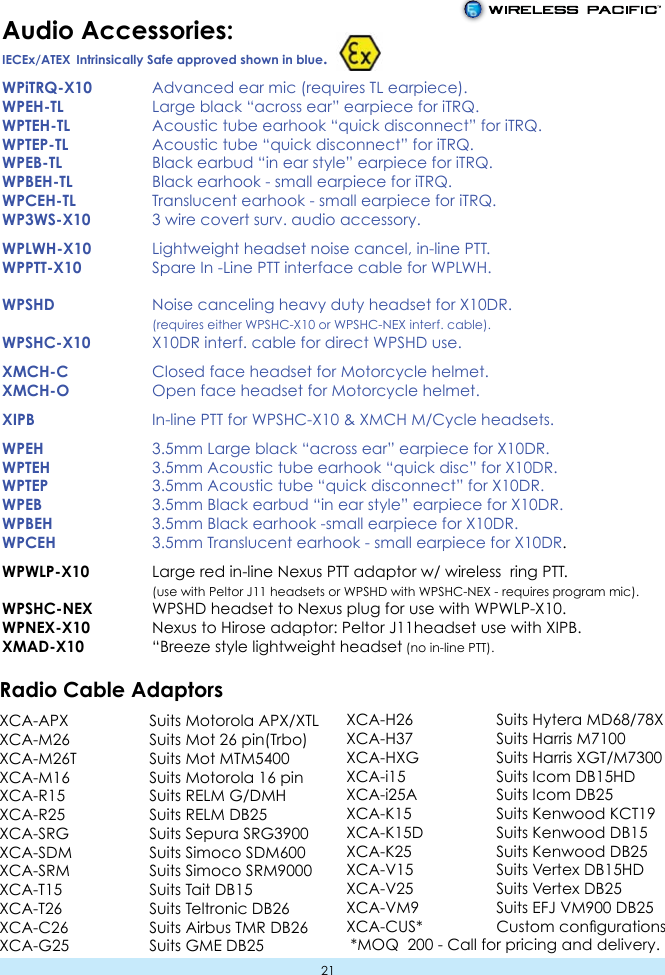

Audio Accessories: IECEx/ATEX Intrinsically Safe approved shown in blue.WPiTRQ-X10    Advanced ear mic (requires TL earpiece).WPEH-TL      Large black “across ear” earpiece for iTRQ. WPTEH-TL     Acoustic tube earhook “quick disconnect” for iTRQ.WPTEP-TL     Acoustic tube “quick disconnect” for iTRQ.WPEB-TL      Black earbud “in ear style” earpiece for iTRQ.WPBEH-TL   Black earhook - small earpiece for iTRQ.WPCEH-TL   Translucent earhook - small earpiece for iTRQ.WP3WS-X10   3 wire covert surv. audio accessory.WPLWH-X10   Lightweight headset noise cancel, in-line PTT. WPPTT-X10    Spare In -Line PTT interface cable for WPLWH. WPSHD     Noise canceling heavy duty headset for X10DR.   (requires either WPSHC-X10 or WPSHC-NEX interf. cable).WPSHC-X10   X10DR interf. cable for direct WPSHD use.XMCH-C     Closed face headset for Motorcycle helmet.XMCH-O     Open face headset for Motorcycle helmet.XIPB      In-line PTT for WPSHC-X10 & XMCH M/Cycle headsets.WPEH     3.5mm Large black “across ear” earpiece for X10DR.WPTEH     3.5mm Acoustic tube earhook “quick disc” for X10DR.WPTEP     3.5mm Acoustic tube “quick disconnect” for X10DR. WPEB     3.5mm Black earbud “in ear style” earpiece for X10DR.WPBEH      3.5mm Black earhook -small earpiece for X10DR.WPCEH      3.5mm Translucent earhook - small earpiece for X10DR.WPWLP-X10   Large red in-line Nexus PTT adaptor w/ wireless  ring PTT.   (use with Peltor J11 headsets or WPSHD with WPSHC-NEX - requires program mic).WPSHC-NEX    WPSHD headset to Nexus plug for use with WPWLP-X10.WPNEX-X10    Nexus to Hirose adaptor: Peltor J11headset use with XIPB.XMAD-X10  “Breeze style lightweight headset (no in-line PTT).21Radio Cable AdaptorsXCA-APX   Suits Motorola APX/XTLXCA-M26   Suits Mot 26 pin(Trbo)XCA-M26T  Suits Mot MTM5400XCA-M16   Suits Motorola 16 pinXCA-R15    Suits RELM G/DMHXCA-R25    Suits RELM DB25XCA-SRG   Suits Sepura SRG3900 XCA-SDM   Suits Simoco SDM600XCA-SRM   Suits Simoco SRM9000XCA-T15    Suits Tait DB15XCA-T26    Suits Teltronic DB26XCA-C26   Suits Airbus TMR DB26XCA-G25   Suits GME DB25XCA-H26    Suits Hytera MD68/78XXCA-H37    Suits Harris M7100XCA-HXG   Suits Harris XGT/M7300  XCA-i15    Suits Icom DB15HD XCA-i25A   Suits Icom DB25 XCA-K15    Suits Kenwood KCT19XCA-K15D  Suits Kenwood DB15XCA-K25    Suits Kenwood DB25XCA-V15    Suits Vertex DB15HDXCA-V25    Suits Vertex DB25XCA-VM9   Suits EFJ VM900 DB25XCA-CUS*  Custom congurations  *MOQ  200 - Call for pricing and delivery.

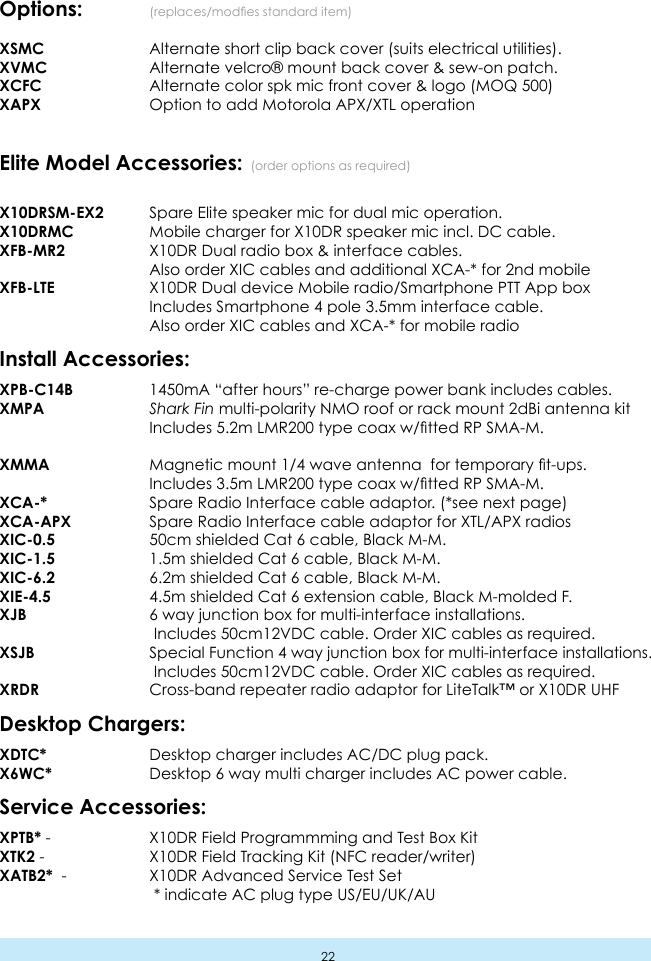

Options:   (replaces/modes standard item)XSMC     Alternate short clip back cover (suits electrical utilities).XVMC     Alternate velcro® mount back cover & sew-on patch.XCFC     Alternate color spk mic front cover & logo (MOQ 500)XAPX     Option to add Motorola APX/XTL operationElite Model Accessories:  (order options as required)  X10DRSM-EX2   Spare Elite speaker mic for dual mic operation. X10DRMC      Mobile charger for X10DR speaker mic incl. DC cable.  XFB-MR2        X10DR Dual radio box & interface cables.            Also order XIC cables and additional XCA-* for 2nd mobile XFB-LTE          X10DR Dual device Mobile radio/Smartphone PTT App box             Includes Smartphone 4 pole 3.5mm interface cable.     Also order XIC cables and XCA-* for mobile radioInstall Accessories:XPB-C14B      1450mA “after hours” re-charge power bank includes cables. XMPA             Shark Fin multi-polarity NMO roof or rack mount 2dBi antenna kit     Includes 5.2m LMR200 type coax w/tted RP SMA-M.XMMA             Magnetic mount 1/4 wave antenna  for temporary t-ups.    Includes 3.5m LMR200 type coax w/tted RP SMA-M. XCA-*            Spare Radio Interface cable adaptor. (*see next page)XCA-APX       Spare Radio Interface cable adaptor for XTL/APX radiosXIC-0.5          50cm shielded Cat 6 cable, Black M-M.XIC-1.5          1.5m shielded Cat 6 cable, Black M-M.XIC-6.2          6.2m shielded Cat 6 cable, Black M-M.XIE-4.5           4.5m shielded Cat 6 extension cable, Black M-molded F.XJB                 6 way junction box for multi-interface installations.                    Includes 50cm12VDC cable. Order XIC cables as required.XSJB                 Special Function 4 way junction box for multi-interface installations.        Includes 50cm12VDC cable. Order XIC cables as required.XRDR    Cross-band repeater radio adaptor for LiteTalk™ or X10DR UHFDesktop Chargers:  XDTC*     Desktop charger includes AC/DC plug pack.X6WC*     Desktop 6 way multi charger includes AC power cable.Service Accessories: XPTB* -     X10DR Field Programmming and Test Box KitXTK2 -     X10DR Field Tracking Kit (NFC reader/writer)XATB2*  -    X10DR Advanced Service Test Set      * indicate AC plug type US/EU/UK/AU22
23Spares:  (order options as required)X10DRSM-PU2   Spare Standard Mobile Spk Mic .X10DRMD-PU2   Spare Mobile X-Ponder gateway charger.X10DRSM-EX2   Spare Elite Mobile Spk Mic.X10DRMD-EX2   Spare Elite Mobile X-Ponder gateway charger. X10DRSM-AU2 Spare ATEX Mobile Spk Mic.X10DRMD-AU2  Spare ATEX Mobile X-Ponder gateway charger.XLMC-RK     Retrot X10DR Long mic clip kit. (for original X10DR only)XSMC-RK    Retrot X10DR Short mic clip back cover kit.XVMC-RK   Retrot X10DR Velcro® mic clip back cover kit.XSMA2     Spare X10DR Speaker Mic/local gateway antenna.XSMB-C14  Spare X10DR 1450mA battery.Items in BLUE above are Intrinsically Safe approved.XFB-**** feature specicReplacement Parts & Installation AccessoriesXSMA2XMPAX6WC6 Way ChargerWARNING Made in ChinaXSMB-C14 3.7V Li-Po 1450mAhEFTMLi-PolymerPlease re-cycle or dispose of properly. May explode if disposed of in fire.  To prevent injury do not short circuit battery terminals.Before initial use re-charge battery overnight. WIRELESS PACIFI CTM®XDTCDesktop Charger(shown with X10DR)XSMB-C14 Li-Po BatteryReplacementXJB/ XSJBPOWERXPB-C14  Power BankRadioWARNINGLi-Polymer7.5VDC@1.45AMay explode if disposed of in a fire. Please re-cycle or dispose of properly. DC Input 10 -16VDCTEMP HI®XPB-C14BXJB  Junction BoxDC Input 10 -16VDC®CMYCMMYCYCMYKXJB label 1 60x40.pdf   1   1/18/16   2:45 PMX10DRMCMobile ChargerXRDRXLMC-RK Long mount back cover retrot kit incl: magnet, new cradle cup(for original X10DR devices)XSMC-RK Short mountback cover retrot kit(for XLMC tted devices) XVMC-RK Velcro® mountback cover  retrot kit (for XLMC tted devices)Includes labelsVelcro hook (sow on)Includes labels& screwIncludes labelsreplacement cradle cup & screws & clip
24

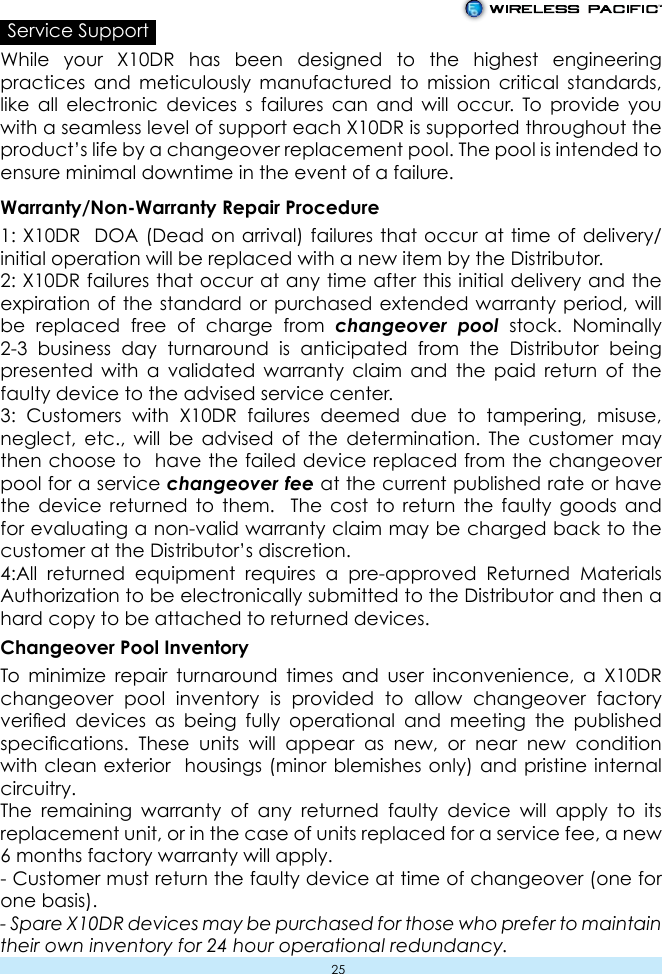

Service SupportWhile your X10DR has been designed to the highest engineering practices and meticulously manufactured to mission critical standards, like all electronic devices s failures can and will occur. To provide you with a seamless level of support each X10DR is supported throughout the product’s life by a changeover replacement pool. The pool is intended to ensure minimal downtime in the event of a failure.Warranty/Non-Warranty Repair Procedure1: X10DR  DOA (Dead on arrival) failures that occur at time of delivery/initial operation will be replaced with a new item by the Distributor. 2: X10DR failures that occur at any time after this initial delivery and the expiration of the standard or purchased extended warranty period, will be replaced free of charge from changeover pool stock. Nominally 2-3 business day turnaround is anticipated from the Distributor being presented with a validated warranty claim and the paid return of the faulty device to the advised service center. 3: Customers with X10DR failures deemed due to tampering, misuse, neglect, etc., will be advised of the determination. The customer may then choose to  have the failed device replaced from the changeover pool for a service changeover fee at the current published rate or have the device returned to them.  The cost to return the faulty goods and for evaluating a non-valid warranty claim may be charged back to the customer at the Distributor’s discretion.4:All returned equipment requires a pre-approved Returned Materials Authorization to be electronically submitted to the Distributor and then a hard copy to be attached to returned devices. Changeover Pool InventoryTo minimize repair turnaround times and user inconvenience, a X10DR changeover pool inventory is provided to allow changeover factory veried  devices  as  being  fully  operational  and  meeting  the  published specications.  These  units  will  appear  as  new,  or  near  new  condition with clean exterior  housings (minor blemishes only) and pristine internal circuitry.The remaining warranty of any returned faulty device will apply to its replacement unit, or in the case of units replaced for a service fee, a new 6 months factory warranty will apply.- Customer must return the faulty device at time of changeover (one for one basis). - Spare X10DR devices may be purchased for those who prefer to maintain their own inventory for 24 hour operational redundancy.25

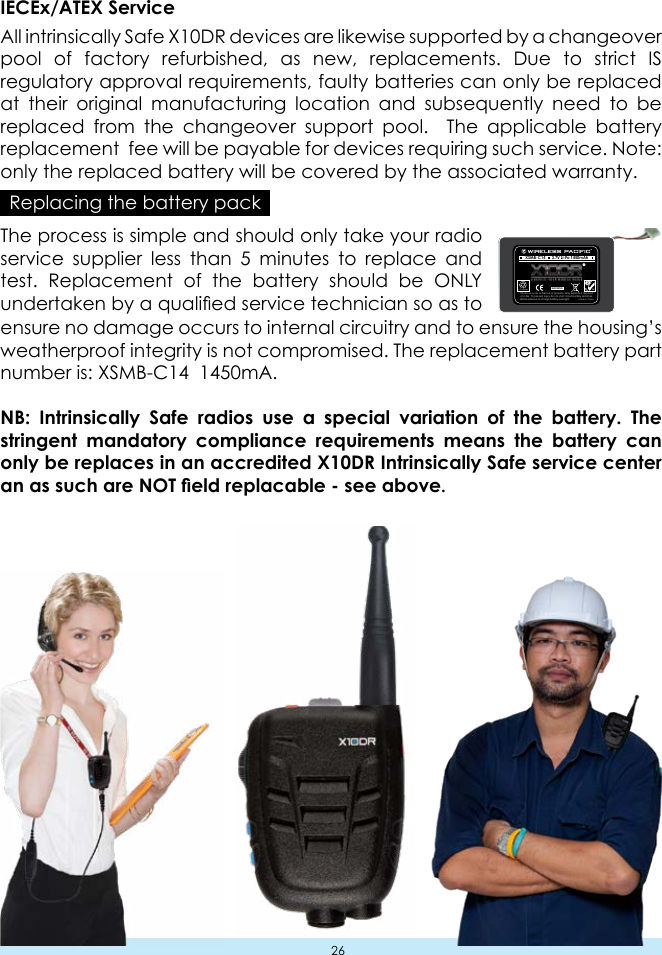

The process is simple and should only take your radio service supplier less than 5 minutes to replace and test. Replacement of the battery should be ONLY undertaken by a qualied service technician so as to Replacing the battery pack26IECEx/ATEX ServiceAll intrinsically Safe X10DR devices are likewise supported by a changeover pool of factory refurbished, as new, replacements. Due to strict IS regulatory approval requirements, faulty batteries can only be replaced at their original manufacturing location and subsequently need to be replaced from the changeover support pool.  The applicable battery replacement  fee will be payable for devices requiring such service. Note: only the replaced battery will be covered by the associated warranty.WARNING Made in ChinaXSMB-C14 3.7V Li-Po 1450mAhEFTMLi-PolymerPlease re-cycle or dispose of properly. May explode if disposed of in fire.  To prevent injury do not short circuit battery terminals.Before initial use re-charge battery overnight. WIRELESS PACIFI CTM®ensure no damage occurs to internal circuitry and to ensure the housing’s weatherproof integrity is not compromised. The replacement battery part number is: XSMB-C14  1450mA.NB: Intrinsically Safe radios use a special variation of the battery. The stringent mandatory compliance requirements means the battery can only be replaces in an accredited X10DR Intrinsically Safe service center an as such are NOT eld replacable - see above.

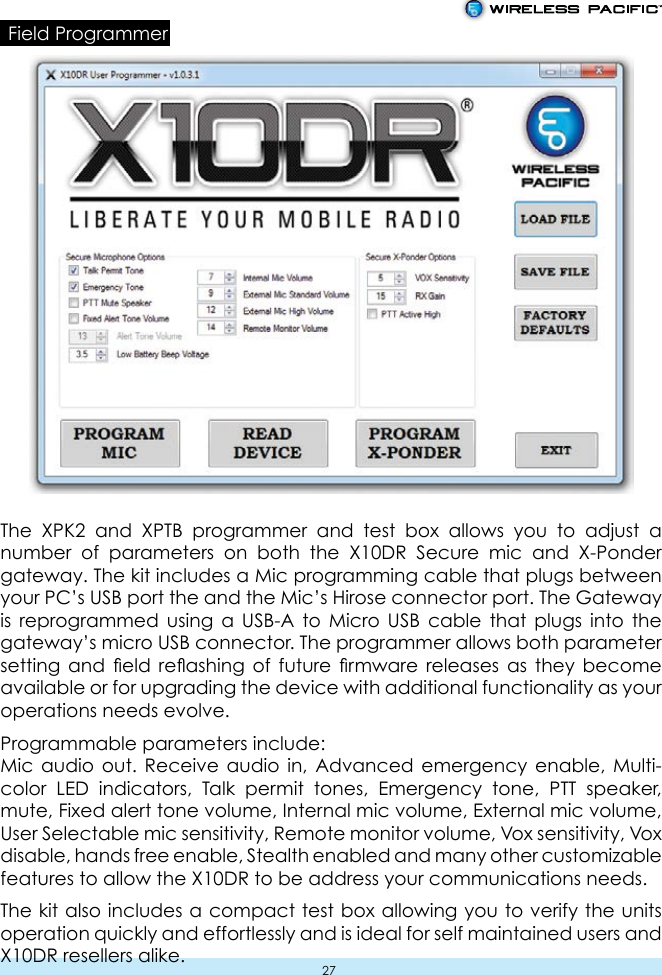

Field ProgrammerThe XPK2 and XPTB programmer and test box allows you to adjust a number of parameters on both the X10DR Secure mic and X-Ponder gateway. The kit includes a Mic programming cable that plugs between your PC’s USB port the and the Mic’s Hirose connector port. The Gateway is reprogrammed using a USB-A to Micro USB cable that plugs into the gateway’s micro USB connector. The programmer allows both parameter setting  and  eld  reashing  of  future  rmware  releases  as  they  become available or for upgrading the device with additional functionality as your operations needs evolve.Programmable parameters include:Mic audio out. Receive audio in, Advanced emergency enable, Multi-color LED indicators, Talk permit tones, Emergency tone, PTT speaker, mute, Fixed alert tone volume, Internal mic volume, External mic volume, User Selectable mic sensitivity, Remote monitor volume, Vox sensitivity, Vox disable, hands free enable, Stealth enabled and many other customizable features to allow the X10DR to be address your communications needs. The kit also includes a compact test box allowing you to verify the units operation quickly and effortlessly and is ideal for self maintained users and  X10DR resellers alike. 27

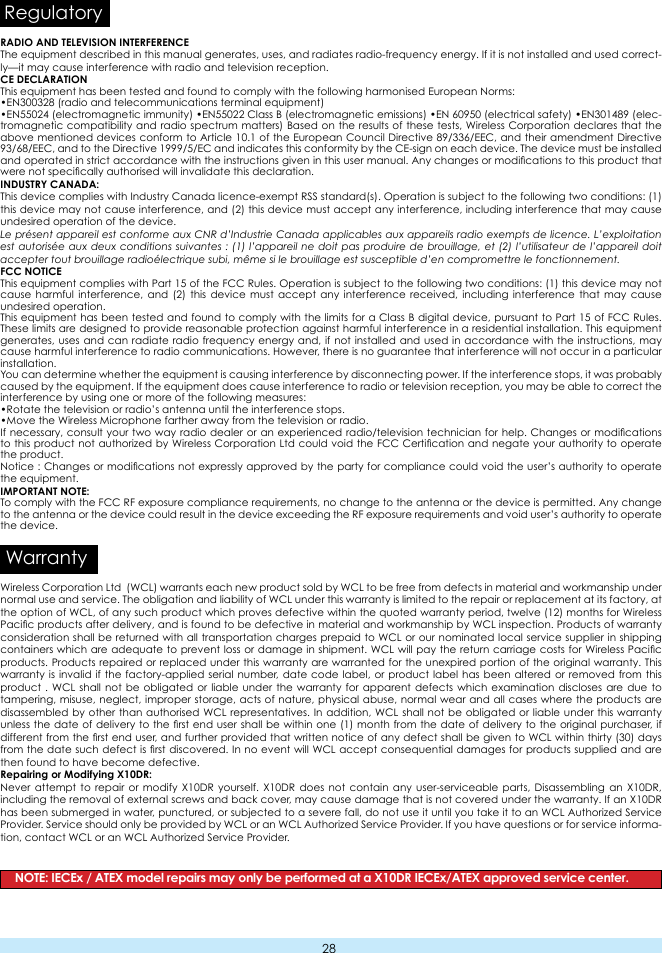

RADIO AND TELEVISION INTERFERENCEThe equipment described in this manual generates, uses, and radiates radio-frequency energy. If it is not installed and used correct-ly—it may cause interference with radio and television reception.CE DECLARATIONThis equipment has been tested and found to comply with the following harmonised European Norms:•EN300328 (radio and telecommunications terminal equipment)•EN55024 (electromagnetic immunity) •EN55022 Class B (electromagnetic emissions) •EN 60950 (electrical safety) •EN301489 (elec-tromagnetic compatibility and radio spectrum matters) Based on the results of these tests, Wireless Corporation declares that the above mentioned devices conform to Article 10.1 of the European Council Directive 89/336/EEC, and their amendment Directive 93/68/EEC, and to the Directive 1999/5/EC and indicates this conformity by the CE-sign on each device. The device must be installed and operated in strict accordance with the instructions given in this user manual. Any changes or modications to this product that were not specically authorised will invalidate this declaration.INDUSTRY CANADA: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC NOTICEThis equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.You can determine whether the equipment is causing interference by disconnecting power. If the interference stops, it was probably caused by the equipment. If the equipment does cause interference to radio or television reception, you may be able to correct the interference by using one or more of the following measures:•Rotate the television or radio’s antenna until the interference stops.•Move the Wireless Microphone farther away from the television or radio.If necessary, consult  your two  way radio  dealer or  an experienced  radio/television technician for help. Changes or modications to this product not authorized by Wireless Corporation Ltd could void the FCC Certication and negate your authority to operate the product. Notice : Changes or modications not expressly approved by the party for compliance could void the user’s authority to operate the equipment.IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.Wireless Corporation Ltd  (WCL) warrants each new product sold by WCL to be free from defects in material and workmanship under normal use and service. The obligation and liability of WCL under this warranty is limited to the repair or replacement at its factory, at the option of WCL, of any such product which proves defective within the quoted warranty period, twelve (12) months for Wireless Pacic products after delivery, and is found to be defective in material and workmanship by WCL inspection. Products of warranty consideration shall be returned with all transportation charges prepaid to WCL or our nominated local service supplier in shipping containers which are adequate to prevent loss or damage in shipment. WCL will pay the return carriage costs for Wireless Pacic products. Products repaired or replaced under this warranty are warranted for the unexpired portion of the original warranty. This warranty is invalid if the factory-applied serial number, date code label, or product label has been altered or removed from this product . WCL shall not be obligated or liable under the warranty for apparent defects which examination discloses are due to tampering, misuse, neglect, improper storage, acts of nature, physical abuse, normal wear and all cases where the products are disassembled by other than authorised WCL representatives. In addition, WCL shall not be obligated or liable under this warranty unless the date of delivery to the rst end  user shall be  within one (1) month from the date of delivery to the  original purchaser, if different from the rst end user, and further provided that written notice of any defect shall be given to WCL within thirty (30) days from the date such defect is rst discovered. In no event will WCL accept consequential damages for products supplied and are then found to have become defective.Repairing or Modifying X10DR:Never attempt to repair or modify X10DR yourself. X10DR does not contain any user-serviceable parts, Disassembling an X10DR, including the removal of external screws and back cover, may cause damage that is not covered under the warranty. If an X10DR has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to an WCL Authorized Service Provider. Service should only be provided by WCL or an WCL Authorized Service Provider. If you have questions or for service informa-tion, contact WCL or an WCL Authorized Service Provider.RegulatoryWarrantyNOTE: IECEx / ATEX model repairs may only be performed at a X10DR IECEx/ATEX approved service center.28

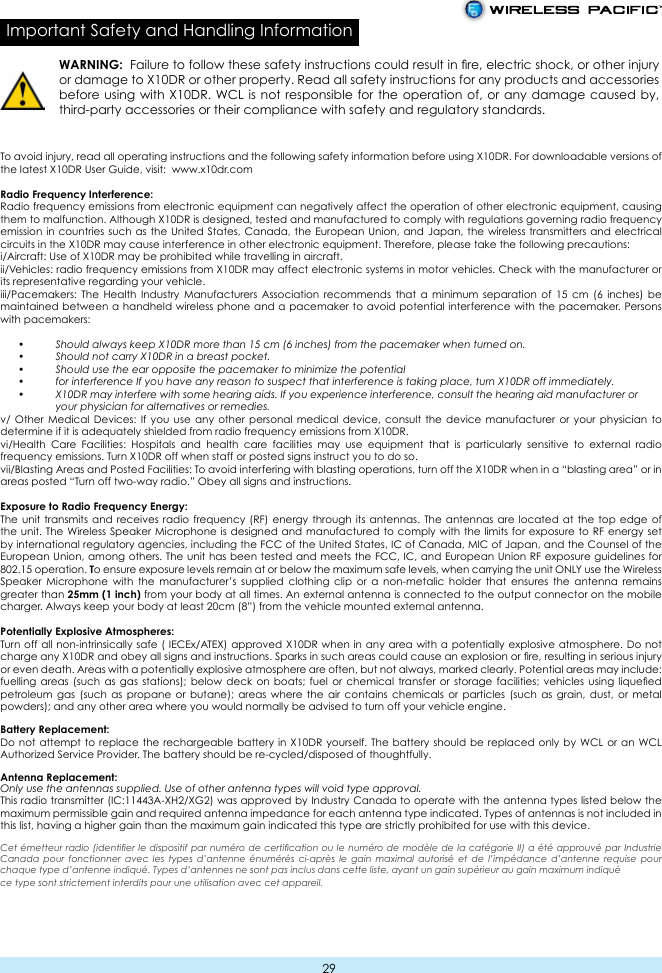

29Important Safety and Handling InformationWARNING:  Failure to follow these safety instructions could result in re, electric shock, or other injury or damage to X10DR or other property. Read all safety instructions for any products and accessories before using with X10DR. WCL is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards.To avoid injury, read all operating instructions and the following safety information before using X10DR. For downloadable versions of the latest X10DR User Guide, visit:  www.x10dr.com Radio Frequency Interference:Radio frequency emissions from electronic equipment can negatively affect the operation of other electronic equipment, causing them to malfunction. Although X10DR is designed, tested and manufactured to comply with regulations governing radio frequency emission in countries such as the United States, Canada, the European Union, and Japan, the wireless transmitters and electrical circuits in the X10DR may cause interference in other electronic equipment. Therefore, please take the following precautions:i/Aircraft: Use of X10DR may be prohibited while travelling in aircraft. ii/Vehicles: radio frequency emissions from X10DR may affect electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.iii/Pacemakers: The Health Industry Manufacturers Association recommends that a minimum separation of 15 cm (6 inches) be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. Persons with pacemakers:•  Should always keep X10DR more than 15 cm (6 inches) from the pacemaker when turned on.•  Should not carry X10DR in a breast pocket. •  Should use the ear opposite the pacemaker to minimize the potential•  for interference If you have any reason to suspect that interference is taking place, turn X10DR off immediately.•  X10DR may interfere with some hearing aids. If you experience interference, consult the hearing aid manufacturer or your physician for alternatives or remedies.v/ Other Medical Devices: If you use any other personal medical device, consult the device manufacturer or your physician to determine if it is adequately shielded from radio frequency emissions from X10DR.vi/Health Care Facilities: Hospitals and health care facilities may use equipment that is particularly sensitive to external radio frequency emissions. Turn X10DR off when staff or posted signs instruct you to do so.vii/Blasting Areas and Posted Facilities: To avoid interfering with blasting operations, turn off the X10DR when in a “blasting area” or in areas posted “Turn off two-way radio.” Obey all signs and instructions.Exposure to Radio Frequency Energy:The unit transmits and receives radio frequency (RF) energy through its antennas. The antennas are located at the top edge of the unit. The Wireless Speaker Microphone is designed and manufactured to comply with the limits for exposure to RF energy set by international regulatory agencies, including the FCC of the United States, IC of Canada, MIC of Japan, and the Counsel of the European Union, among others. The unit has been tested and meets the FCC, IC, and European Union RF exposure guidelines for 802.15 operation. To ensure exposure levels remain at or below the maximum safe levels, when carrying the unit ONLY use the Wireless Speaker Microphone with the manufacturer’s supplied clothing clip or a non-metalic holder that ensures the antenna remains greater than 25mm (1 inch) from your body at all times. An external antenna is connected to the output connector on the mobile charger. Always keep your body at least 20cm (8”) from the vehicle mounted external antenna. Potentially Explosive Atmospheres:Turn off all non-intrinsically safe ( IECEx/ATEX) approved X10DR when in any area with a potentially explosive atmosphere. Do not charge any X10DR and obey all signs and instructions. Sparks in such areas could cause an explosion or re, resulting in serious injury or even death. Areas with a potentially explosive atmosphere are often, but not always, marked clearly. Potential areas may include: fuelling  areas  (such  as  gas  stations);  below  deck  on  boats;  fuel  or  chemical  transfer  or  storage  facilities;  vehicles  using  liqueed petroleum gas (such as propane or butane); areas where the air contains chemicals or particles (such as grain, dust, or metal powders); and any other area where you would normally be advised to turn off your vehicle engine.Battery Replacement:Do not attempt to replace the rechargeable battery in X10DR yourself. The battery should be replaced only by WCL or an WCL Authorized Service Provider. The battery should be re-cycled/disposed of thoughtfully.Antenna Replacement:Only use the antennas supplied. Use of other antenna types will void type approval.This radio transmitter (IC:11443A-XH2/XG2) was approved by Industry Canada to operate with the antenna types listed below the maximum permissible gain and required antenna impedance for each antenna type indicated. Types of antennas is not included in this list, having a higher gain than the maximum gain indicated this type are strictly prohibited for use with this device.Cet émetteur radio (identier le dispositif par numéro de certication ou le numéro de modèle de la catégorie II) a été approuvé par Industrie Canada  pour  fonctionner  avec  les  types  d’antenne  énumérés  ci-après  le  gain  maximal  autorisé  et  de  l’impédance  d’antenne  requise  pour chaque type d’antenne indiqué. Types d’antennes ne sont pas inclus dans cette liste, ayant un gain supérieur au gain maximum indiqué ce type sont strictement interdits pour une utilisation avec cet appareil.

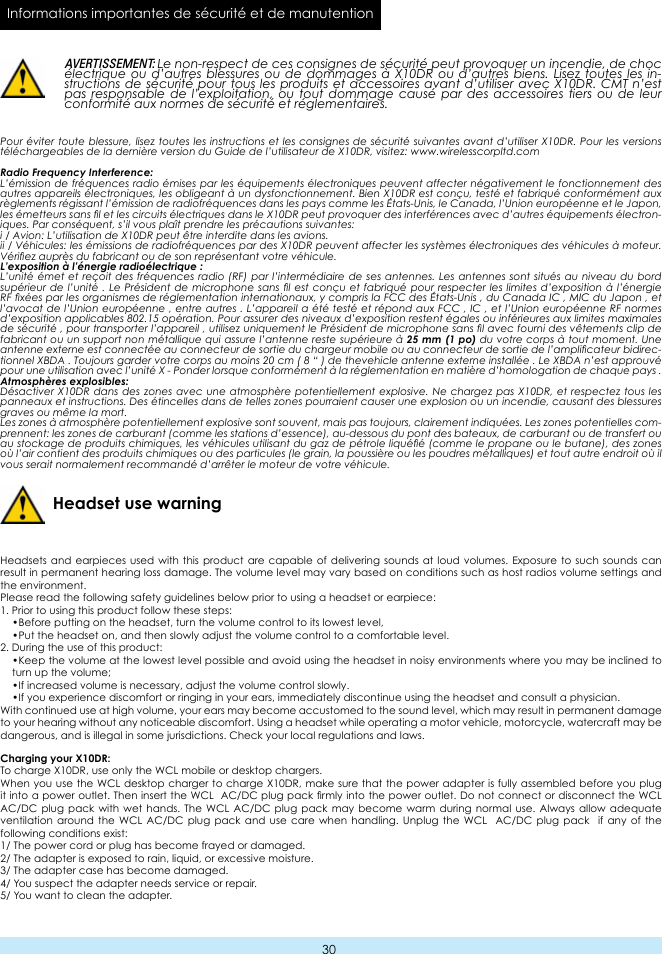

Pour éviter toute blessure, lisez toutes les instructions et les consignes de sécurité suivantes avant d’utiliser X10DR. Pour les versions téléchargeables de la dernière version du Guide de l’utilisateur de X10DR, visitez: www.wirelesscorpltd.com Radio Frequency Interference: L’émission de fréquences radio émises par les équipements électroniques peuvent affecter négativement le fonctionnement des autres appareils électroniques, les obligeant à un dysfonctionnement. Bien X10DR est conçu, testé et fabriqué conformément aux règlements régissant l’émission de radiofréquences dans les pays comme les États-Unis, le Canada, l’Union européenne et le Japon, les émetteurs sans l et les circuits électriques dans le X10DR peut provoquer des interférences avec d’autres équipements électron-iques. Par conséquent, s’il vous plaît prendre les précautions suivantes: i / Avion: L’utilisation de X10DR peut être interdite dans les avions. ii / Véhicules: les émissions de radiofréquences par des X10DR peuvent affecter les systèmes électroniques des véhicules à moteur. Vériez auprès du fabricant ou de son représentant votre véhicule. L’exposition à l’énergie radioélectrique :L’unité émet et reçoit des fréquences radio (RF) par l’intermédiaire de ses antennes. Les antennes sont situés au niveau du bord supérieur de l’unité . Le Président de microphone sans l est conçu et fabriqué pour respecter les limites d’exposition à l’énergie RF xées par les organismes de réglementation internationaux, y compris la FCC des États-Unis , du Canada IC , MIC du Japon , et l’avocat de l’Union européenne , entre autres . L’appareil a été testé et répond aux FCC , IC , et l’Union européenne RF normes d’exposition applicables 802.15 opération. Pour assurer des niveaux d’exposition restent égales ou inférieures aux limites maximales de sécurité , pour transporter l’appareil , utilisez uniquement le Président de microphone sans l avec fourni des vêtements clip de fabricant ou un support non métallique qui assure l’antenne reste supérieure à 25 mm (1 po) du votre corps à tout moment. Une antenne externe est connectée au connecteur de sortie du chargeur mobile ou au connecteur de sortie de l’amplicateur bidirec-tionnel XBDA . Toujours garder votre corps au moins 20 cm ( 8 “ ) de thevehicle antenne externe installée . Le XBDA n’est approuvé pour une utilisation avec l’unité X - Ponder lorsque conformément à la réglementation en matière d’homologation de chaque pays .Atmosphères explosibles: Désactiver X10DR dans des zones avec une atmosphère potentiellement explosive. Ne chargez pas X10DR, et respectez tous les panneaux et instructions. Des étincelles dans de telles zones pourraient causer une explosion ou un incendie, causant des blessures graves ou même la mort. Les zones à atmosphère potentiellement explosive sont souvent, mais pas toujours, clairement indiquées. Les zones potentielles com-prennent: les zones de carburant (comme les stations d’essence), au-dessous du pont des bateaux, de carburant ou de transfert ou au stockage de produits chimiques, les véhicules utilisant du gaz de pétrole liquéé (comme le propane ou le butane), des zones où l’air contient des produits chimiques ou des particules (le grain, la poussière ou les poudres métalliques) et tout autre endroit où il vous serait normalement recommandé d’arrêter le moteur de votre véhicule.Headsets and earpieces used with this product are capable of delivering sounds at loud volumes. Exposure to such sounds can result in permanent hearing loss damage. The volume level may vary based on conditions such as host radios volume settings and the environment. Please read the following safety guidelines below prior to using a headset or earpiece:1. Prior to using this product follow these steps:•Before putting on the headset, turn the volume control to its lowest level,•Put the headset on, and then slowly adjust the volume control to a comfortable level. 2. During the use of this product:•Keep the volume at the lowest level possible and avoid using the headset in noisy environments where you may be inclined to turn up the volume;•If increased volume is necessary, adjust the volume control slowly.•If you experience discomfort or ringing in your ears, immediately discontinue using the headset and consult a physician.With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing without any noticeable discomfort. Using a headset while operating a motor vehicle, motorcycle, watercraft may be dangerous, and is illegal in some jurisdictions. Check your local regulations and laws.Charging your X10DR: To charge X10DR, use only the WCL mobile or desktop chargers. When you use the WCL desktop charger to charge X10DR, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the WCL  AC/DC plug pack rmly into the power outlet. Do not connect or disconnect the WCL AC/DC plug pack with wet hands. The WCL AC/DC plug pack may become warm during normal use. Always allow adequate ventilation around the WCL AC/DC plug pack and use care when handling. Unplug the WCL  AC/DC plug pack  if any of the following conditions exist:1/ The power cord or plug has become frayed or damaged. 2/ The adapter is exposed to rain, liquid, or excessive moisture. 3/ The adapter case has become damaged. 4/ You suspect the adapter needs service or repair. 5/ You want to clean the adapter.Headset use warningInformations importantes de sécurité et de manutentionAVERTISSEMENT: Le non-respect de ces consignes de sécurité peut provoquer un incendie, de choc électrique ou d’autres blessures ou de dommages à X10DR ou d’autres biens. Lisez toutes les in-structions de sécurité pour tous les produits et accessoires avant d’utiliser avec X10DR. CMT n’est pas responsable de l’exploitation, ou tout dommage causé par des accessoires tiers ou de leur conformité aux normes de sécurité et réglementaires.30

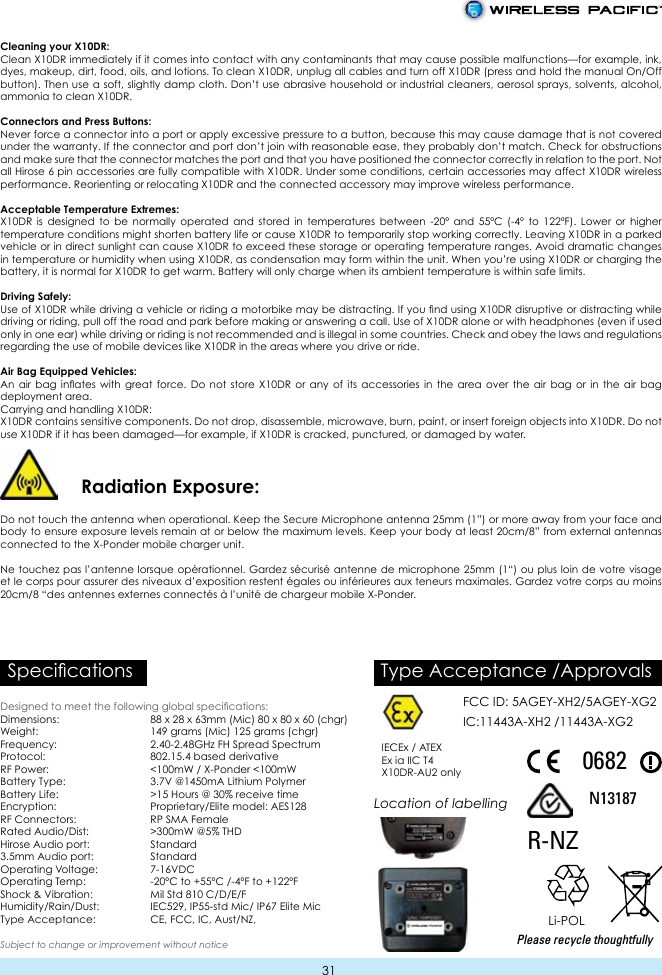

Cleaning your X10DR:Clean X10DR immediately if it comes into contact with any contaminants that may cause possible malfunctions—for example, ink, dyes, makeup, dirt, food, oils, and lotions. To clean X10DR, unplug all cables and turn off X10DR (press and hold the manual On/Off button). Then use a soft, slightly damp cloth. Don’t use abrasive household or industrial cleaners, aerosol sprays, solvents, alcohol, ammonia to clean X10DR. Connectors and Press Buttons:Never force a connector into a port or apply excessive pressure to a button, because this may cause damage that is not covered under the warranty. If the connector and port don’t join with reasonable ease, they probably don’t match. Check for obstructions and make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Not all Hirose 6 pin accessories are fully compatible with X10DR. Under some conditions, certain accessories may affect X10DR wireless performance. Reorienting or relocating X10DR and the connected accessory may improve wireless performance.Acceptable Temperature Extremes:X10DR is designed to be normally operated and stored in temperatures between -20º and 55ºC (-4º to 122ºF). Lower or higher temperature conditions might shorten battery life or cause X10DR to temporarily stop working correctly. Leaving X10DR in a parked vehicle or in direct sunlight can cause X10DR to exceed these storage or operating temperature ranges. Avoid dramatic changes in temperature or humidity when using X10DR, as condensation may form within the unit. When you’re using X10DR or charging the battery, it is normal for X10DR to get warm. Battery will only charge when its ambient temperature is within safe limits.Driving Safely:Use of X10DR while driving a vehicle or riding a motorbike may be distracting. If you nd using X10DR disruptive or distracting while driving or riding, pull off the road and park before making or answering a call. Use of X10DR alone or with headphones (even if used only in one ear) while driving or riding is not recommended and is illegal in some countries. Check and obey the laws and regulations regarding the use of mobile devices like X10DR in the areas where you drive or ride. Air Bag Equipped Vehicles:An  air  bag  inates  with  great  force.  Do  not  store  X10DR  or  any  of  its  accessories  in  the  area  over  the  air  bag  or  in  the  air  bag deployment area.Carrying and handling X10DR: X10DR contains sensitive components. Do not drop, disassemble, microwave, burn, paint, or insert foreign objects into X10DR. Do not use X10DR if it has been damaged—for example, if X10DR is cracked, punctured, or damaged by water.Do not touch the antenna when operational. Keep the Secure Microphone antenna 25mm (1”) or more away from your face and body to ensure exposure levels remain at or below the maximum levels. Keep your body at least 20cm/8” from external antennas connected to the X-Ponder mobile charger unit.Ne touchez pas l’antenne lorsque opérationnel. Gardez sécurisé antenne de microphone 25mm (1“) ou plus loin de votre visage et le corps pour assurer des niveaux d’exposition restent égales ou inférieures aux teneurs maximales. Gardez votre corps au moins 20cm/8 “des antennes externes connectés à l’unité de chargeur mobile X-Ponder.31Designed to meet the following global specications:Dimensions:    88 x 28 x 63mm (Mic) 80 x 80 x 60 (chgr)Weight:    149 grams (Mic) 125 grams (chgr)Frequency:    2.40-2.48GHz FH Spread SpectrumProtocol:     802.15.4 based derivativeRF Power:    <100mW / X-Ponder <100mWBattery Type:     3.7V @1450mA Lithium PolymerBattery Life:    >15 Hours @ 30% receive timeEncryption:    Proprietary/Elite model: AES128RF Connectors:  RP SMA FemaleRated Audio/Dist:  >300mW @5% THDHirose Audio port:  Standard3.5mm Audio port:  StandardOperating Voltage:  7-16VDCOperating Temp:  -20ºC to +55ºC /-4ºF to +122ºFShock & Vibration:  Mil Std 810 C/D/E/FHumidity/Rain/Dust:  IEC529, IP55-std Mic/ IP67 Elite MicType Acceptance:  CE, FCC, IC, Aust/NZ,Subject to change or improvement without noticeSpecicationsFCC ID: 5AGEY-XH2/5AGEY-XG2IC:11443A-XH2 /11443A-XG2Location of labellingType Acceptance /ApprovalsIECEx / ATEX Ex ia IIC T4X10DR-AU2 only  0682N13187Please recycle thoughtfullyLi-POLR-NZ   Radiation Exposure:
All rights reserved  Wireless Corporation Limited ©2016Wireless Pacic™, X10DR®, Libertae your mobile™ Find Me™ and their logos are trademarks or registered trademarks of Wireless Corporation Limited  :  Manual revision O
