Users Manual
User Manual
SiteWERX Base Station, Wireless
1 June 2009
SiteWERX User Manual WirelessWerx
SiteWERX ii 1June09
Table of Contents
1. Scope ...........................................................................................................1
1.1 Safety Instructions .......................................................................................................... 1
1.2 Contact Information......................................................................................................... 1
2. Description ..................................................................................................2
2.1 SiteWERX Base Station, Wireless .................................................................................. 2
2.2 Architecture ...................................................................................................................... 3
2.2.1 Bluetooth Module .................................................................................................... 3
2.2.2 WI-FI Module .......................................................................................................... 4
2.2.3 Voltage and Operating Current ............................................................................... 4
2.2.4 Antenna ................................................................................................................... 4
2.2.5 Power Supply .......................................................................................................... 6
2.2.6 Power-On Indicator ................................................................................................. 6
2.2.7 Development/Programming Interface ..................................................................... 6
2.3 Construction and Packaging .......................................................................................... 6
2.4 Environment ..................................................................................................................... 6
3. Constraints ..................................................................................................7
4. Reference Documentation .........................................................................7
4.1 Acronyms/Abbreviations ................................................................................................ 7
Table of Figures
Figure 1 SiteWERX Location System ................................................................................................... 2
Figure 2. SiteWERX Base Station, Wireless Block Diagram .............................................................. 3
Figure 3 SBS Antenna Pattern .............................................................................................................. 5
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
1
1. Scope
This document provides user information for the SiteWERX wireless Base Station
(SBS-W). Information is included regarding safety, technical features, installation,
and operating constraints
1.1 Safety Instructions
a. Read the manual carefully before use.
b. The Base Station shall be installed according to the installation
instructions.
c. The Base Station is for indoor use only.
d. Ensure that power is OFF during installation procedures.
e. All maintenance and servicing should be performed or supervised by qualified
service personnel.
f. To satisfy RF exposure requirements, this device and its antenna must operate
with a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
1.2 Contact Information
This product is manufactured by:
WirelessWERX, Inc.
100 Chaparral Court, Suite 100
Anaheim, CA 92808
Phone: 714-685-9776
Fax: 714-685-9270
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
2
2. Description
The SiteWERX Location system consists of System Management software residing
on a networked PC, a Bluetooth / WIFI Base Station, and one or more SiteWERX
Location Nodes (SLN’s).
The SBS-W and SLN’s form a communication chain (scatternet) using Bluetooth
radios. The SBS-W uses an 802.11 WIFI module to maintain a communication link
with a local area network, allowing the system to be managed by a PC with access to
this LAN. Mobile devices, such as cell phones and PDAs, running the SiteWERX
Mobile Client (SMC) are able to communicate with an SLN to receive location and
real-time messages, reference Figure 1.
SiteWERX
Management
Console
PC
LAN
802.11 SiteWERX Base Station SLN1
Bluetooth Bluetooth
SLN 2
SLN 3
Bluetooth
Cell
Phone
SMC
Bluetooth

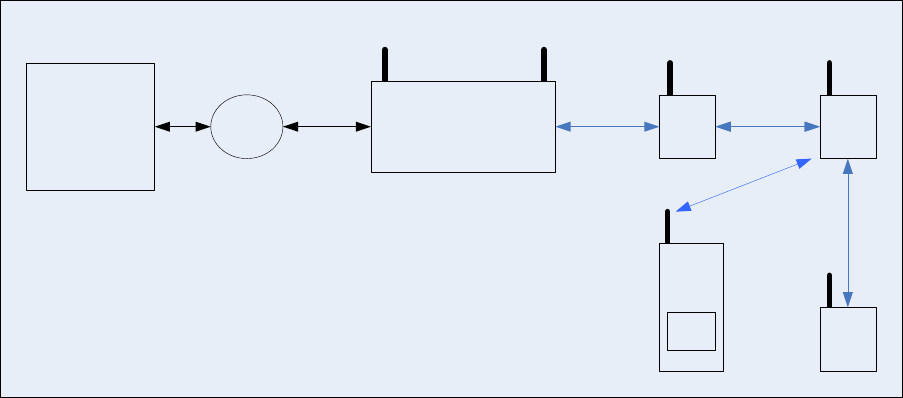

Figure 1 SiteWERX Location System
2.1 SiteWERX Base Station, Wireless
The SBS-W has the following functional capabilities:
a) Operate as a Bluetooth device in accordance with the Bluetooth 2.0 + EDR
b) Establish wireless links with other Bluetooth devices in proximities of 1 to 10
meters
c) Transmit area-specific information to other Bluetooth devices in support of
precision location
d) Transmit information to, and receive information from other Bluetooth devices in support of
system administration, status and diagnostics
e) Transmit Real-Time Alerts
f) Establish Ethernet link with System Management Console
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
3
2.2 Architecture
The SBS-W consists of a Bluetooth Module and antenna for Bluetooth operations,
and a WI-FI controller, transceiver and antenna for communications with the
SiteWERX Controller. A functional block diagram of the SBS-W is shown in Figure 2
Bluetooth
Module
Input Voltage
3.3VDC
WI-FI
Module
Transceiver
Controller & Memory
Transceiver
Controller & Memory
Link with System
Controller Link with Location Nodes
Development/
Programming Interface Base Station
Module
Figure 2. SiteWERX Base Station, Wireless Block Diagram
2.2.1 Bluetooth Module
The Bluetooth Module provides the operating parameters and protocols required by
the Bluetooth 2.0 + EDR Core Specification.
2.2.1.1 Radio Characteristics, Basic Data Rate
Receiver Typical Bluetooth Spec Unit
Sensitivity @ 0.1% BER - 83 ≤ - 70 dBm
Transmitter Typical Bluetooth Spec Unit
Max RF Transmit Power + 4 - 6 to + 4 dBm
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
4
2.2.1.2 Radio Characteristics, Enhanced Data Rate
Receiver Typical Bluetooth Spec Unit
Sensitivity @ 0.1% BER - 83 ≤ - 70 dBm
Transmitter Typical Bluetooth Spec Unit
Max RF Transmit Power + 4 - 6 to + 4 dBm
2.2.2 WI-FI Module
The SBS-W has a WI-FI Module to provide the operating parameters and protocols
required by the IEEE 802.11 b/g wireless standard.
2.2.2.1 Radio Characteristics
Receiver Typical Data Rate
Sensitivity @ 0.1% BER - 69 dBm 54 Mbps
- 88 dBm 11 Mbps
- 91 dBm 1.0 Mbps
Transmitter Typical Unit
RF Transmit Power 11 to 16 dBm
Data Rates 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.2.3 Voltage and Operating Current
The SBS-W module operates with an input of 3.3 VDC and a max current ≤ 700 mA .
2.2.4 Antenna
The SBS Module has two identical antennas. One for the transmission and reception
of Bluetooth Radio-Frequency (RF) Signals, and one for the transmission and
reception of WI-FI Radio-Frequency (RF) Signals.
The antennas are 4 inch dipoles with a 50 ohm impedance, and a max gain of 2.89
dBi, Figure 3.
The SBS antennas are capable of transmitting a constant 1.0 watt.
The SBS antennas have a right angle, reverse polarity SMA connector.
The SBS antennas are adjustable and normally operate with the primary axis aligned
with the local vertical.
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
5
Figure 3 SBS Antenna Pattern
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
6
2.2.5 Power Supply
The SBS-W module operates from an external AC/DC power supply to provide a
regulated DC voltage of 3.3 VDC at 2.18 Amps, and consumes a maximum power of
7.2 Watts.
2.2.6 Power-On Indicator
The SBS has a RED LED indicator that is illuminated when power is enabled.
2.2.7 Development/Programming Interface
The SBS is programmed using a four-wire serial peripheral interface (SPI). The SPI
is also used for real-time debugging / development, and is connected to a PC parallel
port via connector and cable assembly made by WirelessWERX.
The development / programming interface shall be designed to permit the following
connections:
PC connect to WI-FI module only
PC connect to Bluetooth module only
Bluetooth module to WI-FI module, No connection to PC
2.3 Construction and Packaging
The Wireless Base Station is shaped similar to a rectangular with the following
dimensions 87in length x5.9in width x 2.3in height. The Enclosure is molded for
FRABS UL 94-V0 Plastic.
The SBS WI-FI- and Bluetooth modules, and related circuit elements are assembled
on a single PCB, and enclosed in a rectangular box, with the following (nominal)
dimensions:
Length 8.7 inches
Width 5.9 inches
Height 2.3 inches
2.4 Environment
The SiteWERX allowable environments for operating and storage shall be as follows:
Operating Temperature -40 to +70 C
Storage Temperature -40 to +85 C
Operating Humidity 5% to 80% RH, non-condensing
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
7
3. Constraints
Instruction to the User
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Operation with non-approved equipment is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment
without the approval of manufacturer could void the user's authority to operate this
equipment.
4. Reference Documentation
Bluetooth 2.0 + Enhanced Data Rate (EDR)
BlueCore4-External DataBook
Dipole Antenna Datasheet
Matchport b/g Integration Guide
IEEE 802.11 b/g wireless standard
4.1 Acronyms/Abbreviations
AC Alternating Current
BIST Built In Self Test
CM Cellular Module
dBi Decibels referenced to an isotropic radiator operating at the same
frequency
dBm Decibels referenced to one milliWatt
DC Direct Current
SiteWERX User Manual WirelessWerx
SiteWERX 1June09
8
EDR Enhanced Data Rate
EEPROM Electrically Erasable Programmable Read Only Memory
GPS Global Positioning System
I/O Input /Output
mA milliAmperes
PCB Printed Circuit Board
SBS SiteWERX Base Station
SLN SiteWERX Location Node
SPS SiteWERX Power Supply
UART Universal Asynchronous Receiver/Transmitter
USB Universal Serial Bus
VAC Volts, Alternating Current
VDC Volts, Direct Current
