WirelessWERX orporated SBS05W Base Station User Manual SBS05 W Usr Manual
WirelessWERX, Incorporated Base Station SBS05 W Usr Manual
User Manual
User Manual
SiteWERX Base Station, Wireless
20 October 2011
SiteWERX User Manual WirelessWERX
SiteWERX ii 1June09
Table of Contents
1.Scope ........................................................................................................... 1
1.1Safety Instructions .......................................................................................................... 1
1.2Contact Information......................................................................................................... 1
2.Description .................................................................................................. 2
2.1SiteWERX Base Station .................................................................................................. 2
2.2Architecture ...................................................................................................................... 3
2.2.1Bluetooth Module .................................................................................................... 3
2.2.2LAN module ............................................................................................................ 4
2.2.2.1Ethernet ............................................................................................................... 4
2.2.2.2Wi-Fi .................................................................................................................... 4
2.2.3Voltage and Operating Current ............................................................................... 5
2.2.4Antennas ................................................................................................................. 5
2.2.5Power Supply .......................................................................................................... 7
2.2.6Power-On Indicator ................................................................................................. 7
2.2.7Development/Programming Interface ..................................................................... 7
2.3Construction and Packaging .......................................................................................... 7
2.4Environment ..................................................................................................................... 8
3.Constraints .................................................................................................. 8
4.Declaration of Conformity .......................................................................... 9
5.Reference Documentation ....................................................................... 10
5.1Acronyms/Abbreviations .............................................................................................. 10
Table of Figures
Figure 1 SiteWERX Location System ................................................................................................... 2
Figure 2. SiteWERX Base Station Block Diagram .............................................................................. 3
Figure 3 SBS Antenna Pattern .............................................................................................................. 6
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
1
1. Scope
This document provides user information for the SiteWERX Base Station.
Information is included regarding safety, technical features, installation, and operating
constraints
1.1 Safety Instructions
a. Read the manual carefully before use.
b. The Base Station shall be installed according to the installation
instructions.
c. The Base Station is for indoor use only.
d. Ensure that power is OFF during installation procedures.
e. All maintenance and servicing should be performed or supervised by qualified
service personnel.
f. To satisfy RF exposure requirements, this device and its antennas must operate
with a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
1.2 Contact Information
This product is manufactured by:
WirelessWERX, Inc.
100 Chaparral Court, Suite 100
Anaheim, CA 92808
Phone: 714-685-9776
Fax: 714-685-9270
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
2
2. Description
The SiteWERX Location system consists of System Management software residing
on a networked PC, a SiteWERX Base Station (SBS), and one or more SiteWERX
Location Nodes (SLN’s).
The SBS and SLN’s form a communication chain (scatter-net) using Bluetooth radios.
The SBS uses Ethernet or 802.11 Wi-Fi to maintain a communication link with a local
area network, allowing the system to be managed by a PC with access to this LAN.
Mobile devices, such as cell phones and PDAs, running the SiteWERX Mobile Client
(SMC) software are able to communicate with an SLN to receive location and real-
time messages, reference Figure 1.

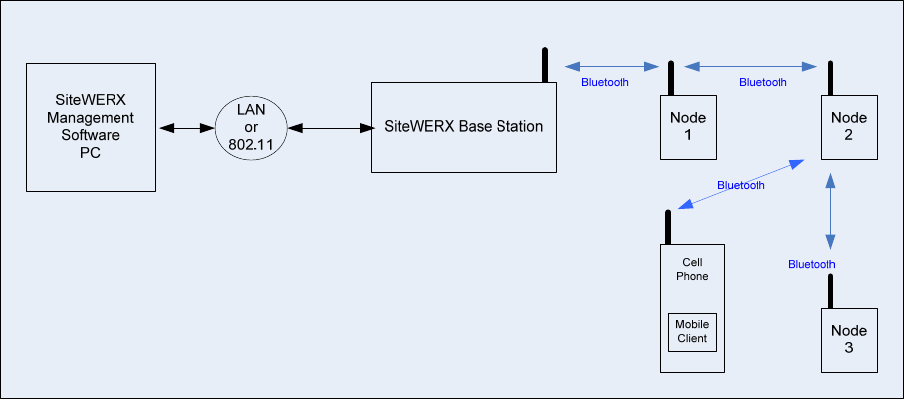

Figure 1 SiteWERX Location System
2.1 SiteWERX Base Station
The SBS has the following functional capabilities:
a) Operate as a Bluetooth device in accordance with the Bluetooth 2.0 + EDR
b) Establish wireless links with other Bluetooth devices in proximities of 1 to 10
meters
c) Transmit area-specific information to other Bluetooth devices in support of
precision location
d) Transmit information to, and receive information from other Bluetooth devices in support of
system administration, status and diagnostics
e) Transmit Real-Time Alerts
f) Establish Ethernet or 802.11 link with System Management Console
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
3
2.2 Architecture
The SBS consists of a Bluetooth Module and antenna for Bluetooth operations, and a
LAN module that communicates with the SiteWERX System Controller using Ethernet
or an 802.11 transceiver and antenna. A functional block diagram of the SiteWERX
Base Station is shown in Figure 2
Bluetooth
Module
Input Voltage
3.3 VDC
802.11 Tranceiver or
LAN Interface
Controller & Memory
Transceiver
Controller & Memory
Link with Location Nodes
Development/
Programming Interface
Base Station
Module
Link with System
Controller

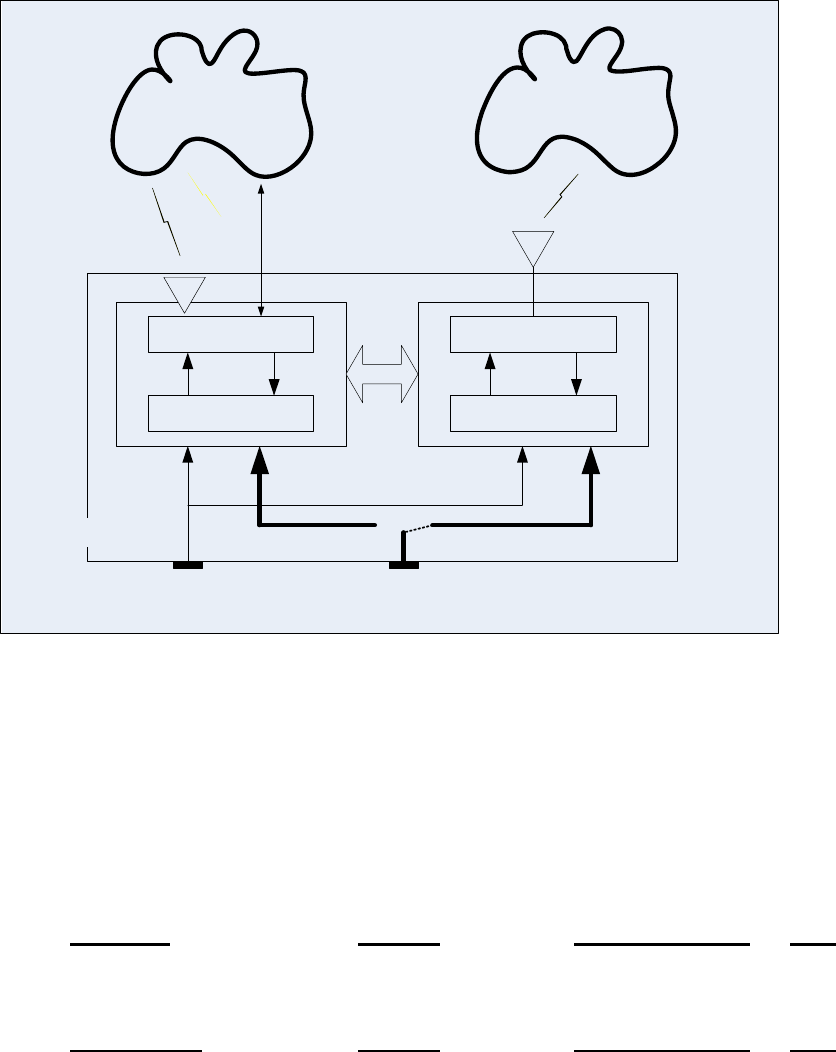

Figure 2. SiteWERX Base Station Block Diagram
2.2.1 Bluetooth Module
The Bluetooth Module provides the operating parameters and protocols required by
the Bluetooth 2.0 + EDR Core Specification.
2.2.1.1 Radio Characteristics, Basic Data Rate
Receiver Typical Bluetooth Spec Unit
Sensitivity @ 0.1% BER - 83 ≤ - 70 dBm
Transmitter Typical Bluetooth Spec Unit
Max RF Transmit Power + 4 - 6 to + 4 dBm
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
4
2.2.1.2 Radio Characteristics, Enhanced Data Rate
Receiver Typical Bluetooth Spec Unit
Sensitivity @ 0.1% BER - 83 ≤ - 70 dBm
Transmitter Typical Bluetooth Spec Unit
Max RF Transmit Power + 4 - 6 to + 4 dBm
2.2.2 LAN module
2.2.2.1 Ethernet
The SBS LAN module manages the Ethernet interface with the System Controller.
SBS Data Rates:
1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps
The SBS LAN module connects to the Ethernet through a RJ45 connector.
2.2.2.2 Wi-Fi
The SBS WI-FI Module that provides the operating parameters and protocols
required by the IEEE 802.11 b/g wireless standard.
Radio Characteristics
Receiver Typical Data Rate
Sensitivity @ 0.1% BER - 69 dBm 54 Mbps
- 88 dBm 11 Mbps
- 91 dBm 1.0 Mbps
Transmitter Typical Unit
RF Transmit Power 11 to 16 dBm
Data Rates 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54 Mbps
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
5
2.2.3 Voltage and Operating Current
The SBS module operates with an input of 3.3 VDC and a max current ≤ 700 mA .
2.2.4 Antennas
The SBS Module has two identical antennas. One for the transmission and reception
of Bluetooth Radio-Frequency (RF) Signals, and one for the transmission and
reception of WI-FI Radio-Frequency (RF) Signals.
The antennas are 4 inch dipoles with 50 ohm impedance, and a typical gain of 2.0
dBi, Figure 3.
The SBS antennas are capable of transmitting a constant 1.0 watt.
The SBS antennas have a right angle, reverse polarity SMA connector.
The SBS antennas are adjustable and normally operate with the primary axis aligned
with the local vertical.
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
6

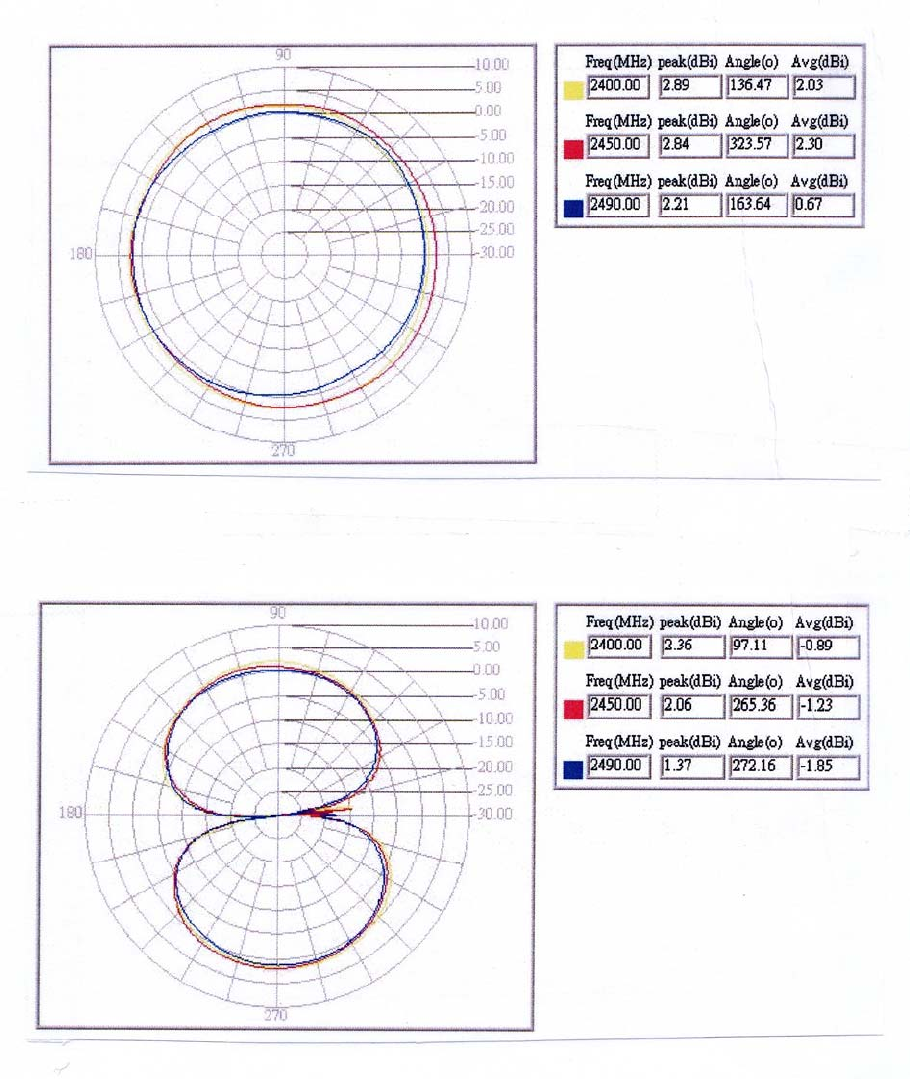

Figure 3 SBS Antenna Pattern
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
7
2.2.5 Power Supply
The SBS module operates from an external AC/DC power supply to provide a
regulated DC voltage of 3.3 VDC at 2.18 Amps, and consumes a maximum of 7.2
Watts.
2.2.6 Power-On Indicator
The SBS has a GREEN LED indicator that is illuminated when power is enabled.
2.2.7 Development/Programming Interface
The SBS has a four-wire serial peripheral interface (SPI). The SPI is used for real-
time debugging / development, and is connected to a PC parallel or USB port via
connector and cable assembly made by WirelessWERX.
The development / programming interface is designed to permit the following
connections:
PC connect to LAN module only
PC connect to Bluetooth module only
Bluetooth module to LAN module, No connection to PC
2.3 Construction and Packaging
The SBS modules, and related circuit elements are assembled on a single PCB. The
PCB shall be enclosed in a Bud Industries Plastibox, PT-11754, with the following
(nominal) dimensions:
Length 4 inches
Width 5.5 inches
Height 1.5 inches
The SBS Bluetooth module RF output is brought to the edge of the PCB and
terminated in bulkhead type, SMA connector that penetrates the enclosure and
permits the connect/disconnect of the SBS antenna external to the enclosure.
The SBS Wi-Fi module RF output is brought to the back panel of the enclosure with
50 ohm coax cable terminated in an SMA connector that penetrates the enclosure
and permits the connect/disconnect of the SBS antenna external to the enclosure.
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
8
2.4 Environment
The SiteWERX allowable environments for SBS operating and storage are as follows:
Operating Temperature -40 to +70 C
Storage Temperature -40 to +85 C
Operating Humidity 5% to 80% RH, non-condensing
3. Constraints
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Operation with non-approved equipment is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment
without the approval of manufacturer could void the user's authority to operate this
equipment.
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
9
4. Declaration of Conformity
TRADE NAME Network Bridge
MODEL NUMBER SBS05-W
RESPONSIBLE PARTY (IN USA) WirelessWERX, Inc.
ADDRESS 100 S. Chaparral Court, Suite 100: Anaheim, CA
TELEPHONE 714-685-9776
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If the unit does cause harmful interference to radio or television reception, please refer to your user
manual for instructions on correcting the problem.
SiteWERX User Manual WirelessWERX
SiteWERX 1June09
10
5. Reference Documentation
Bluetooth 2.0 + Enhanced Data Rate (EDR)
BlueCore4-External DataBook
Dipole Antenna Datasheet
Matchport b/g Integration Guide
IEEE 802.11 b/g wireless standard
5.1 Acronyms/Abbreviations
AC Alternating Current
BIST Built In Self Test
CM Cellular Module
dBi Decibels referenced to an isotropic radiator operating at the same
frequency
dBm Decibels referenced to One milliWatt
DC direct current
EDR Enhanced Data Rate
EEPROM Electrically Erasable Programmable Read Only Memory
GPS Global Positioning System
I/O Input /Output
mA milliAmperes
PCB Printed Circuit Board
SBS SiteWERX Base Station
SLN SiteWERX Location Node
SPS SiteWERX Power Supply
UART Universal Asynchronous Receiver/Transmitter
USB Universal Serial Bus
VAC Volts, Alternating Current
VDC Volts, Direct Current
