User Manual

KNOW YOUR MOBILE PHONE Display ScreenYour mobile phone has a single screen display, which consist of three main areas: The first line displays status icons, which indicate the signal strength, the remaining power of the battery, etc. The middle lines display text and images, including numbers, text, animated icons and the information you enter. The last line displays the currently available operations assigned to the left or right soft key.Status Icons Switching Your Phone On/Off1. Press and hold the Power key for a few seconds to switch your phone on.2. If the phone asks for a phone lock code, enter the phone lock code, and press OK. The default code is 1122.3. If the phone asks for a PIN code, enter the PIN code, and press OK. The PIN code is usually supplied with the SIM card. Please consult your network operator for more information.4. Press and hold Power key for a few seconds to switch your phone off. Making/Answering CallsEnter the phone number (with the area code). According to your need, enter the country code or the extension number.Press the Pick up key to make a call.To answer an incoming call, press the Pick up key or the left soft key. To end or reject an incoming/ongoing call, pressthe Hang up key. Select Functions and OptionsThis mobile phone provides a series of functions for you to use and custom. These functions or options are arrangedin the menu or submenu. You can use the left or right key to execute those functions indicated at the left or right ofthe prompt bar on the screen. Using The Personal Handsfree HandsetConnect the handsfree handset to your mobile phone, you can still answer calls and use the microphone withoutholding the phone. General InformationAntennaUse of other antenna devices could damage your mobile phone and reduce performance. Your phone has a built-inantenna area unnecessarily when the phone is switched on. Contact with the antenna affects call quality and maycause the phone to operate at a higher power level than otherwise needed.Network ServiceA lot of features described in this manual are called network service. They are special services provided by wirelessservice providers. You should subscribe to these services from your home service provider and learn instructions onuses before you select the network you want to use.AccessoriesLi-lon battery is the manufacturer-approved rechargeable battery available for your phone. Maybe some batteriesperform best after several full charge/discharge cycles.Use only batteries, chargers and accessories approved by the phone manufacturer for use with this particular model.The use of any other types will invalidate any approval or warranty applying to the phone, and may be dangerous.Please consult with your dealer for availability of approved accessories.Phone Lock CodeThe factory setting for the phone lock code is 1122. To avoid unauthorized use of your phone, you can change the codein the Settings > Security Settings. Remember your new code and write down in a safe place. Log(sequel)Call settingsCaller ID: (Net work Service) You can select Set By Network, Hide ID or Send ID. The default status is the Set ByNetwork.Call Waiting > Activate, the network will notify you of a new incoming call while you have a call in progress (Net workService).Call Divert: This network service allows you to divert your incoming calls to anther number. For details, contact yourservice provider.Call Barring > Activate, this network service allows you to restrict incoming calls from your phone. For details,contact your service provider.Close User Group > On, this network service specifies the group of people whom you can call and who can call you.For further information contact your network operator or service provider.Advance settings:Black List > On, you won’t receive the calls from the numbers entered in the blacklist.White list: you can set 20 numbers. When this white list is enabled, you can but receive the calls from the numbersentered in the White list.Auto Redial > On, the phone will automatically redial the last called number after a while if you fail to connect to thenumber. The times for auto redial are up to 10 times. Press Cancel to end Auto Redial.Call Time Display > On, the call time will display.Call Time Reminder: This function prompts you to end the call in time to save the call cost. You can select Off, Single,or Periodic.Auto quick end: Can set on or off and time of auto quick end. 2 3 4 5 6 7 8 9 10 111. Earpiece 2. Screen15. Battery Cover8. Right Soft Key6. Number keys4. Left Soft key 5. Pick up Key3. Direction key12. Cord hole13. Charger and Accessories connector 1 Back LightYou can set the Back Light for the keypad through options in the menu. The backlight will be off automatically withoutany key operation after a while. Settings(sequel) Note: The SIM card will be locked if the inputs of PIN codes are wrong for three times. Then you need the PUKcode to unlock the SIM card. The PIN code and PUK code are supplied together. If not, please contact your networksupplier.Phone lockThe phone lock can prevent your phone from unauthorized use.The default password of the phone lock is 1122; please change it into your personalized password. If you forgot thepassword of your phone, you would have to contact the distributor or the local service center to unlock your phone.Auto Keypad LockThe keypad will lock itself after the phone is unused for a specified time you set.Fixed DialIf activated, only the numbers set in the list or numbers started with the digits in the list can be made. (Require thesupport of SIM card.) Note: Open or close the function of Fixed Calls requires the input of PIN2 code. Please contact your networksupplier for the PIN2 code. Enter Fix Calls; numbers of fixed calls will appear in the directory.Barred DialIf this function is activated, the phone numbers in the barred dial list cannot be dialed. PIN2 is required for the function.Network support is also required.Change PasswordChange the passwords of PIN, PIN2 and phone password. Note: Certain functions are provided by service provider.Restore Factory SettingsAll settings can be restored to factory settings with this function.The factory setting for the password is 1122. File managerYou can use the function to manage all types of files saved in the memory card and the phone.11. Torch PhonebookYou can fast locate the number of the person you want to contact. Please enter the initial letter of the person’s name,and related records about it will display in the middle of the screen. You can locate your records by up or down keyand press OK key, and then you can view, send text message, send multimedia message, call and so on. Call CenterCall historyMissed Calls: displays the list of recent missed phone numbers.Dialled Calls: displays the list of recent dialed phone numbers.Received Calls: displays the list of recent received phone numbers.Delete Call Logs: You can delete all records of missed calls, dialed calls or received calls with this function or Deleteall folders drastically.Call timers:Last Call: The last call time can be checked.Dialled Calls: The total time for all dialed calls can be checked.Received Calls: The total time for all received calls can be checked.Reset All: Reset the counters.Call Cost:Last Call Cost: You can check the last call’s fee.Total Cost: You can check the whole call’s fee.Reset Cost: You can modify the call’s fee, and reset the cost to 0. PIN2 code is required while modifying.Max Cost: You can check and modify the upper limit. PIN2 code is required while modifying.Price Per Unit: You can check and modify the call’s rate. PIN2 code is required while modifying. Note: This function is related with the SIM card. Some SIM cards don’t support the function. PIN2 is providedfrom the network operator. Please consult your network operator to obtain the number.Text message Counter:Sent: You can check and clear the number of sent messages.Received: You can check and clear the number of received messages. Note: This function has nothing to do with the SIM card. The amount of sent or received messages will notchange even if you change the SIM card.GPRS Counter: you can check or reset the Last Sent, Last Received, All Sent, All Received and Reset Counter.Note: The picture is for reference only, the product is subject to the real one.10. OK Key7. Microphone 9. Hang up / Power key14. Camera SettingsUser ProfilesYou can select General, Meeting, Outdoor, Indoor, Headset, Bluetooth and Power Saving. Note: Insert the earphone to access the Headset mode automatically. This mode has no Activate option. Press#key to enable or cancel the silent mode. In the Silent mode, you can not hear any sounds except the vibration indicatesa call or a message is coming.Phone settings1. Time and Date: You can set Time Zone, set Time/Date, set Format, and Update with time zone.2. Schedule Power On/Off: You can set the time for auto power on/off.3. Language: Select the desired language for the display text.4. Preferred Input Methods: Select the desired input method for the default input method.5. Display: You can configure the wallpaper, screen saver, Main menu style, Show date and time, and so on.6. Dazzle Ringtone: You can set up to 10 songs in one time as your ring tone.7. Dedicated Key: You can configure short cut functions for the Up, Down, Left and Right key respectively.8. Auto Update of Date and Time: It can be set to ON or OFF. (Network Service)9. Misc. settings:LCD Backlight > According to various lighting conditions, you can select different Brightness and backlight time.NetworkYou can configure the following options as desired: Network Settings (Automatic suggested), Data account.Security settingsSIM LockYou can make the security settings to prevent your phone or SIM card from unauthorized use.The PIN code can prevent your SIM card from unauthorized use. If the PIN code is closed, you can open it to activateits protection. The phone will ask for the PIN code next time the phone is turned on. If the PIN code is opened, you canclose it to deactivate its protection.Network SignalAlarm clock is activatedMissed callsVib. and RingNew message or messages are fullDivert all Voice CallsRing OnlyBattery statusLockedVib. Only Vib. then RingBluetooth Mounting The SIM Card/ T-Flash CardKeep all miniature SIM cards out of children’s reach.Please consult with your SIM card dealer on SIM card services and its usages. The SIM card dealer could be theservice provider, network operator or other related dealers. Note: Always make sure the phone is switched off before you insert or remove the SIM card, otherwise it maydamage the SIM card.1. Remove the battery cover by sliding it, insert the SIM card, with the gold contacts face down, into the card slot.Alignthe card to the arrow sign as the following picture shows:3. Replace the battery and close the cover tightly. Charging The Battery1. Connect the connector of the travel adapter to the phone.2. Plug the travel adapter into a proper AC wall outlet.3. When your phone indicates that the battery is fully charged, please pull the travel adapter out from the I/O socketof the phone.2. Open the gold cap from the Hinge Type Connector. Lay the T-Flash card which gold contacts face down on theConnector, then close it. Align the card to the arrow sign as the following picture shows: Guidance On Entry MethodsThis phone provides input methods of Multitap ABC (ABC), Multitap abc (abc), Numeric (123), etc., which can beused in editing the phone book, short messages, alarms and other text applications.The icons of input methods: “123”: The entry method of Numeric appears as: “123” “Gb ENG”: The entry method of Multitap Smart ABC appears as: “Gb ENG” “Gb eng”: The entry method of Multitap Smart abc appears as: “Gb eng” “Abc”: The entry method of Multitap Abc appears as: “Abc” “ABC”: The entry method of Multitap ABC appears as: “ABC” “abc”: The entry method of Multitap abc appears as: “abc”Switch Input MethodsPress # key to switch the input methods. e.g.: If the current input is Multitap ABC, the screen will show “ABC”. Press# key, to go to Multitap abc, and the screen will show “abc”.Numeric Input MethodWhen the icon of the input method is “123”, press the number keys to enter the numbers directly.Multitap ABC and Multitap abcWhen the icon is “ABC” or “abc”, press the number keys (2 to 9) repeatedly until the desired letter appear in the textarea. Press the number key once for the first letter. Press twice for the second letter. So, press number keys to reachthe desired letter in the same way.Input Special SymbolsIf you want to input special symbols, such as “. ! ? = < >”, Etc., please follow the steps as below:Press the * key to display the symbols. Press the Up/Down, or Left/Right Key to move the cursor in the symbol table,and select one symbol. Press the right soft key to cancel the symbols selection. MessagingOnly when your network operator supports this service, you can use the function.SMS1. Write Message: You can edit the SMS .2. Inbox: The phone will prompt you when you receive a new message.3. Outbox: This function is used to check messages in outbox.4. Drafts: In the Drafts, please select Options, and then you can send, edit or select other operations.5. Templates: Your phone saves messages both for SMS in common use. You can edit, remove or write message.6. SMS Settings: You can configure the default information about SMS properties.7. Schedule SMS: Press the left soft key to access the Add or Options > Add, and then you can set the date, time,message, Phone number. Press Done and Save the message will sent out the message to the number as your desire.MMS1. Write Message: You can edit the MMS message.2. Inbox: The phone will prompt you when you receive a new MMS.3. Outbox: This function is used to check MMS in outbox.4. Drafts: This function is used to check messages in drafts.5. MMS Settings: You can configure the default information about MMS properties.Voice Mail Server Call Voicemail: You can hear messages in the voice mailbox. Edit: Input or modify the Name and the number of voice mailbox. Note: This service is supplied by the network. It enables the caller to leave messages when you can’t orunwilling to answer the incoming call. Please consult your network operator for more details.Broadcast MessageThis network service enables you to receive all kinds of text messages, such as weather reports or transportationinformation. Until now, there are several networks afford the service in this world. Please consult your network operatorfor more reference.

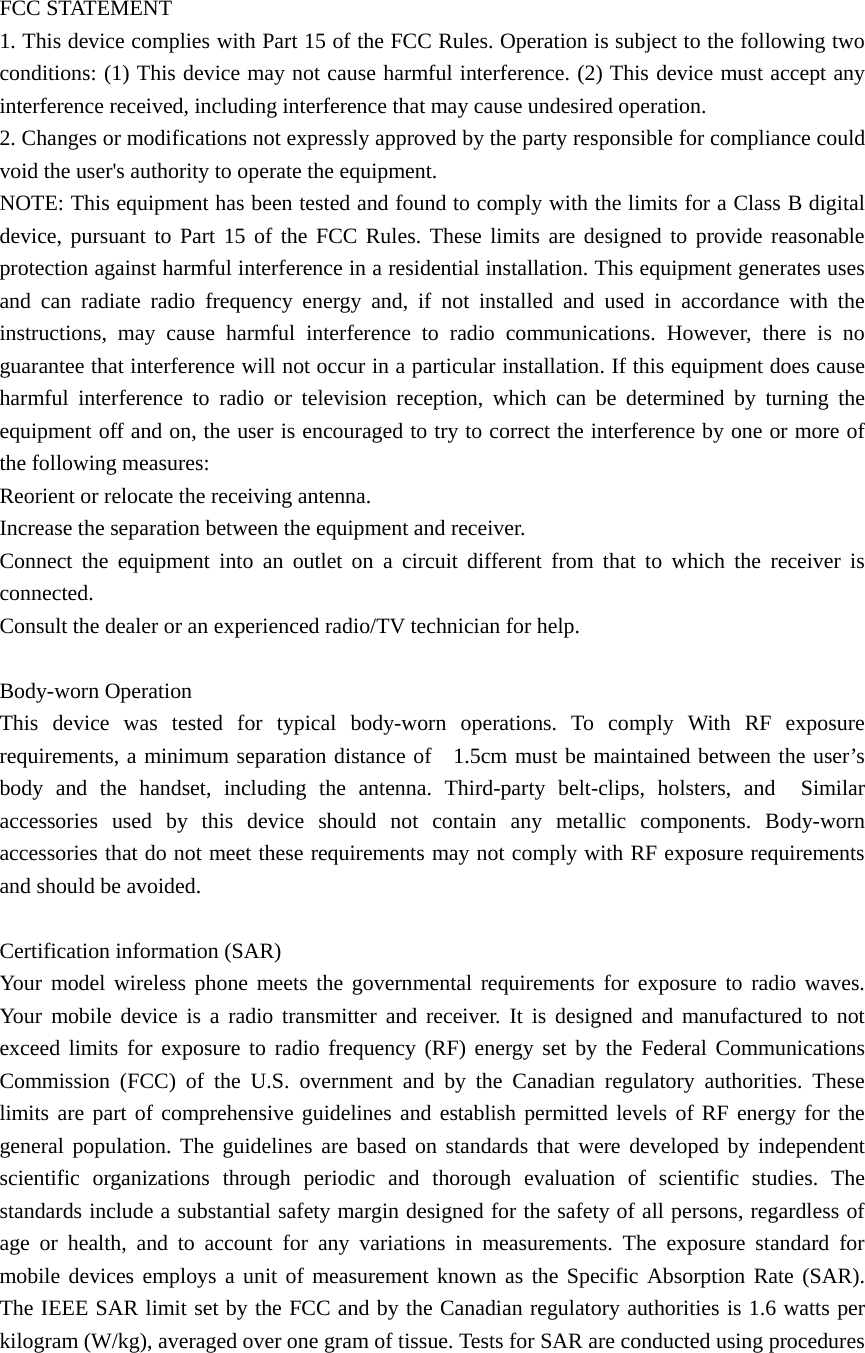

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Body-worn Operation This device was tested for typical body-worn operations. To comply With RF exposure requirements, a minimum separation distance of 1.5cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and Similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Certification information (SAR) Your model wireless phone meets the governmental requirements for exposure to radio waves. Your mobile device is a radio transmitter and receiver. It is designed and manufactured to not exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. overnment and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed for the safety of all persons, regardless of age or health, and to account for any variations in measurements. The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate (SAR). The IEEE SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 watts per kilogram (W/kg), averaged over one gram of tissue. Tests for SAR are conducted using procedures

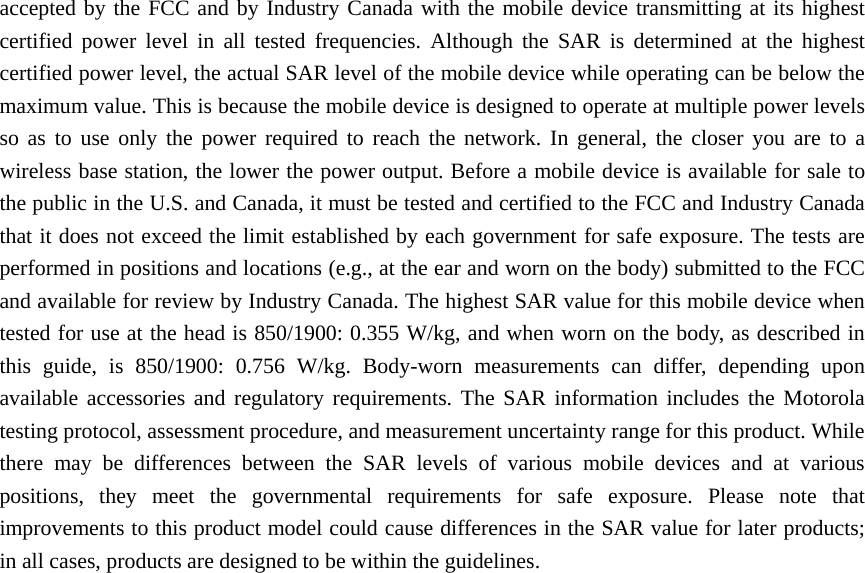

accepted by the FCC and by Industry Canada with the mobile device transmitting at its highest certified power level in all tested frequencies. Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile device while operating can be below the maximum value. This is because the mobile device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a mobile device is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) submitted to the FCC and available for review by Industry Canada. The highest SAR value for this mobile device when tested for use at the head is 850/1900: 0.355 W/kg, and when worn on the body, as described in this guide, is 850/1900: 0.756 W/kg. Body-worn measurements can differ, depending upon available accessories and regulatory requirements. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. While there may be differences between the SAR levels of various mobile devices and at various positions, they meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines.
