English
The Euro symbol
If your keyboard layout is set to United States-International or United
Kingdom or if you have a keyboard with a European layout, you can
type the Euro symbol on your keyboard.
Note for US keyboard users: The keyboard layout is set when
you first set up Windows. For the Euro symbol to work, the
keyboard layout has to be set to United States-International.
To verify the keyboard type in Windows 2000, follow the steps below:
1Click on Start, Settings, Control Panel.
2 Double-click on Keyboard.
3Click on the Language tab.
4 Verify that the keyboard layout used for "En English (United
States)" is set to United States-International.
If not, select and click on Properties; then select United States-
International and click on OK.
5Click on OK.
To verify the keyboard type in Windows XP, follow the steps below:
1Click on Start, Control Panel.
2 Double-click on Regional and Language Options.
3Click on the Language tab and click on Details.
4 Verify that the keyboard layout used for "En English (United
States)" is set to United States-International.
If not, select and click on ADD; then select United States-
International and click on OK.
1 Getting to know your TravelMate
18
English
5Click on OK.

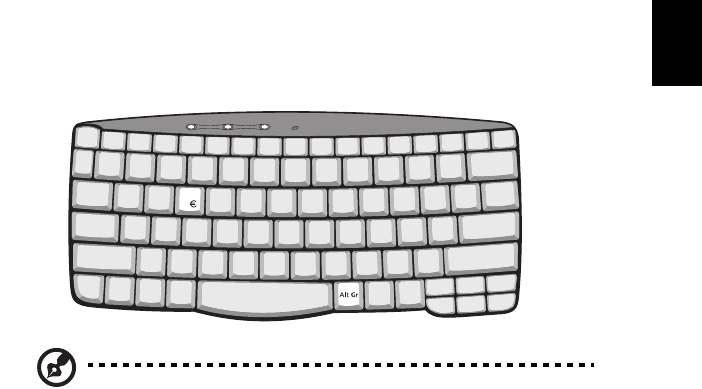

To type the Euro symbol:
1 Locate the Euro symbol on your keyboard.
2 Open a text editor or word processor.
3 Hold Alt Gr and press the Euro symbol.
Note: Some fonts and software do not support the Euro symbol.
Please refer to www.microsoft.com/typography/faq/faq12.htm for
more information.

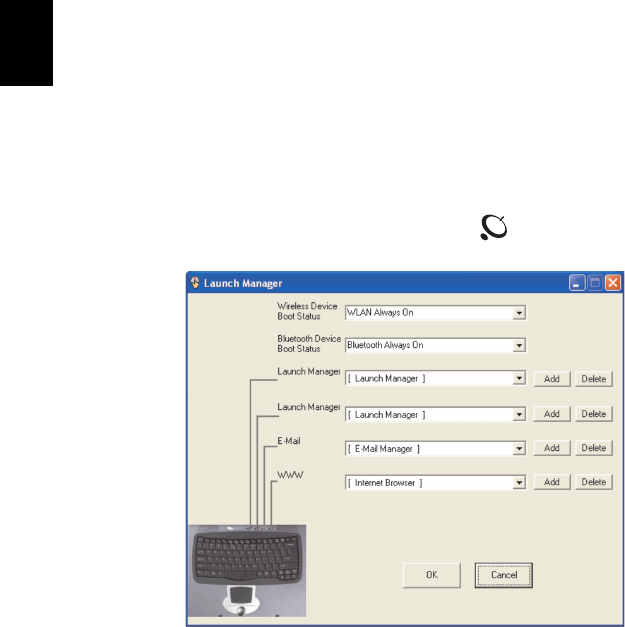

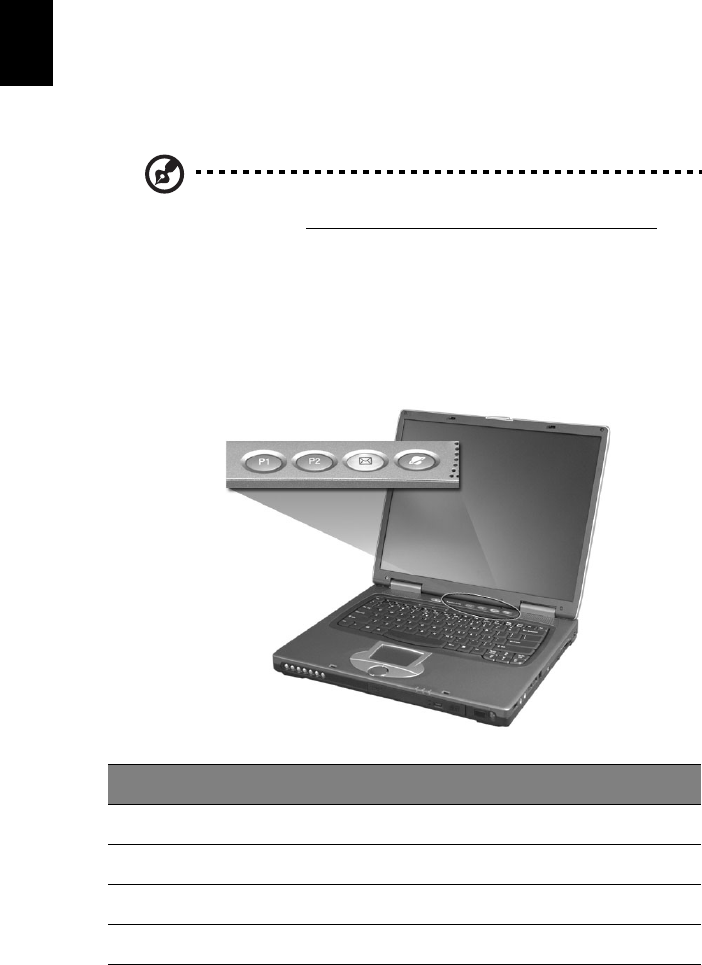

Launch Keys
Located at the top of the keyboard are four buttons. These buttons
are called launch keys. They are designated as P1, P2 Email button and
Web browser button.
Launch key Default application
P1 User-programmable
P2 User-programmable
Email Email application
Web browser Internet browser application
19
English

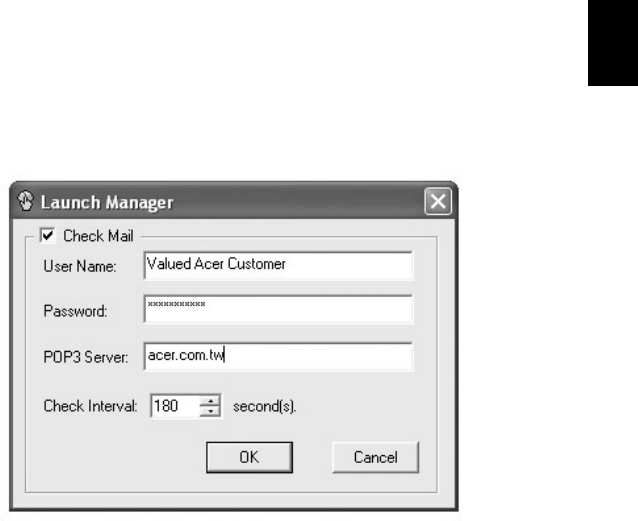

E-Mail Detection
Click right button at the Launch Manager icon on the taskbar and click
on E-Mail Detection. In this dialog box, you have the option to enable/
disable mail checking, set the time interval for mail checking, etc. If
you already have an email account, you can fill in User Name, Password
and POP3 Sever in the dialog box. The POP3 Sever is the mail sever
where you get your email.
Aside from the email checking function, there is a mail button that is
used to launch the email application. It is located above the keyboard
right below the LCD.
1 Getting to know your TravelMate
20
English

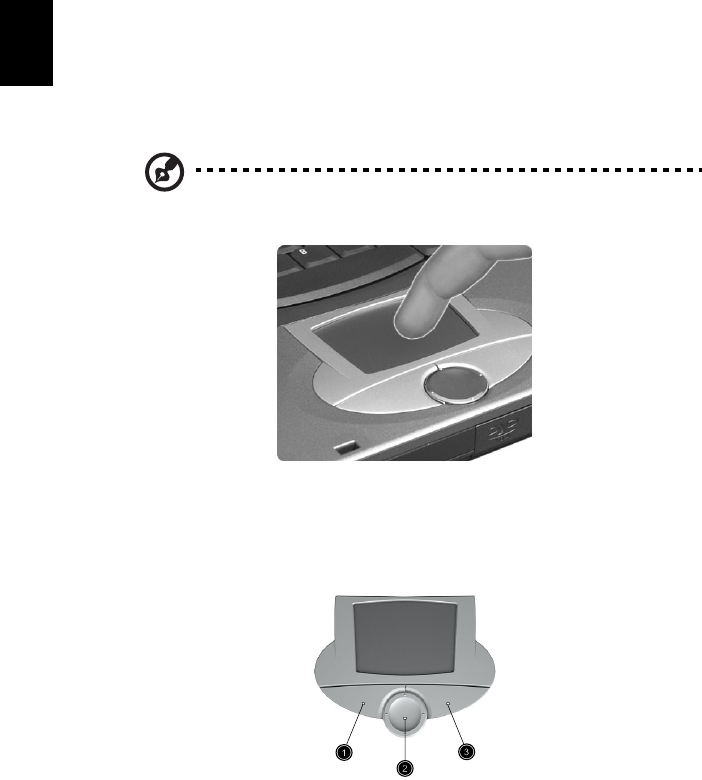

Touchpad
The built-in touchpad is a pointing device that senses movement on its
surface. This means the cursor responds as you move your finger on
the surface of the touchpad. The central location on the palmrest
provides optimal comfort and support.
Note: When using an external USB mouse, you can press Fn-F7 to
disable the touchpad.
Touchpad basics
The following items teach you how to use the touchpad:
•Move your finger across the touchpad to move the cursor.
•Press the left (1) and right (3) buttons located on the edge of the
touchpad to do selection and execution functions. These two
buttons are similar to the left and right buttons on a mouse.
Tapping on the touchpad produces similar results.
•Use the 4-way scroll (2) button (top/bottom/left and right) to scroll
a page up, down, left or right. This button mimics your cursor
21
English
pressing on the vertical and horizontal scroll bars of Windows
applications.
Note: Keep your fingers dry and clean when using the touchpad.
Also keep the touchpad dry and clean. The touchpad is sensitive to
finger movements. Hence, the lighter the touch, the better the
response. Tapping harder will not increase the touchpad's
responsiveness.
Function Left button Right
button
Scroll
button Tap
Execute Click twice
quickly
Tap twice (at the
same speed as
double-clicking a
mouse button)
Select Click once Tap once
Drag Click and
hold, then
use finger to
drag the
cursor on the
touchpad
Tap twice (at the
same speed as
double-clicking a
mouse button)
then hold finger
to the touchpad
on the second tap
and drag the
cursor
Access
context
menu
Click
once
Scroll Click and
hold the
button in
the desired
direction
(up/down/
left/right)
1 Getting to know your TravelMate
22
English
Storage
This computer supplies you with the following media storage:
•High-capacity Enhanced-IDE hard disk
•Optical drive
Hard disk
The high-capacity hard disk is the answer to your storage needs. This is
where your programs and data are stored.
Optical drive
The optical drive bay accepts a wide variety of optional media drive
modules for use with your computer. These optional items include:
•CD-ROM drive
•DVD-ROM drive
•DVD/CD-RW drive

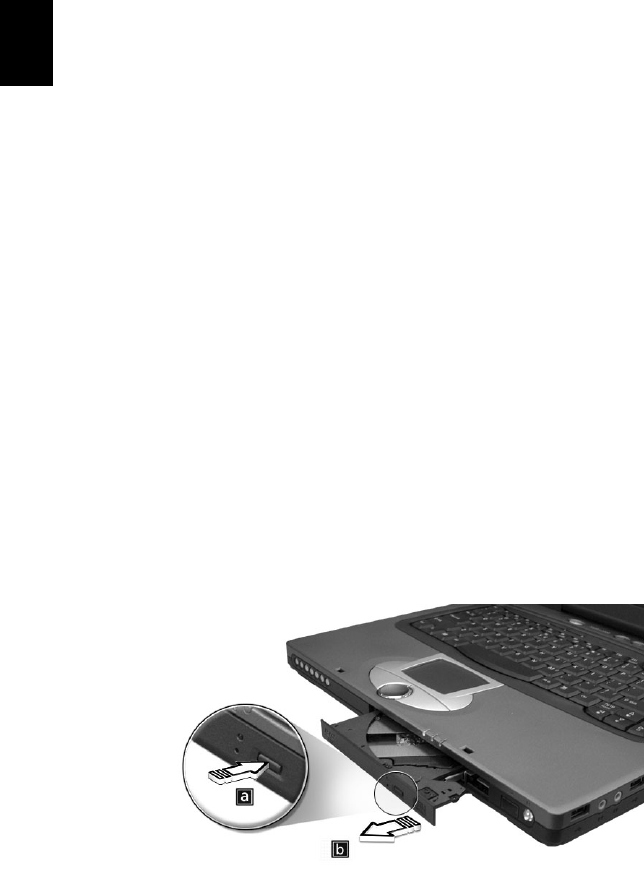

Ejecting the optical (CD or DVD) drive tray
To eject the optical drive tray when the computer is turned on, press
the drive eject button.

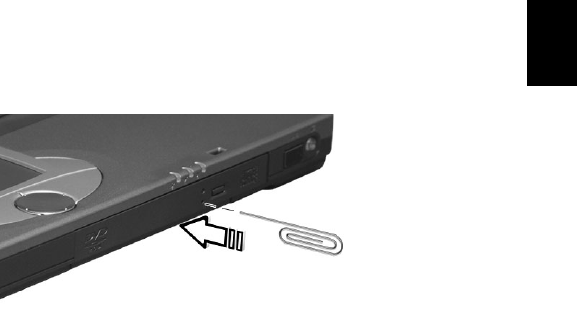

When the power is off, you can eject the drive tray using the
emergency eject hole. See page 51.
23
English
Using software
Playing DVD movies
When the DVD-ROM drive module is installed in the optical drive bay,
you can play DVD movies on your computer.
1 Eject the DVD tray and insert a DVD movie disc; then close the DVD
tray.
Important! When you launch the DVD player for the first time,
the program asks you to input the region code. DVD discs are
divided into 6 regions. Once your DVD drive is set to a region
code, it will play DVD discs of that region only. You can set the
region code a maximum of five times (including the first time),
after which the last region code set will remain permanent.
Recovering your hard disk does not reset the number of times the
region code has been set. Refer to the table below for DVD movie
region code information.
2 The DVD movie will automatically play after a few seconds.
Note: To change the region code, insert a DVD movie of a
different region into the DVD-ROM drive. Please refer to the
online help for more information.
Region code Country or region
1 U.S.A., Canada
2 Europe, Middle East, South Africa, Japan
3 Southeast Asia, Taiwan, Korea (South)
4 Latin America, Australia, New Zealand
5 Former U.S.S.R., parts of Africa, India
6 People's Republic of China
1 Getting to know your TravelMate
24
English

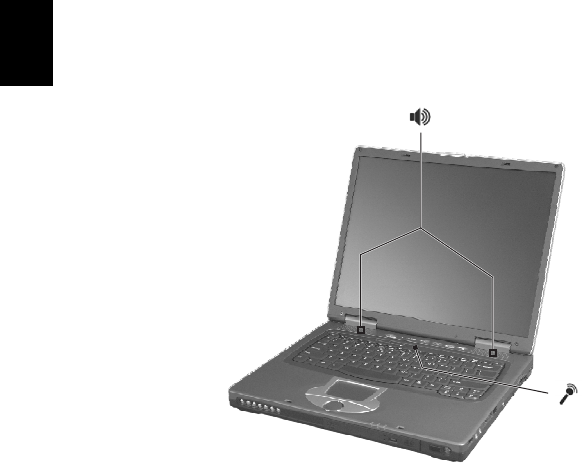

Audio
The computer comes with 18-bit high-fidelity AC’97 stereo audio, and
includes a built-in sensitive microphone and dual stereo speakers.
There are audio ports on the right side of the computer. See “Right
view” on page 6 for more information on connecting external audio
devices.
Adjusting the volume
Adjusting the volume on the computer is as easy as pressing some
buttons. See “Hot keys” on page 15 for more informations on
adjusting the speaker volume.
25
English
Using the Audio DJ feature
The Audio DJ feature allows you to control the playback of music CDs
even with the computer turned off.
To playback an audio CD, do as follows:
1 Press the Audio DJ power button (on the front panel of the
computer) until the power indicator lights up to turn on the Audio
DJ feature.
2 Press the optical drive eject button; then pull out the drive tray.
3 Place a music CD on the optical drive spindle until it clicks in place.
4 Close the optical drive tray securely.

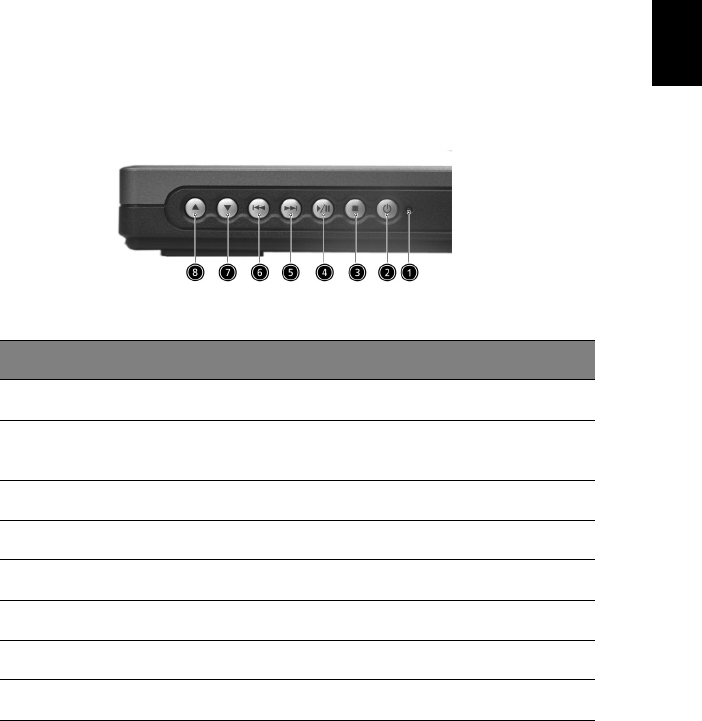

#Item Description
1 Power indicator Lights when the Audio DJ function is on.
2 Power Press for more than one second to turn the
Audio DJ feature on/off.
3 Stop Stops audio playback.
4 Play/pause Plays/pauses audio.
5 Next track Skip to next audio track.
6 Previous track Skips to previous audio track.
7 Volume down Decrease volume.
8 Volume up Increase volume.
1 Getting to know your TravelMate
26
English
5 You can now press the music playback buttons to begin music
playback.
Adjust the volume by using the volume buttons found at the left side
of the front panel.
Power management
This computer has a built-in power management unit that monitors
system activity. System activity refers to any activity involving one or
more of the following devices: keyboard, mouse, floppy drive, hard
disk, peripherals connected to the serial and parallel ports. If no
activity is detected for a period of time (called an inactivity timeout),
the computer stops some or all of these devices in order to conserve
energy.
This computer employs a power management scheme that supports
ACPI (Advanced Configuration and Power Interface), which allows for
maximum power conservation and maximum performance at the same
time. Windows handles all power-saving chores for your computer.
27
English
Moving around with your TravelMate
This section gives you tips and hints to consider when moving around
or traveling with your computer.
Disconnecting from the desktop
Follow these steps to disconnect your computer from external
accessories:
1 Save your work in progress.
2 Remove any media, diskette or compact disc, from the drive(s).
3 Shut down the computer.
4 Close the display cover.
5 Disconnect the cord from the AC adapter.
6 Disconnect the keyboard, pointing device, printer, external
monitor, and other external devices.

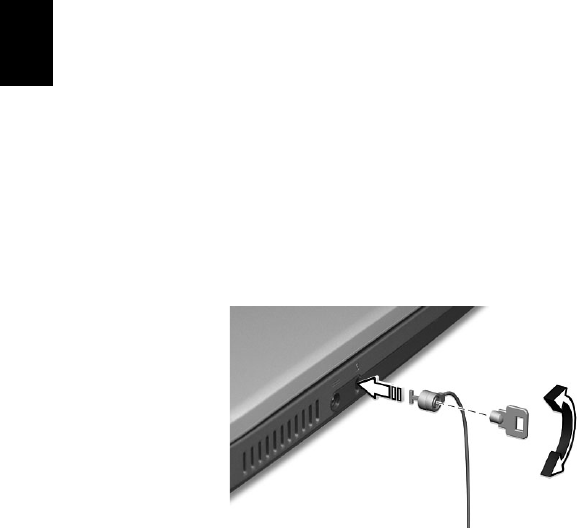

7 Disconnect the Kensington lock if you are using one to secure the
computer.
Moving around
“when you are just moving within short distances, for example, from
your office desk to a meeting room”
Preparing the computer
Before moving the computer, close and latch the display cover to place
it in Sleep mode. You can now safely take the computer anywhere you
go within the building. To bring the computer out of Sleep mode,
open the display; press the power button.
If you are taking the computer to a client's office or a different
building, you may choose to shut down the computer:
1Click on Start, Turn off Computer (Windows XP).
2Click on Turn Off (Windows XP).
- or -
choose to enter hibernation mode.
1 Getting to know your TravelMate
28
English
1 Click on Start, Turn off Computer (Windows XP).
2 Hold "Shift"
3 Click on Hibernation (Windows XP).
Then close and latch the display.
When you are ready to use the computer again, unlatch and open the
display; then release the power button.
Note: If the sleep indicator is off, the computer has entered
Hibernation mode and turned off. If the power indicator is off
but the sleep indicator is on, the computer has entered Sleep
mode. In both cases, press the power button to turn the computer
back on. Note that the computer may enter Hibernation mode
after it is in Sleep mode for a period of time.
What to bring to short meetings
A fully charged battery runs the computer for about 1.5~2 hours under
most circumstances. If your meeting is shorter than that, you probably
do not need to bring anything with you other than the computer.
What to bring to long meetings
If your meeting will last longer than 1.5 hours or if your battery is not
fully charged, you may want to bring the AC adapter with you to plug
in your computer in the meeting room.
If the meeting room does not have an electrical outlet, reduce the
drain on the battery by putting the computer in Sleep mode. Press Fn-
F4 or close the display cover whenever you are not actively using the
computer. To resume, open the display (if closed); then press the
power button.
Taking the computer home
“when you are moving from your office to your home or vice versa”
Preparing the computer
After disconnecting the computer from your desktop, follow these
steps to prepare the computer for the trip home:
29
English
•Check if you have removed all media, diskettes and compact discs,
from the drive(s). Failure to remove the media can damage the
drive head.
•Pack the computer in a protective case that can prevent the
computer from sliding around and cushion it if it should fall.
Caution: Avoid packing items next to the top cover of the
computer. Pressure against the top cover can damage the screen
What to bring with you
Unless you already have some items at home, bring the following items
with you:
•AC adapter and power cord
•The printed user’s guide
Special considerations
Follow these guidelines to protect your computer while traveling to
and from work:
•Minimize the effect of temperature changes by keeping the
computer with you.
•If you need to stop for an extended period of time and cannot
bring the computer with you, leave the computer in the trunk of
the car to avoid exposing the computer to excessive heat.
•Changes in temperature and humidity can cause condensation.
Allow the computer to return to room temperature, and inspect
the screen for condensation before turning on the computer. If the
temperature change is greater than 18°F (10°C), allow the
computer to come to room temperature slowly. If possible, leave
the computer for 30 minutes in an environment with a
temperature between outside and room temperature.
Setting up a home office
If you frequently work on your computer at home, you may want to
purchase a second AC adapter for use at home. With a second AC
adapter, you can avoid transporting the extra weight to and from
home.
1 Getting to know your TravelMate
30
English
If you use your computer at home for significant periods of time, you
might also want to add an external keyboard, monitor, or mouse.
Traveling with the computer
“when you are moving within a larger distance, for instance, from your
office building to a client’s office building or traveling locally”
Preparing the computer
Prepare the computer as if you were taking it home. Make sure that
the battery in the computer is charged. Airport security may require
you to turn on your computer when bringing it into the gate area.
What to bring with you
Bring the following items with you:
•AC adapter
•Spare, fully-charged battery pack(s)
Special considerations
In addition to the guidelines for taking the computer home, follow
these guidelines to protect your computer while traveling:
•Always take the computer as carry-on luggage.
•If possible, have the computer inspected by hand. Airport security
X-ray machines are safe, but do not put the computer through a
metal detector.
•Avoid exposing floppy disks to hand-held metal detectors.
Traveling internationally with the computer
“when you are moving from country to country”
Preparing the computer
Prepare the computer as you would normally prepare it for traveling.
31
English
What to bring with you
Bring the following items with you:
•AC adapter
•Power cords that are appropriate for the country to which you are
traveling
•Spare, fully-charged battery packs
•Proof of purchase, in case you need to show it to Customs officials
•International Traveler’s Warranty passport
Special considerations
Follow the same special considerations as when traveling with the
computer. In addition, these tips are useful when traveling
internationally:
•When traveling in another country, check that the local AC voltage
and the AC adapter power cord specifications are compatible. If
not, purchase a power cord that is compatible with the local AC
voltage. Do not use converter kits sold for appliances to power
the computer.
•If you are using the modem, check if the modem and connector is
compatible with the telecommunications system of the country
you are traveling in.
1 Getting to know your TravelMate
32
English
Securing your computer
Your computer is a valuable investment that you need to take care of.
Learn how to protect and take care of your computer.
Security features include hardware and software locks — a security
notch and passwords.
Using a computer security lock
A security keylock notch located on the left panel of the computer lets
you connect a Kensington-compatible computer security lock.
Wrap a computer security lock cable around an immovable object such
as a table or locked drawer handle. Insert the lock into the notch and
turn the key to secure the lock. Some keyless locks are also available.
Using passwords
Passwords protect your computer from unauthorized access. Setting
these passwords creates several different levels of protection for your
computer and data:
•Supervisor Password prevents unauthorized entry into the BIOS
Utility. Once set, you must key-in this password to gain access to
the BIOS Utility. See “BIOS Utility” on page 44 for more details.
•User Password secures your computer against unauthorized use.
Combine the use of this password with password checkpoints on
boot-up and resume from hibernation for maximum security.
•Password on Boot secures your computer against unauthorized
use. Combine the use of this password with password checkpoints
33
English
on boot-up and resume from hibernation for maximum security.
•Hard Disk Password protects your data by preventing
unauthorized access to your hard disk. Even if the hard disk is
removed from the computer and moved to another computer, it
cannot be accessed without the Hard Disk Password.
Important! Do not forget your Supervisor and Hard Disk
Password! If you forget your password, please get in touch with
your dealer or an authorized service center.
Entering passwords
When a password is set, a password prompt appears in the left-hand
corner of the display screen.
•When the Supervisor Password is set, a prompt appears when you
press F2 to enter the BIOS Utility at boot-up.
•Type the Supervisor Password and press Enter to access the BIOS
Utility. If you enter the password incorrectly, a warning message
appears. Try again and press Enter.
•When the User Password is set and the Password on boot
parameter is enabled, a prompt appears at boot-up.
•Type the User Password and press Enter to use the computer. If
you enter the password incorrectly, a warning message appears.
Try again and press Enter.
•When the Hard Disk Password is set, a prompt appears at boot-up.
•Type the Hard Disk Password and press Enter to use the computer.
If you enter the password incorrectly, a warning message appears.
Try again and press Enter.
Important! You have three chances to enter a password. If you
fail to enter the password correctly after three tries, the system
halts. Press the power button for four seconds to shut down the
computer. Then turn on the computer again, and try again. If you
fail to enter the Hard Disk Password, please contact your dealer or
an authorized service center.
Setting passwords

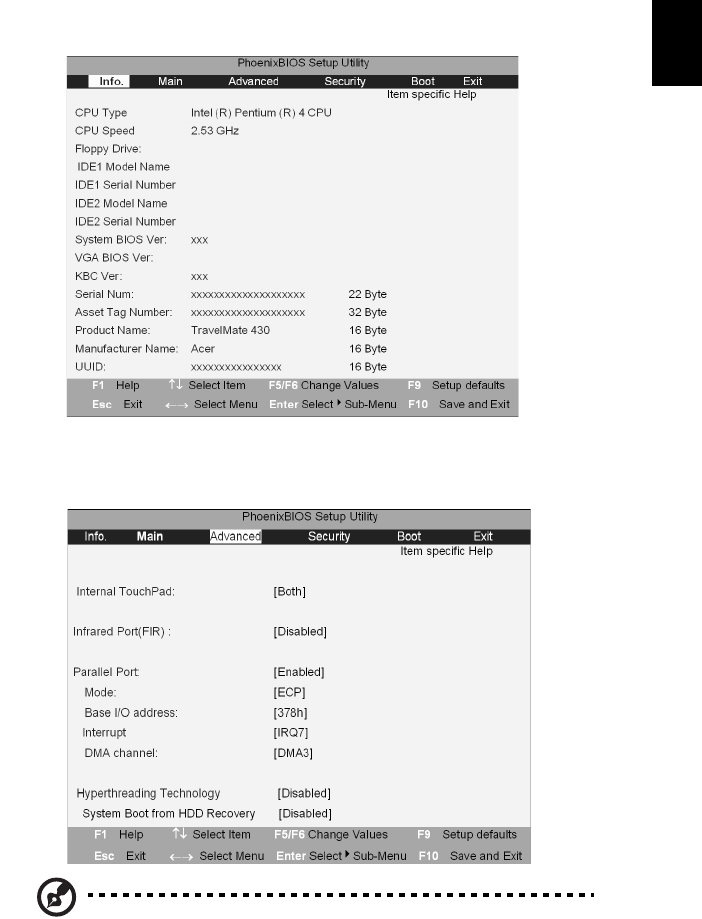

You can set passwords using the BIOS Utility.
1 Getting to know your TravelMate
34
English
2 Customizing my
computer
After learning the basics of your TravelMate
computer, let’s get acquainted with the
advanced features of your computer. In this
chapter, you will learn how to add options,
upgrade components for better performance,
and customize your computer.
37
English
Expanding through options
Your TravelMate offers you a complete mobile computing experience.
Connectivity options
Ports allow you to connect peripheral devices to your computer as you
would with a desktop PC.
Fax/data modem
Your computer have a built-in V.90/92 56Kbps AC’97 Link fax/data
modem.
Warning! This modem port is not compatible with digital
phone lines. Plugging this modem into a digital phone line
will damage the modem.

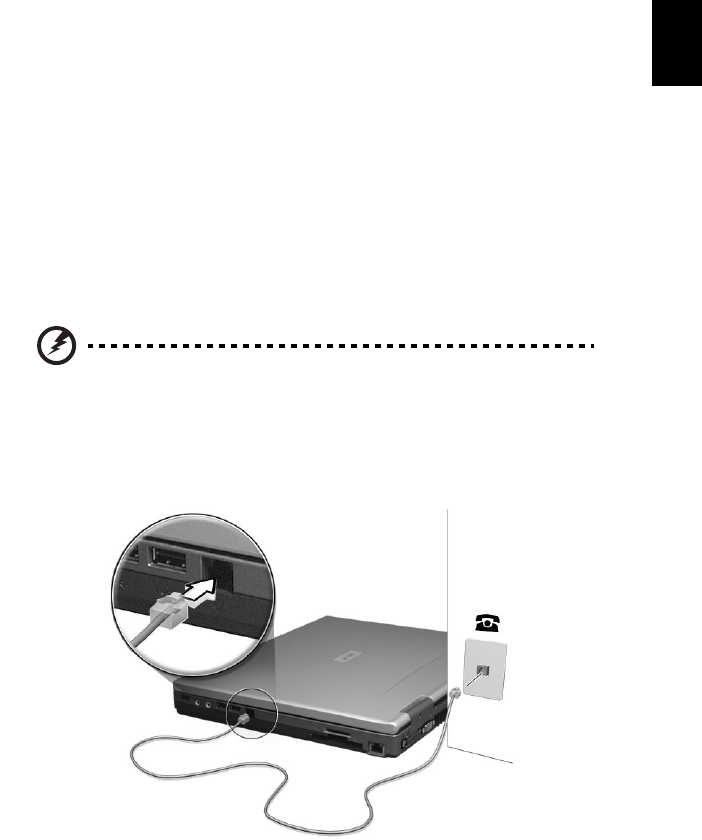

To use the fax/data modem port, connect a phone cable from the
modem port to a telephone jack.
Start your communications software program.
2 Customizing my computer
38
English
Built-in network feature
The built-in network feature allows you to connect your computer to
an Ethernet-based (10/100 Mbps) network.

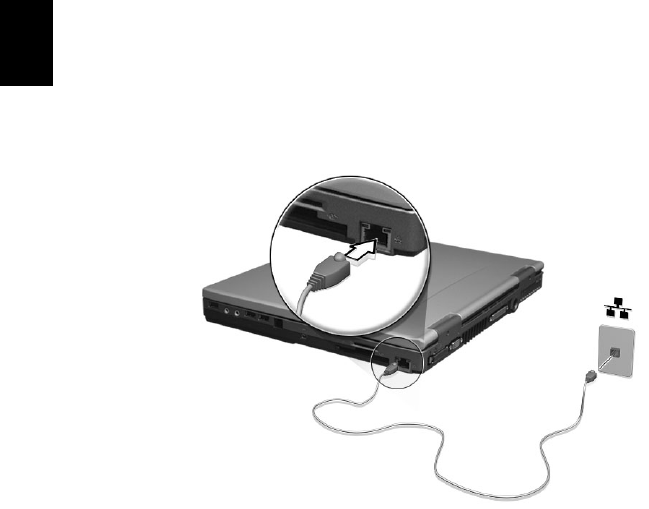

To use the network feature, connect an Ethernet cable from the
network jack on the right side of the computer to a network jack or
hub on your network.

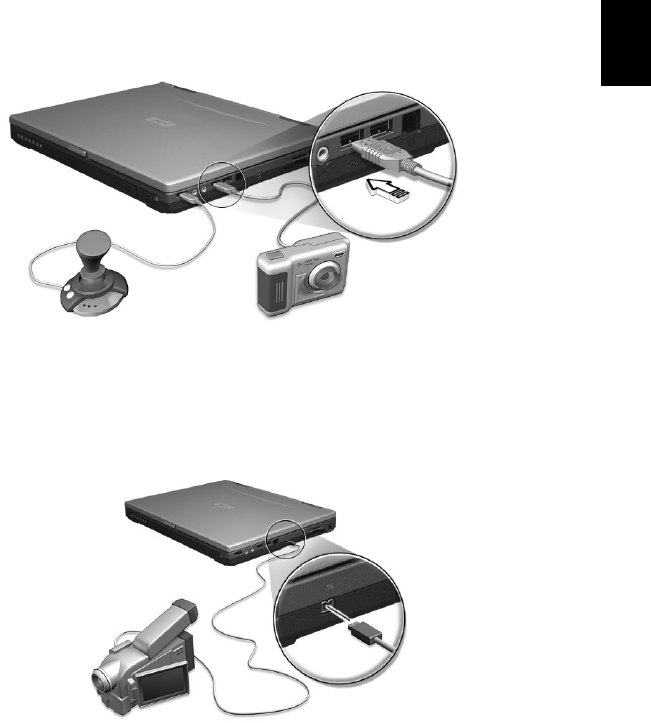

Universal Serial Bus
The Universal Serial Bus (USB) port is a high-speed serial bus which
allows you to connect and daisy-chain USB peripherals without taking
39
English
up precious system resources. Your computer has three USB 2.0 ports
available.
IEEE 1394 port
The computer's IEEE 1394 port allows you to connect to an IEEE 1394
supported devices like a video camera or digital camera.
See your video or digital camera's documentation for details.
PC Card slot
The type II CardBus PC Card slot found on the right side of the
computer accepts credit-card-sized cards that enhance the usability
and expandability of the computer. These cards should have a PC Card
logo on them.
2 Customizing my computer
40
English
PC Cards (formerly PCMCIA) are add-on cards for portable computers,
giving you expansion possibilities long afforded by desktop PCs.
Popular PC cards include fax/data modem, LAN, wireless LAN and SCSI
cards. CardBus improves on the 16-bit PC card technology by
expanding the bandwidth to 32 bits.
Note: Refer to your card’s manual for details on how to install and
use the card and its functions.

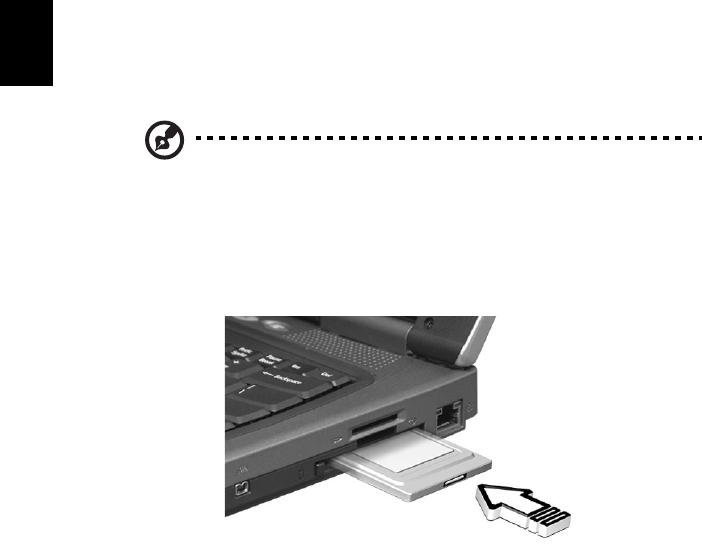

Inserting a PC Card
Insert the card into the slot and make the proper connection (e.g.,
network cable), if necessary. See your card manual for details.
Ejecting a PC Card
Before ejecting a PC Card:
1 Exit the application using the card.
2 Left-click on the PC Card icon on the taskbar and stop the card
operation.
41
English
3 Press the slot eject button to pop out the eject button (a); then
press it again to eject the card (b).
Upgrade options
Your computer delivers superior power and performance. However,
some users and the applications they use may demand more. This
computer allows you to upgrade key components when you need
increased performance.
Note: Contact your authorized dealer if you decide to perform a
key component upgrade.
Memory upgrade
Memory is expandable to 2 GB, employing 256/512-MB industry
standard soDIMMs (Small Outline Dual Inline Memory Modules). 1024
MB will be available in the future.
The computer supports DDR 266 (Double Data Rate) SDRAM
(Synchronous Dynamic Random Access Memory).
There are two memory slots on your computer, one of which is
occupied by standard memory. You can upgrade memory by installing
a memory module into the available slot, or replacing the standard
memory with a higher-capacity memory module.
2 Customizing my computer
42
English

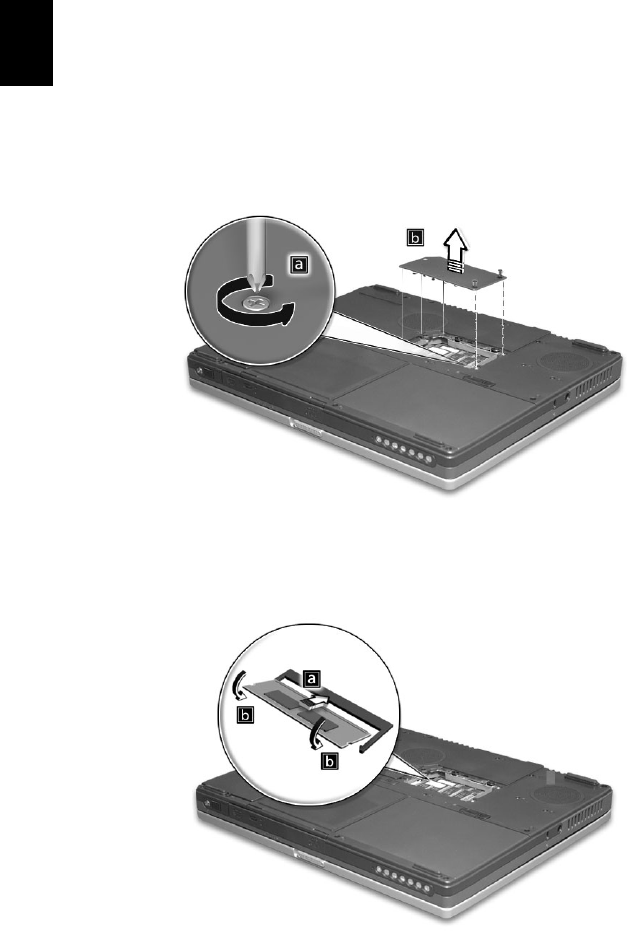

Installing memory
Follow these steps to install memory:
1 Turn off the computer, unplug the AC adapter (if connected) and
remove the battery pack. Then turn the computer over to access
its base.
2 Remove the screw from the memory cover (a); then lift up and
remove the memory cover (b).
3 Insert the memory module diagonally into the slot (a), then gently
press it down (b) until it clicks into place.
43
English
Using system utilities

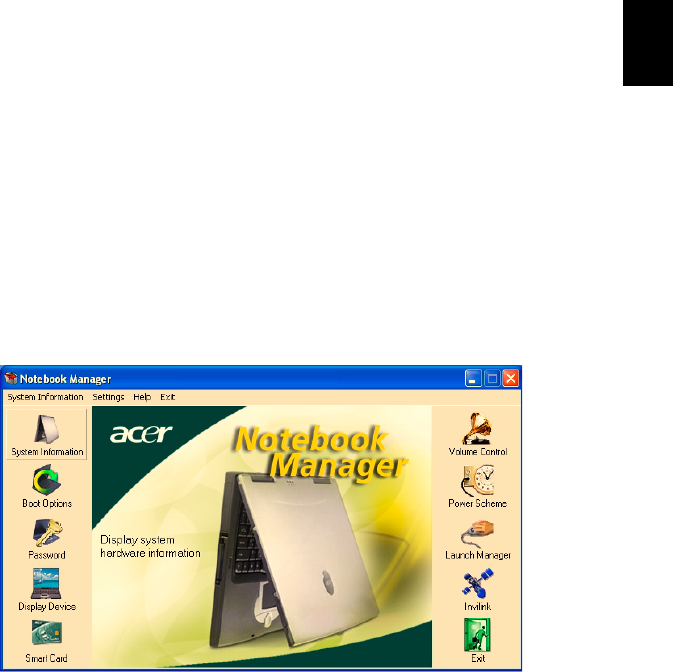

Notebook Manager
The computer has a built-in system setup program called Notebook Manager.
The Windows-based Notebook Manager allows you to set passwords, the
startup sequence of the drives, and power management settings. It also
shows current hardware configurations.
To start the Notebook Manager, press Fn-F2 or follow these steps:
1Click on Start, Programs, then Notebook Manager.
2Select the Notebook Manager application to run the program.
Click on Help for more information.
2 Customizing my computer
44
English
Launch Manager
Launch Manager allows you to set the four launch keys located above
the keyboard. See “Launch Keys” on page 18 for the location of the
launch key.
You can access the Launch Manager by clicking on Start, All Programs,
and then Launch Manager to start the application.
You can manually switch off the 802.11b/802.11a+b wireless LAN and
the Bluetooth wireless PAN by pressing the wireless button.
BIOS Utility
The BIOS Utility is a hardware configuration program built into your
computer’s BIOS (Basic Input/Output System).
Your computer is already properly configured and optimized, and you
do not need to run this utility. However, if you encounter
configuration problems, you may need to run it.
45
English
To activate the BIOS Utility, press F2 during the POST (power-on self-
test) while the TravelMate logo is being displayed.
Move the cusor key to Advanced to promt the following screen for
setting Hyperthreading Technology.
Note: Hyperthreading Technology is enbaded in CPU with 3.06GHz
and up.
2 Customizing my computer
46
English
3 Troubleshooting my
computer
This chapter instructs you on how to deal
with common system problems. Read it
before calling a technician if a problem
occurs. Solutions to more serious problems
require opening up the computer. Do not
attempt to open the computer by yourself.
Contact your dealer or an authorized service
center for assistance.
key link: www.acersupport.com
49
English
Frequently-asked questions
The following is a list of possible situations that may arise during the
use of your computer. Easy answers and solutions are provided for
each one.
I opened the display and pressed the power button, but computer
does not start or boot-up.
Look at the Power indicator:
•If it is not lit, no power is being applied to the computer. Check
the following:
•If you are running on battery power, it may be low and unable
to power the computer. Connect the AC adapter to recharge
the battery pack.
•Make sure that the AC adapter is plugged in properly to the
computer and to the power outlet.
•If it is lit, check the following:
•The operating system files may be damaged or missing. Insert
the bootable Acer System CD into the optical drive to restart
the system. This will diagnose your system and make necessary
fixes.
Nothing appears on the screen.
The computer’s power management system automatically blanks the
screen to save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, two things might
be the cause:
•The brightness level might be too low. Press Fn-→ (increase) and
Fn-← (decrease) to adjust the brightness to higher.
•The display device might be set to an external monitor. Press the
display toggle hot key Fn-F5 to toggle the display back to the
computer.
Image is not full-screen.
The computer display has a native resolution of 1024 x 768 (XGA) for
the 14.1”/15.0” or 1400 x 1050 (SXGA+) for the 15.0”(selected models
3 Troubleshooting my computer50
English
only). If you set the resolution lower than this, the screen expands to
fill the computer display.
Right-click on your Windows desktop and select Properties to bring up
the Display Properties dialog box. Then click on the Settings tab to
make sure that the resolution is set to the appropriate resolution.
Resolutions lower than the specified resolution may not be full-screen
on the computer or on an external monitor.
No audio is heard from the computer.
Check the following:
•The volume may be muted. In Windows, look at the volume
control (speaker) icon on the taskbar. If it is crossed-out, click on
the icon and deselect the Mute option.
•The speakers may be turned off. Press Fn-F8 to turn the speakers
on (this hot key also turns the speakers off).
•The volume level may be too low. In Windows, look at the volume
control icon on the taskbar. See “Hot keys” on page 15 for more
detail.
•If headphones, earphones or external speakers are connected to
the line-out port on the computer’s right panel, the internal
speakers automatically turn off.
51
English
I want to eject the optical drive tray without turning on the power. I
cannot eject the optical drive tray.
There is a mechanical eject button on the optical drive. Simply insert
the tip of a pen or paperclip and push to eject the tray.
The keyboard does not respond.
Try attaching an external keyboard to the USB port of the computer. If
it works, contact your dealer or an authorized service center as the
internal keyboard cable may be loose.
The printer does not work.
Check the following:
•Make sure that the printer is connected to a power outlet and that
it is turned on.
•Make sure that the printer cable is connected securely to the
computer’s parallel port and the corresponding port on the
printer.
•During POST, press F2 to access the BIOS Utility and verify that the
parallel port is enabled.
I want to set up my location to use the internal modem.
To properly use your communications software (e.g., HyperTerminal),
you need to set up your location: (for Windows XP)
1Click on Start, Control Panel.
2 Double-click on Phone and Modem.
3Click on Dialing Rules and begin setting up your location.
Refer to the Windows manual.
3 Troubleshooting my computer52
English
Requesting service
International Traveler’s Warranty (ITW)
Your computer is backed by an International Traveler’s Warranty (ITW)
that gives you security and peace of mind when traveling. Our
worldwide network of service centers are there to give you a helping
hand.
An ITW passport comes with your computer. This passport contains all
you need to know about the ITW program. A list of available,
authorized service centers is in this handy booklet. Read this passport
thoroughly.
Always have your ITW passport on hand, especially when you travel to
receive the benefits from our support centers. Place your proof-of-
purchase in the flap located inside the front cover of the ITW passport.
If the country you are traveling in does not have an Acer-authorized
ITW service site, you can still get in contact with our offices worldwide.
There are two ways to access Acer for technical support and
information:
•Internet service worldwide (www.acersupport.com)
•Technical support numbers in various countries
You can view a list of technical support numbers by following these
steps: (for Windows XP)
1Click on Start.
2Click on Help and Support.
3Click on Contact Acer.
You can also check Acer worldwide service centers by following these
steps:
1Click on Start.
2 Right click on My Computer, choose Properties.
3Click Support Information for more information about Acer
worldwide service centers.
53
English
Before you call
Please have the following information available when you call Acer for
online service, and please be at your computer when you call. With
your support, we can reduce the amount of time a call takes and help
solve your problems efficiently.
If there are error messages or beeps reported by your computer, write
them down as they appear on the screen (or the number and sequence
in the case of beeps).
You are required to provide the following information:
Name:________________________________________
Address:______________________________________
______________________________________________
Telephone number:____________________________
Machine and model type:_______________________
Serial number:_________________________________
Date of purchase:______________________________
3 Troubleshooting my computer54
English
Appendix A
Specifications
This appendix lists the general specifications
of your computer.
57
English
Microprocessor
•Intel® Desktop P4P CPU with packing mPGA 478 package, 533
MHz FSB (front side bus)
•Main memory expandable to 2 GB, dual 200-pin soDIMM sockets
•DDR 266 (PC2100) DDR-SDRAM (Double Data Rate-Synchronous
Dynamic Random Access Memory) support
•512 KB Flash ROM BIOS
Data storage
•One high-capacity, Enhanced-IDE hard disk
•One 5.25-inch internal optical drive
Display and video
•Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32-
bit true color up to 1024 x 786 eXtended Graphics Array (XGA)
resolution for 14.1”/15.0”or 1400 x 1050 Super eXtended Graphics
Array+ (SXGA+) resolution for 15.0”
•ATi Radeon 7500 video chip, with 32/64 MB dedicated DDR video
memory
•4X AGP bus with 3D acceleration
•Simultaneous LCD and CRT display support
•Dual display capability
•S-video for output to a television or display device that supports
S-video input (NTSC/PAL)
•"Automatic LCD dim" feature that automatically decides the best
settings for your display and conserves power
Audio
•18-bit AC’97 stereo audio
•Dual speakers and microphone
•Audio ports for microphone/line-in and headphone/speaker/line-
out
•Audio DJ console for audio CD playback when the computer is off
Keyboard and pointing device
•84-/85-/88-key Windows keyboard
Appendix A Specifications58
English
•Ergonomically-centered touchpad pointing device with 4-way
scroll button
I/O ports
•One type II CardBus PC Card slots
•One RJ-45 jack (Ethernet 10/100)
•One RJ-11 jack (V.90/56Kbps)
•One DC-in jack
•One parallel port (ECP/EPP)
•One external monitor port
•One headphone/speaker/line-out jack (3.5mm mini jack)
•One microphone/line-in jack (3.5mm mini jack)
•Three USB ports
•One IEEE 1394 port
•One S-video TV-out (NTSC/PAL) port
•100-pin port replicator connector for Acer EasyPort
•One SD/MMC slot
•One memory stick slot
Weight and dimensions
•327(W) x 269(D) x 35.9(F) x 39.9(R)mm; (12.9" x 10.6" x 1.4") for
14.1"/15.0" LCD
•2.99 kg (6.6 lbs) for 14.1" LCD model / 3.11kg (6.8 lbs) for 15.0"
LCD model
Environment
•Temperature
•Operating: 5°C ~ 35°C
•Non-operating: -20°C ~ 65°C
•Humidity (non-condensing)
•Operating: 20% ~ 80% RH
•Non-operating: 20% ~ 80% RH
59
English
System
•ACPI support
•DMI 2.0-compliant
•Microsoft Windows operating system
Power
•Battery pack
•70Wh Li-Ion battery pack
•3~3.5-hour rapid charge/4.5-hour charge-in-use
•AC adapter
•90-Watt
•Auto sensing 100~240Vac, 50~60Hz
Options
•256/512-MB memory upgrade modules (1024 MB will be available
in the future)
•Additional Li-Ion battery pack
•Additional AC adapter
•Bay floppy disc drive, DVD drive and DVD/CD-RW combo drive
•Acer EasyPort
•USB FDD(Bootable)
•2nd HDD(Bootable)
Appendix A Specifications60
English
Appendix B
Notices
This appendix lists the general notices of your
computer.
63
English
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the device and receiver
•Connect the device into an outlet on a circuit different from that to which
the receiver is connected
•Consult the dealer or an experienced radio/television technician for help
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.
Use conditions
This part complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Appendix B Notices64
English
Notice: Canadian users
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numérique de la classe B respected toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Modem notices
FCC
This equipment complies with Part 68 of the FCC rules. Located on the bottom
side of the modem is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment.
Upon request, you must provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible, they
will notify you in advance. But, if advance notice is not practical, you will be
notified as soon as possible. You will also be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance to give you an
opportunity to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is
with the equipment, discontinue use and contact your dealer or vendor.
TBR 21
This equipment has been approved [Council Decision 98/482/EC - “TBR 21”] for
pan-European single terminal connection to the Public Switched Telephone
Network (PSTN). However, due to differences between the individual PSTNs
provided in different countries, the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN termination
point. In the event of problems, you should contact your equipment supplier in
the first instance.
Important safety instructions
Read these instructions carefully. Save these instructions for future reference.
65
English
1 Follow all warnings and instructions marked on the product.
2 Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3 Do not use this product near water.
4 Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
5 Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should never be placed near or
over a radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
6 This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
7 Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
8 If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
9 Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.
10 Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to qualified service personnel.
11 Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a When the power cord or plug is damaged or frayed
b If liquid has been spilled into the product
c If the product has been exposed to rain or water
d If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal condition.
e If the product has been dropped or the cabinet has been damaged
Appendix B Notices66
English
f If the product exhibits a distinct change in performance, indicating a
need for service.
12 Replace the battery with the same type as the product's battery we
recommend. Use of another battery may present a risk of fire or explosion.
13 Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children and
dispose of used batteries promptly.
14 Use only the proper type of power supply cord set (provided in your
accessories box) for this unit. It should be a detachable type: UL listed/CSA
certified, type SPT-2, rated 7A 125V minimum, VDE approved or its
equivalent. Maximum length is 15 feet (4.6 meters).
Laser compliance statement
The CD, DVD or DVD/CD-RW drive used with this computer is a laser product.
The CD, DVD or DVD/CD-RW drive’s classification label (shown below) is located
on the drive.
CLASS 1 LASER PRODUCT
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO
BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS
D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE
EXPONERSE A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA
SÅTEESEENSTIRRA EJ IN I STRÅLEN
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I
STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN
Lithium battery statement
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the
67
English
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to local regulations. Recycle if at all possible.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til
leverandøren.
ADVARSEL
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller
en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt
batteri enligt fabrikantens instruktion.
VAROITUS
Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo
valmistajan ohjeiden mukaisesti.
VORSICHT!
Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or colored
dots. This has no effect on the recorded image and does not constitute a
malfunction.
Macrovision copyright protection notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and
4,907,093 licensed for limited viewing uses only.
Appendix B Notices68
English
A-Tick notice
For safety reasons, only connect headsets with a telecommunications
compliance label. This includes customer equipment previously labelled
permitted or certified.
The unit shall be connected to Telecommunication Network through a line cord
which meets the requirements of ACA Technical Standard TS008.
Australian approved mains cord set shall be used with the equipment.
69
English
Index
A
AC adapter
caring for v
AcerMedia drive 22
audio 24
adjusting the volume 24
troubleshooting 50
B
battery pack
caring for v
charging indicator 11
BIOS utility 44
brightness
hotkeys 16
C
caps lock 12
on indicator 11
care
AC adapter v
battery pack v
computer iv
CD-ROM
ejecting 22
ejecting manually 51
troubleshooting 51
cleaning
computer v
computer
bringing to meetings 28
caring for iv
cleaning v
disconnecting 27
features 3, 9
indicators 11
keyboards 12
moving around 27
on indicator 11
performance 9
security 32
setting up a home office 29
taking home 28
traveling internationally 30
traveling on local trips 30
troubleshooting 48
turning off iv
Wireless Communication indica-
tor 11
connections
network 38
D
display
hotkeys 16
troubleshooting 49
DVD 23
DVD movies
playing 23
E
email checking function 19
Euro 17
F
FAQ. See frequently-asked questions
frequently-asked questions 49
front view 3
H
hard disk 22
help
online services 52
Hibernation mode
hotkey 15
hotkeys 15
I
IEEE 1394 port 39
indicator lights 11
ITW. See warranty
K
keyboard 12
embedded numeric keypad 13
hotkeys 15
lock keys 12
troubleshooting 51
Windows keys 14
L
LEDs 11
70
English
M
media access
on indicator 11
memory
installing 42–??
upgrading 41
modem 37
N
network 38
Notebook Manager 43
hotkey 15
notice
DVD copyright protection 67
num lock 12
on indicator 11
numeric keypad
embedded 13
num lock 13
O
online services 52
options
memory upgrade 41
P
password 32
types 32
PC Card 39
ejecting 40
inserting 40
ports 37
POST (power-on self-test) 45
printer
troubleshooting 51
problems 49
CD-ROM 51
display 49
keyboard 51
printer 51
startup 49
troubleshooting 48
Q
questions
setting location for modem use
51
S
safety
CD-ROM 66
FCC notice 63
general instructions 64
modem notices 64
scroll lock 12
security
keylock 32
passwords 32
smart card 32
service
when to call vi
speakers
hotkey 16
troubleshooting 50
specifications 56
Standby mode
hotkey 15
status indicators 11
storage 22
AcerMedia drive 22
hard disk 22
support
information 52
T
touchpad 20
hotkey 16
using 20
travel
international flights 30
local trips 30
troubleshooting 48
U
universal serial bus 38
V
view
bottom 8
front 5
left 5
rear 7
right 6
volume
adjusting 24
71
English
W
warranty
International Traveler’s Warran-
ty 52
Windows keys 14
72
English
