Wistron NeWeb CB1GSKV2C Intergrate with certified module-End product User Manual UMC SKV2C Rev 05 20160426
Wistron NeWeb Corporation Intergrate with certified module-End product UMC SKV2C Rev 05 20160426
User manual
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 1 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
UMC-SKV2C User Manual
The document contains proprietary information which is the property of Wistron NeWeb
Corporation and is strictly confidential and shall not be disclosed to others in whole or in
part, reproduced, copied, or used as basic for design, manufacturing or sale of apparatus
without the written permission of Wistron NeWeb Corporation.
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 2 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
Revision History
Issue Date Version Description
2016/03/25 0.1 Initial Issued
2016/03/28 0.2 Add LTE P/D switch and appendix I
2016/03/30 0.3 Add assemble pictures including SMCC/Honey board/external antenna connection
2016/04/08 0.4 Update the control command for Zigbee
2016/04/26 0.5 Add warning messages and some notes
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 3 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
Contents
1. Introduction .......................................................................................................................................... 4
2. Test Setup Configuration ..................................................................................................................... 5
2.1 Power Supply and Debug Console Connection ...................................................................... 5
2.2 Antenna Connection ................................................................................................................. 6
2.3 Whole DUT connection ............................................................................................................ 7
2.4 Hardware Component Introduction ....................................................................................... 8
3. Zigbee Test .......................................................................................................................................... 10
3.1 COM port Setup in a Windows Host PC ................................................................................ 10
3.2 Enter Zigbee Control mode .................................................................................................... 12
3.3 Zigbee Test Command ............................................................................................................ 12
4. LTE B4/B13 Test ................................................................................................................................. 13
4.1 For LTE connection to Test Equipment ................................................................................... 13
4.2 LTE Rx Primary/Secondary switch for OTA ........................................................................... 14
Appendix I ................................................................................................................................................... 16
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 4 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
1. Introduction
This User Manual of Victor CB (Communication Board) module is to describe how to use
the following sections for lab test by specific qualified engineers or technicians.
Furthermore, this module is NOT intended for commercial use but designed as part of
Smart Meter product which mainly provides 4G LTE WAN access and/or Zigbee HAN
access capabilities. For the procedure of CB installation into electric meter and the
operation of CB in assembly factory, that information is described in assembly instruction
document.
FCC Interference Statement
This module complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This module may not cause harmful interference and (2) this module
must accept any interference received, including interference that may cause undesired
operation.
Radiation Exposure Statement
This module complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This module should be installed and operated with minimum distance of
20cm between radiator and human body.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the device.
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 5 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
2. Test Setup Configuration

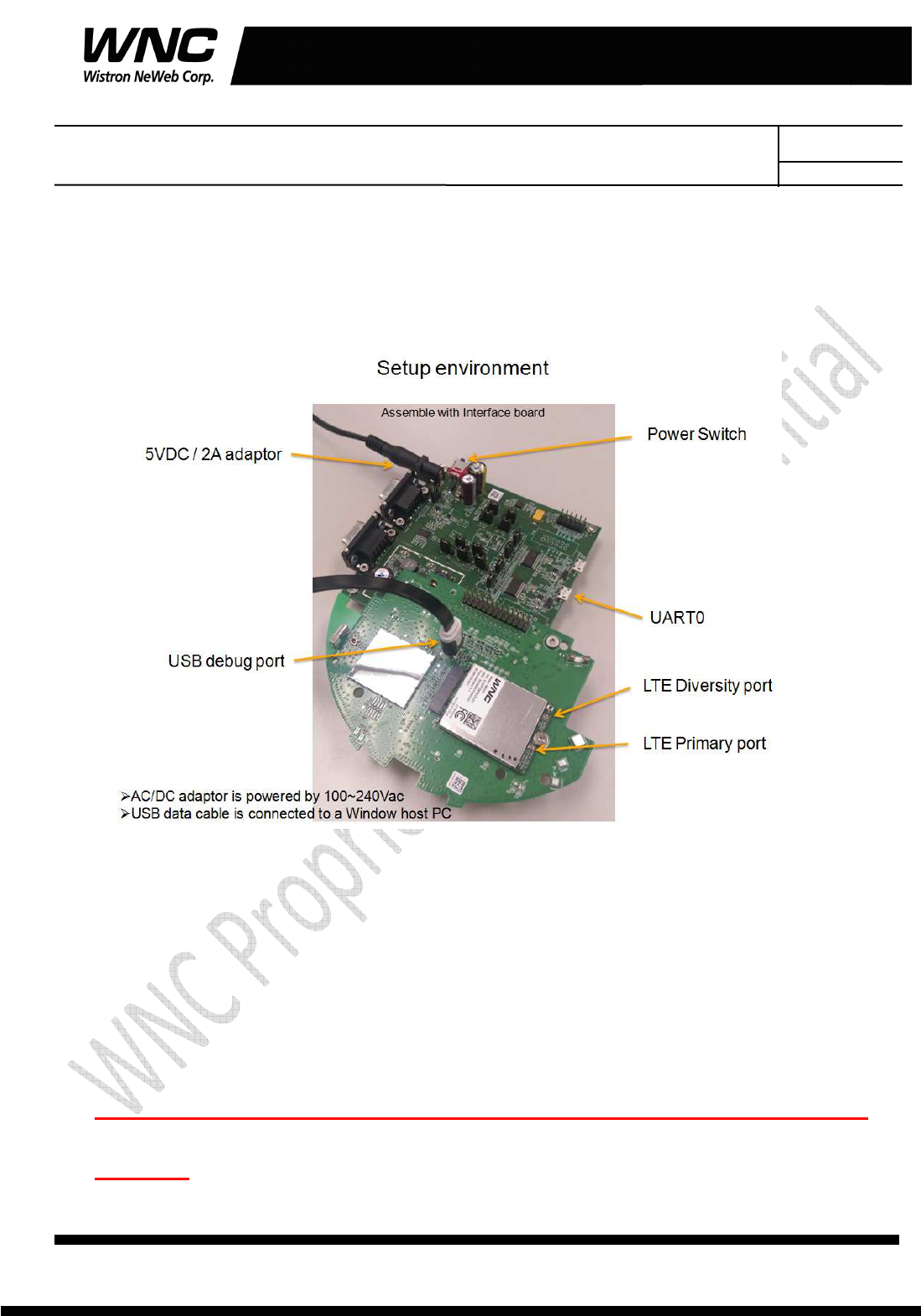

2.1 Power Supply and Debug Console Connection
Power on Sequence:
I. Connect 30-pin-to-Jig-baord cable
II. Attach AC-DC Adaptor & USB Debug Port Cable
III. Wait for 20 seconds when system ready
[Caution] Improper power on sequence might lead to system boot-up
failure!
Interface Board
DUT (CB)
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 6 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

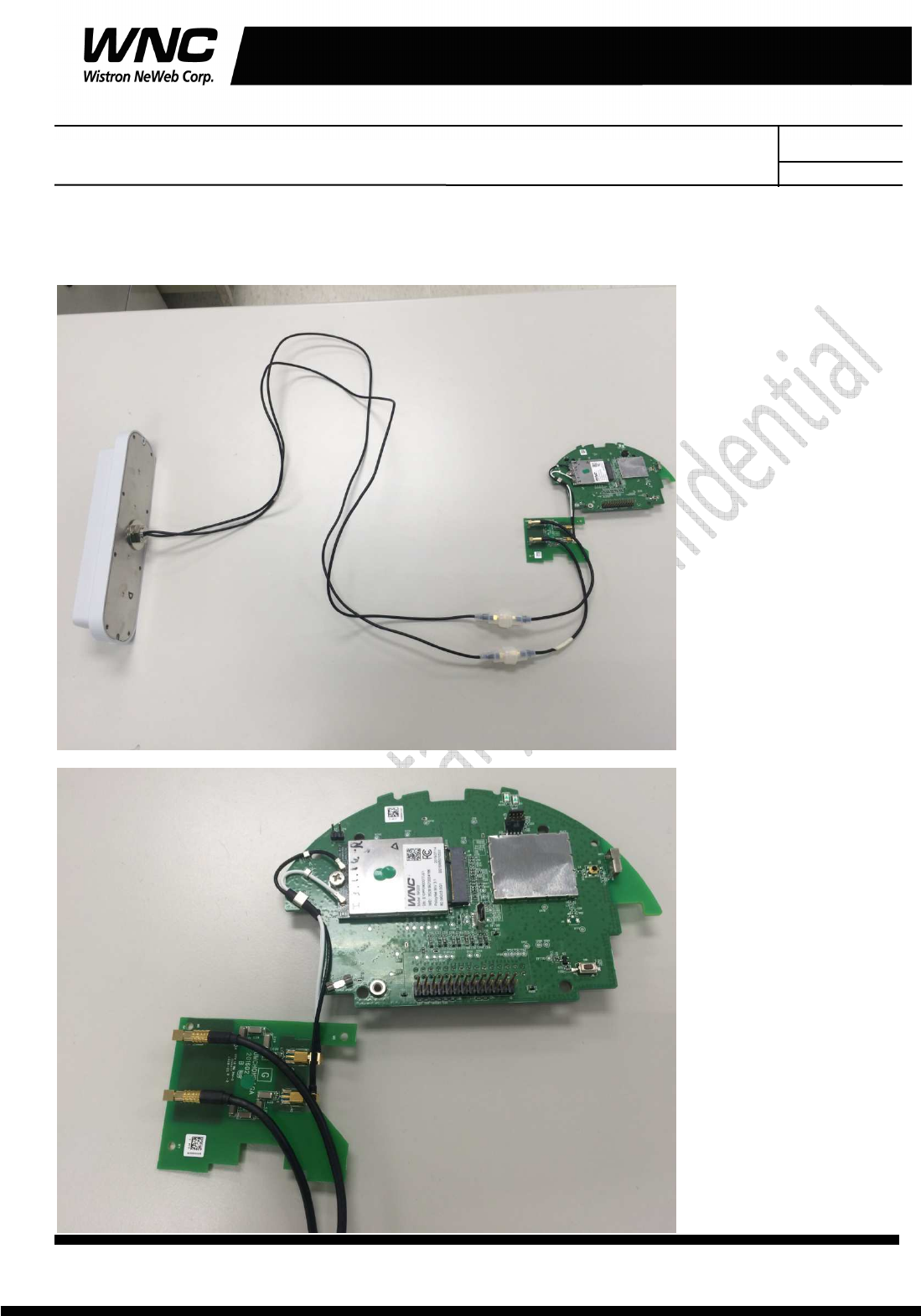

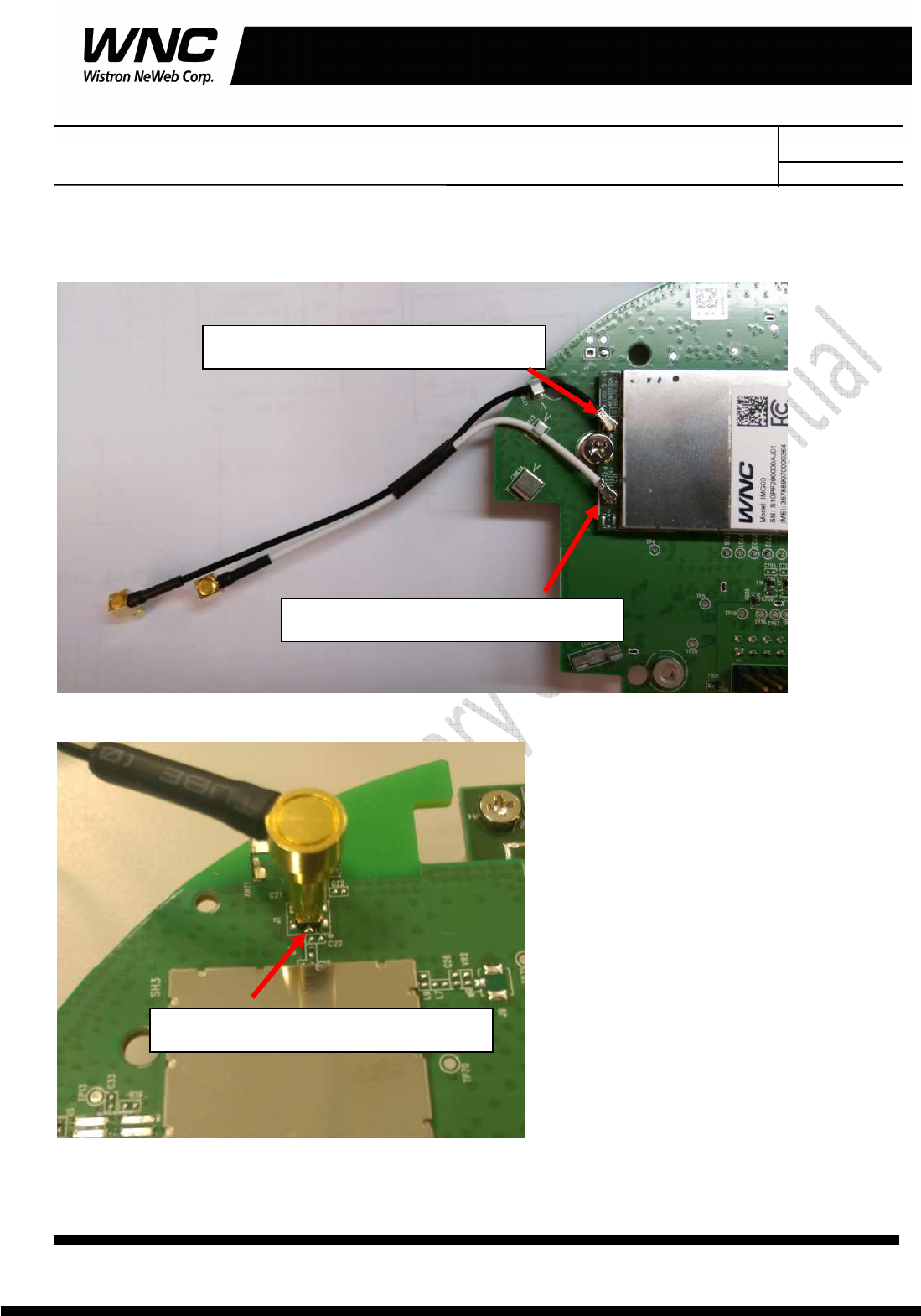

2.2 Antenna Connection
Connect to LTE primary antenna
Connect to LTE diversity antenna
Connect to Zigbee antenna
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 7 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
2.3 Whole DUT connection
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 8 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

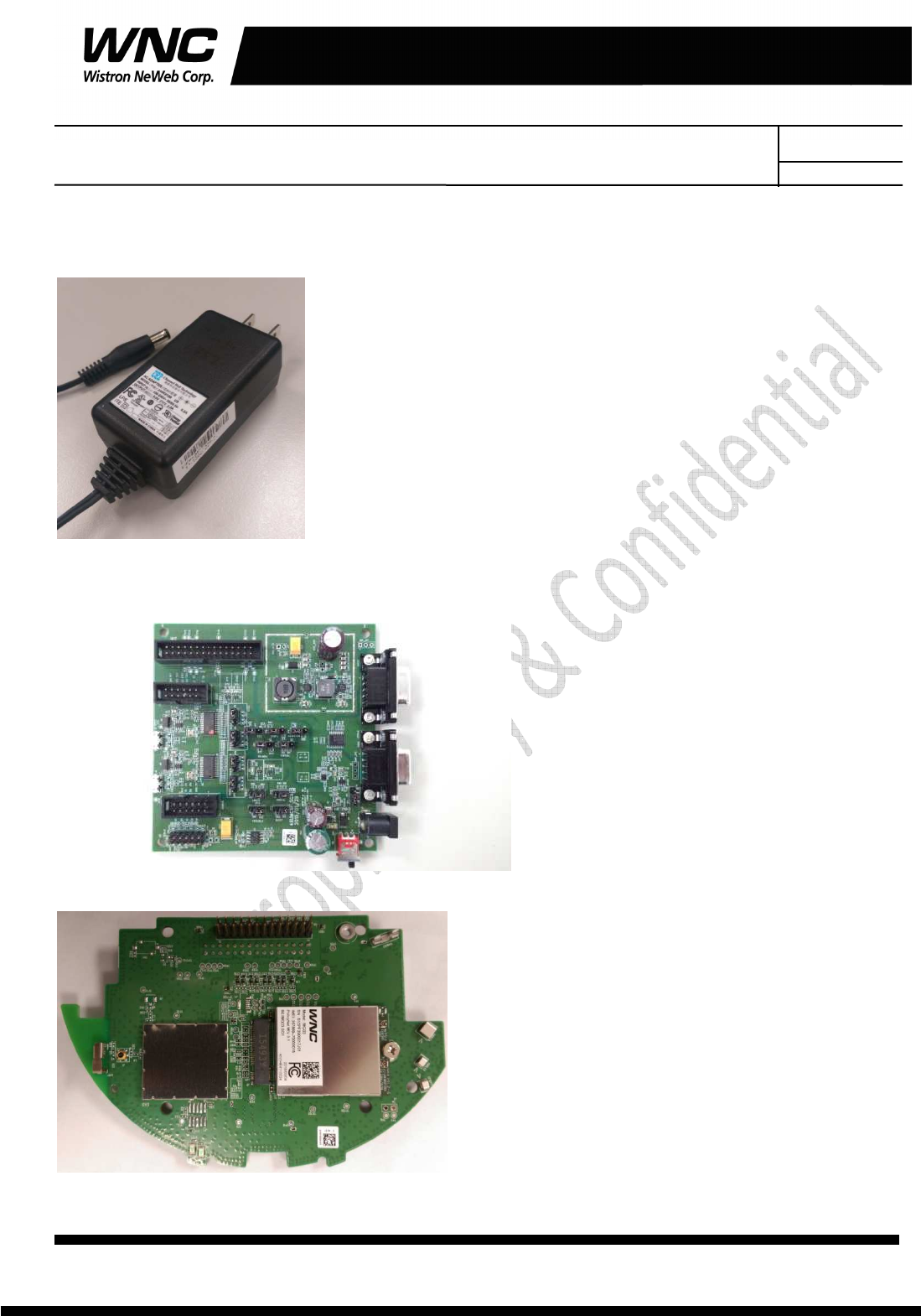

2.4 Hardware Component Introduction
AC-DC 5V Adaptor
Interface Board
Victor CB
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 9 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

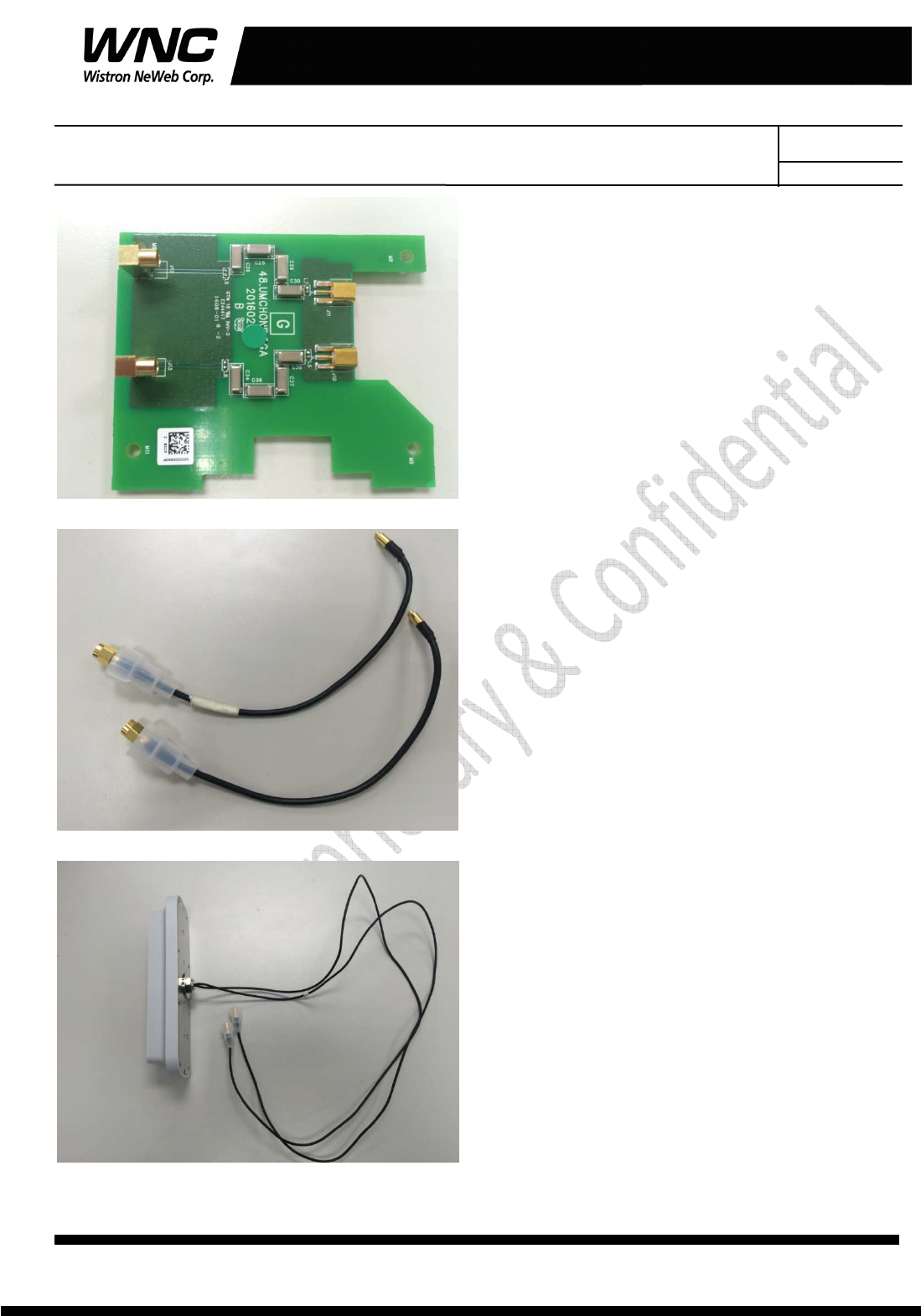

Honey Board
Extension Cable
External Antenna
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 10 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
3. Zigbee Test
3.1 COM port Setup in a Windows Host PC
Install PuTTy for connection to DUT, refer to http://www.putty.org/
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 11 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

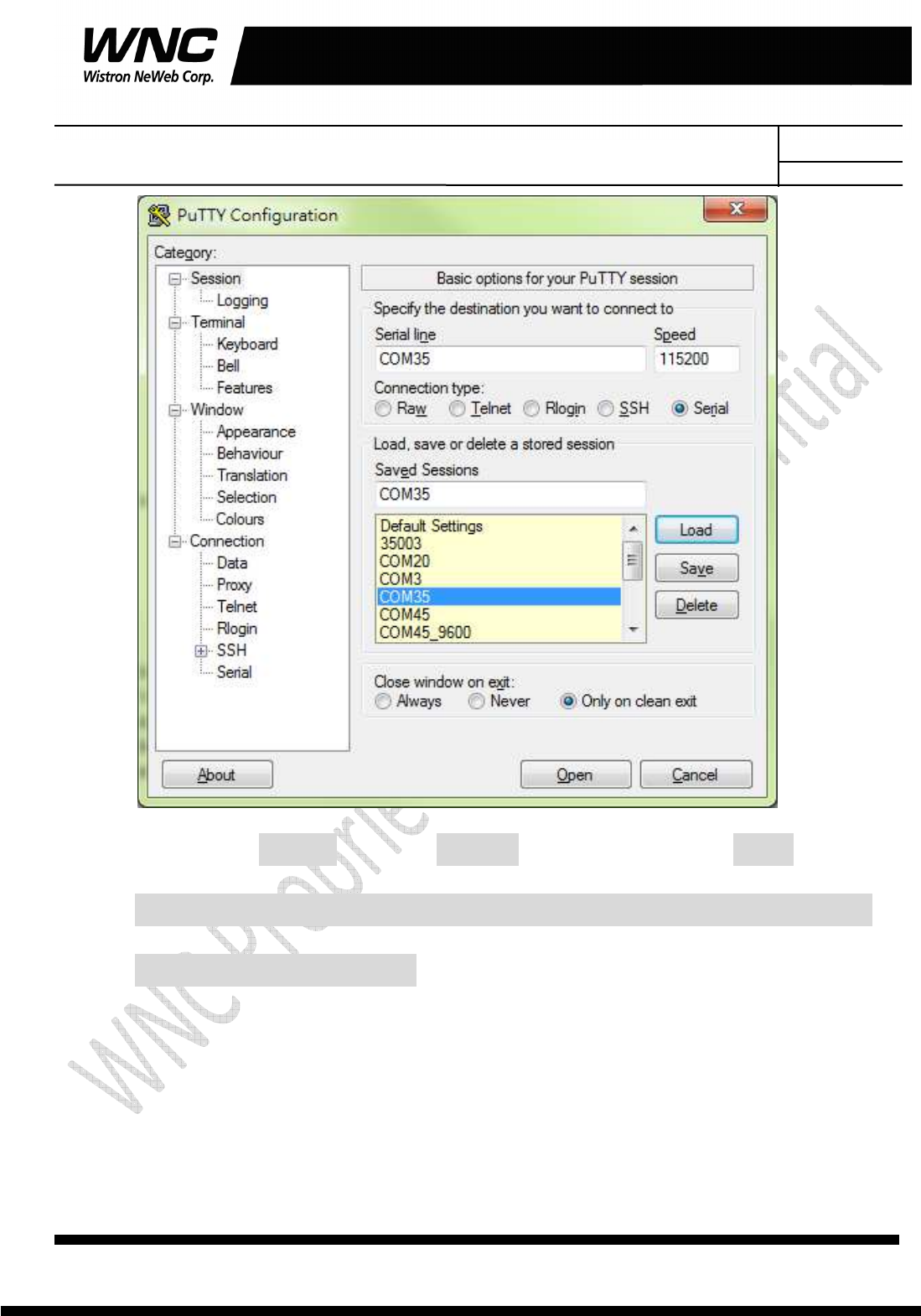

Serial Line: COMxx ; Speed: 115200 ; Connection Type: Serial
Note: If there is no response when typing anything in the com port,
please see the appendix I.
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 12 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

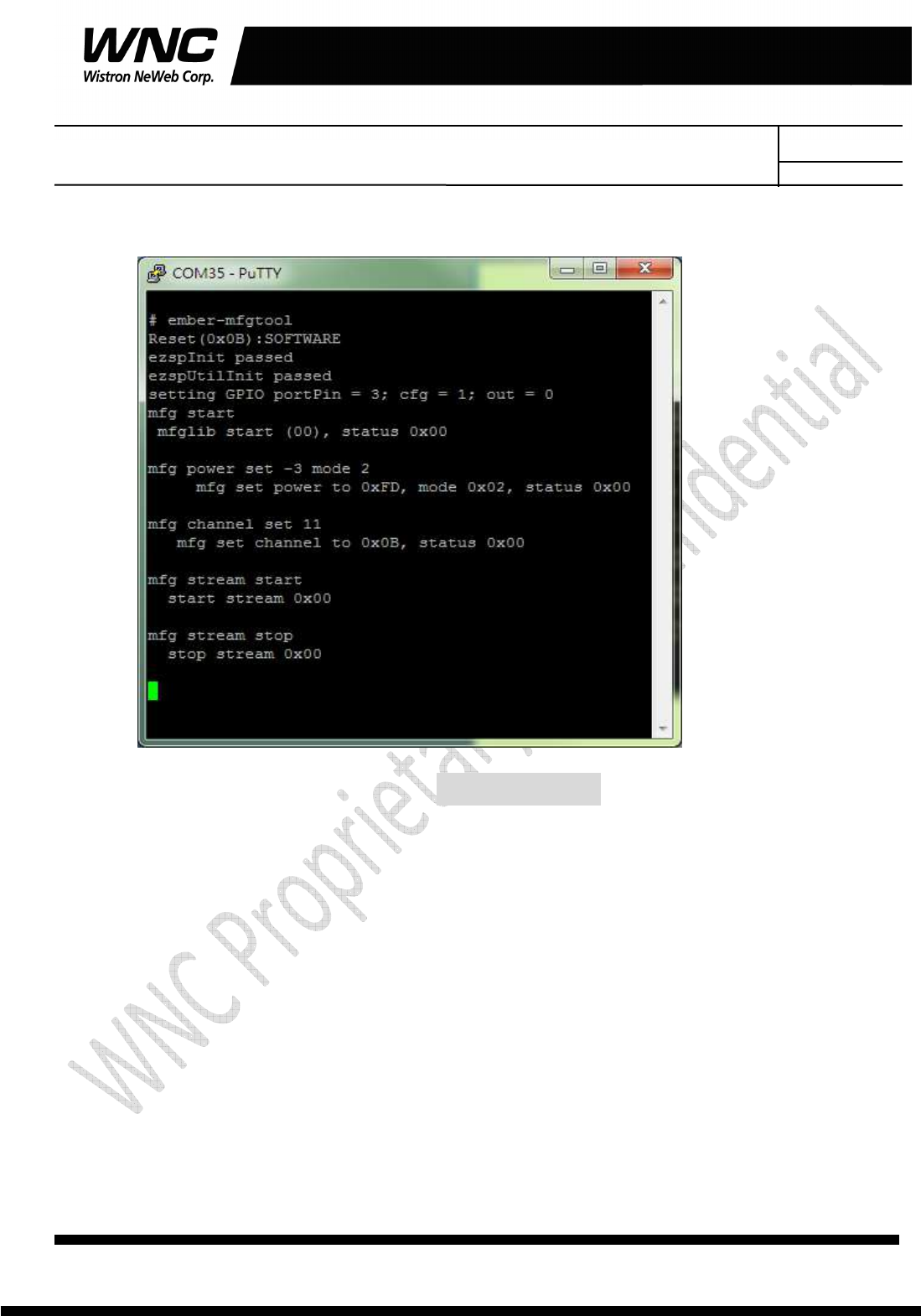

3.2 Enter Zigbee Control mode
Enter Zigbee control mode: ember-mfgtool
3.3 Zigbee Test Command
Freq. channel setting: mfg channel set 11
Channel Low : 11 -> CH11
Channel Mid : 18 -> CH18
Channel High : 25 -> CH25
Power level/mode setting: mfg power set -3 mode 2
Enable callback: mfg start 1
Single tone output: mfg tone start
Single tone output stop: mfg tone stop
Modulation signal output: mfg stream start
Modulation signal output stop : mfg stream stop
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 13 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
4. LTE B4/B13 Test
It is suggested to use Anritsu MT8820C for RF conductive test
For LTE radiation tests, the LTE antenna gain lists below.
LTE Main Antenna
Band 13 Peak Gain: 2.0 dBi ~ 2.5 dBi
Band 4 Peak Gain: 4.5 dBi ~ 5.0 dBi
LTE Diversity Antenna
Band 13 Peak Gain: 2.0 dBi ~ 2.5 dBi
Band 4 Peak Gain: 2.5 dBi ~ 3.0 dBi
4.1 For LTE connection to Test Equipment
When UMC-I210C is installed with test SIM, it can automatically
connect to tester, such as Anritsu 8820C.
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 14 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

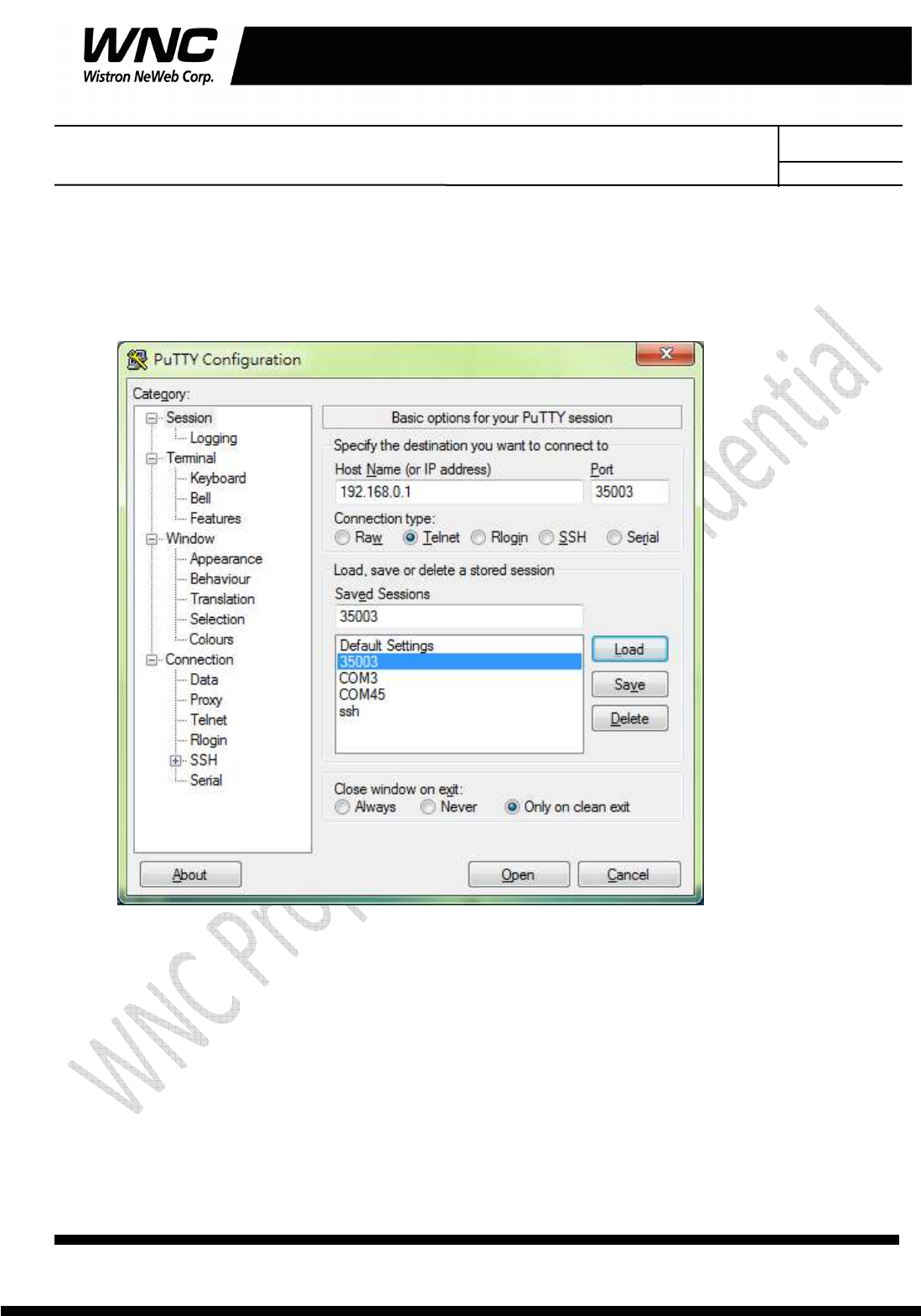

4.2 LTE Rx Primary/Secondary switch for OTA
Login the cli mode (only in service mode 1,4)
Telnet IP:192.168.0.1 Port: 35003
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 15 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

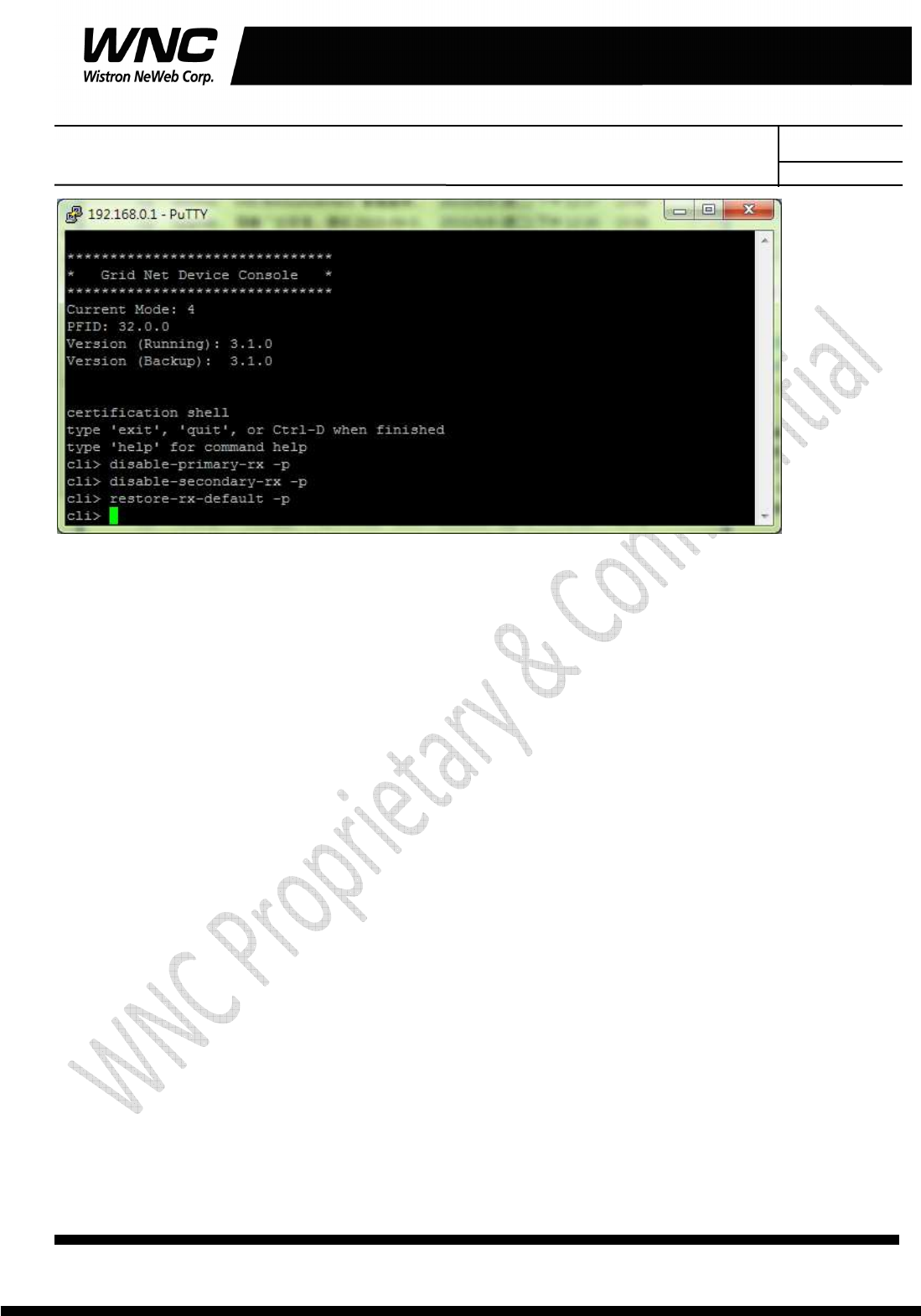

disable-primary-rx -p Disable Primary Rx
disable-secondary-rx -p Disable secondary Rx
restore-rx-default -p Enable Primary/Secondary Rx
Note: The setting will persist across reboots
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 16 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document
Appendix I
Change System Service Mode for Serial Port Control

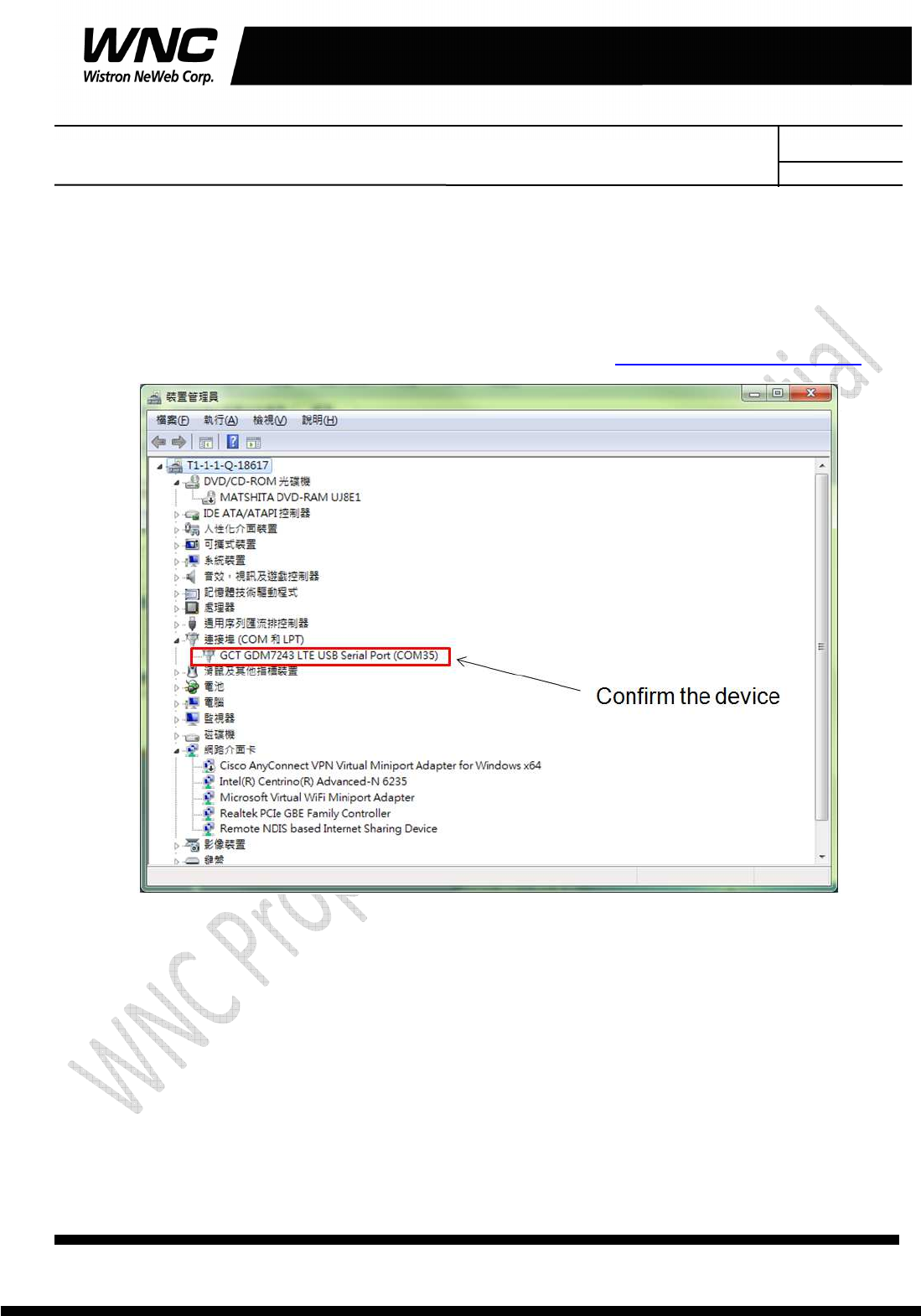

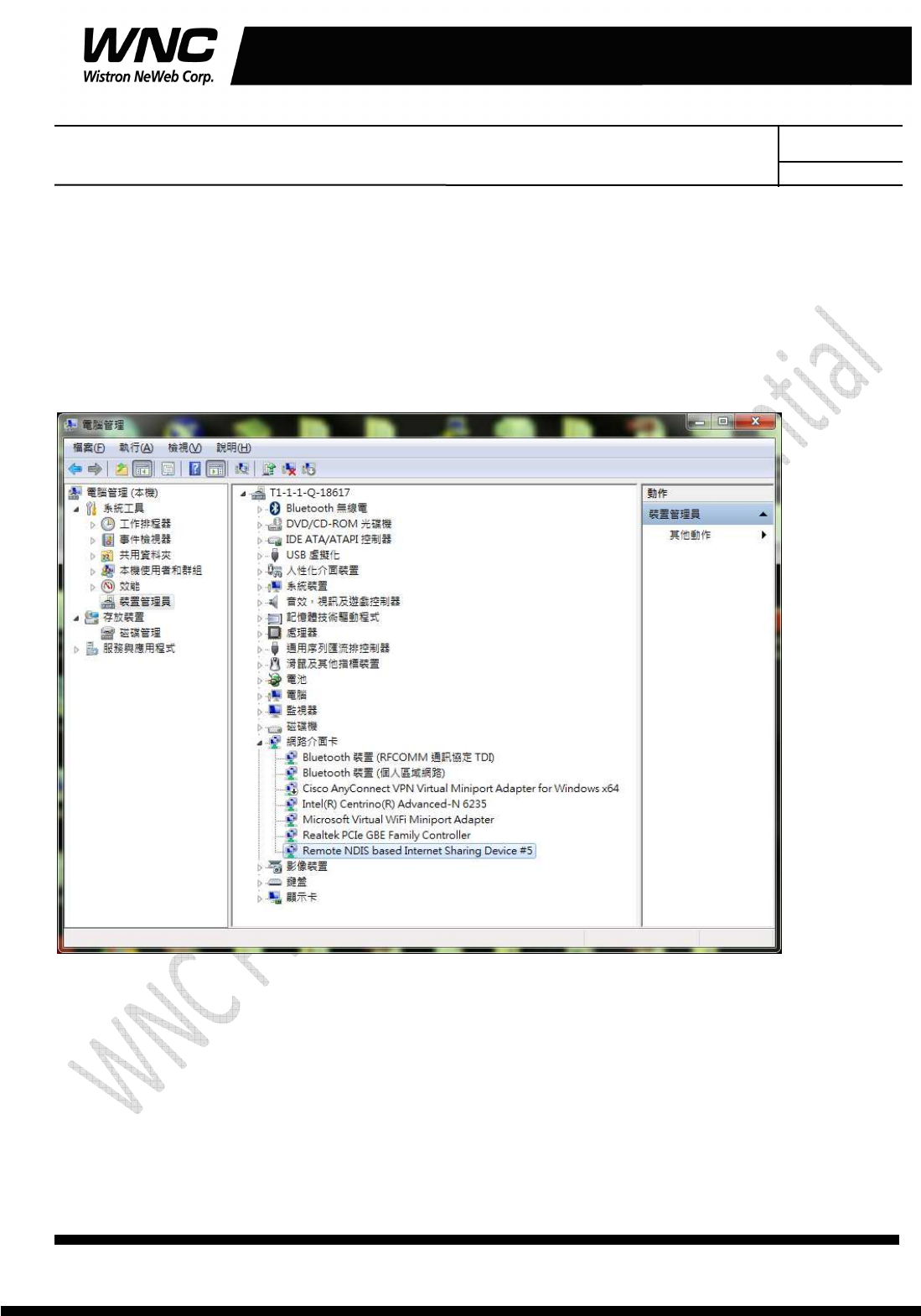

Step 1: Confirm windows capture the device
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 17 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

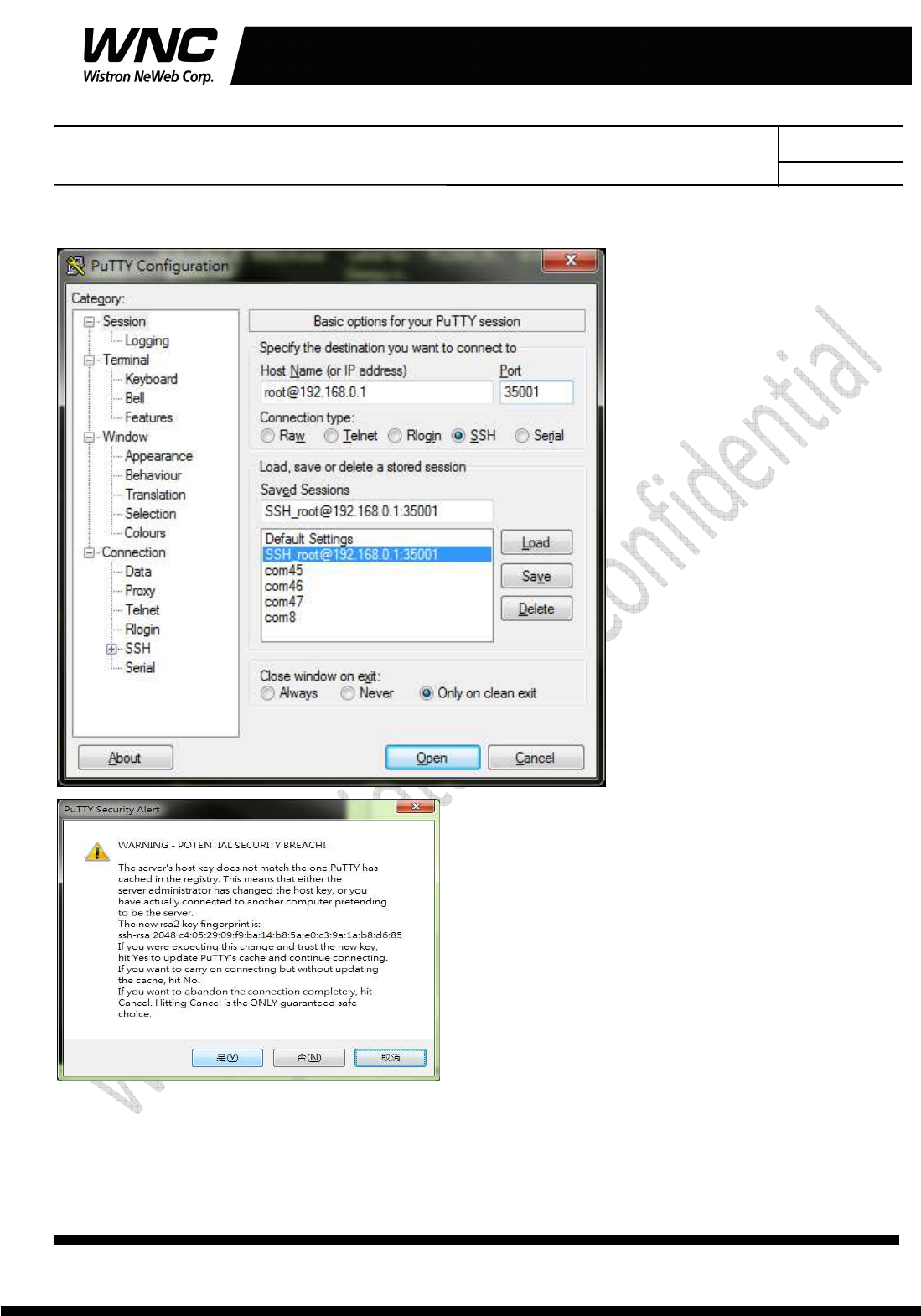

Step 2: Establish SSH connection by Putty in windows
Hostname: root@192.168.0.1 port: 35001 Connection type: SSH
Click “NO” for continue without saving ssh key
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 18 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

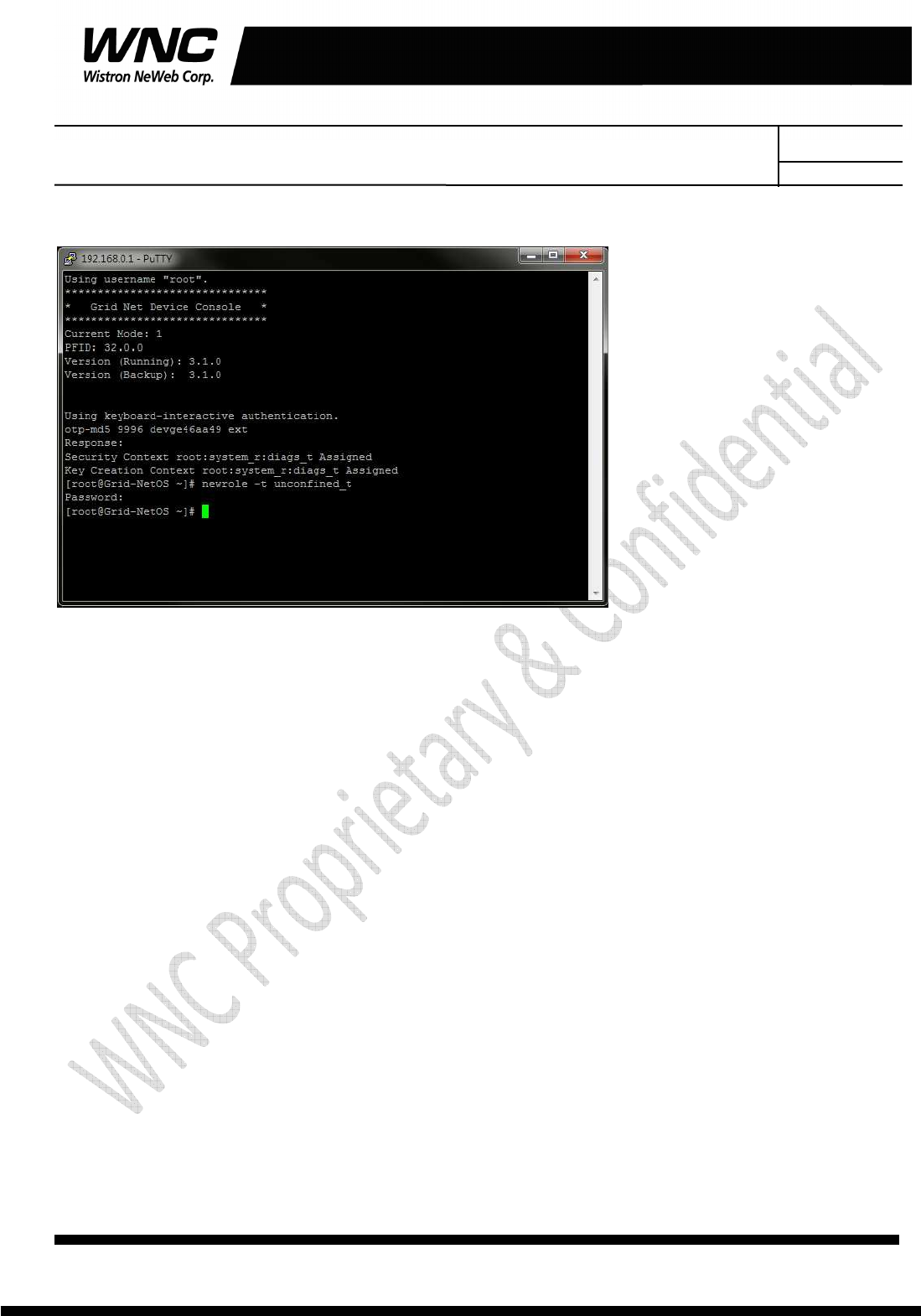

Step 3: Login with one time password.
Login with one time pass word
Look up the corresponding password in the OTP list below.
Ex: 9998
NOB YET HECK CAKE CUR MALE
Enter command: newrole -t unconfined_t
Look up the corresponding password in the OTP list below.
Ex: 9997
VOID COON MEET TEST OVER MOD
One Time Password (OTP ) List:
9989: ACTS EDGY AMID TAG TREE SLIM
9990: DO SAT HI SOIL A HATE
9991: SOON CUE PEG SAUL LACK IFFY
9992: SALK NAVY ROVE INCA LOON HIT
9993: GULF NOUN HUH TAKE OLIN SILO
9994: WAYS AUNT GAUL IRK TALK ROSE
9995: HAT PRY CLAW CHIC GAP CHIN
9996: MAC OLAF GLOM OVAL SAC LO
9997: VOID COON MEET TEST OVER MOD
9998: NOB YET HECK CAKE CUR MALE
Subject: UMC-SKV2C User Manual
REV: 0.5
PAGE 19 OF 19
Wistron Neweb Corporation Proprietary & Confidential
Design Document

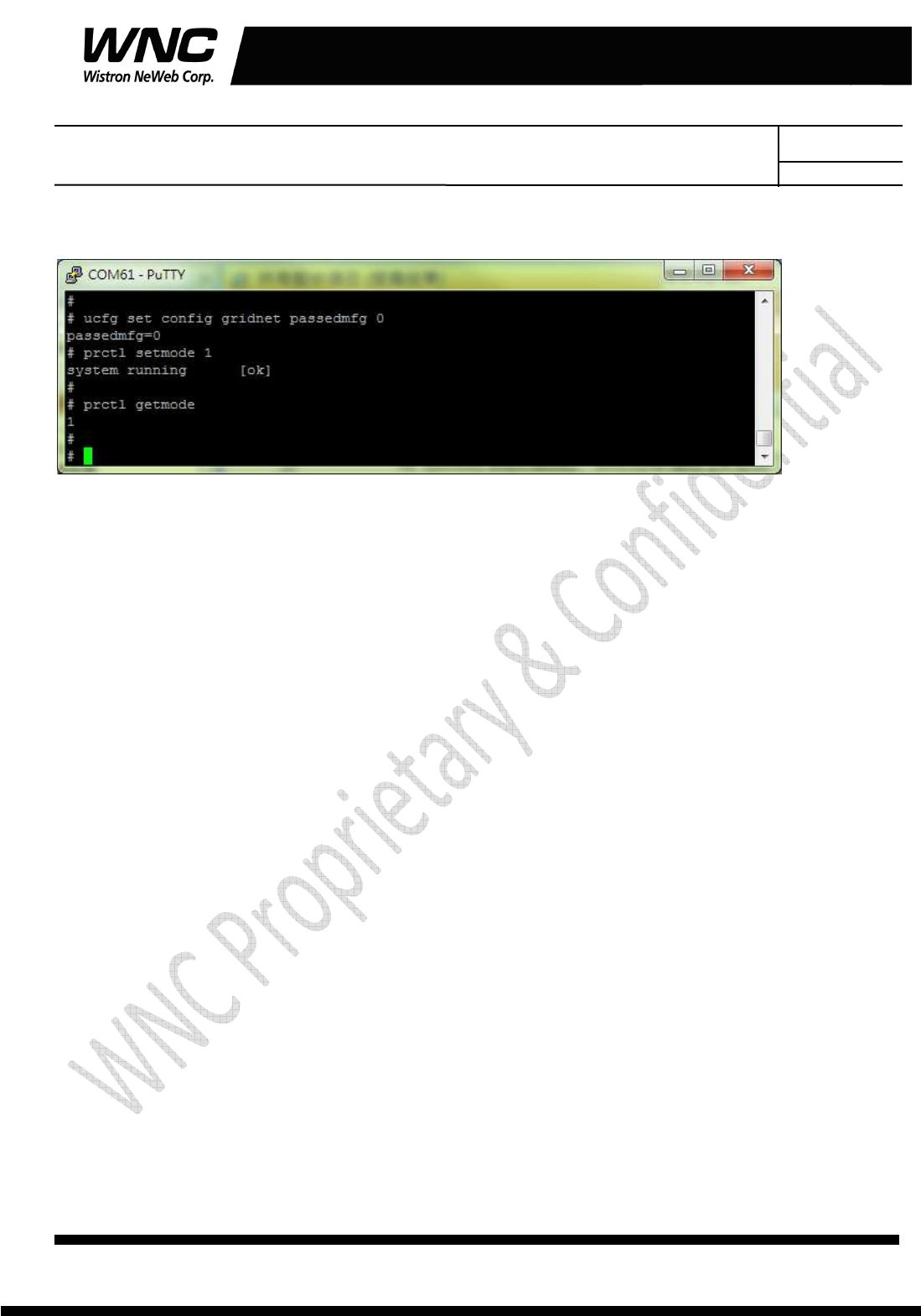

Step 4: Set system service mode
ucfg set config gridnet passedmfg 0
prctl setmode 1 Set system service mode to 1
prctl getmode Read the system mode
