Wistron NeWeb DAUKW12 802.11a/b/g/n/ac Wireless LAN Module User Manual Product Specifications
Wistron NeWeb Corporation 802.11a/b/g/n/ac Wireless LAN Module Product Specifications
Users Manual
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
1 / 17
Date: 2016/12/01
Delivery Specifications
Product Description
802.11a/b/g/n/ac Wireless LAN Module
Customer Part Number
098001402081
WNC Part Number
91DAUK13.G32
WNC Model Name
DAUK-W12
Issue Version :
V1.9
Manufacturer
Wistron NeWeb Corporation (WNC)
Address: 20 Park Avenue II Road, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
(ZIP Code: 308)
Tel: +886-3-666-7799
Production Factory
Wistron NeWeb (Kunshan) Corporation
Address: 789 Yujinxiang Road, Comprehensive Free Trade Zone, Kunshan City, Jiangsu
Province, P.R.C (ZIP Code: 215300)
Tel: 0086-512-5772-2688
Production Country
People's Republic of China
PO Reception & Invoice
Release Company
ANC holding Corporation
P.O. Box 3152, Road Town, Tortola, British Virgin Islands
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
2 / 17
Revision History
Version
Change history
Date
V1.0
Initial version
2016/09/30
V1.1
Updated operation voltage tolerance, output power tolerance,
pin define, shielding cover dimension, module dimension and
module label information
2016/10/05
V1.2
Updated product photo, output power and PCB layout
2016/10/18
V1.3
Updated product photo, schematic, PCB Layout and module
dimension
2016/11/09
V1.4
Updated product photo
2016/11/10
V1.5
Updated module label and BOM
2016/11/10
V1.6
Updated packing information
2016/11/11
V1.7
Updated product photo and module dimension
2016/11/21
V1.8
Updated customer PN, product photo, schematic, PCB
layout, shielding cover dimension, module label information,
packing information, BOM and reliability environment
specification
2016/11/30
V1.9
Updated PCB flame class, shielding cover material
certificate, reliability and environment complete date and
antenna radiation pattern
2016/12/01
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
3 / 17
Contents
1. Product Introduction .................................................................................................. 4
2. Product Photograph ................................................................................................... 5
3. Functional Block Diagram ......................................................................................... 6
4. I/O Pin Definition ......................................................................................................... 6
5. Product Specification ................................................................................................. 7
5.1 Specifications ............................................................................................................................................ 7
5.2 EEPROM Information ............................................................................................................................... 12
6. Schematic.................................................................................................................... 13
7. PCB Layout ................................................................................................................. 14
7.1 Layer-1 (Top) ............................................................................................................................................ 14
7.2 Layer-2 ...................................................................................................................................................... 14
7.3 Layer-3 ...................................................................................................................................................... 14
7.4 Layer-4 (Bottom) ...................................................................................................................................... 14
8. Mechanical Dimension ............................................................................................... 15
8.1 Connector Dimension ............................................................................................................................... 15
8.2 Shielding cover Dimension ....................................................................................................................... 17
8.3 Module Dimension .................................................................................................................................... 18
9. Module Label Information .......................................................................................... 19
10. Packing Information ................................................................................................... 20
10.1 Packing Assembly ..................................................................................................................................... 20
10.2 Tray ........................................................................................................................................................... 21
10.3 Carton Label Information .......................................................................................................................... 22
11. BOM ............................................................................................................................. 23
12. Reliability and Environment specification................................................................ 25
13. Antenna Radiation Pattern......................................................................................... 27
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
4 / 17
1. Product Introduction
DAUK-W12 is a 802.11 a/b/g/n/ac WLAN module which compliant with IEEE802.11n/ac
standard supports 2x2 ac/a/b/g/n MIMO technology with data rate from MCS 0-15 in
20MHz/40MHz/80MHz Channels.
Features
Full IEEE 802.11 a/b/g/n/ac legacy compatibility with enhanced performance
Dual-stream spatial multiplexing up to 866.7 Mbps data rate, supports 20, 40 and 80 channels
with optional SGI (256 QAM modulation)
Wake on WLAN function
Double-side SMT process
Two on-board metal antennas
Interfaces and Power supply
WLAN RF interface
USB interface
5V supply voltage
8 pins I/O connector
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
5 / 17

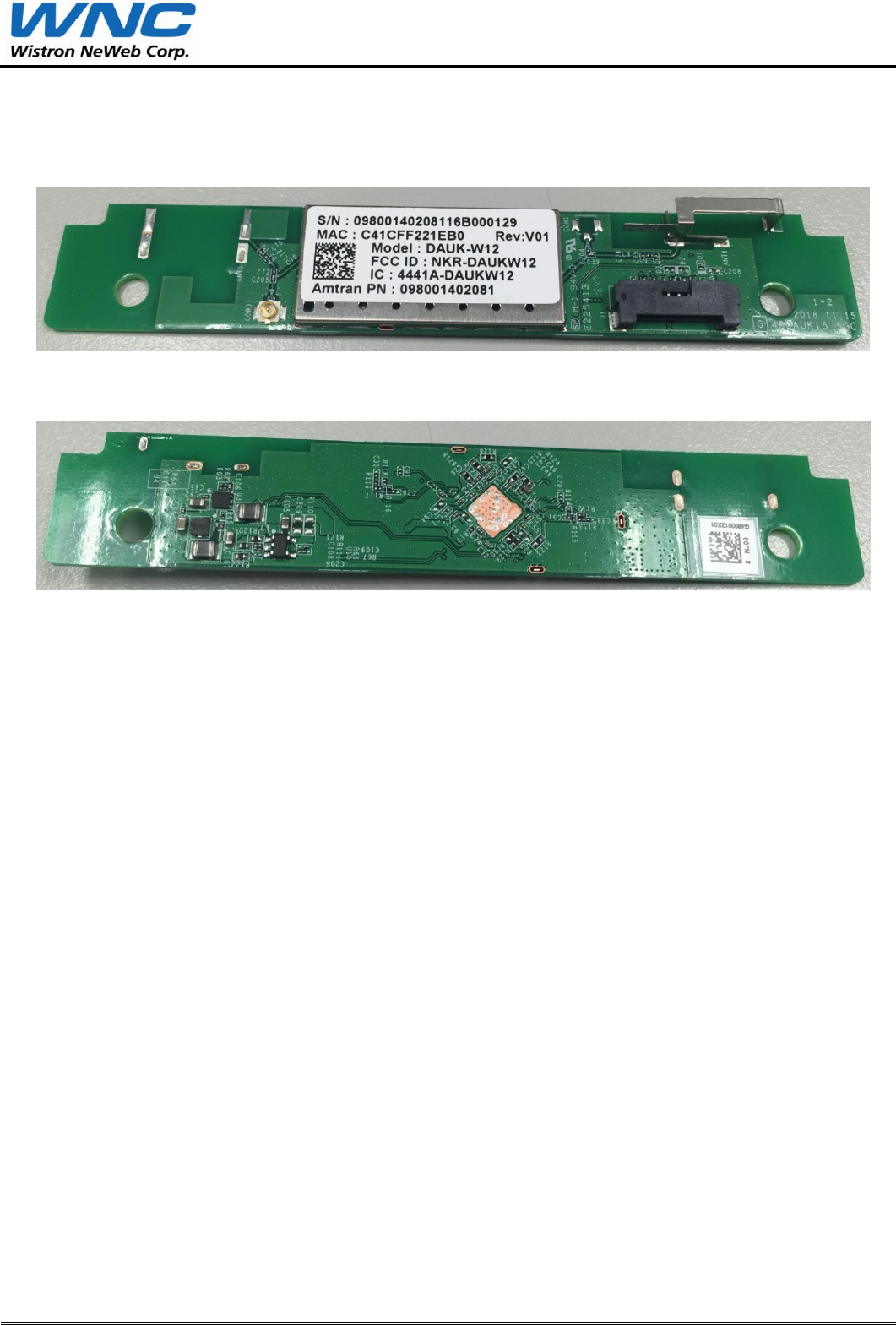

2. Product Photograph
Top side
Bottom side
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
6 / 17
4. Product Specification
5.1 Specifications
Item
Key specifications
Main chipset
Realtek RTL8812AU-VS
TX/RX
2T2R
Host interface
USB 2.0
Operation voltage
5V DC +/- 5%
Frequency range
2.400 ~ 2.483GHz, 5.15 ~ 5.85GHz
PCB dimension
100mm*17mm*1.0mm, 4L, FR4
Modulation
technique
802.11 Legacy a/b/g
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
DSSS (Direct Sequence Spread Spectrum) with
DBPSK (Differential Binary Phase Shift Keying 1Mbps),
DQPSK (Differential Quaternary Phase Shift Keying 2Mbps), and
CCK (Complementary Code Keying 5.5&11Mbps), and
OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6,9Mbps、
QPSK for 12,18Mbps、 16QAM for 24,36Mbps、 64QAM for 48,54Mbps)
802.11n a/g
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Output power
(for each chain;
with ±1.5dBm
tolerance)
802.11b
Test Frequencies 1/2_Target 5.5_Target 11_Target
2412 17 17 17
2437 17 17 17
2462 17 17 17
802.11g
Test Frequencies 6-24_Target 36_Target 48_Target 54_Target
2412 16 16 16 16
2437 16 16 16 16
2462 16 16 16 16
802.11a
Test Frequencies 6-24_Target 36_Target 48_Target 54_Target
5180 14 14 14 14
5500 14 14 14 14
5785 14 14 14 14
802.11n 2G HT20
Test Frequencies MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7
2412 15 15 15 15 15 15 15 15
2437 15 15 15 15 15 15 15 15
2462 15 15 15 15 15 15 15 15
802.11n 2G HT40
Test Frequencies MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7
2422 15 15 15 15 15 15 15 15
2437 15 15 15 15 15 15 15 15
2452 15 15 15 15 15 15 15 15
802.11n 5G HT20
Test Frequencies MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7
5180 13 13 13 13 13 13 13 13
5500 13 13 13 13 13 13 13 13
5785 13 13 13 13 13 13 13 13
802.11n 5G HT40
Test Frequencies MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7
5190 13 13 13 13 13 13 13 13
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
7 / 17
5510 13 13 13 13 13 13 13 13
5795 13 13 13 13 13 13 13 13
802.11ac HT80
Test Frequencies MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 MCS8 MCS9
5210 9 9 9 9 9 9 9 9 9 9
5530 9 9 9 9 9 9 9 9 9 9
5775 9 9 9 9 9 9 9 9 9 9
RF output power is limited by regulatory rule in each country, so the actual output power
would be minimum (target power, regulatory limit power) at each channel.
EVM
The transmit modulation accuracy is measured using error vector magnitude (EVM).
EVM is the magnitude of the phase difference as a function of time between an ideal
reference signal and the measured transmitted signal.
802.11b
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
DBPSK -10 -14
DQPSK -10 -14
CCK -10 -14
802.11g
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
BPSK 1/2 -5 -32
BPSK 3/4 -8 -32
QPSK 1/2 -10 -32
QPSK 3/4 -13 -32
16-QAM 1/2 -16 -32
16-QAM 3/4 -19 -32
64-QAM 2/3 -22 -32
64-QAM 3/4 -25 -32
802.11a
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
BPSK 1/2 -5 -30
BPSK 3/4 -8 -30
QPSK 1/2 -10 -30
QPSK 3/4 -13 -30
16-QAM 1/2 -16 -30
16-QAM 3/4 -19 -30
64-QAM 2/3 -22 -30
64-QAM 3/4 -25 -30
802.11ng
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
HT20
(MCS0) BPSK 1/2 -5 -31
(MCS1) QPSK 1/2 -10 -31
(MCS2) QPSK 3/4 -13 -31
(MCS3) 16-QAM 1/2 -16 -31
(MCS4) 16-QAM 3/4 -19 -31
(MCS5) 64-QAM 2/3 -22 -31
(MCS6) 64-QAM 3/4 -25 -31
(MCS7) 64-QAM 5/6 -27 -31
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
8 / 17
HT40
(MCS0) BPSK 1/2 -5 -31
(MCS1) QPSK 1/2 -10 -31
(MCS2) QPSK 3/4 -13 -31
(MCS3) 16-QAM 1/2 -16 -31
(MCS4) 16-QAM 3/4 -19 -31
(MCS5) 64-QAM 2/3 -22 -31
(MCS6) 64-QAM 3/4 -25 -31
(MCS7) 64-QAM 5/6 -27 -31
802.11na
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
HT20
(MCS0) BPSK 1/2 -5 -30
(MCS1) QPSK 1/2 -10 -30
(MCS2) QPSK 3/4 -13 -30
(MCS3) 16-QAM 1/2 -16 -30
(MCS4) 16-QAM 3/4 -19 -30
(MCS5) 64-QAM 2/3 -22 -30
(MCS6) 64-QAM 3/4 -25 -30
(MCS7) 64-QAM 5/6 -27 -30
HT40
(MCS0) BPSK 1/2 -5 -31
(MCS1) QPSK 1/2 -10 -31
(MCS2) QPSK 3/4 -13 -31
(MCS3) 16-QAM 1/2 -16 -31
(MCS4) 16-QAM 3/4 -19 -31
(MCS5) 64-QAM 2/3 -22 -31
(MCS6) 64-QAM 3/4 -25 -31
(MCS7) 64-QAM 5/6 -27 -31
802.11ac
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
HT80
(MCS0) BPSK 1/2 -5 -30
(MCS1) QPSK 1/2 -10 -30
(MCS2) QPSK 3/4 -13 -30
(MCS3) 16-QAM 1/2 -16 -30
(MCS4) 16-QAM 3/4 -19 -30
(MCS5) 64-QAM 2/3 -22 -30
(MCS6) 64-QAM 3/4 -25 -30
(MCS7) 64-QAM 5/6 -27 -30
(MCS8) 256-QAM 3/4 -30 -32
(MCS9) 256-QAM 5/6 -32 -33.5
Sensitivity
(with +2/-2dB
tolerance, dBm)
802.11b
Modulation Code Rate IEEE Spec (1Rx dBm) Typical (1Rx dBm)
DBPSK not specified -93
DQPSK not specified -90
CCK not specified -85
802.11g
Modulation Code Rate IEEE Spec (1Rx dBm) Typical (1Rx dBm)
BPSK 1/2 -82 -88
BPSK 3/4 -81 -85
QPSK 1/2 -79 -85
QPSK 3/4 -77 -83
16-QAM 1/2 -74 -80
16-QAM 3/4 -70 -77
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
9 / 17
64-QAM 2/3 -66 -72
64-QAM 3/4 -65 -71
802.11a
Modulation Code Rate IEEE Spec (1Rx dBm) Typical (1Rx dBm)
BPSK 1/2 -82 -90
BPSK 3/4 -81 -88
QPSK 1/2 -79 -86
QPSK 3/4 -77 -84
16-QAM 1/2 -74 -80
16-QAM 3/4 -70 -77
64-QAM 2/3 -66 -71
64-QAM 3/4 -65 -70
802.11ng
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
HT20
(MCS0) BPSK 1/2 -82 -88
(MCS1) QPSK 1/2 -79 -85
(MCS2) QPSK 3/4 -77 -82
(MCS3) 16-QAM 1/2 -74 -78
(MCS4) 16-QAM 3/4 -70 -74
(MCS5) 64-QAM 2/3 -66 -72
(MCS6) 64-QAM 3/4 -65 -71
(MCS7) 64-QAM 5/6 -64 -70
HT40
(MCS0) BPSK 1/2 -79 -85
(MCS1) QPSK 1/2 -76 -82
(MCS2) QPSK 3/4 -74 -79
(MCS3) 16-QAM 1/2 -71 -75
(MCS4) 16-QAM 3/4 -67 -71
(MCS5) 64-QAM 2/3 -63 -69
(MCS6) 64-QAM 3/4 -62 -68
(MCS7) 64-QAM 5/6 -61 -67
802.11na
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
HT20
(MCS0) BPSK 1/2 -82 -87
(MCS1) QPSK 1/2 -79 -85
(MCS2) QPSK 3/4 -77 -83
(MCS3) 16-QAM 1/2 -74 -79
(MCS4) 16-QAM 3/4 -70 -76
(MCS5) 64-QAM 2/3 -66 -71
(MCS6) 64-QAM 3/4 -65 -69
(MCS7) 64-QAM 5/6 -64 -68
HT40
(MCS0) BPSK 1/2 -79 -84
(MCS1) QPSK 1/2 -76 -81
(MCS2) QPSK 3/4 -74 -78
(MCS3) 16-QAM 1/2 -71 -75
(MCS4) 16-QAM 3/4 -67 -72
(MCS5) 64-QAM 2/3 -63 -68
(MCS6) 64-QAM 3/4 -62 -66
(MCS7) 64-QAM 5/6 -61 -65
802.11ac
Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB)
IEEE Spec (1Tx dB) Typical (1Tx dB)
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
10 / 17
HT80
(MCS0) BPSK 1/2 -76 -80
(MCS1) QPSK 1/2 -73 -77
(MCS2) QPSK 3/4 -71 -75
(MCS3) 16-QAM 1/2 -68 -72
(MCS4) 16-QAM 3/4 -64 -68
(MCS5) 64-QAM 2/3 -60 -64
(MCS6) 64-QAM 3/4 -59 -63
(MCS7) 64-QAM 5/6 -58 -62
(MCS8) 256-QAM 3/4 -53 -57
(MCS9) 256-QAM 5/6 -51 -55
Transmit
spectrum mask
For transmitted spectral mask for 11a shall be less than –40dBr for fc–
30MHz<f<fc+30MHz.
For transmitted spectral mask for 11b shall be less than –50dBr for fc–
22MHz<f<fc+22MHz.
For transmitted spectral mask for 11g shall be less than –40dBr for fc–
30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 20MHz shall be less than –45dBr for
fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 40MHz shall be less than –45dBr for
fc–60MHz<f<fc+60MHz.
Transmit
spectrum flatness
For 802.11a/g the average energy of the constellations in each of spectral lines –
16..-1 and +1..+16 will deviate no more than +/- 2dB from their average energy.
For 802.11n 40MHz mode, the average energy of the constellations in each of
spectral
lines –42..-2 and +2..+42 will deviate no more than +/- 2dB from their average
energy.
The transmitted spectral flatness should be with in +2/- 4dB.
Transmit center
frequency
tolerance
The transmitted center frequency tolerance shall be ±20 ppm maximum.
Carrier
suppression
802.11a:
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of
the
rest of the sub-carriers.
802.11b:
The RF carrier suppression, measured at the channel center frequency, shall be at
least
15 dB below the peak SIN(x)/x power spectrum.
802.11g:
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of
the
rest of the sub-carriers.
802.11n:
For all 20 MHz modes of transmission
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of
the
rest of the sub-carriers.
For all 40 MHz modes of transmission
The center frequency leakage shall not exceed -18 dB relative to overall
transmitted
power, or, equivalently, +2 dB relative to the average energy of the rest of the
sub-carriers.
Delta > 15dB for a, b, g & 11n 20MHz
Delta > 18dB for 11n 40MHz
Transmit power
on ramp and
power down ramp
The transmitting power-on ramp for 10% to 90% of maximum power m shall be no
greater than 2 µs.
The transmitting power-down ramp for 90% to 10% of maximum power shall be no
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
11 / 17
time
greater than 2 µs.
Receiver
maximum input
level
802.11a
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11b
Modulation IEEE Spec (1Rx dBm)
DBPSK >-10
DQPSK >-10
CCK >-10
802.11g
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11na
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11ng
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11ac
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
Transfer data rate
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: @800GI(400GI)
20MHz BW
1 Nss: 65(72.2) Mbps maximal
2 Nss: 130(144.444) Mbps maximal
40MHz BW
1 Nss: 135(150) Mbps maximal
2 Nss: 270(300) Mbps maximal
Operation
temperature
-10o ~ 60o C
Storage
temperature
-35o ~ 70o C, R.H.: 90%
Antenna
Two on-board antennas
5.2 EEPROM Information
- WiFi MAC Address
- PA parameter
- Vendor ID
- Product ID
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
12 / 17
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
Operation of this device is restricted to indoor use only
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
13 / 17
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for
2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info
to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the
FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: NKR-DAUKW12”.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Antenna info.
Antenna
Peak gain ( dBi )
Model
Type
Connector
2400~
2483.5MHz
5150~
5250MHz
5250~
5350MHz
5470~
5725MHz
5725~
5850MHz
sample 組態
ANT 0
PIFA
No
2.21
3.04
2.82
2.7
2.7
On-board ANT0
+
On-board ANT0
ANT 1
PIFA
No
3.32
4.95
4.48
5.43
5.63
RFMTA340740IMLB701
PIFA
IPEX
2.3
4.36
4.36
4.36
4.36
External-Amtran (白色)
+
On-board ANT1
ANT 1
PIFA
No
3.32
4.95
4.48
5.43
5.63
NA
PIFA
IPEX
-4.72
-5.22
-4.92
-4.69
-4.69
External-WNC Antenna
(330mm)
+
External-WNC Antenna
(330mm)
NA
PIFA
IPEX
-4.72
-5.22
-4.92
-4.69
-4.69
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
14 / 17
Industry Canada statement:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
This radio transmitter (IC: 4441A-DAUKW12) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
Le présent émetteur radio (IC: 4441A-DAUKW12) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal.
Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Antenna info.
Antenna
Peak gain ( dBi )
Model
Type
Connector
2400~
2483.5MHz
5150~
5250MHz
5250~
5350MHz
5470~
5725MHz
5725~
5850MHz
sample 組態
ANT 0
PIFA
No
2.21
3.04
2.82
2.7
2.7
On-board ANT0
+
On-board ANT0
ANT 1
PIFA
No
3.32
4.95
4.48
5.43
5.63
RFMTA340740IMLB701
PIFA
IPEX
2.3
4.36
4.36
4.36
4.36
External-Amtran (白色)
+
On-board ANT1
ANT 1
PIFA
No
3.32
4.95
4.48
5.43
5.63
NA
PIFA
IPEX
-4.72
-5.22
-4.92
-4.69
-4.69
External-WNC Antenna
(330mm)
+
External-WNC Antenna
(330mm)
NA
PIFA
IPEX
-4.72
-5.22
-4.92
-4.69
-4.69
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
15 / 17
Caution:
(i) the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with
the e.i.r.p. limit;
(iii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-to-point operation as appropriate; and
Operations in the 5.25-5.35GHz band are restricted to indoor usage only.
Avertissement:
(i) les dispositifs fonctionnant dans la bande de 5150 à 5250MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes
de satellites mobiles utilisant les mêmes canaux;
(ii) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis pour les
dispositifs utilisant les bandes de 5250 à 5350MHz et de 5470 à 5725 MHz doit être conforme à la
limite de la p.i.r.e;
(iii) pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis (pour
les dispositifs utilisant la bande de 5725 à 5850 MHz) doit être conforme à la limite de la p.i.r.e.
spécifiée pour l'exploitation point à point et l'exploitation non point à point, selon le cas;
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
16 / 17
Les opérations dans la bande de 5.25-5.35GHz sont limités à un usage intérieur seulement.
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement
non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le
radiateur et votre corps.
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 1 condition above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes:
1) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne
seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son
produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the Canada authorization is no longer considered valid and
the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur),
l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le
produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y
compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.
MODEL: DAUK-W12
Confidential. Wistron Neweb Corporation
17 / 17
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains IC: 4441A-
DAUKW12”.
Plaque signalétique du produit final
Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: "Contient des
IC: 4441A-DAUKW12".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant à
la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit final
qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et
avertissements comme indiqué dans ce manuel.
