Wistron NeWeb DFCN67H NFC Module User Manual
Wistron NeWeb Corporation NFC Module
user manual
USER MANUAL
XRAI NFC MOUDULE
USER MANUAL & Operational description
USER MANUAL
I. Introduction
DFCN01 is a kind of NFC (Near Field Communication) module that could be embedded in one IT system
by simply connecting the module to his target microcontroller and start developing his application
software.
II. DESIGNREFERENCE
XRAI reference design module consists of the following:
• Reference Design:
When the user wishes to incorporate the XRAI to their device, it is strongly recommended that this
reference design is copied “as is” in the final application board to guarantee optimum performance,
regulatory compliance and lowest development time and design effort.
• MCU FPC/FFC Connector:
Allow user to connect the XRAI module to the host board via FPC/FFC connector.
• Antenna Connector:
Connect to FPC antenna.
USER MANUAL
III. FEATURE
Contactless protocols:
• ISO14443 A/B
• ISO15693
• ISO18092
Contactless transmission of data and RF energy
Peer-to-peer communication
Card emulation
NFC card reader/writer
Programmable receiver sensitivity
Carrier frequency: 13.56 MHz
RF Field detection
Single ended external antenna connection
IV. ElectricalCharacteristics
Symbol Parameter Min Typical Maximum Unit
VDD Power supply voltage 2.7 3.3 5.5
VDD_IO Power supply voltage 3.0 3.3 3.6 V
Power consumption
I VDD_IO 30
I MOD_VDD 120
mA
USER MANUAL

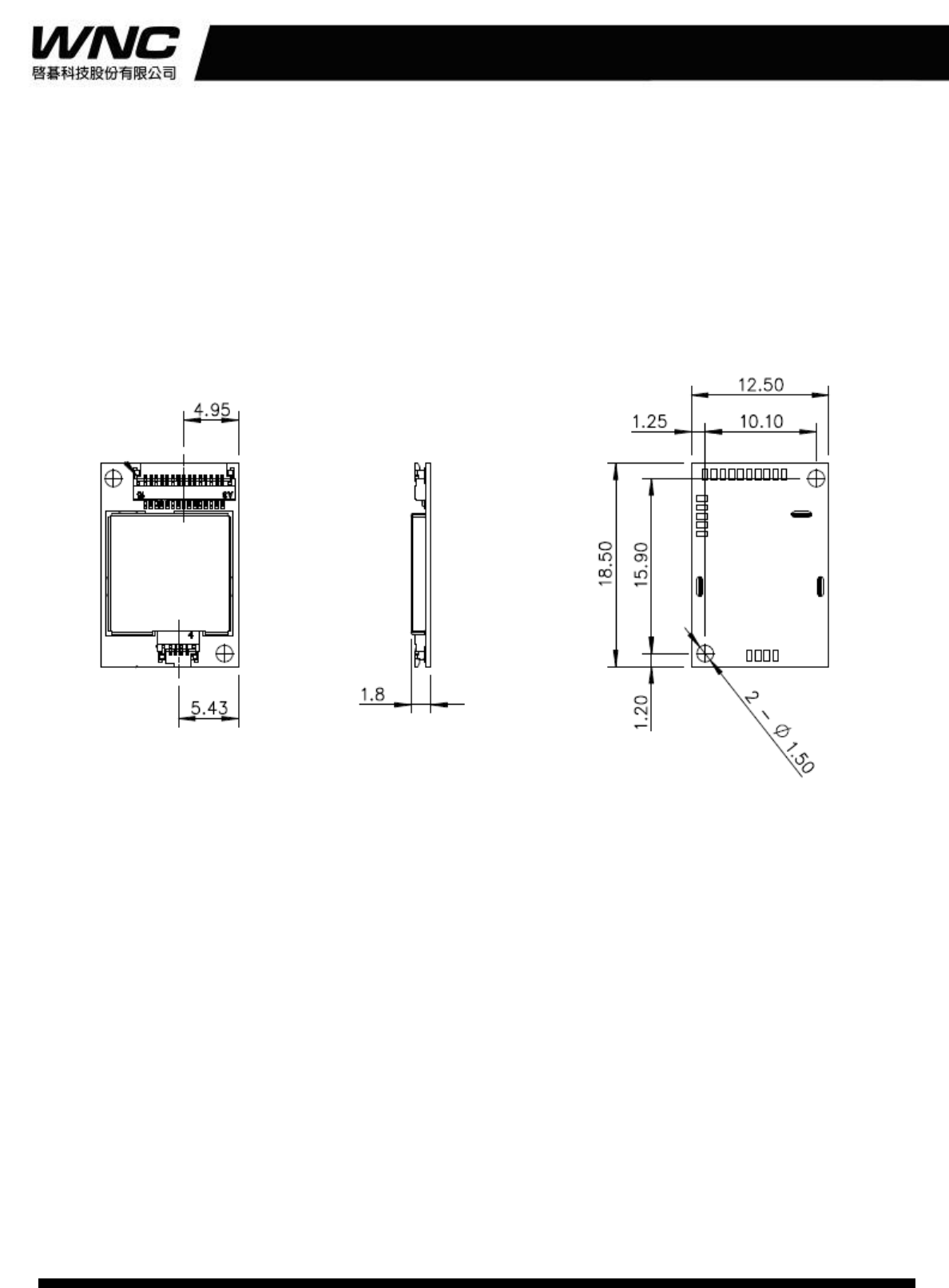

V. MECHANICALDIMENSION
USER MANUAL
VI. EnvironmentalRequirement
Item Feature Description
5.1 Operating Temperature 0 to 80 deg.C
5.2 Storage Temperature -40 to 85 deg.C
5.3 Operating Humidity 10 to 90 % (Non-condensing)
5.4 MTBF TBD
5.5 ROHS TBD
VII. CertificationsandRegulatory
Item Feature Description
6.1 FCC
RF: FCC part 15C
EMI: FCC part 15B
FCC grant: TCB Filing fee
6.2 CE
RF: EN302291
EMC: EN301489-1/-3
Safety: EN 60950-1:2006/A11:2009
6.3 TBD TBD
USER MANUAL
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: NKR-DFCN67H ".
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication. USER MANUAL
USER MANUAL
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following: “Contains transmitter module IC:
4441A-DFCN67H”.
Contient le module d'émission IC: 4441A-DFCN67H
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
Digital apparatus (ICES003)
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
