Wistron NeWeb DHURAZ68 DHUR-AZ68 11a/b/g/n/ac 2x2 module User Manual Product Specifications

Wistron NeWeb Corporation DHUR-AZ68 11a/b/g/n/ac 2x2 module Product Specifications

Contents

Users Manual_revised0301

MODEL: DHUR-AZ68
Wistron Neweb Corporation
1 of 21
DHUR-AZ68 a/b/g/n/ac
2x2 Module
User Manual
Revision History
Version
Change history
Date
V1.0
Initial version
2017/11/02
MODEL: DHUR-AZ68
Wistron Neweb Corporation
2 of 21
V1.1
Modify pin define
2017/11/09
Contents
1. Product Introduction……………………..…………………………………….……………………………………………………………….4
1-1. Features…………………………………………………………………………………………………..……………………………………………………………….4
1-2. Interfaces and Power Supply………………………………………………………………………………………..…………………………………………..4
MODEL: DHUR-AZ68
Wistron Neweb Corporation
3 of 21
2. Product Photo……………………..……………………………….……………………………………………………………………………...5
3. Product Specification…………………………..………………………………………………………………………………………………..5
3-1. Electrical Specification ………………………….………………………….….…………………………………………………………………….……..……..5
3-2. Chip Sequence………………………….……………………………….…..…………………………………………………………………………..………..…..6
3-3. Wi-Fi Portion……………………………………………………………..….…………………………………………………………………………………..……..6
3-4. BT Portion………………………………………………………………..….……………………….………………………………….………………………..……12

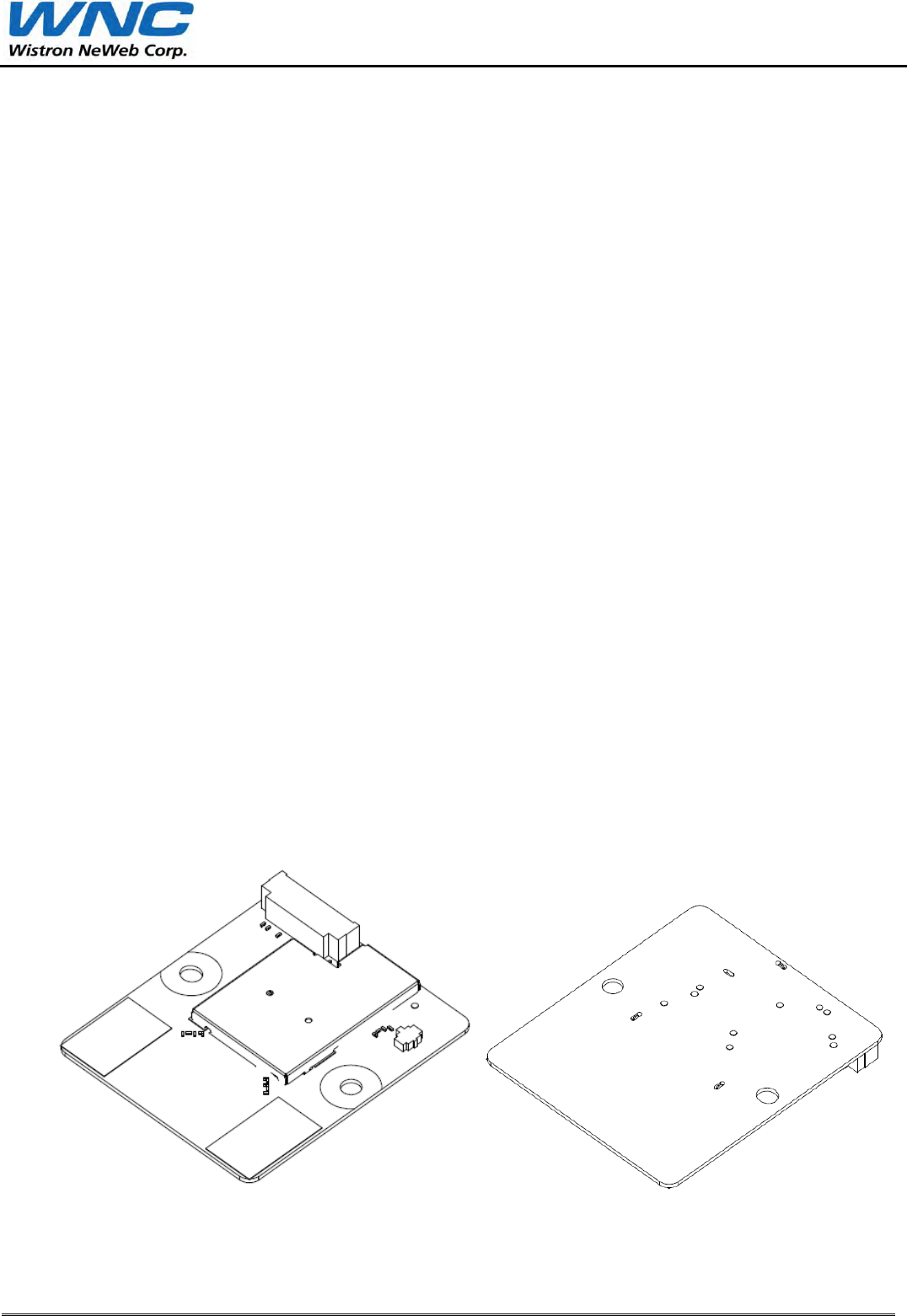

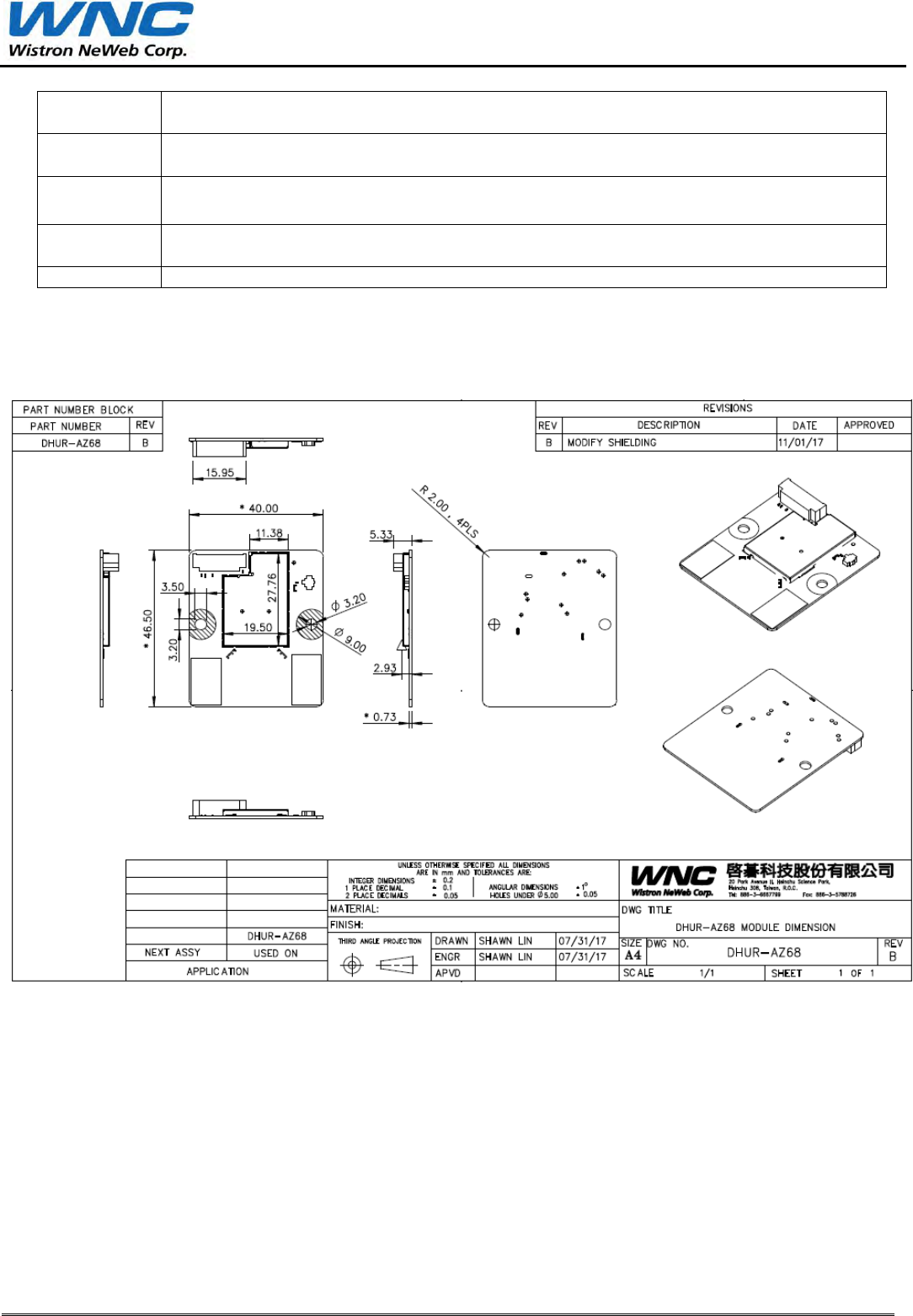

4. Mechanical Drawing…………………………………..……………………………………………………………………….………………13

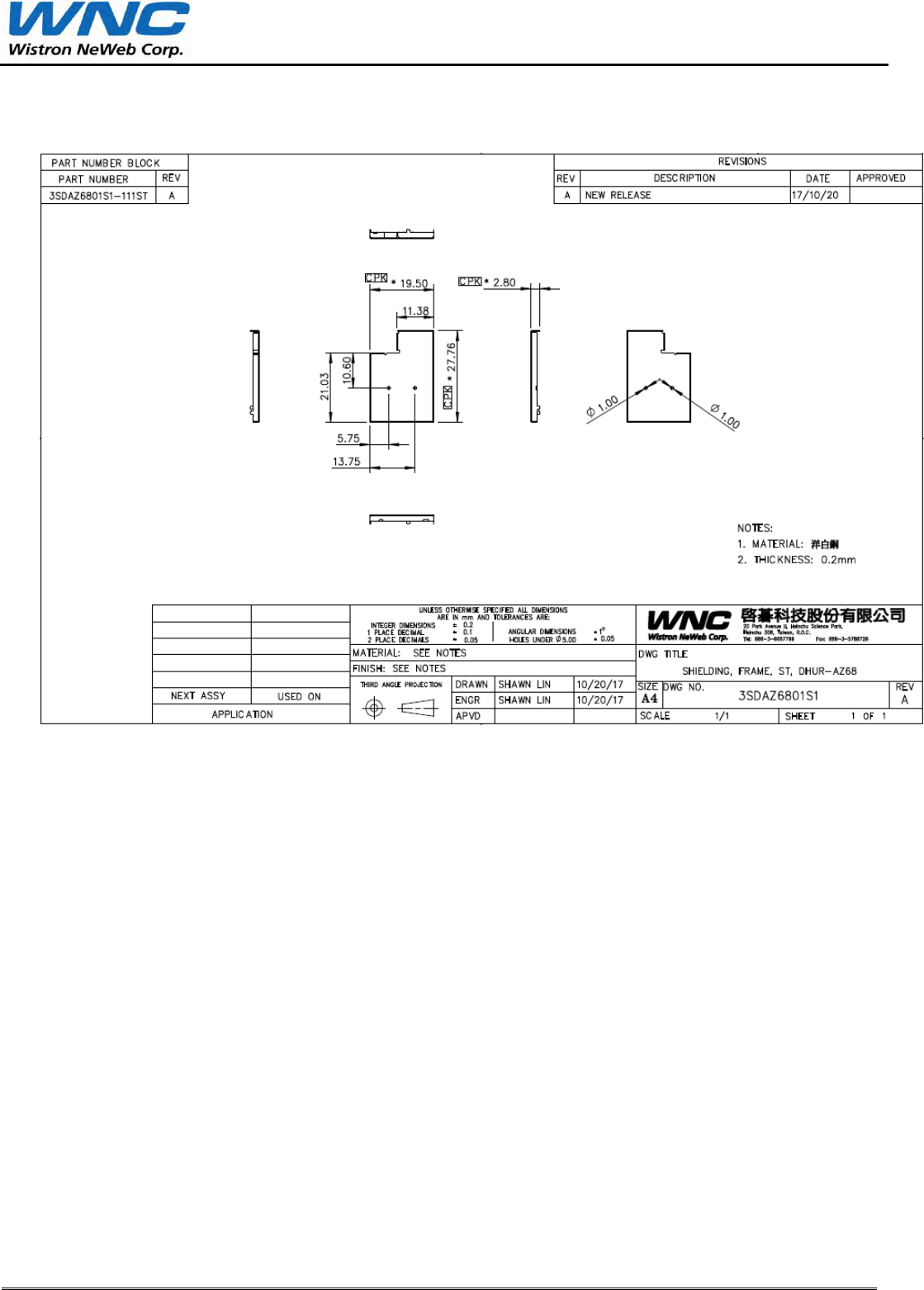

5. Shielding cover Information…………………………………………………………………………………………………………………14
6. Connector Information………………………………………………….…………………………………………………………..……….15

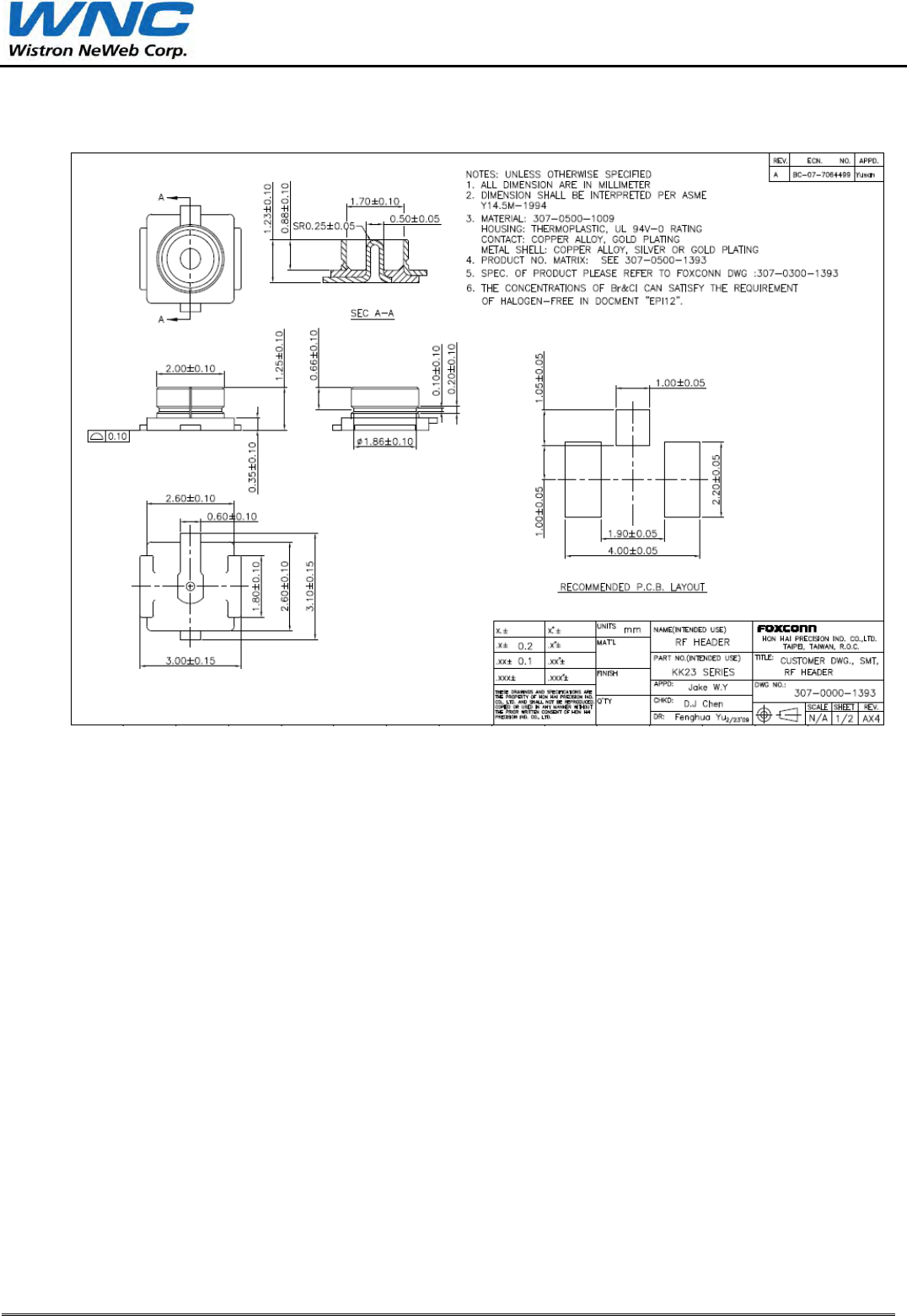

7. Coaxial IPEX Connector……………………………………………………………………….………………………………………………16
MODEL: DHUR-AZ68
Wistron Neweb Corporation
4 of 21
Product Introduction
DHUR-AZ68 is an 802.11 a/b/g/n/ac WLAN/Bluetooth 5.0 combo module with USB interface based on
MediaTek MT7668AUN chipset solution.
1-1. Features
Dual band 2T2R support, IEEE 802.11a/b/g/n/ac + Bluetooth 5.0
Support 20MHz, 40MHz and 80MHz bandwidth
Support MU-MIMO RX, DBDC, STBC, LDPC, TX Beamformer, Rx Beamformee
2 on-board printed Wi-Fi antennas and 1 BT external antenna
PCB 4 Layers with 46.5 x 40 x1.0 mm3
1-2.Interfaces and Power supply
Power supply with VCC 5.0
10 pin wire to board
USB 2.0 Interface
MODEL: DHUR-AZ68
Wistron Neweb Corporation
5 of 21

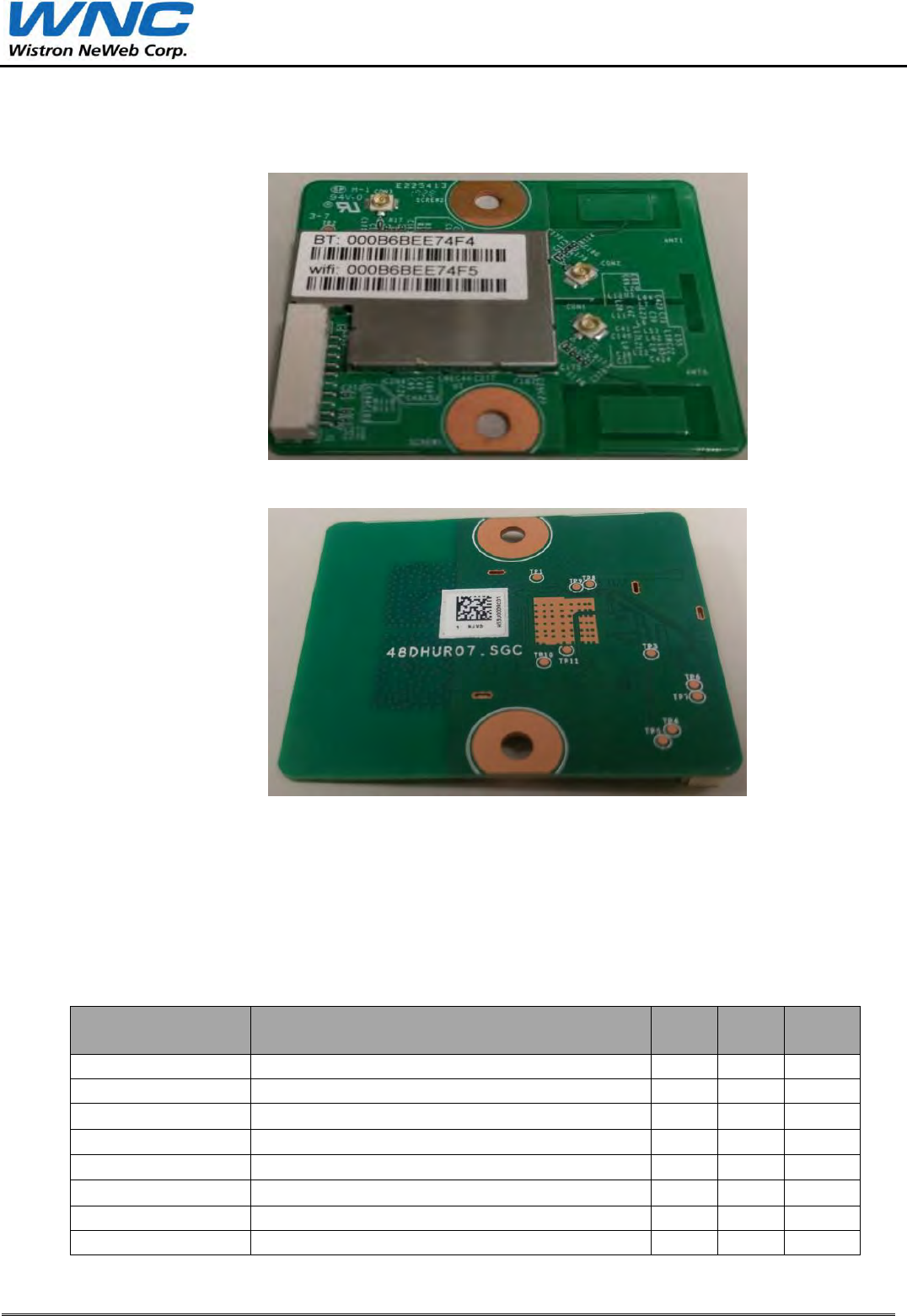

2 Product Photo
Top Side
Bottom Side
3. Product Specification
3-1. Electrical Specification
3-1-1. Absolute Maximum Ratings
Symbol
(Board level)
Description
Min.
Units
5V
5V power supply
0
V
RESET
Controlled by SOC, GPIO input
-0.3
V
BT_WAKE_HOST
BT wake up host, GPIO output
-0.3
V
WoWLAN
Wake on Wireless LAN, GPIO output
-0.3
V
BT_IR
BT_IR signal from MT7668, GPIO output
-0.3
V
GPIO_X
BT_IR signal select, GPIO output
-0.3
V
Hstorage
Storage humidity
5
%RH
Tstorage
Storage temperature
-40
°C
3-1-2. Recommended Operating Conditions
MODEL: DHUR-AZ68
Wistron Neweb Corporation
6 of 21
Symbol
(Board level)
Status
Description
Min.
Typ.
Max.
Units
5V
--
5V power supply
4.5
5.0
5.5
V
RESET
VIH
3.3V Supply Voltage
2.97
3.3
3.63
V
WoWLAN
VOH
Wake on wireless LAN
2.97
3.3
3.63
V
BT_WAKE_HOST
VIH
BT wake up host
2.97
3.3
3.63
V
BT_IR
VOH
BT_IR signal form MT7668
2.97
3.3
3.63
V
GPIO_X
VIH
BT_IR signal select
2.97
3.3
3.63
V
Toperating
--
Operating temperature
-10
--
60
°C
Hoperating
--
Operating humidity
5
--
95
%RH

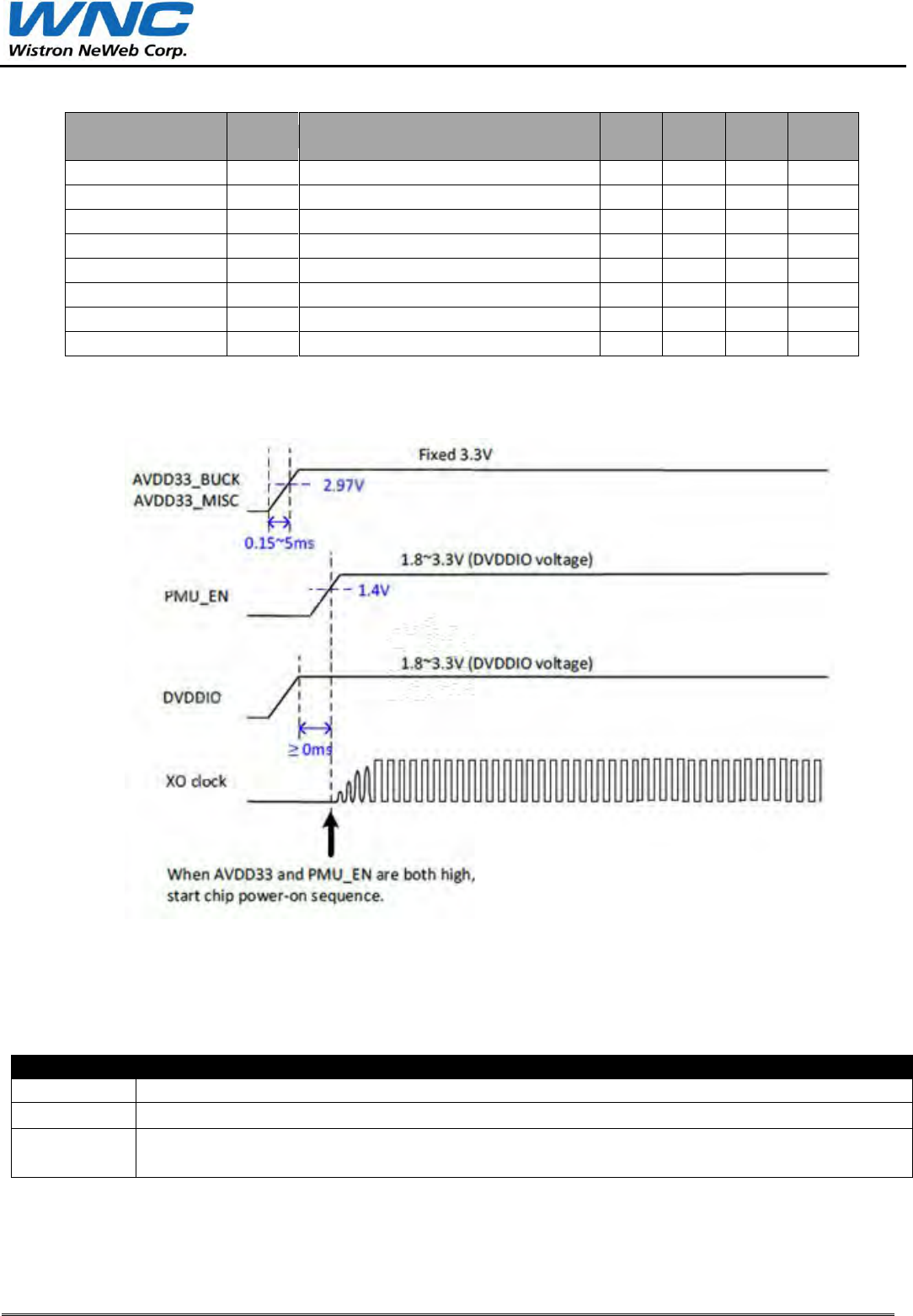

3-2. Chip Sequence
3-3. Wi-Fi Portion
Item
Key specifications
Main chipset
MT7668AUN
TX/RX
2T2R
Frequency
range
2.400 ~ 2.497GHz,5.15GHz ~ 5.85GHz
MODEL: DHUR-AZ68
Wistron Neweb Corporation
7 of 21
Modulation
technique
802.11 a/b/g
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
DSSS (Direct Sequence Spread Spectrum) with
DBPSK (Differential Binary Phase Shift Keying 1Mbps),
DQPSK (Differential Quaternary Phase Shift Keying 2Mbps), and
CCK (Complementary Code Keying 5.5&11Mbps), and
OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6,9Mbps、 QPSK for 12,18Mbps、
16QAM for 24,36Mbps、 64QAM for 48,54Mbps)
802.11n a/g
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11 ac
OFDM (BPSK, QPSK, 16-QAM, 64-QAM,256-QAM)
Host interface
USB2.0
Power
consumption
@25 o C
Current
consumption
standard
Data Rate
Average.
Units
Typ.
Max.
Sleep mode
Radio off
--
--
1.5
2.0
mA
WLAN Tx
2.4G
11b
CCK-1M
250
280
mA
11g
OFDM-7M
350
400
11n
HT20_MCS0
350
390
5G
11a
OFDM-6M
510
630
mA
11n
HT20-MCS0
490
590
11ac
VHT20-MCS0
490
580
WLAN Rx
2.4G
11b
CCK-1M
85
158
mA
11g
OFDM-7M
93
158
11n
HT20_MCS0
93
158
5G
11a
OFDM-6M
100
165
mA
11n
HT20-MCS0
100
165
11ac
VHT20-MCS0
101
165
MODEL: DHUR-AZ68
Wistron Neweb Corporation
8 of 21
Output
power
(per chain;
2.4G
tolerance
+/-2.5 dB,
5G tolerance
+/-3,0dB)
802.11a
Test Frequencies 6-36_Target 48_Target 54_Target
5180 15.5 15.5 14.5
5320 15.5 15.5 14.5
5500 15.5 15.5 14.5
5600 15.5 15.5 14.5
5700 15.5 15.5 14.5
5825 15.5 15.5 14.5
802.11b
Test Frequencies 1/2_Target 5.5_Target 11_Target
2412 18.5 18 18
2472 18.5 18 18
2484 18.5 18 18
802.11g
Test Frequencies 6-12_Target 18_Target 24_Target 36_Target 48_Target 54_Target
2412 16.5 16.5 16.5 16.5 15.5 15.5
2442 16.5 16.5 16.5 16.5 15.5 15.5
2472 16.5 16.5 16.5 16.5 15.5 15.5
802.11n
Freq. Range: HT20
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
5180 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5240 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5320 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5500 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5700 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5745 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5825 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
Freq. Range: HT40
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
5190 14 14 14 14 14 14 14 14.5
5230 14 14 14 14 14 14 14 14.5
5270 14 14 14 14 14 14 14 14.5
5510 14 14 14 14 14 14 14 14.5
5670 14 14 14 14 14 14 14 14.5
5755 14 14 14 14 14 14 14 14.5
5795 14 14 14 14 14 14 14 14.5
Freq. Range: HT20
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
2412 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
2437 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
2472 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
Freq. Range: HT40
Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15
2412 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
2437 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
2472 15.5 15.5 15.5 15.5 15.5 15.5 15.5 15.5
MODEL: DHUR-AZ68
Wistron Neweb Corporation
9 of 21
802.11ac
Freq. Range: VHT20
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS 8
5180 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5240 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5320 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5500 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5700 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5745 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
5825 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5 14.5
Freq. Range: VHT40
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS 8 MCS 9
5210 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5290 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5530 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5610 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5690 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5775 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
Freq. Range: VHT80
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS 8 MCS 9
5210 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5290 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5530 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5610 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5690 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
5775 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5 13.5
Sensitivity
802.11a
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
BPSK
1/2
-82
-89
BPSK
3/4
-81
-88
QPSK
1/2
-79
-87
QPSK
3/4
-77
-85
16-QAM
1/2
-74
-82
16-QAM
3/4
-70
-78
64-QAM
2/3
-66
-74
64-QAM
3/4
-65
-67
802.11b
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
DBPSK
-
not specified
-98
DQPSK
-
not specified
-95
DQPSK
CCK
not specified
-90
DQPSK
CCK
not specified
-90
802.11g
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
BPSK
1/2
-82
-89
BPSK
3/4
-81
-88
QPSK
1/2
-79
-86
QPSK
3/4
-77
-84
16-QAM
1/2
-74
-81
16-QAM
3/4
-70
-78
64-QAM
2/3
-66
-74
64-QAM
3/4
-65
-73
MODEL: DHUR-AZ68
Wistron Neweb Corporation
10 of 21
802.11ng（HT20）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-82
-90
(MCS1) QPSK
1/2
-79
-87
(MCS2) QPSK
3/4
-77
-85
(MCS3) 16-QAM
1/2
-74
-82
(MCS4) 16-QAM
3/4
-70
-80
(MCS5) 64-QAM
2/3
-66
-75
(MCS6) 64-QAM
3/4
-65
-74
(MCS7) 64-QAM
5/6
-64
-67
（HT40）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-79
-88
(MCS1) QPSK
1/2
-76
-86
(MCS2) QPSK
3/4
-74
-84
(MCS3) 16-QAM
1/2
-71
-81
(MCS4) 16-QAM
3/4
-67
-78
(MCS5) 64-QAM
2/3
-63
-74
(MCS6) 64-QAM
3/4
-62
-69
(MCS7) 64-QAM
5/6
-61
-65
802.11na（HT20）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-82
-89
(MCS1) QPSK
1/2
-79
-86
(MCS2) QPSK
3/4
-77
-84
(MCS3) 16-QAM
1/2
-74
-82
(MCS4) 16-QAM
3/4
-70
-79
(MCS5) 64-QAM
2/3
-66
-74
(MCS6) 64-QAM
3/4
-65
-73
(MCS7) 64-QAM
5/6
-64
-66
（HT40）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-79
-86
(MCS1) QPSK
1/2
-76
-84
(MCS2) QPSK
3/4
-74
-82
(MCS3) 16-QAM
1/2
-71
-80
(MCS4) 16-QAM
3/4
-67
-80
(MCS5) 64-QAM
2/3
-63
-78
(MCS6) 64-QAM
3/4
-62
-76
(MCS7) 64-QAM
5/6
-61
-73
802.11ac（HT80）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-76
-88
(MCS1) QPSK
1/2
-73
-86
(MCS2) QPSK
3/4
-71
-83
(MCS3) 16-QAM
1/2
-68
-80
(MCS4) 16-QAM
3/4
-64
-78
(MCS5) 64-QAM
2/3
-60
-76
(MCS6) 64-QAM
3/4
-59
-73
(MCS7) 64-QAM
5/6
-58
-71
(MCS8) 256-QAM
3/4
-53
-65
(MCS9) 256-QAM
5/6
-51
-59
MODEL: DHUR-AZ68
Wistron Neweb Corporation
11 of 21
Transmit
spectrum
mask
For transmitted spectral mask for 11b shall be less than –50dBr for 22MHz<f<fc+22MHz.
For transmitted spectral mask for 11g shall be less than –40dBr for fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 20MHz shall be less than –45dBr for
fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 40MHz shall be less than –45dBr for
fc–60MHz<f<fc+60MHz.
Transmit
spectrum
flatness
For 802.11g the average energy of the constellations in each of spectral lines –16..-1
and +1..+16 will deviate no more than +/- 2dB from their average energy.
For 802.11n 40MHz mode, the average energy of the constellations in each of spectral
lines –42..-2 and +2..+42 will deviate no more than +/- 2dB from their average energy.
The transmitted spectral flatness should be within +2/- 4dB.
Transmit
center
frequency
tolerance
The transmitted center frequency tolerance shall be ±20 ppm maximum.
Carrier
suppression
802.11a:
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of the
rest of the sub-carriers.
802.11b:
The RF carrier suppression, measured at the channel center frequency, shall be at least
15 dB below the peak SIN(x)/x power spectrum.
802.11g:
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of the
rest of the sub-carriers.
802.11n:
For all 20 MHz modes of transmission
The leakage of the center frequency component shall not exceed -15 dB relative to
overall transmitted power or, equivalently, +2 dB relative to the average energy of the
rest of the sub-carriers.
For all 40 MHz modes of transmission
The center frequency leakage shall not exceed -18 dB relative to overall transmitted
power, or, equivalently, +2 dB relative to the average energy of the rest of the sub-carriers.
Transmit
power on
ramp and
power down
ramp time
The transmitting power-on ramp for 10% to 90% of maximum power m shall be no greater than 2 µs.
The transmitting power-down ramp for 90% to 10% of maximum power shall be no greater than 2 µs.
Receiver
maximum
input level
802.11a
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11b
Modulation IEEE Spec (1Rx dBm)
DBPSK >-10
DQPSK >-10
CCK >-10
802.11g
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11na
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11ng
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11ac
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
MODEL: DHUR-AZ68
Wistron Neweb Corporation
12 of 21
PCB
dimension
46.0+/-0.1mm x 40.00+/-0.1mm x 1.0+/-0.1mm 4L FR4
Transfer
data rate
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: @800GI(400GI)
20MHz BW
1 Nss: 65(72.2) Mbps maximal
2 Nss: 130(144.444) Mbps maximal
40MHz BW
1 Nss: 135(150) Mbps maximal
2 Nss: 270(300) Mbps maximal
802.11ac: @800GI(400GI)
80MHz BW
1 Nss: 390(433.3) Mbps maximal
2 Nss: 780(866.7) Mbps maximal
Security
WEP, WPA ,WPA2 ,AES, TKIP
Operation
temperature
-10o ~ 60o C
Storage
temperature
- 45o ~ 85o C ,R.H:90%（non-condensing）
Antenna
Wi-Fi on-board antenna.
3-4. BT Portion
Item
Key specifications
Main chipset
MT7668AUN
Compliance
Bluetooth 5.0
Frequency
range
2400 ~ 2483.5MHz
Initial carrier
frequency
tolerance
+/- 40kHz (typical)
Modulation
technique
Frequency hopping, 1600 hops/sec
Channel
spacing
1MHz
Channels
support
79 channels
Power
consumption
@25 o C
Current
consumption
Data Rate
Average.
Units
Typ.
Max.
Sleep mode
Radio off
--
1.5
2.0
mA
BT Tx
BDR
34
38
mA
EDR
34
38
mA
BLE
34
38
mA
BT Rx
BDR
23
26
mA
EDR
23
26
mA
BLE
23
26
mA
Note：
※The maximum current consumption would be impacted by radiation environment and the driver
mechanism.
MODEL: DHUR-AZ68
Wistron Neweb Corporation
13 of 21
Output power
(dBm)
+ 4 dBm ≤ Output Power ≤ +10dBm （Class I Device）
Sensitivity
-80 dBm (typ.) for pi/4-DQPSK, 0.1%BER
Operation
temperature
-10o ~ 60o C
Storage
temperature
-45o ~ 85o C , R.H. : 90%（non-condensing）
Antenna
1 U.FL connector on module for BT external antenna.
4. Mechanical Drawing
MODEL: DHUR-AZ68
Wistron Neweb Corporation
14 of 21
5. Shielding cover Information
MODEL: DHUR-AZ68
Wistron Neweb Corporation
15 of 21
6. Connector Information
MODEL: DHUR-AZ68
Wistron Neweb Corporation
16 of 21
7. Coaxial IPEX Connector
MODEL: DHUR-AZ68
Wistron Neweb Corporation
17 of 21
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can
be operated. Selection of other channels is not possible.
This device is restricted for indoor use.
Professional installation is required
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user
has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied.
The end user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment.
MODEL: DHUR-AZ68
Wistron Neweb Corporation
18 of 21
If the labelling area is small than the palm of the hand, then additional FCC part 15.19
statement is required to be available in the users manual: This device complies with Part 15 of
FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC
ID: NKR-DHURAZ68 ".
If the labelling area is larger than the palm of the hand, then the following FCC part 15.19
statement has to also be available on the label: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Set
Ant.
Port
Brand
Model
Name
Antenna
Type
Connector
Gain (dBi)
2.4GHz
5GHz
Bluetooth
1
1
1
WNC
-
Printed Antenna
N/A
5.31
5.92
-
2
2
WNC
-
Printed Antenna
N/A
5.26
5.91
-
2
3
1
WNC
-
PIFA
Antenna
I-PEX
1.54
3.52
-
4
2
WNC
-
PIFA
Antenna
I-PEX
0.15
2.83
-
3
5
1
WNC
-
PIFA
Antenna
I-PEX
3.56
5.59
-
6
2
WNC
-
PIFA
Antenna
I-PEX
2.14
5.08
-
4
7
1
WNC
-
PIFA
Antenna
I-PEX
-
-
3.90
5
8
1
WNC
-
PIFA
Antenna
I-PEX
-
-
1.18
6
9
1
WNC
-
PIFA
Antenna
I-PEX
-
-
0.01
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can
be operated. Selection of other channels is not possible.
MODEL: DHUR-AZ68
Wistron Neweb Corporation
19 of 21
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités.
Sélection d'autres canaux n'est pas possible.
This radio transmitter (4441A-DHURAZ68) has been approved by Industry Canada to operate with
the antenna types listed below with the maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Le présent émetteur radio (4441A-DHURAZ68) a été approuvé par Industrie Canada pour fonctionner avec
les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement
interdits pour l'exploitation de l'émetteur.
Set
Ant.
Port
Brand
Model
Name
Antenna
Type
Connector
Gain (dBi)
2.4GHz
5GHz
Bluetooth
1
1
1
WNC
-
Printed Antenna
N/A
5.31
5.92
-
2
2
WNC
-
Printed Antenna
N/A
5.26
5.91
-
2
3
1
WNC
-
PIFA
Antenna
I-PEX
1.54
3.52
-
4
2
WNC
-
PIFA
Antenna
I-PEX
0.15
2.83
-
3
5
1
WNC
-
PIFA
Antenna
I-PEX
3.56
5.59
-
6
2
WNC
-
PIFA
Antenna
I-PEX
2.14
5.08
-
4
7
1
WNC
-
PIFA
Antenna
I-PEX
-
-
3.90
5
8
1
WNC
-
PIFA
Antenna
I-PEX
-
-
1.18
6
9
1
WNC
-
PIFA
Antenna
I-PEX
-
-
0.01
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential
for harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles
utilisant les mêmes canaux.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point
operation as appropriate.
le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le
cas.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
MODEL: DHUR-AZ68
Wistron Neweb Corporation
20 of 21
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm
de distance entre la source de rayonnement et votre corps.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
Any changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user
has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied.
MODEL: DHUR-AZ68
Wistron Neweb Corporation
21 of 21
The end user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference
that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains IC: 4441A-
DHURAZ68 ".
The Host Model Number (HMN) must be indicated at any location on the exterior of the end
product or product packaging or product literature which shall be available with the end
product or online.
Contact name : Kenny Young
＜Americas＞W-NeWeb Corporation
• Address : 1525 McCarthy Blvd, Suite 206, Milpitas, CA 95035, U.S.A.
• Tel : +1-408-457-6800
• Fax : +1-408-457-6789

Navigation menu
