Wistron NeWeb DNUB-B1 802.11AGN 2X2 USB EMBEDDED WI-FI MODULE User Manual 20100504 DNUB B1 User Manual
Wistron NeWeb Corporation 802.11AGN 2X2 USB EMBEDDED WI-FI MODULE 20100504 DNUB B1 User Manual
User Manual
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
1
User Manual
Model Name: DNUB-B1
(Broadcom BCM4323
2x2 11agn embedded USB module)
Revision: 1.1
Issue Date: 2010/05/03
This document and the information contained herein is the property of Wistron NeWeb
Corporation and reproduction by any means (including, but not limited to, xerographic,
chemical, electronic) and distribution is expressly prohibited without prior written consent from
Wistron NeWeb Corporation. The document and information contained herein are
confidential and may not be divulged without express written consent from Wistron NeWeb
Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan,
R.O.C.
Copyright 2010 by Wistron NeWeb Corporation / All rights reserved.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
2
Revision History
Edition # Reason for revision Issue date Author
1.0 Initial Draft Document 2010/04/29 Lydia Tsai
1.1 Detail spec. update 2010/5/3 Johnny Chan
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
3
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
3) For all products market in US, OEM has to limit the operation in the frequency 2412MHz,
2438MHz and 2462MHz for 2.4G band by supplied firmware programming tool. OEM shall not
supply any tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements,
etc.).
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
4
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance
requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host this
module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with
the antenna while this end product is installed and operated. The end user has to be informed that the FCC
radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also
be informed that any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC
part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC
rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: NKR-DNUB-B1 ".
If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be
available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
5
Canadian ICES-003
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other
channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
The device could automatically discontinue transmission in case of absence of information to transmit, or
operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the
use of repetitive codes where required by the technology.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to
co-channel mobile satellite systems.
The maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to comply
with the e.i.r.p. limit.
The maximum antenna gain permitted (for devices in the band 5725-5825 MHz) to comply with the e.i.r.p. limits
specified for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3).
High-power radars are allocated as primary users (meaning they have priority) of the bands 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance
requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host this
module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with
the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
6
frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be
informed that any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment. IC statement is required to be available in the users manual: This Class B
digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX IC : 4441A-DNUB-B1 ".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
7
1. General Description
The DNUB-B1 module is 802.11n sign-chip solutions for embedded USB module. It’s very
small and cost-effective modules which can integrated in PCs, TVs, set-top boxes, personal
video recorders and other devices to a WiFi network. As a result of this unprecedented
integration, the DNUB-B1 modules enables smaller, more cost-effective modules that can be
used to add high-performance wireless connectivity to devices.
2. Usage
Install DNUB-B1 module to PCs, TVs, set-top boxes, personal video recorders and other
devices to a WiFi network some CE product, like Speaker, TV …etc, then it will support
Wireless function for those products.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
8

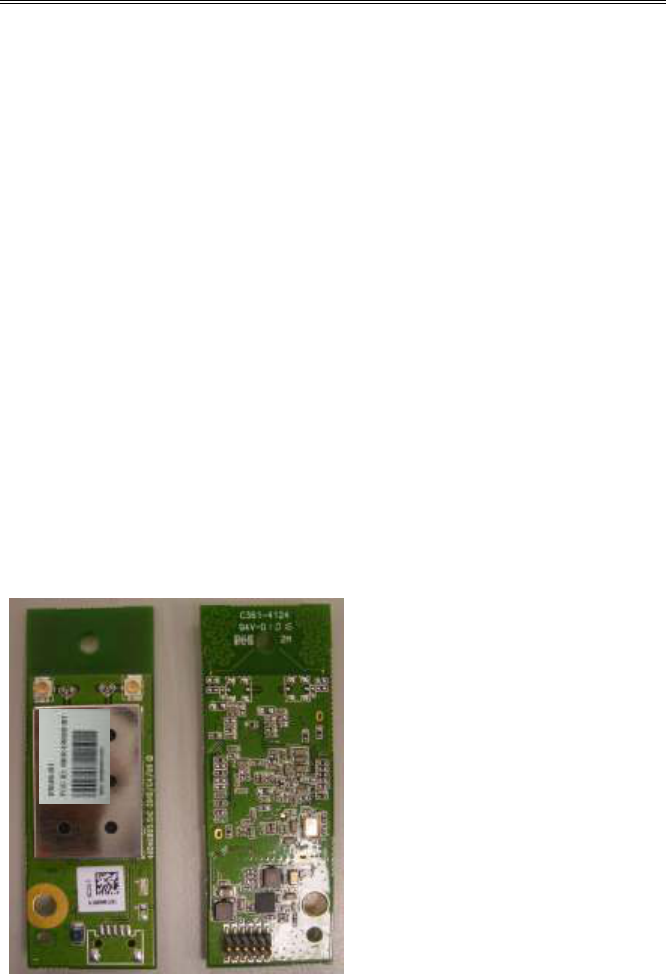

3. Module Outline
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
9

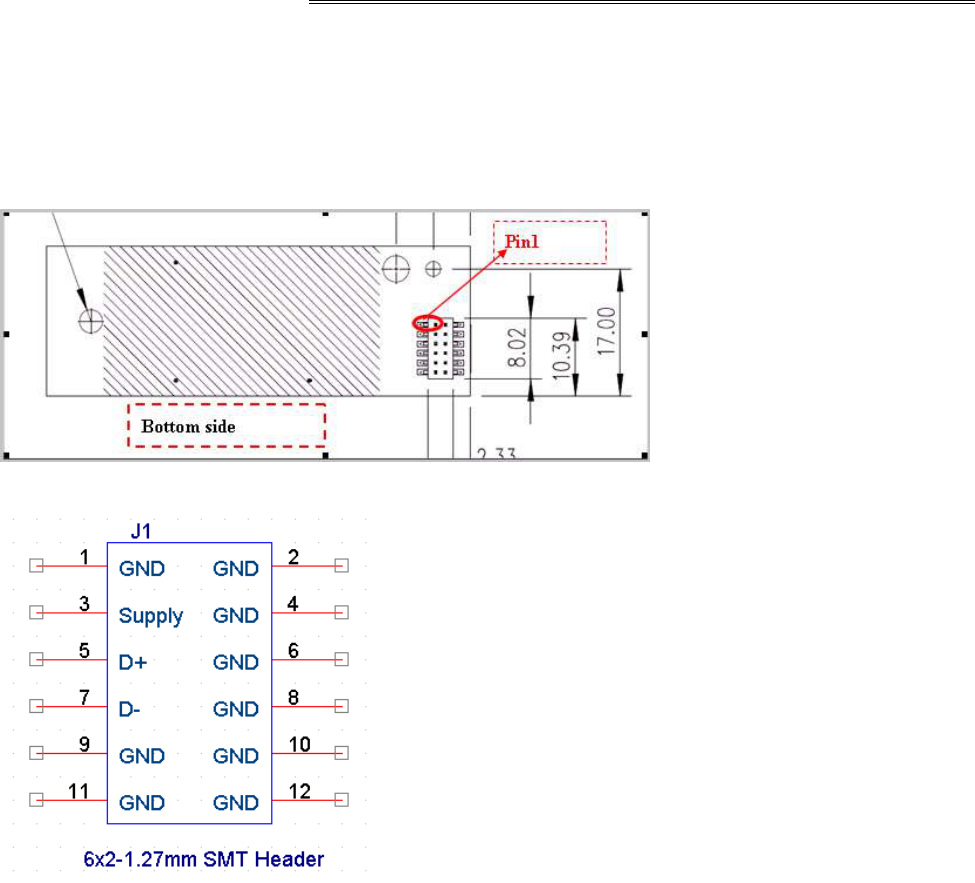

4. Pin Configuration
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
10
Table 0-1 DNUB-B1 pin description
Pin Number Pin Name Direction Description
1,2,4,6,8,9,10,11,12 GND --- Ground
3 5V 5V
5 USB_D+ I/O USB_P
7 USB_D- I/O USB_N
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
11

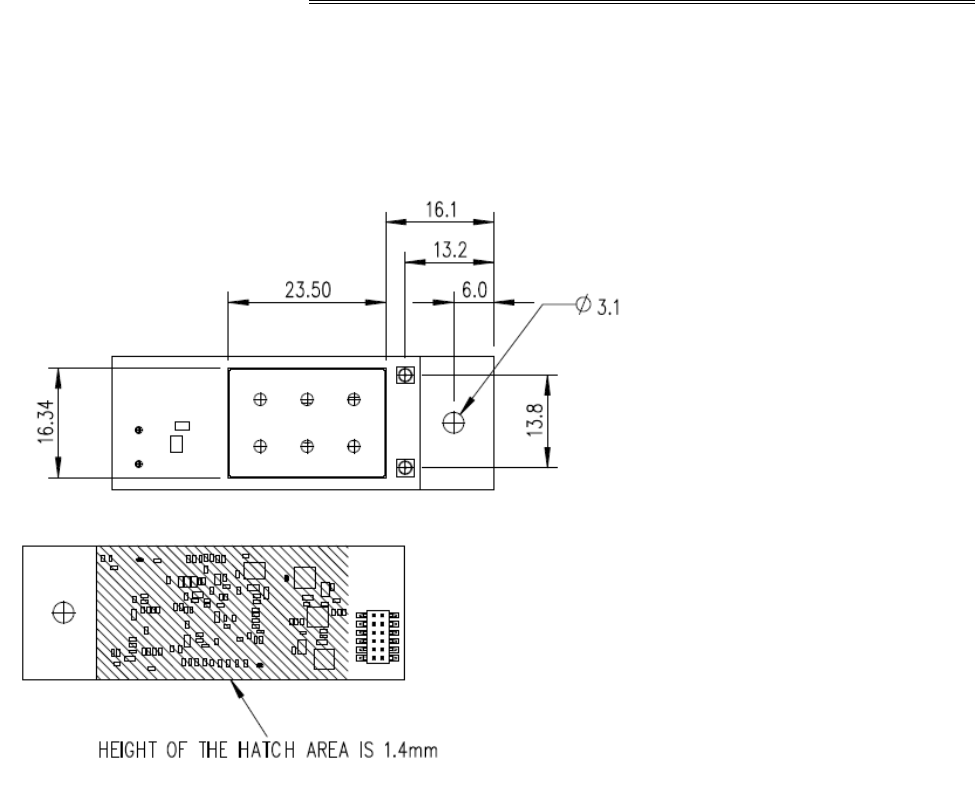

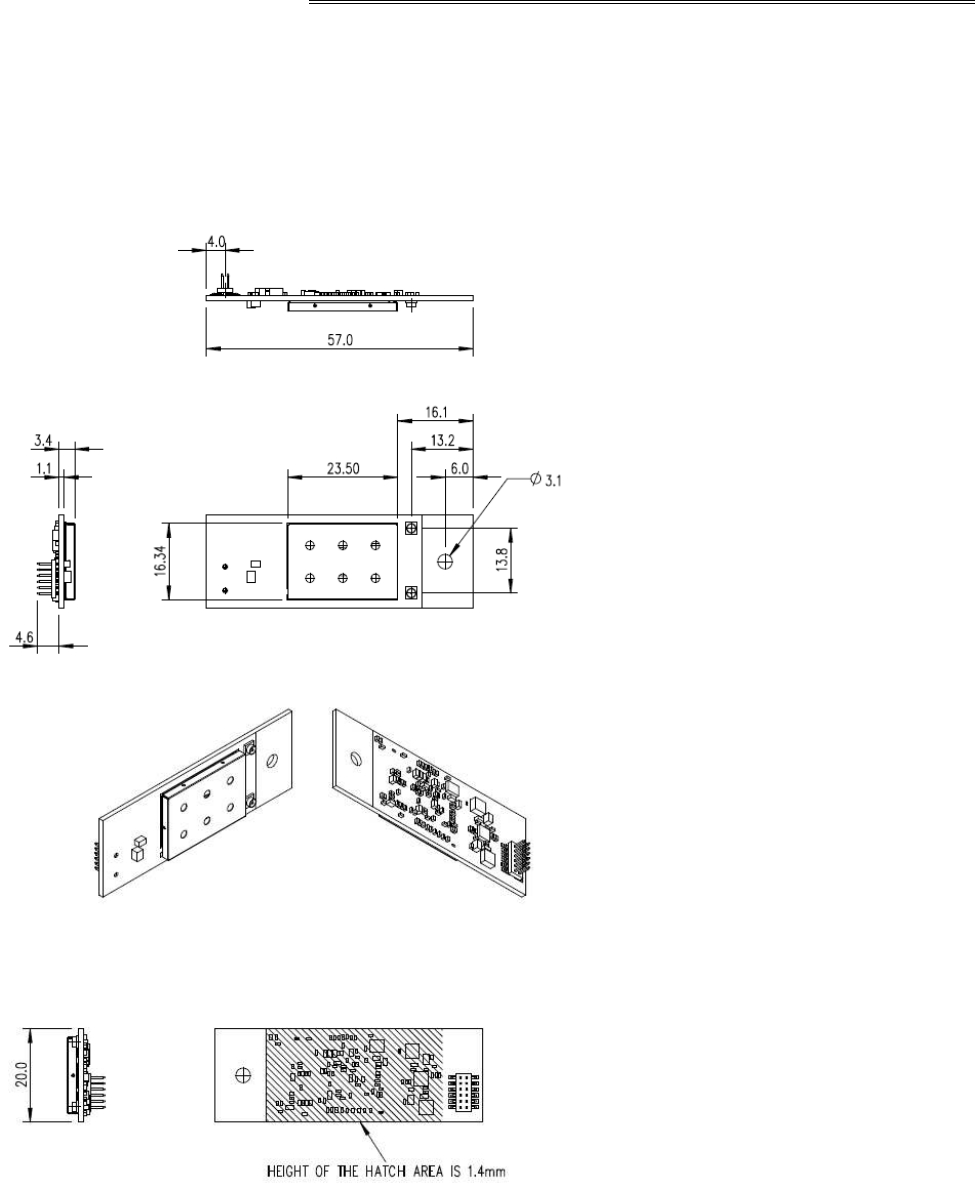

5. Mechanical Dimension
