Wistron NeWeb PW8Q7A Mini board wi-fi edition User Manual PW8Q7 x
Wistron NeWeb Corporation Mini board wi-fi edition PW8Q7 x
User Manual
Product specification for Smart module PW8Q7
Page1
User Manual for PW8Q7 smart module
Wistron NeWeb Corp.
啟碁科技股份有限公司
Product specification for Smart module PW8Q7
Page2
Revision History
Version Change history Date
A01 Initial version 2013-12-20
CONFIDENTIAL
THIS DOCUMENT CONTAINS PROPRIETARY TECHNICAL INFORMATION, WHICH IS
THE PROPERTY OF THE WISTRON NEWEB CORPORATION AND SHALL NOT BE
DISCLOSED TO OTHERS IN WHOLE OR IN PART, REPRODUCED, COPIED, OR USED AS
THE BASIS FOR DESIGN, MANUFACTURING, OR SALE OF APPARATUS WITHOUT
WRITTEN PERMISSION OF WISTRON NEWEB CORPORATION.
Product specification for Smart module PW8Q7
Page3
Contents
Contents ...................................................................................... 3
A. Product Description ............................................................... 4
A.1GeneralDescriptions...........................................................................4
A.2ApplicableDevice................................................................................4
B. Main Features ......................................................................... 4
B.1ApplicationProcessorfeatures.............................................................5
C. General Specification ............................................................. 5
D. Application ...............................................................................6
E. Power Consumption ................................................................ 7
F. Mechanic Specifications .....................................................…..7
G. Package Specifications ............................................................8
H. Electrostatic discharge (ESD) .................................................9
I. FCC and CE Warnings................................................ ...............11
J. Support .......................................................................................14
Product specification for Smart module PW8Q7
Page4
A. Product Description
A.1 General Descriptions
This document describes and specifies requirements for smart Module PW8Q7,
PW8Q7 is smart module for smart phone and Tablet . It can support Bluetooth, WiFi and GPS
function.
It can support SD card, LCM,Touch Screen,Audio,two camera,Flash LED,Accelerometer/
Magnetometer/Gyroscope/Pressure/Temperature/P&L Sensor functions though application
design board.
A.2 Applicable Device
WNC PW8Q7 module integrate high speed dual core application processor and high speed
modem with 300pin connector connection form factor and is focusing on the Handheld,Gateway,
Notebook,Tablet and other portable device marketing.
Handheld Device
Tablet
Mobile Internet Device
Handheld Device
Notebook/ Netbook
Wireless Multimedia Device
B. Main Features1
Multi-band:
Wifi 2.4GHz (HT20)/5GHz (HT20/HT40) 802.11 a/b/g/n
BT 2.4GHz Bluetooth 4.0
GPS
Application Processor
APQ8060A, Dual Core 1.5 GHz
Support LCM/Camera/Touchpannel/SD/USB/Sensor/Audio/HDMI
Operation System
Android
Certification
CE Compliance
FCC Compliance
Product specification for Smart module PW8Q7
Page5
RoHS Compliance
Environment
Operating temperature: -30℃ ~ +70℃ @ humidity 10% to 85%
Storage temperature: -30℃~ +70℃@ humidity 5% to 90%
B.1 Application Processor features
Qualcomm APQ8060A Dual Core 1.5 GHz processor
1GB LPDDR2 HYNIX H9TKNNN8KDARAR-NGM
8GB eMMC MICRON MTFC8GLVEA-4M
C. General Specification
Item Parameter
Form Factor (mm) 40 x 62 x 5.0 mm
Weight (g) 20g (TBD)
Processor APQ8060A, Dual Core 1.5 GHz
WLAN 2.4GHz/5GHz 802.11 a/b/g/n
Bluetooth 2.4GHz Bluetooth 4.0
Memory 1 GB LPDDR2
8 GB eMMC
GPS MS-Based/MS-Assisted/Standalone
Application interface
LCM: MIPI DSI
Camera :MIPI CSI /I2C
Flash LED: I2C
Touch screen: I2C
Sensor(Accelerometer,P&L,E-Compass,Pressure,Temperature,Gyroscope): I2C
SD
USB
HSIC
HDMI
Audio(Receiver/Speaker/Microphone/Headset): Analog signal
Keypad
Vibrator
Product specification for Smart module PW8Q7
Page6
Indicator Lights
GPIO
D. Application

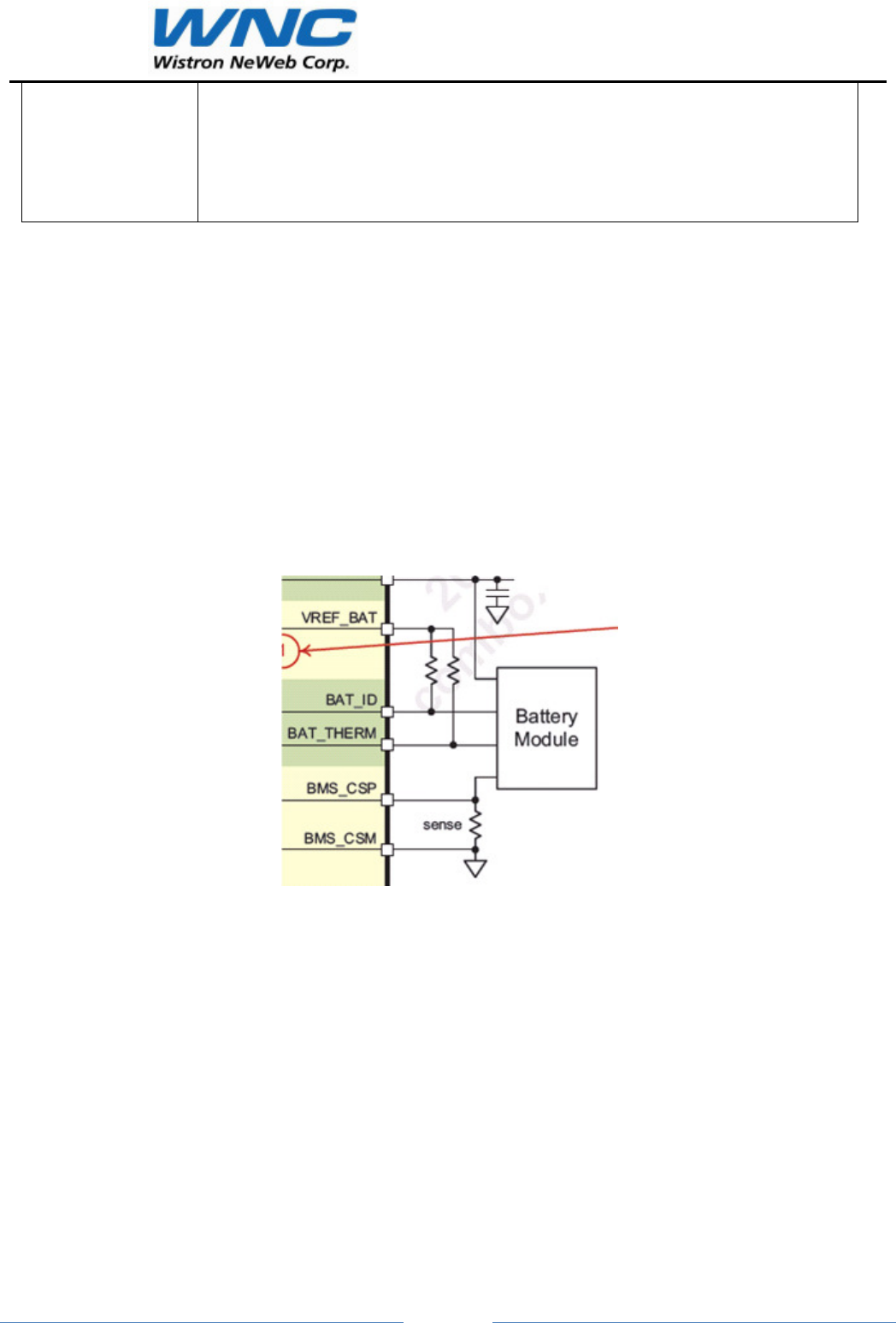

Battery connection
A stable and accurate 1.80 V bias voltage is available at the VREF_BAT pin
Supplements off-chip resistors and the battery module to create analog voltages needed to
identify the battery type and determine its temperature
Coulomb Counter,require to install a 10 m ohm resistor between battery negative and
GND

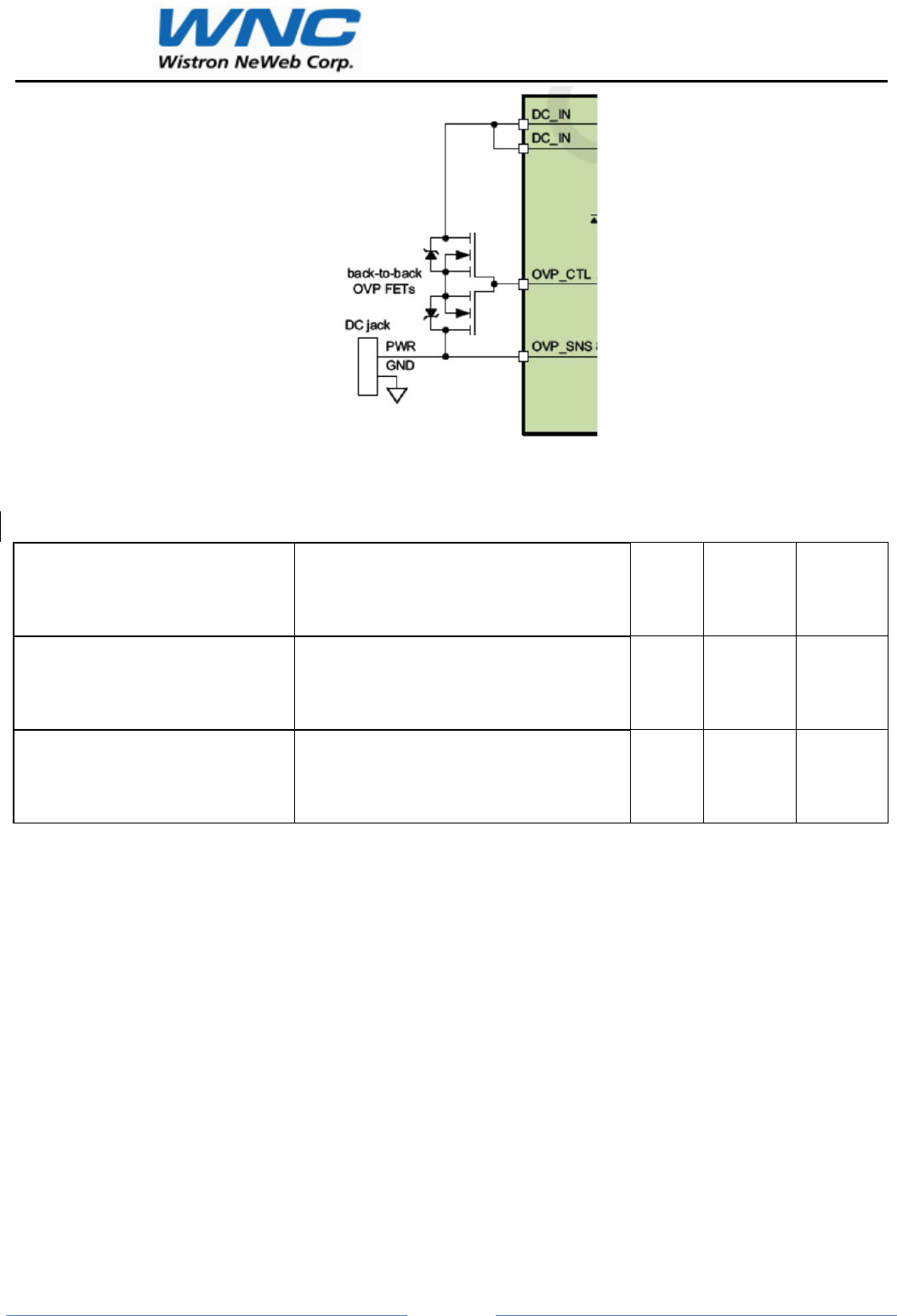

DC Charging
If you want to support two charging power sources: a USB charger and a wall charger
They can be connected one at a time or simultaneously. The system recognizes the state of
both input sources, selects which to use, and supports or provides OVP at both input nodes
But you must install a back-to-back MOSFET to support OVP function
Product specification for Smart module PW8Q7
Page7
E.
Power Consumption
Work Mode Definition Min. Typ. Max.
Sleep (Airplane mode) Airplane; backlight and display off 3.5mA 4mA
WLAN (DTIM1) with W standby WLAN standby, beacon cycle 100 ms 9mA 11mA
F.

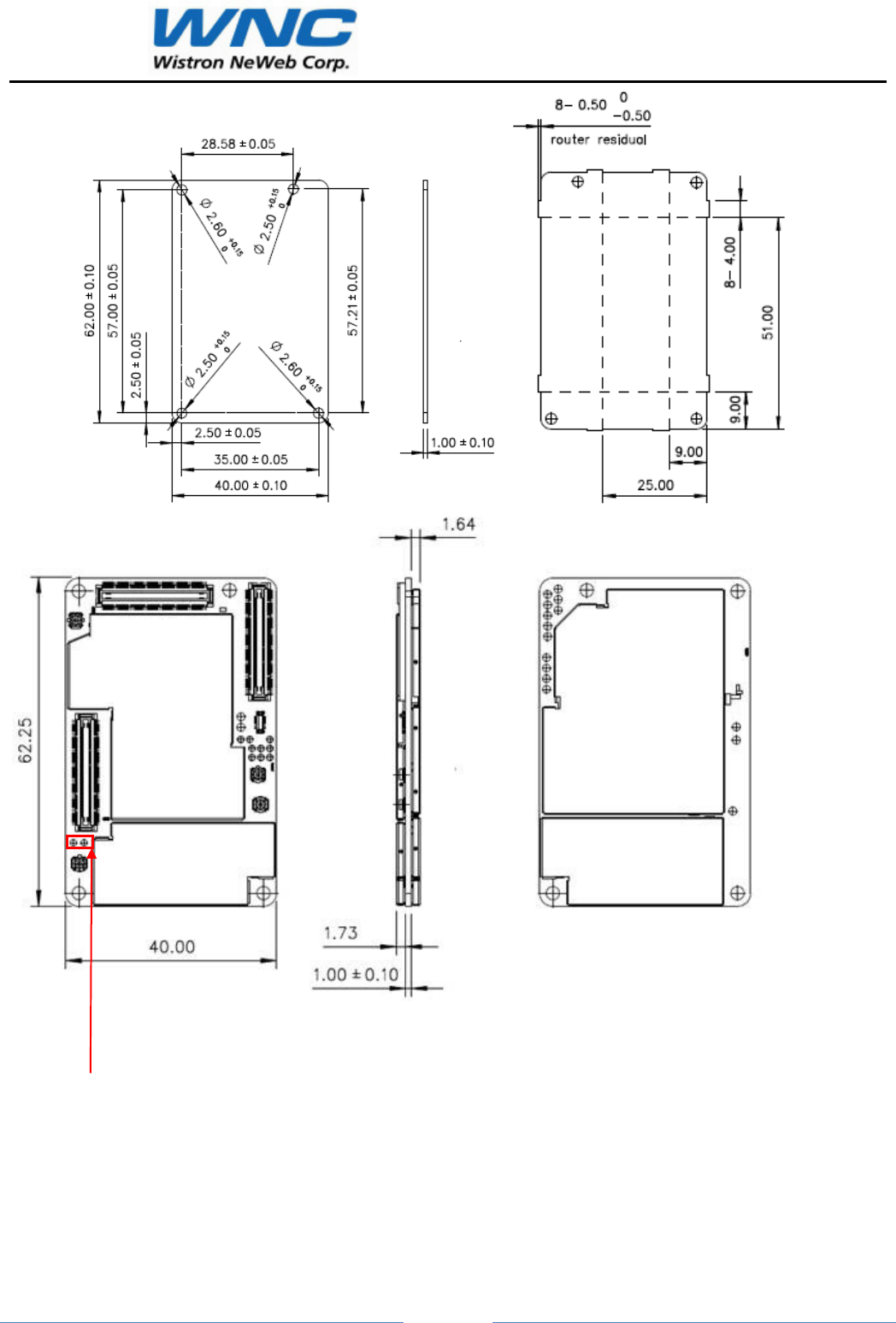

Mechanic Specifications
Product specification for Smart module PW8Q7
Page8
Emergency Download Test Points: Pull these two points to ground if you want to enter the
emergency download mode
Product specification for Smart module PW8Q7
Page9

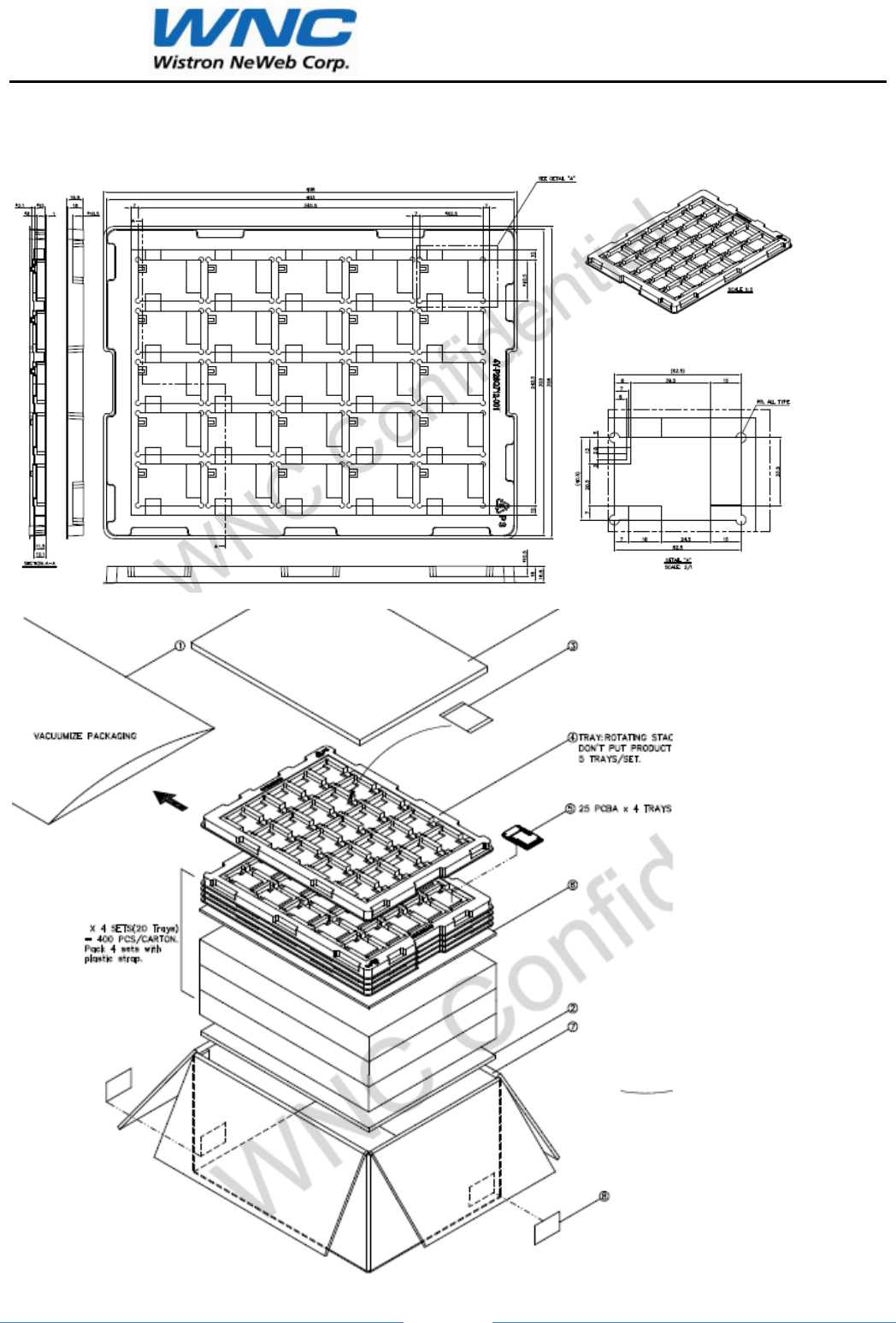

G. Package Specifications
Product specification for Smart module PW8Q7
Page10
H. Electrostatic discharge (ESD)
The OEM is responsible for ensuring that the Mini board interface pins are not
exposed to ESD during handling or normal operation.
ESD protection is highly recommended for the user interface connector at the point
where the contacts are exposed and for any other signals from the host interface that
would be subjected to ESD by the user of the product.

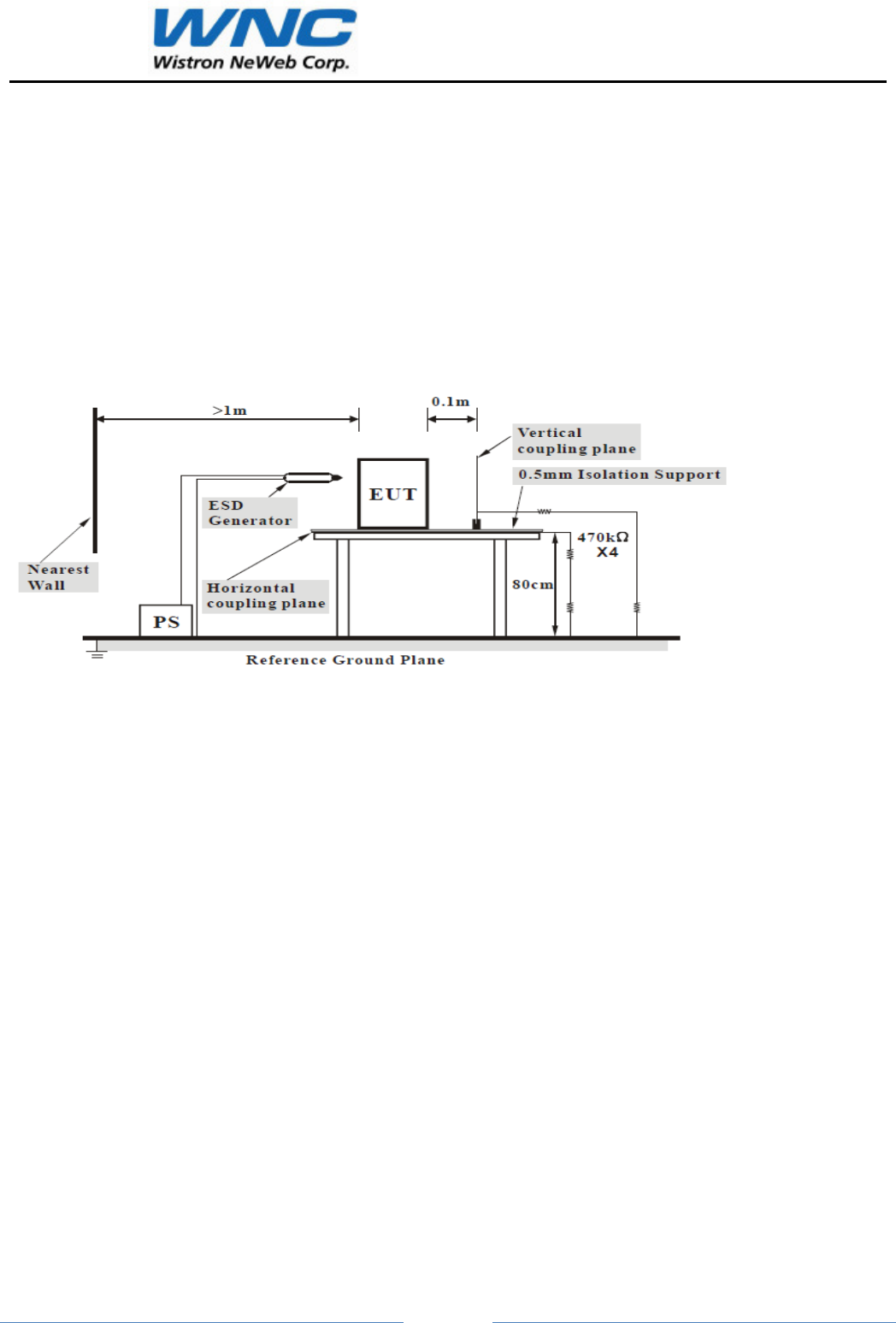

P28Q7 can meet IEC 61000-4-2 test requirement, Indirect application of the discharge
±4kV-Level2, Include Horizontal coupling plane (HCP) and Vertical coupling plane (VCP)
mode. the criterion is TT/TR
Product specification for Smart module PW8Q7
Page11
I FCC and CE Warnings
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device ,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
RF Exposure Information
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
Product specification for Smart module PW8Q7
Page12
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC
compliance requirement of the end product, which integrates this module. 20cm minimum
distance has to be able to be maintained between the antenna and the users for the host this
module is integrated into. Under such configuration, the FCC radiation exposure limits set forth
for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to
be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment
can be satisfied. The end user has to also be informed that any changes or modifications not
expressly approved by the manufacturer could void the user's authority to operate this equipment.
If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is
required to be available in the users manual: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
NKR-PW8Q7A". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be
available on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Product specification for Smart module PW8Q7
Page13
CE Conformance：
The device is tested for typical body worn operation. The minimum distance between the user
and/or any bystander and the radiating structure of the transmitter is 20cm.
WLAN 5150MHz to 5250MHz is limited indoor use.
Complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used
for its intended use and that the following standards have been applied:
1. Health (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN62311 :2008
EN 62479 :2010
2. Safety (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
Applied Standard(s):
EN 301 489-1 V1.9.2/-3 V1.4.1-17 V2.2.1
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
Applied Standard(s):
EN 300 328 V1.8.1
EN 301 893 V.1.7.1
EN 300440-1 V1.6.1
EN 300440-2 V1.4.1
All the reports of the applied standards have the Positive Opinion of Notified Body:
PHOENIX TESTLAB, Königswinkel 10 D-32825 Blomberg, Germany
Identification mark: 0700 (Notified Body) CE
Product specification for Smart module PW8Q7
Page14
J. Support
Support
20 Park Avenue II,
Hsinchu Science Park,
Hsinchu 308, Taiwan, R.O.C.
TEL: 886-3-666-7799
FAX: 886-3-612-8391
Website: http://www.wneweb.com
