Wistron NeWeb RT200G 802.11g WLAN Router User Manual Revised Manual
Wistron NeWeb Corporation 802.11g WLAN Router Revised Manual
Revised Manual
802.11g WLAN Router
USER’S GUIDE
VERSION 1.0, JUN. 2003
802.11g Router User’s Guide
1
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, whether electronic, mechanical, photocopying, recording or
otherwise without the prior writing of the publisher.
Windows 95/98 and Windows 2000 are trademarks of Microsoft Corp.
Pentium is trademark of Intel.
All copyright is reserved.
2
TABLE OF CONTENT
INTRODUCING THE 802.11G ROUTER....................................................................................................................................3
OVERVIEW OF THE 802.11G ROUTER ..........................................................................................................................................3
802.11G ROUTER APPLICATIONS.................................................................................................................................................4
A SECURITY OVERVIEW...............................................................................................................................................................5
802.11G ROUTER FEATURES........................................................................................................................................................5
SETTING UP THE DEVICE ..............................................................................................................................................................6
INSTALLING THE 802.11G ROUTER.....................................................................................................................................7
WHAT’S IN THE BOX?...................................................................................................................................................................7
A PHYSICAL LOOK AT THE BACK PANEL......................................................................................................................................8
A PHYSICAL LOOK AT THE FRONT PANEL....................................................................................................................................9
CONNECTING THE CABLES.........................................................................................................................................................10
HIGH LEVEL CONFIGURATION STEPS REQUIRED FOR THE 802.11G ROUTER.........................................................................10
SETTING UP A WINDOWS PC OR WIRELESS CLIENT AS DHCP CLIENTS..................................................................................11
CONFIGURING A PC RUNNING MS-WINDOWS 95/98/ME: .......................................................................................................11
CONFIGURING A PC RUNNING MS-WINDOWS XP/2000:.........................................................................................................11
CONFIRMING YOUR PC’S IP CONFIGURATION:.........................................................................................................................12
CONNECTING MORE DEVICES THROUGH A HUB TO THE 802.11G ROUTER..........................................................................12
BASIC CONFIGURATION OF THE 802.11G ROUTER....................................................................................................13
LOGGING ON...............................................................................................................................................................................14
SETUP WIZARD ...........................................................................................................................................................................14
ADVANCED SETTINGS............................................................................................................................................................22
OPERATIONAL MODE .................................................................................................................................................................22
PASSWORD SETTINGS.................................................................................................................................................................23
SYSTEM MANAGEMENT .............................................................................................................................................................24
SNMP SETTINGS ........................................................................................................................................................................26
DHCP SERVER SETTINGS ..........................................................................................................................................................27
MULTIPLE DMZ..........................................................................................................................................................................29
VIRTUAL SERVER SETTINGS ......................................................................................................................................................30
SPECIAL APPLICATIONS..............................................................................................................................................................31
MAC FILTERING SETTINGS .......................................................................................................................................................32
IP FILTERING SETTINGS .............................................................................................................................................................34
IP ROUTING SETTINGS ...............................................................................................................................................................36
WIRELESS SETTINGS...................................................................................................................................................................37
RADIUS SETTINGS ....................................................................................................................................................................38
DYNAMIC DNS SETTINGS ..........................................................................................................................................................40
MANAGING YOUR 802.11G ROUTER .................................................................................................................................42
HOW TO VIEW THE DEVICE STATUS ..........................................................................................................................................42
HOW TO VIEW THE SYSTEM LOG...............................................................................................................................................42
DHCP CLIENT TABLE ................................................................................................................................................................43
WIRELESS CLIENT TABLE ..........................................................................................................................................................43
BRIDGE TABLE ............................................................................................................................................................................43
UPGRADING FIRMWARE .............................................................................................................................................................44
HOW TO SAVE OR RESTORE CONFIGURATION CHANGES.........................................................................................................44
HOW TO REBOOT YOUR 802.11G ROUTER ................................................................................................................................45
WHAT IF YOU FORGOT THE PASSWORD? ..................................................................................................................................45
COMMAND LINE INTERFACE .............................................................................................................................................46
GENERAL GUIDELINES................................................................................................................................................................46
EXPRESS MODE VS. ADVANCED MODE OF OPERATION ...........................................................................................................47
CONVENTIONS.............................................................................................................................................................................47
COMMAND LIST ..........................................................................................................................................................................48
SPECIFICATION ........................................................................................................................................................................49
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface
cables when connecting to computer or peripheral devices) any changes or modifications
not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
The user cannot use channel 12 & 13, or it will be a violation of the
sensitive restricted bands of 15.205.
Introducing the 802.11g Router
This manual gives a basic introduction to 802.11g Wireless Router. It provides
information to configure the 802.11g Router to operate in common applications
such as connecting to the Internet.
We’ll describe how to use your web browser to configure the 802.11g Router and to perform various
management functions, e.g. upgrading the software, or viewing the system log, a task that can be useful
in ongoing operations.
This manual consists of the following chapters and appendixes:
Chapter One, Introduction, summarizes features and capabilities of the 802.11g Router.
Chapter Two, Installing the 802.11g Router, gives steps you should follow to install the 802.11g Router
and configure your PCs.
Chapter Three, Configuring the 802.11g Router, describes how to log in to the Web Manager, the
browser screen, and steps needed to configure your 802.11g Router for specific applications. It gives
easy-to-follow instructions for quick Internet access and provides a guide to basic 802.11g Router
configuration.
Chapter Four, Advanced Configuration, provides information on advanced router configuration.
Chapter Five, Managing your 802.11g Router, explains other management features of the 802.11g Router.

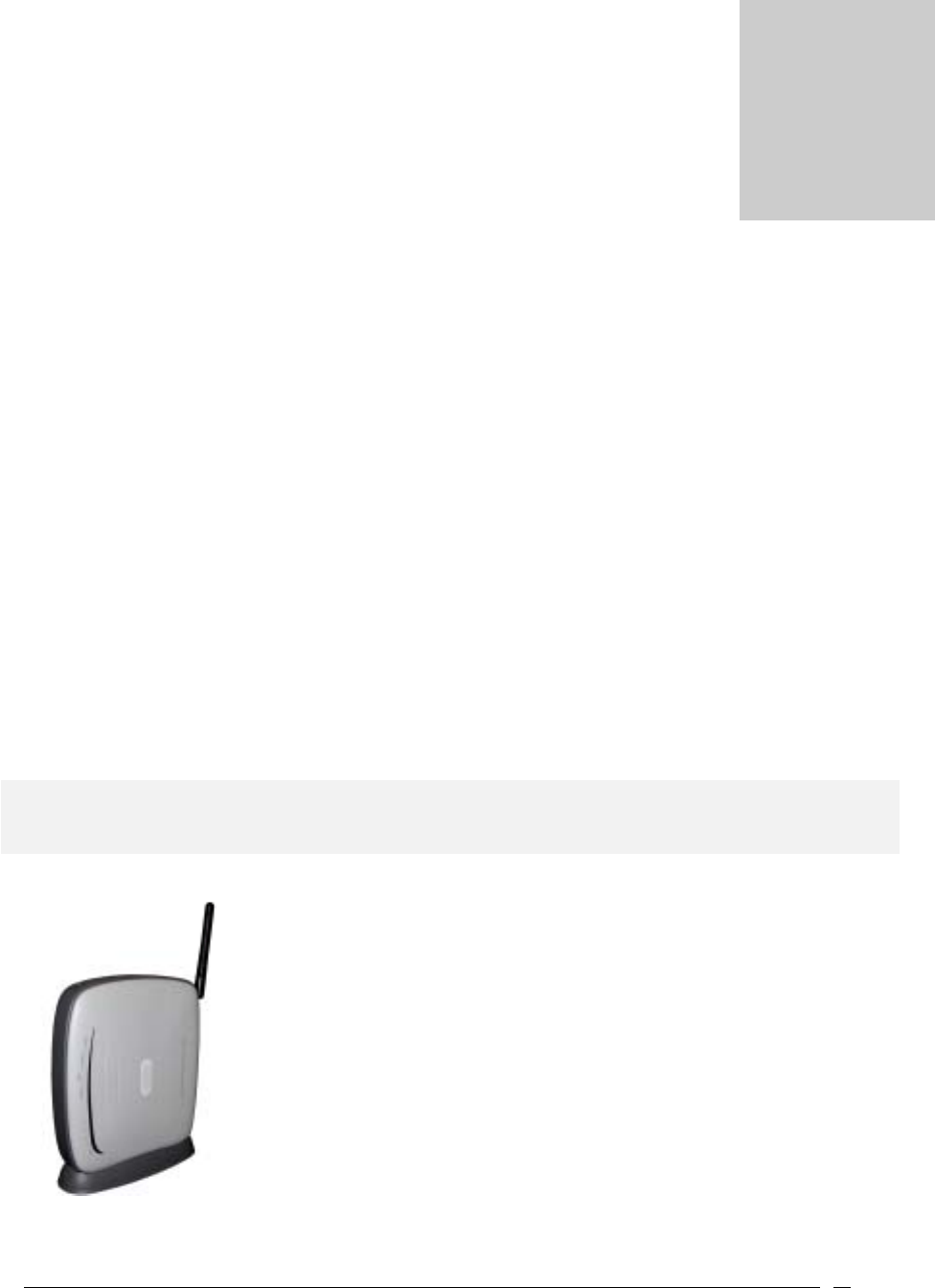

Overview of the 802.11g Router
The 802.11g Router is a small desktop router that sits between your local
Ethernet network and a remote network (e.g., the Internet). The 802.11g
Router contains an WAN port connecting to an external ADSL/Cable
modem, a DMZ port, a four-port 10/100Mbps Ethernet switch for
connection to PCs on your local wired network, and a wireless interface for
connection to your local wireless network (supporting a data rate of up to
54 Mbps).
Data comes into the 802.11g Router from the local wired and wireless
LAN and then is “routed” to the Internet, and vice versa.
C
h
apte
r
1
4

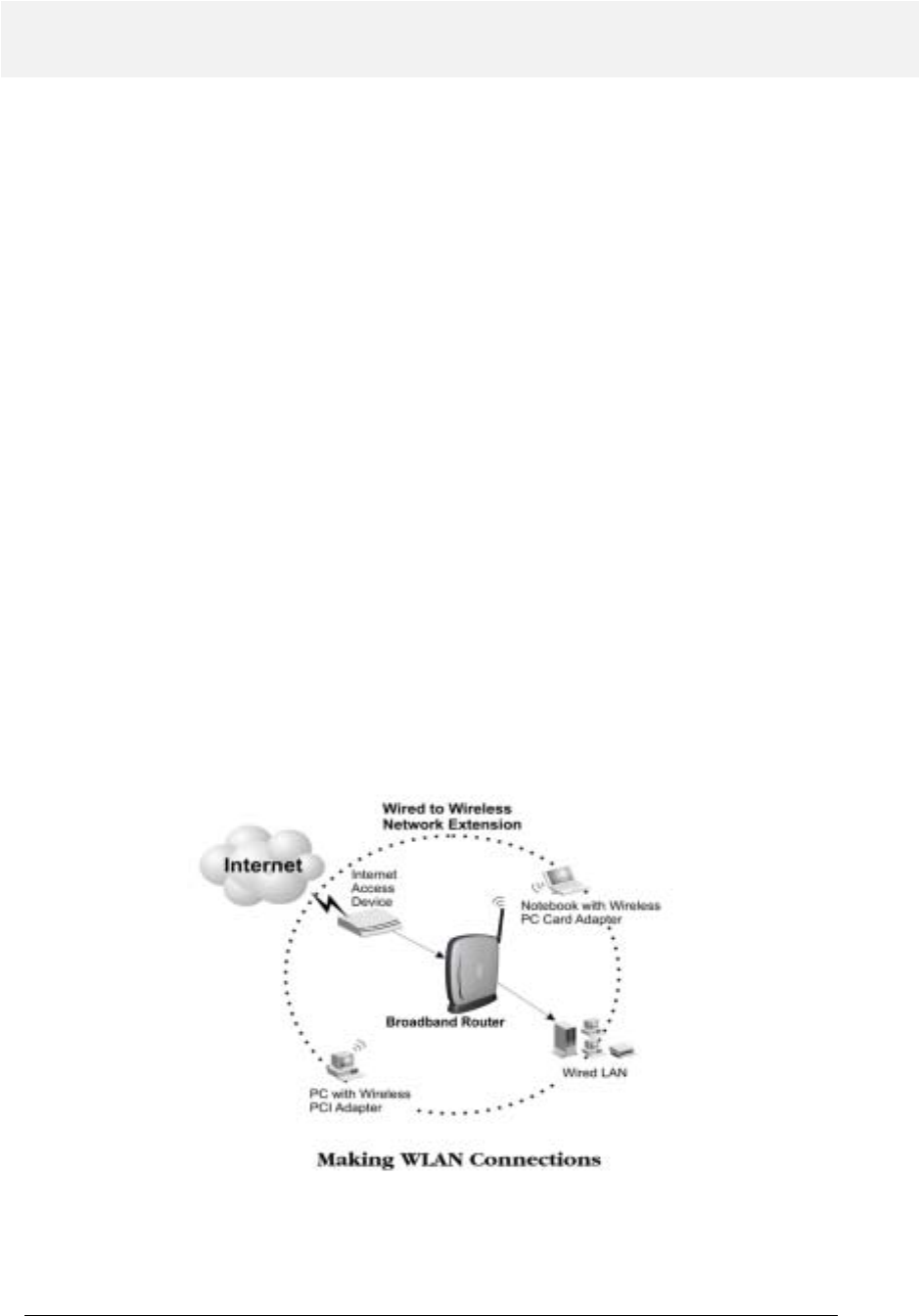

802.11g Router Applications
ACCESSING THE INTERNET
The most common use of the 802.11g Router is to provide shared Internet access to allow everyone
on your LAN to surf the web and send/receive emails or files. The 802.11g Router can automatically
acquire a public IP address when connecting to the Internet. In turn, it will automatically assign IP
addresses to PCs (requesting DHCP client devices) on your LAN - you don’t have to apply for and
assign IP addresses to PCs on your network.
ACCESSING SERVERS FROM THE PUBLIC NETWORK
If you want special servers to be accessible to remote users across the Internet (e.g., an e-mail server, an
FTP server, or a web server), you can configure the 802.11g Router to proxy the service using its (public)
IP address. It means a remote user can access the server by using the 802.11g Router’s IP address.
Upon receiving a request, the 802.11g Router will re-direct the request to the actual server on your local
network.
OPERATING AS AN ACCESS POINT
Additionally, the Wireless Router can also be configured as an Access Point, and acts as the central
point of your local wireless network supporting a data rate of up to 54 Mbps. It allows client devices on
your wireless network to access the Internet, to communicate with other wireless devices on your
wireless network, or to communicate with devices on your wired LAN network.
Since 802.11g is based on the same 2.4GHz radio band as the 802.11b technology, the 802.11g Router
can inter-operate with existing 11Mbps 802.11b devices. Therefore you can protect your existing
investment in 802.11b client cards, and migrate to the high-speed 802.11g standard as your needs grow.
802.11g Router User’s Guide
5
A Security Overview
More and more people are concerned about protecting your local network from the Internet. The
802.11g Router provides several ways to keep your network secure:
Devices on your wired or wireless network are assigned private IP addresses; therefore remote
users from the Internet cannot see nor access them.
The 802.11g Router implements IP packet filtering capabilities, which you can use to selectively
filter (discard) packets to/from the Internet.
You can selectively restrict management to remote devices.
To address the growing security concern in a wireless LAN environment, different levels of security
can also be enabled in the 802.11g Router, including:
To disable SSID broadcast so to restrict association to only client stations that are already pre-
configured with correct SSIDs
To enable WEP (Wireless Encryption Protocol) encryption to implement privacy of your data
Support of Access Control List to allow you to grant/deny access to/from specified wireless
stations (using MAC addresses)
Provisioning of centralized authentication through RADIUS Server(s).
802.11g Router Features
Compliant with 802.11b and 802.11g standards with roaming capability
Support of NAT for multiple users to share Internet access
IP routing (RIP1/RIP2) support
VPN (Virtual Private Network) support for PPTP/ IPSec pass-through.
Support of PPPoE and PPTP client function for xDSL connections
Support of multimedia applications (ICQ, NetMeeting, CUSeeMe, Quick Time, etc).
Support of the Virtual Server function.
Support of the standard Access Point mode for connection to wireless clients
Built-in DHCP server to assign IP addresses to DHCP client devices on both wired and
wireless LAN
Multiple security measures: to disable SSID broadcast, to define Access Control List, to
enable WEP based encryption (up to 128 bits), plus enhanced Security with 802.1x using a
primary and a backup RADIUS Server
Extensive monitoring capability such as event logging, traffic/error statistics monitoring
6
Easy configuration and monitoring through the use of a Web-browser based GUI, a
Command Line Interface (CLI) through a remote telnet session, or SNMP commands from a
remote SNMP management station
Setup Wizard for easy configuration/installation
Setting Up the device
The 802.11g Router can be managed by a local PC on either the wired or wireless LAN network. To
do this, the 802.11g Router must have an IP address, which can be statically configured, or is
dynamically obtained from a DHCP server on the LAN. For reasons to be given in Chapter 3, static IP
address assignment is much preferred.
802.11g Router User’s Guide
7
Installing the 802.11g Router
This section describes the installation procedure for your 802.11g Router. It starts
with a summary of the content of the package you have purchased, followed by steps of how to
connect and power up your 802.11g Router. Finally, it describes how to configure a Windows PC to
communicate with your 802.11g Router.
What’s in the Box?
The 802.11g Router package comes with the following items:
One 802.11g Router
One 12V AC power adapter with a barrel connector
One Category-5 LAN cable with RJ-45 connectors
One copy of the 802.11g Router User’ Guide
C
h
a
p
te
r
2
8
A physical look at the back panel

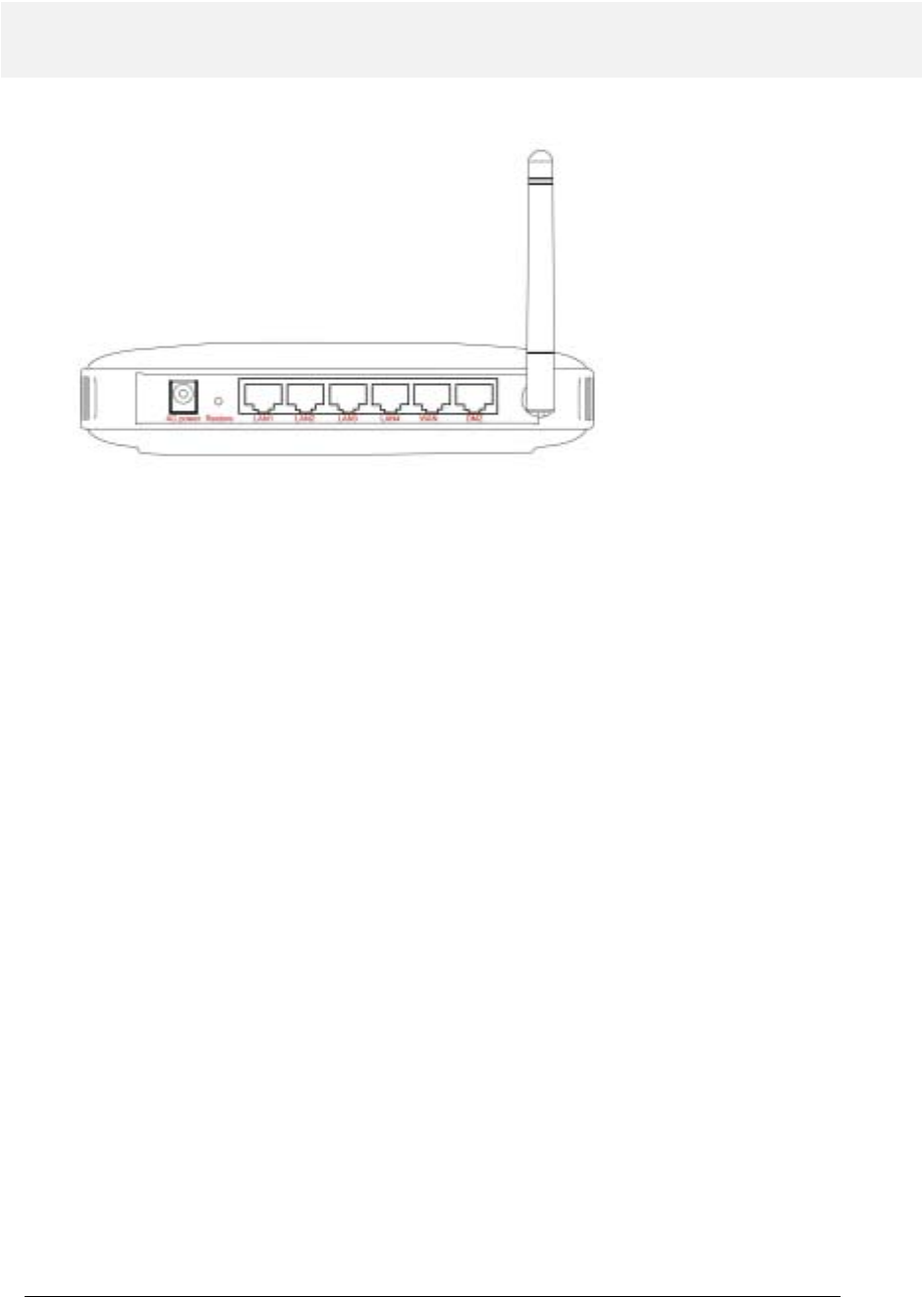

The following illustration shows the rear panel of Wireless Router.
(1) 4 RJ-45 10/100 Switch connectors for connecting to PCs and workstations or connecting
external Ethernet hub, or switch with auto-sensing.
(2) 1 RJ-45 WAN connector for connecting to Internet via ADSL/Cable modem
(3) 1 RJ-45 DMZ connector for connecting to an internal DMZ network or a PC
(4) 1 AC power connector for connecting through an AC power adapter (included as part of the
product) to the wall power outlet
(5) 1 Restore button to restore the device back to the factory settings
802.11g Router User’s Guide
9
A physical look at the front panel

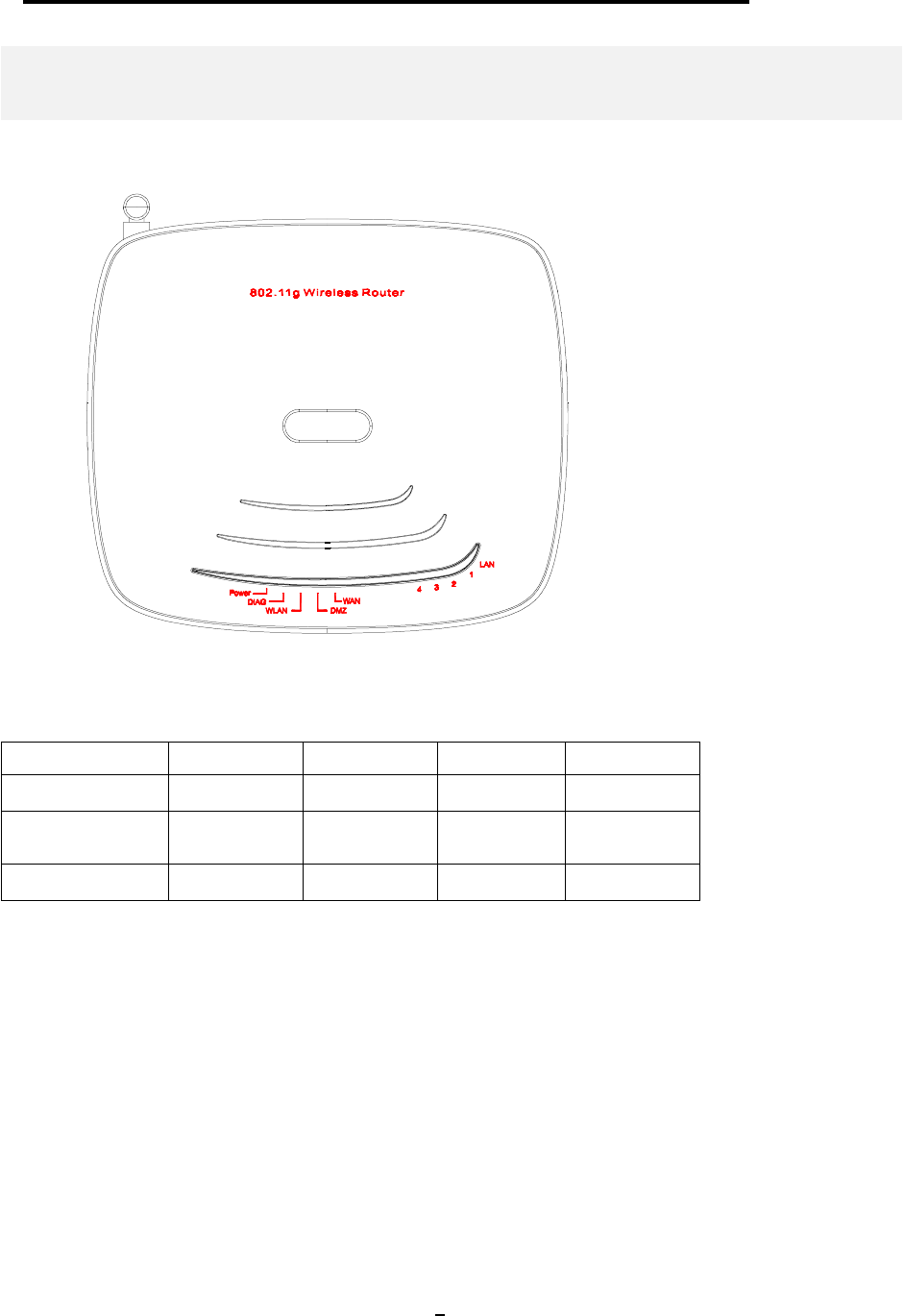

The LEDs on the front of the 802.11g Router reflect the operational status of the unit.
802.11g Router LED Description
Label LAN WAN/DMZ WLAN POWER
Steady Green Link is active Link is active Link is active Power
OFF No LAN
connection No connection No Wireless
connection No Power
FLASH XMT/RCV Data XMT/RCV Data XMT/RCV Data N/A
10
Connecting the Cables
Follow these steps to install your 802.11g Router:
Step 1 Connect ADSL/Cable modem to the Wireless Router WAN port using CAT5 UTP
LAN cable.
Step 2 Connect a PC/Workstation to one of the LAN ports of the Wireless Router, such as
port 1 or port 2.
Step 3 Connect the AC adapter to the Wireless Router and an electrical outlet.
High Level Configuration Steps Required for the 802.11g Router
This section describes configuration required for the 802.11g Router before it can work properly in
your network.
Normally, devices on both LANs (except for the Web servers) are configured to obtain their IP
addresses automatically. Depending on whether there is a separate DHCP server available in your LAN
environment network, thus to determine if you need to enable the built-in DHCP server in the
Wireless Router. The following configuration step assumes that the router’s built-in DHCPS will be
used.
Additionally, since you need to perform various configuration changes to the 802.11g Router, including
the SSID, Channel number, the WEP key, …, etc., it is necessary to associate a fixed IP address with
the 802.11g Router, which is why the 802.11g Router will be shipped with a factory default private IP
address of 192.168.1.1 (and a network mask of 255.255.255.0).
802.11g Router User’s Guide
11
Setting up a Windows PC or wireless client as DHCP clients
The following will give detailed steps of how to configure a PC or a wireless client to “obtain IP
addresses automatically”. For other types of configuration, please refer to the corresponding user
manual.
For the case of using a LAN attached PC, the PC must have an Ethernet interface installed properly,
be connected to the 802.11g Router either directly or through an external LAN switch, and have
TCP/IP installed and configured to obtain an IP address automatically from a DHCP server in the
network.
For the case of using a wireless client, the client must also have a wireless interface installed properly,
be physically within the radio range of the 802.11g Router, and have TCP/IP installed and configured
to obtain an IP address automatically from a DHCP server in the network.
Configuring a PC running MS-Windows 95/98/Me:
1. Click the Start Button, and select Settings.
2. Click the Control Panel. The Win95/98/Me Control Panel will appear.
3. Open the Network setup window by double-clicking the Network icon.
4. Check your list of Network items. If TCP/IP is already installed, proceed to step 5. Otherwise:
(You may need your Windows CD to complete the installation of TCP/IP.)
Click the ADD button.
In the Network Component Type dialog box, select Protocol.
In the Select Network Protocol dialog box, select Microsoft.
In the Network Protocols area of the same dialog box, select TCP/IP and click OK.
5. With TCP/IP installed, select TCP/IP from the list of Network Components.
6. In the TCP/IP window, check each of the tabs and verify the following settings:
Bindings: Select Client for Microsoft Networks and Files and printer sharing for Microsoft
Networks
Gateway: All fields are blank.
DNS Configuration: Select Disable DNS.
WINS Configuration: Select Use DHCP for WINS Resolution.
IP address: Select the Obtain IP address automatically radio button.
7. Reboot the PC.
Configuring a PC running MS-Windows XP/2000:
1. Click the Start button, and choose Control Panel (in Classic View).
2. In the Control Panel, double-click Network Connections.
3. Double-click Local Area Connection.
4. In the LAN Area Connection Status window, select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically
radio buttons.
12
6. Click OK to finish the configuration.
Confirming your PC’s IP Configuration:
There are two tools useful for finding out a computer's IP address and default gateway:
WINIPCFG (for Windows 95/98/Me) Select the Start button, and choose Run. Type winipcfg, and a
window will appear listing the IP configuration. You can also type winipcfg in the MS-DOS prompt.
The procedure required to set a static IP address is not too much different from the procedure
required to set to “obtain IP addresses dynamically” - except that at the end of step 7, instead of
selecting “obtain IP addresses dynamically, you should specify the IP address explicitly.
Connecting More Devices Through A Hub To The 802.11g Router
The Wireless Router provides four LAN ports to allow up to four PCs or Workstations to be
connected to it directly. If you want to connect more devices, you can connect an external hub or
switch to any of the LAN ports using a LAN cable.
802.11g Router User’s Guide
13
Basic Configuration of the 802.11g Router
This section contains basic configuration procedure for the 802.11g Router. It
describes how to set up the 802.11g Router for Internet Access operation, and how
to set up the LAN configuration.
Although the Command Line Interface (CLI) may also be used to configure the 802.11g Router, the
browser-based configuration mechanism is generally preferred for its ease of use. The Internet
Explorer 6.0 and up are supported.
The 802.11g Router is designed so that all basic configuration may be invoked through the a standard
Web browser such as Internet Explorer.
To access the WLAN 11g Router’s management interface for the first time, enter the default IP
address of the WLAN 11g Router in your Web browser http://192.168.1.1/.
Note: The IP address of your PC must be in the same IP subnet as the 802.11g Router. It is preferred that you
configure the PC to obtain an IP address automatically from the 802.11g Router.
C
h
a
p
te
r
3
14

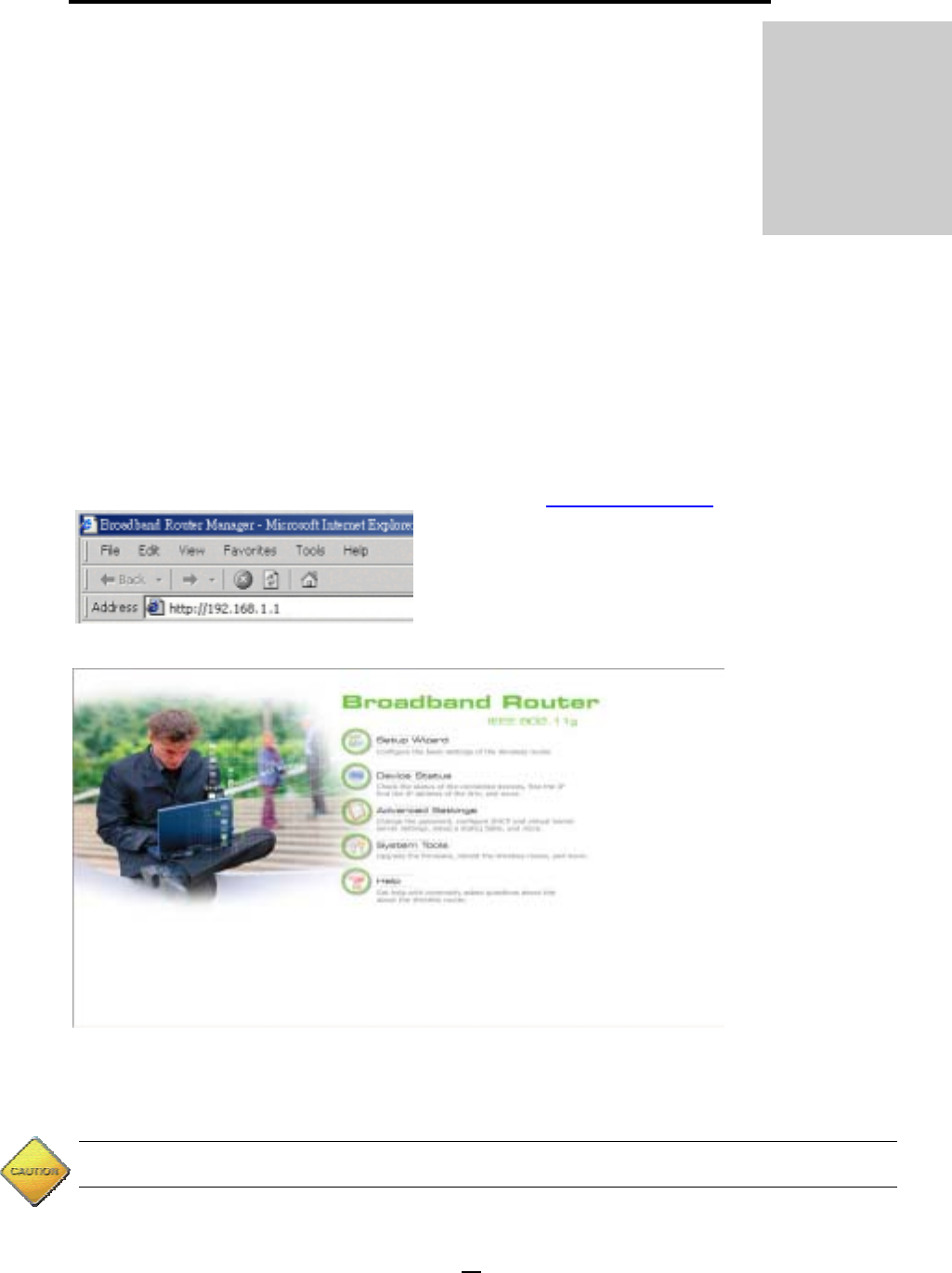

The Home Page of the 802.11g Router screen will appear, with its main menu displayed on the
screen, showing the following top-level choices: Setup Wizard, Device Status, System Tools,
Advanced Settings, and Help. Selecting any will allow you to navigate to other configuration menus.
Logging On

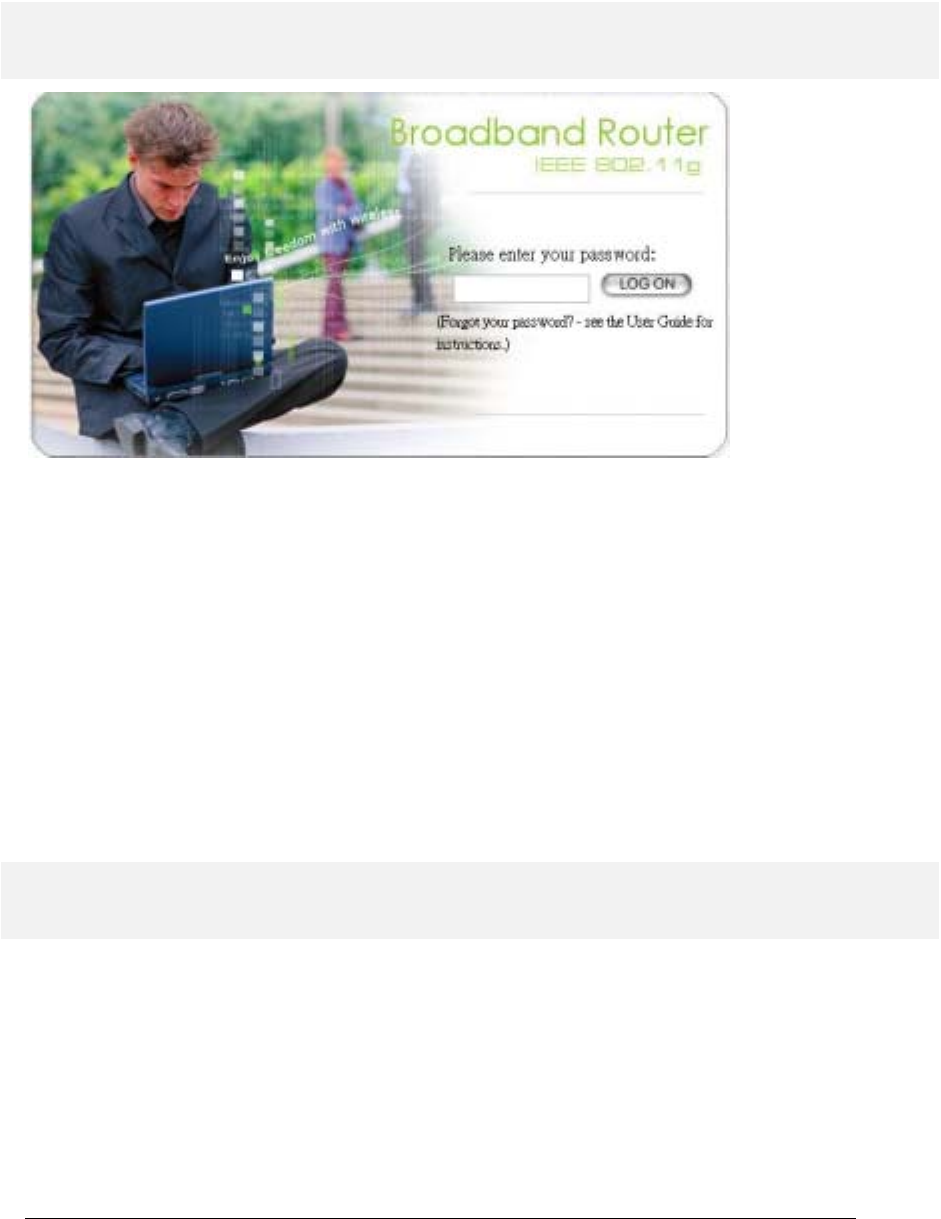

When you attempt to access a configuration screen from the browser menu, an administrator login
screen will appear, prompting you to enter your password to log on. Once you are logged in, you will
not be asked to log in again unless your “session” expires such as due to inactivity timeout.
If you are logging in for the first time after you received your 802.11g Router, you should use the
factory default password, “password” to log in. (You should change it as soon as after you log in.)
Characters you type (as your password) will be echoed back as a string of asterisks (“*”) for security
reasons. After you enter the password, clicking the LOG ON button will begin the password
verification process and, if successful, your configuration session can begin.
Note: Should there be no settings or access on the web management screen, system will logout
automatically in 10 minutes.
Setup Wizard
The Setup Wizard will guide you through a series of configuration screens to set up the basic
configuration of your 802.11g Router. At the end of the Setup Wizard screens, you should press the
“finish” button, and all your configuration modifications will take effect.
SETTING UP YOUR LOCAL TIME ZONE AND DATE/TIME
After logging in, the Time Settings page appears. The router time will first be set to the local time of
the PC (on which the browser is running). If this time is not correct, modify the appropriate fields as
necessary, and then click “NEXT”.
802.11g Router User’s Guide
15
DEVICE IP SETTINGS
The Device IP setting screen allows you to configure the IP address and subnet mask of your
802.11g Router: you can configure a static IP address and a subnet mask, or configure it to obtain an IP
address and a subnet mask automatically from a DHCP server on the local network.
If you choose to assign a static IP address manually, check the button that says, “Assign static IP to
this device” and then fill in the following fields
IP Address and IP Subnet Mask: These values default to 192.168.1.1 and 255.255.255.0, respectively.
This IP address can be modified if necessary, to either a different address in this same subnet or to an
address in a different subnet.
16
When you modify it, if the DHCP server function of your 802.11g Router is enabled, the pool of
IP addresses it will use for assignment purposes will also be automatcailly adjusted accordingly. For
example, if the default IP address is used, the IP address pool for assignment consists of addresses
from 192.168.1.2 to 192.168.1.254. However, please do not change the default IP address unless
you know exactly what you want to achieve.
Then you should press Next to get to the next screen.
If you choose to use an external DHCP Server to automatically assign an IP address to your 802.11g
Router, check the button that says, “Use the DHCP protocol to automatically get the IP address
for this device”, and then press Next to the next screen.
When an IP address is dynamically assigned to the router, its value can change depending on the IP
address assignment policy used by the DHCP server in the network. Since you need to use an IP
address to control and manage your 802.11g Router, without the knowledge of its IP address, in order
to access it, you will need to use UPnP (Universal Plug and Play) or other management tools that do
not depend on a fixed IP address.
It is strongly recommended that you select the manual static IP address.
CONFIGURE THE ISP PROFILE
In the following configuration screen, as with the usual convention, radio buttons are used to
make a selection when only one out of multiple mutually exclusive choices can be selected, while
square check boxes can be used to select multiple non-mutually-exclusive choices.
When configuring the device for Internet access, decide which one of the following multiple
choices to select (through radio buttons):
1. You can use a static IP address provided by your ISP to connect to the Internet. In this case,
you need to configure the following information:
• IP Address Assigned by your ISP: the IP address of the WAN interface of your router.
• IP Subnet Mask: the IP subnet mask of the WAN interface of your router.
• ISP Gateway IP Address: the IP address of your ISP’s Gateway.
• DNS IP Address: the IP address of the DNS server.
2. You use the user name and password assigned by your ISP to connect to the Internet
(required for the underlying PPPoE protocol). In this case, you need to configure the
following information:
• User name: the username of your ISP account.
• Password: the password of your ISP account.
• Idle time: The Idle Timeout is the number of seconds of "inactivity" before an
established PPPoE connection is taken down.
802.11g Router User’s Guide
17
The idle timeout value should be between 0 to 60 minutes, with 5 (minutes) being the default. A
value of 0 means the connection will never time out.
3. You use DHCP to connect to the Internet (most likely through a cable modem connection).
In this case, your ISP may require you to configure the Host Computer Name:
• Host Name: The Host Name provided by your ISP.
4. You use PPTP to connect to the Internet. In this case, your ISP requires you to configure
PPTP's tunnel IP address, the username, and password. In this case, configure the static IP
address as in the above and then configure the following information:
• PPTP Local IP Address: the IP address on the local side of the PPTP tunnel provided
by your ISP.
• PPTP IP Netmask: the Netmask on the local side of the PPTP tunnel provided by your
ISP.
• PPTP Remote IP Address: the IP address of the remote side of the PPTP tunnel
provided by your ISP.
• User Name: the username of your ISP account.
• Password: the password of your ISP account.
• Idle time: The Idle Timeout is the number of seconds of "inactivity" before the PPTP
connection is taken down.
Its value should be between 0 to 60 minutes, with 5 (minutes) being the default value, and
0 meaning the connection will never time out.
Cloned MAC Address: Some ISPs expect a PC to be connected to their service, and use the MAC
address of this PC’s LAN card for identification purposes. By checking the following “Cloned MAC
address” square check box, your 802.11g Router allows a MAC address to be configured and
“cloned” in the router to simulate a PC.
If the device is a PC based on WIN 95/98/Me, you can run winipcfg to find out the MAC Address
of its LAN card. If the device is a PC based on WIN 2000/NT/XP, you need to run "ipconfig/all"
to find out the MAC address of its LAN card.
18
CONFIGURE YOUR WIRELESS LAN CONNECTION

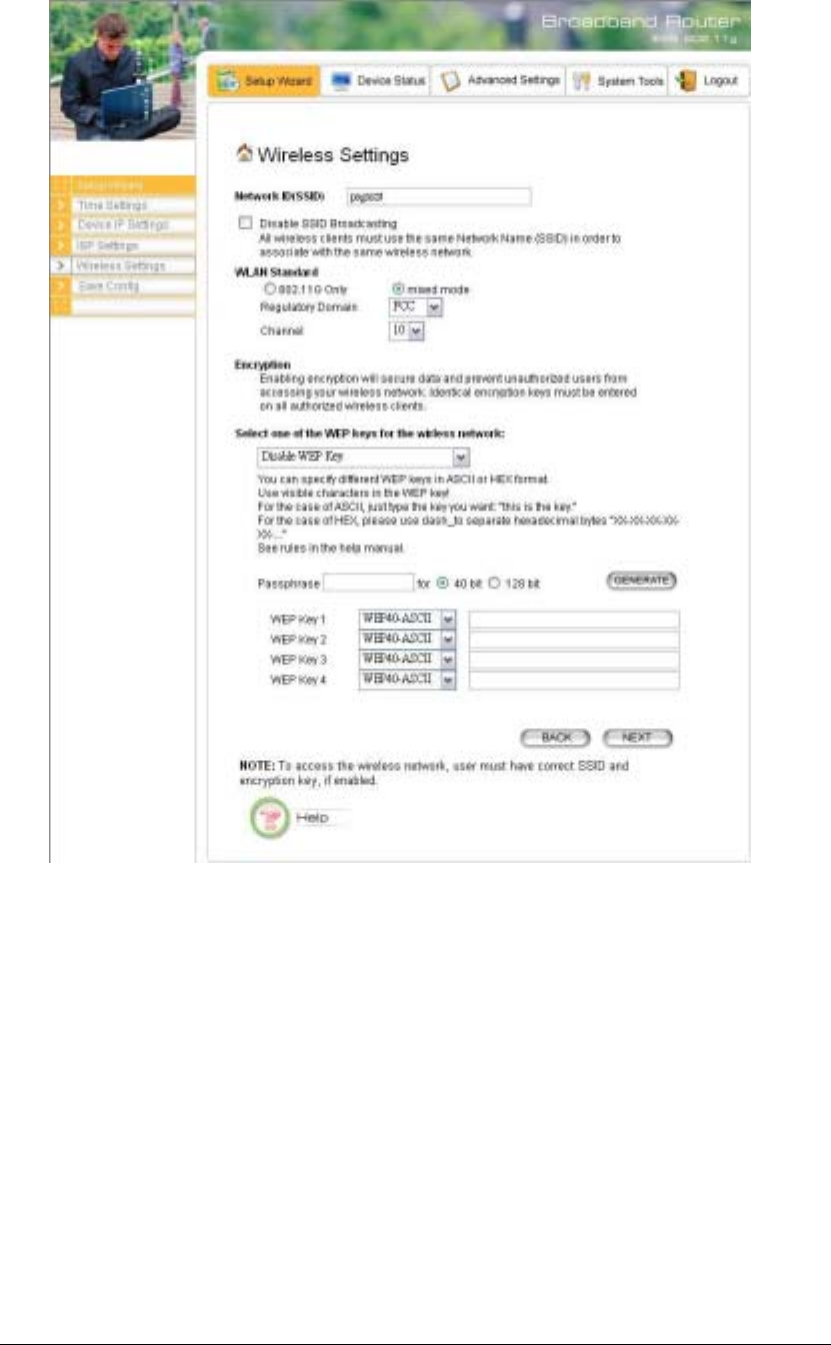

In the following configuration screen, you can configure wireless related parameters of your
802.11g Router:
Network Name (SSID): The SSID is the network name used to identify a wireless network. The
SSID must be the same for all devices in the wireless network. Several Routers on a network can have
the same SSID. The SSID can be up to 30 characters long.
Disable SSID Broadcasting: An access point periodically broadcasts its SSID, along with other
information, which allows client stations to learn its existence while searching for Routers in the
wireless network. Select Disable if you do not want the device to broadcast the SSID.
802.11g Router User’s Guide
19
WLAN standard: You can select the device to run the 802.11g only protocol, or the mixed mode –
allowing both 802.11g and 802.11b to co-exist.
Regulatory Domain: You can select the regulatory domain where the device will be running. Possible
choices include FCC, ETSI, France, Spain, and Japan.
Channel: Select the channel from the available list to match your network settings. All devices in the
wireless network must use the same channel and share the total bandwidth available.
Note: The available channel numbers are different from country to country.
USA and Canada: CH01~11, Europe: CH01~CH13, Japan: CH01~CH14, France: CH10~CH13,
Spain: CH01~CH13
You can use encryption to protect your data when you are transmitting data in the wireless network.
You can select Disable WEP Key to disable encryption, or select one of four WEP keys to
transmit/receive data in the wireless network.
You can enter a “Passphrase” (a key of up to 30 alphanumerical characters), choose 40-bit, and press
the “Generate” button to generate four 40-bit keys in the entries below, or choose 128-bit, and press
the Generate button to generate one 128-bit key in the first entry.
Alternatively you can manually configure each of them.
When you manually configure a key (an alphanumeric string), the length for a 40-bit WEP must be
equal to 5, and that for a 128-bit WEP key must be equal to 13. Once you enable the WEP function,
please make sure that exactly the same WEP key is configured in both the Wireless Router and client
stations.
You can define a key using ASCII or hex characters. A WEP128 ASCII key looks like "An ASCII
key!" (13 characters), while a WEP40 hex key looks like "44-12-24-A8-B2" (5 characters).
Please note that some Wireless Client Cards allow Hexadecimal characters only.
20
FINISH SETUP WIZARD AND SAVE YOUR SETTINGS
After stepping through the Wizard’s pages, you can press the FINISH button for your modification to
take effect. This will also cause your new settings to be saved into your system permanently.
802.11g Router User’s Guide
21
Alternatively, You can also click the “Back” button to go back to previous configuration screens for
more changes.
Note: If you change the router’s IP address to a different IP network address space, as soon as you click on
FINISH you will no longer be able to communicate with your 802.11g Router. You need to change your IP
address and then re-boot your computer in order to resume the communication.
22
Advanced Settings
This section contains advanced setting procedures for the 802.11g Router. It describes modifications
that normally you may not need for basic system operation. One exception is changing your password:
it is highly recommended that you change the default factory setting as soon as you start to use your
802.11g Router.
Operational Mode
Before you start to use the device, you need to select the operational mode to be wireless AP only
or both Internet gateway and wireless AP:
Wireless Access Point only: When this is selected, the router operates in the AP-only
Mode, and connects Wireless Client Users to the Ethernet (WAN).
Internet Gateway + Wireless Access Point: When this is selected, the router will function
as an Internet access sharing device as well as a wireless AP.
Cha
p
te
r
4
802.11g Router User’s Guide
23
Password Settings
Your 802.11g Router comes with a default factory password of “password”. After you start using the
router, you should change the default password.

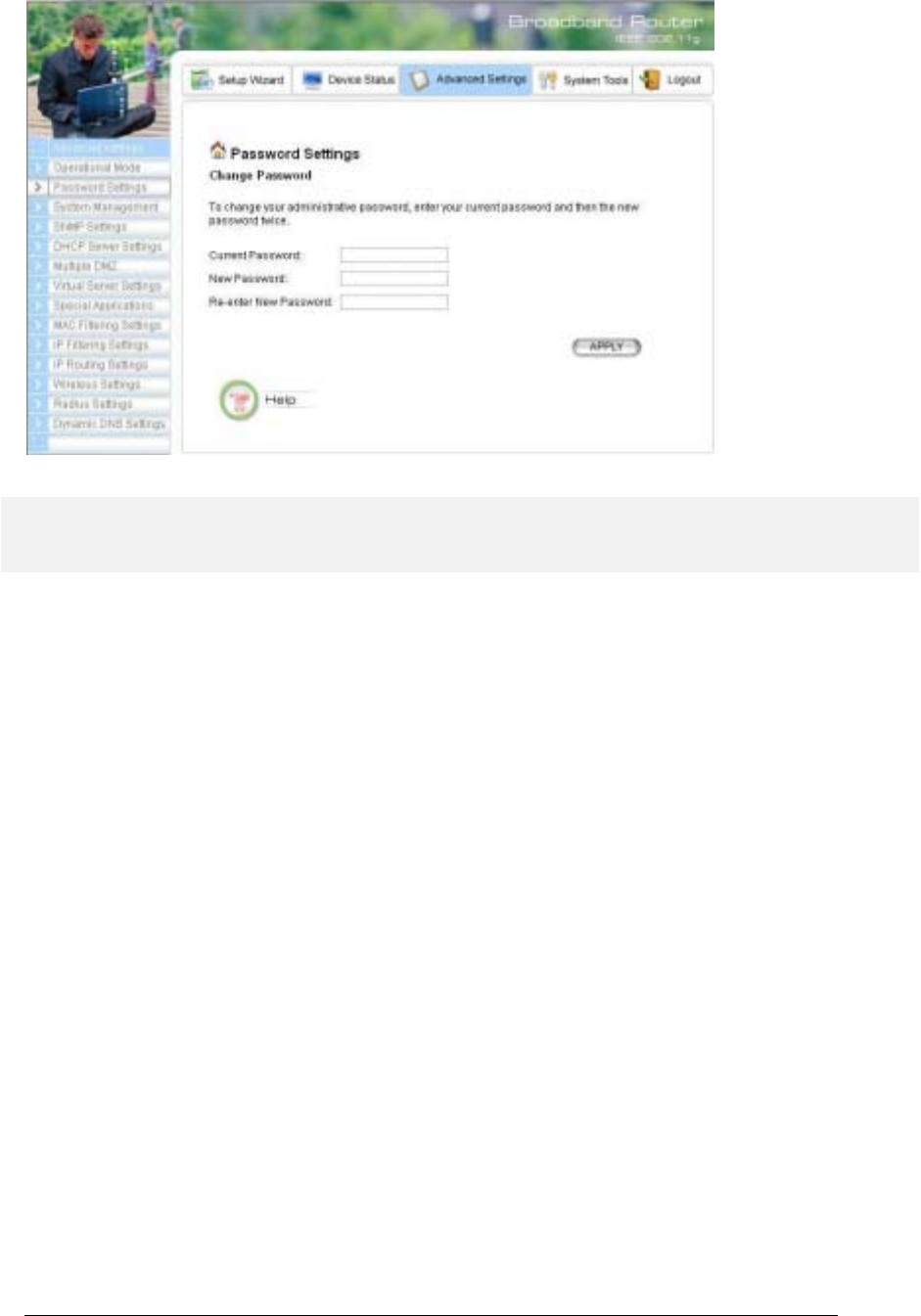

To change the password, press the Password Settings button to enter the Password Settings screen,
enter the current password followed by the new password twice. The entered characters will appear as
asterisks.
If you forgot the password, the only way to recover it is to return the device to its default state as
shipped from the factory. To restore the password to the default password, please refer to the
section, "What if I forgot the Password?" in the user manual.
24
System Management
Clicking the System Management button allows system related parameters to be configured for the
802.11g Router.
Remote Management: The remote management feature allows you to manage your 802.11g Router
remotely through the use of an HTTP browser, or a telnet utility.
The system allows you to (1) allow remote management from all WAN IP addresses, to (2) allow
remote management from up to two WAN IP addresses, or to (3) disallow remote
management from any WAN IP addresses.
System Administration: The router allows you to designate special port numbers other than the
standard 80 and 23, respectively, for http or telnet for remote management. It also allows you to
specify the duration of idle time (inactivity) before a web browser or telnet session times out. The
default time-out value is 10 minutes.
UPnP: The router's Universal Plug and Play (UPnP) feature allows a Windows XP/ME PC to
discover the router and automatically show an icon on its screen. You can double-click the icon to
access the router directly (without having to specify its IP address).
Disable Ping: "Ping" is a utility for testing the connectivity. Response to a ping can be disabled, such
as when you do not want the router to be accessed (e.g., attacked) from the Internet.
802.11g Router User’s Guide
25
Syslog: Syslog is an IETF (Internet Engineering Task Force - the Internet standards body)-
conformant standard for logging system events (RFC-3164). When the 802.11g Router encounters an
error or warning condition (e.g., a log-in attempt with an invalid password), it will create a log in the
system log table. To be able to remotely view such system log events, you need to check the Enable
Syslog box, configure the IP address of a PC where a Syslog daemon is running in the background.
When doing so, the 802.11g Router will send logged events over the network to the PC for future
viewing.
Syslog server IP address: The IP address of the PC where the Syslog daemon is running.
26
SNMP Settings
This screen allows you to configure SNMP parameters including the system name, the location and
contact information. Additionally, you can configure the 802.11g Router to send SNMP Traps to
remote SNMP management stations. Traps are unsolicited alert messages that 802.11g Router sends to
remote management stations.
System Name: A name that you assign to your 802.11g Router. It is an alphanumeric string of up to
30 characters.
System Location: Description of where your 802.11g Router is physically located. It is an
alphanumeric string of up to 60 characters.
System Contact: Contact information for the system administrator responsible for managing your
802.11g Router. It is an alphanumeric string of up to 60 characters.
802.11g Router User’s Guide
27

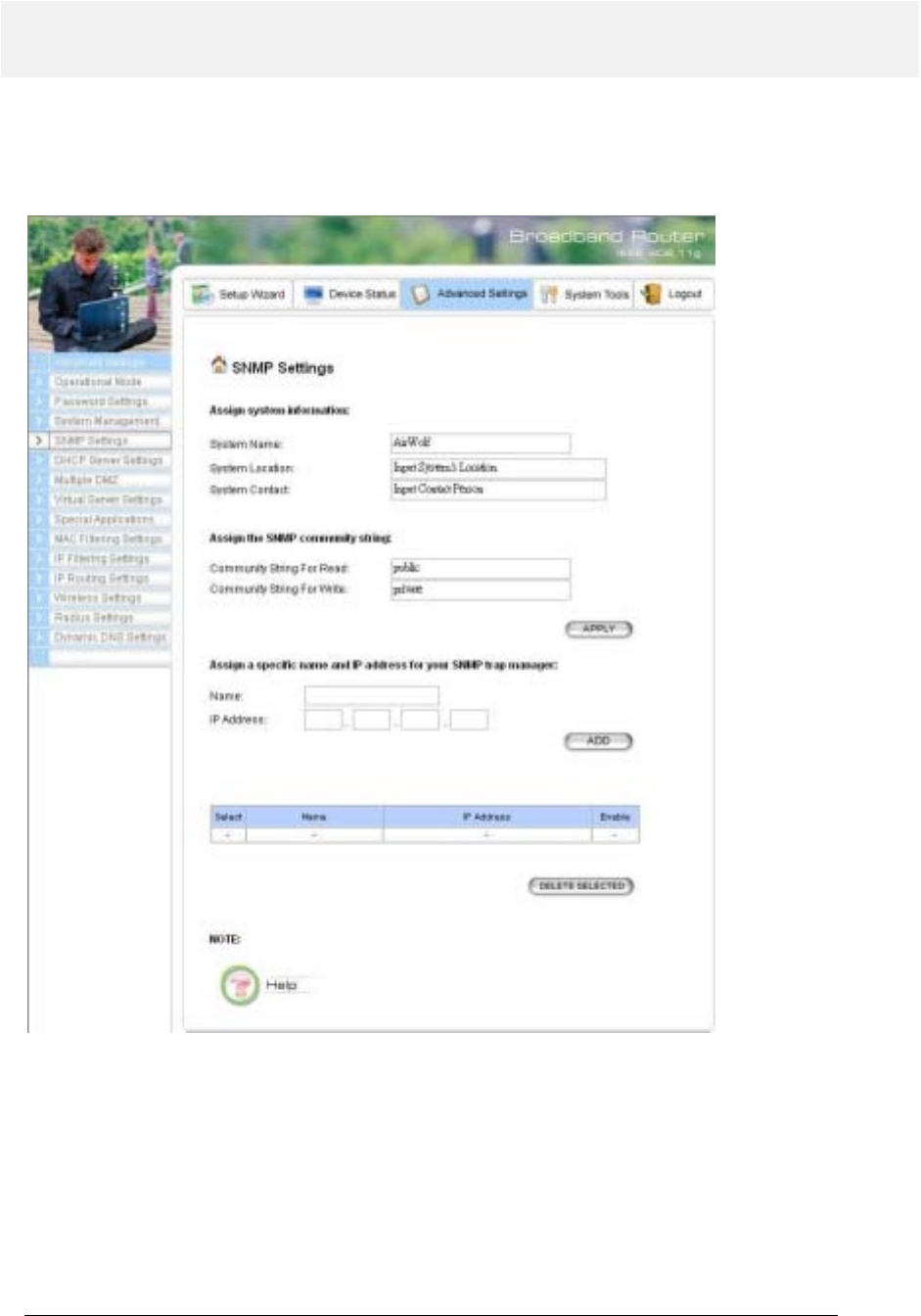

Community String For Read: If you intend the router to be managed from a remote SNMP
management station, you need to configure a read-only “community string” for read-only operation.
The community string is an alphanumeric string of up to 15 characters.
Community String For Write: For read-write operation, you need to configure a write “community
string”.
A trap manager is a remote SNMP management station where special SNMP trap messages are
generated (by the router) and sent to in the network.
You can define trap managers in the system.
You can add a trap manager by entering a name, an IP address, followed by pressing the ADD
button.
You can delete a trap manager by selecting the corresponding entry and press the DELETE
SELECTED button.
You enable a trap manager by checking the Enable box in the corresponding entry or disable the trap
manager by un-checking the Enable box.
DHCP Server Settings
The DHCP server option allows the 802.11g Router to assign IP addresses to DHCP client devices
on your wired or wireless LAN to obtain IP addresses automatically.
If you want the Router to act as a DHCP server and assign private IP addresses to requesting
DHCP clients on the LAN, you need to check the Enable DHCP Server box.
You can select one of the following two ways to assign IP addresses:
Assigns IP addresses to wired or wireless clients from the following range:
When IP addresses are assigned to a requesting DHCP client, after the “lease time”, the
client is expected to renew the lease. Its default value is 10080 minutes.
The from and to range of IP addresses to be assigned to requesting DHCP clients can be
configured manually, with the default being 2 to 254.
After you enter the information, you should press APPLY.
Assigns the following IP address to the client with the following MAC address:
You can also specify the IP address to be assigned to a device with a pre-configured MAC
address.
You can add such a mapping by entering a MAC address, and the IP address to be assigned,
followed by pressing the ADD button. Up to 20 mappings can be added.
28
You can delete a mapping by selecting the corresponding entry and press the DELETE
SELECTED button.

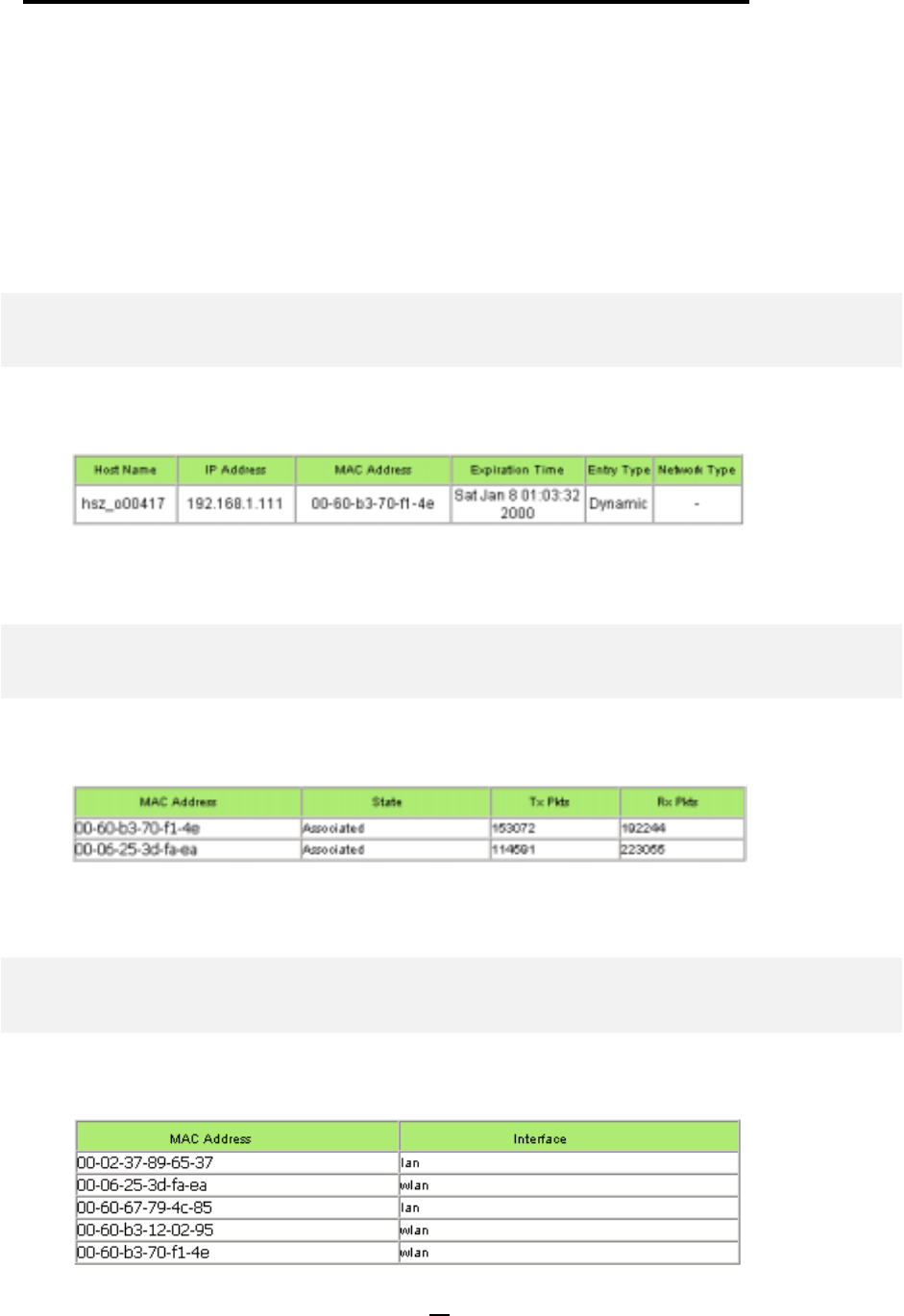

DHCP Table: Press this button will cause the screen to jump to DHCP client table page.
802.11g Router User’s Guide
29

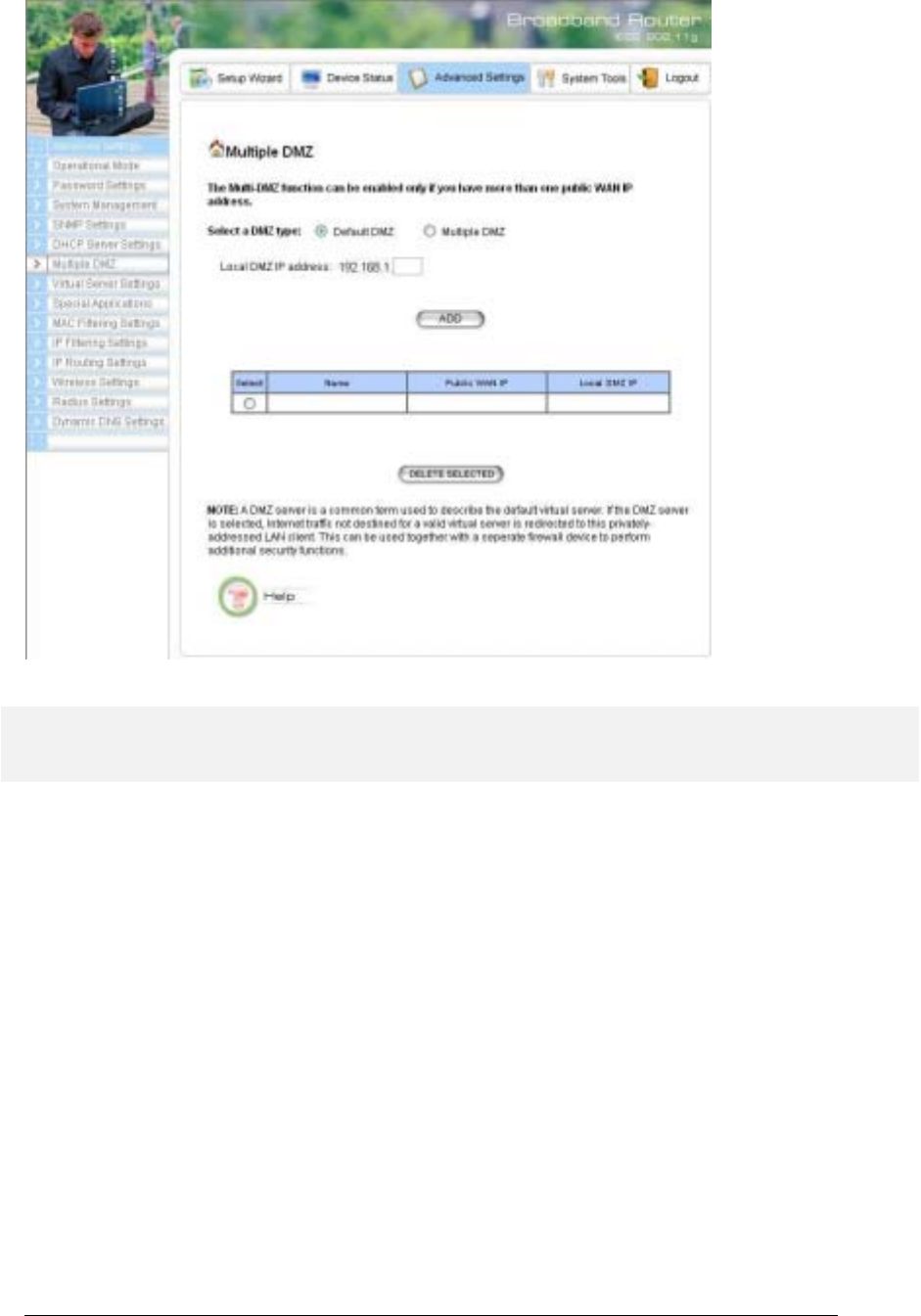

Multiple DMZ
The router supports one hardware DMZ port, multiple software DMZ ports, plus one default
DMZ port.
The hardware DMZ is implemented through the hardware: the router has a separate hardware
Ethernet port, to which multiple devices with public IP addresses assigned by the ISP can be
connected. Incoming data for these devices from the Internet will be sent by the router to the
hardware Ethernet port directly. No configuration would be required.
Both the default and multiple DMZ ports are implemented through software.
When the router receives incoming data from the Internet, it will search through an internal
address translation table to perform address translation function. If a match cannot be found, the
data will be forwarded to a special device for processing.
An additional feature is to allow devices with WAN IP addresses to be used by the Internet users
to access private devices in your local LAN. In this case, you need to configure the mapping
between the WAN IP address and the private IP address.
To add the default DMZ, you need to select “Default DMZ” and enter the local DMZ IP
address, followed by pressing the ADD button.
To add a device for multiple DMZ, first select “Multiple DMZ”, add a name, a public WAN
IP address, and the local DMZ IP address on the LAN, followed by pressing the ADD button.
You can delete a DMZ entry by selecting the corresponding entry and press the DELETE
SELECTED button.
30
Virtual Server Settings
A Virtual Server is a server built on a single or a cluster of real servers. A DMZ server is a term
commonly used to describe the default Virtual Server - the router will redirect all traffic from the
Internet without a valid port address mapping to this device. An HTTP server with a private IP
address on the LAN allows access from the Internet by mapping a special port to the HTTP
server. In this case, the HTTP service will be mapped to a port of the Router.

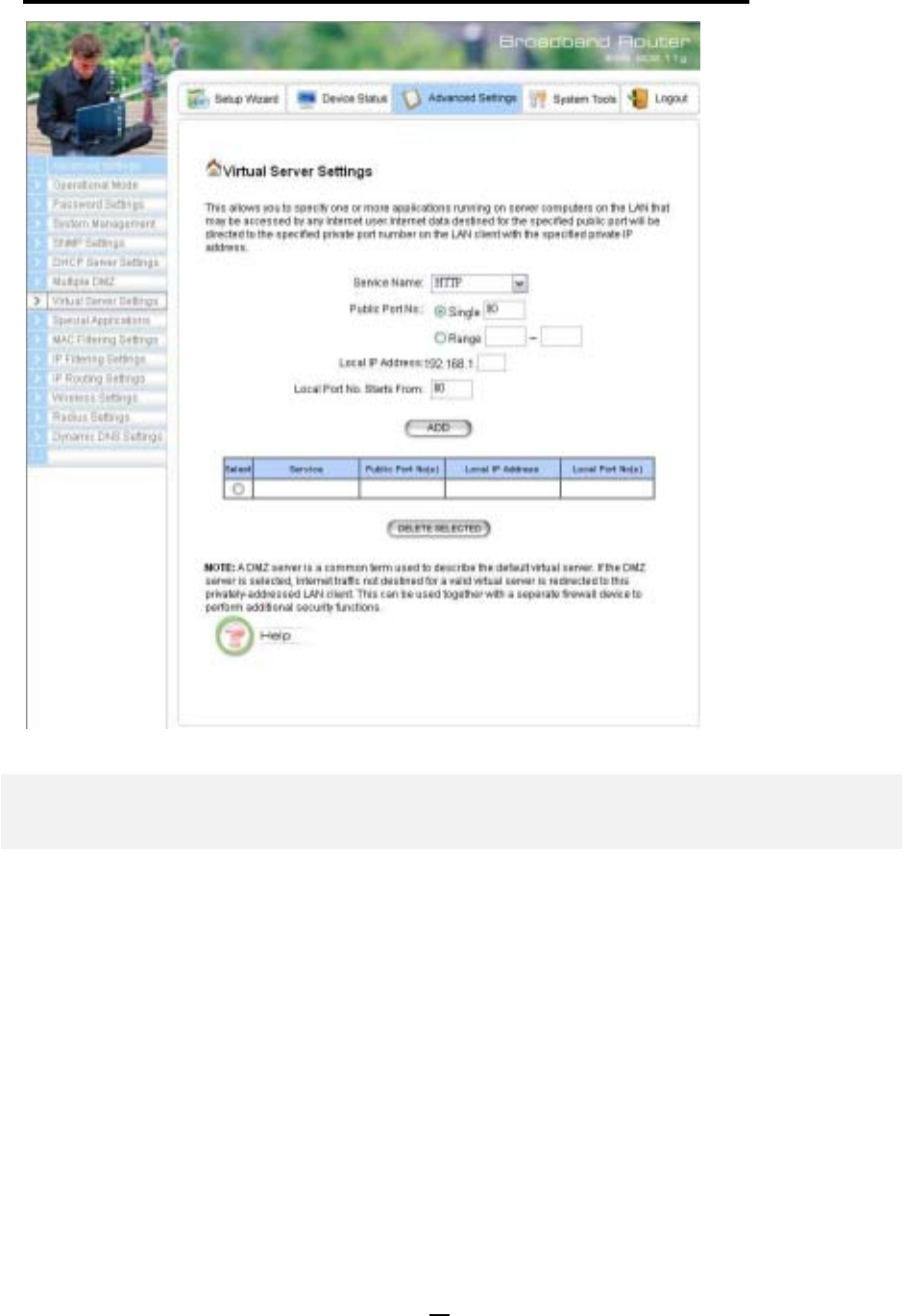

You can add a virtual server mapping by (1) selecting the service name (such as HTTP, FTP,
TELNET, SMTP, POP3, CUSTOM), (2) enter the public port number to be used (either a
single port number or a range), (3) enter the local IP address of the server on your LAN, (4)
enter its local port number to map to (either a single port number or the starting port number
of a range), (5) followed by pressing the ADD button.
You can delete a mapping by selecting the corresponding entry and press the DELETE
SELECTED button.
Note: Virtual Server Setting and IP Filtering may affect with each other.
802.11g Router User’s Guide
31
Special Applications
Special applications such as the Microsoft instant messaging or some Internet games are getting
to be increasingly popular. These applications usually work in the following manner:
A client can start an Internet game by first registering with a game server on the Internet. Other
clients can, using the corresponding protocol, join the game by checking with the server and
deciding if to join the game. A client can "leave" the game at any time.
If the initiating client is behind your router, you need to add the application by performing the
following configuration:

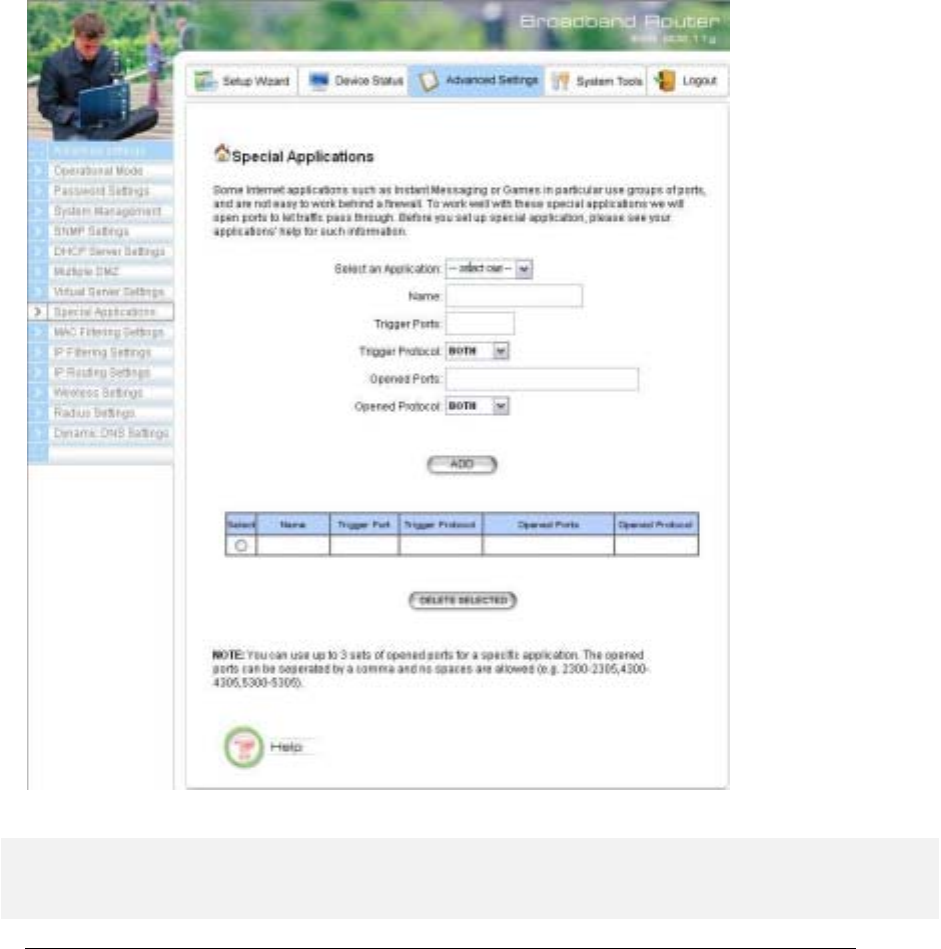

Select an application: Select an application that you want to add to the supported list. You
should choose "Other" if your application is not explicitly shown in the list.
Name: You can provide a name.
32
Trigger Port: You need to specify, based on instructions provided by your application’s user
manual, the (UDP/TCP) port number in the router that the initiating client uses to start an
Internet game.
Trigger Type: Select UDP, TCP, or both for the trigger port.
Opened ports: You need to specify the port numbers in the router that joining clients can use to
communicate with the initiating client, again based on instructions provided by your application
user manual.
Public Type: Select UDP, TCP, or both for the Opened ports.
After you finish the above, you press the ADD button to add an entry to the table.
You can delete an entry by selecting the corresponding entry and press the DELETE
SELECTED button.

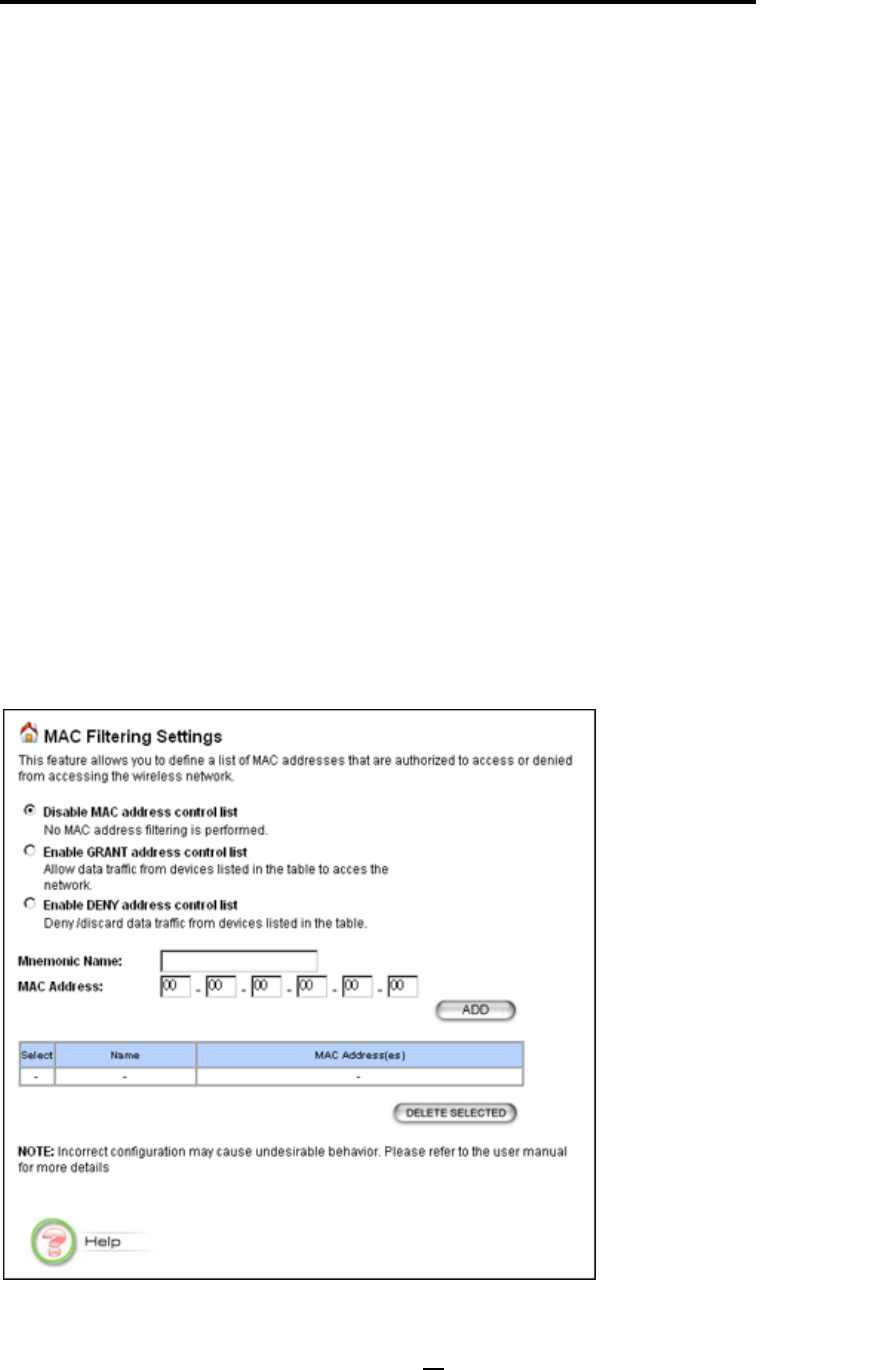

MAC Filtering Settings
802.11g Router User’s Guide
33
The 802.11g Router allows you to define a list of MAC addresses. One of three mutually
exclusive rules can be selected to forward/filter data packets based on these MAC addresses.
Disable MAC address control list: When this radio button is selected, no MAC address
filtering will be performed.
Enable GRANT address control list: When this radio button is selected, only packets
received from the wireless LAN interface with the configured MAC addresses will be
allowed/forwarded.
Enable DENY address control list: When this radio button is selected, only packets
received from the wireless LAN interface with the configured MAC addresses will be
denied/filtered.
Once a choice is made, the choice applies to all filtering rules.
To add a filtering rule, configure the following:
Mnemonic Name: the name to identify the filter
MAC Address: the MAC address for grant or deny.
After you finish the above, you press the ADD button to add the entry to the table. There are up
to 32 MAC filtering rules could be configured.
You can delete an entry by selecting the corresponding entry and press the DELETE
SELECTED button.
34

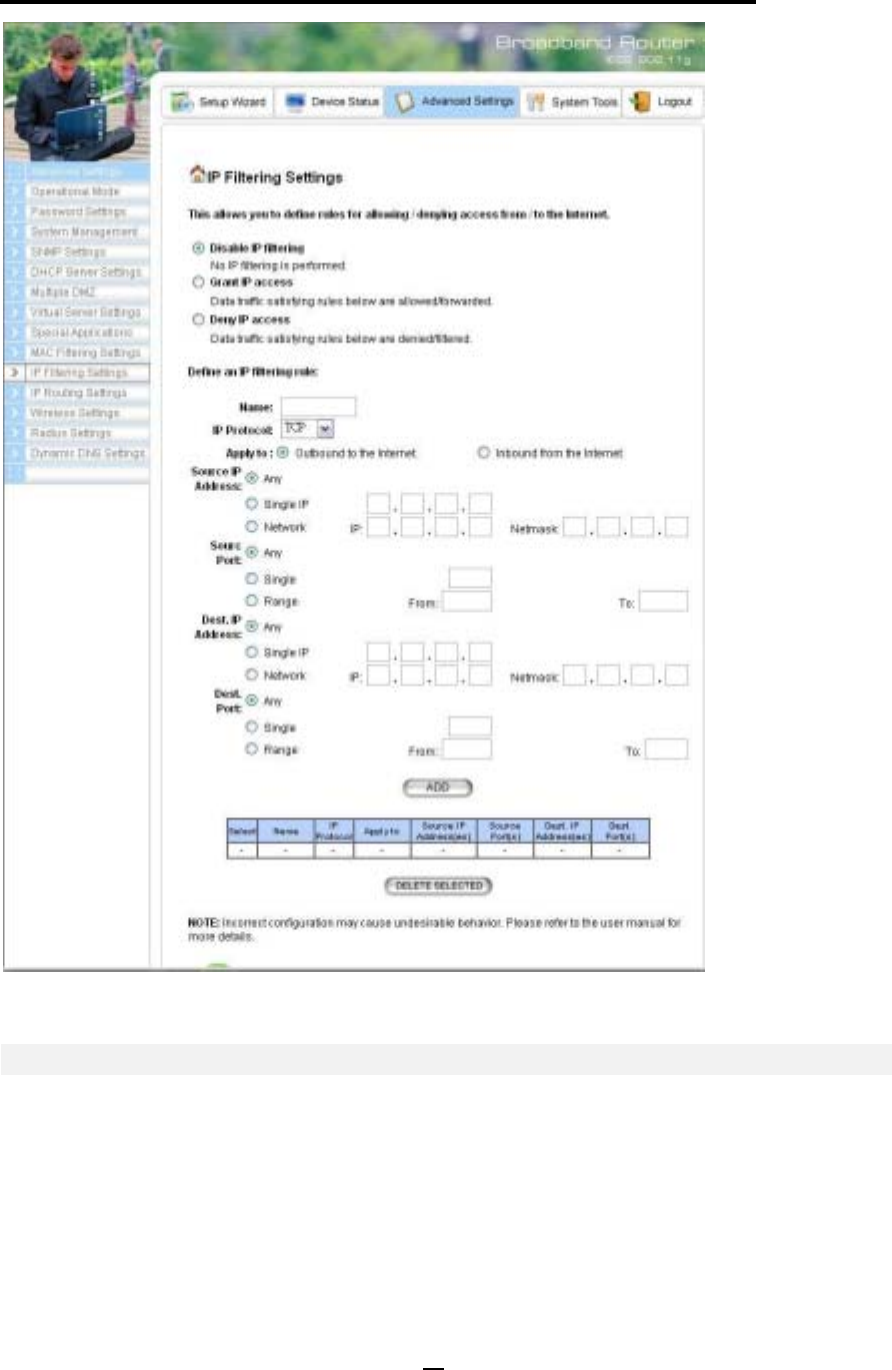

IP Filtering Settings
Three mutually exclusive rules can be defined to forward/filter IP packets based on their IP
address and/or port numbers.
Disable IP filtering: If this is selected, the IP filtering feature is disabled. No IP filtering
will be performed.
GRANT IP access: When this is elected, packets received from/transmitted to WAN with
specified (source or destination) IP addresses will be allowed/forwarded.
DENY IP access: Packets received from/transmitted to WAN with the specified IP
addresses will be denied/filtered.
Once a choice is made, the choice applies to all filtering rules.
To define/add an IP filtering rule, enter the following information
• Name: The name of the filter
• IP Protocol: TCP or UDP
• Apply to: You need to select whether the filtering rule should apply to packets outbound
for the Internet or inbound from the Internet.
• Source IP address: you can select Any, Single IP, or a Network (of source IP
addresses).
• Source Port: you can select Any, Single, or a Range of port numbers.
• Destination IP address: Any, Single IP, or a Network (of destination IP addresses).
• Destination Port: you can select Any, Single, or a Range of port numbers.
After you finish the above, you press the ADD button to add the entry to the table. There are up
to 32 IP filtering rules could be configured.
You can delete an entry by selecting the corresponding entry and press the DELETE
SELECTED button.
Please Note that IP filtering is a sophisticated feature that can severely impact your Router
operation. Please be sure that you fully understand it before you use this feature. If you make any
mistakes, it can produce dramatic and potentially undesirable results.
802.11g Router User’s Guide
35
36

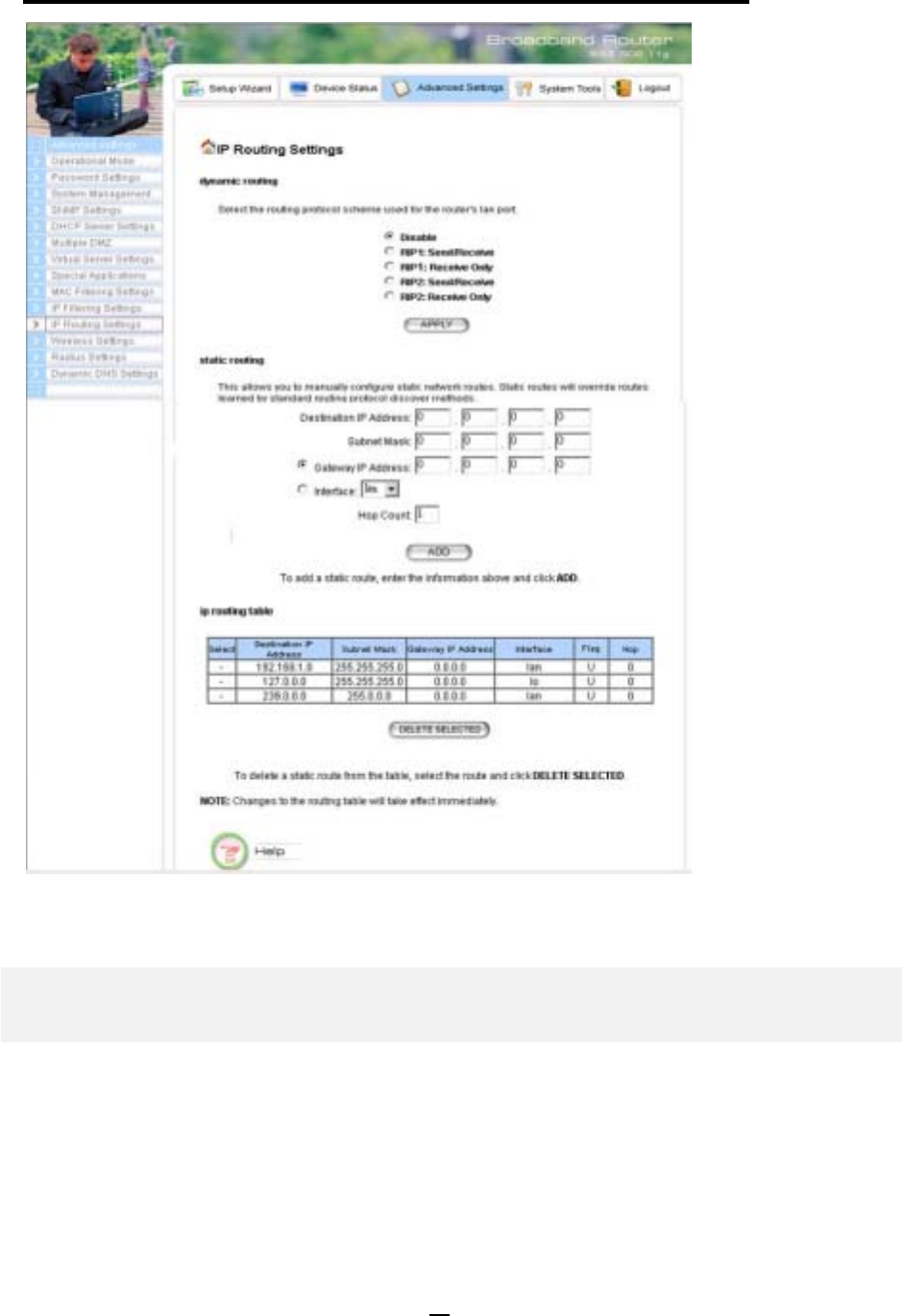

IP Routing Settings
Dynamic Routing: enable gateway to change the routing table dynamically through LAN port.
Static Routing: If you have routers on your LAN or WAN, you can configure static routes on the
802.11g Router to route network traffic to a specific, predefined destination. The 802.11g Router
can route packets based only on the packet's destination not on the source of a packet. Static
routes must be defined if the LAN or WAN are segmented into subnets. For example, a subnet
can be created to isolate a section of a company, such as finance, from traffic on the rest of the
LAN or WAN.
Static Routes are configured when network traffic is directed to a specific destination on the network
whether it is the LAN or WAN. For instance, you can configure the 802.11g Router to route
traffic from a computer, 192.168.1.100, on the LAN to a specific computer on the LAN,
192.168.168.27 using the following steps:
1. Enter the IP address of the destination network in the Destination Network field.
2. Enter the subnet in the Subnet Mask field.
3. Enter the IP address of the default gateway in the Default Gateway field.
4. Select LAN from the Interface menu.
6. Click Add.
IP Routing Table: The Routing Table shows a list of destinations that the IP software maintains on
each host and router. The destination network IP address, subnet mask, gateway address, and the
corresponding destination link are displayed.
Note! The 802.11g Router can support up to 128 static route entries.
802.11g Router User’s Guide
37

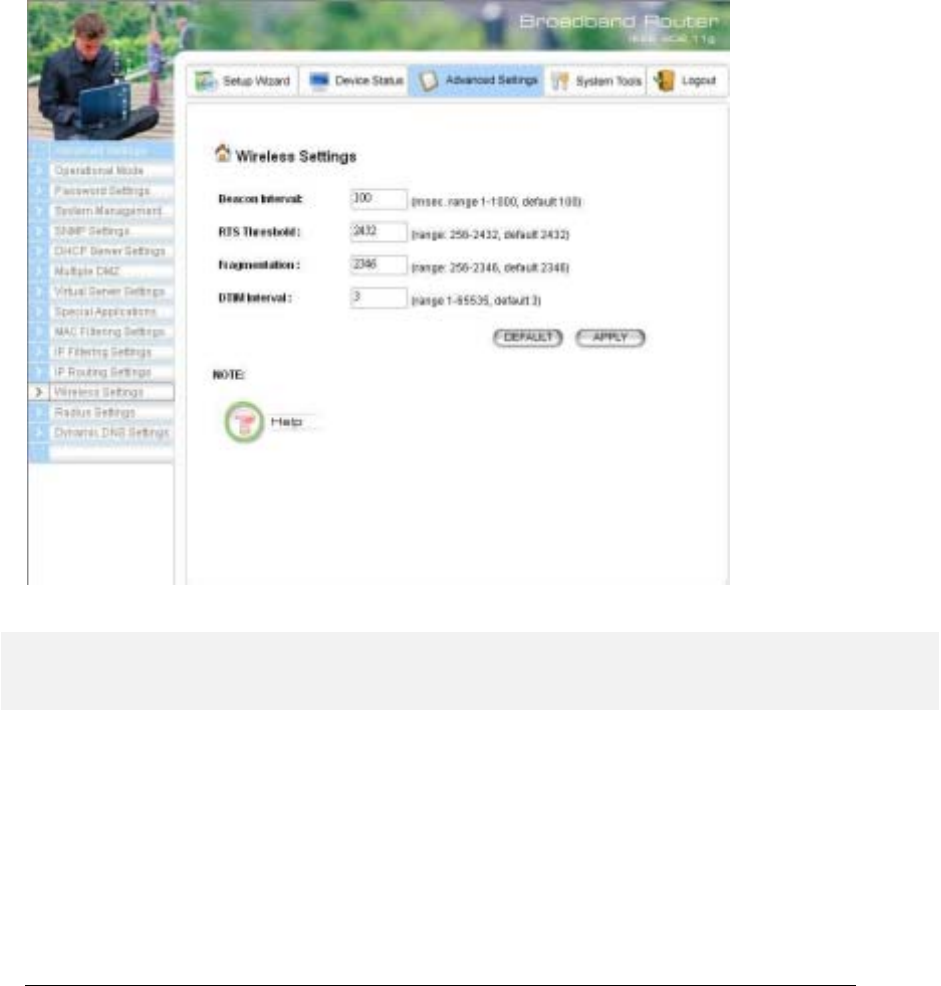

Wireless Settings
You can use this screen to configure various parameters of your 802.11g Router.
Beacon Interval: The 802.11g Router broadcasts beacon frames regularly to announce its existence.
The beacon Interval specifies how often beacon frames are transmitted - in time unit of milliseconds.
Its default value is 100; a valid value should be between 1 and 1000.
RTS Threshold: RTS/CTS frames are used to gain control of the medium for transmission. Any
unicast (data or control) frames larger than specified RTS threshold must be transmitted following the
RTS/CTS handshake exchange mechanism. The RTS threshold should have a value between 256-
38
2432 bytes, with a default value of 2432. A value of zero activates the RTS/CTS handshake before
every transmission. It is recommended that this value does not deviate from the default too much.
Fragmentation: When the size of a unicast frame exceeds the fragmentation threshold, the frame will
be fragmented before transmission. The threshold should have a value of 256-2346 bytes, with a
default value of 2346. If you experience a high packet error rate, you should slightly decrease the
Fragmentation Threshold.
DTIM Interval: The 802.11g Router buffers packets for stations that operate in the power-saving
mode. A Delivery Traffic Indication Message (DTIM) contains information on which power-
conserving stations have packets waiting to be received. The DTIM interval specifies how often
beacon frames should contain DTIMs. It should have a value between 1 and 65535, with a default
value of 3.

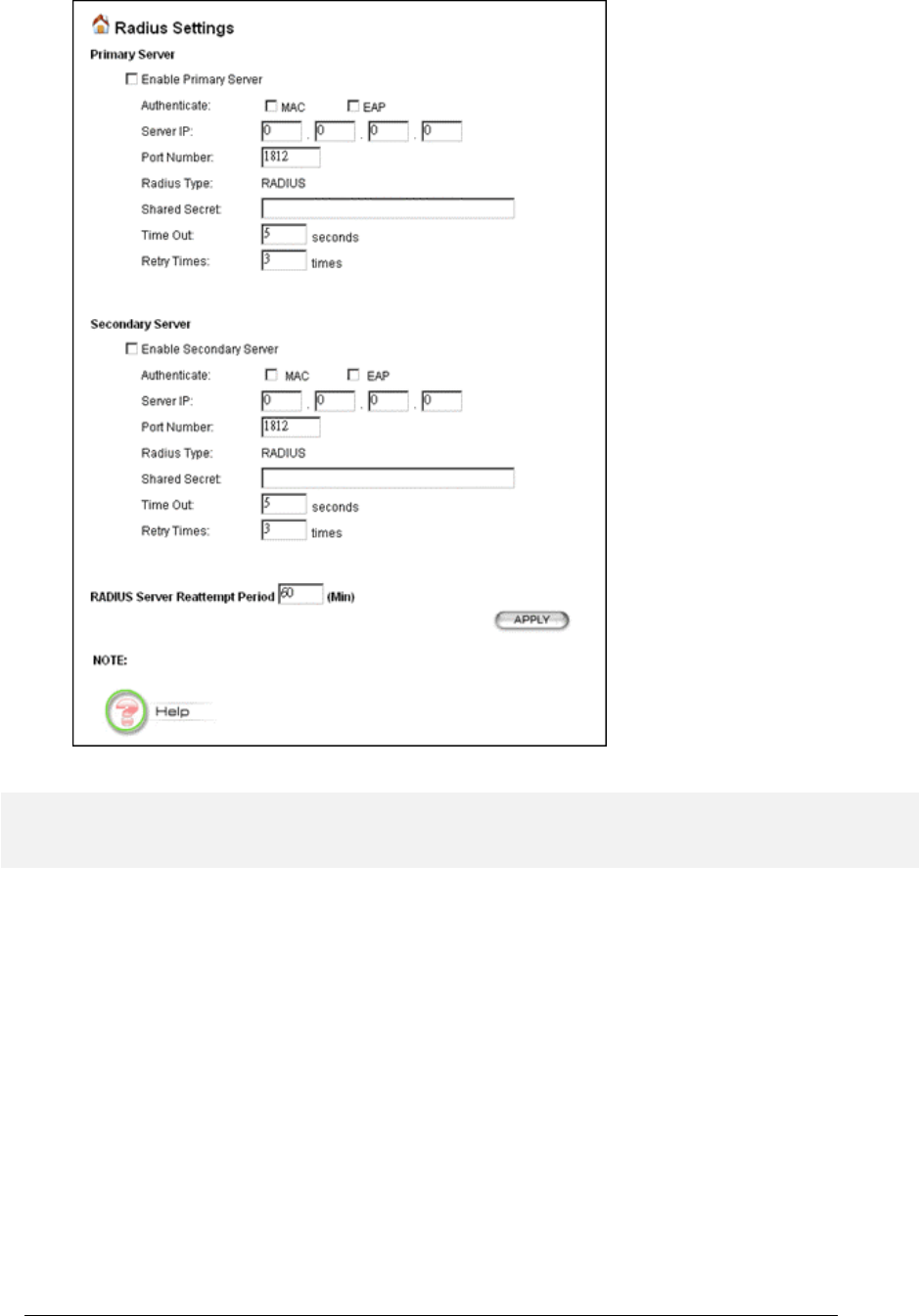

RADIUS Settings
RADIUS (Remote Access Dial In Service) servers provide centralized authentication services to
wireless clients. Up to two RADIUS servers can be defined, one acting as a primary, and the other
acting as a backup.
Enable Primary Server: To configure the primary server, check the “Enable Primary Server” box,
and configure the following parameters:
Authenticate: Two user authentication methods can be enabled: one based on MAC address filter, the
other based on 802.1x EAP/MD5. You can select either or both.
802.11g Router User’s Guide
39
MAC address filtering based authentication requires a MAC address filter table to be created in
either the 802.11g Router and/or the RADIUS server. During the Authentication phase, the
MAC address filter table is searched for a match against the wireless client’s MAC address to
determine whether the station is to be allowed or denied to access the network.
The RADIUS server can also be used for 802.1x EAP/MD5 authentication. IEEE 802.1x is an
IEEE standard which is based on a framework that involves stations to be authenticated (called
Supplicant), an authentication server (a RADIUS Server) that provides authentication services,
and an authenticator that provides necessary translation and mediating functions between the
authentication server and stations to be authenticated, in this case your 802.11g Router.
During EAP authentication, the 802.11g Router relays authentication messages between the
RADIUS server and clients being authenticated.
Server IP: The IP address of the RADIUS server
Port Number: The port number your RADIUS server uses for authentication. The default setting is
1812.
Shared Secret: This is used by your RADIUS server in the Shared Secret field in RADIUS protocol
messages. The shared secret configured in the 802.11g Router must match the shared secret configured
in the RADIUS server. The shared secret can contain up to 64 alphanumeric characters.
Time Out: The number of seconds the 802.11g Router should wait before authentication is
considered to have failed in the Retry Times (sec) field.
Retry Times: The number of times the 802.11g Router should attempt to contact the primary server
before giving up.
Enable Secondary Server: To configure the secondary server, check the “Enable Secondary Server”
box, and configure the same parameters as for the primary server.
RADIUS Server Reattempt Period: This is the amount of time the router will wait before it will try
to reconnect to the primary RADIUS server if the secondary RADIUS server is in operation at the
time, and vice versa.
40

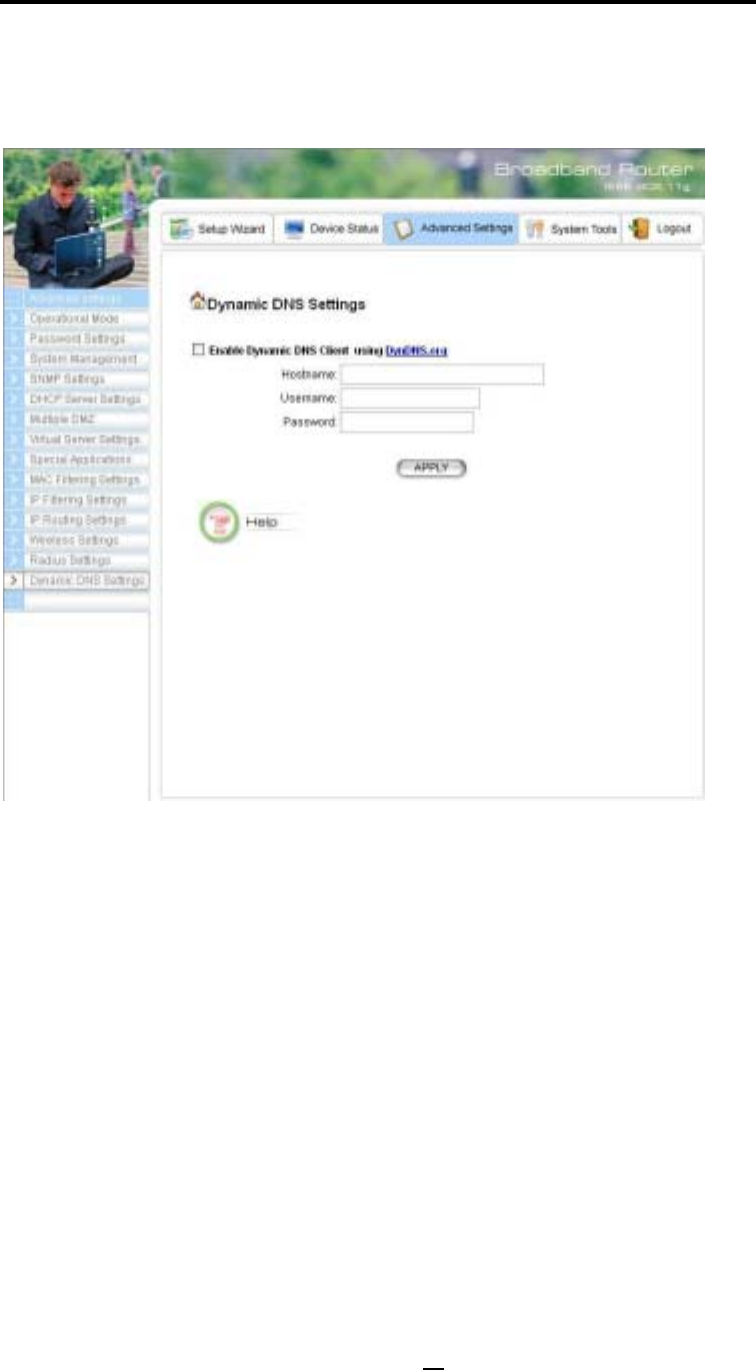

Dynamic DNS Settings
Some people advertise the IP addresses of their routers so that Internet users can access these
routers (which is really to access virtual servers behind these routers) using these IP addresses.
However, for those routers that are assigned dynamic IP addresses from the ISP, since IP
addresses change, this approach requires additional work.
The 802.11g Router implements the dynamic DNS feature so that each time it is booted, it will
re-register its domain-name-to-IP-address mapping with DynDNS.org, the standards
organization that provides domain name to IP address mapping. This is so that you can advertise
your router by providing your domain name, while Internet users can access the router using the
domain name, not the router’s IP address.
To activate this feature, you need to check the “Enable Dynamic DNS Client using
DynDNS.org” box first, and then configure the following parameters:
Hostname: the hostname (domain name) registered with DynDNS.org by you.
802.11g Router User’s Guide
41
Username: the username required to log in to the domain name server maintained by
DynDNS.org.
Password: the password required to log in to the domain name server maintained by DynDNS.org.
42
Managing your 802.11g Router
This Chapter covers other management aspects of your 802.11g Router:
How to view the device status
How to view the system log
How to upgrade your 802.11g Router firmware
How to save or restore configuration changes
How to reboot your 802.11g Router
What if you forgot the password
How to View the device Status
You can monitor the system status and get general device information from the Device Information
screen:
How to View the System Log
C
h
a
p
te
r
5
802.11g Router User’s Guide
43
The 802.11g Router maintains a system log that you can use to track events that have occurred in the
system. Such event messages can sometimes be helpful in determining the cause of a problem that you
may have encountered.
You can select System Log on the left to view log events recorded in the system. The System Log
entries are shown in the main screen along with the log level, the severity level of messages that are
being displayed (a low number such as 2 means critical), and the uptime, the amount of time since the
802.11g Router was last reset. The maximum number of entries is 128. If there are more than 128
entries, older entries will be deleted.
DHCP Client Table
The DHCP client table lists current DHCP clients connected with its host name, IP address, MAC
address, expiration time, and entry type.
Wireless Client Table
The wireless client table lists the current wireless clients with its MAC address, state, transmitted
packets, and received packets.
Bridge Table
The bridge table shows all MAC entries learned from the LAN interface, wireless clients, and WDS
peers.
44
Upgrading Firmware
You can upgrade your 802.11g Router’s firmware (the software that controls your 802.11g Router’s
operation). Normally, this is done when a new version of firmware offers new features that you want,
or solves problems you have encountered when using the current version. System upgrade can be
performed through the System Upgrade option as follows:
Step 1 Select System Tools, then Firmware Upgrade from the menu and the following screen
displays:
Step 2: To update the 802.11g Router firmware, first download the firmware from the distributor’s
web site to your local disk. Then from the above screen enter the path and filename of the firmware
(or click Browse to select the path and filename of the firmware). Next, Click the Upgrade button.
The new firmware will begin loading to your 802.11g Router. After a message appears telling you that
the operation is complete, you need to reset the system to have the new firmware take effect.
Note: It is recommended that you do not upgrade your 802.11g Router if you are happy with its operation.
How to Save or Restore Configuration Changes
You can save system configuration settings to a file, and later download it back to the 802.11g Router
system by following the steps below.
Step 1 Select Configuration Save and Restore from the System Tools menu and the following
screen displays:
802.11g Router User’s Guide
45
How to Reboot your 802.11g Router
You can reset your 802.11g Router from the Brower. To reset it:
Step 1 Select Reboot System from the System Tools menu, the following screen shows:
Step 2 Click YES to reset the 802.11g Router.
Note: Resetting the 802.11g Router disconnects any active clients, and therefore will disrupt any current
data traffic.
What if you Forgot the Password?
If you forgot the password, the only way to recover is to clear the device configuration and return the
unit to its original state as shipped from the factory. You can do this by pressing the hardware
“restore” button on the device for two seconds. Please note that this will require you to re-enter all of
your configuration data.
46
Command Line Interface
This document defines the Command Line Interface (CLI) for the 802.11g Router. The CLI is
accessible through a Telnet session.
General guidelines
When the 802.11g Router is powered up, the user can use a standard telnet application from a PC
connected to the network to perform configuration and management functions. This is done by typing
the telnet command, “telnet <the 802.11g Router’s ip>” (the default is 192.168.1.1) and pressing a
return key, the user will see a system sign-on message followed by a password prompt as follows.
Wireless ROUTER Manager Console Version: rev_no
Please enter your password: ********
A default password “password” has been pre-configured with the system. The user should use it to log
into the system until the password is explicitly changed using the
change password
command. Note
that the entered password is case-sensitive. This password may also be changed using the browser-
based GUI configuration utility.
The password entered will be echoed as asterisks (*). After the Carriage Return is entered, if the
password string is validated, the command prompt
Command>>>
will be displayed, and the user can
then issue other commands. Otherwise, the password prompt will be redisplayed.
Most commands are single-line commands, and commands are not context sensitive: each command is
independent of other commands before or after it.
The command syntax is straightforward.
The following briefly summarizes the guideline for the interface.
At any time, the user can type a “?” (preceded by a space) to request context-sensitive help on
what the user can enter next.
At any time, the user can type control-p (^p, by pressing both the Ctrl key and the p key at the
same time) to repeat the previous command, or control n to return to the following (next)
command. At startup, typing ^p or ^n will not cause anything to happen - since previous
Cha
p
te
r
6
802.11g Router User’s Guide
47
commands do not yet exist. In normal operation, typing ^p will cause the previous command to
show, and the cursor will sit at the end of the command. At this point, the user can either type a
carriage return to accept the command, or type backspaces to edit the command from the end.
Up to 15 previously entered commands can be invoked through ^p’s and ^n’s.
If a keyword is expected when the user types “ ?”, all valid keywords will be displayed. The
command typed in so far will then be displayed again along with the cursor sitting at the end,
waiting for the user to continue.
If the user types in part of the keyword but does not type in the entire word, the user can then
enter a tab or space for the system to automatically complete the keyword if the characters typed
in so far can uniquely identify the keyword. If the characters typed in so far do not uniquely
identify a keyword, a list of possible keywords will be displayed.
If the user is not sure what to type next, he or she can type "?” to display the possible keywords
that match the current CLI command input.
If an interactive mode is entered, the system will prompt for each required parameter, such as:
…
select regulatory domain (fcc, fcc/etsi/france/spain/japan):
enter channel number (10, 1-14):
…
The first prompt means there are five choices (FCC, ETSI, France, Spain, or Japan), with FCC
being the default. The second prompt means a number between 1 and 14 is expected, with 10
being the default.
During the first time a particular parameter is configured, typing a carriage return will cause the
default value to be selected. Otherwise, typing a carriage return means no change to the current
value.
Express Mode vs. Advanced Mode of operation
The Command Line Interface operates in one of two modes:
Express
Mode
or
Advanced
Mode
. In Express Mode, not all parameters are displayed. Default values are set for those
parameters not displayed in multi-line commands. In Advanced Mode, users have the option to
modify all possible values appropriate to each operation.
The user can toggle between Express Mode and Advanced Mode by typing ^E (Control-E) at any
time. Normally, the system prompt will be changed by appending “>>” to the configured prompt
when in Advanced Mode.
Conventions
The following notations will be used:
lan means the LAN port;
48
wlan means the Wireless port;
<> specifies the arguments of the command, <1-4> means a number between 1 to 4;
[ ] indicates a required or optional parameter, or choice of parameters;
MacAddr, or XX-XX-XX-XX-XX-XX means any MAC address in hexadecimal format,
where each XX can be 00, 01, ... 99, 0A, 0B, 0C, 0D, 0E, 0F, 10, 11,… FF;
ipAddr, netmask, or xxx.xxx.xxx.xxx means any ip address or network mask, where xxx is a
decimal integer between 0 and 255;
the term string means a string of characters up to the specified length, which may be enclosed
in double quotes (“) (required if the string contains embedded blanks;
Names representing filters and MAC addresses should be up to 30 characters in length;
password and SNMP community read/write strings are up to 15 characters in length. When
the password and SNMP community write string are entered, they are echoed back as a string
of “*”s for protection, while other parameters, such as WEP keys, are echoed back the way
they are typed (in clear text).
Command List
From a functional point of view, CLI commands will be grouped into the following categories:
(1) System
(2) Port
(3) Filtering
(4) DHCP Server
(5) SNMP
(6) Diagnostics
(7) Security
(8) Wireless
The command format will be described in the following sections, some with description and examples
as follows:
Command Syntax
Description: the description of the command is given here.
Example:
Command>>> command (with parameters)
Output …
802.11g Router User’s Guide
49
Specification
Product Name IEEE 802.11b/g Wireless LAN Router
Control Number
Core Logic, CPU IDTl 438 200MHz
Core Logic, WLAN Intersil Gti/Frisbee ™
OS Monta Vista PE 2.1 with Linux 2.4.17
Standard
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.1x
• IEEE 802.3u
Frequency Range
• U-NI: 2.412 ~2.456 GHz & 2.400 ~ 2.483 GHz
• EU: 2.412~ 2.471 GHz & 2.400~ 2.483 GHz
• Japan: 2.412~ 2.484 GHz & 2.400~ 2.483 GHz
• China: 2.412~ 2.484 GHz & 2.400~ 2.483 GHz
WLAN Network Architecture Type • Infrastructure
Wireless Transfer Data Rate for IEEE 802.11g
Standard IEEE 802.11g Standard: 54, 48, 36, 24, 18, 12, 9 & 6 Mbps with auto fallback
Wireless Transfer Data Rate for IEEE 802.11b 11, 5.5, 2 & 1 Mbps with auto fallback
Physical Specification
• External Power Adapter with DC12v/24v Input
• PCB Dimension: 100 mm x 100 mm
• Desktop Instillation
• Wall/Ceiling Mountable
Hardware & Antenna
• 6 x RJ45 (4x 10/100 Mbps Ethernet Switch Auto MDI/MDI-X)
• 1 x RJ45 for WAN
• 1 x RJ45 for DMZ
• 1 x Reset Button
• 1x External Antenna, 1x embedded antenna
• 9 x LED; 1 x Power; 2 x WLAN; 1 x WLAN (LINK/ACT); 4 x LAN (LINK/ACT);
1 x DMZ (LINK/ACT)
DHCP Server • Build-in DHCP server
• Support static DHCP assignment
Security, VPN Support • IP Sec, L2TP, PPTP pass through
NAT & Firewall
• Support special applications including H323, NetMeeting, internet
gaming
• Default private receiver (Software DMZ)
• Hardware DMZ
• Virtual server
• IP Filtering
IP Routing • Rip v1 & v2
• Static and default route
Management
• Web-Based Management Tool
• UPnP
• SNMP V1 & V2
• MIB: Ethernet, MIB II, 802.11
• Command line interface with Telenet
• Upload & download test-based configuration file vis HTTP browser
• Firmware upgrade via HTTP browser
• SysLog
DNS • DNS relay & Dynamic DNS
WAN Encapsulation • Static IP
• DHCP client; PPPoE client
• PPTP client
IP Address Assignment • DHCP Client
• Static IP Address
Environmental Specification • Operation Temperature: 00 ~400 C.
• Storage Temperature: -200 ~ 650 C
• Operating Humidity: 10% ~80% (without Condensation)
EMC Certification • FCC, UL, TELEC/JTEC, SRRC/CCC, CE
Certificate • Wi-Fi Class 2.4 GHz 802.11g (Planning)
• Cisco CCX 1.0 (planning)
