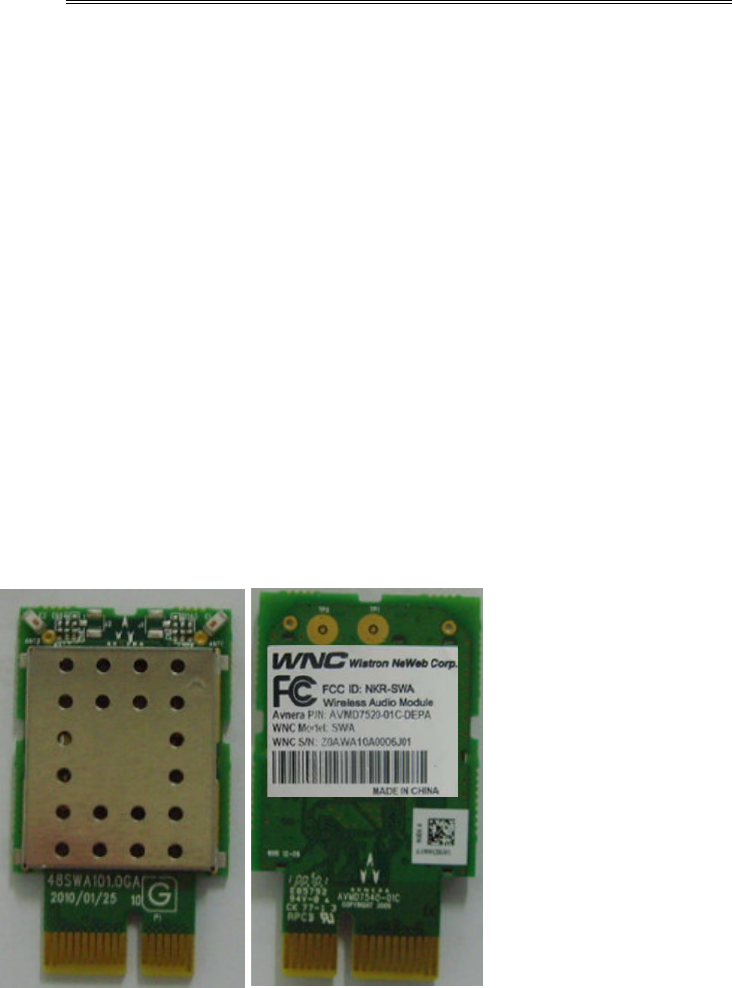

User Manual
Model Name: SWA1
(AV7520 with ceramic antenna module)
Revision: 2.1
Issue Date: 2010/04/14
This document and the information contained herein is the property of Wistron NeWeb
Corporation and reproduction by any means (including, but not limited to, xerographic,
chemical, electronic) and distribution is expressly prohibited without prior written consent
from Wistron NeWeb Corporation. The document and information contained herein are
confidential and may not be divulged without express written consent from Wistron NeWeb
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
2
Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan,
R.O.C.
Copyright 2010 by Wistron NeWeb Corporation / All rights reserved.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
3
Revision History
Edition # Reason for revision Issue date Author
1.0 Initial Draft Document 2010/01/13 Amy Tu
2.0 Refer Avnera and updated 2010/03/08 Amy Tu
2.1 Modify Photo on cover page
2010/4/14 Amy Tu
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
4
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and
2) The transmitter module may not be co-located with any other transmitter or antenna.
3) For all products market in US, OEM has to limit the operation in the frequency 2412MH̍,
2438MHz and 2462MHz for 2.4G band by supplied firmware programming tool. OEM shall not
supply any tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
5
requirements required with this module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm
may be maintained between the antenna and users. The final end product must be labeled in a visible area with the
following: “Contains TX FCC ID: NKR-SWA”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module. The end user manual shall include all required regulatory information/warning as show in
this manual.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
6
1. General Description
The AVMD7520 module is a complete radio module solution containing all the necessary HW
and FW to provide a system-integration ready, multichannel wireless HD audio solution.
The module is comprised of a AV7540 IC combined with RF front-end circuits (RF PA + balun
+ filter + RF switch), flash memory, crystal, and passive components. It is FCC certified
(modular approval) and ready for operation with U.FL connectors or integrated antennas.
The module provides a convenient set of digital I/O interfaces for digital audio through an I2S
port, host MCU control through an SPI or I2C interface and optional GPIO for various control
and indicator functions.
The module is a card edge style using the 36 pin PCIe card edge connection method to save
space and cost in
connecting to the main board.
2. Usage
Install SWA1 module to some CE product, like Speaker, TV …etc, then it will support
Wireless Audio function for these products.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
7

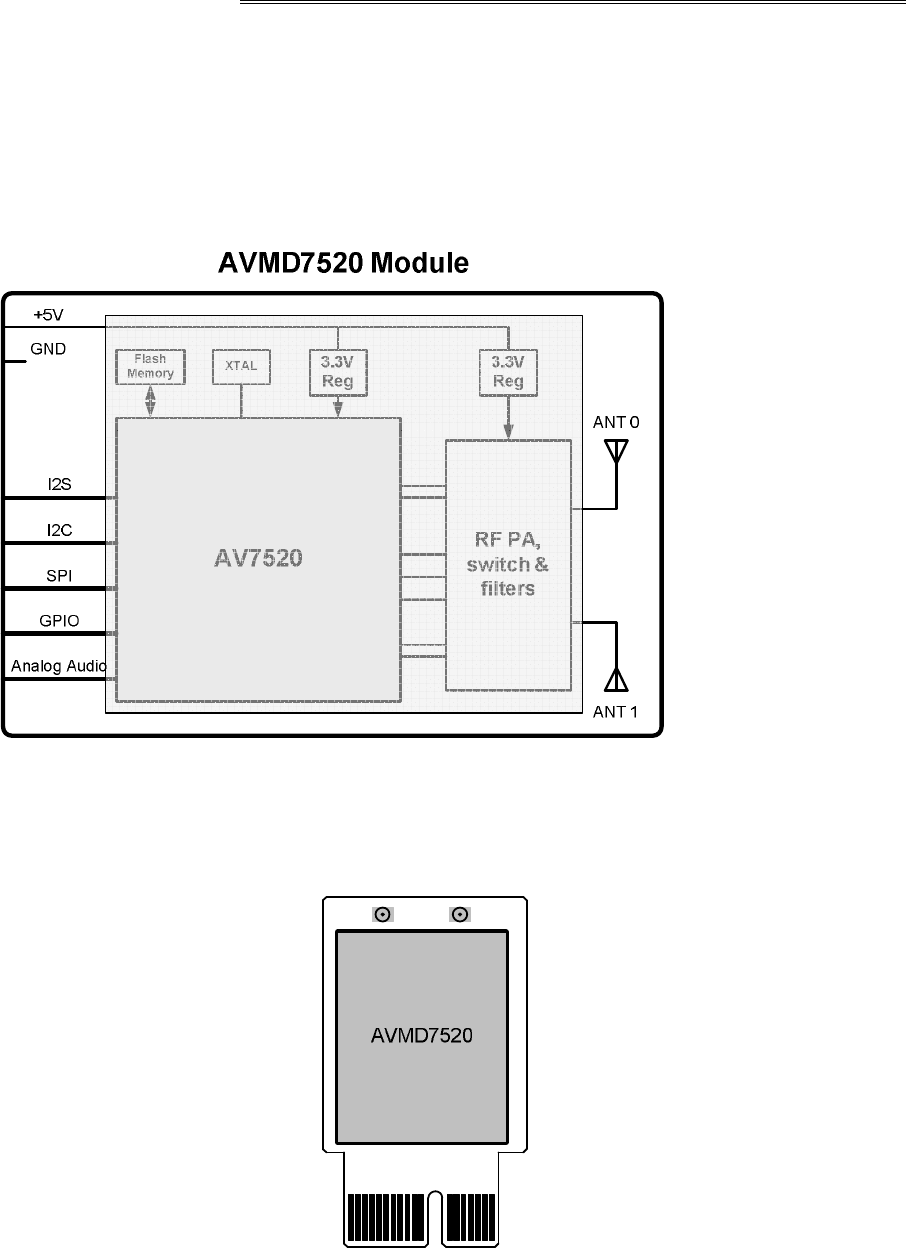

3. Block Diagram
4. Module Outline
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
8
5. Pin Configuration

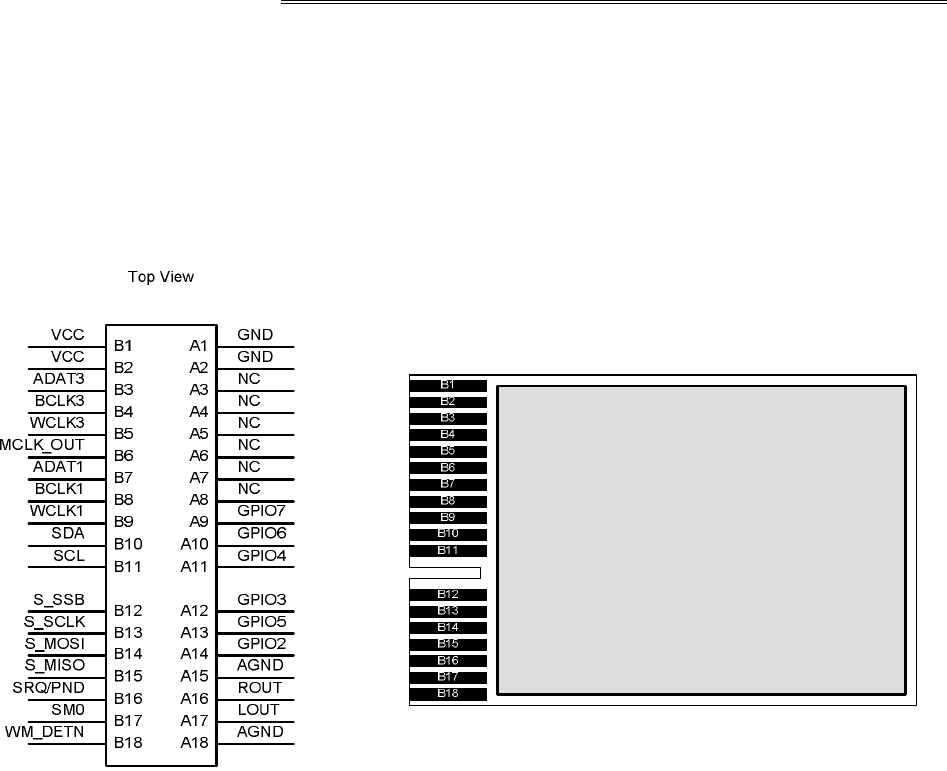

Figure 1-1 – AVMD7520 module pin configuration
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
9
Table 0-1 AVMD7520 pin description
# Pin Name Pin Type Description
A1
GND Analog Module ground
A2
GND Analog Module ground
A3
NC - no connection
A4
NC - no connection
A5
NC - no connection
A6
NC - no connection
A7
NC - no connection
A8
NC - no connection
A9
GPIO7 Digital I/O GPIO #7
A10
GPIO6 Digital I/O GPIO #6
A11
GPIO4 Digital I/O GPIO #4
A12
GPIO3 Digital I/O GPIO #4
A13
GPIO5 Digital I/O GPIO #5
A14
GPIO2 Digital I/O GPIO #2
A15
AGND Analog Audio ground
A16
ROUT Analog Audio DAC right channel output
A17
LOUT Analog Audio DAC left channel output
A18
AGND Analog Audio ground
B1
VCC Analog +5V supply voltage input
B2
VCC Analog +5V supply voltage input
B3
ADAT3 Digital I/O I2S audio data, AV75xx I2S physical I/O # 3 – input/output
B4
BCLK3 Digital I/O I2S Bit clock, AV75xx I2S physical I/O # 3 – input/output
B5
WCLK3 Digital I/O I2S Word clock, AV75xx I2S physical I/O # 3 – input/output
B6
MCLK_OUT Digital
Output
MCLK for I2S audio data
B7
ADAT1 Digital I/O I2S audio data, AV75xx I2S physical I/O # 1 – input/output
B8
BCLK1 Digital I/O I2S Bit clock, AV75xx I2S physical I/O # 1 – input/output
B9
WCLK1 Digital I/O I2S Word clock, AV75xx I2S physical I/O # 1 – input/output
B10
SDA Digital I/O I2C compatible serial data I/O
B11
SCL Digital I/O I2C compatible serial clock I/O
B12
S_SSB Digital I/O SPI Slave – slave select (active low)
B13
S_SCLK Digital I/O SPI Slave – serial clock
B14
S_MOSI Digital I/O SPI Slave – master out slave in
B15
S_MISO Digital I/O SPI Slave – master in slave out
B16
SRQ/PND Digital
Output
Notification signal to host (pending notification)
B17
SM0 Digital Input Serial Mux control (for flash programming) and module reset
(active low)
B18
WM_DETN Digital output
Wireless module detect (low signal to indicate module is inserted in
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
10
# Pin Name Pin Type Description
product)
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
11

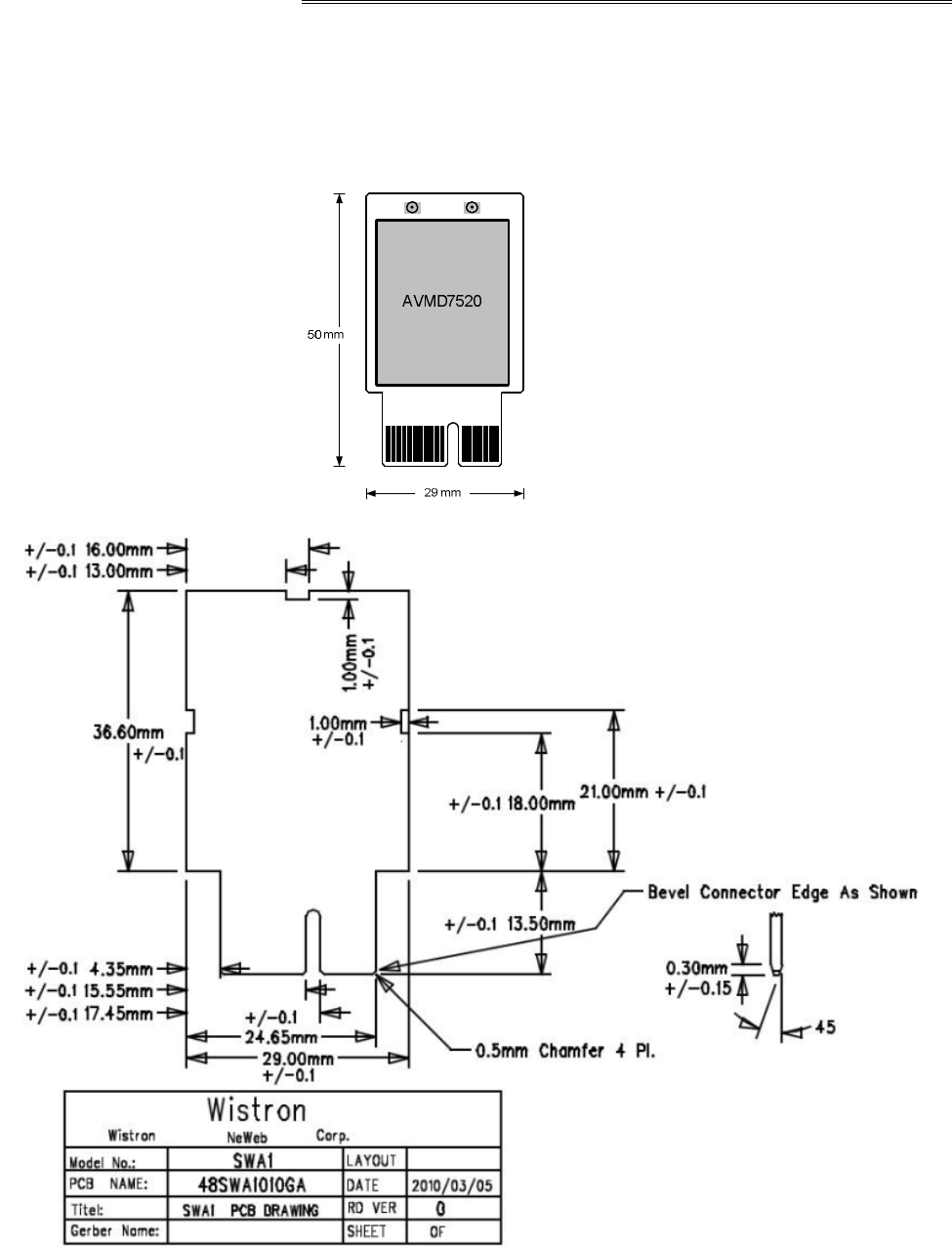

6. Mechanical Dimension
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
12

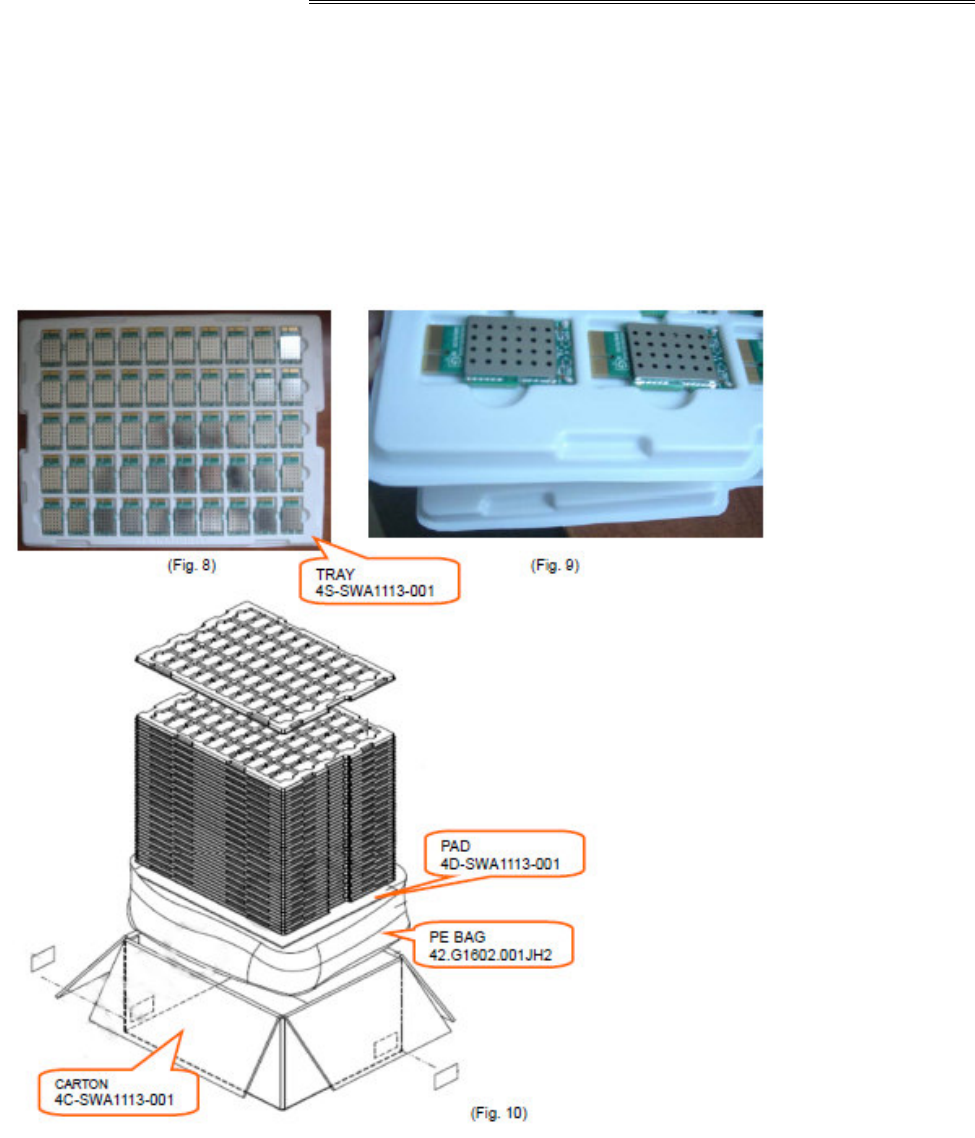

8. Package Information
50pcs / Tray-Plate
40 Tray-Plate / Carton -> 2000pcs / Carton
