Wistron NeWeb SWA5 Wireless Audio Card User Manual
Wistron NeWeb Corporation Wireless Audio Card
User Manual
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
1
Product Specification
Model Name: AVMD7540-SWA5
(AV7540 +16dBm module with U.FL connector)
Revision: 1.0
Issue Date: 2010/10/26
This document and the information contained herein is the property of Wistron NeWeb
Corporation and reproduction by any means (including, but not limited to, xerographic,
chemical, electronic) and distribution is expressly prohibited without prior written consent
from Wistron NeWeb Corporation. The document and information contained herein are
confidential and may not be divulged without express written consent from Wistron NeWeb
Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan,
R.O.C.
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
2
Copyright 2010 by Wistron NeWeb Corporation / All rights reserved.
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
3
Revision History
Edition #
Reason for revision Issue date
Author
0.1 Initial Revision 2010/05/07
cjo
1.0
Add FCC certification wording on p.3
2010/10/26
Amy
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
4
1. General Description
The AVMD7540-SWA5 module is a complete radio module solution containing all the necessary HW
and FW to provide a system-integration ready, multichannel wireless HD audio solution.
The module is comprised of a AV7540 IC combined with RF front-end circuits (RF PA + balun + filter
+ RF switch), flash memory, crystal, and passive components. It is FCC certified and ready for
operation with U.FL connectors. The module provides a convenient set of digital I/O interfaces for
digital audio through an I2S port, host MCU control through an SPI or I2C interface and optional
GPIO for various control and indicator functions.
The module is a card edge style using the 36 pin PCIe card edge connection method to save space
and cost in connecting to the main board.
FCC & IC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the exemption from the routine evaluation limits in section 2.5 of RSS
102.
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters from user and bystanders.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
5
2. Features
Complete, Integrated Wireless Module
o AV7540 IC
o RF front-end
o Flash memory
High Performance Audio and RF solution
o 16 bit, 48kHz to 24 bit, 96kHz digital audio
o 120dB SNR Digital Audio Path
o Fixed Low Latency solution
o +16dBm transmit RF output power
o -82dBm receive RF sensitivity
o Support for 30m/100m range NLOS/LOS
Digital interfaces and Audio
o 8 channel digital audio I/O (4 I2S ports)
Configurable as input or output
o Stereo audio DAC output
o 4-wire SPI slave interface or 2-wire I2C-compatible communication with the host MCU
Package and connections
o Compact size
o 36 pin (2x18) PCIe card edge connector
o diversity antenna capability
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
6

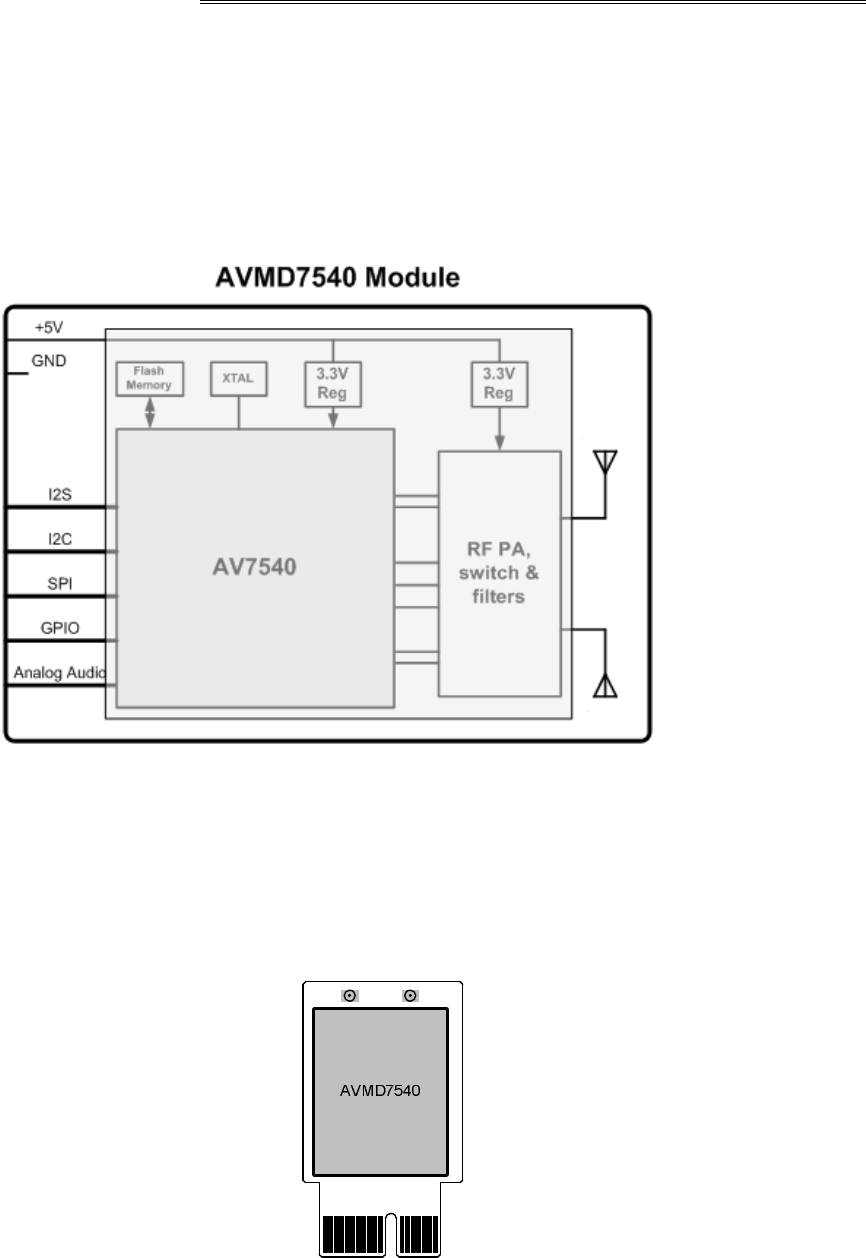

3. Block Diagram

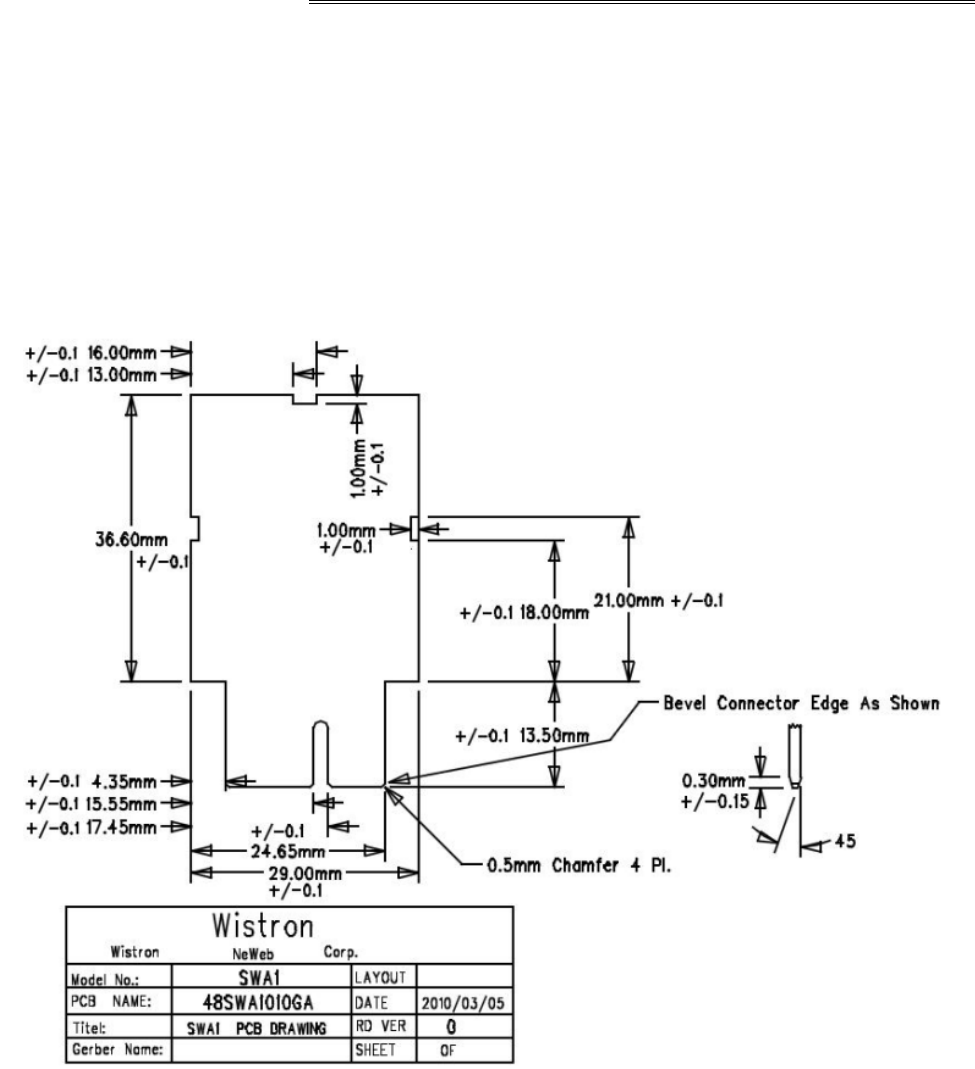

3. Module Outline
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
7
4. Pin Configuration and Definition

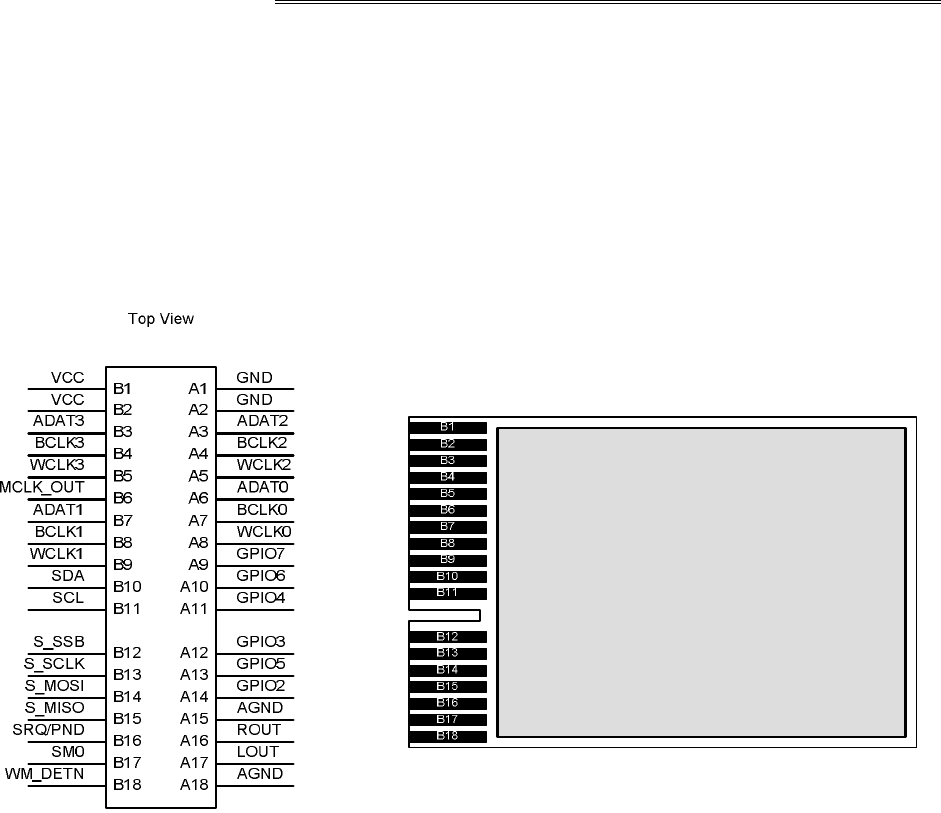

Figure 1-1 – AVMD7540-SWA5 module pin configuration
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
8
Table ᙑᎄ! ࢬਐࡳऱᑌڤऱ֮ڗլژڇ֮ٙխΖ-1 AVMD7540-SWA5 pin description
# Pin Name Pin Type Description
A1
GND Analog Module ground
A2
GND Analog Module ground
A3
WCLK2 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 2 – input/output
A4
BCLK2 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 2 – input/output
A5
ADAT2 Digital I/O I2S audio data, AV75xx physical I2S I/O #2 – input/output
A6
WCLK0 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 0 – input/output
A7
BCLK0 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 0 – input/output
A8
ADAT0 Digital I/O I2S audio data, AV75xx physical I2S I/O # 0 – input/output
A9
SPI/TWI_SEL Digital I/O SPI / TWI interface selection (SPI = 0, TWI = 1)
A1
0 GPIO6 Digital I/O GPIO #6
A1
1 GPIO4 Digital I/O GPIO #4
A1
2 GPIO3 Digital I/O GPIO #3
A1
3 GPIO5 Digital I/O GPIO #5
A1
4 reserved Digital I/O reserved
A1
5 AGND Analog Audio ground
A1
6 ROUT Analog Audio DAC right channel output
A1
7 LOUT Analog Audio DAC left channel output
A1
8 AGND Analog Audio ground
B1
VCC Analog +5V supply voltage input
B2
VCC Analog +5V supply voltage input
B3
ADAT3 Digital I/O I2S audio data, AV75xx physical I2S I/O # 3 – input/output
B4
BCLK3 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 3 – input/output
B5
WCLK3 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 3 – input/output
B6
MCLK_OUT Digital Output MCLK for I2S audio data
B7
ADAT1 Digital I/O I2S audio data, AV75xx physical I2S I/O # 1 – input/output
B8
BCLK1 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 1 – input/output
B9
WCLK1 Digital I/O I2S Word clock, AV75xx physical I2S I/O # 1 – input/output
B1
0 SDA Digital I/O I2C compatible serial data I/O
B1
1 SCL Digital I/O I2C compatible serial clock I/O
B1
2 S_SSB Digital I/O SPI Slave – slave select (active low)
B1
3 S_SCLK Digital I/O SPI Slave – serial clock
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
9
# Pin Name Pin Type Description
B1
4 S_MOSI Digital I/O SPI Slave – master out slave in
B1
5 S_MISO Digital I/O SPI Slave – master in slave out
B1
6 SRQ/PND Digital Output Notification signal to host (pending notification)
B1
7 SM0 Digital Input Serial Mux control (for flash programming) and module reset (active low)
B1
8 WM_DETN Digital output Wireless module detect (low signal to indicate module is inserted in
product)
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
10
5. Electrical Specifications
5.1. Absolute Maximum Ratings
The Absolute Maximum Rating (AMR) corresponds to the maximum value that can be applied without leading
to instantaneous or very short-term unrecoverable hard failure (destructive breakdown). Absolute Maximum
Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at
or beyond these limits. Device functional operating limits and guaranteed performance specifications are given
under Electrical Characteristics at the test conditions specified.
Table 6-1 6-2 AVMD7540-SWA5 Absolute Maximum Ratings
CONDITION MIN MAX Units
Supply (relative to GND)
+5V -0.3 6.0 V
Input Voltage Range – Digital Inputs -0.3 3.6V V
Short circuit to GND (any pin) --- continuous
Storage Temperature -40 +100 ºC
Lead Temperature (10s) -- +225 ºC
ESD Voltage Rating – Human Body Model test 2000 V
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
11
5.2. DC Electrical Characteristics
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA5 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-2
6
-3 AVMD7540-SWA5 DC Electrical Characteristics
PARAMETER CONDITIONS MIN TYP MAX UNIT
Input supply voltage Driven by an external regulator 4.5 5.5 V
Supply Current – (Note 1) RESET 10 mA
RX mode: 1 stereo output I2S 100 mA
CMOS I/O Logic Levels – 3.3V I/O
Input Voltage Logic Low, VIL Internal regulator = 3.3V 0.6 V
Input Voltage Logic High, VIH Internal regulator = 3.3V 2.0 V
Output Voltage Logic Low, VOL Internal regulator = 3.3V; ILOAD=1mA 0.4 V
Output Voltage Logic High, VOH Internal regulator = 3.3V; ILOAD=1mA 2.9 V
Note 1: The operating states are defined as:
RESET = AVMD7540-SWA5 is held in reset by holding SM0 low
RX mode: AVMD7540-SWA5 is operating in a link as a client node receiving 1 stereo channel of 16bit,
48kHz audio.
5.3. Electrical Characteristics – RF Receiver
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA5 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-3 -4 AVMD7540-SWA5 Electrical Characteristics – RF Receiver
PARAMETER CONDITIONS MIN TYP MAX UNIT
RF Channel Frequency Range 2412 2462 MHz
Sensitivity (Note 1) TA=25ºC -80 dBm
Max Input Signal (Note 1) -5 dBm
Spurious RF outputs
2400-2483.5 MHz
<2400 MHz
>2483.5 MHz
-47
-60
-60
dBm
dBm
dBm
LO leakage -47 dBm
Note 1: Sensitivity and max signal level are defined as the onset of 1% BLER Block Error Rate.
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
12
5.4. Electrical Characteristics – RF Transmitter
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA5 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-5 -5 AVMD7540-SWA5 Electrical Characteristics – RF Transmitter
PARAMETER CONDITIONS MIN TYP MAX UNIT
RF Performance
RF Channel Frequency Range 2412 2462 MHz
Output Power TA=25ºC, OFDM signal, 16MHz channel BW +16 dBm
Harmonics (Note 1) 2nd harmonic
3rd harmonic
-45
-45
dBm
dBm
Conducted RF Spurious signals
800-1000MHz
2000-2390MHz
2483.5- 3000MHz; RBW=1MHz
3000-4000MHz ; RBW=1MHz
4.0-26.5GHz; RBW=1MHz
-45
-45
-45
dBm
dBm
dBm
Radiated Spurious RF signals 30-88MHz,
88-216MHz
216-960MHz
>960MHz
34
37
40
48
dBuV/
m
dBuV/
m
dBuV/
m
dBuV/
m
LO leakage Relative to power in a 100kHz BW **, after DC
offset correction -20 dBc
Note 1: Measured at TX output power = +16dBm
Note 1: Measured at TX output power = +16dBm
5.5. Electrical Characteristics – RF Channel Frequency
Operating Conditions: +5V_IN = 5.0V ±10%, T
A
=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA5 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-5 -6 AVMD7540-SWA5 Electrical Characteristics – RF Transmitter
PARAMETER CONDITIONS MIN TYP MAX UNIT
RF Performance
Channel Frequency
AM2G system channel 1
AM2G system channel 2
AM2G system channel 3
2412
2438
2462
MHz
MHz
MHz
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
13
PARAMETER CONDITIONS MIN TYP MAX UNIT
Frequency Error 16MHz crystal
+/- 20
ppm
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
14
5.6. Electrical Characteristics – End-to-end Audio Characteristics
Operating Conditions: +5V_IN = 5.0V ±10%, TA=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA5 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-6 -7 AVMD7540-SWA5 Electrical Characteristics – End-to-end Audio Characteristics
PARAMETER CONDITIONS MIN TYP MAX UNITS
End-to-end SNR I2S in to I2S out, no interference;
16bit / 48kHz mode
24bit / 48kHz mode
16bit / 96kHz mode
24bit / 96kHz mode
96
120
97
120
dB
dB
dB
dB
Latency 48kHz, interleaving level = 0
48kHz, interleaving level = 1
48kHz, interleaving level = 2
11
15
19
ms
ms
ms
Bandwidth +/-0.5dB flatness, 48Khz modes
+/-0.5dB flatness, 96Khz modes
20
20
20k
40k
Hz
Hz
5.7. Electrical Characteristics – MCLK Characteristics
Operating Conditions: +5V_IN = 5.0V ±10%, TA=0ºC to +50 ºC; RF Chan. Freq. = 2412MHz to 2462MHz. All
specifications are referenced to the AVMD7540-SWA5 edge connector pins and RF connectors, unless
otherwise specified. Typical specifications at 5.0V and 25 ºC.
Table 6-7 cccccccccccvcccccccccccccccccccccc-8 AVMD7540-SWA5 Electrical Characteristics –
MCLK Characteristics
PARAMETER CONDITIONS MIN TYP MAX UNITS
MCLK frequency “24MHz” mode (256MHz divide by 10.5)
“12MHz” mode (256MHz divide by 21) 24.38
12.19 MHz
MHz
MCLK output duty cycle 40 60 %
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
15
6. Mechanical Dimension
Wistron
NeWeb
®
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
16

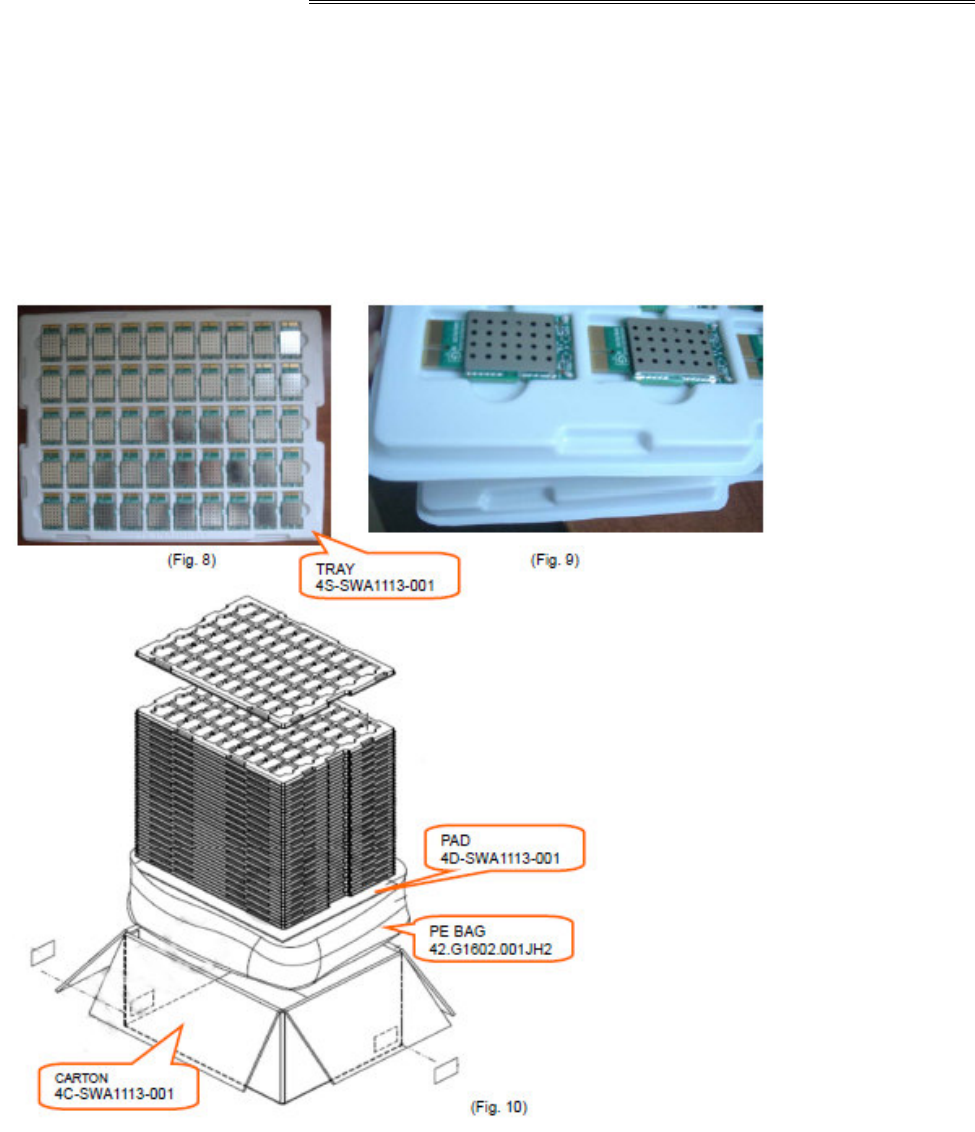

7. Package Information
50pcs / Tray-Plate
40 Tray-Plate / Carton -> 2000pcs / Carton
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the
host this module is integrated into. Under such configuration, the FCC radiation exposure limits set
forth for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be
available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
NKR-SWA5". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19
statement has to also be available on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
