Wistron NeWeb SWZ1 ZWave Remote Control Module User Manual 20100526 SWZ1 User Manual
Wistron NeWeb Corporation ZWave Remote Control Module 20100526 SWZ1 User Manual
User Manual
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
1
User Manual
Model Name: SWZ1
(Sigma Design SD3402)
(ZWave Embedded Module)
Revision: 1.0
Issue Date: 2010/05/14
This document and the information contained herein is the property of Wistron NeWeb
Corporation and reproduction by any means (including, but not limited to, xerographic,
chemical, electronic) and distribution is expressly prohibited without prior written consent from
Wistron NeWeb Corporation. The document and information contained herein are
confidential and may not be divulged without express written consent from Wistron NeWeb
Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan,
R.O.C.
Copyright 2010 by Wistron NeWeb Corporation / All rights reserved.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
2
Revision History
Edition #
Reason for revisio
n
Issue date
Author
1.0 Initial Draft Document 2010/05/14 Lydia Tsai
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
3
Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and receiver.
●
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
4
Canadian ICES-003
C Statement
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
5
1. General Description
The SWZ11 module is ZWave single chip solutions for embedded module. It’s very small and
cost-effective modules and comlete wireless solution for application in home control and AV
control consisting of an integrated multi band, multi channel, multi speed RD transceiver. And
SWZ1 use an 8051 micorcontroller, a comprehensive set of peripherals, RAM, OTP memory
storage for user application software and the ZWave software. Through an integrated HW
key matrix scanner, SWZ1 had on-chip IR coding support, the ID learning features, its low
power design, and advanced power management.
2. Usage & Key Features
SWZ1 is the perfect solution for managing energy consumption in the home.
SWZ1 enable the right solutions to the consumer through
o
Home Health Care
o
Home Security
o
Energy Management
o
Entertainment Control
Using Z-Wave SD3402 Signle Chip
64 kbyte OTP memory for Z-Wave protocol + API + customization device
application SW
W/I printed ANT on the board
URAT available for general use
AES-128 security hardware acceleration
Power-on reset / brown-out detector which is active in all power modes.
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
6

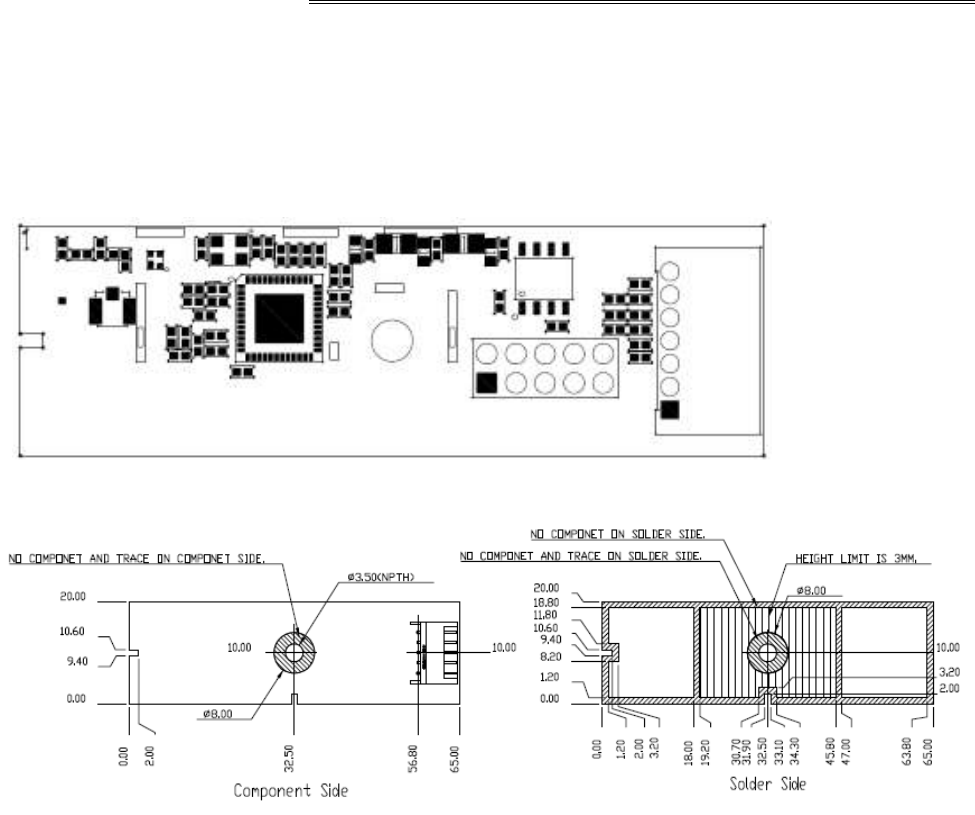

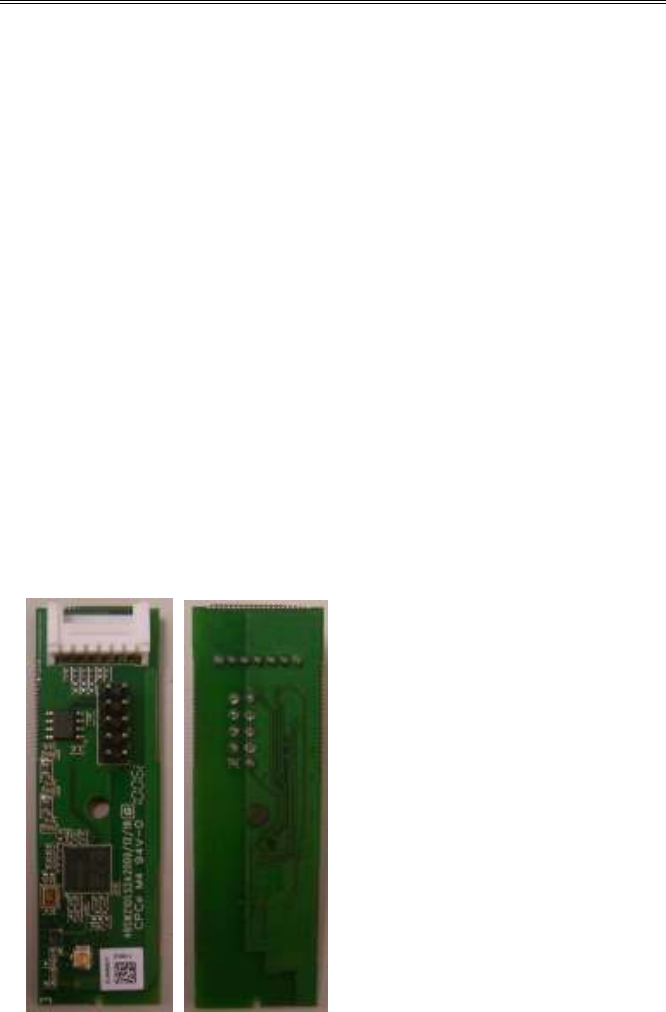

3. Module Outline
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
7
4. Pin Configuration & RF Spec.
Main Parts:
IC SD3402 Single Chip, QFN48
TXC- XTAL 32MHz, 12pF
Atmel- Serial EEPROM, SPI, 128K
KYOCERA SF16-0908M4UU01 SAW Filter
TAI- TA0602A SAW Filter
PCB Dimension: 65 x 20 mm
Antennas: Printed ANT on the board
Z-Wave SD3403 single chip:
QFN48 (7x7mm)
Optimized 8051 CPU Core
64kbyte OTP memory
16kbyte data SRAM
RF communication:
FSK / GFSK/ 4-FSK modulation
Band
Data rate 9.6 / 40 / 100 kbit/s
Power Consumption
TX: 30~40mA
RX: 30~35mA
7-pin Connector’s pin definition
Pin1: +3.3V
Pin2: TXD
Pin3: RXD
Pin4: RESET
Pin5: Power_On (Low for power on; High_3.3V for power off)
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
8
Pin6: IR_IN
Pin7: GND
Z-Wave Frequencies:
RF frequency US, 9.6kbit/s 908.42 MHz
RF frequency US, 40kbit/s 908.40 MHz
RF frequency US, 100kbit/s 916.00 MHz
Wistron
NeWeb
Wistron NeWeb Corporation
20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C.
Phone: 886-3-666-7799 Fax: 886-3-666-7711
Website: www.wneweb.com
Wistron NeWeb Confidential Document
9

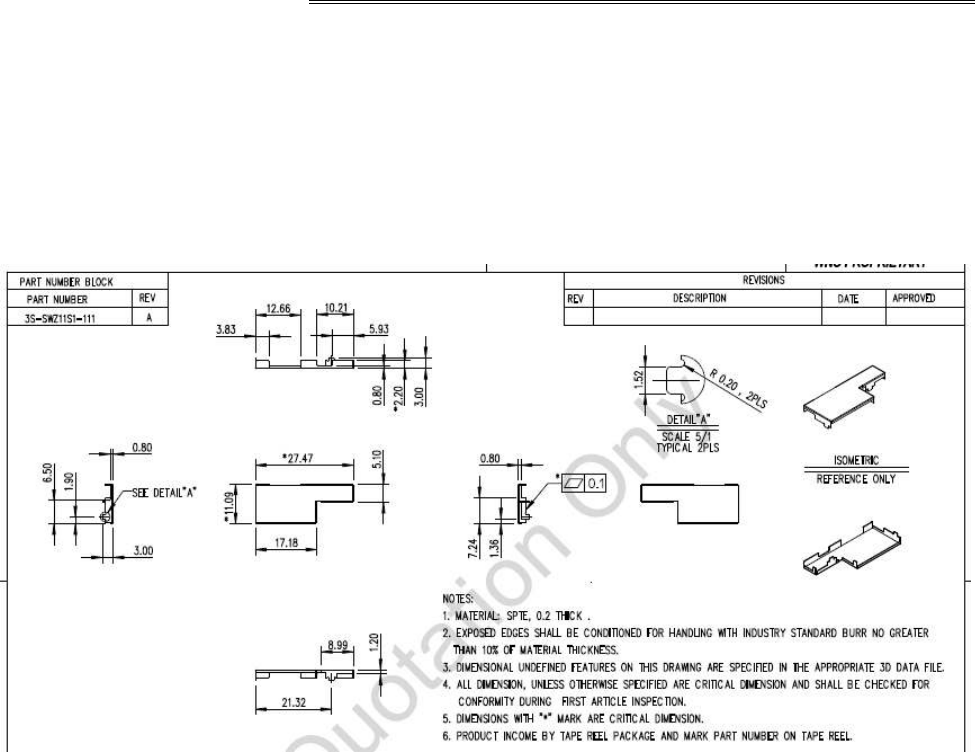

5. Shielding Mechanical Dimension
