User Guide

Satellite Radio Plug & Play Receiver

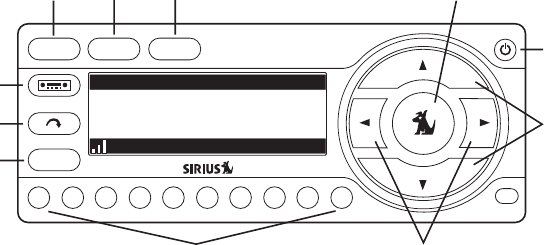

Congratulations on the Purchase of your new SIRIUS Starmate 3

Plug-n-Play Receiver

Your new SIRIUS Starmate 3 Plug-n-Play Receiver lets you enjoy SIRIUS® Satellite Radio’s

digital entertainment anywhere you’ve installed the SUPH1 SIRIUS Universal Plug and Play

Home Kit, SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, or the SUBX1 SIRIUS Plug and

Play Universal Boombox (each sold separately). Use this manual to familiarize yourself with all

of SIRIUS Starmate 3 features and capabilities. For the latest information about this and other

SIRIUS Starmate products and accessories, visit http://www.sirius.com.

[ Table of Contents ]

Table of Contents

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4

FCC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 7

PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Maximizing Audio Quality From Your SIRIUS Receiver . . . . . . . . . . . . . . . 10

Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Direct Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 14

CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SIRIUS Starmate 3 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . 16

Remote Control Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . 18

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Changing Channels and Categories . . . . . . . . . . . . . . . . . . . . . . . . 21

Display Button (DISP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Selecting Channels Directly . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Channel Presets (BAND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Memory (MEMO) and Song Seek (S-Seek) Functions . . . . . . . . . . . . . . . . . 27

Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Game Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

FM Preset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

MENU OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Sirius ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

FM Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Game Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

[ Table of Contents ] 3

Jump Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Memory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Conﬁrmation Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Time Based Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

．Reorient or relocate the receiving antenna.

．Increase the separation between the equipment and receiver.

．Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

．Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20

cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

[ Warning and Safety Information ]

Warning and Safety Information

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference, and

This device must not accept any interference received, including interference that may

cause undesired operation.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Canadian Compliance

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

General Precautions

Liquid Crystal Precautions

If the LCD screen on the receiver is damaged, do not to touch the liquid crystal fluid. If any of

the following situations happen, take the action indicated:

[ Warning and Safety Information ] 5

If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth

and then wash the skin thoroughly with soap and running water.

If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15

minutes. Seek medical care.

If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large

quantities of water and induce vomiting. Seek medical care.

Safety Precautions

Be sure to observe the following warnings. Failure to follow these safety instructions and

warnings may result in a serious accident.

Do not operate the receiver in a way that might divert your attention from driving safely.

As a driver, you alone are responsible for safely operating your vehicle in accordance with

traffic safety laws at all times.

Do not install the receiver where it may obstruct your view through the windshield, or of

your vehicle’s indicator displays.

Do not install the receiver where it may hinder the function of safety devices such as an

airbag. Doing so may prevent the airbag from functioning properly in the event of an ac-

cident.

Be sure the receiver and accessories are installed as described in the installation instruc-

tions which accompany each accessory kit. SIRIUS Satellite Radio is not responsible for

issues arising from installations which were not installed according to the instructions.

To avoid short circuits, do not open the receiver or accessories, and never put or leave any

metallic objects (coins, tools, etc.) inside the receiver.

If the receiver or accessories emits smoke or unusual odors, turn the power off immedi-

ately, and disconnect the receiver from any power source.

Do not drop the receiver or subject it to strong shocks.

If the receiver doesn’t seem to be working properly, turn the receiver off, wait 10 seconds,

replace the battery and then turn it on again.

The installation and use suggestions contained in this manual are subject to any restric-

tions or limitations that may be imposed by applicable law. The purchaser should check

applicable law for any restrictions or limitations before installing and/or operating this unit.

•

[ Warning and Safety Information ]

Operating Temperature

The receiver is designed to operate between -20° to +85° C (-4° to +185° F). Avoid leaving

the receiver in a vehicle or elsewhere where the temperature may fall outside this range. Ex-

treme temperatures or extreme temperature fluctuations can degrade the performance of the

LCD display screen, and possibly damage it.

Cleaning and Maintenance

If the receiver or accessories become dirty, turn the power off and wipe it clean with a soft

cloth. Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile

solvents to clean. These may cause damage to the receiver.

[ Copyrights & Trademarks ] 7

Copyrights & Trademarks

® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS

Satellite Radio Inc. “NFL” and the NFL Shield logo, and the NFL Sunday Drive name and logo

are registered trademarks of the National Football League. “NHL” and the NHL Shield are

registered trademarks of the National Hockey League. “NBA” and the NBA silhouette logo are

registered trademarks of NBA Properties Inc. All other trademarks, service marks, sports team

™ “Starmate” is a trademark of SIRIUS Satellite Radio.

Portions of the software on this receiver are licensed under the eCos License. Distribution of

eCos requires that the eCos source code be made available to Sirius Satellite Radio custom-

ers. The eCos License and eCos source code are available to the public at http://www.sirius.

com/ecoslicense.

Sirius Satellite Radio reserves all rights to all receiver software not covered under the eCos

license. This includes all portions of receiver software that were not distributed to Sirius as

part of the eCos operating system.

Hardware, subscription and activation fee required. For full Terms & Conditions, visit

http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.

Equipment and subscription sold separately. Installation required with some equipment.

[ Package Contents ]

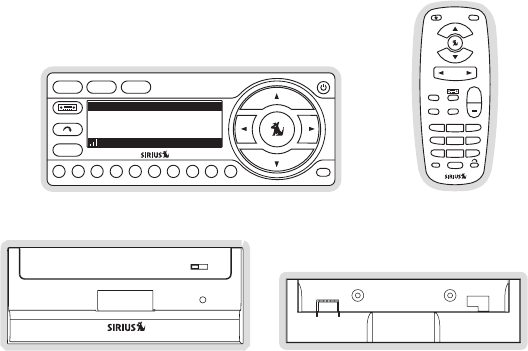

Package Contents

The following items are included with your purchase of the SIRIUS Starmate 3 receiver:

MUTE

Category

001 Channel Name001 Channel Name

002 Channel Name

003 Channel Name003 Channel Name

004 Channel Name004 Channel Name

Repeated momentary pressing of the DISP button while in the category list mode will cause

the receiver to sequence the display between listings of artist names, song titles, and back to

channel names. (Figure 3)

Category

001 Channel Name001 Channel Name

002 Channel Name

003 Channel Name003 Channel Name

004 Channel Name004 Channel Name

Category

001 Artist Name001 Artist Name

002 Artist Name

003 Artist Name003 Artist Name

004 Artist Name004 Artist Name

Category

001 Song Title001 Song Title

002 Song Title

003 Song Title003 Song Title

004 Song Title004 Song Title

Pressing the category previous or next button again will cause the receiver to display a listing

of the previous or next channel category.

Use the channel up/down buttons to highlight a channel within a category and press the

Select button to tune to the highlighted channel. When a new channel is selected, the display

Figure 2Figure 2

Figure 3Figure 3

[ Operation ]

will revert to the default display screen for the new channel.

To exit the channel list mode without changing to a different channel, press and hold the DISP

button for 1½ seconds, until the default screen is displayed.

Display Button (DISP)

Momentarily pressing and releasing the DISP (Display) button while the default screen is

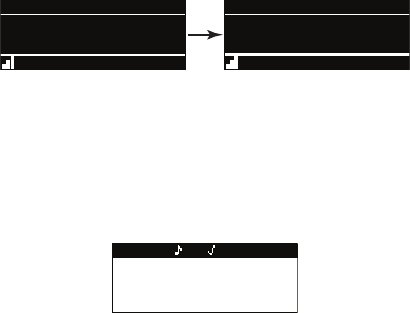

displayed changes the artist name and song title to a scrolling, single line, large format display

for easier viewing from a distance. (Figure 4)

001

Category 12:00P A

Artist N

Channel Name

001

Artist Name

Song Title

Category 12:00P A

Channel Name

Pressing and holding the DISP button for 1½ seconds will cause the receiver enter the chan-

nel list mode. The channel list mode makes it easy to quickly search for and locate music by

channel, by category, by artist, and by song title.

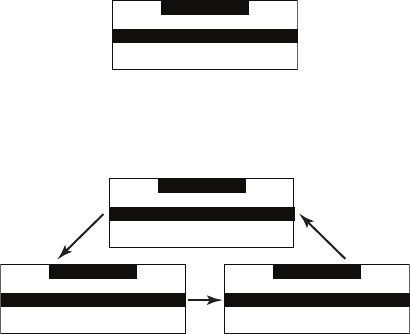

Once the receiver has entered the channel list mode, a listing of the channel numbers and

names is displayed. (Figure 5) Repeated momentary pressing and releasing of the DISP

button will sequence the display between listings of artist names, song titles, and back to

channel names.

Figure 4Figure 4

[ Operation ] 23

001 Channel Name001 Channel Name

003 Channel Name

005 Channel Name005 Channel Name

004 Channel Name004 Channel Name

002 Channel Name002 Channel Name

001 Artist Name001 Artist Name

003 Artist Name

005 Artist Name005 Artist Name

004 Artist Name004 Artist Name

002 Artist Name002 Artist Name

001 Song Title001 Song Title

003 Song Title

005 Song Title005 Song Title

004 Song Title004 Song Title

002 Song Title002 Song Title

Note: If you are viewing a sports category channel list (NFL®, NBA®, NHL®, or College),

pressing the DISP button will instead toggle between the team names and the current score

of any live play-by-play game.

Use the category previous and next buttons to scroll through the music and entertainment

categories, and the channel up and down buttons to scroll through the available channels in

each category to find the channel to which you want to listen.

When you have found the channel you wish to listen to, highlight the channel using the chan-

nel up and down buttons and press the Select button to tune to the channel. The new channel

will begin playing and the display will revert to the default display screen for the new channel.

To exit the channel list mode without changing to a different channel, press and hold the DISP

button for 1½ seconds, until the default screen is displayed.

Figure 5Figure 5

[ Operation ]

Selecting Channels Directly

A channel may be directly selected by entering the channel number using the 0 - 9 buttons on

the receiver. To enter a channel number, momentarily press and release the Select button. At

the display prompt (Figure 6) enter the three digit channel number.

001

Category 12:00P A

Artist NArtist N

# ___

Enter Channel

Channel Name

Channel Presets (BAND)

You can store up to 30 of your favorite channels as presets for quick recall access. The

preset channels are stored in 3 bands, A, B, and C, each containing 10 channel presets, and

are numbered 0 to 9. The 10 channel presets in each band are accessed by pressing the ap-

propriate number (0 to 9) on the receiver. A momentary press and release of the BAND button

cycles through the 3 preset bands (A, B, and C).

Storing Channel Presets

To store a favorite channel as a preset, do the following:

Momentarily press and release the BAND button until the desired preset band, A, B, or

C, is displayed in the lower right corner of the default display screen.

Tune the receiver to the channel you wish to store as a preset. (Refer to the section

Changing Channels for specific instructions for tuning to a channel.)

Press and hold the numbered preset button in which you wish to store your favorite

channel for 1½ seconds until you hear a beep. The band and preset number will then be

displayed in the lower right corner of the display screen to confirm that the channel has

been stored. (Figure 7)

Figure 6Figure 6

[ Operation ] 25

001

Category 12:00P A1

Artist NameArtist Name

Song TitleSong Title

Channel Name

Preset Stored

Note: If the preset button already has a channel stored in it, the preset will be replaced by the

newly stored channel.

Using Channel Presets

The active band of presets is displayed in the lower right corner of the default display screen,

A, B or C. To change the active band, momentarily press and release the BAND button to

cycle between the preset bands.

The 10 preset channels in the active band can then be selected by momentarily pressing and

releasing the 0 through 9 buttons.

When you have chosen a preset channel, the band and preset number will be displayed in the

lower right corner of the default display screen. (Figure 8)

001

Category 12:00P A3

Artist NameArtist Name

Song TitleSong Title

Channel Name

Searching for a Channel Preset (P.TUNE Mode)

To quickly search through all of your presets in the P.TUNE mode, do the following:

Press and hold the BAND button for approximately 1 second to enter the P.TUNE mode.

Preset Tuning Mode will momentarily be displayed and the top left and lower right

corners of the display will invert to indicate the receiver is in the Preset Tune Mode.

(Figure 9)

Figure 7Figure 7

Figure 8Figure 8

[ Operation ]

001

Category 12:00P A1

Artist Name

Song Title

Channel Name

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Preset Tune Mode

Channel Name

Use the channel up and down buttons to move up or down through your channel presets

and immediately tune to each channel. Channel presets are grouped and displayed by

bank and preset number, i.e., A-1, A-2...B-1, B-2, etc. Empty presets are not displayed.

To view the channel presets in the channel list mode, where you can view 4 presets at

once, momentarily press and hold the DISP button for approximately one second until

the channel list mode is displayed. Repeated momentary pressing and releasing of the

DISP button will sequence the display between listings of artist names, song titles, and

back to channel names. (Figure 10)

A-1 Channel NameA-1 Channel Name

A-3 Channel Name

A-5 Channel NameA-5 Channel Name

A-4 Channel NameA-4 Channel Name

A-2 Channel NameA-2 Channel Name

A-1 Artist NameA-1 Artist Name

A-3 Artist Name

A-5 Artist NameA-5 Artist Name

A-4 Artist NameA-4 Artist Name

A-2 Artist NameA-2 Artist Name

A-1 Song TitleA-1 Song Title

A-3 Song Title

A-5 Song TitleA-5 Song Title

A-4 Song TitleA-4 Song Title

A-2 Song TitleA-2 Song Title

Note: If you are viewing a sports category channel list (NFL®, NBA®, NHL®, or COL-

LEGE), pressing the DISP button will instead toggle between the team names and the

current score of any live play-by-play game.

To exit the channel list mode, press and hold the DISP button for approximately one

second, until the display reverts to the P.TUNE mode.

To exit the P.TUNE mode, press and hold the BAND button for approximately 1 second,

until the default display screen is displayed.

Figure 9Figure 9

Figure 10Figure 10

[ Operation ] 27

Memory (MEMO) and Song Seek (S-Seek) Functions

This feature allows you to capture and store information in the receiver’s memory about the

currently tuned programming– artist, song, or sports team. The receiver then continuously

searches all incoming SIRIUS channels and alerts the user when a program saved in memory

matches a selection currently being played. (Figure 11)

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

S-Seek Alert

Channel Name

A total of 30 artists, songs, and sports teams may be stored in memory.

If you have saved a sports team (or teams) in memory, at the time receiver is initially powered

on, you will be alerted if your sports teams are playing in a game being broadcast. Also, while

listening to your SIRIUS receiver, should one of your teams begin to play a game, you will be

alerted.

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Game Alert

Channel Name

Storing Artist Names, Song Titles, and Sports Teams to Memory

If you are listening to a song or other entertainment channel, or a sports team, and wish to

save the artist, song, or sports team selection to memory for future S-Seek alerts, do the fol-

lowing:

For Artist Names or Song Titles: If the currently tuned channel is a music or entertain-

ment channel, momentarily press and release the MEMO button. The receiver will display

a menu to choose to store the artist name or the song title. (Figure 13)

Figure 11Figure 11

Figure 12Figure 12

[ Operation ]

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Store Song?

Store Artist?Store Artist?

Channel Name

If either the artist name or song title is not available to save, the choice will be displayed

as unavailable. (Figure 14)

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Song Unavailable

Store Artist?Store Artist?

Channel Name 100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Artist Unavailable

Store Song?Store Song?

Channel Name

Using the channel up and down buttons, choose Store Artist or Store Song (when avail-

able) and press the Select button to save the current selection to memory.

If both the artist and song are available to save, you will be prompted again to save

whichever one you haven’t yet saved, song title or artist name. (Figure 15) If you do not

wish to save, press the MEMO button to exit.

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Song Stored

Store Artist?Store Artist?

Channel Name

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Artist Stored

Store Song?Store Song?

Channel Name

For Sports Games: If the current tuned channel is an NFL, NBA, NHL, or College play-

by-play sports broadcast, momentarily press and release the MEMO button. The receiver

will display a menu to choose which sports team should be saved to memory. (Figure

16)

Figure 13Figure 13

Figure 14Figure 14

Figure 15Figure 15

[ Operation ] 29

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Store DAL?

Store NYG?Store NYG?

Channel Name

If either of the teams is not available to save, that team will be displayed as unavailable.

(Figure 17)

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

Team2 Unavailable

Store NYG?Store NYG?

Channel Name

Using the channel up and down buttons, choose the desired sports team (when avail-

able) and press the Select button to save the current selection to memory.

The next screen will ask which kind of alert you wish to have. (Figure 18)

Alert Type

Initial Game Alert

All Score UpdatesAll Score Updates

Initial Game Alert will provide an alert when the team you have chosen is playing a

game. All Score Updates will provide an alert when the team you have chosen is playing

a game, and also when the scores are updated for the team.

Using the channel up and down buttons, choose the desired alert and press the Select

button to save the selection to memory.

If both teams are available to save, you will be prompted again to save the other team.

If you wish to save the team, follow the same procedure as when saving the first team.

(Figure 19) If you do not wish to save, press the MEMO button to exit.

Figure 16Figure 16

Figure 17Figure 17

Figure 18Figure 18

[ Operation ]

100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

NYG Stored

Store DAL?Store DAL?

Channel Name 100

Category 12:00P A

Artist NameArtist Name

Song TitleSong Title

DAL Stored

Store NYG?Store NYG?

Channel Name

To ensure that no duplicate entries are stored in memory, the receiver will check the

stored memory list to ensure that the alert about to be stored is not already stored in

memory. If a duplicate entry is found, an Unable to Store screen will be displayed for 1

second. (Figure 20) The receiver will then revert to the last active display mode.

001

Category 12:00P

Artist NArtist N

Unable to Store

Channel Name

If the new alert was successfully stored in memory, a Artist/Song/Game Stored pop-up

screen followed by an X Used/Y Empty screen will be displayed for 1 and 2 seconds

respectively. X is the total number of listings stored in memory, and Y is the total number

of memory listings still available for storage. (Figure 21)

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

X Used/Y Empty

Channel Name

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Artist Stored

Channel Name

If the MEMO button is pressed and all of the memory spaces are full, an “S-Seek Full”

screen will be displayed for 1 second. (Figure 21)

Figure 19Figure 19

Figure 20Figure 20

Figure 21Figure 21

[ Operation ] 31

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Memory Full

Channel Name

A Replace - Cancel screen will then be displayed which will allow you to choose

whether to replace an existing alert stored in memory, or to cancel storing the alert to

memory. (Figure 22)

001

Category 12:00P A

Artist NArtist N

Cancel

ReplaceReplace

Channel Name

Using the channel up and down buttons, choose whether to replace an existing alert or

cancel saving the alert to memory. If you choose to cancel saving the alert, the receiver

will revert to the last active display mode.

If you have chosen to replace an existing alert, a listing of all the alerts stored in memory

will be displayed. (Figure 23)

Replace

Artist Name/ Song TitArtist Name/ Song Tit

Artist Name

Sports TeamSports Team

Artist Name/ Song TitArtist Name/ Song Tit

X/Y

Using the channel up and down buttons, highlight the alert that you would like to

overwrite and press the Select button to store the new alert. If the new alert was suc-

cessfully saved in memory, a Artist/Song/Game Stored pop-up screen followed by an

X Used/Y Empty screen will be displayed for 1 and 2 seconds respectively. (Figure 24)

X is the total number of listings stored in memory, and Y is the total number of memory

listings still available for storage.

Figure 21Figure 21

Figure 22Figure 22

Figure 23Figure 23

[ Operation ]

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

X Used/Y Empty

Channel Name

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Artist Stored

Channel Name

The receiver will revert to the last active display mode.

Viewing Stored Alerts Stored in Memory

To view the alerts which have been saved to memory, press and hold the MEMO button for

1½ seconds to enter S-Seek mode. The alerts stored in memory will be displayed one-at-a-

time in page format. (Figure 25) Use the channel up and down buttons to scroll through the

listings. This function allows you to review previously stored program information.

Memory

Artist NameArtist Name

Song TitleSong Title

1/30

To exit this function, press and release the MEMO button.

Deleting an Alert Stored into Memory

To delete an alert stored in memory, do the following:

Press and hold the MEMO button for 1½ seconds to enter S-Seek mode. The alerts

stored in memory will be displayed one-at-a-time in page format.

Use the channel up and down buttons to find the alert which you wish to delete and

press the Select button.

A screen displaying Delete, Seek On, and Seek Off will be displayed. (Figure 26)

Figure 24Figure 24

Figure 25Figure 25

[ Operation ] 33

Memory Recall

Delete

Seek OffSeek Off

Seek OnSeek On

Use the channel up and down buttons to highlight the Delete option, and press the

Select button. A delete confirmation screen will appear. (Figure 27)

Delete

Yes

NoNo

To permanently delete the alert from the memory list, highlight Yes using the channel up

and down buttons and press the Select button to confirm.

A Deleted pop-up screen followed by an X Used/Y Empty screen will be displayed for

1 and 2 seconds respectively. (Figure 28) X is the total number of listings saved in

memory, and Y is the total number of memory listings still available for storage.

Memory

Artist NameArtist Name

Song TitleSong Title

08/29

29 Used/1 Empty

Memory

Artist NameArtist Name

Song TitleSong Title

08/29

Deleted

The receiver will revert to the last active display mode.

Figure 26Figure 26

Figure 27Figure 27

Figure 28Figure 28

[ Operation ]

Activating the S-Seek Alert

To activate the S-Seek alert function to begin receiving alerts, do the following:

Press and hold the MEMO button for 1½ seconds to enter the S-Seek mode.

Press and release the Select button. A screen displaying S-Seek On, S-Seek Off, and

Delete will be displayed. (Figure 29)

Memory Recall

S-Seek On

S-Seek OffS-Seek Off

DeleteDelete

To enable S-Seek alerts, use the channel up and down buttons to highlight the S-Seek

On option and press the Select button. The S-Seek function is now enabled.

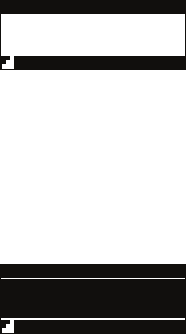

When the S-Seek option is enabled, whenever the receiver is turned on, it automatically

searches the incoming channels to determine if a match exists with the program information

stored in the S-Seek memory. If one or more matches are found, a pop-up screen momentarily

appears for 2 seconds and displays S-Seek Alert or Game Alert, depending upon which type

of a match was found. (Figure 30) An audible beep tone will also be heard indicating that a

match was found.

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

S-Seek Alert

Channel Name 001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Game Alert

Channel Name

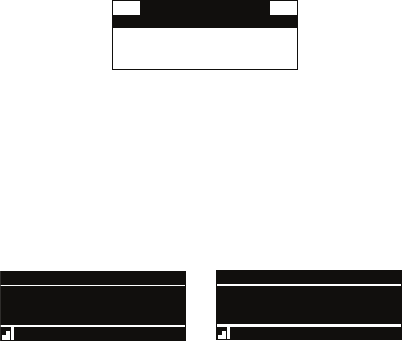

The receiver then displays the SIRIUS SEEK LIST or MY GAME ZONE screen, which dis-

plays a list of the current matches. (Figure 31) No alert is provided for the currently selected

channel.

Figure 29Figure 29

Figure 30Figure 30

[ Operation ] 35

SIRIUS SEEK LIST

121 Artist Name/ Song121 Artist Name/ Song

156 Artist Name

MY GAME ZONE

100 Giants @ Cowboys100 Giants @ Cowboys

123 Bulls @ Cavaliers

MY GAME ZONE

100 NFL NYG 7 DAL 3100 NFL NYG 7 DAL 3

123 NBA BUL 77 CLE 73

You can now select the artist, song, or sports game that you wish to tune to by using the

channel up and down buttons to highlight your selection from the list, and then pressing the

Select button. If no selection is made within 10 seconds, the receiver will revert to the last

active display mode. Note that play of the current selection will continue until a new selection

is chosen from the S-Seek or My Game Zone list.

Jump Button

The receiver has a special preset button called the Jump button, which is identified by the

icon. The Jump button is used to quickly tune to a channel that is accessed frequently and

temporarily such as a traffic channel, a weather channel, a news channel, a sports channel, or

any channel at all. Pressing the Jump button allows you to quickly tune to the specific chan-

nel you have programmed into the Jump button, and then tune back to the original channel

by pressing the Jump button again. (Refer to the Menu Options section of this manual for

instructions for configuring the Jump button.)

If the Jump button has been preset to the traffic option, which will cause the receiver to ac-

cess a specific city traffic report, pressing the Jump button will immediately begin a search for

the city’s traffic report. The Jump icon will be displayed in the lower right corner of the display

screen to indicate that a Jump search is active. The search process may take up to 4 minutes

until the city’s traffic report found. The receiver will automatically tune to the traffic report

Figure 31Figure 31

[ Operation ]

channel when the traffic report is found. (Figure 32)

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P

NYC Pending

Channel Name

Pressing the Jump button again while the receiver is actively searching will cancel the search.

(Figure 33)

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Jump Canceled

Channel Name

Pressing the Jump button after the receiver has tuned to the traffic report channel will return

you to the previous channel.

If the Jump button has been preset to the JumpSet option, pressing the Jump button will

immediately tune to the channel preset into the JumpSet. (Figure 34) The Jump icon will be

displayed in the lower right corner of the display screen to indicate that the Jump preset chan-

nel is currently tuned.

Category 12:00P

150

NYC WeatherNYC Weather

Channel Name

Pressing the Jump button again will return to the previous channel.

Note: The channel preset for the Jump button remains the same regardless of which preset

memory bank is currently selected.

Figure 32Figure 32

Figure 33Figure 33

Figure 34Figure 34

[ Operation ] 37

Game Alert

The receiver has a feature called Game Alert which can automatically alert you when your fa-

vorite sports team is playing a game. When a sports game involving one of your favorite sports

teams is found, a Game Alert screen is displayed, followed by a screen displaying tuning infor-

mation for the sports games. (Figure 35)

MY GAME ZONE

100 Giants @ Cowboys100 Giants @ Cowboys

123 Bulls @ Cavaliers

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Game Alert

Channel Name

You can then use the channel up and down buttons to highlight your favorite sports team

in the list, and then press the Select button to tune to the channel where the game is being

broadcast.

Refer to the Game Alert section in the Menu Options section of this manual for instructions

on programming your favorite sports teams into the receiver. You can also use the S-Seek fea-

ture to add Game Alerts for sports teams. Refer to the section, Storing Artist Names, Song

Titles, and Sports Teams to Memory for more information.

Figure 35Figure 35

[ Operation ]

FM Preset Button

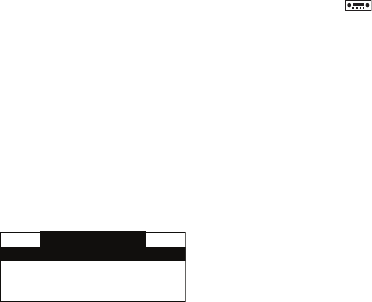

The receiver has a special button called the FM Preset button, which is identified by the

icon.

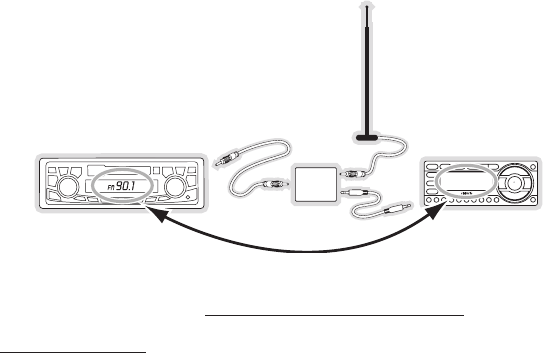

When the FM Preset button is pressed, the receiver turns on the built-in FM transmitter and

begins transmitting on the next frequency from the FM frequency preset list. A screen will be

displayed for 3 seconds showing the currently selected FM frequency. When the FM transmit-

ter is turned on, an FM radio tuned to the same FM frequency will receive the currently tuned

SIRIUS broadcast. Each subsequent press of the FM Preset button advances to the next

frequency in the FM frequency preset list. Using the FM Preset button, a quiet FM frequency

may be quickly tuned.

If no FM frequencies have been preset when the FM Preset button is pressed, the receiver will

default to a frequency of 88.1 MHz.

Pressing and holding the FM Preset button will cause a list of the FM presets to be displayed.

(Figure 36)

FM Presets

FM1 88.1 MHz

FM2 <EMPTY>FM2 <EMPTY>

FM3 <EMPTY>FM3 <EMPTY>

FM4 <EMPTY>FM4 <EMPTY>

You can use the channel up and down buttons to scroll through the FM preset list and high-

light the preset you wish to change, and press the Select button to choose the preset. Use

the channel up and down buttons to highlight the frequency you wish to select for the preset

and press the Select button. The FM frequency will then be stored in the preset. To select the

preset and exit, press the MENU button.

You may also change the FM presets by using the FM Presets menu option of the receiver.

(Refer to the FM Transmitter section in the Menu Options section of this manual for instruc-

tions on programming the FM frequency preset list.)

Figure 36Figure 36

[ Menu Options ] 39

Menu Options

To enter the Menu Options page of the receiver, press the MENU button. The Menu Options

list will be displayed. (Figure 1)

Menu Options

Sirius ID

FM Transmitter

Game Alert

Settings

To select a menu option, use the channel up and down buttons to highlight the option you

wish to adjust, and press the Select button. If a selection is not made within 10 seconds, the

receiver will exit the menu options screen, and revert to the last active display mode.

To exit the Menu Options screen, or any of the other menu option screens, repeatedly press

and release the MENU button until you are returned to the default display screen.

The following sections explain each of the menu options in the order in which they are dis-

played on the Menu Options screen.

Sirius ID

This menu option displays your 12 digit SIRIUS ID (SID) number. (Figure 2) The SID is unique

to each SIRIUS receiver, and is required to activate your service. It is recommended that you

write this number in the space provided near the end of this user guide. No adjustments are

allowed in this mode. To exit, press the MENU button.

Figure 1Figure 1

[ Menu Options ]

Sirius ID

ESN 000492229812

FM Transmitter

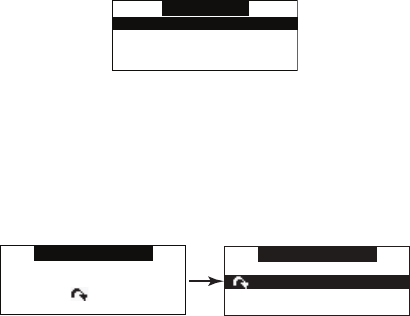

The FM Transmitter feature allows you to create a preset list of 5 suitable FM frequencies

which can then be accessed by using the FM Preset button. This option also allows you to

turn the FM transmitter On and Off. (Figure 3)

FM Transmitter

FM On/OffFM On/Off

FM Presets

To create or add to a list of FM Preset frequencies , do the following:

Using the channel up and down buttons, highlight the “FM Presets” menu item and press

the Select button. A list of the FM presets will be displayed. (Figure 4) (You may also

enter this list by pressing and holding the FM Preset button.)

Figure 2Figure 2

Figure 3Figure 3

[ Menu Options ] 41

FM Presets

FM1 88.1 MHz

FM2 <EMPTY>FM2 <EMPTY>

FM3 <EMPTY>FM3 <EMPTY>

FM4 <EMPTY>FM4 <EMPTY>

Using the channel up and down buttons, highlight the FM preset you wish to set (or

change) and press the Select button. A list of FM frequencies will be displayed, begin-

ning with the currently selected FM frequency for the preset. (Figure 5)

88.3 MHz

88.7 MHz88.7 MHz

88.5 MHz88.5 MHz

88.1 MHz88.1 MHz

Use your FM radio to locate quiet FM frequencies where there is no interference from

adjacent FM stations. These are the frequencies which should be added to the FM

Presets list.

Using the channel up and down buttons, highlight the frequency you wish to select for

the preset and press the Select button. The FM frequency will then be stored in the

preset. If you do not want a frequency for the preset, choose EMPTY from the menu and

press the Select button.

You may then continue to select FM frequencies for other presets using the same steps.

To exit the FM Presets menu, press the MENU button.

FM On/Off

To turn the receiver’s FM transmitter On or Off, use the channel up and down buttons to

highlight the FM On/Off menu item and press the Select button.

Use the channel up and down buttons to highlight FM On or FM Off and press the Select

button. (Figure 6)

Figure 4Figure 4

Figure 5Figure 5

[ Menu Options ]

FM On/Off

FM On

FM OffFM Off

To exit the FM On/Off menu, press the MENU button.

Game Alert

The Game Alert feature allows you to store your favorite sports teams in memory. The receiver

will constantly scan the SIRIUS channels and will sound an alert when a sports team you had

stored in memory is playing, or when there is a score update for a team, depending on which

option you have chosen for the sports team.

Sports teams which you have selected and which are currently playing will be displayed in a

category called My Game Zone.

You may select one sports team from each sports league and the college category using

the Game Alert option, however, more teams may be chosen by using the Memory (MEMO)

function. (See the section Memory (MEMO) and Song Seek (S-Seek) Functions for more

information about adding additional teams.)

To choose sports teams to add for game alerts, do the following:

Use the channel up and down buttons to highlight Game Alert and press the Select

button.

Use the channel up and down buttons to highlight the sports league or college category

of the sports team you wish to add, and press the Select button. (Figure 7)

Figure 6Figure 6

[ Menu Options ] 43

Game Alert

NFL

NBANBA

NHLNHL

COLLEGECOLLEGE

Use the channel up and down buttons to highlight the league team name or college team

name you wish to add, and press the Select button. (Figure 8)

NFL

None

Arizona CardinalsArizona Cardinals

Atlanta FalconsAtlanta Falcons

Baltimore RavensBaltimore Ravens

COLLEGE

None

AlabamaAlabama

AuburnAuburn

ColoradoColorado

Note that for college teams, you will receive an alert for all teams playing for that college.

Use the channel up and down buttons to highlight which type of an alert you want, and

press the Select button. (Figure 9)

Alert Type

Initial Game Alert

All Score UpdatesAll Score Updates

When the receiver is powered on, and while it is playing, Initial Game Alert will sound

an alert when the team you have chosen is playing a game. All Score Updates does the

same but also sounds an alert when the scores are updated for the chosen team.

To exit the Game Alert menu, press the MENU button.

Figure 7Figure 7

Figure 8Figure 8

Figure 9Figure 9

[ Menu Options ]

Settings

The following sections explain each of settings menu options in the order in which they are

displayed. (Figure 10)

Settings

Jump Setting

Display OptionsDisplay Options

Memory OptionsMemory Options

Auto SelectAuto Select

To select a menu option, use the channel up and down buttons to highlight the option you

wish to adjust, and press the Select button.

Jump settings

The Jump setting controls the actions of the Jump button. The Jump setting menu may also be

accessed by pressing and holding the Jump button. (Figure 11)

Jump Setting

Traffic: ATL

Jump Set

Jump Setting

Choose one of theChoose one of the

following options

for button

following options

for button

Two options are available for the Jump setting, Traffic and Jump Set. The currently selected

option is indicated by the Jump icon.

The Traffic option sets the function of the Jump button to provide a traffic report for a selected

city, while the JumpSet option assigns any channel to the Jump button.

Traffic

To set the Jump button to provide a traffic report when pressed, do the following:

Use the channel up and down buttons to highlight the Traffic option, and press the 1.

Figure 10Figure 10

Figure 11Figure 11

[ Menu Options ] 45

Select button.

A screen showing a list of cities will be displayed. (Figure 12)

Traffic Market

Atlanta

BaltimoreBaltimore

BostonBoston

ChicagoChicago

Use the channel up and down buttons to highlight the city for which you wish to have a

traffic report and press the Select button.

If the city list has not yet been updated, a message will be displayed indicating that the

city list is updating. (Figure 13) Wait 10 minutes and then try again.

Traffic Market

Atlanta

BaltimoreBaltimore

BostonBoston

Updating City List

To exit the Jump Settings menu, press the MENU button.

JumpSet

To set the Jump button to a specific channel (other than a traffic channel) when pressed, do

the following:

Use the channel up and down buttons to highlight the “JumpSet” option, and press the

Select button.

Figure 14 will be displayed.

Figure 12Figure 12

Figure 13Figure 13

[ Menu Options ]

Jump Setting

Tune to desired Ch.Tune to desired Ch.

press & hold

the button

press & hold

the button

Use the channel up and down buttons to tune to the channel you want assigned to the

Jump button. When the channel is tuned, press and hold the Jump button for 2 seconds

until Figure 15 is displayed.

Jump Setting

Traffic: NONE

JumpSetJumpSet

The channel selected is now assigned to the Jump button.

To exit the Jump Settings menu, press the MENU button.

At any time while listening to a channel (other than a traffic channel), the channel may be as-

signed to the Jump button by simply pressing and holding the Jump button for 2 seconds.

Display options

The receiver’s display screen can be adjusted for brightness and contrast using the Display

Options. (Figure 16)

Display Options

Brightness

ContrastContrast

Use the channel up and down buttons to highlight the Brightness or Contrast option, and

Figure 14Figure 14

Figure 15Figure 15

Figure 16Figure 16

[ Menu Options ] 47

press the Select button.

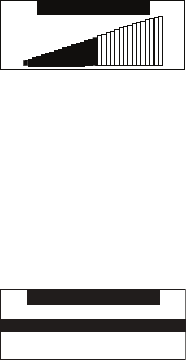

Brightness adjusts the overall intensity of the LCD display to help with viewing in different

lighting conditions. Contrast adjusts the relationship between the background and the text on

the LCD display. Use the channel up and down buttons, to adjust the brightness/contrast. The

bar graph will move to indicate the change. (Figure 17)

- +- +

Brightness

- +- +

Contrast

To exit the Brightness/Contrast screen, press the MENU button.

memory options

The Memory Options feature allows you to set whether the automatic S-Seek feature is On

or Off, and also provides the a way to clear (erase) all the stored S-Seek alerts from memory.

(Figure 18)

Memory Options

Auto Memory Search

Clear All MemoryClear All Memory

Automatic Memory Search

To turn the automatic memory search On or Off, do the following:

1. Use the channel up and down buttons to highlight Auto Memory Search, and press the

Select button.

2. Use the channel up and down buttons to highlight either On or Off, and press the Select

button. (Figure 19)

Figure 17Figure 17

Figure 18Figure 18

[ Menu Options ]

Auto Memory Search

OffOff

To exit the Memory Options menu, press the MENU button.

Clear All Memory

To clear all the S-Seek alerts stored in memory, do the following:

Use the channel up and down buttons to highlight Clear All Memory, and press the

Select button.

At the confirmation screen, use the channel up and down buttons to highlight Yes and

press the Select button. (Figure 20)

Clear All Memory?

YesYes

The S-Seek memory is now erased.

To exit the Memory Options menu, press the MENU button.

Audio Level

The Audio Level setting adjusts the level of the audio output of the receiver.

To adjust the audio level, use the channel up and down buttons to change the audio level. The

bar graph will move to indicate the change. (Figure 21)

Figure 19Figure 19

Figure 20Figure 20

[ Menu Options ] 49

Audio Level

To exit the Audio Level menu, press the MENU button.

Confirmation Tone

The receiver will sound an audio tone alert when it is powered On or Off, as well as when an

S-Seek alert is activated and other alerts. The default setting is On. To change the Confirma-

tion Tone setting to On or Off, use the channel up or down buttons to highlight On or Off, and

press the Select button. (Figure 22)

Confirm. Tone

OffOff

To exit the Confirmation Tone menu, press the MENU button.

Parental Control

The receiver has the ability to lock out with password protection any channels you do not

want others to access without your permission. (Figure 23) A locked channel will not appear

in the channel list.

Figure 21Figure 21

Figure 22Figure 22

[ Menu Options ]

Parental Control

Lock/Unlock

Edit CodeEdit Code

When access to a locked channel is attempted using the direct channel entry method, the

Enter Code screen is displayed and the channel cannot be accessed until the correct code is

entered. (Figure 24)

Enter Code

# ____# ____

If the wrong code is entered, a message will be displayed indicating that the wrong code has

been entered. (Figure 25)

Enter Code

Wrong Code

Lock/Unlock

To lock or unlock a channel, do the following:

Use the channel up and down buttons to highlight “Lock/Unlock, and press the Select

button.

If this is the first time that Parental Control is being used, you will be prompted to cre-

ate and enter a four digit numerical code. (Figure 26) This code can be any four digit

number from 0000 to 9999.

Figure 23Figure 23

Figure 24Figure 24

Figure 25Figure 25

[ Menu Options ] 51

Enter Code

# ____# ____

If you should exit this prompt without entering a code, you will be prompted to set a

code next time you enter the Lock/Unlock option.

If a code has been previously set, a Enter Code prompt will be displayed. (Figure 27)

Enter your four digit code and press the Select button to continue.

Enter Code

# ____# ____

When the correct code has been entered, a listing of channels will be displayed. (Figure

28) Use the channel up and down buttons to navigate to the channel you wish to lock

or unlock, and press the Select button. A previously locked channel will have the word

Lock displayed to the right of the channel name.

001 Channel Name001 Channel Name

002 Channel Name

003 Channel Name Lock003 Channel Name Lock

004 Channel Name004 Channel Name

Lock/Unlock

To lock or unlock a channels, use the channel up and down buttons to highlight a chan-

nel, and press the Select button.

If you are locking a channel, the Lock will be displayed to the right of the channel name.

If you are unlocking a channel, the Lock will be removed from the right of the channel

name.

Figure 26Figure 26

Figure 27Figure 27

Figure 28Figure 28

[ Menu Options ]

To exit the Parental Control menu, press the MENU button.

Edit Code

This setting allows you to change a previously selected Parental Control code.

The first time the Edit Code setting is accessed you will be prompted to enter a four digit

code. (Figure 29) This code can be any four digit number from 0000 to 9999.

Enter Code

# ____# ____

If you should exit this prompt without entering a code, you will be prompted to set a code the

next time you enter the Edit Code option.

To change the Parental Control code, do the following:

Use the channel up and down buttons to highlight Edit Code, and press the Select

button.

At the prompt, enter the four digit Parental Control code. (Figure 30)

Enter Code

# ____# ____

If you did not enter the correct code, a message will be displayed alerting you that the

wrong code was entered, and you will be prompted again to enter the code. (Figure 31)

Figure 29Figure 29

Figure 30Figure 30

[ Menu Options ] 53

Enter Code

Wrong Code

If the correct code was entered, the “New Code” prompt will appear. Enter the new

Parental Control code. (Figure 32)

New Code

# ____# ____

You will then be prompted to confirm the new code by entering it again. (Figure 33)

Confirm Code

# ____# ____

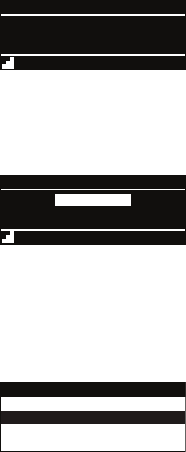

If you confirmed the correct code, the lock code is now changed and a confirmation

screen is displayed. If you entered the wrong code at the confirmation prompt, a screen

will be displayed to alert you that you have entered the wrong code, and you will have to

repeat the process again. (Figure 34)

Figure 31Figure 31

Figure 32Figure 32

Figure 33Figure 33

[ Menu Options ]

Confirm Code

Wrong Code

Confirm Code

Code Saved

To exit the Parental Control menu, press the MENU button.

If you have forgotten your Parental Control code, call SIRIUS Customer Service for help.

Time Based Features

Time based settings (Figure 35) allow for adjustment of the following features of the receiver:

Clock - Sets the clock format, time zone, and daylight savings time function.

Alarm - Sets an alarm for a specific time.

Program Alert - Sets the receiver to tune to a specific channel at a specified time.

Auto Shutdown - Sets the receiver to turn off at a specified time.

Sleep Mode - Sets the receiver to turn off after a designated period of time.

Time Features

Clock

AlarmAlarm

Program AlertProgram Alert

Auto ShutdownAuto Shutdown

To select a menu option, use the channel up and down buttons to highlight the option you

wish to adjust, and press the Select button.

Clock

The time data for the receiver’s clock is provided via the SIRIUS signal, and will update based

Figure 34Figure 34

Figure 35Figure 35

[ Menu Options ] 55

on the data received from the signal.

You can configure the clock format for 12-hour or 24-hour display format, set the time zone

for the clock for your location, and turn On or Off the automatic adjustment for Daylight Sav-

ings Time (DST) (Figure 36).

Clock

Format

Time ZoneTime Zone

Daylight Savings TimeDaylight Savings Time

Format

To change the clock display format of the receiver to 12 hour or 24 hour format, do the fol-

lowing:

Use the channel up and down buttons to highlight Clock and press the Select button.

Use the channel up and down buttons to highlight either 12 hour or 24 Hour, and press

the Select button. (Figure 37)

Format

12 Hour12 Hour

24 Hour

To exit the Clock menu, press the MENU button.

Time Zone

To change the time zone of the receiver, do the following:

Use the channel up and down buttons to highlight Time Zone, and press the Select

button.

Use the channel up and down buttons to highlight the proper time zone for your location,

and press the Select button. (Figure 38)

Figure 36Figure 36

Figure 37Figure 37

[ Menu Options ]

Time Zone

(GMT -6:00) Central(GMT -6:00) Central

(GMT -5:00) Eastern

(GMT -4:30) Atlantic (GMT -4:30) Atlantic

(GMT -3:30) Newfndlnd(GMT -3:30) Newfndlnd

To exit the Time Zone menu, press the MENU button.

Daylight Savings Time

To turn the Daylight Savings Time feature On or Off, do the following:

Use the channel up and down buttons to highlight Daylight Savings Time, and press the

Select button.

2. Use the channel up and down buttons to highlight DST Observed or DST Not

Observed, and press the Select button. (Figure 39)

Daylight Savings Time

DST Observed

DST Not ObservedDST Not Observed

To exit the Daylight Savings Time menu, press the MENU button.

Figure 38Figure 38

Figure 39Figure 39

[ Menu Options ] 57

Alarm

This feature allows you to set an alarm to sound at a specific time each day, and to turn the

alarm feature On or Off. (Figure 40)

Alarm

Set Alarm

Alarm TimeAlarm Time

Set Alarm

To turn the alarm On or Off, do the following:

Use the channel up and down buttons to highlight Set Alarm, and press the Select but-

ton.

Use the channel up and down buttons to highlight Alarm On or Alarm Off, and press the

Select button. (Figure 41)

Set Alarm

OnOn

Off

To exit the Set Alarm menu, press the MENU button.

Alarm Time

To set the time of the alarm, do the following:

Use the channel up and down buttons to highlight Alarm Time, and press the Select

button.

Use the channel up and down buttons to change the minutes, and the category previous

and next buttons to change the hours, to select the desired alarm time. (Figure 42)

Figure 40Figure 40

Figure 41Figure 41

[ Menu Options ]

Alarm Time

12:00 PM12:00 PM

When you have selected the desired alarm time, press the Select button to set the alarm

time and exit.

To exit the Alarm Time menu, press the MENU button.

Program Alert

The Program Alert feature allows you to program the receiver to automatically tune to a

specific channel at a specific time. The receiver must be powered on in order for this feature

to function. (Figure 43)

Program Alert

Program Time/Day

ChannelChannel

Program Alert On/OffProgram Alert On/Off

Program Time/Day

To program the time and day when the receiver will tune to the specified channel, do the

following:

Use the channel up and down buttons to highlight Program Time/Day, and press the

Select button.

At the Program Time/Day screen, use the channel up and down buttons to highlight

Time, and press the Select button. (Figure 44)

Figure 42Figure 42

Figure 43Figure 43

[ Menu Options ] 59

Program Time/Day

Time

DayDay

Use the channel up and down buttons to change the minutes, and the category previous

and next buttons to change the hours, to select the time you wish to tune to the speci-

fied channel. (Figure 45)

Program Time

12:00 PM12:00 PM

When you have selected the desired time, press the Select button to set the time and

exit.

At the Program Time/Day screen, use the channel up and down buttons to highlight Day,

and press the Select button.

Using the channel up and down buttons, select the day of the week you wish to tune to

the selected channel, i.e., Monday, Tuesday, etc., and press the Select button. (Figure

46)

Program Day

MondayMonday

To exit the Program Time/Day menu, press the MENU button.

Figure 44Figure 44

Figure 45Figure 45

Figure 46Figure 46

[ Menu Options ]

Channel

To set the channel to which the receiver will tune when the Program Alert feature is On, do

the following:

Use the channel up and down buttons to highlight Channel, and press the Select button.

When the default display screen is displayed, use the channel up and down buttons to

navigate to the channel which you wish to select for the Program Alert feature. Use the

category previous and next buttons to navigate between categories. When the channel

is displayed, press the Select button.

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P

Channel Name

To exit the Channel menu, press the MENU button.

Program Alert On/Off

To turn the Program Alert feature is On or Off, do the following:

Use the channel up and down buttons to highlight Program Alert On/Off, and press the

Select button.

Use the channel up and down buttons to highlight Program Alert On or Program Alert

Off, and press the Select button. (Figure 48)

Program Alert On/Off

OffOff

To exit the Program Alert On/Off menu, press the MENU button.

Figure 47Figure 47

Figure 48Figure 48

[ Menu Options ] 61

Auto Shutdown

You can set the receiver to automatically power off after a 1 hour period of inactivity, that is,

no buttons have been pressed for 1 hour.

When the Auto Shutdown feature is enabled, after 59 minutes of inactivity, a beep tone will

sound and a display prompt will appear on the screen, Cancel Auto Shutdown. (Figure 49)

At this point the auto shutdown can be reset to 1 hour of inactivity by pressing the Select but-

ton. If the Auto Shutdown is not reset, the receiver will automatically power off.

001

Artist NameArtist Name

Song TitleSong Title

Category 12:00P A

Cancel Auto Shutdown

Channel Name

To enable or disable the Auto Shutdown feature, do the following:

Use the channel up and down buttons to highlight Auto Shutdown, and press the Select

button.

Use the channel up and down buttons to highlight Enabled or Disabled, and press the

Select button. (Figure 50)

Auto Shutdown

EnabledEnabled

Disabled

To exit the Auto Shutdown menu, press the MENU button.

Sleep Mode

The receiver can be set to turn off automatically after a selected period of time, 15, 30, 45, or

60 minutes.

To activate or deactivate the Sleep Mode feature, do the following:

Use the channel up and down buttons to highlight Sleep Mode, and press the Select

Figure 49Figure 49

Figure 50Figure 50

[ Menu Options ]

button.

Use the channel up and down buttons to select the desired time, 15, 30, 45, or 60

minutes to activate the Sleep Mode feature, or choose Off to cancel the sleep feature,

and press the Select button. (Figure 51)

Sleep Mode

Off

15 min15 min

30 min30 min

45 min45 min

To exit the Sleep Mode menu, press the MENU button.

Signal Indicator

The Signal Indicator display screen provides a visual display of the strength of the SIRIUS

signal from the satellite antenna and also from terrestrial (ground) transmitters.

To display the Signal Indicator screen, do the following:

Use channel up and down buttons to highlight Signal Indicator, and press the Select

button.

Two 10 segment horizontal bar graphs will be displayed with a “-“ sign to the left and a

“+” sign to the right. SAT indicates the satellite signal strength while TER indicates the

terrestrial signal strength, if a terrestrial signal is available. (Figure 52)

Signal Indicator

SAT - +SAT - +

TER - +TER - +

To exit the Signal Indicator menu, press the MENU button.

Figure 51Figure 51

Figure 52Figure 52

[ Menu Options ] 63

Factory Default

The Factory Default option will restore most every feature of the receiver to the original factory

settings. The following is a list of all features affected by the Factory Default option:

All Presets are cleared

All Game Alerts are cleared

Receiver set to Normal Tuning Mode

Display brightness set to 50%

Display Contrast set to 50%

FM Transmitter set to On

FM Frequency set to 88.1 MHz

All S-Seek memory cleared

Clock set to 12-Hour Format

Time Zone set to Eastern Standard Time

Daylight Savings Time set to Observed

Auto Shutdown set to Off

Sleep Mode set to Off

Auto Select set to Off

Program Alert cleared

Note that the Parental Control feature is not affected by the Factory Default option. If a code

has been set for the Parental Control feature, the code will not be reset by the Factory Default

feature, preventing someone from circumventing the Parental Control feature. Channels which

have been locked will remain locked.

To activate the Factory Default feature, and restore the features of the receiver to the factory

defaults, do the following:

Use the channel up and down buttons to highlight Factory Default, and press the Select

button.

Use the channel up and down buttons to select Yes to restore all settings to the settings

from the factory, or select No to leave them as-is and return to the Menu Options menu.

(Figure 53)

•

[ Menu Options ]

Restore Settings?

YesYes

If Yes is chosen, a confirmation is displayed. Use the channel up and down buttons to

select Yes to restore all settings to the settings from the factory, or select No to leave

them as-is and return to the Menu Options menu. (Figure 54)

Are You Sure?

Yes

NoNo

If Yes is chosen, the receiver will revert to the original factory settings. (Figure 55)

Are You Sure?

Yes

NoNo

Restoring

Factory Defaults

When the Factory Default is complete, the receiver will place you in Channel 184 the

SIRIUS preview channel and display, Call 1-888-539-SIRIUS to Subscribe. The receiver

is still subscribed to the SIRIUS service.

Figure 53Figure 53

Figure 54Figure 54

Figure 55Figure 55

[ Troubleshooting ] 65

Troubleshooting

Symptom Solution

Receiver does not

power on

Blown fuse, or the power cable is not properly connected.

Check for a bad fuse and check power cable connection

Receiver displays: An-

tenna Not Detected

The satellite antenna is not connected to the receiver dock.

Check the satellite antenna connection to the dock.

Receiver displays:

Acquiring Signal

No satellite signal is being received.

Check for obstacles over or around the satellite antenna.

Change the vehicle location to eliminate nearby obstacles

(bridges, overpasses, tress, buildings, etc.).

Audio static or loss of

clarity

The FM frequency contains static.

Locate a quiet FM frequency on your vehicle radio and set the FM

transmitter frequency of the SIRIUS Starmate 3 to match.

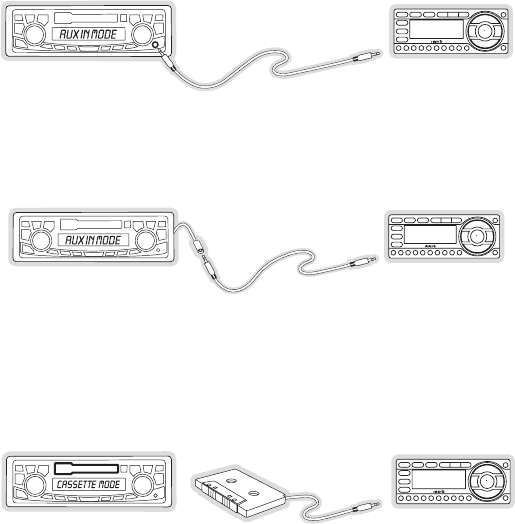

If using the AUX audio connector, check the cable connections.

No sound The audio cables are not connected, or the FM radio is set to the

wrong frequency. Check the audio cables at the receiver dock

and the radio. Tune the FM radio to the same FM frequency the

receiver is tuned.

[ Optional Accessories ]

Optional Accessories

The following optional accessories are available for purchase from your SIRIUS retailer to

maximize your SIRIUS experience:

SUBX1 SIRIUS Plug and Play Universal Boombox

The SUBX1 SIRIUS Plug and Play Universal Boombox is a portable docking station and audio

system for use with the SIRIUS Sportster receiver. With the built-in amplifier and speakers,

the boombox delivers rich powerful sound indoors or outdoors, and features an auxiliary input

for other audio devices,

Included with the boombox is an adjustable indoor/outdoor windowsill antenna with 20’ of

cable and an AC adapter.

SUPH1 SIRIUS Universal Plug and Play Home Kit

The SUPH1 SIRIUS Universal Plug and Play Home Kit is a compact docking cradle that posi-

tions the receiver for easy viewing and operation. Designed for quick and easy self-installation,

it includes all necessary cabling to connect your SIRIUS receiver to your home audio system.

The kit includes a compact tabletop/desktop docking cradle with FM output for wireless

connectivity, an audio cable for connection to any stereo bookshelf system, an adjustable

indoor/outdoor windowsill antenna with 20’ of cable, and an AC Adapter.

SUPV1 SIRIUS Universal Plug and Play Vehicle Kit

The SUPV1 SIRIUS Universal Plug and Play Vehicle Kit is a compact docking cradle that posi-

tions the receiver for easy wiring, viewing, and operation in a vehicle. Designed for quick and

easy self-installation, it provides several mounting options and includes all necessary cabling

to connect your SIRIUS receiver to your car audio system.

The SUPV1 SIRIUS Universal Plug and Play Vehicle Kit will work with the Sportster 4 and

most new SIRIUS plug and play receivers.

The kit includes a mobile docking cradle, a suction cup vehicle mount, a vent mount, a ciga-

rette lighter adapter, and a magnetic antenna with 21’ of cable.

[ Optional Accessories ] 67

FM Direct Adapter

The FM Direct Adapter accessory redirects your vehicle’s FM antenna signal when listening to

your SIRIUS receiver using your vehicle’s AM/FM radio. When the SIRIUS receiver is powered

on the FM Direct Adapter automatically redirects the vehicle’s FM antenna signal away from

the vehicle’s AM/FM radio, reducing any interference which might be present from FM radio

station broadcasts. When the SIRIUS receiver is turned off, the FM antenna signal is automati-

cally redirected back to the vehicle’s AM/FM radio. (Product number 14100.)

[ Specifications ]

Specifications

Satellite Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2322.293/2330.207 MHz

Terrestrial Frequencies .............................................2326.250MHz

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Volts, Negative Ground, DC

Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2V (normal) 2.8V (max.) (Peak-to-Peak)

Total Harmonic Distortion (THD)............................................<0.2%

Signal-to-noise (S/N)........................................... Greater than 73dB

Fuse Requirement ......................................................2A ATC

Receiver Dimensions (Length x Height x Depth) . . . . . . . . . . . . . . . 124.2mm x 48.5mm x 16mm

(4.9” x 1.9” x .0.6”)

Receiver Weight....................................................91g (3.2 oz.)

Antenna Type............................................... Low Profile Magnetic

Antenna Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21’ (single micro-cable)

Connector Type ................................................ SMB (right-angle)

Remote Control Dimensions (Width x Length x Height) . . . . . . . . . . . . 41mm x 104mm x 15mm

(1.61” x 4.09” x .59”)

Remote Control Battery Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CR2025

[ Warranty ] 69

Warranty

12 Month Warranty

SIRIUS Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product

that should this product or any part thereof, under normal use and conditions, be proven defective in

material or workmanship within 12 months from the date of original purchase, such defect(s) will be

repaired or replaced with new or reconditioned product (at the Company’s option) without charge for

parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product

is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s),

transportation prepaid, to the location shown below under WARRANTY RETURN.

This Warranty does not extend to the elimination of externally generated static or noise, to correction

of antenna problems, to costs incurred for installation, removal or reinstallation of the product, or to

damage to tapes, compact discs, speakers, accessories, or vehicle electrical systems.

This Warranty does not apply to any product or part thereof which, in the opinion of the Company,

has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect,

accident, or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT

OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR

REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY

EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, IN-

CLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURA-

TION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HERE-

UNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT

WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL

THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR

BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No

person or representative is authorized to assume for the Company any liability other than expressed

herein in connection with the sale of this product. Some states do not allow limitations on how long

an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the

above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and

you may also have other rights which vary from state to state.

WARRANTY RETURN: To obtain repair or replacement within the terms of this Warranty, please re-

turn product to an authorized retailer or call Customer Service at 1-800-869-5590; proof of purchase

and description of defect are required. Products to be returned to an approved warranty station must

be shipped freight prepaid.

[ SIRIUS ID ]

SIRIUS ID

Write down the SIRIUS ID (SID) of your SIRIUS Starmate 3 in the space provided below.

SID: _______________________________________

SIRIUS Customer Service: 1-888-539-7474

customercare@sirius-radio.com

SIRIUS Satellite Radio Inc.

1221 Avenue of the Americas

New York, NY 10020

1-888-539-7474

http://www.sirius.com

SIRIUS Starmate ST3 (080106a)

SIRIUS Satellite Radio Inc.

1221 Avenue of the Americas

New York, NY 10020

(800) 869-5590

http://sirius.com

49.UPAS3.002
