Magellan Navigation, Inc. 960 Overland Court, San Dimas, CA 91773

Magellan®

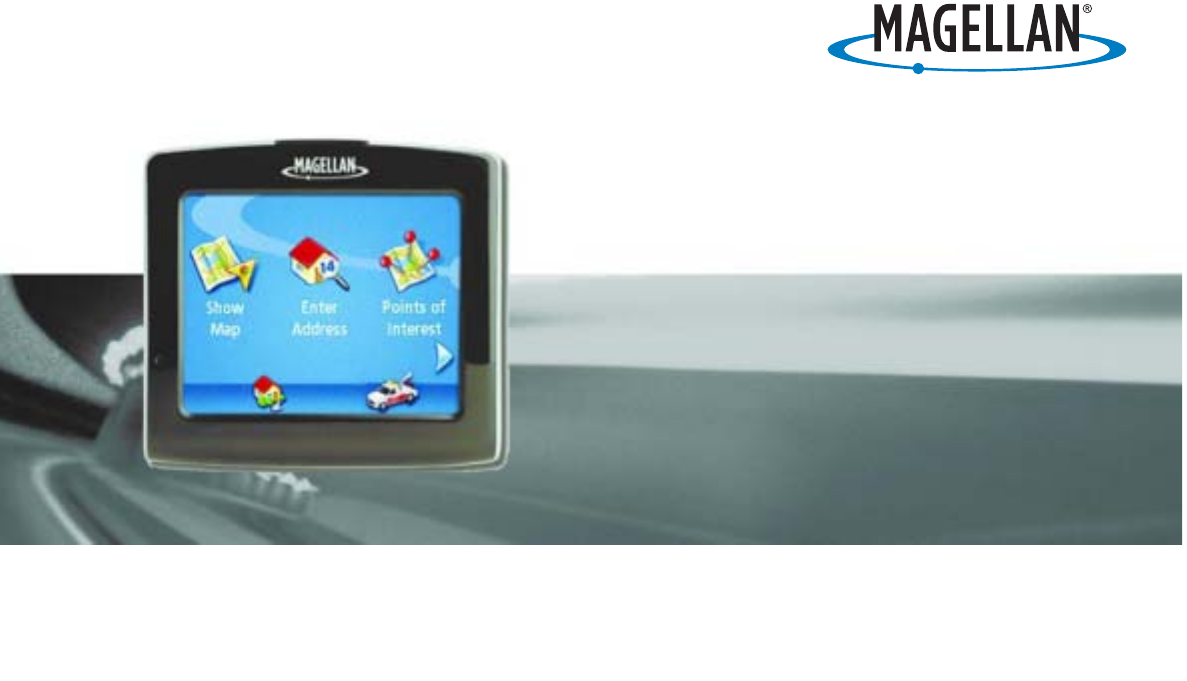

Maestro™3250 /3270

User Manual

The Magellan Maestro is a vehicle-navigation aid designed to assist you in arriving to your selected destinations. When using

the Magellan Maestro, these safety rules must be followed to prevent accidents that can result in injury or death to yourself

or others:

• California and Minnesota law prohibits mounting any item to your windshield. Please check with your state or local law

enforcement for applicable regulations regarding windshield mounting. Go to www.magellanGPS.com for alternate

mounting solutions. An adhesive disk is supplied with the Magellan Maestro for use as an alternate mounting solution to

the dashboard.

• When driving, the need to view the display is minimal. Voice prompts will guide you to your destination. The driver

should enter data or program the Magellan Maestro only when the vehicle is stopped. Only a vehicle passenger should

enter data or program the Magellan Maestro while the vehicle is moving.

• It is your responsibility to comply with all traffic laws.

• Every attempt is made to ensure that the database is accurate. However, roadways, points of interest (POIs), and

business and service locations may change over time. The database does not include, analyze, process, consider, or

reflect any of the following: legal restrictions (such as vehicular type, weight, height, width, load and speed restrictions);

road slope or grade; bridge height, width, weight, or other limits; population density; neighborhood quality or safety;

availability or proximity of law enforcement, emergency rescue, medical, or other assistance; construction work zones or

hazards; road or lane closures; road, traffic, or traffic facilities’ safety or condition; weather conditions; pavement

characteristics or conditions; special events; traffic congestion. It is your responsibility to disregard any unsafe,

hazardous, or illegal route suggestions.

• Keep the Magellan Maestro safe from extreme temperature conditions. For example, do not leave it exposed to direct

sunlight for an extended period of time.

• Take care when mounting the Magellan Maestro in your vehicle, whether using the windshield mount or other mount or

accessories, that it does not obstruct the driver's view of the road, interfere with the operation of the vehicle's safety

devices such as air bags, or present a hazard to occupants of the vehicle should the Magellan Maestro be dislodged

while driving. You assume the risks associated with damage to your vehicle or vehicle occupants as the result of your

choices in mounting the Magellan Maestro.

• Laws in some states prohibit wearing stereo headphones while operating a motor vehicle. Please contact your state’s

Department of Motor Vehicles for information.

• The battery in the Magellan Maestro is rechargeable and should not be removed. In the event it should need to be

replaced, please contact Magellan Technical Support.

About Charging the Magellan Maestro

• An optional AC adapter is available as an accessory for your Magellan Maestro. Use of another type of AC adapter can

result in malfunction and/or possible fire hazard due to battery over heating.

• Use only the car charger approved for / supplied with your Magellan Maestro. Use of another type of car charger will

result in malfunction and/or damage to the receiver.

• For safety reasons, the battery in your Magellan Maestro will stop charging when the ambient temperature is less than

32°F (0°C) or more than 113°F (45°C).

• It will take approximately 4 hours of charging the Maestro through the cigarette lighter adapter or optional AC adapter to

obtain a full battery charge.

About the Battery

• Do not attempt to replace the battery. Please contact Magellan Technical Support for issues related to the battery.

• Use the charger approved for your Magellan Maestro.

IMPORTANT SAFETY WARNINGS

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one of the following measures:

• -Reorient or relocate the receiving antenna.

• -Increase the separation between the equipment and receiver.

• -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• -Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must

follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with

non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is

cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's

authority to operate this equipment.

The Magellan Maestro must be installed and operated at a distance no closer then 8 inches (20 cm) from the user.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

IMPORTANT SAFETY WARNINGS

iii

IC statement

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may cause undesired operation of the

device.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow

the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The information provided in this document is subject to change without notice. Improvements and enhancements to the

product may occur without any formal notification. Check the Magellan website (www.magellanGPS) for product updates

and additional information.

SmartVolume are trademarks of Magellan Navigation, Inc. No part of this user manual may be reproduced or transmitted in

any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the

purchaser’s personal use, without the prior written permission of Magellan Navigation, Inc.

604-0009-001 A
