Launch Keys

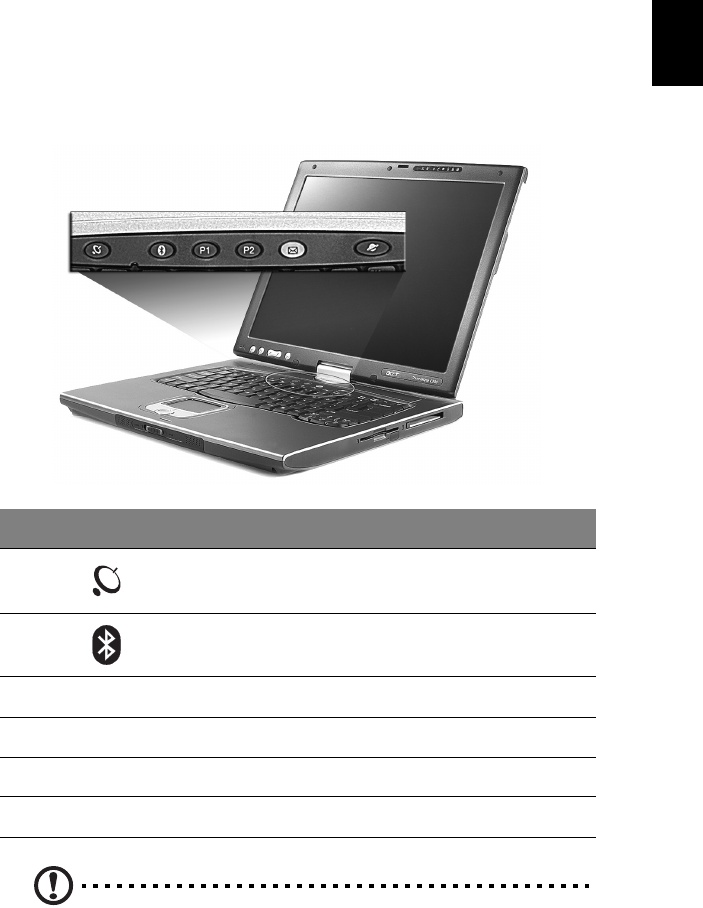

Located at the top of the keyboard are six buttons. These buttons are
called launch keys. They are designated as Wireless, Bluetooth, P1 , P2,
mail, and Web browser buttons. The Wireless and Bluetooth buttons

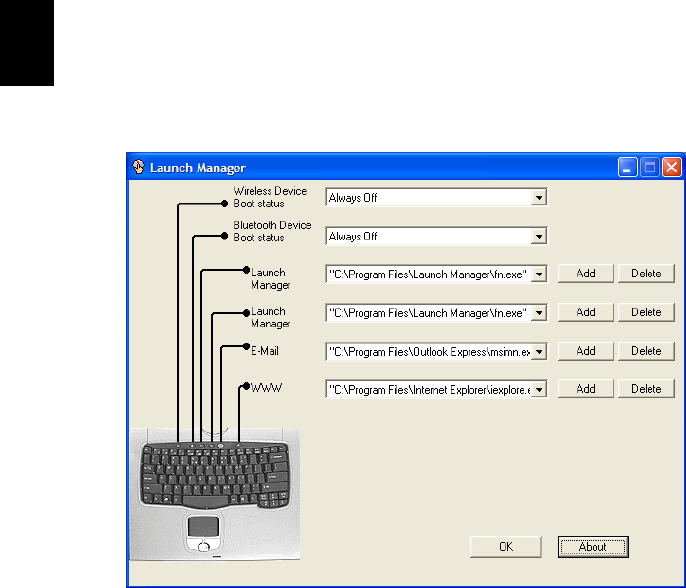

cannot be set by the user. To set the other four launch keys, run the
Acer Launch Manager.
Caution: It’s important that Wireless LAN and Bluetooth is turned
off before boarding an airplane.
No. Description Default application
1 Wireless LAN
(optional)
Activate wireless LAN for wireless
communication.
2Bluetooth
(optional)
Activate Bluetooth for wireless
communication.
3 P1 User-programmable
4 P2 User-programmable
5 Mail Email application
6 Web browser Internet browser application
1 Getting to know your TravelMate24
English
Touchpad

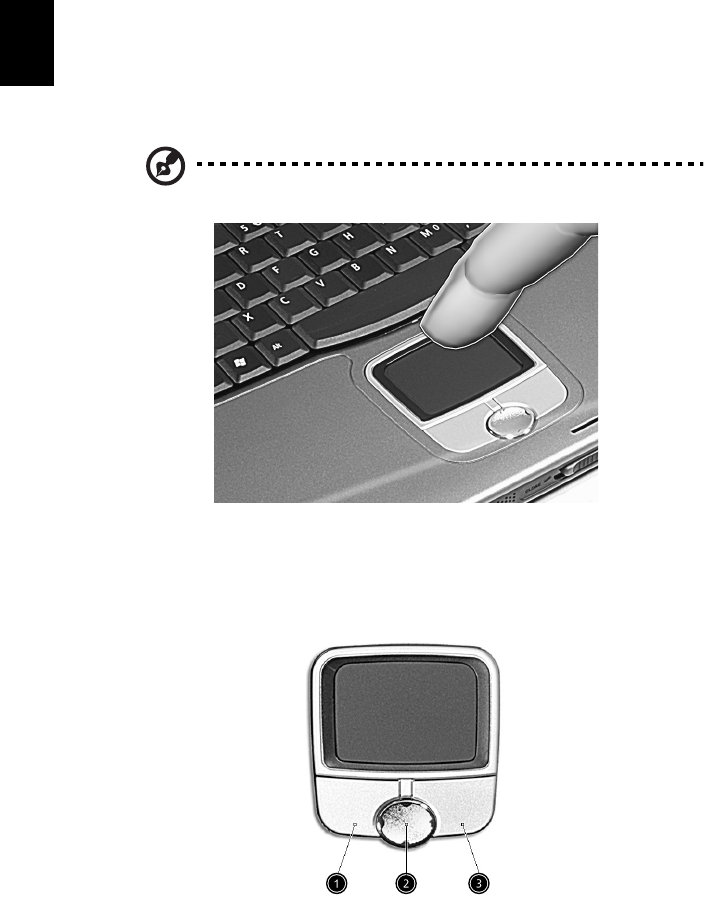

The built-in touchpad is a PS/2-compatible pointing device that senses
movement on its surface. This means the cursor responds as you move
your finger on the surface of the touchpad. The central location on
the palmrest provides optimum comfort and support.
Note: When using an external USB or serial mouse, you can press
Fn-F7 to disable the touchpad.
Touchpad basics
The following items teach you how to use the touchpad:
•Move your finger across the touchpad to move the cursor.
25
English
•Press the left (#1) and right (#3) buttons located on the edge of the
touchpad to do selection and execution functions. These two
buttons are similar to the left and right buttons on a mouse.
Tapping on the touchpad produces similar results.
•Use the 4-way scroll (#2) button to scroll up or down and move left
or right a page. This button mimics your cursor pressing on the
right scroll bar of Windows applications.
Note: Keep your fingers dry and clean when using the touchpad.
Also keep the touchpad dry and clean. The touchpad is sensitive
to finger movements. Hence, the lighter the touch, the better the
response. Tapping harder will not increase the touchpad’s
responsiveness.
Function Left button Right
button
Center
buttons Tap
Execute Click twice
quickly
Tap twice (at the
same speed as
double-clicking a
mouse button)
Select Click once Tap once
Drag Click and
hold, then
use finger to
drag the
cursor on the
touchpad
Tap twice (at the
same speed as
double-clicking a
mouse button) then
hold finger to the
touchpad on the
second tap and drag
the cursor
Access
context
menu
Click
once
Scroll Click
and
hold the
up/
down/
left/
right
1 Getting to know your TravelMate26
English
Storage
This computer supplies you with the following media storage:
•High-capacity Enhanced-IDE hard disk
•Optical (2nd HDD, DVD, DVD/CD-RW combo, DVD or DVD dual)
drive
Hard disk
The high-capacity hard disk is the answer to your storage needs. This is
where your data files and applications are stored.
Optical drive
Your computer comes equipped with an optical drive which may be
one of the following:
•DVD-ROM drive
•DVD/CD-RW combo drive
•DVD dual drive
Ejecting the CD or DVD tray

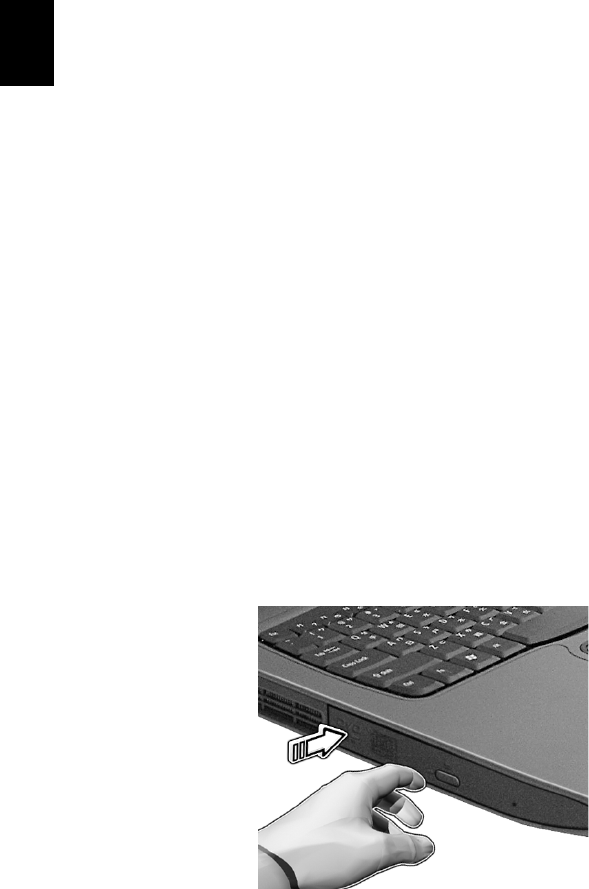

To eject the CD or DVD tray when the computer is turned on, press the
drive eject button; then pull out the tray.

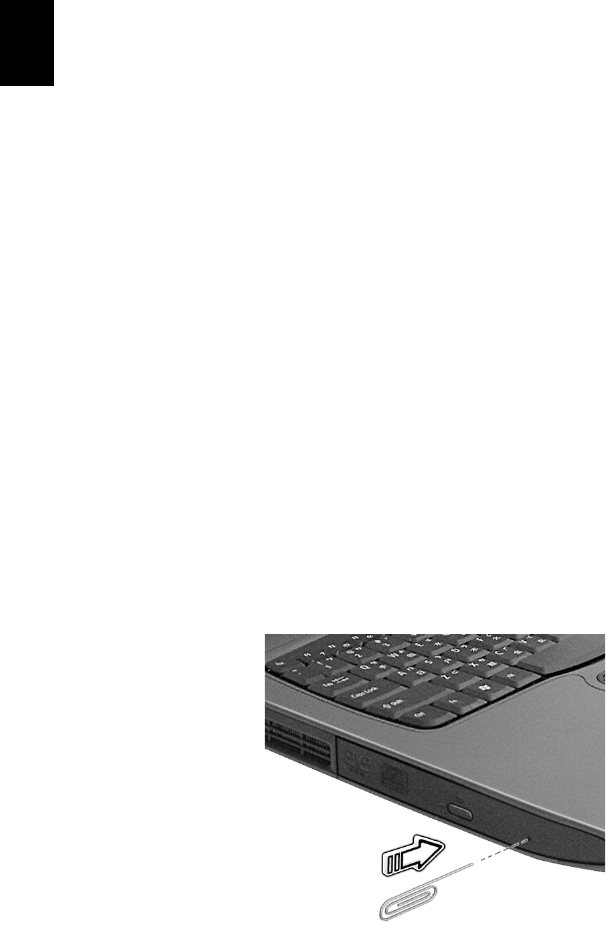

When the power is off, you can eject the drive tray using the
emergency eject hole. See page 54.
27
English
Playing DVD movies
When the DVD drive module is installed in the optical drive bay, you
can play DVD movies on your computer.
1Eject the DVD tray and insert a DVD movie disc; then close the DVD
tray.
Important! When you launch the DVD player for the first time,
the program asks you to input the region code. DVD discs are
divided into 6 regions. Once your DVD drive is set to a region
code, it will play DVD discs of that region only. You can set the
region code a maximum of five times (including the first time),
after which the last region code set will remain permanent.
Recovering your hard disk does not reset the number of times the
region code has been set. Refer to the table later in this section
for DVD movie region code information.
2The DVD movie will automatically play after a few seconds.
Note: To change the region code, insert a DVD movie of a
different region into the DVD drive.
Region Code Country or Region
1 U.S.A., Canada
2 Europe, Middle East, South Africa, Japan
3 Southeast Asia, Taiwan, Korea (South)
4 Latin America, Australia, New Zealand
5 Former U.S.S.R., parts of Africa, India
6 People's Republic of China
1 Getting to know your TravelMate28
English

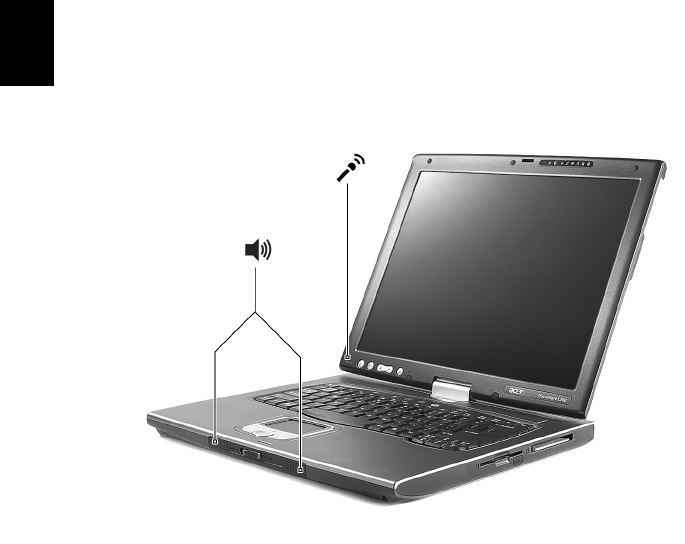

Audio
The computer comes with 16-bit high-fidelity AC’97 stereo audio. The
built-in dual stereo speakers are easy to access.
There are audio ports on the rear panel of the computer. See “Rear
view” on page 6 for more information on external audio devices.
29
English
Power management
This computer has a built-in power management unit that monitors
system activity. System activity refers to any activity involving one or
more of the following devices: keyboard, mouse, floppy drive, hard
disk, peripherals connected to the serial and video memory. If no
activity is detected for a period of time (called an inactivity timeout),
the computer stops some or all of these devices in order to conserve
energy.
This computer employs a power management scheme that supports
ACPI (Advanced Configuration and Power Interface), which allows for
maximum power conservation and maximum performance at the same
time. Windows handles all power-saving chores for your computer.
1 Getting to know your TravelMate30
English
Acer light sensor
Acer light sensor allows the TravelMate C300 to automatically brighten
or darken the display’s backlighting to reduce eyestrain. At the top of
the screen, with the status indicators, is the Acer light sensor.
Depending on ambient brightness the screen
When the computer is taken from an area of normal lighting, such as
an office, to a darker area, such as a conference room for a
presentation, the screen will automatically dim - while still providing
the same relative brightness and contrast. Conversely, if the computer
is taken into a very bright atrium from the office, the screen will
increase in brightness so that you won’t have to squint to see what
you’re working on.
Light sensing has 4 preset modes:
•Mode 1 - the lowest brightness setting for darkened conference
rooms
•Mode 2 - for use in softly lit areas
•Mode 3 - standard office setting to deal with overhead fluorescent
lighting
•Mode 4 - the brightest setting for working in very bright
conditions
Note: The maximum screen brightness is limited by the LCD
manufacturing specifications. The panel will can not be made so
bright as to be clearly seen in bright sunlight.
31
English
Moving around with your TravelMate
This section gives you tips and hints on things to consider when moving
around or traveling with your computer.
Disconnecting from the desktop
Follow these steps to disconnect your computer from external
accessories:
1Save your work in progress.
2Remove any media, diskette or compact disc, from the drive(s).
3Shut down the operating system.
4Turn off the computer.
5Close the display cover.
6Disconnect the cord from the AC adapter.
7Disconnect the keyboard, pointing device, printer, external
monitor, and other external devices.
8Disconnect the Kensington lock if you are using one to secure the
computer.
Moving around
“when you are just moving within short distances, for example, from
your office desk to a meeting room”
Preparing the computer
Before moving the computer, close and latch the display cover to place
it in Sleep mode. You can now safely take the computer anywhere you
go within the building. To bring the computer out of Sleep mode,
open the display.
If you are taking the computer to a client's office or a different
building, you may choose to shut down the computer:
1Click on Start, Turn Off Computer.
2Click on Turn Off.
- or -
1 Getting to know your TravelMate32
English
you can put the computer in Sleep mode by pressing Fn-F4. Then close
and latch the display.
When you are ready to use the computer again, unlatch and open the
display, and press and release the power switch. If the power indicator
is off, the computer has entered Hibernation mode and turned off.
Press and release the power switch to turn the computer back on.
Note that the computer may enter Hibernation mode after a period of
time it is in Sleep mode. Turn the power on to wake up the computer
from Hibernation mode.
What to bring to short meetings
A fully charged battery runs the computer for about 6.5 hours under
most circumstances. If your meeting is shorter than that, you probably
do not need to bring anything with you other than the computer.
What to bring to long meetings
If your meeting will last longer than 6.5 hours or if your battery is not
fully charged, you may want to bring the AC adapter with you to plug
in your computer in the meeting room.
If the meeting room does not have an electrical outlet, reduce the
drain on the battery by putting the computer in Sleep mode. Press Fn-
F4 or close the display cover whenever you are not actively using the
computer. Then tap any key or open the display to resume.
Taking the computer home
“when you are moving from your office to your home or vice versa”
Preparing the computer
After disconnecting the computer from your desktop, follow these
steps to prepare the computer for the trip home:
•Check if you have removed all media, diskettes and compact discs,
from the drive(s). Failure to remove the media can damage the
drive head.
•Pack the computer in a protective case that can prevent the
computer from sliding around and cushion it if it should fall.
33
English
Caution: Avoid packing items next to the top cover of the
computer. Pressure against the top cover can damage the screen
What to bring with you
Unless you already have some items at home, bring the following items
with you:
•AC adapter and power cord
•The printed user’s manual
Special considerations
Follow these guidelines to protect your computer while traveling to
and from work:
•Minimize the effect of temperature changes by keeping the
computer with you.
•If you need to stop for an extended period of time and cannot
bring the computer with you, leave the computer in the trunk of
the car to avoid exposing the computer to excessive heat.
•Changes in temperature and humidity can cause condensation.
Allow the computer to return to room temperature, and inspect
the screen for condensation before turning on the computer. If
the temperature change is greater than 18°F (10°C), allow the
computer to come to room temperature slowly. If possible, leave
the computer for 30 minutes in an environment with a
temperature between outside and room temperature.
Setting up a home office
If you frequently work on your computer at home, you may want to
purchase a second AC adapter for use at home. With a second AC
adapter, you can avoid transporting the extra weight to and from
home.
If you use your computer at home for significant periods of time, you
might also want to add an external keyboard, monitor, or mouse.
1 Getting to know your TravelMate34
English
Traveling with the computer
“when you are moving within a larger distance, for instance, from your
office building to a client’s office building or traveling locally”
Preparing the computer
Prepare the computer as if you were taking it home. Make sure that
the battery in the computer is charged. Airport security may require
you to turn on your computer when bringing it into the gate area.
What to bring with you
Bring the following items with you:
•AC adapter
•Spare, fully-charged battery pack(s)
•Additional printer driver files if you plan to use another printer
Special considerations
In addition to the guidelines for taking the computer home, follow
these guidelines to protect your computer while traveling:
•Always take the computer as carry-on luggage.
•If possible, have the computer inspected by hand. Airport security
X-ray machines are safe, but do not put the computer through a
metal detector.
•Avoid exposing floppy disks to hand-held metal detectors.
35
English
Traveling internationally with the computer
“when you are moving from country to country”
Preparing the computer
Prepare the computer as you would normally prepare it for traveling.
What to bring with you
Bring the following items with you:
•AC adapter
•Power cords that are appropriate for the country to which you are
travelling
•Spare, fully-charged battery packs
•Additional printer driver files if you plan to use another printer
•Proof of purchase, in case you need to show it to customs officials
•International Traveler’s Warranty passport
Special considerations
Follow the same special considerations as when traveling with the
computer. In addition, these tips are useful when traveling
internationally:
•When travelling in another country, check that the local AC
voltage and the AC adapter power cord specifications are
compatible. If not, purchase a power cord that is compatible with
the local AC voltage. Do not use converter kits sold for appliances
to power the computer.
•If you are using the modem, check if the modem and connector is
compatible with the telecommunications system of the country
you are travelling in.
1 Getting to know your TravelMate36
English
Securing your computer
Your computer is a valuable investment that you need to take care of.
Learn how to protect and take care of your computer.
Security features include hardware and software locks — a security
notch and passwords.

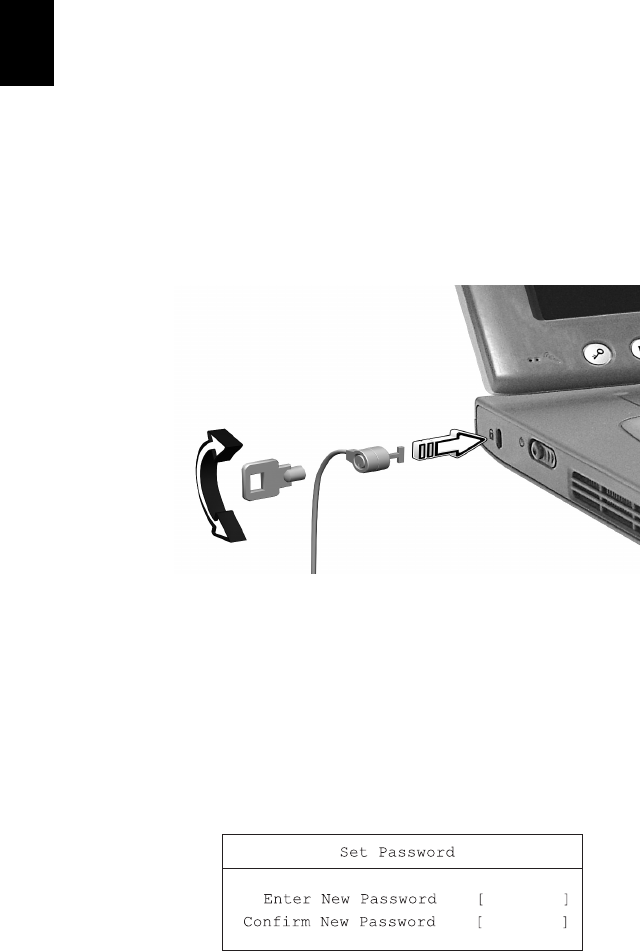

Using a computer security lock
A security keylock notch located on the right panel of the computer
lets you connect a Kensington-compatible computer security lock.
Wrap a computer security lock cable around an immovable object such
as a table or locked drawer handle. Insert the lock into the notch and
turn the key to secure the lock. Some keyless models are also available.
Setting a password
Follow these steps:
1Use the cursor up/down keys to highlight a password parameter
and press the Enter key. The password box appears.
37
English
2Type a password. The password may consist of up to eight
characters (A-Z, a-z, 0-9).
3Press Enter. Retype the password to verify your first entry and press
Enter.
4After setting the password, the computer automatically sets the
chosen password parameter to Present.
Removing a password
Should you want to remove a password, do the following:
1Use the cursor up/down keys to highlight a password parameter
and press the Enter key. The password box appears.
2Enter the current password and press Enter.
3Press Enter twice without entering anything in the new and
confirm password fields to remove the existing password.
Note: When you want to remove the Hard Disk (or 2nd Hard Disk)
password, you are prompted for the current Hard Disk password
before it is removed.
Changing a password
Should you want to change a password, do the following:
1Remove the current password.
2Set a new password.
Setting passwords
You can set passwords using:
•Notebook Manager
•BIOS Utility
1 Getting to know your TravelMate38
English
2 Customizing
my computer
After learning the basics of your TravelMate
computer, let’s get acquainted with the
advanced features of your computer. In this
chapter, you will learn how to add options,
upgrade components for better
performance, and customize your computer.
41
English
Expanding through options
Your TravelMate offers you a complete mobile computing experience.
Connectivity options
Ports allow you to connect peripheral devices to your computer as you
would with a desktop PC.
Modem
Your computer has a built-in V.90/V.92 56Kbps AC’97 Link modem.
Warning! This modem port is not compatible with digital
phone lines. Plugging this modem into a digital phone line
will damage the modem.

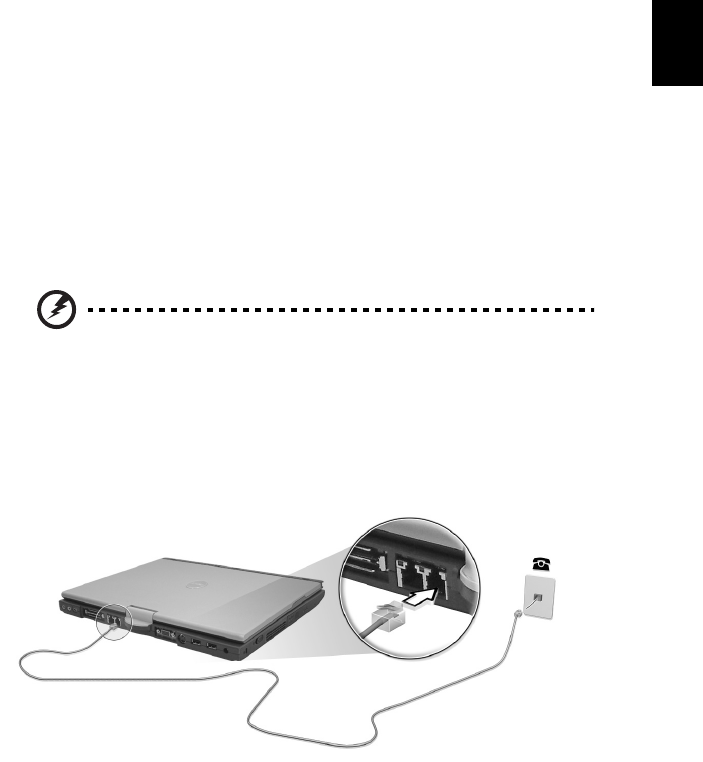

To use the modem, connect a phone cable from the modem jack to a
phone line jack.
Start your communications software program. See your
communications manual for instructions.
2 Customizing my computer42
English

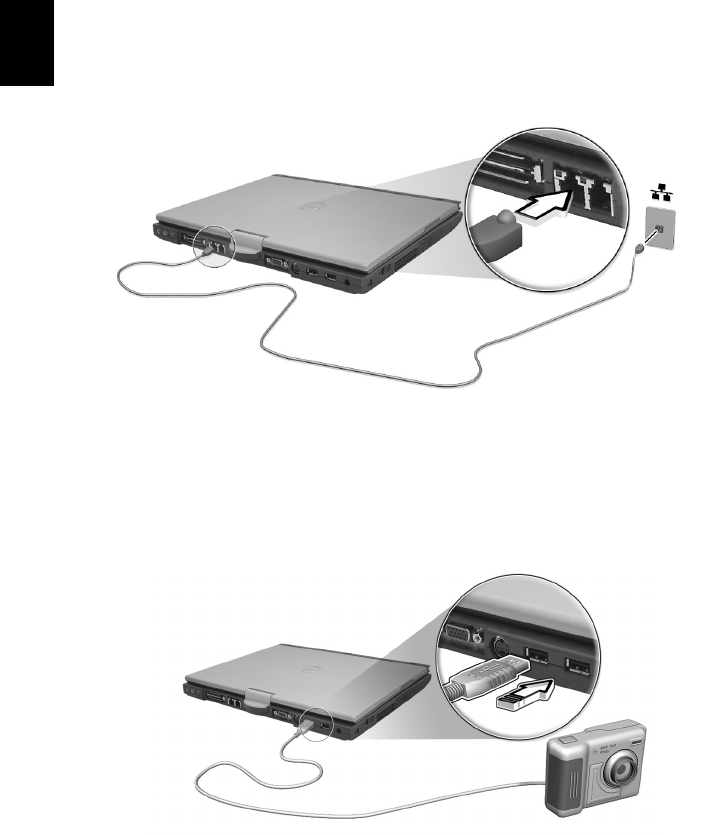

Network
Your computer has built-in Ethernet / 10/100/1000 t-based Gigabit
Ethernet capabilities. To use the network feature, connect an Ethernet
cable from the network jack to an network jack or hub. Consult your
network administrator for details.
Universal Serial Bus
The Universal Serial Bus (USB) 2.0 port is a high-speed serial bus which
allows you to connect and daisy-chain USB peripherals without taking
up precious system resources. Your computer has two ports available.
43
English
PC Card slot
The Type II CardBus PC Card slot found on the right side of the
computer accepts credit-card-sized cards that enhance the usability
and expandability of the computer. These cards should have a PC Card
logo on them.
PC Cards (formerly PCMCIA) are add-on cards for portable computers,
giving you expansion possibilities long afforded by desktop PCs.
CardBus improves on the 16-bit PC card technology by expanding the
bandwidth to 32 bits.
Note: Refer to your card’s manual for details on how to install
and use the card and its functions.
Inserting a PC Card

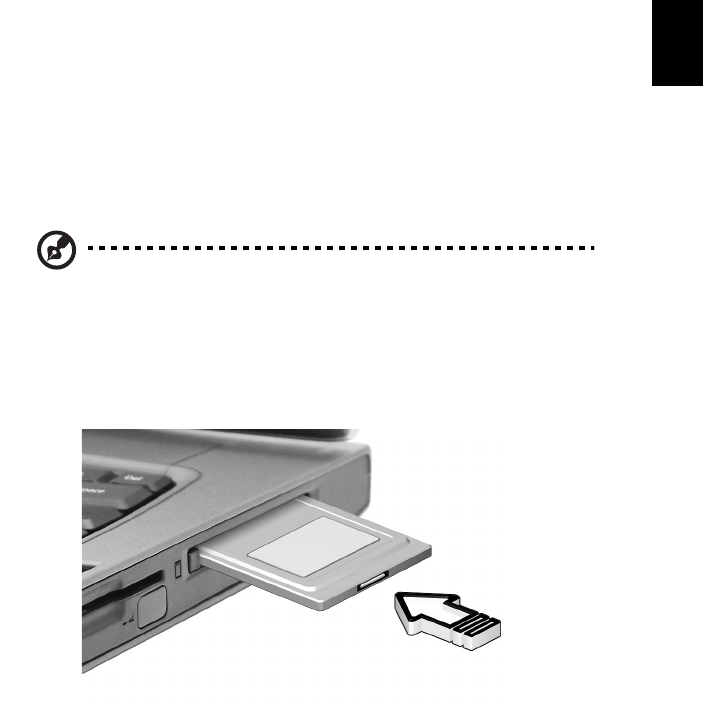

Insert the card into the lower slot and make the proper connections
(e.g., network cable), if necessary. See your card manual for details.
Ejecting a PC Card
Before ejecting a PC Card:
1Exit the application using the card.
2Left-click on the Safely Remove Hardware icon on the taskbar and
click on the PC Card item. Click OK to confirm.
2 Customizing my computer44
English

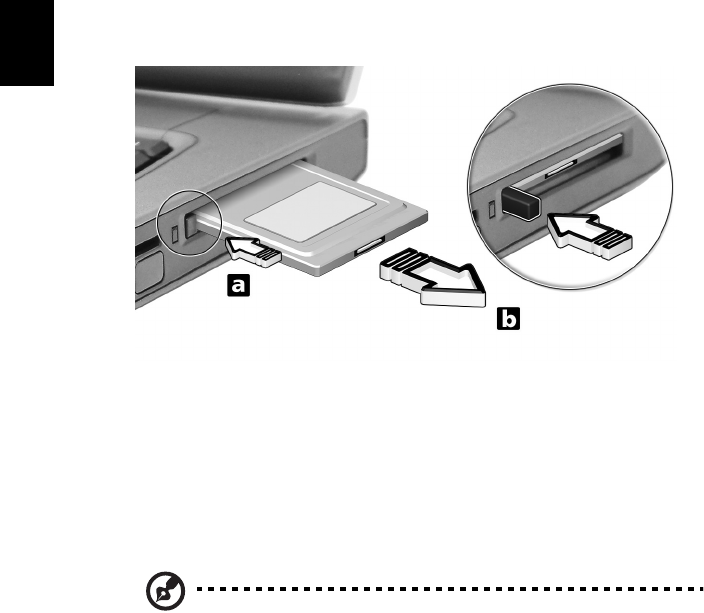

3Press the slot eject button (a) to pop out the eject button; then
press it again (a) to eject the card (b).
Upgrade options
Your computer delivers superior power and performance. However,
some users and the applications they use may demand more. This
computer allows you to upgrade key components when you need
increased performance.
Note: Contact your authorized dealer if you decide to perform a
key component upgrade.
Memory upgrade
Memory is expandable to 2 GB, employing 256MB/512MB/1GB DDR
SDRAM modules on two DDR DIMM slots.
There are two memory slots on your computer, one of which is
occupied by standard memory. You can upgrade memory by installing
a memory module into the available slot, or replacing the standard
memory with a higher-capacity memory module.
45
English
Installing memory
Follow these steps to install memory:
1Turn off the computer, unplug the AC adapter (if connected) and
remove the battery pack. Then turn the computer over to access
its base.

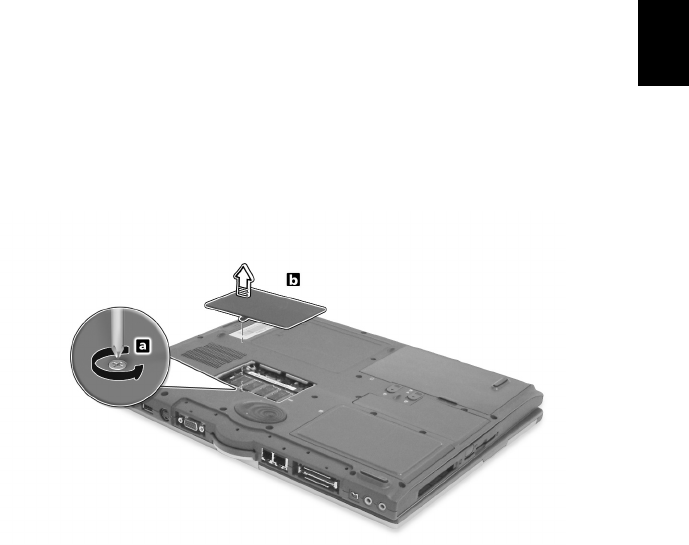

2Remove the screw from the memory cover (a); then lift up and
remove the memory cover (b).
2 Customizing my computer46
English

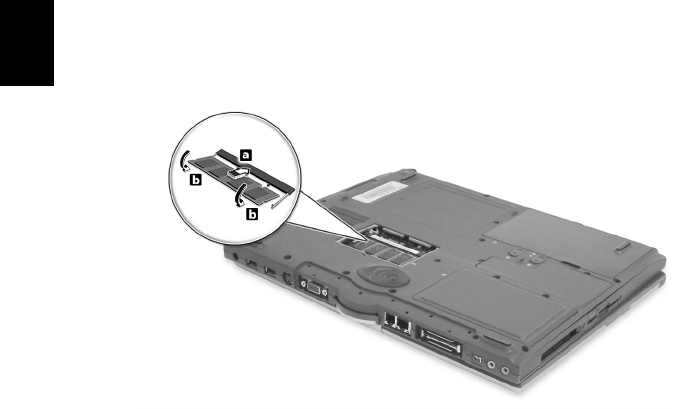

3Insert the memory module diagonally into the slot (1), then gently
press it down until it clicks into place (2).
4Replace the memory cover and secure it with the screw.
The computer automatically detects and reconfigures the total
memory size.
47
English
Using system utilities

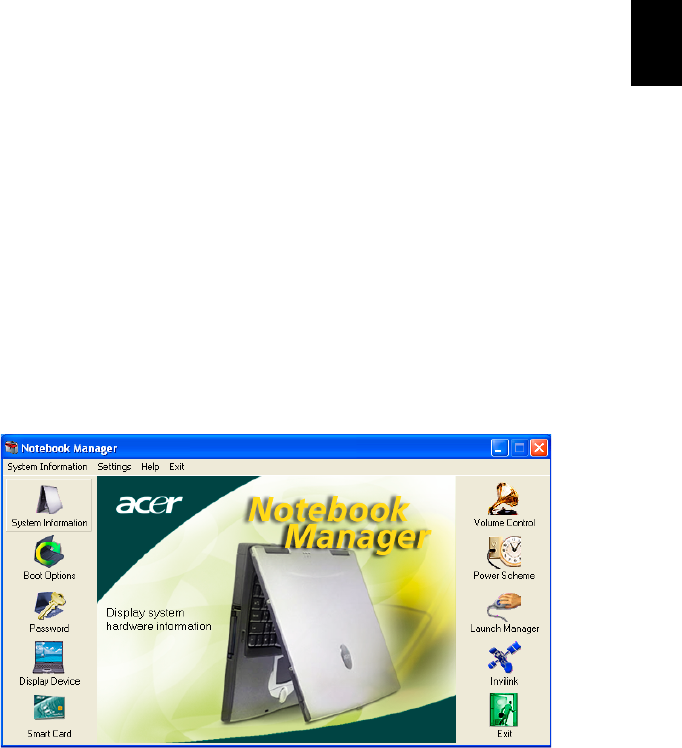

Notebook Manager
The computer has a built-in system setup program called Notebook
Manager. The Windows-based Notebook Manager allows you to set
passwords, the startup sequence of the drives, and power
management settings. It also shows current hardware configurations.
To start the Notebook Manager, press Fn-F2 or follow these steps:
1Click on Start, All Programs, then Notebook Manager.
2Select the Notebook Manager application to run the program.
Click on Help for more information.
2 Customizing my computer48
English
Launch Manager
There are six Launch Keys located above the keyboard. The Wireless
button is not programmable. Launch Manager only allows you to set
the other five Launch Keys. See “Launch Keys” on page 23 for more
information.
You can access the Launch Manager by clicking on Start, All
Programs, and then Launch Manager to start the application.
49
English
BIOS Utility
The BIOS Utility is a hardware configuration program built into your
computer’s BIOS (basic input/output system).
Your computer is already properly configured and optimized, and you
do not need to run this utility. However, if you encounter
configuration problems, you may need to run it.
To activate the BIOS Utility, press F2 during the POST (power-on self-
test) while the TravelMate logo is being displayed.
2 Customizing my computer50
English
3 Troubleshooting
my computer
This chapter instructs you on how to deal
with common system problems. Read it
before calling a technician if a problem
occurs. Solutions to more serious problems
require opening up the computer. Do not
attempt to open the computer by yourself.
Contact your dealer or an authorized
service center for assistance.
53
English
Frequently-asked questions
The following is a list of possible situations that may arise during the
use of your computer. Easy answers and solutions are provided for
each one.
I pressed the power switch and opened the display, but the computer
does not start or boot-up.
Look at the Power indicator:
•If it is not lit, no power is being applied to the computer. Check
the following:
• If you are running on battery power, it may be low and unable
to power the computer. Connect the AC adapter to recharge
the battery pack.
• Make sure that the AC adapter is plugged in properly to the
computer and to the power outlet.
•If it is lit, check the following:
• If the Sleep indicator is lit, the computer is in Sleep mode.
Press any key or tap on the touchpad to resume.
• Is a non-bootable (non-system) diskette in the floppy drive?
Remove or replace it with a system diskette and press Ctrl-Alt-
Del to restart the system.
•The operating system files may be damaged or missing. Insert the
startup disk you created during Windows setup into the floppy
drive and press Ctrl-Alt-Del to restart the system. This will
diagnose your system and make necessary fixes.
Nothing appears on the screen.
The computer’s power management system automatically blanks the
screen to save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, two things might
be the cause:
•The brightness level might be too low. Press Fn-→ to increase the
brightness level.
•The display device might be set to an external monitor. Press the
display toggle hot key Fn-F5 to toggle the display back to the
computer.
3 Troubleshooting my computer54
English
Image is not full-screen.
Make sure that the resolution is set to 1024x768. This is the native
resolution of your computer display. Right-click on your Windows
desktop and select Properties to bring up the Display Properties
dialog box. Then click on the Settings tab to make sure that the
resolution is set to the appropriate resolution. Resolutions lower than
the specified resolution are not full-screen on the computer or on an
external monitor.
No audio is heard from the computer.
Check the following:
•The volume may be muted. In Windows, look at the volume
control (speaker) icon on the taskbar. If it is crossed-out, click on
the icon and deselect the Mute option.
•The speakers may be turned off. Press Fn-F8 to turn the speakers
on (this hot key also turns the speakers off).
•The volume level may be too low. In Windows, look at the volume
control icon on the taskbar.
•If headphones, earphones or external speakers are connected to
the line-out port, the internal speakers automatically turn off.
I want to eject the CD or DVD tray without turning on the power. I
cannot eject the CD or DVD tray.
There is a mechanical eject button on the CD-ROM or DVD-ROM drive.
Simply insert the tip of a pen or paperclip and push to eject the tray.
55
English
The floppy drive cannot access a diskette.
Check the following:
•Make sure the diskette is properly inserted in the floppy drive.
•Make sure the diskette is formatted.
•If the diskette is not the cause of the problem, the floppy drive
may be dirty. Clean it using a drive cleaning kit. Follow the
instructions included with the kit.
The CD or DVD drive cannot access a disc.
Check the following:
•Make sure the disc is supported by the drive. If your computer has
a CD-ROM drive, it can read CDs but cannot read DVDs. If your
computer has a DVD drive, it can read DVDs in addition to CDs.
•When placing the CD or DVD in the drive tray, make sure it is
secure in the spindle on the drive tray.
•Make sure the CD or DVD is free from scratches or smudges. If the
CD or DVD is dirty, clean it using a disc cleaning kit. Remember to
follow the instructions included with the kit.
•If the problem does not lie with the disc, your CD or DVD drive
may be dirty. Clean it using a drive cleaning kit. Follow the
instructions included with the kit.
The keyboard does not respond.
Try attaching an external keyboard to the USB connector on the
computer’s rear. If it works, contact your dealer or an authorized
service center as the internal keyboard cable may be loose.
The printer does not work.
Check the following:
•Make sure that the printer is connected to a power outlet and that
it is turned on.
•Depending on your connection (USB), make sure that the printer
cable is connected securely to the appropriate port on your
computer and the corresponding port on the printer.
3 Troubleshooting my computer56
English
I want to set up my location to use the internal modem.
To properly use your communications software, you need to set up
your location:
1Click on Start, Control Panel.
2Double-click on Phone and Modem Options.
3Click on the Dialing Rules tab and begin setting up your location.
Refer to Windows Help and Support.
57
English
Requesting service
International Travelers Warranty (ITW)
Your computer is backed by an International Traveler’s Warranty (ITW)
that gives you security and peace of mind when traveling. Our
worldwide network of service centers are there to give you a helping
hand.
An ITW passport comes with your computer. This passport contains all
you need to know about the ITW program. A list of available,
authorized service centers is in this handy booklet. Read this passport
thoroughly.
Always have your ITW passport on hand, especially when you travel to
receive the benefits from our support centers. Place your proof-of-
purchase in the flap located inside the front cover of the ITW passport.
If the country you are traveling in does not have an Acer-authorized
ITW service site, you can still get in contact with our offices worldwide.
Please consult www.acersupport.com
Before you call
Please have the following information available when you call Acer for
online service, and please be at your computer when you call. With
your support, we can reduce the amount of time a call takes and help
solve your problems efficiently.
If there are error messages or beeps reported by your computer, write
them down as they appear on the screen (or the number and sequence
in the case of beeps).
3 Troubleshooting my computer58
English
You are required to provide the following information:
Name:________________________________________
Address:______________________________________
______________________________________________
Telephone number:____________________________
Machine and model type:_______________________
Serial number:_________________________________
Date of purchase:______________________________
Appendix A
Acer soft button
This appendix introduces the Acer soft button
, a unique new tool to increase the
ease of use of your Tablet PC.
61
English
Acer soft button

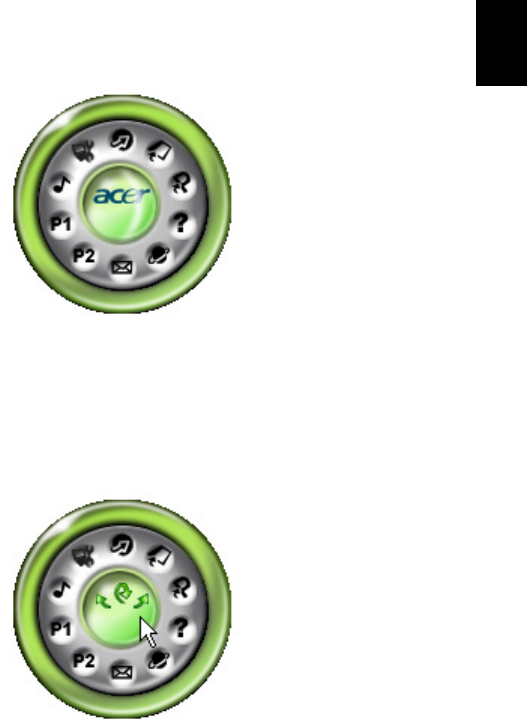

Acer soft button is a radial device that manages program icons,
system settings/utilities, file folders and network locations.
Surrounding the central Acer brand name logo are three levels of
functionality (level 1, level 2, and level 3) numbered from inner to
outer.
You will notice, when the EMR stylus is moved near the Acer soft
button, that the Acer brand name fades and is replaced by a number
of arrows.
• You may drag the Acer soft button wherever you want it on
the screen. Simply press and hold the EMR stylus to the Acer
soft button and drag it.
Appendix A Acer soft button
62
English

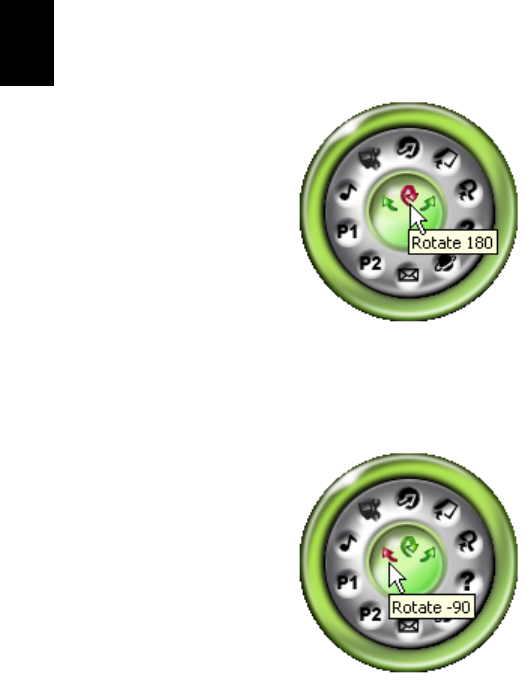

• The top arrow (12 o’clock position) vertically flips the display
output 180 degrees. This means what was at the top of the
screen, will now be at the bottom. Simply press the icon as
shown
• The left arrow (9 o’clock position) rotates the display output
90 degrees counter-clockwise. This changes the output from
landscape to portrait or vice versa. Simply press the icon as
shown
63
English

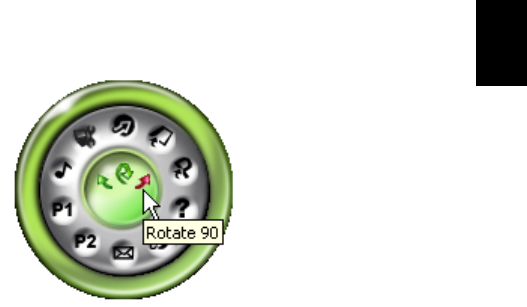

• The right arrow (3 o’clock position) rotates the display output
90 degrees clockwise. This changes the output from landscape
to portrait or vice versa. Simply press the icon as shown
Appendix A Acer soft button
64
English
Appendix B
Specifications
This appendix lists the general specifications
of your computer.
67
English
Microprocessor
•Intel® Pentium® M processor with 1 MB L2 cache
Memory
•Main memory expandable to 2 GB
•Two DDR SDRAM DIMM slots
•Supports 256MB, 512MB, 1GB DDR SDRAM modules
•512 KB Flash ROM BIOS; Shadow RAM support
Data storage
•One high-capacity, Enhanced-IDE hard disk
•One 5.25-inch internal DVD-ROM, DVD/CD-RW combo or DVD dual
drive
Display and video
•14.1" Thin-Film Transistor (TFT) liquid crystal-display (LCD)
supporting pen-based input, with 16M color at 1024x768 XGA
(eXtended Graphics Array) resolution
•Integrated VGA controller with Dynamic Video Memory Allocation
technology up to 64 MB
•Simultaneous LCD and external display support
•Dual display support
Audio
•16-bit AC’97 stereo audio
•Dual stereo speakers
•Windows Sound System-compatible
•Separate audio ports for line-out, line-in devices
•Built-in internal microphone
Keyboard and pointing device
•87/88/90-key Windows keyboard with 101/102 key emulation
•Ergonomically-centered touchpad pointing device with two
buttons and 4-way scroll button
Appendix B Specifications68
English
I/O ports
•One Card bus type II card slot
•One smart-card slot
•One RJ-11 phone jack (V.90/V.92, 56Kbps modem)
•One RJ-45 network jack (Gigabit Ethernet)
•One DC-in jack (AC adapter)
•One external monitor (VGA) port
•One S-video TV out port
•One 100-pin port replicator connector
•One line-out (headphone) jack (3.5mm minijack)
•One line-in (microphone) jack (3.5mm minijack)
•Two USB 2.0 ports
•One 4-pin IEEE 1394 port
•One infrared (FIR) port
Weight and dimensions
•2.83 kg (6.23 lbs) for 14.1" TFT model
•326 (W) x 272 (D) x 33.4~35.9 (H) mm
Environment
•Temperature
• Operating: 5°C ~ 35°C
• Non-operating: -10°C ~ 60°C
•Humidity (non-condensing)
• Operating: 20% ~ 85% RH
• Non-operating: 20% ~ 85% RH
System
•Microsoft Windows XP Tablet PC Edition SP1
•ACPI 1.0 compliant BIOS
•Phoenix BIOS
•Suspend to RAM/Disk
69
English
Power
•Battery pack
• 8 cell Li-Ion battery pack
• 6.5 hours operating time with Battery mark 4.0
• AC adapter
• 65-Watt
• Auto sensing 100~240V AC, 50~60Hz
Wireless Communications
•Optional Intel PRO/Wireless 2100 or 2100A module
•Optional MDC Bluetooth module (includes built-in antenna)
Options
•256MB/512MB/1GB memory upgrade module
•Additional AC adapter, Battery, or Weight-saver
•Hot-swapable optical drive
• 8x DVD module
• DVD/CD-RW combo module
•Additional HDD module
•2nd battery
Appendix B Specifications70
English
Appendix C
Notices
This appendix lists the general notices of
your computer.
73
English
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the device and receiver
•Connect the device into an outlet on a circuit different from that to which
the receiver is connected
•Consult the dealer or an experienced radio/television technician for help
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.
Use conditions
This part complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Appendix C Notices74
English
Notice: Canadian users
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numérique de la classe B respected toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Modem notices
FCC
This equipment complies with Part 68 of the FCC rules. Located on the bottom
side of the modem is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment.
Upon request, you must provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible, they
will notify you in advance. But, if advance notice is not practical, you will be
notified as soon as possible. You will also be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance to give you an
opportunity to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is
with the equipment, discontinue use and contact your dealer or vendor.
TBR 21
This equipment has been approved [Council Decision 98/482/EC - “TBR 21”] for
pan-European single terminal connection to the Public Switched Telephone
Network (PSTN). However, due to differences between the individual PSTNs
provided in different countries, the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN termination
point. In the event of problems, you should contact your equipment supplier in
the first instance.
75
English
Important safety instructions
Read these instructions carefully. Save these instructions for future reference.
1Follow all warnings and instructions marked on the product.
2Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3Do not use this product near water.
4Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
5Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should never be placed near or
over a radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
6This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
7Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
8If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
9Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.
10 Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to qualified service personnel.
11 Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
aWhen the power cord or plug is damaged or frayed
bIf liquid has been spilled into the product
cIf the product has been exposed to rain or water
Appendix C Notices76
English
dIf the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal condition.
eIf the product has been dropped or the cabinet has been damaged
fIf the product exhibits a distinct change in performance, indicating a
need for service.
12 Replace the battery with the same type as the product's battery we
recommend. Use of another battery may present a risk of fire or explosion.
Refer battery replacement to a qualified serviceman.
13 Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children and
dispose of used batteries promptly.
14 Use only the proper type of power supply cord set (provided in your
accessories box) for this unit. It should be a detachable type: UL listed/CSA
certified, type SPT-2, rated 7A 125V minimum, VDE approved or its
equivalent. Maximum length is 15 feet (4.6 meters).
Laser compliance statement
The CD or DVD drive used with this computer is a laser product. The CD or DVD
drive’s classification label (shown below) is located on the drive.
CLASS 1 LASER PRODUCT
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID
EXPOSURE TO BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS
D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE
EXPONERSE A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA
SÅTEESEENSTIRRA EJ IN I STRÅLEN
77
English
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I
STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN
Lithium battery statement
The TravelMate C300 series uses the lithium battery, models BTP-63D1,
SBTP-3D1.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til
leverandøren.
ADVARSEL
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller
en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt
batteri enligt fabrikantens instruktion.
VAROITUS
Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo
valmistajan ohjeiden mukaisesti.
VORSICHT!
Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or colored
dots. This has no effect on the recorded image and does not constitute a
malfunction.
Appendix C Notices78
English
Macrovision copyright protection notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and
4,907,093 licensed for limited viewing uses only.
Note: Below regulatory information is for models with wireless
LAN and/or Bluetooth only.
Regulatory Information
The Wireless module must be installed and used in strict accordance with the
manufacturer’s instructions. This device complies with the following radio
frequency and safety standards.
Canada - Industry Canada (IC)
•This device complies with RSS 210 of Industry Canada.
79
English
USA - Federal Communications Commission (FCC)
This device complies with Part 15 of FCC Rules. Operation of the devices in an
Wireless LAN System is subject to the following two conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may cause undesired
operation.
Exposure to Radio Frequency Radiation
The radiated output power of the Wireless module is far below the FCC radio
frequency exposure limits. Nevertheless, the Wireless module shall be used in
such a manner that the potential for human contact during normal operation is
minimized.
The transmitter and the antenna are permanently installed inside the
notebook, and are specific for this model (not for generic computer). The
antenna of this device is installed on the top of the LCD display. For compliance
with FCC radiation exposure limits.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment (example - use only shielded
interface cables when connecting to computer or peripheral devices).
Appendix C Notices80
English
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
81
English
Index
A
AC adapter
caring for v
audio 28
troubleshooting 54
B
battery pack
caring for v
charging indicator 15
BIOS utility 49
brightness
hotkeys 21
C
caps lock 17
on indicator 15
care
AC adapter v
battery pack v
computer iv
CD
troubleshooting 55
CD-ROM
ejecting 26
ejecting manually 54
troubleshooting 54
cleaning
computer v
computer
bringing to meetings 32
caring for iv
cleaning v
disconnecting 31
features 3, 12
indicators 14
keyboards 17
moving around 31
on indicator 14
performance 12
security 36
setting up a home office 33
taking home 32
traveling internationally 35
traveling on local trips 34
troubleshooting 52
turning off iv
D
display
hotkeys 21
troubleshooting 53, 54
DVD 27
troubleshooting 55
DVD movies
playing 27
DVD RW drive 12
E
Ethernet 42
Euro 21, 22
F
FAQ. See frequently-asked questions
floppy drive
troubleshooting 55
frequently-asked questions 53
front view 3
H
hard disk 26
help
online services 57
Hibernation mode
hotkey 20
hotkeys 20
I
indicator lights 14
ITW. See warranty
K
keyboard 17
embedded numeric keypad 18
hotkeys 20
lock keys 17
troubleshooting 55
Windows keys 19
L
LEDs 14
M
media access
82
English
on indicator 15
memory
installing 45– 46
upgrading 44
modem 41
N
network 42
Notebook Manager 47
hotkey 20
notice
DVD copyright protection 78
num lock 17
on indicator 15
numeric keypad
embedded 18
num lock 18
O
online services 57
optical drive 26
options
memory upgrade 44
P
PC Card 43
ejecting 43
inserting 43
ports 41
POST (power-on self-test) 49
printer
troubleshooting 55
problems 53
CD 55
CD-ROM 54
diskette 55
display 53, 54
DVD 55
floppy drive 55
keyboard 55
printer 55
startup 53
troubleshooting 52
Q
questions
setting location for modem use
56
S
safety
CD-ROM 76
FCC notice 73
general instructions 75
modem notices 74
scroll lock 17
security
keylock 36
service
when to call v
speakers
hotkey 21
troubleshooting 54
specifications 60, 66
Standby mode
hotkey 20
status indicator 14
status indicators 14
storage 26
CD, DVD, or DVD/CD-RW combo
drive 26
hard disk 26
support
information 57
T
touchpad 24
hotkey 21
using 24– 25
travel
international flights 35
local trips 34
troubleshooting 52
U
universal serial bus 42
Using computer in tablet mode 9
utility
BIOS Setup 49
V
view
front 4
left 4
83
English
rear 6
right 5
W
warranty
International Traveler’s
Warranty 57
Windows keys 19
84
English
