Wolf Design Guide
Microwave Ovens
As true cooking instruments, Wolf microwave ovens have
features that make fast meals better meals. Wolf offers both
a roomy, powerful standard microwave and a convection
model that can microwave, broil and cook in three convec-
tion modes. Stainless steel trim kits are available through an
authorized Wolf dealer to match L and E series ovens.
KEY FEATURES
• Large-capacity interior.
• Built-in or freestanding option for design versatility.
• Sensor cooking to monitor and adjust settings.
• Warming feature for gentle heating.
• Reheat setting is perfect for leftovers.
WOLF MICROWAVE OVENS
CONVECTION MICROWAVE
MWC24
L Series Trim
MWC24
E Series Trim
STANDARD MICROWAVE
MW24
L Series Trim
MW24
E Series Trim
2
|
Wolf Customer Care 800.222.7820
RANGES / RANGETOPSVENTILATION COOKTOPS OVENS / WARMING DRAWERSOUTDOOR GRILLS
wolfappliance.com
|
3
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS

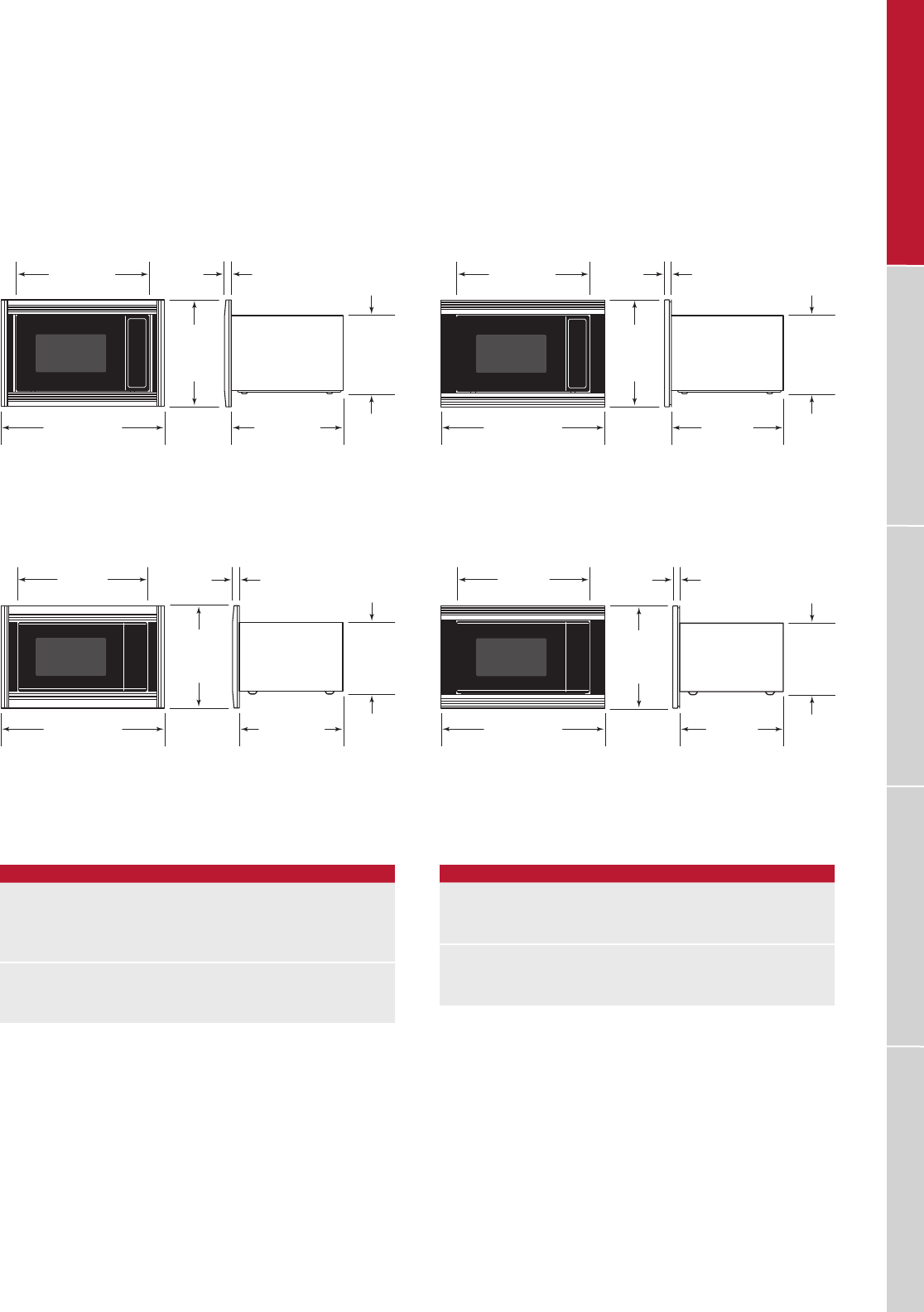

L SERIES TRIM E SERIES TRIM
24" (610)
FREESTANDING
133/8"
(340)
FREE-
STANDING
133/8"
(340)
FREE-
STANDING
181/4"
(464)
L SERIES
TRIM
24" (610)
FREESTANDING
181/4"
(464)
E SERIES
TRIM
175/8" (448)
BEHIND TRIM
13/8"
(35)
18" (457)
BEHIND TRIM
*1" (25) for professional and transitional trim and 11/4" (32) for contemporary trim.
1" (25) OR
11/4" (32)*
WOLF MICROWAVE OVENS
STANDARD MICROWAVE
243/4" (629)
FREESTANDING
147/8"
(378)
FREE-
STANDING
147/8"
(378)
FREE-
STANDING
197/8"
(505)
L SERIES
TRIM
243/4" (629)
FREESTANDING
197/8"
(505)
E SERIES
TRIM
L SERIES TRIM E SERIES TRIM
175/8" (448)
BEHIND TRIM
13/8"
(35)
18" (457)
BEHIND TRIM
*1" (25) for professional and transitional trim and 11/4" (32) for contemporary trim.
1" (25) OR
11/4" (32)*
SPECIFICATIONS
INTERIOR CAPACITY CU FT (L)
Convection 1.5 (42)
Standard 2.0 (57)
INTERIOR DIMENSIONS WHD
Convection 161/8" (410) 95/8" (244) 161/8" (410)
Standard 173/8" (441) 101/2" (267) 185/8" (473)
Microwave Ovens
CONVECTION MICROWAVE
TRIM WIDTH
CONVECTION L SERIES E SERIES
27" Trim NA 267/8" (683)
30" Trim 297/8" (759) 297/8" (759)
36" Trim 355/8" (905) NA
STANDARD L SERIES E SERIES
27" Trim NA 267/8" (683)
30" Trim 297/8" (759) 297/8" (759)
4
|
Wolf Customer Care 800.222.7820
RANGES / RANGETOPSVENTILATION COOKTOPS OVENS / WARMING DRAWERSOUTDOOR GRILLS
ELECTRICAL
Installation must comply with all applicable electrical codes.
The receptacle should be located in the upper left area of
the opening. Refer to the illustration for your specic instal-
lation on the following pages. The receptacle may also be
located in an adjacent cabinet within reach of the power
cord. An access hole must be provided through the cabinet
for the power cord.
IMPORTANT NOTE: The microwave oven is equipped with a
power cord with a 3-prong grounding plug. The power cord
must be plugged into a mating 3-prong grounded outlet. If
you only have a 2-prong outlet, have a qualied electrician
install a properly grounded outlet. If you have any questions
about the grounding or electrical instructions, consult a
qualied electrician or service technician.
ELECTRICAL REQUIREMENTS
Electrical Supply grounded, 120 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
Power Cord 3' (.9 m)
Planning Information
Wolf convection and standard microwaves can be used
freestanding or built-in with optional trim kit, available
through an authorized Wolf dealer. For local dealer infor-
mation, visit the nd a showroom section of our website,
wolfappliance.com. In a freestanding application, allow
2" (51) of airow space on the top, rear and both sides.
Built-in opening dimensions accommodate air ow space.
In a built-in application, convection and standard micro-
waves will overlap stiles and rails. Refer to the chart below
for trim overlaps.
TRIM OVERLAP
27" E SERIES TRIM CONVECTION STANDARD
Top 1/4" (6) 9/16" (14)
Bottom 3/4" (19) 11/16" (17)
Sides 13/16" (21) 13/16" (21)
30" L / E SERIES TRIM CONVECTION STANDARD
Top 1/4" (6) 9/16" (14)
Bottom 3/4" (19) 11/16" (17)
Sides 13/16" (30) 13/16" (30)
36" L SERIES TRIM CONVECTION STANDARD
Top 3/16" (5) NA
Bottom 13/16" (21) NA
Sides 11/4" (32) NA
WOLF MICROWAVE OVENS
wolfappliance.com
|
5
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS
E
FRONT VIEW
SIDE
VIEW
201/8" (511)
OPENING
DEPTH
NOTE: Dashed line represents profile of unit.
TOP VIEW
187/8" (479)
OPENING
HEIGHT
W
OPENING WIDTH
BASE SUPPORT
WOLF MICROWAVE OVENS

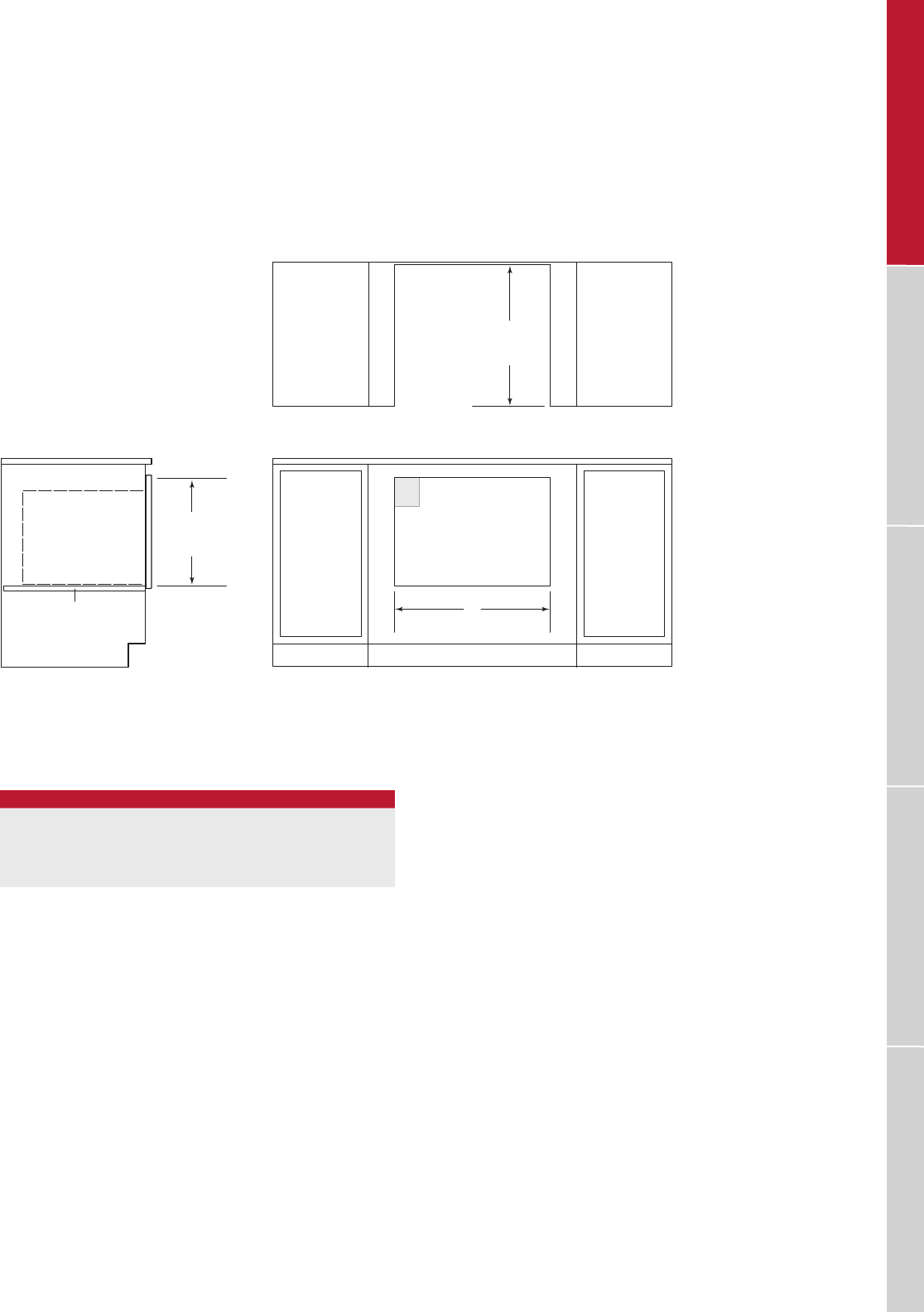

Convection Microwave Oven
INSTALLATION WITH TRIM
OPENING WIDTH
MODEL W
Microwave with 27" Trim 251/4" (641)
Microwave with 30" Trim 271/2" (699)
Microwave with 36" Trim 333/8" (854)
6
|
Wolf Customer Care 800.222.7820
WOLF MICROWAVE OVENS

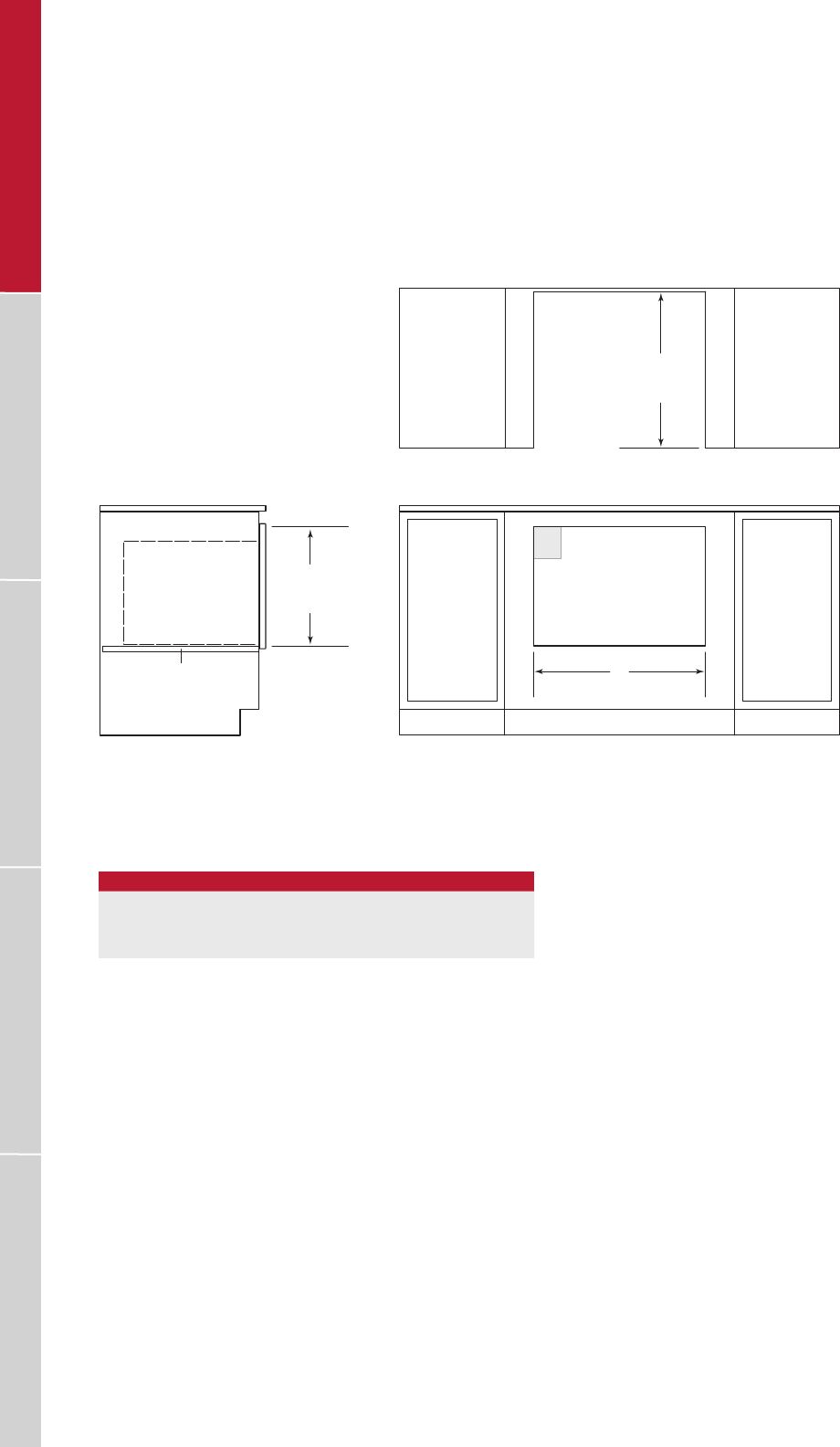

Standard Microwave Oven
INSTALLATION WITH TRIM
E
FRONT VIEW
SIDE
VIEW
20" (508)
OPENING
DEPTH
NOTE: Dashed line represents profile of unit.
W
OPENING WIDTH
TOP VIEW
17" (432)
OPENING
HEIGHT
BASE SUPPORT
RANGES / RANGETOPSVENTILATION COOKTOPS OVENS / WARMING DRAWERSOUTDOOR GRILLS
OPENING WIDTH
MODEL W
Microwave with 27" Trim 251/4" (641)
Microwave with 30" Trim 271/2" (699)
wolfappliance.com
|
7
RANGES / RANGETOPSOVENS / WARMING DRAWERS OUTDOOR GRILLS VENTILATIONCOOKTOPS
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero, Sub-Zero &
Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. (collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
WDGOMW 12/2013
