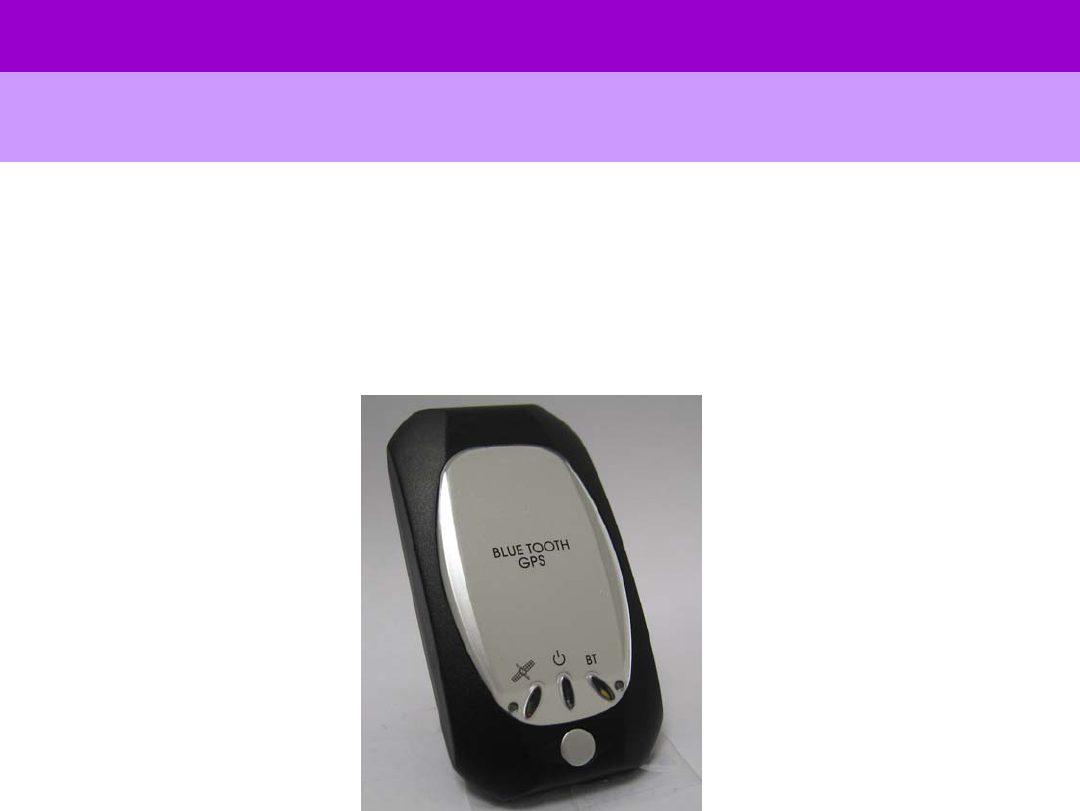

Wonde Proud Technology WPBT74S BLUETOOTH GPS RECEIVER User Manual GPS BT74S User s Guide

Wonde Proud Technology Co., Ltd. BLUETOOTH GPS RECEIVER GPS BT74S User s Guide

USERS MANUAL

*** USER’S MANUAL ***
FCC ID : SRKWPBT74S
The Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction, may
cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of more of the following
measures: -
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced Radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change
or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERECE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.
User’s Guide
GPS-BT74S
GPS-BT74S
User’s Guide
1
User’s Guide
GPS-BT74S
Table of Contents
1. Read Me First………………………………………………………………………………….. p.3
2. Box Contents…………………………………………………………………………………… p.3
3. Getting Started…………………………………………………………………………………. p.3
4. Hardware Description…………………………………………………………………………. p.7
5. LED Indicator…………………………………………………………………………………... p.8
6. Specification……………………………………………………………………………………. p.9
7. Revision History p.10
2
User’s Guide
GPS-BT74S
1. Read Me First
1. The battery must be charged for at least 8 hours for the ‘INITIAL’ use. The LED2 (ORANGE) will turn
off after 3 hours’ charging, please keep on charging for 5 more hours. Thereafter, for each time’s
battery charging please fully charge for 3 hours.
2. We strongly recommend that remove the battery if the device will not be used for over 2 weeks. Do
not remove the battery within 2 weeks.
3. For fast data tracking purpose staying still before get fixed is recommended. (FIX then GOES!!)
4. Please note that the device will only receive the signal under the open sky. In this case, putting the
device under the windshield is recommended.
2. Box Contents
1. GPS Bluetooth receiver
2. Lithium-ion rechargeable battery
3. Car charger
4. Power adapter
5. Document CD
3. Getting Started
1. Install the battery
3
2. Turn on the GPS Bluetooth receiver.
Press the power button for 1 second or until the LED1 (GPS Fix Status) turns into RED and LED3
(Bluetooth Status) turns into Blue.
3. Activate Bluetooth function of your PDA / PC
Prior to activating the Bluetooth function of your PDA / PC, please make sure the device is equipped
with Bluetooth function, and the driver software has been installed.

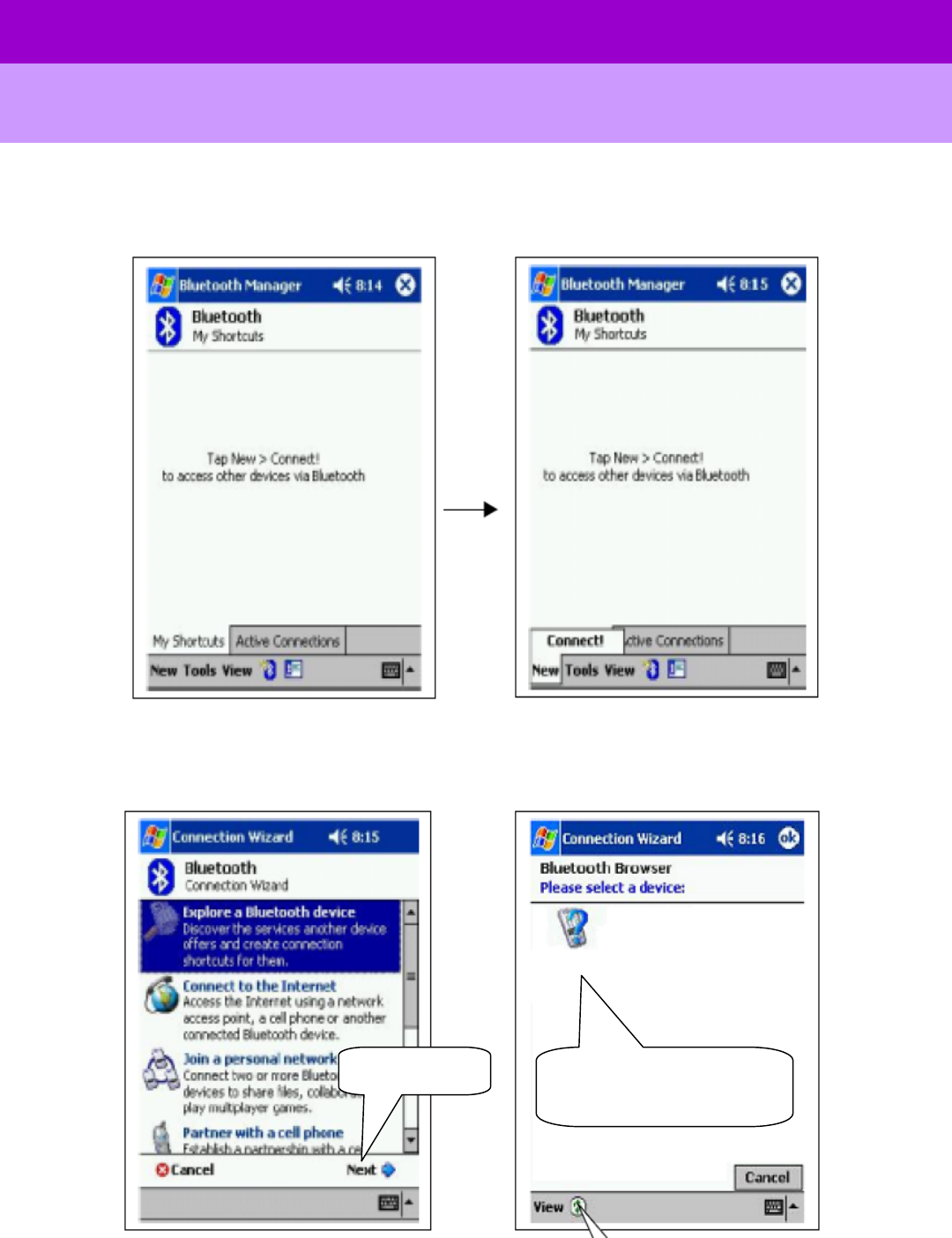

4. Activate Bluetooth Manager & Established New Connections.
Illustrations using HP 2100 PDA as follows:
1. First, find the device with which you wish to establish connection.
2. Open “Bluetooth Manager” on your pocket PC.
3. Press “New”.
4. Press "Connect”.
User’s Guide
GPS-BT74S
Click here Click here to select
installation
BTGPS
4
User’s Guide
GPS-BT74S

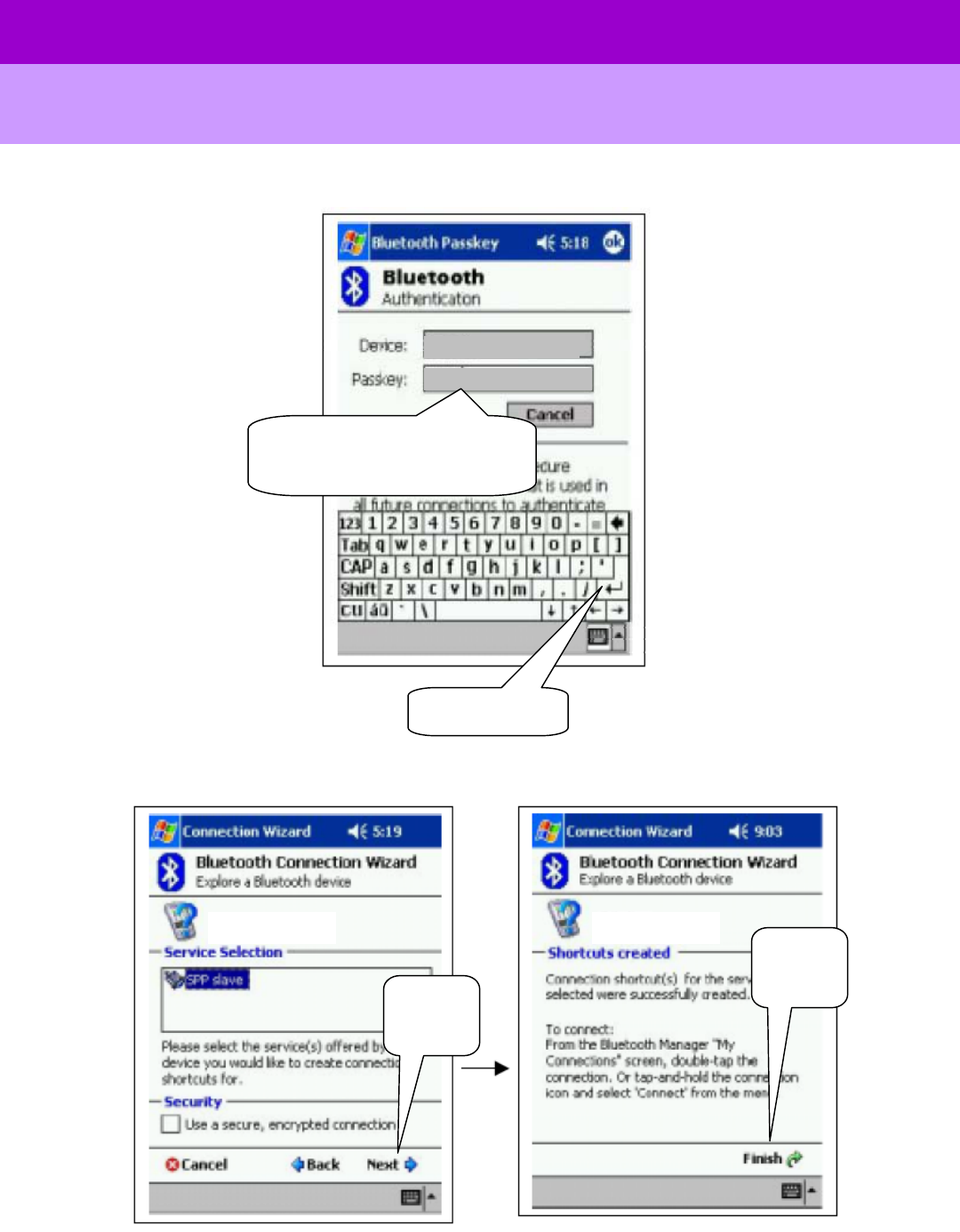

BTGPS
****
Enter Pass Key "
0000",
then Press “Enter”
Enter key
Click
here
Click
here
BTGPS BTGPS
5
User’s Guide
GPS-BT74S

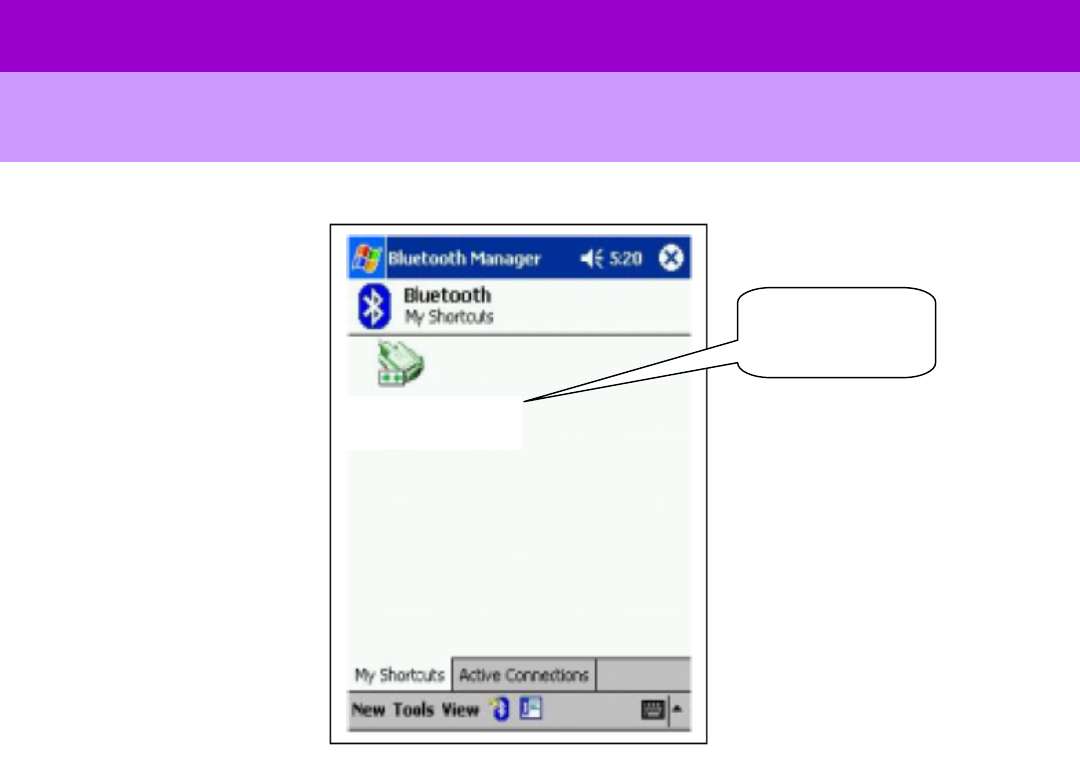

Connection
established
BTGPS: SPP slave
The connection between GPS Bluetooth receiver and PDA has been successfully established
5. Turn off the GPS Bluetooth receiver
Press the power button for 1 second, all LEDs will goes off.
We recommend that close the E-map before turning off the GPS Bluetooth receiver, in order to
avoid any possible PDA /PC freeze.
6
User’s Guide
GPS-BT74S

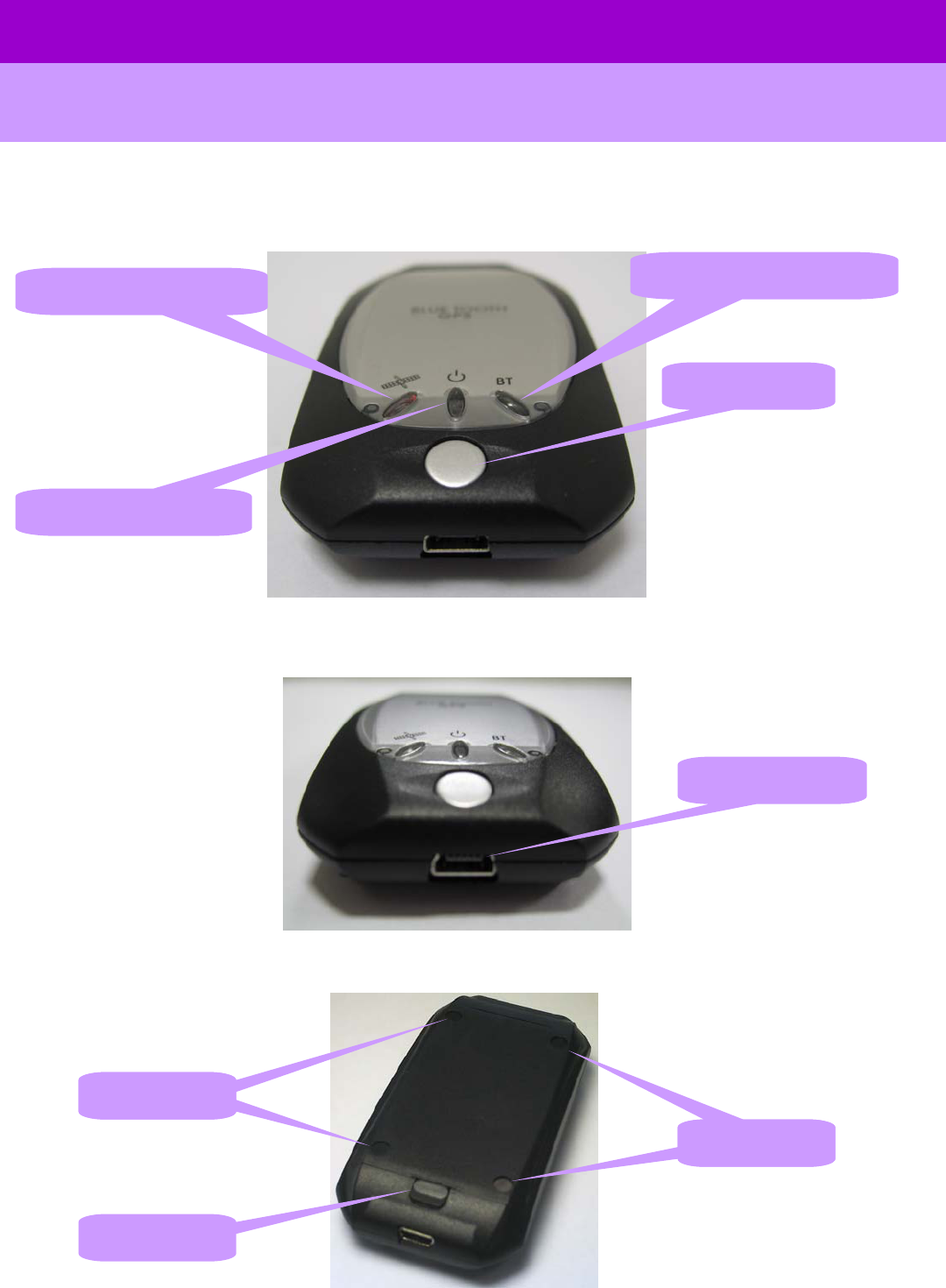

4. Hardware Description
LED3: Bluetooth Status
Power Button
LED1: GPS Fix Status
LED2: Power Status
Charge Socket
Battery Bolt
Slip-resistant
Slip-resistant
7
User’s Guide
GPS-BT74S
5. LED Indicator
Power on:
LED1: GPS Fix Status LED2: Power Status LED3: Bluetooth Status
Red (ON)
GPS not fixed yet!
N/A Blue (ON)
Blinking slowly (in paring mode)
GPS get fixed/Bluetooth connected:
LED1: GPS Fix Status LED2: Power Status LED3: Bluetooth Status
Red
Blinking for every 1 seconds
N/A Blue
Blinking for every 1 seconds
Low battery: LED2 (GREEN) blinking for every 1 second
Charging: LED2 (ORANGE) ON
Battery is fully charged: LED2 (ORANGE) turns off
GPS Bluetooth operates on OS with Bluetooth function that supports SPP
In order to avoid any unexpected problem,
DO NOT attempt to change the default baudrate
8
User’s Guide
GPS-BT74S
6. Specification
GPS Features Datum
Chipset SiRF Star III WGS-84
Frequency L1, 1575.42MHz Dynamic Conditions
C/A Code 1.023MHz chip rate Altitude <18,000 m (60,000 feet)
Channels Supports 20 channels Velocity <515m/s (1000 knots)
Antenna (Internal) Built-in low noise antenna Acceleration <4G
Motional Jerk 20m/sec3 max.
Sensitivity Interface
To – 159dBm Tracking, Superior Urban Canyon Performance Communication Protocol: Communicate with host platform
Time to First Fix (TTFF) via Bluetooth (class 2) serial port profile
Cold Start 42 sec, average Bluetooth communication distance 10meters (Typical)
Warm Start 38 sec, average GPS Protocol: Default: NMEA-0183 - GGA, GSA, GSV,
Hot Start 1 sec, average RMC
Reacquisition 0.1 sec Data bit: 8, stop bit: 1(Default)
Update rate 1 Hz (max.)
Accuracy Device Size and Weight
Position 5 – 25m CEP without SA 81.0 (L) X 43.0 (W) X 17.6 (H) mm
Velocity 0.1m/sec, without SA 3.19 (L) X 1.69 (W) X 0.69 (H) inch
Time 1μs synchronized to GPS time 60g (battery included)
Power Accessories
Built-in rechargeable 1100mAh Li-ion battery and 5V DC input Car charger (12V in, 5V output)
Operation Current <75mA (Typical) AC adaptor (5.3V output, 500mA)
Operation Time 15hrs, fully charged, in continuous mode
Charging time 3.0hrs. (Typical)
Environmental Characteristics
Operating Temperature - 10°C to + 60°C
Storage Temperature - 20°C to + 85°C
9
User’s Guide
GPS-BT74S
7. Revision History
Revision Date Comments
V2.06 21_Feb_2006
1. Updated items: (6. Specification)
operation and charging time
Operation time: updated to 15 hrs.
Charging time: updated to 3 hrs.
2. Dynamic conditions and Interface:
performed minor changes
10
