Wonders Technology DS-1098 BLUETOOTH SPEAKER User Manual WC2DS 1098 usermanual

Wonders Technology Co., Ltd. BLUETOOTH SPEAKER WC2DS 1098 usermanual

User Manual

BLUETOOTH SPEAKER
MODEL: DS-1098, ISDB752B,DS-865B
USER GUIDE
IMPORTANT SAFETY INSTRUCTIONS
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturers instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. When the provided plug
does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over. Unplug this apparatus during lightning
storms or when unused for long periods of time.
13. Refer all servicing to qualified
service personnel. Servicing
is required when the apparatus
has been damaged in any way,
such as power-supply cord or
plug is damaged, liquid has been
spilled or objects have fallen
into the apparatus, the apparatus
has been exposed to rain or
moisture, does not operate
normally, or has been dropped.
FCC Warnings
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the users authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur
in a particular installation. If this equipment does cause harmful interference to radio
or
television reception, which can be determined by turning the equipment off and on,
the user
is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.
The antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all
persons and must not be co-located or operated in conjunction
with any other antenna or transmitter.
Additional Warnings
• The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun
objet ne contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Main plug is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the mains completely, the
mains plug should be disconnected form the mains socket outlet completely.
La prise du secteur ne doit pas être obstruée ou doit être facilement
accessible pendant son utilisation. Pour être complètement déconnecté de
l’alimentation d’entrée, la prise doit être débranchée du secteur.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la
lumière du soleil, au feu ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.
The marking information is located at the rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
WARNINGS AND PRECAUTIONS
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc
électrique, ne pas exposer cet appareil sous la pluie et l’humidité.
• CAUTION: Use of controls or adjustments or performance of procedures
other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the
party
responsible for compliance could void the users authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces
to avoid
damaging the surface. Use a protective barrier between the unit and surface to protect
the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference
regarding use of the remote. If the unit is displaying erratic behavior move
away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façn incorrect.
Remplacer les piles seulement par le même type de pile ou l’équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard
Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control’s button cell battery contains mercury. Do
not put in the trash, instead recycle or dispose of as hazardous waste
• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and
should be
recycled or disposed of in normal household waste. Contact your local government
for disposal
or recycling practices in your area. They should never be incinerated since they might
explode.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
Mains plug is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the mains completely, the
mains plug should be disconnected form the mains socket outlet completely.
La prise du secteur est utilisé pour déconnecter le système.
La prise du secteur ne doit pas être obstruée ou doit être facilement
accessible pendant son utilisation. Pour être complètement déconnecté de
l’alimentation d’entrée, la prise doit être déranché du secteur.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc)
batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh,
etc.).
Features
• Made for iPod and iPhone and iPad
• Plays and charges docked iPod and iPhone and iPad
• 2 channel stereo sound
• Bluetooth A2DP
• Composite video output
• 3.5mm audio input
• Digital volume control
• Portrait or landscape orientation
• DC power input: requires an AC/DC power adapter (included)
Included
• Video out cable
AC/DC power adapter
• 3.5mm audio cable
Introduction

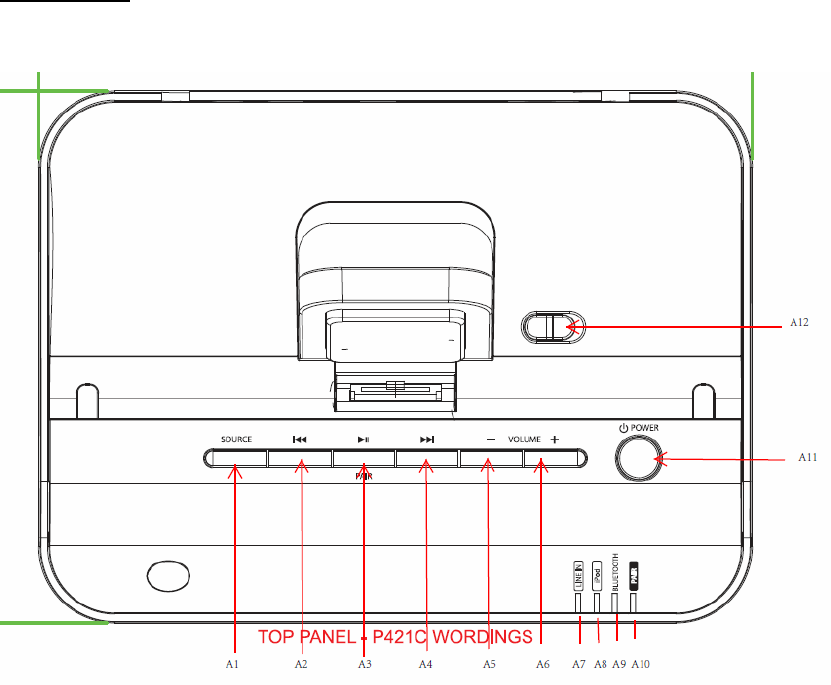

A1: Source
A2: Previous tune
A3: Play/Pause/Pair
A4: Next Tune
A5: Vol-
A6: Vol+
A7: Line In
A8: iPod
A9: Bluetooth
A10: Pair
A11: Power
A12: Release button

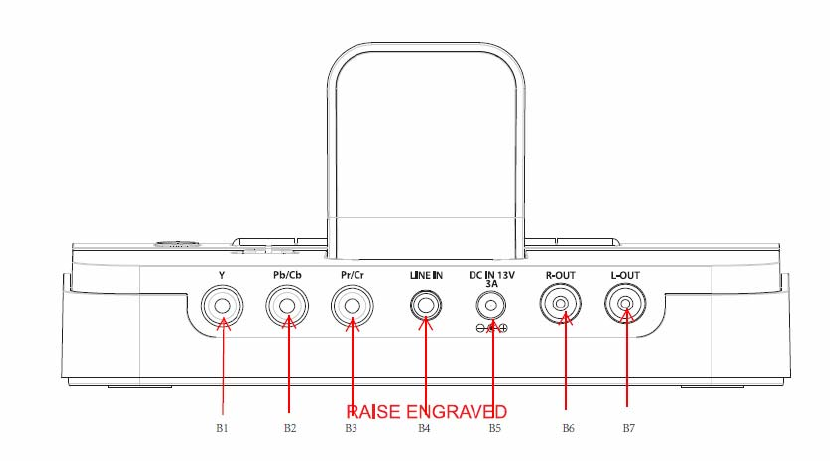

B1: Y Jack
B2: Pb/Cb jack
B3: Pr/Cr jack
B4: LINE IN jack
B5: DC IN jack
B6: R-Out jack
B7: L-Out jack

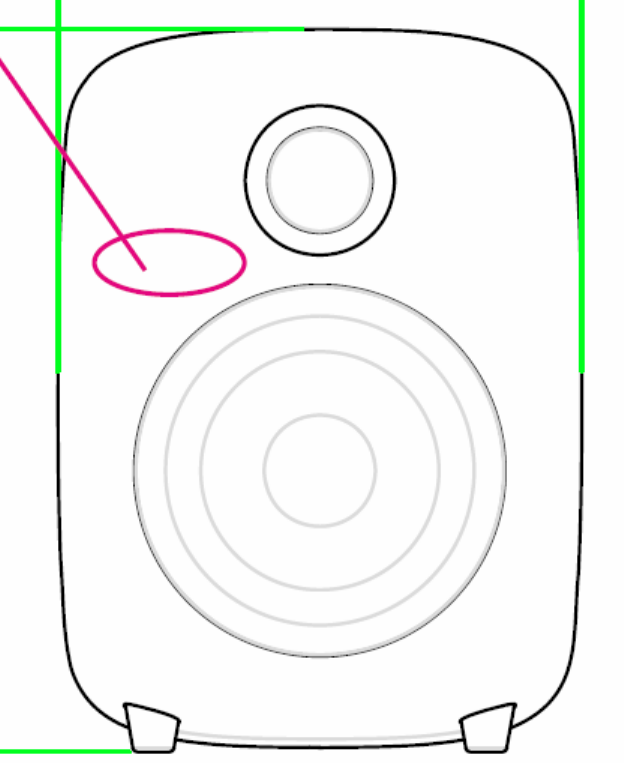

C1: Side Speaker

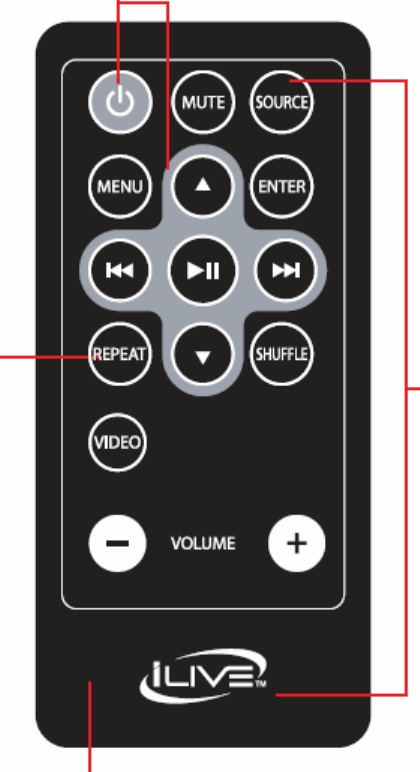

1. Power: Press to turn speaker on/off
2. Mute: Press to mute speaker
3. Source: Press to switch between iPod/Line in/Bluetooth
4. Menu: Press to go to Menu
5. Up: Press to navigate menu
6. Enter: Press to select menu
7. Previous tune: Press to go to last tune
8. Play/Pause: play or pause the track
9. Next tune: Press to go to last tune
10. Repeat: Press to cycle through repeat options on a docked iPod/iPhone/iPad
11. Down: Press to navigate menu
12. Shuffle: Press to cycle through shuffle options on a docked iPod/iPhone/iPad
13. Video out: Press to turn on video out
14. Vol-: Press to decrease volume
15. Vol+: Press to increase volume
Setup
Power
DC power input: requires an AC/DC power adapter (included)
Plug the side speaker connection cable into docking R/L line out jack.
iPod and iPhone and iPad
Docking an iPod or iPhone, or iPad
1. Connect the iPod or iPhone, or iPad to the connector inside the Dock for iPod
2. When the speaker is plugged in, using AC power, the docked iPod/iPHone/iPad
will charge.
Playing a Docked iPod/iPhone/iPad
1. Follow the instructions for Docking an iPod and iPhone and iPad.
2. Press the POWER button to switch on speaker and press SOURCE button to
switch to iPod mode.
3. Use the function buttons to control tracks and volume.
Remark: To see video in landscape orientation, push down the 30pin connector and
place iPad in landscape mode, connect iPad and speaker by 3.5mm audio cable.
To reset connector, please slide the RELEASE button.
3.5mm Audio Input and Composite Video Output
Using the 3.5mm Audio Input
Requires a 3.5mm audio cable
1. Connect a 3.5mm audio cable to the 3.5MM LINE IN on the speaker and an audio
output on an MP3 player or other audio source.
2. Press the SOURCE button to switch to Line In mode.
3. Use the native controls on the connected MP3 player or other audio source to play
and control audio played through the speaker.
Using the Composite Video Output
Requires an RCA composite video cable (included)
1. Connect the RCA composite video cable to the COMPOSITE VIDEO OUTPUT
on the speaker and a composite video input on a television.
2. Adjust the TV OUT settings on the docked iPod to OK.
3. Videos played from the docked iPod or iPhone
Bluetooth Function
1. Turn on speaker and Press the SOURCE button to switch to Bluetooth mode.
3. Use the native controls on the connected MP3 player or other audio source to play
and control audio played through the speaker.
Pairing a Bluetooth Device for the First Time
1. Power on the unit by pressing the Power
button.
2. Press the Source button to switch to
Bluetooth mode.
“PAIR” led will flash slowly.
3. Press and hold the Pair button until
“PAIR” flashes quickly.
When pairing, remain within 3 feet of the
unit.
4. Using the native controls on your
Bluetooth device, select the “ISDB752B” in
your Bluetooth settings to pair.
If your device requests a password, enter
the default password “ 0 0 0 0 ”.
Refer to the users manual for your specific
device for instructions on pairing and
connecting Bluetooth devices.
5. When successfully paired and connected,
the PAIR LED will show solid display.
After initial pairing, the unit will stay paired
unless unpaired manually by the user or
erased due to a reset of the device.
If your device should become unpaired or
you find it is unable to connect, repeat the
above steps.
Note: ISDB752B can store up to 8 devices.
The ninth paired device will replace the
first stored device in the unit’s memory.
The tenth device paired will replace the
second stored unit and so on.
Playing Audio Wirelessly
1. Follow the instructions for Pairing a
Bluetooth Device.
2. Use the native controls on the
connected Bluetooth Device to select a
track.
3. To play or pause the selected track, use
the native controls on the connected
Bluetooth Device or press the Play/
Pause button.
4. Audio played through the connected
Bluetooth device will now be heard through the speakers.

Navigation menu
