Thank you for purchasing the HMDX S50 iPod Speakers. This, like the entire HMDX
product line is built with high-quality craftsmanship to provide you years of
dependable service. We hope you will find it to be the finest product of its kind.
IMPORTANT SAFETY INSTRUCTIONS:
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER
- To reduce the risk of electric shock:
• Always unplug the appliance from the electrical outlet immediately after using
and before cleaning.
• Do not reach for an appliance that has fallen into water. Unplug it immediately.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
WARNING
- To reduce the risk of burns, fire, electric shock or injury to persons:
• Close supervision is necessary when this appliance is used by or near children,
invalids or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not
use attachments not recommended by HMDX; specifically any attachments not
provided with the unit.
• Never operate this appliance if it has a damaged cord, plug, cable or housing.
If it is not working properly, if it has been dropped or damaged, return it to
HMDX Service Center for examination and repair.
• Keep cord away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
• Do not carry this appliance by power cord or use cord as handle.
• To disconnect, remove plug from outlet.
• This appliance is designed for indoor use only. Do not use outdoors.
• Only set on dry surfaces. Do not place on surface wet from water or cleaning
solvents.
C
C
a
a
u
u
t
t
i
i
o
o
n
n
–
–
P
P
l
l
e
e
a
a
s
s
e
e
r
r
e
e
a
a
d
d
a
a
l
l
l
l
i
i
n
n
s
s
t
t
r
r
u
u
c
c
t
t
i
i
o
o
n
n
s
s
c
c
a
a
r
r
e
e
f
f
u
u
l
l
l
l
y
y
b
b
e
e
f
f
o
o
r
r
e
e
o
o
p
p
e
e
r
r
a
a
t
t
i
i
n
n
g
g
.
.
• Never leave the appliance unattended, especially if
children are present.
• Never cover the appliance when it is in operation.
• This unit should not be used by children without
adult supervision.
• Always keep the cord away from high temperature
and fire.
• Do not lift, carry, hang, or pull the product by the
power cord.
• If the adaptor sustains damage, you must stop using
this product immediately and contact the HMDX Service
Center. (See the warranty section for the HMDX address.)
SAVE THESE INSTRUCTIONS
Caution: All
servicing of
this product
must be
performed by
authorized
HMDX Service
Personnel only.
LINE IN Jack
5
4
Figure 3
Figure 2
DC Jack
Insert
1
23
7
89
Dock
Figure 1
Pin
Connector
Removal Slot
1POWER Button 8DC Adapter
2Volume Decrease 9iPod Inserts (4)
3Volume Increase - 2nd Gen iPod nano
4Dock for iPod - 3rd Gen iPod nano
5Speaker Recharging Cradle - 5th Gen iPod 30GB/iPod classic 80GB/iPod touch
6Speaker Alignment Notch - 5th Gen iPod 60GB & 80GB/iPod classic 160GB
7Line In Connection Cable
6
5
6
5
4
Figure 4
Channel
Control Charging
Indicator
Speaker
Alignment
Notch
Volume
Dial

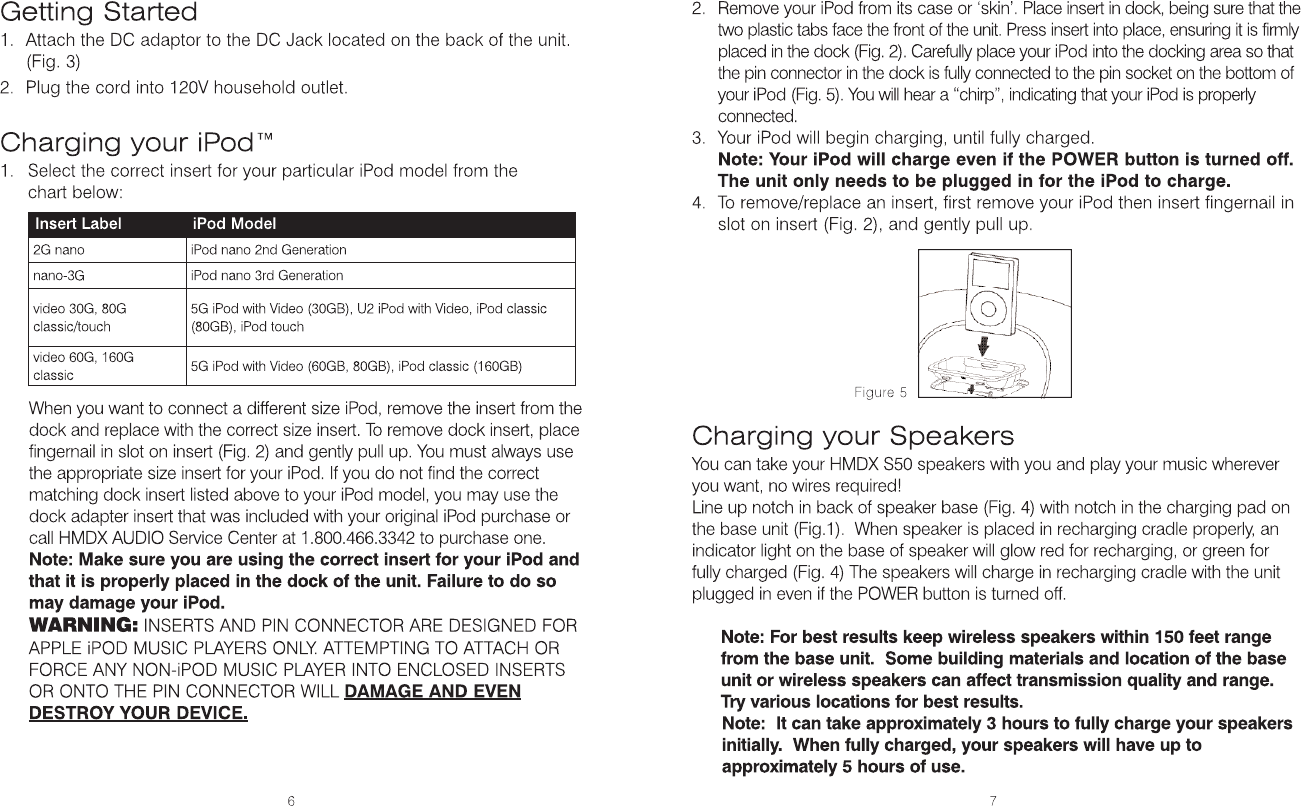

Listening to your iPod
1. Press POWER button on base unit. Button will glow blue to indicate base
unit is on. (Fig. 1).
2. Turn speakers on by rotating volume dial under each speaker clockwise.
Dial will click once as you rotate and glow blue to indicate speaker is on.
(Fig. 4)
Note: Both base unit and speakers need to be turned on to listen to
your iPod.
3. Press PLAY/PAUSE button on iPod to pause play; press again to resume
play.
4. Press – or + on base unit to adjust volume. (Fig. 1)
5. To turn unit off, press POWER button on base unit. Button will no longer
glow blue indicating it is off.
6. To turn speakers off rotate volume dial on each speaker counter clockwise
until dial clicks once and no longer glows blue.
Note: If the speakers have interference or static during play, adjust
channel by sliding channel control on back of unit. (Fig. 3). Select
from channel 1, 2, or 3 to achieve best sound signal.
Control Volume
You can adjust volume for each individual speaker or adjust volume for both
speakers from the HMDX-S50 base unit.
1. To adjust volume of each individual speaker, rotate volume dial under
speaker until you reach desired volume (Fig. 4). This can be done with the
speaker in or out of charging pads.
2. To adjust volume of system, use – or + buttons on HMDX-S50 base unit.
This can be done with speakers in or out of the charging pads. (Fig. 1)
3. For maximum volume rotate volume dial fully clockwise on each speaker,
and push + on front of unit until you have maximum volume.
Note: When iPod is in dock, volume is controlled through HMDX-
S50 unit, not by iPod click wheel. Figure 5
iPod®Shuffle
Connection
Cable
LINE IN
8 9

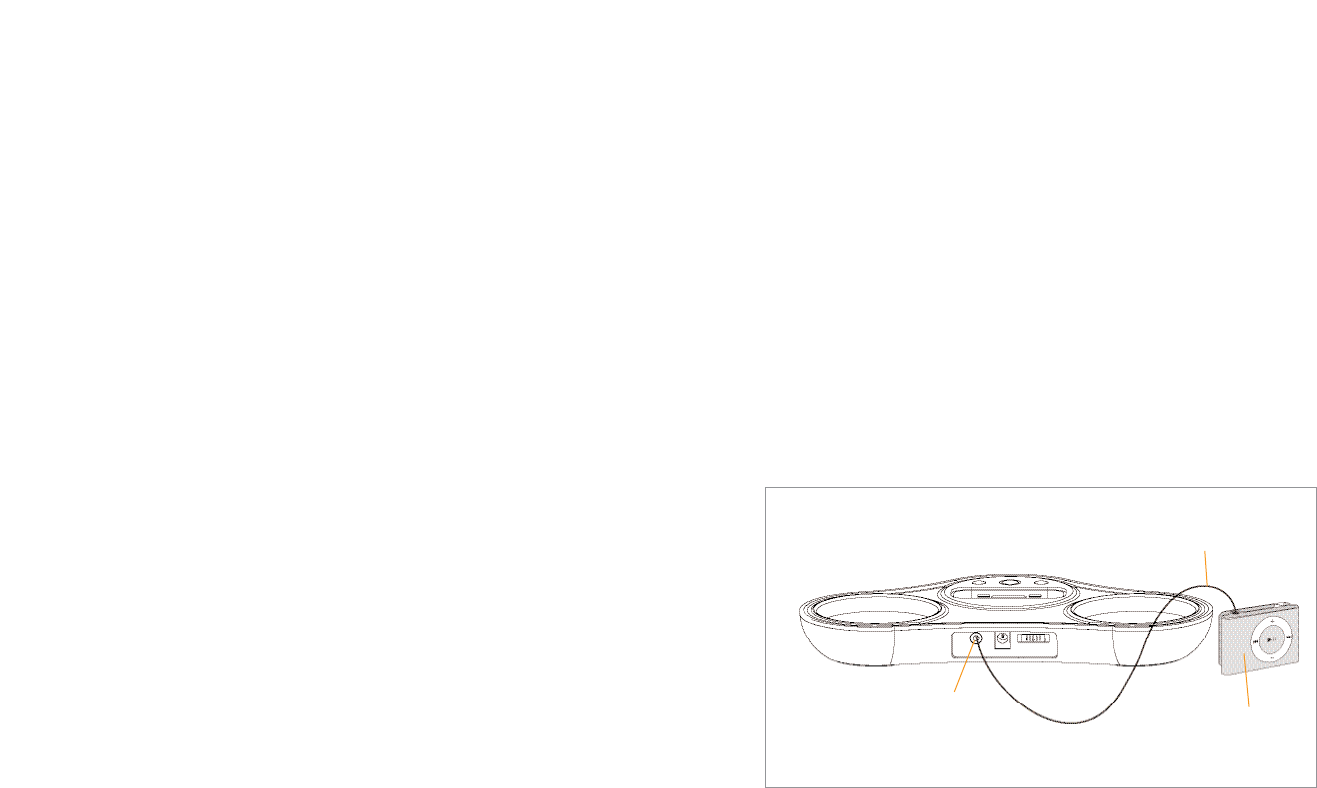

Listening to a non-docking iPod or other
portable audio devices
If you are using an iPod without a docking port, other MP3 player, or other
portable audio device, you can play it through the unit via the LINE IN jack
located on the back of the unit. (Fig. 6)
1. Plug one end of the Connection Cable (included) (Fig. 1) into the
headphone or line-out jack on your audio device and the other end of the
Connection Cable into the unit’s LINE IN jack located on the back of the
unit (Fig. 6).
2. Press the POWER button on the unit to turn it on (Fig. 1).
3. Turn on and play external audio device.
4. Press the ‘–’ or ‘+’ button on the unit to adjust volume (Fig. 1).
Note: You may need to adjust the volume on external device too.
5. To turn unit off, press the POWER button on the front of the unit (Fig. 1).
Note: You also need to turn off your external audio device as well.
