User’s Guide
Please read this user’s guide before using your new
Speaker System.
Wireless Speaker System
for iPod
40-285 UG081109-EN.indd 1 8/13/2009 5:42:09 PM
TM
2
Package contents
• Charging dock/Transmitter
• Two wireless speakers Two wireless speakers
• Remote Control with Battery
• 1/8”(3.5mm) Audio Cable
• AC Adapter • Five Cradles• Five Cradles
• User’s Guide • Quick Start
Features
• Rechargeable speakers can be placed up to 130
feet (40m) away so you can listen to your tunes
anywhere in your home.
• Aux-in jack and cable for connecting any other
audio devices that have a standard 1/8” (3.5mm)
headphone jack.
• Includes five cradles to keep most dockable iPod
models securely connected while they charge and
play.
• Remote control enables you to change songs or scan
through playlists without having to get up.
1Power Your Speaker System
You must charge the speakers for at least 4 hours
before using for the first time. Normally it takes
about 3 hours to fully charge the speakers.

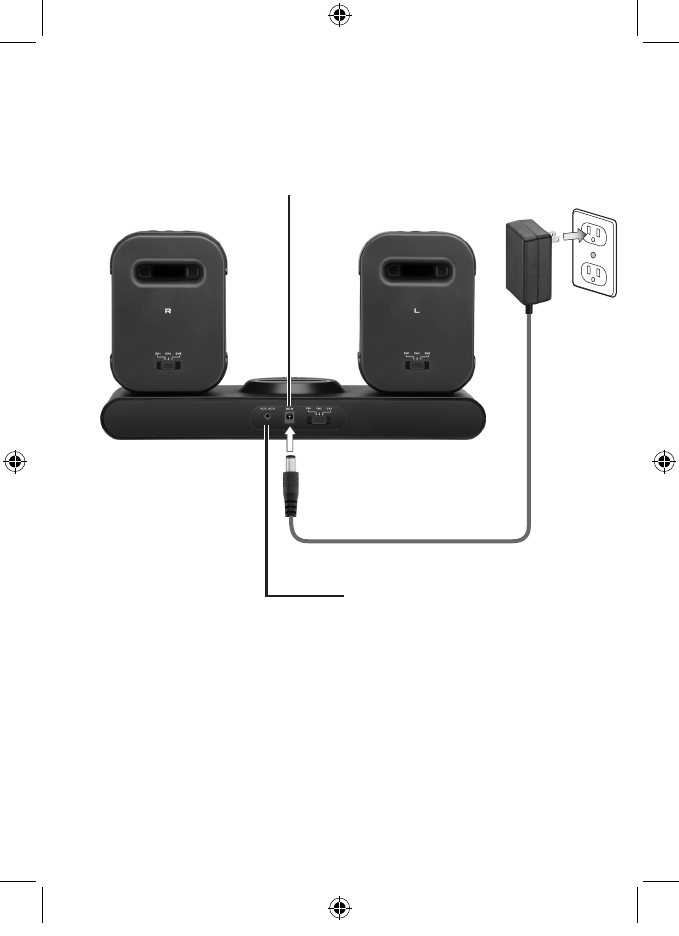

1. Connect the supplied AC adapter to the DC jack and
plug into a standard household outlet.
2. Place the speaker on the charging dock. The LED
indicator lights red. Once the the speakers are fullythe speakers are fully
charged, the indicator turns green. Remove theindicator turns green. Remove the
speakers.
40-285 UG081109-EN.indd 2 8/13/2009 5:42:09 PM
TM
3
AUX JACK
Connect an external
audio source to use
speaker system.
DC IN
Plug in the supplied AC
adapter.
40-285 UG081109-EN.indd 3 8/13/2009 5:42:11 PM
TM
4

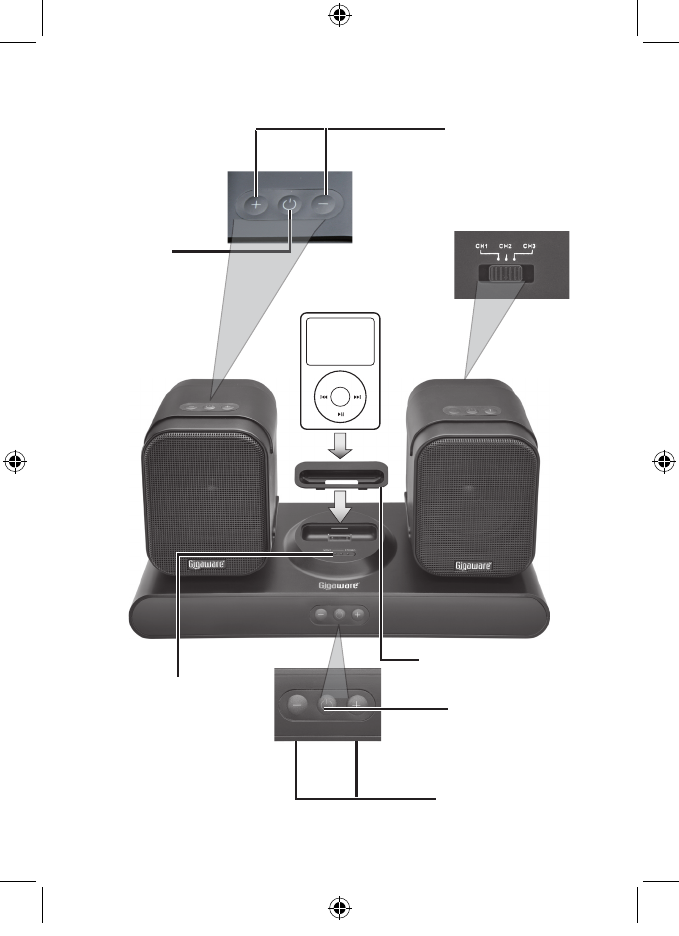

CH1, CH2, CH3
Slide to choose right
sound signal.
MENU
Cradle
Mono/Stereo
Slide to choose a
sound effect.
Volume
up/down
Power
on/off
Volume
up/down
Power
on/off
40-285 UG081109-EN.indd 4 8/13/2009 5:42:16 PM
TM
5
F /J
• Go to the previous/ next track.
• Press and hold to rewind/ fast
forward.
º
Turn on/off
Mute
Press once to mute the sound;
press again to resume sound.
Menu
Access the main menu.
Enter
Confirm menu selection.
Play/Pause
Volume Up/Down

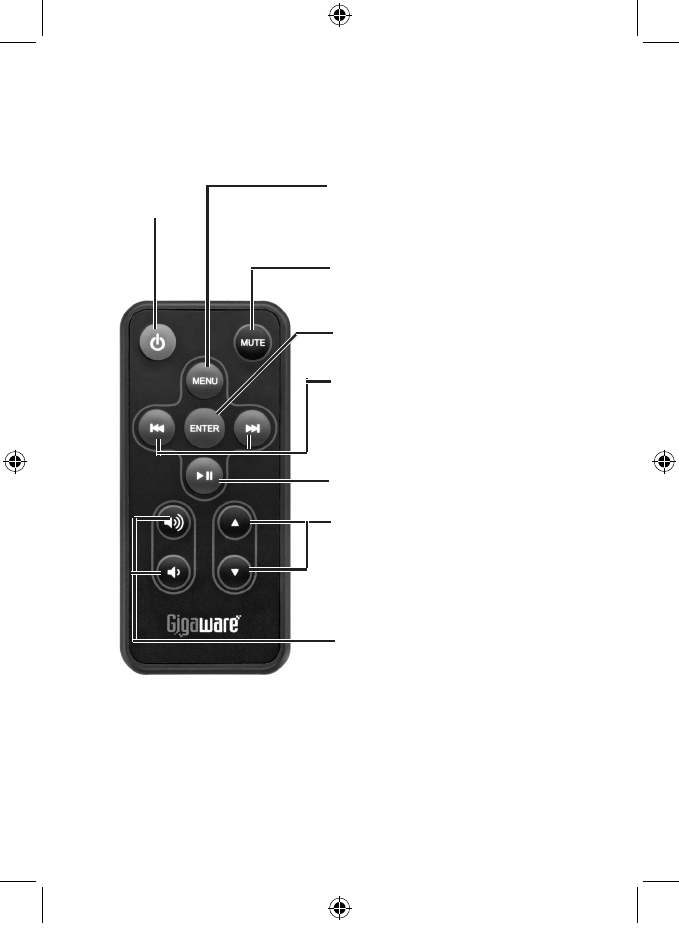

Remote Control
Navigate to select menu
items.
40-285 UG081109-EN.indd 5 8/13/2009 5:42:16 PM
TM
6
2 Replace the Remote Control
Battery
Remove the insulating plastic before using the
remote control.
Press the tab on the battery
compartment tray and slide the
tray out. Insert a new battery
of the same type (3V, CR2025),
positive (+) side up. Slide
the tray back into the battery
compartment until it clicks.
Important Battery Information:
• Dispose of batteries promptly and properly. Do not burn
or bury them. Use only fresh batteries of the required size
and type. Do not mix old and new batteries, different types
of batteries (alkaline, or rechargeable), or rechargeable
batteries of different capacities.
• If you do not plan to use the speaker system for a long
time, remove the battery. Batteries can leak chemicals that
can damage electronic parts.
• Do not charge longer than recommended. Unplug
the transmitter when the speakers are charged, and
disconnect the AC adapter from the wall outlet.
Slide out
40-285 UG081109-EN.indd 6 8/13/2009 5:42:17 PM
TM
7

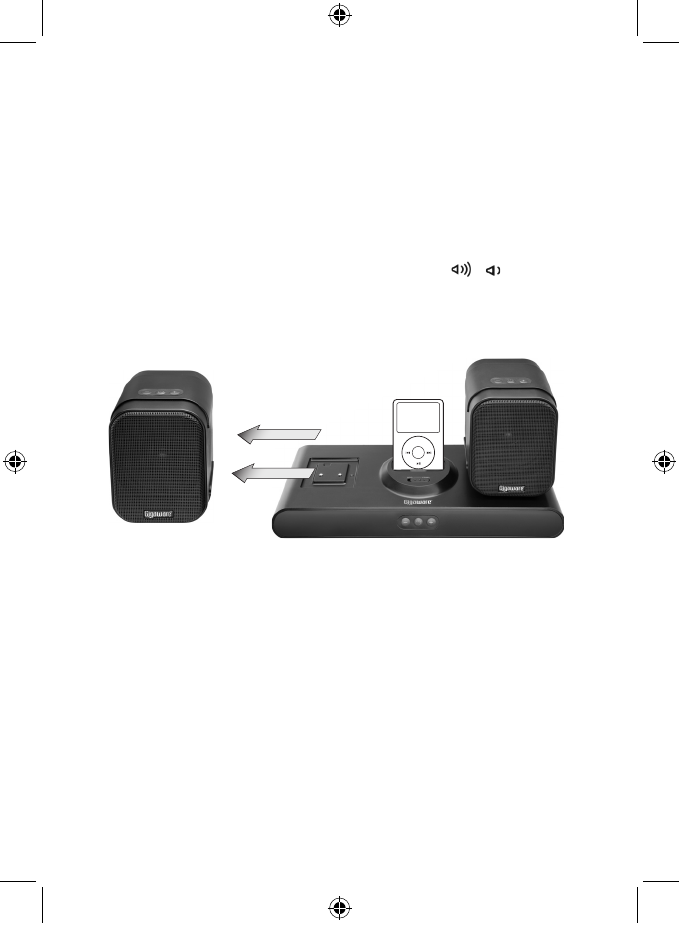

3 Listen to Your iPod
1. Insert the cradle that fits your iPod model, then plug
in your iPod.
2. Press º on the charging dock and the speakers to
turn on the system. Slide CH1, CH2, CH3 to choose
the best channel until the speakers receive the right
signal.
3. Use + or − on the docking system or / on the
remote control to adjust the volume. You can freely
move the speakers from room to room to listen to
your iPod.
n Notes:
• If the unit experiences any interference (signal loss or
distortion) while it is playing, select another channel to
obtain the best reception.
• Sometimes the speakers will give off noise when it is
searching for the wireless connection, which will stop after
the connection is paired. In order to avoid interference, do
not turn on other wireless devices at the same time.
• The docking system will automatically go into standy mode
after 3 minutes to save battery power.
MENU
40-285 UG081109-EN.indd 7 8/13/2009 5:42:18 PM
8
Select a Cradle for your iPod
The following table shows cradle names (on the back of
the cradle) and iPod/iPone models.
Cradle Name iPod Model
iPod touch iPod touch
iPod 4G (clolor display)
iPod 4G
iPod 3G
iPod 1G+2G
iPod mini
Nano 3G
Nano 4G
iPod nano 1G
iPod nano 2G (aluminum)
iPod nano 3G (video)
Video 60G/80G & Classic
160G
iPod classic
iPod 5G (video)
3.5mm Audio Cable iPod shuffle 1G
iPod shuffle 2G
40-285 UG081109-EN.indd 8 8/13/2009 5:42:18 PM
9

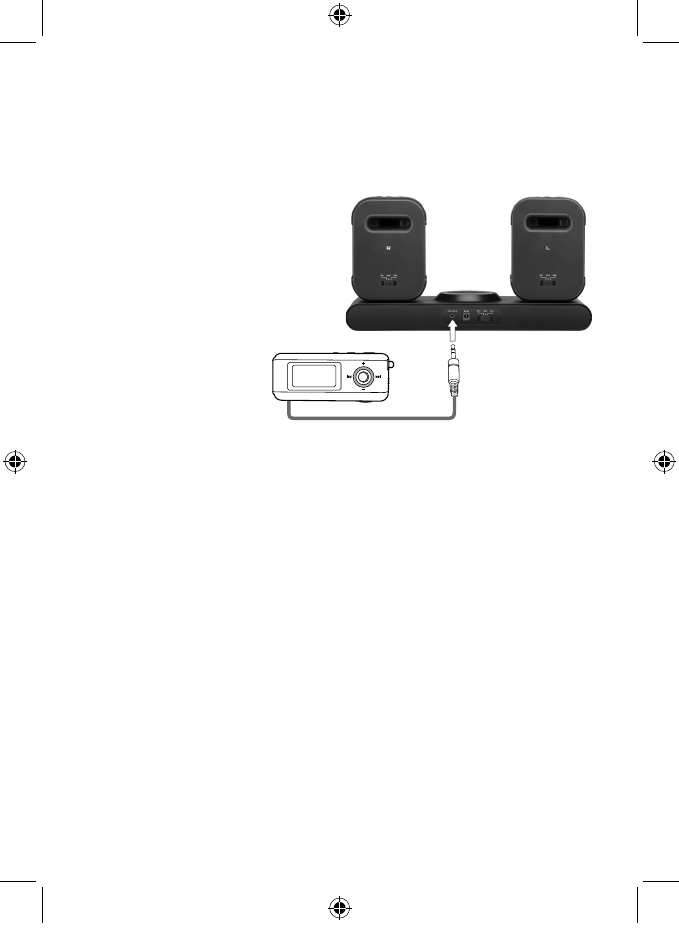

Play Auxiliary Audio Sources
1. Make sure you have removed any iPod from the
charging dock.
2. Use the 1/8 inch (3.5mm) audio cable to connect
your MP3 or
other auxiliary
audio source
with the AUX
JACK at the rear
of the charging
dock.
3. Ajust the
controls on
your connected
device to play.
Specifications
Power Supply ................................................ AC 100~240V, 50Hz~60Hz
Full Range Speaker ........................................................................ 2.75”
Wireless Working Distance ....................................up to 130 feet (40m)
Output Power ............................................... 2W x 2, 4W x 2 peak RMS
Frequency Response ........................................................ 120Hz~18kHz
S/N Ratio ........................................................................................70 dB
Impedance ................................................................................... 4 Ohm
AC Adapter..................................................................................9V, 1.5A
Audio Cable ..................................................................... 1/8 in (3.5mm)
Dimensions (WHD) ..................................................... (13.4x 5.3x 6.9 in)
.................................................................................. 340x 134x 176 mm
Specifications are subject to change and improvement without notice.
Actual product may vary from the images found in this document.
M
40-285 UG081109-EN.indd 9 8/13/2009 5:42:19 PM
10
Important Safety Informations
Read and Retain Instructions — Safety and operating instructions
should be read prior to use. The safety and operating instructions
should be retained for future reference.
Heed Warnings — Follow all warnings on the device and in the
instructions.
Cleaning — Unplug this device from the wall outlet before cleaning.
Clean only as recommended by the manufacturer. Clean by wiping
with a cloth slightly dampened with water. Avoid getting water inside
the device. Do not use liquid or aerosol cleaners.
Water and Moisture — Do not use this device near water (for
example, near a bathtub, washbowl, kitchen sink, or laundry tub; in a
wet basement; or near a swimming pool).
Accessories — Do not place device on an unstable cart, stand,
tripod, bracket, or table. The device may fall, causing injury to a child
or adult, and damage the device. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer or sold with the
device. Follow the manufacturer’s mounting instructions, and use a
recommended mounting accessory.
Ventilation — Slots and openings in the cabinet provide ventilation,
ensure reliable operation, and protect from overheating. Do not block
or cover these openings, and do not place the device on a bed, sofa,
rug, or other similar surface. Do not place the device in a built-in
installation such as a bookcase or rack unless it provides proper
ventilation as specified by the manufacturer.
Heat — The device should be situated away from heat sources such as
radiators, heat registers, stoves, or other devices that produce heat.
Power Sources — Use this device with the power source indicated
on its marking label. If you are not sure of your home’s power type,
consult your appliance dealer or local power company.
Grounding or Polarization — This product is equipped with a
polarized alternating-current line plug (a plug having one blade wider
than the other). This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If you still are unable to insert the plug
into the outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
40-285 UG081109-EN.indd 10 8/13/2009 5:42:19 PM
11
Power-Cord Protection — Route power-supply cords so they are not
likely to be walked on or pinched by items placed on or against them,
paying particular attention to cords at plugs, outlets, and the point
where they exit from the device.
Non-use Periods — The device’s power cord should be unplugged
from the outlet when it is to be left unused for a long period of time.
Overloading — Do not overload wall outlets, extension cords, or other
outlets. This can result in fire or electric shock.
Objects and Liquids — Never spill liquids or push objects of any kind
into this device through openings, as they may touch dangerous
voltage points or short out parts that could result in a fire or electric
shock.
Carts and Stands — If the device is used with a cart or stand, the
cart or stand should be a type recommended by the manufacturer.
A device and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces cause the device and cart
combination to overturn.
Damage Requiring Service — Refer servicing to qualified service
personnel under these conditions:
* When the power-supply cord or plug is damaged.
* Liquid was spilled or objects fell in the device.
* If the device has been exposed to rain or water.
* If the device does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the device to normal operation.
* If the device has been dropped or damaged.
* When there a distinct change in performance.
Servicing — Do not attempt to service this device yourself, as
opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
Replacement Parts — When replacement parts are needed, use
only parts specified by the manufacturer or parts with the same
characteristics as the original part. Substitutions may result in fire or
electric shock.
Safety Check — Upon completion of service or repairs, ask the
40-285 UG081109-EN.indd 11 8/13/2009 5:42:19 PM
12
service technician to perform safety checks to determine if the device
is in operating condition.
Lightning — For added protection during a lightning storm, or when
the device is unused for long periods of time, unplug it from the wall
outlet. This prevents damage due to lightning and power surges.
Attachments — Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
Wall or Ceiling Mounting — The product should be mounted to a wall
or ceiling only as recommended by the manufacturer.
SAVE THESE INSTRUCTIONS
The exclamation symbol is intended to inform you that
important operating and maintenance instructions are
included in the literature accompanying this product.
!
The lightning symbol is intended to alert you to
the
presence of uninsulated, dangerous voltage within this
product’s enclosure that might be of sufcient magnitude
to constitute a risk of electric shock. Do not open the
product’s case.
WARNING: To reduce the risk of re or shock hazard, do not expose
this product to rain or moisture.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER OR BACK. NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Recycle Rechargeable Batteries
Recycle your old rechargeable batteries at one of the many
collection sites in the U.S. and Canada. To find the site
nearest you, visit www.call2recycle.org or call toll-free 1-877-
2-RECYCLE.
40-285 UG081109-EN.indd 12 8/13/2009 5:42:19 PM
13
FCC Information
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Ignition L.P. may cause
interference and void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Product Wireless Speaker System for iPod
Model 40-285
Responsible
Party
Ignition L.P.
3102 Maple Ave. Suite 450
Dallas, TX 75201
Phone 866-315-0426
Limited Warranty
Ignition L.P. warrants this product against defects in materials and workmanship
under normal use by the original purchaser for ninety (90) days after the date of
purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or attributable to
abuse, misuse, failure to follow instructions, improper installation or maintenance,
alteration, accident, Acts of God (such as floods or lightning), or excess voltage or
current; (b) improper or incorrectly performed repairs by persons who are not a
Ignition L.P. Authorized Service Facility; (c) consumables such as fuses or batteries;
(d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or
insurance costs; (f) costs of product removal, installation, set-up service, adjust-
ment or reinstallation; and (g) claims by persons other than the original purchaser.
Should a problem occur that is covered by this warranty, take the product and
the sales receipt as proof of purchase date to the place of purchase. Ignition L.P.
will, at its option, unless otherwise provided by law: (a) repair the product without
40-285 UG081109-EN.indd 13 8/13/2009 5:42:19 PM

Navigation menu
