Wonders Technology SP58089 Bluetooth Speaker User Manual DS 1355 FCC
Wonders Technology Co., Ltd. Bluetooth Speaker DS 1355 FCC
user manual
Bluetooth Speaker
MIST
Thank you to have chosen our product. This product has been created by our
professional team and according to the USA regulation. For a better use of
your new device, we recommend you to read carefully this user manual and
keep it for record.
Specifications
• Model No.: SP58089
• Speaker size : 85 x 77mm
• Power by USB cable :DC 5V
• Rechargeable Li-ion battery included
• Battery capacity: 3.7V 500mAh
• Battery life: 4Hrs (Volume at 75%)
• Output power: 1.5W X 1 (THD=10%)
• Working distance: ＜ 10 M (Distance differs from different cellphone Bluetooth
devices and the environments)

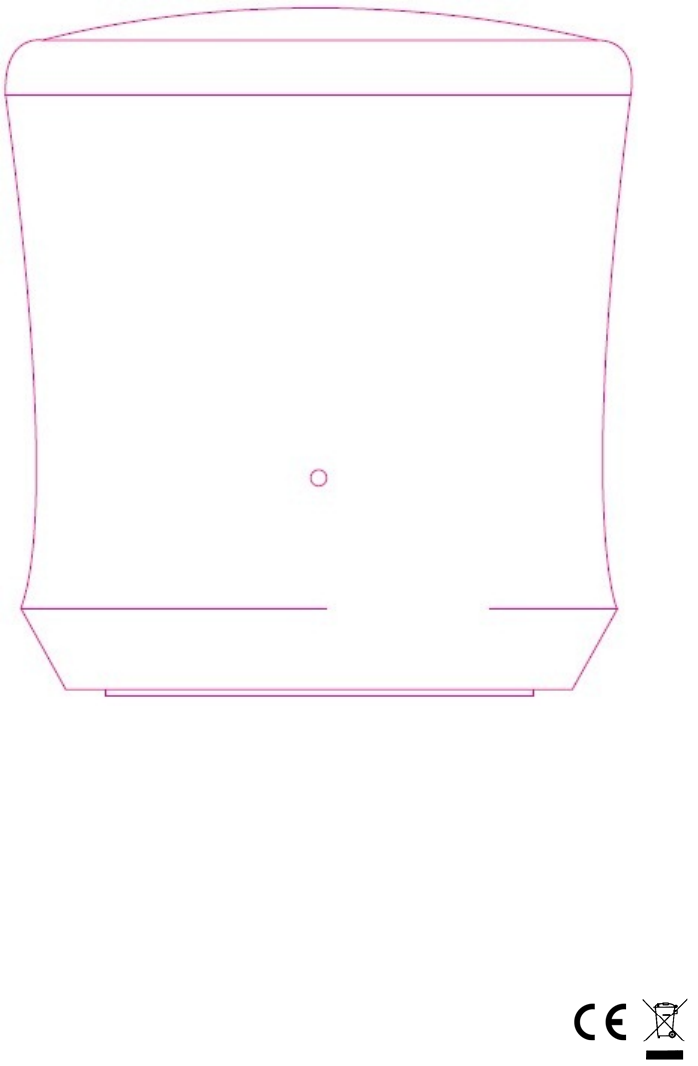

Product sketch map
1 2 3 4
1. Charing Indicator
2. Micro USB port
3. AUX in Port
4. LED Indicator
5. Volume Down
6. Hands Free Button
7. Volume Up
8. Pause/Play
8
5 6 7 9
9. Power On/Off Switch
Status Indicator
Bluetooth pairing LED blue light flash quickly
Paired LED blue lighting
Charging Red light
Fully Charged Green Light
Pairing Bluetooth Speaker
1. Push the power switch to turn on the speaker. A “Ding Du Ding” sound
out. The speaker is defaulted in Bluetooth Mode, and blue LED starts flashing.
2. Turn on your bluetooth device, search “MIST” in your bluetooth searching list,
then pair your bluetooth device with the speaker. (If your bluetooth device ask for
password, please insert “0000”.)
3. After paired successfully, there will be a beep sound out and you could play
songs.
Both the speaker and your Bluetooth device will store the device name. Next time, when you use the same
Bluetooth device to connect the speaker, no password is asked.
Playing Audio Wirelessly
1. Follow the instruction of Pairing Bluetooth Device
2. Adjust the volume by press or hold on the or buttons on speaker; or native
controls on the Bluetooth device.
3. Press Pause button on the speaker to play/pause the tune or just control the
tune by press Play/Pause on your Bluetooth device.
4. When do not play music, please push the power button to OFF.
Using the 3.5mm Audio Input
1. Plug one end of a 3.5mm Audio cable into the unit. The LED indicator light will
display a red light.
2. Plug the other end of the 3.5mm Audio cable into other audio devices.
3. Turn on the speaker, it will play music from the audio device.
4. Press and hold on the or buttons to adjust the volume.
5. If you want to Play/pause the tune, just control the native buttons on your audio
device.
