INSTALLATION MANUAL

SAVE THIS

MANUAL!

Include it with

your Loader Manual.

It contains safety,

operation, and repair

part information

not found in other

manuals.

211718 LOADER MOUNTING KIT

For 1009, 1012 Loaders

On Mahindra® Tractors

2815, 3215

FWA

Includes Hose Kit

1014620

MAN0530

(6/30/2006)

Tested. Proven. Unbeatable.

2 Introduction

LMK (Rev. 6/6/2005)

TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the Woods® dealer. Read manual instructions

and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Loader Operator’s

Manual are completed before releasing equipment to the owner.

TO THE OWNER:

Read this manual and Loader Operator’s Manual before operating your Woods equipment. The information presented

will prepare you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read

this manual carefully and become acquainted with all adjustment and operating procedures before attempting to

operate. Replacement manuals can be obtained from your dealer. To locate your nearest dealer, check the Dealer

Locator at www.WoodsEquipment.com, or in the United States and Canada call 1-800-319-6637.

The equipment you have purchased has been carefully engineered and manufactured to provide dependable and

satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.

Observe all safety information in this manual and safety decals on the equipment.

For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary

tools and equipment to handle all your needs.

Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for

safe and satisfactory operation. Record the model number of your equipment in the space provided.

Model: _______________________________ Date of Purchase: _____________________

Provide this information to your dealer to obtain correct repair parts.

Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to

equipment. The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-Alert Symbol (a

triangle with an exclamation mark) to indicate the degree of hazard for items of personal safety.

This Safety-Alert Symbol indicates a hazard and means ATTENTION!

BECOME ALERT! YOUR SAFETY IS INVOLVED!

Indicates an imminently hazardous situation that, if not avoided, will

result in death or serious injury.

Indicates a potentially hazardous situation that, if not avoided, could

result in death or serious injury, and includes hazards that are exposed

when guards are removed.

Indicates a potentially hazardous situation that, if not avoided, may

result in minor or moderate injury.

Indicates that failure to observe can cause damage to equipment.

Indicates helpful information.

CAUTION

CAUTION

IMPORTANT

IMPORTANT

WARNING

WARNING

DANGER

DANGER

NOTE

NOTE

Safety 3

Loader Mounting Kit SR3 (4/25/2003)

INSTALLATION

This Loader Mounting Kit is to be used only for

the loaders and tractors specified in this manual.

Any other use or modification of this mounting kit

may result in serious injury or death.

Hydraulics must be connected as instructed in

this manual. Do not substitute parts, modify, or

connect in any other way.

After connecting hoses, check that all control

lever positions function as instructed in the Opera-

tor's Manual. Do not put into service until control

lever and equipment movements are correct.

Safety instructions are important! Read all

attachment and power unit manuals; follow all

safety rules and safety decal information. (Replace-

ment manuals and safety decals are available from

your dealer. To locate your nearest dealer, check

the Dealer Locator at www.WoodsEquipment.com,

or in the United States and Canada call 1-800-319-

6637.) Failure to follow instructions or safety rules

can result in serious injury or death.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Check that all hardware is properly installed.

Always tighten to torque chart specifications

unless instructed otherwise in this manual.

Air in hydraulic systems can cause erratic oper-

ation and allows loads or equipment components

to drop unexpectedly. When connecting equipment

or hoses or performing any hydraulic maintenance,

purge any air in hydraulic system by operating all

hydraulic functions several times. Do this before

putting into service or allowing anyone to

approach the equipment.

Protective hose sleeves must cover all hydrau-

lic hoses within 20 inches of the operator and be

secured onto metal hose fittings. Replace hoses or

sleeves if damaged or if protective sleeve cannot

be properly positioned or secured.

Make sure all hydraulic hoses, fittings, and

valves are in good condition and not leaking before

starting power unit or using equipment. Check and

route hoses carefully to prevent damage. Hoses

must not be twisted, bent sharply, kinked, frayed,

pinched, or come into contact with any moving

parts. Operate moveable components through full

operational range to check clearances. Replace

any damaged hoses immediately.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Do not modify or alter or permit anyone else to

modify or alter the equipment or any of its compo-

nents in any way.

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.

Use a suitable lifting device of sufficient capac-

ity. Use adequate personnel to handle heavy com-

ponents.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Safety is a primary concern in the design and man-

ufacture of our products. Unfortunately, our efforts

to provide safe equipment can be wiped out by an

operator’s single careless act.

In addition to the design and configuration of

equipment, hazard control and accident prevention

are dependent upon the awareness, concern,

judgement, and proper training of personnel

involved in the operation, transport, maintenance,

and storage of equipment.

It has been said, “The best safety device is an

informed, careful operator.” We ask you to be that

kind of operator.

Si no lee Ingles, pida ayuda a

alguien que si lo lea para que le

traduzca las medidas de seguridad.

LEA EL INSTRUCTIVO!

!

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

4 Mount Installation

MAN0530 (6/30/2006)

211718 LOADER MOUNTING KIT

■ Only use 211718 Loader Mounting Kit for

mounting Woods 1009 and 1012 loaders on Mahin-

dra® 2815 and 3215 tractors. Any other use or mod-

ification of these mounting kits may result in

serious injury or death.

Safety instructions are important! Read all

attachment and power unit manuals; follow all

safety rules and safety decal information. (Replace-

ment manuals and safety decals are available from

your dealer. To locate your nearest dealer, check

the Dealer Locator at www.WoodsEquipment.com,

or in the United States and Canada call 1-800-319-

6637.) Failure to follow instructions or safety rules

can result in serious injury or death.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate

IMPORTANT

■ This equipment must be assembled and

installed on the customer’s tractor by the Woods

dealer. Dealer must thoroughly inspect equipment

and complete each item on the PRE-DELIVERY

CHECK LIST, DELIVERY CHECK LIST, and PROD-

UCT REGISTRATION before equipment is released

to the customer.

■ Clean threaded holes in the tractor chassis

thoroughly, using a tap of the proper size. Paint,

rust, or debris in the threads may not permit cap

screws to be installed and tightened correctly.

CAUTION

Tractor Preparation

For installing this mounting kit, references to right, left,

forward, and rearward directions are determined from

the operator’s position in the tractor seat.

Leave all hardware loose until loader mount is com-

pletely assembled. When assembly is completed,

torque hardware to specifications listed on page 8 of

this manual.

1. Shut off engine and set parking brake during

installation.

2. Remove the tractor front weights and front weight

bracket, if equipped.

As a valued customer, Woods appreciates your comments. Once loader mount and

hydraulic hoses have been installed, please take a few minutes to complete the Loader

Mount Evaluation sheet that was supplied with this mount. Your comments will help us

continue to bring you quality products.

Mount Installation 5

MAN0530 (6/30/2006)

Install Right and Left Rear Mounts

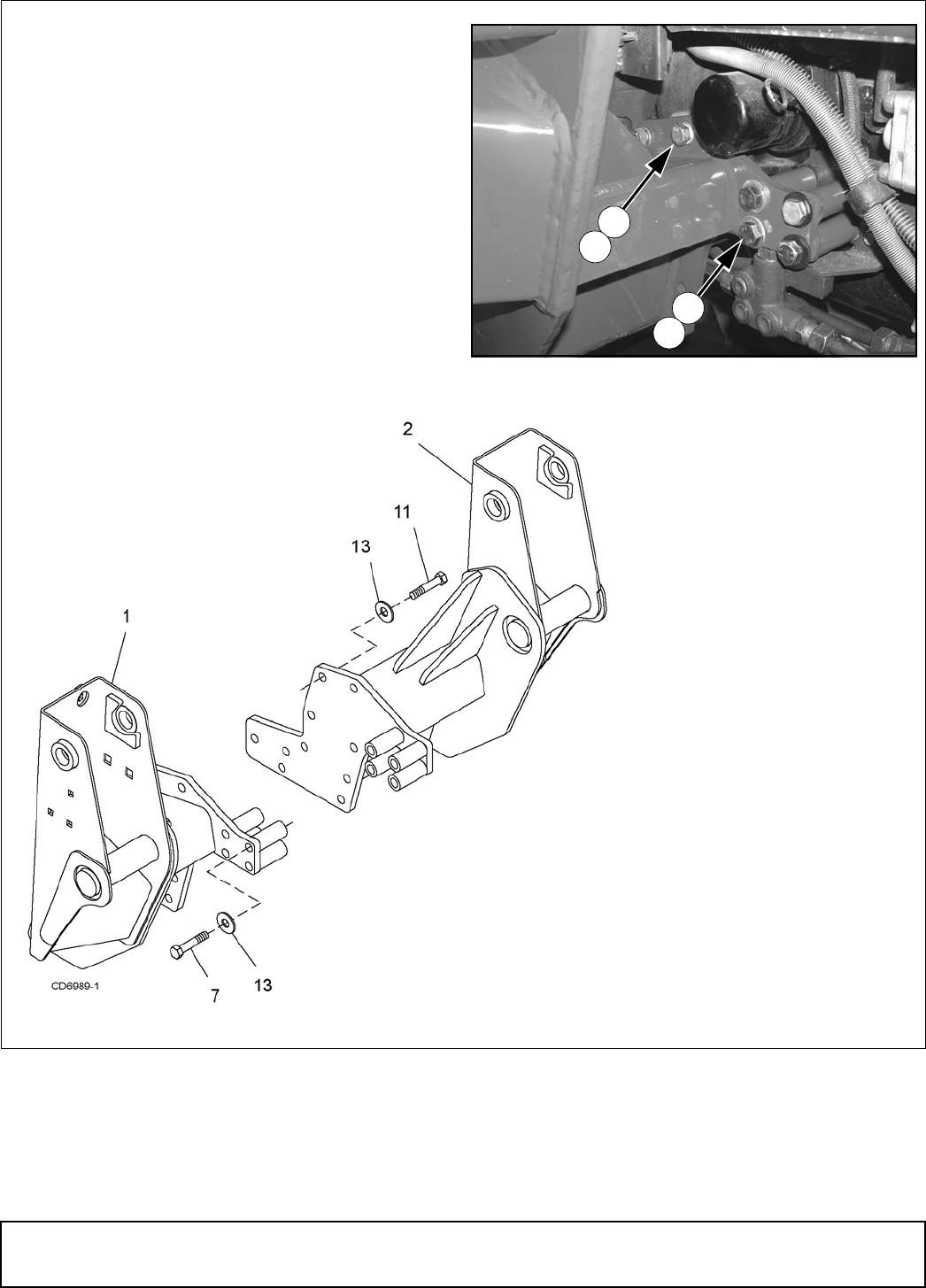

1. Using a lifting device, align right mount (1) with

holes on tractor mounting pad.

2. Secure right mount to mounting pad using four

cap screws (11) and hardened flat washers (13).

See Figure 1 and Figure 2.

3. Secure mount to tractor frame using four cap

screws (7) and hardened flat washers (13).

4. Repeat steps to install left rear mount (2).

Figure 1. Right Rear Mount Installed

Figure 2. Right and Left Rear Mount Installation

DP1

13

7

13

11

1. 1020638 Right rear mount

2. 1020639 Left rear mount

7. 1020669 M14 x 1.5P x 110 mm HHCS

11. 34635 M14 x 2.0P x 40 mm HHCS

13. 46070 9/16 Hardened flat washer

6 Mount Installation

MAN0530 (6/30/2006)

Install Rear Axle Plates

1. Remove three bolts from lower axle housing.

2. Place axle plate (4) over axle housing and secure

using two cap screws (8) and hardened flat wash-

ers (14) in the middle and rear holes.

3. Install cap screw (9) and hardened flat washer

(12) in the front hole.

4. Repeat steps to install second axle plate on oppo-

site of tractor.

4. 1020649 Axle plate

8. 307309 M12 x 1.75P x 60 mm HHCS

9. 32333 M10 x 1.25P x 50 mm HHCS

12. 44546 3/8 Hardened flat washer

14. 57816 1/2 Hardened flat washer

Figure 3. Axle Plate Installed, Left Side Shown

Install Rear Rails

1. Attach right rear rail (5) to the outside of axle plate

on right side of axle housing using three cap

screws (10), hardened flat washers (13), and hex

nuts (15). See Figure 4.

NOTE: Rear rail should be on the inside of front

mount.

2. Attach left rear rail (6) to the outside of axle plate

on left side of axle housing using three cap

screws (10), hardened flat washers (13), and hex

nuts (15).

5. 1020650 Right rear rail

6. 1020651 Left rear rail

10. 33757 M14 x 2.0P x 60 mm HHCS

13. 46070 9/16 Hardened flat washer

15. 307825 M14 x 2.0P Hex nut

Figure 4. Right Rear Rail to Axle Plate Connection

14

84

12

9

13

10

15

5

Mount Installation 7

MAN0530 (6/30/2006)

Install Cross Brace

1. Place cross brace (3) between right (5) and left

(6) rear rails and right (1) and left (2) rear mounts.

2. Secure parts together using six cap screws (10)

(three per side), hardened flat washers (13), and

hex nuts (15).

Figure 5. Cross Brace Installation

1. 1020638 Right rear mount (not shown)

2. 1020639 Left rear mount

3. 1020646 Cross brace

5. 1020650 Right rear rail

6. 1020651 Left rear rail

10. 33757 M14 x 2.0P x 60 mm HHCS

13. 46070 9/16 Hardened flat washer

15. 307825 M14 x 2.0P Hex nut

8 Mount Installation

MAN0530 (6/30/2006)

Torque Hardware

Torque hardware to specifications listed below.

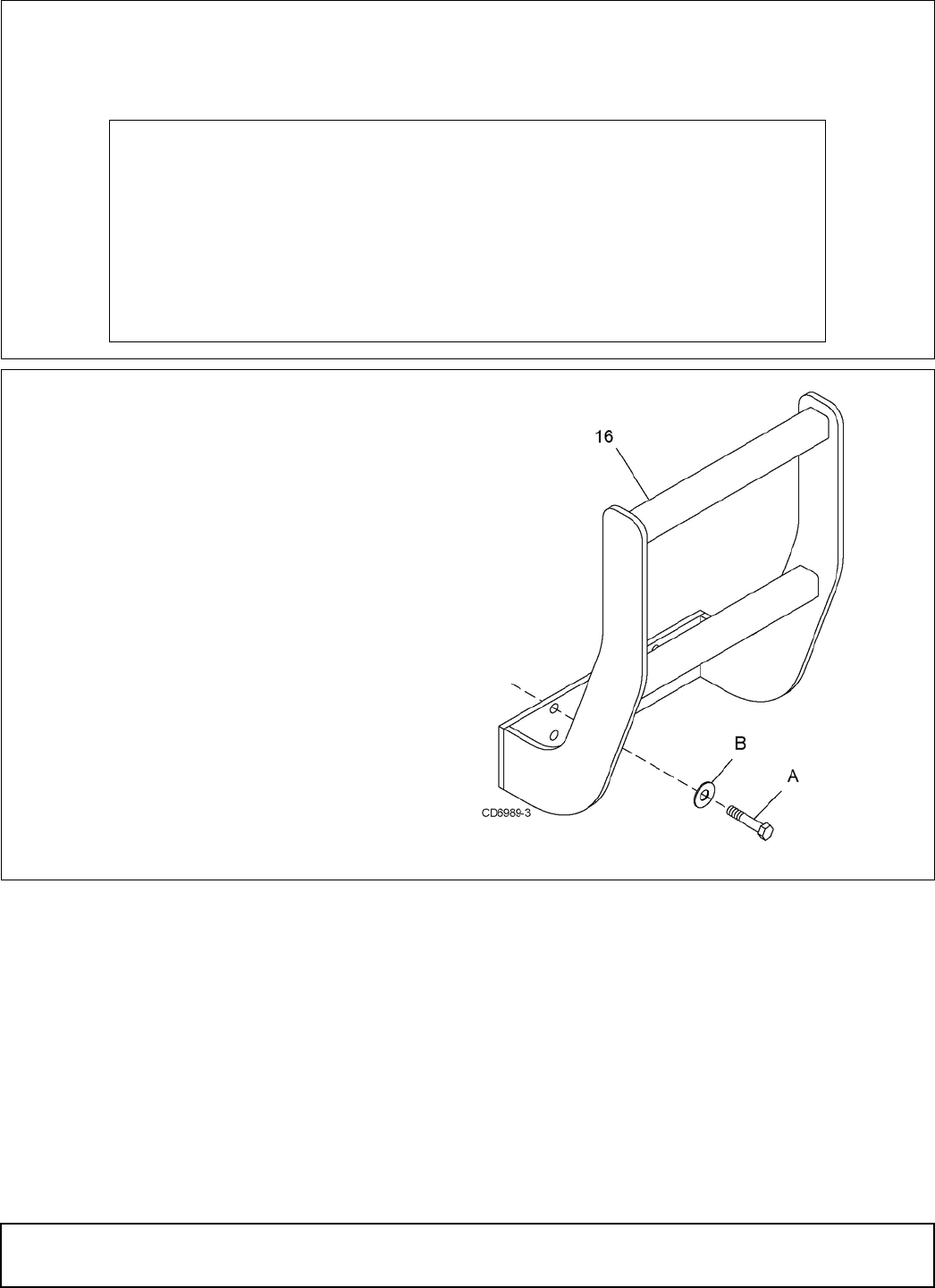

Install Grill Guard (Optional)

1. Align grill guard (16) with holes on front of tractor

frame and secure into position using four cap

screws (A) and hardened flat washers (B).

2. Torque to 50 lbs-ft.

16. 1021860 Grill guard -

(Includes hardware A & B)

A. 62542 M12 x 1.75P x 30 mm HHCS

B. 57816 1/2 Hardened flat washer

Figure 6. Grill Guard Installation

TORQUE SPECIFICATIONS

Ref Hex Head Cap Screw Qty

Wrench

Size Required Torque

7 M14 x 1.5P x 110 mm 8 21mm 87 lbs-ft (118 N-m)

8 M12 x 1.75P x 60 mm 4 18 mm 50 lbs-ft (68 N-m)

9 M10 x 1.25P x 50 mm 2 16 mm 30 lbs-ft (41 N-m)

10 M14 x 2.0P x 60 mm 12 21 mm 80 lbs-ft (109 N-m)

11 M14 x 2.0P x 40 mm CL109 8 21 mm 111 lbs-ft (151 N-m)

Hydraulic Installation 9

MAN0530 (6/30/2006)

1014620 HOSE KIT INSTALLATION

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Air in hydraulic systems can cause erratic oper-

ation and allows loads or equipment components

to drop unexpectedly. When connecting equipment

or hoses or performing any hydraulic maintenance,

purge any air in hydraulic system by operating all

hydraulic functions several times. Do this before

putting into service or allowing anyone to

approach the equipment.

Protective hose sleeves must cover all hydrau-

lic hoses within 20 inches of the operator and be

secured onto metal hose fittings. Replace hoses or

sleeves if damaged or if protective sleeve cannot

be properly positioned or secured.

Make sure all hydraulic hoses, fittings, and

valves are in good condition and not leaking before

starting power unit or using equipment. Check and

route hoses carefully to prevent damage. Hoses

must not be twisted, bent sharply, kinked, frayed,

pinched, or come into contact with any moving

parts. Operate moveable components through full

operational range to check clearances. Replace

any damaged hoses immediately.

IMPORTANT

■ If hydraulic lines are not connected as shown in

this manual, the control valve may be damaged. A

blocked outlet (RETURN) or improper hose

connection will cause pressurized oil to enter the

return circuit and damage the valve.

General Description

Completion of this hose kit installation requires con-

nection to a Woods single-lever control valve,

mounted to the right loader mount with a mounting

bracket as shown in Figure 14.

Mount control valve to loader mount before proceed-

ing.

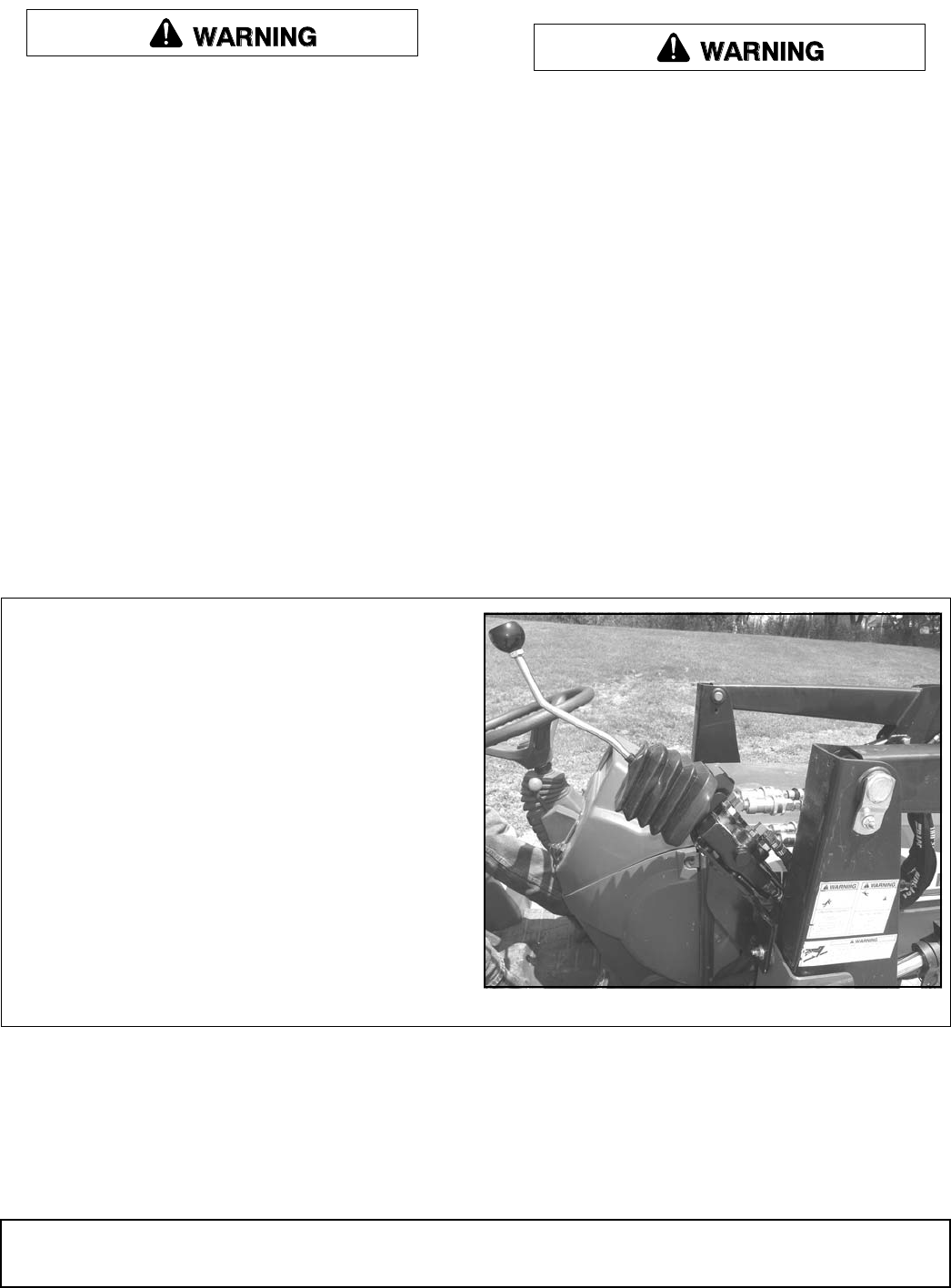

Figure 14. Single-Lever Control Valve

DP8

10 Hydraulic Installation

MAN0530 (6/30/2006)

Install Hydraulic Fittings to Tractor

IMPORTANT

■ Incorrect installation can damage tractor

hydraulic system. Read and understand

instructions in tractor manual before connecting.

1. Locate the hydraulic manifold block on the right

side of the tractor chassis, below and in front of

the operator’s platform.

2. Remove three hex head pipe plugs from manifold

block ports.

NOTE: Use thread sealant on all pipe thread

connections and tighten securely to prevent

leaks.

3. Install adapters (2) and elbows (3) into the T

(RETURN), N (PBY), and P (PRESSURE) ports

on the hydraulic manifold. See Figure 16.

4. Position elbows to point up and slightly to the

front.

2. 315045 Adapter, 3/8 BSPTM x 3/8 NPTF

3. 44552 Elbow, 3/8 NPTM x 9/16 JICM 45°

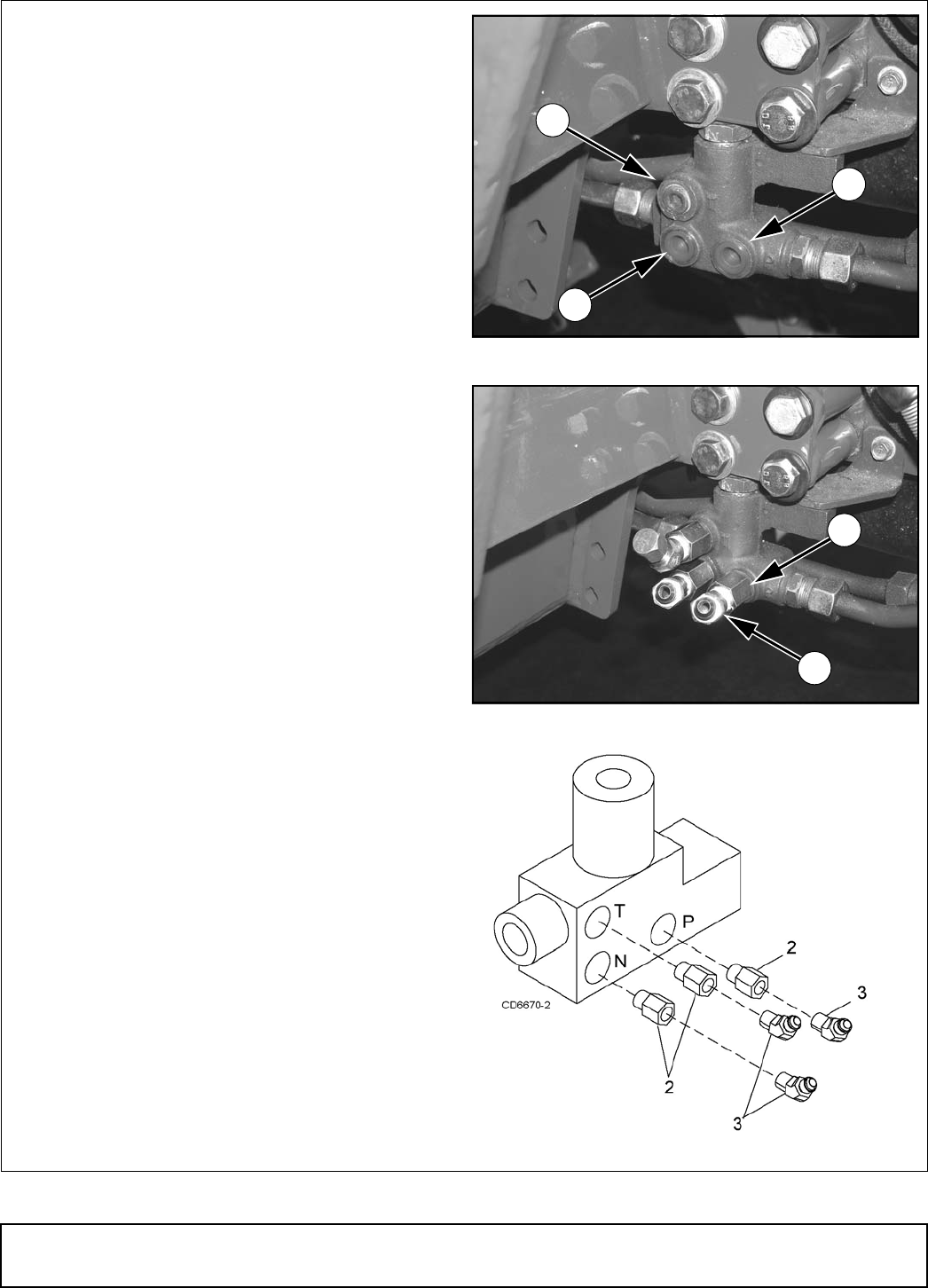

Figure 15. Tractor Hydraulic Manifold

Figure 16. Hydraulic Fittings Installed

Figure 17. Hydraulic Fitting Installation

DP5

T

P

N

DP6

2

3

Hydraulic Installation 11

MAN0530 (6/30/2006)

Connect Hydraulic Hoses

1. Remove hydraulic fitting from the PBY port on the

control valve.

2. Install elbow (4) into PBY port.

3. Connect end of hose (1) to the IN, OUT and PBY

ports on the control valve.

4. Route hoses along inside right loader mount.

5. Connect hose (1) from the IN port on the control

valve to the (P) port on the hydraulic manifold.

6. Connect second hose (1) from the OUT port on

the control valve to the (T) port on the hydraulic

manifold.

7. Connect third hose (1) from the PBY port on the

control valve to the (N) port on the hydraulic

manifold.

1. 1014619 Hose, 36" x 9/16 JICF x 9/16 JICF

4. 63558 9/16 JICM x 9/16 ORBM 90° Figure 18. Hydraulic Hose Installation - Control Valve

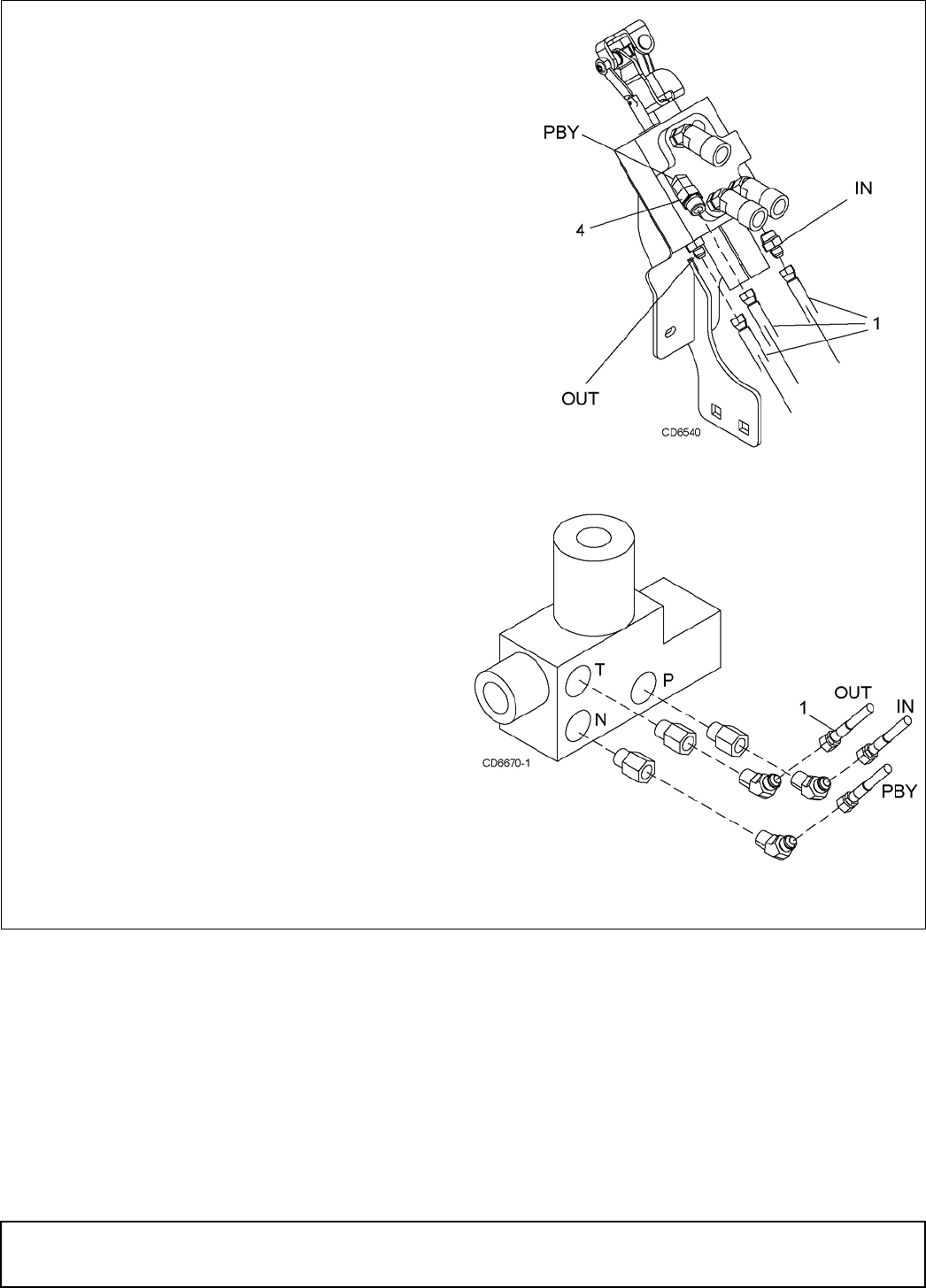

Figure 19. Hydraulic Hose Installation

Hydraulic Manifold

12 Hydraulic Installation

MAN0530 (6/30/2006)

Connect Work Port Hoses

1. The control valve kit contains hoses assembled

with quick couplers. Attach the hoses to loader

feedlines, following the color scheme shown in

Figure 20.

2. Connect loader feed hoses to control valve

hydraulic couplers when attaching loader.

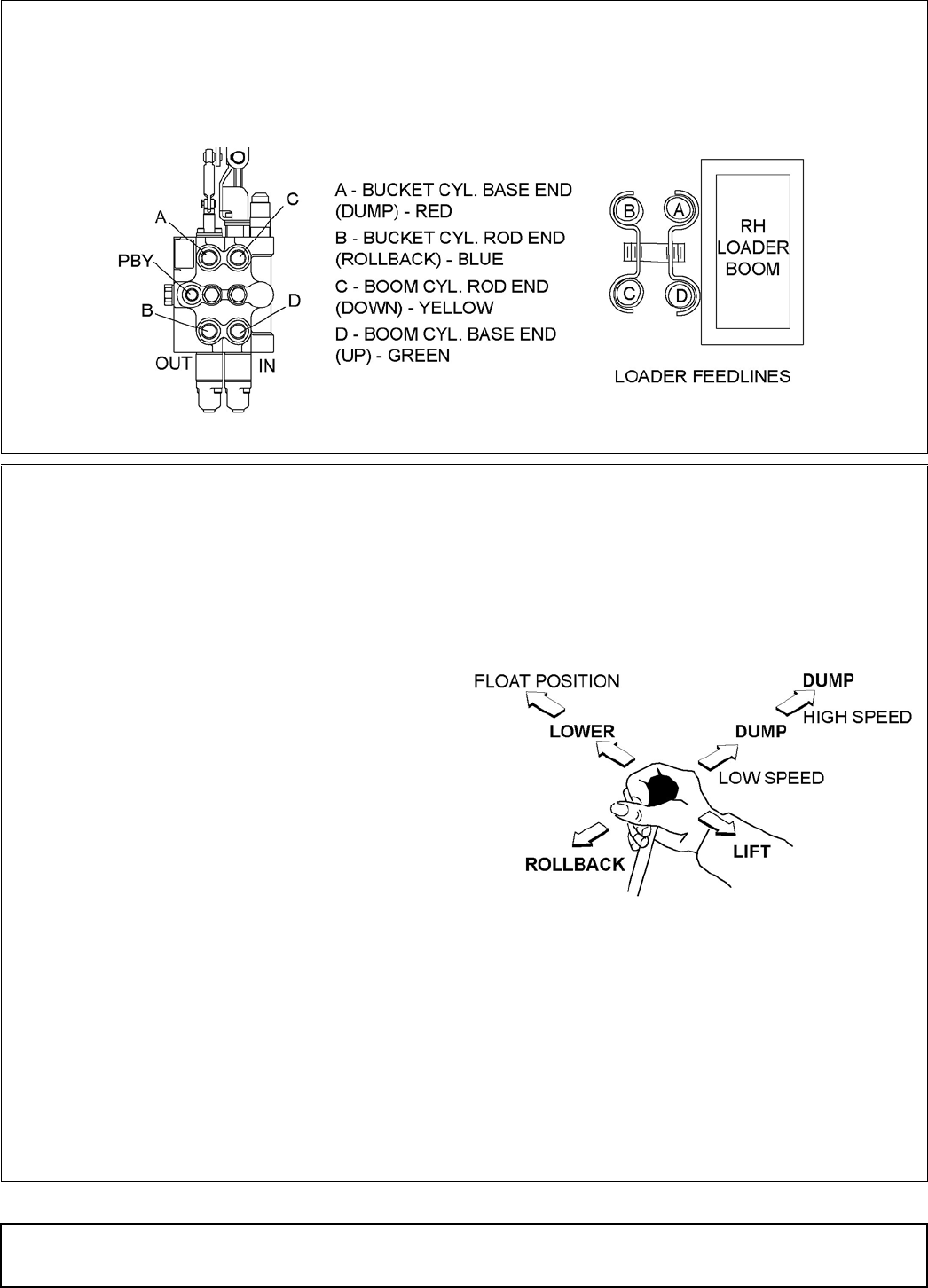

Figure 20. Control Valve and Loader Feedline Connections

Verify Control Movements

1. Mount loader to tractor: Remove mount pins

from loader uprights. Align tractor with loader and

slowly drive tractor into loader. Shut off tractor.

2. Connect loader feedline hoses to the loader

control valve quick couplers. See Figure 20.

3. Comply with all safety rules and start the tractor.

4. Mount loader to tractor by activating bucket

cylinders to raise or lower the loader uprights into

the loader mounts. Slowly drive tractor forward,

activating appropriate cylinders to engage loader

completely into mounts. Insert mounting pins to

secure loader.

5. Check that all tractor hydraulic control lever

positions operate the loader movements correctly.

See Figure 21.

6. If loader movements do not respond correctly,

shut off tractor, relieve pressure, and reconnect

properly. Loader control movements must be

correct before proceeding.

7. Once all loader functions are correct, start the

tractor and operate the loader to check for leaks.

Purge any remaining air from the hydraulic

system and check oil level.

8. When hose routings and correct loader

operations are verified, identify each circuit by

placing a matching colored band around the male

and female quick-disconnect coupler. The

color-coded bands will make reinstallation easier

when the loader is removed from the tractor.

9. Attach the plastic tie straps (included in kit) every

20 inches around the hoses to keep them tightly

bundled and away from contact with the ground

or other moving parts on the tractor or loader.

10. Before operating the loader, make sure that the

Pre-Delivery, Delivery, and Pre-Operation Check

Lists from the Loader Operator’s Manual have

been completed.

Figure 21. Single Lever Control Operation

●Handle forward - Boom down

●Handle forward to limit - Float position

●Handle back - Boom up

●Handle right -

Dump bucket or attachment (slow)

●Handle right to limit -

Dump bucket or attachment (fast)

●Handle to left - Rollback bucket or attachment

Parts 13

MAN0530 (6/30/2006)

211718 LOADER MOUNTING KIT

REF PART QTY DESCRIPTION

1 1020638 1 Right rear mount

2 1020639 1 Left rear mount

3 1020646 1 Cross brace

4 1020649 2 Rear axle plate

5 1020650 1 Right rear rail

6 1020651 1 Left rear rail

7 1020669 8 M14 x 1.5P x 110 mm HHCS CL8.8

8 307309 4 M12 x 1.75P x 60 mm HHCS

9 32333 2 M10 x 1.25P x 50 mm HHCS

10 33757 12 M14 x 2.0P x 60 mm HHCS

11 34635 8 M14 x 2.0P x 40 mm HHCS CL10.9

REF PART QTY DESCRIPTION

12 44546 2 3/8 Hardened flat washer

13 46070 28 9/16 Hardened flat washer

14 57816 4 1/2 Hardened flat washer

15 307825 12 M14 x 2.0P Hex nut

16 1021860 1 Grill guard (optional)

includes items A & B

A 62542 4 M12 x 1.75P x 30 mm HHCS

B 57816 4 1/2 Hardened flat washer

HHCS Hex head cap screw

* Standard hardware, obtain locally

14 Parts

MAN0530 (6/30/2006)

1014620 HOSE KIT

REF PART QTY DESCRIPTION

1 1014619 3 Hose, 36" x 9/16 JICF x 9/16 JICF

2 315045 3 Adapter, 3/8 BSPTM x 3/8 NPTF

3 44552 3 Elbow, 3/8 NPTM x 9/16 JICM 45°

4 63558 1 Elbow, 9/16 JICM x 9/16 ORBM 90°

(not shown)

Appendix 15

Bolt Torque & Size Charts (Rev. 10/10/2005)

BOLT TORQUE CHART

Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific

application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.

Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.

Make sure fastener threads are clean and you start thread engagement properly.

All torque values are given to specifications used on hardware defined by SAE J1701 MAR 99 & J1701M JUL 96.

Diameter

(Inches)

Wrench

Size

MARKING ON HEAD

SAE 2 SAE 5 SAE 8

lbs-ft N-m lbs-ft N-m lbs-ft N-m

1/4" 7/16" 6 8 10 13 14 18

5/16"1/2"121719262737

3/8"9/16"233135474967

7/16"5/8"3648557578106

1/2" 3/4" 55 75 85 115 120 163

9/16" 13/16" 78 106 121 164 171 232

5/8" 15/16" 110 149 170 230 240 325

3/4" 1-1/8" 192 261 297 403 420 569

7/8" 1-5/16" 306 416 474 642 669 907

1" 1-1/2" 467 634 722 979 1020 1383

A

SAE SERIES

TORQUE

CHART

SAE Bolt Head

Identification

SAE Grade 2

(No Dashes)

SAE Grade 5

(3 Radial Dashes)

SAE Grade 8

(6 Radial Dashes)

A

METRIC SERIES

TORQUE

CHART

Metric Bolt Head

Identification

8.8

Metric

Grade 10.9

10.9

Metric

Grade 8.8

A

Diameter &

Thread Pitch

(Millimeters)

Wrench

Size

COARSE THREAD FINE THREAD

Diameter &

Thread Pitch

(Millimeters)

MARKING ON HEAD MARKING ON HEAD

Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9

N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft

6 x 1.0 10 mm 8 6 11 8 8 6 11 8 6 x 1.0

8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8 x 1.0

10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10 x 1.25

12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25

14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5

16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5

18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5

20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5

22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5

24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0

30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0

A A

Typical Washer

Installations

Lock Washer

Flat Washer

8/9/00

Bolt

16 Appendix

Bolt Torque & Size Charts (Rev. 10/10/2005)

BOLT SIZE CHART

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts.

ABBREVIATIONS

AG ............................................................ Agriculture

ATF .............................. Automatic Transmission Fluid

BSPP ........................... British Standard Pipe Parallel

BSPTM .............. British Standard Pipe Tapered Male

CV................................................... Constant Velocity

CCW .............................................Counter-Clockwise

CW..............................................................Clockwise

F .....................................................................Female

GA ................................................................... Gauge

GR (5, etc.) ..........................................Grade (5, etc.)

HHCS ...................................... Hex Head Cap Screw

HT.......................................................... Heat-Treated

JIC ............... Joint Industry Council 37° Degree Flare

LH ............................................................... Left Hand

LT..........................................................................Left

m....................................................................... Meter

mm.............................................................. Millimeter

M.........................................................................Male

MPa ....................................................... Mega Pascal

N .....................................................................Newton

NC .................................................... National Coarse

NF .........................................................National Fine

NPSM................... National Pipe Straight Mechanical

NPT .........................................National Pipe Tapered

NPT SWF ........National Pipe Tapered Swivel Female

ORBM .........................................O-Ring Boss - Male

P......................................................................... Pitch

PBY .....................................................Power-Beyond

psi........................................ Pounds per Square Inch

PTO ....................................................Power Take Off

QD.................................................. Quick Disconnect

RH ............................................................ Right Hand

ROPS ......................... Roll-Over Protective Structure

RPM ...................................... Revolutions Per Minute

RT ......................................................................Right

SAE ........................ Society of Automotive Engineers

UNC ................................................... Unified Coarse

UNF.........................................................Unified Fine

UNS.................................................... Unified Special

5/16 3/81/2 5/83/4 7/8

SAE Bolt Thread Sizes

MM 25 50 75 100 125 150 175

IN 1 7

Metric Bolt Thread Sizes

8MM 18MM14MM12MM10MM 16MM

234 56

F-3079 (Rev. 5/2/2006)

Woods Equipment

Company

2606 South Illinois Route 2

Post Office Box 1000

Oregon, Illinois 61061

800-319-6637 tel

800-399-6637 fax

www.WoodsEquipment.com

WARRANTY

(All Models Except Mow’n MachineTM Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Please Enter Information Below and Save for Future Reference.

Date Purchased: __________________________ From (Dealer): ________________________________________

Model Number: __________________________ Serial Number:________________________________________

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship. Except as otherwise

set forth below, the duration of this Warranty shall be for TWELVE (12) MONTHS COMMENCING ON THE DATE OF DELIVERY OF

THE PRODUCT TO THE ORIGINAL PURCHASER.

The warranty periods for certain gearboxes and blade spindles are listed below:

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to

improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been

materially modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized

service center. This Warranty does not cover normal wear or tear, or normal maintenance items. This Warranty also does not cover repairs

made with parts other than those obtainable through WOODS.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this

product to a third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this

Warranty.

WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories not manufactured by

WOODS. Warranties for these items, if any, are provided separately by their respective manufacturers.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if

WOODS, in its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product must be returned to

WOODS with proof of purchase within thirty (30) days after such defect or noncompliance is discovered or should have been

discovered, routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid.

WOODS shall complete such repair or replacement within a reasonable time after WOODS receives the product. THERE ARE NO

OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND

EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY.

WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED

WARRANTY OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the

product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other

legal theory. Without limiting the generality of the foregoing, Woods specifically disclaims any damages relating to (i) lost profits,

business, revenues or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor,

supplies, substitute machinery or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture

replacement parts.

No agent, representative, dealer, distributor, serviceperson, salesperson, or employee of any company, including without limitation,

WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:

Model No.Part Warranted Duration

PHD25, PHD35, PHD65, PHD95, 1260, 2162, 3240, BB48, BB60, BB72, BB84,

BB600, BB720, BB840, BB6000, BB7200, BB8400, BW180-2, BW1800, DS96,

DS120, RCC42, RM550-2, RM660-2, RM990-3, PRD6000, PRD7200, PRD8400,

7144RD-2, 9180RD-2, 9204RD-2, S15CD, S20CD, S22CD, S25CD, S27CD

Gearbox

components 5 years from the date of delivery to

the original purchaser.

RDC54, RD60, RD72 Gearbox

components

3 years from the date of delivery to

the original purchaser.

RDC54, RD60, RD72 Gearbox

components

1 year from the date of delivery to

the original purchaser if used in

rental or commercial applications.

RM550-2, RM660-2, RM990-3, PRD6000, PRD7200, PRD8400, 7144RD-2,

9180RD-2, 9204RD-2 Blade spindles 3 years from the date of delivery to

the original purchaser.

F-8494 (Rev. 6/23/2005)

©2006 Woods Equipment Company. All rights reserved. WOODS, the Woods logo, and "Tested. Proven. Unbeatable." are trademarks of Woods

Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are

the property of their respective companies or mark holders. Specifications subject to change without notice.

WARRANTY

(Replacement Parts For All Models Except Mow’n MachineTM

Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and

workmanship for a period of ninety (90) days from the date of delivery of the product to the original purchaser

with the exception of V-belts, which will be free of defect in material and workmanship for a period of 12 months.

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of

WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty

does not cover normal wear or tear, or normal maintenance items.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or

otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any

way. There are no third party beneficiaries of this Warranty.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of

charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with this

Warranty. The product must be returned to WOODS with proof of purchase within thirty (30) days after

such defect or noncompliance is discovered or should have been discovered, routed through the dealer and

distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete

such repair or replacement within a reasonable time after WOODS receives the product. THERE ARE NO

OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE

SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS

WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS

SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/OR ANY

IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly

or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty,

negligence, strict liability in tort or any other legal theory. Without limiting the generality of the foregoing,

Woods specifically disclaims any damages relating to (i) lost profits, business, revenues or goodwill; (ii) loss of

crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute

machinery or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain

materials or manufacture replacement parts.

No agent, representative, dealer, distributor, service person, salesperson, or employee of any company, including

without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify,

or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:
