OPER ATOR'S MANUAL

BATWING-

ROTARY CUTTER

MAN0707

(Rev. 07/9/2010)

®

BW180-3

BW180Q-3

BW126-3

BW126Q-3

2 Introduction

Gen’l (Rev. 3/5/2010)

TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the Woods® dealer. Read manual instructions

and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual

are completed before releasing equipment to the owner.

The dealer must complete the online Product Registration form at the Woods Dealer Website which certifies that

all Dealer Check List items have been completed. Please contact your dealer to complete this form. Dealers can

register all Woods product at dealer.WoodsEquipment.com under Product Registration.

Failure to register the product does not diminish customer’s warranty rights.

TO THE OWNER:

Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and

safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become

acquainted with all adjustment and operating procedures before attempting to operate. Replacement manuals can be

obtained from your dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in

the United States and Canada call 1-800-319-6637.

The equipment you have purchased has been carefully engineered and manufactured to provide dependable and

satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.

Observe all safety information in this manual and safety decals on the equipment.

For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary

tools and equipment to handle all your needs.

Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for

safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces

provided:

Model: _______________________________ Date of Purchase: _____________________

Serial Number: (see Safety Decal section for location) ____________________________________

Provide this information to your dealer to obtain correct repair parts.

Throughout this manual, the term NOTICE is used to indicate that failure to observe can cause damage to equipment.

The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with

an exclamation mark) to indicate the degree of hazard for items of personal safety.

Introduction 3

MAN0707 (5/30/2008)

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SAFETY VIDEO ORDER FORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

ASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

DEALER CHECK LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

INDEX TO PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

BOLT SIZE CHART & ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 73

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . INSIDE BACK COVER

REPLACEMENT PARTS WARRANTY . . . . . . . . . . . . . . . . . . .BACK COVER

Si no lee Ingles, pida ayuda a

alguien que si lo lea para que le

traduzca las medidas de seguridad.

LEA EL INSTRUCTIVO!

!

This Operator’s Manual should be regarded as part of the machine.

Suppliers of both new and second-hand machines must make sure

that this manual is provided with the machine.

4 Introduction

MAN0707 (5/30/2008)

SPECIFICATIONS

BW180-3 / BW180Q-3 BW126-3 / BW126Q-3

Cutting Height (Varies with tire selection) . . . . . . . . . . . . . . . . . . . 1" - 15" 1" - 15"

Cutting Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180" (15’) 126" (10.5’)

Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190" 140"

Transport Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96" 93"

Tractor HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45-160 45-160

Blade Spindle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2

Blade Overlap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6" 6"

Number of Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 4

Blade Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Left Spindle: CW; Right & Center Spindles: CCW

Main Driveline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat 5 Heavy Cat 5 Heavy

CV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat 6 Cat 6

Side Frame Thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" 1/4"

Weight (approximate lbs.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4200 4000

Wheel Size. . . . . . . . . . . . . . . . . . . . 15" Rims (BW180 and BW180Q only) or 21" OD Solid Tires, Airplane

Torsion Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Slip Clutch Slip Clutch

GENERAL INFORMATION

Some illustrations in this manual show the

equipment with safety shields removed to provide

a better view. This equipment should never be

operated with any necessary safety shielding

removed.

The purpose of this manual is to assist you in operating

and maintaining your cutter. Read it carefully. It fur-

nishes information and instructions that will help you

achieve years of dependable performance. These

instructions have been compiled from extensive field

experience and engineering data. Some information

may be general in nature due to unknown and varying

operating conditions. However, through experience

and these instructions, you should be able to develop

procedures suitable to your particular situation.

The illustrations and data used in this manual were cur-

rent at the time of printing but, due to possible inline

production changes, your machine may vary slightly in

detail. We reserve the right to redesign and change the

machines as may be necessary without notification.

Throughout this manual, references are made to right

and left directions. These are determined by standing

behind the equipment facing the direction of forward

travel. Blade rotation is clockwise (left wing) and coun-

terclockwise (right wing and center section) as viewed

from the top of the cutter.

BW180-3

BW126-3

BW180Q-3

BW126Q-3

Tractor PTO rpm 540 1000

Blade Speed (Feet per minute) 14,965 15,450

Safety 5

Safety Video Order Form (8/2/2005)

Free Mower Safety Video

Fill out and return the order form and we will send you a FREE VHS

or DVD video outlining

Industrial and Agricultural Mower Safety

Practices

. The 22 minute video, developed in cooperation with

AEM (Association of Equipment Manufacturers), reinforces the

proper procedures to follow while operating your mowing

equipment. The video does not replace the information contained in

the Operator’s Manual, so please review this manual thoroughly

before operating your new mowing equipment.

Safety Training

Does Make a Difference.

BE SAFE!

BE ALERT!

BE ALIVE!

BE TRAINED

Before Operating Mowers!

ASSOCIATION OF

EQUIPMENT

MANUFACTURERS

Safety Video Order Form

6 Safety

Safety Video Order Form (Rev. 2/6/2006)

Free Mower/Cutter Safety Video Order Form

3 (Select one)

VHS Format - VHS01052 Safety Video

DVD Format - DVD01052 Safety Video

Please send me

Name: ________________________________________ Phone: __________________

Address: _____________________________________

_____________________________________

_____________________________________

Mower/Cutter Model: ______________________ Serial #: ________________________

Send to: ATTENTION: DEALER SERVICES

WOODS EQUIPMENT COMPANY

PO BOX 1000

OREGON IL 61061-1000

USA

Also, available from the Association of Equipment Manufacturers:

A large variety of training materials (ideal for groups) are available for a nominal

charge from AEM. Following is a partial list:

●Training Package for Rotary Mowers/Cutters-English

Contains: DVD & VHS (English)

Guidebook for Rotary Mowers/Cutters (English)

AEM Industrial/Agricultural Mower Safety Manual (English)

AEM Agricultural Tractor Safety Manual (English)

●Training Package for Rotary Mowers/Cutters-English/Spanish

Contains: DVD & VHS (English/Spanish)

Guidebook for Rotary Mowers/Cutters (English/Spanish)

AEM Industrial/Agricultural Mower Safety Manual (English/Spanish)

AEM Agricultural Tractor Safety Manual (English/Spanish)

AEM training packages are available through:

AEM at:

www.aem.org

or

Universal Lithographers, Inc.

Email: aem@ulilitho.com

800-369-2310 tel

866-541-1668 fax



Safety 7

BW180_ SR (Rev. 12/10/2007)

INSTALLATION

Hydraulics must be connected as instructed in

this manual. Do not substitute parts, modify, or

connect in any other way.

TRAINING

Safety instructions are important! Read all

attachment and power unit manuals; follow all

safety rules and safety decal information. (Replace-

ment manuals and safety decals are available from

your dealer. To locate your nearest dealer, check

the Dealer Locator at www.WoodsEquipment.com,

or in the United States and Canada call 1-800-319-

6637.) Failure to follow instructions or safety rules

can result in serious injury or death.

If you do not understand any part of this manual

and need assistance, see your dealer.

Know your controls and how to stop engine and

attachment quickly in an emergency.



Operators must be instructed in and be capable

of the safe operation of the equipment, its attach-

ments, and all controls. Do not allow anyone to

operate this equipment without proper instructions.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Never allow children or untrained persons to

operate equipment.

PREPARATION

Check that all hardware is properly installed.

Always tighten to torque chart specifications

unless instructed otherwise in this manual.

Air in hydraulic systems can cause erratic oper-

ation and allows loads or equipment components

to drop unexpectedly. When connecting equipment

or hoses or performing any hydraulic maintenance,

purge any air in hydraulic system by operating all

hydraulic functions several times. Do this before

putting into service or allowing anyone to

approach the equipment.

Make sure all hydraulic hoses, fittings, and

valves are in good condition and not leaking before

starting power unit or using equipment. Check and

route hoses carefully to prevent damage. Hoses

must not be twisted, bent sharply, kinked, frayed,

pinched, or come into contact with any moving

parts. Operate moveable components through full

operational range to check clearances. Replace

any damaged hoses immediately.

After connecting hoses, check that all control

lever positions function as instructed in the Opera-

tor's Manual. Do not put into service until control

lever and equipment movements are correct.

Set tractor hydraulic relief valve at 2500 psi (170

bars) (17,000 kPa) to prevent injury and equipment

damage due to hydraulic system failure.

Your dealer can supply original equipment

hydraulic accessories and repair parts. Substitute

parts may not meet original equipment specifica-

tions and may be dangerous.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Make sure attachment is properly secured,

adjusted, and in good operating condition.

Make sure spring-activated locking pin or collar

slides freely and is seated firmly in tractor PTO

spline groove.

(Safety Rules continued on next page)

Safety is a primary concern in the design and

manufacture of our products. Unfortunately, our

efforts to provide safe equipment can be wiped

out by an operator’s single careless act.

In addition to the design and configuration of

equipment, hazard control and accident preven-

tion are dependent upon the awareness, con-

cern, judgement, and proper training of

personnel involved in the operation, transport,

maintenance, and storage of equipment.

It has been said, “The best safety device is an

informed, careful operator.” We ask you to be

that kind of operator.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

8 Safety

BW180_SR (Rev. 12/10/2007)

(Safety Rules continued from previous page)

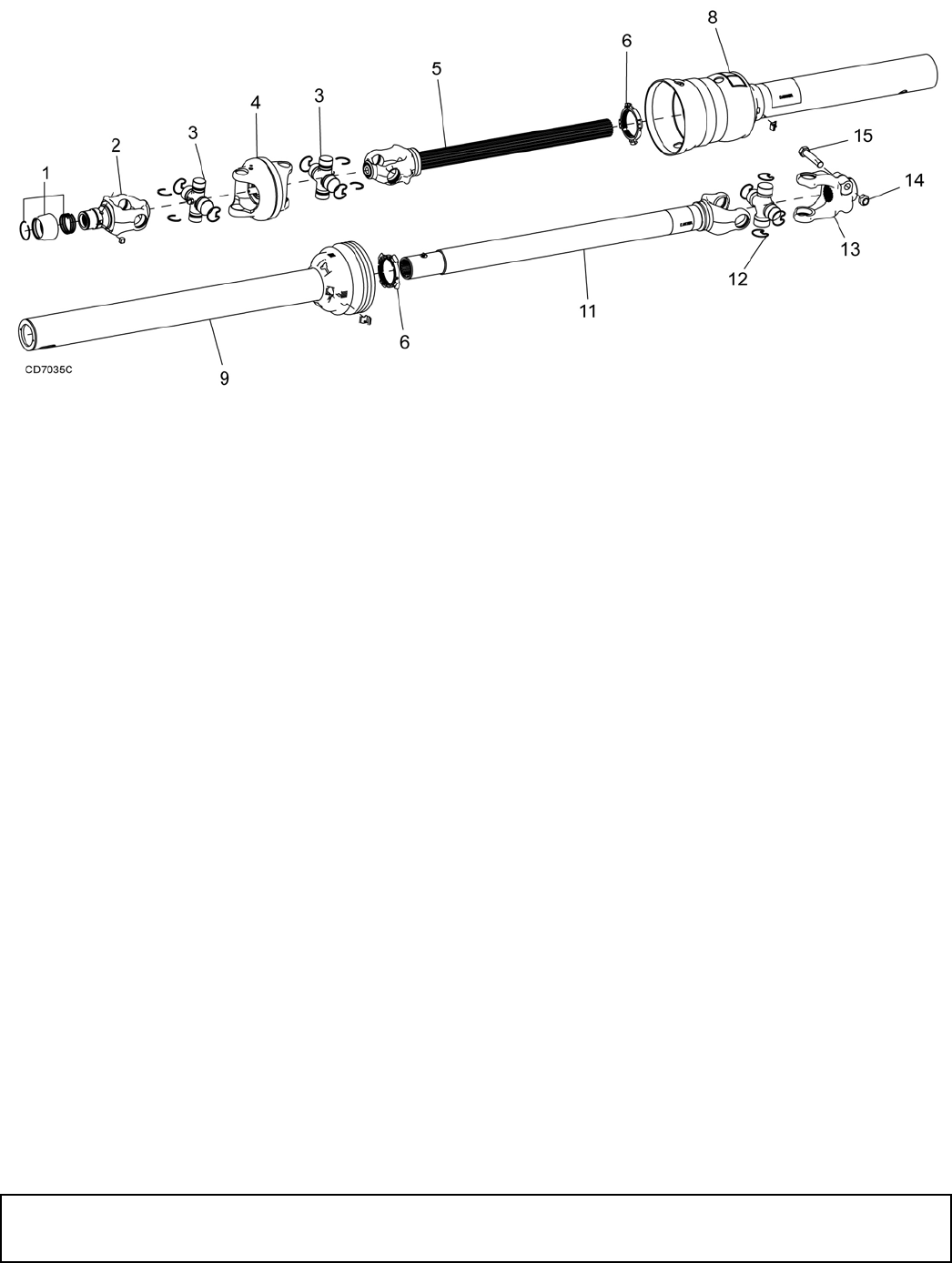

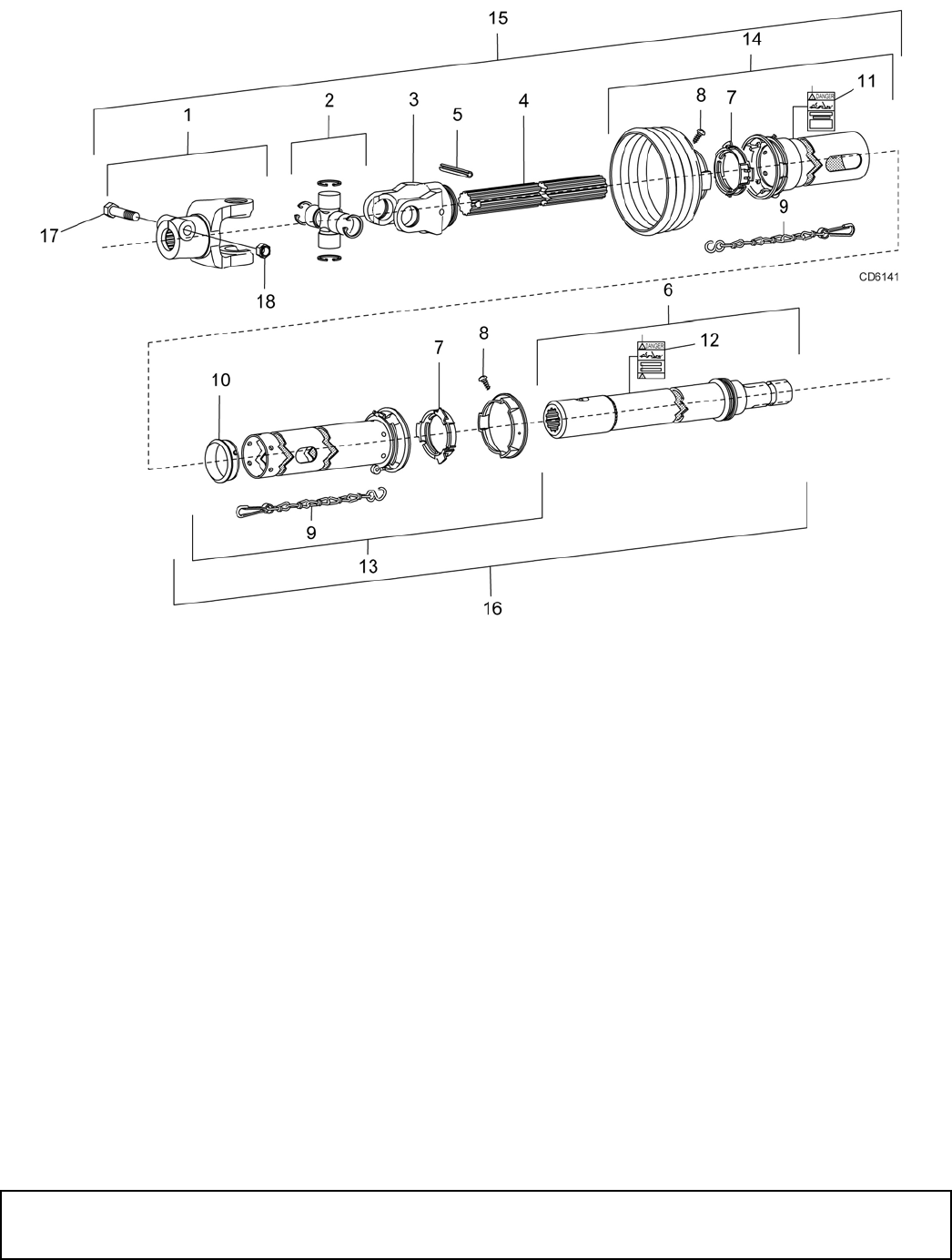

Make sure driveline guard tether chains are

attached to the tractor and equipment as shown in

the pamphlet that accompanies the driveline.

Replace if damaged or broken. Check that driveline

guards rotate freely on driveline before putting

equipment into service.

Before starting power unit, check all equipment

driveline guards for damage. Replace any damaged

guards. Make sure all guards rotate freely on all

drivelines. If guards do not rotate freely on drive-

lines, repair and replace bearings before putting

equipment into service.

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Remove accumulated debris from this equip-

ment, power unit, and engine to avoid fire hazard.

Make sure all safety decals are installed.

Replace if damaged. (See Safety Decals section for

location.)



Make sure shields and guards are properly

installed and in good condition. Replace if damaged.

Do not put this equipment into service unless all

side skids are properly installed and in good condi-

tion. Replace if damaged.

A minimum 20% of tractor and equipment

weight must be on the tractor front wheels when

attachments are in transport position. Without this

weight, tractor could tip over, causing personal

injury or death. The weight may be attained with a

loader, front wheel weights, ballast in tires or front

tractor weights. Weigh the tractor and equipment.

Do not estimate.

Inspect and clear area of stones, branches, or

other hard objects that might be thrown, causing

injury or damage.

TRANSPORTATION

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Always raise unit and install transport locks

before transporting. Leak down or failure of

mechanical or hydraulic system can cause equip-

ment to drop.

Always attach safety chain to tractor drawbar

when transporting unit.

Always comply with all state and local lighting

and marking requirements.

Never allow riders on power unit or attachment.

Do not operate PTO during transport.

Do not operate or transport on steep slopes.

Do not operate or transport equipment while

under the influence of alcohol or drugs.

The maximum transport speed for towed and

semi-mounted machines is 20 mph (32 km/h).

Regardless of the maximum speed capability of the

towing tractor, do not exceed the implement’s max-

imum transport speed. Doing so could result in:

• Loss of control of the implement and tractor

• Reduced or no ability to stop during braking

• Implement tire failure

• Damage to the implement or its components.

Use additional caution and reduce speed when

under adverse surface conditions, turning, or on

inclines.

Never tow this implement with a motor vehicle.

OPERATION

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.

Never walk, stand, or place yourself or others

under a raised wing or in the path of a lowering

wing. Hydraulic system leak-down, hydraulic sys-

tem failures, mechanical failures, or movement of

control levers can cause wings to drop unexpect-

edly and cause severe injury or death.

Full chain or rubber shielding must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property.

• If this machine is not equipped with full chain

or rubber shielding, operation must be stopped

when anyone comes within 300 feet (92 m).

• This shielding is designed to reduce the risk

of thrown objects. The mower deck and protec-

tive devices cannot prevent all objects from

escaping the blade enclosure in every mowing

condition.

It is possible for objects to ricochet

and escape, traveling as much as 300 feet (92 m).

Never direct discharge toward people, animals,

or property.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Safety 9

BW180_ SR (Rev. 12/10/2007)

Do not operate or transport equipment while

under the influence of alcohol or drugs.

Operate only in daylight or good artificial light.

Keep hands, feet, hair, and clothing away from

equipment while engine is running. Stay clear of all

moving parts.

Always comply with all state and local lighting

and marking requirements.

Never allow riders on power unit or attachment.

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Always sit in power unit seat when operating

controls or starting engine. Securely fasten seat

belt, place transmission in neutral, engage brake,

and ensure all other controls are disengaged

before starting power unit engine.

Operate tractor PTO at 540 RPM (1000 RPM on Q

Series cutters). Do not exceed.

Raise or lower wings slowly to prevent personal

injury or damage to cutter.

Connect PTO driveline directly to power unit

PTO shaft. Never use adapter sleeves or adapter

shafts. Adapters can cause driveline failures due to

incorrect spline or incorrect operating length and

can result in personal injury or death.

Look down and to the rear and make sure area

is clear before operating in reverse.

Do not operate or transport on steep slopes.

Do not stop, start, or change directions sud-

denly on slopes.

Watch for hidden hazards on the terrain during

operation.

Stop power unit and equipment immediately

upon striking an obstruction. Turn off engine,

remove key, inspect, and repair any damage before

resuming operation.

Continuous operation while the clutch is slip-

ping could cause heat build-up resulting in fire.

Adjust slip clutch pressure by tightening springs to

the dimension shown in the “Owner Service” sec-

tion. If clutch is set to minimum spring length,

replace the friction disks as shown.

On pull-type or semi-mounted units with

optional hydraulic cutting height adjustment, use a

single-acting cylinder with a maximum extended

length of 28-1/4" (718 mm) from attaching point

center to center.

MAINTENANCE

Before servicing, adjusting, repairing or unplug-

ging, stop tractor engine, place all controls in neu-

tral, set park brake, remove ignition key, and wait

for all moving parts to stop.

Before dismounting power unit or performing

any service or maintenance, follow these steps:

disengage power to equipment, lower the 3-point

hitch and all raised components to the ground,

operate valve levers to release any hydraulic pres-

sure, set parking brake, stop engine, remove key,

and unfasten seat belt.



Before working underneath, disconnect driveline

from tractor, lower wings to ground, raise cutter,

and pin transport bar in raised position. Attach park-

ing jack and lower to ground. Securely block all four

corners of center section and each wing with jack-

stands. Blocking up prevents the cutter from drop-

ping due to hydraulic leak down, hydraulic system

failure, or mechanical component failure.

Do not modify or alter or permit anyone else to

modify or alter the equipment or any of its compo-

nents in any way.

Your dealer can supply original equipment

hydraulic accessories and repair parts. Substitute

parts may not meet original equipment specifica-

tions and may be dangerous.

 To prevent contamination during maintenance

and storage, clean and then cover hose ends, fit-

tings, and hydraulic ports with tape.

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.

Never go underneath equipment (lowered to the

ground or raised) unless it is properly blocked and

secured. Never place any part of the body under-

neath equipment or between moveable parts even

when the engine has been turned off. Hydraulic

system leak down, hydraulic system failures,

mechanical failures, or movement of control levers

can cause equipment to drop or rotate unexpect-

edly and cause severe injury or death. Follow Oper-

ator's Manual instructions for working underneath

and blocking requirements or have work done by a

qualified dealer.

(Safety Rules continued on next page)

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

10 Safety

BW180_SR (Rev. 12/10/2007)

(Safety Rules continued from previous page)

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Make certain all movement of equipment com-

ponents has stopped before approaching for ser-

vice.

Frequently check blades. They should be sharp,

free of nicks and cracks, and securely fastened.

Do not handle blades with bare hands. Careless

or improper handling may result in serious injury.

Your dealer can supply genuine replacement

blades. Substitute blades may not meet original

equipment specifications and may be dangerous.

Tighten all bolts, nuts, and screws to torque

chart specifications. Check that all cotter pins are

installed securely to ensure equipment is in a safe

condition before putting unit into service.

Make sure all safety decals are installed.

Replace if damaged. (See Safety Decals section for

location.)



Make sure shields and guards are properly

installed and in good condition. Replace if damaged.

Never perform service or maintenance with

engine running.

Do not disconnect hydraulic lines until machine

is securely blocked or placed in lowest position

and system pressure is released by operating

valve levers.

Service and maintenance work not covered in

OWNER SERVICE must be done by a qualified

dealership. Special skills, tools, and safety proce-

dures may be required. Failure to follow these

instructions can result in serious injury or death.

Explosive separation of tire and rim parts can

cause serious injury or death. Release all air pres-

sure before loosening bolts on wheel.

STORAGE

Before disconnecting and storing, follow these

instructions:

• Store on level, solid ground.

• Disconnect driveline and secure up off the

ground.

• Lower wings to ground.

• Raise cutter center section and pin transport

bar in raised position.

• Attach parking jack and raise tongue weight

off tractor drawbar.

• Place wedge blocks at front and rear of

wheels on center section and each wing to pre-

vent wheel rotation.

• Securely block all four corners of center sec-

tion and each wing with jackstands.

• Remove hydraulic hoses after tractor is

turned off and all system pressure is released

by operating valve levers several times.

• Remove safety tow chain.

• Remove retainer pin and high strength draw-

bar pin.

Keep children and bystanders away from stor-

age area.



SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Safety 11

MAN0707 (5/30/2008)

4 - PN 18869

SHIELD MISSING

DO NOT OPERATE - PUT SHIELD ON

18869-B

DANGER

BE CAREFUL!

Use a clean, damp cloth to clean safety decals.

Avoid spraying too close to decals when using a pressure

washer; high-pressure water can enter through very small

scratches or under edges of decals causing them to peel

or come off.

Replacement safety decals can be ordered free from your

Woods dealer. To locate your nearest dealer, check the

Dealer Locator at www.WoodsEquipment.com, or in the

United States and Canada call 1-800-319-6637.

MODEL NO. SERIAL NO.

Woods Equipment Company

Oregon, Illinois, U.S.A.

2 - FRONT AMBER REFLECTOR

(PN 1002940)

3 - REAR RED REFLECTOR

(PN 57123)

1 - SERIAL NUMBER PLATE

PN 1006348 - Located on Wheel Rims

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

12 Safety

MAN0707 (5/30/2008)

7 - PN 15503

FALLING OFF CAN RESULT IN BEING RUN OVER.



Tractor must be equipped with ROPS (or ROPS CAB) and seat

belt. Keep foldable ROPS systems in “locked up” position at all

times.



Buckle Up! Keep seat belt securely fastened.



Allow no riders.

RAISED EQUIPMENT CAN DROP AND CRUSH.



Before working underneath, follow all instructions and safety rules in

operator’s manual and securely block up all corners of equipment

with jack stands.



Securely blocking prevents equipment dropping from hydraulic leak-

down, hydraulic system failures or mechanical component failures.

FALLING OFF OR FAILING TO BLOCK SECURELY CAN

RESULT IN SERIOUS INJURY OR DEATH.

WARNING

18865--C

9 - PN 18865

Check for leaks with cardboard; never use hand.

Before loosening fittings: lower load, release pressure, and

be sure oil is cool.

Consult physician immediately if skin penetration occurs.

WARNING

19924-B

11 - PN 19924

8 - PN 18864

ROTATING BLADES AND

THROWN OBJECTS

 Do not put hands or feet under or into mower when

engine is running.

 Before mowing, clear area of objects that may be

thrown by blade.

 Keep bystanders away.

 Keep guards in place and in good condition.

BLADE CONTACT OR THROWN OBJECTS CAN

CAUSE SERIOUS INJURY OR DEATH.

DANGER

15503-C

DANGER

ROTATING DRIVELINE

CONTACT CAN CAUSE DEATH

KEEP AWAY!

DO NOT OPERATE WITHOUT -

 All driveline guards, tractor and

equipment shields in place

 Drivelines securely attached at both ends

 Driveline guards that turn freely on

driveline 18864-C

540 RPM

WARNING

18866-D

WARNING

DO NOT EXCEED PTO SPEED OF

1000 RPM

PTO speeds higher than 1000 RPM

can cause equipment failure and

personal injury. 15922-C

OR

5 - PN 15922

(1000 RPM)

6 - PN 18866

(540 RPM)

If shaft connection is visible, shield

is missing. Replace shield before

operating equipment.

DA

NG

NG

ER

ER

1004114

17 - PN 1004114

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

Safety 13

MAN0707 (5/30/2008)

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

12 - PN 1004991

TRANSPORT LOCK

AND CYLINDER

REQUIREMENTS

1004991

TRANSPORT

LOCK

WARNING

RAISED CUTTER CAN DROP AND CRUSH

e

rs must be e

q

ui

pp

ed with trans

p

ort lock

.

Cutt

e

ds.

sta

n



r

ansport components must be functional, kept in

g

oodAll t

r





Blocking up prevents cutter dropping from hydraulic leak down,

Bloc

hydraulic system failures, or mechanical component failures.

FAILURE TO FOLLOW INSTRUCTIONS CAN

RESULT IN SERIOUS INJURY OR DEATH.

28-1/4"

SINGLE-ACTING FULL

EXTENSION

CRUSHING AND PINCHING HAZARD

 Be extremely careful handling various parts of

the machine. They are heavy and hands, fingers,

feet, and other body parts could be crushed or

pinched between tractor and implement.

 Operate tractor controls from tractor seat only.

 Do not stand between tractor and implement

when tractor is in gear.

 Make sure parking brake is engaged before

going between tractor and implement.

 Stand clear of machine while in operation or

when it is being raised or lowered.

FAILURE TO FOLLOW THESE

INSTRUCTIONS COULD RESULT IN

SERIOUS INJURY OR DEATH.

WARNING

1003751-A

13 - PN 1003751

RAISED WING EXPOSES BLADE AND

INCREASES THROWN OBJECT HAZARDS.

Only raise for transport. Stop cutter and

lock wing(s) up.

RAISED WING CAN FALL AND CRUSH.

Keep away.

Lock up with wing transport bars.

Lower wing(s) after transport and for

storage.

FAILURE TO FOLLOW INSTRUCTIONS CAN

RESULT IN SERIOUS INJURY OR DEATH.

WARNING

18964-A

15 - PN 18964

CONTACT WITH ROTATING PARTS

CAN CAUSE SERIOUS INJURY.

WARNING

15502--B

ROTATING COMPONENTS

Do not operate without cover in place.

Look and listen for rotation. Do not

open cover until all components have

stopped.

16 - PN 15502

14 - PN 18877

33347E

10 - PN 33347

WARNING

TO AVOID SERIOUS

INJURY OR DEATH:

 Read Operator's Manual (available

from dealer) and follow all safety

precautions.

 Keep all shields in place and in good

condition.

 Operate mower from tractor seat only.

 Lower mower, stop engine and remove

key before dismounting tractor.

 Allow no children or untrained persons

to operate equipment.

 Do not transport towed or

semi-mounted units over 20 mph.

FAILURE TO OPERATE SAFELY

CAN RESULT IN

INJURY OR DEATH.

18877-C

14 Operation

MAN0707 (5/30/2008)

OPERATION

The designed and tested safety of this machine

depends on it being operated within the limitations as

explained in this manual. Be familiar with and follow all

safety rules in the manual, on the cutter and on the

tractor.

The safe operation of this cutter is the responsibility of

the operator, who must be properly trained. The opera-

tor should be familiar with the equipment and all safety

practices before starting operation. Read the safety

information on page 7 through page 13.

Recommended tractor ground speed for most condi-

tions is from 1 to 6 mph.

Always operate tractor PTO at 540 rpm on BW180 and

BW126; on BW180Q and BW126Q operate PTO at

1,000 rpm.

Full chain or rubber shielding must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property.

• If this machine is not equipped with full chain

or rubber shielding, operation must be stopped

when anyone comes within 300 feet (92 m).

• This shielding is designed to reduce the risk

of thrown objects. The mower deck and protec-

tive devices cannot prevent all objects from

escaping the blade enclosure in every mowing

condition.

It is possible for objects to ricochet

and escape, traveling as much as 300 feet (92 m).

Never allow children or untrained persons to

operate equipment.

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.

Make sure spring-activated locking pin or collar

slides freely and is seated firmly in tractor PTO

spline groove.

Stop power unit and equipment immediately

upon striking an obstruction. Turn off engine,

remove key, inspect, and repair any damage before

resuming operation.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

CONNECTING CUTTER TO TRACTOR

NOTICE

■ For tractors with a 1-3/8" diameter PTO shaft,

the horizontal distance from the end of the tractor

PTO shaft to the center of drawbar pin should be

14" for 540 rpm cutter and 16" for the 1000 rpm cut-

ters. This will minimize joint knock and damage to

drive components.

Figure 1. Cutter to Tractor Connection

1. Attach cutter using a 1-1/2" clevis pin and clip.

2. Attach safety tow chain (32) to drawbar support.

Leave enough slack for turning (Figure 1).

3. Connect cutter driveline to tractor PTO shaft,

making sure the spring-activated lock pin slides

freely and is seated in tractor PTO splined groove.

4. Attach driveline shield tether chain to tractor

drawbar to prevent rotation.

NOTE: CV driveline does not require a tether

chain.

5. Remove parking jack (29) from the tongue and

attach it to the storage post on the front of the left

wing.

NOTE: Equal Angle Drive Only: With cutting height

established, adjust the 3-joint H-frame bearing

height so that the front driveline is parallel to the

ground.

Hydraulic Connection

1. Inspect hydraulic hoses to ensure they are in good

condition.

2. Clean the fittings before connecting them to the

tractor hydraulic ports.

CAUTION

Operation 15

MAN0707 (5/30/2008)

3. Route the hose through the hose holder at the

hitch and be sure the hose can slide freely in the

holder. Do not allow hose slack to drag on the

ground or become caught on tractor protrusions.

4. Attach the hydraulic hose to the tractor.

5. From the operator position, start tractor and raise

and lower deck several times to purge trapped air

from the hydraulic cylinder.

Interference Check

1. Be sure that tractor 3-point lift links do not interfere

with hydraulic hoses, cutter driveline, or cutter

frame.

2. Check for straight-ahead operation and at full

turning angles. If there is any interference, remove

the lower lift links.

3. Contact between tractor lift links and cutter parts

can cause damage, especially when turning.

CV Driveline Turning Limits

NOTICE

■ You must not exceed a turning angle of 80

degrees at the head of the Constant Velocity drive-

line or damage will occur.

1. To check for potential excessive turn angle,

disconnect the driveline from tractor.

2. Start engine and turn as far right or left as possible.

3. Shut engine off and try to connect CV driveline to

tractor. If it cannot be connected, the turn angle is

too severe.

4. Restart engine and straighten angle slightly, shut

off engine and try to connect CV driveline to tractor.

5. Repeat the process until the driveline can be

connected. The point at which the driveline can be

connected is the maximum turn that should be

made.

Cutting Height Adjustment

On pull-type or semi-mounted units with

optional hydraulic cutting height adjustment, use a

single-acting cylinder with a maximum extended

length of 28-1/4" (718 mm) from attaching point

center to center.

NOTICE

■ Avoid ground contact with blades. Striking

ground with blades produces one of the most dam-

aging shock loads a cutter can encounter. If this

occurs repeatedly, the cutter, driveline, and gear-

boxes will be damaged.

Cutting height range is from 1" to 15". A hydraulic cylin-

der or ratchet jack is available for cutting height adjust-

ment.

When selecting a cutting height, you should consider

the area of operation. If the ground is rolling and has

mounds the blades could contact, set the cutting height

accordingly. The cutting height (blade edge) is approxi-

mately 1" above the bottom of the side skid.

Cutting Height (Normal Mowing) - Center Section

1. Position the cutter on a hard level surface and

select an approximate cutting height, Example 6".

2. Raise wings and lock them in the UP position.

3. Use any of the optional cutting height mechanisms

to raise or lower the center section to obtain a

distance of 5" from bottom edge of skid shoe to the

ground.

4. Loosen jam nuts on the attitude rod that runs from

the wheel yoke to the tongue.

5. Adjust rod in or out until the rear of the cutter is

approximately 1/2" higher than the front.

6. Tighten jam nuts against sleeve.

Cutting Height (Normal Mowing) - Wings

1. Lower wings to normal mowing position.

2. Loosen the jam nut on the adjustable link (turn

buckle).

3. Lengthening the link will raise the wing, shortening

the link will lower the wing. The rear edge of the

wing should be parallel to the ground.

When using the cutter to shred, the rear of the cutter

deck should be approximately 1/2" to 1" lower than the

front.

NOTE: Equal Angle Drive Only: With the cutting height

established, adjust the driveline carrier bearing in the

H-frame to ensure the front driveline is parallel to the

ground with cutter in cutting position.

TRACTOR OPERATION

Use care when operating around tree limbs and other

low objects. Avoid being knocked off tractor and being

injured.

Only use a tractor with a Roll Over Protection Structure

(ROPS) and seat belt. Securely fasten seat belt.

The cutter is operated with tractor controls. Engage the

PTO at a low rpm to prevent excessive loads on the

cutter drive system. Increase throttle to recommended

PTO operating RPM.

16 Operation

MAN0707 (5/30/2008)

Be sure operator is familiar with all controls and can

stop tractor and cutter quickly in an emergency. The

operator should give complete, undivided attention to

operating tractor and cutter.

CUTTER OPERATION

When beginning operation of the cutter, make sure that

all persons are in a safe location.

Power for operating the cutter is supplied by the tractor

PTO. Operate PTO at 540 (1000 RPM for "Q" models).

Know how to stop the tractor and cutter quickly in an

emergency.

Engage PTO at a low engine, rpm to minimize stress

on the drive system and gearbox.

With PTO engaged, raise PTO speed to 540 or 1000

RPM depending on model and maintain throughout

cutting operation.

Gearbox protection is provided by a slip clutch with

replacement fiber disc. The slip clutch is designed to

slip when excessive torsional loads occur.

Move slowly into material. Adjust tractor ground speed

to provide a clean cut without lugging the tractor

engine.

Use a slow ground speed for better shredding.

Proper ground speed will depend on the terrain and the

material’s height, type, and density.

Normally, ground speed will range from 2 to 5 mph.

Tall, dense material should be cut at a low speed; thin,

medium-height material can be cut at a faster ground

speed.

Always operate tractor PTO at proper RPM (540 or

1000 depending on model) to maintain blade speed

and to produce a clean cut.

Under certain conditions tractor tires may roll down

some grass and prevent cutting at the same height as

the surrounding area. When this occurs, reduce your

ground speed but maintain PTO at 540 or 1000 RPM.

The lower ground speed will permit grass to rebound

partially.

Mowing Tips

Look down and to the rear and make sure area

is clear before operating in reverse.

Do not operate or transport on steep slopes.

Do not stop, start, or change directions sud-

denly on slopes.

Use extreme care and reduce ground speed on

slopes and rough terrain.

Watch for hidden hazards on the terrain during

operation.

Stop power unit and equipment immediately

upon striking an obstruction. Turn off engine,

remove key, inspect, and repair any damage before

resuming operation.

Maximum recommended ground speed for cutting or

shredding is 6 miles per hour. Adjust tractor ground

speed by using higher or lower gears to provide a clean

cut without lugging tractor engine.

Tall material should be cut twice. Cut material higher

the first pass. Cut at desired height at 90 degrees the

second pass.

Remember, sharp blades produce cleaner cuts and

use less power.

Before entering an area, analyze it to determine the

best procedure. Consider the height and type of mate-

rial to be cut and the terrain type (hilly, level or rough,

etc.).

Shredding

The cutter may be used to shred various crops includ-

ing green manure, straw, stubble, asparagus residue,

corn stalks and similar crops in preparation for tilling. It

may also be used to shred pruning in orchards, groves

and vineyards.

Each shredding operation may require a different set-

up. Start with front edge of cutter high. Adjust up or

down as necessary with attitude rod. Experiment until

you obtain the results you want.

When shredding attitude is set, check that the distance

from the bottom rear edge of the wing to the ground

matches the bottom edge of the rear center section to

the ground. With the cutting height and attitude estab-

lished, adjust the driveline carrier bearing in the H-

frame to ensure the front driveline is parallel to the

ground.

CAUTION

Operation 17

MAN0707 (5/30/2008)

TRANSPORTING

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Always raise unit and install transport locks

before transporting. Leak down or failure of

mechanical or hydraulic system can cause equip-

ment to drop.

Always attach safety chain to tractor drawbar

when transporting unit.

Never exceed 20 mph (32.2 km/h) during trans-

port.

Never allow riders on power unit or attachment.

Do not operate PTO during transport.

Do not operate or transport on steep slopes.

Do not operate or transport equipment while

under the influence of alcohol or drugs.

Always comply with all state and local lighting

and marking requirements.

Lock-Up

Always transport with wings and center frame in the

raised, locked position.

Wing Lock-Up

1. Raise wing to the up position.

2. Remove safety pin and lock-up bar from storage

position.

3. Place lock-up bar over cylinder pin and secure with

safety pin.

4. Repeat steps 1 to 3 for opposite wing.

5. Lower cylinder against lock-up bars (Figure 2).

Figure 2. Transport Lock-Up Bar - Right Wing

Center Section Lock-Up

1. Raise cutter with hydraulic cylinder to maximum

height.

2. Rotate transport lock into position over cylinder rod

(Figure 3).

Figure 3. Transport Lock In Transport Position

3. Lower cutter against transport lock.

4. To lower cutter for operation, extend hydraulic

cylinder to raise cutter. Rotate transport lock back

away from cylinder rod (Figure 4).

5. Lower cutter to desired cutting height.

Figure 4. Transport Lock In Operation Position

CAUTION

DP4a

DP7

18 Operation

MAN0707 (5/30/2008)

STORAGE

Follow these steps when storing your cutter:

1. Clean cutter before storing. See page 23 for

cleaning instructions. Store on level, solid ground.

2. Disconnect driveline and secure up off the ground.

3. Lower wings to ground.

4. Raise cutter center section and pin transport bar in

raised position.

5. Attach parking jack and raise tongue weight off

tractor drawbar.

6. Place wedge blocks at front and rear of wheels on

center section and each wing to prevent wheel

rotation.

7. Securely block all four corners of center section

and each wing with jack stands.

8. Remove hydraulic hoses after tractor is turned off

and all system pressure is released by operating

valve levers several times.

9. Remove safety tow chain.

10. Remove retainer pin and high strength drawbar

pin.

11. Keep children and bystanders away from storage

area.

PRE-OPERATION CHECK LIST

(OWNER'S RESPONSIBILITY)

___ Review and follow all safety rules and safety

decal instructions on page 7 through page 13.

___ Check that all safety decals are installed and in

good condition. Replace if damaged.

___ Check that equipment is properly and securely

attached to tractor.

___ Make sure driveline spring-activated locking pin

or collar slides freely and is seated firmly in trac-

tor PTO spline groove.

___ Check all lubrication points and grease as

instructed in lubrication information. Make sure

the PTO slip joint is lubricated and that the gear-

box fluid levels are correct.

___ Set tractor PTO at correct rpm for your equip-

ment.

___ Lubricate all grease fitting locations. Make sure

PTO shaft slip joint is lubricated.

___ Check that all hydraulic hoses and fittings are in

good condition and not leaking before starting

tractor. Check that hoses are not twisted, bent

sharply, kinked, frayed, or pulled tight. Replace

any damaged hoses immediately.

___ Check that all hardware is properly installed and

secured.

___ Check cutting height and attitude adjustment.

___ Raise and lower equipment to make sure air is

purged from hydraulic cylinders and hoses. Raise

and lower equipment to make sure air is purged

from hydraulic cylinders and hoses.

___ Check that blades are sharp and secure and cut-

ting edge is positioned to lead in a counterclock-

wise rotation.

___ Make sure tractor ROPS or ROPS cab and seat

belt are in good condition. Keep seat belt

securely fastened during operation.

___ Check that shields and guards are properly

installed and in good condition. Replace if dam-

aged.

___ Before starting engine, operator must be in trac-

tor seat with seat belt fastened. Place transmis-

sion in neutral or park, engage brake and

disengage tractor PTO.

___ Inspect area to be cut and remove stones,

branches, or other hard objects that might be

thrown and cause injury or damage.

___ Inspect rubber or chain shielding and replace any

damaged rubber shield or missing links.

___ Make sure tractor 3-point lift links do not interfere

with hydraulic hoses or driveline throughout full

turning range.



Owner Service 19

MAN0707 (5/30/2008)

OWNER SERVICE

The information in this section is written for operators

who possess basic mechanical skills. If you need help,

your dealer has trained service technicians available.

For your protection, read and follow the safety informa-

tion in this manual.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Before working underneath, disconnect drive-

line from tractor, lower wings to ground, raise cut-

ter, and pin transport bar in raised position. Attach

parking jack and lower to ground. Securely block

all four corners of center section and each wing

with jack stands. Blocking up prevents the cutter

from dropping due to hydraulic leak down, hydrau-

lic system failure, or mechanical component fail-

ure.

Service and maintenance work not covered in

OWNER SERVICE must be done by a qualified

dealership. Special skills, tools, and safety proce-

dures may be required. Failure to follow these

instructions can result in serious injury or death.

Before servicing, adjusting, repairing or unplug-

ging, stop tractor engine, place all controls in neu-

tral, set park brake, remove ignition key, and wait

for all moving parts to stop.

Never perform service or maintenance with

engine running.

If you do not understand any part of this manual

and need assistance, see your dealer.

Always wear relatively tight and belted clothing

to avoid entanglement in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

BLOCKING METHOD

To minimize the potential hazards of working under-

neath the cutter, follow these procedures:

Before performing any service or maintenance,

lower equipment to ground or block securely, turn

off engine, remove key, and disconnect driveline

from tractor PTO.

Never go underneath equipment (lowered to the

ground or raised) unless it is properly blocked and

secured. Never place any part of the body under-

neath equipment or between moveable parts even

when the engine has been turned off. Hydraulic

system leak down, hydraulic system failures,

mechanical failures, or movement of control levers

can cause equipment to drop or rotate unexpect-

edly and cause severe injury or death. Follow Oper-

ator's Manual instructions for working underneath

and blocking requirements or have work done by a

qualified dealer.

Do not position jackstands under wheels, axles, or

wheel supports. Components can rotate and cause cut-

ter to fall.

1. Jackstands with a load rating of 1000 lbs. or more

are the only approved blocking device for this

cutter. Install jackstands (shown by Xs in Figure 5)

under the cutter before working underneath unit.

2. Consider the overall stability of the blocked unit.

Just placing jackstands underneath will not ensure

your safety.

The working surface must be level and solid to

support the weight on the jackstands. Make sure

jackstands are stable, both top and bottom. Make

sure cutter is approximately level.

3. With full cutter weight lowered onto jackstands, test

blocking stability before working underneath.

4. If cutter is attached to tractor when blocking, set

the brakes, remove key, and block cutter before

working underneath.

5. Securely block rear tractor wheels, in front and

behind. Tighten tractor lower 3-point arm anti-sway

mechanism to prevent side-to-side movement.

CAUTION

20 Owner Service

MAN0707 (5/30/2008)

Figure 5. Jackstand Placement and Lubrication Points

LUBRICATION

Do not let excess grease collect on or around parts,

particularly when operating in sandy areas.

See Figure 5 for lubrication points and frequency or

lubrication based on normal operating conditions.

Severe or unusual conditions may require more fre-

quent lubrication.

Use a lithium grease of #2 consistency with a MOLY

(molybdenum disulfide) additive for all locations unless

otherwise noted. Be sure to clean fittings thoroughly

before attaching grease gun. One good pump of most

guns is sufficient when the lubrication schedule is fol-

lowed.

Gearbox Lubrication

For gearbox, use a high quality gear oil with a viscosity

index of 80W or 90W and an API service rating of GL–

4 or –5 in gearboxes. Fill gearbox until oil runs out the

side plug on gearbox. Check gearbox daily for evi-

dence of leakage, and contact your dealer if leakage

occurs. Use sealant on vent plug threads during instal-

lation. Check vent plug periodically and clean if it does

not relieve pressure.

Driveline Lubrication

1. Lubricate the driveline slip joint every eight

operating hours. Failure to maintain proper

lubrication could result in damage to U-joints,

gearbox, and driveline.

2. Lower cutter to ground, disconnect driveline from

tractor PTO shaft, and slide halves apart but do not

disconnect from each other.

3. Apply a bead of grease completely around male

half where it meets female half. Slide drive halves

over each other several times to distribute grease.

1. Driveline U-joint 10 Hours

2. Telescoping shaft 10 Hours

3. Carrier bearing block 40 Hours

4. CV body assembly 10 hours

(10 pumps minimum)

5. Driveline shield 10 Hours

6. Splined yoke 10 Hours

7. Gearbox (above lower Daily

line on dipstick)

8. Tongue pivot 40 Hours

9. Wheel yoke pivot 40 Hours

10. Tailwheel spindle 20 Hours

11. Turnbuckle 40 Hours

(Rev. 10/19/2009)

Owner Service 21

MAN0707 (5/30/2008)

Seasonal Lubrication

In addition to the daily recommended lubrication, a

more extensive application is recommended season-

ally.

1. Fill CV double yokes with 20 pumps of grease with

the joints in a straight line.

2. Articulate CV body to maximum angle several

times to ensure full coverage of joints.

3. Place joints in the straight position and a add 10

additional pumps of grease to both joints.

4. Wipe telescoping drive clean of all old grease and

contaminants.

5. Add a thin layer of new grease over telescoping

drive.

BLADES

Before working underneath, read manual

instructions, securely block up, and check stability.

Secure blocking prevents equipment from drop-

ping due to hydraulic leak down, hydraulic system

failure, or mechanical component failure.

Blade Removal (Figure 6)

Figure 6. Blade Assembly

1. Disconnect driveline from tractor PTO.

2. Raise cutter and block securely (see Figure 5).

3. Align crossbar (10) with blade access hole in the

cutter frame. Remove cap screw (52), blade pin

lock clip (14), keyhole plate (13), and shims (11 &

12). Carefully drive blade pin (9) out of crossbar.

4. Rotate crossbar and repeat for opposite blade.

NOTICE

■If blade pin (9) is seized in crossbar and extreme

force will be needed to remove it, support crossbar

from below to prevent gearbox damage.

Blade Installation (Figure 6)

Your dealer can supply genuine replacement

blades. Substitute blades may not meet original

equipment specifications and may be dangerous.

NOTICE

■Crossbar rotation has clockwise rotation on left

gearbox and counterclockwise rotation on the right

and center gearboxes when looking down on cut-

ter. Be sure to install blade cutting edge to lead in

correct rotation.

NOTE: Always replace or sharpen both blades at the

same time.

1. Inspect blade pin (9) for nicks or gouges, and if you

find any replace the blade pin.

2. Insert blade pin through the blade. Blade should

swivel on blade pin; if it doesn’t, determine the

cause and correct.

3. Align crossbar (10) with blade access hole in cutter

frame. Apply a liberal coating of Never-Seez® or

equivalent to blade pin and crossbar hole. Make

sure blade offset is down away from cutter.

4. Insert blade pin (9) through blade. Push blade pin

through crossbar.

5. Install shims (11 & 12) over blade pin.

NOTE: Only use enough shims to allow keyhole

plate (13) to slide into blade pin groove.

6. Install blade clip (14) over keyhole plate and into

blade pin groove.

7. Secure into position with cap screw (52). Torque

cap screw to 85 lbs-ft.

8. Repeat steps for opposite side.

NOTE: Blade should be snug but should swivel on

pin without having to exert excessive force. Blade

should not move more than a 1/4 inch up or down

at the tip. Keep any spacers not used in the instal-

lation as replacements or for future installation.

9. Blade pin

10. Crossbar assembly

11. Shim, 18 ga

12. Shim, 20 ga

13. Keyhole plate

14. Blade lock clip

52. 1/2 NC x 1-1/4 HHCS GR5

CAUTION

22 Owner Service

MAN0707 (5/30/2008)

Blade Sharpening

NOTICE

■When sharpening blades, grind the same

amount on each blade to maintain balance.

Replace blades in pairs. Unbalanced blades will

cause excessive vibration, which can damage

gearbox bearings. Vibration may also cause struc-

tural cracks to cutter.

1. Sharpen both blades at the same time to maintain

balance. Follow original sharpening pattern.

2. Do not sharpen blade to a razor edge—leave at

least a 1/16" blunt edge.

3. Do not sharpen back side of blade.

Figure 7. Blade Sharpening

SLIP CLUTCH ADJUSTMENT (FIGURE 8)

The slip clutch is designed to slip so that the gearbox

and driveline are protected if the cutter strikes an

obstruction.

A new slip clutch or one that has been in storage over

the winter may seize. Before operating the cutter, make

sure it will slip by performing the following operation:

1. Turn off tractor engine and remove key.

2. Remove driveline from tractor PTO.

3. Loosen six 10 mm cap screws (6) to remove all

tension from Belleville spring plate (5).

4. Hold clutch hub (3) solid and turn shaft to make

sure clutch slips.

5. If clutch does not slip freely, disassemble and clean

the thrust plate faces (4), flange yoke (1), and

clutch hub (3).

6. Reassemble clutch.

7. Tighten Belleville spring (5) until it is against the

thrust plate (4) of the clutch, and then back off each

of the six nuts by 2 full revolutions. The gap

between Belleville spring and thrust plate should

be 1/8" as shown in Figure 8.

8. If a clutch continues to slip when the spring is

compressed to 1/8" gap, check friction discs (2) for

excessive wear. Discs are 1/8" when new. Replace

discs after 1/16" wear. Minimum disc thickness is

1/16".

Figure 8. Slip Clutch Assembly

1. Flange yoke

2. Friction disc

3. Hub 1-3/8 round bore

4. Thrust plate

5. Belleville spring plate

6. 10 mm x 1.5P x 50 mm Cap screw

7. 10 mm x 1.5P Hex nut

8. 12 mm x 1.5P x 65 mm Cap screw

9. 12 mm x 1.5P Hex nut

Owner Service 23

MAN0707 (5/30/2008)

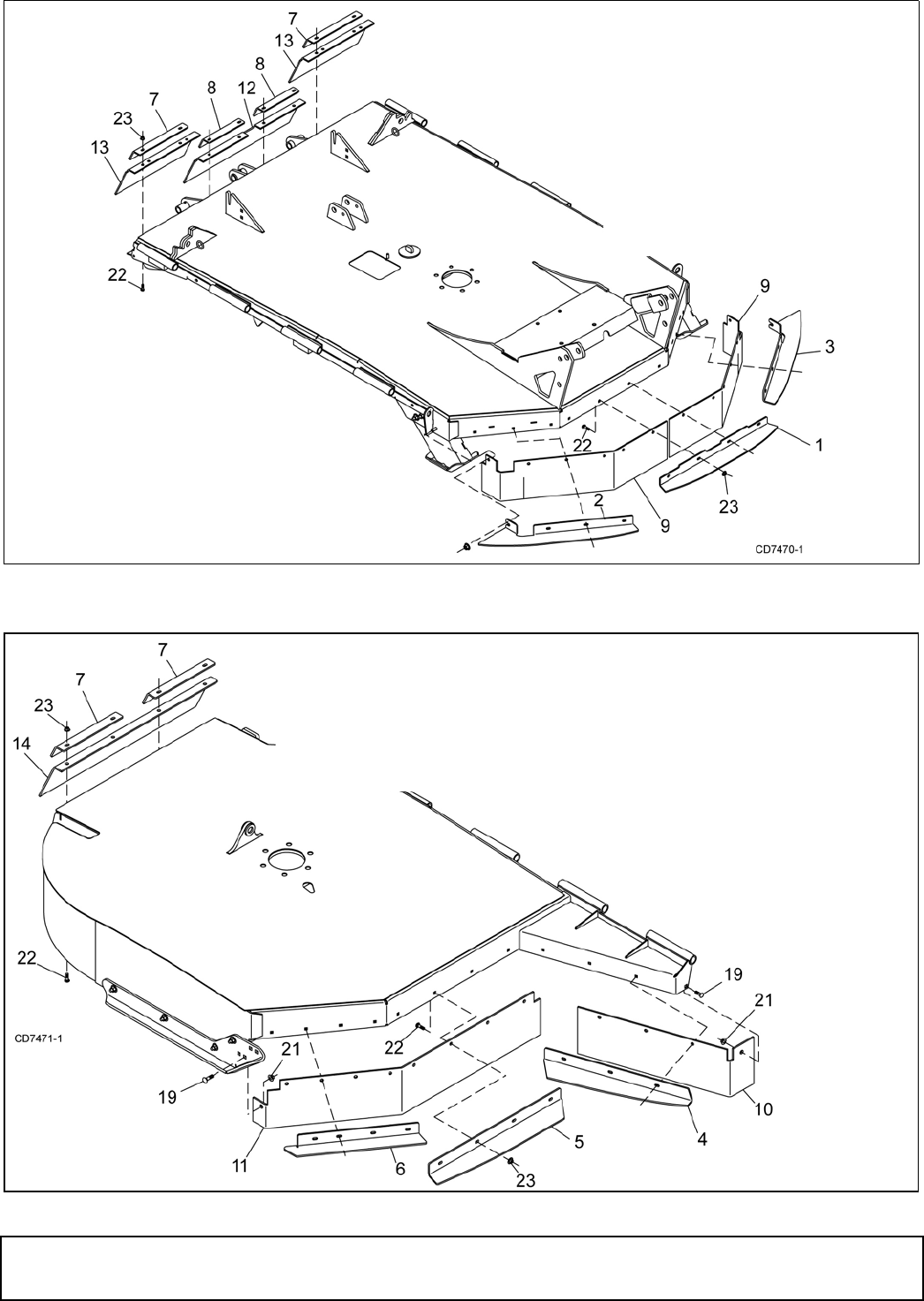

SHIELDING REPAIR

Full chain or rubber shielding must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property.

• If this machine is not equipped with full chain

or rubber shielding, operation must be stopped

when anyone comes within 300 feet (92 m).

• This shielding is designed to reduce the risk

of thrown objects. The mower deck and protec-

tive devices cannot prevent all objects from

escaping the blade enclosure in every mowing

condition.

It is possible for objects to ricochet

and escape, traveling as much as 300 feet (92 m).

Repairing Rubber Shielding

1. Inspect belting and rear bands each day of

operation.

2. Replace if bent, cracked, or broken.

3. Replace any missing hardware.

Repairing Optional Chain Shielding:

1. Inspect chain shielding each day of operation and

replace any broken or missing chains as required.

2. Replace any missing hardware.

SERVICING TIRES SAFELY

Used Aircraft Tires (Figure 9)

Do not attempt to mount a tire unless you have the

proper equipment and experience to perform the job.

Always maintain the correct tire pressure. Do not inflate

tires above the recommended pressure. Never weld or

heat a wheel and tire assembly. The heat can cause an

increase in air pressure and result in a tire explosion.

Welding can structurally weaken or deform the wheel.

When inflating tires, use a clip-on chuck and an exten-

sion hose long enough to allow you to stand to the side

— not in front of or over the tire assembly. Use a safety

cage if available.

Check wheels for low pressure, cuts, bubbles, dam-

aged rims, or missing lug bolts and nuts.

Never remove split rim assembly hardware (A) with the

tire inflated.

Figure 9. Split Rim Tire Servicing

CLEANING

After Each Use

●Remove large debris such as clumps of dirt, grass,

crop residue, etc. from machine.

●Inspect machine and replace worn or damaged

parts.

●Replace any safety decals that are missing or not

readable.

Periodically or Before Extended Storage

●Clean large debris such as clumps of dirt, grass,

crop residue, etc. from machine.

●Remove the remainder using a low-pressure water

spray.

1. Be careful when spraying near scratched or torn

safety decals or near edges of decals as water

spray can peel decal off surface.

2. Be careful when spraying near chipped or

scratched paint as water spray can lift paint.

3. If a pressure washer is used, follow the advice

of the pressure washer manufacturer.

●Inspect machine and replace worn or damaged

parts.

●Sand down scratches and the edges of areas of

missing paint and coat with Woods spray paint of

matching color (purchase from your Woods

dealer).

●Replace any safety decals that are missing or not

readable (supplied free by your Woods dealer).

See Safety Decals section for location drawing.

WARNING

A

PN 1006348

24 Troubleshooting

MAN0707 (5/30/2008)

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Does not cut Dull blades Sharpen blades.

Worn or broken blades Replace blades. (Replace in pairs

only.)

Incorrect PTO speed Set at rated PTO speed.

Ground speed too fast Reduce ground speed.

Drive not functioning (blades do

not turn when PTO is running)

Check drive shaft connection.

Check gearbox.

Gearbox malfunction Repair gearbox.

Excessive clutch slippage Adjust clutch.

Incorrect blade direction Check to be sure blade edge is

correct for direction of rotation.

Streaks or ragged cut Broken or worn blades Replace or sharpen blades.

Attitude incorrect Level machine.

Ground speed too fast Reduce ground speed.

Excessive cutting height Lower cutting height. (Note: Set

height so blades do not frequently

hit ground.)

Excessive lush and tall vegetation Recut at 90° to first pass.

Excessive side skid wear Running with skids continuously

on ground

Raise cutting height or adjust.

Excessive clutch slippage Clutch out of adjustment Adjust clutch.

Clutch discs worn; wear stops

contacting opposite plate

Replace discs.

Blades hitting ground Raise cutting height.

Vibration Broken blade Replace blades in pairs.

Bearing failure Check gearbox shafts for side play.

Hitch length incorrect Reset hitch length.

Universal drive Adjust pedestal bearing height to

be parallel to ground.

Blades hitting deck Bent blades or crossbar Replace bent blades or crossbar.

Unit will not raise Low oil Add hydraulic oil.

Unit doesn’t cut level Wing section cuts lower than

center

Lengthen turnbuckle connecting

center yoke to wing wheel yoke.

Wing section cuts higher than

center

Shorten turnbuckle connecting

center yoke to wing wheel yoke.

Dealer Service 25

MAN0707 (5/30/2008)

DEALER SERVICE

The information in this section is written for dealer ser-

vice personnel. The repair described here requires

special skills and tools. If your shop is not properly

equipped or your mechanics are not properly trained in

this type of repair, you may be time and money ahead

to replace complete assemblies.

Before working underneath, read manual

instructions, securely block up, and check stability.

Secure blocking prevents equipment from drop-

ping due to hydraulic leak down, hydraulic system

failure, or mechanical component failure.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

GEARBOX MAINTENANCE

NOTE: Read this entire section before starting any

repair. Many steps are dependent on each other.

1. Fill gearbox with SAE 80W or 90W gear lube.

Proper oil level is between lowest ring and end of

dipstick.

NOTE: Repair to this gearbox is limited to replac-

ing bearings, seals, and gaskets. Replacing gears,

shafts, and a housing is not cost effective. Pur-

chasing a complete gearbox is more economical.

2. Inspect gearbox for leakage and bad bearings.

Leakage is a very serious problem and must be

corrected immediately.

NOTE: Bearing failure is indicated by excessive

noise and side-to-side or end-play in gear shafts.

Seal Replacement (Figure 12)

Recommended sealant for gearbox repair is

Permatex® Aviation 3D Form-A-Gasket or equivalent.

Leakage can occur at the vertical or horizontal gaskets

and shaft seals.

Leakage at the horizontal gasket or seal can be

repaired without removing the gearbox from the cutter.

Seal Installation

NOTE: Proper seal installation is important. An improp-

erly installed seal will leak.

1. Clean area in housing where seal outer diameter

(OD) seats. Apply a thin coat of Permatex.

2. Inspect area of shaft where seal seats. Remove

any burrs or nicks with an emery cloth.

3. Lubricate gear shaft and seal lips.

4. Place seal squarely on housing, spring-loaded lip

toward housing. Select a piece of pipe or tubing

with an OD that will sit on the outside edge of the

seal but will clear the housing. Tubing with an OD

that is too small will bow seal cage and ruin seal.

5. Carefully press seal into housing, avoiding

distortion to the metal seal cage.

Figure 12. Seal Installation

CAUTION

1. Seal

2. Pipe or tube

3. Seal seat

4. Casting

Pipe or tube must

press at outer

edge of seal.

Incorrect

Installation

26 Dealer Service

MAN0707 (5/30/2008)

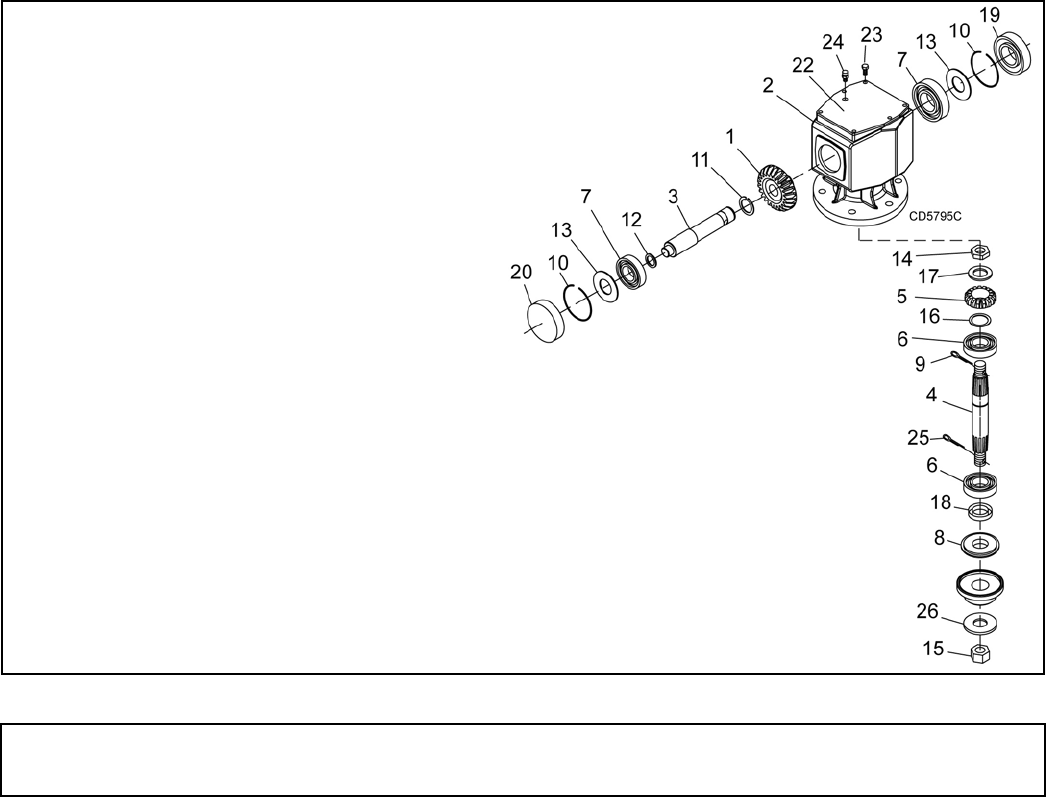

Vertical Shaft Seal Replacement (Figure 13)

1. Disconnect and remove the rear driveline from the

gearbox.

2. Remove vent plug (24) and siphon gear lube from

housing through this opening.

3. Remove crossbar (see page 30).

4. Remove protective seal (8) and vertical shaft seal

(18). Replace seal (18) with new seal.

Vertical seal should be recessed in housing. Hori-

zontal seal (19) should be pressed flush with out-

side of housing.

NOTE: Distortion to seal cage or damage to seal

lip will cause seal to leak.

5. Fill gearbox with SAE 80W or 90W gear lube until it

runs out the level plug.

6. Remove and replace any seal damaged in

installation.

Horizontal Shaft Seal Replacement (Figure 13)

1. Disconnect and remove the rear driveline from the

gearbox.

2. Remove vent plug (24) and siphon gear lube from

housing through this opening.

3. If the leak occurred at either end of horizontal shaft,

remove oil cap (20) and/or oil seal (19). Replace

with new one.

4. Fill gearbox with SAE 80W or 90W gear lube until it

runs out the level plug.

GEARBOX REPAIR

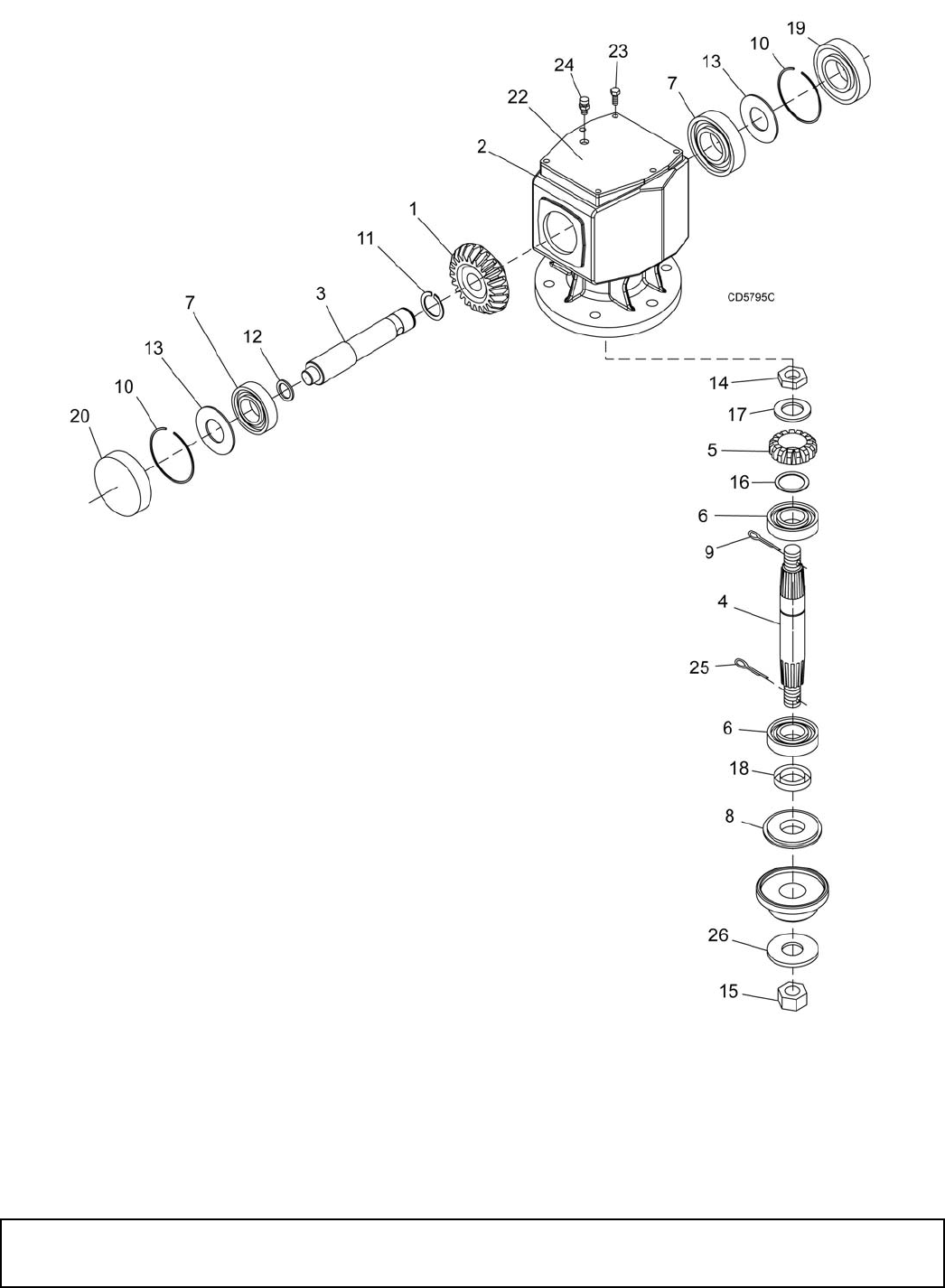

Removal from Cutter (Figure 13)

NOTE: Gearbox is heavy: do not attempt to move with-

out mechanical assistance.

1. Disconnect and remove the rear driveline from the

gearbox.

2. Remove cotter pin and nut from vertical shaft and

remove crossbar (see page 30).

3. Remove the six bolts that attach gearbox to cutter

and remove gearbox.

Disassembly (Figure 13)

1. Remove top cover (22) from gearbox and pour out

gear oil.

2. Remove oil cap (20) (to be replaced).

3. Remove snap ring (10) and shim (13) from input

shaft (3).

4. Support gearbox in hand press and push on input

shaft (3) to remove bearing (7).

5. Remove six cap screws (23) and top cover (22)

from housing. Remove gear (1) from inside

housing.

6. Remove oil seal (19) from front of housing (to be

replaced).

7. Remove snap ring (10) and shim (13) from front of

housing (2).

8. Remove input bearing (7) by using a punch and

hammer from outside of housing.

9. Support housing in vise in a horizontal position.

10. The castle nut (15), cotter pin (25), and hub are

already removed with the stump jumper/crossbar.

Remove the protective seal (8), and oil seal (18).

11. Remove cotter pin (9), castle nut (14), and shim

(17) from output shaft (4).

12. Remove output shaft (4) by using a punch and

hammer and tap on top to drive down. Remove

gear (5) and shim (16) from inside housing.

13. Remove bottom bearing (26) by using a punch and

hammer from the top, outside the housing.

14. Support housing upside down (top cover surface)

and remove bottom bearing (6) by using a punch

and hammer from the bottom side of the housing.

15. Inspect gears for broken teeth and wear. Some

wear is normal and will show on loaded side.

Forged gear surfaces are rough when new. Check

that wear pattern is smooth.

16. Inspect vertical and horizontal shafts for grooves,

nicks, or bumps in the areas where the seals seat.

Resurface any damage with emery cloth.

17. Inspect housing and caps for cracks or other

damage.

Assembly (Figure 13)

1. Clean housing, paying specific attention to areas

where gaskets will be installed.

2. Wash housing and all components thoroughly.

Select a clean area for gearbox assembly. Replace

all seals, bearings, and gaskets. All parts must be

clean and lightly oiled before reassembling.

3. Insert both output bearings (6) in the housing,

using a round tube of the correct diameter and a

hand press.

4. Slide output shaft (4) through both bearings (6)

until it rests against top bearing (6).

5. Slide shim (16) over output shaft (4).

6. Press gear (5) onto output shaft (4) and secure

with shim (17), castle nut (14), and cotter pin (9).

7. Apply grease to lower seal lips (18) and press seal

(18) over output shaft (4), using a tube of the

Dealer Service 27

MAN0707 (5/30/2008)

correct diameter. Be sure not to damage the seal

lip.

8. Press in housing so that seal is recessed. Press

protective seal (8) until seated flush with housing.

Verify that the seal (8) is seated correctly.

9. Press bearing (7) into the housing, using a round

tube of the correct diameter and a hand press.

Secure with shim (13) and snap ring (10).

10. Secure snap ring (11) on input shaft (3) if not

already secure.

11. Place gear (1) through top of housing and align

gear (1) and gear (5) so that gear teeth are a

match.

12. While holding gear (1) in place, slide input shaft (3)

through gear (1) and bearing (7). Align splines on

shaft (3) and gear (1).

13. Slide shim (12) over input shaft (3) and press

bearing (7) onto input shaft (3), using a round tube

of the correct diameter and a hand press.

14. Slide shim (13) over input shaft (3) and secure with

snap ring (10).

15. Check input shaft end float by moving the input

shaft (3) by hand. If end float is higher than 0.012",

insert shim between input shaft (3) and rear

bearing (7). Repeat until end float is less than

0.012". Check rotational torque by hand. The

torque should be less than 2.2 lbs-inch.

16. Check that the gear backlash is between 0.006"

and 0.016". You should not have to adjust the

backlash.

17. Press in input oil seal (19), using tube of correct

diameter. Be careful not to damage seal lip.

18. Press oil cap (20) on to cover the rear of housing,

using a tube of the correct diameter.

19. Place top cover (22) on top of housing and secure

with six cap screw (23).

20. Check gearbox housing for leaks by plugging all

holes except one. Apply 4 psi compressed air and

immerse the gearbox in water to verify that there

are no leaks.

21. Remove gearbox from water and dry off with

compressed air. Add SAE 80W or 90W EP oil until

it runs out of side level hole. Tighten all plugs.

Reinstallation

NOTE: Gearbox is heavy: do not attempt to move with-

out mechanical assistance.

1. Set gearbox on cutter and fasten with bolts and

nuts. Torque bolts to 300 lbs-ft.

2. Attach crossbar (Crossbar Installation, page 31).

Figure 13. Gearbox

1. Crown gear

2. Gearbox housing

3. Input shaft

4. Output shaft

5. Gear pinion

6. Bearing

7. Input bearing

8. Protective seal

9. Cotter pin

10. Snap ring

11. Snap ring

12. Shim, 45.3 x 2.5

13. Shim, 70.3 x 84.7

14. Nut

15. Castle nut

16. Shim, 50.3 x 70.3

17. Shim

18. Oil seal (Vertical Shaft)

19. Oil seal (Horizontal Shaft)

20. Cap

22. Top cover

23. Cap screw 8 mm x 16 (8.8)

24. Vent plug

25. Cotter pin

26. Washer

28 Dealer Service

MAN0707 (5/30/2008)

SPLITTER GEARBOX REPAIR (Figure 14)

Removal from Cutter

1. Disconnect and remove all drivelines from

gearbox.

2. Remove the four cap screw and lock washers that

secure gearbox to cutter, and remove gearbox.

NOTE: Gearbox is heavy: do not attempt to move it

without mechanical assistance.

Disassembly

Center Shaft

1. Remove plug from side of gearbox and pour out

the gear oil.

2. Remove seal (11, to be replaced) from the front

and rear of the center shaft (14).

3. Remove snap ring (10) and shim (12) from the

front and rear of the center shaft (14).

4. Support gearbox in a hand press and push on the

rear of the center shaft.

5. Remove bearing (13) from center shaft (14).

6. Remove six cap screws (20) and top cover (21)

from the gearbox housing.

7. Remove gear (17) and bearing (16).

8. Snap ring (15) does not have to be removed from

shaft (14) unless it is damaged.

Side Shaft

9. Remove seal (2, to be replaced) from the output

shaft (1).

10. Remove snap ring (4) and shim (8) from output

shaft (1).

11. Support gearbox in hand press. Using a punch

through the front opening of the gearbox and, push

shaft (1) and bearing (5) out the backside of

housing.

12. Remove gear (6) from inside housing.

13. Remove bearing (7) and shim (8) by using a

hammer and punch through front opening of the

gearbox and force them out the backside of the

housing.

14. Repeat steps 7 through 11 for opposite side shaft.

Inspect Components

15. Inspect gears for broken teeth and wear. Some

wear is normal and will show on the loaded side of

the teeth. Forged gear surfaces are rough when

new. Check that wear pattern is smooth.

16. Inspect shafts for grooves, nicks, or bumps in the

areas where seals seat. Resurface any damage

with emery cloth or replace shaft.

17. Inspect housing and caps for cracks or other

damage.

Assembly

1. Clean housing, pay specific attention to areas

where gaskets are installed.

2. Wash housing and all components thoroughly.

3. Select a clean work area to assemble gearbox.

4. Replace all seals, bearings, and gaskets.

5. All parts must be clean and lightly oiled before

assembly.

Side Shaft

6. Insert bearing (7) and shim (8) in housing using a

round tube of the same size diameter and a hand

press.

7. Place gear (6) inside the housing and slide output

shaft (1) through gear (6) and into bearing (7).

8. Slide bearing (5) and shim (8) over output shaft.

Secure with snap ring (4).

9. Check end play of shaft by moving it in and out. If

end play is more than 0.012", insert another shim

(8) between snap ring and bearing. Repeat

process until end play is less than 0.012".

10. Check rotational torque. Torque should be less

than 2.2 lbs-inch gear.

11. Place seal (2) over shaft and press into housing

using a tube of the same diameter. Seal should be

flush with housing when properly installed.

12. Repeat steps 6 through 10 for opposite side shaft.

Center Shaft

13. Place gear (17) inside housing and slide center

shaft (14) through the gear from the front of the

housing.

14. Slide bearings (16 & 13) and shims (12) over each

end of the center shaft (14). Secure bearings into

position using snap rings (10).

15. Check end play of shaft by moving it in and out. If

end play is more than 0.012", insert another shim

(12) between snap ring and bearing. Repeat

process until end play is less than 0.012".

16. Check rotational torque. Torque should be less

than 2.2 lbs-inch gear.

17. Check gear backlash, backlash should be between

0.006" and 0.016". You should not have to adjust

for backlash.

18. Place seal (11) over shaft and press into housing

using a tube of the same diameter. Seal should be

flush with housing when properly installed. Repeat

process for opposite end shaft.

Dealer Service 29

MAN0707 (5/30/2008)

Check Gearbox

1. Place top cover (21) on housing and secure into

position using six cap screws (20).

2. Check gearbox for leaks by: plugging all holes

except one, applying 4 psi of compressed air, and

immersing gearbox in water. Verify gearbox does

not leak.

NOTE: Excessive air pressure will damage seals.

3. Remove gearbox from water and dry off.

4. Remove upper plug (3) on right side of housing.

Add SAE 80W or 90W EP oil until it runs out side

level hole. Replace plug.

5. Install breather (18) in top cover.

Reinstallation on Cutter

NOTE: Gearbox is heavy: do not attempt to move it

without mechanical assistance.

1. Place gearbox on cutter and secure into position

using four cap screws and lock washers.

2. Torque hardware to 300 lbs-ft.

3. Attach all drivelines to gearbox.

4. Install all shields.

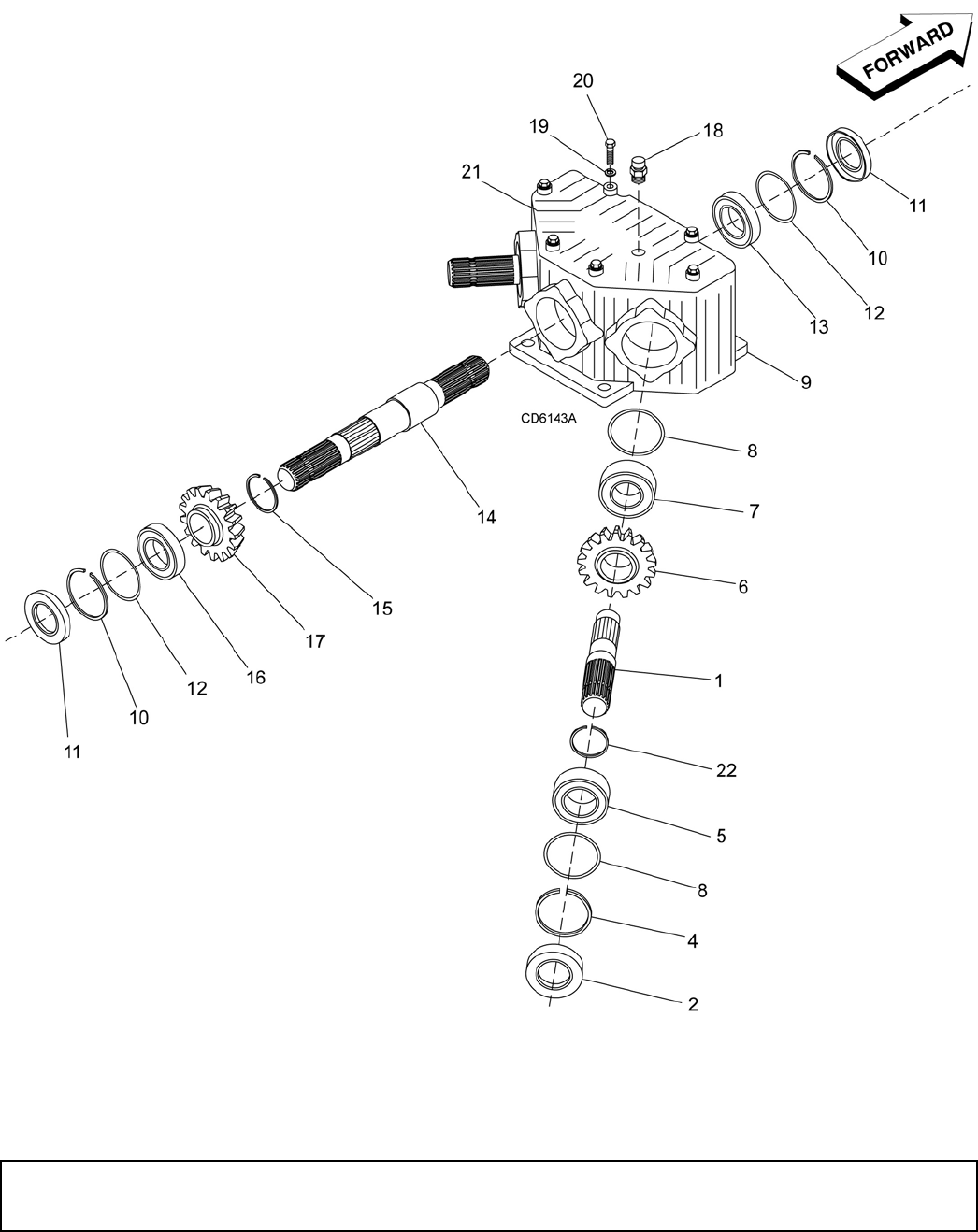

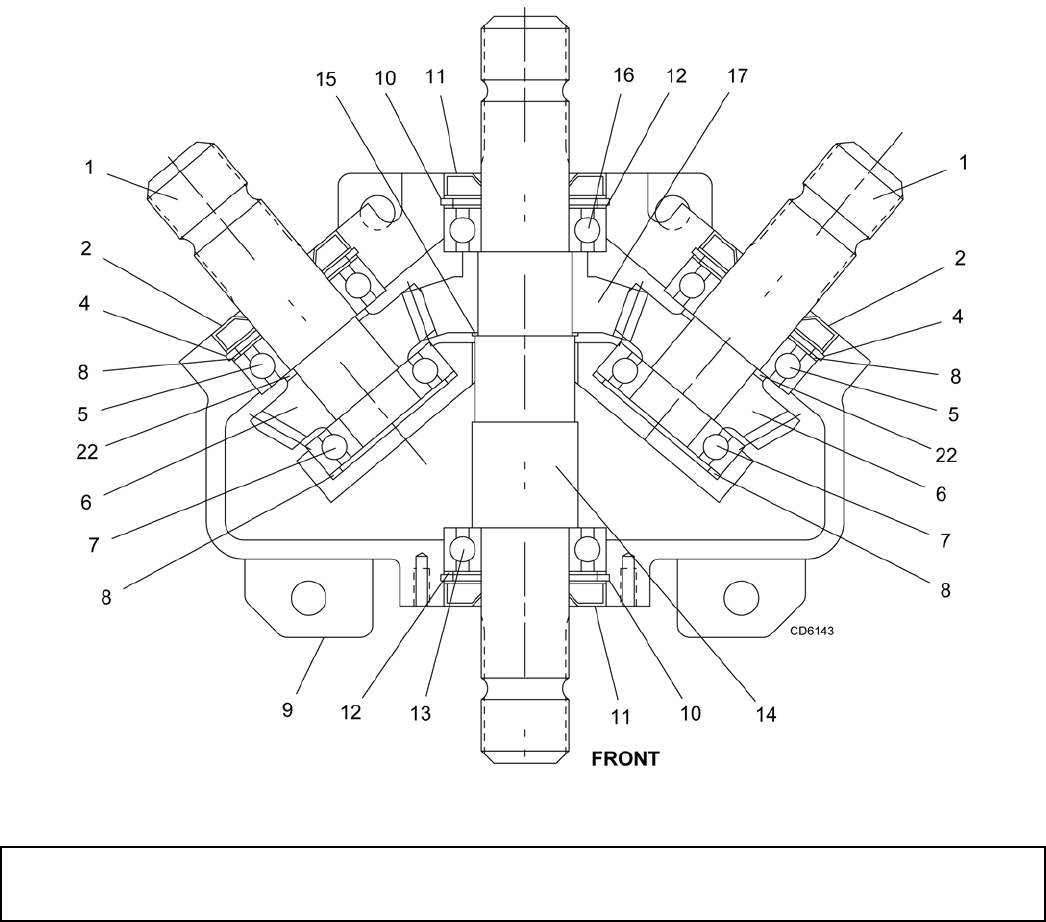

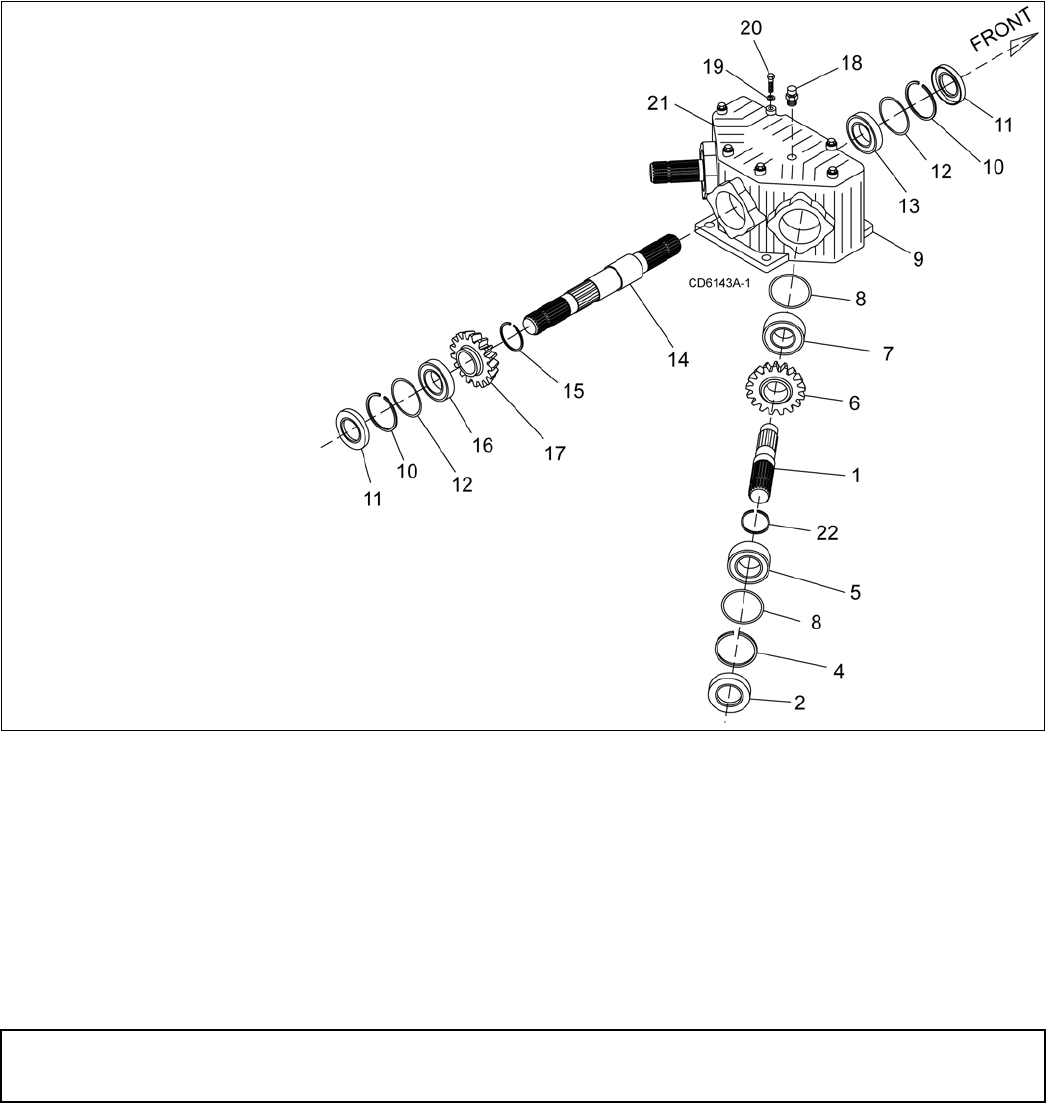

Figure 14. Splitter Gearbox Assembly

1. Shaft 1-3/4, 20 spline, wing

2. Oil seal

3. 3/8 plug

4. Snap ring

5. Bearing

6. Pinion gear

7. Bearing

8. Shim

9. Housing

10. Snap ring

11. Oil seal

12. Shim

13. Bearing

14. Shaft 1-3/4, 20 spline, center

15. Snap ring

16. Bearing

17. Gear

18. 1/2 Breather

19. 5/16 Lock washer

20. M8 x 30 Cap screw 8.8

21. Cover

22. Snap ring

30 Dealer Service

MAN0707 (5/30/2008)

CROSSBAR REMOVAL

1. It is necessary to gain access to bottom side of

cutter for crossbar removal. See Blocking Method

page 19.

NOTE: You will need to use either the puller screw

(Item 6, Figure 16) or a small hydraulic jack to

remove the crossbar.

2. Remove blades from crossbar as shown in Figure

15.

Figure 15. Blade Removal

3. Refer to Figure 16

.

Remove cotter pin from bottom

of crossbar and remove nut and washer.

4. Attach a clevis (1) to each end of crossbar, using

blade pins, spacers, keyhole plates, and blade pin

clips.

5. Position tube assembly (5) with threaded nut (4)

toward crossbar for puller screw removal or down

for hydraulic jack removal.

6. For removal with puller screw, attach tube (5) to

each clevis with bolts (2) and nuts (3). Place pad

(4) in nut and thread puller screw (6) into nut from

bottom. Tighten until pad is solid against gearbox

shaft. For best results, strike head of puller screw

with a hammer while tightening with a wrench.

7. For removal with a jack, attach tube to each clevis

with puller links (7), bolts (2), and nuts (3). Place

jack on tube with end of jack pressing against

gearbox shaft. Slowly apply force with jack.

NOTE: Hydraulic jack will not operate if tipped

more than 90°. Use care to prevent bending cross-

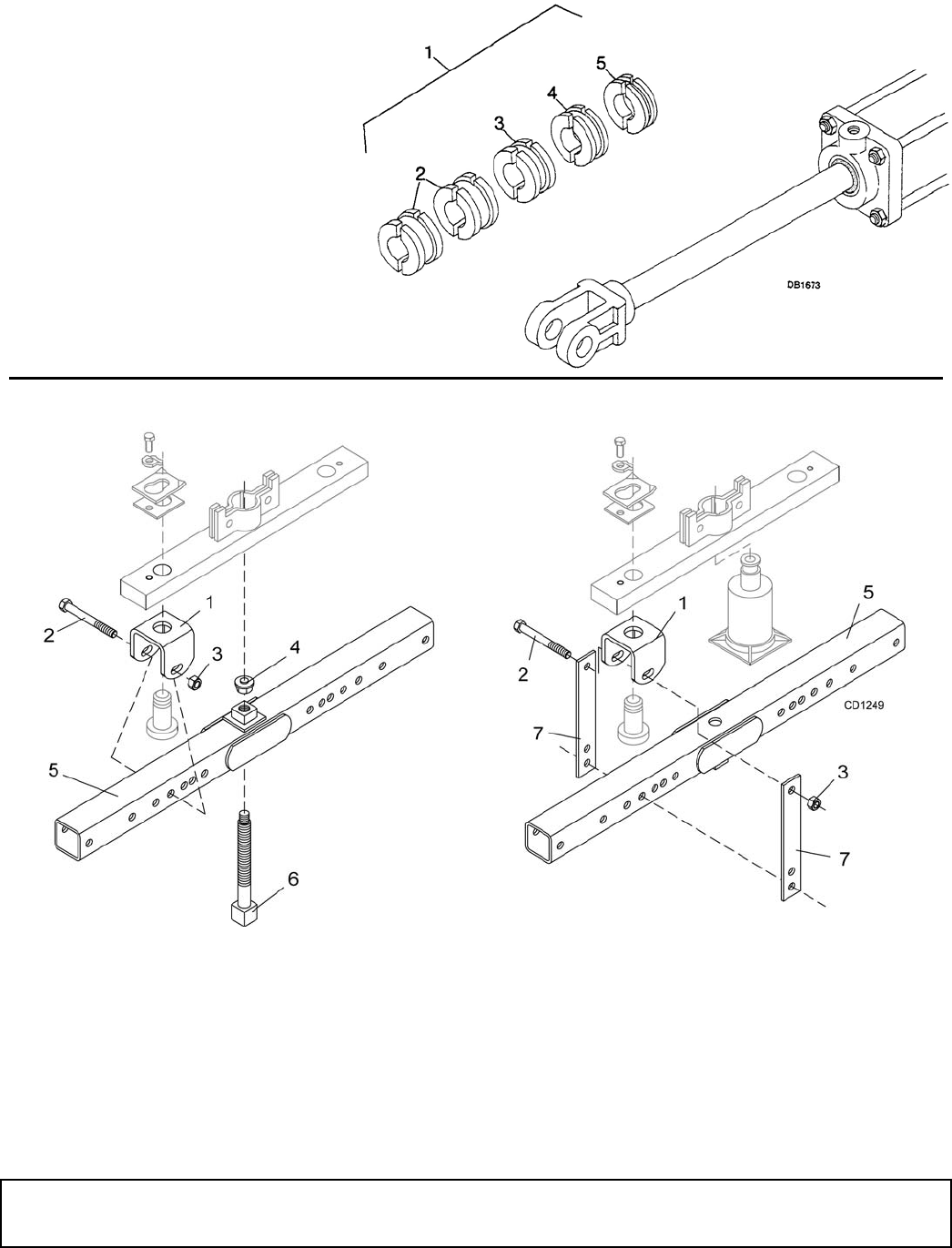

bar during removal. Figure 16. Crossbar Removal

9. Blade pin

10. Crossbar assembly

11. Shim, 18 ga

12. Shim, 20 ga

13. Keyhole plate

14. Blade lock clip

52. 1/2 NC x 1-1/4 HHCS GR5

1. Crossbar puller clevis

2. 5/8 NC x 4-1/2 HHCS

3. 5/8 NC Hex nut

4. Crossbar puller pad

5. Crossbar puller tube

6. Crossbar puller screw

7. Crossbar puller link

Dealer Service 31

MAN0707 (5/30/2008)

CROSSBAR INSTALLATION

1. Using emery cloth (220 or finer), remove surface

rust, Loctite® and foreign material from hub,

splined gearbox vertical shaft, and crossbar

assembly.

2. Slide crossbar assembly (10) onto splined shaft.

Install washer (71) and nut (72) and align a slot

with hole in splined shaft. Torque nut to 450 lbs-ft.

3. Install cotter pin (73) through slot in nut and bend

ends over.

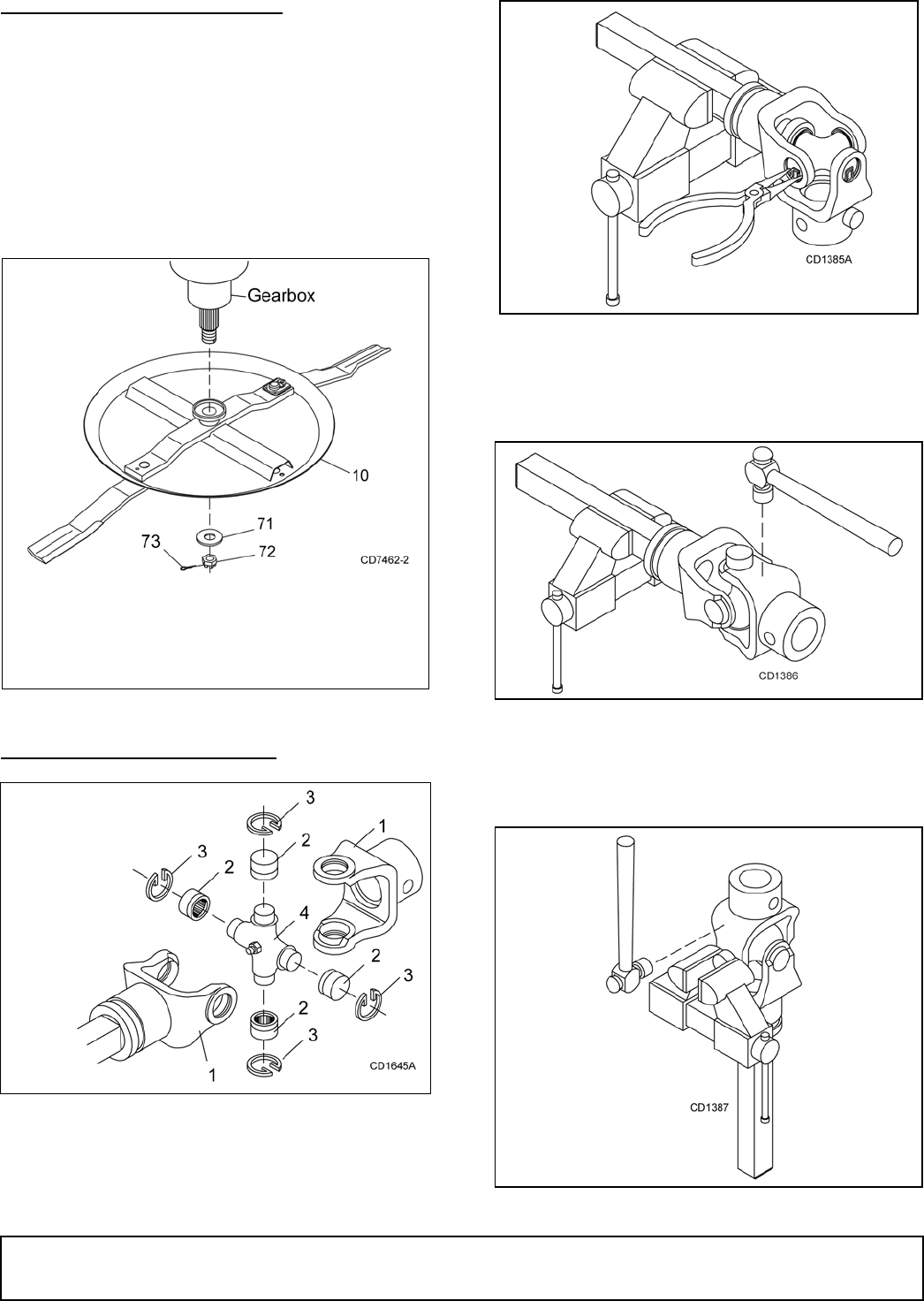

Figure 17. Crossbar Assembly Installation

UNIVERSAL JOINT REPAIR

Figure 18. U-Joint Exploded View

U-Joint Disassembly

1. Remove external snap rings from yokes in four

locations as shown in Figure 19.

Figure 19

2. With snap rings removed, support drive in vise,

hold yoke in hand and tap on yoke to drive cup up

out of yoke. See Figure 20.

Figure 20

3. Clamp cup in vise as shown in Figure 21 and tap

on yoke to completely remove cup from yoke.

Repeat step 2 and step 3 for opposite cup.

Figure 21

10. Crossbar assembly

71. Washer, 1.22 x 2.205 x .236

72. Castle nut, M30 x 2.0P

73. Cotter pin, 1/4 x 2-1/4

1. Yoke

2. Cup and bearings

3. Snap ring

4. Journal cross

32 Dealer Service

MAN0707 (5/30/2008)

4. Place universal cross in vise as shown in Figure 22

and tap on yoke to remove cup. Repeat Step 3 for

final removal. Drive remaining cup out with a drift

and hammer.

Figure 22

U-Joint Assembly

1. Place seals securely on bearing cups. Insert cup

into yoke from outside and press in with hand

pressure as far as possible. Insert journal cross

into bearing cup with grease fitting away from

shaft. Be careful not to disturb needle bearings.

Insert another bearing cup directly across from first

cup and press in as far as possible with hand

pressure.

2. Trap cups in vise and apply pressure. Be sure

journal cross is started into bearings and continue

pressure with vise, squeezing in as far as possible.

Tapping the yoke will help.

3. Seat cups by placing a drift or socket (slightly

smaller than the cup) on cup and rap with a

hammer. Install snap ring and repeat on opposite

cup.

4. Repeat Step 1 and Step 2 to install remaining cups

in remaining yoke.

5. Move both yokes in all directions to check for free

movement. If movement is restricted, rap on yokes

sharply with a hammer to relieve any tension.

Repeat until both yokes move in all directions

without restriction.

SERVICING TIRES SAFELY

Used Aircraft Tires (Figure 23)

Do not attempt to mount a tire unless you have the

proper equipment and experience to perform the job.

Always maintain the correct tire pressure. Do not inflate

tires above the recommended pressure. Never weld or

heat a wheel and tire assembly. The heat can cause an

increase in air pressure and result in a tire explosion.

Welding can structurally weaken or deform the wheel.

When inflating tires, use a clip-on chuck and an exten-

sion hose long enough to allow you to stand to the side

— not in front of or over the tire assembly. Use a safety

cage if available.

Check wheels for low pressure, cuts, bubbles, dam-

aged rims, or missing lug bolts and nuts.

Never remove split rim assembly hardware (A) with the

tire inflated.

Figure 23. Split Rim Tire Servicing

WARNING

A

PN 1006348

(Rev. 9/26/2008)

Assembly 33

MAN0707 (5/30/2008)

ASSEMBLY INSTRUCTIONS

DEALER SET-UP INSTRUCTIONS

Assembly of this cutter is the responsibility of the

WOODS dealer. It should be delivered to the owner

completely assembled, lubricated and adjusted for nor-

mal cutting conditions.

The cutter is shipped partially assembled. Assembly

will be easier if components are aligned and loosely

assembled before tightening hardware. Recommended

torque values for hardware are located on page 72.

Select a suitable working area. A smooth hard surface,

such as concrete, will make assembly much quicker.

Open parts boxes and lay out parts and hardware to

make location easy. Refer to illustrations, accompany-

ing text, parts lists and exploded view drawings.

Complete the check list on page 45 when assembly is

complete and cutter is delivered to the customer.

Before working underneath, carefully read Oper-

ator’s Manual instructions, disconnect driveline,

raise mower, securely block up all corners with

jackstands, and check stability. Secure blocking

prevents equipment from dropping due to hydrau-

lic leak down, hydraulic system failures, or

mechanical component failures.

Do not disconnect hydraulic lines until machine

is securely blocked or placed in lowest position

and system pressure is released by operating

valve levers.

Always wear relatively tight and belted clothing

to avoid entanglement in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Fill Gearboxes

1. Remove top and side plugs from gearbox.

2. Fill gearbox with SAE 80W or 90W EP oil until it

runs out of side level hole. Install plug in the side

hole and vented dipstick in the top.

3. Allow oil to drain into the lower bearings and

recheck oil level.

4. Fill all gearboxes.

Install Attitude Rod

1. Insert attitude rod (6) under splitter gearbox

support and through pivot casting in wheel yoke

arm assembly. The rod is a very tight fit; use care

to prevent thread damage during installation.

2. Slide spacer (16) over rod and loosely install

washer (35) and two nuts (34).

Figure 24. Attitude Rod Installed on Wheel Yoke Tube

Install Spring Arm

Refer to Figure 25.

1. Place spring arm (3), spacers (17), and spring (4)

on deck as shown.

2. Secure spring arm and spacers to lugs on deck

using clevis pin (19) and two cotter pins (66).

3. Install retaining cap screw (53) and flange lock nut

(55).

CAUTION

Small Aircraft Tires

Attitude Rod Length

Beyond Nuts (34)

Tongue at 11" 3.5

Tongue at 18" 1.75

Large Aircraft Tires

Tongue at 11" 4.5

Tongue at 18" 2.5

6. Attitude rod

16. 1" x 3.75 Spacer, pipe schedule 40

34.1" Hex nut

35.1" Flat washer

34 Assembly

MAN0707 (5/30/2008)

Install Height Adjustment Cylinder

Refer to Figure 25.

1. Attach base end of cylinder (5) to the spring arm

(3) using clevis pin (18) and two cotter pins (66).

2. Extend cylinder rod and place transport lock

bracket (7) over cylinder rod clevis.

3. Position cylinder rod and transport lock bracket

between lugs on the wheel yoke tube and align

holes.

4. Secure cylinder rod and transport lock bracket to

the wheel yoke tube using clevis pin (20) and two

cotter pins (66).

5. Install bushing (40), elbow, (41) and hose (42) to

the base end of cylinder (5). See Install Hose Kit,

page 39 for complete instructions.

NOTE: An optional ratchet (9) is available, and

replaces the hydraulic cylinder. Install ratchet jack

using the same procedure and hardware used for

the installation of the hydraulic cylinder.

Install SMV Emblem

Refer to Figure 25.

1. Attach SMV mounting bracket (10) to left side of

center section as shown using two carriage bolts

(56) and flange lock nuts (55).

2. Attach SMV socket (11) to mounting bracket (10)

using two carriage bolts (30) and lock nuts (31).

3. Attach SMV emblem (13) to SMV bracket (12)

using two round head cap screws (36) and hex

nuts (37).

Insert SMV bracket (12) and emblem (13) into

socket (11).

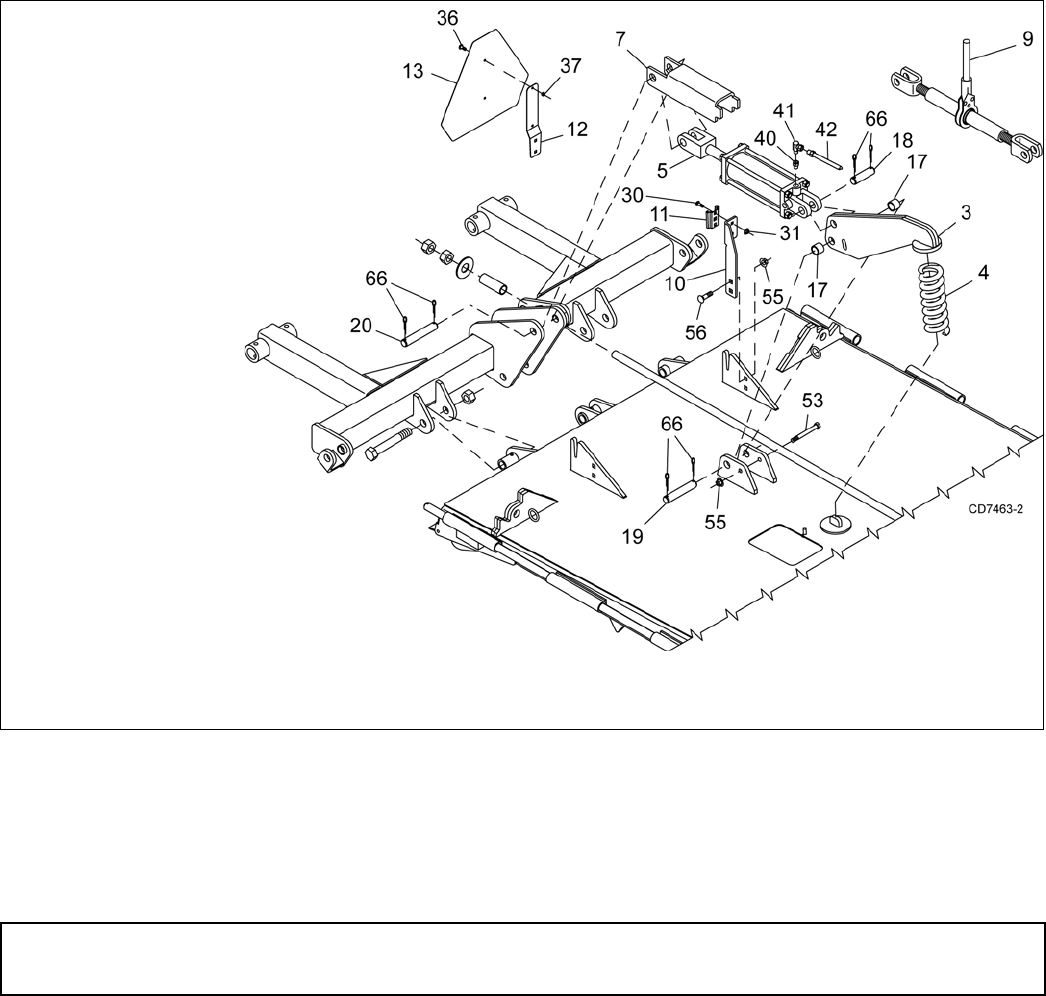

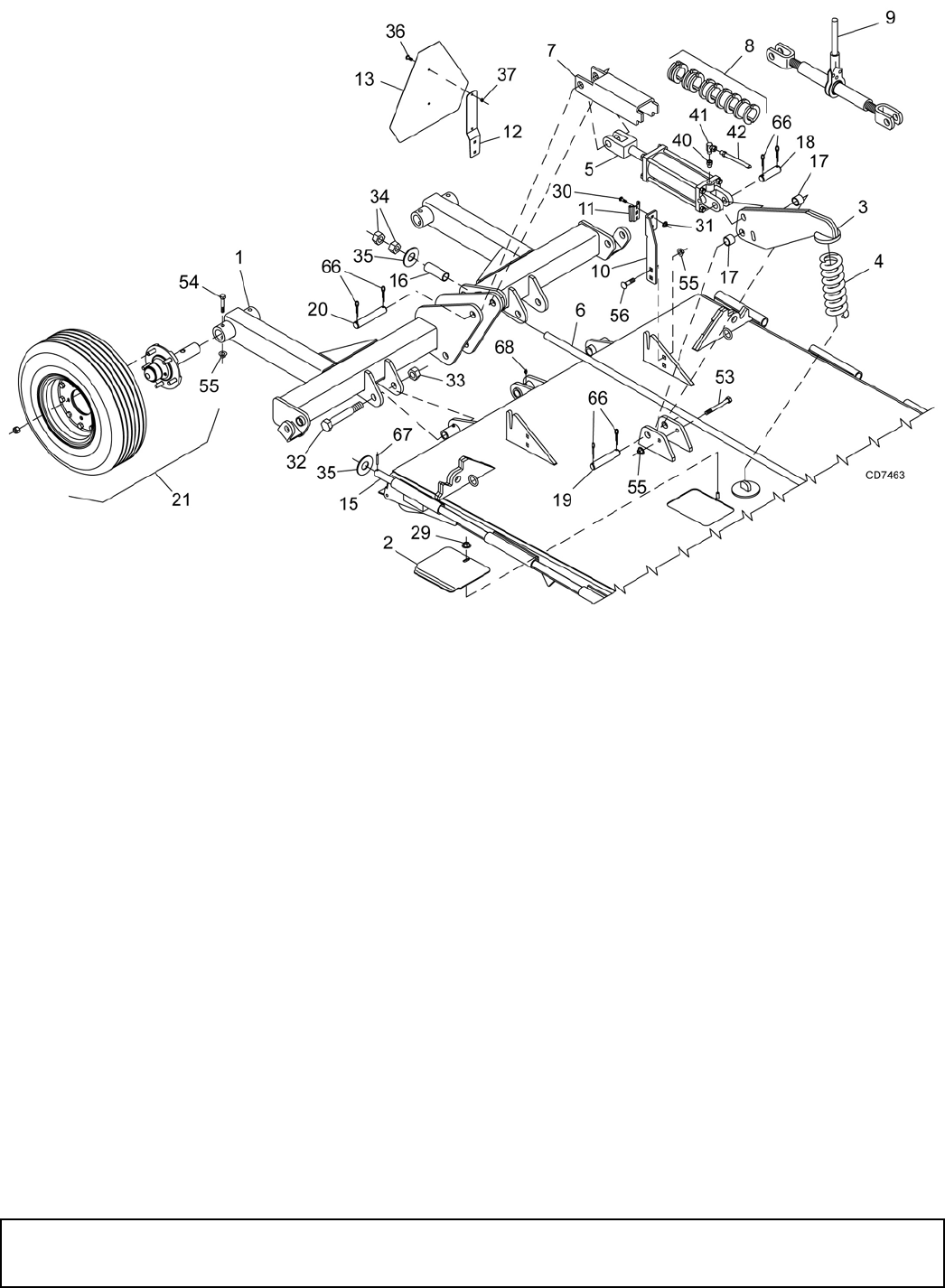

Figure 25. Spring Arm and Cylinder Installation

3. Spring arm

4. Spring, compression 3.25" x .69" x 9.5"

5. Hydraulic cylinder 3-1/2"

7. Transport lock-up

9. Ratchet

10. SMV Mounting bracket

11. SMV Socket

12. SMV bracket

13. SMV Emblem

17. Spacer, 1"

18. Clevis pin, 1" x 2.72

19. Clevis pin, 1" x 4.58"

20. Clevis pin, 1" x 5.08"

30. 5/16 NC x 3/4 Carriage bolt

31. 5/16 NC Lock nut

36. 1/4 NC x 1/2 Round head screw

37. 1/4 NC Hex nut

40. 1/2 NPT x 1/4 NPT Reducer bushing

41. 1/4 NPT x 1/4 NPT Restricted

42. 1/4 NPT x 1/4 NPT x 156" Hose

53. 1/2 NC x 5 HHCS GR5

55. 1/2 NC Lock nut

56. 1/2 NC x 1-1/2 Carriage bolt

66. Cotter pin, 1/4" x 1-1/2"

(Rev. 9/26/2008)

Assembly 35

MAN0707 (5/30/2008)

Install Wheel and Hub

1. Insert wheel hub into outside of wheel yoke arm (1)

and align holes.

2. Secure into position using cap screw (54) and

flanged lock nut (55).

3. Attach wheel to hub using five lug nuts. Install the

chamfered side of the lug nut toward the inside for

steel rim for pneumatic tires and rims. Tighten to 75

lbs-ft. Check that tire air pressure is a maximum of

40 psi.

NOTE: Install the flat side of the nut toward the

inside for solid tires and aircraft tires (shown).

4. Install optional dual wheel and hub to inside of

wheel yoke arm.

NOTE: Pneumatic (BW180 and BW180Q only),

notat, and airplane tires are available for this cutter.

See page 63 for parts list.

Figure 26. Center Section Wheel and

Hub Installation

Install Tongue

1. Attach tongue (24) to center section using two

tongue pivot pins (33) and cotter pins (70).

2. Attach attitude rod (6) to lug on tongue and secure

with clevis pin (34), washer (35), and cotter pin

(66).

3. Attach parking jack (22) to the side of the tongue.

4. Attach safety chain (8) to the bottom of center

gusset and secure with cap screw (40), washer

(38), and lock nut (39).

Figure 27. Tongue Installation

1. Center wheel yoke arm

54. 1/2" NC x 3" HHCS GR5

55. 1/2" NC Flange lock nut

6. Attitude rod

8. Safety chain

22. Parking jack

24. Tongue

33. Tongue pivot pin

34. Clevis pin, 1" x 2.26"

35. Washer, flat 1"

38. Washer, flat 3/4" x 2" x 3/8"

39. 3/4" NC Lock nut

40. 3/4" NC x 2-1/2" HHCS GR5

66. Cotter pin, 1/4" x 1-1/2"

70. Cotter pin, 3/16"x 1-1/2"

36 Assembly

MAN0707 (5/30/2008)

Install 3-Joint Drive (540 RPM Only)

Before installing cutter input driveline to gearbox, check

the tag wired to the driveline and the tag wired to the

input shaft of gearbox. Ensure the tag rpm speeds

match the rpm speed decal on front of cutter. After con-

firming all speeds match, remove and discard tags and

then complete driveline assembly.

1. Attach H-frame (26) to tongue with cap screw (45),

sleeves (47), cup washers (46), and nut (48).

2. Coat splined end of gearbox input shaft with

grease.

3. Align hole in drive yoke with groove on gearbox

input shaft and slide drive (29) onto shaft.

4. Secure with bolt and nut supplied with drive.

5. Secure driveline carrier bearing to H-frame with

cap screw (50), washer (53), sleeves (56) and a

flanged lock nut (55).

NOTE: When cutting height is established, adjust

the 3-joint H-frame bearing height so that the front

driveline is parallel to the ground.

6. Attach front driveline (28) to rear driveline (29) and

tighten clamp bolt and nut.

7. Attach shield (19) to driveline carrier bearing with

two cap screws (57) and lock washers (58).

8. Attach spacer (54) and hydraulic hose holder (27)

to top hole of H-frame using cap screw (50) and

flanged lock nut (55).

Figure 28. 3-Joint Drive Installation

19. Carrier bearing shield

24. Tongue

26. H-frame

27. Hydraulic hose holder

28. Front half, 3-joint drive

29. Rear half, Telescoping driveshaft

45. 5/8" NC x 7" HHCS GR5

46. 5/8" x 1-3/4" x 14 ga Cup washer

47. 5/8" x 1" x 9/16" Sleeve, HT

48. 5/8" NC Lock nut

50. 1/2" NC x 6-1/2" HHCS GR5

53. 1/2" Flat washer

54. 1/2" x 4.56" Spacer, pipe schedule 40

55.1/2" NC Flanged lock nut

56. Sleeve, .50" x 1.00" x 1.031"

57. 3/8" NC x 1" HHCS GR5

58. 3/8" Lock washer

Assembly 37

MAN0707 (5/30/2008)

Install CV Drive (Optional)

Before installing cutter input driveline to gearbox, check

the tag wired to the driveline and the tag wired to the

input shaft of gearbox. Ensure the tag rpm speeds

match the rpm speed decal on front of cutter. After con-

firming all speeds match, remove and discard tags and

then complete driveline assembly.

1. Align hole in drive yoke with groove on gearbox

input shaft and slide rear half of drive (23) onto

shaft.

2. Secure with bolt and nut supplied with drive.

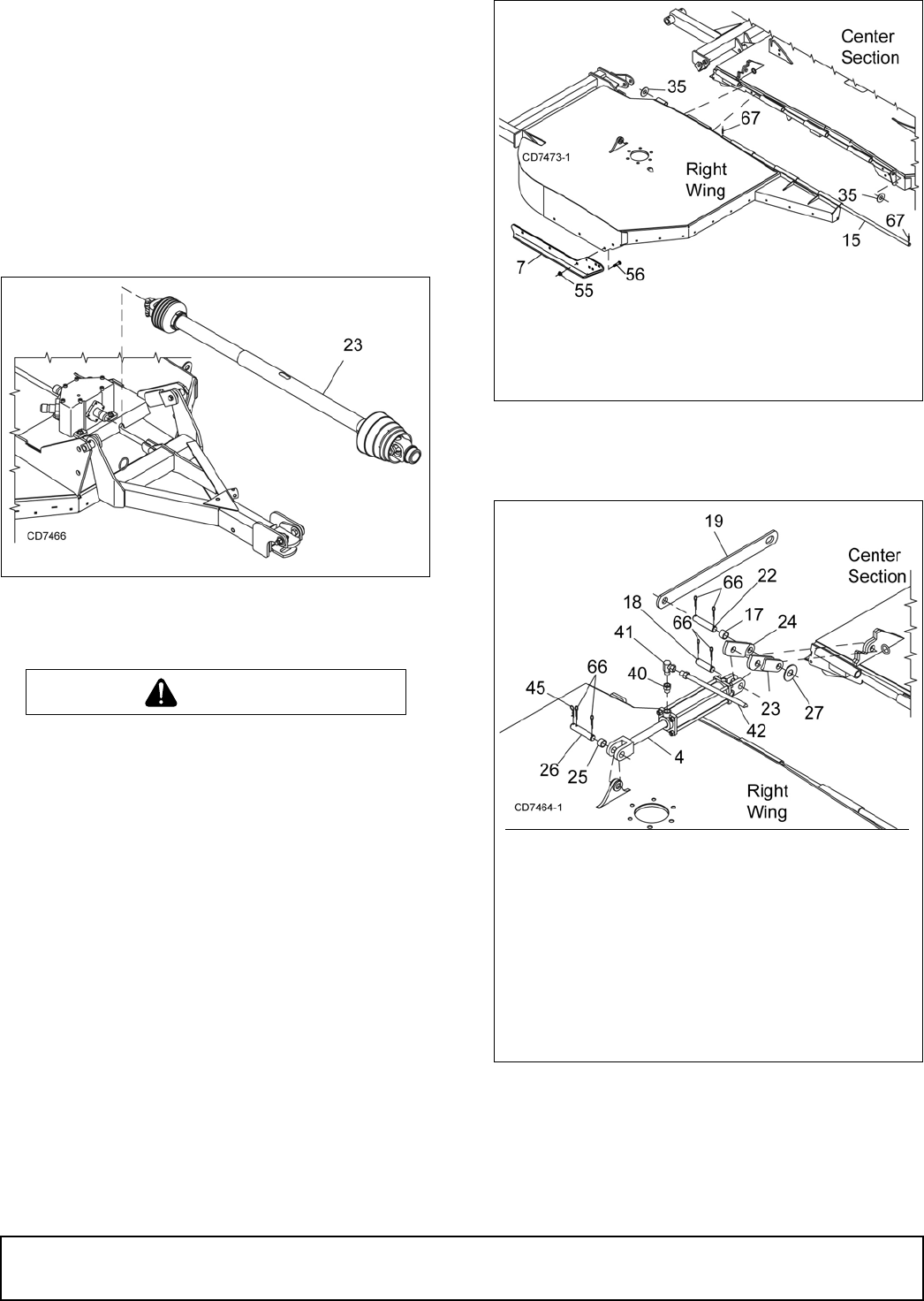

Figure 29. CV Drive Installation

Install Wing

Use a suitable lifting device of sufficient capac-

ity. Use adequate personnel to handle heavy com-

ponents.

The wing must be installed in the following sequence

and will require at least two people. A floor jack or a

suitable lifting device will be helpful to align decks when

installing the hinge pin.

Check RPM tags on wing and center section to make

sure they match before proceeding.

1. Remove hinge pin (15) from center section.

2. Place wing assembly adjacent to the center section

and align hinge sections.

3. Insert hinge pin through the hinge sections and

secure with spring pin (67) and washer (35) on

both ends.

4. Attach sice skid (7) to the wing using four carriage

bolts (56) and flange lock nuts (55).

5. Repeat procedure of opposite wing. (BW126R only

had right wing installed. BW126L only has left wing

installed.

Figure 30. Right Wing Installation

Install Wing Cylinder & Lock-up Bar

Figure 31. Wing Cylinder & Lock-Up Bar Installation

1. Place two cylinder links (23 & 24) on either side of

cylinder lug on center section as shown, align

holes and insert clevis pin (22).

NOTE: Items 23 & 24 must be installed with square

corners on top and facing cylinder as shown.

23. CV Drive

CAUTION

7. Side skid

15.Hinge pin

35. 1" Flat washer

37. Spring pin, 1/4 x 1-1/2

55. 1/2 NC Lock nut

56. 1/2 NC x 1-1/2 carriage bolt

4. Hydraulic cylinder

17. Spacer, 1"

18. 1 x 2.72 Clevis pin

19. Wing lock-up bar

22. 1" x 4.08" Clevis pin

23. Cylinder link

24. Cylinder link

25. Spacer, 3/4

26. Lock-up pin 1" x 5"

27. Washer, 1 x 1-7/8

40. 1/2 NPT x 1/4 NPT

Reducer bushing

41. 1/4 NPT x 1/4 NPT

Restricted

42. 1/4 NPT x 1/4 NPT x

200" Hose

45. 3/16 Safety pin

66. 1/4 x 1-1/2 Cotter pin

(Rev. 1/30/2009)

38 Assembly

MAN0707 (5/30/2008)

2. Slide spacer (17) and lock-up bar (19) over clevis

pin (22) on back side of cylinder lug & secure with

washer (27) and cotter pins (66).

3. Attach base end of wing cylinder (4) to cylinder

links (23 & 24) using clevis pin (18) and cotter pins

(66).

4. Remove plug from base end of hydraulic cylinder.

Align cylinder rod end with cylinder lug on the wing

and insert lock-up pin (26).

5. Slide spacer (25) over lock-up pin (26) on back

side of cylinder rod and secure with cotter pins

(66).

6. Insert safety pin (45) into the end of lock-up pin

(26). The safety pin will secure lock-up bar into

position when wing is in the UP position.

7. Extend cylinder fully & replace plug in base end of

cylinder. This trapped air will help push wing down.

8. Install bushing (40), elbow, (41) and hose (42) to

the rod end of cylinder (4). See Install Hose Kit,

page 39 for complete instructions.

9. Repeat procedure for opposite wing.

NOTE: (BW126R has only the right wing installed.

BW126L has only the left wing installed.)

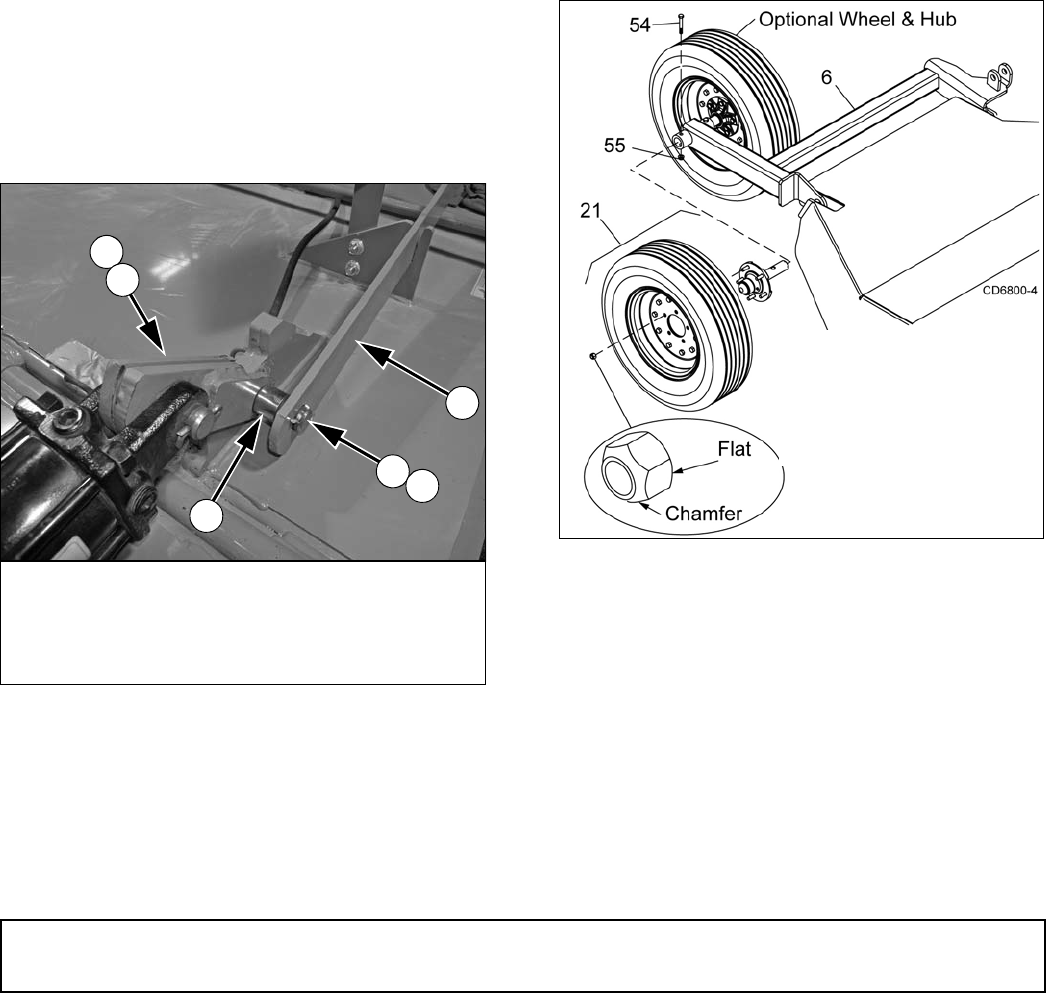

Figure 32. Left Wing Lock-Up Bar Installed

Install Wing Wheel and Hub (Figure 33)

1. Insert wheel hub into wing wheel yoke arms (6)

and align holes.

2. Secure into position using cap screw (54) and

flanged lock nut (55).

3. Attach wheel to hub using five lug nuts. Install the

chamfered side of the lug nut toward the inside for

steel rim for pneumatic tires and rims. Tighten to 75

lbs-ft. Check that tire air pressure is a maximum of

40 psi.

NOTE: Install the flat side of the nut toward the

inside for solid tires and aircraft tires (shown).

4. Install optional dual wheel and hub to inside of

wheel yoke arm.

NOTE: Pneumatic (BW180 and BW180Q only),

notat, and airplane tires are available for this cutter.

See page 63 for parts list.

Figure 33. Wing Wheel and Hub Installation - Right

17

19

22 66

23

24

DP3

17. Spacer, 1"

19. Wing lock-up bar

22. Headless pin,

1 x 4.08

23. Cylinder link

24. Cylinder link

66. Cotter pin,

1/4 x 1-1/2

6. Wing wheel yoke arm,

right

21. Wheel and hub

39. 1/2 NC x 3 HHCS GR5

40. 1/2 NC Flanged lock nut

Assembly 39

MAN0707 (5/30/2008)

Install Wing Wheel Yoke Adjustment Link

Use a suitable lifting device of sufficient capac-

ity. Use adequate personnel to handle heavy com-

ponents.

1. With a lifting device raise right wing and lock in the

up position using the wing lock-up bar. Leave lifting

device attached for added support.

2. Attach adjustable link (8) to right side of center

wheel yoke arm and secure with cap screw (28)

and lock nut (33).

3. Attach opposite end of adjustable link (8) to wing

wheel yoke arm and secure with cap screw (28)

and lock nut (33).

4. Remove lock-up bar and carefully lower wing using

lifting device.

5. Repeat process for left wing. (BW126R only has

right wing installed; BW126L only has left wing

installed.)

Figure 34. Left Wing Wheel Yoke

Adjustment Link Installed

Install Wing Driveline

1. Attach clutch shield (16) to wing gearbox using four

cap screws (60), lock washers (64), and flat

washers (63).

2. Slide non clutch end of driveline (3) over wing

gearbox shaft and align holes with groove.

3. Secure driveline to shaft using cap screws and lock

nuts supplied with driveline.

4. Slide clutch end of driveline over splitter gearbox

and secure using cap screws and lock nuts

supplied with driveline.

5. Repeat process for left driveline. (BW126R only

has right wing installed; BW126L only has left wing

installed.)

Figure 35. Right Driveline Installation

Install Hose Kit

1. Remove plug from rod end of each wing cylinder.

2. With the wings in the down position and cylinder

extended, remove and reinstall the plugs from the

base of the wing cylinders. This will trap air behind

the piston and help when lowering the wings.

3. Install reducer bushing and restricter elbow into

cylinders. Position elbow on center cylinder to point

forward; on wing cylinders point elbows to the

center.

NOTE: Make sure a breather fitting is installed in

the rod end port of the wheel yoke cylinder.

4. Attach hose to each elbow.

CAUTION

8

28

33 DP2

8. Adjustable link

28. 1 NC x 4-1/2 HHCS GR5

33. 1 NC Lock nut

3. Driveline, complete

16. Clutch shield

60. M8 x 1.25P x 20 mm HHCS

63. 5/16" Flat washer

64. 5/16" Lock washer

(Rev. 10/19/2009)

40 Assembly

MAN0707 (5/30/2008)

Install Chain or Belt Shielding

Full chain shielding must be installed when

operating in populated areas or other areas where

thrown objects could injure people or damage

property.

• If this machine is not equipped with full chain

shielding, operation must be stopped when any-

one comes within 300 feet (92 m).

• This shielding is designed to reduce the risk

of thrown objects. The mower deck and protec-

tive devices cannot prevent all objects from

escaping the blade enclosure in every mowing

condition.

It is possible for objects to ricochet

and escape, traveling as much as 300 feet (92 m).

Install chain and rubber shields with hardware as

shown. (Refer to Figure 36 for Chain Shielding Installa-

tion; Figure 38 and Figure 39 for Belt Shielding Installa-

tion.)

NOTE: Chain Shielding: Install four (two per wing) 6-

link chain sections (16) and four (two per wing) 4-link

chain sections (18) to the wing skid shoes. Secure with

carriage bolts (19) and flange lock nuts (21).

Figure 36. Chain Shielding Installation - Center Section

1. Front center chain plate

2. Front right chain plate

3. Front left chain plate

4. Rear chain plate, right

5. Rear chain plate, left

22. 3/8 NC x 1-1/4 Carriage bolt

23. 3/8 NC Flange lock nut

(Rev. 9/26/2008)

Assembly 41

MAN0707 (5/30/2008)

Figure 37. Chain Shielding Installation - Right Wing Shown

6-Link

4-Link

5. Front wing chain plate, inner

6. Front wing chain plate, middle

7. Front wing chain plate, outer

8. Rear wing chain plate

16. 5/16 Chain - 6-link

18. 5/16 Chain - 4-link

19. 1/2 NC x 1-1/2 Carriage bolt

21. 1/2 NC Flange lock nut

22. 3/8 NC x 1-1/4 Carriage bolt

23. 3/8 NC Flange lock nut

42 Assembly

MAN0707 (5/30/2008)

Figure 38. Belt Shielding Installation - Center Section

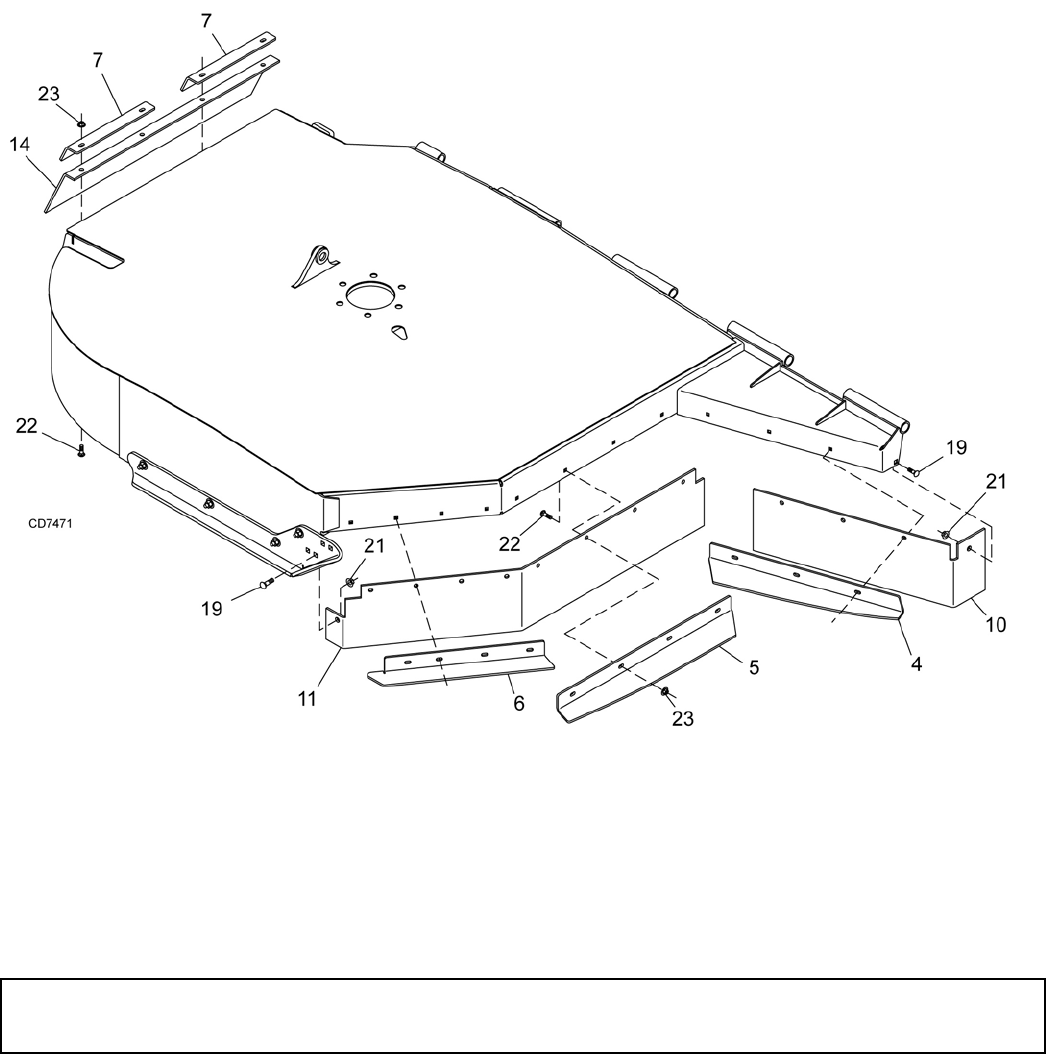

Figure 39. Belt Shielding Installation - Right Wing

1. Front center belt shield plate

2. Front right belt shield plate

3. Front left belt shield plate

7. Bent link, .25 x 1.72 x 13.00

8. Bent link, .25 x 9.25 x 9.50

9. Rubber shield, .25 x 8.75 x 40.76

12. Rubber shield, .25 x 9.25 x 28.00

13. Rubber shield, .25 x 9.25 x 18.25

22. 3/8 NC x 1-1/4 Carriage bolt GR5

23. 3/8 NC Flange lock nut

4. Front wing belt shield plate, inside

5. Front wing belt shield plate, middle

6. Front wing belt shield plate, outer

7. Bent link, .25 x 1.72 x 13.00

10. Rubber belt, .25 x 8.75 x 31.11

11. Rubber belt, .25 x 8.75 x 53.87

14. Rubber belt, .25 x 9.25 x 34.00

19. 1/2 NC x 1-1/2 Carriage bolt GR5

21. 1/2 NC Flange lock nut

22. 3/8 NC x 1-1/4 Carriage bolt GR5

23. 3/8 NC Flange lock nut

Assembly 43

MAN0707 (5/30/2008)

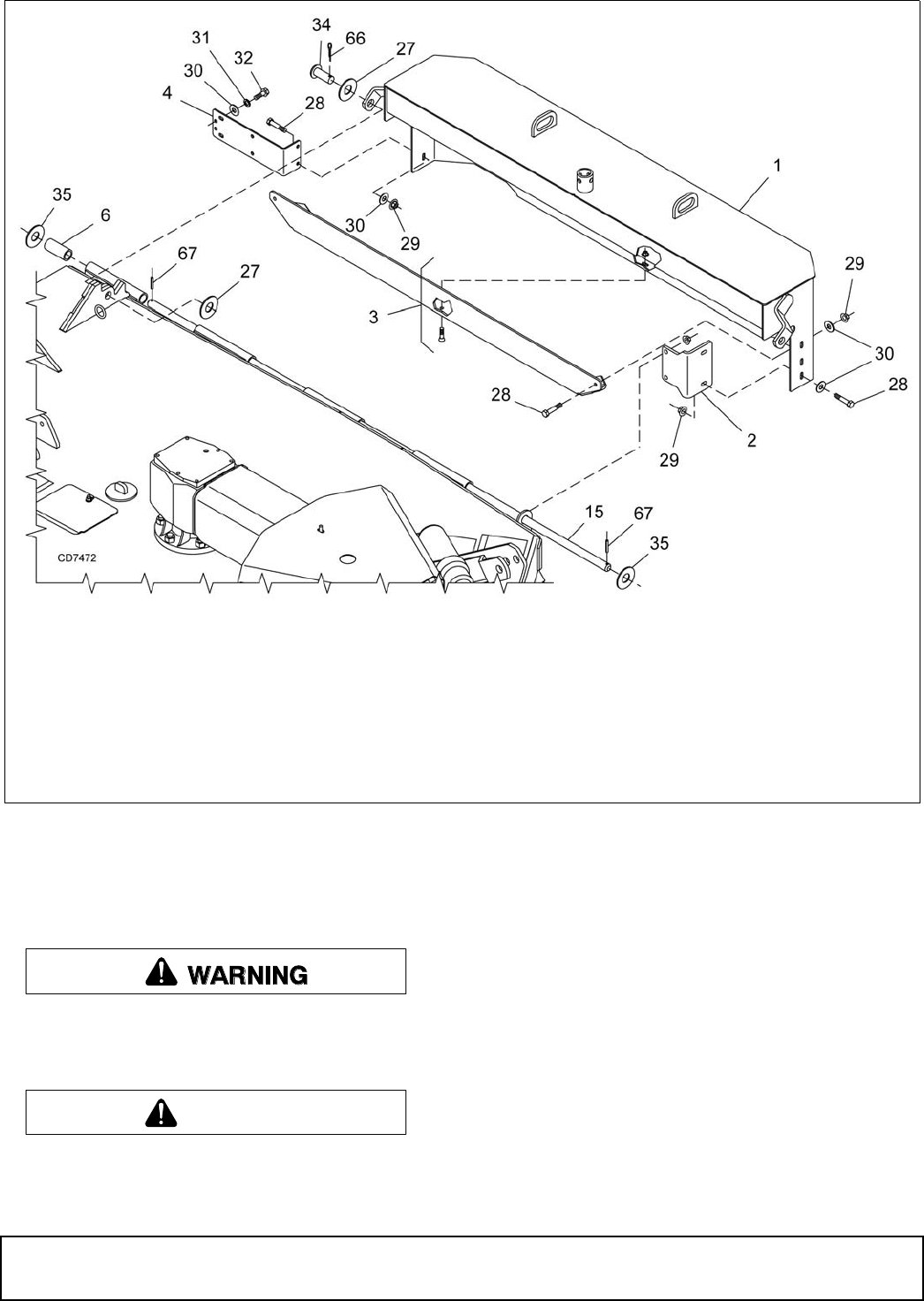

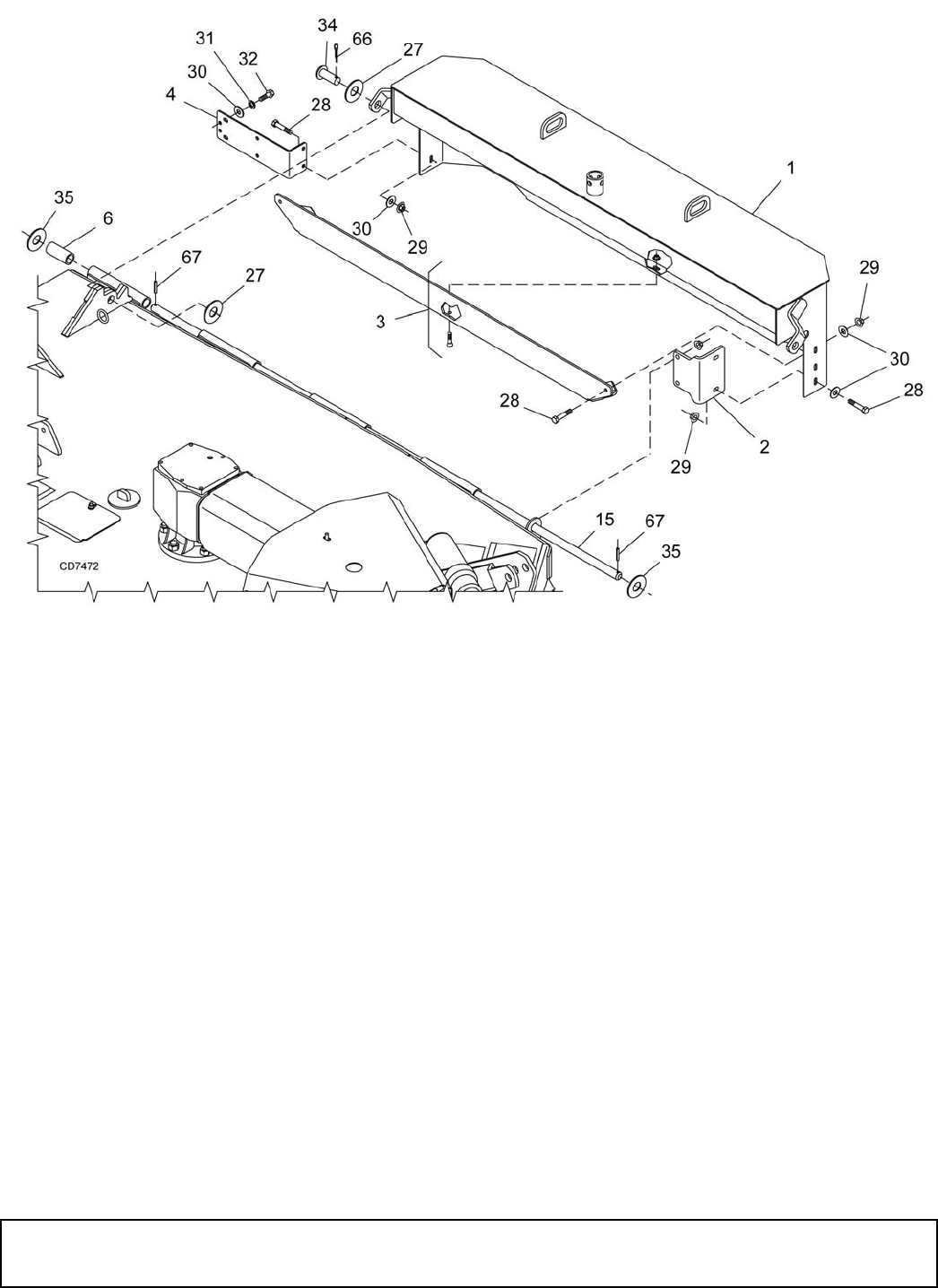

Figure 40. Counterweight Installation

BW126 and BW126L Counterweight

Installation

■ The offset model is unstable without adequate

counterweight. Use counterweight box loaded with

750 lbs. of steel.

Use a suitable lifting device of sufficient capac-

ity. Use adequate personnel to handle heavy com-

ponents.

This unit may be operated with only one wing - either

right or left. With only one wing, the unit is unshielded

and unstable. When electing to operate with one wing,

you must install a counterweight box, available from

your dealer. This box has a dual purpose: it substitutes

for the shielding and for the weight of the removed

wing.

The counterweight must be installed in the following

sequence and will require at least two people. A floor

jack or a suitable lifting device will be helpful to align

the hinges when installing the hinge pin.

Refer to Figure 40.

1. Remove hinge pin (15) from center section.

1. Weight box 750 lbs

2. Brace

3. Skid shoe

4. Mounting plate

6. Sleeve, 1.25 x 1.5 x 3.40

15. Hinge pin

27. Washer, 1 x 1-1/8 x 1/4

28. 3/8 NC x 1-1/4 HHCS GR5

29. 3/8 NC Flange lock nut

30. 3/8 Flat washer

31. 3/8 Lock washer

32. 3/8 NC x 1-1/4 Self-tapping screw

34. Clevis pin, 1 x 2.26

35. 1" Flat washer

37. Spring pin, 1/4 x 1-1/2

66. Cotter pin, 1/4 x 1-1/2

CAUTION

44 Assembly

MAN0707 (5/30/2008)

2. Place brace (2) inside the front corner of the weight

box (1) and secure with two cap screws (28), two

flat washers (30), and two lock nuts (29).

3. Align mounting plate (4) with slots of rear of weight

box. Secure with two cap screws (28), two flat

washers (30), and two lock nuts (29). Do not

tighten hardware at this point.

4. Align skid shoe (3) with holes on bottom and inside

of weight box. Secure bottom with the hardware

provided with skid shoe. Secure top with two cap

screws (28), two flat washers (30) and two lock

nuts (29).

5. Place weight box assembly adjacent to the center

section and align hinge sections.

6. Insert hinge pin through the hinge sections. Install

sleeve (6) on hinge pin behind deck hinge section

to prevent weight box from sliding rearward.

Secure hinge pin with two washers (35) and two

spring pins (67).

7. Insert clevis pin (34) through lug on rear of weight

box and cylinder lug on center section with two

washers (27) as shown. Secure with cotter pin

(66).

8. Insert self-tapping screw (32), lock washer (31),

and flat washer (30) through upper-rear hole in

mounting plate (4) and hole in side of center

section. Tighten hardware from step 3.

Winch Kit Installation (Optional)

Refer to page 71 for Installation and Operation instruc-

tions.



Dealer Check Lists 45

MAN0707 (5/30/2008)

DEALER CHECK LISTS

PRE-DELIVERY CHECK LIST

(DEALER’S RESPONSIBILITY)

Inspect the equipment thoroughly after assembly to

ensure it is set up properly before delivering it to the

customer.

The following check lists are a reminder of points to

inspect. Check off each item as it is found satisfactory

or after proper adjustment is made.

NOTICE

■Gearboxes are not filled at the factory. Prior to

delivery, make sure each gearbox is filled between

lowest ring and end of dipstick with 80 or 90W API

GL-4 or GL-5 gear lube.

___ Check that all safety decals are installed and in

good condition. Replace if damaged.

___ Check that shields and guards are properly

installed and in good condition. Replace if dam-

aged.

___ Check all bolts to be sure they are properly

torqued.

___ Check wheel bolts for proper torque.

___ Check that all cotter pins and safety pins are

properly installed. Replace if damaged.

___ Check that blades have been properly installed.

___ Check and grease all lubrication points as identi-

fied in lubrication information on page 20.

___ Check the level of gearbox fluids before delivery.

Service, if required, as specified in the lubrication

information on page 20.

DELIVERY CHECK LIST

(DEALER’S RESPONSIBILITY)

___ Show customer how to make adjustments and

select proper PTO speed.

___ Show customer how to make sure driveline is

properly installed and that spring-activated lock-

ing pin or collar slides freely and is seated in

groove on tractor PTO shaft.

___ Show customer how to determine the turning lim-

its of the CV PTO driveline.

___ Show customer the safe, proper procedures to be

used when mounting, dismounting, and storing

equipment.

___ Make customer aware of optional equipment

available so that customer can make proper

choices as required.

___ Instruct customer how to lubricate and explain

importance of lubrication.

___ Point out the safety decals. Explain their meaning

and the need to keep them in place and in good

condition. Emphasize the increased safety haz-

ards when instructions are not followed.

___ Explain to customer that when transporting the

cutter, the wing and center sections should be

raised and their respective transport bars

installed and pinned in place.

___ Present Operator's Manual and request that cus-

tomer and all operators read it before operating

equipment. Point out the manual safety rules,

explain their meanings and emphasize the

increased safety hazards that exist when safety

rules are not followed.

___ Explain to customer the potential crushing haz-

ards of going underneath raised equipment.

Instruct that before going underneath to discon-

nect the driveline, securely block up all corners

with jack stands and to follow all instructions in

the BLOCKING METHOD, page 19 of the opera-

tor’s manual. Explain that blocking up prevents

equipment dropping from hydraulic leak down,

hydraulic system failures or mechanical compo-

nent failures.

___ Point out all guards and shields. Explain their

importance and the safety hazards that exist

when not kept in place and in good condition.

___ Explain to customer that when towing on a public

road to comply with all state and local light-

ing/marking laws and to use a safety tow chain.

46 Notes

MAN0707 (5/30/2008)

NOTES

Parts 47

MAN0707 (5/30/2008)

PARTS INDEX

BATWING® Rotary Cutter

BW180-3, BW180Q-3

BW126-3, BW126Q-3

MAIN FRAME ASSEMBLY (FRONT SECTION) ...................................................... 48-49

(REAR SECTION)......................................................... 50-51

WING ASSEMBLY ........................................................................................................ 52-53

GEARBOX ASSEMBLY SPLITTER .................................................................... 54-55

WING & CENTER ......................................................... 56-57

DRIVE ASSEMBLY CENTER DECK ................................................................ 58

BW180 & BW126 FRONT - EQUAL ANGLE ..................... 59

BW180 & BW126 REAR - EQUAL ANGLE........................ 60

540 RPM & 1000 RPM CV DRIVE ..................................... 61

WING ................................................................................. 62

WHEEL & TIRE ASSEMBLY 5-BOLT............................................................................... 63

SHIELDING RUBBER SHIELDING - CENTER SECTION............................................... 64

RUBBER SHIELDING - WING..................................................................... 65

CHAIN SHIELDING - CENTER SECTION (OPTIONAL) ............................. 66

CHAIN SHIELDING - WING (OPTIONAL) ................................................... 67

HYDRAULIC CYLINDERS................................................................................................. 68

HYDRAULIC CYLINDER STROKE CONTROL KIT .......................................................... 69

CROSSBAR PULLER (OPTIONAL) .................................................................................. 69

BW126 / BW126Q COUNTERWEIGHT BOX ASSEMBLY (OPTIONAL) .......................... 70

WINCH KIT (OPTIONAL)................................................................................................... 71

48 Parts

MAN0707 (5/30/2008)

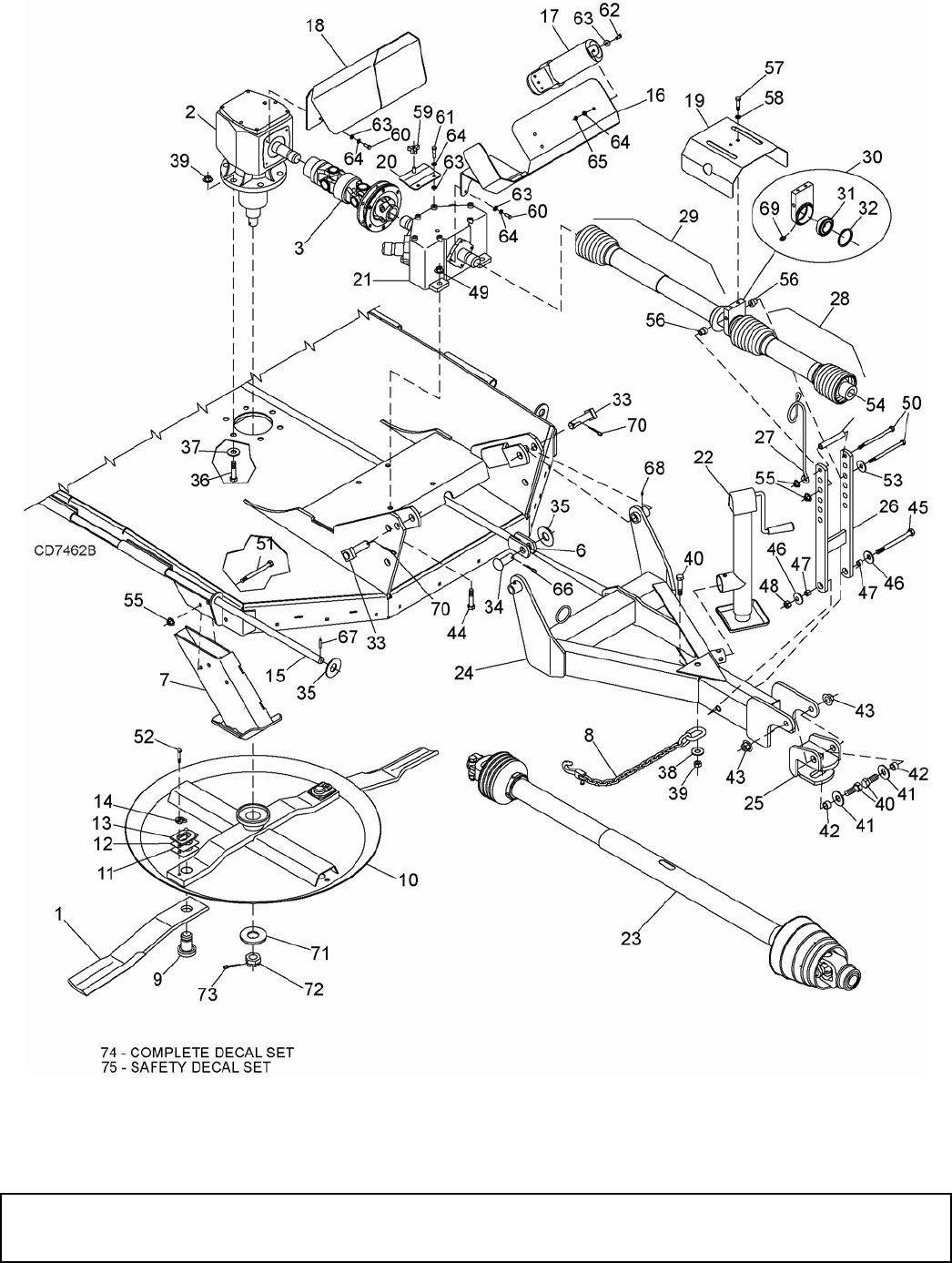

MAIN FRAME ASSEMBLY (FRONT SECTION)

(Rev. 01/12/2010)

Parts 49

MAN0707 (5/30/2008)

MAIN FRAME ASSEMBLY (FRONT SECTION)

REF PART QTY DESCRIPTION

1 19160KT 1 Blade kit, CCW

2 ----- 1 Gearbox (see page 56)

3 1004933 1 Driveline complete, 1340, 1.75-20 6.0

w/ clutch (see page 58)

6 1003491 1 Attitude rod

7 1027302 2 Front skid

8 19407 1 Safety chain

9 1008190 2 1-1/2 Blade pin kit (includes 13 & 14)

10 1027339 1 Crossbar Assembly

11 10520 2 Shim, 18 GA, 1-1/2 blade pin

12 13946 2 Shim, 20 GA, 1-1/2 blade pin

13 32603 2 Keyhole plate - special

14 32604 2 Blade pin lock clip - special

15 1003495 2 Hinge pin

16 1028585 1 Front shield with hinge

17 1003828 1 Manual tube

18 1027308 1 Rear shield with hinge

19 1003444 1 Front drive shield

20 1003558 1 Shield standoff

21 ----- 1 Splitter gearbox (see page 54)

22 52232 1 Parking jack

23 1021103 1 CV drive - 540 RPM (see page 61) or

23 1021104 1 CV drive - 1000 RPM (see page 61)

24 1010839 1 Tongue (includes 25, 40, 41, 42, 43)

25 1005595 1 Hitch, Cat. 2 clevis

26 1003440 1 H-Frame

27 3443 1 Hydraulic hose holder

28 57282 1 Front 2/3 of 3-joint drive - 540 RPM

only (see page 59)

29 1004932 1 Telescoping shaft (see page 60)

30 32347 1 3-Joint bearing housing

(includes 31, 32, 69)

31 13133 1 1-1/2 ID Ball bearing

32 12128 1 .062 x 72 mm ID Snap ring

33 58982 2 Tongue pivot pin

34 46605 1 Clevis pin, 1 x 2.26

35 1863 * 1" Flat washer

36 30068 * 3/4 NC x 2-1/2 HHCS GR5

37 57798 3/4 Hardened flat washer

38 8424 3/4 x 2 x 3/8 Flat washer

REF PART QTY DESCRIPTION

39 2371 * 3/4 NC Lock nut

40 13759 3/4 NC x 2-1/4 HHCS GR5

41 28873 3/4 ID x 1-1/2 OD 1/4 Thick washer

42 13087 3/4 x 1 x 9/16 HT Sleeve

43 302207 3/4 NC Flange lock nut

44 902 * 5/8 NC x 2 HHCS GR5

45 23638 5/8 NC x 7 HHCS GR5

46 10635 5/8 x 1-3/4 x 14 GA Cup washer

47 1791 .625 x 1 x .563 HT Sleeve

48 6239 * 5/8 NC Hex lock nut

49 19025 * 5/8 NC Flange lock nut

50 22205 * 1/2 NC x 6-1/2 HHCS GR5

51 3508 1/2 NC x 4-1/2 HHCS GR5

52 6100 * 1/2 NC x 1-1/4 HHCS GR5

53 3598 * 1/2 Flat washer

54 1003435 .66 x .88 x 4.50 Sleeve

55 11900 * 1/2 NC Flange lock nut

56 1003445 .50 x 1.00 x 1.031 Sleeve

57 839 * 3/8 NC x 1 HHCS GR5

58 838 * 3/8 Lock washer

59 66840 3/8 NC 3-Prong knob

60 24801 * M8 x 1.25P x 20 mm HHCS

61 307130 M8 x 1.25P x 40 mm HHCS

62 14562 * 5/16 NC x 1 HHCS GR5

63 35155 * 5/16 SAE Flat washer

64 2472 * 5/16 Lock washer

65 4529 * 5/16 NC Hex nut ZP

66 1285 * 1/4 x 1-1/2 Cotter pin

67 66016 * Spring pin, 1/4 x 1-1/2

68 12296 * 1/4-28 Grease fitting

69 2985 * 1/4-28 x 90° Grease fitting

70 1266 * 3/16 x 1-1/2 Cotter pin

71 1024670 Washer, 1.22 x 2.205 x .236

72 39323 M30 x 2.0P Castle nut

73 6185 * 1/4 x 2-1/4 Cotter pin

74 1003689 Complete decal set

75 1003679 Safety decal set

HHCS Hex Head Cap Screw

* Standard hardware, obtain locally

(Rev. 01/12/2010)

50 Parts

MAN0707 (5/30/2008)

MAIN FRAME ASSEMBLY (REAR SECTION)

Parts 51

MAN0707 (5/30/2008)

MAIN FRAME ASSEMBLY (REAR SECTION)

REF PART QTY DESCRIPTION

1 1027470 1 Center wheel yoke

2 57050 1 Access hole cover

3 1027305 1 Spring arm

4 19710 1 Compression spring 3.25 x .69 x 9.5

5 10475 1 Hydraulic cylinder 3-1/2 (see page 68)

6 1003491 1 Attitude rod

7 1004814 1 Transport lock-up

8 24098 1 1-1/4 Cylinder stroke control kit

(optional)

9 23650 1 Ratchet adjustable link bundle

(optional)

10 1017143 1 SMV Mounting link

11 62484 1 SMV Socket

12 1004251 1 SMV Bracket

13 24611 1 SMV Emblem

15 1003495 2 Hinge pin

16 27267 1 Pipe, 1" Schedule 40 x 3.75

17 65130 2 Spacer, 1"

18 1631 1 1 x 2.72 Headless pin

19 8346 1 1 x 4.58 Headless pin

20 8347 1 1 x 5.08 Headless pin

REF PART QTY DESCRIPTION

21 ----- 1 Tire & hub (see page 63)

29 14350 * 3/8 NC Flange lock nut

30 16148 5/16 NC x 3/4 Carriage bolt

31 14139 * 5/16 NC Flange lock nut

32 1003606 * 1 NC x 6 HHCS GR5

33 34279 * 1 NC Lock nut

34 3132 * 1 NC Hex nut

35 1863 * 1" Flat washer

36 1282 * 1/4 NC x 1/2 Round head screw

37 5288 * 1/4 NC Hex nut

40 11893 1 1/2 x 1/4 Pipe reducer bushing

41 10290 1 1/4 x 1/4 Elbow w/ 1/16 restricter

42 8669 1 1/4 x 1/4 x 156 Hose

53 23479 1/2 NC x 5 HHCS GR5

54 3489 * 1/2 NC x 3 HHCS GR5

55 11900 * 1/2 NC Flange lock nut

56 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5

66 1285 * 1/4 x 1-1/2 Cotter pin

67 66016 * Spring pin, 1/4 x 1-1/2

68 12296 * 1/4-28 Grease fitting

HHCS Hex Head Cap Screw

* Standard hardware, obtain locally

52 Parts

MAN0707 (5/30/2008)

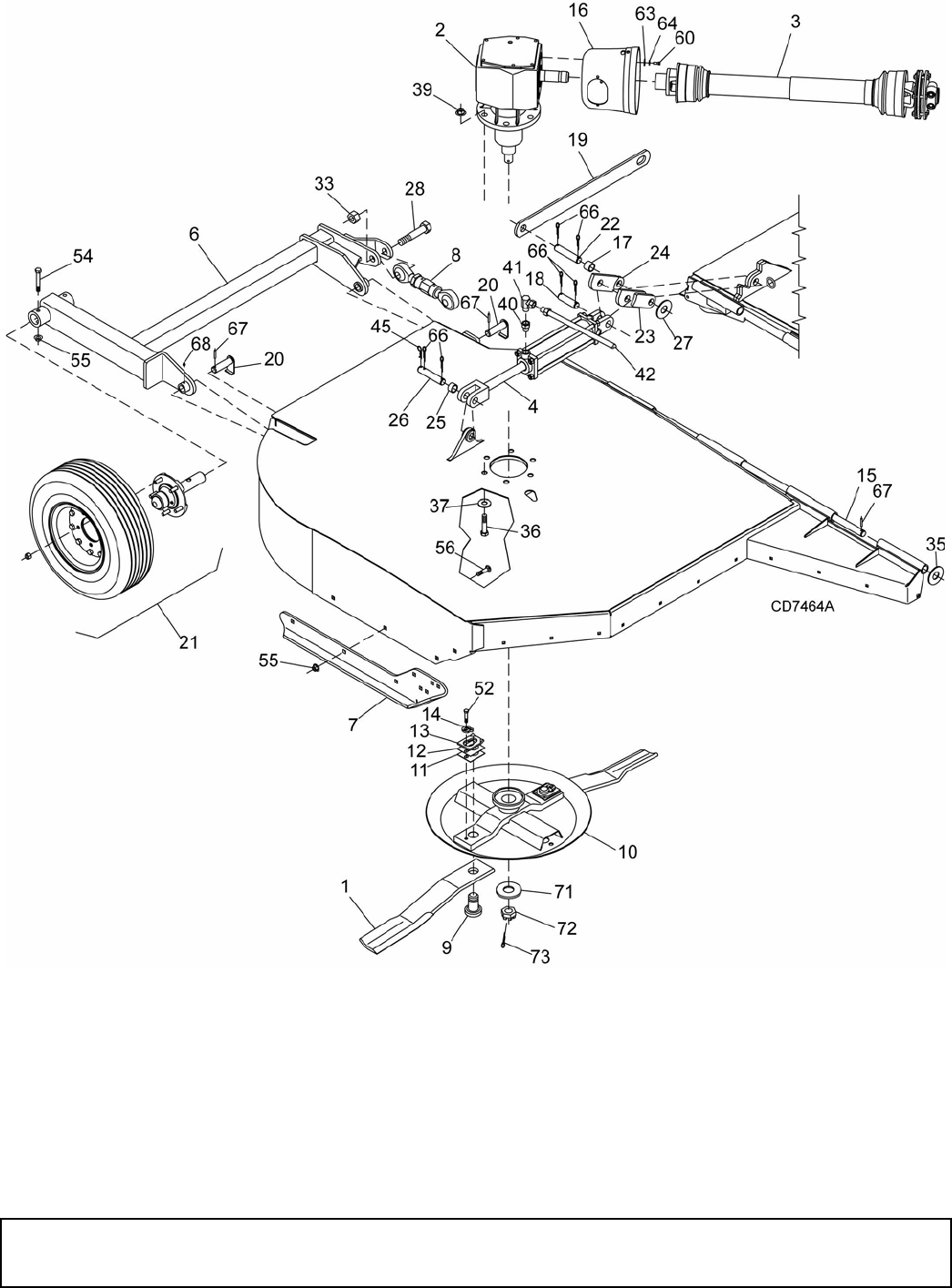

WING ASSEMBLY

(Rev. 10/19/2009)

Parts 53

MAN0707 (5/30/2008)

WING ASSEMBLY

REF PART QTY DESCRIPTION

1 19160KT 1 Blade kit, CCW (Right wing) - or -

1 19161KT 1 Blade kit, CW (Left wing)

2 ----- 1 Gearbox (see page 56)

3 1004934 1 Driveline complete 1340, 47.6 x 68.1

(see page 62)

4 1031166 1 Hydraulic cylinder 3 x 10

(see page 68)

6 1027448 1 Wing wheel yoke (Right wing) - or -

6 1027449 1 Wing wheel yoke (Left wing)

7 1026996 1 Side skid (Right wing) - or -

7 1026997 1 Side skid (Left wing)

8 1003690 1 Adjustable link

9 1008190 2 1-1/2 Blade pin kit (includes 13 & 14)

10 1027443 1 Crossbar Assembly

11 10520 2 Shim, 18 GA, 1-1/2 blade pin

12 13946 2 Shim, 20 GA, 1-1/2 blade pin

13 32603 2 Keyhole plate - special

14 32604 2 Blade pin lock clip - special

15 1003495 1 Hinge pin

16 1002048 1 Clutch shield

17 65130 1 Spacer, 1"

18 1631 1 1 x 2.72 Headless pin

19 1003498 1 Wing lock-up bar

20 1003650 2 Wing pivot pin

21 ----- 1 Tire & hub (see page 63)

22 8345 1 1 x 4.08 Headless pin

23 1017075 1 Cylinder link

24 1017095 1 Cylinder link

REF PART QTY DESCRIPTION

25 33647 1 Spacer, 3/4

26 32469 1 1 x 5 Lock-up pin

27 11920 Washer, 1 x 1-7/8 x 1/4

28 46752 1 NC x 4-1/2 HHCS GR5

33 34279 * 1 NC Lock nut

35 1863 * 1" Flat washer

36 30068 * 3/4 NC x 2-1/2 HHCS GR5

37 57798 3/4 Hardened flat washer

39 2371 * 3/4 NC Lock nut

40 11893 1 1/2 x 1/4 Pipe reducer bushing

41 10290 1 1/4 x 1/4 Elbow w/ 1/16 restricter

42 14552 1 1/4 x 1/4 x 200 Hose

45 18270 * 3/16 Safety pin

52 6100 * 1/2 NC x 1-1/4 HHCS GR5

54 3489 * 1/2 NC x 3 HHCS GR5

55 11900 * 1/2 NC Flange lock nut

56 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5

60 24801 * M8 x 1.25P x 20 mm HHCS

63 35155 * 5/16 SAE Flat washer

64 2472 * 5/16 Lock washer

66 1285 * 1/4 x 1-1/2 Cotter pin

67 66016 * Spring pin, 1/4 x 1-1/2

68 12296 * 1/4-28 Grease fitting

71 1024670 Washer, 1.22 x 2.205 x .236

72 39323 M30 x 2.0P Castle nut

73 6185 * 1/4 x 2-1/4 Cotter pin

HHCS Hex Head Cap Screw

* Standard hardware, obtain locally

(Rev. 1/30/2009)

54 Parts

MAN0707 (5/30/2008)

SPLITTER GEARBOX ASSEMBLY

Parts 55

MAN0707 (5/30/2008)

SPLITTER GEARBOX ASSEMBLY

REF PART QTY DESCRIPTION

A 1003687 1 Complete splitter gearbox, 540 rpm

B 1003688 1 Complete splitter gearbox, 1000 rpm

1 1005308 2 Shaft 1-3/4, 20 spline, wing

2 1005304 2 Oil seal

3 -------- 2 3/8 Plug (not shown)

4 39251 2 Snap ring

5 20891 2 Bearing

6 1005305 2 Pinion gear, 540 rpm

6 1005312 2 Pinion gear, 1000 rpm

7 39414 2 Bearing

8 1005306 4 Shim

9 -------- 1 Casting

10 57320 2 Snap ring

11 57318 2 Oil seal

12 1005307 2 Shim

REF PART QTY DESCRIPTION

13 1005319 1 Bearing

14 1005303 1 Shaft 1-3/4, 20 spline, center

15 1005309 1 Snap ring

16 1005319 1 Bearing

17 1005310 1 Gear, 540 rpm

17 1005313 1 Gear, 1000 rpm

18 57076 1 1/2 Breather

19 2472 * 6 5/16 Lock washer, standard

20 -------- * 6 M8 x 30 HHCS 8.8

21 1005311 1 Cover

22 20895 2 Snap ring

* Standard hardware, obtain locally

56 Parts

MAN0707 (5/30/2008)

WING & CENTER GEARBOX ASSEMBLY

Parts 57

MAN0707 (5/30/2008)

WING & CENTER GEARBOX ASSEMBLY

540 RPM 1000 RPM

REF QTY

Left

Wing Center

Right

Wing

Left

Wing Center

Right

Wing DESCRIPTION

A 1 1003682 1003682 1003683 1003685 1003684 1003686 Complete gearbox

1 1 1005314 1005314 1005314** 1005316 1005317 1005316** Gear crown

2 1 NS NS NS NS NS NS Gearbox housing

3 1 57319 57319 57319 57319 57319 57319 Input shaft

4 1 57356 57356 57356 57356 57356 57356 Output shaft

5 1 1005315 1005315 1005315 1005317 1005316 1005317 Gear pinion

6 2 39263 39263 39263 39263 39263 39263 Bearing cup & cone

7 2 39411 39411 39411 39411 39411 39411 Bearing cup & cone

8 1 57338 57338 57338 57338 57338 57338 Protective seal

9 1 * * * * * * Cotter pin 3/16 x 2

10 2 57320 57320 57320 57320 57320 57320 Snap ring 85 UNI7437

11 1 57321 57321 57321 57321 57321 57321 Snap ring 50 UNI7435

12 1 57471 57471 57471 57471 57471 57471 Shim 45.3 x 2.5

13 2 57471 57471 57471 57471 57471 57471 Shim 70.3 x 84.7

14 1 57329 57329 57329 57329 57329 57329 Castle nut M40 x 1.5P

15 1 39323 39323 39323 39323 39323 39323 Castle nut M30 x 2.0P

16 1 57471 57471 57471 57471 57471 57471 Shim 50.3 x 70.3

17 1 57471 57471 57471 57471 57471 57471 Shim 40.3 x 61.7 x 1

18 1 39289 39289 39289 39289 39289 39289 Oil seal 50 x 90 x 10

19 1 57318 57318 57318 57318 57318 57318 Oil seal 45 x 85 x 10

20 1 57371 57371 57371 57371 57371 57371 Cap

22 1 57372 57372 57372 57372 57372 57372 Top cover

23 6 * * * * * * M8 x 16 GR8.8 HHCS

24 1 57057 57057 57057 57057 57057 57057 Dipstick, 1/2 x 6.18

25 1 * * * * * * Cotter pin 1/4 x 2-1/4

26 1 1024670 1024670 1024670 1024670 1024670 1024670 Washer, 1.22 x 2.205 x .236

27 1 1005512 1005512 1005512 1005512 1005512 1005512 Gearbox repair kit (Includes items

6, 7, 8, 10, 11, 12, 13, 18, & 19)

** Crown gear placed on opposite

end of input shaft

* Standard hardware, obtain locally

NS Not Serviced

(Rev. 9/26/2008)

58 Parts

MAN0707 (5/30/2008)

CENTER DECK DRIVE ASSEMBLY

REF PART QTY DESCRIPTION

A 1004933 1 Complete center drive assembly

1 1004961 1 Yoke, 1-3/4, 20 spline

2 110 2 Cross & bearing kit

3 1004962 1 Double yoke

4 1005521 1 Grease fitting

5 57416 1 Friction clutch 1340 1-3/4, 20 spline

6 57438 1 Flange yoke

7 57432 1 Friction disc (package of 2)

REF PART QTY DESCRIPTION

8 57440 1 Hub, 1-3/4, 20 spline

9 57434 1 Thrust plate

10 57439 1 Belleville spring plate

11 57259 6 M10 x 1.5P x 55 mm HHCS 8.8

12 57260 6 M10 x 1.5P Hex lock nut

13 57261 2 M12 x 1.75P Hex lock nut

14 57262 2 M12 x 1.75P x 65 mm HHCS 8.8

15 1005508 Clutch repair kit

(includes items 7, 10, 11, 12, 13 & 14)

Parts 59

MAN0707 (5/30/2008)

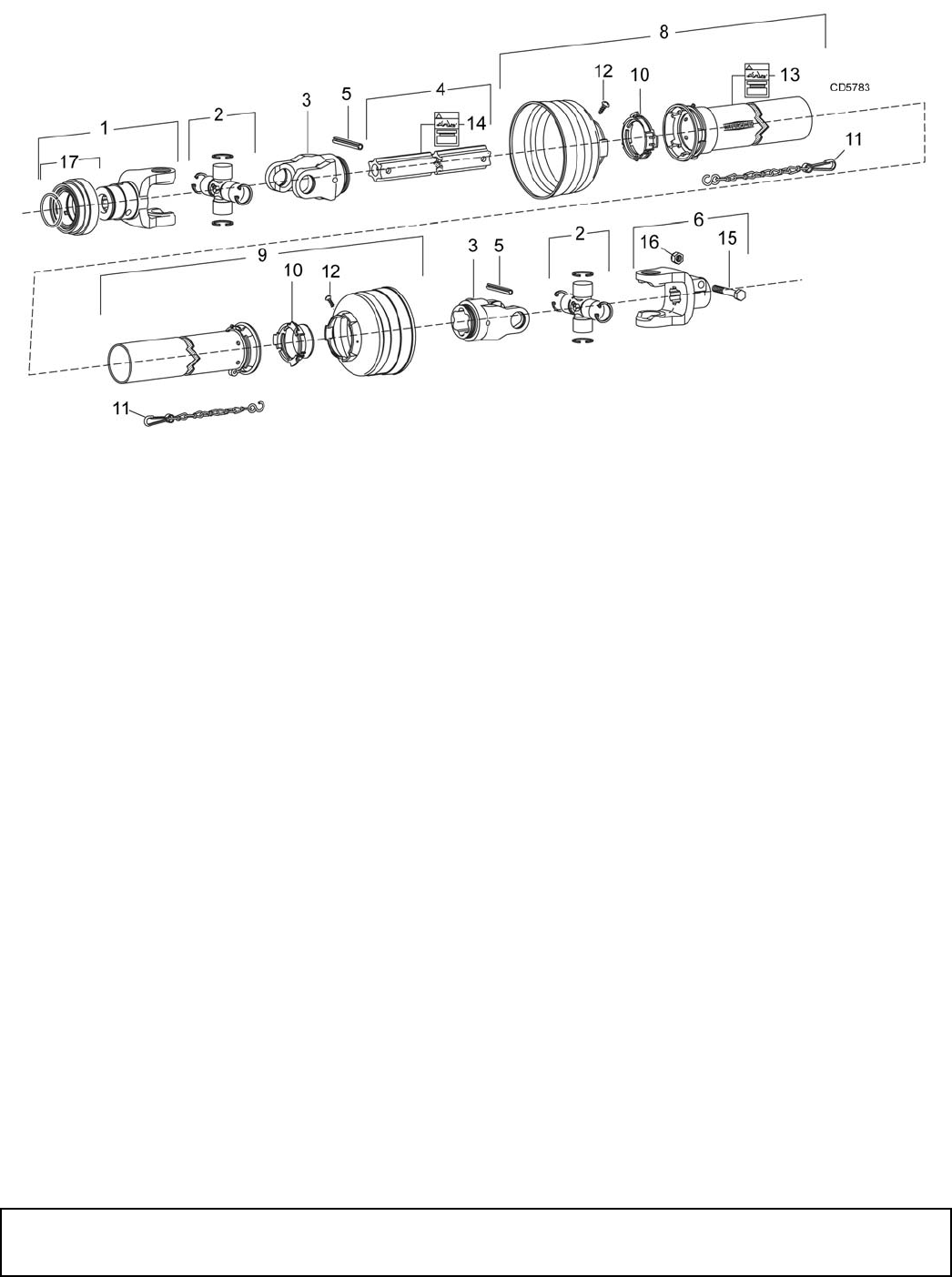

BW180 & BW126 FRONT DRIVE ASSEMBLY - EQUAL ANGLE

REF PART QTY DESCRIPTION

A 57282 1 Complete 540 rpm (6-spline)

1 40563 1 Yoke 1-3/8, 6-spline (540 rpm)

2 40566 2 Cross & bearing

3 40751 2 Inboard yoke

4 40753 1 Outer profile

5 40765 2 Spring pin 10 x 90

6 57299 1 Yoke 1-1/2, 23-spline I.C.

8 40727 1 Outer shield

9 40728 1 Inner shield

REF PART QTY DESCRIPTION

10 40766 2 Bearing ring SC25

11 40777 2 Anti-rotation chain

12 40778 2 Screw (package of 10)

13 18864 1 Danger decal, rotating driveline

14 33347 1 Danger decal, shield missing

15 19811 1 1/2 NC x 2 HHCS GR8

16 765 1 1/2 NC Hex nut

17 40758 1 Lock collar kit ASG (540 rpm 6-spline

1-3/8)

60 Parts

MAN0707 (5/30/2008)

BW180 & BW126 REAR DRIVE ASSEMBLY - EQUAL ANGLE

REF PART QTY DESCRIPTION

A 1004932 1 Complete rear drive assembly

1 1004957 1 Yoke, 1-3/4, 20 spline

2 40566 1 Cross and bearing

3 1003471 1 Inboard yoke

4 1004958 1 Inner profile

5 40765 1 Spring pin 10 x 90

6 1029936 1 Stub shaft

7 40766 2 Bearing ring SC25

8 40778 2 Screw (package of 10)

9 40777 2 Anti-rotation chain

REF PART QTY DESCRIPTION

10 40767 1 Support bearing

11 18864 1 Decal, danger rotating driveline

12 33347 1 Decal, danger guard missing

13 1004960 1 Inner guard half

14 1004959 1 Outer guard half

15 NSS 1 Shaft assembly, male

(complete w/guard)

16 NSS 1 Shaft assembly, female

(complete w/guard)

17 1001042 1 M16 x 2.0P x 90 mm HHCS 8.8

18 1005522 1 M16 x 2.0P Hex lock nut

NSS Not serviced separately

(Rev. 10/19/2009)

Parts 61

MAN0707 (5/30/2008)

540 RPM & 1000 RPM FRONT CV DRIVE

REF PART QTY DESCRIPTION

A 1021103 1 Complete CV drive (540 RPM)

A 1021104 1 Complete CV drive (1000 RPM)

1 19851 1 Slide lock repair kit

2 58774 1 Yoke QD CV 1.375 - 6 (540 RPM)

2 58770 1 Yoke QD CV 1.375 - 21 (1000 RPM)

3 58759 2 CV U-Joint repair kit Cat 6 55E

4 58760 1 CV Body with fitting

5 1021313 1 Yoke and shaft CV splined 25.9

(540 RPM)

5 1021317 1 Yoke and shaft - CV splined 26.6

(1000 RPM)

6 1009065 2 Drive shield bearing kit

7 18864 † 1 Decal, danger rotating driveline

(see page 12)

8 1021314 1 CV shield outer (540 RPM)

8 1021318 1 CV shield outer (1000 RPM)

REF PART QTY DESCRIPTION

9 1021315 1 CV shield inner (540 RPM)

9 1021319 1 CV shield inner (1000 RPM)

10 33347 † 1 Decal, danger guard missing

(see page 13)

11 1021316 1 Yoke 55R x 36.4 x 1.69 - 20

(540 RPM)

11 1021320 1 Yoke 55R x 38.4 x 1.69 - 20

(1000 RPM)

12 58765 1 U-Joint cross and bearing kit

13 1023058 1 Yoke, 55R x 5.06 x SP 1.75 - 20

14 6239 * 1 5/8 NC Lock nut

15 34473 * 1 5/8 NC x 3 HHCS GR5

†Not shown

HHCS Hex Head Cap Screw

* Standard hardware, obtain locally

62 Parts

MAN0707 (5/30/2008)

WING DRIVE ASSEMBLY

REF PART QTY DESCRIPTION

A 1004934 Complete wing drive assembly

1 1004963 1 Yoke 1-3/4, 20 Spline

2 110 2 Cross & bearing kit

3 40764 2 Spring pin 10 x 80

4 40575 1 Inboard yoke

5 40587 1 Inner profile

6 1004964 1 Outer profile & sleeve

7 40576 1 Inboard yoke

8 57416 1 Friction clutch 1340 1-3/4, 20 Spline

9 40766 2 Bearing ring

10 40777 2 Anti-rotation chain

11 18864 1 Decal, danger rotating drive

12 33347 1 Decal, danger guard missing

13 40778 2 Screw (package of 10)

14 40767 1 Support bearing

15 40779 1 Grease fitting

REF PART QTY DESCRIPTION

16 1004965 4 Outer guard half

17 1004966 1 Inner guard half

18 1004951 1 Shaft assembly, male

(complete w/guard)

19 1004934 1 Shaft assembly, female

(complete w/guard)

20 57438 1 Flange yoke

21 57432 1 Friction disc (package of 2)

22 57440 1 Hub, 1-3/4, 20 Spline

23 57434 1 Thrust plate

24 57439 1 Belleville spring plate

25 57259 6 M10 x 1.5P x 55 mm HHCS 8.8

26 57260 6 M10 x 1.5P Hex lock nut

27 57261 2 M12 x 1.75P Hex lock nut

28 57262 2 M12 x 1.75P x 65 mm HHCS 8.8

29 58549 2 M12 x 1.75P Hex lock nut

30 307309 2 M12 x 1.75P x 60 mm HHCS 8.8

31 1005508 - Clutch repair kit (includes items 21,

24, 25, 26, 27 & 28)

HHCS Hex Head Cap Screw

Parts 63

MAN0707 (5/30/2008)

5-BOLT WHEEL & TIRE ASSEMBLY

REF PART QTY DESCRIPTION

1 1017050 1 Heavy hub assembly

(includes items 1 through 15)

2 1017034 1 Heavy wheel hub with cups

(includes items 6,7,14)

3 1017033 1 Axle

4 1017027 1 Seal

5 1017028 1 Bearing cone

6 1017036 1 Bearing cup

7 1017037 1 Bearing cup

8 1017029 1 Bearing cone

9 1017031 1 Washer

10 1017032 1 Castle nut

11 1017035 1 Hub cap

12 1017038 5 Stud

13 1017069 1 Cotter pin

14 1017067 1 Grease fitting

15 35317 5 Nut, lug 1/2 NF

16 1017088 1 15" Rim for pneumatic tire - 5 bolt -or-

16 1017040 1 6.00 x 9 Solid tire,

rim & hardware - 5 bolt -or-

16 1028820 1 24 x 7.25 x 12 Aircraft tire,

rim & hardware - 5 bolt -or-

REF PART QTY DESCRIPTION

16 1028820F 1 24 x 7.25 x 12 Aircraft tire,

rim & hardware, foam filled - 5 bolt

16 1017030 1 29 x 9 x 15 Aircraft tire,

rim & hardware - 5 bolt

17 1028821 1 12.0 x 6 Rim half

(for 24" aircraft wheel only) -or-

17 1017026 1 15.0 x 6.0 Rim half

(for 29" aircraft wheel only)

18 1028822 1 12.0 x 6 Rim half

(for 24" aircraft wheel only)

18 1017025 1 15.0 x 6.0 Rim half w/ valve hole

(for 29" aircraft wheel only)

19 6100 * 1/2 NC x 1-1/4 HHCS GR5

20 765 * 1/2 NC Lock nut

21 19887 * 3/8 NC x 1 HHCS GR8

22 838 * 3/8 Standard lock washer

23 835 * 3/8 NC Hex nut

- 1015833 1 29 x 9 x 15 Inner tube

(for 29" aircraft wheel only)

- 1017042 2 Rim half for 6 x 9 solid tire

* Standard hardware, obtain locally

(Rev. 4/20/2010)

64 Parts

MAN0707 (5/30/2008)

BW180 / BW180Q RUBBER SHIELDING - CENTER SECTION

(FRONT & REAR)

(STANDARD ON BW180-3 MODELS)

REF PART QTY DESCRIPTION

1 1017057 1 Front center belt shield plate

2 1028588 1 Front right belt shield plate

3 1028589 1 Front left belt shield plate

7 1028506 2 Bent link .25 x 1.72 x 13.00

8 1028507 2 Bent link .25 x 1.72 x 9.50

9 1028592 2 Rubber shield .25 x 8.75 x 40.76

12 1027468 1 Rubber shield .25 x 9.25 x 28.00

13 1027469 2 Rubber shield .25 x 9.25 x 18.25

22 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5

23 14350 * 3/8 NC Flanged lock nut

* Standard hardware, obtain locally

(Rev. 7/9/2010)

Parts 65

MAN0707 (5/30/2008)

BW180 / BW180Q RUBBER SHIELDING - WING

(FRONT & REAR)

(STANDARD ON BW180-3 MODELS)

REF PART QTY DESCRIPTION

4 1028590 1 Front right wing belt shield plate, inside -or-

4 1028591 1 Front left wing belt shield plate, inside

5 1027496 1 Front right wing belt shield plate, middle -or-

5 1027497 1 Front left wing belt shield plate, middle

6 1028504 1 Front right wing belt shield plate, outer -or-

6 1028505 1 Front left wing belt shield plate, outer

7 1028506 4 Bent link .25 x 1.72 x 13.00

10 1028593 2 Rubber belt .25 x 8.75 x 31.11

11 1028594 2 Rubber belt .25 x 8.75 x 53.87

14 1027484 2 Rubber belt .25 x 9.25 x 34.00

19 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5

21 11900 * 1/2 NC Flanged lock nut

22 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5

23 14350 * 3/8 NC Flanged lock nut

* Standard hardware, obtain locally

(Rev. 7/9/2010)

66 Parts

MAN0707 (5/30/2008)

CHAIN SHIELDING - CENTER SECTION (FRONT & REAR)

(SINGLE ROW STANDARD ON BW126 MODELS)

(SINGLE ROW OPTIONAL ON BW180 MODELS)

(DOUBLE ROW OPTIONAL ON BW126 AND BW180 MODELS)

SINGLE ROW DOUBLE ROW

REF PART QTY DESCRIPTION

1 1017124 1 Front center chain plate

2 1028596 1 Front right chain plate

3 1028597 1 Front left chain plate

4 1027460 1 Rear chain plate, right

5 1027461 1 Rear chain plate, left

9 1017309 1 Pin, 4 to 6 chains

10 1003642 2 Pin, 16 to 18 chains

12 1003644 1 Pin, 22 to 24 chains

13 1003645 2 Pin, 25 to 27 chains

15 5496 114 5/16 Chain - 7 link

16 5498 2 5/16 Chain - 6 link

17 3994 2 5/16 Chain - 5 link

18 4069 2 5/16 Chain - 4 link

22 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5

23 14350 * 3/8 NC Flanged lock nut

* Standard hardware, obtain locally

REF PART QTY DESCRIPTION

1 1017124 1 Front center chain plate

2 1028596 1 Front right chain plate

3 1028597 1 Front left chain plate

4 1027460 1 Rear chain plate, right

5 1027461 1 Rear chain plate, left

9 1017309 1 Pin, 4 to 6 chains

10 1003642 2 Pin, 16 to 18 chains

12 1003644 1 Pin, 22 to 24 chains

13 1003645 2 Pin, 25 to 27 chains

15 1016952 114 5/16 Chain - 13 link

16 1016953 2 5/16 Chain - 11 link

17 38381 2 5/16 Chain - 9 link

18 5496 2 5/16 Chain - 7 link

22 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5

23 14350 * 3/8 NC Flanged lock nut

* Standard hardware, obtain locally

(Rev. 7/9/2010)

Parts 67

MAN0707 (5/30/2008)

CHAIN SHIELDING - WING (FRONT & REAR)

(SINGLE ROW STANDARD ON BW126 MODELS)

(SINGLE ROW OPTIONAL ON BW180 MODELS)

(DOUBLE ROW OPTIONAL ON BW126 AND BW180 MODELS

SINGLE ROW DOUBLE ROW

REF PART QTY DESCRIPTION

5 1028598 1 Front right wing chain plate, inner -or

5 1028599 1 Front left wing chain plate, inner

6 1028500 1 Front right wing chain plate, middle -or

6 1028501 1 Front left wing chain plate, middle

7 1028502 1 Front right wing chain plate, outer - or

7 1028503 1 Front left wing chain plate, outer

8 1028174 2 Rear wing chain plate

10 1003642 2 Pin, 16 to 18 chains

11 1003643 2 Pin, 19 to 21 chains

12 1003644 2 Pin, 22 to 24 chains

13 1003645 2 Pin, 25 to 27 chains

15 5496 168 5/16 Chain - 7 link

16 5498 12 5/16 Chain - 6 link

18 4069 4 5/16 Chain - 4 link

19 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5

20 14406 * 1/2 NC x 1 Carriage bolt

21 11900 * 1/2 NC Flanged lock nut

22 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5

23 14350 * 3/8 NC Flanged lock nut

* Standard hardware, obtain locally

REF PART QTY DESCRIPTION

5 1028598 1 Front right wing chain plate, inner -or

5 1028599 1 Front left wing chain plate, inner

6 1028500 1 Front right wing chain plate, middle -or

6 1028501 1 Front left wing chain plate, middle

7 1028502 1 Front right wing chain plate, outer - or

7 1028503 1 Front left wing chain plate, outer

8 1028174 2 Rear wing chain plate

10 1003642 2 Pin, 16 To 18 Chains

11 1003643 2 Pin, 19 To 21 Chains

12 1003644 2 Pin, 22 To 24 Chains

13 1003645 2 Pin, 25 To 27 Chains

15 1016952 168 5/16 Chain - 13 Link

16 1016953 12 5/16 Chain - 11 Link

18 5496 4 5/16 Chain - 7 Link

19 29893 * 1/2 NC x 1-1/2 Carriage bolt GR5

20 14406 * 1/2 NC x 1 Carriage bolt

21 11900 * 1/2 NC Flanged lock nut

22 20973 * 3/8 NC x 1-1/4 Carriage bolt GR5

23 14350 * 3/8 NC Flanged lock nut

* Standard hardware, obtain locally

(Rev 7/9/2010)

68 Parts

MAN0707 (5/30/2008)

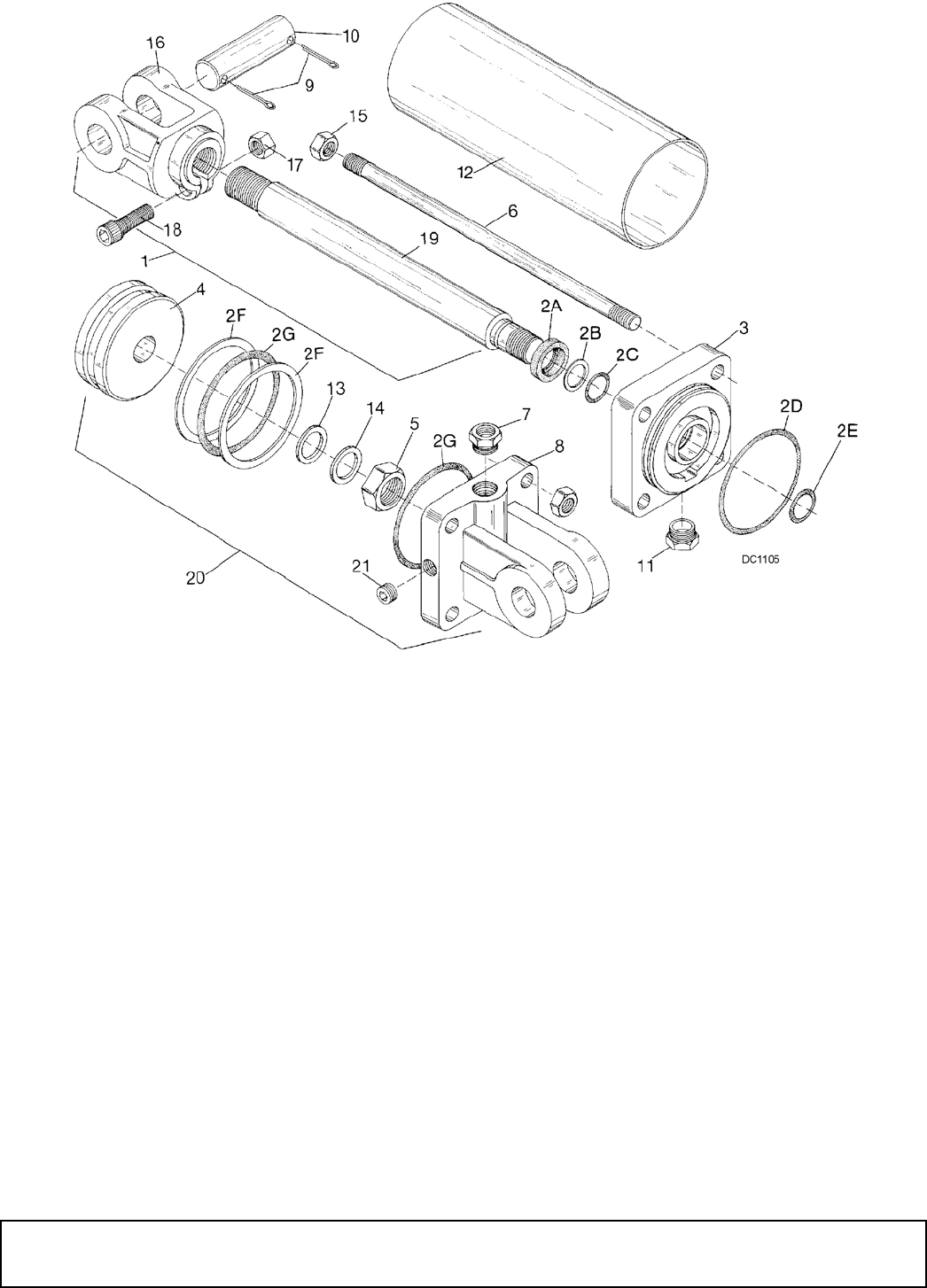

HYDRAULIC CYLINDERS

Wing

3 x 10

Center

3.5 x 8

REF PART PART QTY DESCRIPTION

2 19810 23540 1 Seal repair kit

(includes 2A thru 2G)

-or-

2 19810HD -------- 1 Seal repair kit w/ heavy

duty piston seal(includes

2A thru 2G)

2A ‡ ‡ 1 Wiper seal

2C ‡ ‡ 2 1-1/4 ID U-Cup

2D ‡ ‡ 2 Barrel O-ring

2E † † Rod static O-ring

2F ‡ ‡ 2 Piston back-up washer

2G ‡ ‡ 1 Piston seal O-ring

3 NS 23543 1 Rod end housing

4 NS 23544 1 Piston

5 34328 25496 1 Jam nut

6 NS NS 4 Cylinder tie rod

7 4510 -------- 1 1/2 Pipe plug -or-

7 11893* 11893* 1 1/2 x 1/4 Pipe reducer

bushing

8 NS NS 1 Cylinder butt end

Wing

3 x 10

Center

3.5 x 8

REF PART PART QTY DESCRIPTION

9 923* 923* 4 1/4 x 1-3/4 Cotter pin

10 1631 1631 2 1 x 3-5/8 Clevis pin

11 11893* -------- 1 1/2 x 1/4 Pipe reducer

bushing -or-

11 11975 11975 1 1/2 NPT Vent plug

12 NS NS 1 Cylinder barrel

15 * * 8 Tie rod nut

16 23549 23549 1 Hydraulic cylinder rod clevis

17 6698* 6698* 1 3/8 NC Lock nut

18 23550* 23550* 1 3/8 NC x 1-1/2 Socket head

cap screw

19 NS 23551 1 Hydraulic cylinder rod

20 1031166 -------- 1 3 x 10 Hydraulic cylinder -

Wing

20 -------- 10475 1 3-1/2 x 8 Hydraulic cylinder w/

breather complete - Center

* Obtain Locally

† Not used on this cylinder

‡ Included in seal kit

NS Not sold separately

(Rev. 10/19/2009)

Parts 69

MAN0707 (5/30/2008)

HYDRAULIC CYLINDER STROKE CONTROL KIT

CROSSBAR PULLER (OPTIONAL)

REF PART QTY DESCRIPTION

1 24098 1 Stroke control set for 1-1/4" cylinder

rod (contains items 2 - 5)

2 – – – – 2 1-1/2" Segment

3 – – – – 1 1-1/4" Segment

4 – – – – 1 1" Segment

5 – – – – 1 3/4" Segment

REF PART QTY DESCRIPTION

A 8811 1 Crossbar puller, complete

1 19914 2 Crossbar puller clevis

2 3097 * 4 5/8 NC x 4-1/2 HHCS GR5

3 230 * 4 5/8 NC Hex nut

REF PART QTY DESCRIPTION

4 24879 1 Crossbar puller pad assembly

5 24876 1 Crossbar puller tube assembly

6 24881 1 Crossbar puller screw assembly

7 24885 4 Crossbar puller link

* Standard hardware - obtain locally

70 Parts

MAN0707 (5/30/2008)

BW126 / BW126Q WEIGHT BOX ASSEMBLY (OPTIONAL)

REF PART QTY DESCRIPTION

1 1027345 1 Weight box 750 lbs

2 1028584 1 Brace

3 1010985 1 Skid shoe

4 1028566 1 Mounting plate

6 1003559 1 1.25 x 1.500 x 3.40 Sleeve

15 1003495 1 Hinge pin

27 11920 Washer, 1 x 1-1/8 x 1/4

28 12169 * 3/8 NC x 1-1/4 HHCS GR5

REF PART QTY DESCRIPTION

29 14350 * 3/8 NC x Flange lock nut

30 565 * 3/8 Flat washer

31 838 * 3/8 Lock washer

32 19446 * 3/8 NC x 1-1/4 Self-tapping screw

34 46605 1 Clevis pin, 1 x 2.26

35 1863 * 1" Flat washer

37 66016 * Spring pin, 1/4 x 1-1/2

66 1285 * 1/4 x 1-1/2 Cotter pin

* Standard hardware, obtain locally

Parts 71

MAN0707 (5/30/2008)

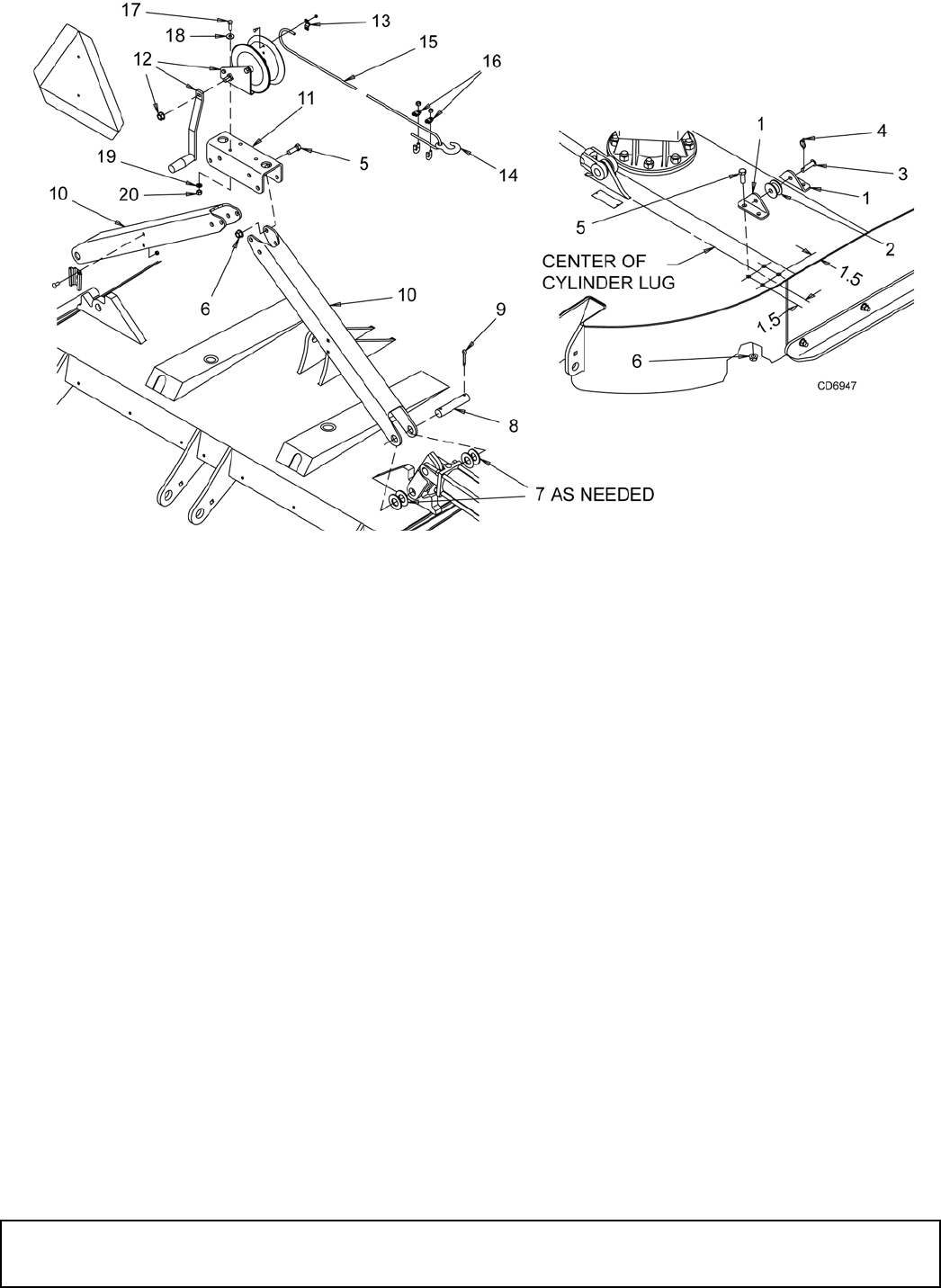

WINCH KIT (OPTIONAL)

REF PART QTY DESCRIPTION

A 1019456 - Winch kit, complete

1 52478 4 Idler bracket

2 6696 2 Chain idler casting

3 409 2 Clevis pin, 1/2 x 2

4 22411 2 Klik pin, 3/16 x 1

5 3379 * - HHCS, 1/2 NC x 1-1/2 GR5

6 11900 * - Lock nut, 1/2 NC flanged

7 1863 * - Washer, 1" SAE flat

8 1008325 2 Headless pin, 1 x 4 drilled

9 1266 * - Cotter pin, 3/16 x 1-1/2

10 1019454 2 Channel. 2.56 x 2.75 x 32.88

11 1019455 1 Channel, 3.12 x 3.25 x 10.00

12 12612 1 Gear winch 5.1 to 1

13 12642 1 Winch cable clamp kit

14 11790 1 C-Hook, 1/4 cable

15 52479 1 Cable, 1/4" x 24-ft

16 11789 2 Clip, 1/4 cable

17 839 * - HHCS, NC x 1 GR5

18 565 * - Washer, 3/8 flat

19 838 * - Washer, 3/8 lock

20 835 * - Hex nut, 3/8 NC plated

* Standard hardware; obtain locally

Winch Kit Installation

1. Locate and drill one 9/16" hole in each wing as

shown. Assemble items 1, 2, 3 and 4 and use to

locate and drill remaining holes.

2. Secure idler brackets (1) and rollers (2) to deck

with bolts (5) and nuts (6).

3. Assemble channels (10) to cylinder lugs using

pins (8), washers (7), and cotter pins (9) as

shown.

4. Assemble winch assembly to channels (10) using

bolts (5) and lock nuts (6).

5. Move SMV sign and hardware to channel as

shown.

6. Tighten all hardware.

Winch Kit Operation

1. Move cutter so wing is on the up slope of a ditch

to aid in wing lift with the winch.

2. Unwind cable and remove roller (2).

3. Place cable around roller (2) and reinstall using

pin (3) and Klik pin (4).

4. Remove cylinder pin from clevis end and raise

slowly.

5. Install transport lock before moving unit.

72 Appendix

Bolt Torque & Size Charts (Rev. 3/28/2007)

BOLT TORQUE CHART

Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific

application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.

Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.

Make sure fastener threads are clean and you start thread engagement properly.

All torque values are given to specifications used on hardware defined by SAE J1701 MAR 99 & J1701M JUL 96.

Diameter

(Inches)

Wrench

Size

MARKING ON HEAD

SAE 2 SAE 5 SAE 8

lbs-ft N-m lbs-ft N-m lbs-ft N-m

1/4" 7/16" 6 8 10 13 14 18

5/16"1/2"121719262737

3/8"9/16"233135474967

7/16"5/8"3648557578106

1/2" 3/4" 55 75 85 115 120 163

9/16" 13/16" 78 106 121 164 171 232

5/8" 15/16" 110 149 170 230 240 325

3/4" 1-1/8" 192 261 297 403 420 569

7/8" 1-5/16" 306 416 474 642 669 907

1" 1-1/2" 467 634 722 979 1020 1383

Diameter &

Thread Pitch

(Millimeters)

Wrench

Size

COARSE THREAD FINE THREAD

Diameter &

Thread Pitch

(Millimeters)

MARKING ON HEAD MARKING ON HEAD

Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9

N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft

6 x 1.0 10 mm 8 6 11 8 8 6 11 8 6 x 1.0

8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8 x 1.0

10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10 x 1.25

12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25

14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5

16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5

18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5

20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5

22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5

24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0

30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0

A

SAE SERIES

TORQUE

CHART

SAE Bolt Head

Identification

SAE Grade 2

(No Dashes)

SAE Grade 5

(3 Radial Dashes)

SAE Grade 8

(6 Radial Dashes)

A

METRIC SERIES

TORQUE

CHART

Metric Bolt Head

Identification

8.8

Metric

Grade 10.9

10.9

Metric

Grade 8.8

A

A

A

Typical Washer

Installations

Lock Washer

Flat Washer

8/9/00

Bolt

Appendix 73

Bolt Torque & Size Charts (Rev. 3/28/2007)

BOLT SIZE CHART

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts.

ABBREVIATIONS

AG .............................................................. Agriculture

ASABE.................... American Society of Agricultural &

Biological Engineers (formerly ASAE)

ASAE ....... American Society of Agricultural Engineers

ATF ............................... Automatic Transmission Fluid

BSPP .............................British Standard Pipe Parallel

BSPTM ................British Standard Pipe Tapered Male

CV.....................................................Constant Velocity

CCW .............................................. Counter-Clockwise

CW............................................................... Clockwise

F ...................................................................... Female

FT .............................................................. Full Thread

GA .................................................................... Gauge

GR (5, etc.) ........................................... Grade (5, etc.)

HHCS ........................................Hex Head Cap Screw

HT........................................................... Heat-Treated

JIC .................Joint Industry Council 37° Degree Flare

LH .................................................................Left Hand

LT........................................................................... Left

m......................................................................... Meter

mm................................................................Millimeter

M.......................................................................... Male

MPa.........................................................Mega Pascal

N.......................................................................Newton

NC ......................................................National Coarse

NF ...........................................................National Fine

NPSM.....................National Pipe Straight Mechanical

NPT .......................................... National Pipe Tapered

NPT SWF .........National Pipe Tapered Swivel Female

ORBM .......................................... O-Ring Boss - Male

P...........................................................................Pitch

PBY ...................................................... Power-Beyond

psi..........................................Pounds per Square Inch

PTO ..................................................... Power Take Off

QD....................................................Quick Disconnect

RH ..............................................................Right Hand

ROPS ........................... Roll-Over Protective Structure

RPM ........................................Revolutions Per Minute

RT ....................................................................... Right

SAE ..........................Society of Automotive Engineers

UNC .....................................................Unified Coarse

UNF...........................................................Unified Fine

UNS......................................................Unified Special

5/16 3/81/2 5/83/4 7/8

SAE Bolt Thread Sizes

MM 25 50 75 100 125 150 175

IN 1 7

Metric Bolt Thread Sizes

8MM 18MM14MM12MM10MM 16MM

234 56

74 Index

MAN0707 (5/30/2008)

INDEX

A

ADJUSTMENTS

Cutting Height 15

Slip Clutch 22

ASSEMBLY

Dealer Set-Up Instructions 33

Fill Gearboxes 33

D

DEALER CHECK LIST

Check Lists

Delivery (Dealer’s Responsibility) 45

Pre-Delivery (Dealer’s Responsibility) 45

DEALER SERVICE

Crossbar

Installation 31

Removal 30

Gearbox Maintenance

Seal Installation 25

Seal Replacement 25

Horizontal Shaft 26

Vertical Shaft 26

Gearbox Repair

Assembly 26

Disassembly 26

Reinstallation 27

Removal 26

Splitter Gearbox Repair

Assembly 28

Check Gearbox for Leaks 29

Disassembly 28

Reinstallation 29

Removal from Cutter 28

Universal Joint

Assembly 32

Disassembly 31

Repair 31

G

GENERAL

Abbreviations 73

Bolt Size Chart 73

Bolt Torque Chart 72

General Information 4

Introduction 2

Obtaining Replacement Manuals 2

Product Registration 2

Specifications 4

Table of Contents 3

Warranty

Product 1

Replacement Parts 50

O

OPERATION

Connecting Cutter to Tractor 14

Cutting Height Adjustment 15

CV Driveline Turning Limits 15

Hydraulic Connection 14

Interference Check 15

Cutter Operation 16

Mowing Tips 16

Shredding 16

Pre-Operation Check List (Owner’s Responsibility)

18

Storage 18

Tractor Operation 15

Transporting 17

Lock-Up 17

Center Section 17

Wing 17

OWNER SERVICE

Adjusting Slip Clutch 22

Blades

Installation 21

Removal 21

Sharpening 22

Blocking Method 19

Lubrication

Driveline 20

Gearbox 20

Lubrication Points 20

Seasonal 21

Shielding Repair 23

Slip Clutch Adjustment 22

P

PARTS

Parts Index 47

S

SAFETY

Blocking Method 19

Check Lists

Delivery Check List (Dealer’s Responsibility) 45

Pre-Delivery Check List (Dealer’s Responsibility) 45

Pre-Operation Check List (Owner’s Responsibility)

18

Free Mower Safety Video Order Form 5, 6

Safety & Instructional Decals 11, 12, 13

Safety Rules 7, 8, 9, 10

Safety Symbols Explained 2

T

TROUBLESHOOTING 24

F-3079 (Rev. 3/31/2010)

Woods Equipment

Company

2606 South Illinois Route 2

Post Office Box 1000

Oregon, Illinois 61061 USA

800-319-6637 tel

800-399-6637 fax

www.WoodsEquipment.com

WARRANTY

All Models Except Mow’n MachineTM Zero-Turn Mowers

Please Enter Information Below and Save for Future Reference.

Date Purchased: ____________________________ From (Dealer): __________________________________________

Model Number: ____________________________ Serial Number: __________________________________________

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship. Except as otherwise set forth

below, the duration of this Warranty shall be for TWELVE (12) MONTHS COMMENCING ON THE DATE OF DELIVERY OF THE

PRODUCT TO THE ORIGINAL PURCHASER.

All current model loaders and backhoes are warranted for two (2) years from the date of delivery to the original purchaser.

The warranty periods for specific parts or conditions are listed below:

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to

improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been materially

modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized service center.

This Warranty does not cover normal wear or tear, or normal maintenance items. This Warranty also does not cover repairs made with parts other

than those obtainable through WOODS.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this product to a

third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.

WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories not manufactured by

WOODS. Warranties for these items, if any, are provided separately by their respective manufacturers.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if WOODS, in

its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product must be returned to WOODS with proof of

purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the

dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete such repair or

replacement within a reasonable time after WOODS receives the product. THERE ARE NO OTHER REMEDIES UNDER THIS WARRANTY.

THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. WOODS

MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY

OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the

product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal

theory. Without limiting the generality of the foregoing, Woods specifically disclaims any damages relating to (i) lost profits, business, revenues

or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute machinery or

rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture

replacement parts.

No agent, representative, dealer, distributor, serviceperson, salesperson, or employee of any company, including without limitation, WOODS, its

authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty. Answers to any

questions regarding warranty service and locations may be obtained by contacting:

Part or

Condition

Warranted

Model Number

Duration (from date of

delivery to the original

purchaser)

Gearbox

Seals All units listed below 2 years

Gearbox

components

BW1260, BW1620, BW1800, BW2400 8 years

BW240HD, BW180HD, BW180HB, BW126HB 7 years

BB48X, BB60X, BB72X, BB84X, BB600X, BB720X, BB840X, BB6000X, BB7200X, BB8400X,

DS1260, DSO1260, DS1440, TS1680, BW126-3, BW180-3, BW240 6 years

PHD25, PHD35, PHD65, PHD95, 2162, 3240, DS96, DS120, RCC42, RM550-2, RM660-2, RM990-

3, PRD6000, PRD7200, PRD8400, 7144RD-2, 9180RD-2,

9204RD-2, S15CD, S20CD, S22CD, S25CD, S27CD, BW180LH, TC/R74, TC/R68, TC/R60

5 years

RDC54, RD60, RD72, TBW150C, TS/R60, TS/R52, TS/R44 3 years (1 year if used in rental or

commercial applications)

Blade

spindles RM550-2, RM660-2, RM990-3, PRD6000, PRD7200, PRD8400, 7144RD-2, 9180RD-2, 9204RD-2 3 years

Rust-through

BB600, BB720, BB840, BB6000, BB7200, BB8400, BW126-3, BW126HB, BW180-3, BW180HB,

BW180HD, BW1260, BW1800, BW240, BW240HD, 2162, 3240, DS1260, DSO1260, DS1440,

TS1680

10 years

F-8494 (Rev. 6/23/2005)

©2008 Woods Equipment Company. All rights reserved. WOODS and the Woods logo are trademarks of Woods Equipment Company. All other

trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are the property of their respective

companies or mark holders. Specifications subject to change without notice.

WARRANTY

(Replacement Parts For All Models Except Mow’n MachineTM

Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and

workmanship for a period of ninety (90) days from the date of delivery of the product to the original purchaser

with the exception of V-belts, which will be free of defect in material and workmanship for a period of 12 months.

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of

WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty

does not cover normal wear or tear, or normal maintenance items.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or

otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any

way. There are no third party beneficiaries of this Warranty.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of

charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with this

Warranty. The product must be returned to WOODS with proof of purchase within thirty (30) days after

such defect or noncompliance is discovered or should have been discovered, routed through the dealer and

distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete

such repair or replacement within a reasonable time after WOODS receives the product. THERE ARE NO

OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE

SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS

WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS

SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/OR ANY

IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly

or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty,

negligence, strict liability in tort or any other legal theory. Without limiting the generality of the foregoing,

Woods specifically disclaims any damages relating to (i) lost profits, business, revenues or goodwill; (ii) loss of

crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute

machinery or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain

materials or manufacture replacement parts.

No agent, representative, dealer, distributor, service person, salesperson, or employee of any company, including

without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify,

or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:
