OPER ATOR'S MANUAL

ROTARY CUTTER

15914

Rev. 5/11/2007

Tested. Proven. Unbeatable.

D80-2

MD80-2

2 Introduction

Gen’l (Rev. 2/5/2007)

TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the Woods® dealer. Read manual instructions

and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual

are completed before releasing equipment to the owner.

The dealer must complete the Product Registration included with the Operator’s Manual. The customer must sign the

registration which certifies that all Dealer Check List items have been completed. The dealer is to return the prepaid

postage portion to Woods, give one copy to the customer, and retain one copy. Failure to complete and return this

card does not diminish customer’s warranty rights.

TO THE OWNER:

Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and

safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become

acquainted with all adjustment and operating procedures before attempting to operate. Replacement manuals can be

obtained from your dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in

the United States and Canada call 1-800-319-6637.

The equipment you have purchased has been carefully engineered and manufactured to provide dependable and

satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.

Observe all safety information in this manual and safety decals on the equipment.

For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary

tools and equipment to handle all your needs.

Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for

safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces

provided:

Model: _______________________________ Date of Purchase: _____________________

Serial Number: (see Safety Decal section for location) ____________________________________

Provide this information to your dealer to obtain correct repair parts.

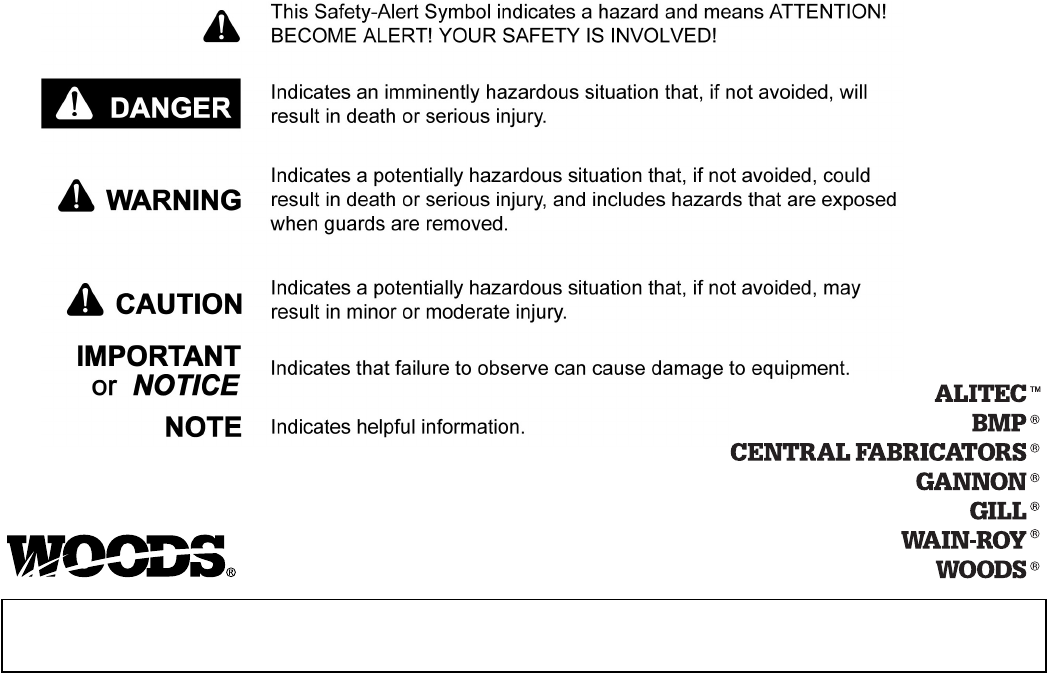

Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to

equipment. The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-Alert Symbol (a

triangle with an exclamation mark) to indicate the degree of hazard for items of personal safety.

Introduction 3

15914 (Rev. 3/23/2007)

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SAFETY VIDEO ORDER FORM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DEALER CHECK LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INDEX TO PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

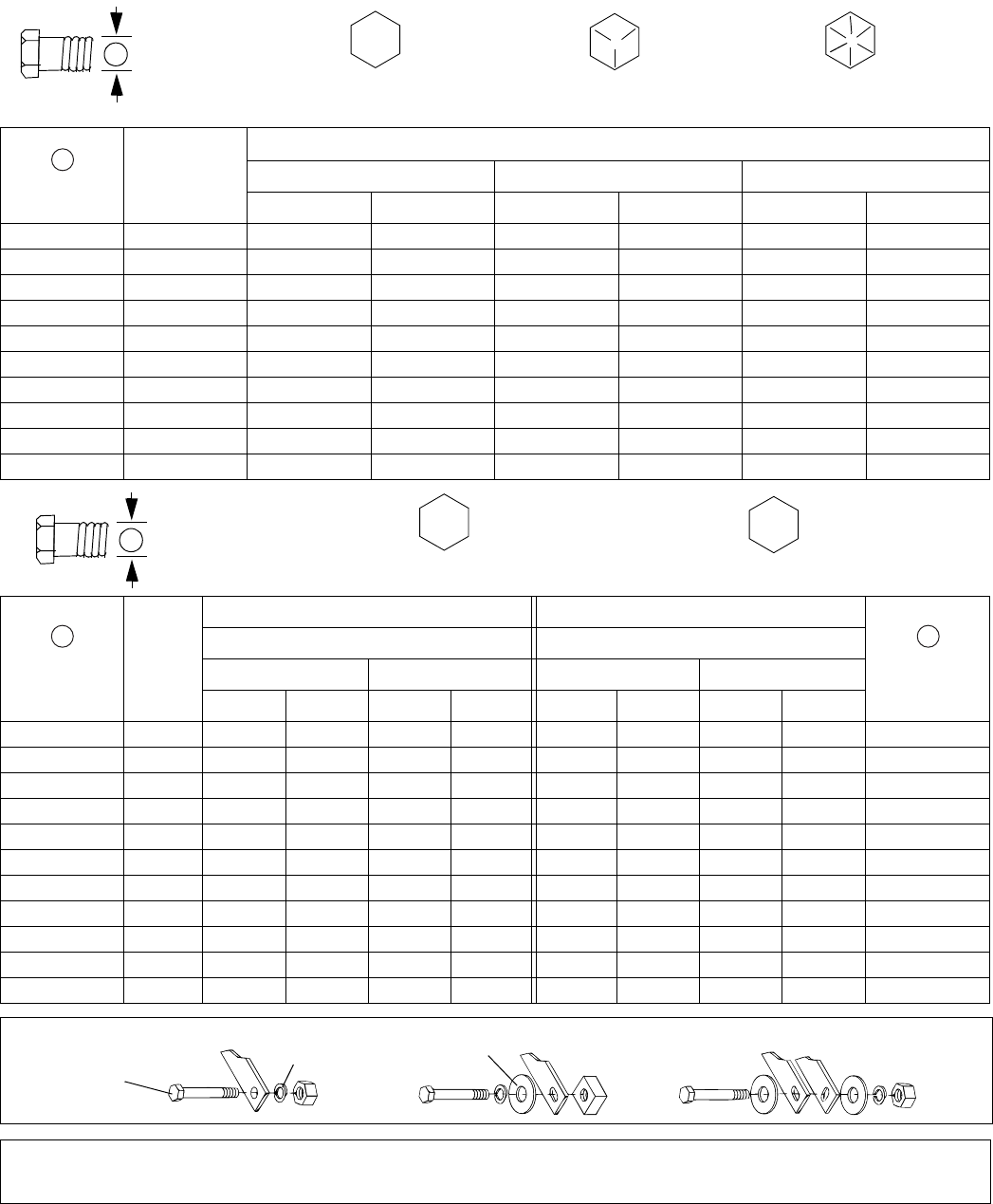

BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

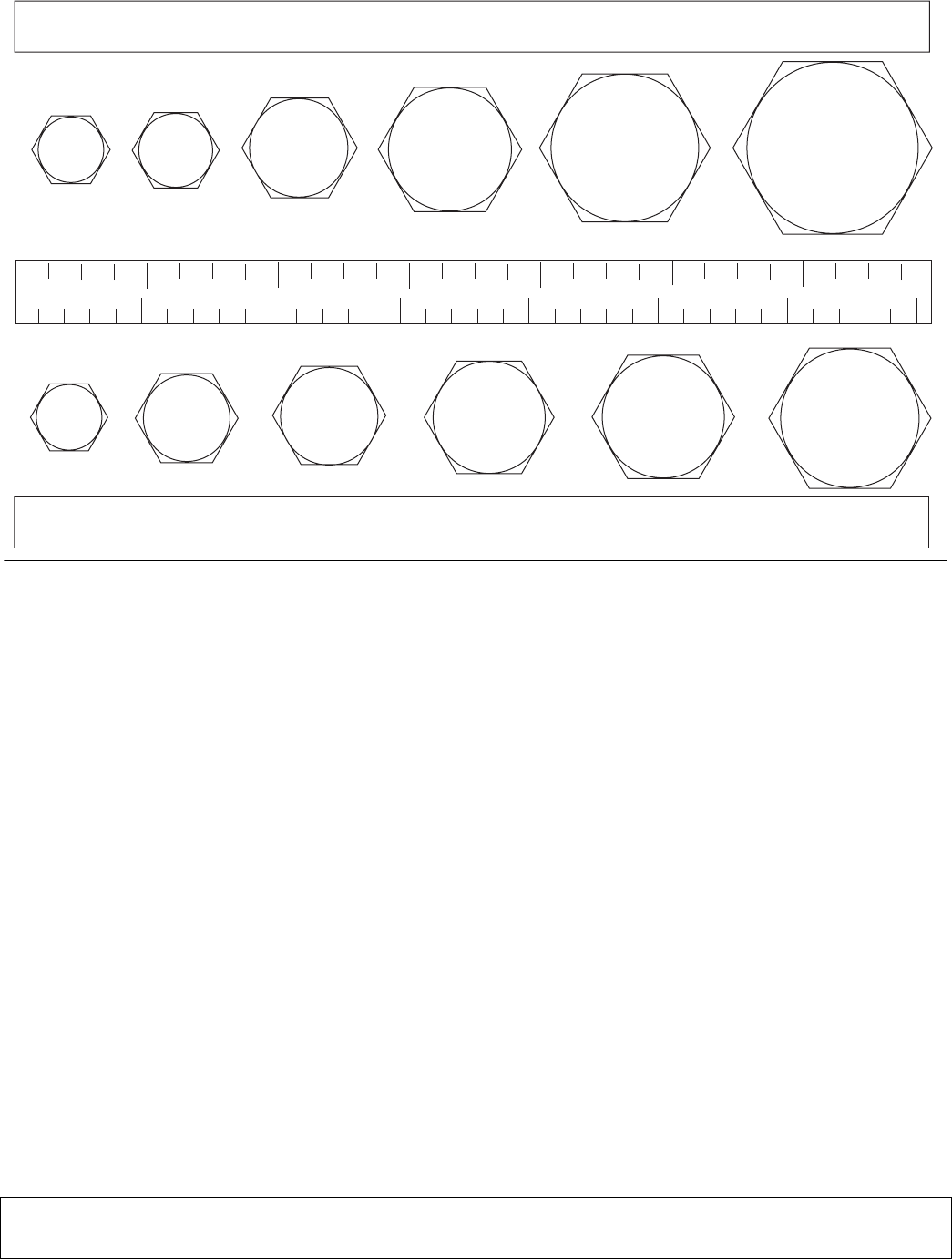

BOLT SIZE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

REPLACEMENT PARTS WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . INSIDE BACK COVER

Si no lee Ingles, pida ayuda a

alguien que si lo lea para que le

traduzca las medidas de seguridad.

LEA EL INSTRUCTIVO!

!

4 Introduction

15914 (Rev. 3/23/2007)

SPECIFICATIONS

D80-2 (Towed) MD80-2 (Mounted)

Cutting Width 80" 80"

Cutting Height 2" - 14" 2" (Limited by tractor lift)

Overall Width 83" 83"

Cutter Blade Spindles 2 2

Blade Tip Speed 14,400 14,400

V-Belts 3 3

Framework Channel 5/16" 5/16"

Spindle Shafts 1-3/8" 1-3/8"

Gearbox 60 HP 60 HP

TRACTOR REQUIREMENTS

D80-2 (Towed) MD80-2 (Mounted)

Tractor PTO 540 rpm 540 rpm

3-Point Hitch N/A Category 1

(Category 2 Optional)

GENERAL INFORMATION

The purpose of this manual is to assist you in operating

and maintaining your cutter. Read it carefully. It fur-

nishes information and instructions that will help you

achieve years of dependable performance. These

instructions have been compiled from extensive field

experience and engineering data. Some information

may be general in nature due to unknown and varying

operating conditions. However, through experience

and these instructions, you should be able to develop

procedures suitable to your particular situation.

The illustrations and data used in this manual were cur-

rent at the time of printing, but due to possible inline

production changes, your machine may vary slightly in

detail. We reserve the right to redesign and change the

machines as may be necessary without notification.

■ Some illustrations in this manual show the

equipment with safety shields removed to provide

a better view. The equipment should never be oper-

ated with any safety shielding removed.

WARNING

Safety 5

Safety Video Order Form (2/23/2005)

Free Mower Safety Video

Fill out and return the order form and we will send you a FREE VHS

or DVD video outlining

Industrial and Agricultural Mower Safety

Practices.

The 22 minute video, developed in cooperation with

AEM (Association of Equipment Manufacturers), reinforces the

proper procedures to follow while operating your Woods mowing

equipment. The video does not replace the information contained in

the Operator’s Manual, so please review this manual thoroughly

before operating your new mowing equipment.

Safety Training

Does Make a Difference.

BE SAFE!

BE ALERT!

BE ALIVE!

BE TRAINED

BEFORE OPERATING

ASSOCIATION OF

EQUIPMENT

MANUFACTURERS

6 Safety

Safety Video Order Form (2/23/2005)

Free Mower/Cutter Safety Video Order Form

✔

(Select one)

VHS Format - VHS01052 Safety Video

DVD Format - DVD01052 Safety Video

Please send me

Name: ________________________________________ Phone: __________________

Address: _____________________________________

_____________________________________

_____________________________________

Mower/Cutter Model: ______________________ Serial #: ________________________

Send to: ATTENTION: DEALER SERVICES

WOODS EQUIPMENT COMPANY

PO BOX 1000

OREGON IL 61061-1000

Also, available from the Association of Equipment Manufacturers:

A large variety of training materials (ideal for groups) are available for a nominal

charge from AEM. Following is a partial list:

●Training Package for Rotary Mowers/Cutters--English

Contains: DVD & VHS (English)

Guidebook for Rotary Mowers/Cutters (English)

AEM Industrial/Agricultural Mower Safety Manual (English)

AEM Agricultural Tractor Safety Manual (English)

●Training Package for Rotary Mowers/Cutters-English/Spanish

Contains: DVD & VHS (English/Spanish)

Guidebook for Rotary Mowers/Cutters (English/Spanish)

AEM Indust./Agricultural Mower Safety Manual (English/Spanish)

AEM Agricultural Tractor Safety Manual (English/Spanish)

AEM training packages are available through:

AEM at:

www.aem.org

or

Hubbard Publishing

800-369-2310 tel

608-846-3398 fax



Safety 7

D80 Safety Rules (Rev. 3/23/2007)

TRAINING

Safety instructions are important! Read all

attachment and power unit manuals; follow all

safety rules and safety decal information. (Replace-

ment manuals and safety decals are available from

your dealer. To locate your nearest dealer, check

the Dealer Locator at www.WoodsEquipment.com,

or in the United States and Canada call 1-800-319-

6637.) Failure to follow instructions or safety rules

can result in serious injury or death.

If you do not understand any part of this manual

and need assistance, see your dealer.

Know your controls and how to stop engine and

attachment quickly in an emergency.

Operators must be instructed in and be capable

of the safe operation of the equipment, its attach-

ments, and all controls. Do not allow anyone to

operate this equipment without proper instruc-

tions.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Never allow children or untrained persons to

operate equipment.

PREPARATION

Check that all hardware is properly installed.

Always tighten to torque chart specifications

unless instructed otherwise in this manual.

Always wear relatively tight and belted clothing

to avoid entanglement in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Make sure attachment is properly secured,

adjusted, and in good operating condition.

Make sure spring-activated locking pin or collar

slides freely and is seated firmly in tractor PTO

spline groove.

Make sure driveline shield tether chains are

attached to the tractor and equipment as shown in

this manual. Replace if damaged or broken. Check

that driveline guards rotate freely on driveline

before putting equipment into service.

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS systems in “locked up” position at all times.

Remove accumulated debris from this equip-

ment, power unit, and engine to avoid fire hazard.

Make sure all safety decals are installed.

Replace if damaged. (See Safety Decals section for

location.)



Make sure shields and guards are properly

installed and in good condition. Replace if damaged.

A minimum 20% of tractor and equipment

weight must be on the tractor front wheels when

attachments are in transport position. Without this

weight, tractor could tip over, causing personal

injury or death. The weight may be attained with a

loader, front wheel weights, ballast in tires or front

tractor weights. Weigh the tractor and equipment.

Do not estimate.

Inspect and clear area of stones, branches, or

other hard objects that might be thrown, causing

injury or damage.

(Safety Rules continued on next page)

Safety is a primary concern in the design and

manufacture of our products. Unfortunately, our

efforts to provide safe equipment can be wiped

out by an operator’s single careless act.

In addition to the design and configuration of

equipment, hazard control and accident preven-

tion are dependent upon the awareness, concern,

judgement, and proper training of personnel

involved in the operation, transport, maintenance

and storage of equipment.

It has been said “The best safety device is an

informed, careful operator.” We ask you to be that

kind of operator.

S

AFETY RULE

S

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

8 Safety

D80 Safety Rules (Rev. 3/23/2007)

(Safety Rules continued from previous page)

Air in hydraulic systems can cause erratic oper-

ation and allows loads or equipment components

to drop unexpectedly. When connecting equipment

or hoses or performing any hydraulic maintenance,

purge any air in hydraulic system by operating all

hydraulic functions several times. Do this before

putting into service or allowing anyone to

approach the equipment.

OPERATION

Keep bystanders away from equipment.

Operate only in daylight or good artificial light.

Never go underneath equipment (lowered to the

ground or raised) unless it is properly blocked and

secured. Never place any part of the body under-

neath equipment or between moveable parts even

when the engine has been turned off. Hydraulic

system leak down, hydraulic system failures,

mechanical failures, or movement of control levers

can cause equipment to drop or rotate unexpect-

edly and cause severe injury or death. Follow Oper-

ator's Manual instructions for working underneath

and blocking requirements or have work done by a

qualified dealer.

Never direct discharge toward people, animals,

or property.

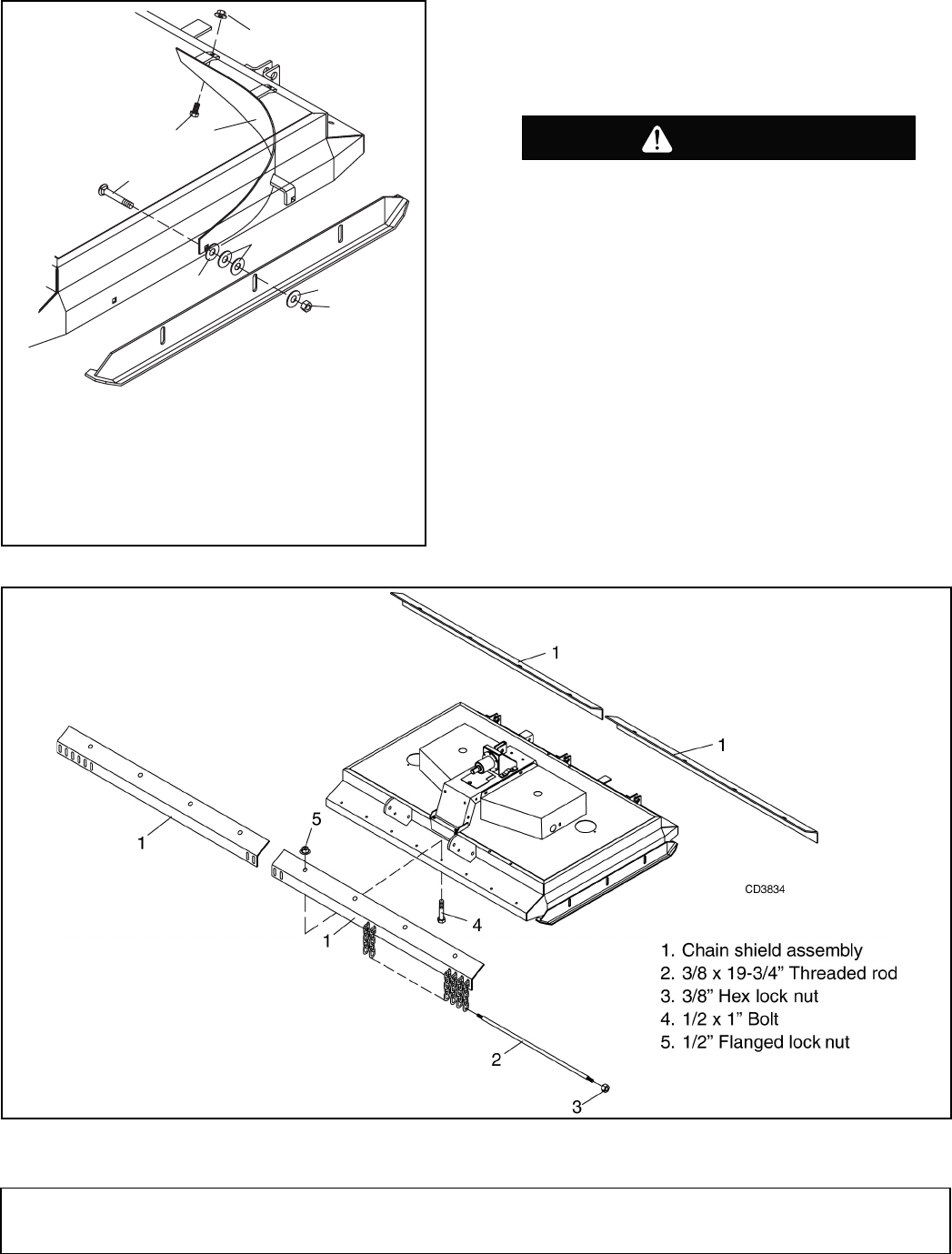

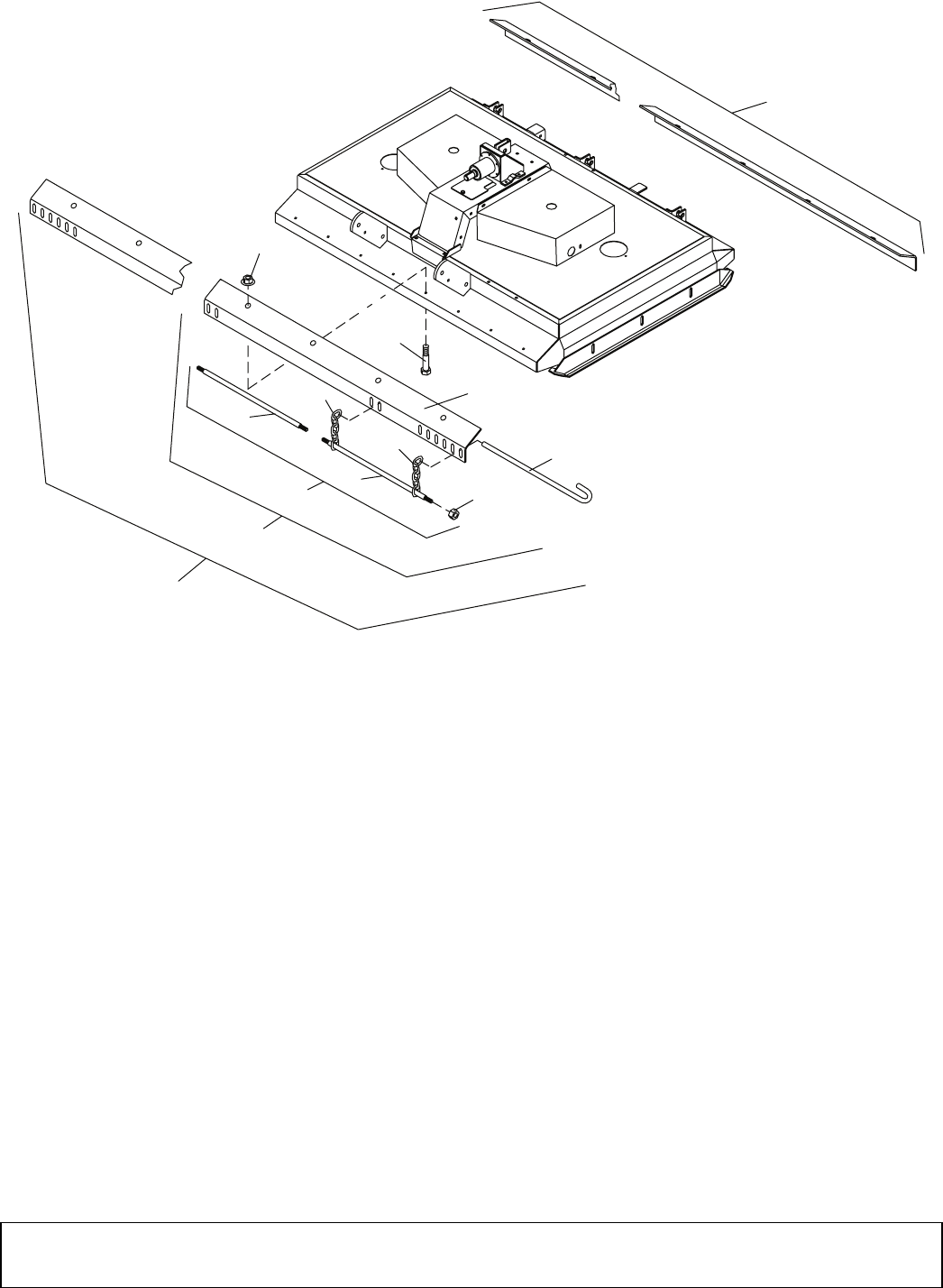

Full chain shielding, designed to reduce the

possibility of thrown objects, must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property. If this machine is not equipped with

full chain shielding, operation must be stopped

when anyone comes within 300 feet.

Do not operate or transport equipment while

under the influence of alcohol or drugs.

Keep hands, feet, hair, and clothing away from

equipment while engine is running. Stay clear of all

moving parts.

Always comply with all state and local lighting

and marking requirements.

Never allow riders on power unit or attachment.

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS systems in “locked up” position at all times.

Always sit in power unit seat when operating

controls or starting engine. Securely fasten seat

belt, place transmission in neutral, engage brake,

and ensure all other controls are disengaged

before starting power unit engine.

Operate tractor PTO at 540 RPM. Do not exceed.

Look down and to the rear and make sure area

is clear before operating in reverse.

Do not operate or transport on steep slopes.

Do not stop, start, or change directions sud-

denly on slopes.

Use extreme care and reduce ground speed on

slopes and rough terrain.

Watch for hidden hazards on the terrain during

operation.

Stop power unit and equipment immediately

upon striking an obstruction. Turn off engine,

remove key, inspect, and repair any damage before

resuming operation.

TRANSPORTATION

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

The maximum transport speed for towed and

semi-mounted machines is 20 mph (32 km/h).

Regardless of the maximum speed capability of the

towing tractor, do not exceed the implement’s max-

imum transport speed. Doing so could result in:

• Loss of control of the implement and tractor

• Reduced or no ability to stop during braking

• Implement tire failure

• Damage to the implement or its components.

Always comply with all state and local lighting

and marking requirements.

Never allow riders on power unit or attachment.

Do not operate PTO during transport.

Do not operate or transport on steep slopes.

Do not operate or transport equipment while

under the influence of alcohol or drugs.

Never tow this implement with a motor vehicle.

MAINTENANCE

Before performing any service or maintenance,

lower equipment to ground or block securely, turn

off engine, remove key, and disconnect driveline

from tractor PTO.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Safety 9

D80 Safety Rules (Rev. 3/23/2007)

Do not modify or alter or permit anyone else to

modify or alter the equipment or any of its compo-

nents in any way.

Always wear relatively tight and belted clothing

to avoid entanglement in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Never go underneath equipment (lowered to the

ground or raised) unless it is properly blocked and

secured. Never place any part of the body under-

neath equipment or between moveable parts even

when the engine has been turned off. Hydraulic

system leak down, hydraulic system failures,

mechanical failures, or movement of control levers

can cause equipment to drop or rotate unexpect-

edly and cause severe injury or death. Follow Oper-

ator's Manual instructions for working underneath

and blocking requirements or have work done by a

qualified dealer.

Make sure attachment is properly secured,

adjusted, and in good operating condition.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

 Make certain all movement of equipment com-

ponents has stopped before approaching for ser-

vice.

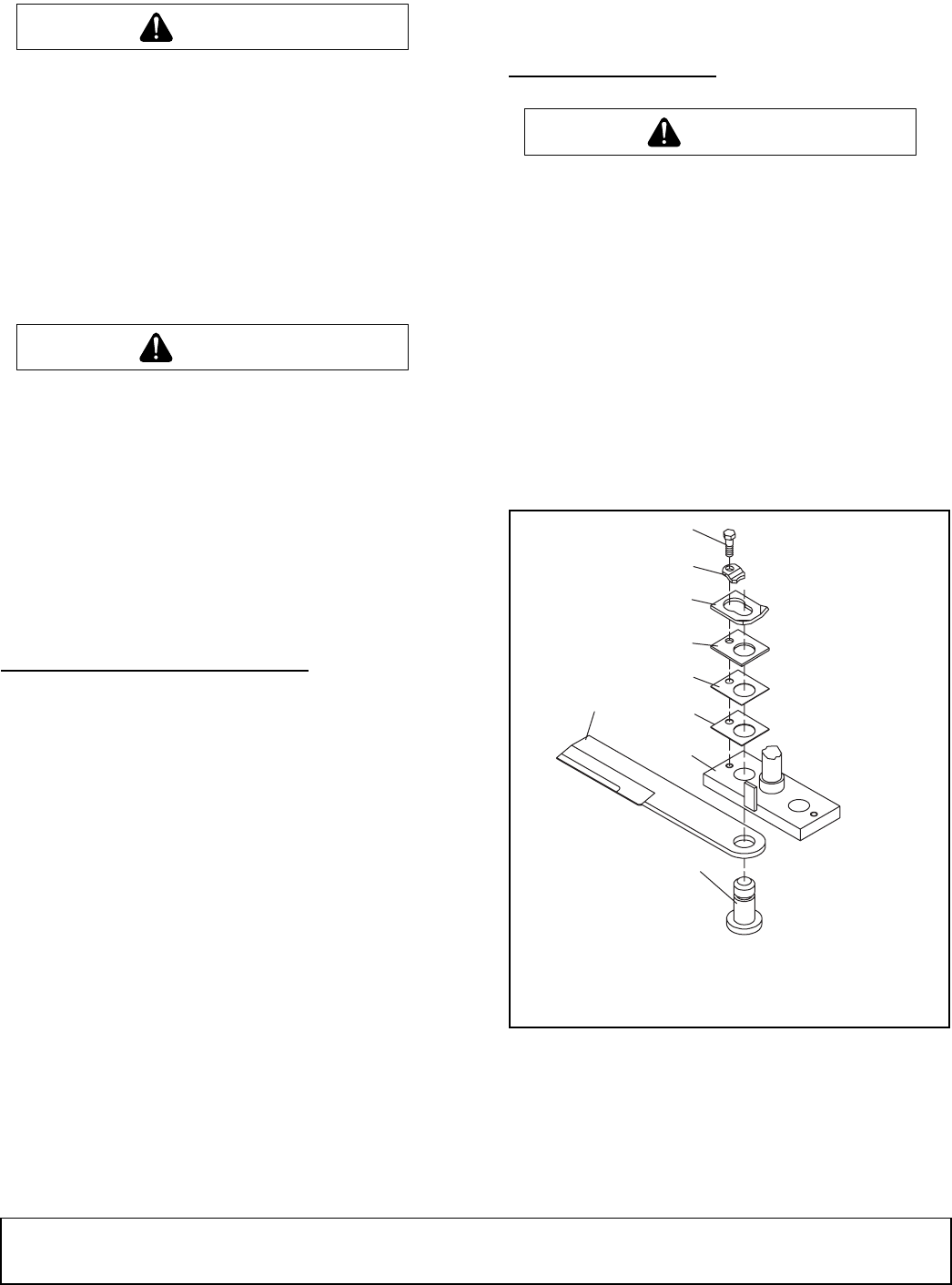

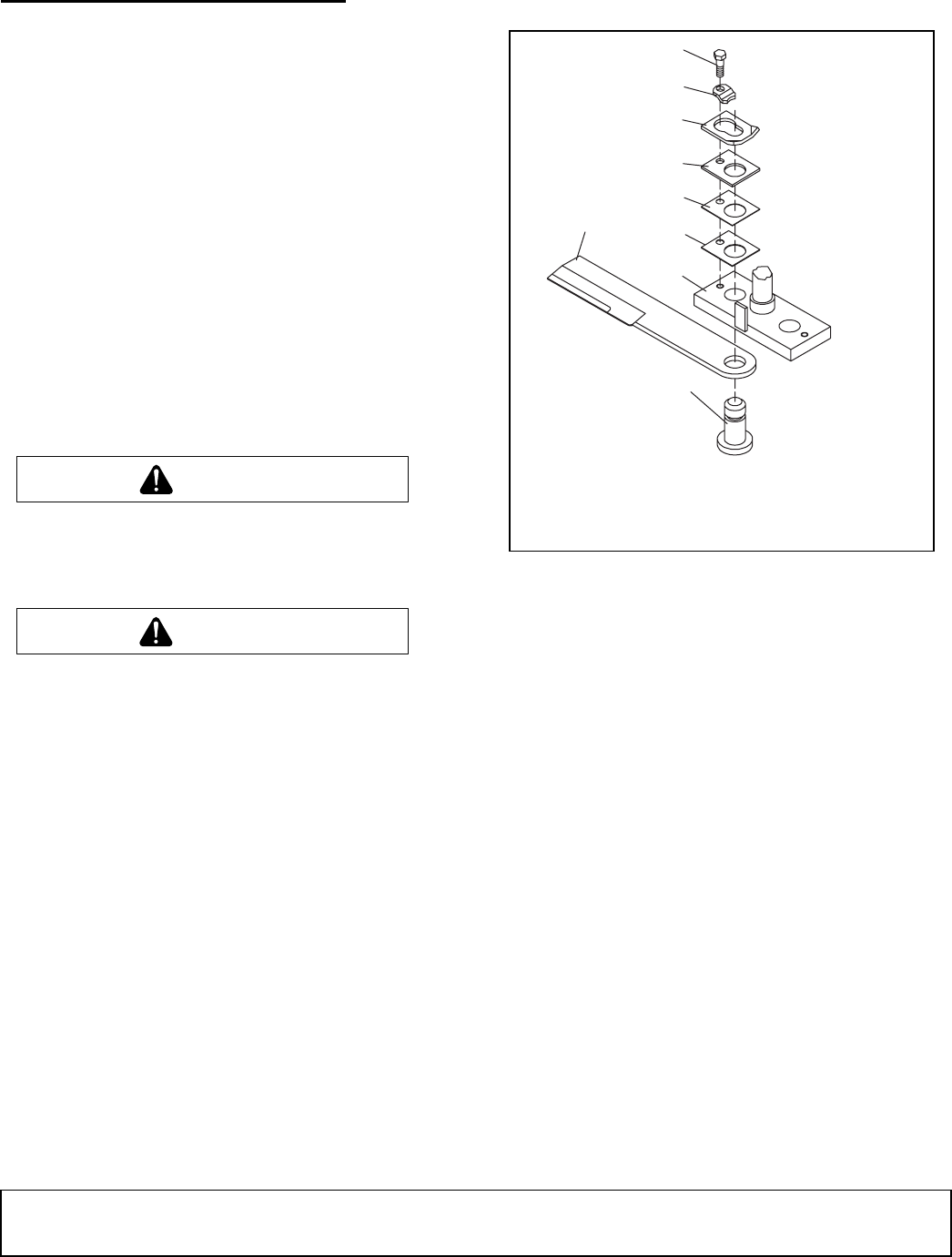

Frequently check blades. They should be sharp,

free of nicks and cracks, and securely fastened.

Your dealer can supply genuine replacement

blades. Substitute blades may not meet original

equipment specifications and may be dangerous.

Make sure shields and guards are properly

installed and in good condition. Replace if dam-

aged.

Tighten all bolts, nuts and screws to torque

chart specifications. Check that all cotter pins are

installed securely to ensure equipment is in a safe

condition before putting unit into service.

Make sure all safety decals are installed.

Replace if damaged. (See Safety Decals section for

location.)

Do not handle blades with bare hands. Careless

or improper handling may result in serious injury.

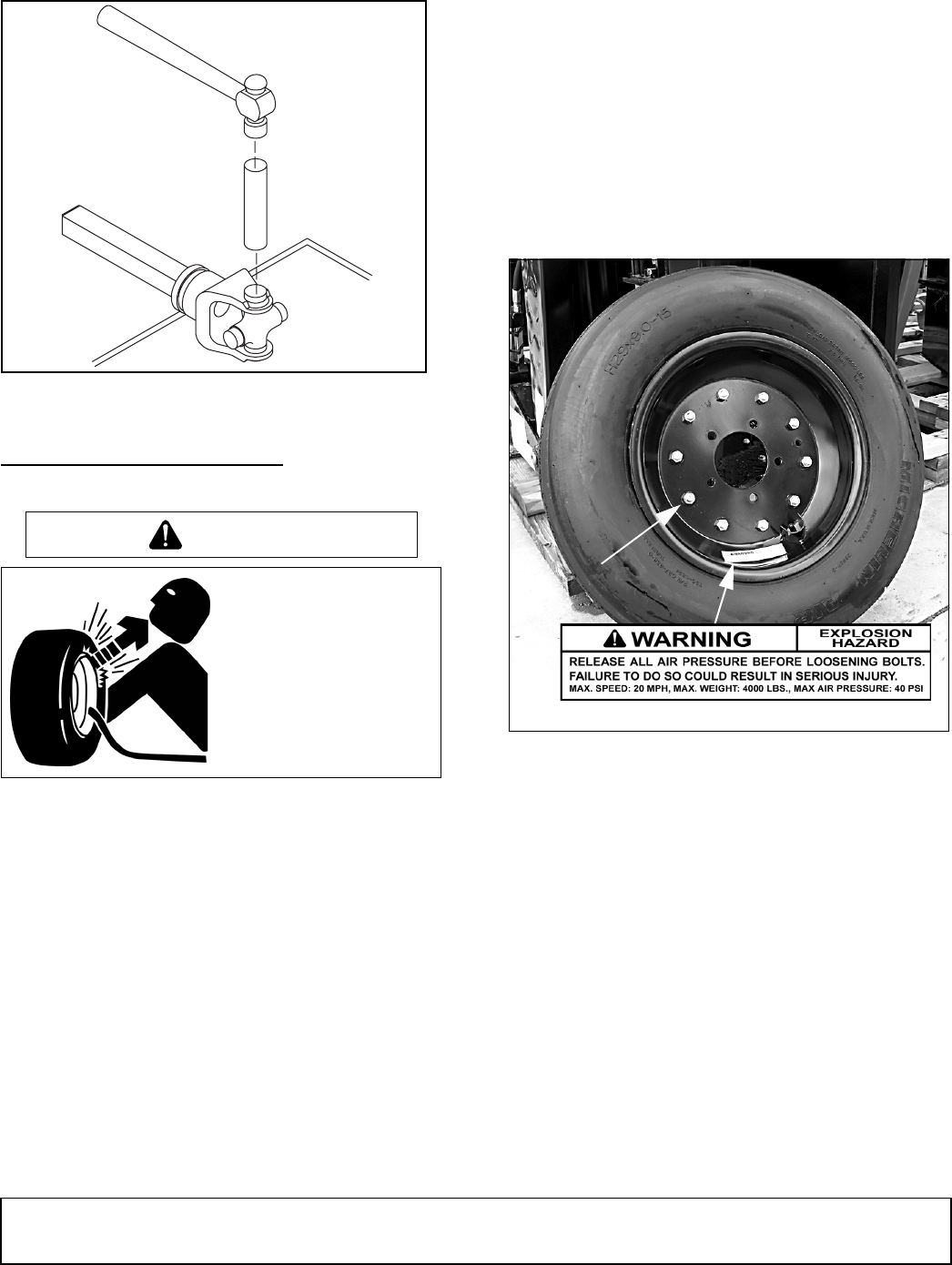

Explosive separation of tire and rim parts can

cause serious injury or death. Release all air pres-

sure before loosening bolts.

STORAGE

Raise cutter and block securely. Block wheels

and raise tongue with jack. Disconnect hydraulic

lines to optional cylinder. Disconnect driveline and

secure up off the ground.

Keep children and bystanders away from stor-

age area.

Store on level, solid ground.

Follow manual instructions for storage.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

(Rev. 5/11/2007)

10 SAFETY

15914 (Rev. 3/23/2007)

13

7

11

7

11

9

8

9

12

11

7

10

5

6

12

6

5

3

2

4

1CD3817A

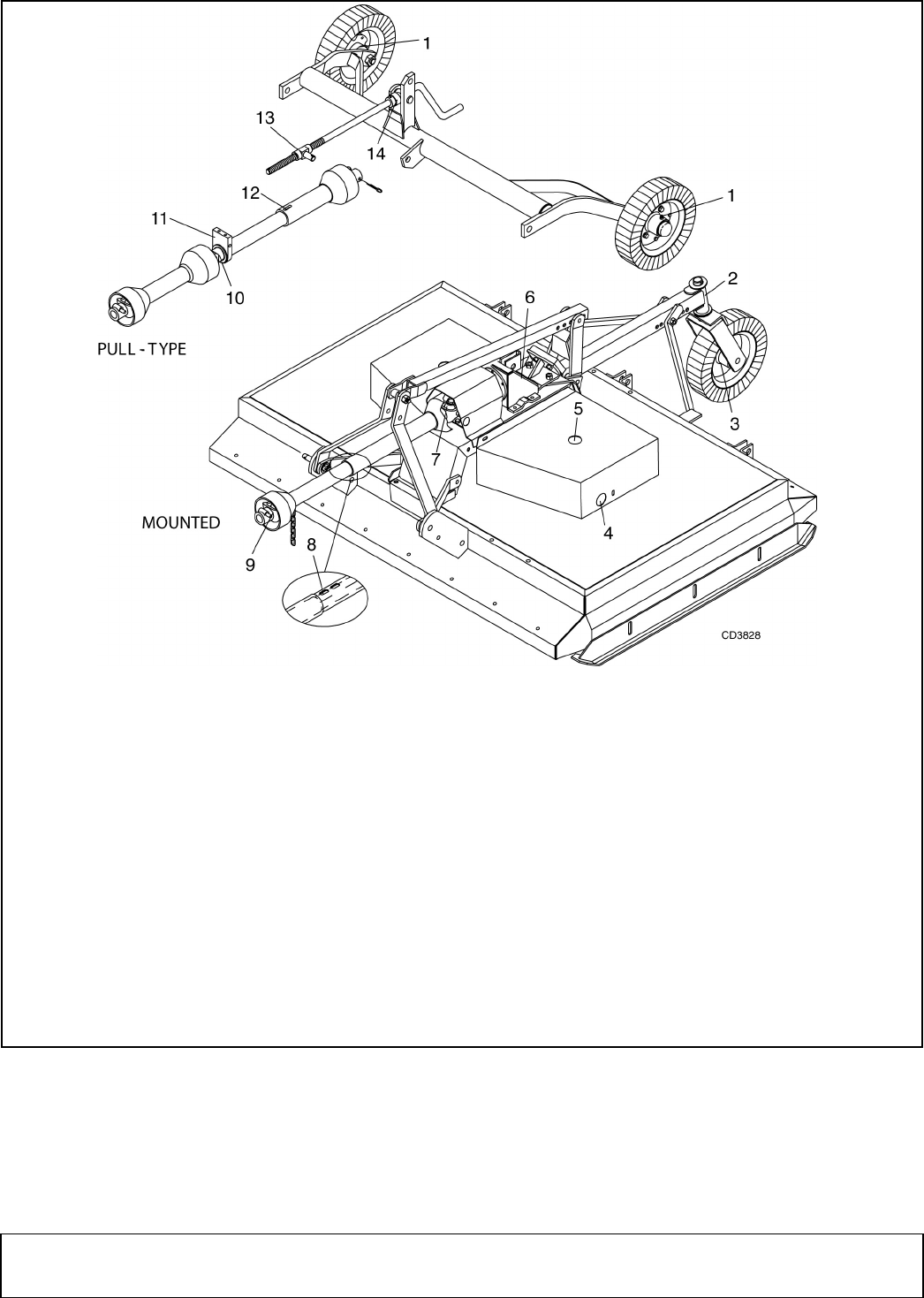

MOUNTED

DRIVE

PULL-TYPE

ONLY

PULL-TYPE

ONLY

FRAME FOR

MOUNTED &

PULL-TYPE

PULL-TYPE

ONLY

1 - SERIAL NUMBER PLATE

540 RPM

WARNING

18866-D

4 - 18866

FALLING OFF CAN RESULT IN BEING RUN OVER.



Tractor must be equipped with ROPS (or ROPS CAB) and seat

belt. Keep foldable ROPS systems in “locked up” position at all

times.



Buckle Up! Keep seat belt securely fastened.



Allow no riders.

RAISED EQUIPMENT CAN DROP AND CRUSH.



Before working underneath, follow all instructions and safety rules in

operator’s manual and securely block up all corners of equipment

with jack stands.



Securely blocking prevents equipment dropping from hydraulic leak-

down, hydraulic system failures or mechanical component failures.

FALLING OFF OR FAILING TO BLOCK SECURELY CAN

RESULT IN SERIOUS INJURY OR DEATH.

WARNING

18865--C

2 - 18865

MODEL NO. SERIAL NO.

Woods Equipment Company

Oregon, Illinois, U.S.A.

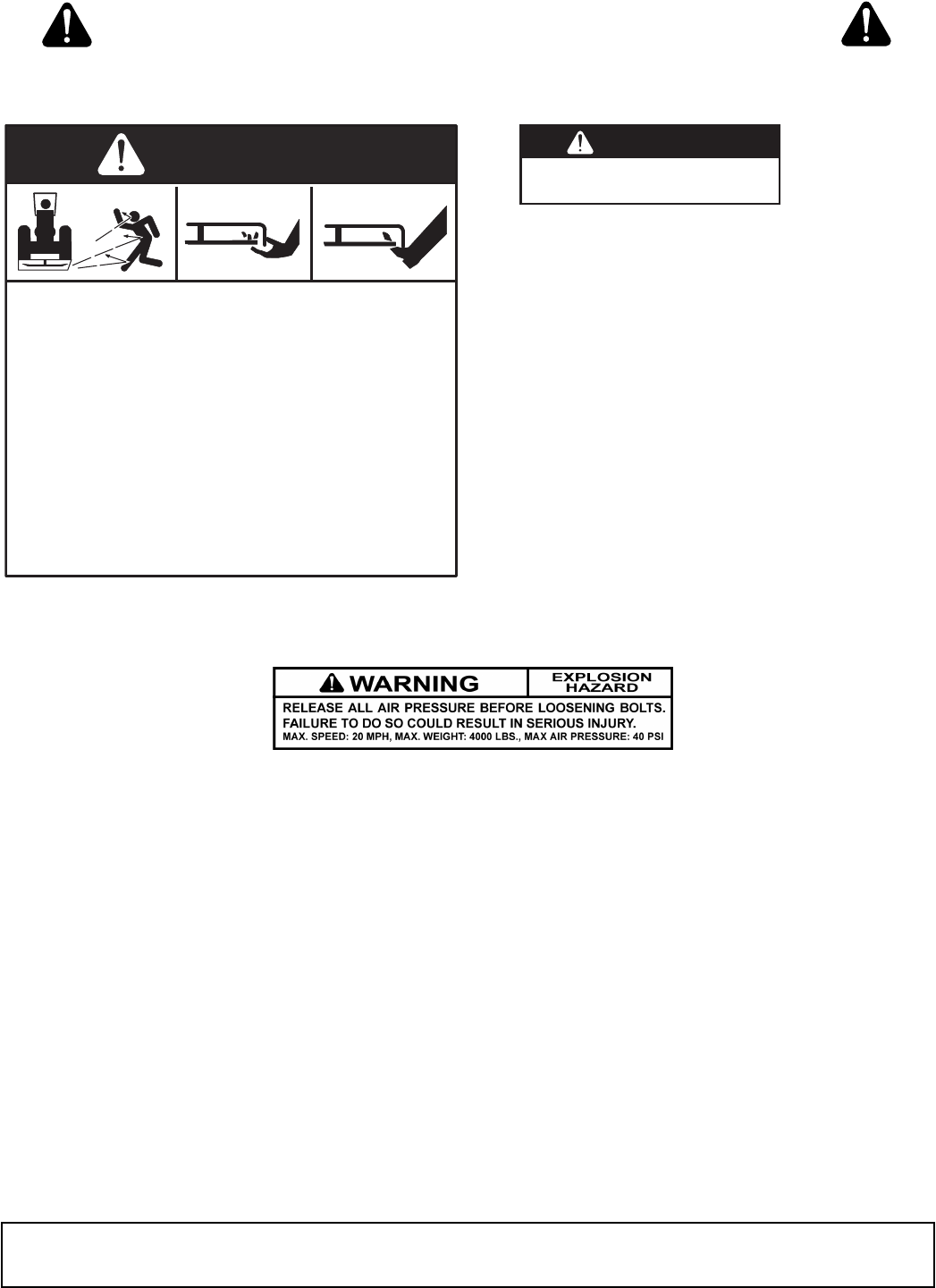

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

SAFETY 11

15914 (Rev. 3/23/2007)

WARNING

TO AVOID SERIOUS

INJURY OR DEATH:

 Read Operator's Manual (available

from dealer) and follow all safety

precautions.

 Keep all shields in place and in good

condition.

 Operate mower from tractor seat only.

 Lower mower, stop engine and remove

key before dismounting tractor.

 Allow no children or untrained persons

to operate equipment.

 Do not transport towed or

semi-mounted units over 20 mph.

FAILURE TO OPERATE SAFELY

CAN RESULT IN

INJURY OR DEATH.

18877-C

3 - 18877

SHIELD MISSING

DO NOT OPERATE

PUT SHIELD ON

DANGER

18867--B

6 - 18867

DANGER

ROTATING DRIVELINE

CONTACT CAN CAUSE DEATH

KEEP AWAY!

DO NOT OPERATE WITHOUT -

 All driveline guards, tractor and

equipment shields in place

 Drivelines securely attached at both ends

 Driveline guards that turn freely on

driveline 18864-C

7 - 18864

CONTACT WITH ROTATING PARTS

CAN CAUSE SERIOUS INJURY.

WARNING

15502--B

ROTATING COMPONENTS

Do not operate without cover in place.

Look and listen for rotation. Do not

open cover until all components have

stopped.

5 - 15502

WARNING

15951-B

CYLINDER AND CRANK

REQUIREMENTS

28-1/4

CRANK PIN

A RAISED CUTTER CAN DROP AND CRUSH

Cutter must have crank with pin installed to prevent

crank detachment.

Before working underneath, rotate crank to highest

position and block up cutter.

Blocking up prevents cutter dropping from hydraulic

leak down, hydraulic system failures, or mechanical

component failures.

FAILURE TO FOLLOW INSTRUCTIONS CAN

RESULT IN SERIOUS INJURY OR DEATH.

8 - 15951

33347E

11- 33347

Check for leaks with cardboard; never use hand.

Before loosening fittings: lower load, release pressure, and

be sure oil is cool.

Consult physician immediately if skin penetration occurs.

WARNING

19924-B

9 - 19924

12 - RED REAR REFLECTOR 4.5"

PN 20106

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

12 SAFETY

15914 (Rev. 3/23/2007)

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

ROTATING BLADES AND

THROWN OBJECTS

 Do not put hands or feet under or into mower when

engine is running.

 Before mowing, clear area of objects that may be

thrown by blade.

 Keep bystanders away.

 Keep guards in place and in good condition.

BLADE CONTACT OR THROWN OBJECTS CAN

CAUSE SERIOUS INJURY OR DEATH.

DANGER

15503-C

10 - 15503

BE CAREFUL!

Use a clean, damp cloth to clean safety decals.

Avoid spraying too close to decals when using a

pressure washer; high-pressure water can enter

through very small scratches or under edges of

decals causing them to peel or come off.

Replacement safety decals can be ordered free

from your Woods dealer. To locate your nearest

dealer, check the Dealer Locator at

www.WoodsEquipment.com, or in the United

States and Canada call 1-800-319-6637.

SHIELD MISSING

DO NOT OPERATE - PUT SHIELD ON

18869-B

DANGER

13 - 18869

PN - 1006348

(Rev. 5/11/2007)

Operation 13

15914 (Rev. 3/23/2007)

OPERATION

The designed and tested safety of this machine

depends on it being operated within the limitations as

explained in this manual. Be familiar with and follow all

safety rules in the manual, on the cutter and on the

tractor.

The safe operation of this cutter is the responsibility of

the operator, who must be properly trained. The opera-

tor should be familiar with the equipment and all safety

practices before starting operation. Read the Safety

Rules and decals on page 7 through page 12.

Information specific to attaching or operating the

mounted or towed unit will be identified in the text.

Information applicable to either unit will not be segre-

gated.

This cutter is designed for shredding heavy brush, such

as prunings in orchards, groves and vineyards. Other

applications include topping onion sets and potatoes

before harvesting. It may also be used to shred green

manure crops, straw and stubble, asparagus residue

etc. prior to plowing. Recommended tractor ground

speed for most mowing conditions is from 1 to 5 mph.

Always operate tractor PTO at 540 rpm.

Full chain shielding, designed to reduce the

possibility of thrown objects, must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property. If this machine is not equipped with

full chain shielding, operation must be stopped

when anyone comes within 300 feet.

Never allow children or untrained persons to

operate equipment.

Keep bystanders away from equipment.

Before performing any service or maintenance,

lower equipment to ground or block securely, turn

off engine, remove key, and disconnect driveline

from tractor PTO.

On pull-type units, a pin is installed to prevent

the height adjustment crank from detaching. Do

not operate or service unit unless pin is installed.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Make sure spring-activated locking pin or collar

slides freely and is seated firmly in tractor PTO

spline groove.

Stop power unit and equipment immediately

upon striking an obstruction. Turn off engine,

remove key, inspect, and repair any damage before

resuming operation.

TRACTOR STABILITY

A minimum 20% of tractor and equipment

weight must be on the tractor front wheels when

attachments are in transport position. Without this

weight, tractor could tip over, causing personal

injury or death. The weight may be attained with a

loader, front wheel weights, ballast in tires or front

tractor weights. Weigh the tractor and equipment.

Do not estimate.

ATTACHING MOUNTED CUTTER TO

TRACTOR

Make sure spring-activated locking pin or collar

slides freely and is seated firmly in tractor PTO

spline groove.

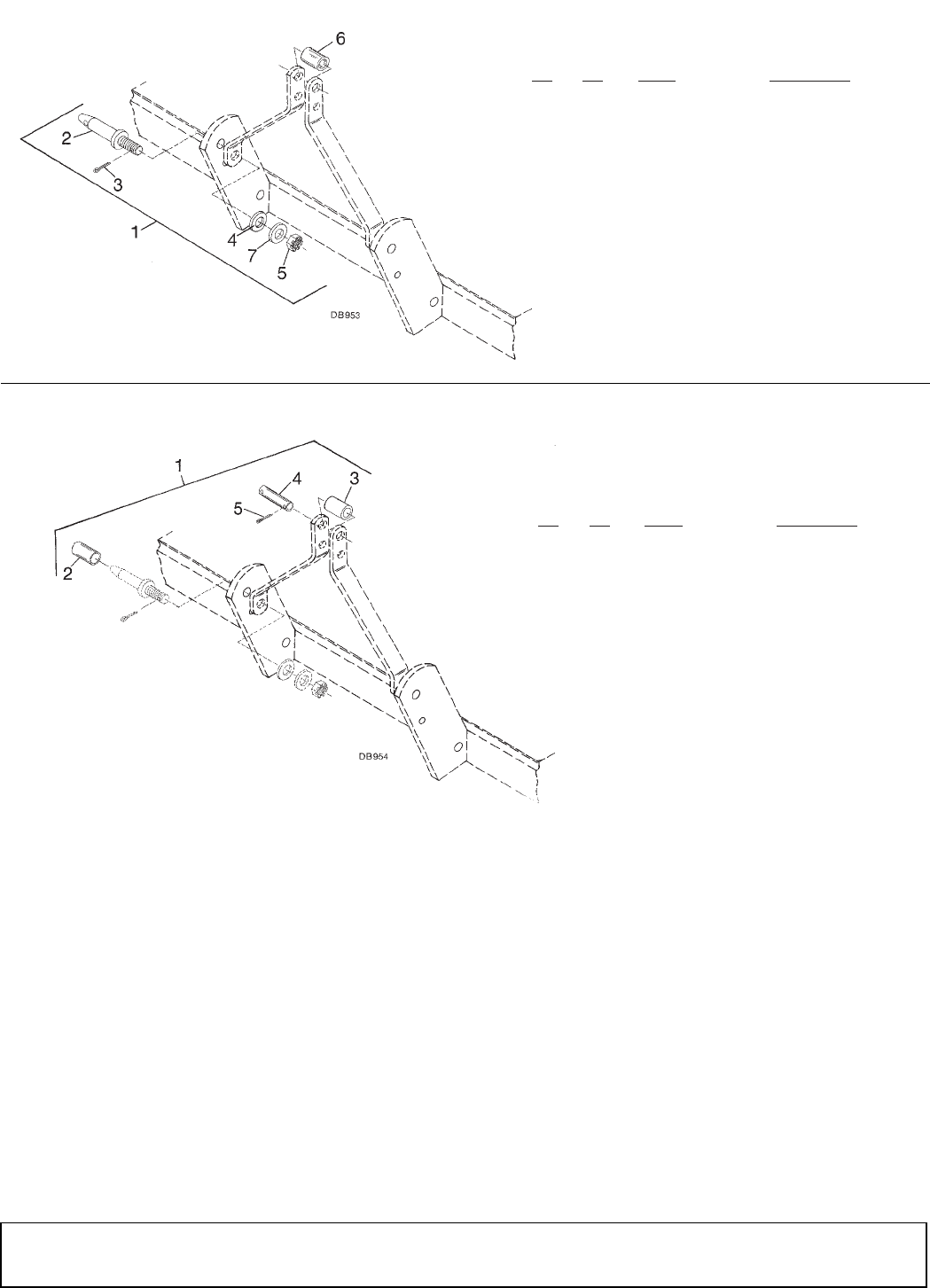

MD80 Mounting

Standard Category 1 mounting pins are used when

attaching cutter to tractor. Also available for mounting

are optional Category 2 pins and a bushing kit.

Check to be sure mounting pins are properly torqued -

Category 1: 300 lbs-ft.; Category 2: 450 lbs-ft.

Install tractor lower lift arms over the cutter mounting

pins. Attach tractor top link in top hole of cutter A-

frame. Use bushing over top link clevis pin when

mounting on a Category 2 tractor.

DANGER

W

W

ARNING

ARNING

CAUTION

CAUTION

W

W

ARNING

ARNING

W

W

ARNING

ARNING

14 Operation

15914 (Rev. 3/23/2007)

Driveline Attachment

Attach the cutter to the tractor 3-point hitch (or quick

hitch if available). Do not attach driveline. Raise and

lower cutter to determine maximum and minimum dis-

tance between the tractor PTO shaft and the gearbox

input shaft. If the distance is too large, the driveline will

be too short for proper engagement. If distance is too

small, the driveline may bottom out in operation and

damage the cutter or tractor.

Driveline length must be sufficient to provide at least

1/3 driveline length of engagement during operation.

There must be at least 4 inches of engagement at the

cutters lowest possible point of operation. The driveline

must not bottom out when raised to the maximum

height possible.

If driveline is too short please call your Woods dealer

for a longer driveline.

If driveline is too long please follow the instructions for

shortening the driveline.

Shorten Driveline

1. Move cutter up and down to get the shortest

possible distance between tractor PTO shaft and

gearbox input shaft.

2. Separate driveline into two halves and connect

them to the tractor PTO and gearbox.

3. Place driveline halves parallel to one another to

determine how much to shorten the driveline.

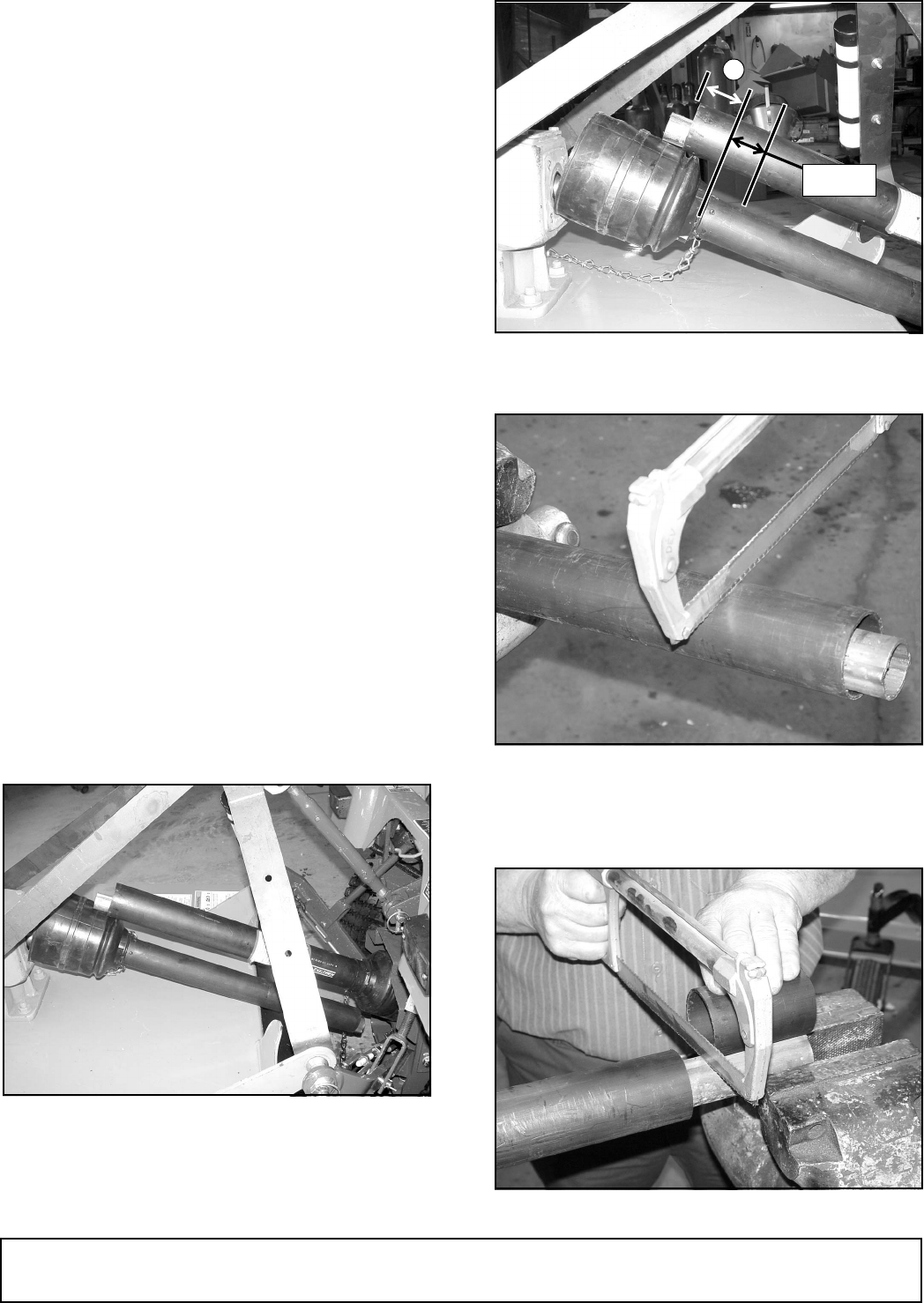

Figure 1. Drive Halves Placed Parallel

4. Measure from end of the upper shield to the base

of the bell on the lower shield (A). Add 1-9/16" to

dimension (A). See Figure 2.

Figure 2. Determine Shield Length

5. Cut the shield to the overall dimension.

Figure 3. Cut Shield

6. Place the cutoff portion of the shield against the

end of the shaft and use as a guide. Mark and cut

the shaft.

Figure 4. Cut Shaft to Length

1-9/16"

A

Operation 15

15914 (Rev. 3/23/2007)

7. Repeat step 6 for the other half of the drive.

8. File and clean cut ends of both drive halves.

Do not use tractor if proper driveline engagement can-

not be obtained through these methods.

Connect driveline to tractor PTO shaft, making sure the

spring-activated locking collar slides freely and locks

driveline to PTO shaft.

NOTICE

■ If attaching with quick hitch the distance

between the tractor PTO and gearbox input shaft

will increase. Please follow the steps as you would

for a 3-point hitch to insure proper engagement.

Cutting Height Adjustment for MD80

Mounted Cutter

Place tractor and cutter on a level surface.

The adjustments given here are to provide you with a

starting point. Adjustments are approximate and may

vary due to slight differences in blade shimming and

machine wear. You may desire to fine tune them for

your situation.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

■ Avoid very low cutting heights. Striking the

ground with blades produces one of the most dam-

aging shock loads a cutter can encounter. Allowing

blades to contact ground repeatedly, will cause

damage to cutter and drive.

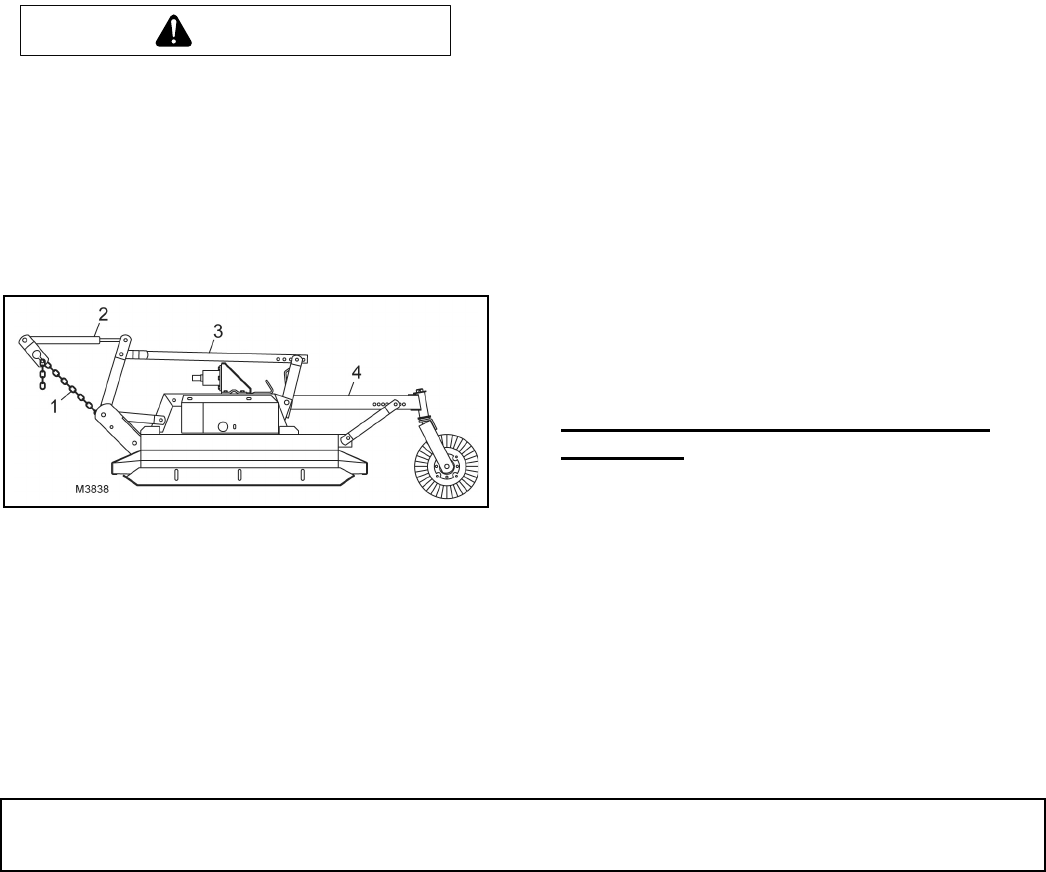

Figure 5. Cutting Height Adjustment - MD80

(Mounted Model)

Cutting height may be controlled by several methods.

Without the optional check chains and tailwheel it is

controlled with the tractor 3-point lift and top link adjust-

ment.

Measure from front edge of cutter frame (on each side)

to ground to be sure cutter is level. Use adjustment on

3-point arms, if necessary, for fine adjustment side to

side.

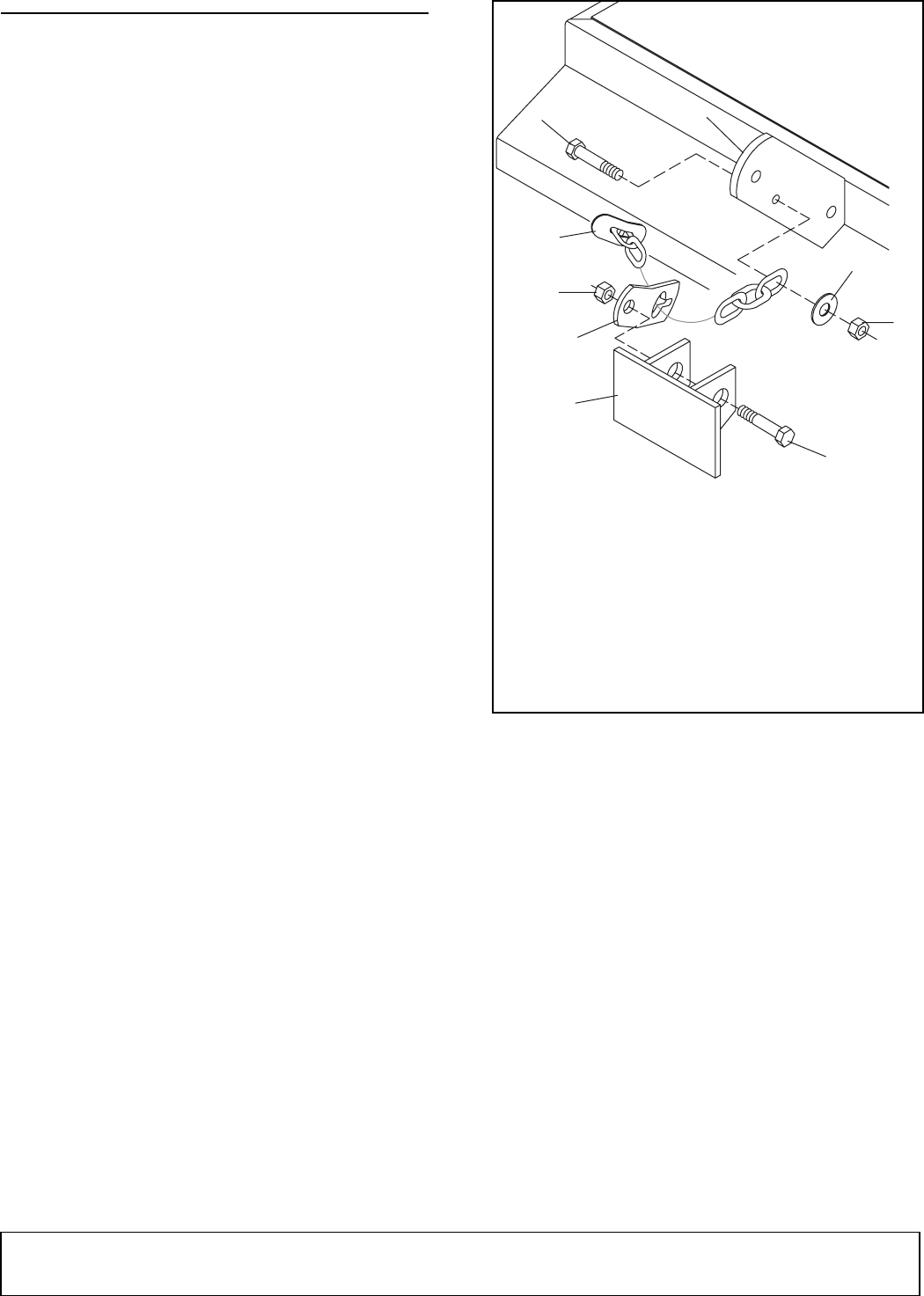

When using optional check chains, install them in key-

hole brackets. Count the links between the cutter and

brackets to be sure you have the same number of links

on each side. You may twist check chain for fine adjust-

ment side to side.

Cutting Height Adjustment Without

Tailwheel or Check Chains

The blade is approximately 9-1/4" below the top of the

cutter deck.

Select a cutting height, EXAMPLE 3".

Use tractor 3-point lift to set front blade 3" above level

surface (measure 12-1/4" from top of deck to ground).

At the rear, measure from top of deck to ground; adjust

top link until this distance is from 12-3/4" to 13". Adjust

lower stop of the tractor 3-point lift control. When

adjustment is set, this will enable you to return to the

preset cutting height.

Maintain distance from blade tip to level surface from

1/2" to 3/4" higher at rear for best cutting results and

lowest power consumption.

When using cutter for shredding, it is better to set blade

tip lower at the rear. How much lower depends on the

material to be shredded. You will need to experiment to

determine the best setting for your situation.

Cutting Height Adjustment With Tailwheel

or Check Chains

The blade is approximately 9-1/4" below the top of the

cutter deck.

Select a cutting height, EXAMPLE 3".

Use check chains and tractor 3-point lift and raise top

front of cutter deck 12-1/4" above the level surface. At

the rear, measure from top of deck to ground; adjust

tailwheel until this distance is from 12-3/4" to 13".

Shorten the check chains to raise front of cutter. Move

tailwheel adjustment to the rear to raise rear of cutter.

ATTACHING PULL-TYPE CUTTER TO

TRACTOR

The cutter is shipped with a 1-3/8" PTO spline. The

horizontal distance between the end of the tractor PTO

shaft and the drawbar hitch point should be 14". This

distance must not vary more than plus or minus one

inch (±1") or the drive may be damaged when turning.

Adjust tractor drawbar to obtain the desired drawbar to

hitch point distance. On some tractors, a drawbar kit

must be used to obtain the required dimension. Check

with your tractor dealer if you encounter problems.

Raise cutter tongue to tractor drawbar height with jack

provided and attach with a 3/4" or larger high-strength

drawbar pin. Retain pin to keep it in place.

WARNING

16 Operation

15914 (Rev. 3/23/2007)

Connect cutter driveline to tractor PTO shaft, making

sure the spring-activated locking pin slides freely and is

seated firmly in tractor PTO spline groove.

Adjust H-frame bearing height to ensure front driveline

is parallel to ground.

Remove parking jack from tongue. Attach to frame rail

storage with top forward. Always attach jack to tongue

to hold it up when disconnecting it from tractor.

Adjust drive shaft carrier bearing (2), Figure 6, verti-

cally in H-frame until driveline is as straight as possible

between tractor PTO and cutter gearbox.

Cutting Height Adjustment for D80 Pull-

Type Cutter

Place tractor and cutter on a level surface.

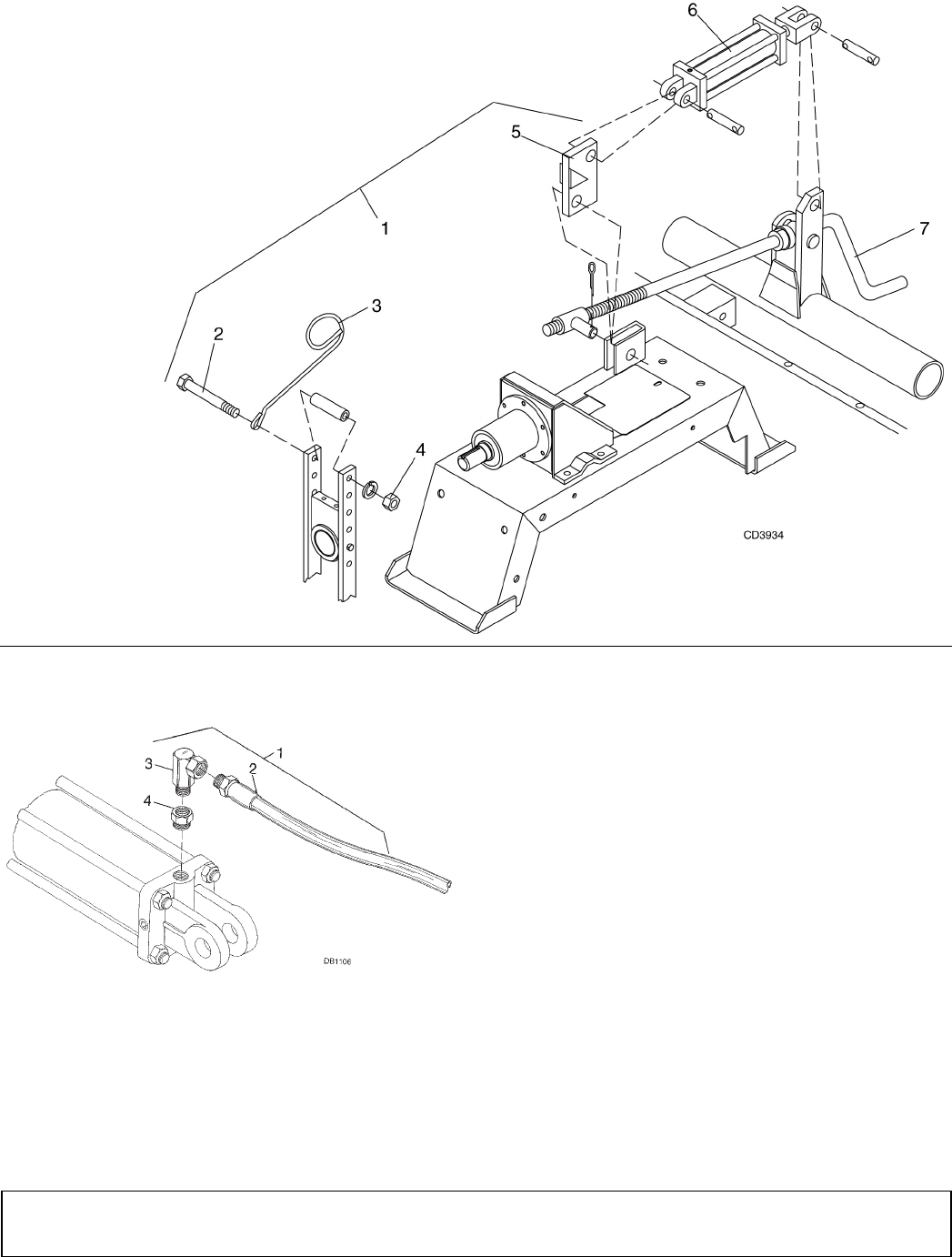

Cutting height is raised and lowered with height adjust-

ment crank (3) or optional hydraulic cylinder. Front to

rear attitude is set with the compression link (1). See

Figure 6.

The blade is approximately 9-1/4" below cutter deck.

Select a cutting height, EXAMPLE 3".

Raise front end of deck with a jack to take the compres-

sion member (1) out of compression and remove the

bolt connecting it to the tongue.

Raise front end of deck until both sides are 12-1/4"

above the ground and block underneath to maintain

this distance.

Raise rear end of deck until it is from 13-3/4" to 14"

above the ground.

Connect compression member (1) to tongue. It may be

necessary to raise or lower rear of deck to align hole.

Remove the blocks from under the deck and position

each side skid 1/2" above the ground.

This complete procedure must be followed to properly

set a new cutting height. Raising rear of deck with

crank without changing the compression link position

will result in an incorrect front-to-rear attitude setting.

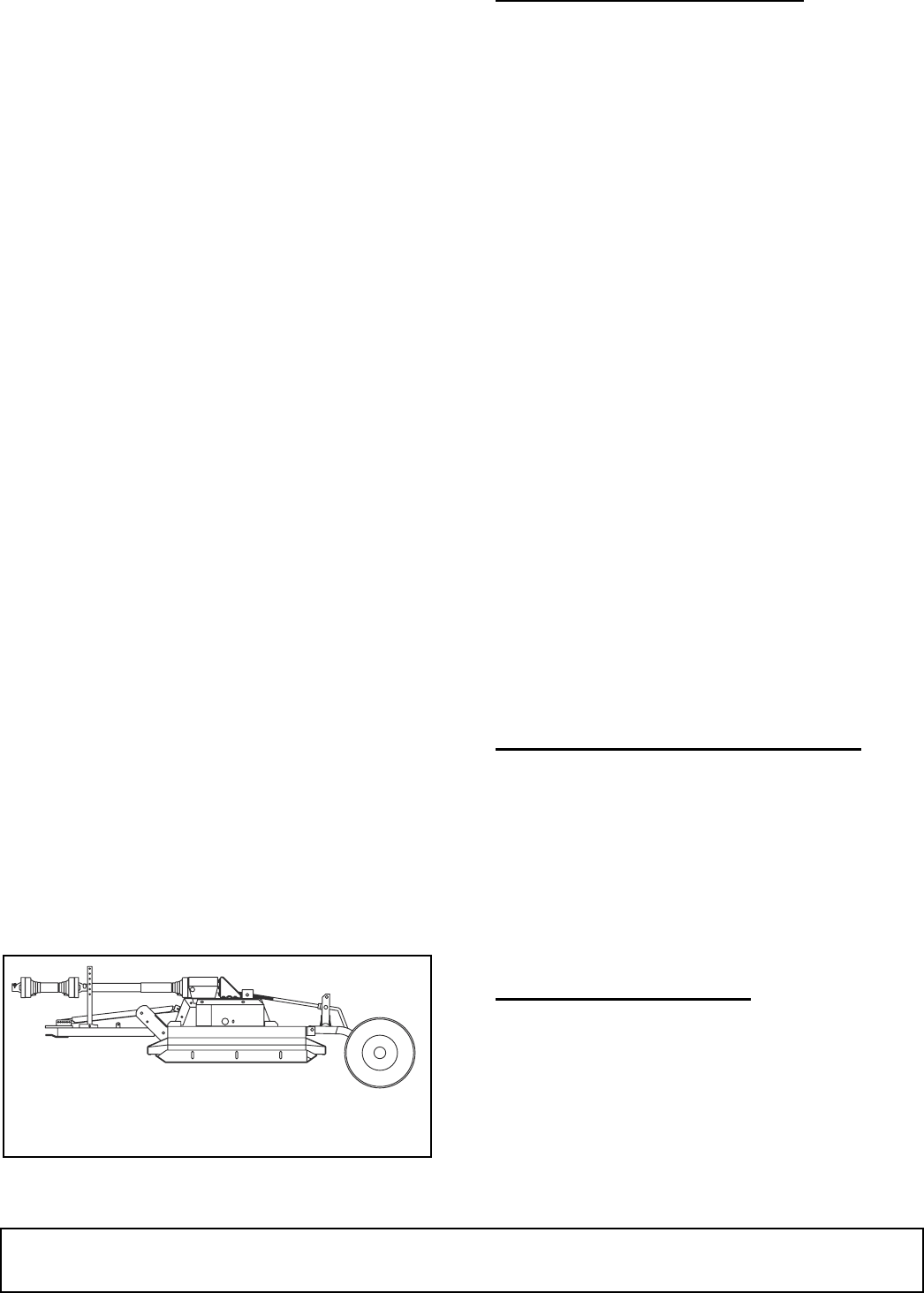

Figure 6. Cutting Height Adjustment - D80

(Pull-Type Model)

PRE-OPERATION CHECK LIST

(Owner’s Responsibility)

___ Check that cutter is properly and securely

attached to tractor.

___ Make sure driveline spring-activated locking pin

slides freely and is seated firmly in tractor PTO

spline groove.

___ On pull-type cutter, make sure the pin to prevent

crank detachment is installed.

___ Set tractor PTO at 540 rpm.

___ Make sure gearbox is full to fill plug with SAE

90W gear lube.

___ Lubricate all grease fitting locations.

___ Check that all hardware is properly installed and

secured.

___ Check to ensure blades are sharp and secure

and cutting edge is positioned to lead in a

counter-clockwise rotation.

___ Check that all shields and guards are properly

installed and in good condition.

___ Check cutting height and attitude adjustment.

___ Place tractor PTO and transmission in neutral

before attempting to start engine.

___ Inspect area to be cut and remove stones,

branches or other hard objects that might be

thrown, causing injury or damage.

___ Inspect chain shielding and replace any damaged

or missing links.

STARTING AND STOPPING CUTTER

Cutter operating power is supplied from tractor PTO.

Refer to your tractor manual for PTO engagement and

disengagement instructions. Always operate PTO at

540 rpm. Know how to stop tractor and cutter quickly in

case of an emergency.

When engaging PTO, the engine rpm should always be

low. Once engaged and ready to start cutting, raise

PTO speed to 540 rpm and maintain throughout cutting

operation.

OPERATING TECHNIQUE

Proper ground speed will depend upon the height, type

and density of material to be cut.

Normally, ground speed will range from 2 to 5 mph. Tall

dense material should be cut at a low speed, while thin

medium-height material can be cut at a higher ground

speed.

Always operate PTO at 540 rpm; this is necessary to

maintain proper blade speed and produce a clean cut.

M3866

1. Compression member

2. Carrier bearing

3. Adjustment crank

Operation 17

15914 (Rev. 3/23/2007)

Under certain conditions, tractor tires may roll some

material down and prevent it from being cut at the

same height as the surrounding area. When this

occurs, reduce tractor ground speed but maintain 540

rpm PTO speed. The lower speed will permit material

to at least partially rebound.

Under some conditions, material will not rebound

enough to be cut evenly, resulting in an uneven

appearance. In general, lower cutting heights give a

more even cut with less tendency to leave tire tracks.

The cutter is equipped with general purpose suction

blades as standard equipment. These blades are

intended for most conditions.

Optional flat blades for light brush cutting and optional

high fin blades for stalk shredding are available from

your dealer.

Tips

Extremely tall material should be cut twice. Cut mate-

rial higher the first pass. Then cut at desired height, at

90° to first pass.

Remember, sharp blades produce cleaner cuts and

require less power.

Analyze area to be cut to determine best procedure.

Consider height and type of material and terrain type:

hilly, level or rough.

Plan your pattern to travel straight forward whenever

possible.

Inspect and clear area of stones, branches, or

other hard objects that might be thrown, causing

injury or damage.

Uneven Terrain

Do not operate or transport on steep slopes.

Do not stop, start, or change directions sud-

denly on slopes.

Use extreme care and reduce ground speed on

slopes and rough terrain.

Watch for hidden hazards on the terrain during

operation.

Pass diagonally through sharp dips and avoid sharp

drops to prevent hanging up tractor and cutter.

Practice will improve your skills in maneuvering rough

terrain.

STORAGE

Follow these steps when storing your cutter:

1. Store on level, solid ground.

2. Disconnect driveline and secure up off the ground.

3. On pull-type model, attach parking jack and raise

tongue weight off tractor drawbar.

4. Securely block all four corners of deck with jack

stands.

5. Remove hydraulic hoses after tractor is turned off

and all system pressure is released by operating

valve levers several times.

6. Remove retainer pin and high strength drawbar

pin.

7. Keep children and bystanders away from storage

area.

WARNING

WARNING

18 Owner Service

15914 (Rev. 3/23/2007)

OWNERS SERVICE

On pull-type units, a pin is installed to prevent

the height adjustment crank from detaching. Do

not operate or service unit unless pin is installed.

Before performing any service or maintenance,

lower equipment to ground or block securely, turn

off engine, remove key, and disconnect driveline

from tractor PTO.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

The information in this section is written for operators

who possess basic mechanical skills. Should you need

help, your dealer has trained service technicians avail-

able. For your protection, read and follow all safety

information in this manual.

LUBRICATION INFORMATION

The accompanying chart gives the frequency of lubri-

cation in operating hours, based on normal conditions.

Severe or unusual conditions may require more fre-

quent lubrication. See Figure 8.

Do not let excess grease collect on or around parts,

particularly when operating in sandy areas.

Use an SAE 90W gear lube in gearbox.

Use a lithium grease of No. 2 consistency with a MOLY

(molybdenum disulfide) additive for all locations. Be

sure to clean fittings thoroughly before attaching

grease gun. When applied according to the lubrication

chart, one good pump of most guns is sufficient. Do not

overgrease.

Daily lubrication of the PTO slip joint is necessary. Fail-

ure to maintain proper lubrication can result in damage

to U-joints, gearbox, tractor PTO and/or cutter drive-

line.

BLADE SERVICING

On pull-type units, a pin is installed to prevent

the height adjustment crank from detaching. Do

not operate or service unit unless pin is installed.

Blocking the cutter before working underneath provides

additional safety. If a mechanical or hydraulic failure

occurs, the blocks will support the cutter and prevent

anyone under it from being crushed.

Inspect blades, each time before operating cutter, for

condition and proper installation. Check to be sure

blades are snug but still swivel on blade pin (see Blade

Installation, page 20). Replace any blade that is bent,

excessively nicked, worn or has any other damage.

Small nicks can be ground out when sharpening.

Figure 7. Blade Removal & Installation

WARNING

CAUTION

CAUTION

WARNING

6. 20 GA Spacer

7. Crossbar

8. Blade

9. Blade pin

1. Bolt

2. Blade pin clip

3. Keyhole plate

4. Spacer

5. 18GA Spacer

9

8

7

6

5

4

3

2

1

CD3818

Owner Service 19

15914 (Rev. 3/23/2007)

Figure 8. Lubrication Points

Blade Removal

Rotate crossbar until blade pin assembly is directly

below access hole in rear of cutter frame. Remove bolt

(1) and blade pin clip (2). Slide keyhole plate (3) out of

blade pin groove and remove. Remove spacers and

drive pin out of crossbar. See Figure 7.

Ref

No Description Frequency

1 Tailwheel Hub (Towed Model) 10 hrs

2 Tailwheel Pivot Arm 8 hrs

3 Tailwheel (Mounted Model) 8 hrs

4 Blade Spindle - Access through

hole in end of belt shield (right);

Remove left belt shield (left) 10 hrs

5 Belt Idler - Access through hole

in top of belt shield (right);

Remove left belt shield (left) 50 hrs

6 Gearbox: Fill with EP90 gear

lube Check Daily

7 Rear U-Joint 8 hrs

8 Slip Joint (Mounted Model) -

Apply grease to all four sides

of shaft 8 hrs

9 Front U-Joint 8 hrs

10 Center U-Joint (Towed Model) 10 hrs

11 Driveline Carrier Bearing

(Towed Model) 10 hrs

12 Slip Joint (Towed Model) -

Apply grease to all four sides

of shaft 10 hrs

13 Height Adjustment Pivot Block Occasionally

14 Height Adjustment Crank Occasionally

20 Owner Service

15914 (Rev. 3/23/2007)

NOTICE

■ If blade pin is seized in crossbar and extreme

force will be required to remove it, support cross-

bar from below to prevent damage to spindle.

Your dealer can supply genuine replacement

blades. Substitute blades may not meet original

equipment specifications and may be dangerous.

Blade Installation

Always replace both blades at the same time to main-

tain balance.

Liberally coat blade pin and crossbar hole with Never-

Seez® or equivalent. Make sure blade is offset away

from deck and cutting edge is positioned for counter-

clockwise rotation.

Install blade pin (9) up through blade (8) then through

hole in crossbar and push firmly against crossbar (7).

Install as many spacers (4, 5 or 6) as possible and still

be able to slide keyhole plate (3), with ears up as

shown, into blade pin groove. Place blade pin clip (2)

over keyhole plate and into blade pin groove. Secure

with bolt (1). Repeat for opposite blade. See Figure 7.

Blade should be snug but swivel on pin without exces-

sive force. Retain any spacers not used in installation

for use when blade wears or on future installations.

Blade Sharpening

Always sharpen both blades at the same time to main-

tain balance. Follow original sharpening pattern. Do not

sharpen blade to a razor edge. Leave from a 1/16" to

1/8" blunt edge. Do not sharpen back side of blade.

Belt Installation

One of the major causes of belt failure is improper

installation.

Before new belts are installed, check pulley shafts and

bearings for wear. Check pulley grooves for cleanliness

and wear. Be sure they turn freely and with only slight

wobble. If grooves require cleaning, moisten a cloth

with a non-flammable, non-toxic degreasing agent or

commercial detergent and water.

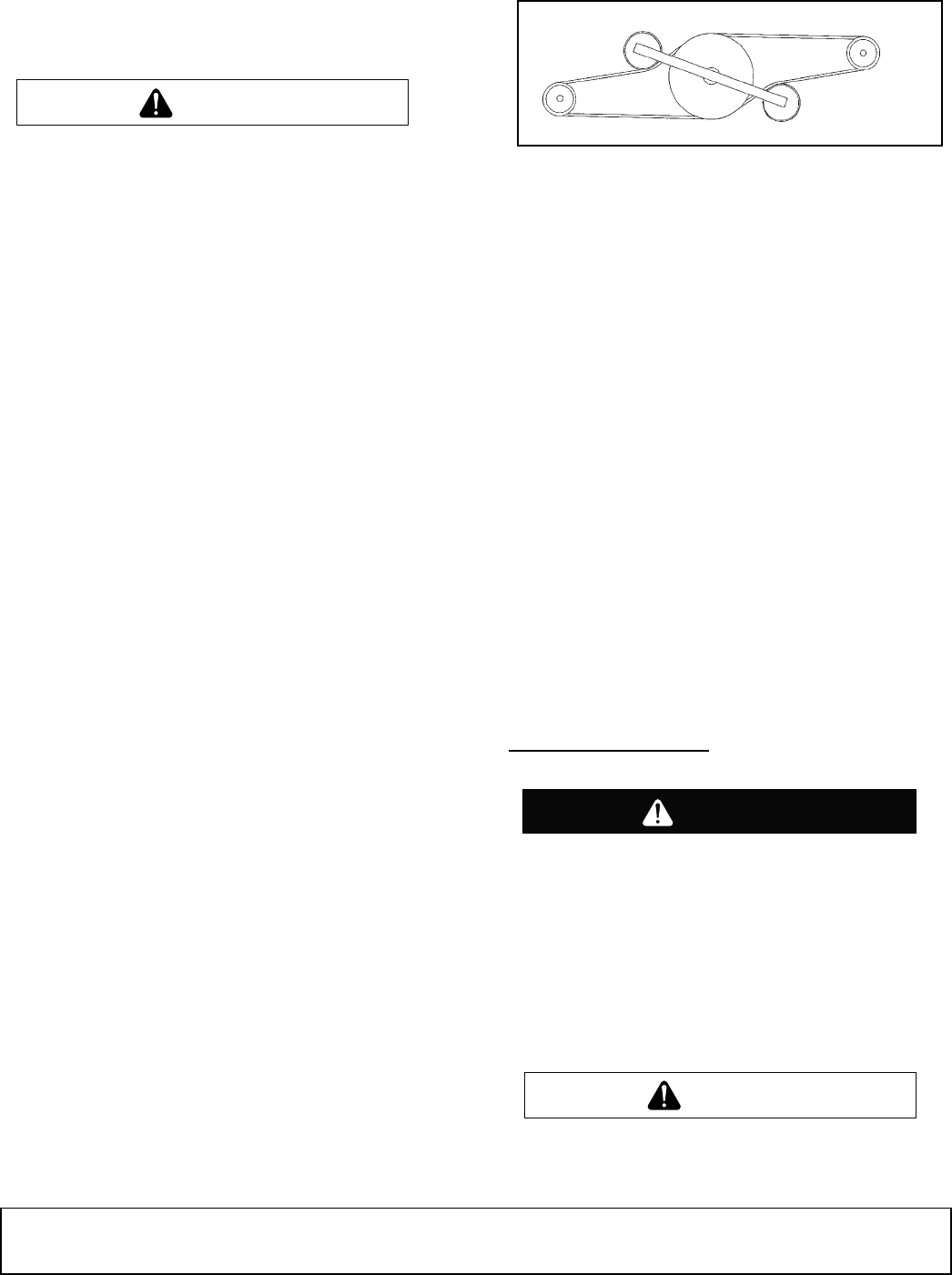

Figure 9. Belt Routing

Avoid excessive force during installation. Do not use

tools to pry belt into pulley groove. Do not roll belt over

pulleys to install. This can cause hidden damage and

premature belt failure. Always loosen idlers when

installing belts.

The drive on this cutter uses three belts. They are a

matched set and must be replaced as such.

Remove belt shields.

Loosen nut on idler adjustment rod (located on right

side of gearbox stand) as loose as possible.

Remove old belts and install new ones. Tighten nut on

idler adjustment rod. Belts should be very tight.

NOTICE

■ Check tension on new belts every half hour the

first four hours of operation and then every eight

hours.

CHAIN SHIELDING

Full chain shielding, designed to reduce the

possibility of thrown objects, must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property. If this machine is not equipped with

full chain shielding, operation must be stopped

when anyone comes within 300 feet.

Inspect chain, rubber, or steel band shielding

before each use. Replace if damaged.

CAUTION

DB967

DANGER

W

W

ARNING

ARNING

Owner Service 21

15914 (Rev. 3/23/2007)

SERVICING TIRES SAFELY

Used Aircraft Tires (Figure 10)

Do not attempt to mount a tire unless you have the

proper equipment and experience to perform the job.

Always maintain the correct tire pressure. Do not inflate

tires above the recommended pressure. Never weld or

heat a wheel and tire assembly. The heat can cause an

increase in air pressure and result in a tire explosion.

Welding can structurally weaken or deform the wheel.

When inflating tires, use a clip-on chuck and an exten-

sion hose long enough to allow you to stand to the side

— not in front of or over the tire assembly. Use a safety

cage if available.

Check wheels for low pressure, cuts, bubbles, dam-

aged rims, or missing lug bolts and nuts.

Never remove split rim assembly hardware (A) with the

tire inflated.

Figure 10. Split Rim Tire Servicing

WARNING

Explosive separa-

tion of tire and rim

parts can cause seri-

ous injury or death.

Release all air pressure

before loosening bolts.

A

DECAL PN 1006348

(Rev. 5/11/2007)

22 Dealer Service

15914 (Rev. 5/11/2007)

DEALER SERVICE

On pull-type units, a pin is installed to prevent

the height adjustment crank from detaching. Do

not operate or service unit unless pin is installed.

Before performing any service or maintenance,

lower equipment to ground or block securely, turn

off engine, remove key, and disconnect driveline

from tractor PTO.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

The information in this section is written for dealer ser-

vice personnel. The repair described herein requires

special skills and tools. If your shop is not properly

equipped or your mechanics are not properly trained in

this type of repair, you may be time and money ahead

to replace complete assemblies.

GEARBOX MAINTENANCE

Before beginning any gearbox repair, please read this

entire section. Many steps are dependent on each

other.

Always make sure proper vent plug is installed in top of

gearbox. Proper gear lube level for gearbox is half full.

Never operate cutter unless gearbox is half full of SAE

90W gear lube.

Troubleshooting is an important part of gearbox main-

tenance. Check for leakage and bad bearings.

Bearing Check

Bearing maladjustment or failure is indicated by exces-

sive noise and noticeable side or end play in gear

shafts.

Possible Leakage Causes

Leakage may be caused by an improperly operating

vent plug. The plug has a check valve in it; remove and

apply very low pressure air to the bottom to check for

proper venting.

Check housing for visible signs of leakage.

Check for leaks at vertical and horizontal seals and

gaskets.

Take necessary corrective action and clean area where

leakage was evident. Place cutter in service and check

to ensure leakage has stopped.

Leakage Repair

Permatex Aviation 3D Form-A-Gasket® or equivalent

is the recommended sealant for gearbox repair.

Leakage at the horizontal seal or gasket can be cor-

rected without removing gearbox from cutter.

Remove fill plug and siphon gear lube from gearbox.

Remove and replace leaking seal or gasket. Refer to

Seal Installation section, page 23.

Removing Gearbox from Cutter

Remove nut from belt tension idler adjustment rod.

Remove belt shields. Remove belts.

The front gear stand bolts are tack welded in place.

Loosen the nuts to protect bolt threads and break tack

welds by rapping them with a hammer. Remove nuts

and bolts.

Remove nuts from the rear gear stand bolts. Tip rear of

gear stand up over bolts and slide the stand rearward.

Cut the safety wire and remove bolt from drive pulley

under gearbox.

Disassemble split taper bushing (located on bottom of

drive pulley) by removing the three bolts and inserting

two of them into the threaded holes. Tighten alternately

to press bushing off.

Remove the four gearbox attaching bolts from the gear

stand and remove gearbox from stand.

Gearbox Disassembly

(Refer to illustration on page 45.)

Remove the horizontal and vertical gear shaft housings

from gearbox housing. Remove seals. Remove tack

weld, holding sleeve to shaft, by grinding. Press gear

and shaft from housing. Remove cups from housing.

Damage Inspection

Inspect gears for excessive wear. Some wear is nor-

mal. Gears will show more wear on loaded side. They

are forged and surfaces will appear rough, even when

new. The wear pattern should be smooth.

Do not replace gears unless deep gouges, chips, deep

pitting or deep wear grooves are present.

WARNING

CAUTION

CAUTION

Dealer Service 23

15914 (Rev. 5/11/2007)

Inspect gear shafts and sleeves. Pay specific attention

to areas where seals seat. Check for cracks, grooves,

nicks or bumps. If damage cannot be repaired by resur-

facing with emery cloth, replace damaged part.

Inspect housings for damage, paying specific attention

where seals seat. Replace housing if damaged area

cannot be resurfaced with emery cloth.

Gearbox Assembly

(Refer to illustration on page 45.)

Bearing cups, cones and sleeves are a press fit.

Press new bearing cups into vertical and horizontal

housings.

Press bearing cones onto vertical and horizontal shafts

until they seat against machined surface next to gears.

Insert shafts into their respective housings and press

bearing cones onto shaft until all free play is removed

(similar to adjusting front wheel bearings on an auto-

mobile).

Check adjustment by spinning housing. It should turn

freely. If bearings are too tight, hold housing and rap

gear shaft with lead or brass hammer. Readjust bear-

ings. Proper bearing adjustment is essential to good

bearing life. Do not leave bearings adjusted too tight.

Bearings should turn freely without any noticeable end

play.

Place O-ring seal over shaft and seat against bearing.

Press sleeve on shaft and down against bearing, but

do not move bearing. Check bearing adjustment again

by spinning housing. Readjust if necessary. Protect

surfaces where seal seats and tack weld sleeve to

shaft.

Seal Installation

An improperly installed seal will leak and could result in

gearbox failure.

Clean area in housing where outer diameter of seal

seats and apply a thin coat of Permatex.

Lubricate seal lip, position spring toward housing, and

carefully guide over sleeve and shaft, using a blunt tool

such as a letter opener. Use care to prevent seal lip

from rolling under. Do not use a knife blade as it will

nick and ruin seal.

Select a piece of pipe or tubing with an OD that will set

on outside edge of seal cage but will clear housing. A

driver that is too small will bow cage and ruin seal.

Carefully press seal into housing, preventing distortion

to metal seal cage. Seat seal firmly against housing.

Gearbox Adjustment

Place a 1/32" thick gasket between the vertical and

horizontal housing and gearbox housing. Horizontal

housing must be positioned so breather hole is at top

when gearbox is on cutter. Snug bolts and check gear

mesh by shining a flashlight into the oil fill hole. The

small ends of the teeth on both gears should be flush

with each other and there should be some backlash.

If the gear teeth are not aligned, add gaskets under

one of the gear housings until they do.

Use a feeler gauge to check for .020 backlash between

the teeth. Adjust by adding or subtracting even num-

bers of gaskets of the same thickness from each hous-

ing and the gearbox.

When all of the bolts are tightened, check the backlash

again to ensure it did not change. If it is changed, add

or subtract gaskets as necessary to obtain .020 back-

lash between the teeth.

BLADE SPINDLE REPAIR

Remove blades from crossbar and belts from pulley.

Remove split taper bushing from pulley and remove

pulley from spindle. Remove spindle from cutter.

Remove set screw and flanged nut (1) from spindle,

see Figure 11. Block under washer (9) and housing and

press blade carrier and spindle shaft out of housing.

Assembly

Press new cups (6) into spindle housing, seating them

against housing bore shoulder, see Figure 11.

Place bottom end of spindle housing (18) up. Set bear-

ing cone and sleeve (5) on cup.

Coat area of spindle housing where seal seats with

Permatex. Press seal (4) (with spring-loaded lip toward

the center) into housing, using care to prevent seal

cage distortion.

Place washer (9) on spindle crossbar and shaft.

Remove bearing cones from housing.

Lubricate bottom seal, turn housing right side up and

press down onto spindle shaft.

Fill housing cavity with a lithium grease of #2 consis-

tency with a MOLY (molybdenum disulfide) additive.

Place washer (7) over shaft and seat. Seat bearing

cone and sleeve (5) on bearing cup, see Figure 11.

Adjust bearings by pressing on shaft until all free play

is removed (similar to adjusting front wheel bearings on

an automobile).

Check adjustment by spinning housing; it should turn

freely. If bearings are too tight, hold housing and rap

spindle shaft with a lead hammer. Readjust bearings.

24 Dealer Service

15914 (Rev. 5/11/2007)

Proper bearing adjustment is essential to good bearing

life. Do not leave bearing adjusted too tightly. Bearings

should turn freely without any noticeable end play.

When the bearings are adjusted, coat area of spindle

housing where seal seats with Permatex and press

seal (4) (with spring-loaded lip up) into housing using

care to prevent seal cage distortion.

When the bearings are adjusted, tighten nut against

sleeve and bearing (5). Insert brass plug (2) into hole in

nut then tighten set screw (3) against brass plug (2).

Grease spindle through grease fitting (8) until a small

amount of grease escapes seal.

Install spindle on unit.

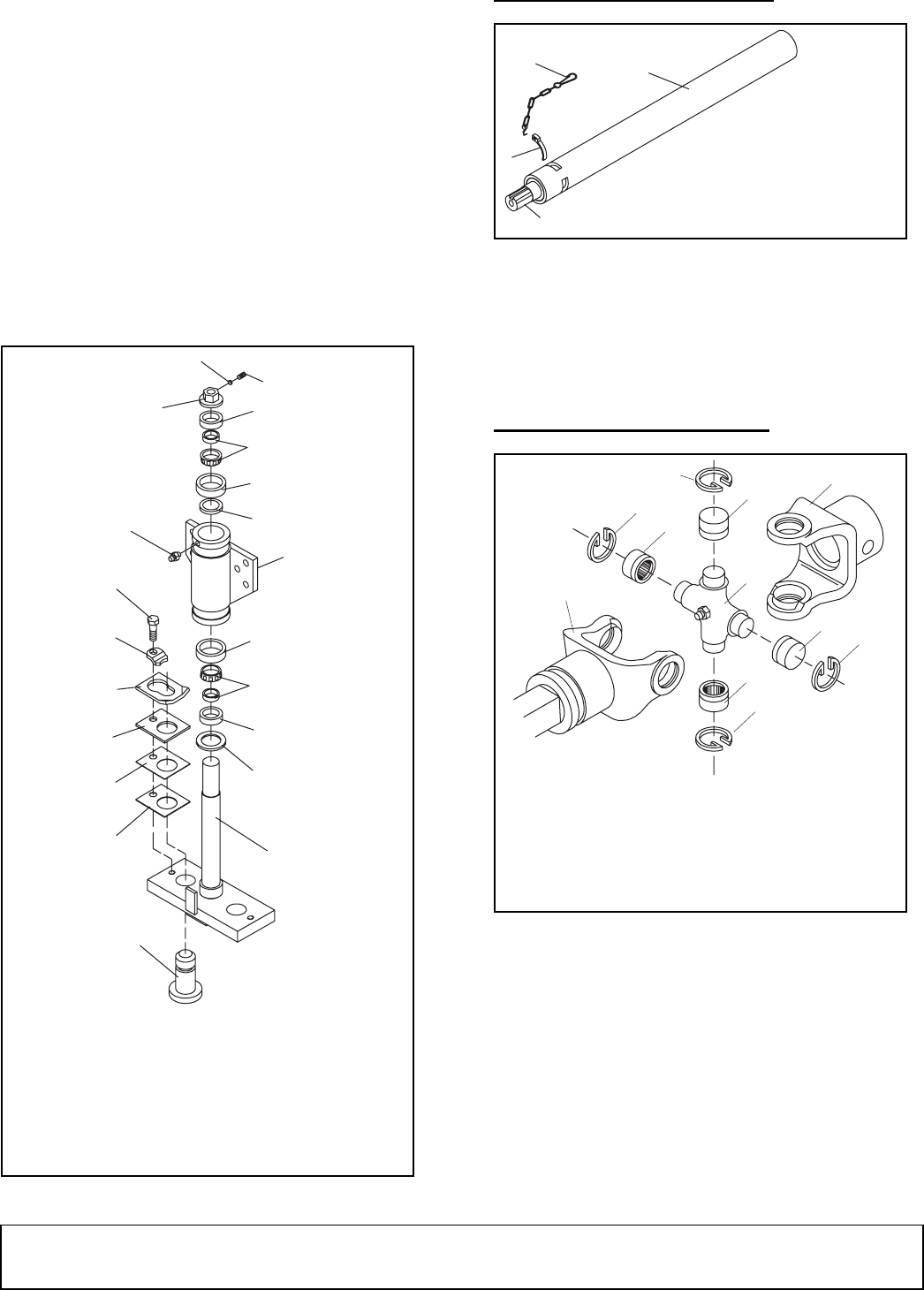

Figure 11. Blade Spindle Assembly

SHIELD BEARING SERVICE

Figure 12. Shield Bearing Service

Remove shield bearings (1) by lifting up and pulling

them out of the driveline groove.

When installing them, smear grease in the driveline

groove and install all four bearings into the groove

clockwise as shown in Figure 12.

UNIVERSAL JOINT REPAIR

Figure 13. U-Joint Exploded View

U-Joint Disassembly

1. Remove snap rings from inside of yokes in four

locations as shown in Figure 14.

1. Flanged nut

2. Brass plug

3. Set screw

4. Oil seal

5. Bearing cone and

sleeve

6. Bearing cup

7. Washer

8. Grease fitting

9. Washer

17

16

15

14

13

12

11

10

9

4

5

6

87

6

5

4

3

2

1

CD3829

18

10. Crossbar

11. Blade pin

12. 18Gauge shim

13. 20 Gauge shim

14. Spacer

15. Keyhole plate

16. Blade pin clip

17. Bolt

18. Spindle housing

4

3

2

1

CD3939

1. Shield bearing

2. Tether chain

3. Plastic shield

4. Tubular drive shaft

CD1645A

3

3

3

3

2

2

2

2

4

1

1

1.Yoke

2.Snap ring

3.Cup and bearings

4.Cross

5.Yoke

Dealer Service 25

15914 (Rev. 5/11/2007)

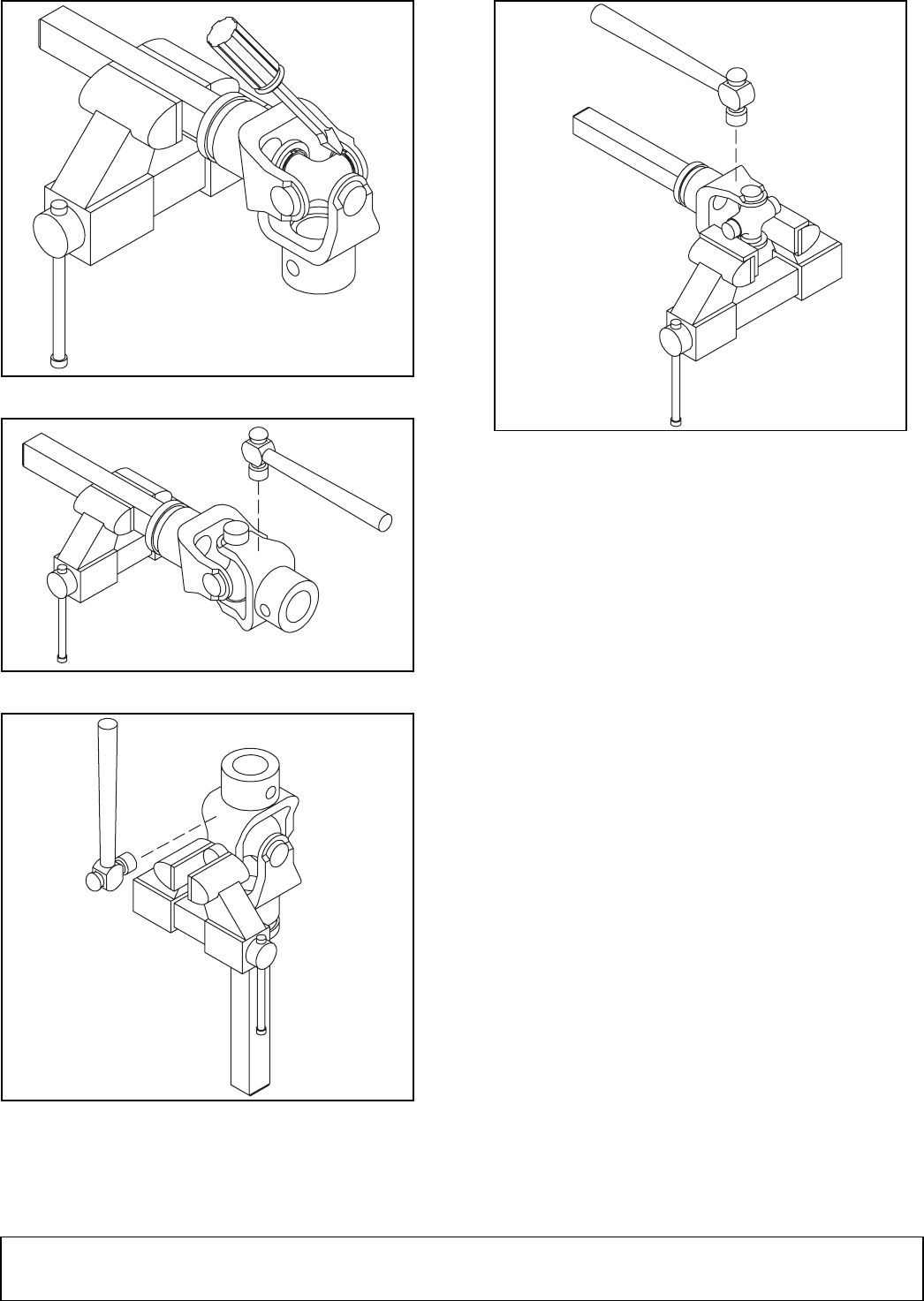

Figure 14

Figure 15

Figure 16

Figure 17

2. With snap rings removed, support drive in vise,

hold yoke in hand and tap on yoke to drive cup up

out of yoke. See Figure 15.

3. Clamp cup in vise as shown in Figure 16 and tap

on yoke to completely remove cup from yoke.

Repeat steps two and three for opposite cup.

4. Place universal cross in vise as shown in Figure 17

and tap on yoke to remove cup. Repeat step three

for final removal. Drive remaining cup out with a

drift and hammer.

U-Joint Assembly

1. Place seals securely on bearing cups. Insert cup

into yoke from outside and press in with hand

pressure as far as possible. Insert journal cross

into bearing cup with grease fitting away from

shaft. Be careful not to disturb needle bearings.

Insert another bearing cup directly across from first

cup and press in as far as possible with hand

pressure.

Trap cups in vise and apply pressure. Be sure jour-

nal cross is started into bearings and continue

pressure with vise, squeezing in as far as possible.

Tap yoke to aid in process.

2. Seat cups by placing a drift or socket (slightly

smaller than the cup) on cup and rapping with a

hammer. See Figure 18. Install snap ring and

repeat on opposite cup.

3. Repeat steps one and two to install remaining cups

in remaining yoke.

Move both yokes in all directions to check for free

movement. Should movement be restricted, rap on

CD1384

CD1386

CD1387

CD1388

26 Dealer Service

15914 (Rev. 5/11/2007)

yokes sharply with a hammer to relieve any ten-

sion. Repeat until both yokes move in all directions

without restriction.

Figure 18

SERVICING TIRES SAFELY

Used Aircraft Tires (Figure 19)

Do not attempt to mount a tire unless you have the

proper equipment and experience to perform the job.

Always maintain the correct tire pressure. Do not inflate

tires above the recommended pressure. Never weld or

heat a wheel and tire assembly. The heat can cause an

increase in air pressure and result in a tire explosion.

Welding can structurally weaken or deform the wheel.

When inflating tires, use a clip-on chuck and an exten-

sion hose long enough to allow you to stand to the side

— not in front of or over the tire assembly. Use a safety

cage if available.

Check wheels for low pressure, cuts, bubbles, dam-

aged rims, or missing lug bolts and nuts.

Never remove split rim assembly hardware (A) with the

tire inflated.

Figure 19. Split Rim Tire Servicing

CD1389

WARNING

Explosive separa-

tion of tire and rim

parts can cause seri-

ous injury or death.

Release all air pressure

before loosening bolts.

A

DECAL PN 1006348

Dealer Service 27

15914 (Rev. 5/11/2007)

TROUBLE SHOOTING

* Check belt for damage by laying it flat on floor. If belt does not lie flat (has humps or twists) this indicates broken or

stretched cords. Replace belt.

PROBLEM POSSIBLE CAUSE SOLUTION

Does not cut Dull blades Sharpen blades.

Worn or broken blades Replace blades. (Replace in pairs

only.)

Ground speed too fast Reduce ground speed.

Drive not functioning (blades do

not turn when PTO is running

Check drive shaft connection.

Check belts. Check gearbox.

Belt off pulleys Replace belts. Belts are supplied

in matched sets only.

Broken belt; belts not in groove Replace belts. Check belts for

uneven stretch.*

Belts will not stay in groove Check belt tension. Check belt

alignment. Ensure idler bearings

and spindle bearings are in good

condition and turn freely. Make

sure spindles are tight and sitting

straight and secure.

Shock loading could cause a worn

belt to jump off grooves. Eliminate

shock loading my raising cutting

height.

Belt tension too loose Tighten idlers. Belts must be very

tight.

Gearbox malfunction Repair gearbox.

Streaks or gives ragged cut Broken or worn blades Replace or sharpen blades.

Ground speed too fast Reduce ground speed.

Excessive cutting height Lower cutting height. (Note: Set

height so unit does not frequently

hit ground.)

Excessive lush and tall vegetation Recut at 90-degree to first pass.

Thrown objects No shielding Use chain shielding.

Excessive side skid wear Running with skids continuously

on ground

Use check chains and tail wheels.

Set skids above ground.

28 Assembly

15914 (Rev. 5/11/2007)

ASSEMBLY

DEALER SET-UP INSTRUCTIONS

These instructions are for the assembly of the MD80

and D80. Many of the procedures apply to both units.

When an instruction applies to a specific unit, the sec-

tion heading will indicate which unit.

Assembly of this cutter is the responsibility of the

WOODS dealer. It should be delivered to the owner

completely assembled, lubricated and adjusted for nor-

mal cutting conditions.

Complete check lists when assembly is complete.

The cutter is shipped partially assembled. Assembly

will be easier if components are aligned and loosely

assembled before tightening hardware. Recommended

torque values for hardware are located on page 57.

Select a suitable working area. Open parts boxes and

lay out parts and hardware to make location easy.

Refer to illustrations, accompanying text, parts lists and

exploded view drawings.

Make sure spring-activated locking pin or collar

slides freely and is seated firmly in tractor PTO

spline groove.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Blade Installation

Figure 20. Blade Installation

Either place cutter on stands or hang to permit access

to both top and bottom. Make sure cutter is secured to

prevent it from falling.

Liberally coat blade pin and crossbar hole with Never-

Seez® or equivalent. Make sure blade is offset away

from deck and cutting edge is positioned for counter-

clockwise rotation as viewed from top of deck.

Install blade pin (9) up through blade (8) then through

hole in crossbar and push firmly against crossbar (7).

Install as many spacers (4, 5 or 6) as possible and still

be able to slide keyhole plate (3), with ears up as

shown, into blade pin groove. Place blade pin clip (2)

over keyhole plate and into blade pin groove. Secure

with bolt (1). Repeat for opposite blade.

Blade should be snug but swivel on pin without exces-

sive force. Retain any spacers not used in installation

for use when blade wears or on future installations.

Distribution Baffle Installation

A distribution baffle is supplied. It is recommended

when mowing grass and weeds. It should not be used

when operating cutter in heavy brush.

WARNING

CAUTION

CAUTION

6. 20 GA Spacer

7. Crossbar

8. Blade

9. Blade pin

1. Bolt

2. Blade pin clip

3. Keyhole plate

4. Spacer

5. 18GA Spacer

9

8

7

6

5

4

3

2

1

CD3818

Assembly 29

15914 (Rev. 5/11/2007)

Remove the two rear carriage bolts from the left side

skid. Place baffle (1) under cutter frame and attach as

shown in Figure 21.

Figure 21. Distribution Baffle Installation

Gearbox Lubrication

NOTICE

■ The gearbox was not filled at the factory. It

must be serviced before operating cutter. Failure to

service will result in damage to the gearbox.

Chain Shielding Installation

Full chain shielding, designed to reduce the

possibility of thrown objects, must be installed

when operating in populated areas or other areas

where thrown objects could injure people or dam-

age property. If this machine is not equipped with

full chain shielding, operation must be stopped

when anyone comes within 300 feet.

All four chain assemblies (1) are interchangeable.

Place each assembly on the cutter and attach by

inserting bolt (4) up through the cutter and chain shield

assembly, then install flange lock nut (5) on each bolt.

The threaded rods (2) are sold separately. To install,

place a lock nut (3) on one end and thread rod (2)

through bottom of 16 chain links, then secure with

another lock nut (3). Two rods (2) are used on each

chain shield assembly (1).

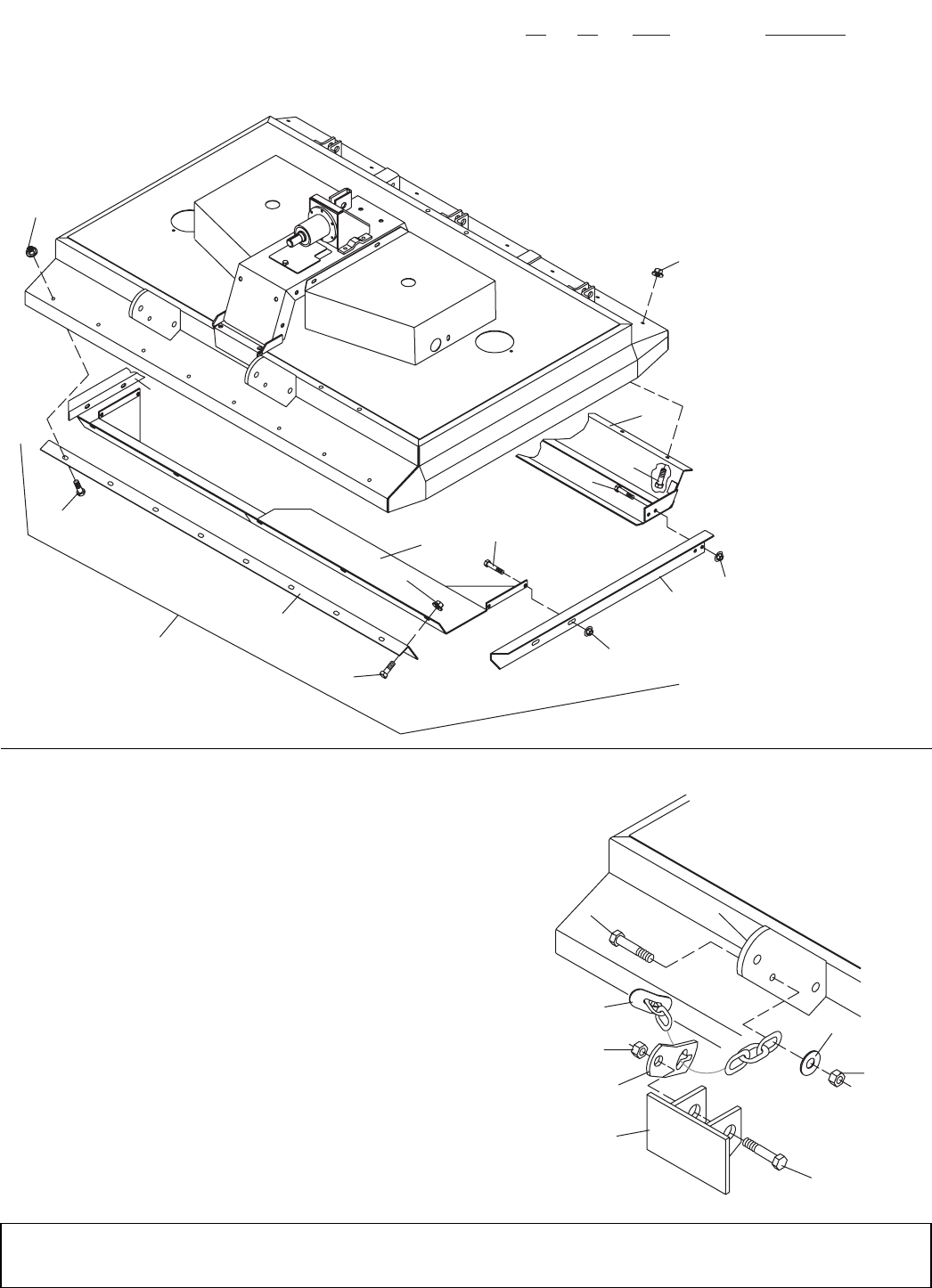

Figure 22. Chain Shielding Assembly

1

7

6

6

5

4

3

2

CD3819

1. Distribution baffle

2. 1/2 x 1" Bolt

3. 1/2" Flanged hex lock nut

4. 5/8 x 2" Carriage bolt

5. 3/4" Flat washer

6. 5/8" Flat washer

7. 5/8" Nut

DANGER

30 Assembly

15914 (Rev. 5/11/2007)

Wheel Yoke Installation for D80-2 Pull-Type

Cutter

The wheel yoke for use with pneumatic tires is illus-

trated. The spring-loaded wheel yoke installs the same.

Attach wheel yoke (6) to rear of cutter frame with clevis

pins (15) and cotter pins (3) at two points.

Insert crank (11) through pivot block (10). Slide sleeve

(7) onto crank, align hole in sleeve and hole in crank,

and drive the spirol pin (8) into the assembly to attach.

Thread pivot nut (2) onto crank (11) until it will install

into pivot lug (1), then attach with cotter pin (3). Install

spirol pin (4) into crank (11) to prevent crank detach-

ment.

Attach axle with rim (12) and tire (not supplied) to

wheel yoke using lock washer (13) and nut (14).

NOTICE

■ You must use the pneumatic tire with this

wheel yoke. The solid tire may be used with the

spring-loaded wheel yoke.

Figure 23. Wheel Yoke Installation

1. Pivot lug

2. Pivot nut

3. 1/4 x 1-1/2" Cotter pin

4. 1/4 x 1" Spirol pin

5. Grease fitting

6. Wheel yoke

7. Sleeve

8. 5/16 x 1-3/4" Spirol pin

9. Thrust bearing

10. Pivot block

11. Crank

12. Rim (tire not supplied)

13. 1" Standard lock washer

14. 1" Nut

15. 1 x 2-1/2" Clevis pin

Assembly 31

15914 (Rev. 5/11/2007)

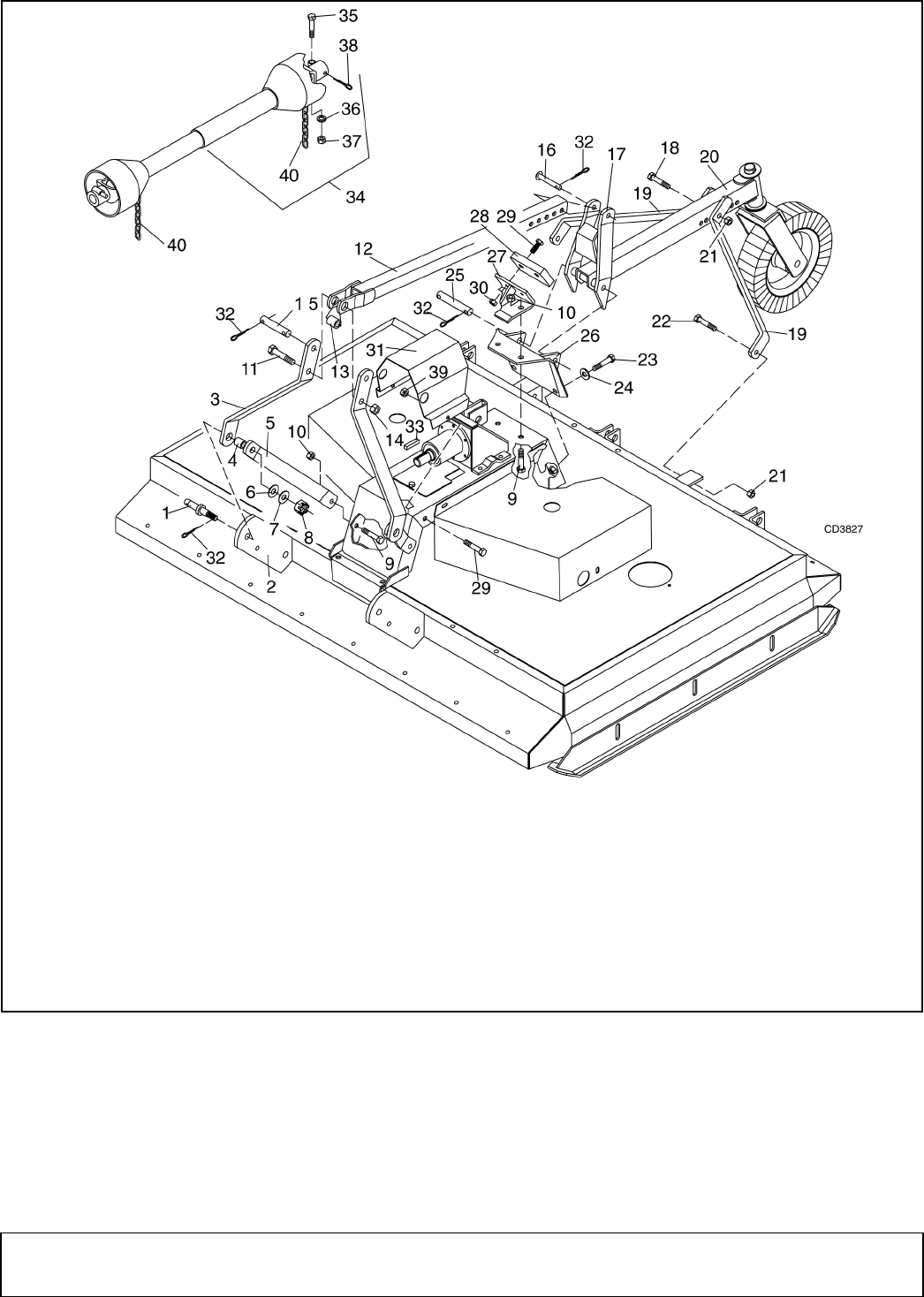

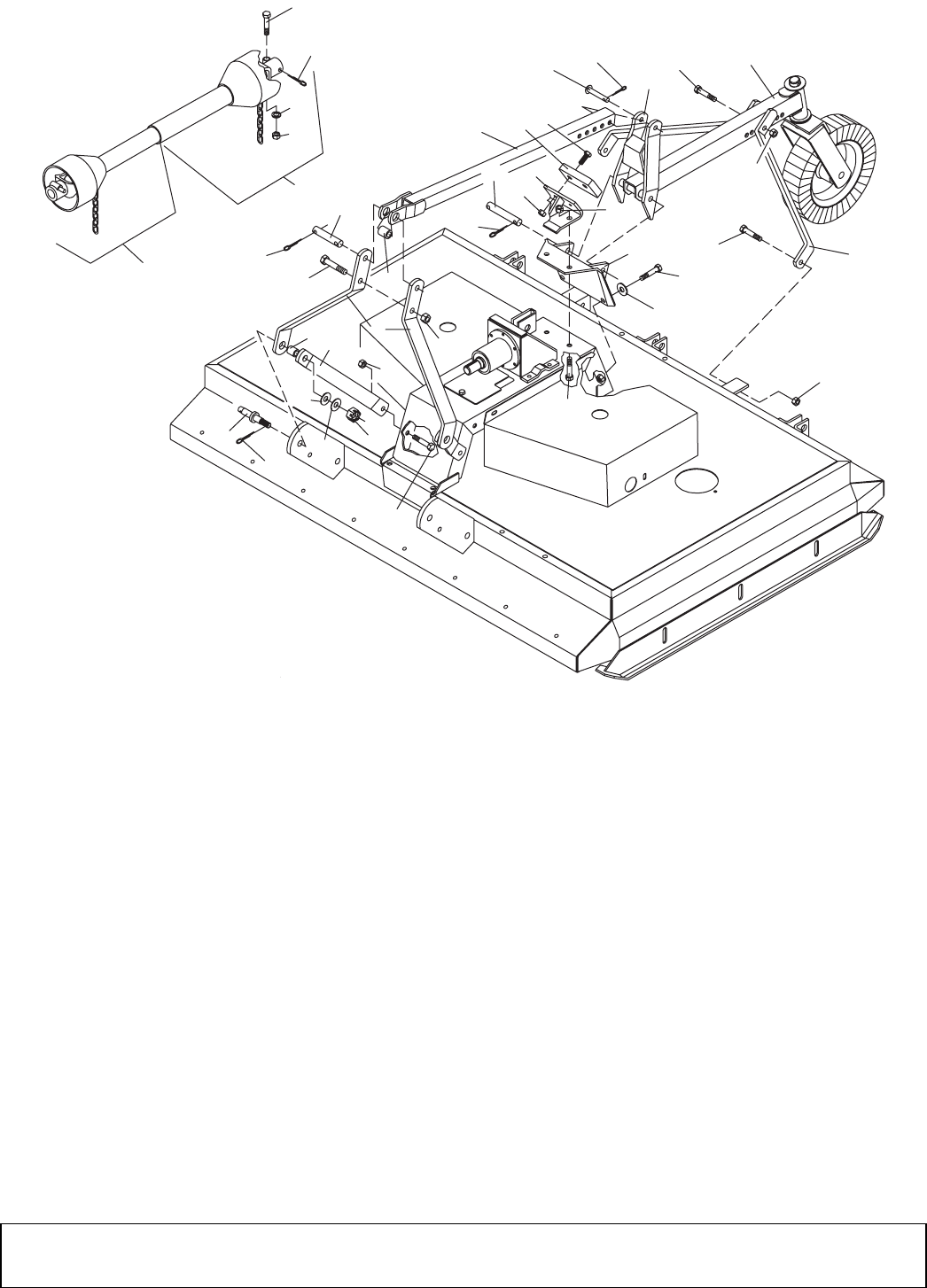

Figure 24. Tongue and H-Frame Assembly

Tongue Installation for D80-2 Pull-Type

Cutter

Attach compression bracket (7) to front of gearbox

stand with lock washers (20) and nuts (21), see Figure

24.

Align holes in tongue (1) to bottom hole of mast plate

(6) and insert bushing (14) through the holes, then

place washer (13) on bolt (12) and insert through mast

plate, bushing and tongue. Install lock washer (15) over

bolt and attach with nut (16).

Support tongue by attaching jack (27).

Attach compression member (4) to compression

bracket (7) with clevis pin (25) and cotter pin (17), then

attach front end to tongue with bolt (19), lock washer

(20) and nut (21). The compression member setting

must be adjusted when the cutting height is set.

Align H-frame (5) to tongue (1) and attach with clevis

pin (18) and two cotter pins (17).

Place key in gearbox input shaft, loosen clamp bolt (11)

on rear of driveline, and slide driveline onto gearbox

input shaft. Tighten clamp bolt and install cotter pin (30)

through driveline and input shaft. Snap rear tether

30

32

32

31

28

29

2810

9

11

8

12

13

14

26

20

21

7

17

25

6

21

20

24

23

27

17

22

5

4

20

21

15

16

19

18

17

3

2

1

CD3823A

1. Tongue

2. Tongue lug

3. Tongue adjustment bracket

4. Compression member

5. H-Frame

6. Mast plate

7. Compression bracket

8. Rear U-joint shield

9. Carrier bearing housing

10. Drive shaft shield

11. Clamp bolt

12. 5/8 x 2-1/4" Bolt

13. 5/8" Flat washer

14. 5/8 x 7/8 x 11/16" Bushing

15. 5/8" Lock washer

16. 5/8" Hex nut

17. 3/16 x 1" Cotter pin

18. 5/8 x 6-3/4" Clevis pin

19. 1/2 x 1-3/4" Bolt

20. 1/2" Heavy lock washer

21. 1/2" Heavy hex nut

22. 1/2 x 5-1/2" Clevis pin

23. 1/2 x 5-1/2" Bolt

24. 1/2" Schedule 40 x 3-9/16"

pipe

25. 1/2 x 2" Clevis pin

26. 1/2 x 1-1/4" Bolt

27. Parking jack

28. 3/8 x 1" Bolt

29. 3/8" Lock washer

30. 1/4 x 3" Cotter pin

31. 3/8" Flanged lock nut

32. Tether chain

32 Assembly

15914 (Rev. 5/11/2007)

chain (32) around the compression link to prevent driv-

eline shield rotation.

Align driveline in H-frame and insert clevis pin (22)

through H-frame and carrier bearing (9). Attach by

inserting two cotter pins (17) in clevis pin (22). Snap

middle tether chain (32) around H-frame to prevent

driveline shield rotation.

Attach rear universal joint shield (8) to gear stand as

shown with bolts (28) and nuts (31). Place forward driv-

eline shield (10) over H-frame and attach with lock

washer (29) and bolt (28).

Attach pipe (24) to H-frame using bolt (23), lock washer

(20) and nut (21). Attach front tether chain (32)

securely to tractor.

Optional Hydraulic Installation for D80-2

Pull-Type Cutter

Remove the crank (7) from pivot link holder (6), insert

pivot link (5) into pivot link holder (6), then install the

crank and cotter pin (8), see Figure 25.

Remove bolt (2) from H-frame, install hydraulic hose

holder (3), and install bolt.

Install hydraulic cylinder (9) using clevis pins (11), then

route hose through hose holder (3).

Figure 25. Optional Hydraulic Lift Assembly

1. Pivot link kit

2. 1/2 x 5-1/2" Bolt

3. Hose holder

4. 1/2" Hex nut

5. Pivot link

6. Pivot link holder

7. Crank

8. 1/4 x 1-1/2" Cotter pin

9. Cylinder

10. H-Frame

11. Clevis pin

12. Pivot nut

Assembly 33

15914 (Rev. 5/11/2007)

Figure 26. Assembly of MD80 (Mounted Model)

MD80 Assembly

Driveline Installation

Loosen clamp bolt (35) on rear half of drive, see Figure

26. Install key (33) in gearbox keyway and slide drive

onto gearbox input shaft. Install cotter key (38) and

tighten clamp bolt. Snap tether chain (40) to gear stand

to prevent driveline shield rotation.

A-Frame Lift Installation & Tailwheel Installation

Place washers (24) on bolts (23), insert through tail-

wheel mounting bracket (26), and tighten bolts into

nuts welded to gearstand.

1. Hitch pin

2. Mast plate

3. A-Frame half

4. 7/8 x 1-1/8" Sleeve

5. Support brace

6. 3/4" Flat washer

7. 13/16 x 1-9/16 Washer

8. 3/4" Slotted hex nut

9. 5/8 x 1-1/2" Bolt

10. 5/8" Hex lock nut

11. 3/4 x 4-1/2" Bolt

12. Lift channel

13. Spacer bushing

14. 3/4" Hex lock nut

15. Top link pin

16. 5/8 x 3-3/4" Clevis pin

17. Hitch stop

18. 5/8 x 4-1/2" Bolt

19. Tailwheel arm bracket

20. Tailwheel

21. 5/8" Elastic stop nut

22. 5/8 x 2" Bolt

23. 5/8 x 1-3/4" Bolt

24. 5/8" Flat washer

25. 3/4 x 8" Clevis pin

26. Tailwheel mounting bracket

27. Rebound pad support

28. Rebound pad

29. 3/8 x 1" Bolt

30. 3/8" Flange hex nut

31. Rear U-joint shield

32. 3/16 x 1-1/2" Cotter

33. 3/8 x 3/8 x 2" Key

34. Rear drive half

35. Clamp bolt

36. 1/2" Lock washer

37. 1/2" Hex nut

38. 1/4 x 3" Cotter pin

39. 3/8" Flange lock nut

40. Tether chain

34 Assembly

15914 (Rev. 5/11/2007)

Bolt rebound pad (28) to rebound pad support (27).

Insert bolt (9) through gearstand and bracket (26), then

place rebound pad assembly on top and secure with

lock nuts (10).

Attach tailwheel arm brackets (19) to brackets on rear

of cutter frame with bolts (22) and elastic stop nuts

(21).

Attach tailwheel assembly (20) and hitch stop (17) to

tailwheel mounting bracket (26) with clevis pin (25) and

secure with two cotter pins (32). Attach tailwheel arm

brackets (19) to tailwheel assembly (20) with bolt (18)

and elastic stop nuts (21).

Attach one end of each support brace (5) to the gear-

stand with bolts (9) and lock nuts (10). Insert hitch pins

(1) through mast plates (2). Place A-frame arms (3)

over hitch pins, then install sleeve (4) and brace (5)

over pin and secure with slotted hex nut (8).

Place spacer (13) between brackets on lift channel (12)

and mount between lower hole of A-frame halves with

bolt (11) and lock nut (14). Attach lift channel to hitch

stop (17) with clevis pin (16) and cotter pin (32).

Attach rear universal joint shield (31) to gearstand with

bolts (29) and nuts (39).

OPTIONAL LEAF MULCHER

INSTALLATION

Loosely assemble the leaf mulcher to the cutter before

tightening any hardware.

The mulcher uses the chain shielding attachment

holes. It is your option to remove or leave the chain

shielding in place.

Place adapter (4) underneath the front edge of cutter

and attach with bolts (6) and flange lock nuts (7).

Bolt front shield (3) to adapter using bolts (6) and

flange lock nuts (7).

Place rear mulcher section (1) underneath the rear

edge of cutter and attach with bolts (6) and flange lock

nuts (7).

Attach right and left side frames (2 & 5) to the front and

rear mulcher sections with bolts (6) and flange lock

nuts (7). The slots are to the front and the U-section

points outward as shown in Figure 27.

When all hardware is installed, you may tighten it.

Figure 27. Optional Leaf Mulcher Installation

7

6

7

6

7

6

7

6

7

6

4

5

3

2

1

CD3837

1. Rear mulcher section

2. Left side frame

3. Front shield

4. Adapter

5. Right side frame

6. 1/2 x 1" Bolt

7. 1/2" Lock nut

Assembly 35

15914 (Rev. 5/11/2007)

OPTIONAL CHECK CHAIN INSTALLATION

Attach chain (9) to cutter mast plate (2) with bolt (1),

washer (3) and nut (4) as shown. Repeat for opposite

mast plate.

Attach one check chain bracket (7) to each side of the

tractor top link bracket (6) with bolt (5) and nut (8) as

shown.

The check chains may be adjusted to set the front cut-

ting height of the cutter.

Figure 28. Optional Check Chain Installation

9

8

7

6

5

4

3

2

1

CD3826

1. 5/8 x 2-1/4" Bolt

2. Cutter mast plate

3. 5/8" Flat washer

4. 5/8" Hex lock nut

5. 3/4 x 6" Bolt

6. Tractor top link bracket

7. Check chain bracket

8. 3/4" Hex lock nut

9. 3/8" Chain, 32-link

36 Dealer Check Lists

15914 (Rev. 5/11/2007)

DEALER CHECK LISTS

PRE-DELIVERY CHECK LIST

(DEALER’S RESPONSIBILITY)

Inspect cutter thoroughly after assembly to be certain it

is set up properly before delivering it to customer. The

following check list is a reminder of points to inspect.

Check off each item as it is found satisfactory, correc-

tions made or services performed.

___ Check all bolts to be sure they are tight.

___ Check that all cotter pins are properly installed

and secured.

___ On pull-type cutter, make sure pin to prevent

crank detachment is installed.

___ Check that PTO shaft is properly installed.

NOTICE

■ Gearbox was not filled at factory. It must be

serviced before operating cutter. (See page 18.)

Failure to service will result in damage to gearbox.

___ Check that gearbox is properly serviced and

seals are not leaking.

___ Lubricate cutter.

___ Check that blades have been properly installed.

DELIVERY CHECK LIST

(DEALER’S RESPONSIBILITY)

___ Show customer how to make adjustments.

___ Explain importance of lubrication to customer and

point out lubrication points on cutter.

___ Point out safety features and options.

___ For mounted units, add wheel weights, ballast in

front tires, and/or front tractor weight to enhance

front end stability. A minimum 20% of tractor and

equipment gross weight must be on front tractor

wheels. When adding weight to attain 20% of

tractor and equipment weight on front tractor

wheels, you must not exceed the ROPS weight

certification. Weigh the tractor and equipment. Do

not estimate!

___ Give Operator's Manual to customer and recom-

mend that customer become familiar with all sec-

tions, especially the safety information.

___ Explain to customer that when transporting cutter

on road or highway, day or night, safety devices

should be used to provide adequate warning to

operators of other vehicles.

Parts 37

15914 (Rev. 3/23/2007)

INDEX TO PARTS LIST

D80-2 (Pull-Type)

Main Frame Assembly (Pull-Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 38

Main Frame Assembly - Common Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 40

Front 2/3 of 3-Joint Drive (Square Shaft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 42

Front 2/3 of 3-Joint Drive (two lobe Shaft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 43

Rear Section of Universal Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 44

Gearbox Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 45

Blade Spindle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Chain Shielding Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47

Idler Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48

Parking Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48

Height Adjustment Crank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 49

Spring-Loaded Wheel Yoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 49

Laminated Tire with Hub & Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 50

Rim & Axle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 50

Aircraft Tire & Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47

Pivot Link Kit (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 53

Hydraulic Hose Kit & Fittings (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 53

3-1/2 x 8" Hydraulic Cylinder #10475 (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . .page 54

Leaf Mulcher Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55

MD80-2 (Mounted)

Main Frame Assembly (Mounted Model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 39

Main Frame Assembly - Common Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 41

Front 1/2 of Universal Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 44

Rear Section of Universal Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 44

Gearbox Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 45

Blade Spindle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Blades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Chain Shielding Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47

Idler Pulley Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48

Tailwheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 52

Leaf Mulcher Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55

Check Chain Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55

Category 2 Hitch Pin Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 56

Category 2 Bushing Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 56

38 Parts

15914 (Rev. 3/23/2007)

D80-2 MAIN FRAME ASSEMBLY (PULL-TYPE)

6

710

23

36

37

38

35

33

23

39

11

9

25

24

8

26

12

31

32

22

29

32

31

5

28

22

30

32

31

27

34

22

43

2

1

CD3824A

40

REF PART QTY DESCRIPTION

1 7023 1 Tongue

2 406 1 Compression member

370301H-Frame

4 ----- 1 Parking jack

5 7035 1 1/2 Schedule 40 x 3-9/16 pipe

6 ----- 1 Front 2/3 of 3-joint drive

7 ----- 1 Rear section of universal drive

8 19012 1 Drive shaft shield

9 7388 1 Wheel yoke

10 ----- 1 Manual height adjustment crank

11 ----- 2 15" Wheel

12 7033 1 Compression member bracket

HARDWARE

22 1256 * 3/16 x 1 Cotter pin

23 1285 * 1/4 x 1-1/2 Cotter pin

24 839 * 3/8 NC x 1 HHCS GR5

25 838 * 3/8 Standard lock washer

26 6100 * 1/2 NC x 1-1/4 HHCS GR5

27 24576 1/2 NC x 1-3/4 HHCS GR5

28 12305 * 1/2 NC x 5-1/2 HHCS GR5

29 409 1/2 x 2 Clevis pin

30 404 1/2 x 5-3/4 Clevis pin HT

31 855 * 1/2 Extra-heavy lock washer

32 1093 1/2 NC Heavy hex nut

33 12274 * 5/8 NC x 2-1/4 HHCS GR5

34 405 5/8 x 6-3/4 Clevis pin

35 692 * 5/8 Standard flat washer

36 1286 * 5/8 Heavy lock washer

37 230 * 5/8 NC Hex nut

38 11081 5/8 x 7/8 x 11/16 Bushing HT

39 445 1 x 2-1/2 Clevis pin

40 15134 1/4 x 1 Spirol pin

* Obtain Locally - Standard Hardware

REF PART QTY DESCRIPTION

Parts 39

15914 (Rev. 3/23/2007)

MD80-2 MAIN FRAME ASSEMBLY (MOUNTED MODEL)

45

22

32

39

37

42

40

38

43

44

41

36

29

36

29

35

35

34

33

31

30

28

27

26

25

24

23

22

22

22

12

11

10

9

8

7

6

5

4

3

2

1CD3825

REF PART QTY DESCRIPTION

1 31581 2 Inside hitch brace

2 27938 2 A-Frame half

3 28236 1 Lift arm channel assembly

4 29071 1 Hitch stop assembly

5 ----- 1 Tailwheel

6 29080 2 Tailwheel adjustment bracket

7 29070 1 Rebound bumper pad

8 28241 1 Rebound bumper support

9 28238 1 Tailwheel attachment plate

10 7049 2 Cat. 1 mounting, 5-3/4L

11 ----- 1 Front 1/2 universal drive

12 ----- 1 Rear section universal drive

HARDWARE

22 1266 * 3/16 x 1-1/2 Cotter pin

23 1426 * 1/4 x 3 Cotter pin

24 839 * 3/8 NC x 1 HHCS GR5

25 14350 3/8 NC Flanged hex lock nut

26 1637 * 1/2 NC x 3-1/2 HHCS GR5

27 855 * 1/2 Extra-heavy lock washer

28 1093 * 1/2 NC Heavy hex nut

29 7832 * 5/8 NC x 1-1/2 HHCS GR5

REF PART QTY DESCRIPTION

30 4548 * 5/8 NC x 1-3/4 HHCS GR5

31 902 5/8 NC x 2 HHCS GR5

32 8099 5/8 x 3-3/4 Clevis pin HT

33 3097 5/8 NC x 4-1/2 HHCS HT

34 692 * 5/8 Standard flat washer

35 12006 5/8 NC Electric stop nut

36 6239 * 5/8 NC Heck lock nut

37 12587 3/4 x 1-1/4 x 2-1/4 Sleeve

38 1591 3/4 x 4-3/8 Clevis pin

39 29075 3/4 x 8 Clevis pin

40 12558 3/4 NC x 4-1/2 HHCS GR5

41 2864 * 3/4 SAE Flat washer

42 2371 * 3/4 NC Hexk lock nut

43 5849 3/4 NF Slotted hex nut

44 31392 13/16 x 1-9/16 x 10 GA Flat washer

45 29281 7/8 x 1-1/8 x 19/32 Sleeve HT

* Obtain Locally - Standard Hardware

40 Parts

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 MAIN FRAME ASSEMBLY - COMMON PARTS

2

3

4

4

0

51

4

8

57

55

41

4

11 1

2

50

6

1

3

4

3

4

6

2

6

50

47

4

7

49

4

16

22

45

2

3

2

1

24

25

52

57

1

4

56

56

58

53

4

3

5

1

54

1

7

8

2

0

CD3855

27 - Complete English Decal Set

28 - French Safety Decal Set

29 - English Safety Decal Set

Parts 41

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 MAIN FRAME ASSEMBLY - COMMON PARTS

REF PART QTY DESCRIPTION

1 ----- 1 Deck (not sold separately)

2 28219 1 Rear drive shield

3 15818 1 Right v-belt shield

4 28230 1 Take-up rod idler

5 3444 2 Access hole cover

6 28225 1 Gearbox stand

7 28203 1 Tower access cover

8 1942 1 Gearbox angle bracket

9 419 1 Extension spring, 4-1/8 L

10 607 1 3/8 x 3/8 x 2-3/8 Key

11 608* 1 3/8 x 3/8 x 2 Key

12 ----- 1 Gearbox

13 15819 1 Left V-belt shield

14 15779 2 Skid shoe 56.2

15 15817 1 Left rear baffle

16 ----- 2 Spindle

17 ----- 4 Blades

18 10578 2 3TB 7.5 Sheave

19 1482 2 P1 1-1/4 Straight bore bushing

20 10617 1 Idler arm assembly

21 10575 1 3 SB 18.5 Sheave

22 ----- 2 Idler assembly

23 606 1 1/4 x 1-1/2 x 2 Lug

24 222 1 Set of 3 matched v-belts

25 29038 2 Spindle support plate

26 29280 2 3/8 x 1-1/2 x 9-1/4 support plate

27 15828 1 Complete english decal set

28 55827 1 French safety decal set

29 15827 1 English safety decal set

HARDWARE

40 1266* 3/16 x 1-1/2 Cotter pin

41 1426* 1/4 x 3 Cotter pin

42 14562* 5/16 NC x 1 HHCS GR5

43 1287* 3/8 NC Wing nut

44 6100* 1/2 NC x 1-1/4 HHCS GR5

45 1262 1/2 NC x 1-1/4 HHCS drilled head

46 24576 1/2 NC x 1-3/4 HHCS GR5

47 3452 1/2 NF x 1-1/2 HHCS GR5

48 854* 1/2 Standard flat washer

49 855* 1/2 Extra-heavy lock washer

50 11900* 1/2 NC Flaged hex lock nut

51 6241 1/2 NC Elastic stop nut

52 4548* 5/8 NC x 1-3/4 HHCS GR5

53 2855* 5/8 NC x 2 Carriage bolt

54 12274* 5/8 NC x 2-1/4 HHCS GR5

55 1286* 5/8 Heavy lock washer

56 692* 5/8 Standard flat washer

57 230* 5/8 NC Hex nut

58 2864* 3/4 SAE Flat washer

59 7142 1/4 x 1/4 x 2 Key

60 27610 5/16 x 3/4 Sheet metal screw

* Obtain Locally - Standard Hardware

REF PART QTY DESCRIPTION

42 Parts

15914 (Rev. 3/23/2007)

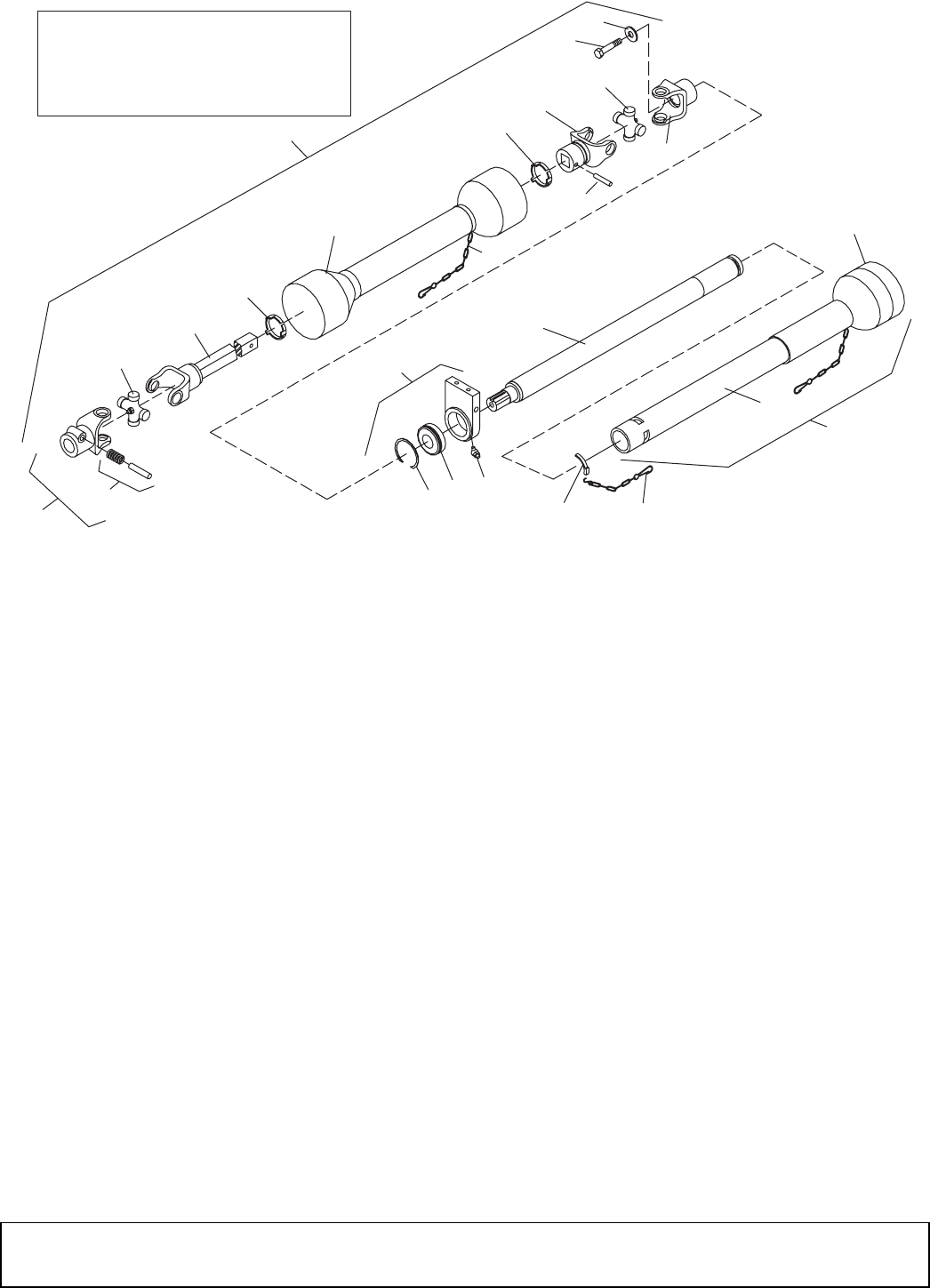

D80-2 FRONT 2/3 OF 3-JOINT DRIVE (SQUARE SHAFT)

22

23

2

21

21

14

1 -- COMPLETE DRIVE

20

20

12

3

19

18

17

16

10

15

13

11

9

8

7

6

3

4

5

CD3873B

NOTE: Twostylesofdriveshafts have

been usedontheD80seriescutters.

Check yourdriveshaft for square or

two--lobe shaft and order repair parts

from the correct parts list.

REF PART QTY DESCRIPTION

1 19054 1 Front 2/3 of 3-joint drive 35N

2 44919 1 Front 2 joints shielded 35N

3 110 2 U-Joint repair kit 35N

4 117 1 Lock pin and spring

5 115 1 1-3/8 Quick disconnect yoke 35N

6 1251 1 Bearing holder with bearing (includes

7, 8 & 9)

7 12128 1 .062 x 72 mm ID Snap ring

8 3502 1 1.37 ID x 2.83 OD Ball bearing

9 2985* - 1/4 - 28 Threaded 90-degree grease

fitting

10 19036 1 Decaled tube, sleeve & stub, 24.38

11 15952 1 Plastic shield 2.75 x 17.69 (includes

items 12 & 21)

12 15141 4 Bearing for tubular shaft

13 1311 1 1/2 NF x 1 HHCS, drilled head

14 -----* 1 1/2 x 1-1/2 x 1/8 Flat washer

15 105 1 1-5/16 Bore universal joint yoke 35N

16 19043 1 Yoke

17 4674 1 3/8 x 2 Spirol pin

18 19045 1 Shield, decaled 2-joint 21.94

(includes items 20 & 21)

19 4663 1 Square shaft & yoke 35N

20 15740 2 World shield bearing

21 15739 3 World shield tether chain 27.5

22 19609 1 Plastic shield kit (includes items 11 &

23)

23 19038 1 Shield, decaled

* Obtain Locally - Standard Hardware

REF PART QTY DESCRIPTION

Parts 43

15914 (Rev. 3/23/2007)

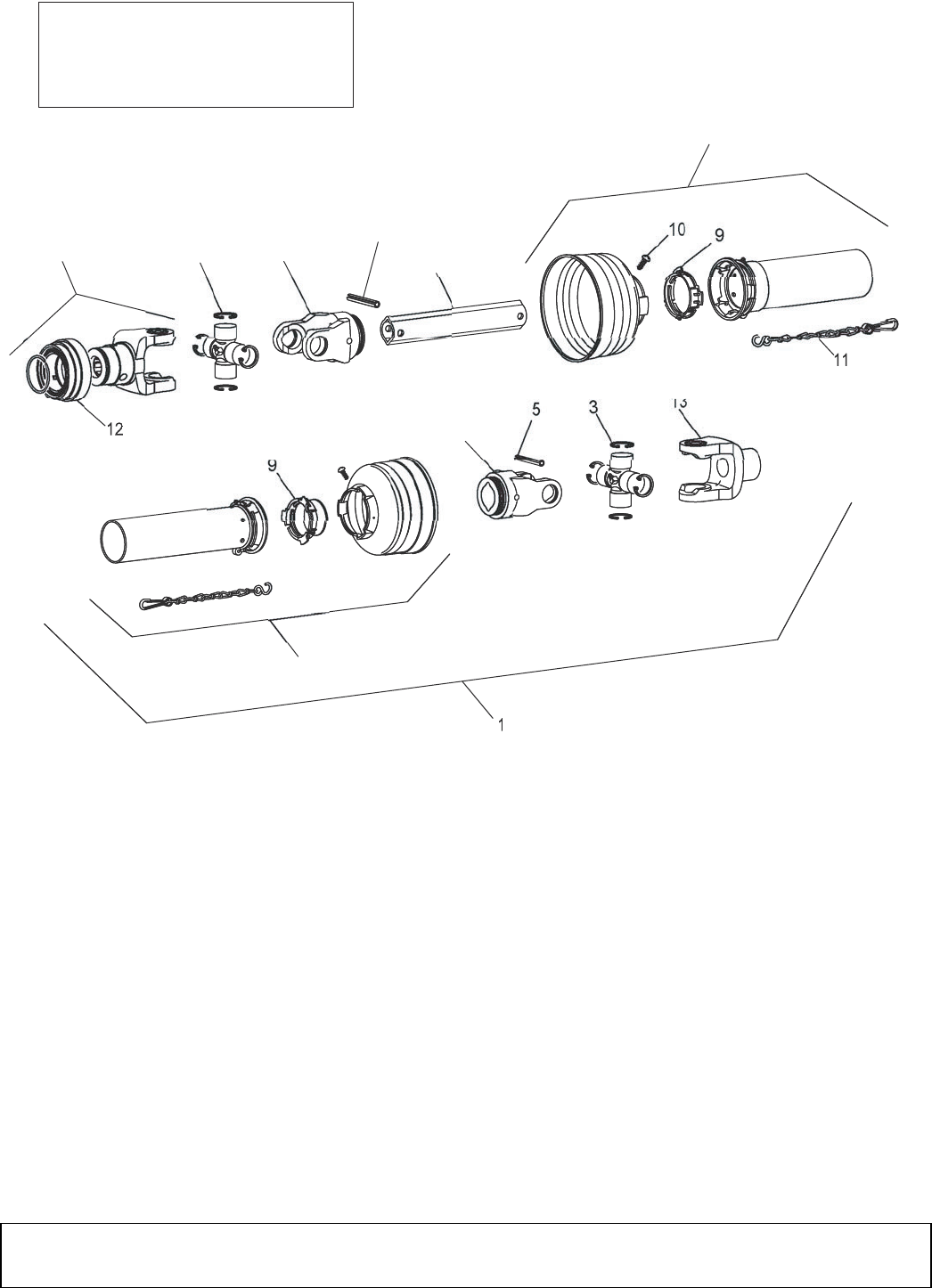

D80-2 FRONT 2/3 OF 3-JOINT DRIVE (TWO-LOBE SHAFT)

2

3

4

5

6

7

8

9

4

13

C

D

5963

12

12

NOTE: Two styles of driveshafts have

been used on the D80 series cutters.

Check your driveshaft for square or

two--lobe shaft and order repair parts

from the correct parts list.

REF PART QTY DESCRIPTION

1 44919 1 Front 2 joints shielded 1340

2 40574 1 Yoke, 1-3/8 -6SP (complete with lock

collar)

3 110 2 Cross & bearing kit

4 40576 2 Inboard yoke

5 40764 2 Spring pin 10 mm x 80 mm (packet of

10)

6 40588 1 Outer profile (cut to length)

7 40590 1 Guard, outer half (includes items 9,

10 & 11) (cut to length)

8 40591 1 Guard, inner half (includes items 9,

10, & 11) (cut to length)

9 40766 2 Bearing ring (package of 2)

10 40778 2 Screw (package of 10)

11 40777 2 Anti-rotation chain

12 40589 1 Lock collar repair kit (without yoke)

13 105 1 Yoke, 1.31 Bore

REF PART QTY DESCRIPTION

44 Parts

15914 (Rev. 3/23/2007)

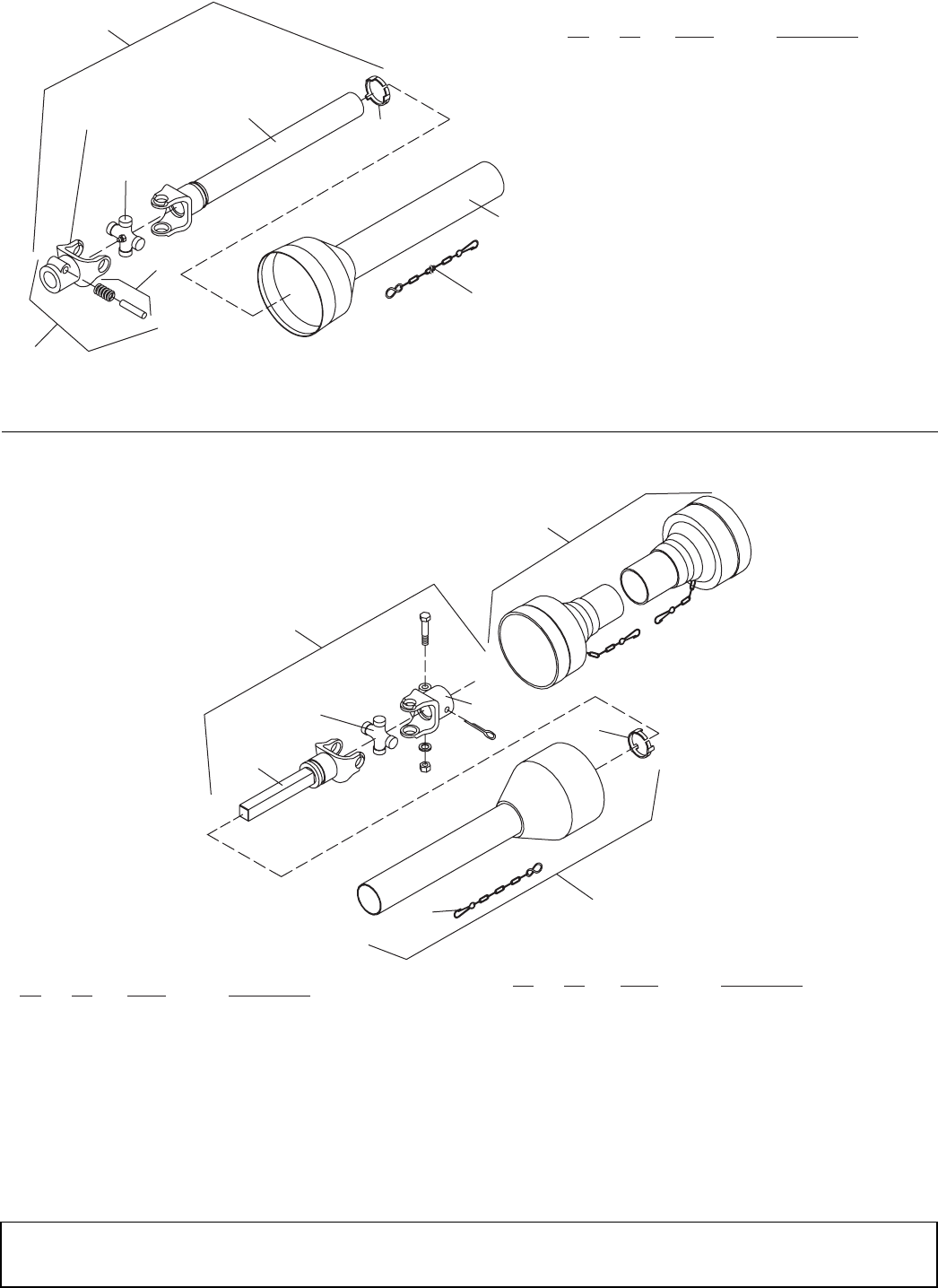

MD80-2 FRONT 1/2 OF UNIVERSAL DRIVE

D80-2 & MD80-2 REAR SECTION OF UNIVERSAL DRIVE

5

8

1

1-3/8SPLINE

7

6

4

3

2

CD3872

Ref Part No

NoNo Used Description

1 19064 1 Front half of 2-joint drive,

complete

211511-3/8, 6-Tooth spline, quick

disconnect U-joint yoke

3 110 1 Universal joint repair kit 35

N

4 7406 1 Yoke and tubular shaft 35N

-- o r -- -- o r --

4 7360 1 Yoke and tubular shaft 27.5

long

5 15907 1 Plastic shield 2.75 x 22.8

(includes 6 & 8)

-- o r -- -- o r --

5 15890 1 Plastic shield 2.75 x 29.0

(includes 6 & 8)

6 15740 1 World shield outer bearing

7 117 1 Lock pin and spring

815739 1 World shield tether chain,

27.5

8

5

1

7

6

4

3

2

CD3871A

Ref Part No

NoNo Used Description

1 19039 1 Universal joint yoke & square shaft

23-7/8Lwith shield

2 190381 Decaled shield 3 x 22 long (includes

6&7)

3 73681Square shaft & yoke, 35N

Ref Part No

NoNo Used Description

4 110 1 Universal joint repair kit 35N

5 6216 1 Clamp yoke

6 15740 1 Shield bearing

7 15739 1 Shield tether chain 27-1/2”

819604 1 Shield kit (contains 15890 & 19038

)

Parts 45

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 GEARBOX ASSEMBLY

Ref Part No

No No Used Description

A 6222 1 1:1 Gearbox assembly complete

1 213 1 Seal for 1-3/4 shaft

2 209 1 1-1/2 x 1-3/4 x 1-3/8 Sleeve

3 255 1 Ring seal

4 211 4 Bearing cone 2788A

5 210 4 Bearing cup 2720

6 6226 1 Vertical gear shaft housing with cups

7 207 1 Vertical gear and shaft

8 202 1 Vertical gear and housing assembly (includes

items 1 thru 4, 6 & 7)

9 3093 * 12 3/8 Shakeproof lockwasher

10 839 * 12 3/8 NC x 1 Hex head cap screw GR5

11 6224 1 Gearbox housing

12 1284 * 1 1” Pipe plug, recessed head

13 1998 1 Gasket set (includes installation instructions)

14 206 1 Horizontal gear and shaft

15 1426 * 1 1/4 x 3 Cotter pin

16 6225 1 Horizontal gear shaft housing with cups

17 208 1 1-1/2 x 1-3/4 x 1 Sleeve

18 212 1 Seal for 1-3/4 shaft

19 201 1 Horizontal gear and housing assembly (in-

cludes items 3, 4, 14 and 16 thru 18)

20 53411 1 Gearbox repair kit (Includes all bearings,

sleeves and seals)

* Obtain Locally

20 -- Gearbox Repair Kit

46 Parts

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 BLADE SPINDLE ASSEMBLY

D80-2 & MD80-2 BLADES

20

10

19

18

17

16

15

14

13

12

11

6

7

8

9

8

7

6

54

3

2

1

CD3831

REF PART QTY DESCRIPTION

1 15805 1 Spindle assembly

2 7143 1 Spindle housing with bearing cups

and grease fitting

3 7269 1 3/8 NF x 3/8 Set screw

4 7127 1 5/16 x 5/32 Dowel plug

5 7115 1 1-3/8 Flanged spindle nut

6 5298 2 Seal for 1-3/4 shaft

7 7068 2 Bearing cone and sleeve

8 7069 2 Bearing cup

9 7129 1 1-3/8 x 2-1/8 x 18 GA Shim

10 195 1 Grease fitting

11 7138 1 1-3/8 x 2-3/4 x 1/4 Flat washer

12 15785 1 Crossbar

13 15803 2 1-1/2 Blade pin x 3.32 L

14 10520 2 18 GA Shim

15 13946 2 20 GA Shim

16 5523 2 Spacer

17 32603 2 Keyhole plate - special

18 32604 2 Blade lock clip - special

19 6100* 2 1/2 NC x 1-1/4 HHCS

20 7571 1 7/64 Wall x 1-5/8 x 11 Tube (Optional)

3

1

24

CD3833B

REF PART QTY DESCRIPTION

1 15789KT 4 General purpose CCW blade

2 15790KT 4 Flat CCW blade

3 15791KT 4 High fin CCW formed blade

4 1003413KT 4 SHL Fin CCW formed blade

Parts 47

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 CHAIN SHIELDING ASSEMBLY

CD3836A

1

2

5

6

6

18

18

17

4

3

19

20

1

REF PART QTY DESCRIPTION

1 29085 2 Chain shielding complete (does not

include items 6 & 17)

2 29086 4 Chain plate assembly (does not

include items 6 & 17)

3 29087 4 Chain shield plate

4 1007850 4 Pin, 31 to 33 chains

5 8731 2 Drag-rod kit - Optional (includes items

6 & 17)

6 12136 8 3/8 & 19-3/4 Threaded rod, 16-chain

HARDWARE

17 6698 * 3/8 NC Hex lock nut

18 3994 5/16 Chain, 5-link

19 25475 1/2 x 1 HHCS GR5

20 11900 * 1/2 NC Flanged hex lock nut

* Obtain locally, standard hardware

REF PART QTY DESCRIPTION

48 Parts

15914 (Rev. 3/23/2007)

D80-2 & MD80-2 IDLER PULLEY ASSEMBLY

D80-2 PARKING JACK

REF PART QTY DESCRIPTION

1 5586 1 Idler assembly complete

2 378 1 5/8 NC x 5 HHCS GR2

3 843 1 1/2 x 2 x 2 Square washer

4 844 2 Seal retainer

5 845 2 Felt seal

6 7016 1 Idler with bearings

7 232 2 Needle bearing

8 ----- * 1 Grease fitting

9 377 1 Needle bearing sleeve

10 691 1 1/4 x 2 x 2 Square washer

11 230 1 5/8 NC Hex nut

* Standard hardware, obtain locally

REF PART QTY DESCRIPTION

1 23790 1 Swivel parking jack

2 25857 1 Jack hitch pin assembly

3 N/S 1 Jack gearbox cover

4 25859 2 15-Tooth bevel gear

5 25860 2 5/32 x 1-1/4 Drive pin

6 N/S 1 Jack crank handle

7 25862 1 Thrust bearing

N/S Not serviced

* Standard hardware, obtain locally

Parts 49

15914 (Rev. 3/23/2007)

D80-2 HEIGHT ADJUSTMENT CRANK

D80-2 SPRING-LOADED WHEEL YOKE

DB956A

REF PART QTY DESCRIPTION

1 15804 1 Height adjustment crank

2 11880 1 5/16 x 1-3/4 Spirol pin

3 10417 1 Height adjustment pivot block

4 1893 1 Thrust bearing

5 1863 2 1" SAE Flat washer

6 5895 1 Height adjustment pivot nut

7 195* 1 Straight 1/8 pipe thread grease fitting

8 15134 1 1/4 x 1 Spirol pin

* Obtain Locally - Standard Hardware

1

16

15

14

13

12

11

10

9

8

7

6

5

4

32

CD3839A

Ref Part No

NoNo Used Description

1 9310 1 Spring-loaded wheel yoke complete

2 445 2 1 x 2-1/2 Clevis pin

31285 * 2 1/4 x 1-1/2 Cotter pin

4 13906 1 Spring wheel yoke pipe assembly

5 2371 * 2 3/4 NC Hex locknut

6 39097 2 .781x.38x 4.12 Square washer

7 13316 2 1/2 x 6 Compression spring

816302 1 Right outer arm assembly

-- o r -- -- o r --

816303 1 Left outer arm assembly

9 5560 2 3/4 x 1-1/8x 31/32 HT Sleeve

Ref Part No

NoNo Used Description

10 2377 2 3/4 NC x 6 Hex head cap screwGR5

11 39160 2 3/4 NCx8.00 Hex head cap screw

GR5

12 20086 1 Right spring yoke inner arm assembly

-- o r -- -- o r --

12 20087 1 Left inner arm assembly

13 986* 4 5/8NC x 2-3/4 Hex head cap screw

GR5

14 6239 * 4 5/8NC Hex locknut

15 1008323/4x1-1/8x5/

8HT Bushing

16 2371 * 1 3/4 NC Hex locknut

*Obtain Locally

50 Parts

15914 (Rev. 3/23/2007)

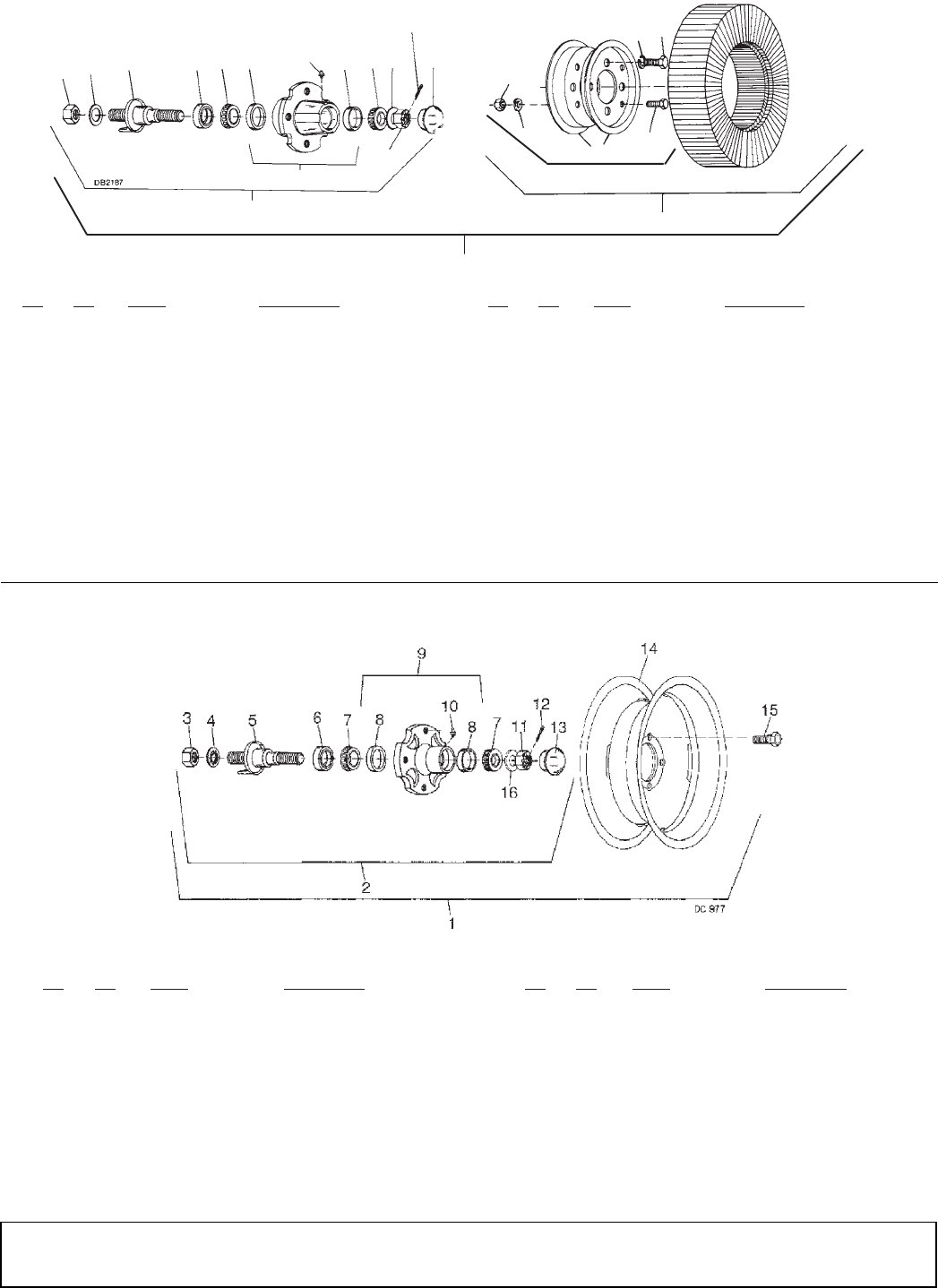

D80-2 LAMINATED TIRE WITH HUB & AXLE

D80-2 RIM & AXLE ASSEMBLY

23

19

15

16

17

18

21 22

14

13

11

7

8

10

2

8

7

6

5

4

3

1

Ref Part No

No No Used Description

1 9373 1 6.00 x 9 Laminated tire w/hub &

axle

2 4984 1 Heavy hub with long axle

3 3626 1 1--14 UNS Hex nut

4 3689 * 1 1” Standard lockwasher

5 6271 1 Long axle assembly for heavy hub

6 314 1 Seal for 1-1/2 shaft

7 310 2 Bearing cone #15126

8 309 2 Bearing cup #15245

9 530 1 Heavy wheel hub with bearing cups

10 1972 * 1 1/4--28 Tapered thread grease fitting

11 1257 * 2 3/4 Standard flat washer

Ref Part No

No No Used Description

12 5849 1 3/4 NF Slotted hex nut

13 1256 * 1 3/16 x 1 Cotter pin

14 531 1 Hub cap, heavy-duty

15 7431 1 Wheel rim w/hardware, 6.00 x 9

16 7430 2 Rim half for 6.00 x 9 tire

17 835 * 4 3/8 NC Hex nut, plated

18 838 * 4 3/8 Standard lockwasher

19 19887 * 4 3/8 NC x 1 Hex head cap screw GR

8

21 855 * 4 1/2 Extra-heavy lockwasher

22 4119 4 1/2 NF x 1 Hex head cap screw GR

5

23 7428 1 6.00 x 9 Solid tire and rim

* Obtain Locall

y

Ref Part No

No No Used Description

1 2315 1 15” Wheel rim, cast hub & axle

2 2302 1 Standard wheel hub & axle

3 3626 1 1--14 UNS Hex nut

4 3689 * 1 1” Standard lockwasher

5 2301 1 Axle for standard hub

6 6273 1 Seal for 1-1/2 shaft

7 2303 1 Bearing cone #LM67048

8 2305 1 Bearing cup #LM67010

Ref Part No

No No Used Description

9 2307 1 Cast hub with cups

10 1972 * 1 1/4--28 Tapered thread grease fitti

n

11 5849 1 3/4 NF Slotted hex nut

12 1256 * 1 3/16 x 1 Cotter pin

13 6248 1 Hub cap, standard

14 529 1 15” 4-Hole rim

15 1258 4 1/2 NF x 1-1/8 Wheel bolt

16 2864 * 1 3/4 SAE Flat washer

* Obtain Locally

Parts 51

15914 (Rev. 3/23/2007)

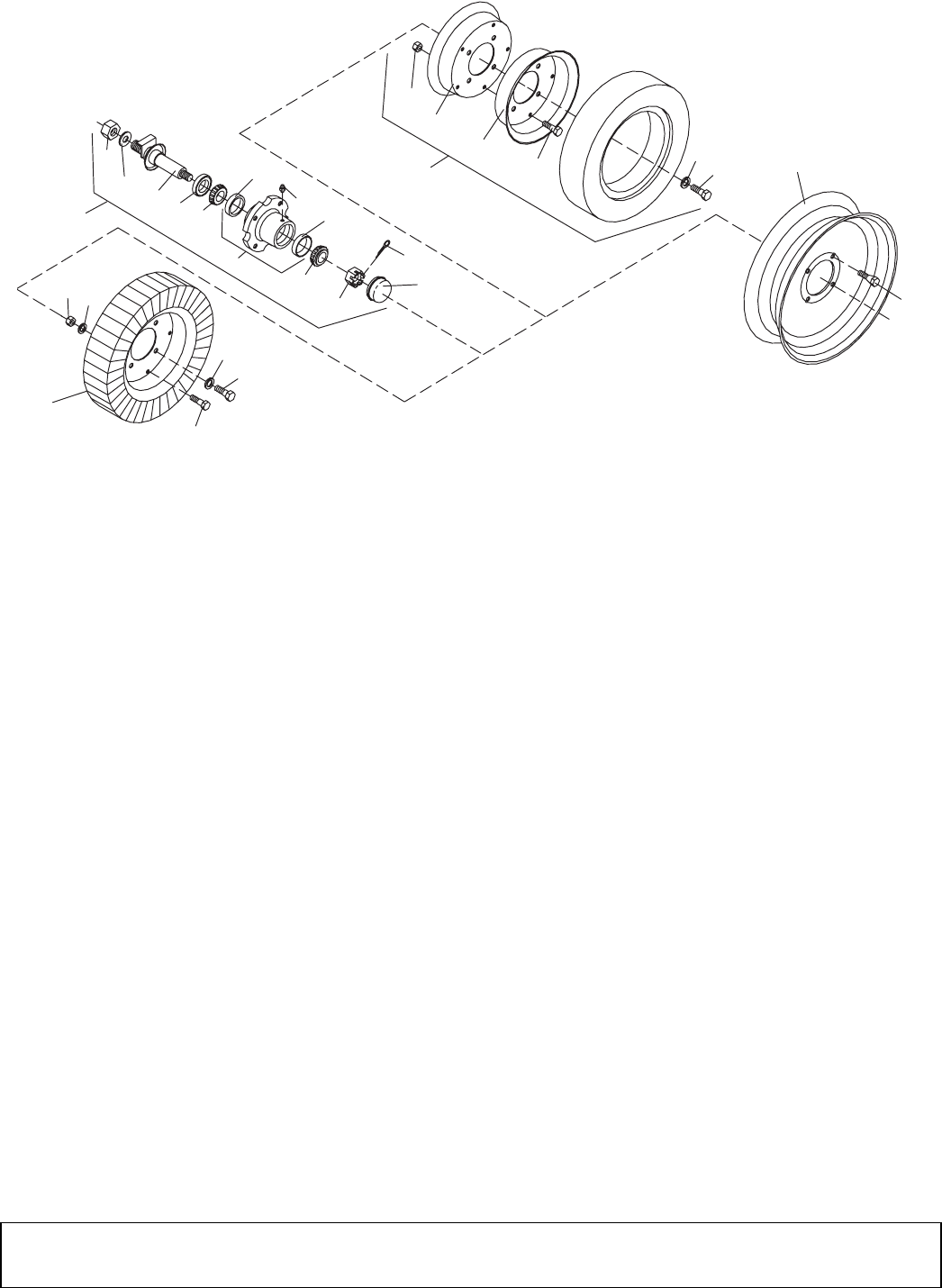

D80-2 AIRCRAFT TIRE & HUB

10

9

19

17

18

20

21

10

SOL ID T IRE

&RIM

27

10 26 20 21

22

10

1

25

24

23

16

15

9

8

7

6

5

4

3

2

RIM F OR

PNEUMAT IC

TIRE

AIRCRAFT

TIRE & R IM

CD4574

REF PART QTY DESCRIPTION

1 12080 1 Standard hub with long axle

2 2307 1 Hub with cups

3 12081 1 Wing axle assembly

4 6273 1 Seal for 1-1/2 shaft

5 2303 1 Bearing cone

6 2305 1 Bearing cup

7 2306 1 Bearing cup

8 2304 1 Bearing cone

962481Hub cap

10 529 1 15" 4-Hole rim for pneumatic tire -or-

10 7428 1 6.00 x 9 Solid tire, rim & hardware

-or-

10 1003695 1 Wheel assembly 22 x 6.6 x 10.0

10A 1015834 1 Inner tube for #1003695 wheel

11 1003694 1 Rim half, aircraft wheel

12 1003693 1 Rim half with valve hole, aircraft

wheel

15 1256 * 3/16 x 1 Cotter pin

16 1972 * 1/4 - 28 Tapered thread grease fitting

HARDWARE

REF PART DESCRIPTION

17 838 *† 3/8 Standard lock washer

18 835 *† 3/8 NC Hex nut, plated

19 19887 † 3/8 NC x 1 HHCS GR8

20 855 *‡ 1/2 Extra-heavy lock washer

21 4358 ‡ 1/2 NF x 1-1/4 HHCS GR5 (solid tire

only)

22 1258 1/2 NF x 1-1/8 Wheel bolt (pneumatic

rim only)

23 5849 3/4 NF Slotted hex nut

24 3689 1" Standard lock washer

25 3626 1-14 UNS Hex nut

26 ----- * 9/16 NC x 1-1/4 HHCS (for aircraft

wheel)

27 ----- * 9/16 NC Hex lock nut (for aircraft

wheel)

* Obtain Locally - Standard Hardware

† Used on Solid Wheel Only

‡ Used on Solid and Aircraft Wheels

only

52 Parts

15914 (Rev. 3/23/2007)

MD80-2 TAILWHEEL ASSEMBLY

16

15

12

17

18

19

11

10

7

8

9

9

8

7

6

20

22

21

14

23

5

13

5

23

4

3

2

1

CD3832

24

REF PART QTY DESCRIPTION

1 15783 1 Tailwheel arm assembly (includes

items 5 & 13)

2 15270 1 Tailwheel clevis

3 15591 1 Wheel hub with cups includes items 9

& 13)

4 4676 1 4.00 x 8 Rim and laminated tire

5 11011 2 1.5 x 1.00 x 1.5 Bronze bushing

6 15279 1 1.25 x 1.50 x .63 Sleeve

7 314 2 Seal for 1-1/2 Shaft

8 310 2 Bearing cone

9 309 2 Bearing cup

10 15281 1 1.0 x 1.25 x 4.53 Sleeve

11 15280 1 1.25 x 1.50 x .821 Sleeve

12 4679 2 Rim half

13 1972* - 1/4-28 Tapered thread grease fitting

14 4674 - 3/8 x 2 Spirol pin

15 838* - 3/8 Standard lockwasher

16 835* - 3/8 Hex nut, plated

17 839* - 3/8 NC x 1 HHCS GR5

18 855* - 1/2 Heavy lockwasher

19 4119 - 1/2 NF x 1 HHCS GR5

20 1386 - 1" NC Hex jam nut

REF PART QTY DESCRIPTION

21 34279 - 1" NC Hex locknut

22 15278 - 1" NC x 7-1/2 HHCS GR5

23 2370 - .18 x 1.62 ID x 3 OD Washer

24 15277 1 Wheel hub assembly (includes items

7, 8, 9 & 13)

* Obtain Locally - Standard Hardware

Parts 53

15914 (Rev. 3/23/2007)

D80-2 PIVOT LINK KIT (OPTIONAL)

D80-2 HYDRAULIC HOSE KIT & FITTINGS (OPTIONAL)

REF PART QTY DESCRIPTION

1 8751 1 Pivot link kit

2 12305 * 1 1/2 x 5-1/2 HHCS GR5

3 3443 1 Hydraulic hose holder

4 1093 1 1/2 NC Hex nut

5 15792 1 Pivot link

6 ----- 1 Cylinder (see page 54

7 ----- 1 Crank (see page 49)

* Obtain locally

REF PART QTY DESCRIPTION

1 17601 1 1/4 x 108 Hydraulic hose kit and fittings

2 17628 1 1/4 NPT x 108 Hydraulic hose assembly

3 10290 1 1/4 x 1/4 x 90-degree Elbox with 1/16

restrictor

4 11893* 1 1/4 x 1/2 Pipe reducer bushing

* Obtain Locally - Standard Hardware

54 Parts

15914 (Rev. 3/23/2007)

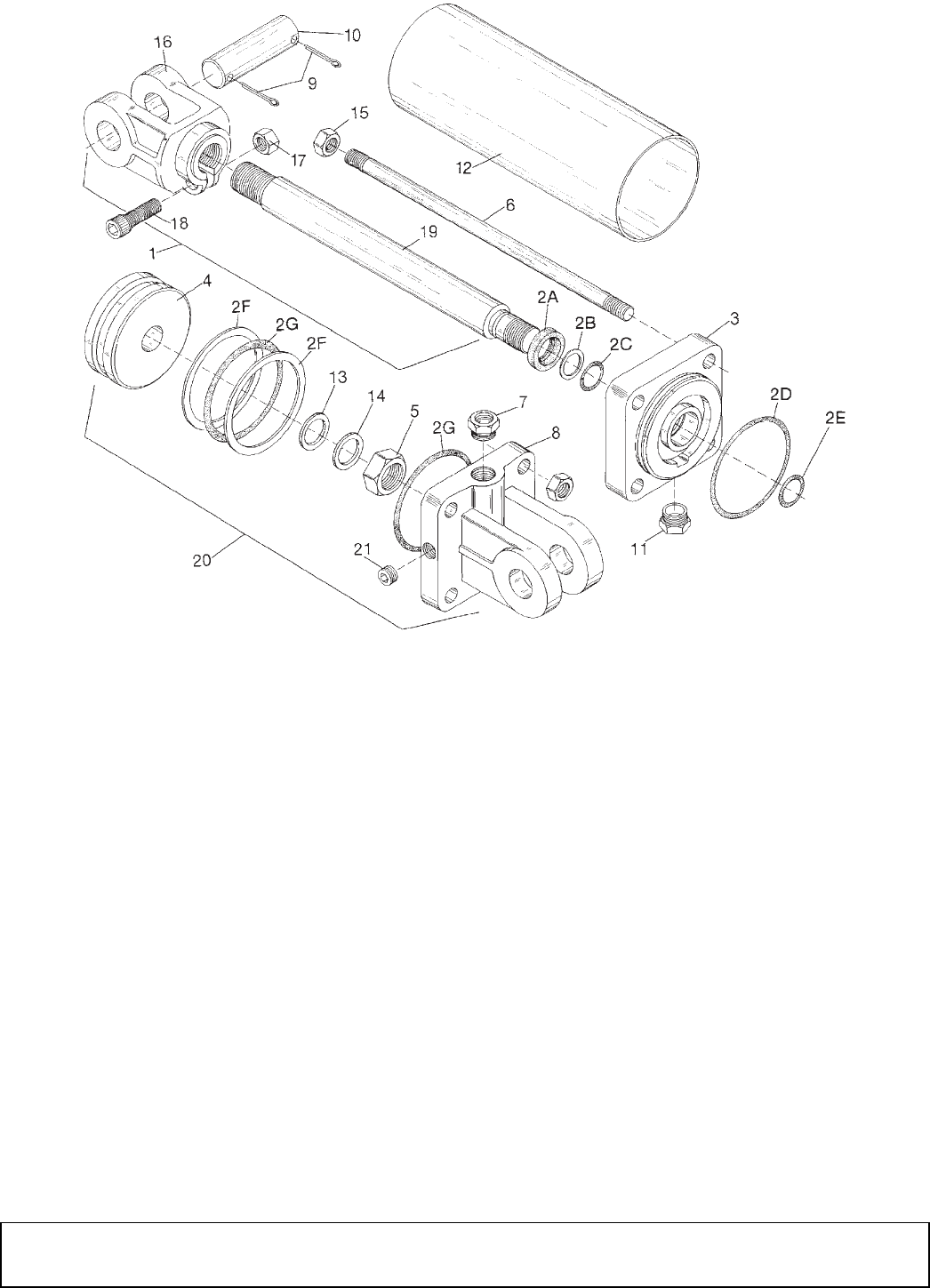

D80-2 3-1/2 X 8" HYDRAULIC CYLINDER #10475 (OPTIONAL)

DC1105

REF PART QTY DESCRIPTION

1 ----- - Not available

2 26340 1 Seal kit (includes 2A thru 2G)

2A † 1 1-1/4 ID Wiper seal

2B † 1 Rod back-up ring

2C † 2 1-1/4 ID O-ring

2D † 2 3/16 x 3-1/2 OD O-ring

2E † 1 3/32 x 3/4 OD O-ring

2F † 2 3-1/2 OD Back-up washer

2G † 1 Piston seal o-ring

3 26338 1 Rod end housing

4 25497 1 Piston

5 25496 1 1-14 UNS Jam nut

6 26341 4 Tie rod

7 11893* 1 1/2 x 1/4 Pipe reducer bushing

8 25494 1 Cylinder butt end

9 923* 4 1/4 x 1-3/4 Cotter pin

10 1631 2 1 x 3-5/8 Clevis pin

11 11975 1 1/2 NPT Vent plug -or-

11 23547 1 1/4 NPT Vent plug

12 26342 1 Cylinder barrel

13 ----- - Not required

14 ----- - Not required

15 4391 8 1/2 NF Hex jam nut

16 25661 1 Cylinder rod clevis

17 6698* 1 3/8 NC Hex locknut

18 23550* 1 3/8 NC x 1-1/2 Socket head cap

screw

19 26343 1 Cylinder rod

20 10475 1 Hydraulic cylinder complete (single-

acting)

21 4510* 1 1/2 Pipe plug

* Obtain Locally - Standard Hardware

† Included in Seal Kit

REF PART QTY DESCRIPTION

Parts 55

15914 (Rev. 3/23/2007)

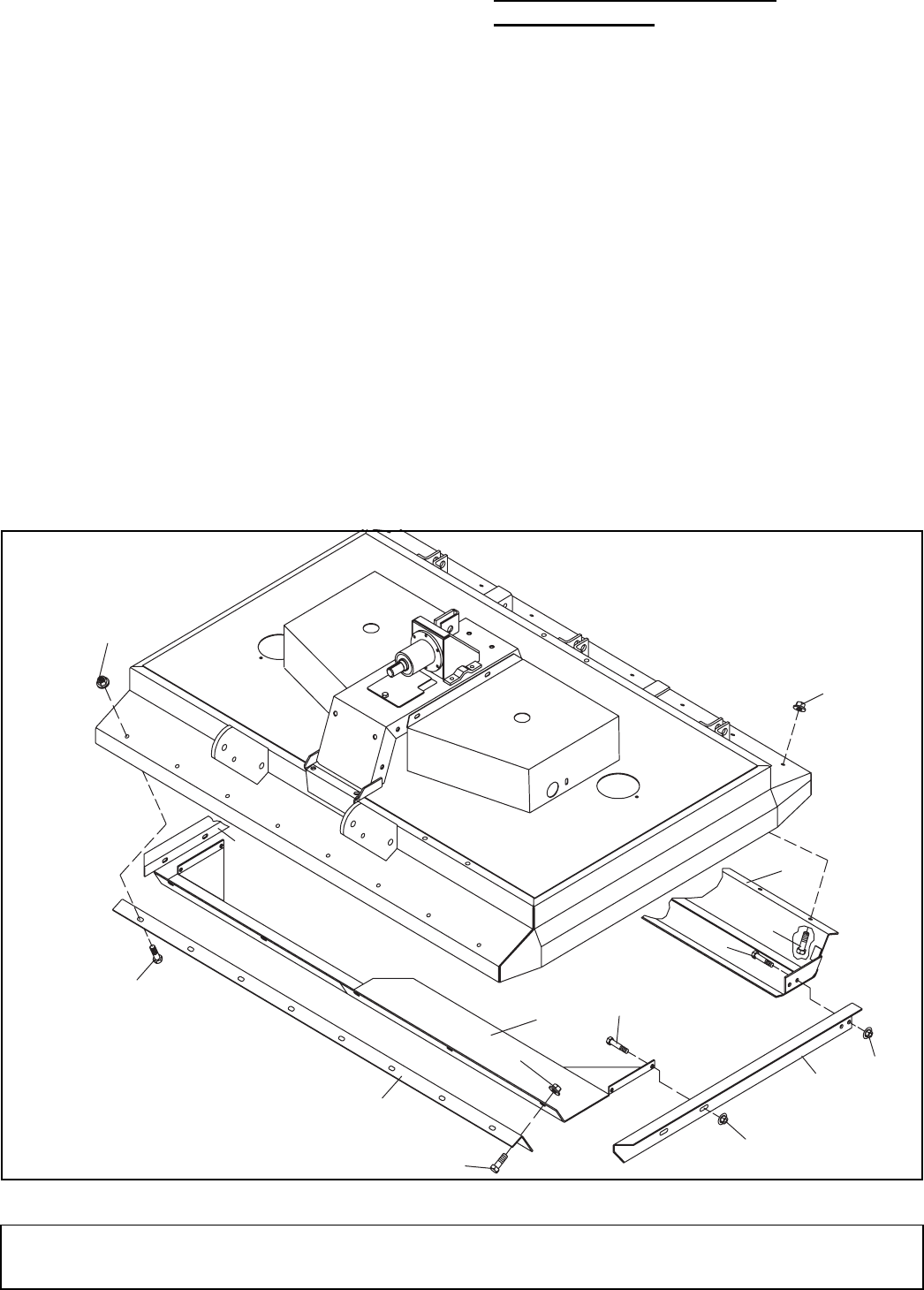

D80-2 & MD80-2 LEAF MULCHER ASSEMBLY (OPTIONAL)

MD80-2 CHECK CHAIN ASSEMBLY (OPTIONAL)

Ref Part No

NoNo Used Description

18757 1 Leaf mulcher complete

2 29089 1 Leaf mulcher adapter

3 12981 Front shield

4 157981 Right angle leaf mulcher

5 15797 1 Rear leaf mulcher

6 15799 1 Left side angle leaf mulcher

7 25475 -- 1/2 x 1 Hex head cap screwGR5

811900 * -- 1/2 NC Flanged hex locknut

*Obtain Locally

1

8

7

8

7

8

7

8

7

8

7

2

4

3

6

5

CD3853

9

8

7

6

5

4

3

2

1

CD3826

REF PART QTY DESCRIPTION

- 10521 - Check chain kit complete

1 12274 - 5/8 x 2-1/4 Bolt

2 ----- - Cutter mast plate

3 3632 - 5/8 Flat washer

4 6239 - 5/8 Hex locknut

5 2377 - 3/4 x 6 Bolt

6 ----- - Tractor top link bracket

7 7906 2 Check chain bracket

8 2371 - 3/4 Hex locknut

9 18048 2 3/8 Chain, 32-link

* Obtain Locally - Standard Hardware

56 Parts

15914 (Rev. 3/23/2007)

MD80-2 CATEGORY 2 HITCH PIN OPTIONS

MD80-2 CATEGORY 2 BUSHING KIT

Ref Part No

No No Used Description

1 13010 1 Category 2 hitch pin mounting

kit

2 12275 2 Category 2 mounting pin, 6”

long

3 1266 * 2 3/16 x 1-1/2 Cotter pin

4 13011 2 7/8 x 2-3/8 x 3/16 Flat washer

5 13012 2 7/8 NF Castle hex nut

6 7372 1 25/32 x 1 x 2 Sleeve

* Obtain Locally

Ref Part No

No No Used Description

1 7112 1 Category 2 hitch bushing

adapter kit

2 3253 2 7/8 x 1-1/8 x 1-3/4 Sleeve

3 7372 1 25/32 x 1 x 2 Sleeve

4 1591 1 3/4 x 4-3/8 Clevis pin

5 1266 * 2 3/16 x 1-1/2 Cotter pin

* Obtain Locally

Appendix 57

Bolt Torque & Size Charts (Rev. 3/28/2007)

BOLT TORQUE CHART

Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific

application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.

Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.

Make sure fastener threads are clean and you start thread engagement properly.

All torque values are given to specifications used on hardware defined by SAE J1701 MAR 99 & J1701M JUL 96.

Diameter

(Inches)

Wrench

Size

MARKING ON HEAD

SAE 2 SAE 5 SAE 8

lbs-ft N-m lbs-ft N-m lbs-ft N-m

1/4" 7/16" 6 8 10 13 14 18

5/16"1/2"121719262737

3/8"9/16"233135474967

7/16"5/8"3648557578106

1/2" 3/4" 55 75 85 115 120 163

9/16" 13/16" 78 106 121 164 171 232

5/8" 15/16" 110 149 170 230 240 325

3/4" 1-1/8" 192 261 297 403 420 569

7/8" 1-5/16" 306 416 474 642 669 907

1" 1-1/2" 467 634 722 979 1020 1383

Diameter &

Thread Pitch

(Millimeters)

Wrench

Size

COARSE THREAD FINE THREAD

Diameter &

Thread Pitch

(Millimeters)

MARKING ON HEAD MARKING ON HEAD

Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9

N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft

6 x 1.0 10 mm 8 6 11 8 8 6 11 8 6 x 1.0

8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8 x 1.0

10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10 x 1.25

12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25

14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5

16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5

18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5

20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5

22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5

24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0

30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0

A

SAE SERIES

TORQUE

CHART

SAE Bolt Head

Identification

SAE Grade 2

(No Dashes)

SAE Grade 5

(3 Radial Dashes)

SAE Grade 8

(6 Radial Dashes)

A

METRIC SERIES

TORQUE

CHART

Metric Bolt Head

Identification

8.8

Metric

Grade 10.9

10.9

Metric

Grade 8.8

A

A A

Typical Washer

Installations

Lock Washer

Flat Washer

8/9/00

Bolt

58 Appendix

Bolt Torque & Size Charts (Rev. 3/28/2007)

BOLT SIZE CHART

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts.

ABBREVIATIONS

AG .............................................................. Agriculture

ASABE ....................American Society of Agricultural &

Biological Engineers (formerly ASAE)

ASAE....... American Society of Agricultural Engineers

ATF................................Automatic Transmission Fluid

BSPP............................. British Standard Pipe Parallel

BSPTM................ British Standard Pipe Tapered Male

CV ....................................................Constant Velocity

CCW.............................................. Counter-Clockwise

CW .............................................................. Clockwise

F .......................................................................Female

FT.............................................................. Full Thread

GA .....................................................................Gauge

GR (5, etc.)........................................... Grade (5, etc.)

HHCS ........................................Hex Head Cap Screw

HT ...........................................................Heat-Treated

JIC................. Joint Industry Council 37° Degree Flare

LH................................................................. Left Hand

LT ...........................................................................Left

m ........................................................................ Meter

mm ............................................................... Millimeter

M ..........................................................................Male

MPa ........................................................ Mega Pascal

N ......................................................................Newton

NC...................................................... National Coarse

NF ...........................................................National Fine

NPSM .................... National Pipe Straight Mechanical

NPT...........................................National Pipe Tapered

NPT SWF......... National Pipe Tapered Swivel Female

ORBM ...........................................O-Ring Boss - Male

P .......................................................................... Pitch

PBY.......................................................Power-Beyond

psi ......................................... Pounds per Square Inch

PTO......................................................Power Take Off

QD ................................................... Quick Disconnect

RH.............................................................. Right Hand

ROPS........................... Roll-Over Protective Structure

RPM........................................Revolutions Per Minute

RT ........................................................................Right

SAE.......................... Society of Automotive Engineers

UNC ..................................................... Unified Coarse

UNF ..........................................................Unified Fine

UNS ..................................................... Unified Special

5/16 3/81/2 5/83/4 7/8

SAE Bolt Thread Sizes

MM 25 50 75 100 125 150 175

IN 1 7

Metric Bolt Thread Sizes

8MM 18MM14MM12MM10MM 16MM

234 56

Index 59

15914 (Rev. 3/23/2007)

INDEX

ASSEMBLY 28

Dealer Set-Up Instructions 28

Blade Installation 28

Chain Shielding Installation 29

Distribution Baffle Installation 28

Gearbox Lubrication 29

MD80 Assembly 33

Optional Hydraulic Installation for D80-2 Pull-

Type Cutter 32

Tongue Installation for D80-2 Pull-Type Cutter

31

Wheel Yoke Installation for D80-2 Pull-Type

Cutter 30

Optional Check Chain Installation 35

Optional Leaf Mulcher Installation 34

DEALER CHECK LISTS 36

Delivery 36

Pre-Delivery 36

DEALER SERVICE 22

Blade Spindle Repair 23

Assembly 23

Gearbox Maintenance 22

Bearing Check 22

Damage Inspection 22

Gearbox Adjustment 23

Gearbox Assembly 23

Gearbox Disassembly 22

Leakage Repair 22

Possible Leakage Causes 22

Removing Gearbox from Cutter 22

Seal Installation 23

Servicing Tires Safely 26

Shield Bearing Service 24

Troubleshooting 27

Universal Joint Repair 24

U-Joint Assembly 25

U-Joint Disassembly 24

GENERAL

Abbreviations 58

Bolt Size Chart 58

Bolt Torque Chart 57

Introduction 2

Obtaining Replacement Manuals 2

Warranty

Product 60

Replacement Parts 61

OPERATION 13

Attaching Mounted Cutter to Tractor 13

Cutting Height Adjustment

For MD80 Mounted Cutter 15

With Tailwheel or Check Chains 15

Without Tail-wheel or Check Chains 15

MD80 Mounting 13

Attaching Pull-Type Cutter to Tractor 15

Cutting Height Adjustment

For D80 Pull-Type Cutter 16

Operating technique 16

Tips 17

Uneven Terrain 17

Pre-Operation Check List 16

Starting and stopping Cutter 16

Storage 17

Tractor Stability 13

OWNER SERVICE

Blade Servicing 18

Blade Installation 20

Blade Removal 19

Blade Sharpening 20

Chain Shielding 20

Lubrication Information 18

Servicing Tires Safely 21

SAFETY

Check Lists

Delivery 36

Pre-Delivery 36

Pre-Operation 16

Free Mower Safety Video Order Form 5, 6

Safety & Instructional Decals 10

Safety Rules 7

Safety Symbols Explained 2

F-3079 (Rev. 1/16/2007)

Woods Equipment

Company

2606 South Illinois Route 2

Post Office Box 1000

Oregon, Illinois 61061

800-319-6637 tel

800-399-6637 fax

www.WoodsEquipment.com

WARRANTY

(All Models Except Mow’n MachineTM Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Please Enter Information Below and Save for Future Reference.

Date Purchased: ____________________________ From (Dealer): ___________________________________________

Model Number: ____________________________ Serial Number: ___________________________________________

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship. Except as otherwise set

forth below, the duration of this Warranty shall be for TWELVE (12) MONTHS COMMENCING ON THE DATE OF DELIVERY OF THE

PRODUCT TO THE ORIGINAL PURCHASER.

Woods backhoe models BH70-X, BH80-X, and BH90-X are warranted for two (2) years from the date of delivery to the original purchaser.

The warranty periods for specific parts or conditions are listed below:

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to

improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been

materially modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized

service center. This Warranty does not cover normal wear or tear, or normal maintenance items. This Warranty also does not cover repairs made

with parts other than those obtainable through WOODS.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this product to

a third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.

WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories not manufactured by

WOODS. Warranties for these items, if any, are provided separately by their respective manufacturers.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if WOODS,

in its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product must be returned to WOODS with proof

of purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the

dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete such repair or

replacement within a reasonable time after WOODS receives the product. THERE ARE NO OTHER REMEDIES UNDER THIS

WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS

WA R R A N T Y.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. WOODS

MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY

OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the

product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal

theory. Without limiting the generality of the foregoing, Woods specifically disclaims any damages relating to (i) lost profits, business, revenues

or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute machinery

or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture

replacement parts.

No agent, representative, dealer, distributor, serviceperson, salesperson, or employee of any company, including without limitation, WOODS, its

authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:

Model Number

Part or

Condition

Warranted

Duration (from date of delivery

to the original purchaser)

PHD25, PHD35, PHD65, PHD95, 1260, 2162, 3240, BB48, BB60, BB72, BB84,

BB600, BB720, BB840, BB6000, BB7200, BB8400, BW180-2, BW1800, DS96,

DS120, DS1260, DSO1260, DS1440, TS1680, RCC42, RM550-2, RM660-2,

RM990-3, PRD6000, PRD7200, PRD8400, 7144RD-2, 9180RD-2, 9204RD-2,

S15CD, S20CD, S22CD, S25CD, S27CD

Gearbox

components 5 years

RDC54, RD60, RD72 Gearbox

components

3 years (1 year if used in rental or

commercial applications)

RM550-2, RM660-2, RM990-3, PRD6000, PRD7200, PRD8400, 7144RD-2,

9180RD-2, 9204RD-2 Blade spindles 3 years

BB600, BB720, BB840, BB6000, BB7200, BB8400, BW126, BW180, BW1260,

BW1800, 1260, 2162, 3240 Rust-through 10 years

F-8494 (Rev. 6/23/2005)

Woods Equipment

Company

2606 South Illinois Route 2

Post Office Box 1000

Oregon, Illinois 61061

800-319-6637 tel

800-399-6637 fax

www.WoodsEquipment.com

WARRANTY

(Replacement Parts For All Models Except Mow’n MachineTM

Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and

workmanship for a period of ninety (90) days from the date of delivery of the product to the original

purchaser with the exception of V-belts, which will be free of defect in material and workmanship for a

period of 12 months.

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of

WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This

Warranty does not cover normal wear or tear, or normal maintenance items.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell

or otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser

in any way. There are no third party beneficiaries of this Warranty.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of

charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with

this Warranty. The product must be returned to WOODS with proof of purchase within thirty (30)

days after such defect or noncompliance is discovered or should have been discovered, routed through

the dealer and distributor from whom the purchase was made, transportation charges prepaid.

WOODS shall complete such repair or replacement within a reasonable time after WOODS receives the

product. THERE ARE NO OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF

REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS

WA RRA N TY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF

THIS WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND

WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/

OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising

directly or indirectly from the product, whether such claim is based upon breach of contract, breach

of warranty, negligence, strict liability in tort or any other legal theory. Without limiting the generality

of the foregoing, Woods specifically disclaims any damages relating to (i) lost profits, business, revenues or

goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for

labor, supplies, substitute machinery or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to

obtain materials or manufacture replacement parts.

No agent, representative, dealer, distributor, service person, salesperson, or employee of any company,

including without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized

to alter, modify, or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:

W

oods Equipment

C

ompany

2

606 South Illinois Route 2

Post Office Box 1000

O

regon, Illinois 61061

8

15-732-2141 tel

8

15-732-7580 fax

w

ww.WoodsEquipment.com

15914

© 1996 Woods Equipment Company. All rights reserved. WOODS, the Woods logo, and "Tested. Proven. Unbeatable." are trademarks of Woods

Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual

are the property of their respective companies or mark holders. Specifications subject to change without notice.
