OPER ATOR'S MANUAL

LOADERS

MAN0556

(Rev. 1/6/2011)

Tested. Proven. Unbeatable.

LF138

LF156

2 Introduction

Gen’l (Rev. 3/5/2010)

TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the Woods® dealer. Read manual instructions

and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual

are completed before releasing equipment to the owner.

The dealer must complete the online Product Registration form at the Woods Dealer Website which certifies that

all Dealer Check List items have been completed. Please contact your dealer to complete this form. Dealers can

register all Woods product at dealer.WoodsEquipment.com under Product Registration.

Failure to register the product does not diminish customer’s warranty rights.

TO THE OWNER:

Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and

safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become

acquainted with all adjustment and operating procedures before attempting to operate. Replacement manuals can be

obtained from your dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in

the United States and Canada call 1-800-319-6637.

The equipment you have purchased has been carefully engineered and manufactured to provide dependable and

satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.

Observe all safety information in this manual and safety decals on the equipment.

For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary

tools and equipment to handle all your needs.

Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for

safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces

provided:

Model: _______________________________ Date of Purchase: _____________________

Serial Number: (see Safety Decal section for location) ____________________________________

Provide this information to your dealer to obtain correct repair parts.

Throughout this manual, the term NOTICE is used to indicate that failure to observe can cause damage to equipment.

The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with

an exclamation mark) to indicate the degree of hazard for items of personal safety.

Introduction 3

MAN0556 (9/21/2007)

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety & Instructional Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Owner Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Dealer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Dealer Check Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Parts Lists

LF138 & LF156 Loader Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 38 - 39

Quick Attach Bucket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Pin-on Bucket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Quick Attach Coupler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

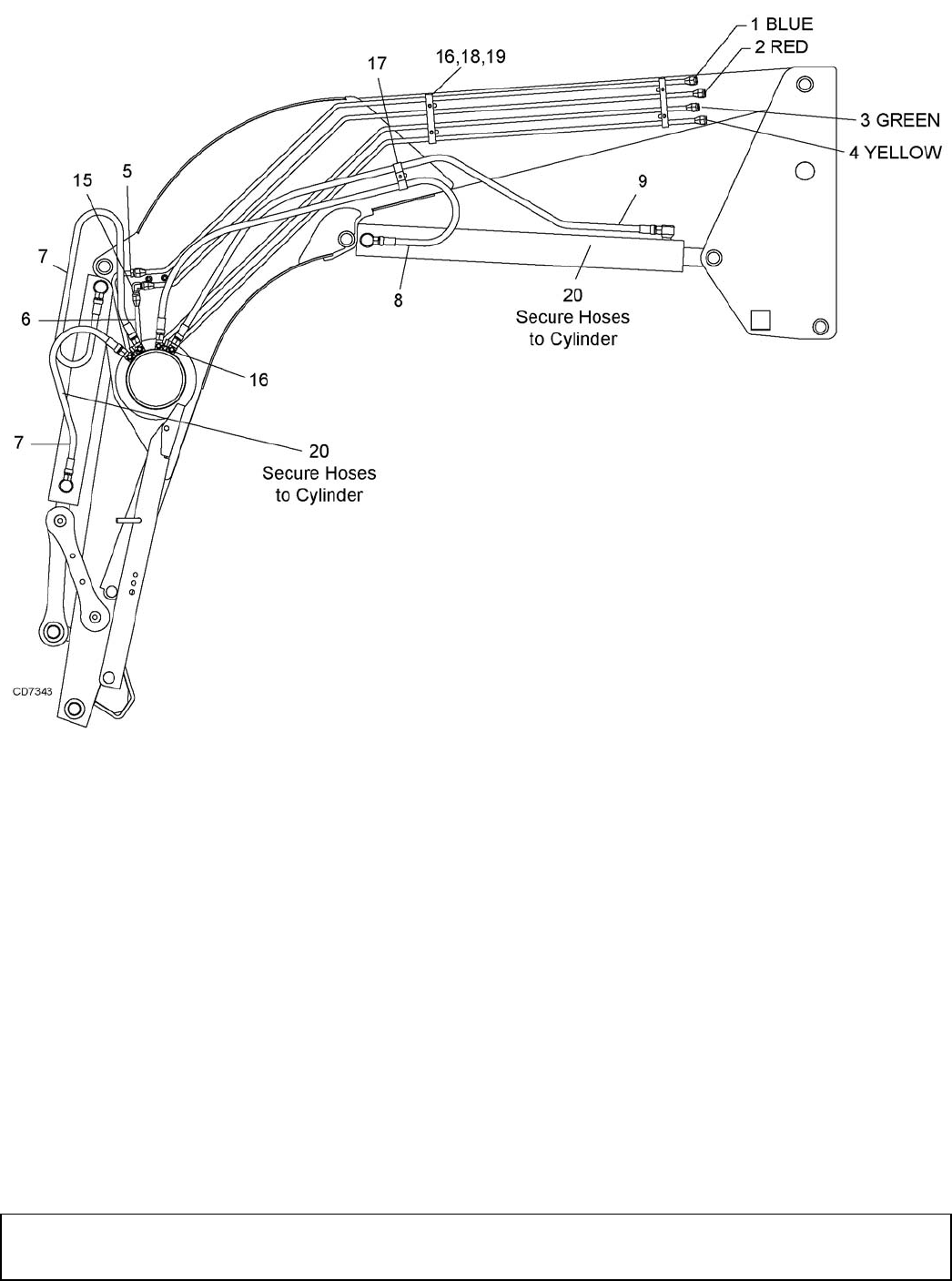

Hydraulic Hose Routing & Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . 42

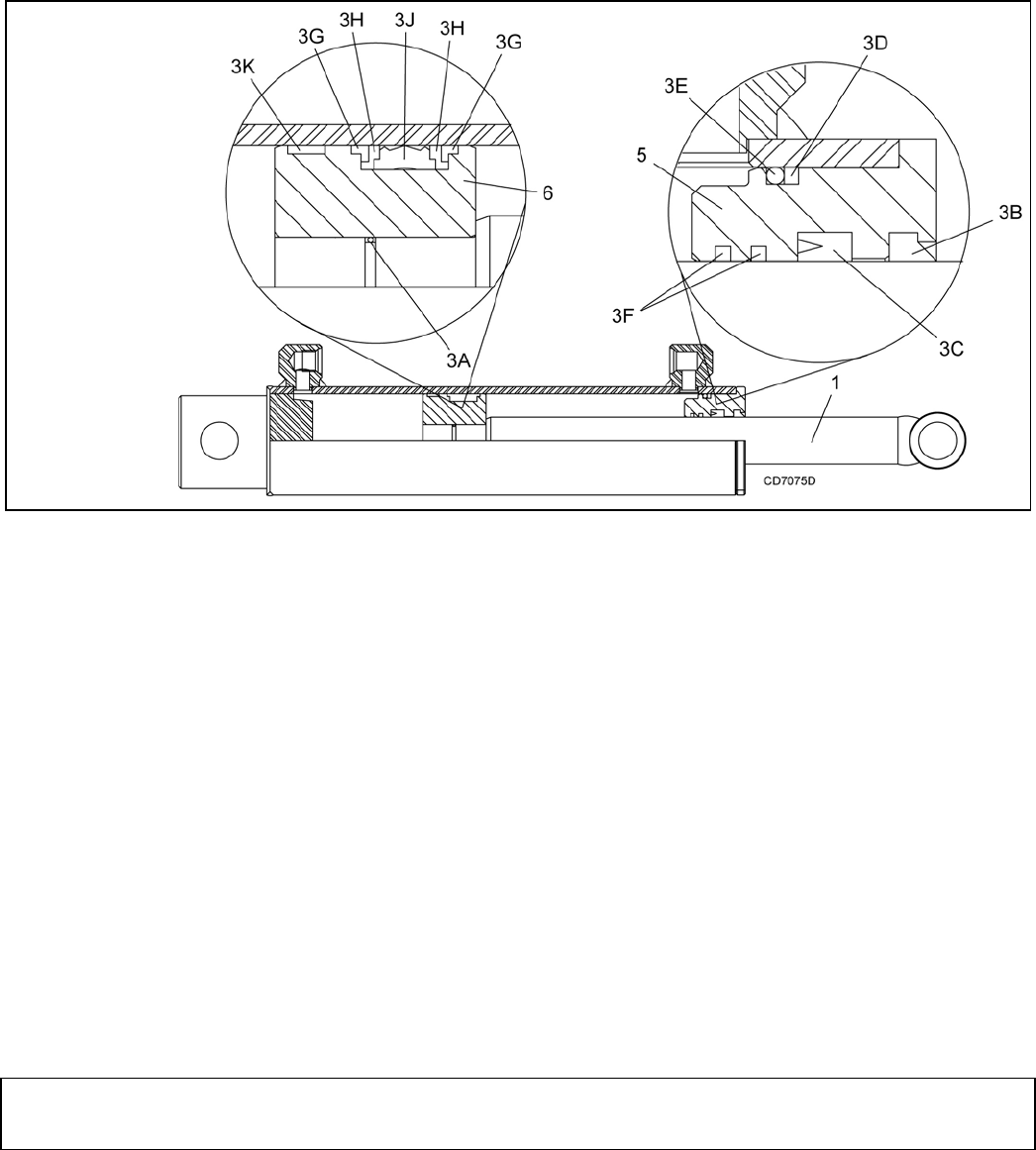

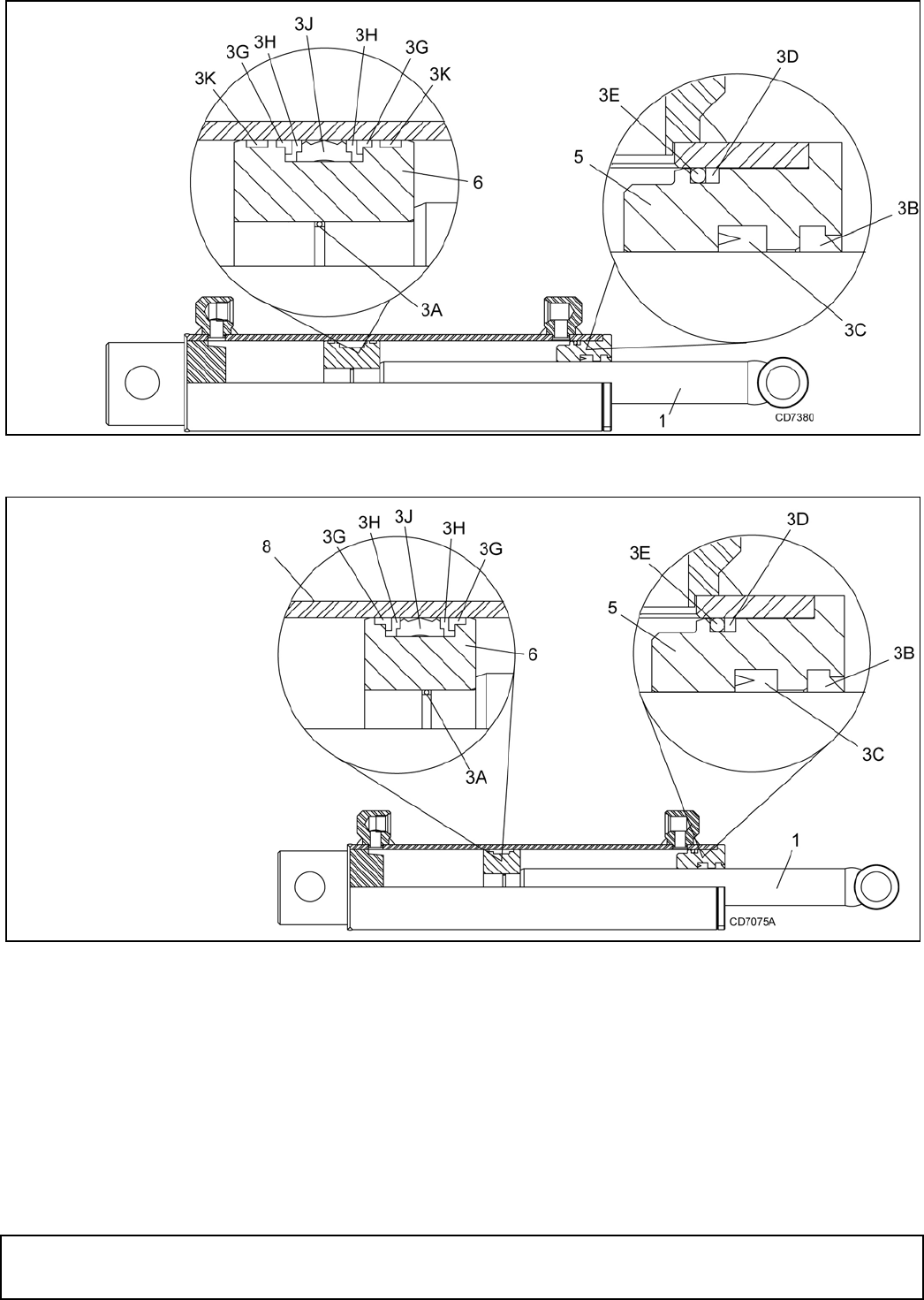

Hydraulic Cylinder Seal Kit & Assembly . . . . . . . . . . . . . . . . . . . . . . . . 43

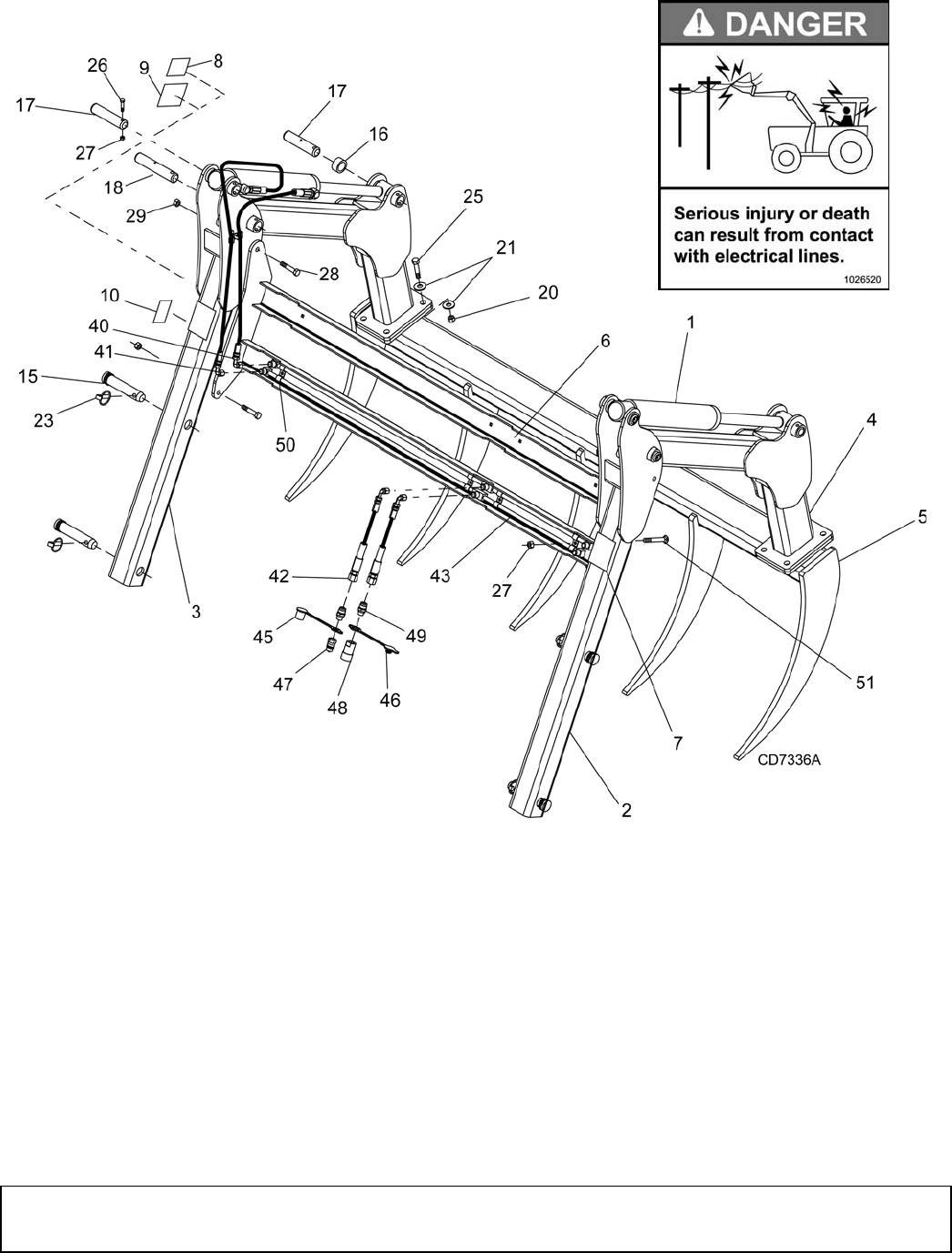

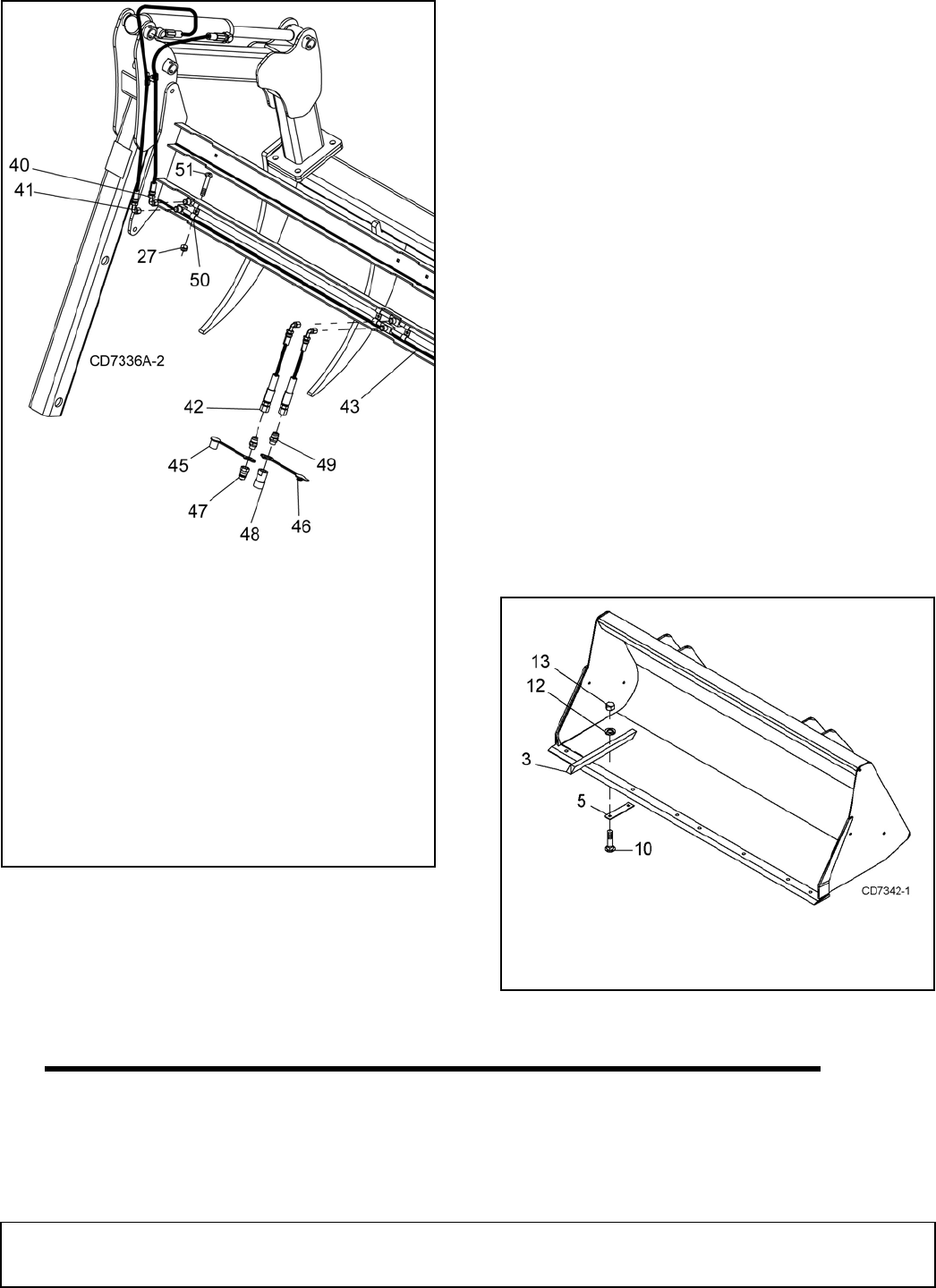

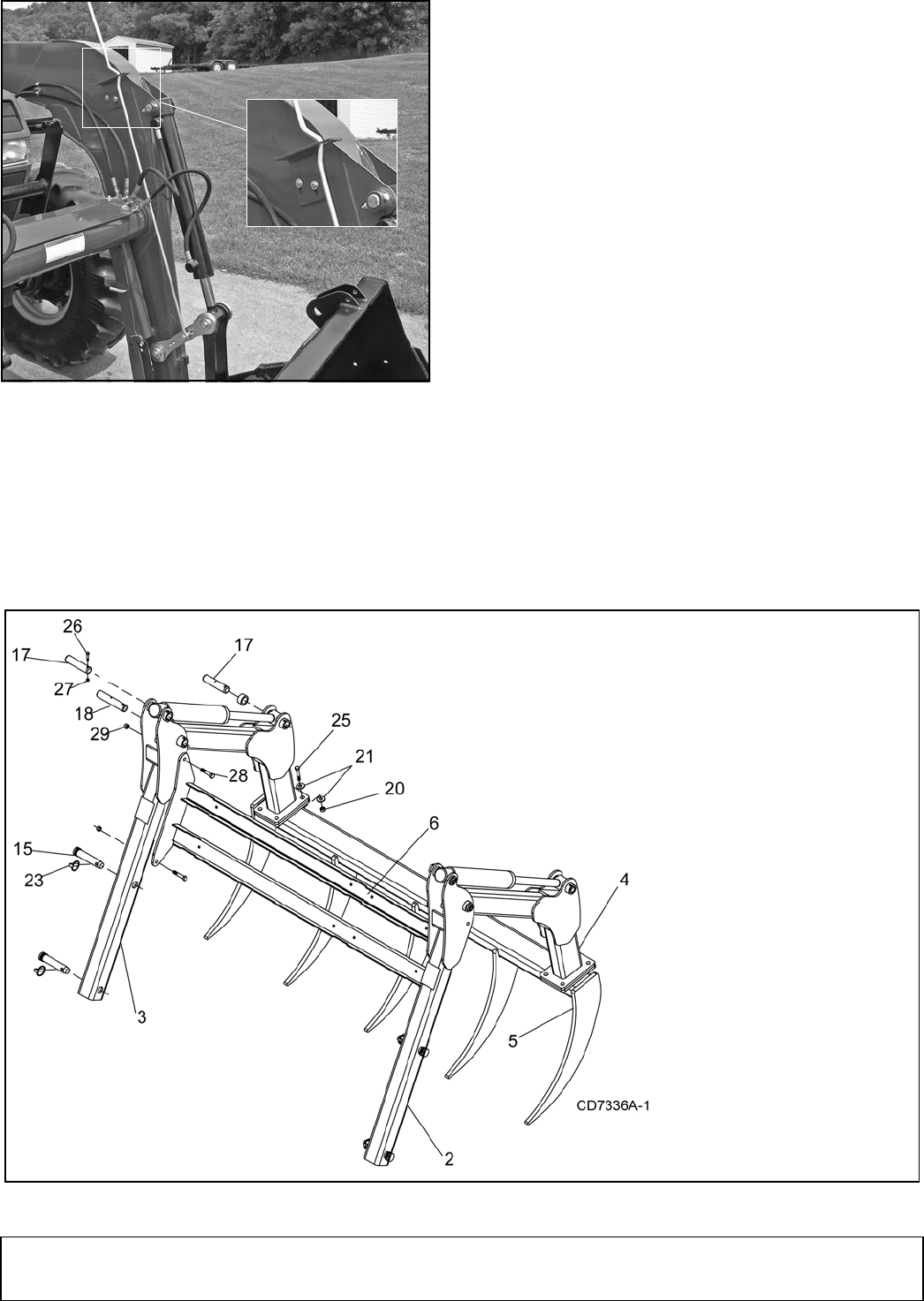

Grapple Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 - 45

Bolt Torque Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Bolt Size Chart & Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Product Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover

Replacement Parts Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

GENERAL INFORMATION

The purpose of this manual is to assist you in operating

and maintaining your loader. Read it carefully. It

furnishes information and instructions that will help you

achieve years of dependable performance. These

instructions have been compiled from extensive field

experience and engineering data. Some information

may be general in nature due to unknown and varying

operating conditions. However, through experience

and these instructions, you should be able to develop

procedures suitable to your particular situation.

The illustrations and data used in this manual were

current at the time of printing, but due to possible inline

production changes, your machine may vary slightly in

detail. We reserve the right to redesign and change the

machines as may be necessary without notification.

Throughout this manual, references are made to right

and left directions. These are determined by standing

behind the equipment facing the direction of forward

travel.

4 Introduction

MAN0556 (9/121/2007)

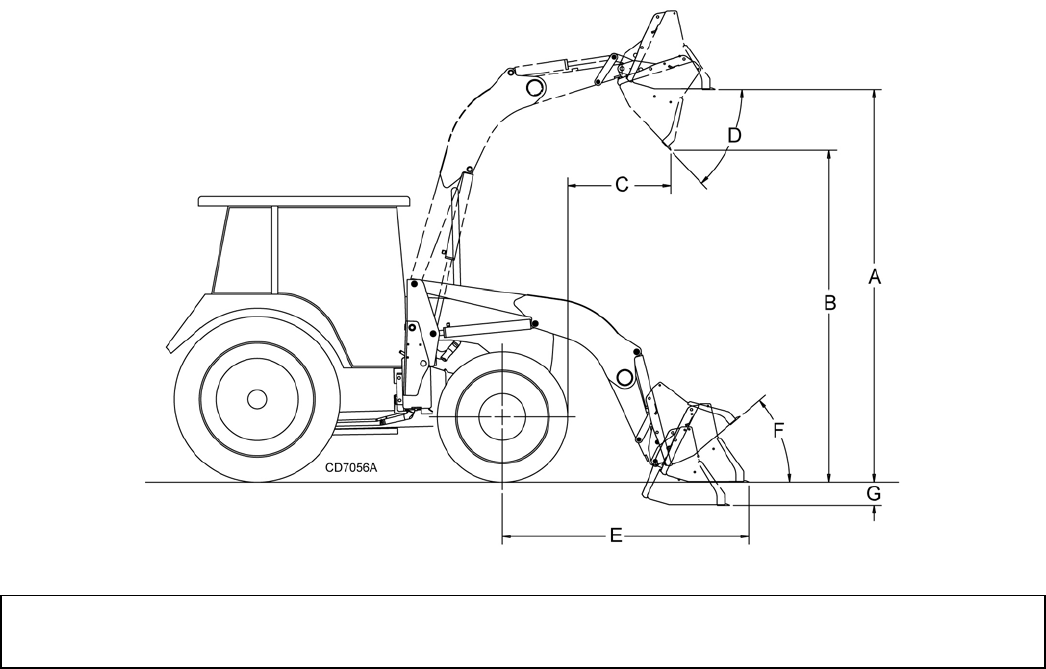

SPECIFICATIONS

Specifications will vary with tractor, tire size, hydraulic system and bucket used. The specifications are given for a

loader equipped with a 84" (LF138) and 96" (LF156) material bucket, operated with an average tractor hydraulic

system of 10-20 gpm with engine operating at rated PTO rpm and a control valve relief setting of 2750 psi.

Model LF138 Model LF156

A Maximum Lift Height 138" 156"

B Clearance with Attachment Dumped 103" 121"

C Reach at Maximum Height 32" 36"

D Maximum Dump Angle 50° 50°

E Reach with Attachment on Ground 85" 94"

F Attachment Rollback Angle 35° 35°

G Digging Depth 6" 6"

Overall Height in Carrying Position 74" 81"

Length of Attachment 42" 42"

Lift Capacity to Full Height at Bucket Pin 4280 lbs. 4850 lbs.

Lift Capacity to Full Height - 31.5" Forward of Bucket Pin 2940 lbs. 3480 lbs.

Breakout Capacity at Bucket Pin 6410 lbs. 7140 lbs.

Breakout Capacity - 31.5" Forward of Bucket Pin 4440 lbs. 4990 lbs.

System Pressure Tested 2750 psi 2750 psi

Recommended Hydraulic Flow 10-20 gpm 12-25 gpm

Recommended Tractor PTO Horsepower 65-105 hp 85-140 hp

Lift Cylinder Bore 2.76" 2.95"

Bucket Cylinder Bore 2.76" 2.76"

BUCKET HEAPED CAPACITY WEIGHT

84" QA 28.7 cu. ft. 690 lbs.

84" Pin 28.7 cu. ft. 660 lbs.

96" QA 33.0 cu. ft. 760 lbs.

Introduction 5

MAN0556 (9/21/2007)

LIFT CAPACITY & BREAKOUT VS PRESSURE

Pressure (psi)

LF138 Lift

Capacity

at Bucket Pin (lbs.)

LF138 Breakout

31.5" Forward of

Bucket Pin (lbs.)

LF156 Lift

Capacity

at Bucket Pin (lbs.)

LF156 Breakout

31.5" Forward of

Bucket Pin (lbs.)

2250 3160 3410 3700 3820

2500 3720 3920 4270 4400

2750 4280 4440 4850 4990

Capacities measured in accordance with ASAE S301.4

ATTACHMENTS

APPROVED FOR USE ON LF138 & LF156 LOADERS

Description Model Weight

Agricultural Grapple

Attachment

GF5000 700 lbs.

Bale Spear BS32E 275 lbs.

Bale Clamp BC22E 570 lbs.

Pallet Fork PF6048E 600 lbs.



6 Safety

1020 Loader SR (Rev. 2/16/2007)

INSTALLATION

During installation, the tractor engine should be

off, the key removed and the brakes locked. Do not

disconnect hydraulic lines until attachments are

removed or lowered to the ground and system

pressure is released by operating valve levers.

Never operate any hydraulic cylinders during any

phase of the installation process.

After connecting hoses, check that all control

lever positions function as instructed in the Opera-

tor's Manual. Do not put into service until control

lever and equipment movements are correct.

TRAINING

Safety instructions are important! Read all

attachment and power unit manuals; follow all

safety rules and safety decal information. (Replace-

ment manuals and safety decals are available from

your dealer. To locate your nearest dealer, check

the Dealer Locator at www.WoodsEquipment.com,

or in the United States and Canada call 1-800-319-

6637.) Failure to follow instructions or safety rules

can result in serious injury or death.

If you do not understand any part of this manual

and need assistance, see your dealer.

Know your controls and how to stop engine and

attachment quickly in an emergency.

Operators must be instructed in and be capable

of the safe operation of the equipment, its attach-

ments, and all controls. Do not allow anyone to

operate this equipment without proper instruc-

tions.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Never allow children or untrained persons to

operate equipment.

PREPARATION

Check that all hardware is properly installed.

Always tighten to torque chart specifications

unless instructed otherwise in this manual.

Air in hydraulic systems can cause erratic oper-

ation and allows loads or equipment components

to drop unexpectedly. When connecting equipment

or hoses or performing any hydraulic maintenance,

purge any air in hydraulic system by operating all

hydraulic functions several times. Do this before

putting into service or allowing anyone to

approach the equipment.

After connecting hoses, check that all control

lever positions function as instructed in the Opera-

tor's Manual. Do not put into service until control

lever and equipment movements are correct.

Make sure all hydraulic hoses, fittings, and

valves are in good condition and not leaking before

starting power unit or using equipment. Check and

route hoses carefully to prevent damage. Hoses

must not be twisted, bent sharply, kinked, frayed,

pinched, or come into contact with any moving

parts. Operate moveable components through full

operational range to check clearances. Replace

any damaged hoses immediately.

Protective hose sleeves must cover all hydrau-

lic hoses within 20 inches of the operator and be

secured onto metal hose fittings. Replace hoses or

sleeves if damaged or if protective sleeve cannot

be properly positioned or secured.

Always wear relatively tight and belted clothing

to avoid entanglement in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Make sure attachment is properly secured,

adjusted, and in good operating condition.

Safety is a primary concern in the design and

manufacture of our products. Unfortunately, our

efforts to provide safe equipment can be wiped

out by an operator’s single careless act.

In addition to the design and configuration of

equipment, hazard control and accident preven-

tion are dependent upon the awareness, con-

cern, judgement, and proper training of

personnel involved in the operation, transport,

maintenance, and storage of equipment.

It has been said, “The best safety device is an

informed, careful operator.” We ask you to be

that kind of operator.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Safety 7

1020 Loader SR (Rev. 2/16/2007)

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Make sure all safety decals are installed.

Replace if damaged. (See Safety Decals section for

location.)

Make sure shields and guards are properly

installed and in good condition. Replace if dam-

aged.

To provide stability, add tractor manufacturer's

recommended wheel ballast or rear weight.

Move wheels to tractor manufacturer's widest

recommended setting to increase stability. Do not

use loader on tractors with single or double cen-

tered front wheels.

To help prevent tractor/loader instability, never

exceed the capacity of the tractor/loader used with

the pallet fork. To increase stability, adjust tires to

maximum possible width.

Your dealer can supply original equipment

hydraulic accessories and repair parts. Substitute

parts may not meet original equipment specifica-

tions and may be dangerous.

OPERATION

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.

Improper use of a loader can cause injury or

death.

Consult local utilities before working. Know

location of all underground cables, pipelines, over-

head wires, and other hazards in working area and

avoid contact.

The bale spear is to be used only for handling

bales. Do not use for digging rocks, pulling out

fence, or as a craning device with a chain over the

spear.

Do not attempt to lift loads in excess of the

loader capacity.

Keep bystanders away from equipment.

Do not walk or work under a raised loader,

bucket, or attachment.

Never allow anyone to get under the loader

bucket or reach through the lift arms when the

bucket is raised.

Do not operate or transport equipment while

under the influence of alcohol or drugs.

Operate only in daylight or good artificial light.

Always comply with all state and local lighting

and marking requirements.

Never allow riders. Do not lift or carry anybody

on the loader or in the bucket or attachments.

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Always sit in power unit seat when operating

controls or starting engine. Securely fasten seat

belt, place transmission in neutral, engage brake,

and ensure all other controls are disengaged

before starting power unit engine.

Look down and to the rear and make sure area

is clear before operating in reverse.

Avoid loose fill, rocks, and holes. They can be

dangerous for loader operation or movement.

Stop the loader arms gradually when lowering

or lifting.

Use caution when handling loose or shiftable

loads.

Allow for extra attachment length and width

when making turns.

The grapple fork is a clamping device and

should be used to clamp loose hay, straw, or

silage. It is not to be used to dig material loose

from a pile.

AVOID INJURY OR DEATH FROM POWER

LINES:

• Stay away from power lines.

• Electrocution can occur without direct con-

tact.

• Check clearances before raising attachment.

• Consult local utilities before digging. Know

location of and avoid contacting all under-

ground cables, pipelines, overhead wires, and

other hazards in digging area.

• Do not leave the operator's seat if any part of

the power unit or attachment contacts electric

lines or underground cables.

(Safety Rules continued on next page)

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

(Rev. 9/17/20107)

8 Safety

1020 Loader SR (Rev. 2/16/2007)

(Safety Rules continued from previous page)

AVOID INJURY OR DEATH FROM ROLLOVER

ACCIDENTS:

• Move and turn tractor at less than 6 mph (10

km/h).

• Watch for hidden hazards such as holes,

ditches, and other obstructions which may

cause tractor and loader to tip over.

• Carry loads close to the ground to aid visibil-

ity and lower center of gravity for improved sta-

bility.

• Balance loads so weight is evenly distributed

and load is stable.

• Be extra careful when operating on a slope.

• Do not operate on steep slopes.

• Do not stop, start or change directions sud-

denly on slopes.

• If loader is equipped with round bale attach-

ments, always approach bale with tractor facing

uphill.

• Be sure tractor tire spacing and rear ballast is

correct before using loader.

• Tractor must be equipped with a Roll-Over

Protective Structure (ROPS) and seat belt. Keep

seat belt securely fastened and keep foldable

ROPS systems in “locked up” position at all

times.

AVOID INJURY OR DEATH FROM FALLING

BALES AND OTHER OBJECTS:

• Do not carry hay bales, logs, fence posts,

stones, or any other loose objects that can roll,

shift, or fall from a raised bucket and crush

operator or bystanders.

• Do not handle round bales unless loader is

equipped with approved bale handling attach-

ment.

• Handle raised loads with caution.

• Carry loads low and drive slowly.

MAINTENANCE

Never work under a raised loader. Always lower

loader to the ground with bucket or loader attach-

ment in full roll-back position. Shut off tractor, set

parking brake, and remove key. Operate valve

levers to release any hydraulic pressure. If loader

obstructs tractor maintenance, loader must be

removed from tractor.

Do not modify or alter or permit anyone else to

modify or alter the equipment or any of its compo-

nents in any way.

Your dealer can supply original equipment

hydraulic accessories and repair parts. Substitute

parts may not meet original equipment specifica-

tions and may be dangerous.

Always wear relatively tight and belted clothing

to avoid entanglement in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Tighten all bolts, nuts and screws to torque

chart specifications. Check that all cotter pins are

installed securely to ensure equipment is in a safe

condition before putting unit into service.

Make sure all safety decals are installed.

Replace if damaged. (See Safety Decals section for

location.)

Make sure shields and guards are properly

installed and in good condition. Replace if dam-

aged.

Do not disconnect hydraulic lines until all sys-

tem pressure is relieved. Lower unit to ground,

stop engine, and operate all hydraulic control

levers.

When servicing or replacing pins in cylinder

ends, buckets, etc., always use a brass drift and

hammer. Failure to do so could result in injury from

flying metal fragments.

STORAGE

Block equipment securely for storage.

Stored loader can fall and cause serious injury

or death. Securely store loader and attachments to

prevent falling.

To help prevent injury caused by a falling imple-

ment, always detach on a hard level surface.

Secure equipment parking stand(s) in park posi-

tion before detaching.

To provide necessary balance, loader frame

must be equipped with bucket or attachment

before attaching or detaching from tractor, or when

loader is in stored position.

To help prevent personal injury from exposed

fork tines, always store bale spear with tines

pointed down, or against bale, building or other

stable object.

SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

(Rev. 9/21/2007)

Safety 9

1020 Loader SR (Rev. 2/16/2007)

Do not loosen hydraulic fittings or hoses while

loader is in stored position.

Do not climb or lean on equipment stored on

stand.

Keep children and bystanders away from stor-

age area.

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.



SAFETY RULES

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

(Rev. 9/21/2007)

10 Safety

MAN0556 (9/21/2007)

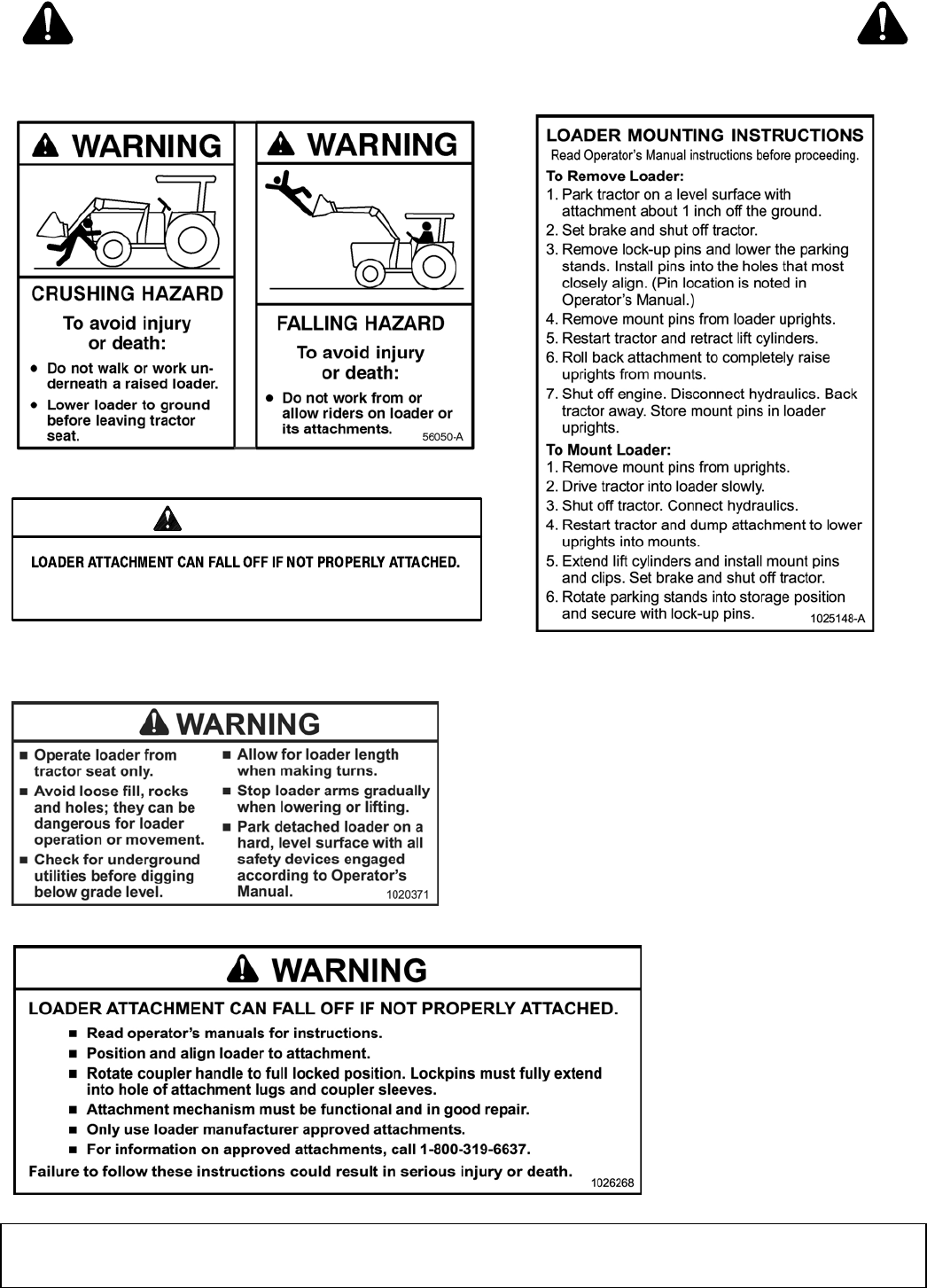

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

7 - PN 56053

56053-A

DANGER

ROLLOVERS CAN

RESULT IN INJURY

OR DEATH

Always use ROPS and

seat belt.

Add rear tractor

ballast.

Move wheels to widest

setting.

Avoid slope operation.

Operate at low speeds.

Carry load low.

Serious injury or death

can result from contact

with electrical lines.

DANGER

9 - PN 56052

MODEL NO. SERIAL NO.

Woods Equipment Company

Oregon, Illinois, U.S.A.

1 - SERIAL NUMBER PLATE

4 - PN 19924

Check for leaks with cardboard; never use hand.

Before loosening fittings: lower load, release pressure, and

be sure oil is cool.

Consult physician immediately if skin penetration occurs.

WARNING

19924-B

WARNING

Read and understand Operator’s

Manual before operating.

(Replacement manuals are

available from dealer or, in the

United States and Canada, call

1-800-319-6637.)

Keep others away when operating

loader.

Do not allow children or untrained

persons to operate equipment.

Lower loader to ground, stop en-

gine, set park brake and remove

key before leaving tractor seat.

Failure to follow safety rules can

result in serious injury or death.

56051-A

6 - PN 56051

Safety 11

MAN0556 (9/212007)

8 - PN 1025148A

5 - PN 56050

3 - PN 1026268

BE CAREFUL!

Use a clean, damp cloth to clean safety decals.

Avoid spraying too close to decals when using a

pressure washer; high-pressure water can enter

through very small scratches or under edges of

decals causing them to peel or come off.

Replacement safety decals can be ordered free

from your Woods dealer. To locate your nearest

dealer, check the Dealer Locator at

www.WoodsEquipment.com, or in the United

States and Canada call 1-

800-319-6637.

10 - PN 1020371

WARNING

Only use loader manufacturer approved attachments.

Failure to do so can cause serious injury or death. 45024-A

2 - PN 45024

SAFETY & INSTRUCTIONAL DECALS

ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Replace Immediately If Damaged!

12 Operation

MAN0556 (9/21/2007)

OPERATION

Be familiar with and follow all safety rules and safety

decals in the manual, on the loader, and on the tractor.

The safe operation of this loader is the responsibility of

the operator, who must be properly trained. The opera-

tor should be familiar with the equipment and all safety

practices before starting operation. Read the safety

rules and safety decals on pages 6 through 11.

AVOID INJURY OR DEATH FROM POWER

LINES:

• Stay away from power lines.

• Electrocution can occur without direct con-

tact.

• Check clearances before raising attachment.

• Consult local utilities before digging. Know

location of and avoid contacting all under-

ground cables, pipelines, overhead wires, and

other hazards in digging area.

• Do not leave the operator's seat if any part of

the power unit or attachment contacts electric

lines or underground cables.

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

Move wheels to tractor manufacturer's widest

recommended setting to increase stability. Do not

use loader on tractors with single or double cen-

tered front wheels.

To provide stability, add tractor manufacturer's

recommended wheel ballast or rear weight.

Never allow children or untrained persons to

operate equipment.

Keep bystanders away from equipment.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

AVOID INJURY OR DEATH FROM FALLING

OBJECTS:

• Do not carry shiftable items. Hay bales, logs,

fence posts, stones, and other objects can roll

or fall from a raised attachment and crush oper-

ator or bystanders.

• This unit is not equipped with any method to

prevent objects such as round bales, posts, or

logs from rolling back onto operator.

• Do not handle round hay bales.

• Carry loads low and drive slowly.

• Do not carry large objects that can fall out of

attachment into operator zone.

• Never lift load higher than necessary to clear

the ground when moving.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

TRACTOR PREPARATION

Before operating the loader, extra weight should be

added to the rear of the tractor with rear wheel weights

or liquid ballast for optimum stability. Refer to your trac-

tor operator's manual for weight information.

The tractor rear wheels should be moved to the tractor

manufacturer's widest recommended settings to

increase the stability of the tractor.

For safety in preventing injury or death from rollover

accidents, the tractor must be equipped with an

approved ROPS or ROPS cab and seat belt.

Pin-on bucket must be securely attached to the loader

using pins and retaining hardware supplied with the

bucket.

CAUTION

Operation 13

MAN0556 (9/21/2007)

CONNECT BUCKET OR ATTACHMENT

USING QUICK ATTACH COUPLER

Position the hydraulic hoses so they will not be pinched

when connecting the attachment.

The quick attach coupler handle should be in the

unlocked (open) position with lock pins retracted, Fig-

ure 1.

Figure 1. Quick Attach Coupler Handle - Unlocked

Move to the operator seat, fasten seat belt, and start

engine.

Lower loader lift arms to their lowest position.

Carefully move and align the quick attach coupler to

the bucket or attachment. The top of the quick attach

coupler must completely engage the attachment or

bucket hook, Figure 2.

Roll the attachment coupler into the attachment flange

so the coupler handle can be engaged.

Figure 2. Connecting Bucket or Attachment to Loader

Shut off the engine, set brake, remove key, and remove

seat belt. Dismount the tractor.

Move the attachment coupler handle to the locked

(closed) position. The lockpins must be completely

extended and secured into the retaining slots, Figure 3.

Attachment coupler handles must always be

rotated to LOCK POSITION to prevent coupler latch

from disengaging and attachment from falling off.

Connect hydraulic hoses to loader auxiliary quick cou-

plers (optional).

Figure 3. Attachment Coupler Handle - Locked

LOADER OPERATION

Do not allow bystanders in the area when oper-

ating, attaching, removing, assembling, or servic-

ing equipment.

The loader should be operated with the tractor engine

running at a safe RPM. Excessive speeds are danger-

ous, and may cause bucket spillage and unnecessary

strain on the tractor and loader.

Open

DP1

Handle

Closed

Handle

14 Operation

MAN0556 (9/21/2007)

Filling Bucket

1. Approach and enter the pile with a level bucket.

Figure 4. Filling Bucket

2. Loaders with single handle controls: Ease the

lever back and toward you to lift and roll back the

bucket, Figure 5.

Figure 5. Single Handle Control

3. Lift and rollback bucket.

Figure 6. Lift and Rollback Bucket

The lift and rollback of the bucket will increase effi-

ciency because maintaining a level bucket throughout

the lifting cycle resists bucket lift and increases break-

away effort, Figure 6.

NOTE: Do not be concerned if the bucket is not com-

pletely filled during each pass. Maximum productivity is

determined by the amount of material loaded in a given

period of time. Time is lost if two or more attempts are

made to fill the bucket on each pass.

Lifting Load

Do not attempt to lift loads in excess of the

loader capacity.

When lifting the load, keep the bucket positioned to

avoid spillage, Figure 7.

Figure 7. Lifting Load

Carrying Load

Position the bucket just below the level of the tractor

hood for maximum stability and visibility, whether the

bucket is loaded or empty, Figure 8.

.

Figure 8. Carrying Load

Operating on a Slope

AVOID INJURY OR DEATH FROM ROLLOVER

ACCIDENTS:

• Move and turn tractor at less than 6 mph (10

km/h).

• Watch for hidden hazards such as holes,

ditches, and other obstructions which may

cause tractor and loader to tip over.

• Carry loads close to the ground to aid visibil-

ity and lower center of gravity for improved sta-

bility.

• Balance loads so weight is evenly distributed

Operation 15

MAN0556 (9/21/2007)

and load is stable.

• Be extra careful when operating on a slope.

• Do not operate on steep slopes.

• Do not stop, start or change directions sud-

denly on slopes.

• If loader is equipped with round bale attach-

ments, always approach bale with tractor facing

uphill.

• Be sure tractor tire spacing and rear ballast is

correct before using loader.

• Tractor must be equipped with a Roll-Over

Protective Structure (ROPS) and seat belt. Keep

seat belt securely fastened and keep foldable

ROPS systems in “locked up” position at all

times.

Use extreme care when operating the loader on a

slope, keeping the bucket as low as possible. This will

maintain a low center of gravity for the bucket and trac-

tor and will provide maximum tractor stability.

When transporting the load, keep the bucket as low as

possible to avoid tipping in case a wheel drops in a rut.

Figure 9. Operating on a Slope

Dumping Bucket

Figure 10. Dumping Bucket

Lift the bucket high enough to clear the side of the vehi-

cle. Move the tractor in as close as possible, then

dump the bucket. See Figure 10.

Lowering Bucket

After the bucket is dumped, back away from the vehicle

while lowering and rolling back the bucket.

Figure 11. Control Handle Function

Operating with Float Control

During hard surface operation, keep the bucket level

and put the lift control in the float position to permit the

bucket to float on the working surface. If hydraulic

down pressure is exerted on the bucket, it will wear

faster than normal.

The float will also prevent the mixing of surface mate-

rial with stockpile material. The float position will

reduce the chance of surface gouging when removing

snow or other material.

Figure 12. Float Position

Loading from a Bank

See Figure 13.

Exercise caution when undercutting high banks. Dirt

slides can be dangerous. Load the bucket from as low

a position as possible for maximum efficiency. Loader

lift and break-away capacity diminish as loading height

is increased.

Keep the bucket level when approaching a bank or

pile. This will help prevent gouging in the work area.

16 Operation

MAN0556 (9/21/2007)

Figure 13. Loading from a Bank

Peeling and Scraping

Use a slight bucket angle, travel forward, and hold the

lift control forward to start the cut. Make a short 5-inch

to 8-inch angle cut and break-out cleanly, Figure 14.

With the bucket level, start a cut at the notch approxi-

mately 2 inches deep. Hold the depth by feathering the

bucket control to adjust the cutting lip up or down.

When the front tires enter the notch, adjust the lift cylin-

der to maintain proper depth, Figure 15.

Figure 14. Angle Cut

Figure 15. Peeling/Scraping

Make additional passes until the desired depth is

reached. During each pass, only use the bucket control

while at working depth. This will allow you to concen-

trate on controlling the bucket angle to maintain a pre-

cise cut, Figure 16.

Figure 16. Additional Passes

Loading Low Trucks or

Spreaders from a Pile

For easier loading, minimize the angle of turn and

length of run between pile and spreader, Figure 17.

Figure 17. Loading

Backgrade occasionally with a loaded bucket to keep

the working surface free of ruts and holes. Also, hold

the lift control forward so the full weight of the bucket is

scraping the ground. Use the heel of the bucket.

Figure 18. Backgrading

Backblading

Position the bucket at an angle of less than 45 degrees

and back up slowly, Figure 19.

Backgrading with the bucket tilted too far will result in

damage to bucket cylinders and void warranty, Figure

20.

Figure 19. Backblading

Operation 17

MAN0556 (9/21/2007)

Figure 20. Bucket Tilted too Far

Backfilling

1. Approach the pile with a flat bucket, Figure 21.

Figure 21. Backfilling Correctly

2. Do not use the bucket in the dump position for

bulldozing. This method will impose severe shock

loadings on the dump linkage, the bucket cylinder,

and the tractor, Figure 22.

Figure 22. Incorrect Bucket Position for Backfilling

3. Leave dirt in the bucket because dumping on each

pass wastes time.

4. Operate at right angles to the ditch. Take as big a

bite as the tractor can handle without lugging

down.

5. Leave dirt that drifts over the side of the bucket for

final clean-up.

6. Pile dirt on the high side for easier backfilling on a

slope.

HANDLING OBJECTS

AVOID INJURY OR DEATH FROM FALLING

BALES AND OTHER OBJECTS:

• Do not carry hay bales, logs, fence posts,

stones, or any other loose objects that can roll,

shift, or fall from a raised bucket and crush

operator or bystanders.

• Do not handle round bales unless loader is

equipped with approved bale handling attach-

ment.

• Handle raised loads with caution.

• Carry loads low and drive slowly.

Figure 23. Avoid Falling Loads

FORKLIFT OPERATION

To avoid injury or death from bale rolling back

down loader, do not handle round bales with the

pallet fork.

To help prevent tractor/loader instability, never

exceed the capacity of the tractor/loader used with

the pallet fork. To increase stability, adjust tires to

maximum possible width.

Use the pallet fork to move pallets, bulk bins, crates,

boxes and hampers.

Do not use for shiftable loads such as logs or poles.

Do not use for digging rocks or lifting concrete slabs.

CAUTION

18 Operation

MAN0556 (9/21/2007)

GRAPPLE OPERATION

The grapple fork is a clamping device and should be

used to clamp loose hay, straw, or silage. It is not to be

used to dig material loose from a pile.

AVOID INJURY OR DEATH FROM ROLLOVER

ACCIDENTS:

• Move and turn tractor at less than 6 mph (10

km/h).

• Watch for hidden hazards such as holes,

ditches, and other obstructions which may

cause tractor and loader to tip over.

• Carry loads close to the ground to aid visibil-

ity and lower center of gravity for improved sta-

bility.

• Balance loads so weight is evenly distributed

and load is stable.

• Be extra careful when operating on a slope.

• Do not operate on steep slopes.

• Do not stop, start or change directions sud-

denly on slopes.

• If loader is equipped with round bale attach-

ments, always approach bale with tractor facing

uphill.

• Be sure tractor tire spacing and rear ballast is

correct before using loader.

• Tractor must be equipped with a Roll-Over

Protective Structure (ROPS) and seat belt. Keep

seat belt securely fastened and keep foldable

ROPS systems in “locked up” position at all

times.

AVOID INJURY OR DEATH FROM FALLING

BALES AND OTHER OBJECTS:

• Do not carry hay bales, logs, fence posts,

stones, or any other loose objects that can roll,

shift, or fall from a raised bucket and crush

operator or bystanders.

• Do not handle round bales unless loader is

equipped with approved bale handling attach-

ment.

• Handle raised loads with caution.

• Carry loads low and drive slowly.

Use caution when handling loose or shiftable

loads.

Never handle large, heavy objects due to the dangers

of rolling the tractor over, upending the tractor, and

having the object roll or slide down the loader arms

onto the operator.

Never lift loader higher than necessary to clear the

ground. When necessary, ballast the tractor rear to

compensate for load. Never lift large objects. Move

slowly and carefully. Avoid rough terrain. Stop the

loader gradually when lowering or lifting loads.

For loose hay or other materials, adjust the mounting

arms and the grapple teeth in the position that provides

the best performance.

Set the rear tractor wheels to the widest recommended

setting. Add enough ballast at the rear end so at least

50% of the original rear wheel weight is maintained

when the load in the loader is at transport height.

Always carry the load on level ground or directly uphill.

Never move along a side hill or directly downhill when a

load is carried.

Make sure the grapple is holding the load securely so it

cannot roll backwards or sideways.

Never carry a round bale in a bucket without a properly

operating and adjusted grapple.

Picking Up a Round Bale with Grapple

Approach bale with grapple open, bucket level and

close to the ground. Work bucket under bale until bale

is against grapple frame. Close grapple, raise and roll

back just high enough to provide ground clearance for

transport.

Figure 24. Pick Up Round Bale

Picking Up Round Bale on Slope with a

Grapple

To help prevent injury caused by tractor rollover when

handling round bales on a slope, avoid side slope

travel whenever possible. Drive up slope to pick up

bale and back down in reverse. Transport bale as close

to the ground as possible.

Approach bale with tractor facing uphill, grapple open,

bucket level and close to the ground.

Work bucket under bale until bale is against grapple

frame. Close grapple.

Operation 19

MAN0556 (9/21/2007)

Raise and roll bale back just high enough to provide

ground clearance for transport.

Select low tractor speed before moving or turning on a

slope.

Figure 25. Picking Up Round Bale on a Slope

Transporting a Round Bale with Grapple

Carry bale low and slightly rolled back.

Figure 26. Transporting a Round Bale

Removing Hay & Silage from a Pile

with Grapple Fork

The grapple fork is a clamping device and

should be used to clamp loose hay, straw, or

silage. It is not to be used to dig material loose

from a pile.

NOTICE

■ Using the grapple teeth to dig material out of a

pile will damage the grapple or loader. The grapple

is designed only to clamp material in a bucket. Use

the bucket to break material loose.

If possible, remove material from the top of the pile

first. Use the loader bucket to break material loose.

Equip the bucket with teeth for better loosening action

in packed silage. After material is loosened, close grap-

ple, Figure 27.

Figure 27. Removing Hay and Silage from a Pile

with a Grapple Fork

Dumping into Truck, Wagon & Spreaders

Use extreme care when dumping into trucks, wagons,

spreaders, etc. when grapple is attached to bucket.

Open grapple teeth will swing a wide radius beyond

bucket and can damage or puncture the opposite sides

of these implements, out of the operator's sight.

BALE SPEAR OPERATION

Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely

fastened. Falling off power unit can result in death

from being run over or crushed. Keep foldable

ROPS system in “locked up” position at all times.

To provide stability, add tractor manufacturer's

recommended wheel ballast or rear weight.

Move wheels to tractor manufacturer's widest

recommended setting to increase stability. Do not

use loader on tractors with single or double cen-

tered front wheels.

Stop the loader arms gradually when lowering

or lifting.

AVOID INJURY OR DEATH FROM FALLING

BALES AND OTHER OBJECTS:

• Do not carry hay bales, logs, fence posts,

stones, or any other loose objects that can roll,

shift, or fall from a raised bucket and crush

operator or bystanders.

• Do not handle round bales unless loader is

equipped with approved bale handling attach-

ment.

• Handle raised loads with caution.

• Carry loads low and drive slowly.

20 Operation

MAN0556 (9/21/2007)

To help prevent personal injury from exposed

fork tines, always store bale spear with tines

pointed down, or against bale, building or other

stable object.

The bale spear is to be used only for handling round

bales. Do not use for digging rocks, pulling out fence,

or as a craning device with a chain over the spear.

Picking Up a Round Bale with Bale Spear

Approach bale with spike level and centered on bale.

Push spike into bale until bale is against the frame.

Raise and roll bale back just high enough to provide

ground clearance for transport, Figure 28.

Figure 28. Picking Up a Round Bale

Picking Up Round Bale on a Slope

with Bale Spear

To help prevent injury caused by tractor rollover when

handling round bales on a slope, avoid side slope

travel whenever possible. Drive up slope to pick up

bale and back down in reverse. Transport bale as close

to the ground as possible.

Approach bale with tractor facing uphill, spike level and

centered on bale. Push spike into bale until bale is

against the frame. Raise and roll bale back just high

enough to provide ground clearance for transport.

Select low tractor speed before moving or turning on a

slope, Figure 29.

Figure 29. Picking Up Round Bale on a Slope

Transporting a Round Bale

To help prevent personal injury or accident caused

from a bale falling off the spike, carry the bale low and

slightly rolled back. Travel slowly over rough ground.

Figure 30. Transporting a Round Bale

CLEANING

After Each Use

●Remove large debris such as clumps of dirt, grass,

crop residue, etc. from machine.

●Inspect machine and replace worn or damaged

parts.

●Replace any safety decals that are missing or not

readable.

Periodically or Before Extended Storage

●Clean large debris such as clumps of dirt, grass,

crop residue, etc. from machine.

●Remove the remainder using a low-pressure water

spray.

1. Be careful when spraying near scratched or torn

safety decals or near edges of decals as water

spray can peel decal off surface.

2. Be careful when spraying near chipped or

scratched paint as water spray can lift paint.

3. If a pressure washer is used, follow the advice

of the pressure washer manufacturer.

●Inspect machine and replace worn or damaged

parts.

●Sand down scratches and the edges of areas of

missing paint and coat with Woods spray paint of

matching color (purchase from your Woods

dealer).

●Replace any safety decals that are missing or not

readable (supplied free by your Woods dealer).

See Safety Decals section for location drawing.

CAUTION

Operation 21

MAN0556 (9/21/2007)

PRE-OPERATION CHECK LIST

(OWNER'S RESPONSIBILITY)

___ Review and follow all safety rules and safety

decal instructions on pages 6 through 11.

___ Check that all safety decals are installed and in

good condition. Replace if damaged.

___ Check that all hardware and cotter pins are prop-

erly installed and secured.

___ Check that equipment is properly and securely

attached to tractor.

___ Do not allow riders.

___ Check all lubrication points and grease as

instructed in Owner Service, ". Lubrication

Points", page 22.

___ Check that all hydraulic hoses and fittings are in

good condition and not leaking before starting

tractor. Check that hoses are not twisted, bent

sharply, kinked, frayed or pulled tight. Replace

any damaged hoses immediately.

___ Make sure tractor ROPS or ROPS cab and seat

belt are in good condition. Keep seat belt

securely fastened during operation.

___ Before starting engine, operator must be in trac-

tor seat with seat belt fastened. Place transmis-

sion in neutral or park, engage brake, and

disengage tractor PTO.



22 Owner Service

MAN0556 (9/21/2007)

OWNER SERVICE

The information in this section is written for operators

who possess basic mechanical skills. If you need help,

your dealer has trained service technicians available.

For your protection, read and follow the safety informa-

tion in this manual.

Never work under a raised loader. Always lower

loader to the ground with bucket or loader attach-

ment in full roll-back position. Shut off tractor, set

parking brake, and remove key. Operate valve

levers to release any hydraulic pressure. If loader

obstructs tractor maintenance, loader must be

removed from tractor.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Do not disconnect hydraulic lines until all sys-

tem pressure is relieved. Lower unit to ground,

stop engine, and operate all hydraulic control

levers.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Before dismounting power unit or performing

any service or maintenance, follow these steps:

disengage power to equipment, lower the 3-point

hitch and all raised components to the ground,

operate valve levers to release any hydraulic pres-

sure, set parking brake, stop engine, remove key,

and unfasten seat belt.

If you do not understand any part of this manual

and need assistance, see your dealer.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

Lubrication

NOTICE

■ When adding oil to the tractor reservoir, always

use hydraulic oil as specified by the tractor manu-

factures.

Daily

___ Check the level of hydraulic oil in tractor before

starting each day's operation. If necessary, add

oil as recommended in your tractor owner's man-

ual.

___ Lubricate after every eight hours of operation;

lubricate grease fittings at each end of each lift

boom arm and at rod and base end of each boom

and bucket cylinder.

___ After every eight hours of operation, check all

hardware and tighten where required.

___ Replace hoses immediately if they are damaged

by a cut or scrape, extruded at the fittings, or

leaking. Hydraulic oil leaks should be repaired

promptly to avoid loss of oil and serious personal

injury from escaping oil.

Annually

___ Lubricate direct mount control valve joystick link-

age with grease.

Figure 30. Lubrication Points

CAUTION



Troubleshooting 23

MAN0556 (9/21/2007)

TROUBLESHOOTING

The following is a list of service problems, possible causes, and solutions. If problems still exist after preforming the

solution, contact your nearest Woods dealer for authorized service.

PROBLEM POSSIBLE CAUSE SOLUTION

Jerky operation Air in hydraulic system Cycle cylinders several times to

purge system of air.

Cold hydraulic oil Run engine to warm oil.

Low hydraulic oil level Add oil to level specified.

Poor oil circulation Change oil filter and clean screen in

tractor hydraulic system.

Worn or damaged hydraulic pump Repair or replace pump.

Air leak in pump inlet line Check, tighten or replace inlet line.

Slow operation Faulty valve Repair or replace valve.

Air in hydraulic system Cycle lift cylinders and bucket

cylinders several times to free

system of air.

Hydraulic oil too heavy Change to proper oil.

Oil filter plugged Clean and replace filter.

Slow engine speed Increase engine speed rate.

Cylinder piston seals leaking Install seal repair kit.

Remote valve incorrectly adjusted

or malfunctioning

Adjust, repair, or replace control

valve.

Tractor hydraulic pump malfunc-

tioning

Repair or replace pump.

Hydraulic pump too small; hoses

or feedlines restricted

Check hoses and feed lines for

kinks and other restrictions.

Hydraulic couplers not completely

engaged

Connect hydraulic couplers.

Oil leaks Loose hose connections Tighten fittings. Use thread sealer

on pipe (tapered) threads.

Fittings or hoses defective Tighten fittings. Use thread sealer

on pipe (tapered) threads.

Fittings or hoses defective Replace defective parts.

Hydraulic cylinder seals worn or

damaged

Install seal repair kit.

Remote valve components worn

or damaged

Repair and/or replace.

24 Troubleshooting

MAN0556 (9/21/2007)

TROUBLESHOOTING

Cannot raise load Low oil supply Check oil level.

Bucket overloaded Try lighter load.

Hydraulic couplers not fully

engaged

Reconnect hoses.

Cylinder piston seal leakage Install seal repair kit.

Control valve incorrectly adjusted

or malfunctioning

Repair or replace control valve.

Tractor valve not open to provide

circuit to auxiliary valve

Open tractor valve. Be sure pres-

sure is to inlet side of auxiliary

valve.

Hydraulic pump malfunctioning Repair or replace hydraulic pump.

Load is greater than boom lift

capacity

Check loader specifications.

Bucket or boom leaks down from

“hold” position

Leaks in hydraulic circuits Tighten loose fittings. Use thread

sealer on pipe (tapered) threads.

Cylinder piston seals leaking Install seal repair kit.

Control valve worn or damaged Repair or replace control valve.

Tractor valve worn or damaged Repair or replace tractor valve.

Cannot lower boom Hydraulic couplers not fully

engaged

Recouple hoses.

Loss of bucket tilt control when

lever is pushed completely for-

ward

Tractor lever in “float” position Use float lockout control to pre-

vent lever from being moved to

“float” position.

Couplers hard to hook up Pressure in circuit Place control levers in “float”

when connecting

Boom and bucket operation does

not correspond to control lever

position

Improperly connected hydraulic

couplers

Connect hydraulic couplers cor-

rectly. See Hydraulic Kit Manual

for proper connections.

Hoses improperly connected Connect hoses properly. See

Hydraulic Kit Manual for proper

connections.

Excessive wear on bucket cutting

edge and wear pads

Bucket is tilted too far forward and

is riding on cutting edge

Keep bottom of bucket parallel to

ground. Use rod gauge to indicate

level bucket position.

Excessive down pressure when

cleaning feedlots and working on

concrete

Use “float” position on boom lift

control lever.

MAN0556 (9/21/2007)

Dealer Check Lists 25

DEALER CHECK LISTS

PRE-DELIVERY CHECK LIST

(Dealer's Responsibility)

Inspect the loader thoroughly after assembly to be cer-

tain it is set up properly before delivering it to the cus-

tomer. The check lists are a reminder of points to

inspect. Check off each item as it is found satisfactory

or after proper adjustments are made.

___ Check all bolts to be sure they are properly

torqued.

___ Check and grease all lubrication points. See “.

Lubrication Points” on page 22.

___ Check that shields and guards are properly

installed and in good condition. Replace if dam-

aged.

___ Check that all cotter pins and safety pins are

properly installed. Replace if damaged.

___ Properly attach implement to tractor and make all

necessary adjustments.

___ Check all hydraulic hoses, fittings, tubing, and

cylinders for any leaks or damage. Be sure quick

couplers operate properly. Make sure hydraulic

valve matches tractor hydraulic system - open

system or closed system.

___ Check parking stand for proper operation.

___ Check that all safety decals are installed and in

good condition. Replace if damaged.

___ Check that all loader mounting decals are prop-

erly installed on left loader mount.

___ Make sure all hydraulic fittings are tight and

hoses are properly routed and not twisted, bent

sharply, kinked or pulled tight.

___ Make sure loader operates as recommended.

See operation section. Make necessary changes

in hydraulic hook-ups to obtain loader operation.

Cycle loader (all functions). Bleed air from

hydraulic system. Cycling loader removes air

from system. After cycling loader, check hydraulic

system oil level.

DELIVERY CHECK LIST

(Dealer's Responsibility)

___ Present Operator's Manual and request that cus-

tomer and all operators read it before operating

equipment. Point out the manual safety rules,

explain their meanings and emphasize the

increased safety hazards that exist when safety

rules are not followed.

___ Show customer how to make adjustments.

___ Instruct customer how to lubricate and explain

importance of lubrication.

___ Explain to customer the potential crushing haz-

ards of going underneath raised equipment.

Instruct customer that service work does not

require going underneath unit and never to do so.

___ Show customer the safe, proper procedures to be

used when mounting, dismounting, and storing

equipment.

___ Point out the correct mounting and routing of

hydraulic hoses. Explain that during operation,

mounting, dismounting and storage, care must be

taken to prevent hose damage from pulling, twist-

ing and kinking.

___ Make customer aware of optional equipment

available so that customer can make proper

choices as required.

A Delivery Report and Registration form must be filled

in by dealer and signed by both dealer and purchaser

at time of delivery. Be sure Operator's Manual remains

with loader. Deliver it to customer with loader.



26 Dealer Service

MAN0556 (9/21/2007)

DEALER SERVICE

The information in this section is written for dealer ser-

vice personnel. The repair described herein requires

special skills and tools. If your shop is not properly

equipped or your mechanics are not properly trained in

this type of repair, you may be time and money ahead

to replace complete assemblies.

Never work under a raised loader. Always lower

loader to the ground with bucket or loader attach-

ment in full roll-back position. Shut off tractor, set

parking brake, and remove key. Operate valve

levers to release any hydraulic pressure. If loader

obstructs tractor maintenance, loader must be

removed from tractor.

Never allow anyone to get under the loader

bucket or reach through the lift arms when the

bucket is raised.

Keep all persons away from operator control

area while performing adjustments, service, or

maintenance.

Do not disconnect hydraulic lines until all sys-

tem pressure is relieved. Lower unit to ground,

stop engine, and operate all hydraulic control

levers.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

CYLINDER SERVICE

The cylinders are designed to be reliable and easy to

service. If a cylinder should malfunction during the war-

ranty period, return the complete cylinder assembly,

without disassembling, to your authorized service

department or contact your authorized service depart-

ment for instructions. Unauthorized disassembly of a

cylinder in the warranty period will VOID WARRANTY.

NOTE: Repair to cylinders is limited to replacing seals,

wear rings, and O-rings. Replacing rod, barrel, or pis-

tons is not cost effective. Purchasing a complete cylin-

der is more economical.

CYLINDER REPAIR

Threaded Rod Guide Cylinders

Threaded guide cylinders for the LF138 and LF156 use

two different styles of seals.

Disassembly

On threaded guide type cylinders, unscrew guide (5)

using a spanner wrench, or carefully use a punch and

hammer. (Spanner wrench 1021841 is available from

Woods to help with these procedures.) Pull on rod (1)

to remove parts from barrel.

Clamp cross pin end of rod assembly (1) in a vise with

protective jaws. Heat threads to break thread locking

compound loose. Unscrew piston (6) from end of rod

assembly using a spanner wrench, or carefully use a

punch and hammer. Remove rod guide (5) from rod.

Remove and discard all seals, wear rings and O-rings.

Clean all components in solvent and blow dry with low

pressure air.

Inspect inside diameter of barrel. Replace cylinder if

damaged.

Assembly

For these assembly instructions the front surface of the

threaded rod guide with two holes will be referred to as

the "rod guide face".

Lubricate O-rings and seals with clean hydraulic fluid.

Install back-up washer (3D) on rod guide (5), and then

install O-ring (3E) in exterior O-ring groove of rod

guide. Make sure that the back-up ring is located clos-

est to the rod guide face. Place rod wiper (3B) in outer

rod guide groove. Install rod seal (3C) into the second

groove from the rod guide face with the open portion of

V-groove toward piston.

For bucket cylinders (Figure 31) install rings into the

third and fourth grooves from the rod guide face.

CAUTION

MAN0556 (9/21/2007)

Dealer Service 27

With all of the seals installed, slide the rod guide

assembly (5) onto rod (1).

Install crown piston seal (3J) onto piston (6). Install off-

set rings (3H) on both sides of the crown piston seal

(3J) in the large groove on the piston (6). The profile of

the offset ring (3B) should mate with the lip on the

crown piston seal (3J). Place the “L” shaped guide ring

(3G) on the outside of each offset ring (3H). Boom cyl-

inders require two additional wear rings (3K) to be

installed in the two smaller grooves on the piston (6).

Bucket cylinders have one wear ring.

Lightly coat rod threads with hydraulic oil and slide O-

ring (3A) over threads and into groove. Completely

clean threads of hydraulic oil, apply Liquid Primer 7649

and Loctite 242 to the rod threads, and thread piston

(6) onto rod (1) with the two holes in the piston orien-

tated away from the rod. Torque the piston (6) to 160

lbs-ft.

Compress wear rings and piston seals and carefully

insert piston and rod assembly into barrel. Use care to

prevent damage while installing. Carefully screw rod

guide (5) into barrel (8) using a spanner wrench, or

carefully use a punch and hammer.

Figure 31. Bucket Cylinders

1. Piston rod

3A. O-Ring

3B. Wiper ring

3C. Rod seal

3D. Back-up ring

3E. O-Ring

3F. Rod guide ring

3G. Guard ring

3H. Offset ring

3J. Crown piston seal

3K. Wear ring

5. Rod guide assembly

6. Piston

8. Cylinder barrel

28 Dealer Service

MAN0556 (9/21/2007)

Figure 32. Boom Cylinders

Figure 33. Grapple Cylinder

1. Piston rod

3A. O-Ring

3B. Wiper ring

3C. Rod seal

3D. Back-up ring

3E. O-Ring

3G. Guard ring

3H. Offset ring

3J. Crown piston seal

5. Rod guide assembly

6. Piston

8. Cylinder barrel

1. Piston rod

3A. O-Ring

3B. Wiper ring

3C. Rod seal

3D. Back-up ring

3E. O-Ring

3G. Guard ring

3H. Offset ring

3J. Crown piston seal

3K. Wear ring

5. Rod guide assembly

6. Piston

8. Cylinder barrel

MAN0556 (9/21/2007)

Dealer Service 29

PIVOT BEARING REPLACEMENT

Two replacable bearings per pivot joint are located in:

Bearing repair kits for LF138 and LF156 loaders are:

1018608 24 Bearing repair kit

(All pivot points)

1018607 2 Bearing repair kit

(For any 1 pivot point)

Replace pivot bearing as follows:

1. Remove loader from tractor.

2. Remove pivot pin from pivot location that needs to

be replaced.

NOTE: Make sure to support upright and/or lift cyl-

inders to prevent them from falling while the loader

is being disassembled.

3. Remove both wipers (if present).

4. Remove both bearings from each pivot point.

NOTE: Hammer and punch or heat may be

required to remove bearings.

5. Apply one drop of Loctite (supplied with bearing kit)

to each new bearing and install bearing.

6. Allow Loctite to set one hour before reassembling

loader.

7. Apply grease to all bearings. Allow grease to fill

small cavities in bearing.

8. Install wipers, if required.

NOTE: Lip must be installed towards the outside of

joint (Figure 36).

9. Reassemble loader.

Figure 34. Bearing Locations

Figure 35. Replaceable Bearings (Typical)

Figure 36. Wiper Installation

Bearing Location Wiper

• Boom pivot (A) X

• Boom cylinder rod end (B)

• Bucket cylinder rod end (C)

• Loader boom bucket pivot (D) X

• Bucket linkage (E) X

• Boom guide link pivot (F) X

DP7

Replaceable

Bearings

30 Dealer Service

MAN0556 (9/21/2007)

NOTES

MAN0556 (9/21/2007)

Assembly 31

ASSEMBLY

DEALER SET-UP INSTRUCTIONS

Loader assembly is the responsibility of the Woods

dealer. The loader is shipped assembled on a pallet for

your convenience. The loader must be properly set up

and installed to assure prolonged service life and safe

operation.

Keep hands and body away from pressurized

lines. Use paper or cardboard, not hands or other

body parts to check for leaks. Wear safety goggles.

Hydraulic fluid under pressure can easily penetrate

skin and will cause serious injury or death.

Make sure that all operating and service person-

nel know that if hydraulic fluid penetrates skin, it

must be surgically removed as soon as possible by

a doctor familiar with this form of injury or gan-

grene, serious injury, or death will result. CON-

TACT A PHYSICIAN IMMEDIATELY IF FLUID

ENTERS SKIN OR EYES. DO NOT DELAY.

Do not disconnect hydraulic lines until all sys-

tem pressure is relieved. Lower unit to ground,

stop engine, and operate all hydraulic control

levers.

Never work under a raised loader. Always lower

loader to the ground with bucket or loader attach-

ment in full roll-back position. Shut off tractor, set

parking brake, and remove key. Operate valve

levers to release any hydraulic pressure. If loader

obstructs tractor maintenance, loader must be

removed from tractor.

Do not modify or alter or permit anyone else to

modify or alter the equipment or any of its compo-

nents in any way.

Always wear relatively tight and belted clothing

to avoid getting caught in moving parts. Wear

sturdy, rough-soled work shoes and protective

equipment for eyes, hair, hands, hearing, and head;

and respirator or filter mask where appropriate.

ASSEMBLY INSTRUCTIONS

Loader Mounting Kit and Hydraulic Kit

Installation

Install the loader mounting kit on the tractor according

to specific mounting instructions included with the

mounting kit and hydraulic kits.

Loader Set-Up

Make sure all hydraulic hoses, fittings, and

valves are in good condition and not leaking before

starting power unit or using equipment. Check and

route hoses carefully to prevent damage. Hoses

must not be twisted, bent sharply, kinked, frayed,

pinched, or come into contact with any moving

parts. Operate moveable components through full

operational range to check clearances. Replace

any damaged hoses immediately.

■Lift and support all loader components safely.

■Stand clear of the loader while attaching. The

loader could fall, causing serious personal injury.

Always work safely and think clearly!

Remove bucket and attachment coupler from shipping

skid.

Support loader frame and remove lag screws from

plates that hold frame on skid. Lower frame to ground.

Using an overhead lifting devise, lift loader frame and

position tractor so uprights can be placed onto loader

mount. Secure uprights on mounts with pin shipped

with frame. Cut shipping straps around boom cylinders

and remove spacer angle and protective sleeves.

Refer to Hydraulic Hose Installation in the loader

mounting kit. Always use hoses that have a minimum

working pressure rating of 3000 psi and meet or

exceed SAE 100R1 specifications.

Refer to Control Valve Manual for optional control valve

instructions.

Connect loader hoses and start tractor. Clear hydraulic

system of air by raising and lowering boom frame and

actuating bucket cylinders several times. After air has

been purged from system, with loader boom on

ground, check the tractor hydraulic oil level as shown in

tractor owner's manual. When adding oil to hydraulic

system, always use the type of oil specified for the trac-

tor. NEVER MIX OIL TYPES.

CAUTION

32 Assembly

MAN0556 (9/21/2007)

Pin-On Bucket Installation (LF138 Only)

1. Remove loader pins and bucket pins from the

bucket mounting lugs.

2. Attach lower holes on bucket to loader boom using

pins and hardware provided.

3. Extend bucket cylinder and attach bucket links to

the upper holes on the bucket using pins and

hardware provided. See Figure 37.

Figure 37. Pin On Bucket Installed (Typical)

Quick Attach Coupler Installation

(Optional on LF138)

Figure 38. Quick Attach Coupler Installed

1. Remove attachment coupler from bucket.

2. Position quick attach coupler on the ground in front

of the loader frame.

3. Attach quick attach coupler (lower holes) to end of

loader boom using pins and retaining hardware

that came with the quick attach coupler, Figure 38.

4. Attach bucket linkage to the upper holes and

secure.

NOTE: To ease installation of bucket link, extend

bucket cylinders. Plugs in hydraulic feedlines may

need to be removed.

Bucket Connection to Quick Attach

Coupler

See connect bucket or attachment using Quick Attach

Coupler, page 13 to connect bucket.

Bucket Level Indicator Installation

Figure 39. Bucket Level Indicator Installation

1. Remove bucket level indicator rod from its shipping

position on right loader boom leg.

2. Slide rod through bucket level indicator bracket on

left boom frame.

3. Attach other end to hole in inner guide link and with

hardware provided. See Figure 39 and Figure 40.

Bucket Level Indicator Adjustment

With tractor and loader on flat surface, position boom

and bucket cylinders as necessary to place bottom sur-

face of bucket level on the ground.

Shut off tractor, set park brake, remove key and exit the

tractor.

Loosen bolts and slide indicator bracket so that bend in

indicator rod is centered in the bracket. Tighten bolts.

See Figure 40.

MAN0556 (9/21/2007)

Assembly 33

Figure 40. Bucket Level Indicator Installed

Grease Loader

Lubricate all pivot points shown on page 22 with a high

quality SAE multi-purpose grease.

Grapple Installation (Optional)

1. With the bucket attached to the loader, roll bucket

forward until the back of it is parallel with the

ground.

2. Secure right (2) and left (3) grapple attachment

brackets to back of bucket using four (two per

bracket) pins (15) and klik pins (23).

3. Place grapple grill (6) between attachment

brackets and secure to lug on bucket with cap

screws (28) and nuts (29).

4. Secure grapple grill (6) to right and left attachment

bracket using cap screws (28) and nuts(29).

5. Attach grapple arm (4) to right attachment bracket

using pin (18), cap screw (26) and lock nut (27).

6. Secure base end of cylinder to attaching bracket

using pin (17), cap screw (26) and lock nut (27).

7. Repeat steps to secure second grapple arm (4)

and cylinder to left attachment bracket.

8. Roll bucket back until front pads of grapple arms

(4) are level with the ground.

9. Place grapple toothbar (5) under grapple arms and

secure using eight (four per arm) cap screws (25),

sixteen hardened flat washers (21) and lock nuts

(20).

Figure 41. Grapple Assembly

2. Attachment bracket - right

3. Attachment bracket - left

4. Grapple arm

5. Grapple toothbar

6. Grapple grill

15. Hitch pin, 1.25 x 4.63

17. Pin, 1.25 x 5.50

18. Pin, 1.25 x 6.68

20. 5/8 NC Lock nut

21. 5/8 Hardened flat washer

23. Klik pin, 7/16 x 2

25. 5/8 NC x 2-1/2 HHCS GR8

26. 5/16 NC x 2-1/4 HHCS GR5

27. 5/16 NC Lock nut

28. 1/2 NC x 1-1/2 HHCS

29. 1/2 NC nut

(Rev. 1/6/2011)

34 Assembly

MAN0556 (9/21/2007)

Install Hydraulic Hoses

Figure 42. Hydraulic Hose Installation

1. Attach straight end of hose (40) to rod end of left

grapple cylinder.

2. Route hose along inside of left attachment bracket

and attach 90° end of hose (40) to the top feedline

(43) on the left side of the grapple.

3. Attach straight end of hose (41) to base end of left

grapple cylinder.

4. Route hose along inside of left attachment bracket

and attach 90° end of hose (41) to the bottom

feedline (43) on the left side of the grapple.

5. Secure hoses to attachment bracket using hose

clamp (50) and lock nut (27).

6. Repeat steps to attach hoses (40 & 41) to right side

of grapple.

7. Attach adapter (49), dust plug (46) and female

quick coupler (48) to straight end of hose (42).

8. Attach this hose to the bottom feedline in the

middle of the grapple.

9. Attach adapter (49), dust cap (45) and male quick

coupler (47) to straight end of second hose (42).

10. Attach this hose to the top feedline in the middle of

the grapple.

Bucket Tooth Installation (Optional)

Holes for teeth must be drilled in bottom of bucket.

Position point of tooth as shown in Figure 43, 5" from

leading edge of cutting edge. Equally space teeth

along bucket before marking holes. Drill 9/16" holes

where marked. Install tooth (3), hardware (10, 12, 13),

and stiffener (5) for each tooth.

Figure 43. Bolt on Bucket Tooth (Optional)

27. 5/16 NC Lock nut

40. Hose, 46” x 9/16 ORBM x 9/16 JICF 90°

41. Hose, 52” x 9/16 ORBM x 9/16 JICF 90°

42. Hose, 28” x 9/16 JICF x 3/4 JICF 90°

43. Feedline

45. Dust cap

46. Dust plug

47. Quick coupler, male ISO B 1/2

48. Quick coupler, female ISO B 1/2

49. Adapter, 1/2 NPTM x 9/16 JICM

50. Feedline clamp

51. Crg bolt 5/16 NC x 1

3. Bucket tooth

5. Stiffener

10. 3/8 NC x 2 Carriage bolt

12. 3/8 Lock washer

13. 3/8 NC Hex nut



(Rev. 1/6/2011)

MAN0556 (9/21/2007)

Installation 35

INSTALLATION

ATTACH LOADER TO TRACTOR

Remove mount pins from loader uprights.

Align tractor with loader and drive tractor into loader

slowly.

Figure 44. Align Tractor to Loader

Shut off tractor. Connect the hydraulic hoses.

Restart tractor and drive tractor forward, dump bucket

to lower upright into mounts.

Continue dumping bucket until uprights settle into

mounts and mounting pin holes are aligned. Set brake

and shut off the tractor. Install mount pins and retaining

clips.

Remove pins and fold stands into storage position

using pins provided (Figure 45).

Figure 45. Parking Stand - Storage Position

REMOVE LOADER FROM TRACTOR

Bucket or attachment must be installed to remove

loader.

Park tractor on a level surface and lower bucket so the

bucket bottom or attachment is about 1” off the ground.

Set brake and shut off tractor.

Remove lock-up pin and lower the parking stands.

Install pin into hole that most closely aligns (Figure 46).

Repeat steps for opposite parking stand.

Remove mount pins from loader uprights.

Start tractor and retract lift cylinders.

Roll bucket back to completely raise loader uprights

from mounts.

Shut off tractor. Disconnect hydraulics. Store mount

pins in loader uprights. Start tractor and back away

from loader.

Figure 46. Parking Stands Installed

Stored loader can fall and cause serious injury

or death. Securely store loader and attachments to

prevent falling.

Secure equipment parking stand(s) in park posi-

tion before detaching.

36 Installation

MAN0556 (9/21/2007)

To provide necessary balance, loader frame

must be equipped with bucket or attachment

before attaching or detaching from tractor, or when

loader is in stored position.

Do not climb or lean on equipment stored on

stand.

Keep children and bystanders away from stor-

age area.

CONNECT LOADER SUPPLY HOSES TO

LOADER

Refer to Loader Mounting Kit Manual for hose kit instal-

lation.

Connect loader supply hoses to loader feedlines at the

right side of the loader. Always use hoses that have a

minimum working pressure rating of 3000 psi and meet

or exceed SAE 100R1 specifications.

Figure 47. Loader Supply Hose Connection

VERIFY CONTROL MOVEMENTS

Check that all tractor hydraulic control lever positions

operate the loader movements correctly. See Figure

48.

If loader movements do not respond correctly, shut off

tractor, relieve pressure, and reconnect properly.

Loader control movements must be correct before pro-

ceeding.

Once all loader functions are correct, start the tractor

and operate the loader to check for leaks. Purge any

remaining air from the hydraulic system and check oil

level.

When hose routing and correct loader operations are

verified, identify each circuit by placing a matching col-

ored band around the male and female quick coupler.

The color-coded bands will make reinstallation easier

when the loader is removed from tractor.

Figure 48. Single Lever Control Operation

GRAPPLE ASSEMBLY (OPTIONAL)

Remove Grapple

Block equipment securely for storage.

To help prevent injury caused by a falling imple-

ment, always detach on a hard level surface.

Keep children and bystanders away from stor-

age area.

1. On a hard level surface, raise bucket and roll it

completely forward.

2. Place 4x4 blocks underneath the grapple arms

near the rod ends of the cylinders.

3. Lower the bucket and set it down so the grapple

arms rest on the 4x4's and the toothbar rests on

the ground.

CAUTION

●Handle forward - Boom down

●Handle forward to limit - Float position

●Handle back - Boom up

●Handle right -

Dump bucket or attachment (slow)

●Handle to left - Rollback bucket or attachment

MAN0556 (9/21/2007)

Installation 37

4. Open the grapple slightly (enough to remove some

pressure from the pins).

5. Remove the pins that attach the grapple to the

bucket (tools may be required to get the pins out)

6. Uncouple the hydraulics.

7. Remove the cap screws that attach the grapple grill

to the bucket.

8. Rotate the grapple grill back over center so that it

won't swing down when the bucket is moved

(secure with bungee straps if necessary).

Figure 49. Remove grapple

9. Lower the bucket and back the tractor away.

10. Lower the grapple grill so that it won't be able to fall

down and cause damage to the cylinder ports.

Install Grapple

1. Raise the grapple grill so that it is out of the way

and will not swing down (secure with bungee

straps if necessary).

2. Roll the bucket completely forward

Figure 50. Align Bucket with Grapple

3. Drive the tractor forward and align the bottom holes

of the grapple with the bottom set of grapple

mounts on the bucket and insert the pins. NOTE:

this may require two people.

4. Roll the bucket back and align the front holes and

insert pins.

5. Attach the grapple grill to the bucket using cap

screws and nuts.

6. Hook up the hydraulics.

7. Raise the loader and roll the bucket back.

Pins

Removed

4 X 4

Grapple

Grill



(Rev. 1/6/2011)

38 Parts

MAN0556 (9/21/2007)

LF138 & LF156 LOADER ASSEMBLY

55

35. Complete Decal Set

36. Safety Decal Set

37. French Decal Set

MAN0556 (9/212007)

Parts 39

LF138 & LF156 LOADER ASSEMBLY PARTS LIST

REF PART QTY DESCRIPTION

1 1026590 1 Boom assembly - LF156

1 1026591 1 Boom assembly - LF138

2 1026592 1 Right upright - LF156

2 1026594 1 Right upright - LF138

3 1026593 1 Left upright - LF156

3 1026595 1 Left upright - LF138

4 1024768B 1 Cylinder, 2.95 x 1.97 x 30.87

(right hand) - LF156

4 1024766B 1 Cylinder, 2.76 x 1.77 x 28.93

(right hand) - LF138

5 1024769B 1 Cylinder, 2.95 x 1.97 x 30.87

(left hand) - LF156

5 1024767B 1 Cylinder, 2.76 x 1.77 x 28.93

(left hand) - LF138

6 1024770B 2 Cylinder 2.76 x 1.49 x 20.00

7 1025640B 2 Bucket link

(also order 2 of wiper 441517)

8 1025645 2 Free link -11.50

9 1025650B 2 Guide link 11.50

10 1026267 2 Pin - bent .50 x 3.00

11 56075 2 Pull pin 1.25 w/lynch pin

12 1025646 4 Pin - 1.25 x 7.63

13 1025647B 4 Pin - 1.25 x 6.68

14 1025660B 1 Cover - feedline - LF156

14 1026270B 1 Cover - feedline - LF138

15 1025667B 2 Channel - stand support - LF156

15 1026261B 2 Channel - stand support - LF138

16 1025668 2 Pad - parking stand

17 1025669 2 Channel - parking stand - LF156

17 1026262 2 Channel - parking stand - LF138

18 1026258 1 Bracket - level indicator - LF156

18 1026269 1 Bracket - level indicator - LF138

REF PART QTY DESCRIPTION

19 1026259 1 Rod - level indicator

20 1025651 1 Bracket - manual tube

21 1003828 1 Manual tube

22 258 8 Feedline clamp - 1/2

23 56 2 Feedline clamp - 5/8

25 43439 2 Strap

26 1018607 12 Bearing 1.25x1.41x1.00 (set of 2)

27 1018608 1 Bearing 1.25x1.41x1.00 (set of 24)

28 441517 16 Wiper ring (1-1/4 ID)

29 88 * 15 Plastic tie

35 1026596 1 Decal set complete

36 1018605 1 Decal set safety

37 1019721 1 Decal set safety French

38 30515 2 M8 x 1.25P Hex nut

39 2688 * 2 5/32 Hair pin cotter

40 64803 * 4 3/16 x 2 Cotter pin

41 62043 2 1/4 x 1-3/4 klik pin

(included with item 10)

42 307128 1 M8 x 1.25P x 150 mm HHCS

43 14562 * 2 5/16 NC x 1 HHCS GR5

44 4378 * 7 Washer, 5/16 Standard flat

45 FA220 14 Nut, 5/16 NC Nylock

46 300165 * 8 3/8 NC x 2-1/2 HHCS GR5

47 6698 * 8 Nut, lock 3/8 NC

48 300300 * 4 1/2 NC x 1 HHCS GR5

49 3699 * 1 1/2 NC x 2 HHCS GR5

50 1637 * 2 1/2 NC x 3-1/2 HHCS GR5

51 29553 4 Washer, 1/2 ID x 1-5/8 OD x 1/4 thick

52 1093 * 2 Nut, hex 1/2 NC

53 765 * 2 Nut, lock 1/2 NC

54 7163 * 4 Washer, 1-1/4 standard flat

55 1021841 1 Spanner wrench

(used for cylinder repairs)

HHCS Hex Head cap Screw

* Standard hardware, obtain locally

(Rev. 4/25/2008)

40 Parts

MAN0556 (9/21/2007)

QUICK ATTACH BUCKET ASSEMBLY

PIN-ON BUCKET ASSEMBLY (LF138 ONLY)

REF PART QTY DESCRIPTION

1 2470084G - 84" Bucket w/Grapple lugs

1 2470084 - 84" Bucket

1 2470096 - 96" Bucket w/Grapple lugs

2 1014179K - 84" Cutting edge kit (incl. items 15-16)

2 1019482K - 96" Cutting edge kit (incl. items 15-16)

3 38993 7 Bucket tooth

4 46381 - Tooth kit (7) for 84" bucket

(incl. items 3, 5, 10-13)

5 46388 7 Bucket tooth stiffener

6 1022758 1 84" Cutting edge, .75 x 6.0 x 84

(weld in edge)

6 1022766 1 96" Cutting edge, .75 x 6.0 x 96

(weld in edge)

10 301145 * 14 3/8 NC x 2 Carriage bolt GR5

12 838 * 14 3/8 Lock washer

13 835 * 14 3/8 NC Hex nut

15 21261 * A/R 5/8 NC x 2 Plow bolt

16 6239 * A/R 5/8 NC Lock nut

** Standard hardware, obtain locally

A/R As required

NOTE: Bolt-on cutting edge kits and bucket tooth kits

are optional and must be ordered separately.

NOTE: Bolt-on cutting edge kits and bucket tooth kits are

optional and must be ordered separately.

REF PART QTY DESCRIPTION

1 2460084 - 84" Bucket (incl. items 7, 10, 11)

2 1014179K - 84" Cutting edge kit (incl. items 15-16)

3 38993 7 Bucket tooth

4 46381 - Tooth kit (7) for 84" bucket

(incl. items 3, 5, 12-14)

5 46388 7 Bucket tooth stiffener

6 1022758 1 84" Cutting edge, .75 x 6.0 x 84

(weld in edge)

7 1025646 4 Pin, 1.25 x 7.63

10 7164 * 4 5/16 NC x 2-1/4 HHCS GR5

11 6778 * 4 5/16 NC Lock nut

12 301145 * 12 3/8 NC x 2 Carriage bolt GR5

13 838 * 12 3/8 Lock washer

14 835 * 12 3/8 NC Hex nut

15 21261 * A/R 5/8 NC x 2 Plow bolt

16 6239 * A/R 2/8 NC Lock nut

* Standard hardware, obtain locally

MAN0556 (9/212007)

Parts 41

QUICK ATTACH COUPLER

(OPTIONAL FOR LF138)

REF PART QTY DESCRIPTION

A 2450000 - ISO 23206 Carriage assembly

1 --------- 1 ISO 23206 Carriage (NSS)

2 1025541 1 Handle

3 1025542 1 Handle link - right

4 1025545 1 Handle link - left

5 1025941 1 Latch link

6 1025646 4 Pin, 1.25 x 7.63

7 1025543 2 Pin, .787 x 7.60

8 395036 1 Handle grip

15 H019 1 Lock pin

REF PART QTY DESCRIPTION

16 12169 * 1 3/8 NC x 1-1/4 HHCS GR5

17 976 * 2 3/8 NC x 1-1/2 HHCS GR5

18 300165 * 4 3/8 NC x 2-1/2 HHCS GR5

19 565 * 4 3/8 Flat washer

20 302082 * 7 3/8 NC Lock nut

21 6100 * 2 1/2 NC x 1-1/4 HHCS GR5

22 639 * 1 1/2 NC x 2-1/2 HHCS GR5

23 765 * 3 1/2 NC Lock nut

NSS Not sold separately

HHCS Hex Head Cap Screw

* Standard hardware, obtain locally

42 Parts

MAN0556 (9/21/2007)

HYDRAULIC HOSE ROUTING & PARTS LIST

REF PART QTY DESCRIPTION

1 1025656 1 Feedline - Bucket rod upper - LF156

1 1026250 1 Feedline - Bucket rod upper - LF138

2 1025653 1 Feedline - Bucket base upper - LF156

2 1026251 1 Feedline - Bucket base upper - LF138

3 1025655 1 Feedline - Boom base - LF156

3 1026252 1 Feedline - Boom base - LF138

4 1025654 1 Feedline - Boom rod - LF156

4 1026253 1 Feedline - Boom rod - LF138

5 1025658 1 Feedline - Bucket rod lower - LF156

5 1026254 1 Feedline - Bucket rod lower - LF138

6 1025657 1 Feedline - Bucket base lower - LF156

6 1026255 1 Feedline - Bucket base lower- LF138

7 360174 4 Hose, 36" x 3/4 ORBM x 3/4 JICF -

LF156

7 1004286 4 Hose, 28" x 3/4 ORBM x 3/4 JICF -

LF138

REF PART QTY DESCRIPTION

8 360175 4 Hose, 60" x 3/4 ORBM x 3/4 JICF -

LF156

8 360178 4 Hose, 50" x 3/4 ORBM x 3/4 JICF -

LF138

9 360161 4 Hose, 64" x 3/4 ORBM x 3/4 JICF -

LF156

9 360175 4 Hose, 60" x 3/4 ORBM x 3/4 JICF -

LF138

15 315019 1 Elbow, 3/4 JICM x 3/4 JICM - LF156

16 258 8 Feedline clamp - 1/2

17 56 2 Feedline clamp - 5/8

18 43439 2 Strap

19 FA220 14 5/16 NC Nylock nut

20 88 * 15 Plastic tie

* Standard hardware, obtain locally

MAN0556 (9/212007)

Parts 43

HYDRAULIC CYLINDER SEAL KITS & ASSEMBLY

Length Seal Kit

Cylinder Tube

ID

Rod

OD

Extended Retracted Spanner Nut

Style

Threaded Rod Gland

Style

Complete Assembly

LF138 Boom 2.76 1.77 67.00 38.07 N.A. 1024771 1024766 RH

1024767 LH

LF156 Boom 2.95 1.97 70.75 39.88 N.A. 1024772 1024768 RH

1024769 LH

LF138 Bucket 2.76 1.49 48.88 28.88 N.A. 1024773 1024770

LF156 Bucket 2.76 1.49 48.88 28.88 N.A. 1024773 1024770

Grapple 2.76 1.38 33.75 20.20 1023728 1023729 1021502

44 Parts

MAN0556 (9/21/2007)

2490000 GRAPPLE (OPTIONAL)

(Rev. 1/6/2011)

7 - PN 1026520

MAN0556 (9/212007)

Parts 45

2490000 GRAPPLE PARTS LIST

NOTE: For items 8, 9 & 10 see Decal pages 10 and 11.

REF PART QTY DESCRIPTION

1 1021502B 2 Hydraulic cylinder

2 1025916 1 Grapple attach right

3 1025917 1 Grapple attach left

4 1025918 1 Grapple arm

5 1025919 1 Grapple tooth

6 1032748 1 Grapple grill

7 1026520 2 Decal, Danger - Overhead Power

Lines

8 56051 1 Decal, Warning - Read Manual

9 56050 1 Decal, Warning - Crush & Fall Hazard

10 19924 1 Decal, Warning - Hydraulic Fluid

15 1002739 4 Hitch pin, 1.25 x 4.63

16 1018607 4 Bearing, 1.25 x 1.41 x 1.0 (set of 2)

17 1020348 4 Pin, 1.25 x 5.50

18 1025647 2 Pin, 1.25 x 6.68

20 6239 * 8 5/8 NC Lock nut

21 57817 16 5/8 Hardened flat washer

23 35124 4 Klik pin, 7/16 x 2

REF PART QTY DESCRIPTION

25 11854 * 8 5/8 NC x 2-1/2 HHCS GR8

26 7164 * 6 5/16 NC x 2-1/4 HHCS GR5

27 6778 * 12 5/16 NC Lock nut

28 3379 * 4 1/2 NC x 1-1/2 HHCS GR5

29 1093 * 4 1/2 NC nut

40 1023474 2 Hose, 46" x 9/16 ORBM x 3/4 JICF 90°

41 1023477 2 Hose, 52" x 9/16 ORBM x 3/4 JICF 90°

42 360143 2 Hose, 28" x 9/16 ORBM x 3/4 JICF 90°

43 216070 2 Feedline

45 1024763 1 Dust cap, 1/2 ISO B

46 1024764 1 Dust plug, 1/2 ISO B

47 1025944 1 Quick coupler, male 1/2 - ISO B

48 1025945 1 Quick coupler, female 1/2 - ISO B

49 54315 2 Adapter, 1/2 NPTM x 9/16 JICM

50 258 6 Feedline clamp

51 24409 4 Crg. bolt 5/16 NC x 1

* Standard hardware, obtain locally

(Rev. 1/6/2011)

46 Appendix

Bolt Torque & Size Charts (Rev. 3/28/2007)

BOLT TORQUE CHART

Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific

application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.

Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware.

Make sure fastener threads are clean and you start thread engagement properly.

All torque values are given to specifications used on hardware defined by SAE J1701 MAR 99 & J1701M JUL 96.

Diameter

(Inches)

Wrench

Size

MARKING ON HEAD

SAE 2 SAE 5 SAE 8

lbs-ft N-m lbs-ft N-m lbs-ft N-m

1/4" 7/16" 6 8 10 13 14 18

5/16"1/2"121719262737

3/8"9/16"233135474967

7/16"5/8"3648557578106

1/2" 3/4" 55 75 85 115 120 163

9/16" 13/16" 78 106 121 164 171 232

5/8" 15/16" 110 149 170 230 240 325

3/4" 1-1/8" 192 261 297 403 420 569

7/8" 1-5/16" 306 416 474 642 669 907

1" 1-1/2" 467 634 722 979 1020 1383

Diameter &

Thread Pitch

(Millimeters)

Wrench

Size

COARSE THREAD FINE THREAD

Diameter &

Thread Pitch

(Millimeters)

MARKING ON HEAD MARKING ON HEAD

Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9

N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft

6 x 1.0 10 mm 8 6 11 8 8 6 11 8 6 x 1.0

8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8 x 1.0

10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10 x 1.25

12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25

14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5

16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5

18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5

20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5

22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5

24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0

30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0

A

SAE SERIES

TORQUE

CHART

SAE Bolt Head

Identification

SAE Grade 2

(No Dashes)

SAE Grade 5

(3 Radial Dashes)

SAE Grade 8

(6 Radial Dashes)

A

METRIC SERIES

TORQUE

CHART

Metric Bolt Head

Identification

8.8

Metric

Grade 10.9

10.9

Metric

Grade 8.8

A

A

A

Typical Washer

Installations

Lock Washer

Flat Washer

8/9/00

Bolt

Appendix 47

Bolt Torque & Size Charts (Rev. 3/28/2007)

BOLT SIZE CHART

NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts.

ABBREVIATIONS

AG .............................................................. Agriculture

ASABE.................... American Society of Agricultural &

Biological Engineers (formerly ASAE)

ASAE ....... American Society of Agricultural Engineers

ATF ............................... Automatic Transmission Fluid

BSPP .............................British Standard Pipe Parallel

BSPTM ................ British Standard Pipe Tapered Male

CV.....................................................Constant Velocity

CCW .............................................. Counter-Clockwise

CW............................................................... Clockwise

F ...................................................................... Female

FT .............................................................. Full Thread

GA .................................................................... Gauge

GR (5, etc.) ........................................... Grade (5, etc.)

HHCS ........................................Hex Head Cap Screw

HT........................................................... Heat-Treated

JIC .................Joint Industry Council 37° Degree Flare

LH .................................................................Left Hand

LT........................................................................... Left

m......................................................................... Meter

mm................................................................ Millimeter

M.......................................................................... Male

MPa.........................................................Mega Pascal

N.......................................................................Newton

NC ......................................................National Coarse

NF ...........................................................National Fine

NPSM.....................National Pipe Straight Mechanical

NPT .......................................... National Pipe Tapered

NPT SWF .........National Pipe Tapered Swivel Female

ORBM .......................................... O-Ring Boss - Male

P...........................................................................Pitch

PBY ...................................................... Power-Beyond

psi.......................................... Pounds per Square Inch

PTO ..................................................... Power Take Off

QD....................................................Quick Disconnect

RH ..............................................................Right Hand

ROPS ........................... Roll-Over Protective Structure

RPM ........................................Revolutions Per Minute

RT ....................................................................... Right

SAE ..........................Society of Automotive Engineers

UNC .....................................................Unified Coarse

UNF...........................................................Unified Fine

UNS......................................................Unified Special

5/16 3/81/2 5/83/4 7/8

SAE Bolt Thread Sizes

MM 25 50 75 100 125 150 175

IN 1 7

Metric Bolt Thread Sizes

8MM 18MM14MM12MM10MM 16MM

234 56

48 Index

MAN0556 (9/21/2007)

INDEX

A

ASSEMBLY

Dealer Set-Up Instructions 31

D

DEALER CHECK LISTS

Delivery (Dealer’s Responsibility) 25

Pre-Delivery (Dealer’s Responsibility) 25

DEALER SERVICE

Cylinder Repair

Threaded Rod Guide Cylinder

Assembly 26

Disassembly 26

Pivot Bearing Replacement 29

G

GENERAL

Abbreviations 47

Bolt Size Chart 47

Bolt Torque Chart 46

General Information 3

Introduction 2

Obtaining Replacement Manuals 2

Product Registration 2

Specifications 4

Table of Contents 3

Warranty

Product 88

Replacement Parts 73

I

INSTALLATION

Attach Loader to Tractor 35

Connect Loader Supply Hoses 36

Grapple Assembly

Install Grapple 37

Remove Grapple 36

Remove Loader from Tractor 35

Verify Control Movements 36

O

OPERATION

Bale Spear Operation 19

Picking Up Round Bale 20

Picking Up Round Bale on Slope 20

Transporting Round Bale 20

Cleaning

After Each Use 20

Extended Storage 20

Connect Bucket using Quick Attach Coupler 13

Forklift Operation 17

Grapple Operation 18

Dumping Load 19

Removing Hay & Silage 19

Handling Objects 17

Loader Operation 13

Backblading 16

Backfilling 17

Carrying Load 14

Dumping Bucket 15

Filling Bucket 14

Lifting Load 14

Loading from a Bank 15

Loading Low Trucks or Spreading 16

Lowering Bucket 15

Operating on a Slope 14

Operating with Float Control 15

Peeling and Scraping 16

Pre-Operation Check List

(Owner’s Responsibility) 21

Tractor Preparation 12

OWNER SERVICE

Lubrication Points 22

S

SAFETY

Delivery (Dealer’s Responsibility) 25

Pre-Delivery (Dealer’s Responsibility) 25

Pre-Operation Check List

(Owner’s Responsibility) 21

Safety & Instructional Decals 10

Safety Rules 6

Safety Symbols Explained 2

T

TROUBLESHOOTING

Troubleshooting 23

F-3079 (Rev. 1/12/2011)

Woods Equipment

Company

2606 South Illinois Route 2

Post Office Box 1000

Oregon, Illinois 61061 USA

800-319-6637 tel

800-399-6637 fax

www.WoodsEquipment.com

WARRANTY

All Models Except Mow’n MachineTM Zero-Turn Mowers

Please Enter Information Below and Save for Future Reference.

Date Purchased: ____________________________ From (Dealer): __________________________________________

Model Number: ____________________________ Serial Number: __________________________________________

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship. Except as otherwise set forth

below, the duration of this Warranty shall be for TWELVE (12) MONTHS COMMENCING ON THE DATE OF DELIVERY OF THE

PRODUCT TO THE ORIGINAL PURCHASER.

All current model loaders and backhoes are warranted for two (2) years from the date of delivery to the original purchaser.

The warranty periods for specific parts or conditions are listed below:

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to

improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been materially

modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized service center.

This Warranty does not cover normal wear or tear, or normal maintenance items. This Warranty also does not cover repairs made with parts other

than those obtainable through WOODS.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this product to a

third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.

WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories not manufactured by

WOODS. Warranties for these items, if any, are provided separately by their respective manufacturers.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if WOODS, in

its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product must be returned to WOODS with proof of

purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the

dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete such repair or

replacement within a reasonable time after WOODS receives the product. THERE ARE NO OTHER REMEDIES UNDER THIS WARRANTY.

THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. WOODS

MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY

OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the

product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal

theory. Without limiting the generality of the foregoing, Woods specifically disclaims any damages relating to (i) lost profits, business, revenues

or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute machinery or

rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture

replacement parts.

No agent, representative, dealer, distributor, serviceperson, salesperson, or employee of any company, including without limitation, WOODS, its

authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty. Answers to any

questions regarding warranty service and locations may be obtained by contacting:

Part or

Condition

Warranted

Model Number

Duration (from date of

delivery to the original

purchaser)

Gearbox

Seals All units listed below 2 years

Gearbox

components

BW1260, BW1620, BW1800, BW2400 8 years

BW240HD, BW180HD, BW180HB, BW126HB 7 years

BB48X, BB60X, BB72X, BB84X, BB600X, BB720X, BB840X, BB6000X, BB7200X, BB8400X,

DS1260, DSO1260, DS1440, TS1680, BW126-3, BW180-3, BW240 6 years

PHD25, PHD35, PHD65, PHD95, 2162, 3240, DS96, DS120, RCC42, RM550-2, RM660-2,

RD990X, PRD6000, PRD7200, PRD8400, S15CD, S20CD, S22CD, S25CD, S27CD, BW180LH,

TC/R74, TC/R68, TC/R60, TBW144, TBW180, TBW204

5 years

RDC54, RD60, RD72, TBW150C, TS/R60, TS/R52, TS/R44 3 years (1 year if used in rental or

commercial applications)

Blade

spindles RM550-2, RM660-2, RD990X, PRD6000, PRD7200, PRD8400, 7144RD-2, 9180RD-2, 9204RD-2 3 years

Rust-through

BB600, BB720, BB840, BB6000, BB7200, BB8400, BW126-3, BW126HB, BW180-3, BW180HB,

BW180HD, BW1260, BW1800, BW240, BW240HD, 2162, 3240, DS1260, DSO1260, DS1440,

TS1680

10 years

F-8494 (Rev. 6/23/2005)

©2007 Woods Equipment Company. All rights reserved. WOODS and the Woods logo are trademarks of Woods Equipment Company. All other

trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are the property of their respective

companies or mark holders. Specifications subject to change without notice.

WARRANTY

(Replacement Parts For All Models Except Mow’n MachineTM

Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and

workmanship for a period of ninety (90) days from the date of delivery of the product to the original purchaser

with the exception of V-belts, which will be free of defect in material and workmanship for a period of 12 months.

Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of

WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty

does not cover normal wear or tear, or normal maintenance items.

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or

otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any

way. There are no third party beneficiaries of this Warranty.

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of

charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with this

Warranty. The product must be returned to WOODS with proof of purchase within thirty (30) days after

such defect or noncompliance is discovered or should have been discovered, routed through the dealer and

distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete

such repair or replacement within a reasonable time after WOODS receives the product. THERE ARE NO

OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE

SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS

WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS

SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/OR ANY

IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly

or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty,

negligence, strict liability in tort or any other legal theory. Without limiting the generality of the foregoing,

Woods specifically disclaims any damages relating to (i) lost profits, business, revenues or goodwill; (ii) loss of

crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute

machinery or rental; or (v) any other type of damage to property or economic loss.

This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain

materials or manufacture replacement parts.

No agent, representative, dealer, distributor, service person, salesperson, or employee of any company, including

without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify,

or enlarge this Warranty.

Answers to any questions regarding warranty service and locations may be obtained by contacting:
