Owner’s Manual
Thank you for purchasing the
Havahart® Spray Away® Hydro-Remote™ Animal Repellent!
Content Page
Cautions
Woodstream® Corporation
69 North Locust Street
Lititz, PA 17543
United States
www.Havahart.com
Intended to operate with typical household water
pressure–between 30 and 80 psi.
Malfunctioning units carry an inherent risk
of causing water damage to your property.
Mitigate your risk by limiting the amount of water
available to the unit (open hose valve 3/4 turn
maximum) and ensuring your water pressure is
within the normal operating range for the unit.
Use a high quality garden hose with a
solid brass connector for a leak-free, durable
connection. Any visible wear (especially on hose
thread), such as bends or dings, can cause the
connection to leak.

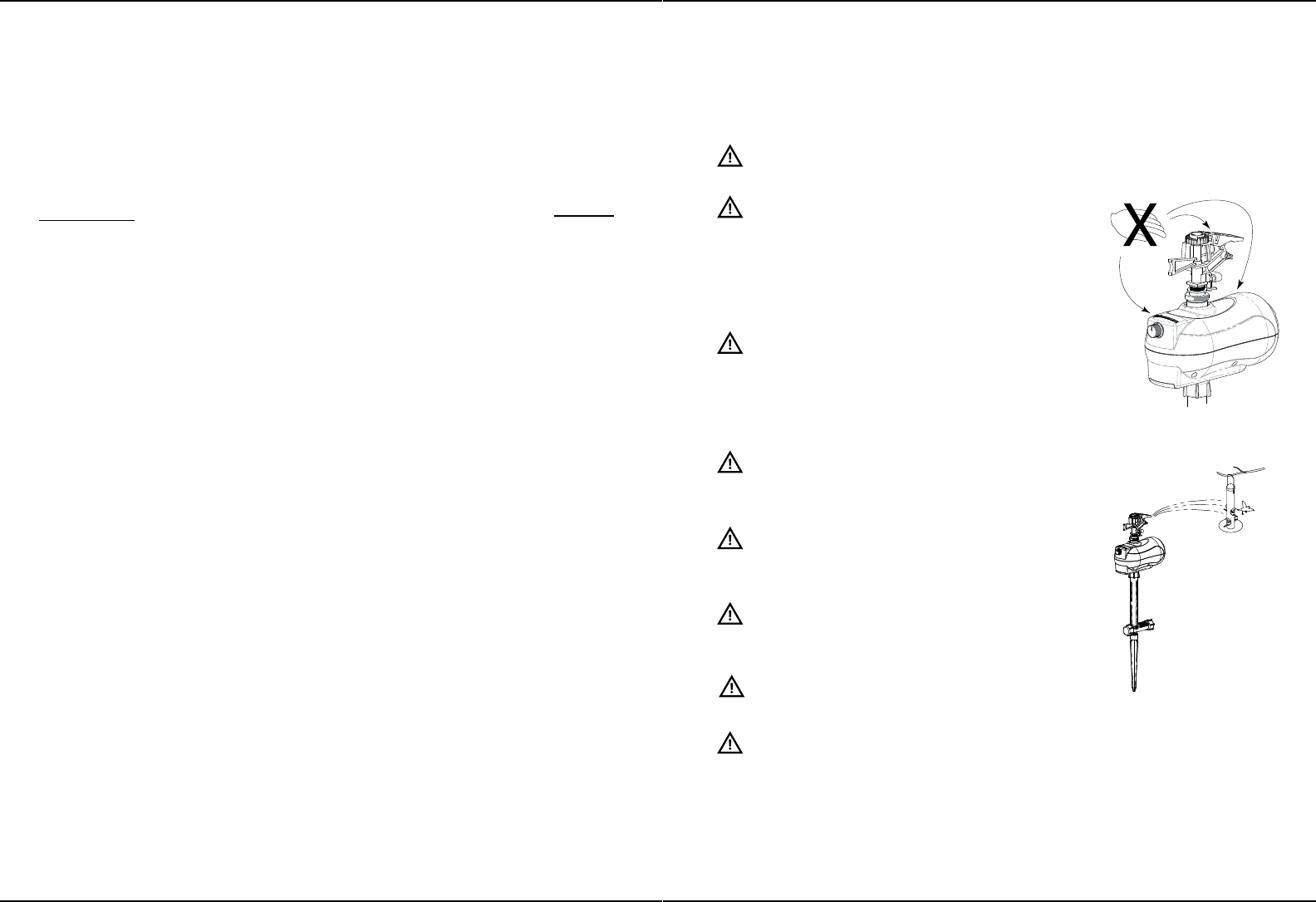

When pushing the stake into the ground, use
the step-in-stake. DO NOT push down or apply
weight on the top of the main unit.
To prevent damage from freezing water, bring
Spray Away® inside when the temperature
drops below 32°F.
Dust, dirt or hard water on Infrared Sensor can
limit sensitivity – keep clean by wiping it gently
with a damp cloth.
Higher sensitivity levels are more prone to
repeated/erroneous sprays.
To minimize false triggers, avoid pointing Spray
Away® at moving water, windy areas and
moving vehicles.
DO NOT PUSH DOWN
ON UNIT!
MAY FRIGHTEN BIRDS!
23
Cautions .......................................................................
Intro ..............................................................................
Parts .............................................................................
Remote Guide..............................................................
Setup ............................................................................
Repelling An Animal ...................................................
Sensitivity Guide .........................................................
Watering Your Yard .....................................................
Troubleshooting .........................................................
Warranty ......................................................................
FCC Statement.............................................................
3
4
5
6
7-10
11
12
13
14
15
16-17
If you encounter any problems while
assembling your Spray Away®, please
refer to the Troubleshooting section of this
manual or call us at 1.855.5.HAVAHART.
Intro Parts
Havahart® Spray Away® Hydro-Remote™ Animal Repellent is the
next generation of motion-activated sprinklers. Hydro-Remote™
combines an effective and humane animal repellent with a water
sprinkler, giving you the ability to hydrate your yard and garden while
protecting it.
Additionally, this unique dual purpose gardening tool can be controlled
with a touch of a button! The first of its kind, Spray Away® Hydro-
Remote’s remote functions from over 100 feet away. For example:
Before getting the newspaper, use the remote to turn off the unit from
the safety of your kitchen. Or, switch the unit into sprinkler mode to
water your garden while you’re relaxing on the patio!
We’ve designed Spray Away® Hydro-Remote™ to be your secret
gardening tool.
Just turn it on and let it do the work for you!
Missing something? Call Customer Service at
1.855.5.HAVAHART.

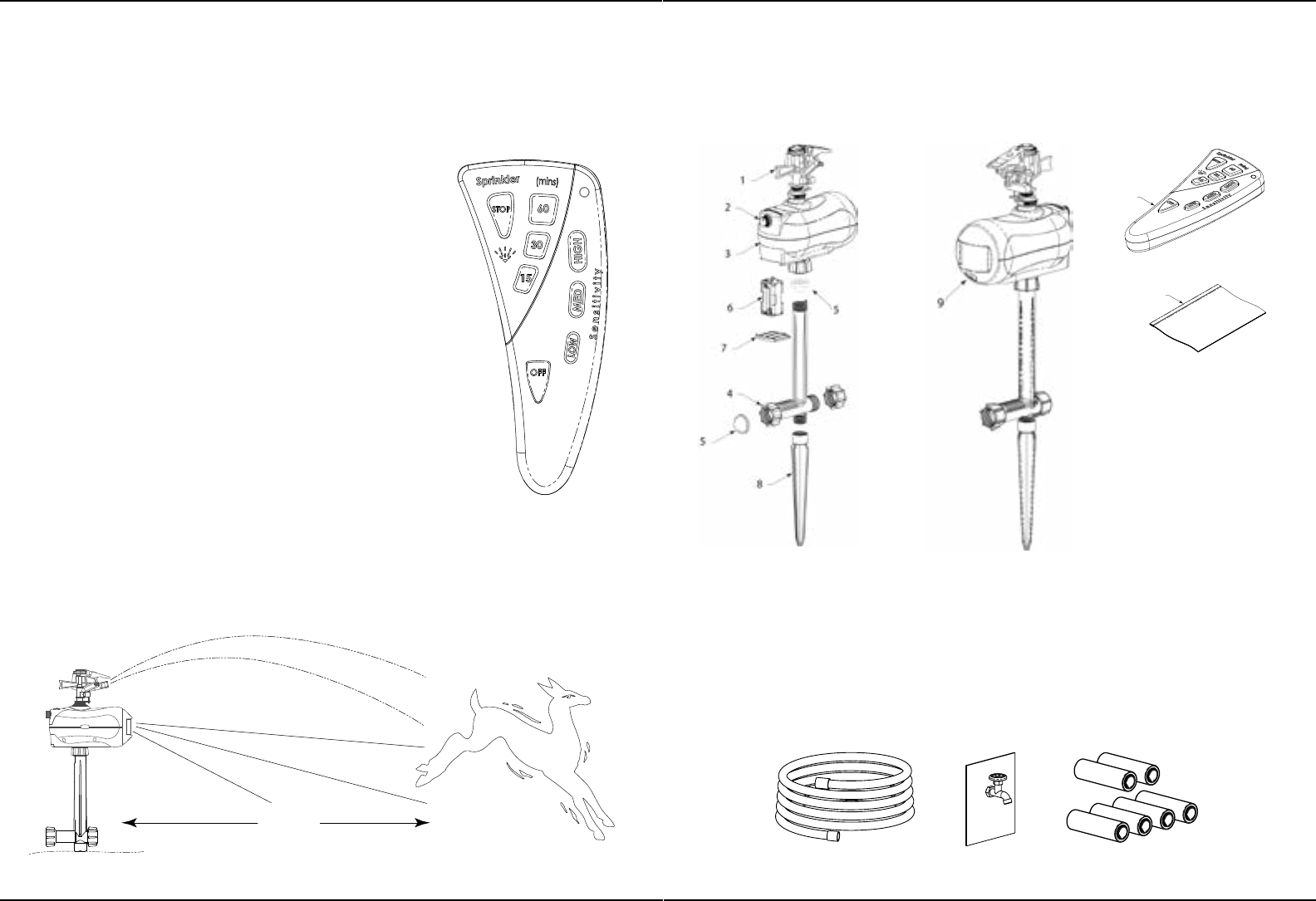

Sprinkler Head
Mode Knob
Main Unit
Hose Connection
Screen Gasket
Battery Case
1.
2.
3.
4.
5.
6.
What you will need:
Garden Hose
Access to Faucet / Tap
6 AA Batteries
Garden Hose Access to
Faucet / Tap
6 AA Batteries
45
Battery Cover
Step-in-Stake
Indicator Light
Remote Control
Owner’s Manual
7.
8.
9.
10.
11.
35 feet
10
11
Remote Guide Setup

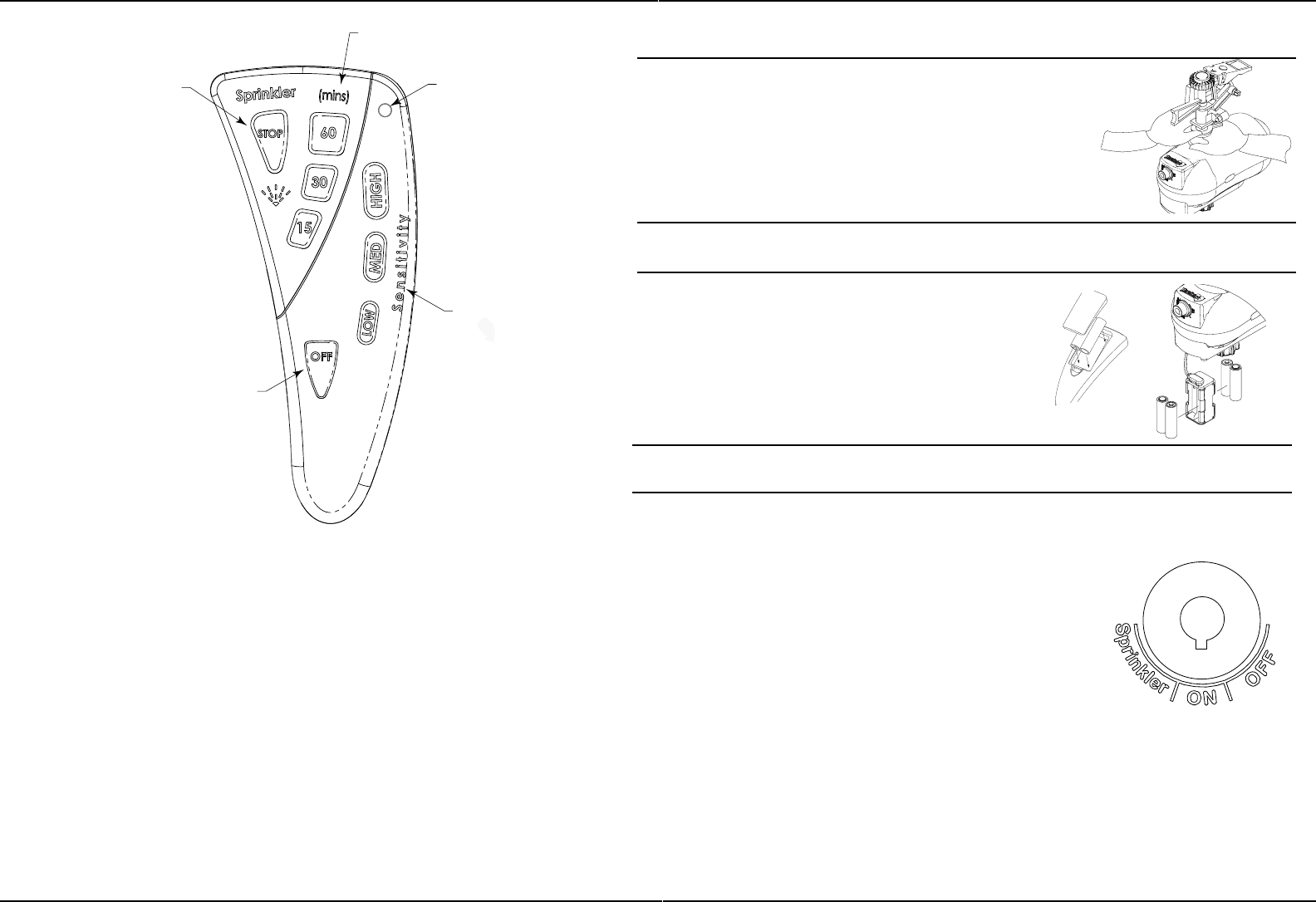

LED Light: Illuminates when a signal is sent to the unit. If this light does not
illuminate when a button is pressed, replace the batteries.
ON/OFF: Turns Spray Away® ON or OFF.
Sensitivity: Select your sensitivity level. See guide on page 12.
Sprinkler Minutes (mins): Commands Spray Away® to water/continuously
spray for 15, 30, or 60 minutes.
STOP: Stops the Sprinkler.
Note: The Remote Control best communicates with Spray Away within 100 feet of the unit. The units
indicator light will blink when you press a button on your Remote.
67
Attach Sprinkler Head
Attach Sprinkler Head and fully tighten by hand.
Note: Using tools (ex: wrench) will damage the unit and result in
leaking and/or unit malfunction.
Install Batteries 2.
Install 2 AA batteries into Remote Control
Install 4 AA batteries into Main Unit
Sync Remote to Spray Away® Hydro3.
Complete the next 2 steps within 10 seconds of each other.
•
1.
2.
3.
4.
5.
1.
•
•
•
1. With Remote Control and Main Unit
in hand, turn the Mode Knob to ON.
2. Immediately press Low on the remote
three times.
Successful - The Main Unit will rapidly blink and beep.
Unsuccessful - Main Unit will NOT rapid blink or respond to remote. You will
need to resync. Remove batteries from the Main Unit and repeat steps 2 and 3.
•
•
2
3
51
4
Setup Cont.
89
Setup Cont.
Stake in Area You Want to Protect or Irrigate4.
50 feet
35 f
eet

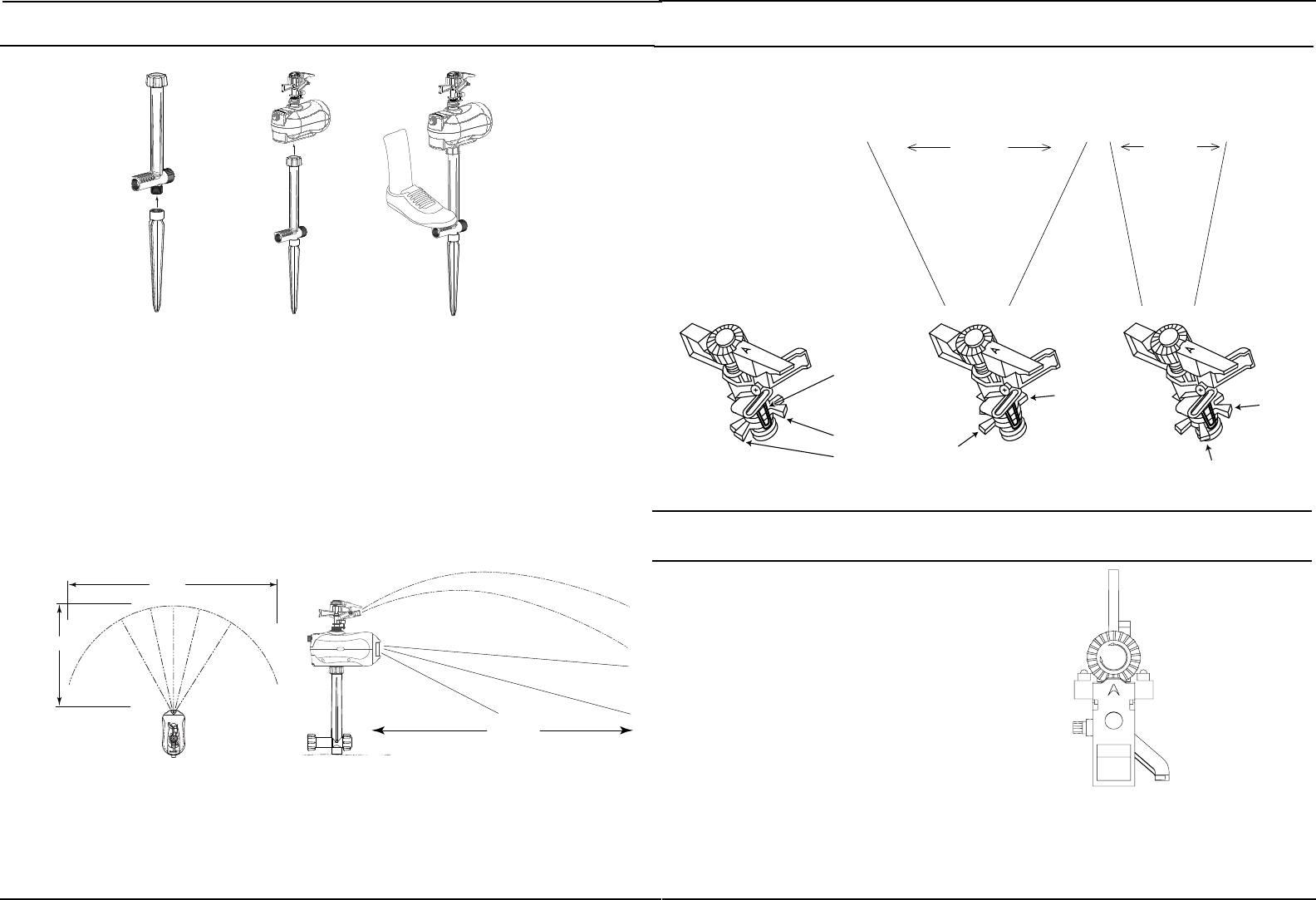

Assemble the Step-in-Stake by attaching it to the Main Unit. (A and B)
Place your foot on stake and gently press the unit into the ground. (C)
Lean unit 5 degrees forward for smaller animals; lean unit 5 degrees
backwards for birds and larger animals.
Ex: Place in/next to landscape you are trying to protect with sensor facing the
direction animals are approaching.
•
•
AB C
Metal
Wire
Clip
Stem
Tabs Wide tabs produce
wide arc
Narrow tabs produce
narrow arc
Adjust the Spray Distance (optional)7.
Rotate dial on top of the Sprinkler Head
to adjust Spray Distance. Use “MIN” and
“MAX” as guidelines (MAX = 35 feet).
Note: Spray distance also varies depending on
water pressure.
MIN
MAX
DISTANCE
Adjust the Spray Width (spray width from left to right)
Position Metal Clip between the stem tabs to achieve desired spray width (use
images below as a guide).
Be sure to position Metal Clip so it is facing the same direction as Infrared
Sensor.
•
6.
25 FT
40 FT
•
•
•
35 feet
•
Max weight:
150lbs.
Setup Cont.
Setting and Testing the Sensitivity - “ON” Mode

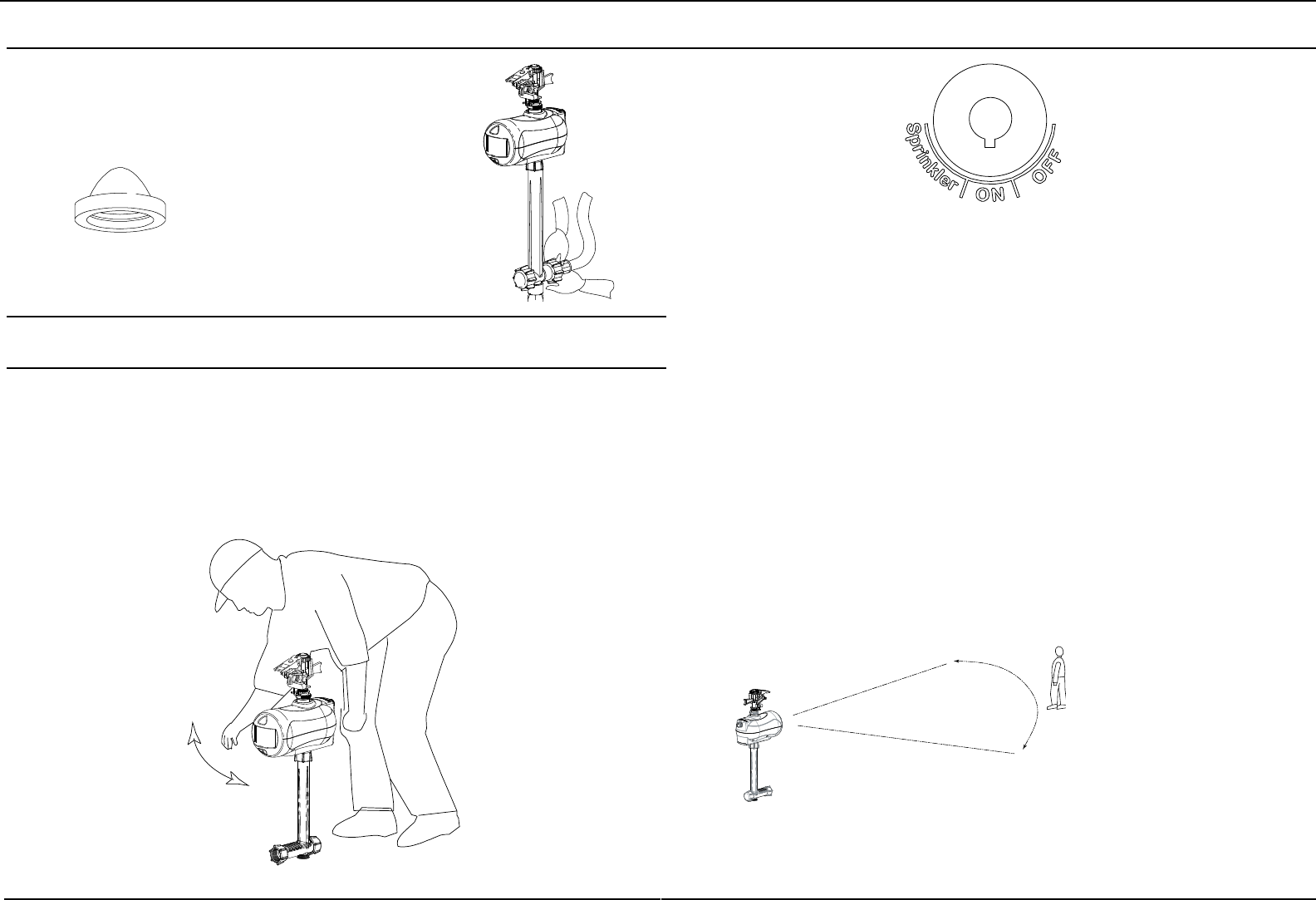

With your water OFF, stand in front of the Spray Away® at the furthest distance you
want to detect. (Max. is 35 feet away from unit.)
Point Remote Control toward Spray Away® and press Low. (This gives you a starting
point to adjust from.)
Wait 10 seconds (remain still as it calibrates). See Important Note below.
Staying the same distance from the unit walk back and forth to test if the unit can see
you. The Indicator Light will double blink if it sees you.
If Spray Away® does not see you, select the next highest sensitivity level. Continue
to select the next highest sensitivity level until the Spray Away® sees you.
Once it sees you, your desired coverage area has been set correctly.
•
•
•
•
•
•
Use the Sensitivity Guide (Page 12) as a reference
IMPORTANT NOTE: Spray Away® does not sense for 10 seconds after an activation.
This means when testing the coverage area you will need to wait (remain still) for 10
seconds before moving again.
10 11
- Spray Away® Indicator Light will blink to indicate that it received
the signal
Repelling An Animal
Attach a Garden Hose8.
With your water OFF, attach a garden hose to the
Main Unit.
Ensure the Screen Gasket is secure inside the Main
Unit.
•
•
Test Spray Away
9.
Turn water ON and approach Spray Away from behind.
Wait 15 seconds. Then wave your hand in front of the Infrared Sensor.
Adjust the spray width and distance as needed (Page 9).
•
•
Screen Gasket
Watering Your YardSensitivity Guide
Controlling the Sprinkler with your Remote Control
12 13
Occassionally sensitivity may need to be adjusted based on outside temperature.
When the weather is warmer, higher sensitivity levels are required. When the weather is
cooler, lower sensitivity levels are required. Use charts as a guide.
Animal Size Examples:
Small - Birds, Rabbits, Squirrels
Medium - Cats, Raccoons, Skunks, Groundhogs
Large - Deer, Dogs, Foxes

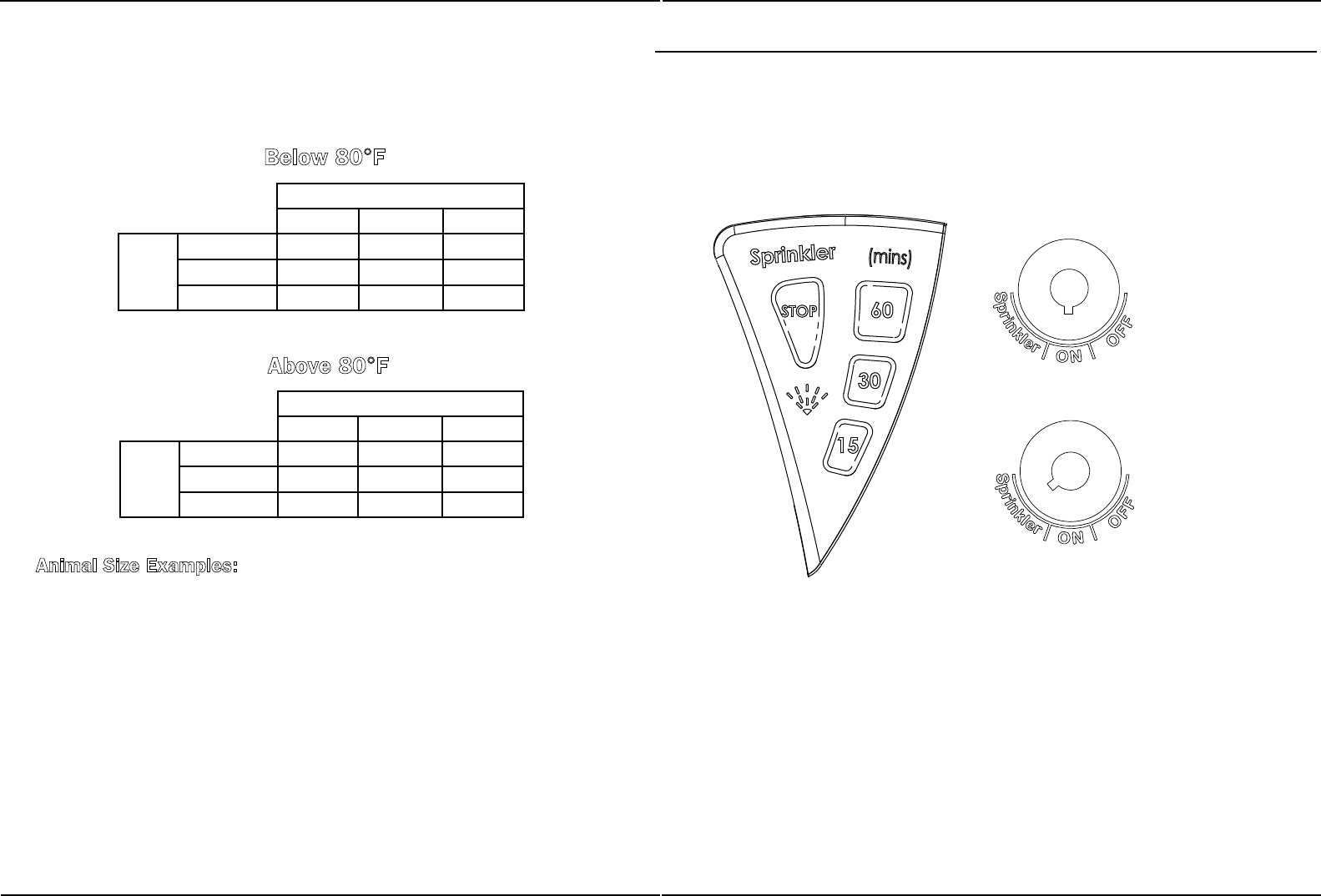

When Mode Knob is in “ON” or “SRINKLER” Mode, use the green portion of
your Remote Control to stop and start the sprinkler as necessary.
To start the Sprinkler: Select 15, 30, or 60 minutes.
The Sprinkler will automatically turn off after the time you have selected.
•
•
Use as
sprinkler
and
repellent
Use as
sprinkler
only
“ON” Mode: When Sprinkler timer has ended, unit will
go back to repelling and detecting animals. It will default to your
last/saved sensitivity setting.
“SPRINKLER” Mode: Unit can only be used as a sprinkler
and will not detect animals. The unit will continuously spray/water
your yard. Selecting the desired minutes on the remote will set the
timer.
•
•
•
•
•
Desired Detection Distance
10 feet 20 feet 30 feet
Animal
Size
Small Medium High High
Medium Medium Medium High
Large Low Low Medium
Desired Detection Distance
10 feet 20 feet 30 feet
Animal
Size
Small High High High
Medium Medium High High
Large Medium Medium High
Above 80°F
Below 80°F
Troubleshooting Warranty
Problem Solutions Diagram
Spray Away® does
not “see” animals
• Change batteries and repeat setup
process.
• Clean the Infrared Sensor with a
damp cloth
• Increase the Sensitivity and re-test
the sensing area (Page 10 and 12)
Spray Away® is not
spraying, or is only
lightly spraying
• If the Indicator Light is blinking
continuously every 3 seconds,
change the Batteries.
• Ensure the Hose and Sprinkler
Head are tightly secured.
Spray Away® is
activating when no
animal is present
• Reduce the Sensitivity and re-test
the sensing area (page 10 and 12).
Spray Away® will not
stop spraying
• Ensure Screen Gasket is secure in
Main Unit, at the hose connection. If
it is not, it is likely that debris from
your hose has made its way up into
the Main Unit, causing it to malfunc-
tion.
• Your water pressure could be too
high - it should not exceed 80 psi.
Unit is leaking • Make sure the Hose and Sprinkler
Head are tightly secured.
• Ensure that the Hose thread is not
damaged.
• Check to be sure that the hose
connection is free from debris.
• Ensure water pressure is not too
high - it should not exceed 80 psi.
This warranty, two (2) years from the purchase of the unit, is extended only to the
original purchaser/user of products.
Woodstream Corp. warrants its products to be free from defects in materials and
workmanship for the warranty period by the original purchaser/user.
For warranty service, please contact our Customer Service at (855) 5-HAVAHART.
Please indicate the nature of the defect.
If Woodstream Corp. determines there may be a defect, Woodstream Corp. will issue a
Return Goods Authorization (RGA) number. The defective unit or parts must be returned
for warranty inspection using the RGA number, when applicable, as identification
within (30) days of return authorization date. DO NOT return products to our factory
without our prior consent, as they, as well as C.O.D. shipments will be refused.
Woodstream Corp., at its option, shall replace the unit, or replace the defective part(s)
and return such unit to you. Woodstream Corp.’s sole obligation and your exclusive
remedy under this warranty shall be limited to such replacement.
Limitations and Exclusions: The warranty shall not apply to problems
arising from normal wear , or failure to adhere to the enclosed instructions. In addition,
the foregoing warranty shall not apply to serial numbered products if the serial number
has been removed or defaced; products subject to negligence, accident, improper op-
eration, maintenance or storage; products damaged by circumstances beyond Wood-
stream Corp.’s control; or products modified (including, but not limited to modifications
through the use of unauthorized parts or attachments) or repaired by anyone other
than Woodstream Corp. or its designee.
The foregoing warranty is exclusive and in lieu of all other warranties, express or im-
plied, including without limitation the implied warranties of merchantability and fitness
for a particular purpose. It shall not extend beyond the duration of the express war-
ranty provided herein, and the remedy for violations of any warranty shall be limited to
repair or replacement of the defective product pursuant to the terms contained herein.
Woodstream Corp. shall not be liable for any consequential or incidental damages
whatsoever.
This warranty gives you specific legal rights and you may also have other legal rights
which may vary based on location.
Visit us at:
www.Havahart.com
14 15
Screen Gasket
FCC Statement
16
WARNING: Changes or modifications to this device not expressly approved by
Woodstream Corporation could void the user’s authority to operate the equipment.
“NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.”
This Device complies with part 15 of the FCC rules. Operation is subject to the follow-
ing two conditions. (1) This Device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Indus-
try Canada. To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé
pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et
son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appar-
eils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivant-
es : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
17
FCC Statement Cont.

Navigation menu
