Wooyoung Telecom HL700A LCD Monitor User Manual 17

Wooyoung Telecom Co., Ltd. LCD Monitor 17

User Manual

HL700A USER’S MANUAL
WOO YOUNG Telecom CO.,LTD.
h t t p : / / w w w . w y t . c o . k r
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or tele-
vision reception, with can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not
expressly approved by the grantee or manufacturer could void the users
authority to operate such equipment.
1
Contents
1. Before Setting up
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
3
Brief Specification of LCD Monitor
・・・・・・・・・・・・・・・・・・・・・・・・・
3
Precautions
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
4
2. Items
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
6
3. Setting up the LCD monitor
・・・・・・・・・・・・・・・・・・・・・・・・・・
8
Where is a good place to position the monitor?
・・・・・・・・・・・・・・・・・・
8
Check before connecting the power cord and the signal cable !!
・・・・・・・・・
8
How to connect the power cord and the several cables to the LCD monitor. ・・ 9
Connecting Your LCD Monitor
・・・・・・・・・・・・・・・・・・・・・・・・・・・
10
Plug & Play
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
10
Warm-up Time
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
10
4. Adjusting The Monitor
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
11
The Function Control Buttons
・・・・・・・・・・・・・・・・・・・・・・・・・・・
11
How to use the Hot Key.
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
11
Main OSD Menu
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
12
BRIGHTNESS/CONTRAST
・・・・・・・・・・・・・・・・・・・・・・・・・・・・
12
POSITION &CLOCK/PHASE
・・・・・・・・・・・・・・・・・・・・・・・・・・・
13
COLOR
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
14
OSD MENU ADJUSTMENT & INPUT SOURCE
・・・・・・・・・・・・・・・・・
14
SETUP MENU・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 15
2
5. Appendix
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
16
Appendix A. Specifications
・・・・・・・・・・・・・・・・・・・・・・・・・・・・
16
Appendix B. 15-pin D-Sub Connector
・・・・・・・・・・・・・・・・・・・・・・・
17
Appendix C. DPMS Power Saving Mode
・・・・・・・・・・・・・・・・・・・・・
18
6. Troubleshooting
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
19
3
Before setting up
1
●Resolution : 17.0 inch SXGA (1280 X 1024@75Hz)
●Color display : 16,777,216 colors
●DPMS (Display Power Management Signaling)
●OSD (On Screen Display)
●Auto Configuration : Hot key
●Speaker [L + R : 3W + 3W = 6W (max)]
●DDC 1/2B : Plug & Play
This is 17.0 inch TFT-LCD monitor. Before setting up the LCD Monitor, please read
this manual to help your understanding of the LCD Monitor.
Brief Specification of LCD Monitor
According to PC system, DDC 1/2B may not be supported. If you meet Error
message,check your video card which compatibility with DDC. If you eant to know
more information, please contact our service center.
Notise
4

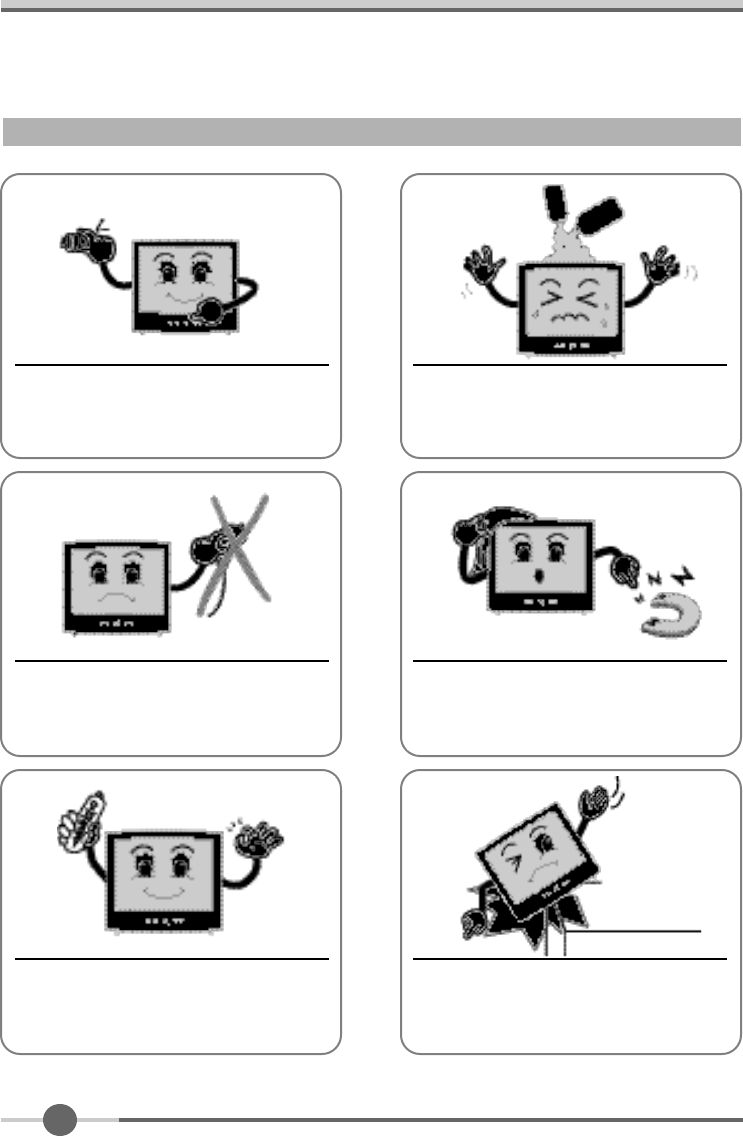

Do not use Ketone type material (ex.
Acetone), Ethyl Alcohol, Toluene, Ethyl
Acid or Methyl chloride, to clear the panel.
It might permanently damage the panel.
Check the voltage corresponds to the
local electrical supply before connecting
the AC power cord.
Never use the damaged AC power cord. Keeps it away from stoves, heaters,
fireplaces and other sources of heat
and magnets.
Dont’ put your LCD monitor in a location
with high humidity and dust.
Temperature : 0~40。C
Humidity : 90% less
Place the LCD monitor on a solid sur-
face. If dropped, the s creen can be
damaged easily.

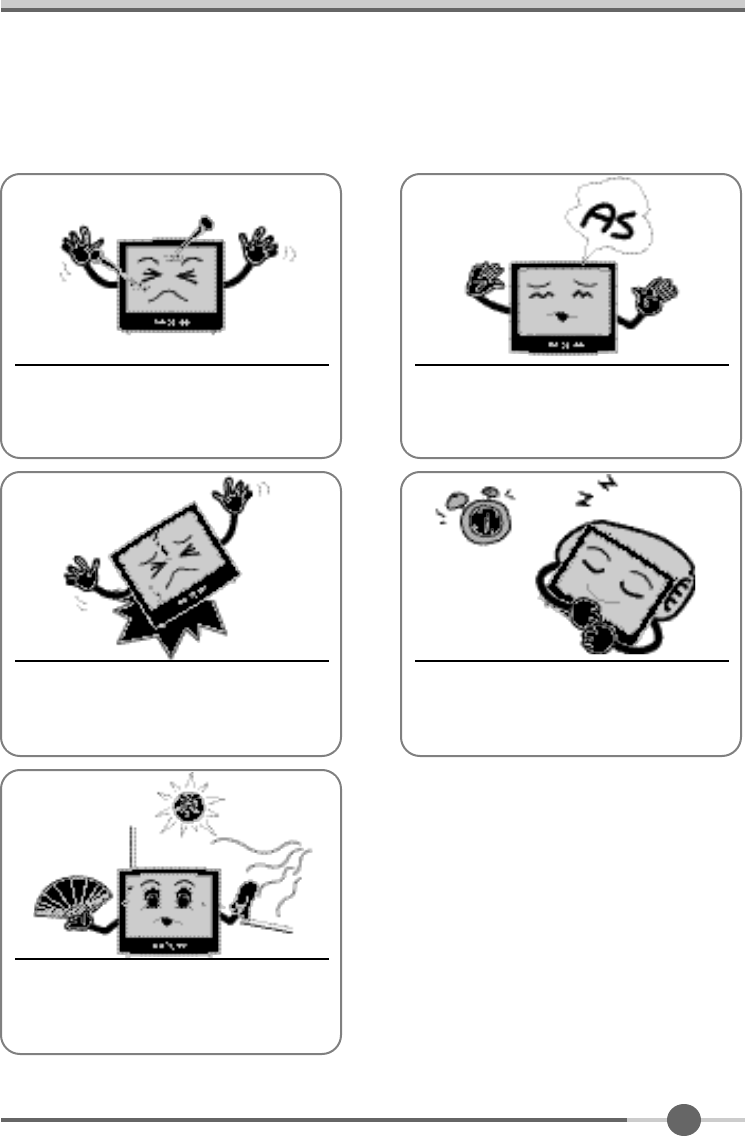

Precautions
5
Don’t touch the screen with a acute nail
and pin
The LCD monitor can be damaged easi-
ly by shock.
The LCD monitor consists of electrical
devices.
If the LCD monitor is damaged, contact
immediately our service center.
Don’t use your LCD moni tor under
direct sunlight.
If you don’t use the LCD monitor for a
long time, unplug the LCD monitor.
6

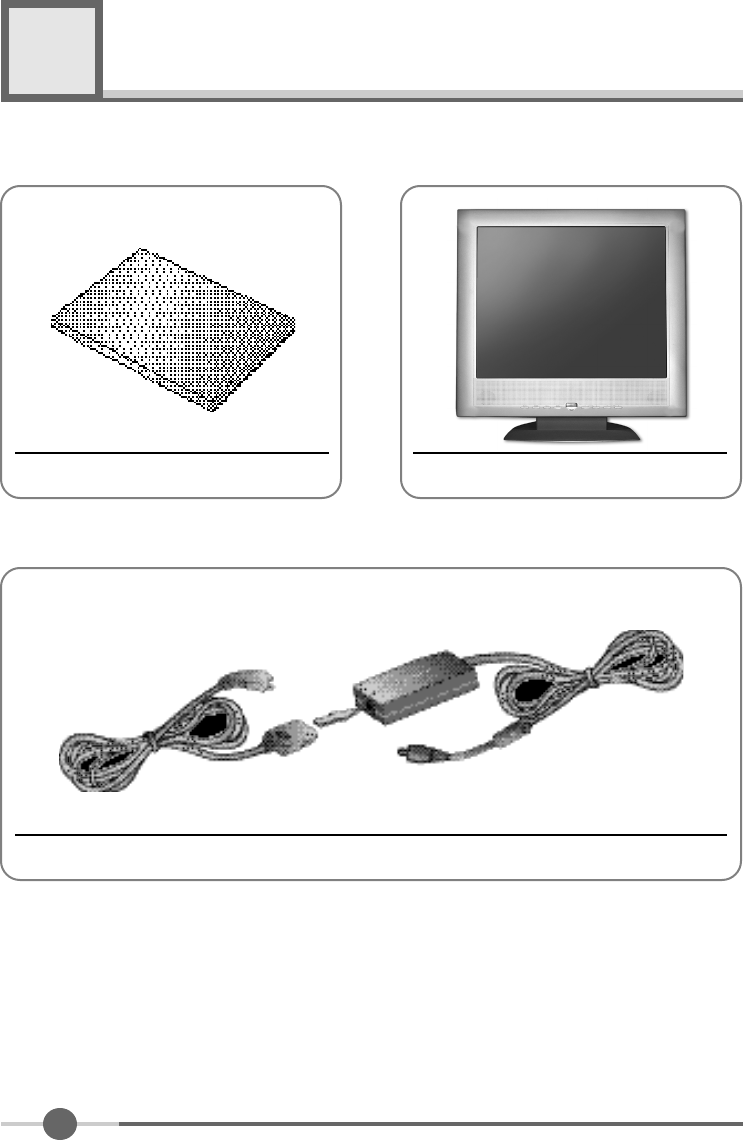

Items
LCD Monitor
DC Adapter
User Manual
2
7

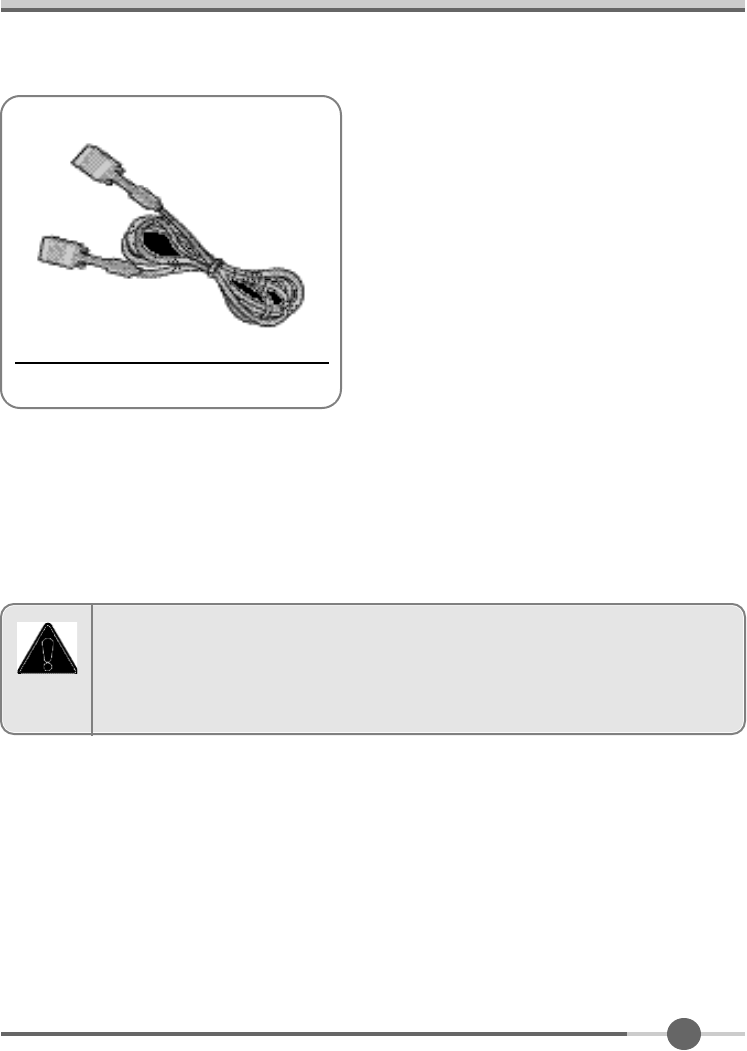

15-pin D-Sub Signal Cable
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Notise
8

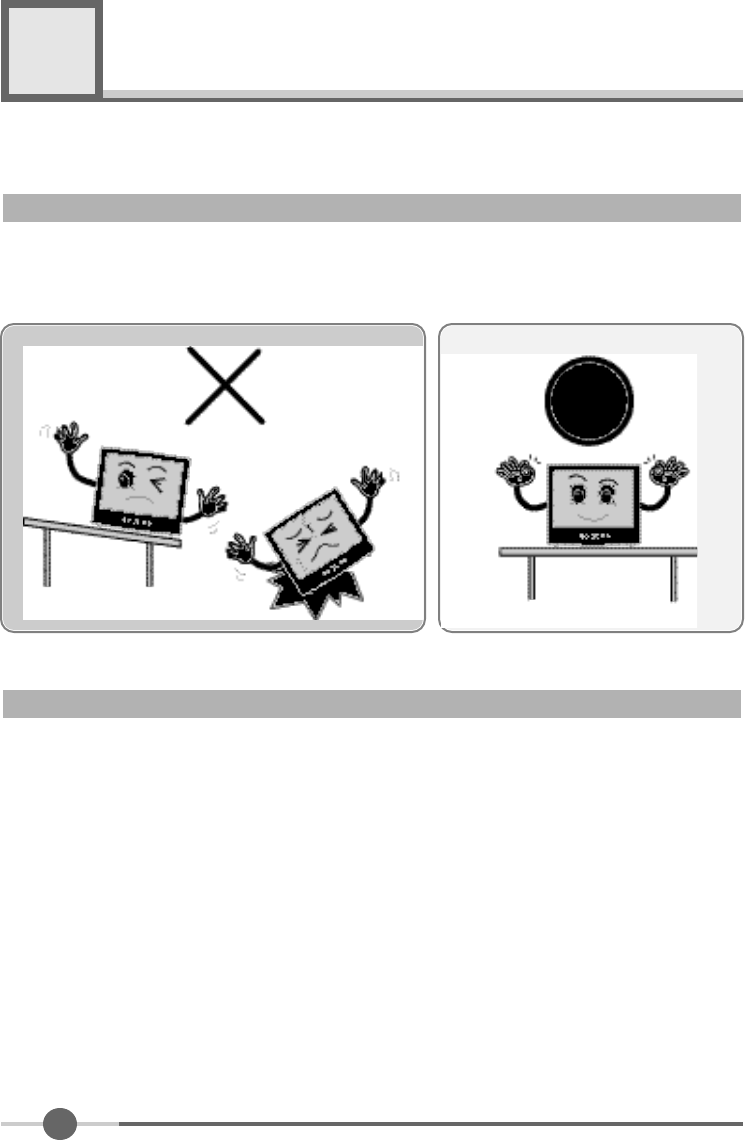

Setting up the LCD monitor
3
Place the LCD monitor on a solid and flat surface. If dropped, the screen can be dam-
aged easily.
Turn off the PC power before connecting the power cord and signal cable to the LCD
monitor.
Where is a good place to position the monitor?
Check before connecting the power cord and the signal cable !!
9

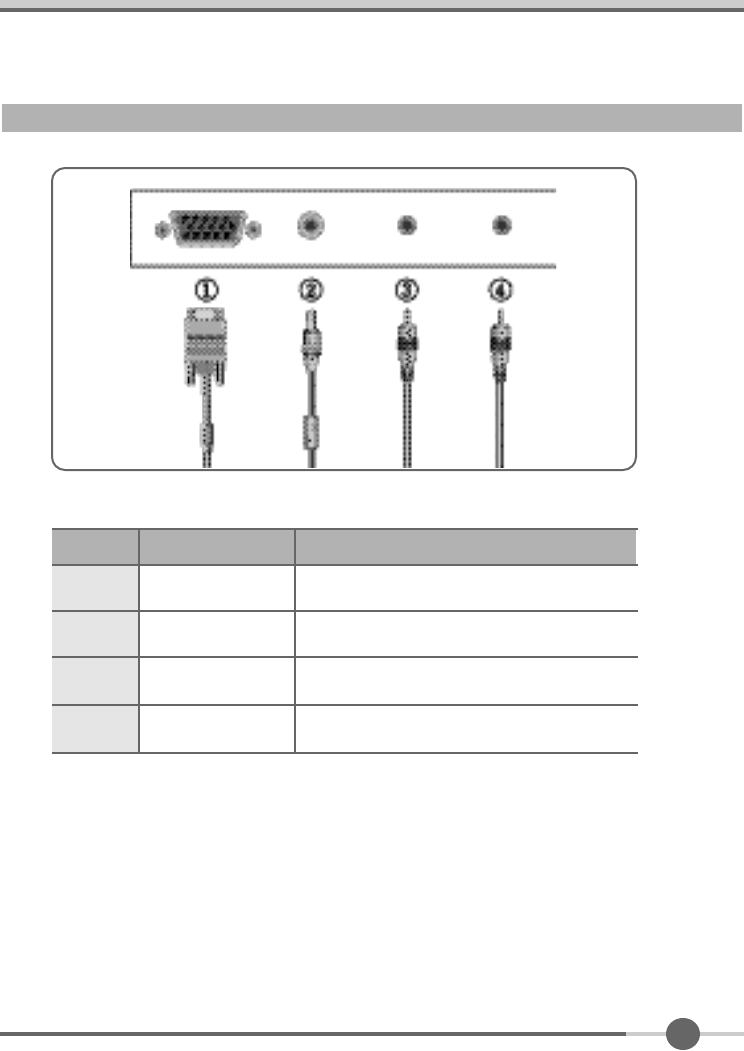

How to connect the power cord and the several cables to the LCD monitor.
1
3
4
2
PC 15-pin D-Sub Signal Cable
DC Adaptor
Speaker Cable
External Speaker
DC12V
SPK IN
SPK OUT
No. Cable connectionsName
1 0
The adoption of the new VESA Plug and Play solution eliminates complicated and
time consuming setup. It allows you to install your monitor in a Plug and Play compati-
ble system without the usual hassles and confusion. Your PC system can easily identi-
fy and configure itself for use with your display. This monitor automatically tells the PC
system its Extended Display Identification Data (EDID) using Display Data Channel
(DDC) protocols so the PC system can automatically configure itself to use the flat
panel display.
All LCD monitors need time to become thermally stable whenever you turn on the
monitor after letting the monitor be turned off for a couple of hours. Therefore, to
achieve more accurate adjustments for parameters, allow the LCD monitor to be
warmed up for at least 20 minutes before making any screen adjustments.
Plug & Play
Warm-up Time
Connecting your PC system
1. Connect the 15-pin D-Sub Signal Cable from PC to No.1.
2. If you use a speaker, connect the Audio Cable from PC to No.3.
3. If you use a headphone and earphone, connect the Headphone Cable from PC to
No.4.
Connecting Your LCD Monitor
1 1
Adjusting The Monitor
4

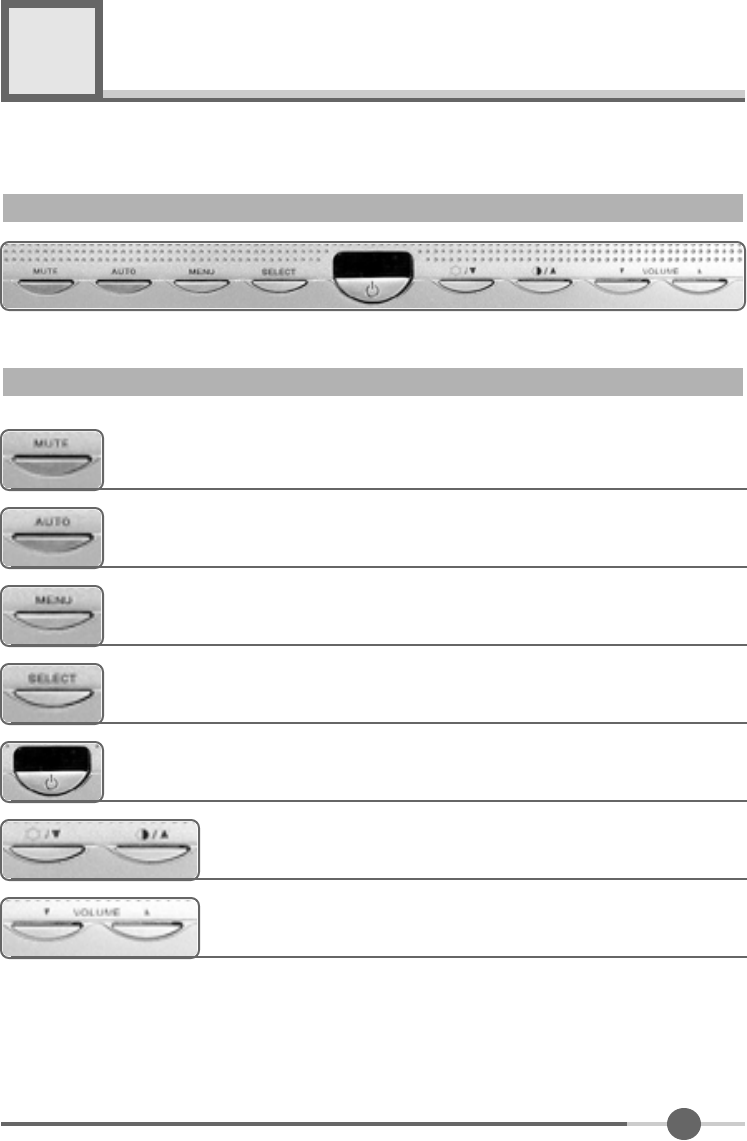

The Function Control Buttons
How to use the Hot Key.
Sound Mute On/Off Button.
You can adjust brightness or contrast as not key. When display
adjust menu, you can ad
j
ust with Left/Right button arrow button.
When you push the Left/Right button, you can adjust the
volume.
When you push the mode button, the mode changes PC
DIGITAL
VIDEO1
VIDEO2
TV. When the mode changes, time spend 2~3sec.
When you push Auto button, this will optimize image quality automati-
cally.
Power On/Off toggle button.
Menu display On/Off button.
1 2

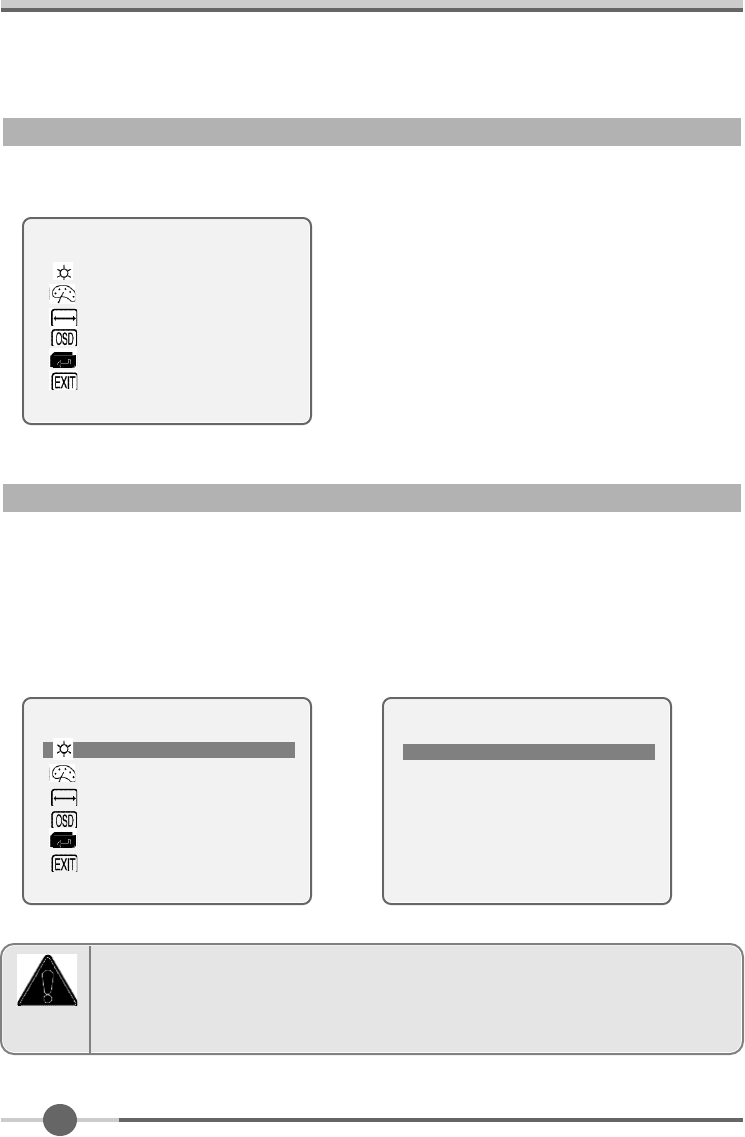

When you push the menu button, you can see below main OSD menu.
●Brightness : Changes the overall light intensity of the images being displayed.
●Contrast : Changes the ratio of light intensity between the brightest white and dark-
est black.
●
You can adjust brightness/contrast values that you want by this hot key.
●Gamma : Change the gamma value.
Main OSD Menu
BRIGHTNESS/CONTRAST
MAIN MENU
BRIGHTNESS/CONTRAST
COLOR
POSITION
OSD
SETUP
EXIT
1280×
1024󰚟󰚟󰚟79.9KHz󰚟/󰚟75Hz
MAIN MENU
BRIGHTNESS/CONTRAST
COLOR
POSITION
OSD
SETUP
EXIT
1280×
1024󰚟󰚟󰚟79.9KHz󰚟/󰚟75Hz
BRIGHTNESS / CONTRAST
BRIGHTNESS
◀

………
▶
50
CONTRAST
◀

………
▶
GAMMA
◀

………
▶
EXIT
Adjusting Gamma Value is useful in case of game or movie screen.
Notise
1 3
MAIN MENU
BRIGHTNESS/CONTRAST
COLOR
POSITION
OSD
SETUP
EXIT
1280×
1024󰚟󰚟󰚟79.9KHz󰚟/󰚟75Hz
P O S I T I O N
HORIZONTAL
◀

………
▶
50
VERTICAL
◀

………
▶
CLOCK
◀

………
▶
PHASE
◀

………
▶
EXIT

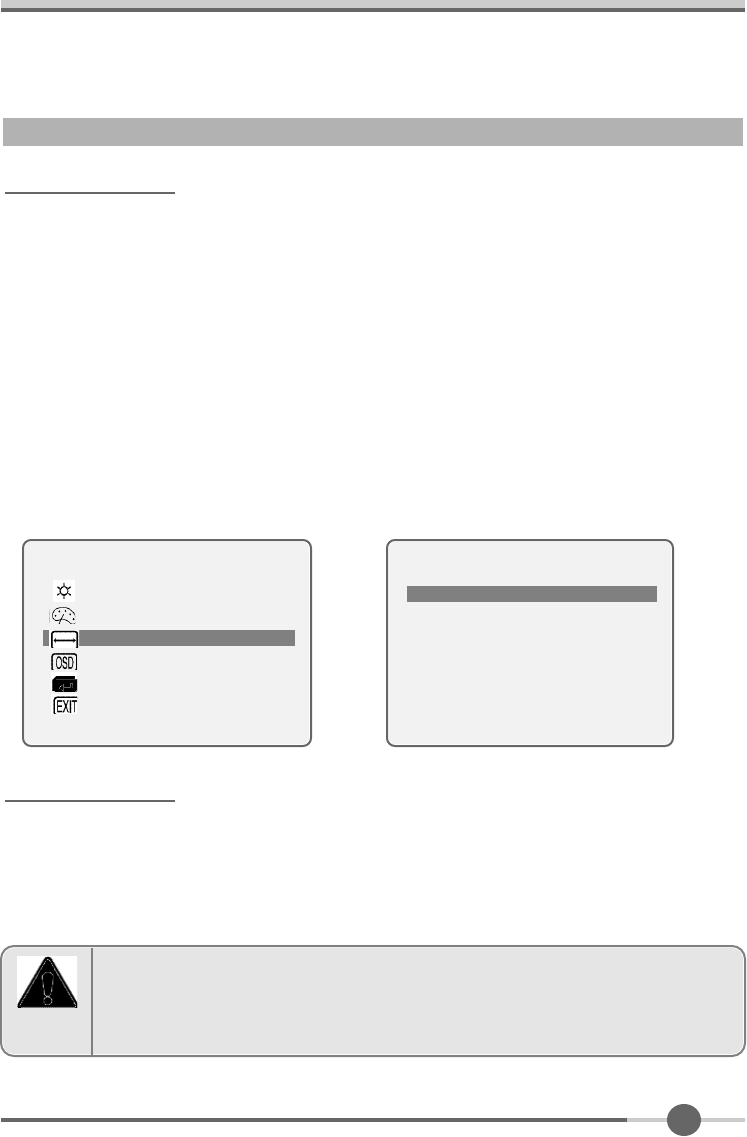

CLOCK/PHASE
●When image is not clear, you can use clock/phase menu.
●PHASE/ CLOCK : Although ‘Auto Adjustment’ automatically finds the optimum val-
ues of Clock and Phase parameters as well as image position, it
may be necessary for you to adjust those parameters manually.
It is recommended for you to use ‘Auto Adjustment’ first. If the
adjustment results are not satisfactory, then use Clock and
Phase adjustment features to get the best adjustment results.
Bear in mind that Clock and Phase adjustment may change the
width of the image and affect image position as well. If the image
is clear while out of center by a couple of pixels, use image posi-
tion to center the image.
POSITION & CLOCK/PHASE
POSITION
●Changes the location of the image.
●H-Position : Moves to the Left/Right
●V-Position : Moves to the Bottom/Top
If image is not clear (noise), you can adjust Clock/Phase.
Notise
1 4
COLOR
●The tone of color can be changed form bluish white to reddish white.
●Color1 - Blue type
●Color2 - Red type
●RED, GREEN, BLUE - You can adjust red, green and blue values that you want.
MAIN MENU
BRIGHTNESS/CONTRAST
COLOR
POSITION
OSD
SETUP
EXIT
1280×
1024󰚟󰚟󰚟79.9KHz󰚟/󰚟75Hz
C O L O R
COLOR1 COLOR2
RED
◀

………
▶
50
GREEN
◀

………
▶
BLUE
◀

………
▶
EXIT
OSD MENU ADJUSTMENT & INPUT SOURCE
●Sets the OSD menu display position.
●OSD Position : Moves the OSD menu to the horizontal or vertical direction.
●OSD TIME : Shows the OSD TIME displays from 5 to 60sec.
●LANGUAGE : Select language in OSD menu.
MAIN MENU
BRIGHTNESS/CONTRAST
COLOR
POSITION
OSDT
SETUP
EXIT
1280×
1024󰚟󰚟󰚟79.9KHz󰚟/󰚟75Hz
O S D
OSD POSITION
▶
OSD TIME
▶
30 SEC
LANGUAGE
▶
ENGLISH
EXIT
1 5
SETUP MENU
●White balance : Automatic djust color (white level) for various input source’s white
level.
●Input source : selects input signals.
●Information : display monitor’s information.
●Recall : Discards current setting and replaced all paramotors with the factory
default values.
MAIN MENU
BRIGHTNESS/CONTRAST
COLOR
POSITION
OSD
SETUPT
EXIT
1280×
1024󰚟󰚟󰚟79.9KHz󰚟/󰚟75Hz
S E T U P
AUTO BALANCE
▶
SELECT
INPUT SOURCE
▶
PC
INFORMATION
▶
SELECT
RECALL
▶
SELECT
EXIT
1 6
Appendix
5
Appendix A. Display Modes
Mode
VGA
SVGA
XGA
SXGA
640 X 480
720 X 400
800 X 600
1024 X 768
1280 X 1024
Resolution
31.468
H o r i z o n t a l
F r e q u e n c y ( K H z )
V e r t i c a l
F r e q u e n c y ( H z )
Pixel Clock
F r e q u e n c y ( M H z )
S y n c
P o l a r i t y ( H / V )
31.468
35.000
37.500
37.879
48.077
46.875
48.363
56.476
60.023
63.981
79.976
70.087
59.940
66.670
75.000
60.300
72.188
75.000
60.004
70.000
75.029
DC12V
DC12V
28.322
25.175
30.240
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
135.000
-/+
-/-
-/-
-/-
+/+
+/+
+/+
-/-
-/-
+/+
+,-/+,-
+/+
1 7

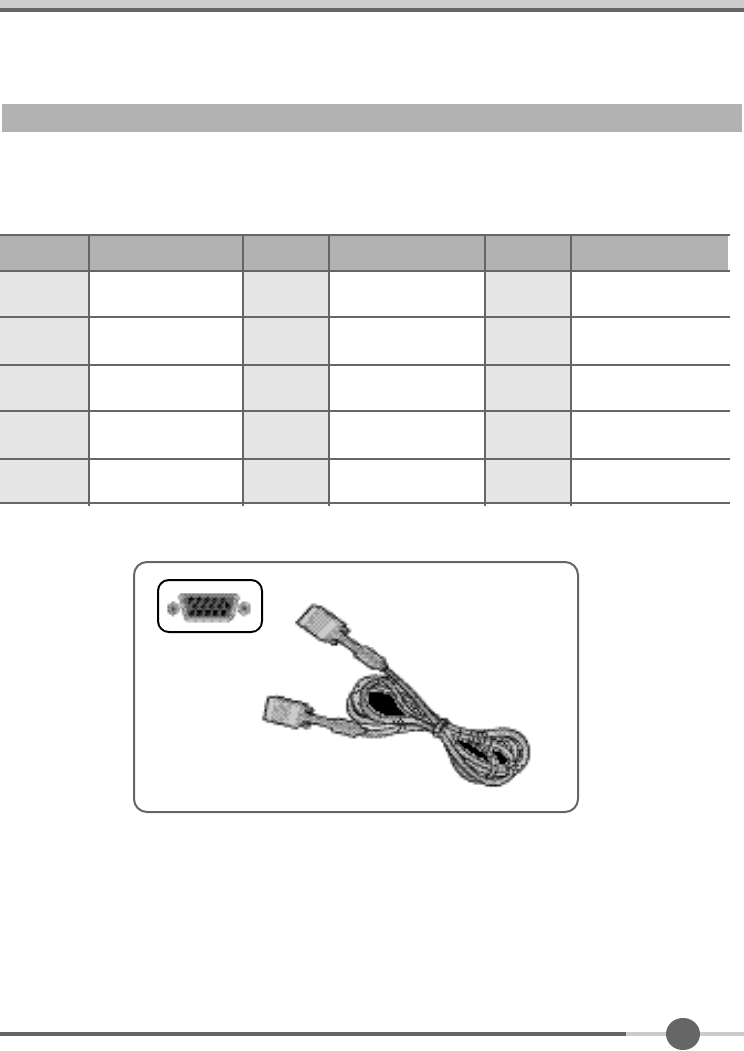

Appendix B. 15-pin D-Sub Connector
●Input signal : Analog RGB
●15-pin D-Sub connector
15pin D-Sub Signal Cable
Pin No.
1
3
4
2
Analog Red Input
Analog Green Input
Analog Blue Input
Ground
5
Pin No.
6
8
9
7
10
DDC Ground
Signal Name
Analog Red Ground
Analog Green Ground
Analog Blue Ground
No Connect
Sync Ground
Signal Name Pin No.
11
13
14
12
15
Ground
DDC Data
Horizontal Sync
Vertical Sync
DDC Clock
Signal Name
1 8
This monitor has a built-in power management system called DPMS Power Saving
Mode. This system saves energy by switching your monitor into a low-power mode
when it has not been used for a certain period of time. The available modes are “ON”,
“Standby”, “Suspend”, and “OFF”.
Appendix C. DPMS Power Saving Mode
ON
State
Stanby
mode
Stanby
mode
OFF
Active
H-sync
Inactive
Active
Inactive
Active
V-sync
Active
Inactive
Inactive
Active
RGB
Signal
Blanked
Blanked
Blanked
Power
C o n s u m p t i o n
Under
40Watt
Less
than
5Watt
-
Recovery
Time
Green
Alternating
Green/Orange
(0.5 Sec interval)
Alternating
Green/Orange
(1 Sec interval)
Orange
LED Color and
Operting status
Within
2Sec
1 9
T
roubleshooting
6
What you see
Ensure that the power cord is firmly connected and the LCD
monitor is on.
“out of range” message
“No signal input” message
Screen is blank and power indictor
is off
Check the maximum resolution and the frequency of the
video adaptor.
Compare these values with the data in the Display Modes
Timing Chart.
Ensure that the signal cable is firmly connected to the PC
or video sources.
Ensure that the PC or video sources are turned on.
The image is too light or too dark Adjust the Brightness and Contrast.
Refer to the Brightness/Contrast
The image color is not good Adjust the Color
Refer to the Color
Image is not centered on the
screen Executes Auto Configuration.
Screen is blank and power indicator
light is steady amber or blinks
every 0.5 or 1 seconds
The monitor is using its power management system.
Move the computer’s mouse or press a
k
ey on the key-
board.
Image is not stable and may
appear to vibrate
Check that the display resolution and frequency from your
PC or video board is an available mode for your monitor.
On your computer check : Control Panel, Display, Settings
Note : Your monitor supports multiscan display functions
within the following frequency domain:
・Horizontal frequency : 31~80KHz
・Vertical frequency : 56~75Hz
・Maximum refresh rate : 1280 x 1024 @75Hz
Suggested Actions
2 0
Appendix A. Specifications
※The specification of this monitor is subject to be changed without notice to improve perfor-
mance.
Panel
Display
Resolution
Frequency
Sync Signal
Connectors
Tilting Degree (U/D)
Plug&Play
Power
Power Management
E n v i r o n m e n t a l
C o n s i d e r a t i o n
D i m e n s i o n s
Weight
TFT active matrix
17 inch
337.92mm×270.336mm
0.264mm×0.264mm
8-bit (16,777,216 colors)
1 2 8 0×1 0 2 4 @ 6 0 H z
1280×1024@75Hz
31.5~80KHz
56~75Hz
TTL, P. or N.
D-Sub 15pin connector
Speaker Input / Headphone Output (Audio Cable)
-5°~30°Degree
VESA DDC 1/2B
90~265VAC
Adapter DC 12V, 4.16A
Under 40W
5W less
VESA DPMS
0~40°C (32°F~104°F)
90% less
416mm(W)×409mm(D)×186mm(H)
5.2kg
3kg
Type
Pixel Pitch
Display Color
Basic
Maximum
Horizontal
Vertical
Input
Output
Consumption
Standby mode
Temperature
Humidity
Outside
Monitor
Carton
Size

Navigation menu
